1. Hemodynamic Disorders
Edema & Effusion .
Hyperemia & Congestion .
Dr . Abhinav Golla
MBBS . MD Pathology
Associate Professor.
Lab Director & Consultant Pathologist
Aadhya Medicure Pathlabs .

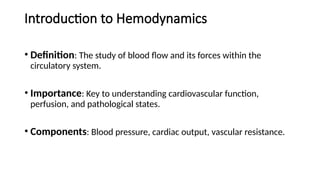

2. Introduction to Hemodynamics
• Definition: The study of blood flow and its forces within the
circulatory system.
• Importance: Key to understanding cardiovascular function,
perfusion, and pathological states.
• Components: Blood pressure, cardiac output, vascular resistance.

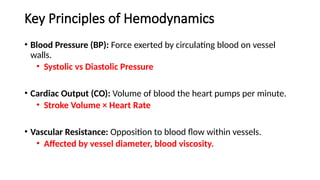

3. Key Principles of Hemodynamics
• Blood Pressure (BP): Force exerted by circulating blood on vessel
walls.
• Systolic vs Diastolic Pressure
• Cardiac Output (CO): Volume of blood the heart pumps per minute.
• Stroke Volume × Heart Rate
• Vascular Resistance: Opposition to blood flow within vessels.
• Affected by vessel diameter, blood viscosity.

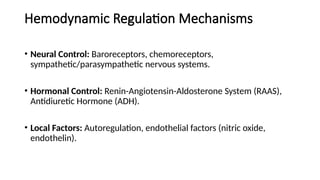

4. Hemodynamic Regulation Mechanisms
• Neural Control: Baroreceptors, chemoreceptors,
sympathetic/parasympathetic nervous systems.
• Hormonal Control: Renin-Angiotensin-Aldosterone System (RAAS),
Antidiuretic Hormone (ADH).
• Local Factors: Autoregulation, endothelial factors (nitric oxide,
endothelin).

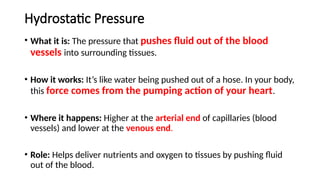

5. Hydrostatic Pressure
• What it is: The pressure that pushes fluid out of the blood
vessels into surrounding tissues.
• How it works: It’s like water being pushed out of a hose. In your body,
this force comes from the pumping action of your heart.
• Where it happens: Higher at the arterial end of capillaries (blood
vessels) and lower at the venous end.
• Role: Helps deliver nutrients and oxygen to tissues by pushing fluid
out of the blood.

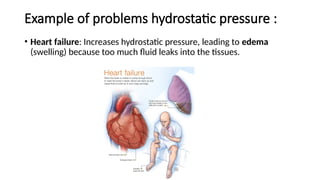

6. Example of problems hydrostatic pressure :
• Heart failure: Increases hydrostatic pressure, leading to edema
(swelling) because too much fluid leaks into the tissues.

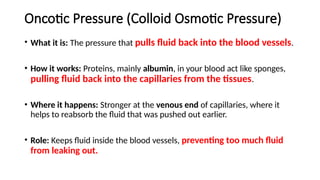

7. Oncotic Pressure (Colloid Osmotic Pressure)
• What it is: The pressure that pulls fluid back into the blood vessels.
• How it works: Proteins, mainly albumin, in your blood act like sponges,
pulling fluid back into the capillaries from the tissues.
• Where it happens: Stronger at the venous end of capillaries, where it
helps to reabsorb the fluid that was pushed out earlier.
• Role: Keeps fluid inside the blood vessels, preventing too much fluid
from leaking out.

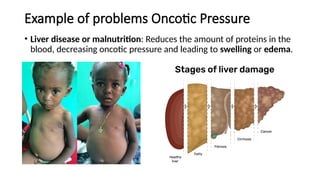

8. Example of problems Oncotic Pressure
• Liver disease or malnutrition: Reduces the amount of proteins in the
blood, decreasing oncotic pressure and leading to swelling or edema.

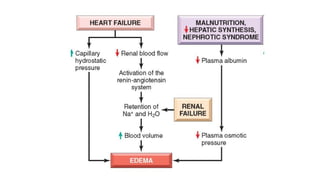

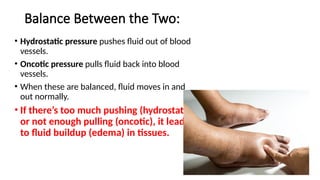

9. Balance Between the Two:
• Hydrostatic pressure pushes fluid out of blood
vessels.
• Oncotic pressure pulls fluid back into blood
vessels.
• When these are balanced, fluid moves in and
out normally.
• If there’s too much pushing (hydrostatic)
or not enough pulling (oncotic), it leads
to fluid buildup (edema) in tissues.

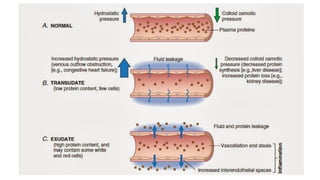

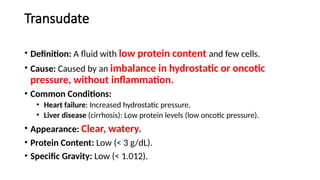

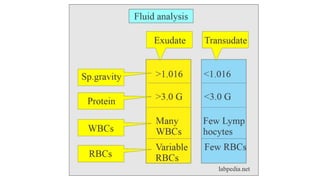

11. Transudate
• Definition: A fluid with low protein content and few cells.
• Cause: Caused by an imbalance in hydrostatic or oncotic
pressure, without inflammation.
• Common Conditions:
• Heart failure: Increased hydrostatic pressure.
• Liver disease (cirrhosis): Low protein levels (low oncotic pressure).
• Appearance: Clear, watery.
• Protein Content: Low (< 3 g/dL).
• Specific Gravity: Low (< 1.012).

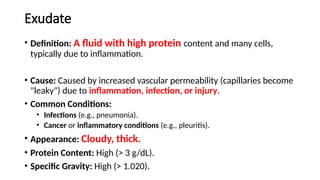

12. Exudate
• Definition: A fluid with high protein content and many cells,
typically due to inflammation.
• Cause: Caused by increased vascular permeability (capillaries become
"leaky") due to inflammation, infection, or injury.
• Common Conditions:
• Infections (e.g., pneumonia).
• Cancer or inflammatory conditions (e.g., pleuritis).
• Appearance: Cloudy, thick.
• Protein Content: High (> 3 g/dL).
• Specific Gravity: High (> 1.020).

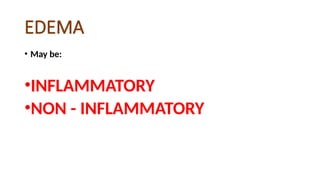

14. EDEMA
• May be:
•INFLAMMATORY
•NON - INFLAMMATORY

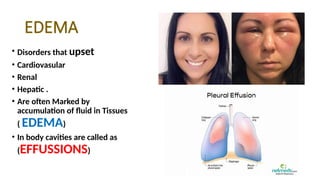

15. EDEMA
• Disorders that upset
• Cardiovasular
• Renal
• Hepatic .
• Are often Marked by
accumulation of fluid in Tissues
( EDEMA)
• In body cavities are called as
(EFFUSSIONS)

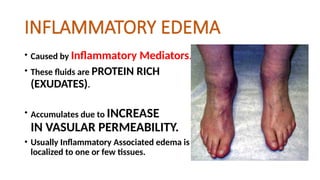

16. INFLAMMATORY EDEMA
• Caused by Inflammatory Mediators.
• These fluids are PROTEIN RICH
(EXUDATES).
• Accumulates due to INCREASE
IN VASULAR PERMEABILITY.
• Usually Inflammatory Associated edema is
localized to one or few tissues.

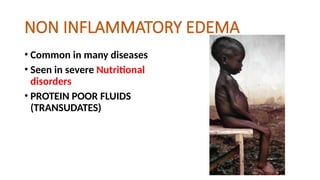

17. NON INFLAMMATORY EDEMA
• Common in many diseases
• Seen in severe Nutritional
disorders
• PROTEIN POOR FLUIDS
(TRANSUDATES)

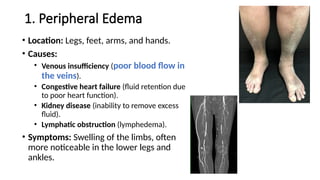

18. 1. Peripheral Edema
• Location: Legs, feet, arms, and hands.
• Causes:
• Venous insufficiency (poor blood flow in
the veins).
• Congestive heart failure (fluid retention due
to poor heart function).
• Kidney disease (inability to remove excess
fluid).
• Lymphatic obstruction (lymphedema).
• Symptoms: Swelling of the limbs, often
more noticeable in the lower legs and
ankles.

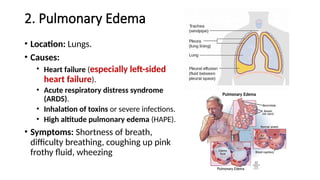

19. 2. Pulmonary Edema
• Location: Lungs.
• Causes:
• Heart failure (especially left-sided
heart failure).
• Acute respiratory distress syndrome
(ARDS).
• Inhalation of toxins or severe infections.
• High altitude pulmonary edema (HAPE).
• Symptoms: Shortness of breath,
difficulty breathing, coughing up pink
frothy fluid, wheezing

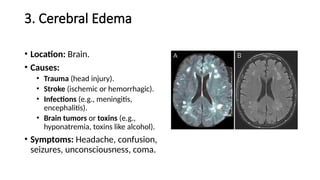

20. 3. Cerebral Edema
• Location: Brain.
• Causes:
• Trauma (head injury).
• Stroke (ischemic or hemorrhagic).
• Infections (e.g., meningitis,
encephalitis).
• Brain tumors or toxins (e.g.,
hyponatremia, toxins like alcohol).
• Symptoms: Headache, confusion,
seizures, unconsciousness, coma.

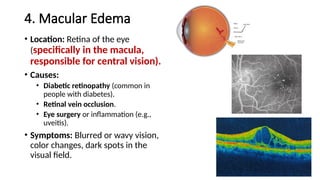

21. 4. Macular Edema
• Location: Retina of the eye
(specifically in the macula,
responsible for central vision).
• Causes:
• Diabetic retinopathy (common in
people with diabetes).
• Retinal vein occlusion.
• Eye surgery or inflammation (e.g.,
uveitis).
• Symptoms: Blurred or wavy vision,
color changes, dark spots in the
visual field.

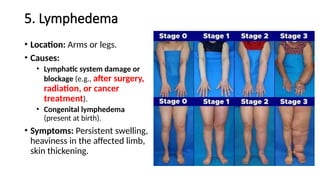

22. 5. Lymphedema
• Location: Arms or legs.
• Causes:
• Lymphatic system damage or
blockage (e.g., after surgery,
radiation, or cancer
treatment).
• Congenital lymphedema
(present at birth).
• Symptoms: Persistent swelling,
heaviness in the affected limb,
skin thickening.

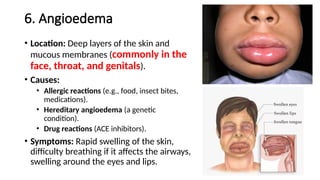

23. 6. Angioedema
• Location: Deep layers of the skin and
mucous membranes (commonly in the
face, throat, and genitals).
• Causes:
• Allergic reactions (e.g., food, insect bites,
medications).
• Hereditary angioedema (a genetic
condition).
• Drug reactions (ACE inhibitors).
• Symptoms: Rapid swelling of the skin,
difficulty breathing if it affects the airways,
swelling around the eyes and lips.

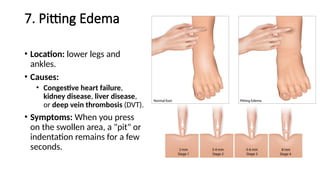

24. 7. Pitting Edema
• Location: lower legs and
ankles.
• Causes:
• Congestive heart failure,
kidney disease, liver disease,
or deep vein thrombosis (DVT).
• Symptoms: When you press
on the swollen area, a "pit" or
indentation remains for a few
seconds.

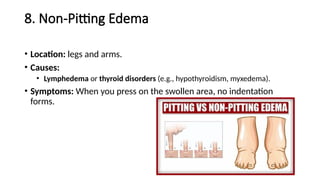

25. 8. Non-Pitting Edema
• Location: legs and arms.
• Causes:
• Lymphedema or thyroid disorders (e.g., hypothyroidism, myxedema).
• Symptoms: When you press on the swollen area, no indentation
forms.

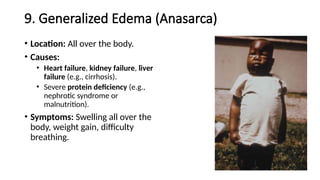

26. 9. Generalized Edema (Anasarca)
• Location: All over the body.
• Causes:
• Heart failure, kidney failure, liver
failure (e.g., cirrhosis).
• Severe protein deficiency (e.g.,
nephrotic syndrome or
malnutrition).
• Symptoms: Swelling all over the
body, weight gain, difficulty
breathing.

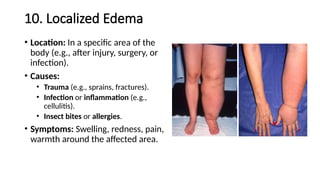

27. 10. Localized Edema
• Location: In a specific area of the
body (e.g., after injury, surgery, or
infection).
• Causes:
• Trauma (e.g., sprains, fractures).
• Infection or inflammation (e.g.,
cellulitis).
• Insect bites or allergies.
• Symptoms: Swelling, redness, pain,
warmth around the affected area.

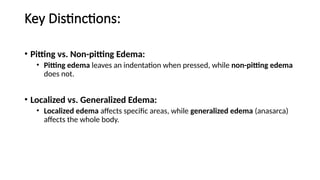

28. Key Distinctions:
• Pitting vs. Non-pitting Edema:
• Pitting edema leaves an indentation when pressed, while non-pitting edema
does not.
• Localized vs. Generalized Edema:
• Localized edema affects specific areas, while generalized edema (anasarca)
affects the whole body.

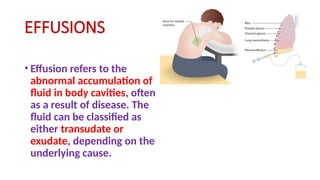

30. EFFUSIONS
• Effusion refers to the
abnormal accumulation of
fluid in body cavities, often
as a result of disease. The
fluid can be classified as
either transudate or
exudate, depending on the
underlying cause.

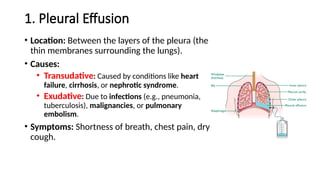

31. 1. Pleural Effusion
• Location: Between the layers of the pleura (the
thin membranes surrounding the lungs).
• Causes:
• Transudative: Caused by conditions like heart
failure, cirrhosis, or nephrotic syndrome.
• Exudative: Due to infections (e.g., pneumonia,
tuberculosis), malignancies, or pulmonary
embolism.
• Symptoms: Shortness of breath, chest pain, dry
cough.

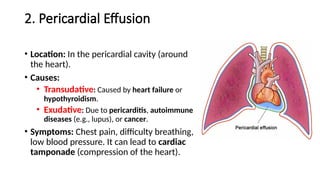

32. 2. Pericardial Effusion
• Location: In the pericardial cavity (around
the heart).
• Causes:
• Transudative: Caused by heart failure or
hypothyroidism.
• Exudative: Due to pericarditis, autoimmune
diseases (e.g., lupus), or cancer.
• Symptoms: Chest pain, difficulty breathing,
low blood pressure. It can lead to cardiac
tamponade (compression of the heart).

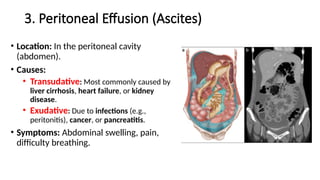

33. 3. Peritoneal Effusion (Ascites)
• Location: In the peritoneal cavity
(abdomen).
• Causes:
• Transudative: Most commonly caused by
liver cirrhosis, heart failure, or kidney
disease.
• Exudative: Due to infections (e.g.,
peritonitis), cancer, or pancreatitis.
• Symptoms: Abdominal swelling, pain,
difficulty breathing.

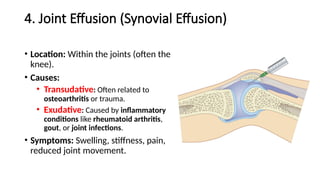

34. 4. Joint Effusion (Synovial Effusion)
• Location: Within the joints (often the
knee).
• Causes:
• Transudative: Often related to
osteoarthritis or trauma.
• Exudative: Caused by inflammatory
conditions like rheumatoid arthritis,
gout, or joint infections.
• Symptoms: Swelling, stiffness, pain,
reduced joint movement.

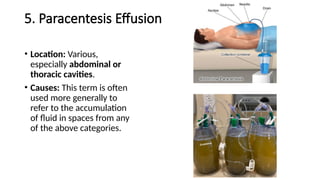

35. 5. Paracentesis Effusion
• Location: Various,
especially abdominal or
thoracic cavities.
• Causes: This term is often
used more generally to
refer to the accumulation
of fluid in spaces from any
of the above categories.

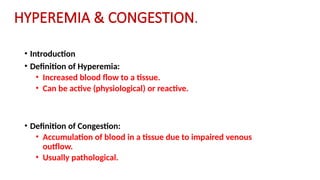

36. HYPEREMIA & CONGESTION.
• Introduction
• Definition of Hyperemia:
• Increased blood flow to a tissue.
• Can be active (physiological) or reactive.
• Definition of Congestion:
• Accumulation of blood in a tissue due to impaired venous
outflow.
• Usually pathological.

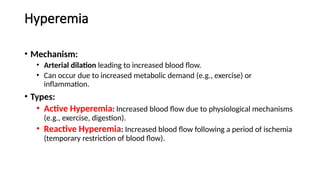

37. Hyperemia
• Mechanism:
• Arterial dilation leading to increased blood flow.
• Can occur due to increased metabolic demand (e.g., exercise) or
inflammation.
• Types:
• Active Hyperemia: Increased blood flow due to physiological mechanisms
(e.g., exercise, digestion).
• Reactive Hyperemia: Increased blood flow following a period of ischemia
(temporary restriction of blood flow).

38. Examples of Hyperemia
• Physiological Examples:
• Exercise: Muscles require more oxygen.
• Postprandial: Blood flow increases to digestive organs after eating.
• Pathological Examples:
• Inflammation: Blood vessels dilate in response to injury or infection, leading
to redness and warmth.

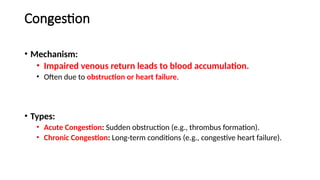

39. Congestion
• Mechanism:
• Impaired venous return leads to blood accumulation.
• Often due to obstruction or heart failure.
• Types:
• Acute Congestion: Sudden obstruction (e.g., thrombus formation).
• Chronic Congestion: Long-term conditions (e.g., congestive heart failure).

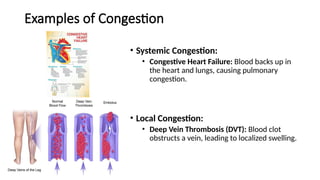

40. Examples of Congestion
• Systemic Congestion:
• Congestive Heart Failure: Blood backs up in
the heart and lungs, causing pulmonary
congestion.
• Local Congestion:
• Deep Vein Thrombosis (DVT): Blood clot
obstructs a vein, leading to localized swelling.

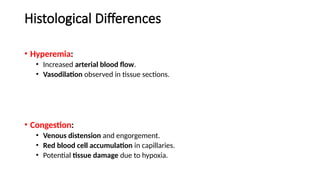

41. Histological Differences
• Hyperemia:
• Increased arterial blood flow.
• Vasodilation observed in tissue sections.
• Congestion:
• Venous distension and engorgement.
• Red blood cell accumulation in capillaries.
• Potential tissue damage due to hypoxia.

42. HYPEREMIA
•Active process.
•( site of
inflammation or in
skeletal muscle
during exercise.)
increase blood flow.

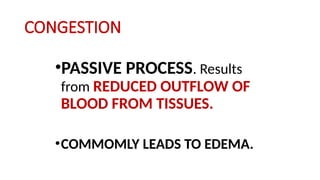

43. CONGESTION
•PASSIVE PROCESS. Results
from REDUCED OUTFLOW OF
BLOOD FROM TISSUES.
•COMMOMLY LEADS TO EDEMA.

44. Pulmonary Congestion
•Causes:
•Congestive Heart Failure (CHF)
•Acute Respiratory Distress Syndrome (ARDS)
•Pulmonary Embolism
•Terms/Names:
•Pulmonary Edema: Fluid accumulation in the alveoli.
•Atelectasis: Collapse of alveoli. "pink, frothy sputum."
•Morphological Changes:
•Increased Alveolar Fluid: Lungs appear heavy and
congested with fluid.
•Hyaline Membranes: Seen in ARDS; a result of
protein-rich fluid in the alveoli.
•Heart Failure Cells: Hemosiderin-laden
macrophages in the alveolar spaces due to chronic
congestion.

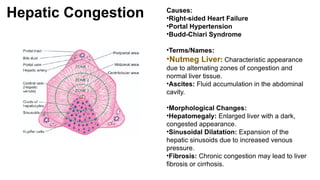

45. Hepatic Congestion Causes:
•Right-sided Heart Failure
•Portal Hypertension
•Budd-Chiari Syndrome
•Terms/Names:
•Nutmeg Liver: Characteristic appearance
due to alternating zones of congestion and
normal liver tissue.
•Ascites: Fluid accumulation in the abdominal
cavity.
•Morphological Changes:
•Hepatomegaly: Enlarged liver with a dark,
congested appearance.
•Sinusoidal Dilatation: Expansion of the
hepatic sinusoids due to increased venous
pressure.
•Fibrosis: Chronic congestion may lead to liver
fibrosis or cirrhosis.

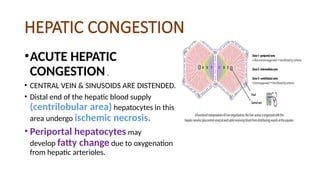

46. HEPATIC CONGESTION
•ACUTE HEPATIC
CONGESTION.
• CENTRAL VEIN & SINUSOIDS ARE DISTENDED.
• Distal end of the hepatic blood supply
(centrilobular area) hepatocytes in this
area undergo ischemic necrosis.
• Periportal hepatocytes may
develop fatty change due to oxygenation
from hepatic arterioles.

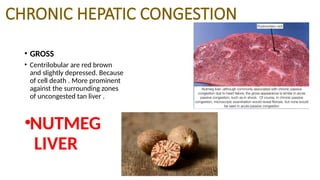

47. CHRONIC HEPATIC CONGESTION
• GROSS
• Centrilobular are red brown
and slightly depressed. Because
of cell death . More prominent
against the surrounding zones
of uncongested tan liver .
•NUTMEG
LIVER

48. NUTMEG LIVER
•Microscopically
• Centrilobular hemorrhage .
• Hemosiderin laden
macrophages
• Variable degree of hepatocytes
dropout & necrosis.

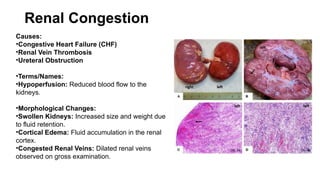

50. Renal Congestion
Causes:
•Congestive Heart Failure (CHF)
•Renal Vein Thrombosis
•Ureteral Obstruction
•Terms/Names:
•Hypoperfusion: Reduced blood flow to the
kidneys.
•Morphological Changes:
•Swollen Kidneys: Increased size and weight due
to fluid retention.
•Cortical Edema: Fluid accumulation in the renal
cortex.
•Congested Renal Veins: Dilated renal veins
observed on gross examination.

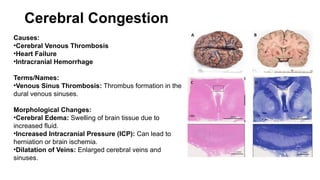

51. Cerebral Congestion
Causes:
•Cerebral Venous Thrombosis
•Heart Failure
•Intracranial Hemorrhage
Terms/Names:
•Venous Sinus Thrombosis: Thrombus formation in the
dural venous sinuses.
Morphological Changes:
•Cerebral Edema: Swelling of brain tissue due to
increased fluid.
•Increased Intracranial Pressure (ICP): Can lead to
herniation or brain ischemia.
•Dilatation of Veins: Enlarged cerebral veins and
sinuses.

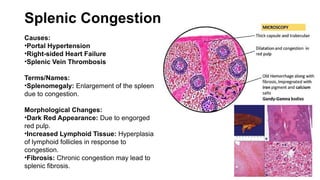

52. Splenic Congestion
Causes:
•Portal Hypertension
•Right-sided Heart Failure
•Splenic Vein Thrombosis
Terms/Names:
•Splenomegaly: Enlargement of the spleen
due to congestion.
Morphological Changes:
•Dark Red Appearance: Due to engorged
red pulp.
•Increased Lymphoid Tissue: Hyperplasia
of lymphoid follicles in response to
congestion.
•Fibrosis: Chronic congestion may lead to
splenic fibrosis.

53. Intestinal Congestion
Causes:
•Mesenteric Ischemia
•Portal Hypertension
•Acute Mesenteric Venous Thrombosis
Terms/Names:
•Ischemic Colitis: Inflammation and injury to the
colon due to inadequate blood flow.
Morphological Changes:
•Edematous Bowel Wall: Thickened and swollen
bowel wall due to fluid accumulation.
•Hemorrhagic Infarcts: Areas of necrosis with
bleeding in severe cases.
•Mucosal Ulceration: Seen in cases of chronic
ischemia.

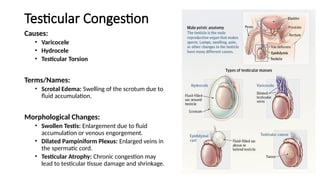

54. Testicular Congestion
Causes:
• Varicocele
• Hydrocele
• Testicular Torsion
Terms/Names:
• Scrotal Edema: Swelling of the scrotum due to
fluid accumulation.
Morphological Changes:
• Swollen Testis: Enlargement due to fluid
accumulation or venous engorgement.
• Dilated Pampiniform Plexus: Enlarged veins in
the spermatic cord.
• Testicular Atrophy: Chronic congestion may
lead to testicular tissue damage and shrinkage.

55. 1.Edema is the abnormal accumulation of fluid in tissues,
categorized as localized or generalized.
2.Effusion refers to fluid accumulation in body cavities, classified as
transudate (clear, low protein) or exudate (cloudy, high protein).
3.Hyperemia is an increase in blood flow to tissues due to
arteriolar dilation, either from physiological (active) or pathological
(passive) causes.
4.Congestion is the accumulation of blood in tissues due to
impaired venous outflow, resulting in swelling and discoloration.
5.Causes of edema include increased hydrostatic pressure,
decreased oncotic pressure, and lymphatic obstruction.

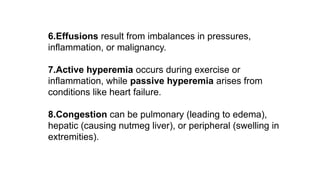

56. 6.Effusions result from imbalances in pressures,
inflammation, or malignancy.
7.Active hyperemia occurs during exercise or
inflammation, while passive hyperemia arises from
conditions like heart failure.
8.Congestion can be pulmonary (leading to edema),
hepatic (causing nutmeg liver), or peripheral (swelling in
extremities).
