This document describes a student project that aims to experimentally analyze heat transfer enhancement using different types of inserts. It will investigate various factors that influence heat transfer for each insert type across a range of Reynolds numbers. The project will also compare experimental and software analysis results for different inserts. Heat transfer can be enhanced through passive surface and flow manipulation techniques that interrupt the boundary layer, create swirl flow, or modify the flow path. Enhanced heat transfer allows for more compact and efficient heat exchanger design.

1. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
A Project On
HEAT TRANSFER ENHANCEMENT TECHNIQE
USING DIFFERENT TYPES OF INSERTS
By:
Mr. Prathmesh A. Tapdiya
Mr. Vishal S. Sharma
Mr. Sandeep U. Mundhe
Mr. Shilpesh S. Brivatkar
Guide :
Prof. H.V.Chavan
Department of Mechanical Engineering
FAMT, Ratnagiri

2. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)

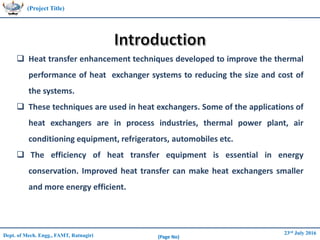

 Heat transfer enhancement techniques developed to improve the thermal
performance of heat exchanger systems to reducing the size and cost of
the systems.
 These techniques are used in heat exchangers. Some of the applications of
heat exchangers are in process industries, thermal power plant, air
conditioning equipment, refrigerators, automobiles etc.
 The efficiency of heat transfer equipment is essential in energy
conservation. Improved heat transfer can make heat exchangers smaller
and more energy efficient.

3. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
THE ENHANCEMENT TECHNIQUES
1.1 Active Techniques:- They require external power, such as electric or acoustic
fields and surface vibration.
1.2 Passive Techniques:- They employ special surface geometries, or fluid additives
for enhancement.
Mechanism of heat enhancement by using passive heat enhancement:-
1. Surface treatment:
 Coated surface
 Rough surface
 Extended surface
2. Flow manipulation:
 Swirl flow
 Modified flow

4. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
 Reasons behind the heat enhancement by using various inserts:-
 Boundary layer interruption
 Swirl Flow
 Displaced flow
 Secondary flow promotion
 Hydraulic diameter reduction
 Advantages of heat enhancement:-
 1.To reduce the heat transfer surface area required for a given application
and thus reduces the size and cost.
 2. To increase the heat duty of the heat exchanger.
 3. It permits closer approach temperatures.

5. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
Experimental setup

6. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
PROJECT OBJECTIVES
1. Experimental analysis of heat transfer enhancement by using
various inserts.
2. Investigation of the various factor for each type of insert for
the certain Reynolds number (Re) in the range.
3. Compare the experimental analysis with software analysis for
different types of insert.

7. (Project Title)
Dept. of Mech. Engg., FAMT, Ratnagiri 23rd July 2016
(Page No)
References:-
 Research Papers:-
1) Methods of Heat transfer enhancement using different surfaces inserts by Mr.
Nitin Ingole and Prof. R.S.Shleke
2) Review on Twisted tapes Heat transfer enhancement by C. Nithiyesh kumar
and P.Murugesan
3) Experimental study on Heat transfer enhancement in tube using counter/co-
swirl generation by Dr. A.G.Matani, Swapnil A. Dahake
4) A study of Heat transfer enhancement using V shaped Dimples on a flat with
Experimentation & CFD by Mr. Amit G. Ranaware & Mr. S.Y.Bhosle
 Books:-
Principle of Enhancement Heat transfer By Ralph L. Webb & Nae-Haun Kim
