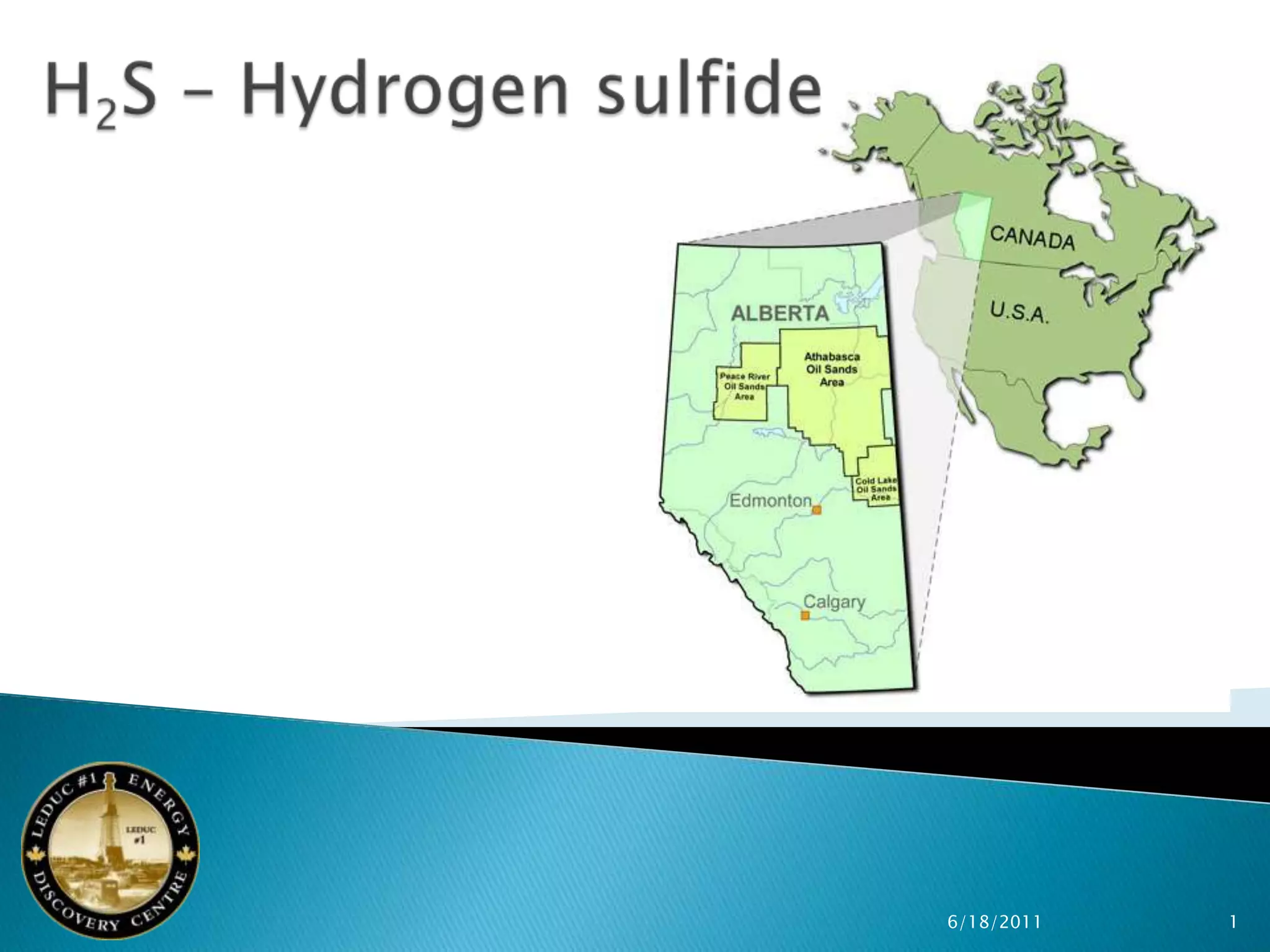

Primer on H2S

1. 6/18/2011 1

2. 6/18/2011 2

3. 6/18/2011 3

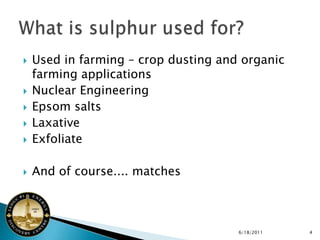

4.  Used in farming – crop dusting and organic
farming applications
 Nuclear Engineering
 Epsom salts
 Laxative
 Exfoliate
 And of course.... matches
6/18/2011 4

5.  Beta lactum antibiotics
◦ Penicillins
◦ Cephalosporins
◦ Monobactums
 Dermatological treatments
◦ Psoriasis
◦ Eczema
◦ Acne
6/18/2011 5

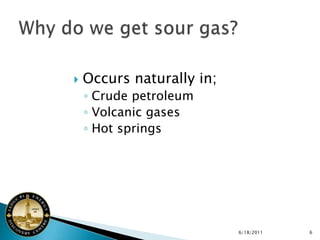

6.  Occurs naturally in;
◦ Crude petroleum
◦ Volcanic gases
◦ Hot springs
6/18/2011 6

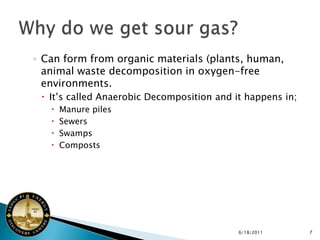

7. ◦ Can form from organic materials (plants, human,
animal waste decomposition in oxygen-free
environments.
 It’s called Anaerobic Decomposition and it happens in;
 Manure piles
 Sewers
 Swamps
 Composts
6/18/2011 7

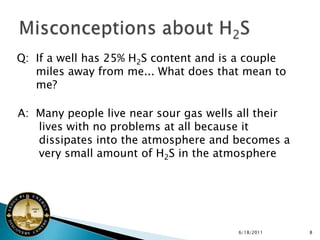

8. Q: If a well has 25% H2S content and is a couple
miles away from me... What does that mean to
me?
A: Many people live near sour gas wells all their
lives with no problems at all because it
dissipates into the atmosphere and becomes a
very small amount of H2S in the atmosphere
6/18/2011 8

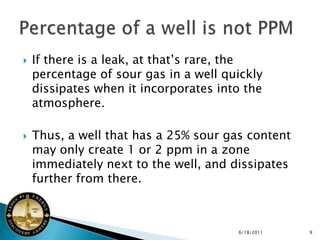

9.  If there is a leak, at that’s rare, the
percentage of sour gas in a well quickly
dissipates when it incorporates into the
atmosphere.
 Thus, a well that has a 25% sour gas content
may only create 1 or 2 ppm in a zone
immediately next to the well, and dissipates
further from there.
6/18/2011 9

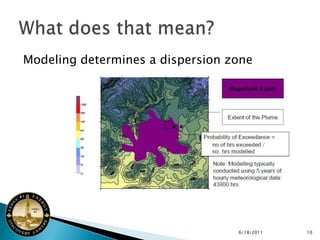

10. Modeling determines a dispersion zone
6/18/2011 10

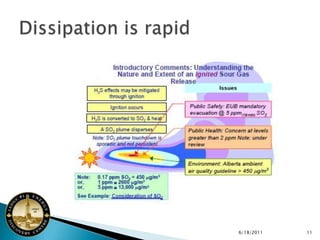

11. 6/18/2011 11

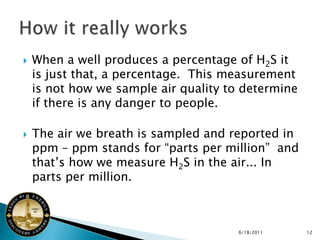

12.  When a well produces a percentage of H2S it
is just that, a percentage. This measurement
is not how we sample air quality to determine
if there is any danger to people.
 The air we breath is sampled and reported in
ppm – ppm stands for “parts per million” and
that’s how we measure H2S in the air... In
parts per million.
6/18/2011 12

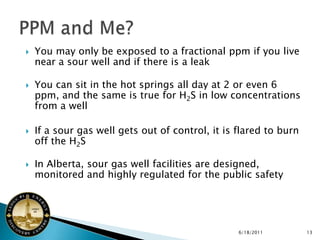

13.  You may only be exposed to a fractional ppm if you live
near a sour well and if there is a leak
 You can sit in the hot springs all day at 2 or even 6
ppm, and the same is true for H2S in low concentrations
from a well
 If a sour gas well gets out of control, it is flared to burn
off the H2S
 In Alberta, sour gas well facilities are designed,
monitored and highly regulated for the public safety
6/18/2011 13

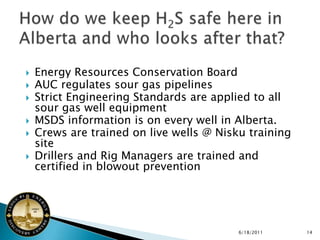

14.  Energy Resources Conservation Board
 AUC regulates sour gas pipelines
 Strict Engineering Standards are applied to all
sour gas well equipment
 MSDS information is on every well in Alberta.
 Crews are trained on live wells @ Nisku training
site
 Drillers and Rig Managers are trained and
certified in blowout prevention
6/18/2011 14

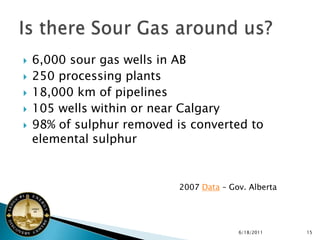

15.  6,000 sour gas wells in AB
 250 processing plants
 18,000 km of pipelines
 105 wells within or near Calgary
 98% of sulphur removed is converted to
elemental sulphur
2007 Data – Gov. Alberta
6/18/2011 15

16.  Best engineering practices
 Setbacks to human dwellings and areas
 Handling and transportation requirements
 Sensing equipment at sites with redundant
backup sensors
 Flaring guidelines
 Evacuation requirements (15 ppm)
6/18/2011 16

17. Lease setbacks are
areas large enough
from human or
livestock to ensure
there is enough
room for sour gas to
dissipate into the
atmosphere to a safe
level
6/18/2011 17

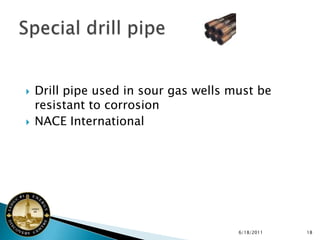

18.  Drill pipe used in sour gas wells must be
resistant to corrosion
 NACE International
6/18/2011 18

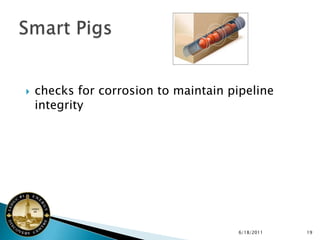

19.  checks for corrosion to maintain pipeline
integrity
6/18/2011 19

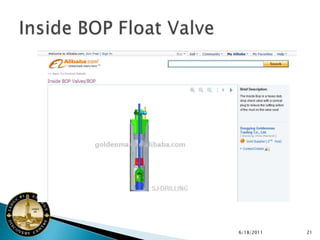

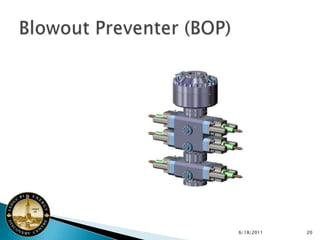

20. 6/18/2011 20

21. 6/18/2011 21

22. 6/18/2011 22

23.  H2S concentration of greater than four parts per
million a.k.a. >4ppm in the atmosphere
◦ .0047 ppm // half of humans sense the rotten egg smell
◦ 5 ppm - 15 ppm // alarm ranges
◦ 10 ppm - 20 ppm // borderline concentration for eye irritation
◦ 150 ppm – 250 ppm // Sense of smell disappears
◦ 320 ppm – 530 ppm // Pulmonary edema, potential death
◦ 530 ppm – 1,000 ppm // Rapid breathing to respiratory arrest
◦ 800 ppm // lethal for 50% of humans with 5 minutes exposure
◦ 1,000 ppm // immediate collapse and respiratory arrest
6/18/2011 23

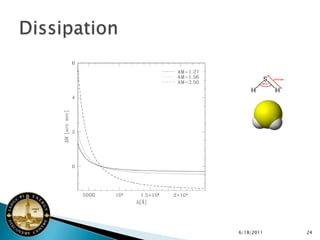

24. 6/18/2011 24

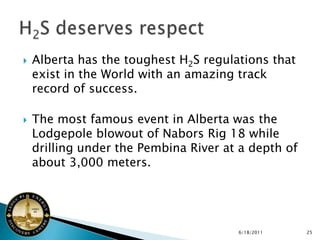

25.  Alberta has the toughest H2S regulations that
exist in the World with an amazing track
record of success.
 The most famous event in Alberta was the
Lodgepole blowout of Nabors Rig 18 while
drilling under the Pembina River at a depth of
about 3,000 meters.
6/18/2011 25

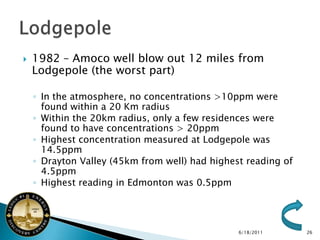

26.  1982 – Amoco well blow out 12 miles from
Lodgepole (the worst part)
◦ In the atmosphere, no concentrations >10ppm were
found within a 20 Km radius
◦ Within the 20km radius, only a few residences were
found to have concentrations > 20ppm
◦ Highest concentration measured at Lodgepole was
14.5ppm
◦ Drayton Valley (45km from well) had highest reading of
4.5ppm
◦ Highest reading in Edmonton was 0.5ppm
6/18/2011 26

27.  Upper Hot Springs – 2ppm
 Miette Hot Springs – 6ppm
 Lodgepole –Drayton Valley reached 5ppm
 Lodgepole –Edmonton reached .5
 In Cynthia and Drayton Valley it was less than
1 ppm about 95 and 96 percent of the time
and about .1 for Edmonton
6/18/2011 27

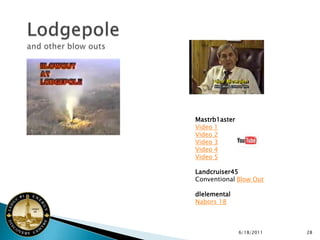

28. Mastrb1aster
Video 1
Video 2
Video 3
Video 4
Video 5
Landcruiser45
Conventional Blow Out
dlelemental
Nabors 18
6/18/2011 28

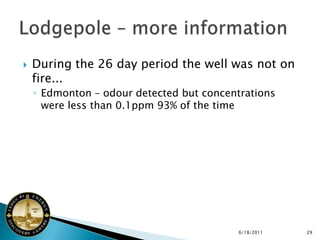

29.  During the 26 day period the well was not on
fire...
◦ Edmonton – odour detected but concentrations
were less than 0.1ppm 93% of the time
6/18/2011 29

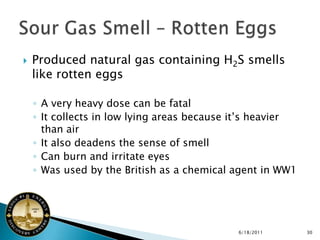

30.  Produced natural gas containing H2S smells
like rotten eggs
◦ A very heavy dose can be fatal
◦ It collects in low lying areas because it’s heavier
than air
◦ It also deadens the sense of smell
◦ Can burn and irritate eyes
◦ Was used by the British as a chemical agent in WW1
6/18/2011 30

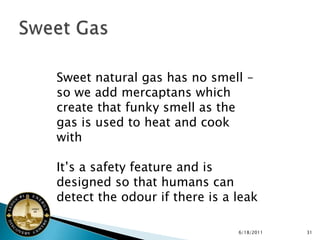

31. Sweet natural gas has no smell –
so we add mercaptans which
create that funky smell as the
gas is used to heat and cook
with
It’s a safety feature and is
designed so that humans can
detect the odour if there is a leak
6/18/2011 31

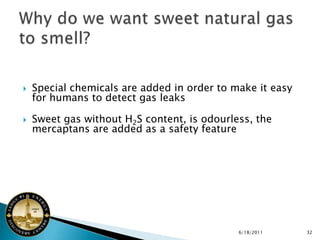

32.  Special chemicals are added in order to make it easy
for humans to detect gas leaks
 Sweet gas without H2S content, is odourless, the
mercaptans are added as a safety feature
6/18/2011 32

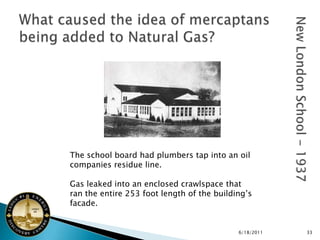

33. The school board had plumbers tap into an oil
companies residue line.
Gas leaked into an enclosed crawlspace that
ran the entire 253 foot length of the building’s
facade.
6/18/2011 33

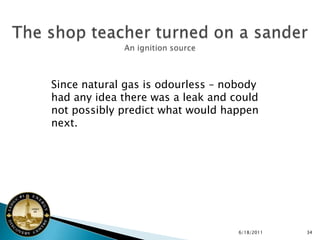

34. Since natural gas is odourless – nobody
had any idea there was a leak and could
not possibly predict what would happen
next.
6/18/2011 34
