1. Ref: Donald Hearn & M. Pauline Baker ,
Computer Graphics (Chapter – 2)
Foley, van Dam, Feiner & Hughes,
Computer Graphics Principles & Practice
Graphics-UPES

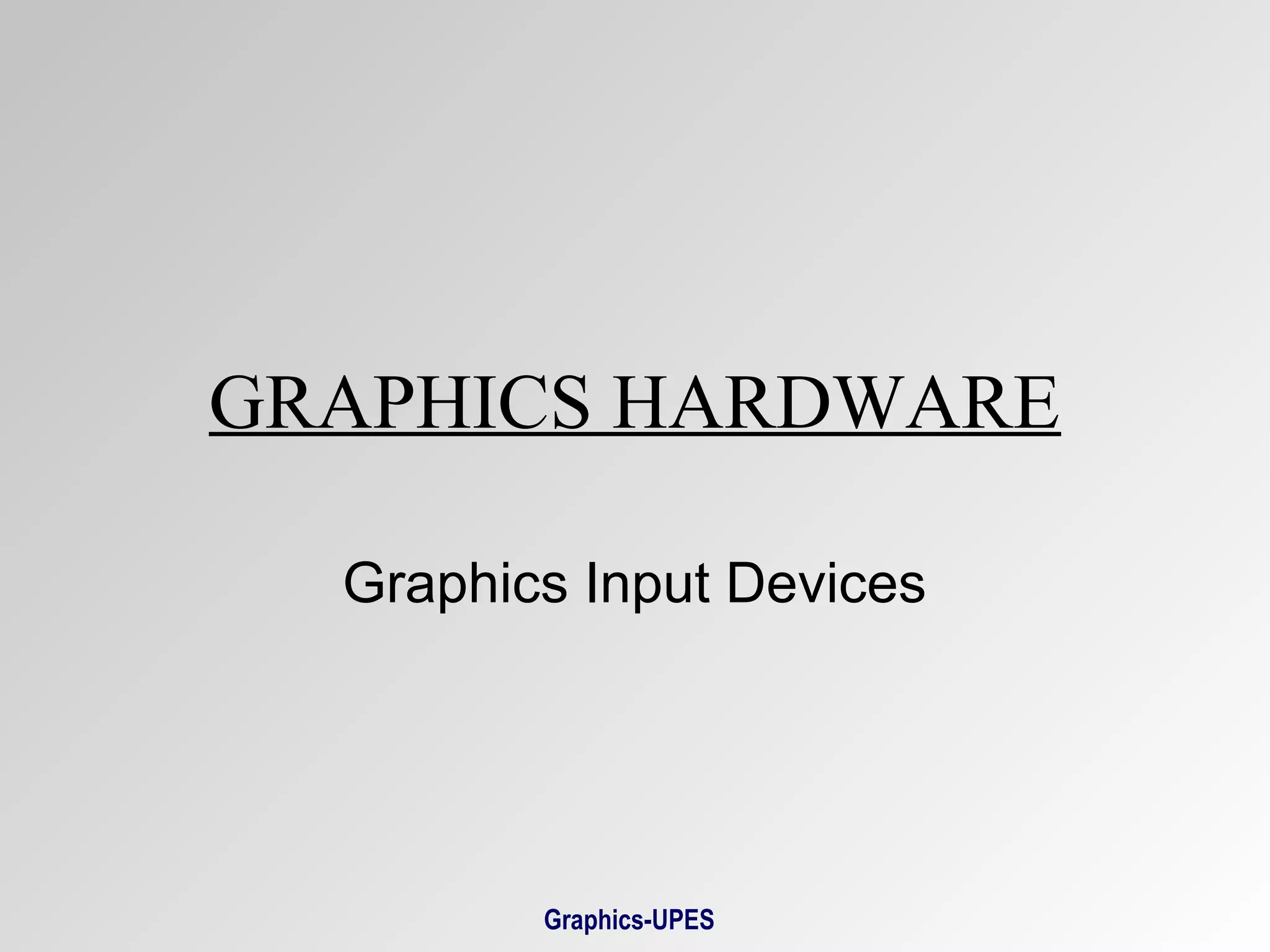

2. GRAPHICS HARDWARE
Graphics Input Devices
Graphics-UPES

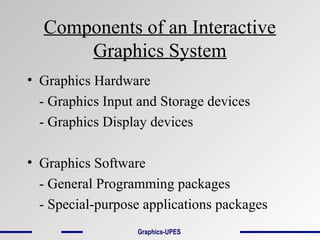

3. Components of an Interactive
Graphics System
• Graphics Hardware
- Graphics Input and Storage devices
- Graphics Display devices
• Graphics Software
- General Programming packages
- Special-purpose applications packages
Graphics-UPES

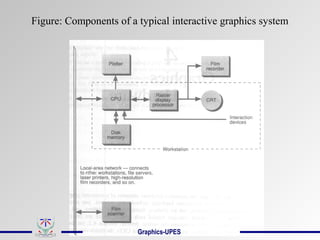

4. Figure: Components of a typical interactive graphics system
Graphics-UPES

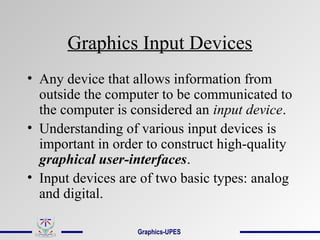

5. Graphics Input Devices
• Any device that allows information from
outside the computer to be communicated to
the computer is considered an input device.
• Understanding of various input devices is
important in order to construct high-quality
graphical user-interfaces.
• Input devices are of two basic types: analog
and digital.
Graphics-UPES

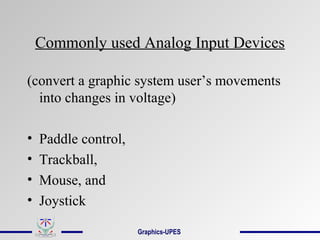

6. Commonly used Analog Input Devices
(convert a graphic system user’s movements
into changes in voltage)
• Paddle control,
• Trackball,
• Mouse, and
• Joystick
Graphics-UPES

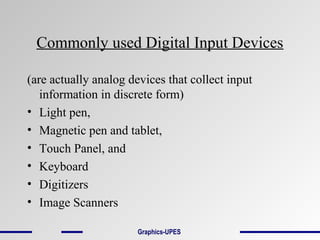

7. Commonly used Digital Input Devices
(are actually analog devices that collect input
information in discrete form)
• Light pen,
• Magnetic pen and tablet,
• Touch Panel, and
• Keyboard
• Digitizers
• Image Scanners
Graphics-UPES

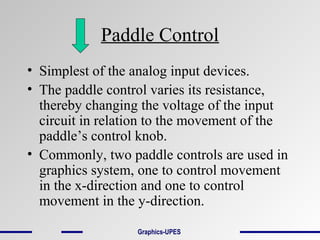

8. Paddle Control
• Simplest of the analog input devices.
• The paddle control varies its resistance,
thereby changing the voltage of the input
circuit in relation to the movement of the
paddle’s control knob.
• Commonly, two paddle controls are used in
graphics system, one to control movement
in the x-direction and one to control
movement in the y-direction.
Graphics-UPES

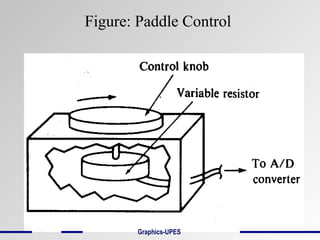

9. Figure: Paddle Control
Graphics-UPES

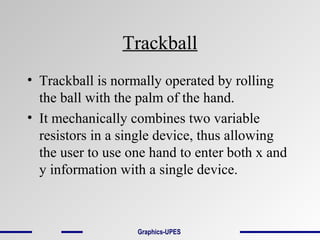

10. Trackball
• Trackball is normally operated by rolling
the ball with the palm of the hand.
• It mechanically combines two variable
resistors in a single device, thus allowing
the user to use one hand to enter both x and
y information with a single device.
Graphics-UPES

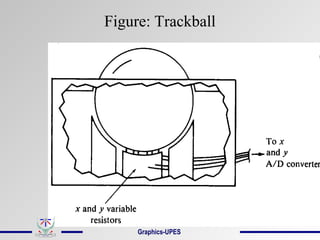

11. Figure: Trackball
Graphics-UPES

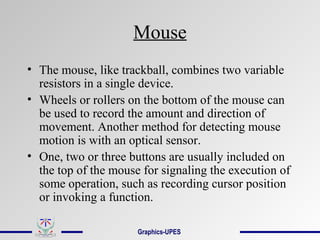

12. Mouse
• The mouse, like trackball, combines two variable
resistors in a single device.
• Wheels or rollers on the bottom of the mouse can
be used to record the amount and direction of
movement. Another method for detecting mouse
motion is with an optical sensor.
• One, two or three buttons are usually included on
the top of the mouse for signaling the execution of
some operation, such as recording cursor position
or invoking a function.
Graphics-UPES

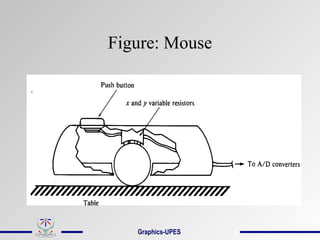

13. Figure: Mouse
Graphics-UPES

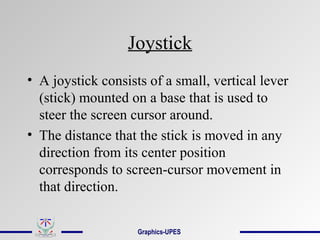

14. Joystick
• A joystick consists of a small, vertical lever
(stick) mounted on a base that is used to
steer the screen cursor around.
• The distance that the stick is moved in any
direction from its center position
corresponds to screen-cursor movement in
that direction.
Graphics-UPES

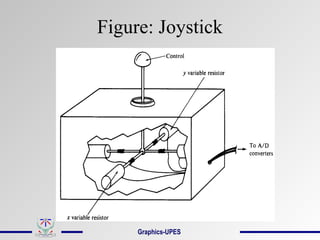

15. Figure: Joystick
Graphics-UPES

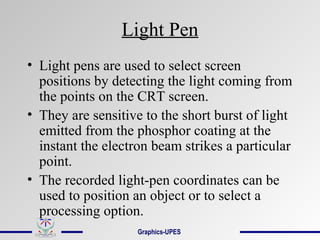

16. Light Pen
• Light pens are used to select screen
positions by detecting the light coming from
the points on the CRT screen.
• They are sensitive to the short burst of light
emitted from the phosphor coating at the
instant the electron beam strikes a particular
point.
• The recorded light-pen coordinates can be
used to position an object or to select a
processing option.
Graphics-UPES

17. Figure: Light pen system
Graphics-UPES

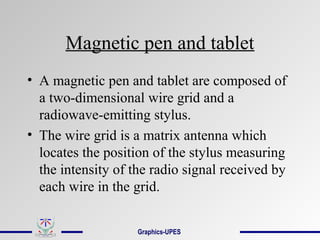

18. Magnetic pen and tablet
• A magnetic pen and tablet are composed of
a two-dimensional wire grid and a
radiowave-emitting stylus.
• The wire grid is a matrix antenna which
locates the position of the stylus measuring
the intensity of the radio signal received by
each wire in the grid.
Graphics-UPES

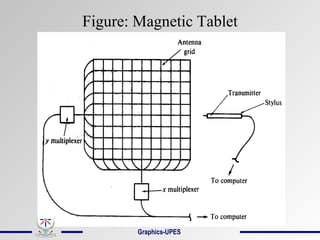

19. Figure: Magnetic Tablet
Graphics-UPES

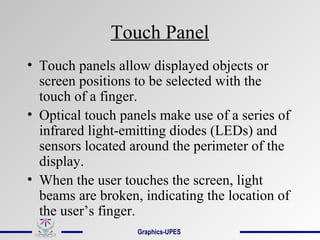

20. Touch Panel
• Touch panels allow displayed objects or
screen positions to be selected with the
touch of a finger.
• Optical touch panels make use of a series of
infrared light-emitting diodes (LEDs) and
sensors located around the perimeter of the
display.
• When the user touches the screen, light
beams are broken, indicating the location of
the user’s finger.
Graphics-UPES

21. Figure: Optical Touch Panel
Graphics-UPES

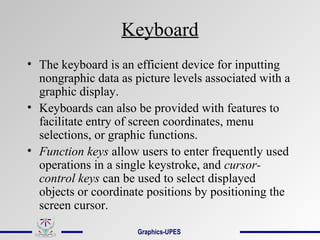

22. Keyboard
• The keyboard is an efficient device for inputting
nongraphic data as picture levels associated with a
graphic display.
• Keyboards can also be provided with features to
facilitate entry of screen coordinates, menu
selections, or graphic functions.
• Function keys allow users to enter frequently used
operations in a single keystroke, and cursor-
control keys can be used to select displayed
objects or coordinate positions by positioning the
screen cursor.
Graphics-UPES

23. Figure: Ergonomically designed keyboard
with removable palm rests
Graphics-UPES

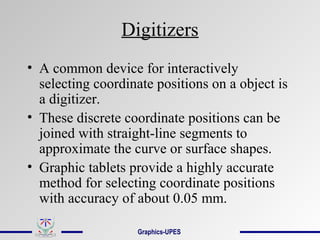

24. Digitizers
• A common device for interactively
selecting coordinate positions on a object is
a digitizer.
• These discrete coordinate positions can be
joined with straight-line segments to
approximate the curve or surface shapes.
• Graphic tablets provide a highly accurate
method for selecting coordinate positions
with accuracy of about 0.05 mm.
Graphics-UPES

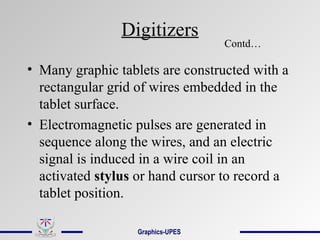

25. Digitizers
• Many graphic tablets are constructed with a
rectangular grid of wires embedded in the
tablet surface.
• Electromagnetic pulses are generated in
sequence along the wires, and an electric
signal is induced in a wire coil in an
activated stylus or hand cursor to record a
tablet position.
Contd…
Graphics-UPES

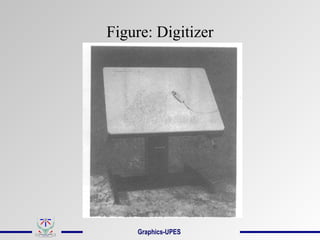

26. Figure: Digitizer
Graphics-UPES

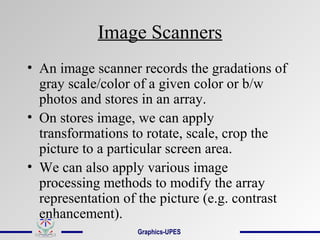

27. Image Scanners
• An image scanner records the gradations of
gray scale/color of a given color or b/w
photos and stores in an array.
• On stores image, we can apply
transformations to rotate, scale, crop the
picture to a particular screen area.
• We can also apply various image
processing methods to modify the array
representation of the picture (e.g. contrast
enhancement).
Graphics-UPES

28. Figure: Flatbed scanner
Graphics-UPES

29. DataGlove: 3D Interaction Device
• The glove is constructed with a series of
sensors that detect hand and finger
movements.
• Electromagnetic coupling between
transmitting antennas and receiving
antennas is used to provide information
about position and orientation of the hand.
• Inputs from the glove can be used to
position or manipulate objects in a virtual
scene.
Graphics-UPES

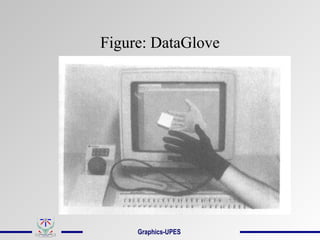

30. Figure: DataGlove
Graphics-UPES

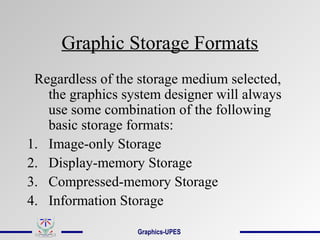

31. Graphic Storage Formats
Regardless of the storage medium selected,
the graphics system designer will always
use some combination of the following
basic storage formats:
1. Image-only Storage
2. Display-memory Storage
3. Compressed-memory Storage
4. Information Storage
Graphics-UPES

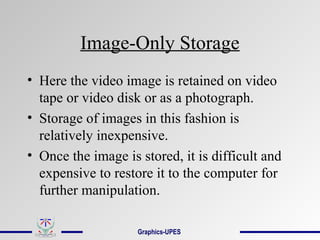

32. Image-Only Storage
• Here the video image is retained on video
tape or video disk or as a photograph.
• Storage of images in this fashion is
relatively inexpensive.
• Once the image is stored, it is difficult and
expensive to restore it to the computer for
further manipulation.
Graphics-UPES

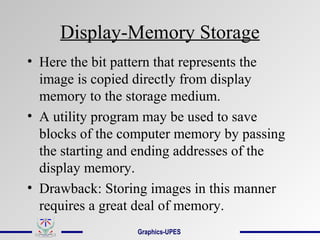

33. Display-Memory Storage
• Here the bit pattern that represents the
image is copied directly from display
memory to the storage medium.
• A utility program may be used to save
blocks of the computer memory by passing
the starting and ending addresses of the
display memory.
• Drawback: Storing images in this manner
requires a great deal of memory.
Graphics-UPES

34. Compressed-Memory Storage
• Storage space can be greatly reduced by
storing images in compressed format.
• Compression takes advantage of repeated
patterns in display memory.
• Compression routines can be very complex,
taking advantage of long series of
replication.
• It may not be useful when images to be
saved contain no or few series of replicated
bytes.
Graphics-UPES

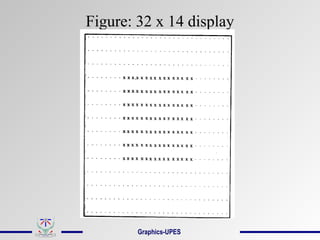

35. Figure: 32 x 14 display
Graphics-UPES

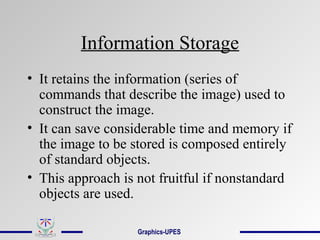

36. Information Storage
• It retains the information (series of
commands that describe the image) used to
construct the image.
• It can save considerable time and memory if
the image to be stored is composed entirely
of standard objects.
• This approach is not fruitful if nonstandard
objects are used.
Graphics-UPES

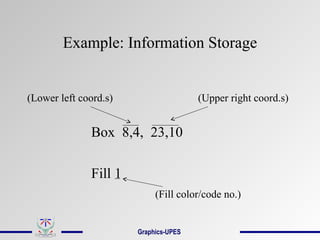

37. Example: Information Storage
(Lower left coord.s) (Upper right coord.s)
Box 8,4, 23,10
Fill 1
(Fill color/code no.)
Graphics-UPES

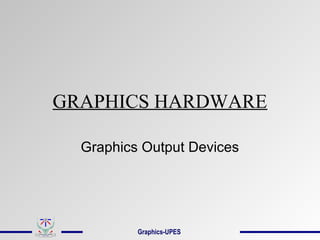

38. GRAPHICS HARDWARE
Graphics Output Devices
Graphics-UPES

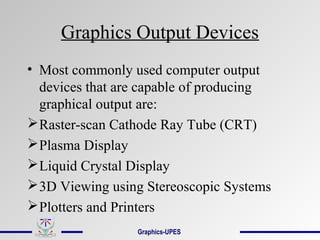

39. Graphics Output Devices
• Most commonly used computer output
devices that are capable of producing
graphical output are:
Raster-scan Cathode Ray Tube (CRT)

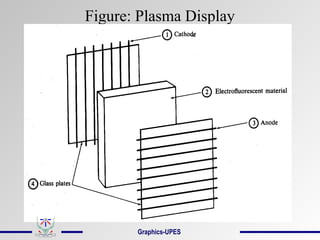

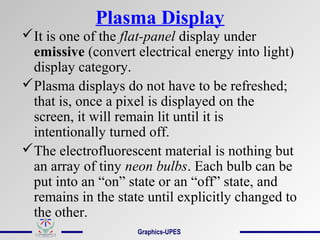

Plasma Display
Liquid Crystal Display

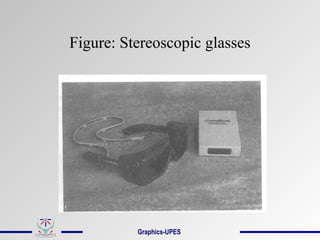

3D Viewing using Stereoscopic Systems
Plotters and Printers
Graphics-UPES

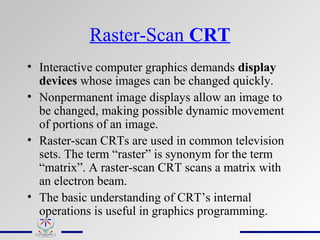

40. Raster-Scan CRT
• Interactive computer graphics demands display
devices whose images can be changed quickly.
• Nonpermanent image displays allow an image to
be changed, making possible dynamic movement
of portions of an image.
• Raster-scan CRTs are used in common television
sets. The term “raster” is synonym for the term
“matrix”. A raster-scan CRT scans a matrix with
an electron beam.
• The basic understanding of CRT’s internal
operations is useful in graphics programming.

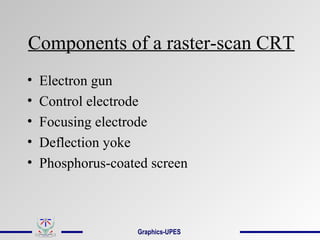

41. Components of a raster-scan CRT
• Electron gun
• Control electrode
• Focusing electrode
• Deflection yoke
• Phosphorus-coated screen
Graphics-UPES

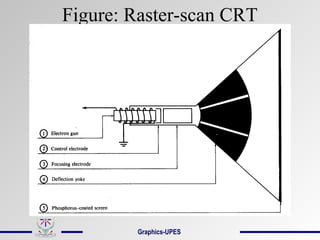

42. Figure: Raster-scan CRT
Graphics-UPES

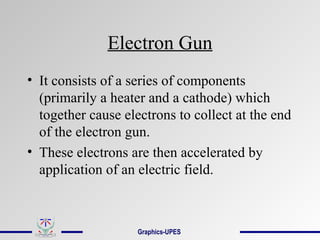

43. Electron Gun
• It consists of a series of components
(primarily a heater and a cathode) which
together cause electrons to collect at the end
of the electron gun.
• These electrons are then accelerated by
application of an electric field.
Graphics-UPES

44. Control Electrode
• It is used to regulate the flow of electrons.
• It is a metal cylinder that fits over the
cathode.
• A negative voltage on the control electrode
simply decreases the number of electrons
passing through.
• Hence intensity of the electron beam is
controlled by setting voltage levels on the
control electrode.
Graphics-UPES

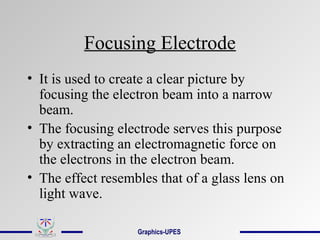

45. Focusing Electrode
• It is used to create a clear picture by
focusing the electron beam into a narrow
beam.
• The focusing electrode serves this purpose
by extracting an electromagnetic force on
the electrons in the electron beam.
• The effect resembles that of a glass lens on
light wave.
Graphics-UPES

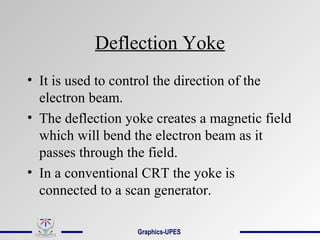

46. Deflection Yoke
• It is used to control the direction of the
electron beam.
• The deflection yoke creates a magnetic field
which will bend the electron beam as it
passes through the field.
• In a conventional CRT the yoke is
connected to a scan generator.
Graphics-UPES

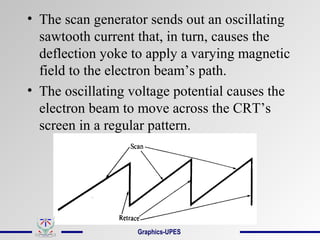

47. • The scan generator sends out an oscillating
sawtooth current that, in turn, causes the
deflection yoke to apply a varying magnetic
field to the electron beam’s path.
• The oscillating voltage potential causes the
electron beam to move across the CRT’s
screen in a regular pattern.
Graphics-UPES

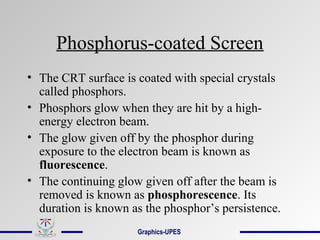

48. Phosphorus-coated Screen
• The CRT surface is coated with special crystals
called phosphors.
• Phosphors glow when they are hit by a high-
energy electron beam.
• The glow given off by the phosphor during
exposure to the electron beam is known as
fluorescence.
• The continuing glow given off after the beam is
removed is known as phosphorescence. Its
duration is known as the phosphor’s persistence.
Graphics-UPES

49. Principle of Raster-scan Displays
• Picture definition is stored in a memory area
called the refresh buffer or frame buffer.
This memory area holds the set of intensity
values for all the screen points.
• The electron beam is swept across the
screen, one row at a time from top to bottom
and painting the stored intensity values.
Graphics-UPES

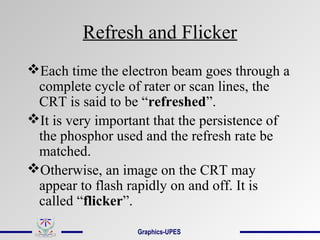

50. Refresh and Flicker
Each time the electron beam goes through a
complete cycle of rater or scan lines, the
CRT is said to be “refreshed”.
It is very important that the persistence of
the phosphor used and the refresh rate be
matched.
Otherwise, an image on the CRT may
appear to flash rapidly on and off. It is
called “flicker”.
Graphics-UPES

51. Horizontal/ Vertical Retrace
• Refreshing of rater-scan displays is done at
the rate of 60 to 80 frames per second.
• At the end of each scan line, the electron
beam returns to the left side of the screen to
begin displaying the next line (horizontal
retrace).
• And at the end of each frame, the electron
beam returns to the top left corner of the
screen to begin the next frame (vertical
retrace).
Graphics-UPES

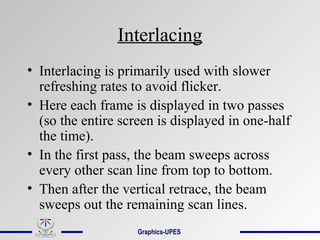

52. Interlacing
• Interlacing is primarily used with slower
refreshing rates to avoid flicker.
• Here each frame is displayed in two passes
(so the entire screen is displayed in one-half
the time).
• In the first pass, the beam sweeps across
every other scan line from top to bottom.
• Then after the vertical retrace, the beam
sweeps out the remaining scan lines.
Graphics-UPES

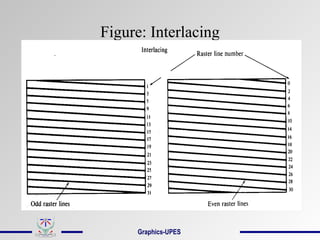

53. Figure: Interlacing
Graphics-UPES

54. Plasma Display
It is one of the flat-panel display under
emissive (convert electrical energy into light)
display category.
Plasma displays do not have to be refreshed;
that is, once a pixel is displayed on the
screen, it will remain lit until it is
intentionally turned off.
The electrofluorescent material is nothing but
an array of tiny neon bulbs. Each bulb can be
put into an “on” state or an “off” state, and
remains in the state until explicitly changed to
the other.
Graphics-UPES

55. Figure: Plasma Display
Graphics-UPES

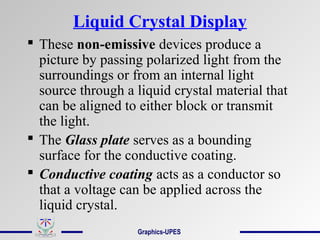

56. Liquid Crystal Display
 These non-emissive devices produce a
picture by passing polarized light from the
surroundings or from an internal light
source through a liquid crystal material that
can be aligned to either block or transmit
the light.
 The Glass plate serves as a bounding
surface for the conductive coating.
 Conductive coating acts as a conductor so
that a voltage can be applied across the
liquid crystal.
Graphics-UPES

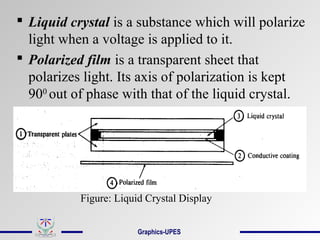

57.  Liquid crystal is a substance which will polarize
light when a voltage is applied to it.
 Polarized film is a transparent sheet that
polarizes light. Its axis of polarization is kept
900
out of phase with that of the liquid crystal.
Figure: Liquid Crystal Display
Graphics-UPES

58. Plotters
• All plotters behave like slow vector devices
from the graphics programmer’s point of
view.
• Examples:
Flatbed plotter
Drum plotter
• Components of a Flatbed plotter:
Pen – an actual pen that draws on the paper.
Graphics-UPES

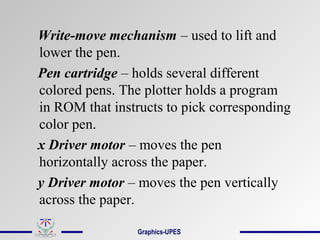

59. Write-move mechanism – used to lift and
lower the pen.
Pen cartridge – holds several different
colored pens. The plotter holds a program
in ROM that instructs to pick corresponding
color pen.
x Driver motor – moves the pen
horizontally across the paper.
y Driver motor – moves the pen vertically
across the paper.
Graphics-UPES

60. 3D Viewing using Stereoscopic Systems
• In a stereoscopic projection, two views of a
scene are generated from a viewing direction
corresponding to each eye.
• When we simultaneously look at the left
view with the left eye and the right view with
the right eye, the two views merge into a
single image and we perceive a scene with
depth.
• Examples: i) stereoscopic glasses & an
infrared synchronizing emitter, ii) Headset
Graphics-UPES

61. Figure: Stereoscopic glasses
Graphics-UPES

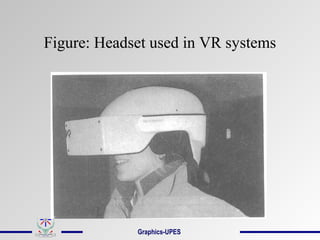

62. Figure: Headset used in VR systems
Graphics-UPES

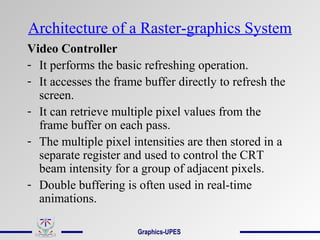

63. Architecture of a Raster-graphics System
Video Controller
- It performs the basic refreshing operation.
- It accesses the frame buffer directly to refresh the
screen.
- It can retrieve multiple pixel values from the
frame buffer on each pass.
- The multiple pixel intensities are then stored in a
separate register and used to control the CRT
beam intensity for a group of adjacent pixels.
- Double buffering is often used in real-time
animations.
Graphics-UPES

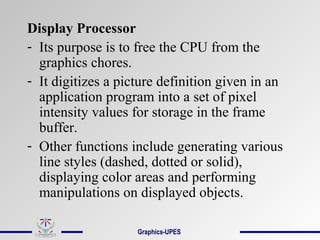

64. Display Processor
- Its purpose is to free the CPU from the
graphics chores.
- It digitizes a picture definition given in an
application program into a set of pixel
intensity values for storage in the frame
buffer.
- Other functions include generating various
line styles (dashed, dotted or solid),
displaying color areas and performing
manipulations on displayed objects.
Graphics-UPES

65. Figure: A raster-graphics system
Graphics-UPES

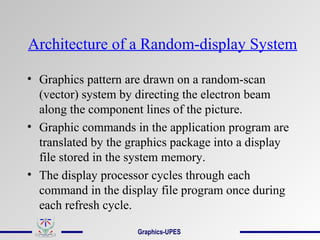

66. Architecture of a Random-display System
• Graphics pattern are drawn on a random-scan
(vector) system by directing the electron beam
along the component lines of the picture.
• Graphic commands in the application program are
translated by the graphics package into a display
file stored in the system memory.
• The display processor cycles through each
command in the display file program once during
each refresh cycle.
Graphics-UPES

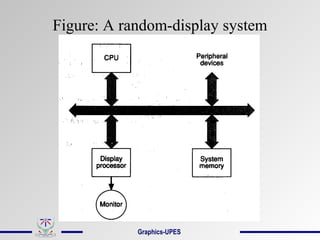

67. Figure: A random-display system
System bus
Graphics-UPES
