1. GOLDEN SECTION METHOD
SYED RUBAID AHMAD
SAU/CS(M)/2013/01
Date : 7-5-
2014

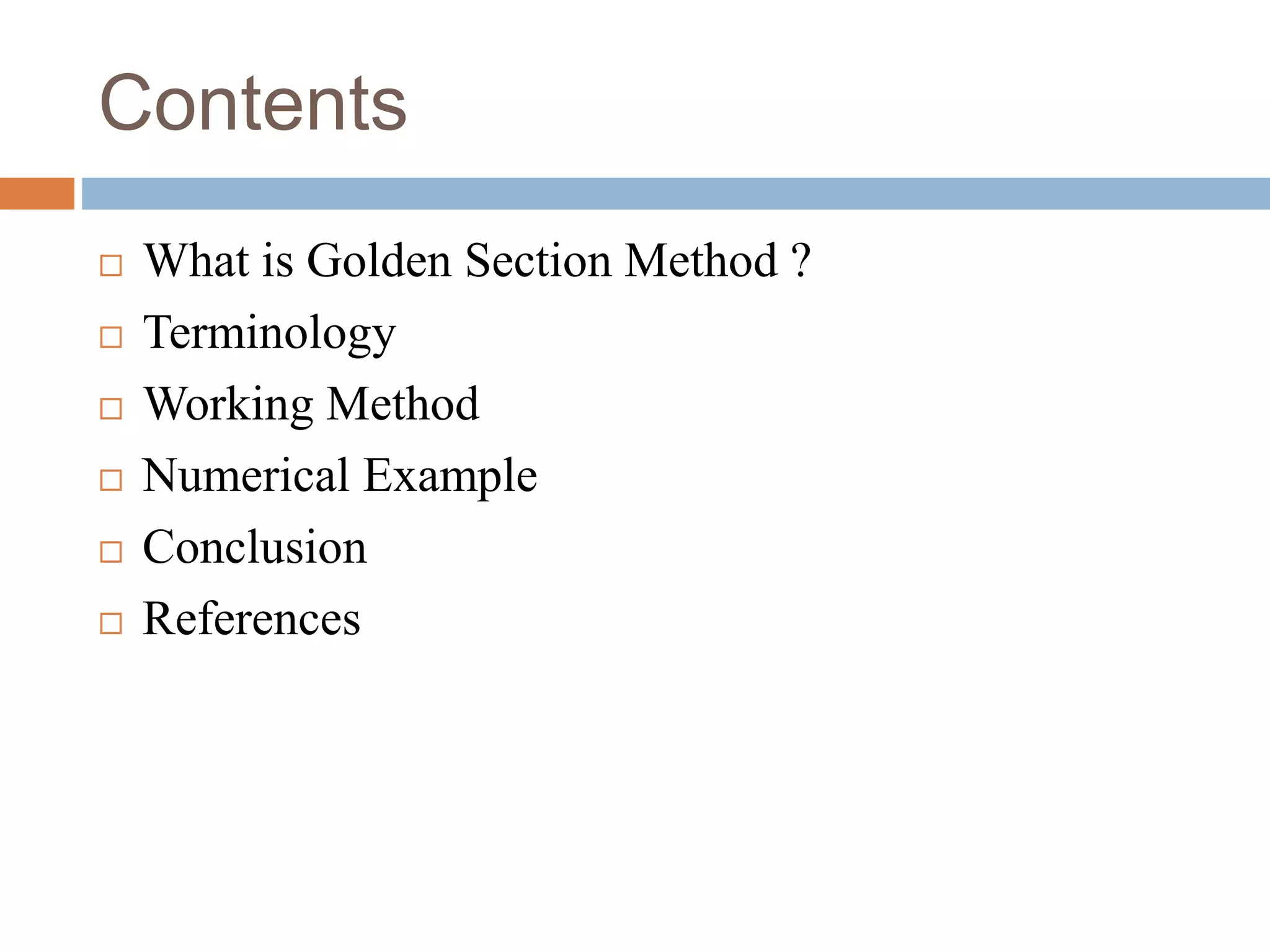

2. Contents
 What is Golden Section Method ?
 Terminology
 Working Method
 Numerical Example
 Conclusion
 References

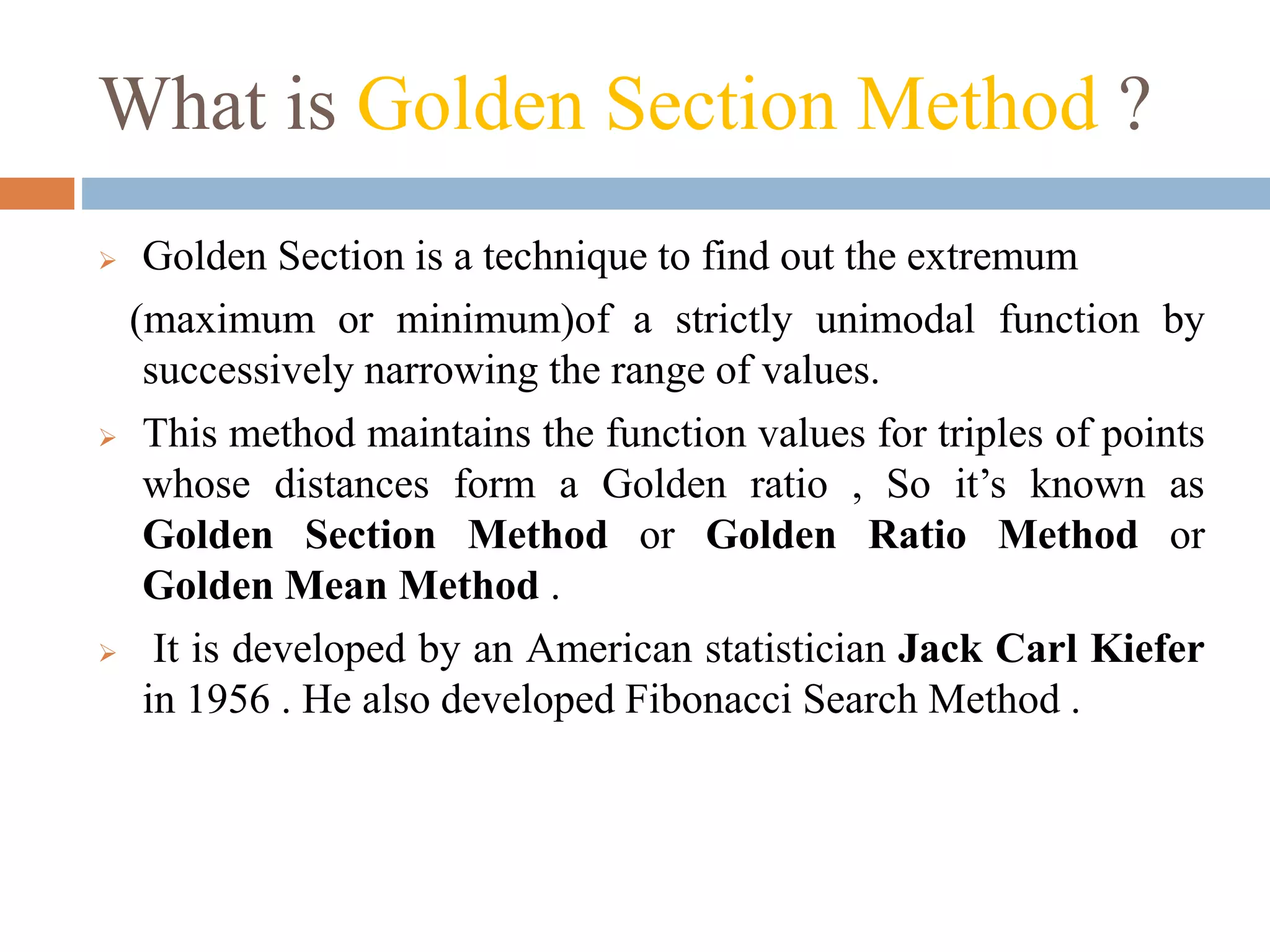

3. What is Golden Section Method ?
 Golden Section is a technique to find out the extremum
(maximum or minimum)of a strictly unimodal function by
successively narrowing the range of values.
 This method maintains the function values for triples of points
whose distances form a Golden ratio , So it’s known as
Golden Section Method or Golden Ratio Method or
Golden Mean Method .
 It is developed by an American statistician Jack Carl Kiefer
in 1956 . He also developed Fibonacci Search Method .

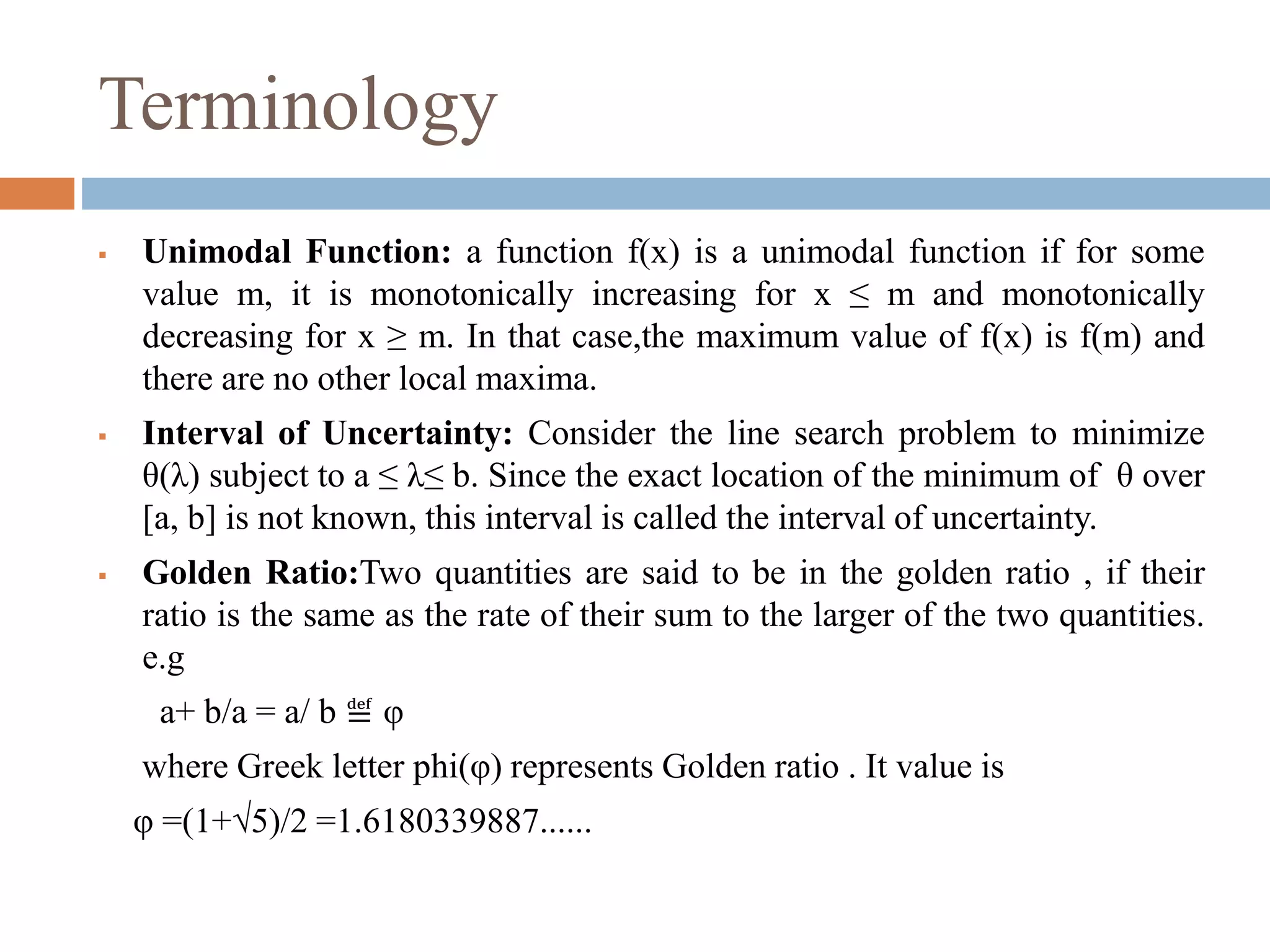

4. Terminology
 Unimodal Function: a function f(x) is a unimodal function if for some
value m, it is monotonically increasing for x ≤ m and monotonically
decreasing for x ≥ m. In that case,the maximum value of f(x) is f(m) and
there are no other local maxima.
 Interval of Uncertainty: Consider the line search problem to minimize
θ(λ) subject to a ≤ λ≤ b. Since the exact location of the minimum of θ over
[a, b] is not known, this interval is called the interval of uncertainty.
 Golden Ratio:Two quantities are said to be in the golden ratio , if their
ratio is the same as the rate of their sum to the larger of the two quantities.
e.g
a+ b/a = a/ b ≝ φ
where Greek letter phi(φ) represents Golden ratio . It value is
φ =(1+√5)/2 =1.6180339887......

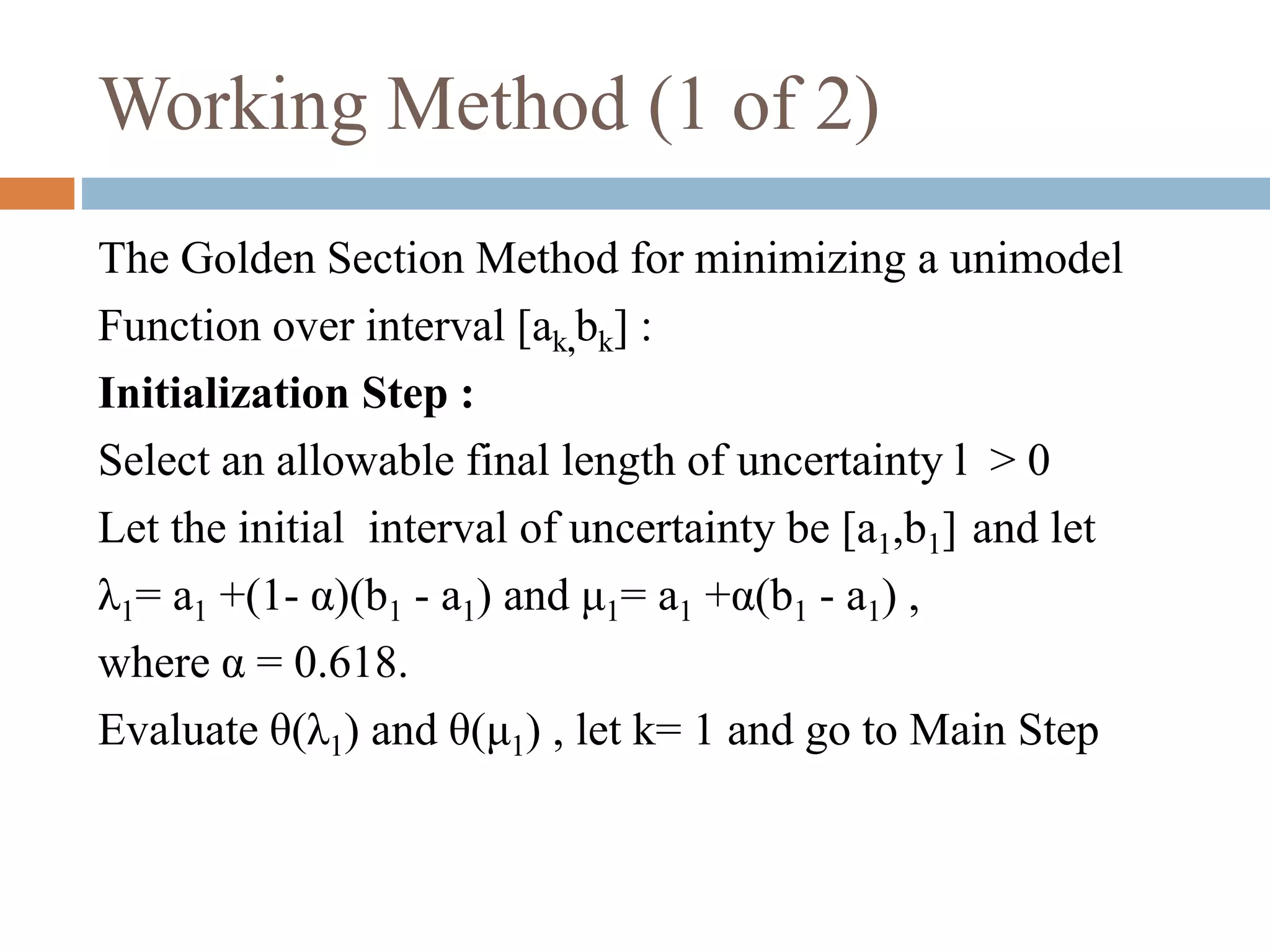

5. Working Method (1 of 2)
The Golden Section Method for minimizing a unimodel
Function over interval [ak,bk] :
Initialization Step :
Select an allowable final length of uncertainty l > 0
Let the initial interval of uncertainty be [a1,b1] and let
λ1= a1 +(1- α)(b1 - a1) and μ1= a1 +α(b1 - a1) ,
where α = 0.618.
Evaluate θ(λ1) and θ(μ1) , let k= 1 and go to Main Step

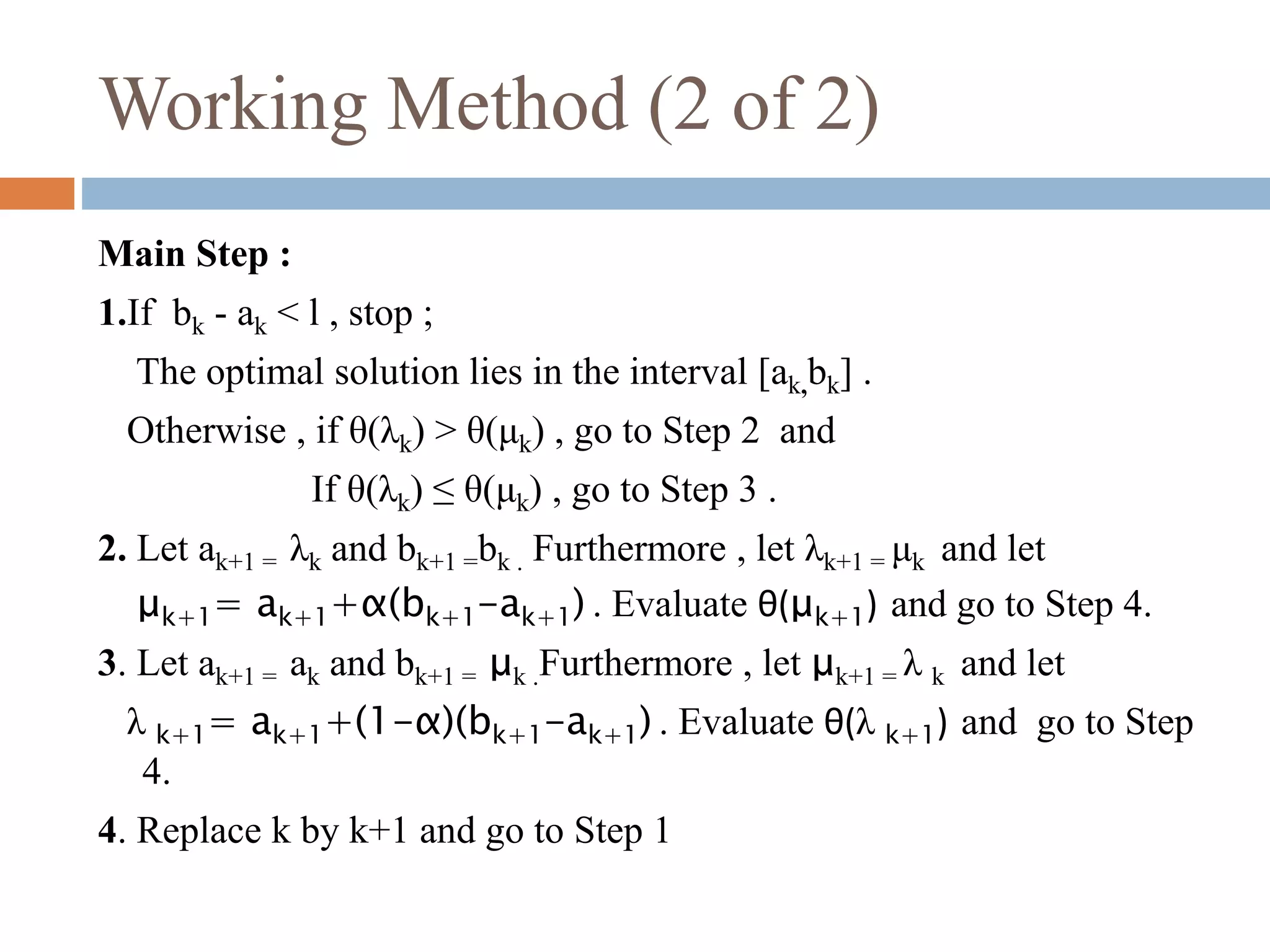

6. Working Method (2 of 2)
Main Step :
1.If bk - ak < l , stop ;
The optimal solution lies in the interval [ak,bk] .
Otherwise , if θ(λk) > θ(μk) , go to Step 2 and
If θ(λk) ≤ θ(μk) , go to Step 3 .
2. Let ak+1 = λk and bk+1 =bk . Furthermore , let λk+1 = μk and let
μk+1= ak+1+α(bk+1-ak+1) . Evaluate θ(μk+1) and go to Step 4.
3. Let ak+1 = ak and bk+1 = μk .Furthermore , let μk+1 = λ k and let
λ k+1= ak+1+(1-α)(bk+1-ak+1) . Evaluate θ(λ k+1) and go to Step
4.
4. Replace k by k+1 and go to Step 1

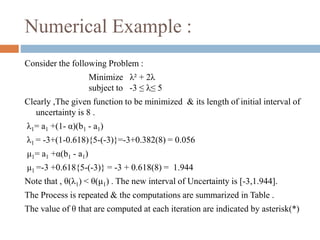

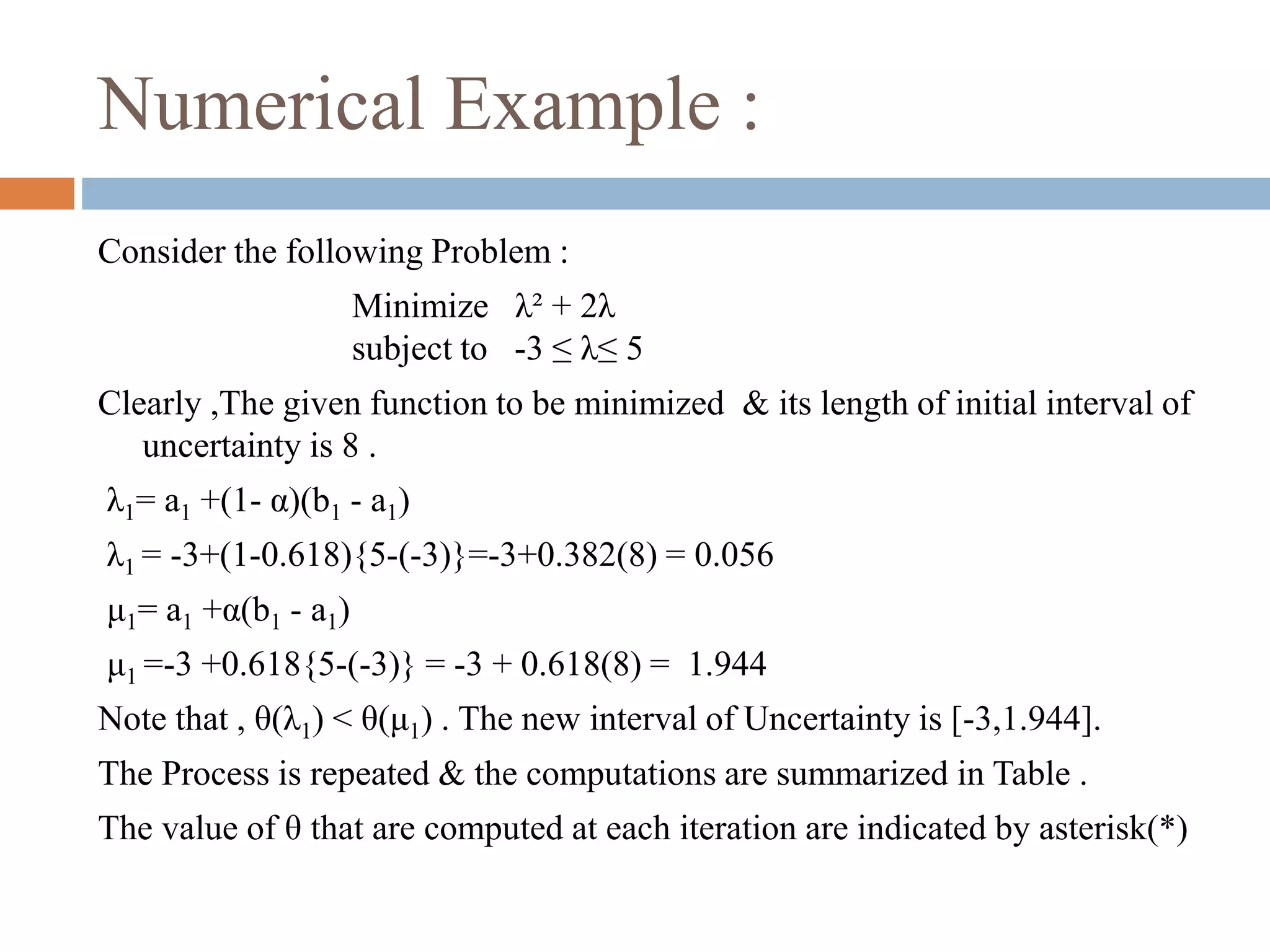

7. Numerical Example :
Consider the following Problem :
Minimize λ² + 2λ
subject to -3 ≤ λ≤ 5
Clearly ,The given function to be minimized & its length of initial interval of
uncertainty is 8 .
λ1= a1 +(1- α)(b1 - a1)
λ1 = -3+(1-0.618){5-(-3)}=-3+0.382(8) = 0.056
μ1= a1 +α(b1 - a1)
μ1 =-3 +0.618{5-(-3)} = -3 + 0.618(8) = 1.944
Note that , θ(λ1) < θ(μ1) . The new interval of Uncertainty is [-3,1.944].
The Process is repeated & the computations are summarized in Table .
The value of θ that are computed at each iteration are indicated by asterisk(*)

8. Table of Computations for Golden
Section Method
Iteration
k
ak bk λ k μk θ(λk) θ(μk)
1 -3.000 5.000 0.56 1.944 0.115* 7.667*
2 -3.000 1.944 -1.112 0.056 -0.987* 0.115
3 -3.000 0.056 -1.832 -1.112 -0.308* -0.987
4 -1.832 0.056 -1.112 -0.664 -0.987 -0.887*
5 -1.832 -0.664 -1.384 -1.112 -0.853* -0.987
6 -1.384 -0.664 -1.112 -0.936 -0.987 -0.996*
7 -1.112 -0.664 -0.936 -0.840 -0.996 -0.974*
8 -1.112 -0.840 -1.016 -0.936 -1.000* -0.996
9 -1.112 -0.936
After eight iterations involving 9-observations , the interval of uncertainty is
[-1.112,-0.936] , so that the minimum can be estimated to be the midpoint
-1.024 . Note that the true minimums is in fact -1.0

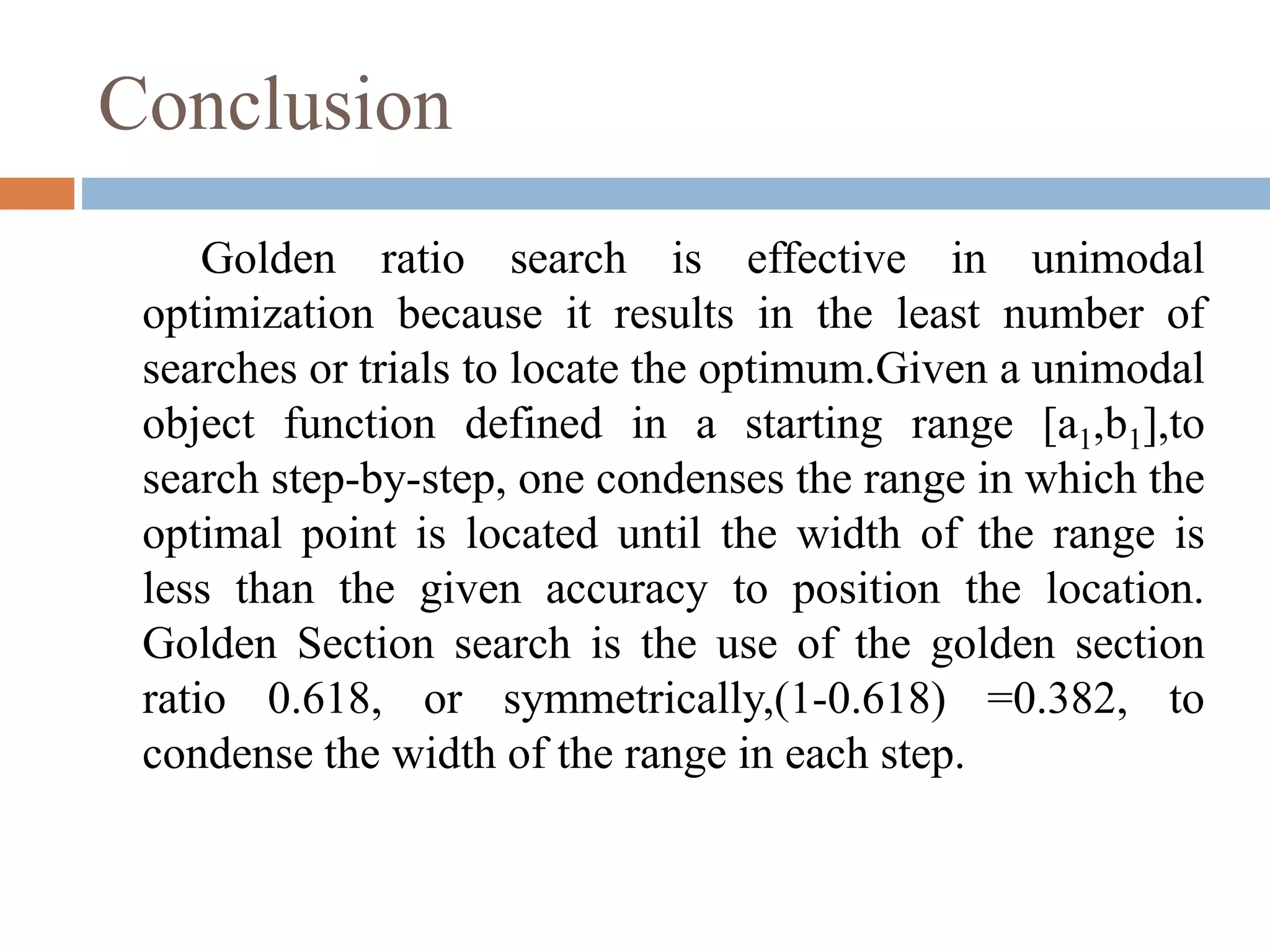

9. Conclusion
Golden ratio search is effective in unimodal
optimization because it results in the least number of
searches or trials to locate the optimum.Given a unimodal
object function defined in a starting range [a1,b1],to
search step-by-step, one condenses the range in which the
optimal point is located until the width of the range is
less than the given accuracy to position the location.
Golden Section search is the use of the golden section
ratio 0.618, or symmetrically,(1-0.618) =0.382, to
condense the width of the range in each step.

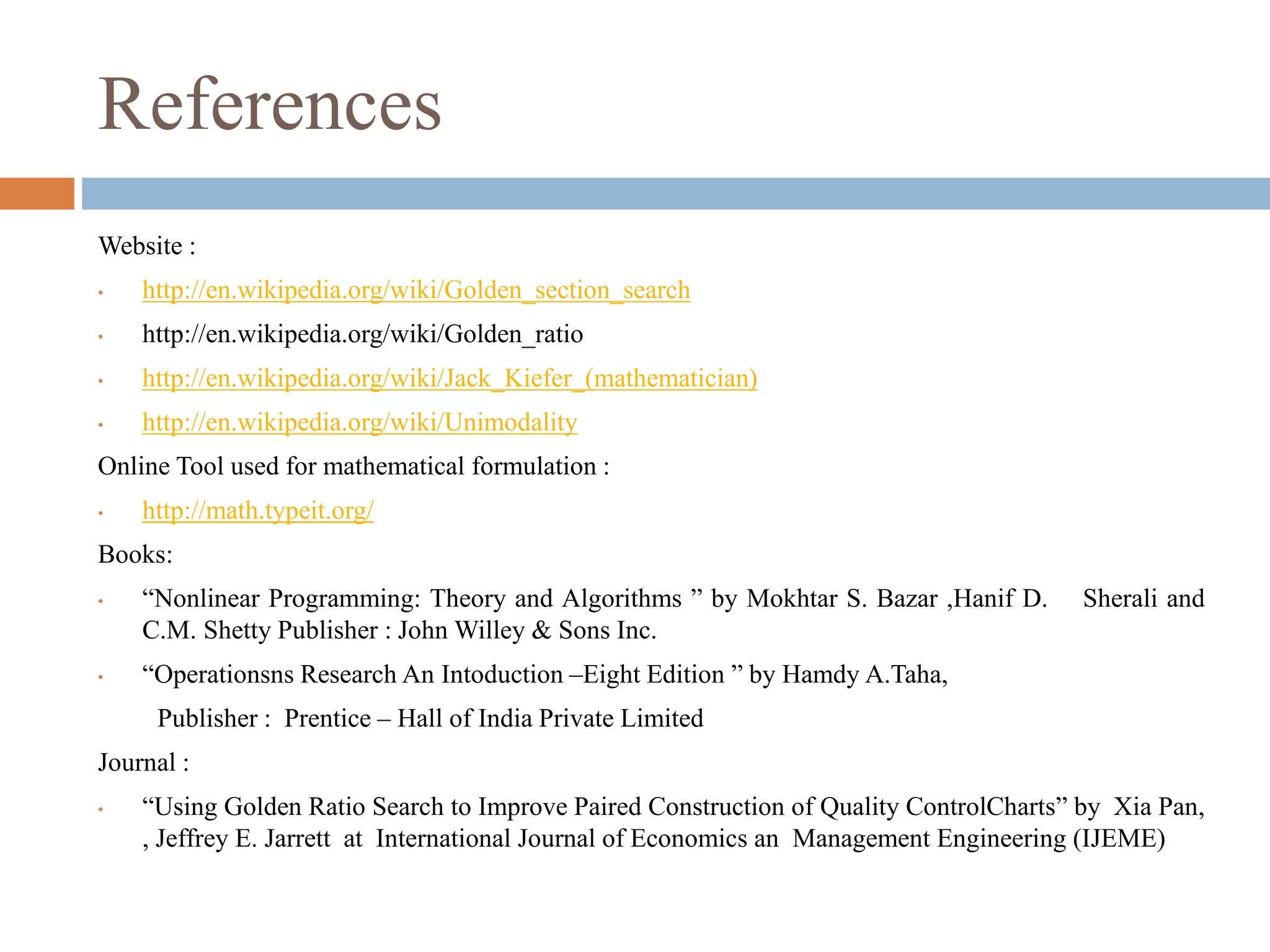

10. References
Website :
• http://en.wikipedia.org/wiki/Golden_section_search
• http://en.wikipedia.org/wiki/Golden_ratio
• http://en.wikipedia.org/wiki/Jack_Kiefer_(mathematician)
• http://en.wikipedia.org/wiki/Unimodality
Online Tool used for mathematical formulation :
• http://math.typeit.org/
Books:
• “Nonlinear Programming: Theory and Algorithms ” by Mokhtar S. Bazar ,Hanif D. Sherali and
C.M. Shetty Publisher : JohnWilley & Sons Inc.
• “Operationsns Research An Intoduction –Eight Edition ” by Hamdy A.Taha,
Publisher : Prentice – Hall of India Private Limited
Journal :
• “Using Golden Ratio Search to Improve Paired Construction of Quality ControlCharts” by Xia Pan,
, Jeffrey E. Jarrett at International Journal of Economics an Management Engineering (IJEME)

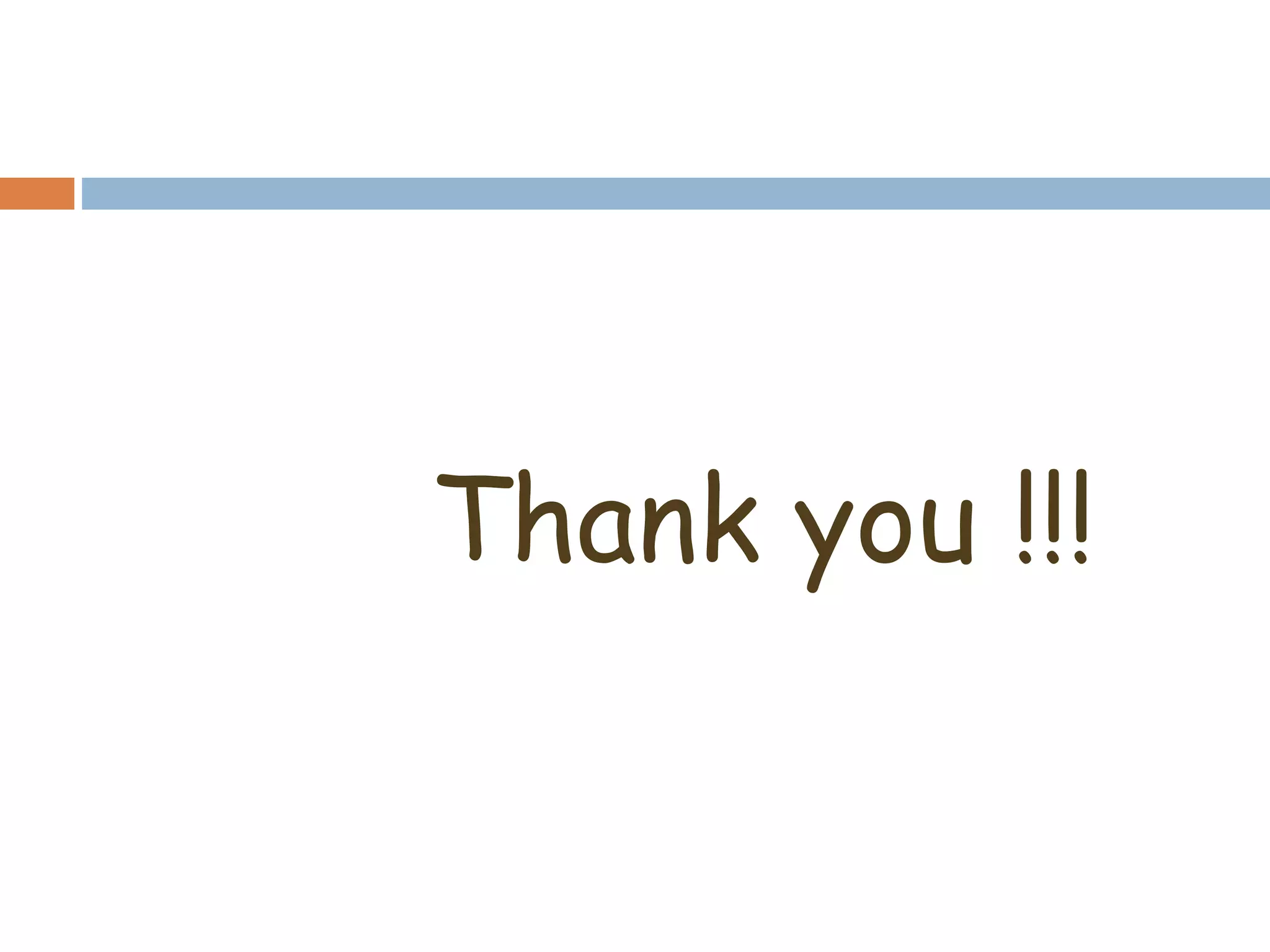

11. Thank you !!!
