This document outlines the Git workflow steps for developers, team leads, testers, and quality managers. It involves: 1. Creating issues and a develop branch for new features. 2. Developers create feature branches from develop and add commits with reviews. 3. Pull requests are made from feature branches to develop, which are reviewed and merged by the team lead. Key steps include code reviews, testing, creating release branches and tags, and reverting changes if live issues occur. The workflow aims to integrate quality control throughout the development process.

1. GIT WORKFLOW
STEP BY STEP
Presenter: BinhQD
Twitter: @binhqd
Github: binhqd
LinkedIn: /in/binhqd

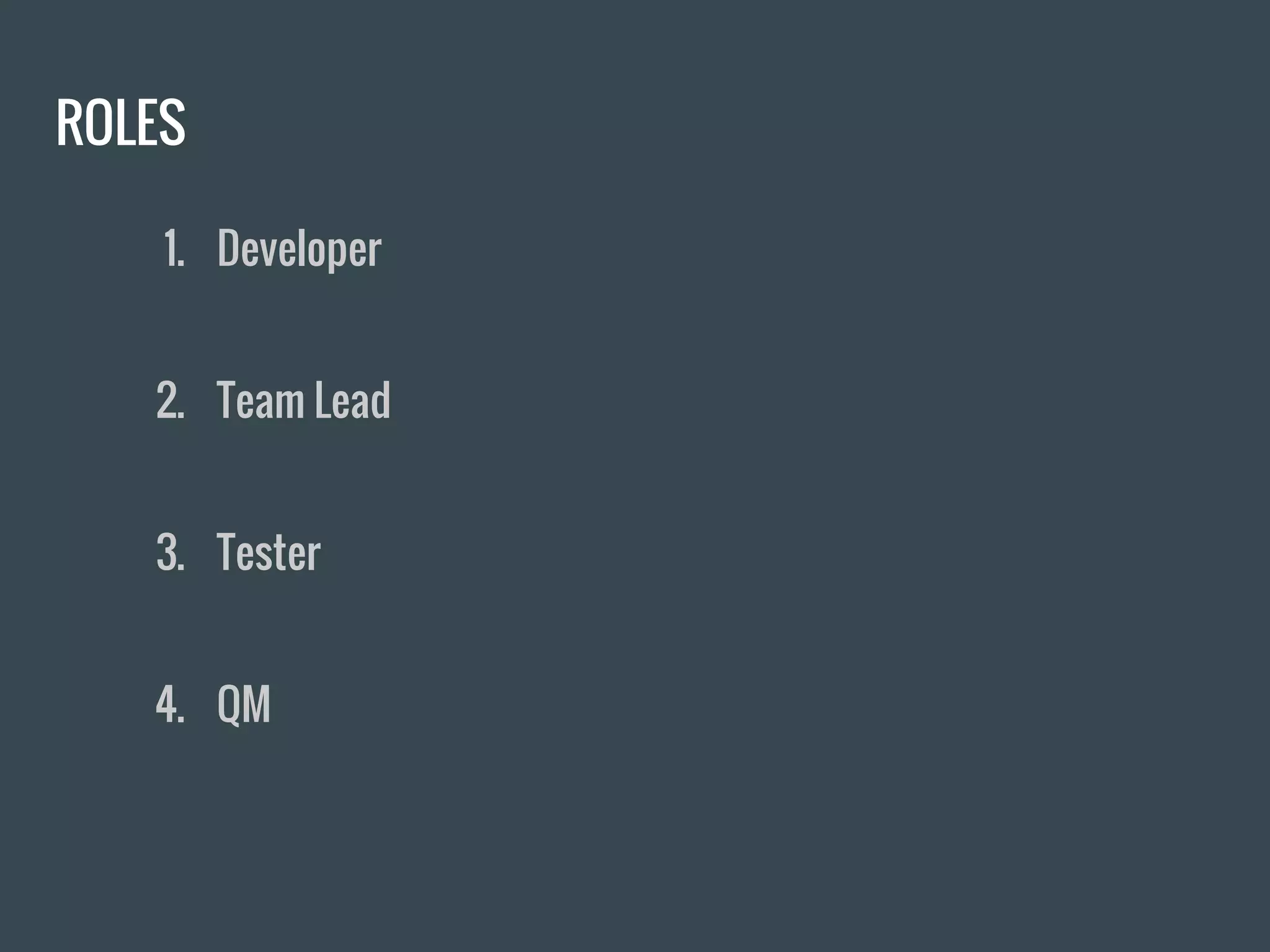

4. ROLES
1. Developer
2. Team Lead
3. Tester
4. QM

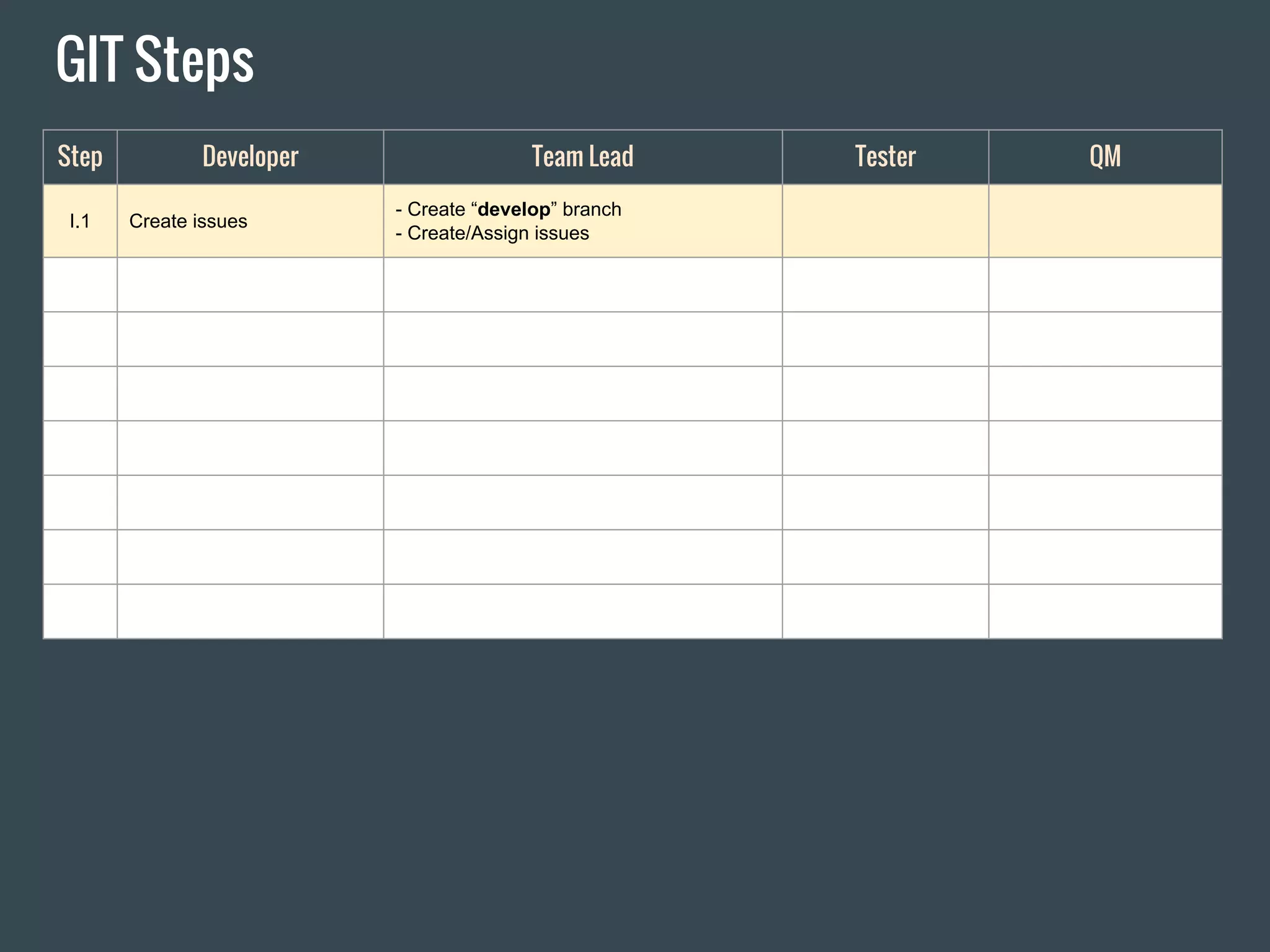

5. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues

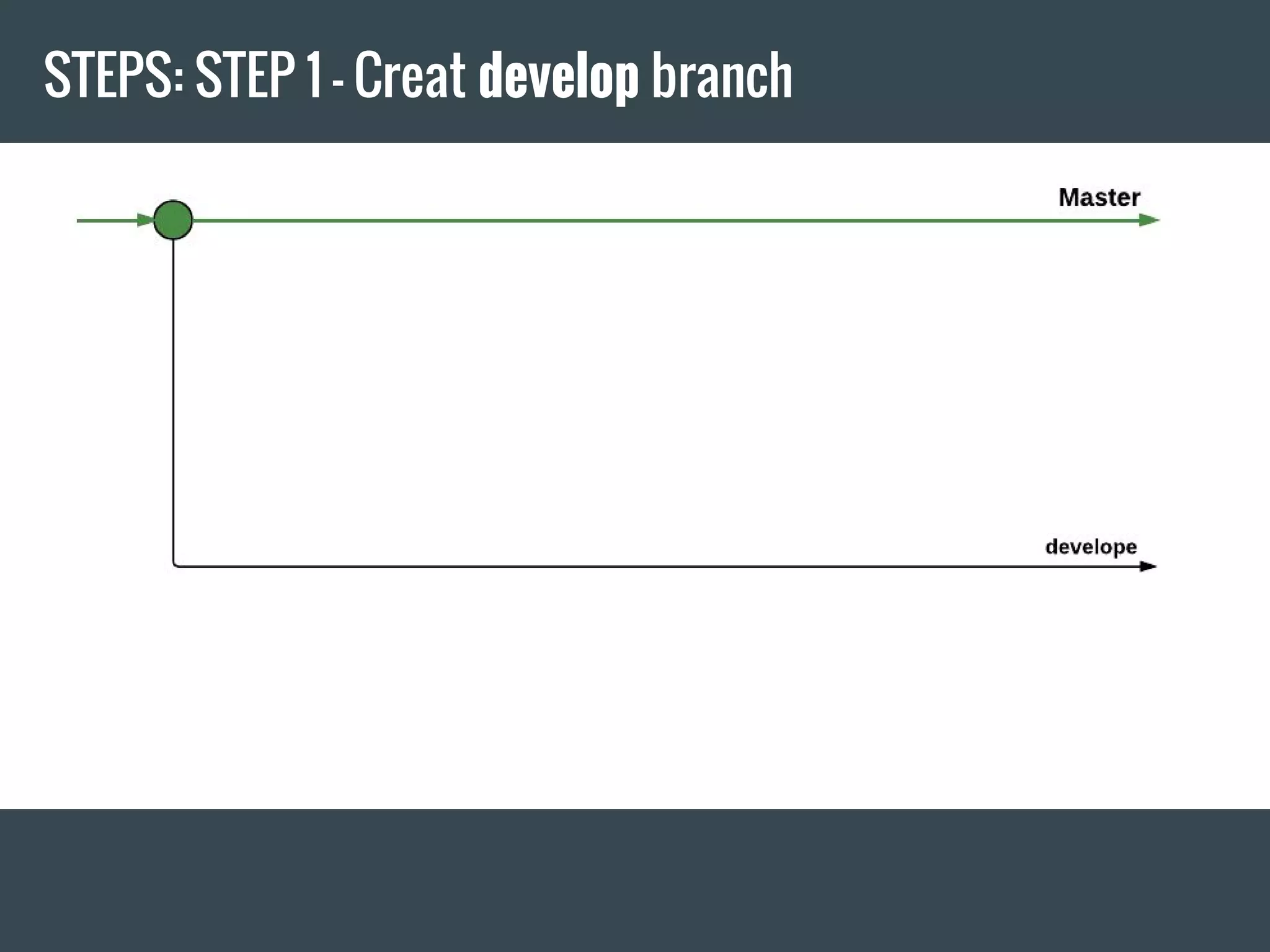

6. STEPS: STEP 1 - Creat develop branch

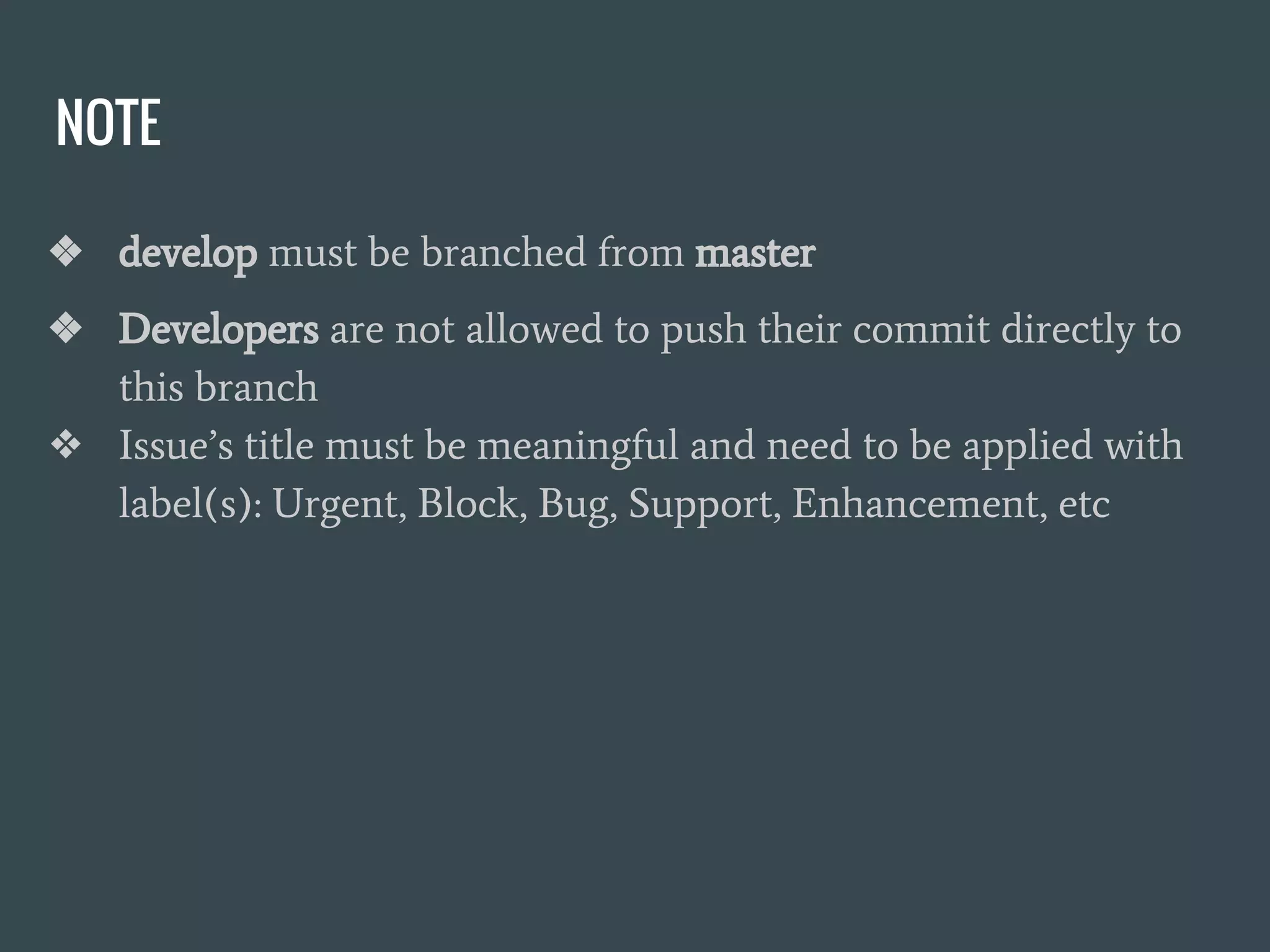

7. NOTE
❖ develop must be branched from master
❖ Developers are not allowed to push their commit directly to
this branch
❖ Issue’s title must be meaningful and need to be applied with
label(s): Urgent, Block, Bug, Support, Enhancement, etc

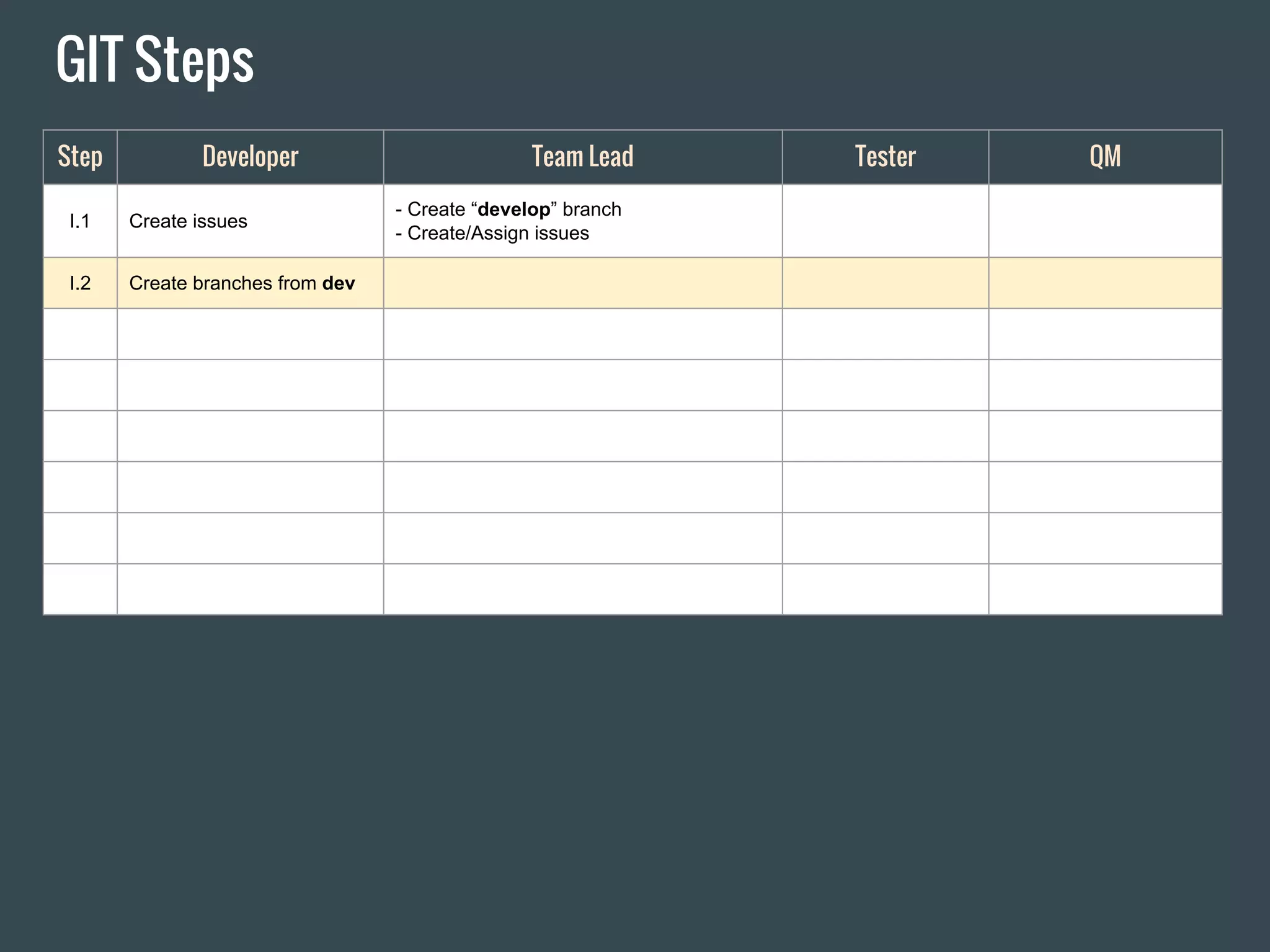

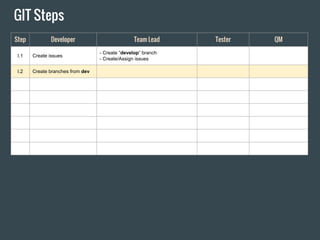

8. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev

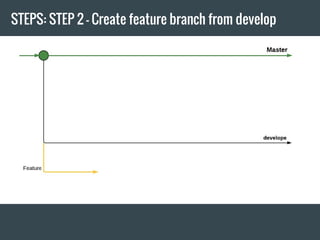

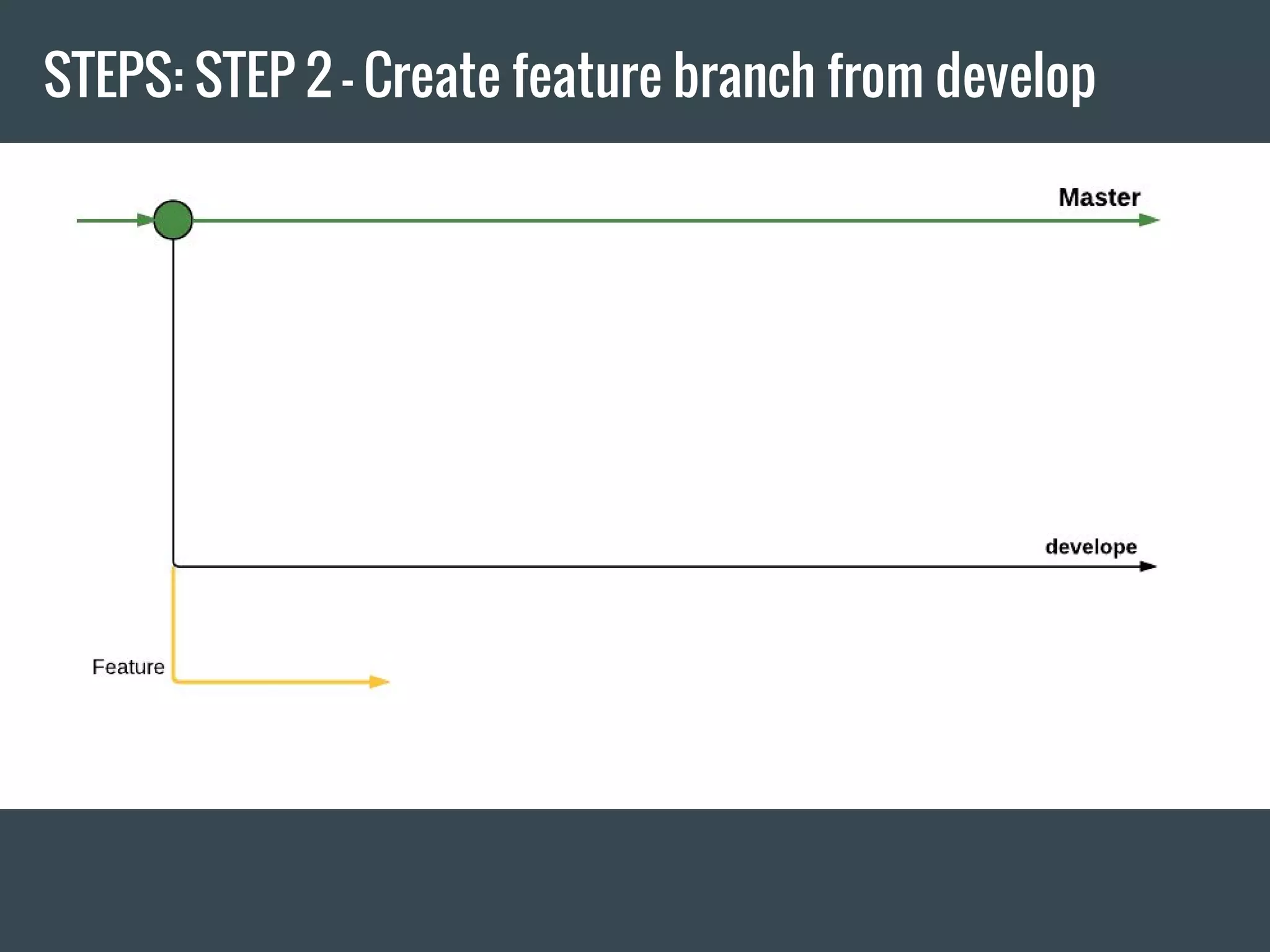

9. STEPS: STEP 2 - Create feature branch from develop

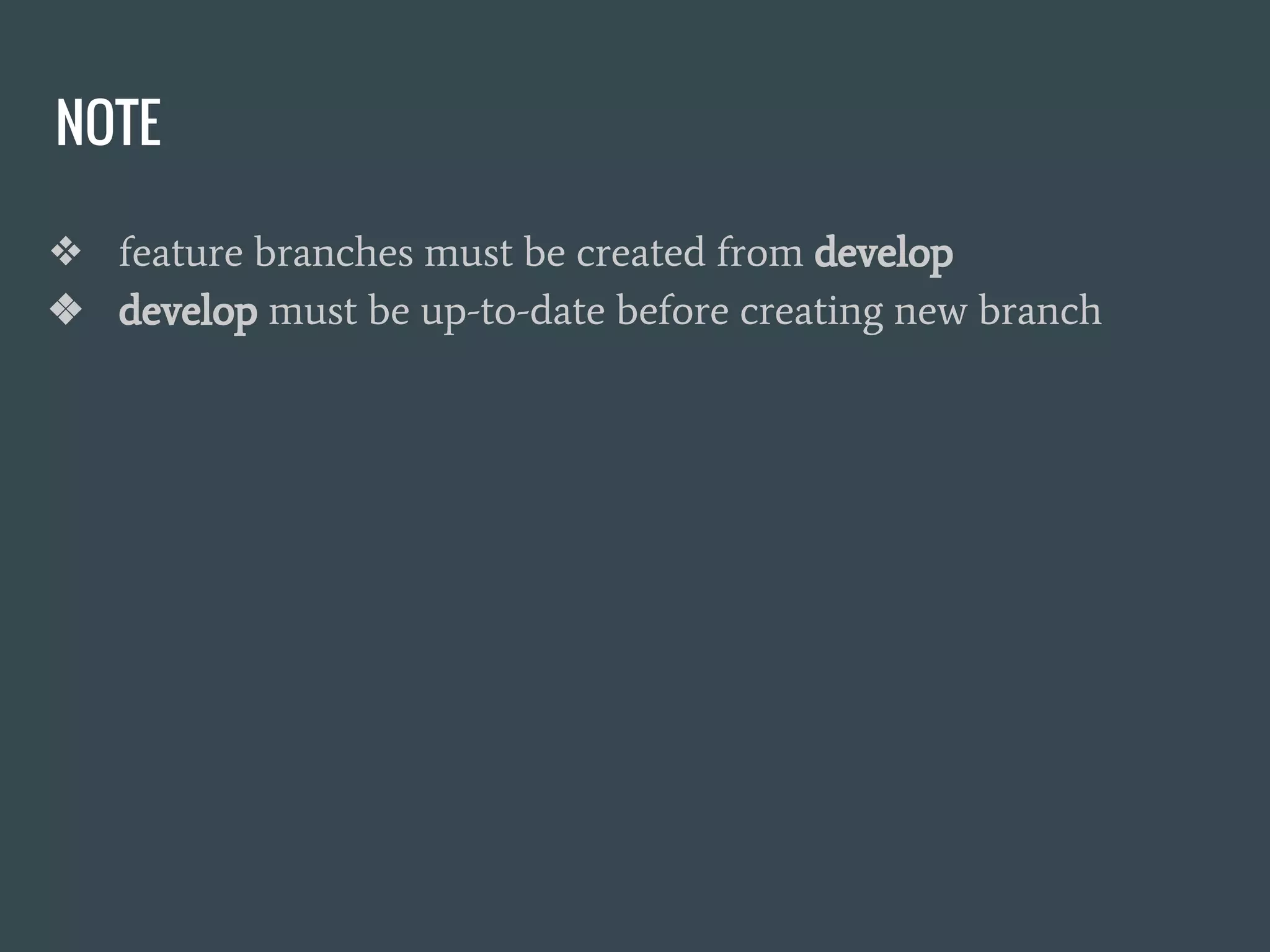

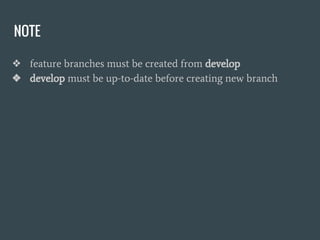

10. NOTE
❖ feature branches must be created from develop
❖ develop must be up-to-date before creating new branch

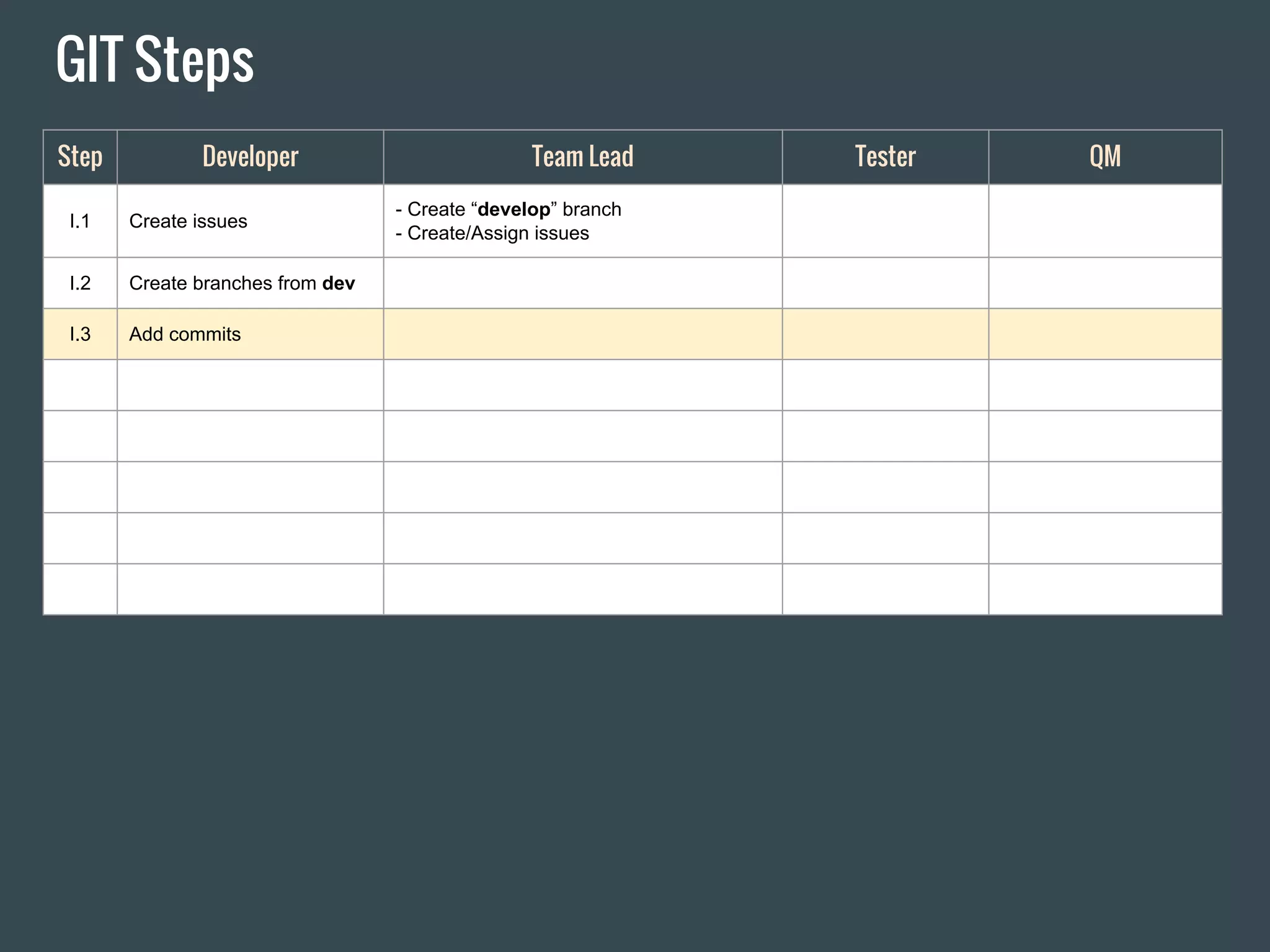

11. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits

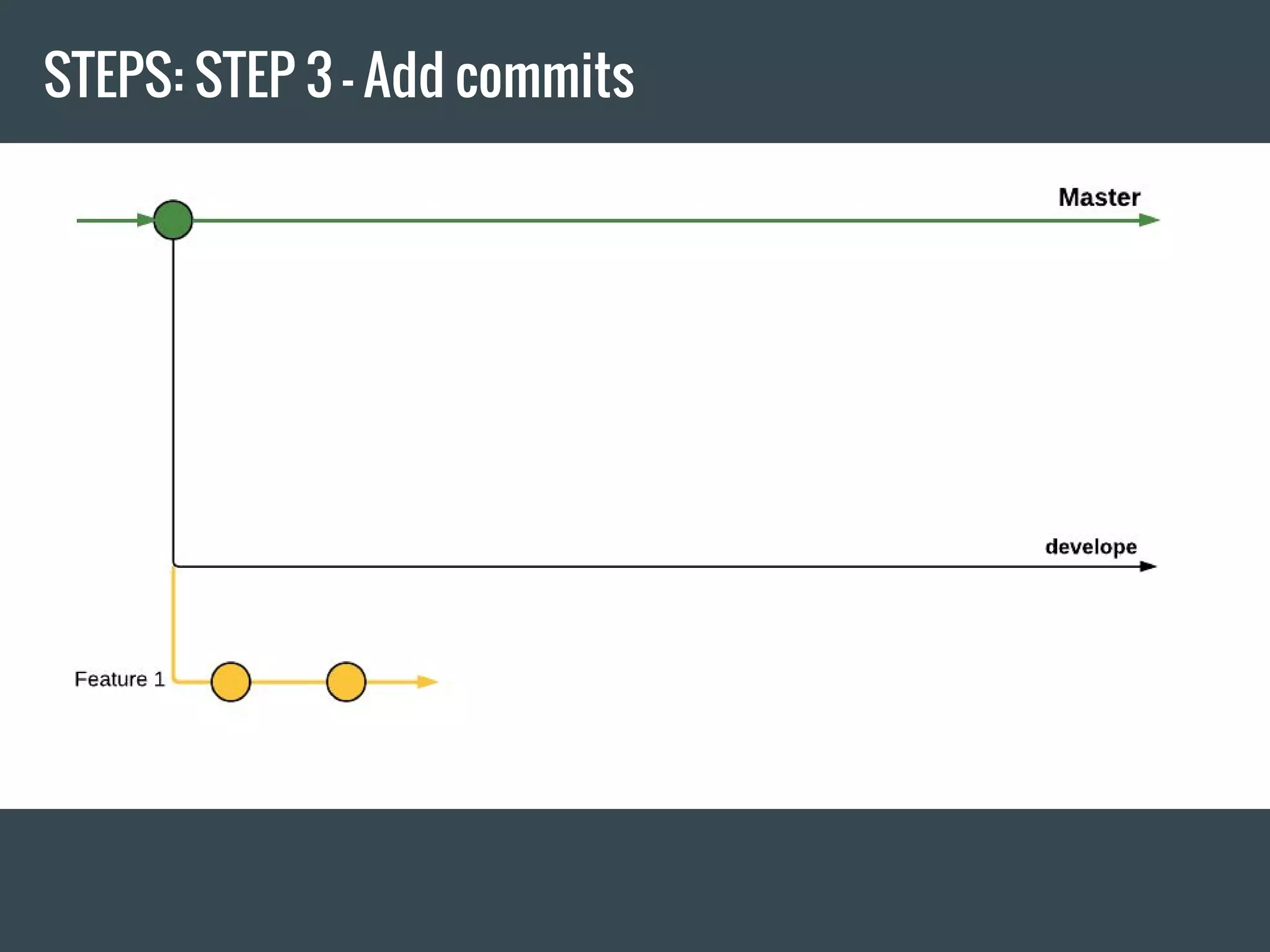

12. STEPS: STEP 3 - Add commits

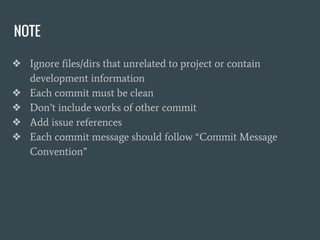

13. NOTE
❖ Ignore files/dirs that unrelated to project or contain
development information
❖ Each commit must be clean
❖ Don’t include works of other commit
❖ Add issue references
❖ Each commit message should follow “Commit Message
Convention”

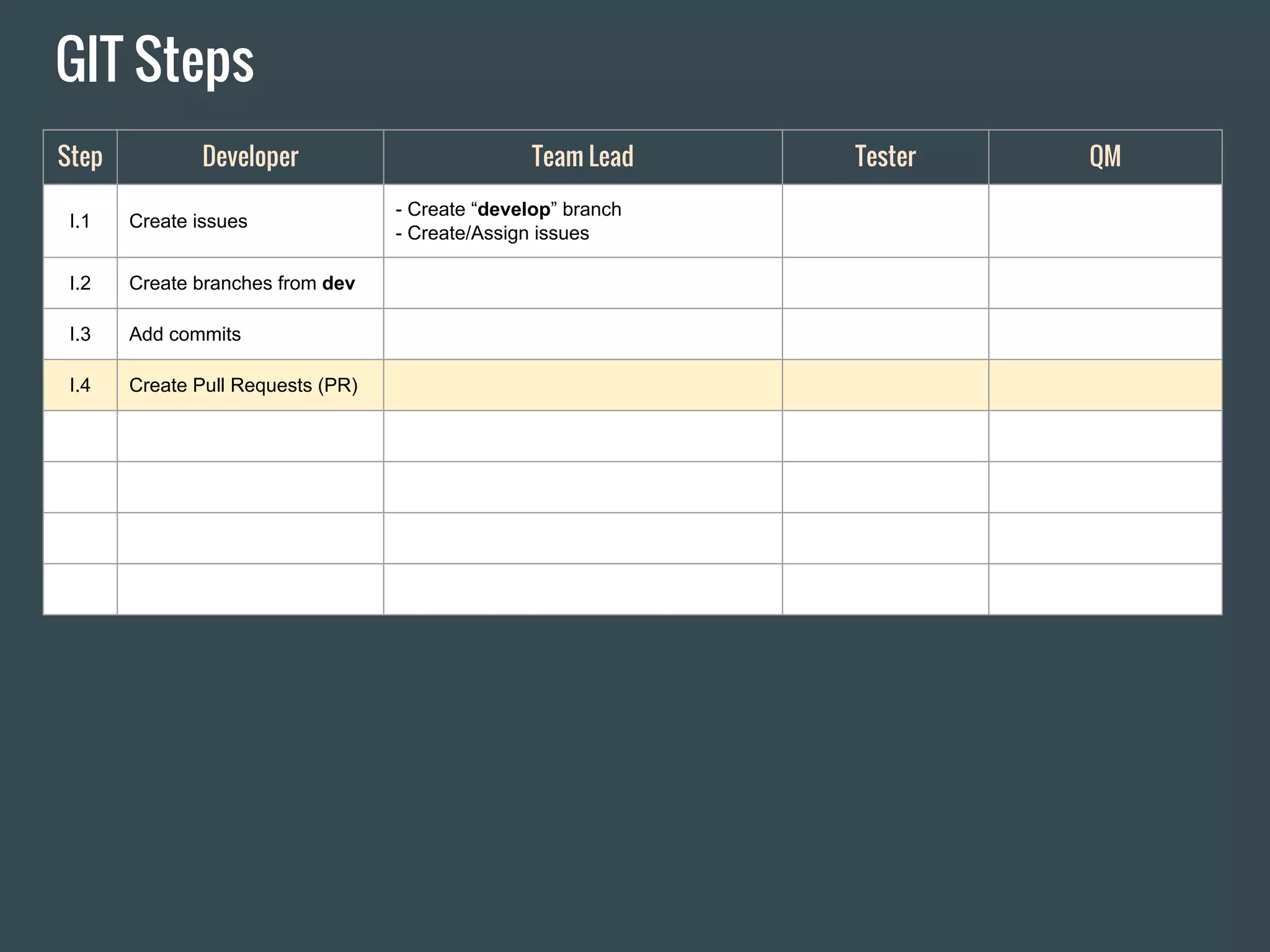

14. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits
I.4 Create Pull Requests (PR)

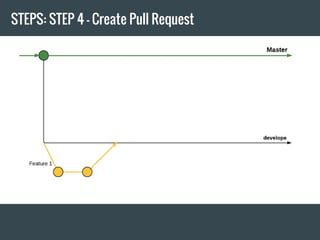

15. STEPS: STEP 4 - Create Pull Request

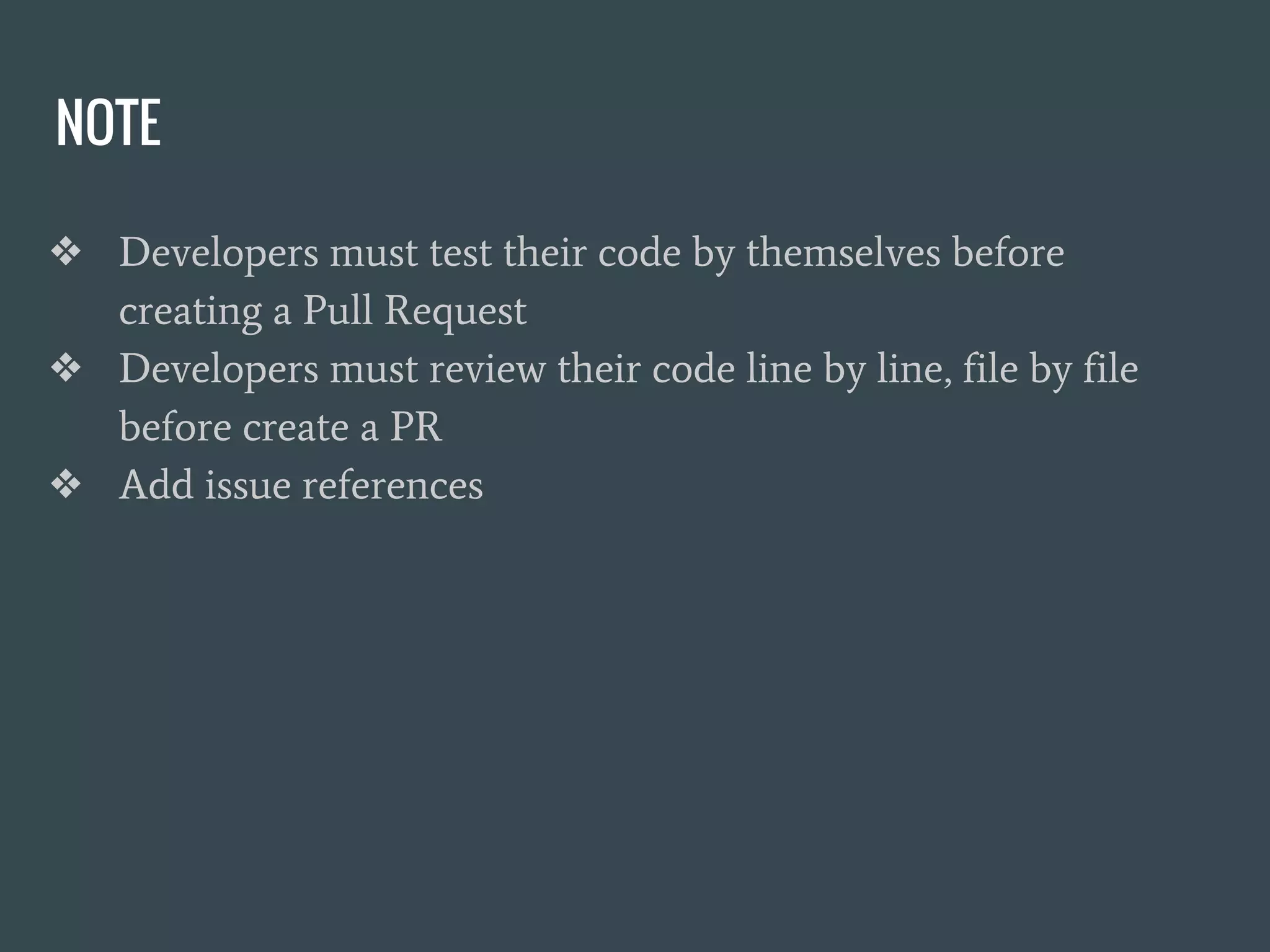

16. NOTE
❖ Developers must test their code by themselves before
creating a Pull Request
❖ Developers must review their code line by line, file by file
before create a PR
❖ Add issue references

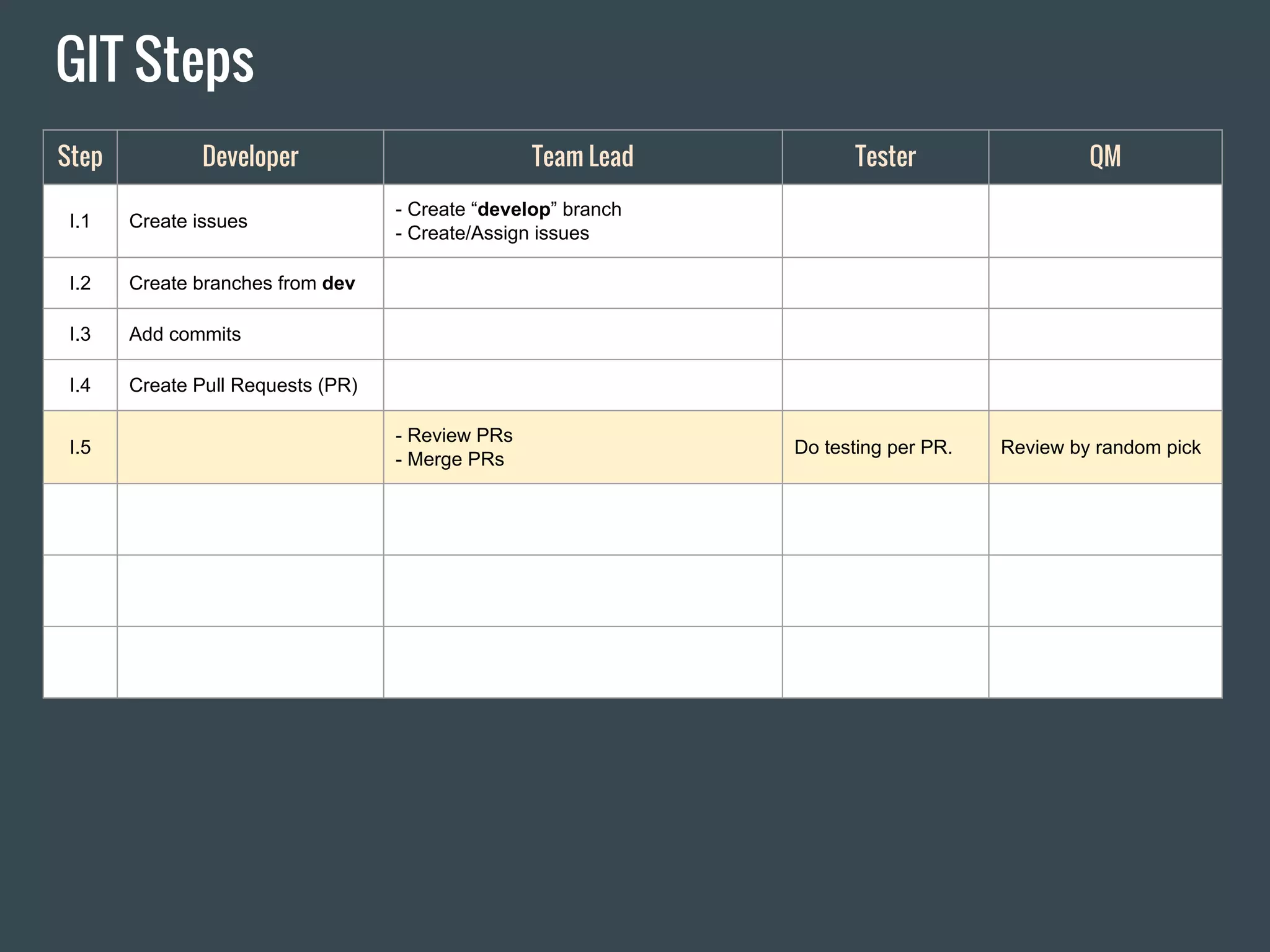

17. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits
I.4 Create Pull Requests (PR)
I.5
- Review PRs
- Merge PRs
Do testing per PR. Review by random pick

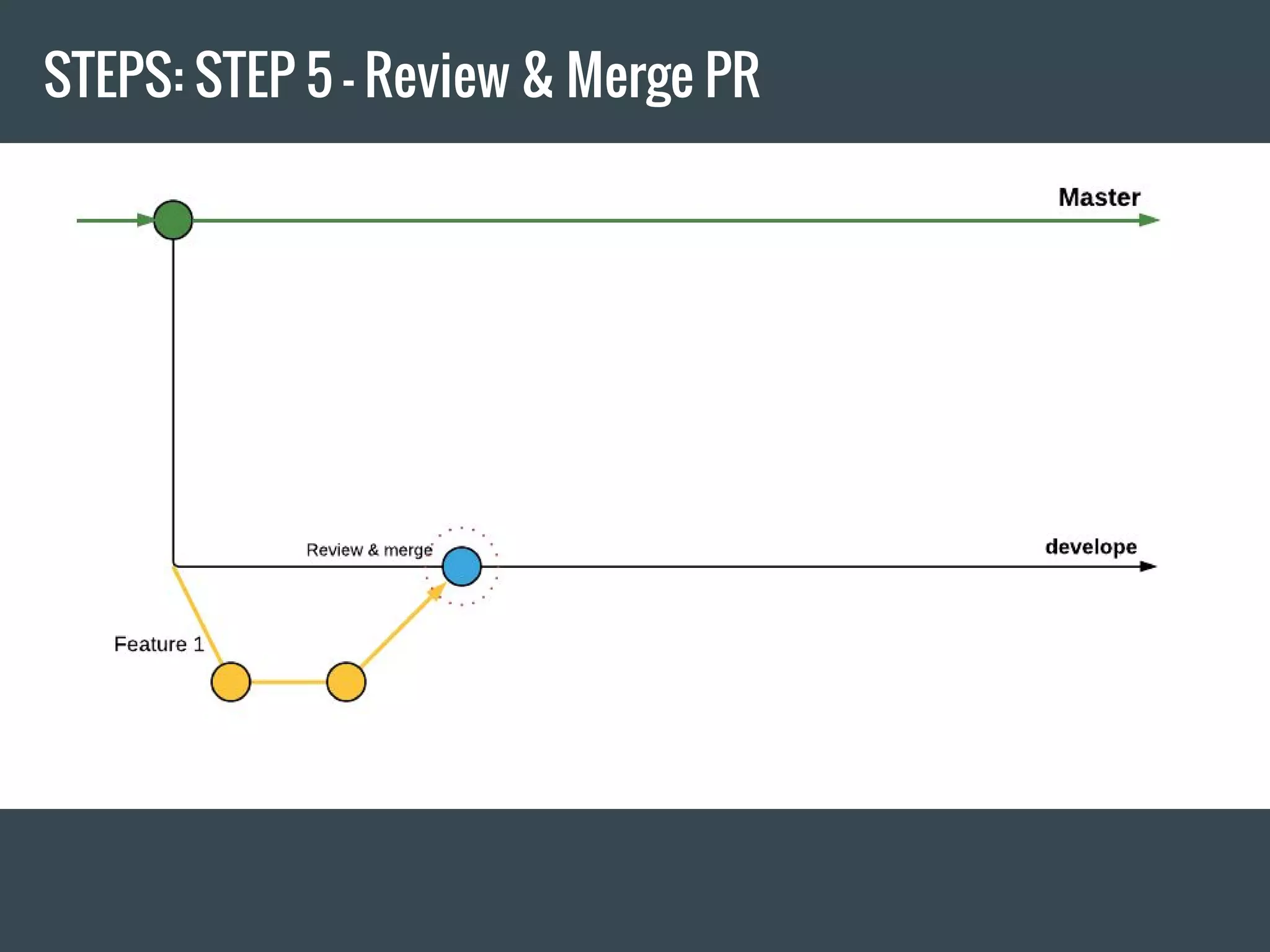

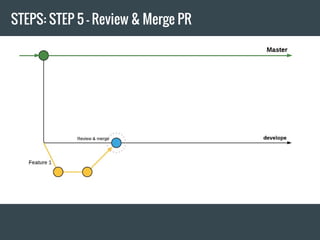

18. STEPS: STEP 5 - Review & Merge PR

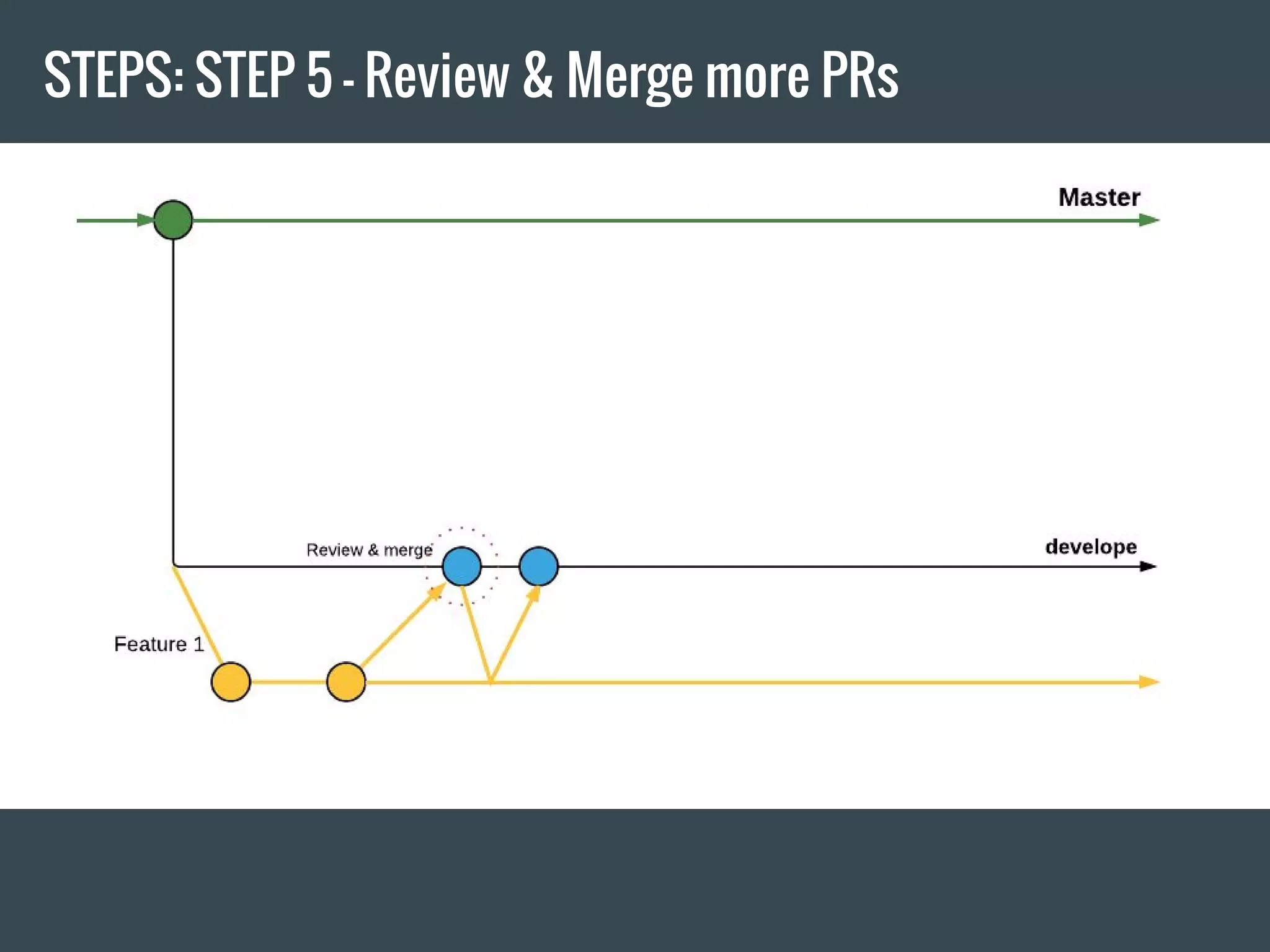

19. STEPS: STEP 5 - Review & Merge more PRs

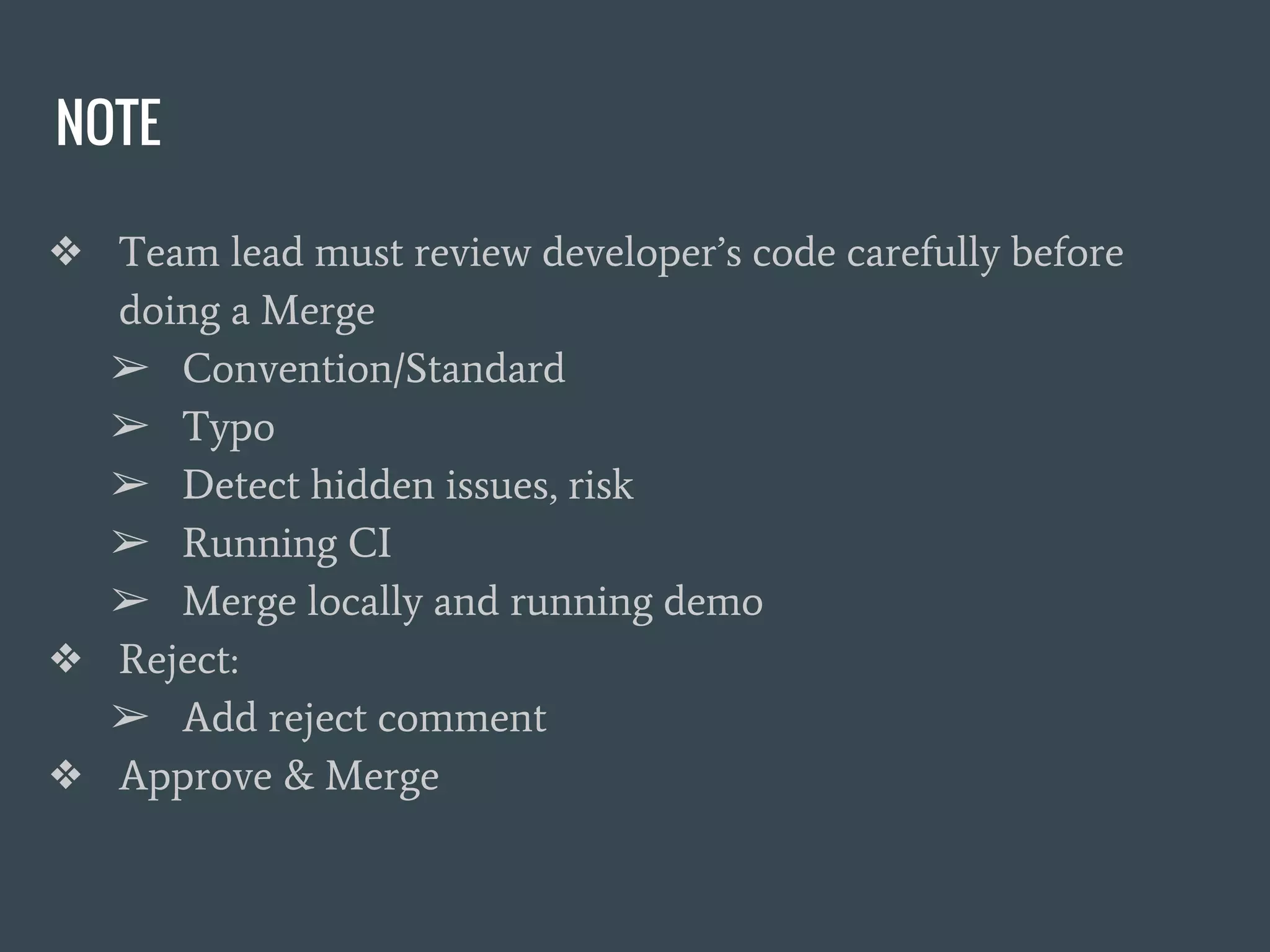

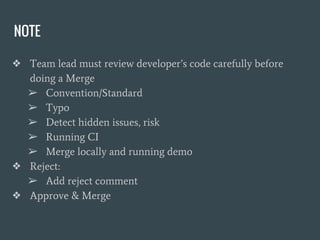

20. NOTE
❖ Team lead must review developer’s code carefully before
doing a Merge
➢ Convention/Standard
➢ Typo
➢ Detect hidden issues, risk
➢ Running CI
➢ Merge locally and running demo
❖ Reject:
➢ Add reject comment
❖ Approve & Merge

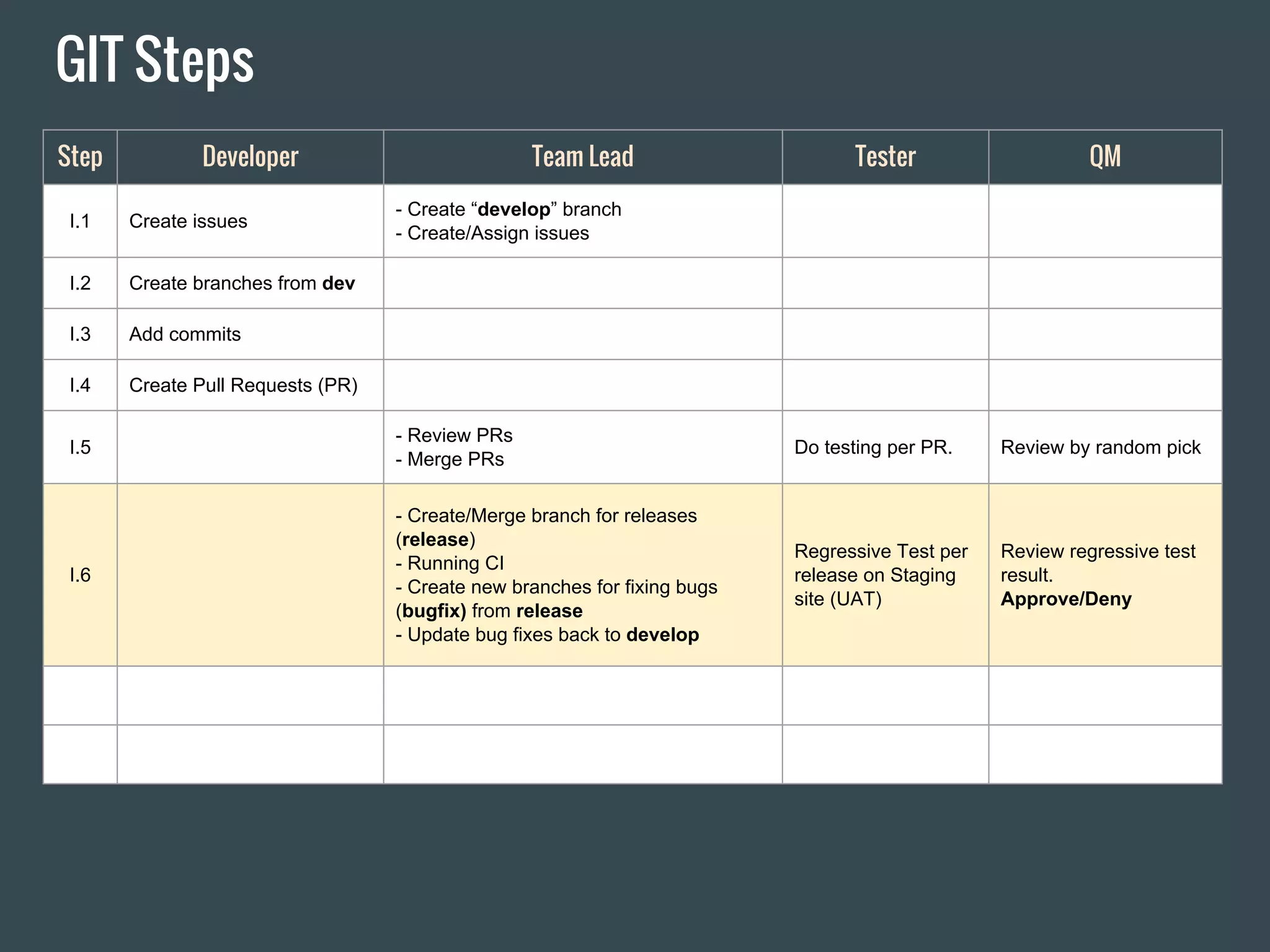

21. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits
I.4 Create Pull Requests (PR)
I.5
- Review PRs
- Merge PRs
Do testing per PR. Review by random pick
I.6
- Create/Merge branch for releases
(release)
- Running CI
- Create new branches for fixing bugs
(bugfix) from release
- Update bug fixes back to develop
Regressive Test per
release on Staging
site (UAT)
Review regressive test
result.
Approve/Deny

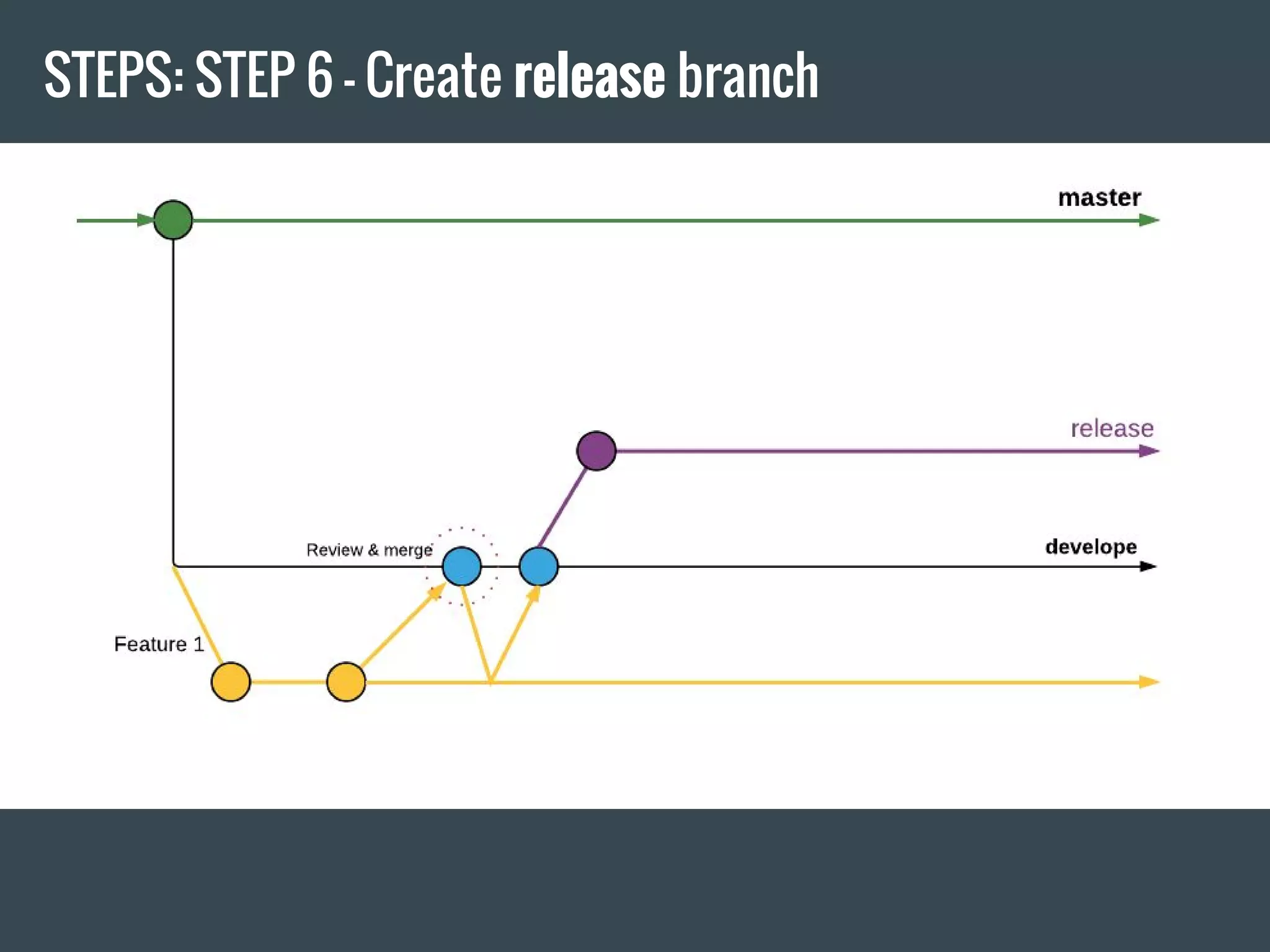

22. STEPS: STEP 6 - Create release branch

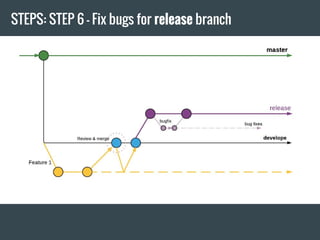

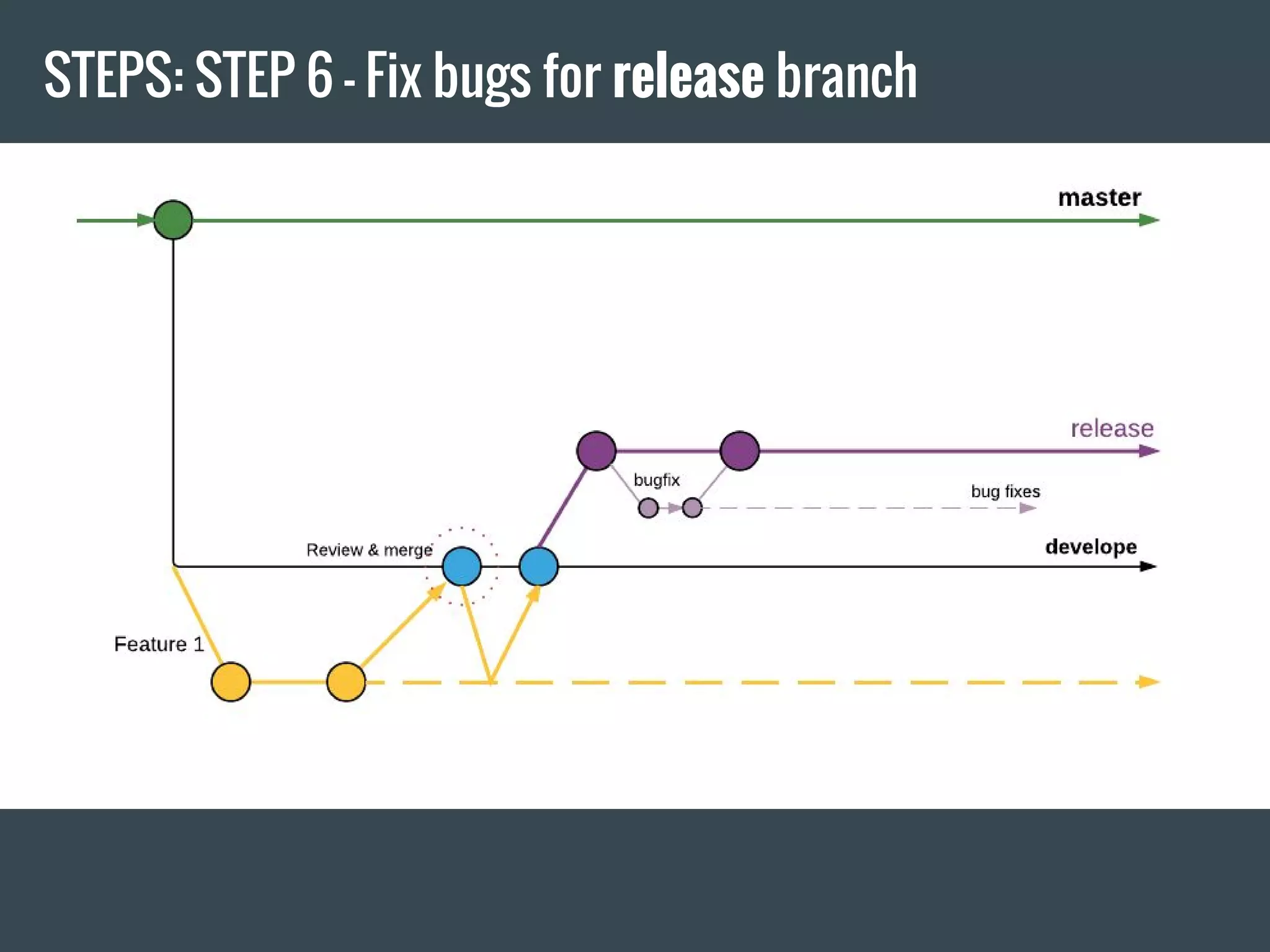

23. STEPS: STEP 6 - Fix bugs for release branch

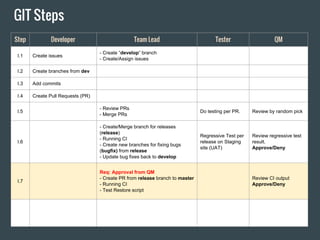

24. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits
I.4 Create Pull Requests (PR)
I.5
- Review PRs
- Merge PRs
Do testing per PR. Review by random pick
I.6
- Create/Merge branch for releases
(release)
- Running CI
- Create new branches for fixing bugs
(bugfix) from release
- Update bug fixes back to develop
Regressive Test per
release on Staging
site (UAT)
Review regressive test
result.
Approve/Deny
I.7
Req: Approval from QM
- Create PR from release branch to master
- Running CI
- Test Restore script
Review CI output
Approve/Deny

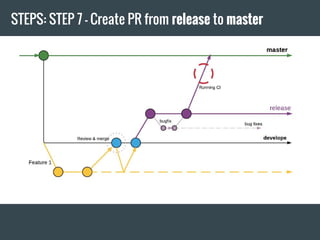

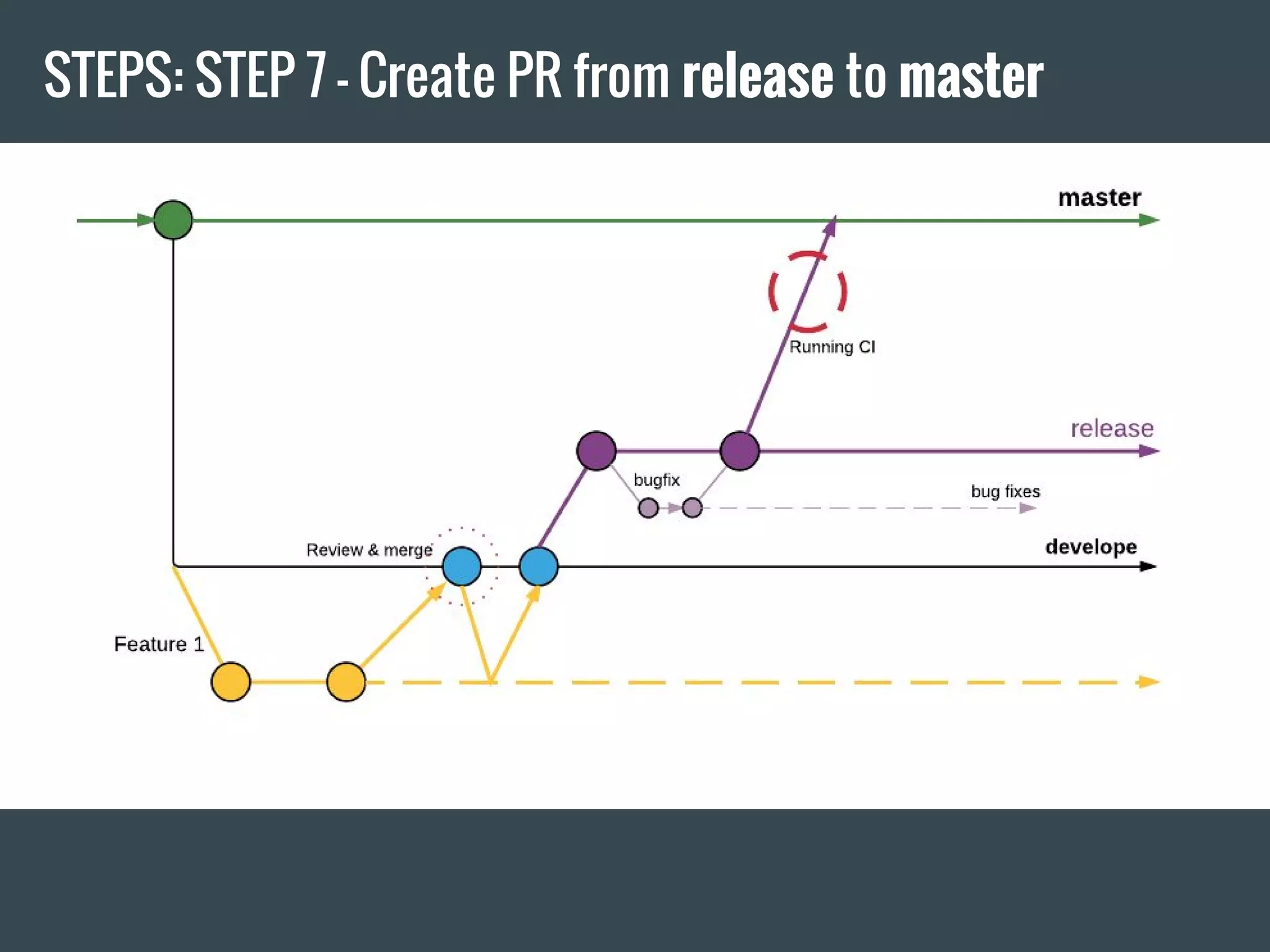

25. STEPS: STEP 7 - Create PR from release to master

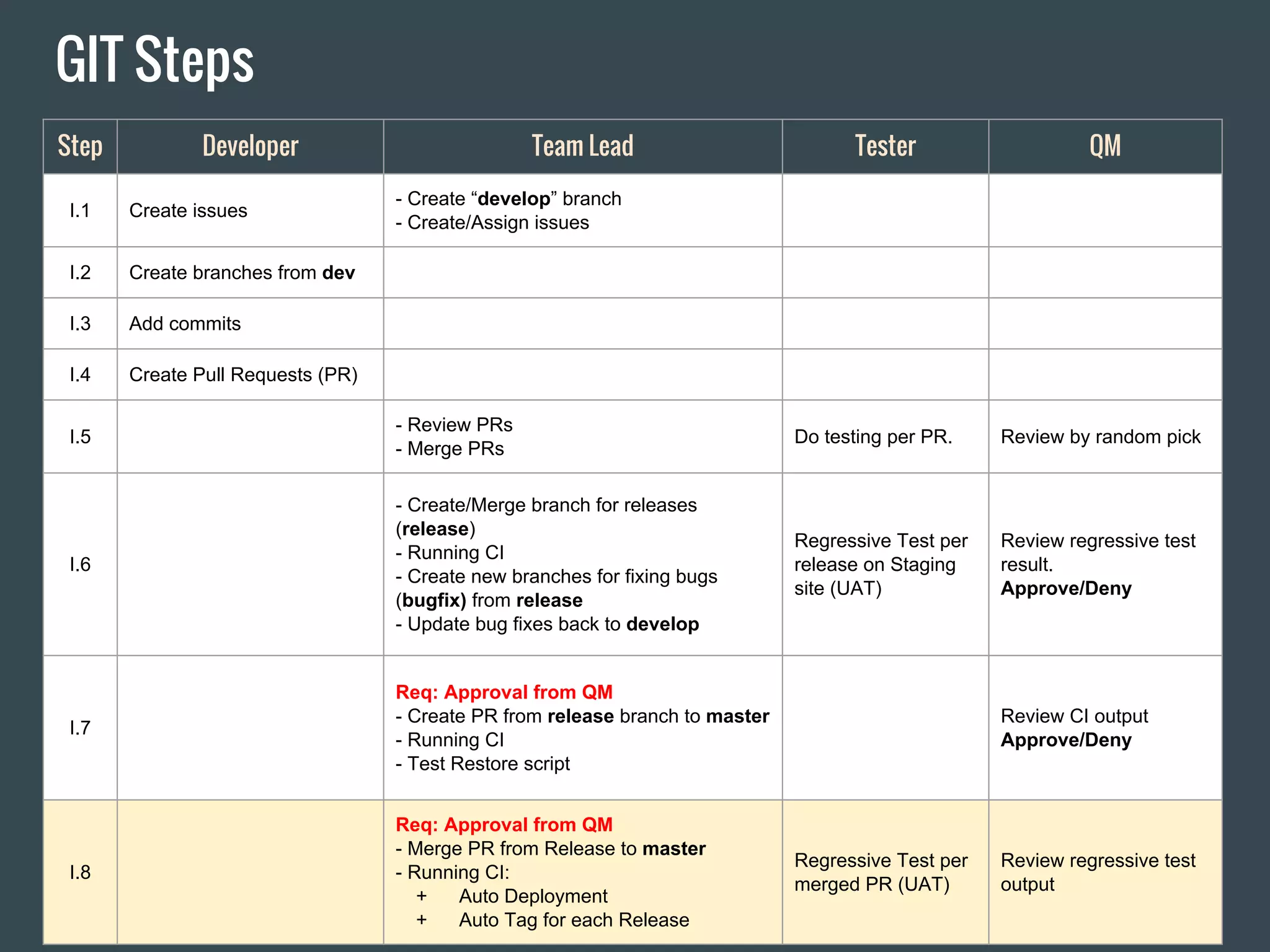

26. GIT Steps
Step Developer Team Lead Tester QM
I.1 Create issues
- Create “develop” branch
- Create/Assign issues
I.2 Create branches from dev
I.3 Add commits
I.4 Create Pull Requests (PR)
I.5
- Review PRs
- Merge PRs
Do testing per PR. Review by random pick
I.6
- Create/Merge branch for releases
(release)
- Running CI
- Create new branches for fixing bugs
(bugfix) from release
- Update bug fixes back to develop
Regressive Test per
release on Staging
site (UAT)
Review regressive test
result.
Approve/Deny
I.7
Req: Approval from QM
- Create PR from release branch to master
- Running CI
- Test Restore script
Review CI output
Approve/Deny
I.8
Req: Approval from QM
- Merge PR from Release to master
- Running CI:
+ Auto Deployment
+ Auto Tag for each Release
Regressive Test per
merged PR (UAT)
Review regressive test
output

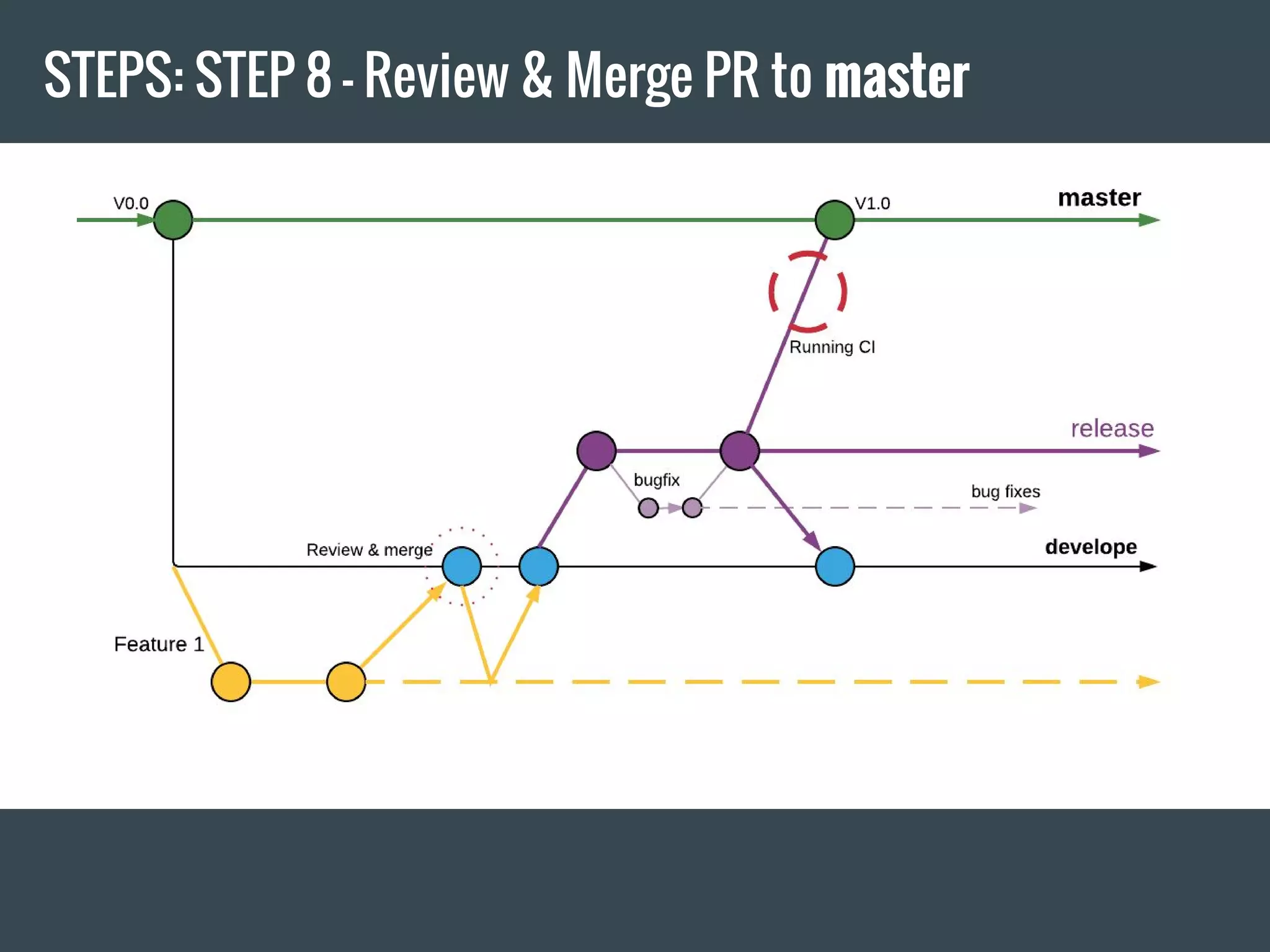

27. STEPS: STEP 8 - Review & Merge PR to master

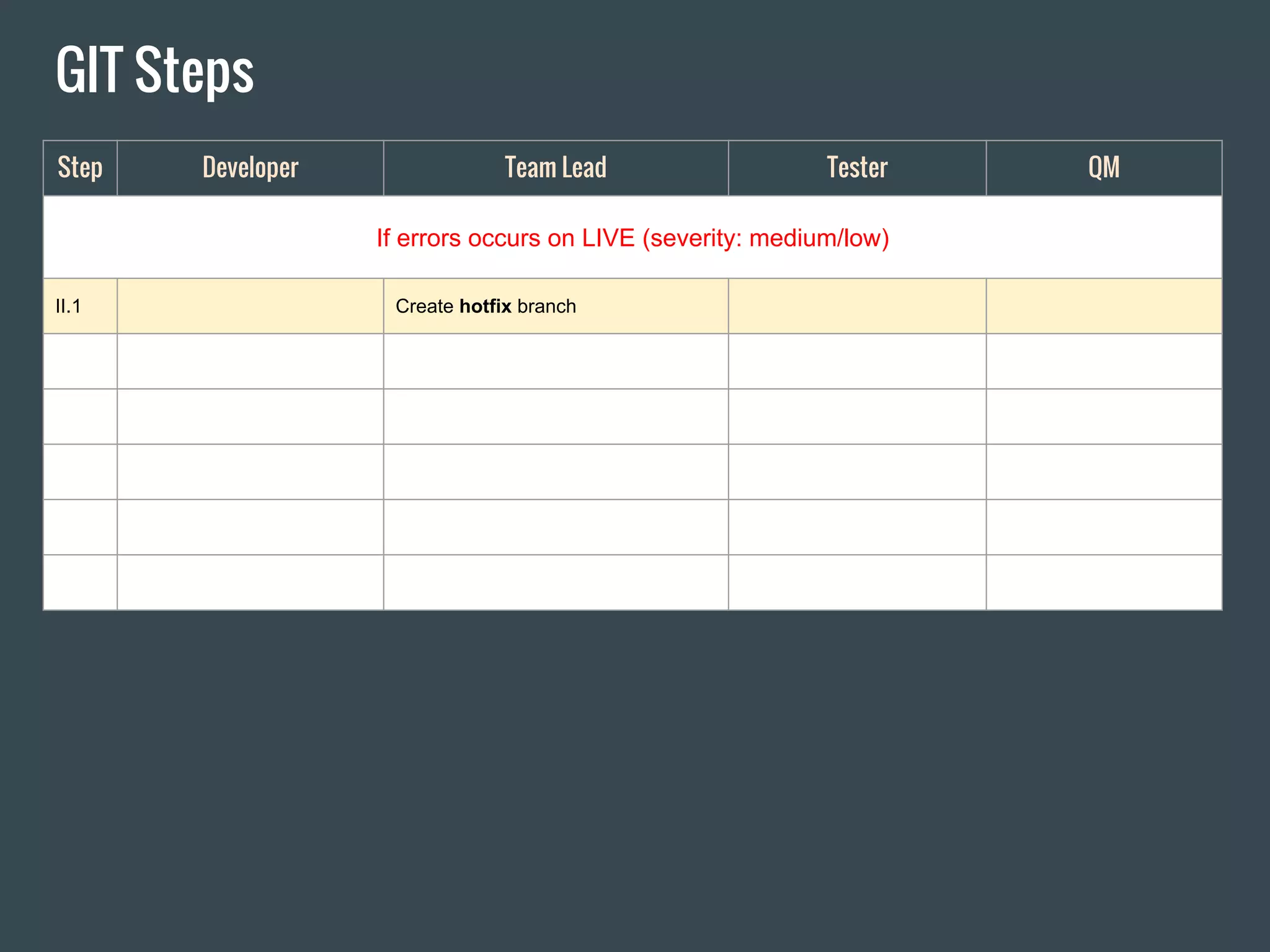

28. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch

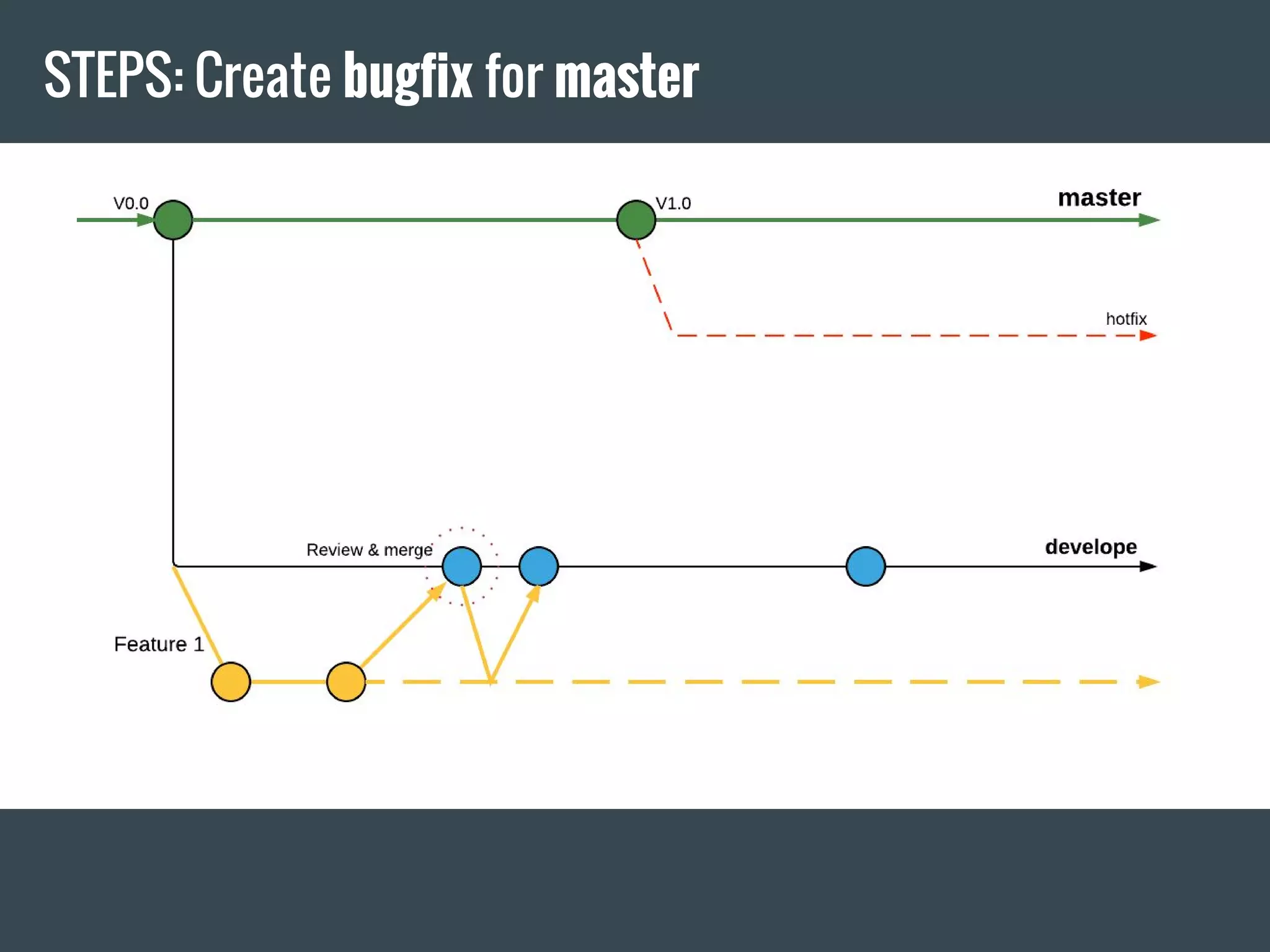

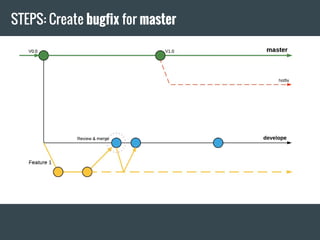

29. STEPS: Create bugfix for master

30. GIT Steps

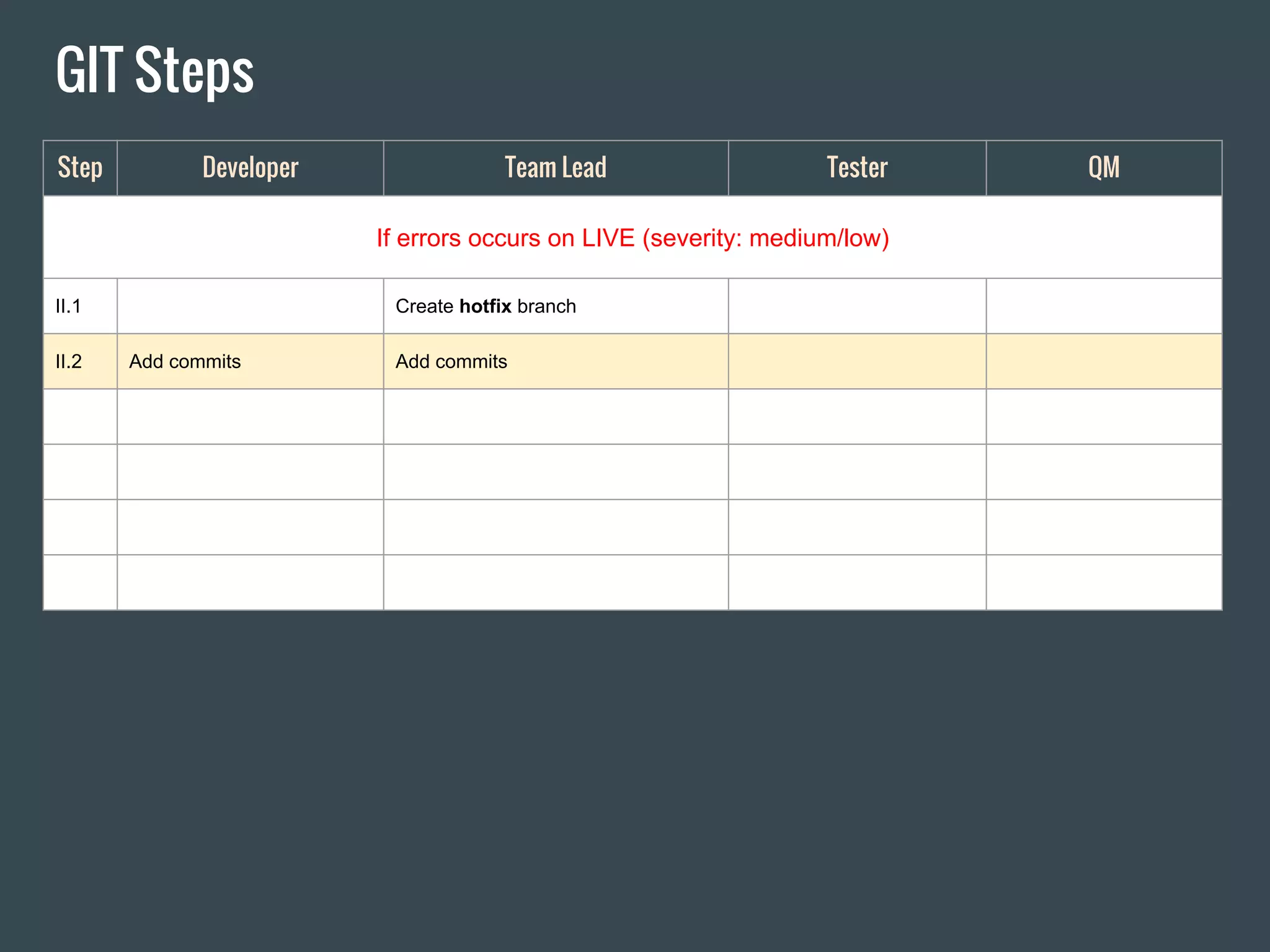

Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch
II.2 Add commits Add commits

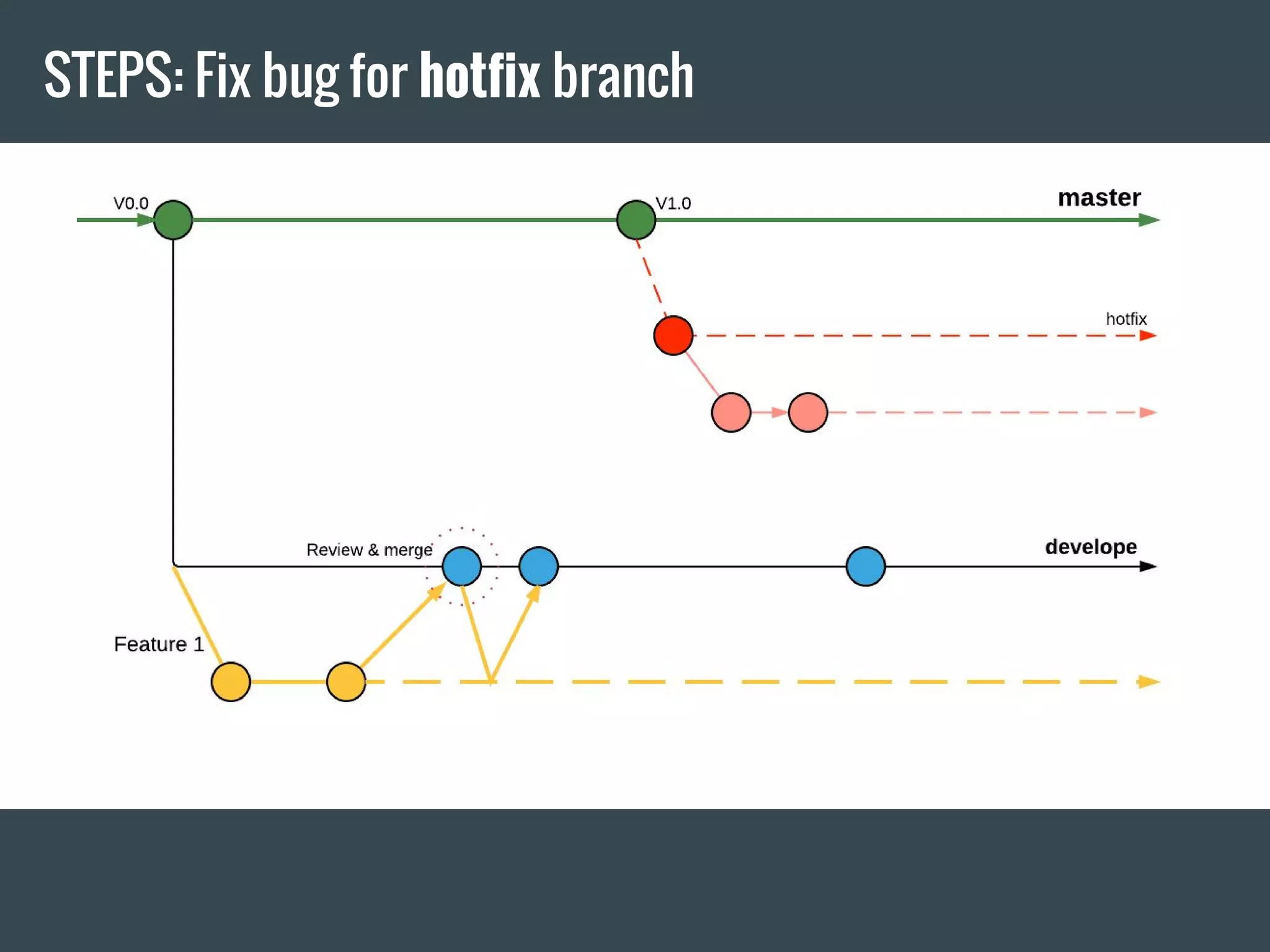

31. STEPS: Fix bug for hotfix branch

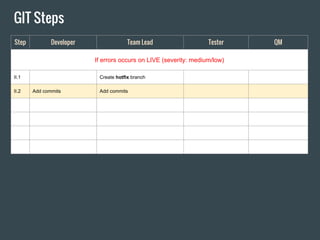

32. GIT Steps

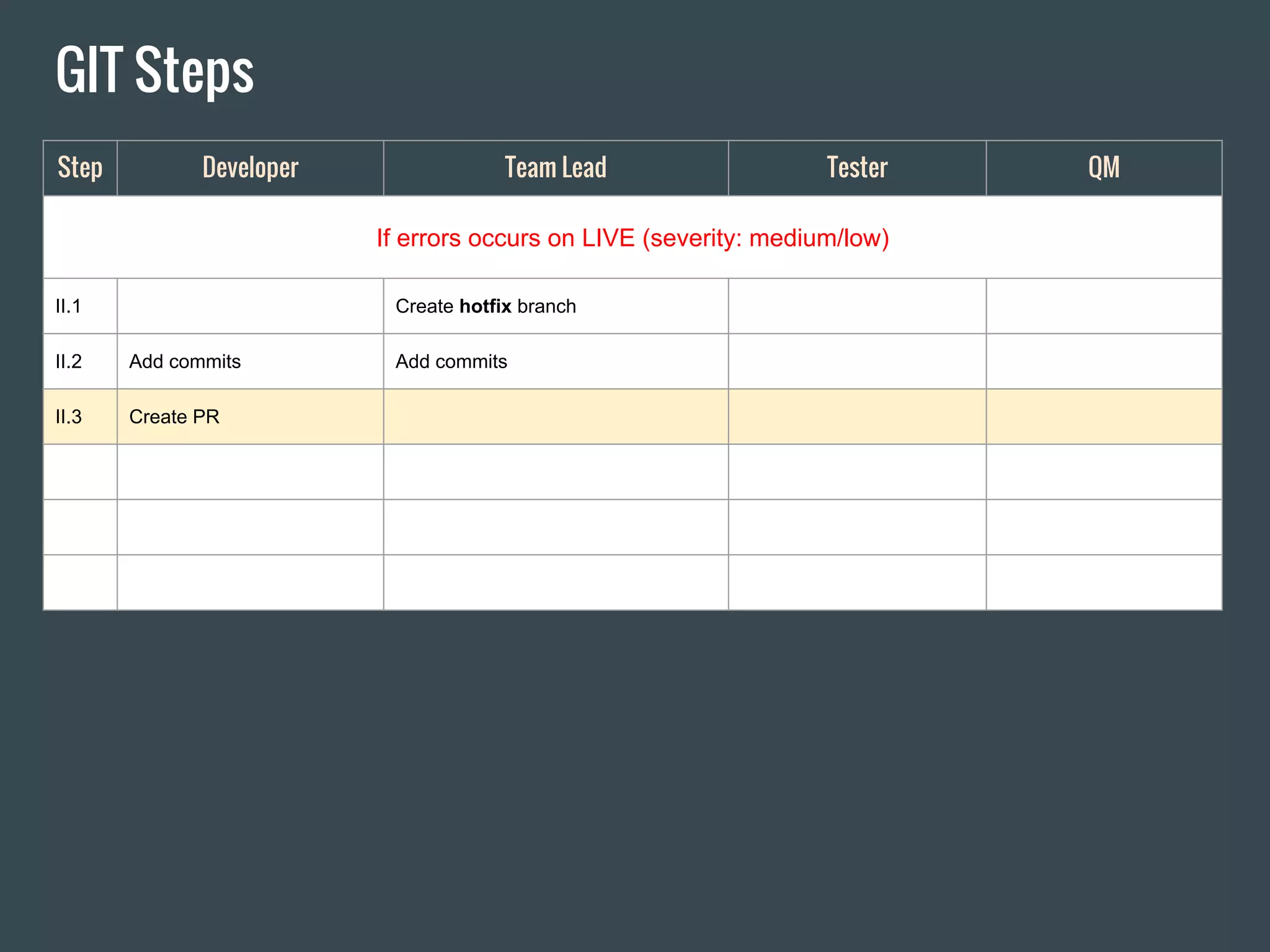

Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch
II.2 Add commits Add commits
II.3 Create PR

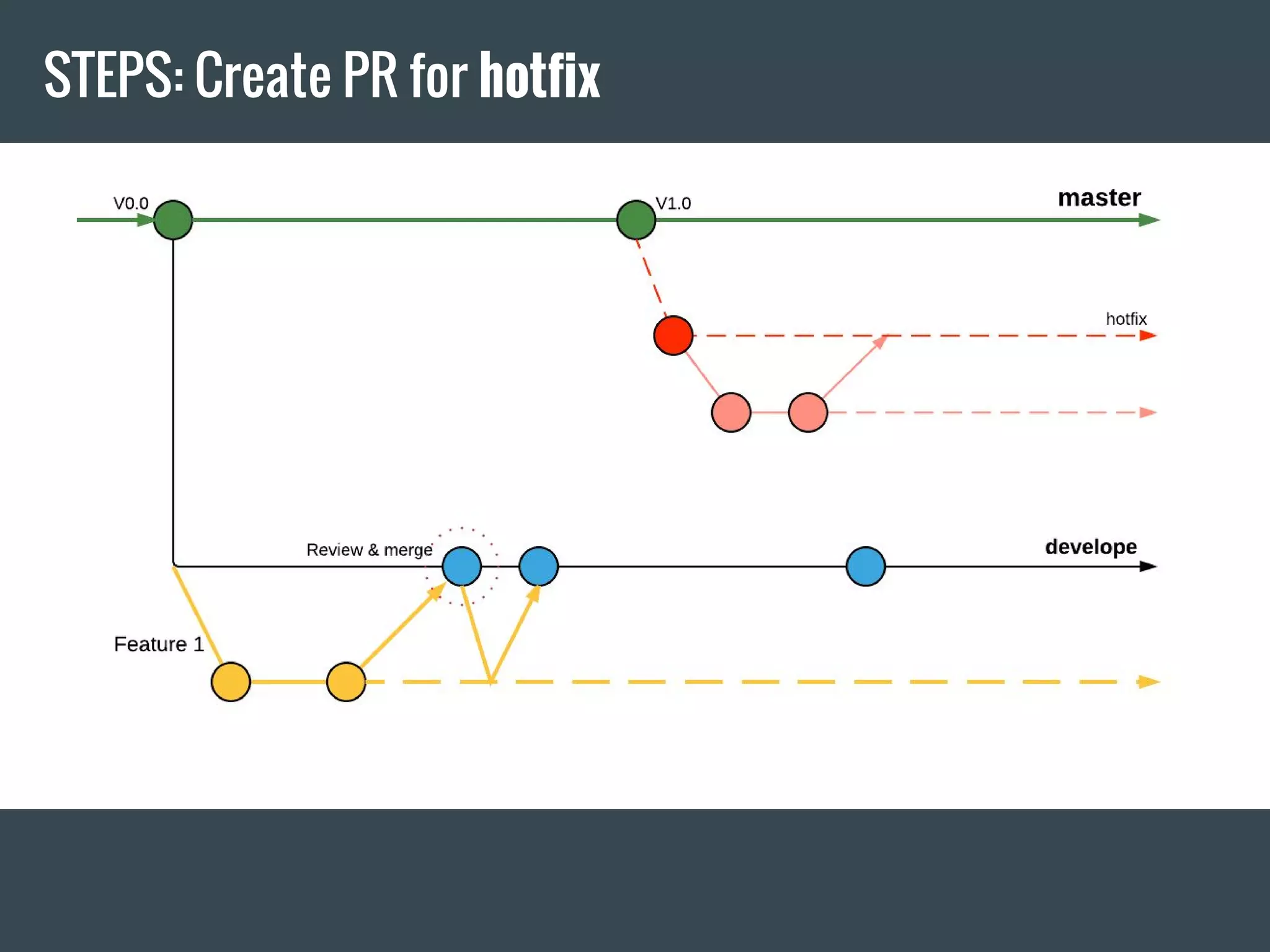

33. STEPS: Create PR for hotfix

34. GIT Steps

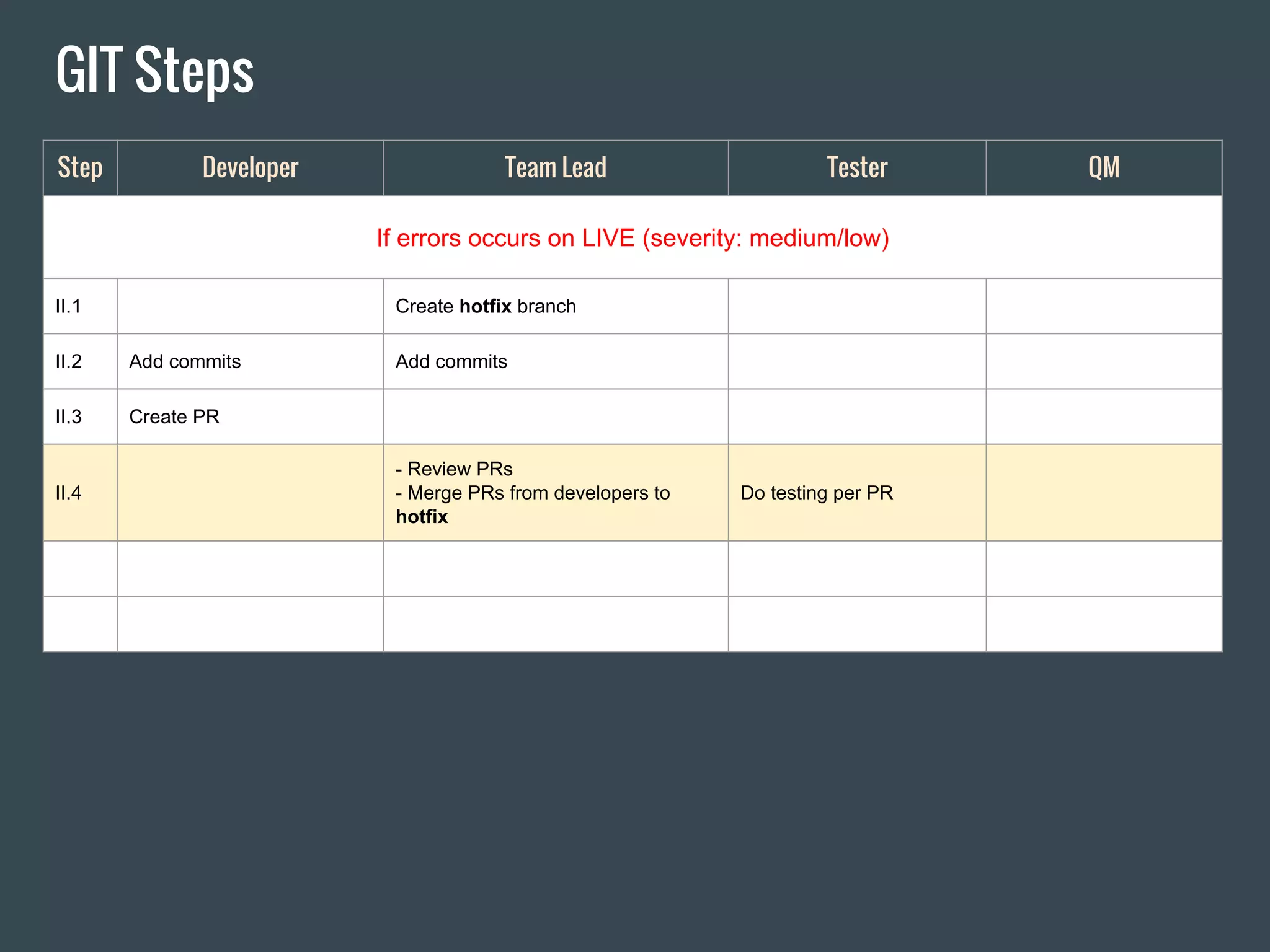

Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch
II.2 Add commits Add commits
II.3 Create PR
II.4
- Review PRs
- Merge PRs from developers to
hotfix
Do testing per PR

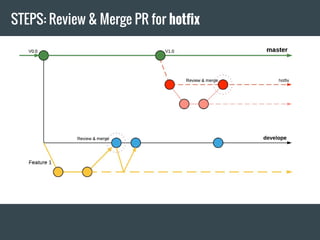

35. STEPS: Review & Merge PR for hotfix

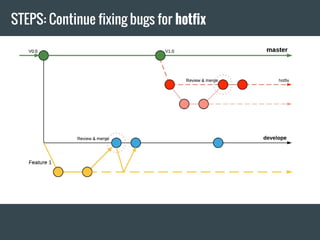

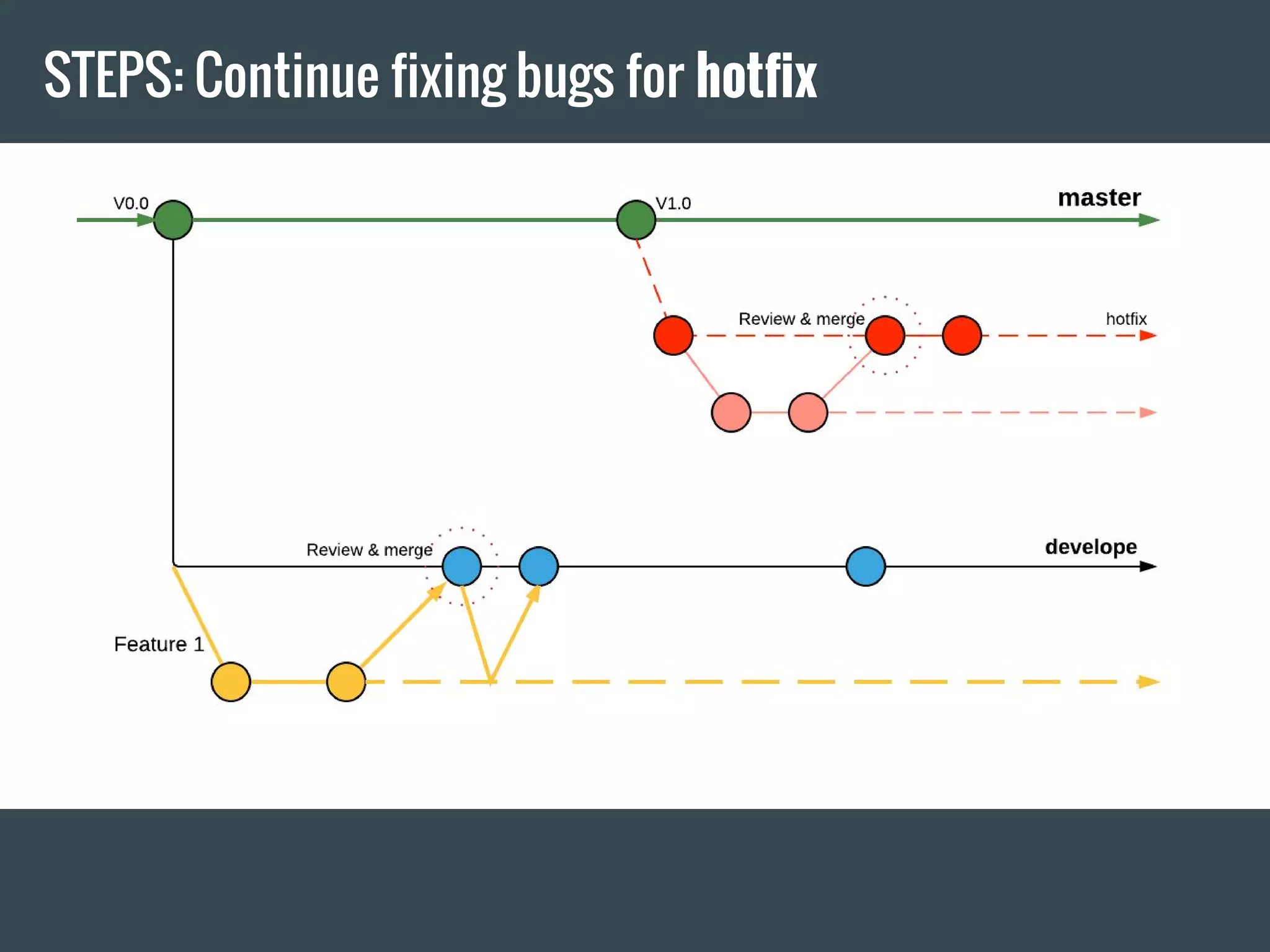

36. STEPS: Continue fixing bugs for hotfix

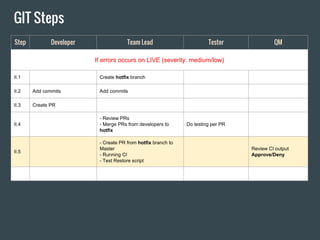

37. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch
II.2 Add commits Add commits
II.3 Create PR
II.4
- Review PRs
- Merge PRs from developers to
hotfix
Do testing per PR
II.5

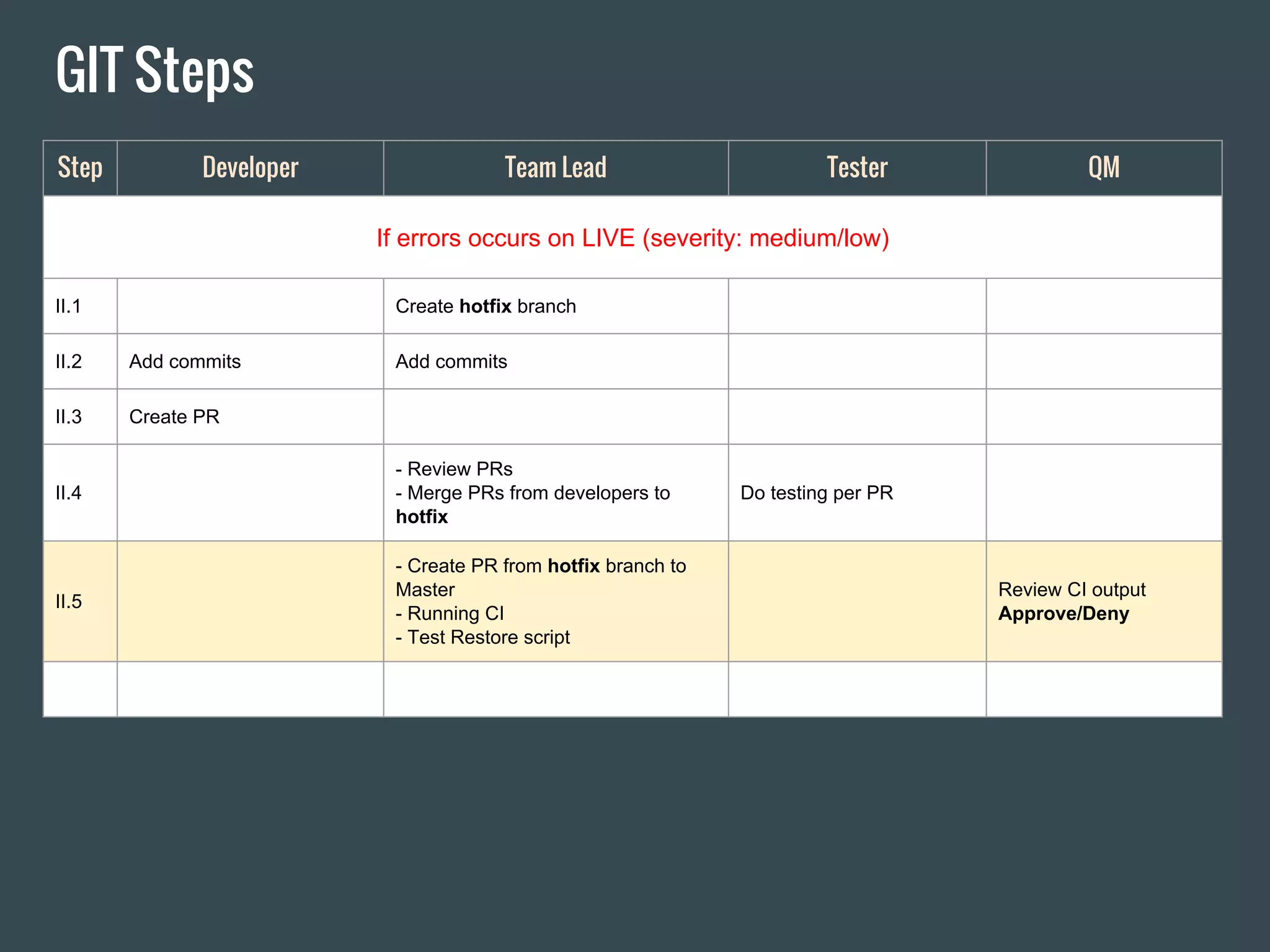

- Create PR from hotfix branch to
Master
- Running CI
- Test Restore script
Review CI output
Approve/Deny

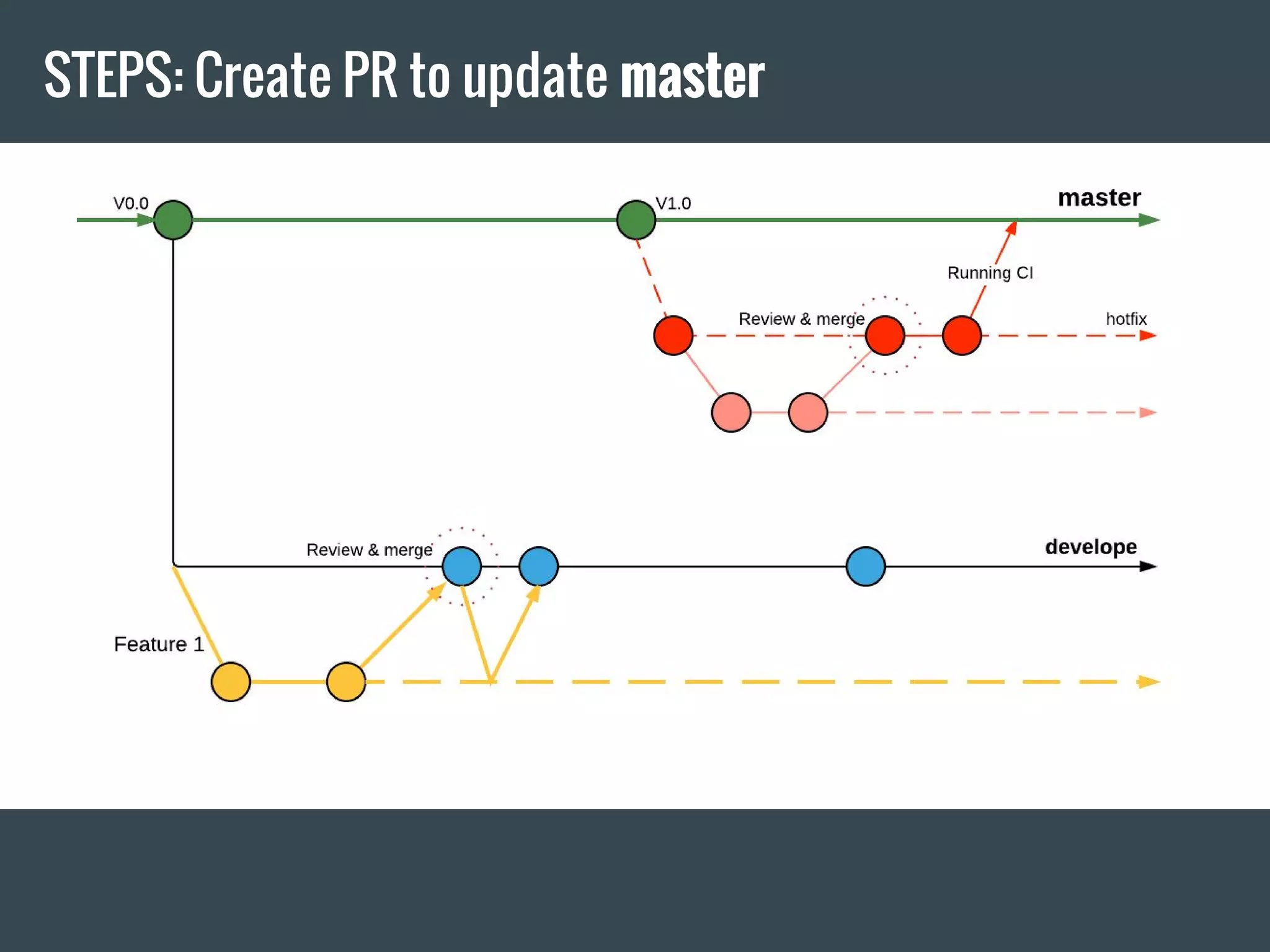

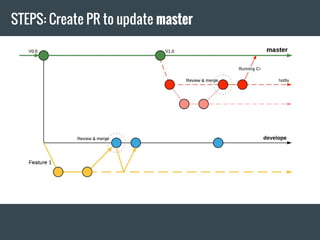

38. STEPS: Create PR to update master

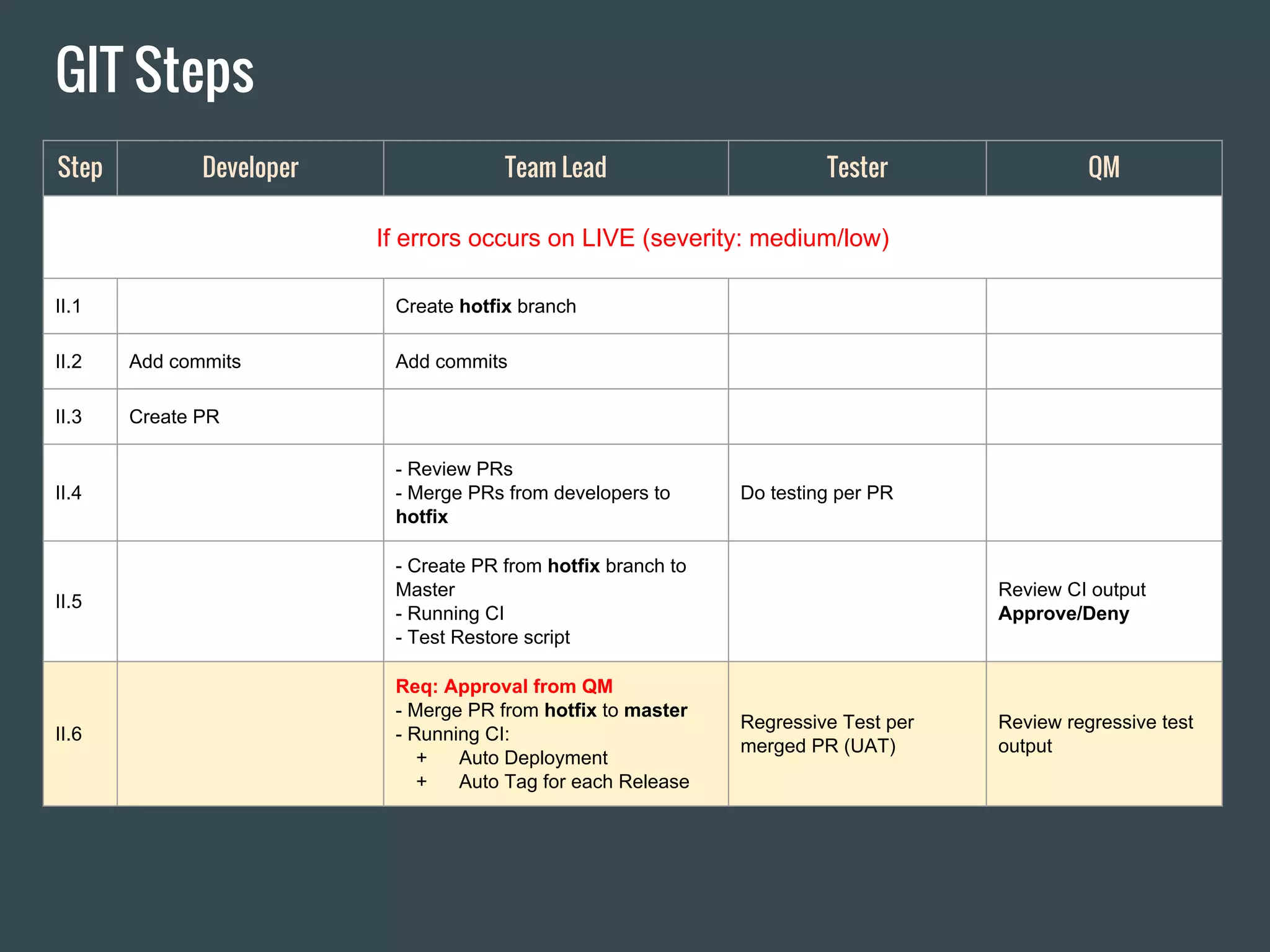

39. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE (severity: medium/low)
II.1 Create hotfix branch
II.2 Add commits Add commits
II.3 Create PR
II.4
- Review PRs
- Merge PRs from developers to
hotfix
Do testing per PR
II.5
- Create PR from hotfix branch to
Master
- Running CI
- Test Restore script
Review CI output
Approve/Deny
II.6
Req: Approval from QM
- Merge PR from hotfix to master
- Running CI:
+ Auto Deployment
+ Auto Tag for each Release
Regressive Test per
merged PR (UAT)
Review regressive test
output

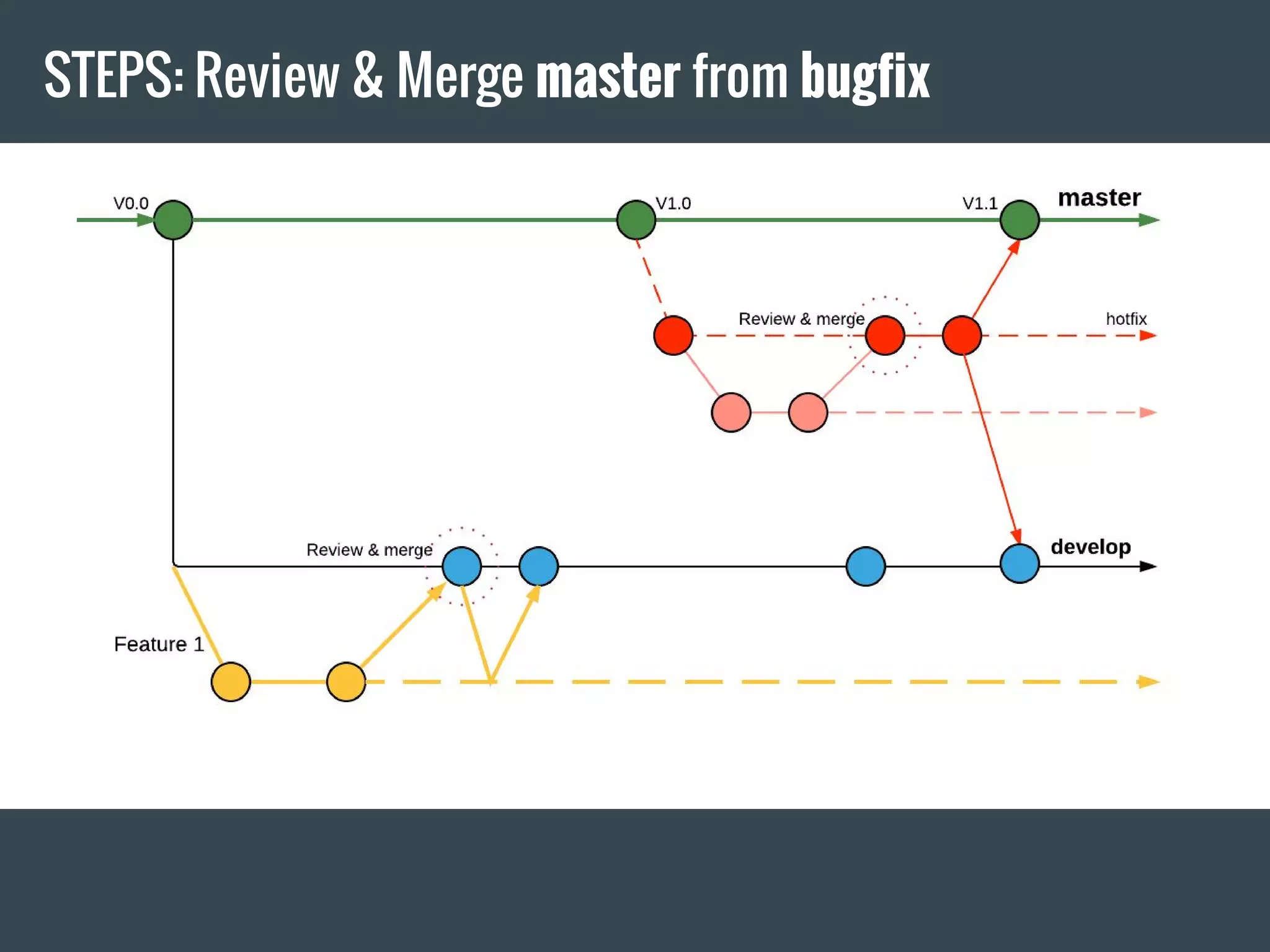

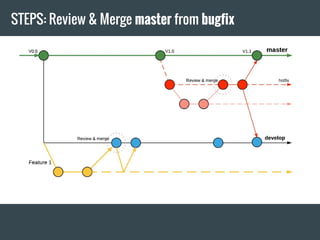

40. STEPS: Review & Merge master from bugfix

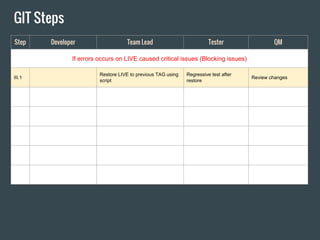

41. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes

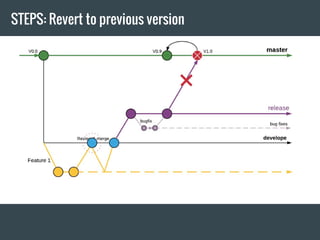

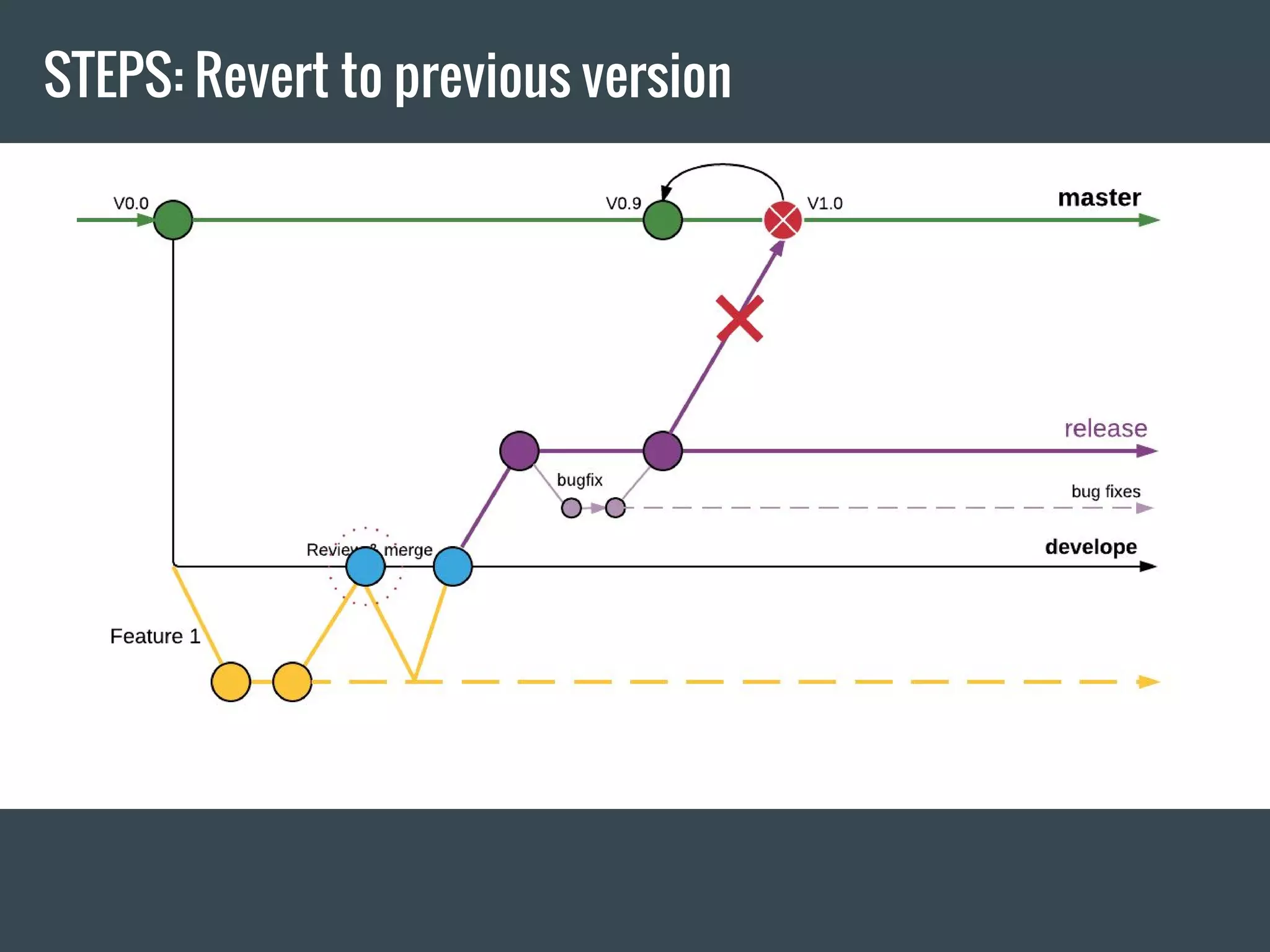

42. STEPS: Revert to previous version

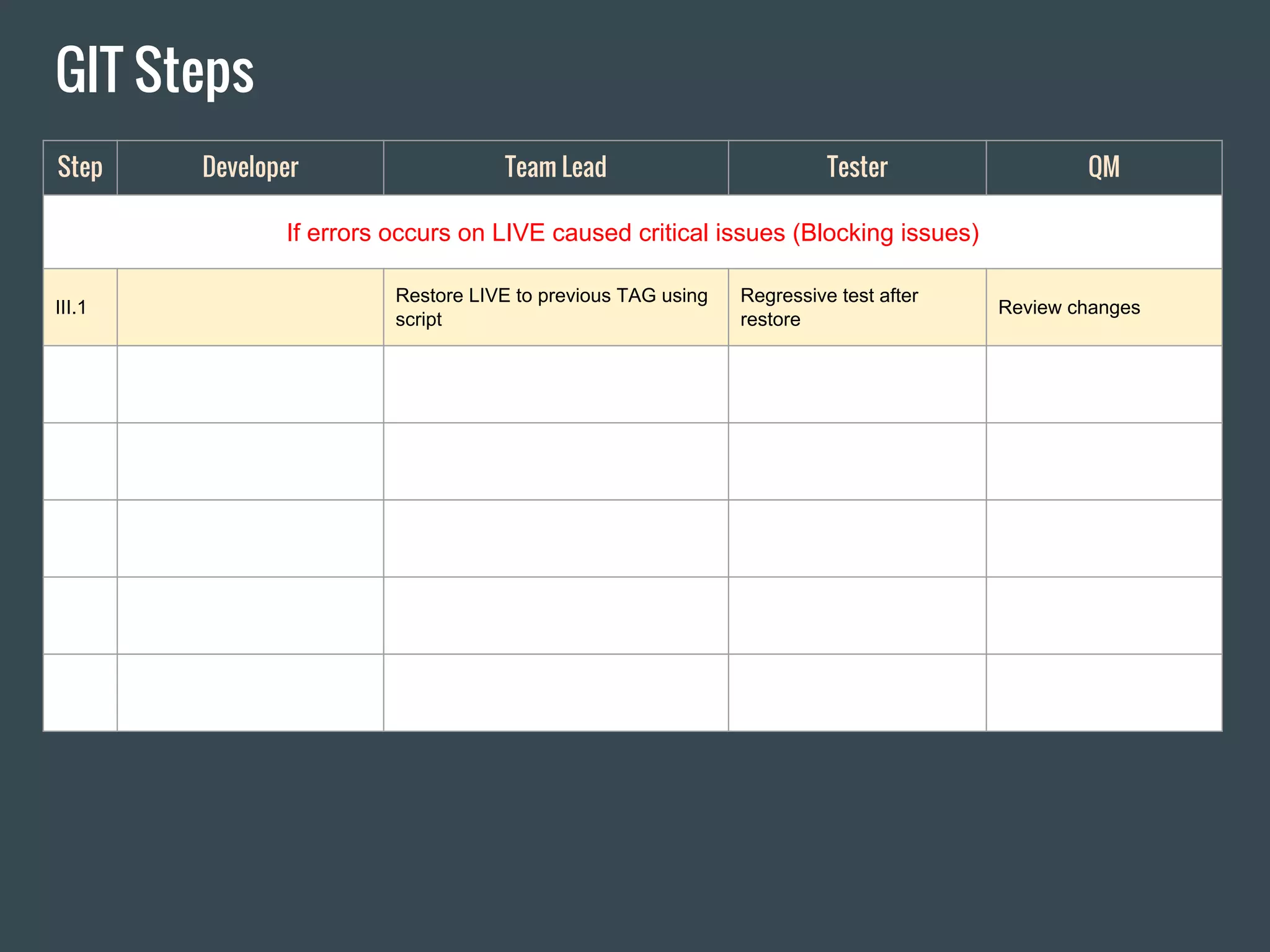

43. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes
III.2
Create branch for fixing bugs
(bugfix) from previous Release Point
(release branch)

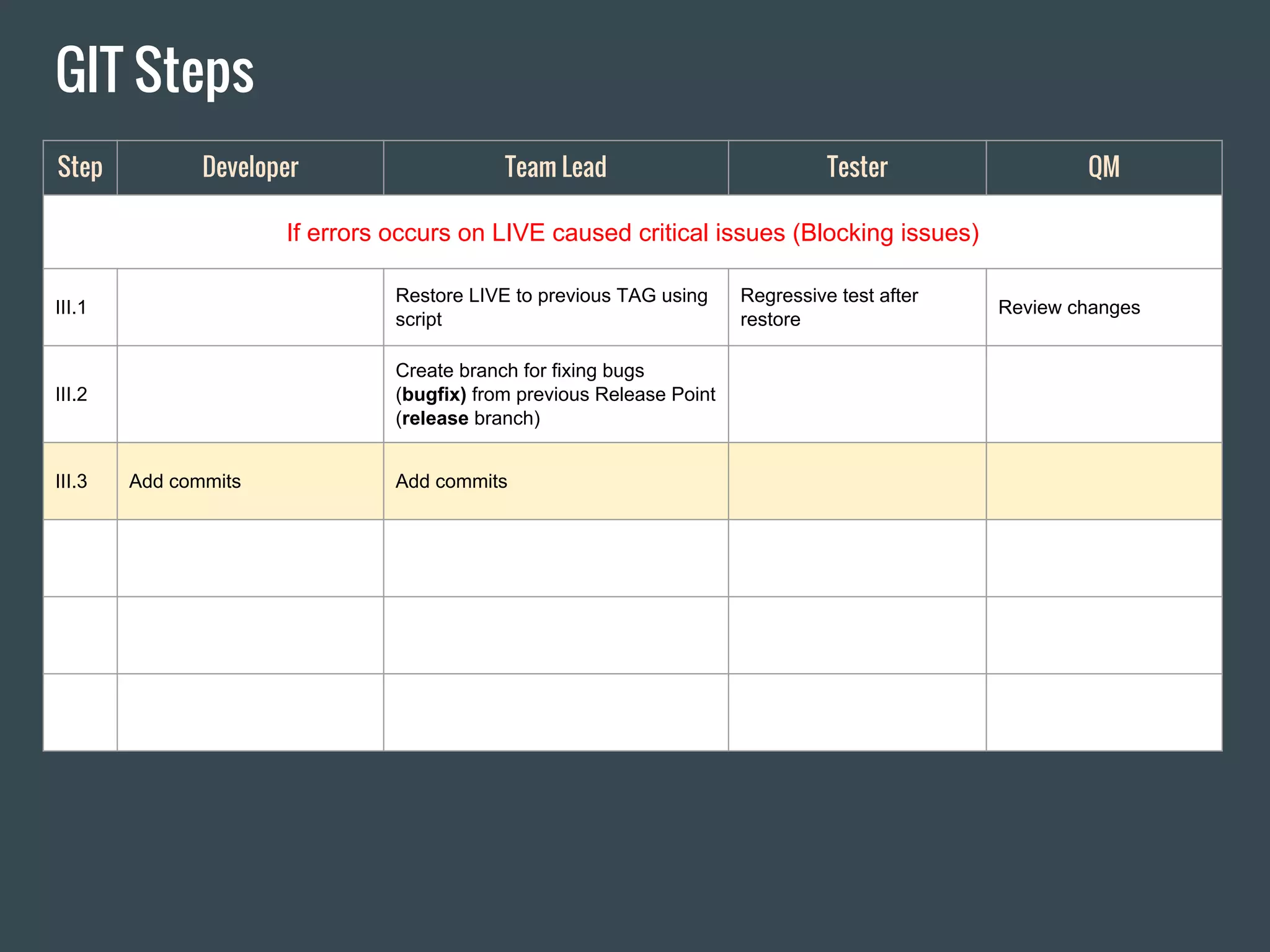

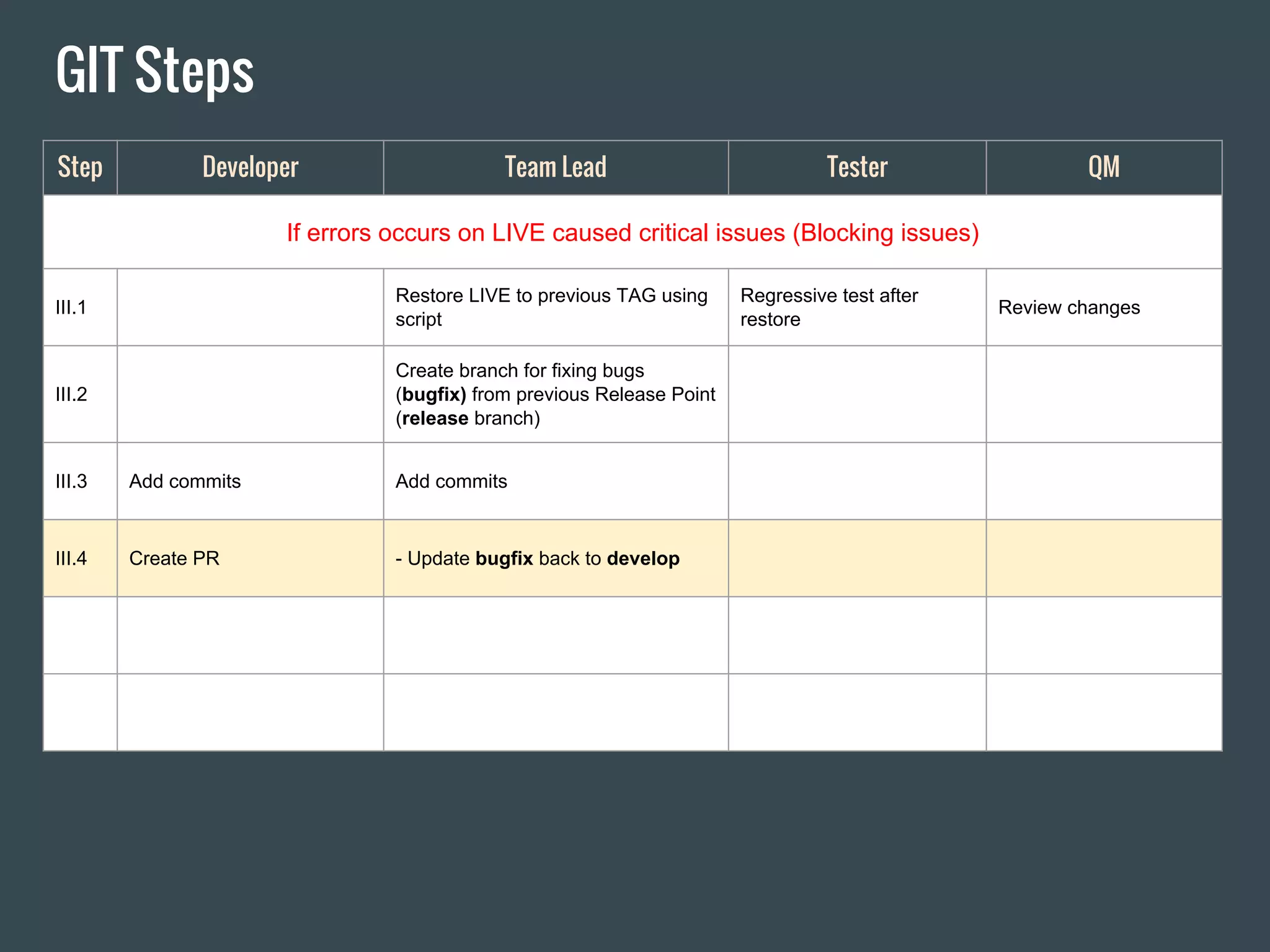

44. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes
III.2
Create branch for fixing bugs
(bugfix) from previous Release Point
(release branch)
III.3 Add commits Add commits

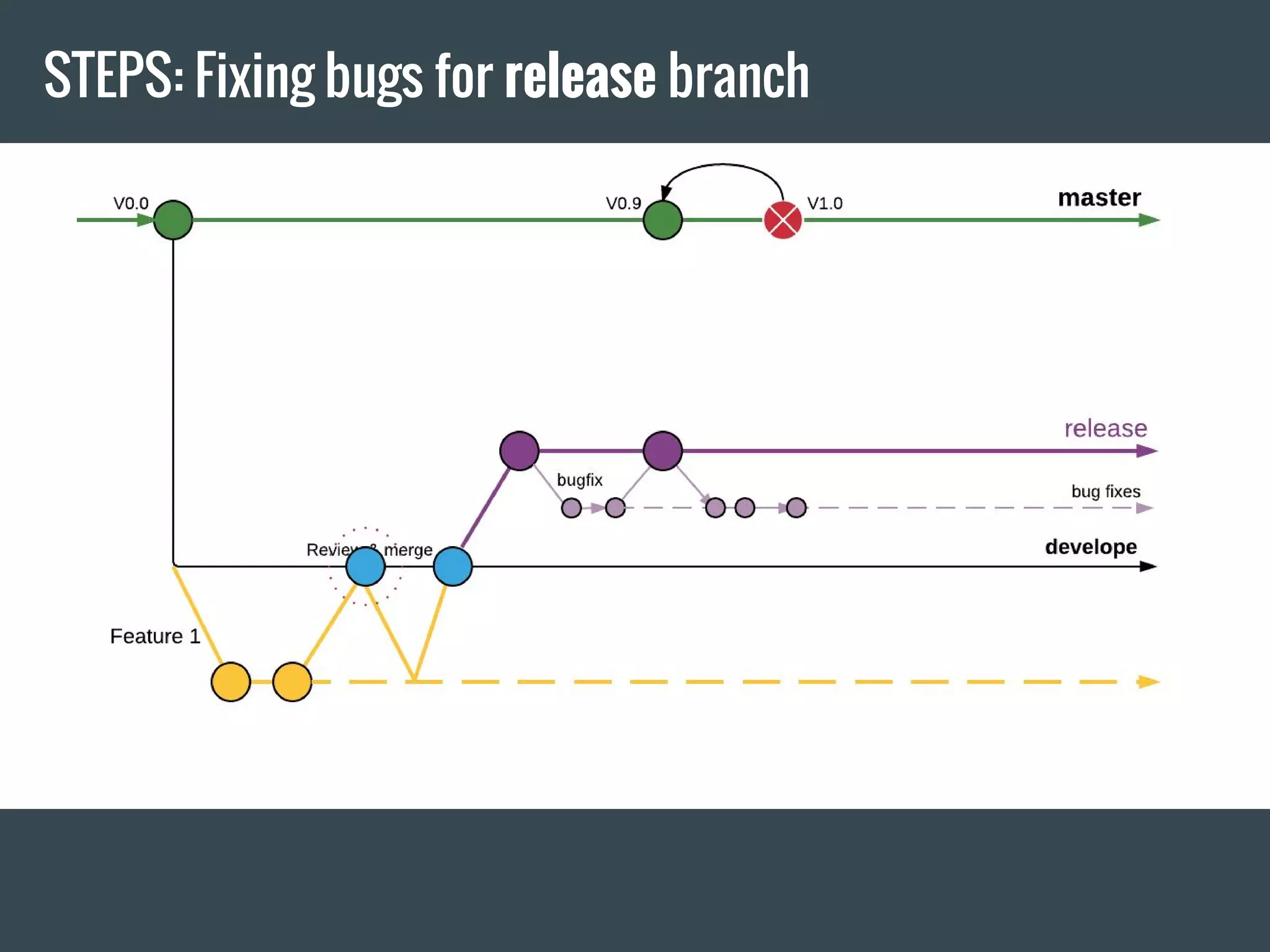

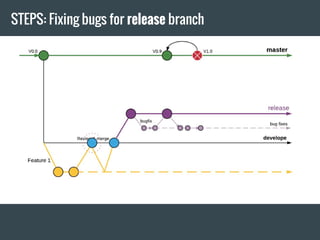

45. STEPS: Fixing bugs for release branch

46. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes
III.2
Create branch for fixing bugs
(bugfix) from previous Release Point
(release branch)
III.3 Add commits Add commits
III.4 Create PR - Update bugfix back to develop

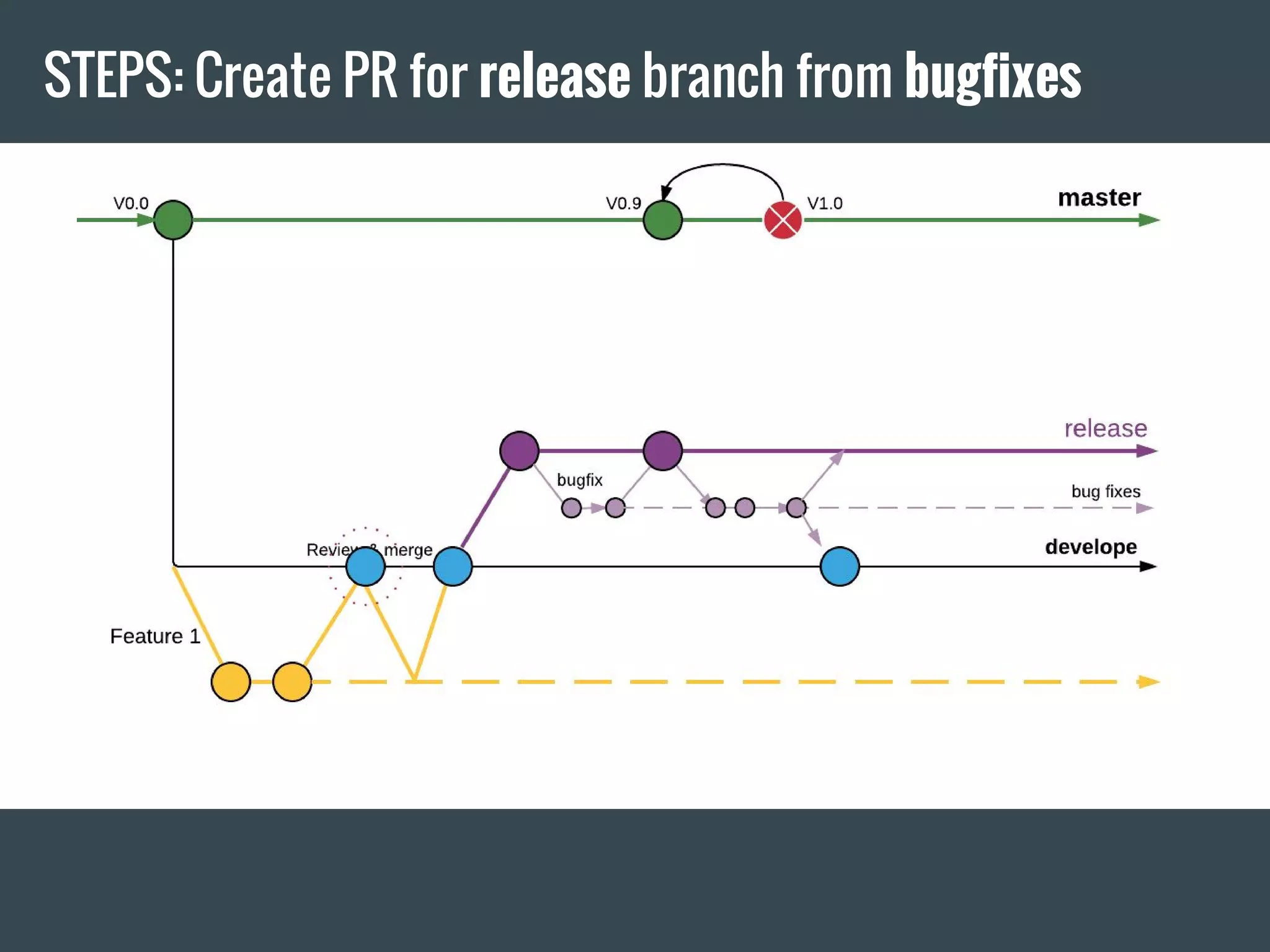

47. STEPS: Create PR for release branch from bugfixes

48. GIT Steps
Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes
III.2
Create branch for fixing bugs
(bugfix) from previous Release Point
(release branch)
III.3 Add commits Add commits
III.4 Create PR
III.5
- Review PRs
- Merge PRs from bugfix to release
Do testing per PR. Review by random pick

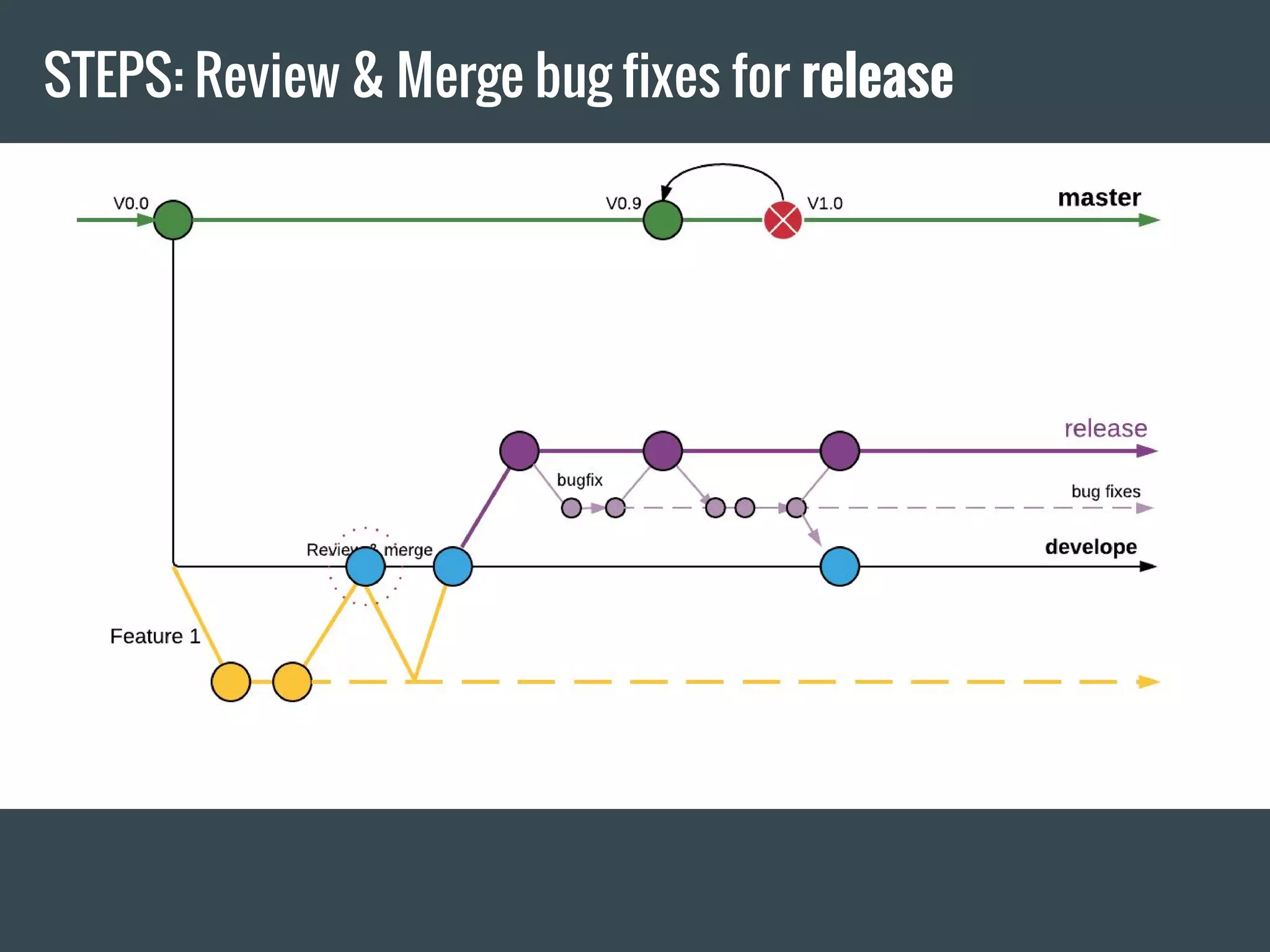

49. STEPS: Review & Merge bug fixes for release

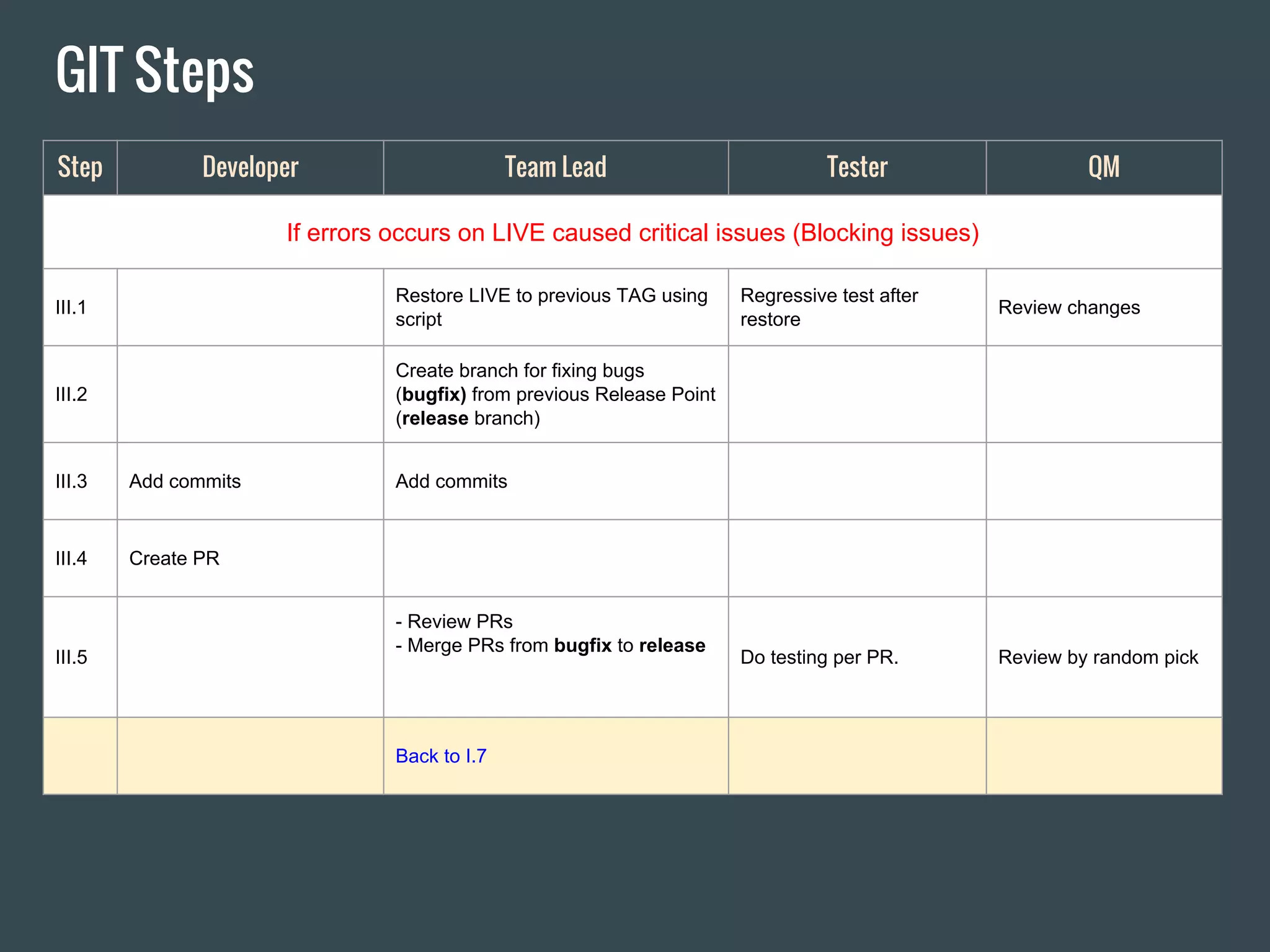

50. GIT Steps

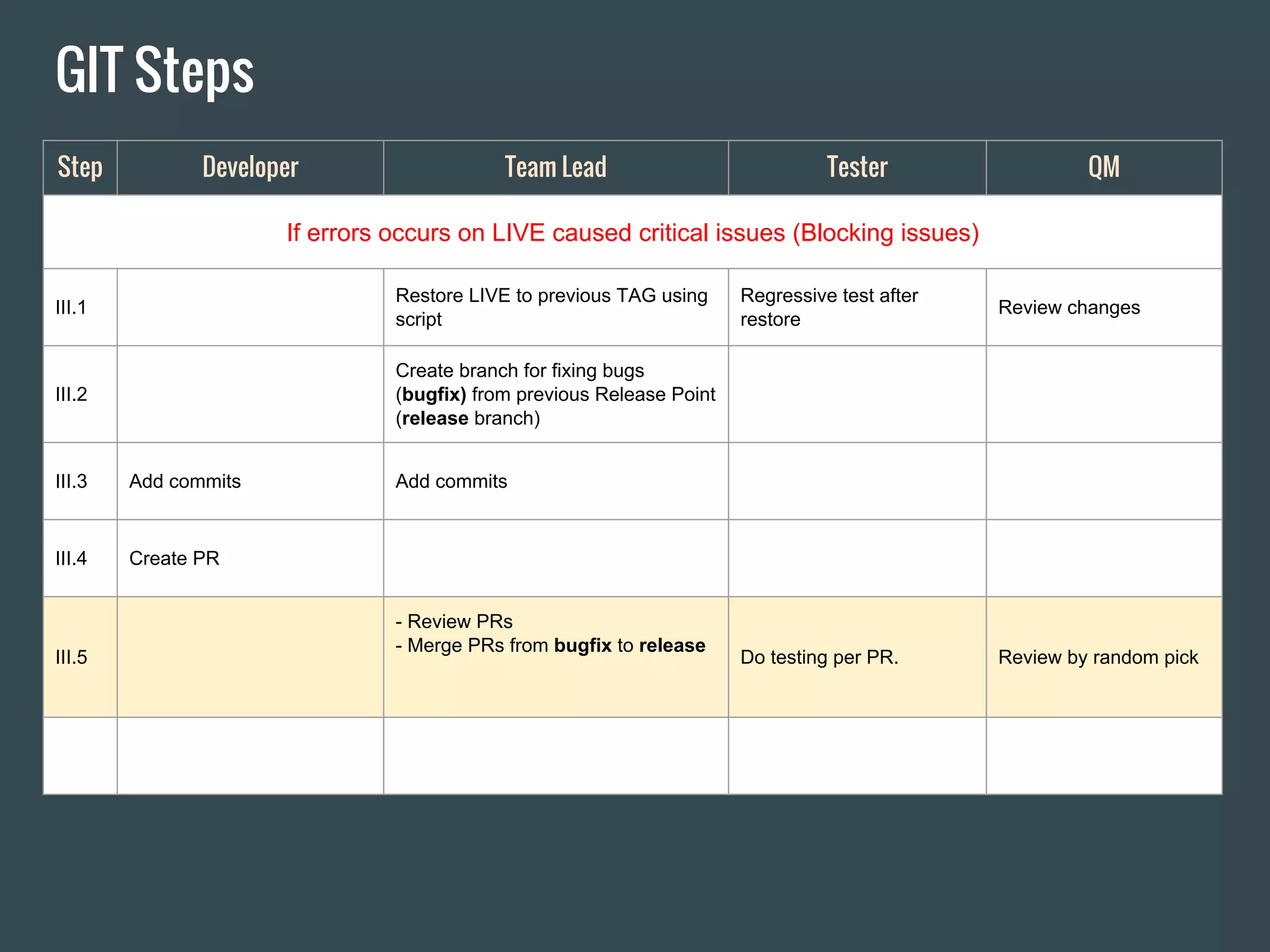

Step Developer Team Lead Tester QM
If errors occurs on LIVE caused critical issues (Blocking issues)
III.1
Restore LIVE to previous TAG using
script
Regressive test after
restore
Review changes
III.2
Create branch for fixing bugs
(bugfix) from previous Release Point
(release branch)
III.3 Add commits Add commits
III.4 Create PR
III.5
- Review PRs
- Merge PRs from bugfix to release
Do testing per PR. Review by random pick
Back to I.7

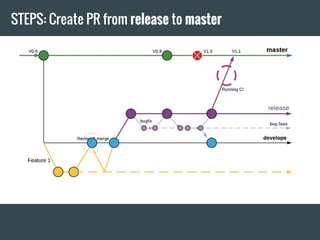

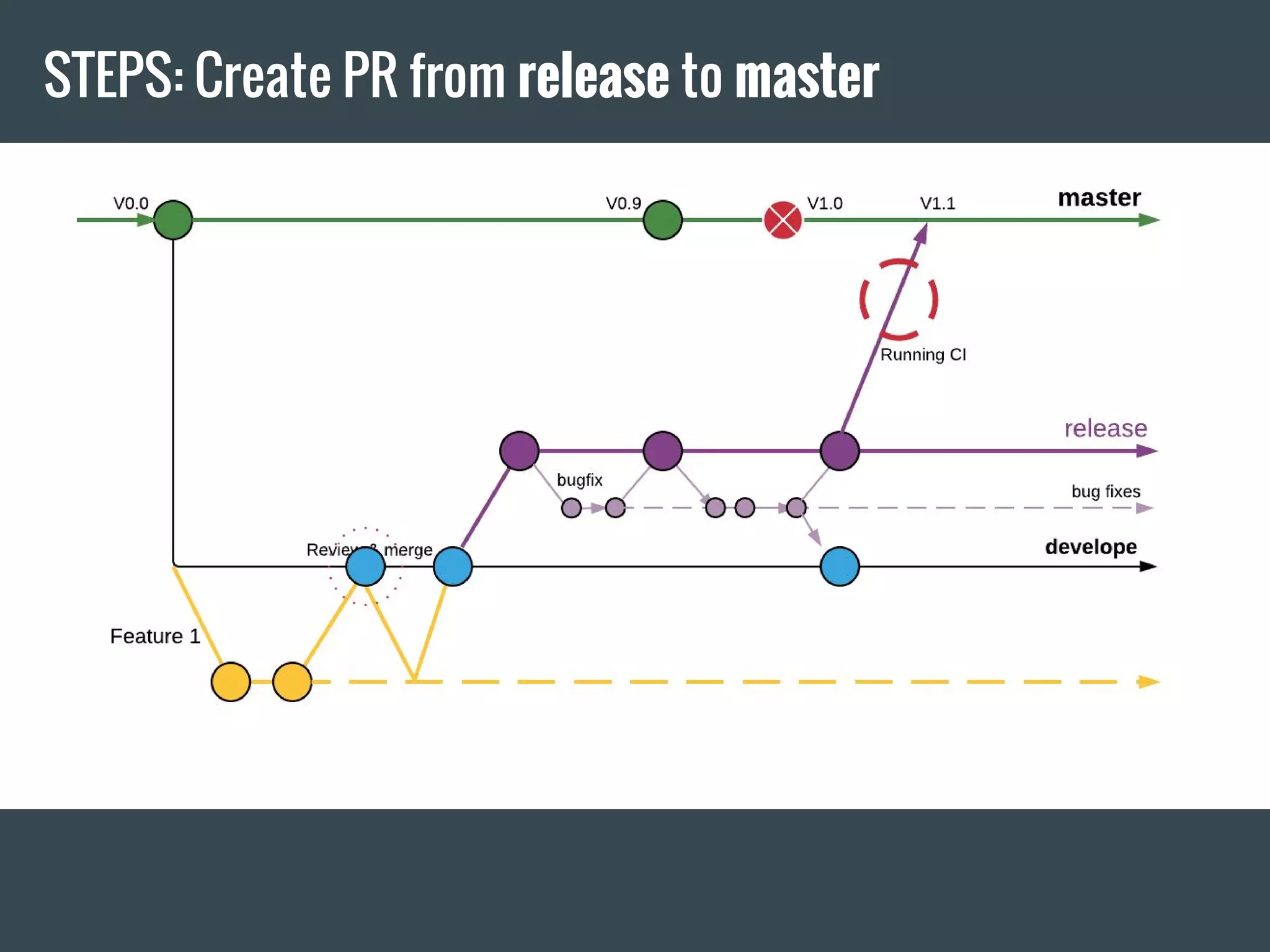

51. STEPS: Create PR from release to master

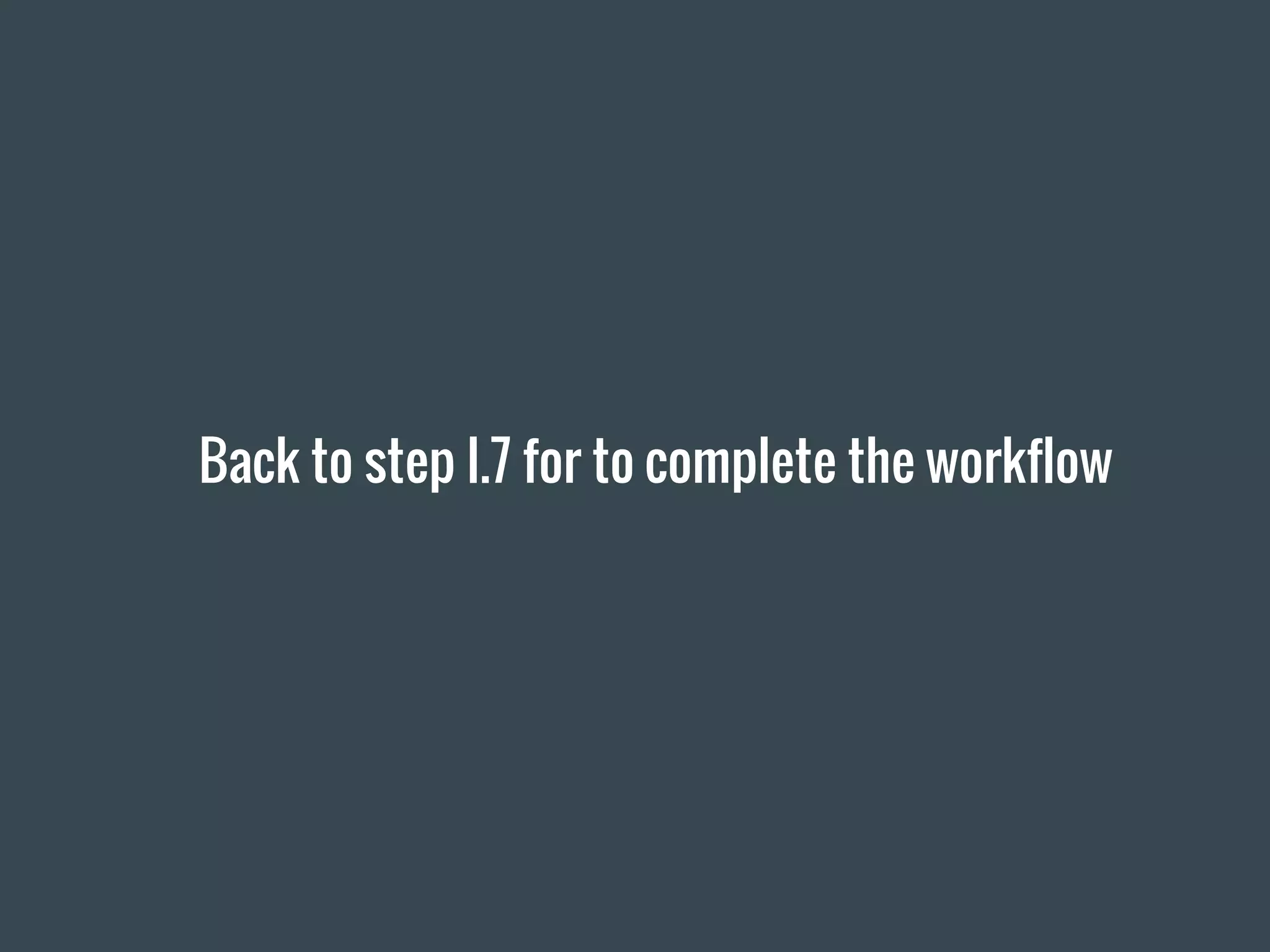

52. Back to step I.7 for to complete the workflow

53. Thanks
