1. GIT HANDS-ON WORKSHOP
VCS FOR TEAMWORK
SOFTWARE DEVELOPMENT BOOTCAMP
BY DEVNET LIMITED
AT INTERNATIONAL ISLAMIC UNIVERSITY CHITTAGONG
15th-16th Nov, 2019

2. ANIS UDDIN AHMAD
WHO AM I
Head of Software Development
Devnet Limited

3. WHY ARE WE HERE?

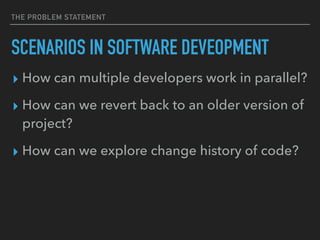

4. THE PROBLEM STATEMENT
SCENARIOS IN SOFTWARE DEVEOPMENT
▸ How can multiple developers work in parallel?
▸ How can we revert back to an older version of
project?
▸ How can we explore change history of code?

5. VCS TO RESCUE…

6. WHAT IS THAT BTW?
VERSION CONTROL SYSTEM
▸ Manage changes to source code over time
▸ Keeps track of every modification to the code
▸ Compare earlier versions and revert (if required)
▸ Helps in collaboration and distribution

7. DISTRIBUTED VERSION CONTROLS SYSTEM

8. DISTRIBUTED VERSION CONTROLS SYSTEM
* SPOILER ALERT: YOU HAVE TO LEARN IT - TODAY OR TOMORROW!

9. BASIC CONCEPTS

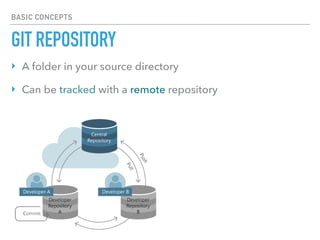

10. BASIC CONCEPTS
GIT REPOSITORY
‣ A folder in your source directory
‣ Can be tracked with a remote repository

11. BASIC CONCEPTS
INIT AND CLONE
‣ init starts a GIT repository in a directory
‣ clone create a repository from a remote repository

12. BASIC CONCEPTS
STAGING
‣ Add new files in GIT’s tracking
‣ Adding Updates of already added files

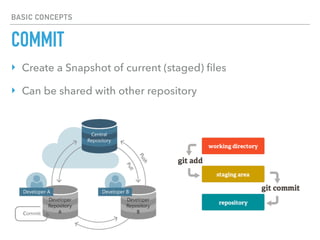

13. BASIC CONCEPTS
COMMIT
‣ Create a Snapshot of current (staged) files
‣ Can be shared with other repository

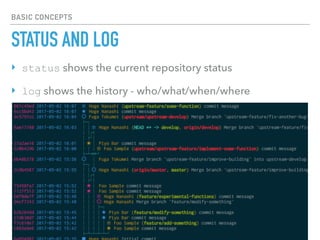

14. BASIC CONCEPTS
STATUS AND LOG
‣ status shows the current repository status
‣ log shows the history - who/what/when/where

15. BASIC CONCEPTS
PUSH AND PULL
‣ push submits local commits to remote repo
‣ pull receives new commits from remote repo

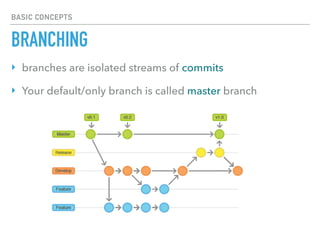

16. BASIC CONCEPTS
BRANCHING
‣ branches are isolated streams of commits
‣ Your default/only branch is called master branch

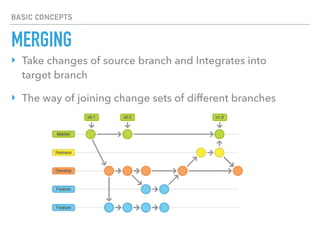

17. BASIC CONCEPTS
MERGING
‣ Take changes of source branch and Integrates into
target branch
‣ The way of joining change sets of different branches

18. HANDS-ON EXPERIENCE
LET’S GET SOME

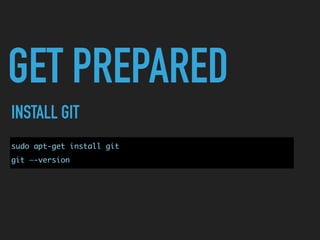

19. GET PREPARED
INSTALL GIT
sudo apt-get install git
git —-version

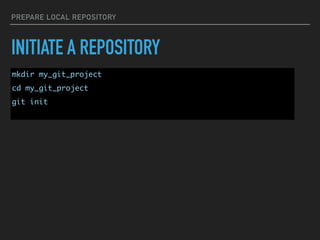

20. PREPARE LOCAL REPOSITORY
INITIATE A REPOSITORY
mkdir my_git_project
cd my_git_project
git init

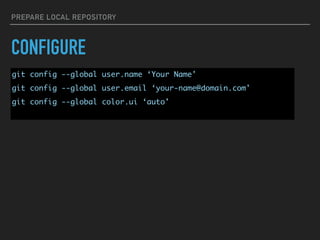

21. PREPARE LOCAL REPOSITORY
CONFIGURE
git config --global user.name ‘Your Name'
git config --global user.email ‘your-name@domain.com'
git config --global color.ui ‘auto'

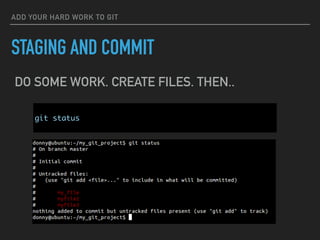

22. ADD YOUR HARD WORK TO GIT
STAGING AND COMMIT
git status
DO SOME WORK. CREATE FILES. THEN..

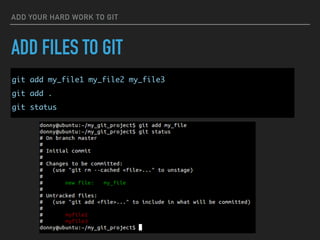

23. ADD YOUR HARD WORK TO GIT
ADD FILES TO GIT
git add my_file1 my_file2 my_file3
git add .
git status

24. ADD YOUR HARD WORK TO GIT
REMOVING FILES FROM STAGE
git rm —-cached my_file2
git status

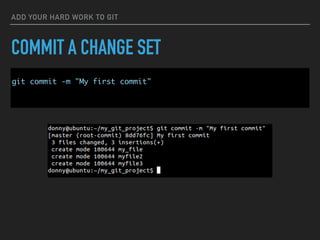

25. ADD YOUR HARD WORK TO GIT
COMMIT A CHANGE SET
git commit -m "My first commit"

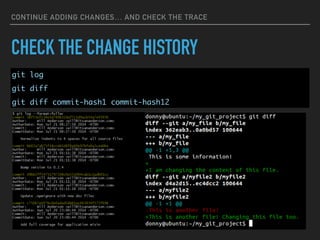

26. CONTINUE ADDING CHANGES… AND CHECK THE TRACE
CHECK THE CHANGE HISTORY
git log
git diff
git diff commit-hash1 commit-hash12

27. STARTING TEAMWORK
LET’S GO CLOUD

28. CREATE AN ACCOUNT
HTTPS://GITHUB.COM/

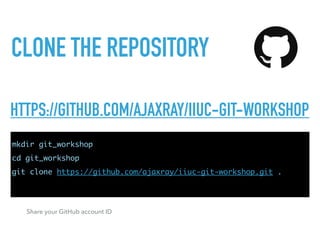

29. CLONE THE REPOSITORY
HTTPS://GITHUB.COM/AJAXRAY/IIUC-GIT-WORKSHOP
mkdir git_workshop
cd git_workshop
git clone https://github.com/ajaxray/iiuc-git-workshop.git .
Share your GitHub account ID

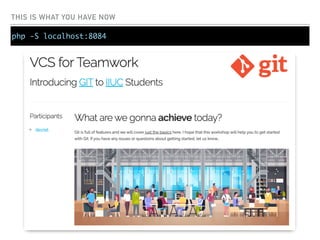

30. THIS IS WHAT YOU HAVE NOW
php -S localhost:8084

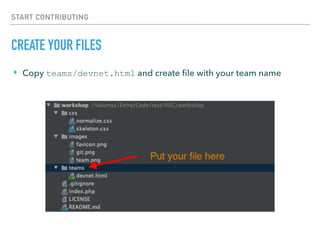

31. START CONTRIBUTING
CREATE YOUR FILES
‣ Copy teams/devnet.html and create file with your team name

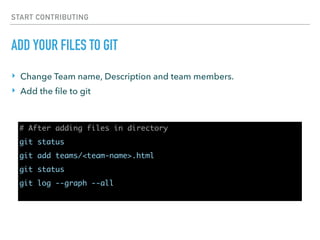

32. START CONTRIBUTING
ADD YOUR FILES TO GIT
# After adding files in directory
git status
git add teams/<team-name>.html
git status
git log --graph --all
‣ Change Team name, Description and team members.
‣ Add the file to git

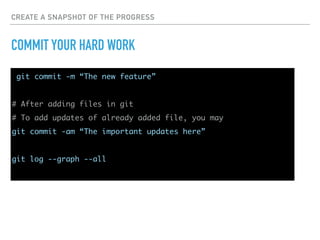

33. CREATE A SNAPSHOT OF THE PROGRESS
COMMIT YOUR HARD WORK
git commit -m “The new feature”
# After adding files in git
# To add updates of already added file, you may
git commit -am “The important updates here”
git log --graph --all

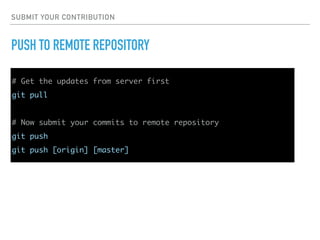

34. SUBMIT YOUR CONTRIBUTION
PUSH TO REMOTE REPOSITORY
# Get the updates from server first
git pull
# Now submit your commits to remote repository
git push
git push [origin] [master]

35. GET THE UPDATES AND CHECK PROGRESS
CHECK WHAT WE HAVE DONE SO FAR
# Get the updates from server first
git pull
git log --graph --all
php -S localhost:8084
‣ Now check your (and other teams) team name on sidebar
‣ Click on team names to what they have done

36. MULTIPLE DEVELOPERS WORKING ON SAME BRANCH
EXPERIMENT: AUTO-MERGE
‣ You are working on same branch
‣ Someone pushed some changes after your last pull

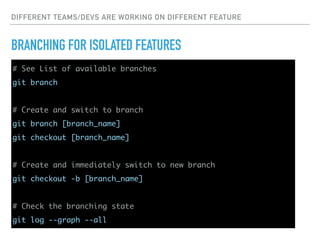

37. DIFFERENT TEAMS/DEVS ARE WORKING ON DIFFERENT FEATURE
BRANCHING FOR ISOLATED FEATURES
# See List of available branches
git branch
# Create and switch to branch
git branch [branch_name]
git checkout [branch_name]
# Create and immediately switch to new branch
git checkout -b [branch_name]
# Check the branching state
git log --graph --all

38. GET THE UPDATES AND CHECK PROGRESS
BRANCHING FOR ISOLATED FEATURES

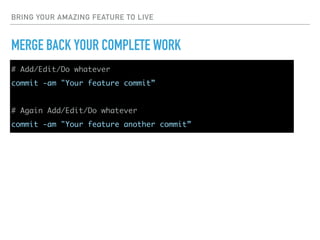

39. BRING YOUR AMAZING FEATURE TO LIVE
MERGE BACK YOUR COMPLETE WORK
# Add/Edit/Do whatever
commit -am "Your feature commit”
# Again Add/Edit/Do whatever
commit -am "Your feature another commit”

40. BRING YOUR AMAZING FEATURE TO LIVE
MERGE BACK YOUR COMPLETE WORK
# Merge changes of target branch to your branch first
git merge master
# Switch to target branch and merge your branch
git checkout master
git pull
git merge your-branch
# Submit the update
git push

41. QUESTIONS?
