This document provides an overview of mobile generations from 1G to 4G. It discusses the key features and technologies of each generation. 1G used analog signals and FDMA. 2G was digital and used TDMA and CDMA. 3G was digital, used CDMA, and enabled broadband. WCDMA was the 3G air interface standard, which provided higher data rates and quality of service compared to prior standards. 4G networks were designed especially for high speed data transmission and support peak speeds over 100 Mbps for downloads and 50 Mbps for uploads. The document concludes with asking if the audience has any other questions.

1. SEMINARON
GENERATION OVERVIEW $ DRIVE
TEST OPTIMIZATION
Submitted By:
Sanjay Kumar
ECE (C2)
11100388

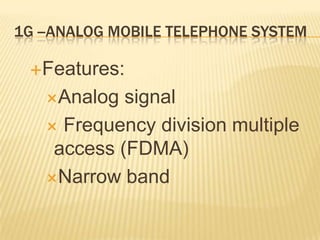

2. 1G --ANALOG MOBILE TELEPHONE SYSTEM
Features:
Analog signal
 Frequency division multiple
access (FDMA)
Narrow band

3. 2G --DIGITAL MOBILE TELEPHONE SYSTEM
Features:
Digital signal
Time division multiple access
(TDMA)
 Narrow code division multiple
access (N-CDMA)
Narrow band

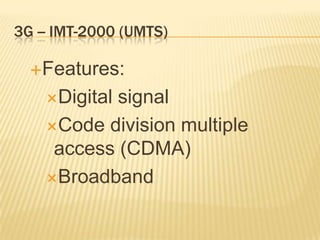

4. 3G -- IMT-2000 (UMTS)
Features:
Digital signal
Code division multiple
access (CDMA)
Broadband

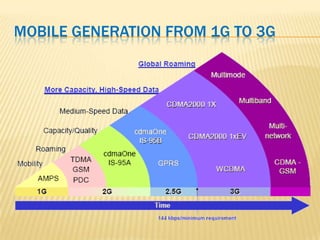

6. MOBILE GENERATION FROM 1G TO 3G

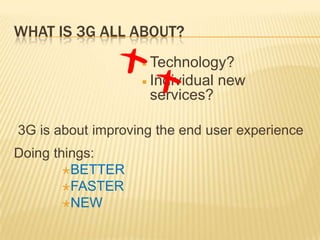

7. WHAT IS 3G ALL ABOUT?
 Technology?
 Individual new
services?
3G is about improving the end user experience
Doing things:
BETTER
FASTER
NEW

8. 3G VISION
 Same set of services
 realize global roaming
 single network
architecture
One World, One Vision, One Network

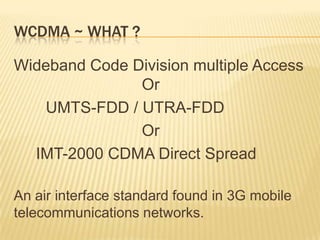

9. WCDMA ~ WHAT ?
Wideband Code Division multiple Access
Or
UMTS-FDD / UTRA-FDD
Or
IMT-2000 CDMA Direct Spread
An air interface standard found in 3G mobile
telecommunications networks.

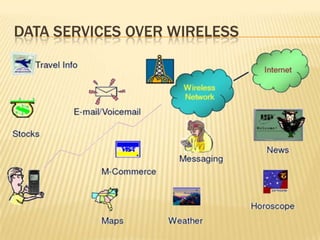

10. DATA SERVICES OVER WIRELESS

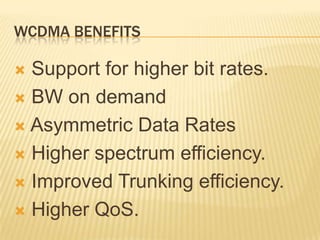

13. WCDMA BENEFITS
 Support for higher bit rates.

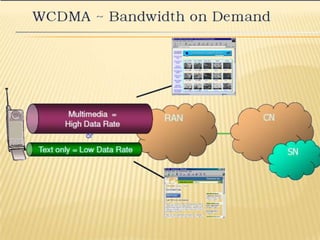

 BW on demand
 Asymmetric Data Rates
 Higher spectrum efficiency.
 Improved Trunking efficiency.
 Higher QoS.

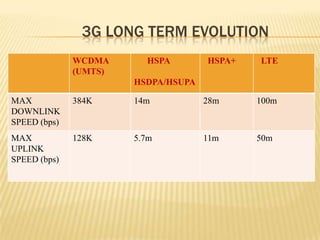

14. 3G LONG TERM EVOLUTION
WCDMA
(UMTS)
HSPA
HSDPA/HSUPA
HSPA+ LTE
MAX
DOWNLINK
SPEED (bps)
384K 14m 28m 100m
MAX
UPLINK
SPEED (bps)
128K 5.7m 11m 50m

15. 3G V/S 4G
1.Data Throughput:
2. Peak Upload Rate:
3. Peak Download Rate:
4. Services And
Applications
5. Frequency Band:
Up to 3.1Mbps with an
average speed range
between 0.5 to 1.5 Mbps
5 Mbps
100 Mbps
CDMA 2000, UMTS,
EDGE etc
1.8 – 2.5GHz
Practically speaking, 2 to
12 Mbps but estimated
at a range of 100 to 300
Mbps.
500 Mbps
1 Gbps
LTE-Advance
2 – 8GHz

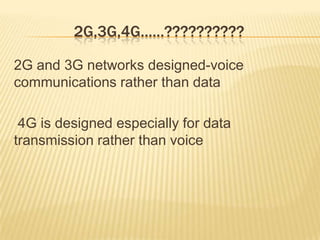

16. 2G,3G,4G……??????????
2G and 3G networks designed-voice
communications rather than data
4G is designed especially for data
transmission rather than voice

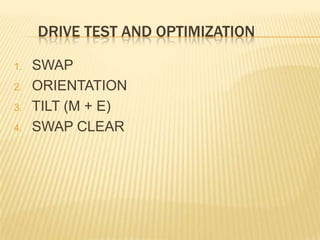

17. DRIVE TEST AND OPTIMIZATION
1. SWAP
2. ORIENTATION
3. TILT (M + E)
4. SWAP CLEAR

19. Your Questions ???????????
THANK YOU
Send your queries to
sanjaykumarece4@gmail.com
8950579604
