1. Long Range Wireless LAN Platform X -LIN Hotware Wireless Co., Ltd. WISP –WiFi-WiMax MESH and Fixed Wireless Systems (Total Solution Program available in frequencies 700Mhz to 8Ghz ) March, 2010

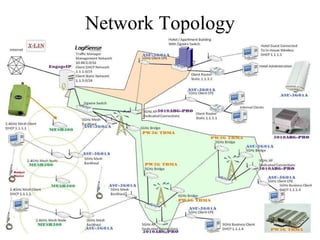

2. Network Topology

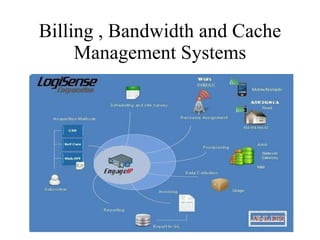

3. Billing , Bandwidth and Cache Management Systems

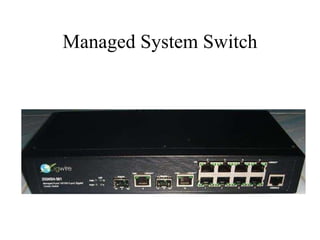

5. Managed System Switch

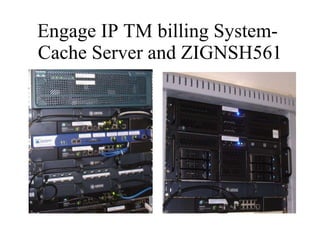

6. Engage IP TM billing System- Cache Server and ZIGNSH561

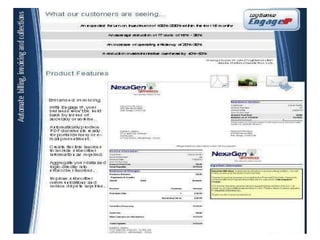

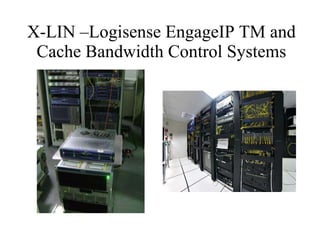

7. X-LIN –Logisense EngageIP TM and Cache Bandwidth Control Systems

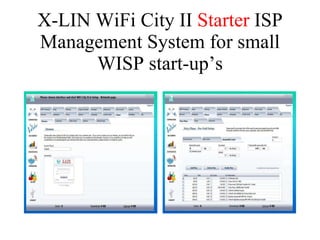

8. X-LIN WiFi City II Starter ISP Management System for small WISP start-up’s

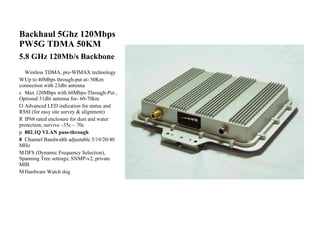

9. Backhaul 5Ghz 120Mbps PW5G TDMA 50KM 5.8 GHz 120Mb/s Backbone  Wireless TDMA, pre-WIMAX technology  Up to 40Mbps through-put at- 50Km connection with 23dbi antenna  Max 120Mbps with 60Mbps-Through-Put , Optional 31dbi antenna for- 60-70km  Advanced LED indication for status and RSSI (for easy site survey & alignment)  IP68 rated enclosure for dust and water protection; survive –35c ~ 70c  802.1Q VLAN pass-through  Channel Bandwidth adjustable 5/10/20/40 MHz  DFS (Dynamic Frequency Selection), Spanning Tree settings; SNMP-v2, private MIB  Hardware Watch dog

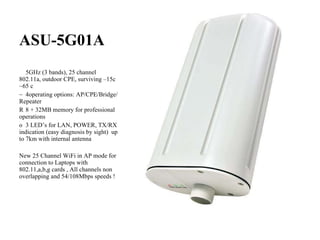

10. ASU-5G01A 􀁺 5GHz (3 bands), 25 channel 802.11a, outdoor CPE, surviving –15c ~65 c 􀁺 4operating options: AP/CPE/Bridge/Repeater 􀁺 8 + 32MB memory for professional operations 􀁺 3 LED’s for LAN, POWER, TX/RX indication (easy diagnosis by sight) up to 7km with internal antenna New 25 Channel WiFi in AP mode for connection to Laptops with 802.11,a,b,g cards , All channels non overlapping and 54/108Mbps speeds !

11. ASU-5G01A-N 􀁺 5GHz (3 bands), 25 channel 802.11a, outdoor CPE, surviving –15c ~65 c 􀁺 4operating options: AP/CPE/Bridge/Repeater 􀁺 8 + 32MB memory for professional operations 􀁺 3 LED’s for LAN, POWER, TX/RX indication (easy diagnosis by sight) up to 17km with external antennas ,YG 5G19 yagi or FP-5G23 panel New 25 Channel WiFi in AP mode for connection to Laptops with 802.11,a,b,g cards , All channels non overlapping and 54/108Mbps speeds !

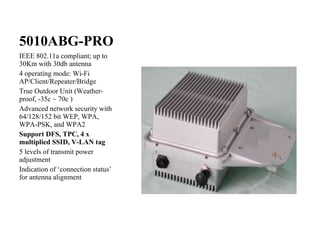

12. 5010ABG-PRO IEEE 802.11a compliant; up to 30Km with 30db antenna 4 operating mode: Wi-Fi AP/Client/Repeater/Bridge True Outdoor Unit (Weather-proof, -35c ~ 70c ) Advanced network security with 64/128/152 bit WEP, WPA, WPA-PSK, and WPA2 Support DFS, TPC, 4 x multiplied SSID, V-LAN tag 5 levels of transmit power adjustment Indication of ‘connection status’ for antenna alignment

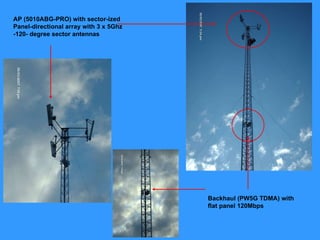

13. AP (5010ABG-PRO) with sector-ized Panel-directional array with 3 x 5Ghz -120- degree sector antennas Backhaul (PW5G TDMA) with flat panel 120Mbps

14. Under tower control cabin Total Solution Program : WISP, IPTV, VOiP, on-line billing, WiFi handset, surveillance

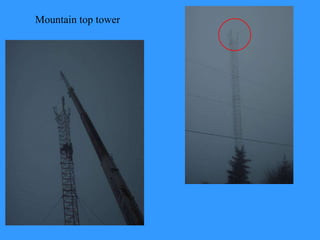

15. Mountain top tower

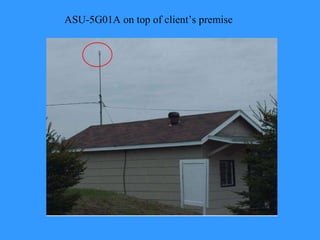

16. ASU-5G01A on top of client’s premise

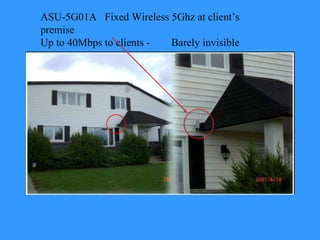

17. ASU-5G01A Fixed Wireless 5Ghz at client’s premise Up to 40Mbps to clients - Barely invisible

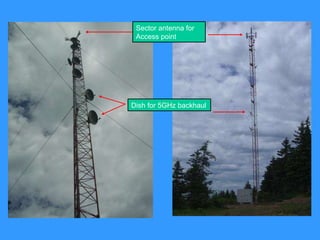

18. Dish for 5GHz backhaul Sector antenna for Access point

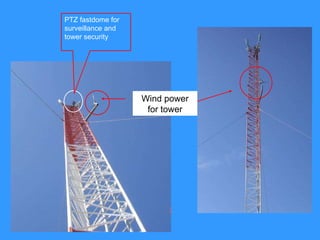

19. Wind power for tower PTZ fastdome for surveillance and tower security

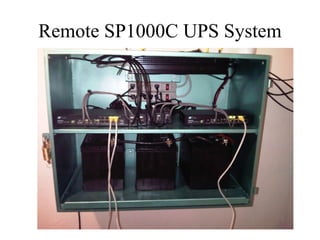

20. Remote SP1000C UPS System

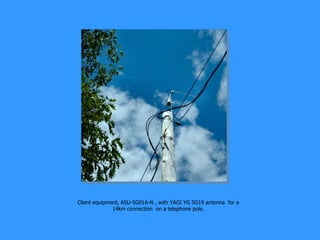

21. Client equipment, ASU-5G01A-N , with YAGI YG 5G19 antenna for a 14km connection on a telephone pole.

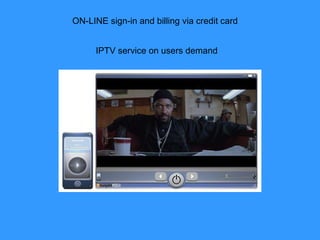

22. ON-LINE sign-in and billing via credit card IPTV service on users demand

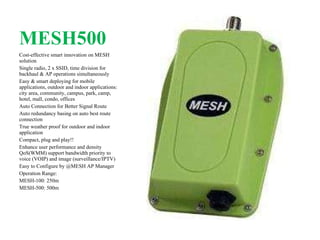

23. MESH500 Cost-effective smart innovation on MESH solution Single radio, 2 x SSID, time division for backhaul & AP operations simultaneously Easy & smart deploying for mobile applications, outdoor and indoor applications: city area, community, campus, park, camp, hotel, mall, condo, offices Auto Connection for Better Signal Route Auto redundancy basing on auto best route connection True weather proof for outdoor and indoor application Compact, plug and play!! Enhance user performance and density QoS(WMM) support bandwidth priority to voice (VOIP) and image (surveillance/IPTV) Easy to Configure by @MESH AP Manager Operation Range: MESH-100: 250m MESH-500: 500m

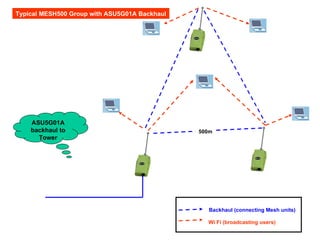

24. 7-dbi omni antenna 500m ASU5G01A backhaul to Tower Typical MESH500 Group with ASU5G01A Backhaul Backhaul (connecting Mesh units) Wi Fi (broadcasting users)

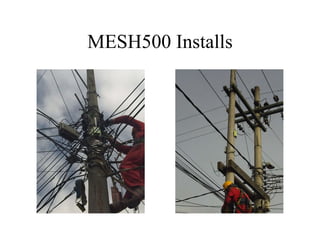

25. MESH500 Installs

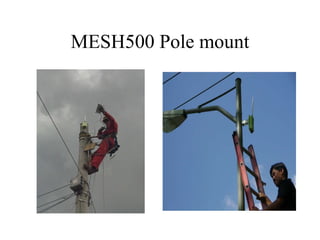

26. MESH500 Pole mount

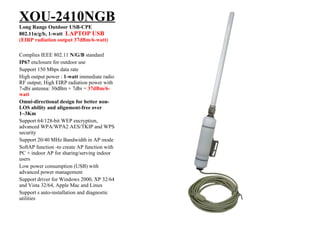

27. XOU-2410NGB Long Range Outdoor USB-CPE 802.11n/g/b, 1-watt LAPTOP USB (EIRP radiation output 37dBm/6-watt) Complies IEEE 802.11 N/G/B standard IP67 enclosure for outdoor use Support 150 Mbps data rate High output power : 1-watt immediate radio RF output; High EIRP radiation power with 7-dbi antenna: 30dBm + 7dbi = 37dBm/6-watt Omni-directional design for better non-LOS ability and alignment-free over 1~3Km Support 64/128-bit WEP encryption, advanced WPA/WPA2 AES/TKIP and WPS security Support 20/40 MHz Bandwidth in AP mode SoftAP function -to create AP function with PC + indoor AP for sharing/serving indoor users Low power consumption (USB) with advanced power management Support driver for Windows 2000, XP 32/64 and Vista 32/64, Apple Mac and Linux Support s auto-installation and diagnostic utilities

28. Training and Management

29. X -LIN Innovation Thank you ! Hotware Wireless Co., Ltd. www.hotware.com.tw [email_address] Tel : +886-3-4639125 Fax ; +886-3-4639367 Integration Center [email_address] www.hotware.asia [email_address]
