Gene families are sets of similar genes formed by duplication of an original gene. A gene cluster is a subgroup of a gene family where the genes are located near each other on a chromosome. Examples discussed include haemoglobin gene clusters, histone gene clusters, and ribosomal RNA gene clusters. Haemoglobin genes are expressed at different developmental stages. Myoglobin is related to haemoglobin and encodes oxygen transport in muscle. Histone genes encode structural proteins that package DNA into nucleosomes. Ribosomal RNA genes are present in high copy numbers and encode components of ribosomes.

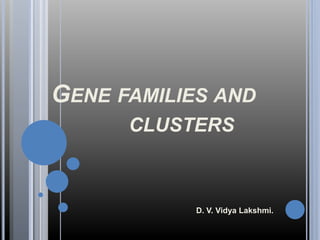

1. GENE FAMILIES AND
CLUSTERS
D. V. Vidya Lakshmi.

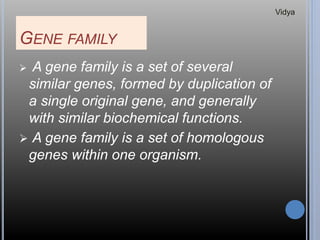

2. GENE FAMILY
 A gene family is a set of several
similar genes, formed by duplication of
a single original gene, and generally
with similar biochemical functions.
 A gene family is a set of homologous
genes within one organism.
Vidya

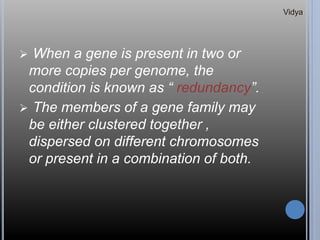

3.  When a gene is present in two or
more copies per genome, the
condition is known as “ redundancy”.
 The members of a gene family may
be either clustered together ,
dispersed on different chromosomes
or present in a combination of both.
Vidya

4.  If the genes of a gene family encode
proteins, the term “protein family” is
often used in an analogous manner to
gene family.
 One example for such family are the
genes for Human haemoglobin
subunits.
Vidya

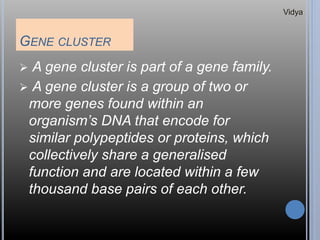

5. GENE CLUSTER
 A gene cluster is part of a gene family.
 A gene cluster is a group of two or
more genes found within an
organism’s DNA that encode for
similar polypeptides or proteins, which
collectively share a generalised
function and are located within a few
thousand base pairs of each other.
Vidya

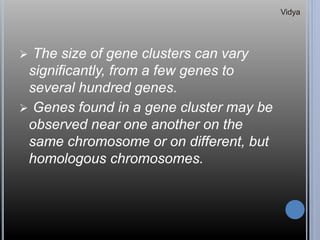

6.  The size of gene clusters can vary
significantly, from a few genes to
several hundred genes.
 Genes found in a gene cluster may be
observed near one another on the
same chromosome or on different, but
homologous chromosomes.
Vidya

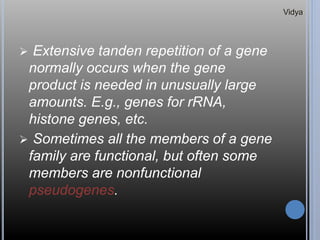

7.  Extensive tanden repetition of a gene
normally occurs when the gene
product is needed in unusually large
amounts. E.g., genes for rRNA,
histone genes, etc.
 Sometimes all the members of a gene
family are functional, but often some
members are nonfunctional
pseudogenes.
Vidya

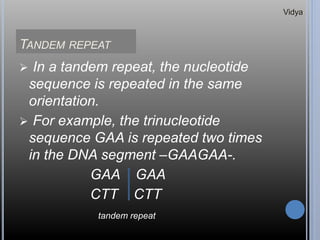

8. TANDEM REPEAT
 In a tandem repeat, the nucleotide
sequence is repeated in the same
orientation.
 For example, the trinucleotide
sequence GAA is repeated two times
in the DNA segment –GAAGAA-.
GAA GAA
CTT CTT
tandem repeat
Vidya

9. GLOBIN GENES
 Genes encoding the various globin
proteins evolved from one common
ancestral globin gene, which
duplicated and diverged about 450-
500 million years ago.
 After the duplication events,
differences between the genes in
globin family arose from the
accumulation of mutations.
Vidya

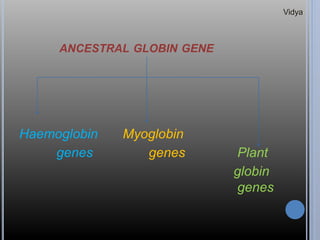

10. ANCESTRAL GLOBIN GENE
Haemoglobin Myoglobin
genes genes Plant
globin
genes
Vidya

11. REPRESENTATION OF EVOLUTION OF
ANCESTRAL GLOBIN GENE
ANCESTRAL GLOBIN GENE
Vidya

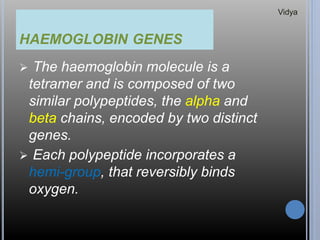

12. HAEMOGLOBIN GENES
 The haemoglobin molecule is a
tetramer and is composed of two
similar polypeptides, the alpha and
beta chains, encoded by two distinct
genes.
 Each polypeptide incorporates a
hemi-group, that reversibly binds
oxygen.
Vidya

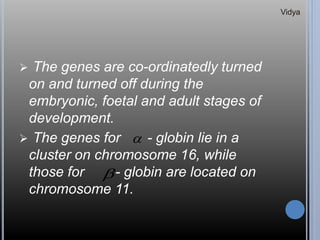

13.  The genes are co-ordinatedly turned
on and turned off during the
embryonic, foetal and adult stages of
development.
 The genes for - globin lie in a
cluster on chromosome 16, while
those for - globin are located on
chromosome 11.


Vidya

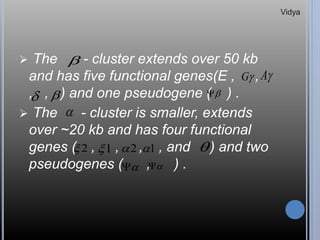

14.  The - cluster extends over 50 kb
and has five functional genes(E , ,
, , ) and one pseudogene ( ) .
 The - cluster is smaller, extends
over ~20 kb and has four functional
genes ( , , , , and ) and two
pseudogenes ( , ) .

G A
 

2 1 2 1 
 

Vidya

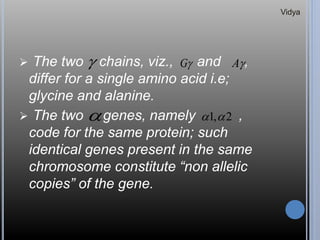

15.  The two chains, viz., and ,
differ for a single amino acid i.e;
glycine and alanine.
 The two genes, namely ,
code for the same protein; such
identical genes present in the same
chromosome constitute “non allelic
copies” of the gene.
 G A
 2,1 
Vidya

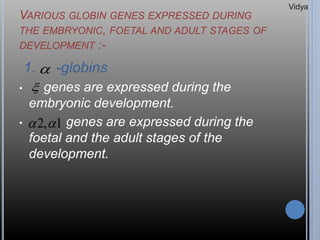

16. VARIOUS GLOBIN GENES EXPRESSED DURING
THE EMBRYONIC, FOETAL AND ADULT STAGES OF
DEVELOPMENT :-
1. -globins
• genes are expressed during the
embryonic development.
• genes are expressed during the
foetal and the adult stages of the
development.


1,2 
Vidya

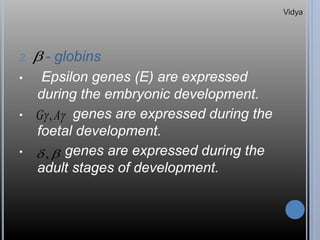

17. 2. - globins
• Epsilon genes (E) are expressed
during the embryonic development.
• genes are expressed during the
foetal development.
• genes are expressed during the
adult stages of development.

 AG ,
 ,
Vidya

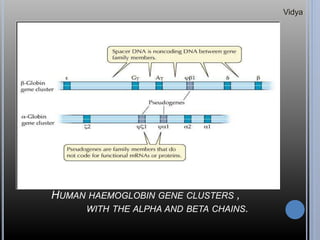

18. HUMAN HAEMOGLOBIN GENE CLUSTERS ,
WITH THE ALPHA AND BETA CHAINS.
Vidya

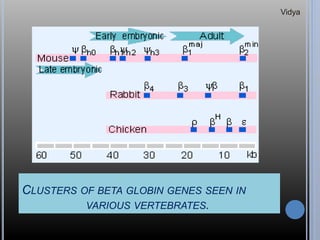

19. CLUSTERS OF BETA GLOBIN GENES SEEN IN
VARIOUS VERTEBRATES.
Vidya

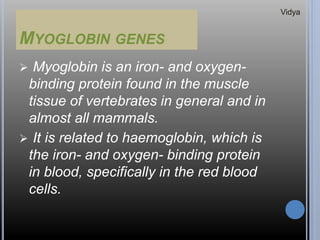

20. MYOGLOBIN GENES
 Myoglobin is an iron- and oxygen-
binding protein found in the muscle
tissue of vertebrates in general and in
almost all mammals.
 It is related to haemoglobin, which is
the iron- and oxygen- binding protein
in blood, specifically in the red blood
cells.
Vidya

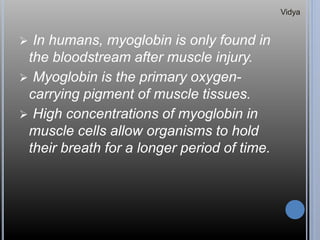

21.  In humans, myoglobin is only found in
the bloodstream after muscle injury.
 Myoglobin is the primary oxygen-
carrying pigment of muscle tissues.
 High concentrations of myoglobin in
muscle cells allow organisms to hold
their breath for a longer period of time.
Vidya

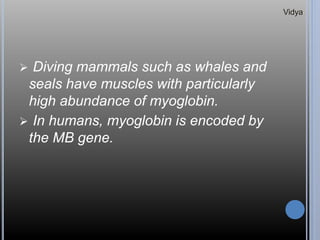

22.  Diving mammals such as whales and
seals have muscles with particularly
high abundance of myoglobin.
 In humans, myoglobin is encoded by
the MB gene.
Vidya

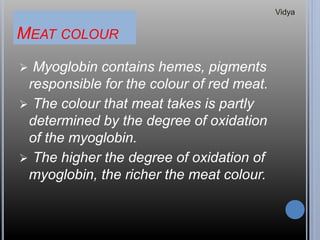

23. MEAT COLOUR
 Myoglobin contains hemes, pigments
responsible for the colour of red meat.
 The colour that meat takes is partly
determined by the degree of oxidation
of the myoglobin.
 The higher the degree of oxidation of
myoglobin, the richer the meat colour.
Vidya

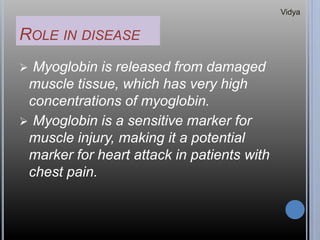

24. ROLE IN DISEASE
 Myoglobin is released from damaged
muscle tissue, which has very high
concentrations of myoglobin.
 Myoglobin is a sensitive marker for
muscle injury, making it a potential
marker for heart attack in patients with
chest pain.
Vidya

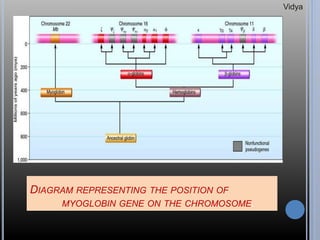

25. DIAGRAM REPRESENTING THE POSITION OF
MYOGLOBIN GENE ON THE CHROMOSOME.
Vidya

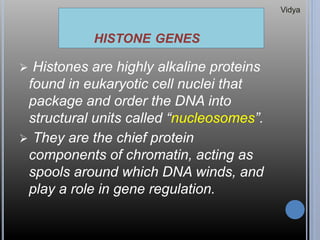

26. HISTONE GENES
 Histones are highly alkaline proteins
found in eukaryotic cell nuclei that
package and order the DNA into
structural units called “nucleosomes”.
 They are the chief protein
components of chromatin, acting as
spools around which DNA winds, and
play a role in gene regulation.
Vidya

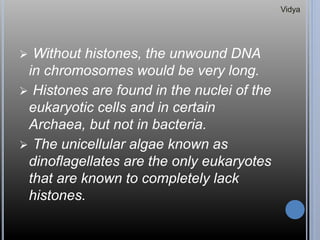

27.  Without histones, the unwound DNA
in chromosomes would be very long.
 Histones are found in the nuclei of the
eukaryotic cells and in certain
Archaea, but not in bacteria.
 The unicellular algae known as
dinoflagellates are the only eukaryotes
that are known to completely lack
histones.
Vidya

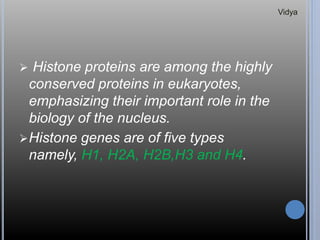

28.  Histone proteins are among the highly
conserved proteins in eukaryotes,
emphasizing their important role in the
biology of the nucleus.
Histone genes are of five types
namely, H1, H2A, H2B,H3 and H4.
Vidya

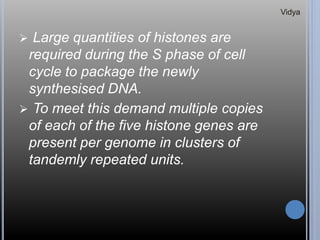

29.  Large quantities of histones are
required during the S phase of cell
cycle to package the newly
synthesised DNA.
 To meet this demand multiple copies
of each of the five histone genes are
present per genome in clusters of
tandemly repeated units.
Vidya

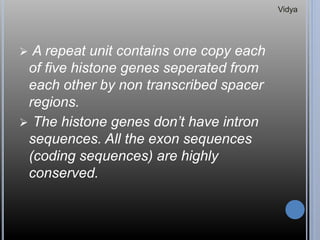

30.  A repeat unit contains one copy each
of five histone genes seperated from
each other by non transcribed spacer
regions.
 The histone genes don’t have intron
sequences. All the exon sequences
(coding sequences) are highly
conserved.
Vidya

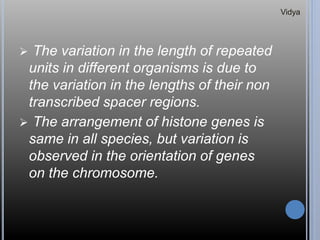

31.  The variation in the length of repeated
units in different organisms is due to
the variation in the lengths of their non
transcribed spacer regions.
 The arrangement of histone genes is
same in all species, but variation is
observed in the orientation of genes
on the chromosome.
Vidya

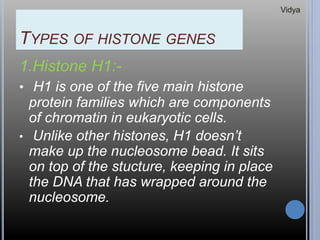

32. TYPES OF HISTONE GENES
1.Histone H1:-
• H1 is one of the five main histone
protein families which are components
of chromatin in eukaryotic cells.
• Unlike other histones, H1 doesn’t
make up the nucleosome bead. It sits
on top of the stucture, keeping in place
the DNA that has wrapped around the
nucleosome.
Vidya

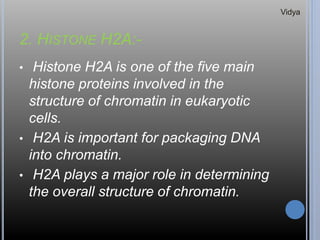

33. 2. HISTONE H2A:-
• Histone H2A is one of the five main
histone proteins involved in the
structure of chromatin in eukaryotic
cells.
• H2A is important for packaging DNA
into chromatin.
• H2A plays a major role in determining
the overall structure of chromatin.
Vidya

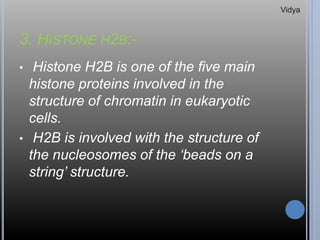

34. 3. HISTONE H2B:-
• Histone H2B is one of the five main
histone proteins involved in the
structure of chromatin in eukaryotic
cells.
• H2B is involved with the structure of
the nucleosomes of the ‘beads on a
string’ structure.
Vidya

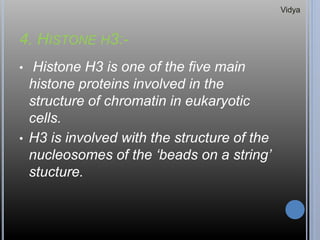

35. 4. HISTONE H3:-
• Histone H3 is one of the five main
histone proteins involved in the
structure of chromatin in eukaryotic
cells.
• H3 is involved with the structure of the
nucleosomes of the ‘beads on a string’
stucture.
Vidya

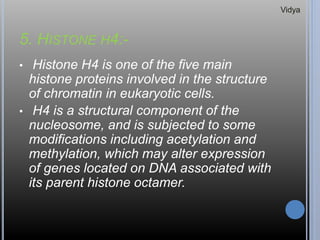

36. 5. HISTONE H4:-
• Histone H4 is one of the five main
histone proteins involved in the structure
of chromatin in eukaryotic cells.
• H4 is a structural component of the
nucleosome, and is subjected to some
modifications including acetylation and
methylation, which may alter expression
of genes located on DNA associated with
its parent histone octamer.
Vidya

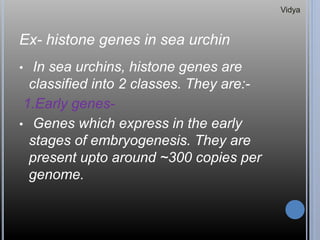

37. Ex- histone genes in sea urchin
• In sea urchins, histone genes are
classified into 2 classes. They are:-
1.Early genes-
• Genes which express in the early
stages of embryogenesis. They are
present upto around ~300 copies per
genome.
Vidya

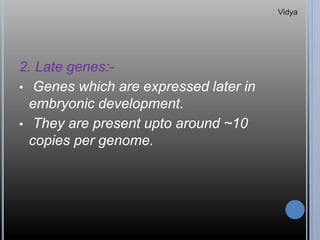

38. 2. Late genes:-
• Genes which are expressed later in
embryonic development.
• They are present upto around ~10
copies per genome.
Vidya

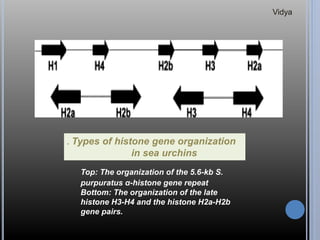

39. . Types of histone gene organization
in sea urchins
Top: The organization of the 5.6-kb S.
purpuratus α-histone gene repeat
Bottom: The organization of the late
histone H3-H4 and the histone H2a-H2b
gene pairs.
Vidya

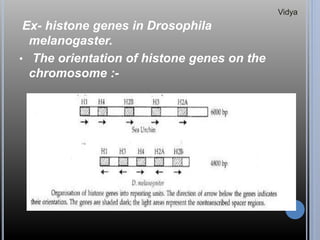

40. Ex- histone genes in Drosophila
melanogaster.
• The orientation of histone genes on the
chromosome :-
Vidya

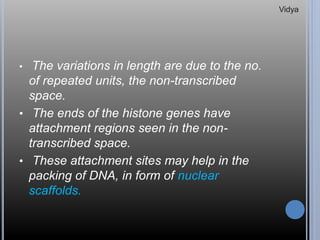

41. • The variations in length are due to the no.
of repeated units, the non-transcribed
space.
• The ends of the histone genes have
attachment regions seen in the non-
transcribed space.
• These attachment sites may help in the
packing of DNA, in form of nuclear
scaffolds.
Vidya

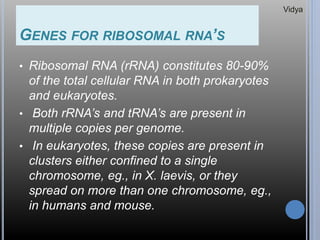

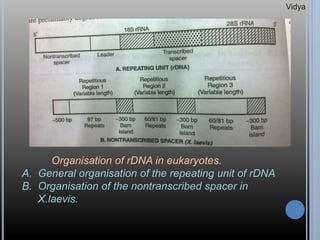

42. GENES FOR RIBOSOMAL RNA’S
• Ribosomal RNA (rRNA) constitutes 80-90%
of the total cellular RNA in both prokaryotes
and eukaryotes.
• Both rRNA’s and tRNA’s are present in
multiple copies per genome.
• In eukaryotes, these copies are present in
clusters either confined to a single
chromosome, eg., in X. laevis, or they
spread on more than one chromosome, eg.,
in humans and mouse.
Vidya

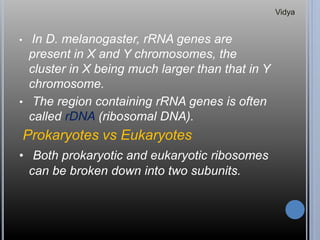

43. • In D. melanogaster, rRNA genes are
present in X and Y chromosomes, the
cluster in X being much larger than that in Y
chromosome.
• The region containing rRNA genes is often
called rDNA (ribosomal DNA).
Prokaryotes vs Eukaryotes
• Both prokaryotic and eukaryotic ribosomes
can be broken down into two subunits.
Vidya

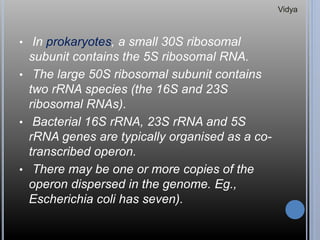

44. • In prokaryotes, a small 30S ribosomal
subunit contains the 5S ribosomal RNA.
• The large 50S ribosomal subunit contains
two rRNA species (the 16S and 23S
ribosomal RNAs).
• Bacterial 16S rRNA, 23S rRNA and 5S
rRNA genes are typically organised as a co-
transcribed operon.
• There may be one or more copies of the
operon dispersed in the genome. Eg.,
Escherichia coli has seven).
Vidya

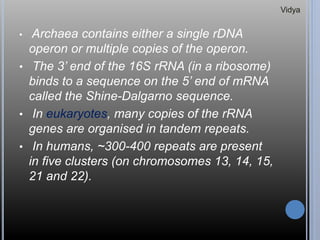

45. • Archaea contains either a single rDNA
operon or multiple copies of the operon.
• The 3’ end of the 16S rRNA (in a ribosome)
binds to a sequence on the 5’ end of mRNA
called the Shine-Dalgarno sequence.
• In eukaryotes, many copies of the rRNA
genes are organised in tandem repeats.
• In humans, ~300-400 repeats are present
in five clusters (on chromosomes 13, 14, 15,
21 and 22).
Vidya

46. • The 5S rRNA in most eukaryotes is in the
small ribosomal subunit, and the large
subunit contains three rRNA species (the
5.8S, 18S and 28S in mammals, 25S in
plants).
• In eukaryotes, the 5S RNA is transcribed
independently.
• In higher eukaryotes, 5S RNA genes are
organised in separate clusters and their
numbers are far in excess of those coding
18S-28S rRNA.
Vidya

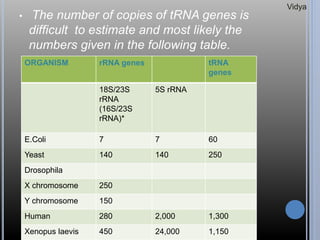

47. • The number of copies of tRNA genes is
difficult to estimate and most likely the
numbers given in the following table.
ORGANISM rRNA genes tRNA
genes
18S/23S
rRNA
(16S/23S
rRNA)*
5S rRNA
E.Coli 7 7 60
Yeast 140 140 250
Drosophila
X chromosome 250
Y chromosome 150
Human 280 2,000 1,300
Xenopus laevis 450 24,000 1,150
Vidya

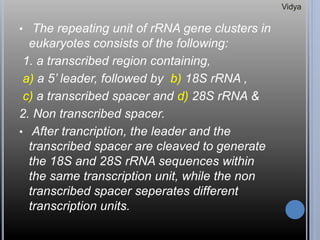

48. • The repeating unit of rRNA gene clusters in
eukaryotes consists of the following:
1. a transcribed region containing,
a) a 5’ leader, followed by b) 18S rRNA ,
c) a transcribed spacer and d) 28S rRNA &
2. Non transcribed spacer.
• After trancription, the leader and the
transcribed spacer are cleaved to generate
the 18S and 28S rRNA sequences within
the same transcription unit, while the non
transcribed spacer seperates different
transcription units.
Vidya

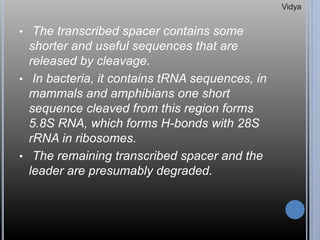

49. • The transcribed spacer contains some
shorter and useful sequences that are
released by cleavage.
• In bacteria, it contains tRNA sequences, in
mammals and amphibians one short
sequence cleaved from this region forms
5.8S RNA, which forms H-bonds with 28S
rRNA in ribosomes.
• The remaining transcribed spacer and the
leader are presumably degraded.
Vidya

50. Organisation of rDNA in eukaryotes.
A. General organisation of the repeating unit of rDNA
B. Organisation of the nontranscribed spacer in
X.laevis.
Vidya

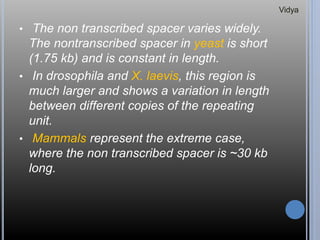

51. • The non transcribed spacer varies widely.
The nontranscribed spacer in yeast is short
(1.75 kb) and is constant in length.
• In drosophila and X. laevis, this region is
much larger and shows a variation in length
between different copies of the repeating
unit.
• Mammals represent the extreme case,
where the non transcribed spacer is ~30 kb
long.
Vidya

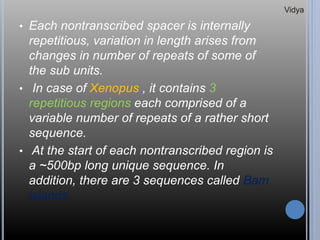

52. • Each nontranscribed spacer is internally
repetitious, variation in length arises from
changes in number of repeats of some of
the sub units.
• In case of Xenopus , it contains 3
repetitious regions each comprised of a
variable number of repeats of a rather short
sequence.
• At the start of each nontranscribed region is
a ~500bp long unique sequence. In
addition, there are 3 sequences called Bam
islands.
Vidya

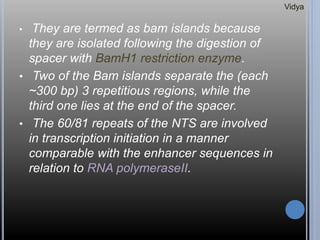

53. • They are termed as bam islands because
they are isolated following the digestion of
spacer with BamH1 restriction enzyme.
• Two of the Bam islands separate the (each
~300 bp) 3 repetitious regions, while the
third one lies at the end of the spacer.
• The 60/81 repeats of the NTS are involved
in transcription initiation in a manner
comparable with the enhancer sequences in
relation to RNA polymeraseII.
Vidya

54. Vidya
