1. From Query Plan to Query
Performance:
Supercharging your Spark Queries using the Spark UI
SQL Tab
Max Thone - Resident Solutions Architect
Stefan van Wouw - Sr. Resident Solutions Architect

2. Agenda
Introduction to Spark SQL Tab
The Most Common Components
of the Query Plan
Supercharge your spark queries

3. Introduction to Spark SQL Tab

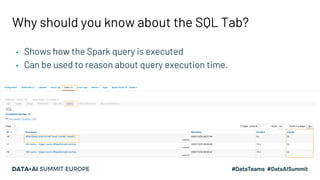

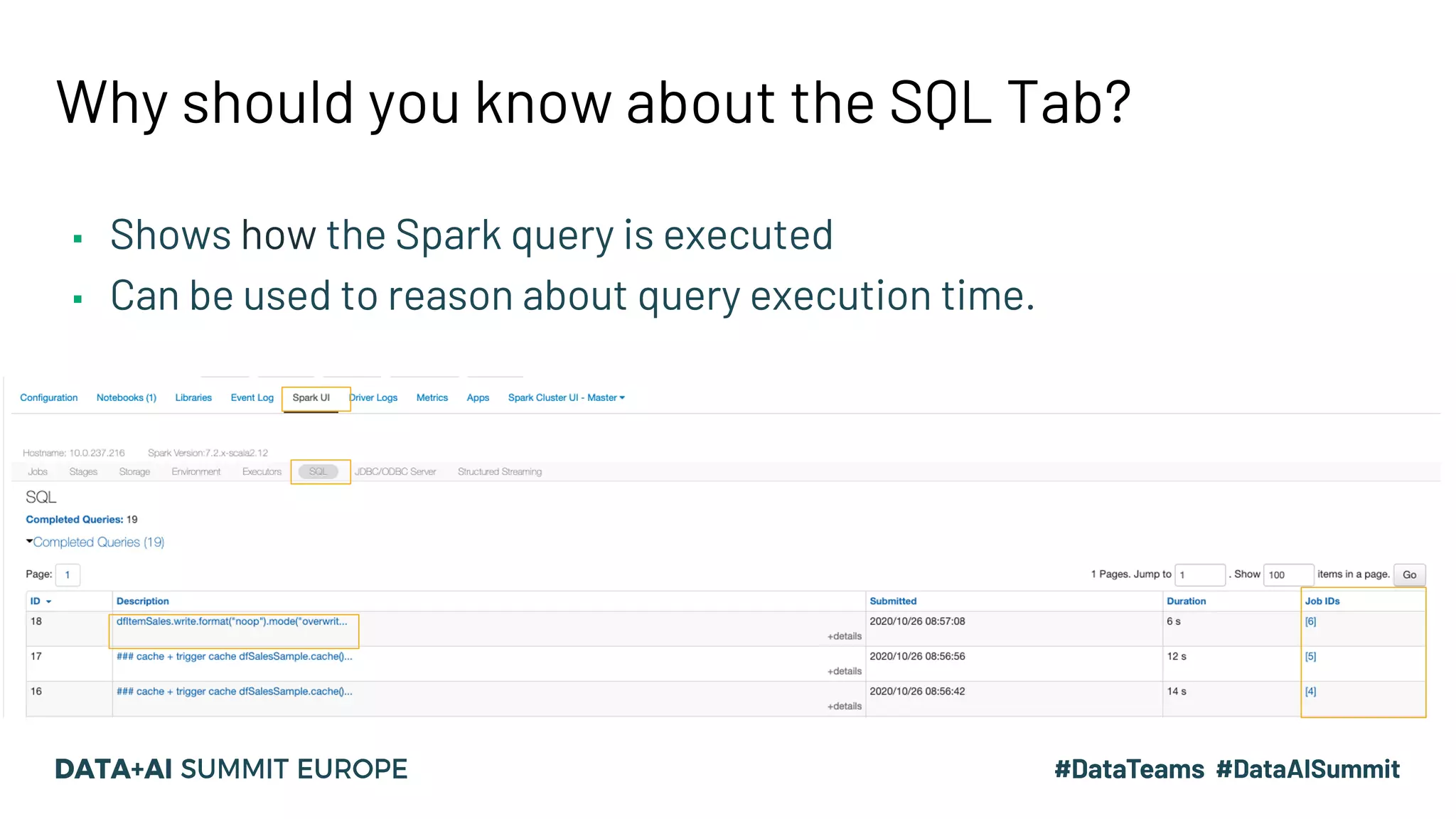

4. Why should you know about the SQL Tab?
▪ Shows how the Spark query is executed
▪ Can be used to reason about query execution time.

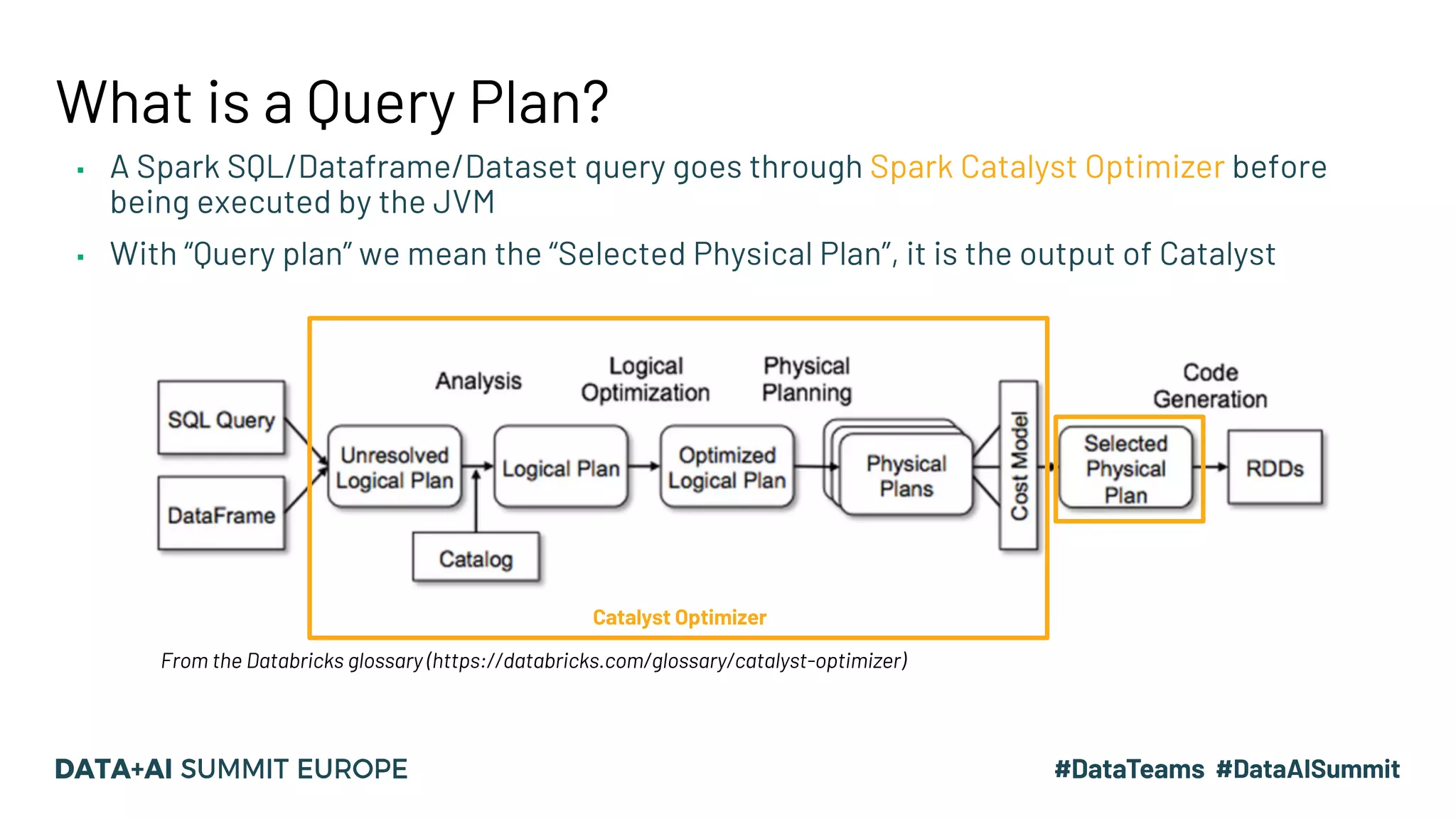

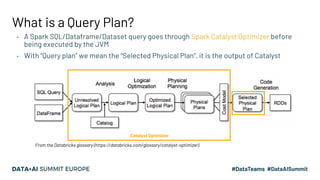

5. What is a Query Plan?
▪ A Spark SQL/Dataframe/Dataset query goes through Spark Catalyst Optimizer before
being executed by the JVM
▪ With “Query plan” we mean the “Selected Physical Plan”, it is the output of Catalyst
Catalyst Optimizer
From the Databricks glossary (https://databricks.com/glossary/catalyst-optimizer)

6. Dataframe
“action”
Query
(=physical
plan)
Spark Job
Spark Job
Spark Job
Stage
Stage
Stage
Stage
Stage
Stage
Stage
Stage
Tasks
Tasks

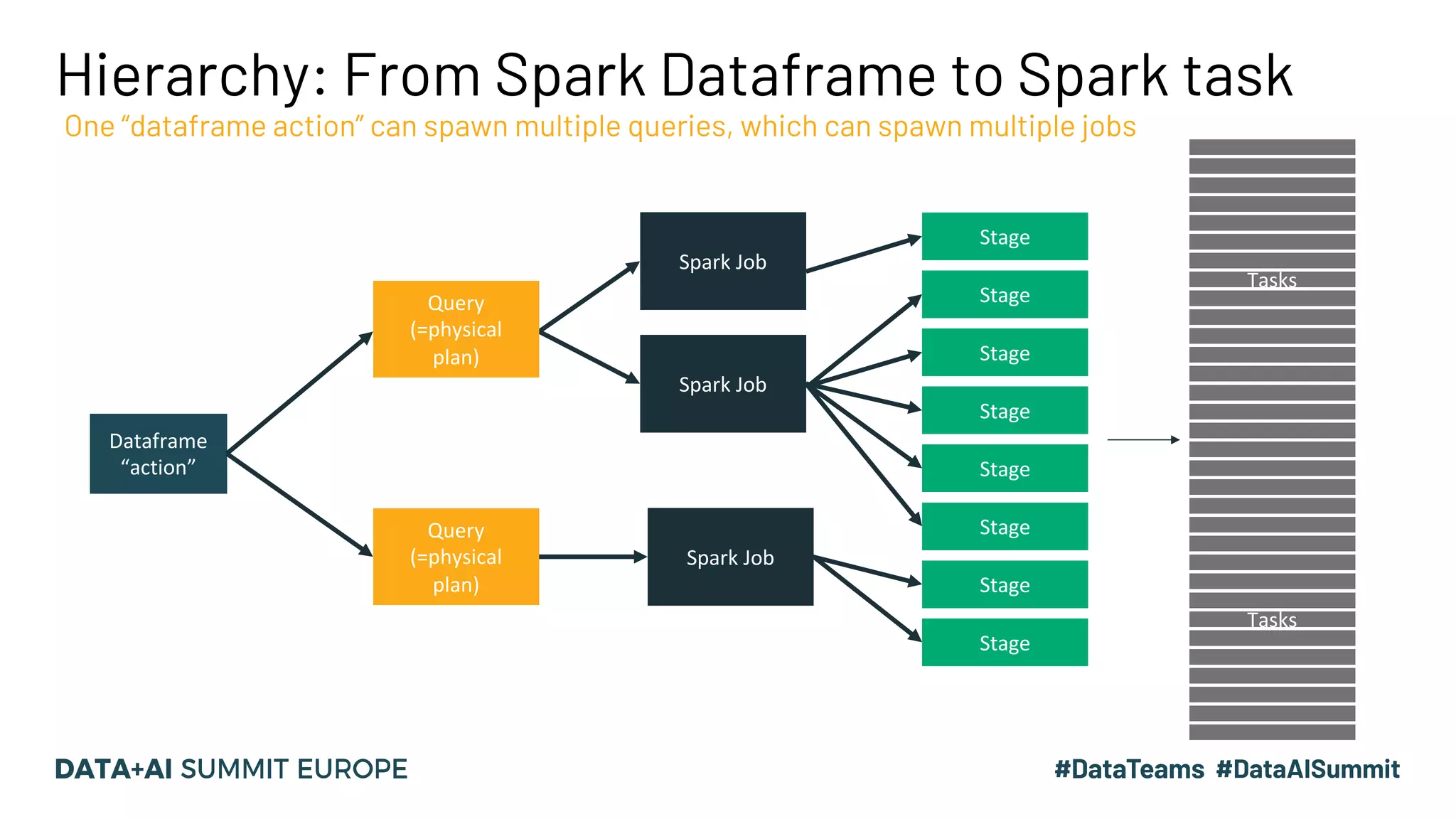

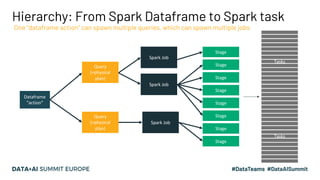

Hierarchy: From Spark Dataframe to Spark task
One “dataframe action” can spawn multiple queries, which can spawn multiple jobs
Query
(=physical
plan)

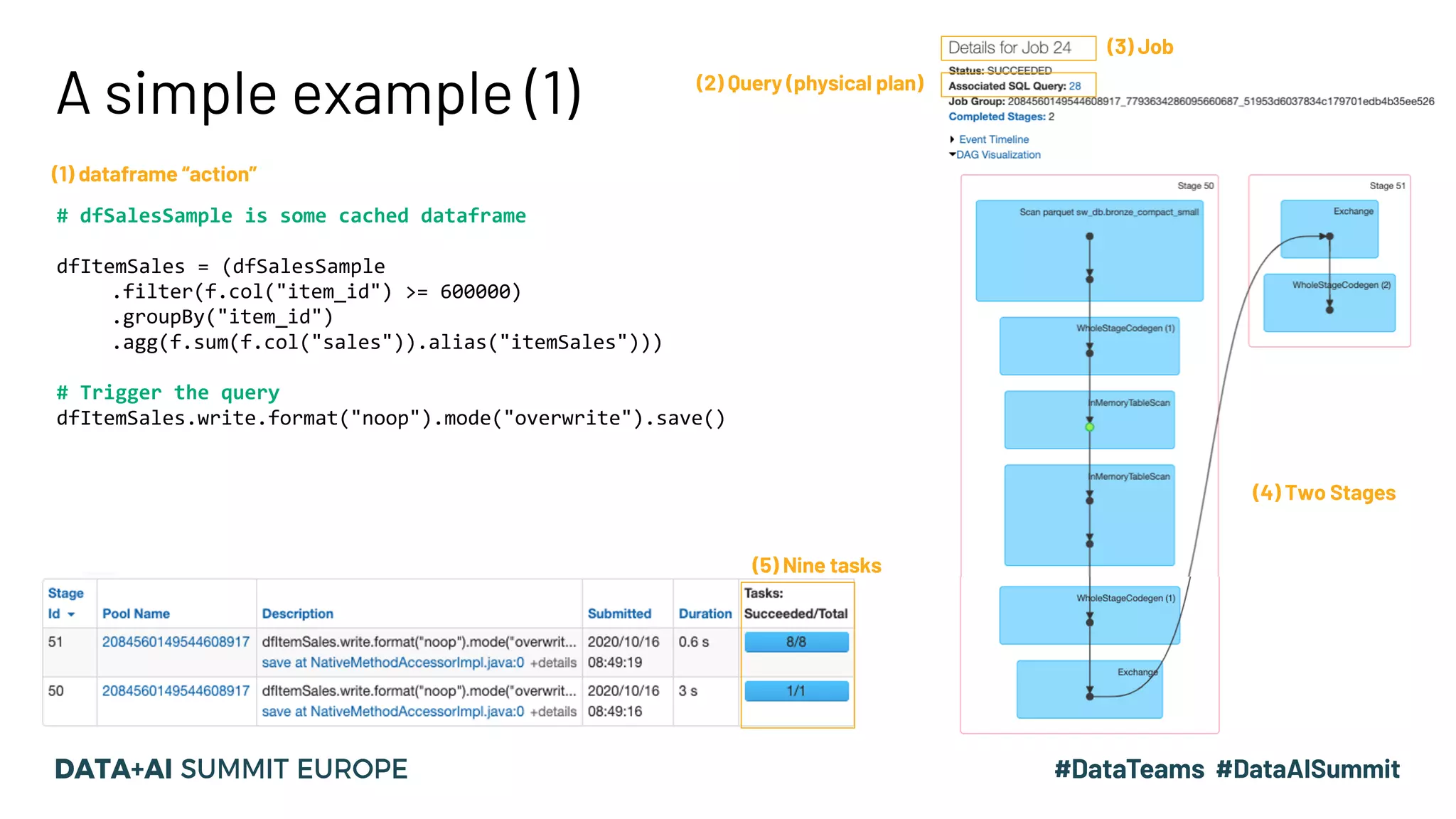

7. A simple example (1)
# dfSalesSample is some cached dataframe
dfItemSales = (dfSalesSample
.filter(f.col("item_id") >= 600000)
.groupBy("item_id")
.agg(f.sum(f.col("sales")).alias("itemSales")))
# Trigger the query
dfItemSales.write.format("noop").mode("overwrite").save()
(1) dataframe “action”
(2) Query (physical plan)
(3) Job
(4) Two Stages
(5) Nine tasks

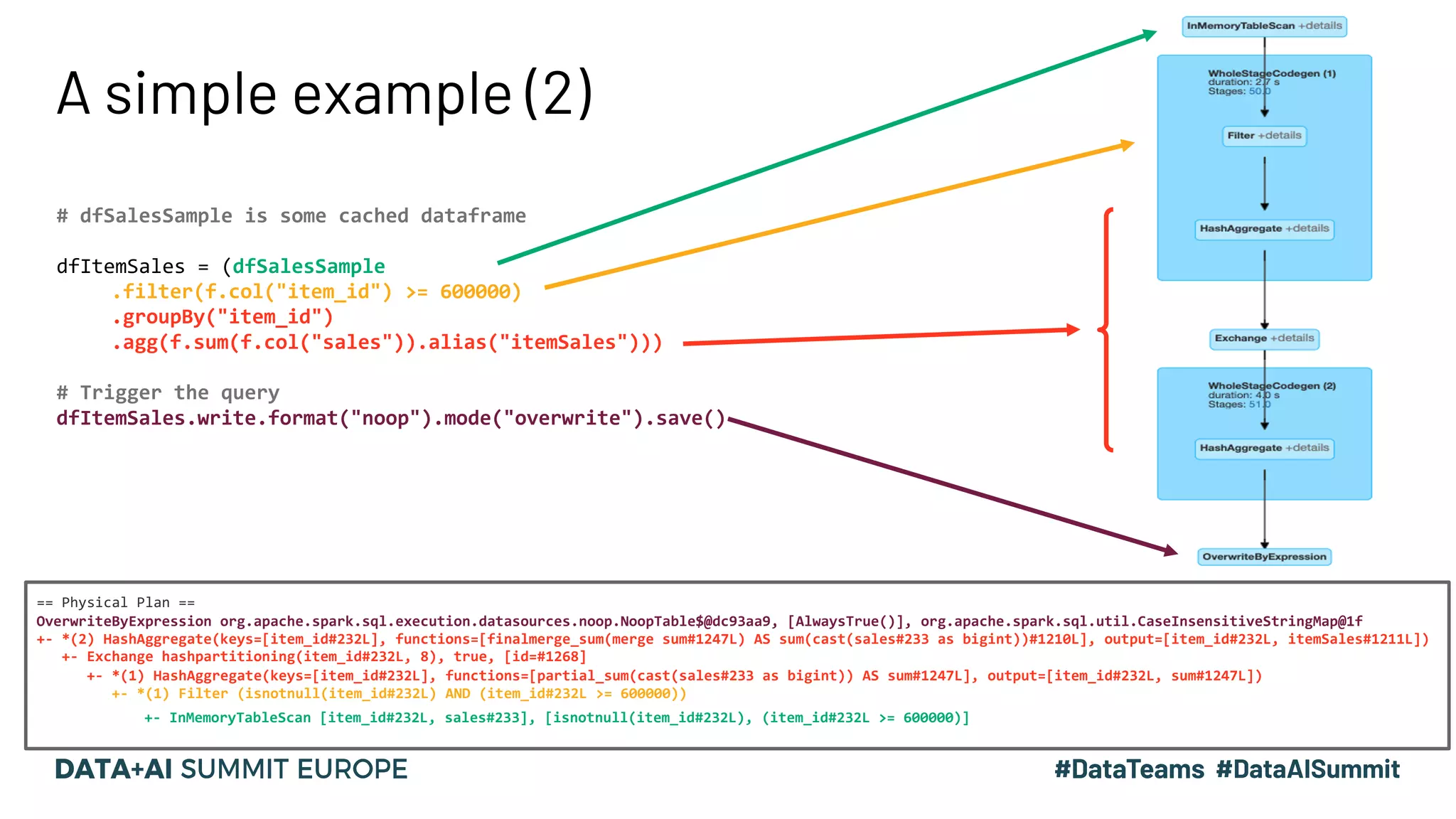

8. A simple example (2)
# dfSalesSample is some cached dataframe
dfItemSales = (dfSalesSample
.filter(f.col("item_id") >= 600000)
.groupBy("item_id")
.agg(f.sum(f.col("sales")).alias("itemSales")))
# Trigger the query
dfItemSales.write.format("noop").mode("overwrite").save()
== Physical Plan ==
OverwriteByExpression org.apache.spark.sql.execution.datasources.noop.NoopTable$@dc93aa9, [AlwaysTrue()], org.apache.spark.sql.util.CaseInsensitiveStringMap@1f
+- *(2) HashAggregate(keys=[item_id#232L], functions=[finalmerge_sum(merge sum#1247L) AS sum(cast(sales#233 as bigint))#1210L], output=[item_id#232L, itemSales#1211L])
+- Exchange hashpartitioning(item_id#232L, 8), true, [id=#1268]
+- *(1) HashAggregate(keys=[item_id#232L], functions=[partial_sum(cast(sales#233 as bigint)) AS sum#1247L], output=[item_id#232L, sum#1247L])
+- *(1) Filter (isnotnull(item_id#232L) AND (item_id#232L >= 600000))
+- InMemoryTableScan [item_id#232L, sales#233], [isnotnull(item_id#232L), (item_id#232L >= 600000)]

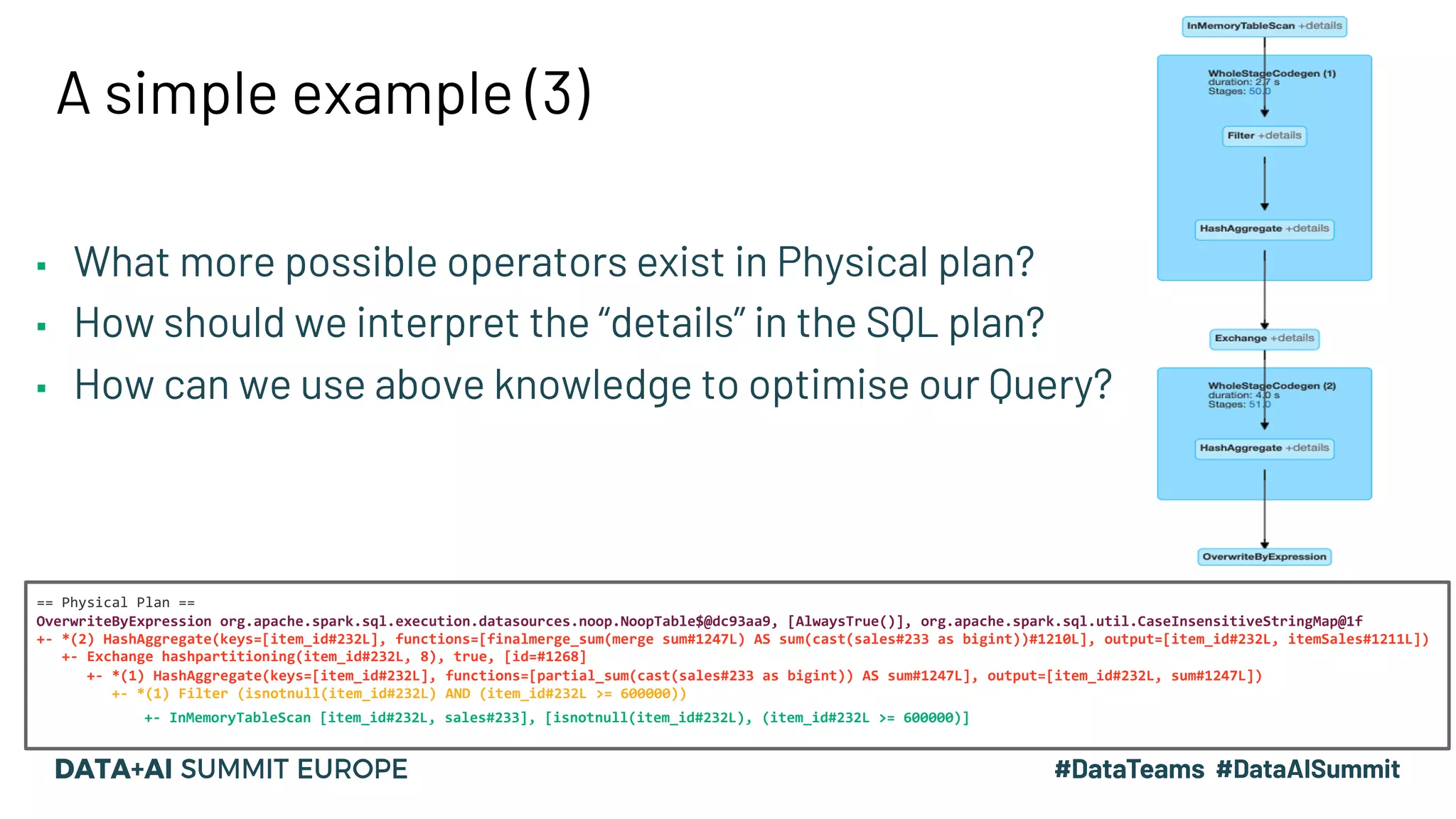

9. A simple example (3)
== Physical Plan ==
OverwriteByExpression org.apache.spark.sql.execution.datasources.noop.NoopTable$@dc93aa9, [AlwaysTrue()], org.apache.spark.sql.util.CaseInsensitiveStringMap@1f
+- *(2) HashAggregate(keys=[item_id#232L], functions=[finalmerge_sum(merge sum#1247L) AS sum(cast(sales#233 as bigint))#1210L], output=[item_id#232L, itemSales#1211L])
+- Exchange hashpartitioning(item_id#232L, 8), true, [id=#1268]
+- *(1) HashAggregate(keys=[item_id#232L], functions=[partial_sum(cast(sales#233 as bigint)) AS sum#1247L], output=[item_id#232L, sum#1247L])
+- *(1) Filter (isnotnull(item_id#232L) AND (item_id#232L >= 600000))
+- InMemoryTableScan [item_id#232L, sales#233], [isnotnull(item_id#232L), (item_id#232L >= 600000)]
▪ What more possible operators exist in Physical plan?
▪ How should we interpret the “details” in the SQL plan?
▪ How can we use above knowledge to optimise our Query?

10. An Overview of Common Components of the
Physical Plan

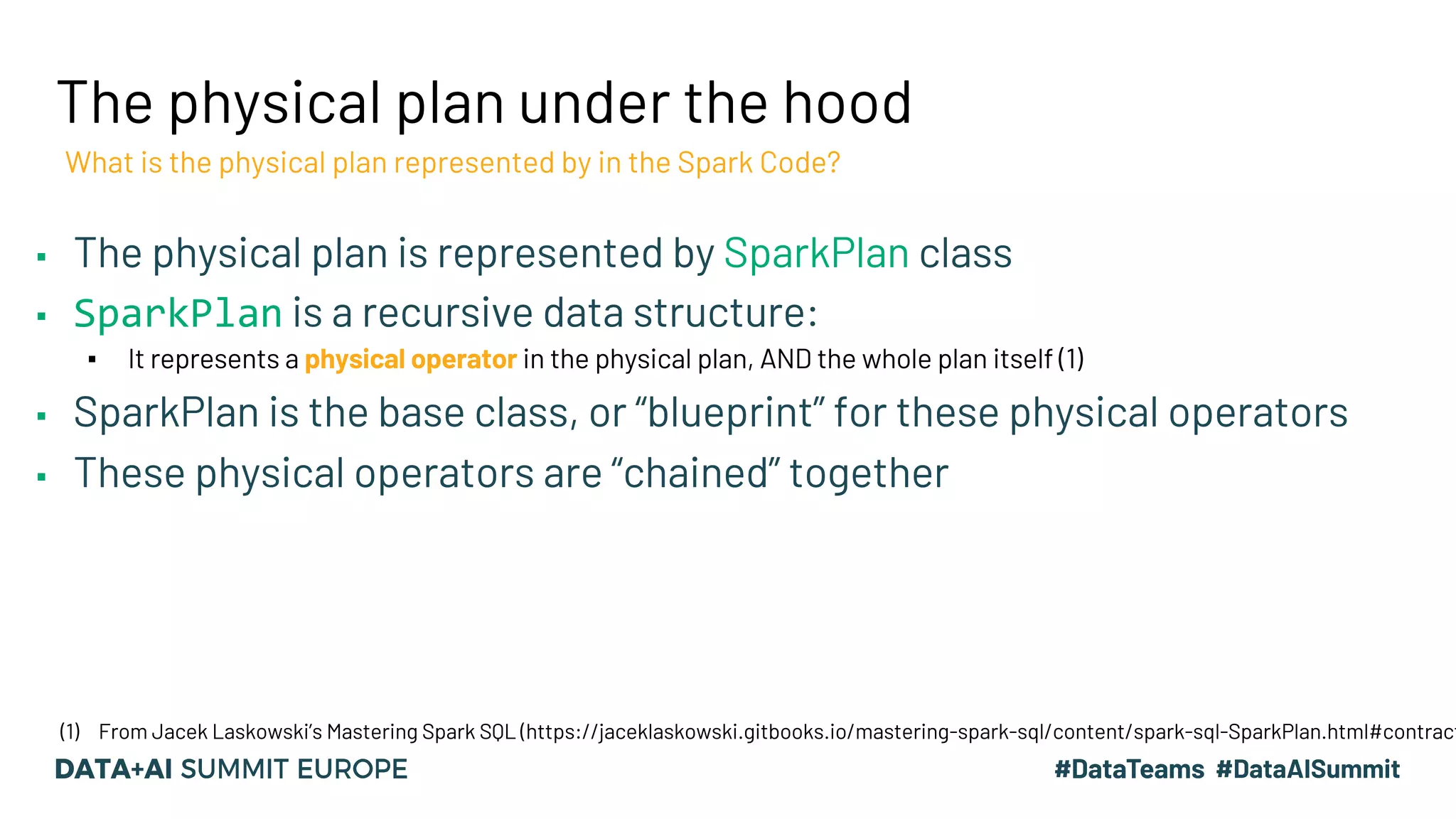

11. The physical plan under the hood
What is the physical plan represented by in the Spark Code?
▪ The physical plan is represented by SparkPlan class
▪ SparkPlan is a recursive data structure:
▪ It represents a physical operator in the physical plan, AND the whole plan itself (1)
▪ SparkPlan is the base class, or “blueprint” for these physical operators
▪ These physical operators are “chained” together
(1) From Jacek Laskowski’s Mastering Spark SQL (https://jaceklaskowski.gitbooks.io/mastering-spark-sql/content/spark-sql-SparkPlan.html#contract

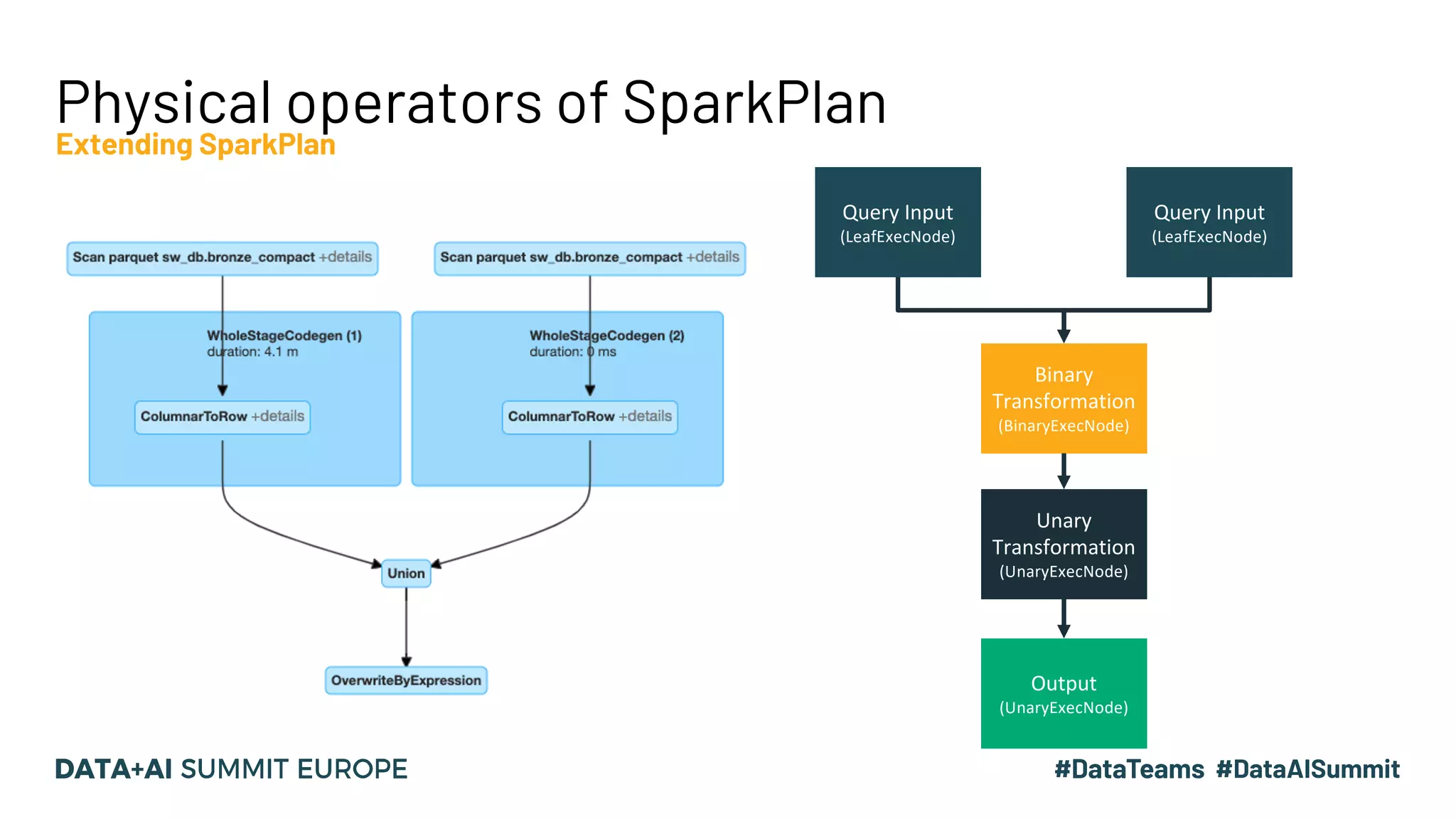

12. Physical operators of SparkPlan
Extending SparkPlan
Query Input
(LeafExecNode)
Output
(UnaryExecNode)
Binary
Transformation
(BinaryExecNode)
Query Input
(LeafExecNode)
Unary
Transformation
(UnaryExecNode)

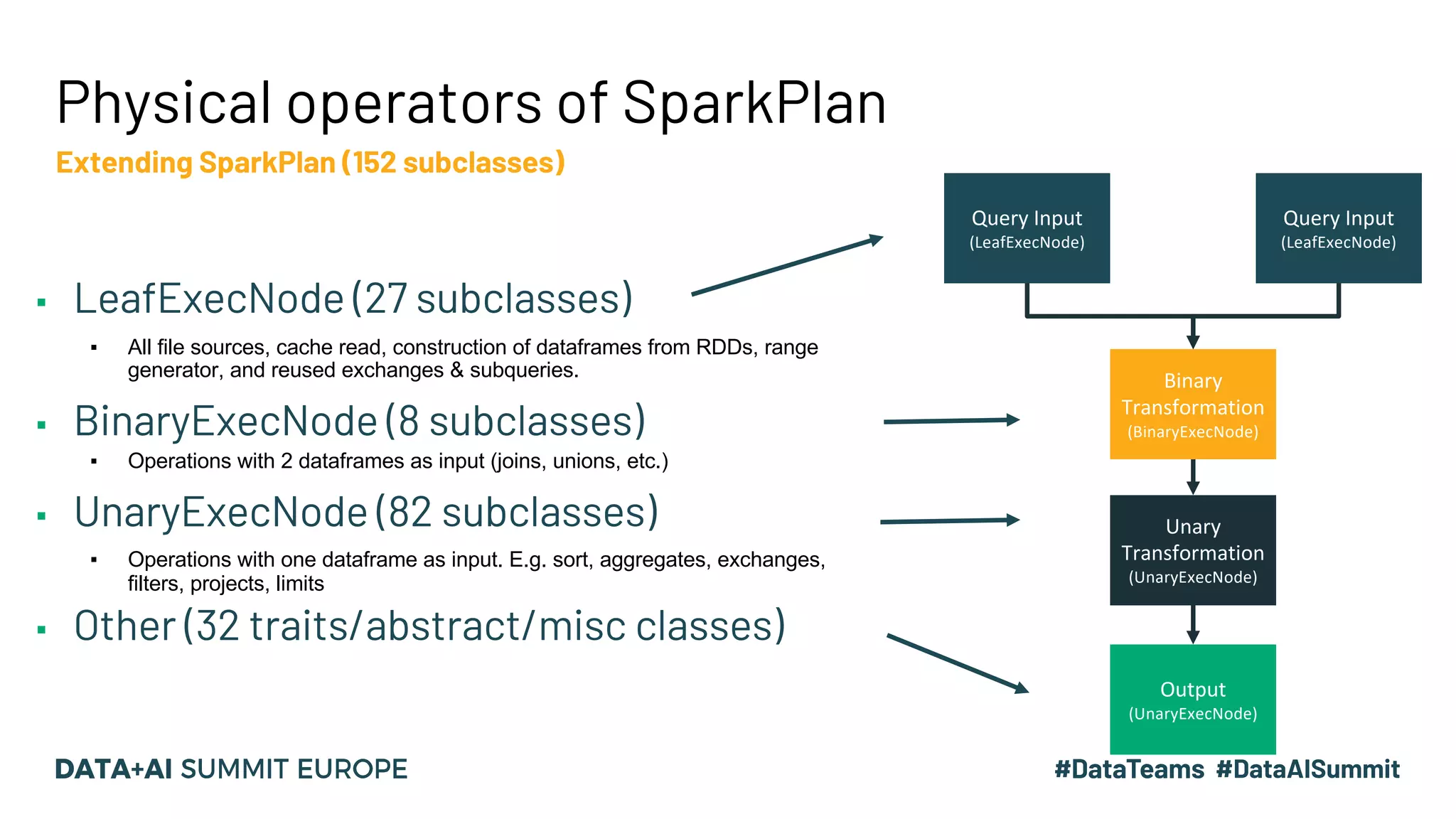

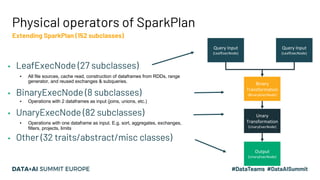

13. Physical operators of SparkPlan
Extending SparkPlan (152 subclasses)
Query Input
(LeafExecNode)
Output
(UnaryExecNode)
Binary
Transformation
(BinaryExecNode)
Query Input
(LeafExecNode)
Unary
Transformation
(UnaryExecNode)
▪ LeafExecNode (27 subclasses)
▪ All file sources, cache read, construction of dataframes from RDDs, range
generator, and reused exchanges & subqueries.
▪ BinaryExecNode (8 subclasses)
▪ Operations with 2 dataframes as input (joins, unions, etc.)
▪ UnaryExecNode (82 subclasses)
▪ Operations with one dataframe as input. E.g. sort, aggregates, exchanges,
filters, projects, limits
▪ Other (32 traits/abstract/misc classes)

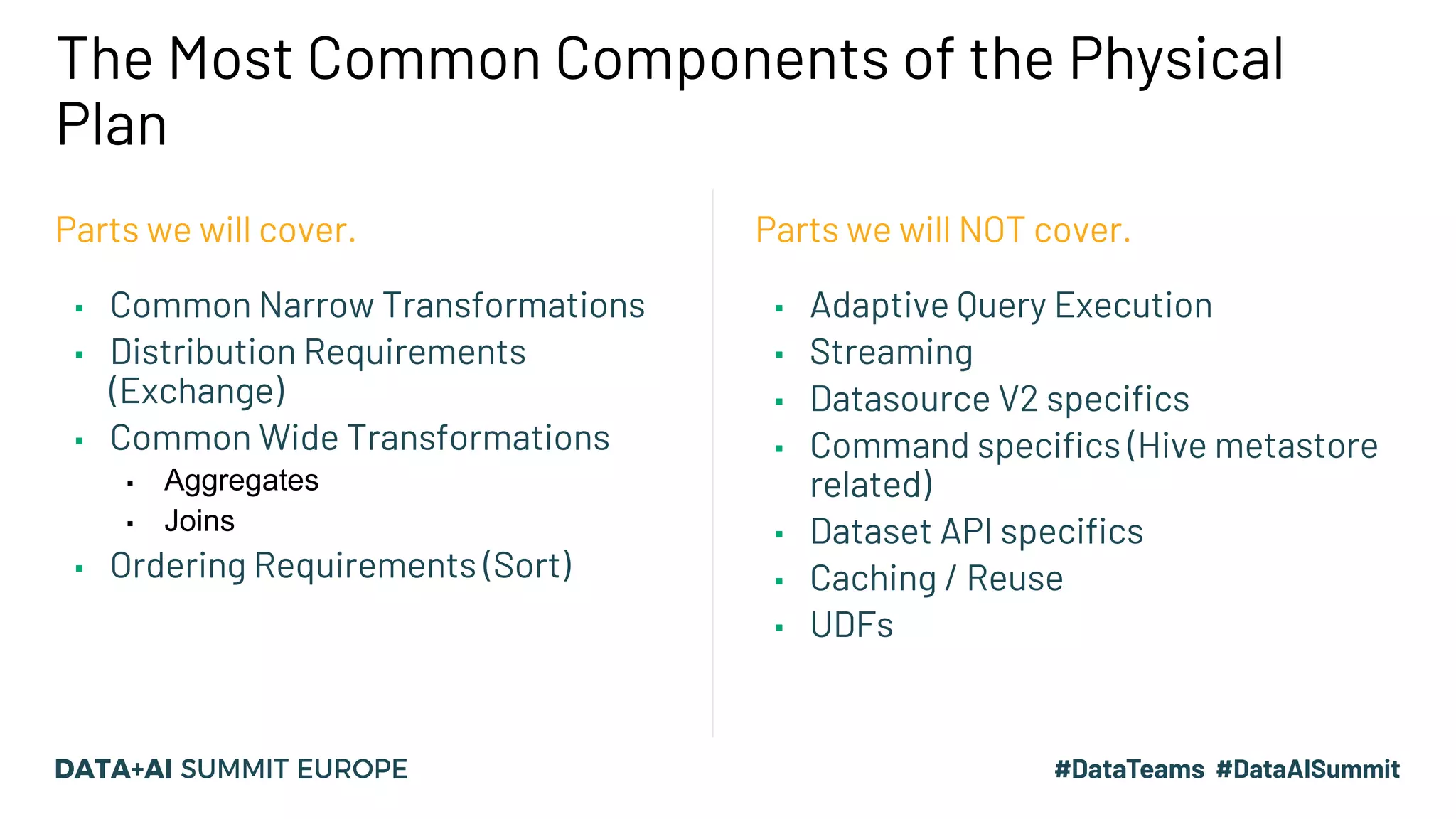

14. The Most Common Components of the Physical
Plan
▪ Common Narrow Transformations
▪ Distribution Requirements
(Exchange)
▪ Common Wide Transformations
▪ Aggregates
▪ Joins
▪ Ordering Requirements (Sort)
▪ Adaptive Query Execution
▪ Streaming
▪ Datasource V2 specifics
▪ Command specifics (Hive metastore
related)
▪ Dataset API specifics
▪ Caching / Reuse
▪ UDFs
Parts we will NOT cover.Parts we will cover.

15. Let’s start with the basics: Read/Write

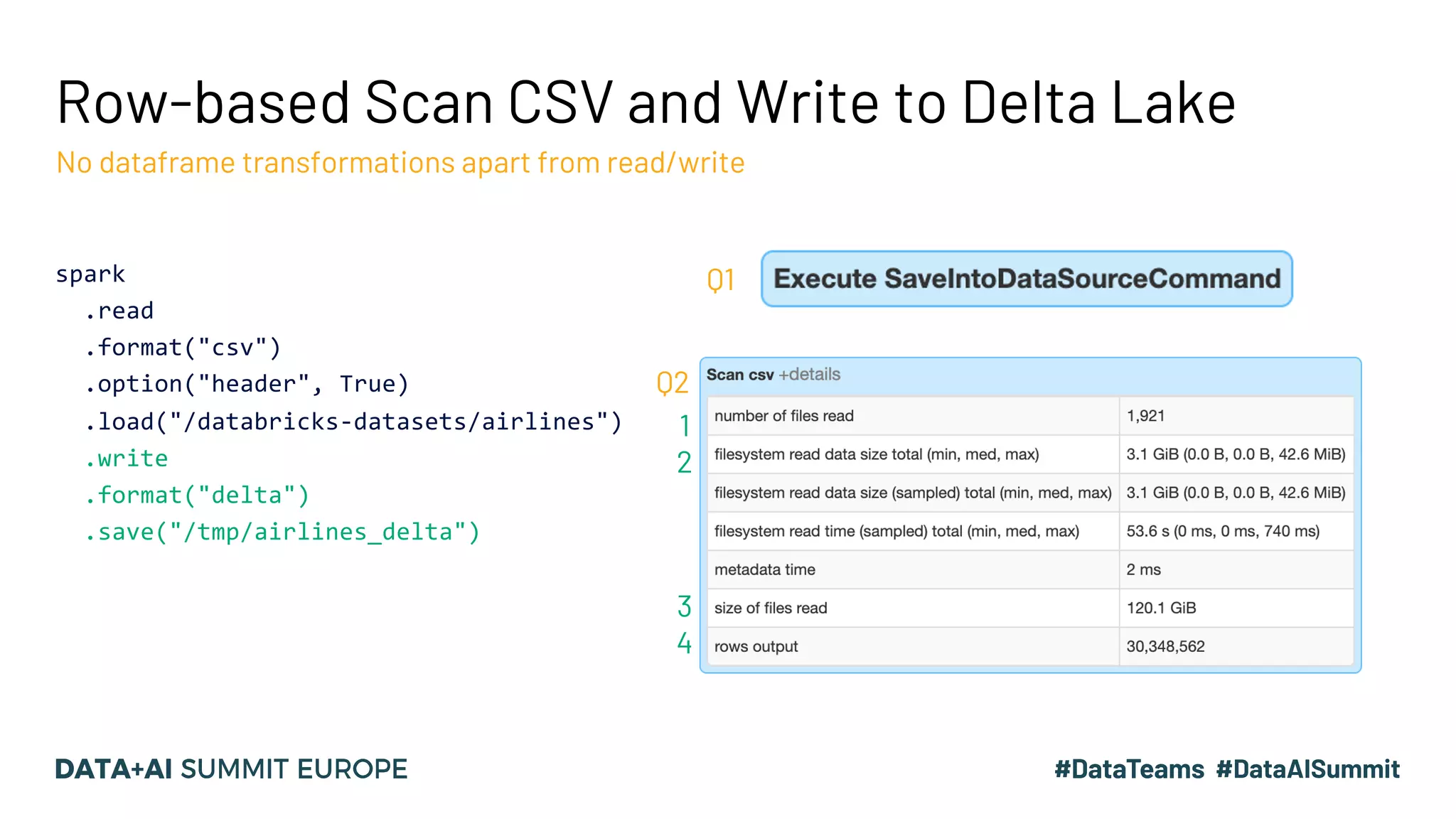

16. Row-based Scan CSV and Write to Delta Lake
No dataframe transformations apart from read/write
spark
.read
.format("csv")
.option("header", True)
.load("/databricks-datasets/airlines")
.write
.format("delta")
.save("/tmp/airlines_delta")
Q1
Q2
1
2
3
4

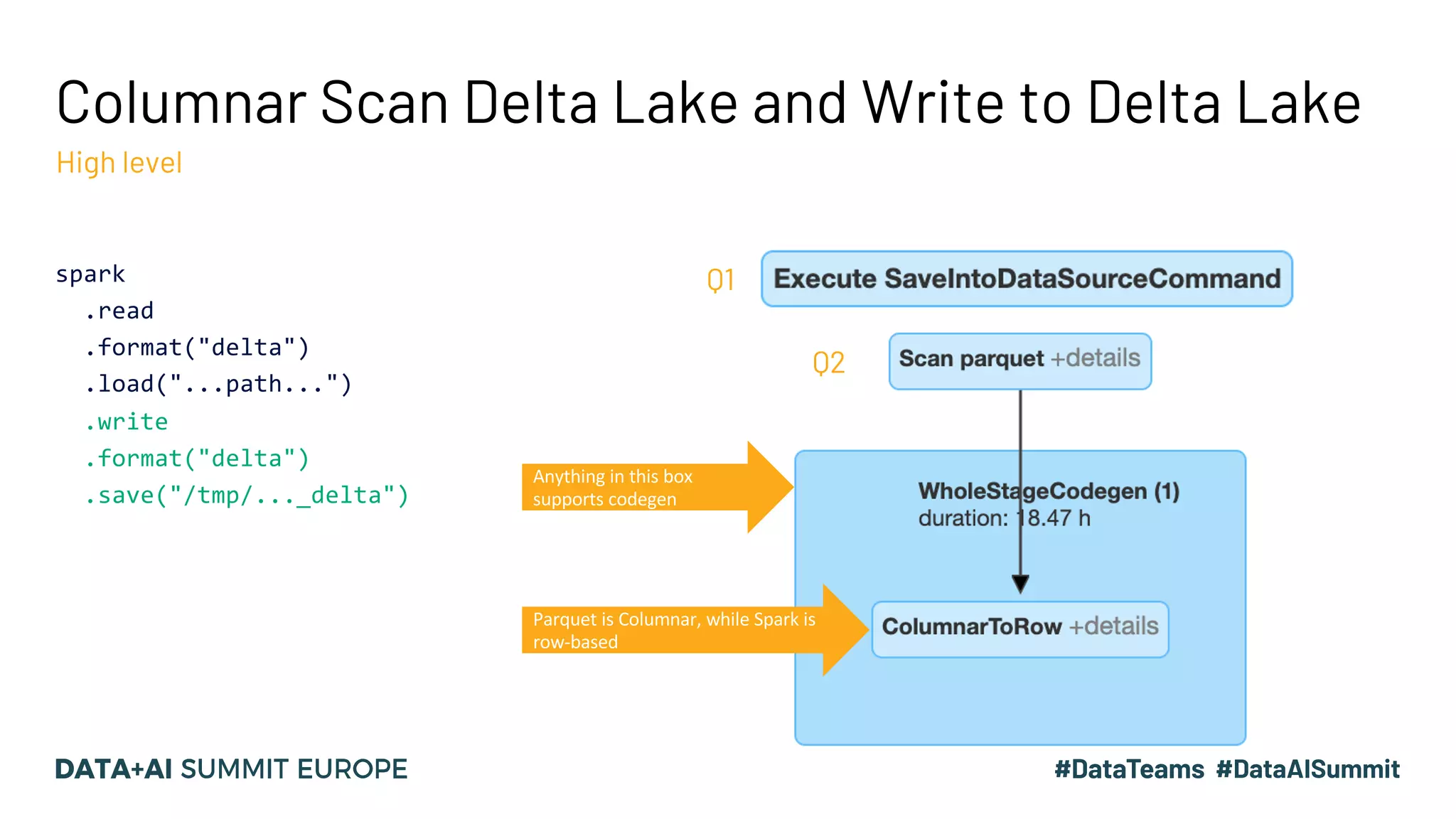

17. Columnar Scan Delta Lake and Write to Delta Lake
High level
spark
.read
.format("delta")
.load("...path...")
.write
.format("delta")
.save("/tmp/..._delta")
Q1
Q2
Parquet is Columnar, while Spark is
row-based
Anything in this box
supports codegen

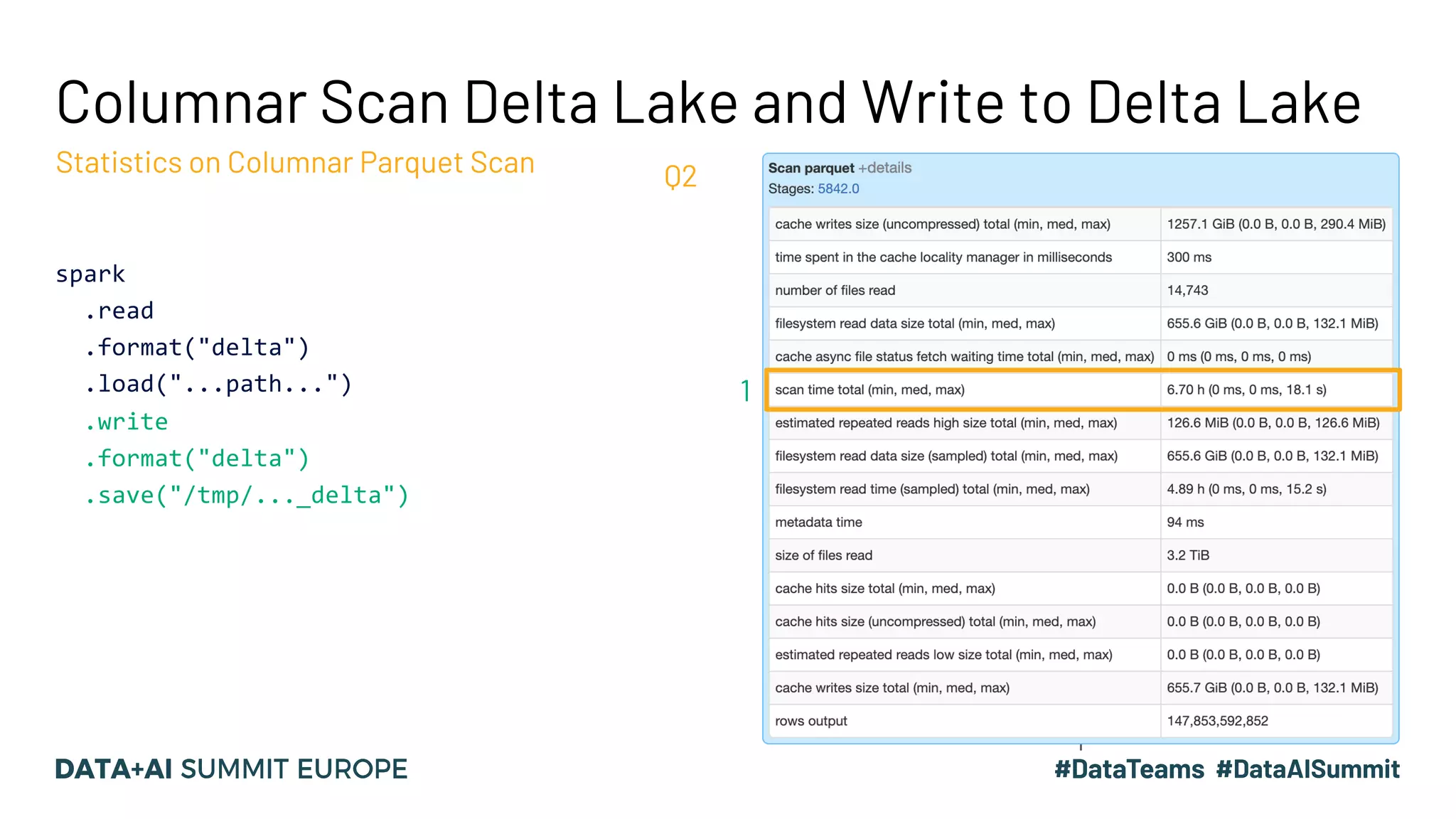

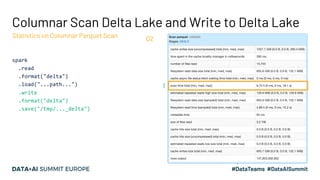

18. Columnar Scan Delta Lake and Write to Delta Lake
Statistics on Columnar Parquet Scan
spark
.read
.format("delta")
.load("...path...")
.write
.format("delta")
.save("/tmp/..._delta")
Q2
1

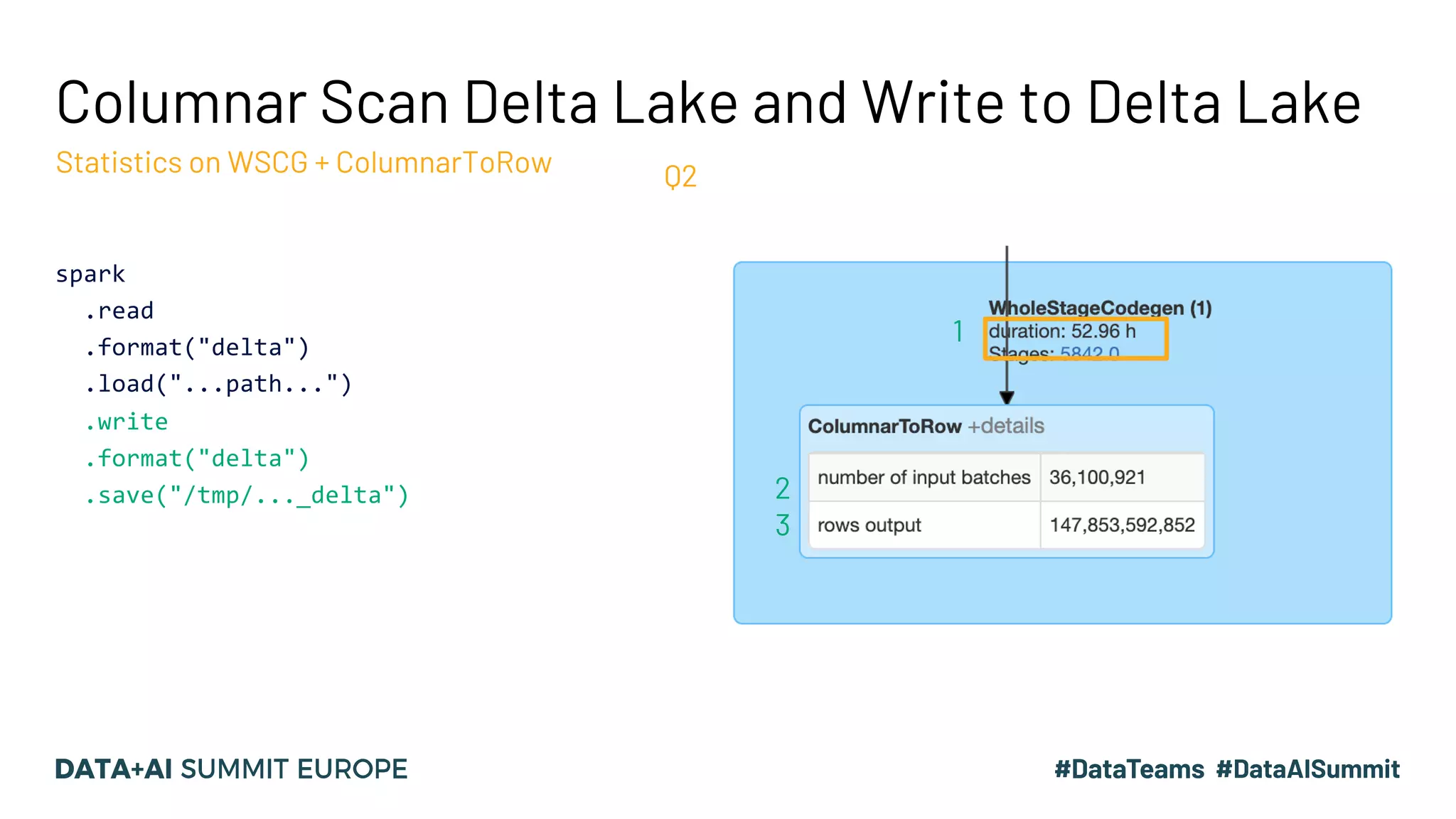

19. Columnar Scan Delta Lake and Write to Delta Lake
Statistics on WSCG + ColumnarToRow
spark
.read
.format("delta")
.load("...path...")
.write
.format("delta")
.save("/tmp/..._delta")
Q2
1
2
3

20. Common Narrow Transformations

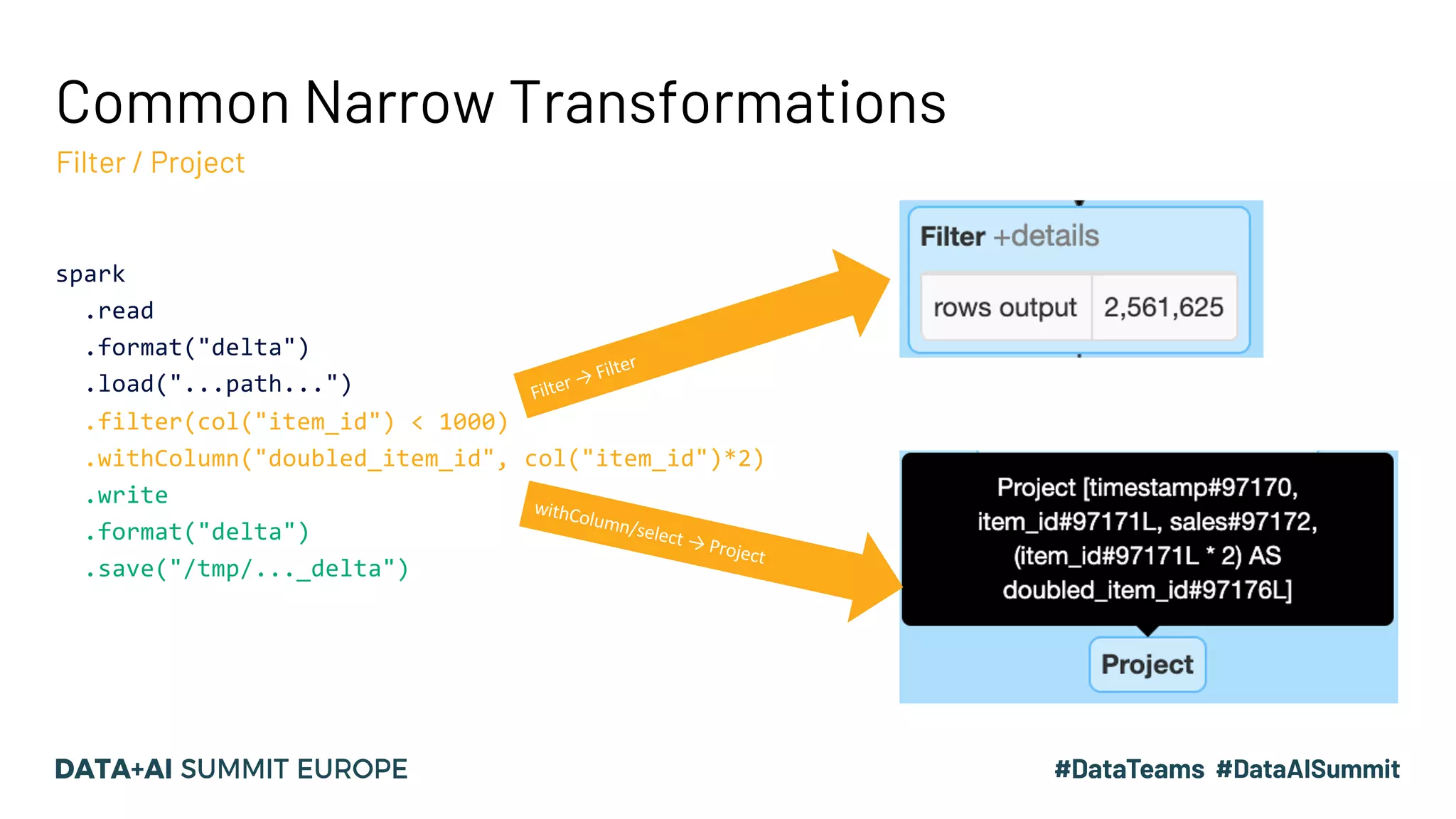

21. Common Narrow Transformations
Filter / Project
spark
.read
.format("delta")
.load("...path...")
.filter(col("item_id") < 1000)
.withColumn("doubled_item_id", col("item_id")*2)
.write
.format("delta")
.save("/tmp/..._delta")
Filter → Filter
withColumn/select → Project

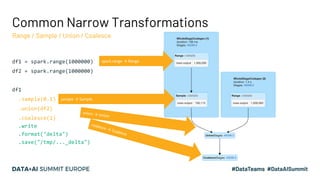

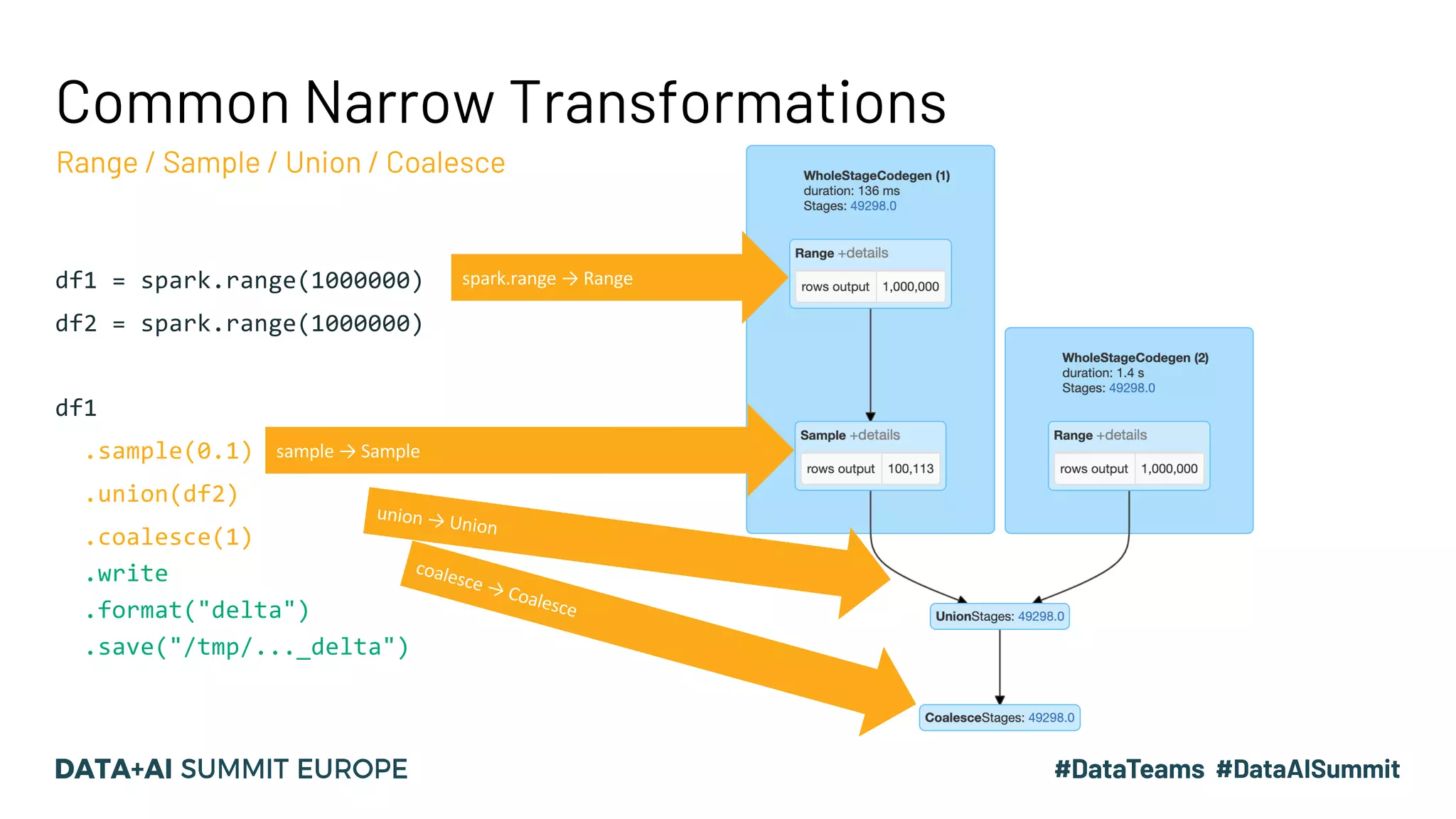

22. Common Narrow Transformations
Range / Sample / Union / Coalesce
df1 = spark.range(1000000)
df2 = spark.range(1000000)
df1
.sample(0.1)
.union(df2)
.coalesce(1)
.write
.format("delta")
.save("/tmp/..._delta")
spark.range → Range
sample → Sample
union → Union
coalesce → Coalesce

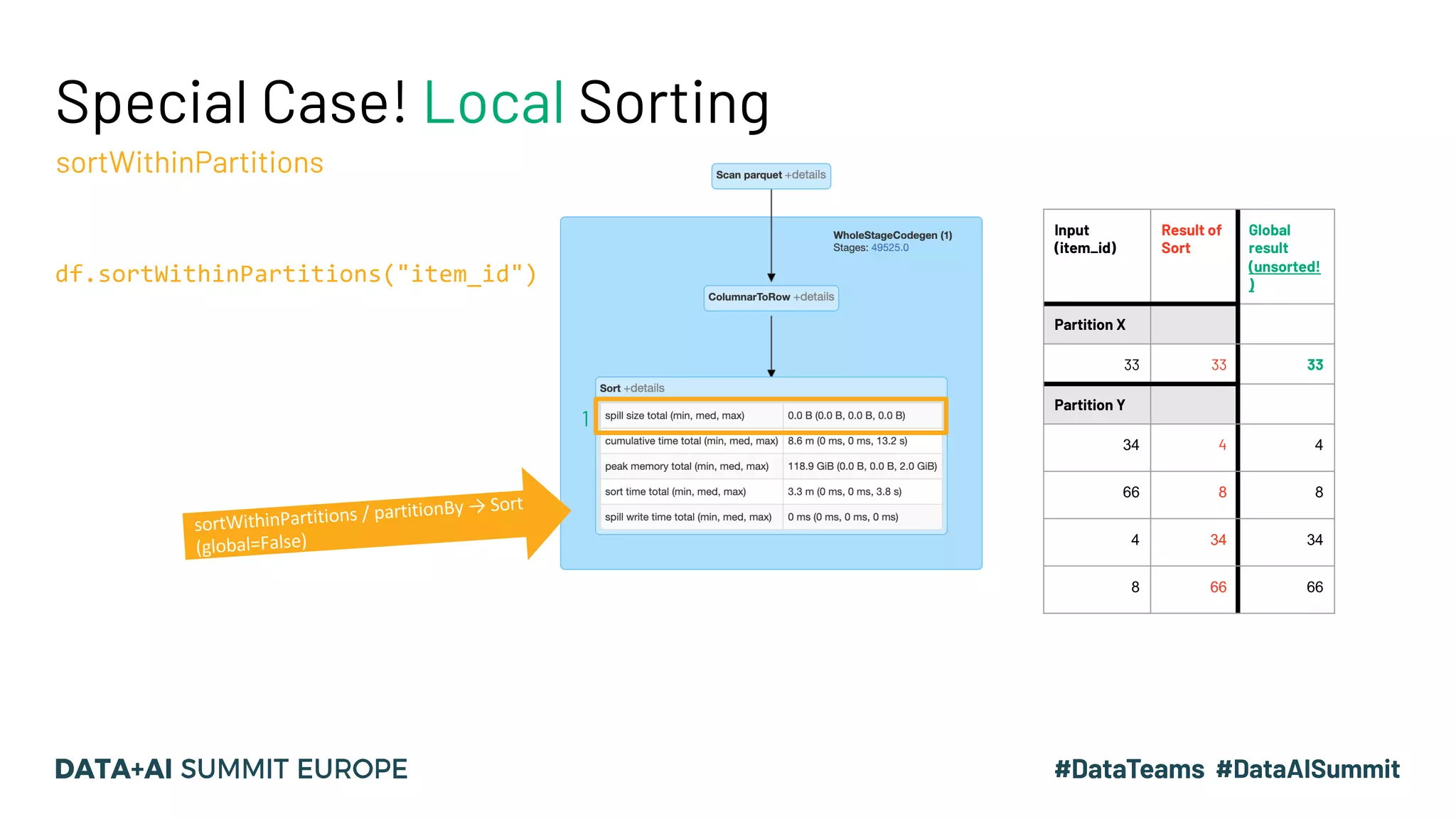

23. Special Case! Local Sorting
sortWithinPartitions
df.sortWithinPartitions("item_id")
sortWithinPartitions / partitionBy → Sort
(global=False)
1
Input
(item_id)
Result of
Sort
Global
result
(unsorted!
)
Partition X
33 33 33
Partition Y
34 4 4
66 8 8
4 34 34
8 66 66

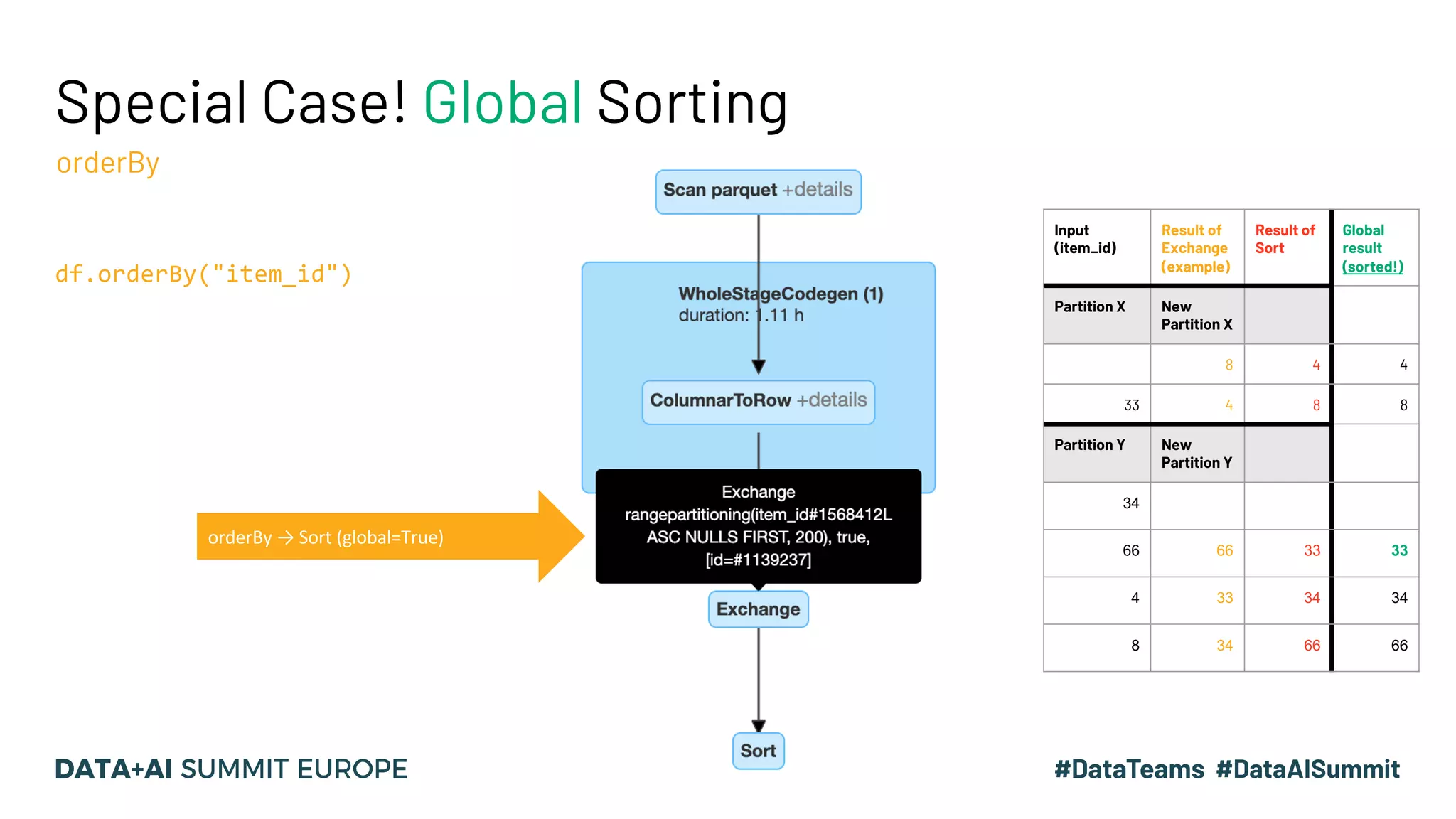

24. Special Case! Global Sorting
orderBy
df.orderBy("item_id")
Input
(item_id)
Result of
Exchange
(example)
Result of
Sort
Global
result
(sorted!)
Partition X New
Partition X
8 4 4
33 4 8 8
Partition Y New
Partition Y
34
66 66 33 33
4 33 34 34
8 34 66 66
orderBy → Sort (global=True)

25. Wide Transformations

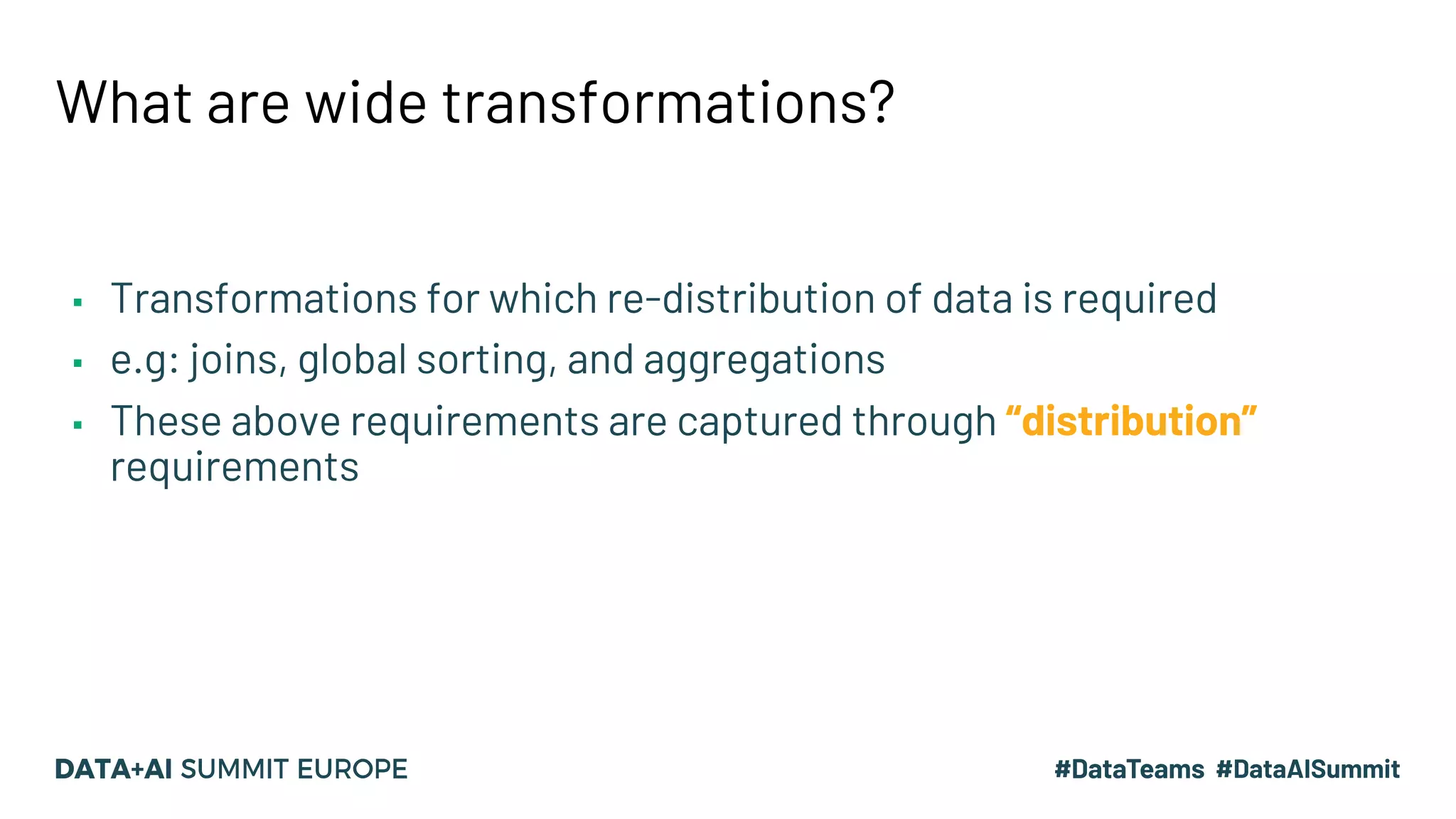

26. What are wide transformations?
▪ Transformations for which re-distribution of data is required
▪ e.g: joins, global sorting, and aggregations
▪ These above requirements are captured through “distribution”
requirements

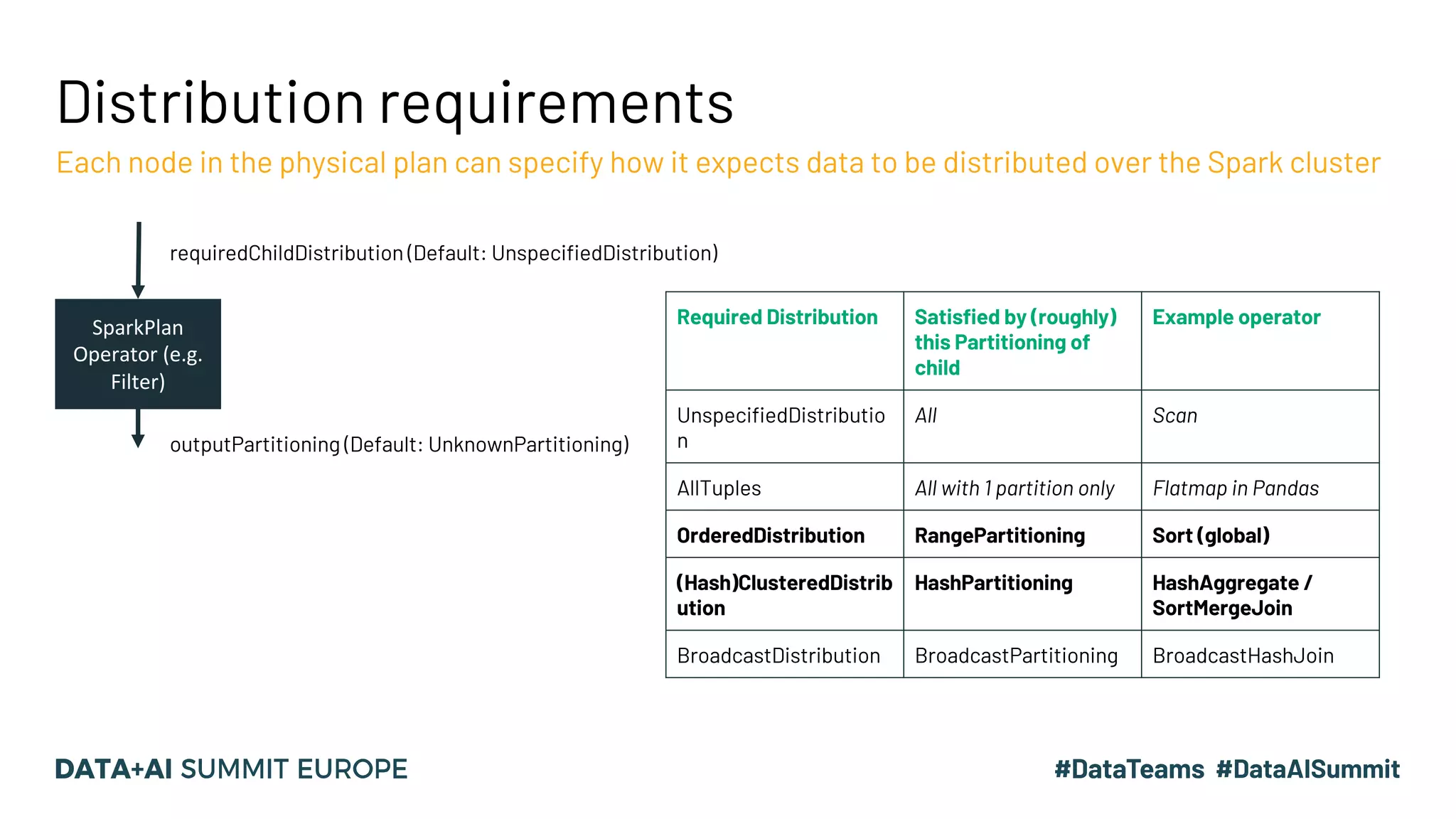

27. Distribution requirements
Each node in the physical plan can specify how it expects data to be distributed over the Spark cluster
SparkPlan
Operator (e.g.
Filter)
requiredChildDistribution (Default: UnspecifiedDistribution)
outputPartitioning (Default: UnknownPartitioning)
Required Distribution Satisfied by (roughly)
this Partitioning of
child
Example operator
UnspecifiedDistributio
n
All Scan
AllTuples All with 1 partition only Flatmap in Pandas
OrderedDistribution RangePartitioning Sort (global)
(Hash)ClusteredDistrib
ution
HashPartitioning HashAggregate /
SortMergeJoin
BroadcastDistribution BroadcastPartitioning BroadcastHashJoin

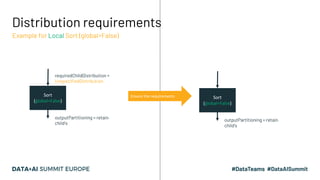

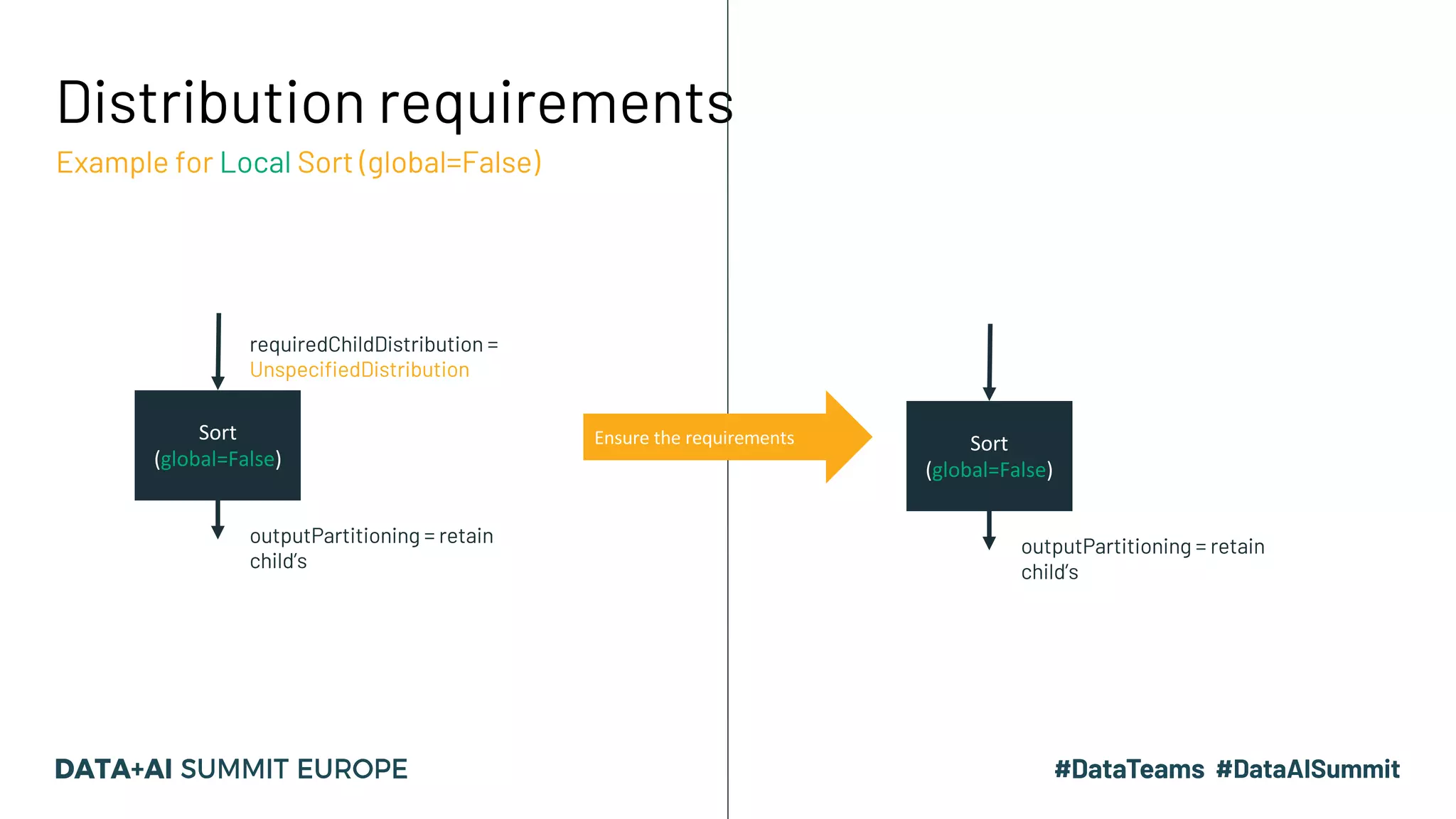

28. Distribution requirements
Example for Local Sort (global=False)
Sort
(global=False)
requiredChildDistribution =
UnspecifiedDistribution
outputPartitioning = retain
child’s
Ensure the requirements Sort
(global=False)
outputPartitioning = retain
child’s

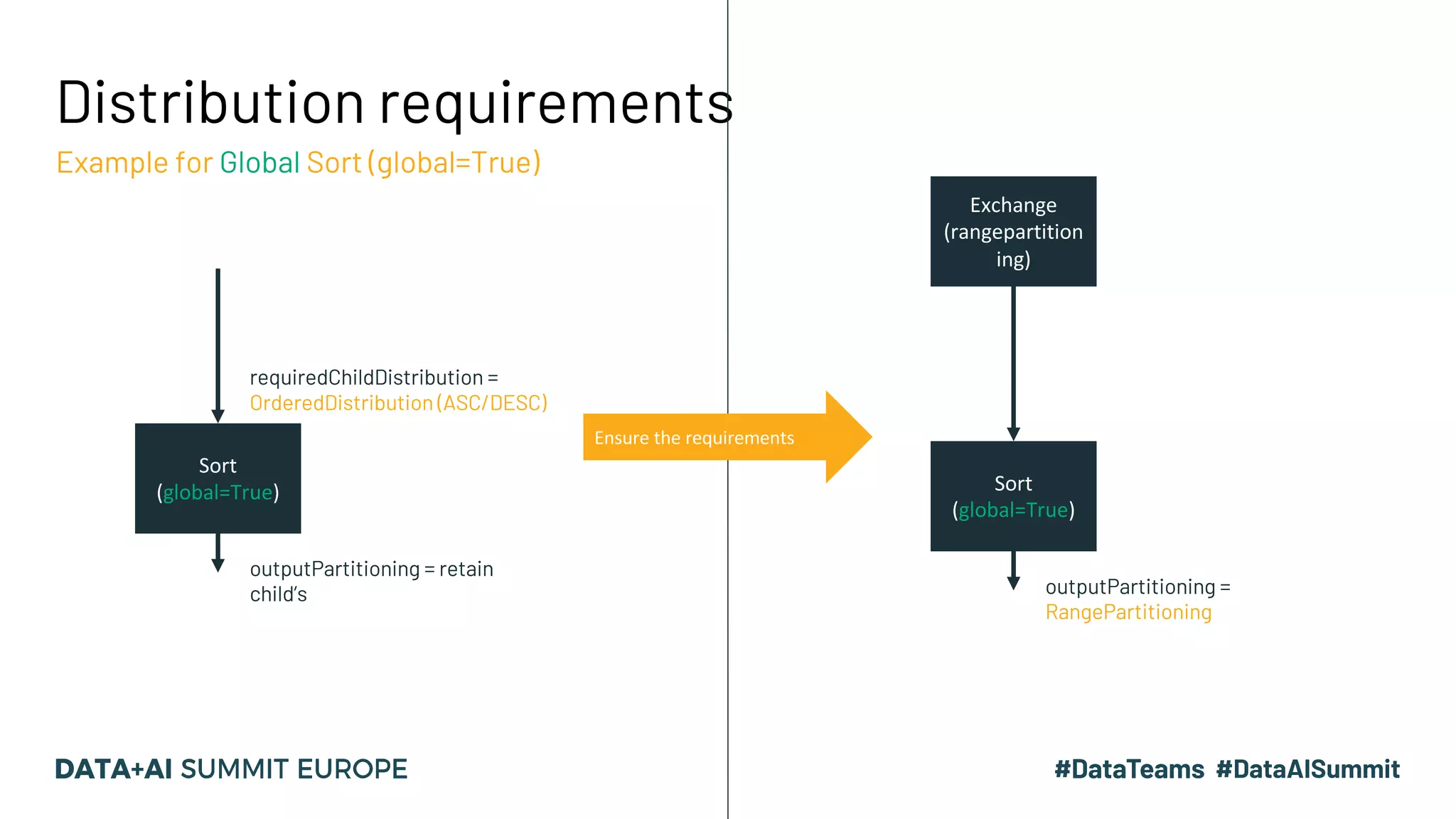

29. Distribution requirements
Example for Global Sort (global=True)
Sort
(global=True)
outputPartitioning =
RangePartitioning
Exchange
(rangepartition
ing)
Sort
(global=True)
requiredChildDistribution =
OrderedDistribution (ASC/DESC)
outputPartitioning = retain
child’s
Ensure the requirements

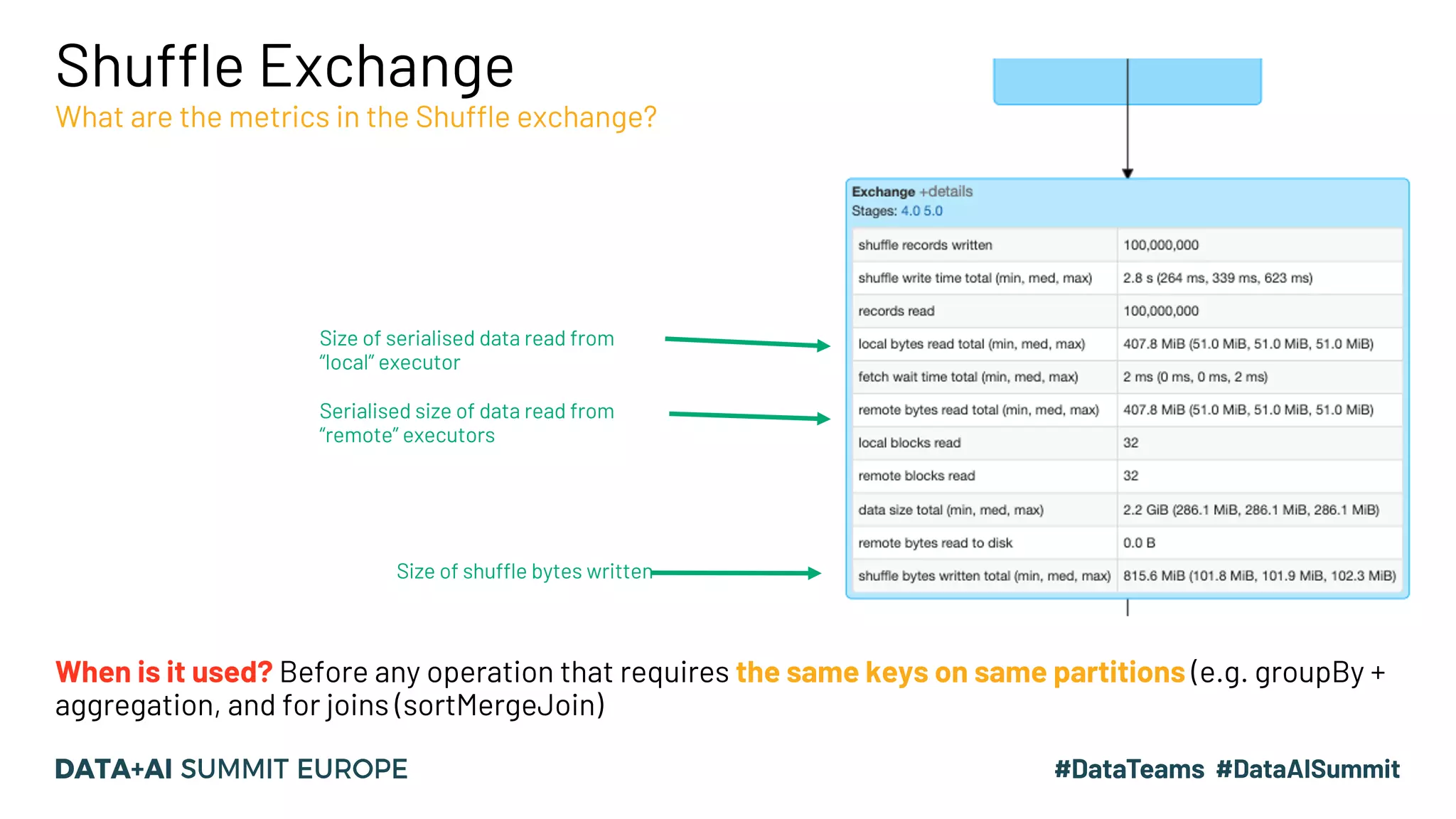

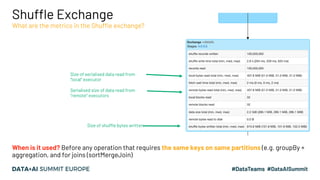

30. Shuffle Exchange
What are the metrics in the Shuffle exchange?
Size of shuffle bytes written
Size of serialised data read from
“local” executor
Serialised size of data read from
“remote” executors
When is it used? Before any operation that requires the same keys on same partitions (e.g. groupBy +
aggregation, and for joins (sortMergeJoin)

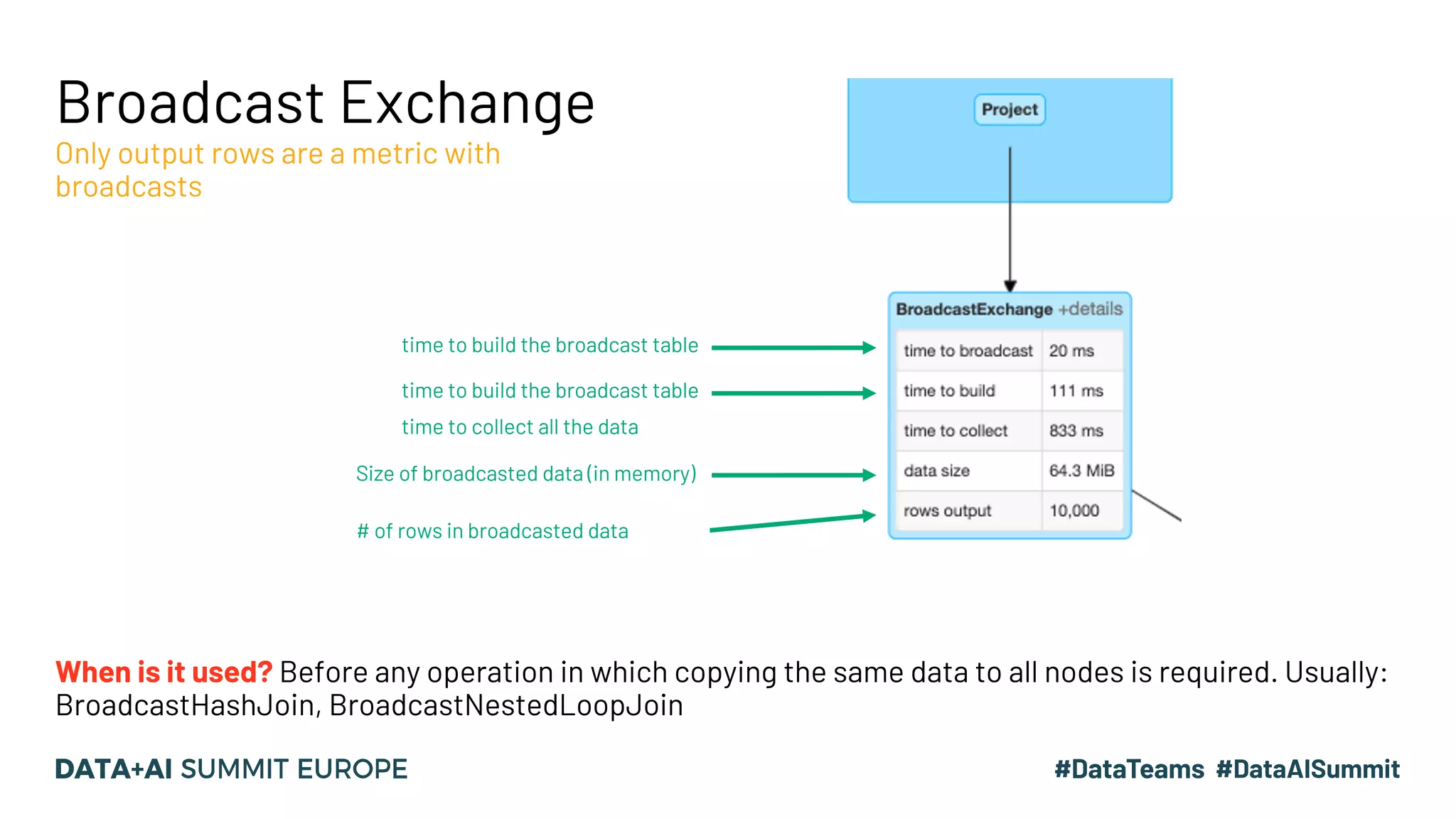

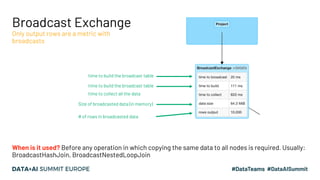

31. Broadcast Exchange
Only output rows are a metric with
broadcasts
Size of broadcasted data (in memory)
# of rows in broadcasted data
time to build the broadcast table
time to build the broadcast table
time to collect all the data
When is it used? Before any operation in which copying the same data to all nodes is required. Usually:
BroadcastHashJoin, BroadcastNestedLoopJoin

32. Zooming in on Aggregates

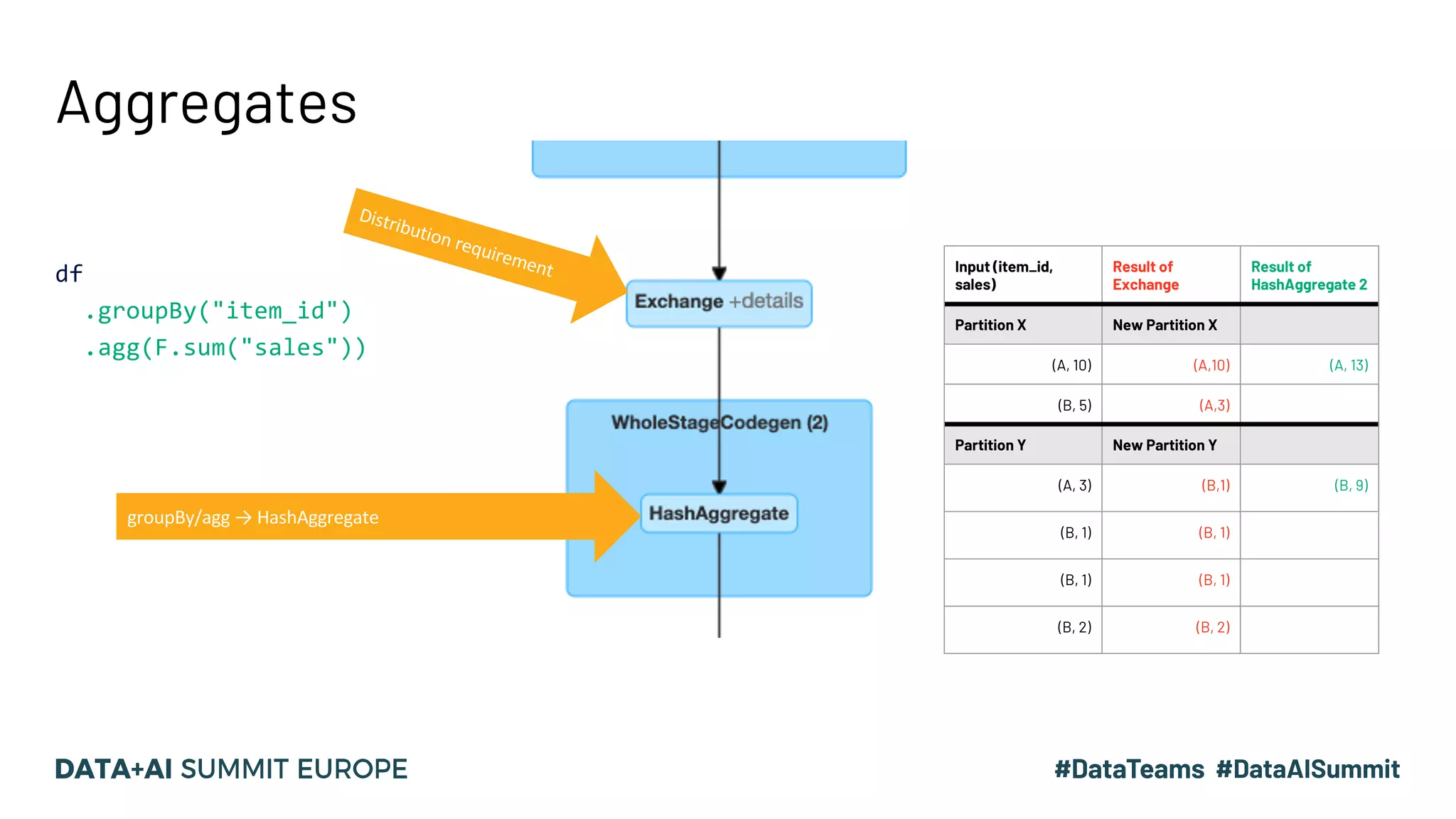

33. Aggregates
groupBy/agg → HashAggregate
Distribution requirement Input (item_id,
sales)
Result of
Exchange
Result of
HashAggregate 2
Partition X New Partition X
(A, 10) (A,10) (A, 13)
(B, 5) (A,3)
Partition Y New Partition Y
(A, 3) (B,1) (B, 9)
(B, 1) (B, 1)
(B, 1) (B, 1)
(B, 2) (B, 2)
df
.groupBy("item_id")
.agg(F.sum("sales"))

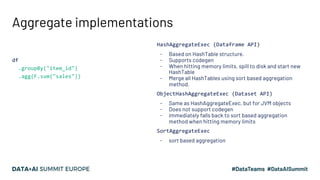

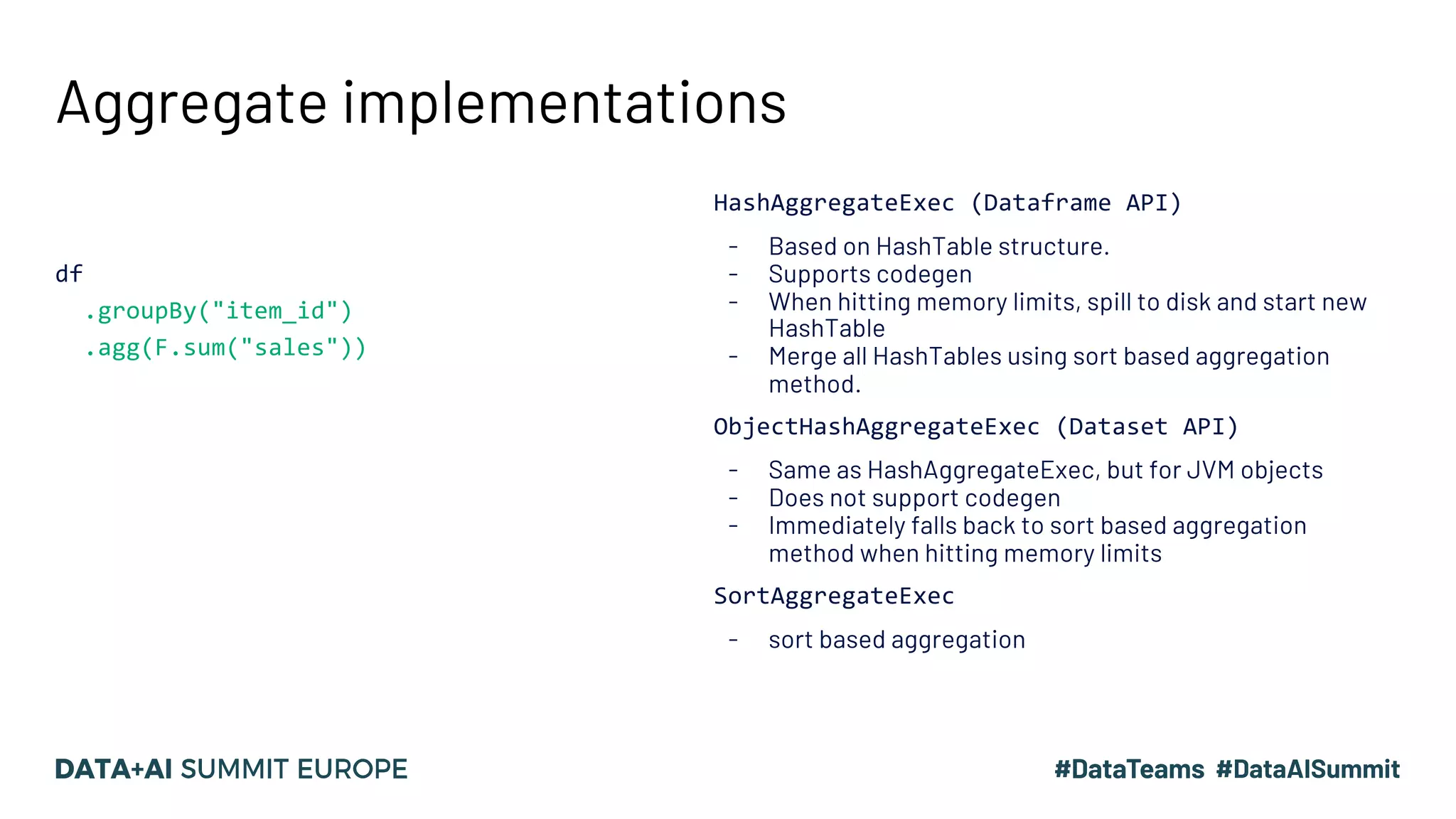

34. Aggregate implementations
df
.groupBy("item_id")
.agg(F.sum("sales"))
HashAggregateExec (Dataframe API)
- Based on HashTable structure.
- Supports codegen
- When hitting memory limits, spill to disk and start new
HashTable
- Merge all HashTables using sort based aggregation
method.
ObjectHashAggregateExec (Dataset API)
- Same as HashAggregateExec, but for JVM objects
- Does not support codegen
- Immediately falls back to sort based aggregation
method when hitting memory limits
SortAggregateExec
- sort based aggregation

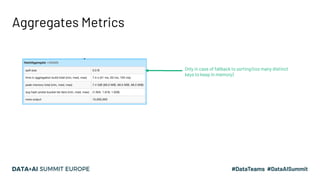

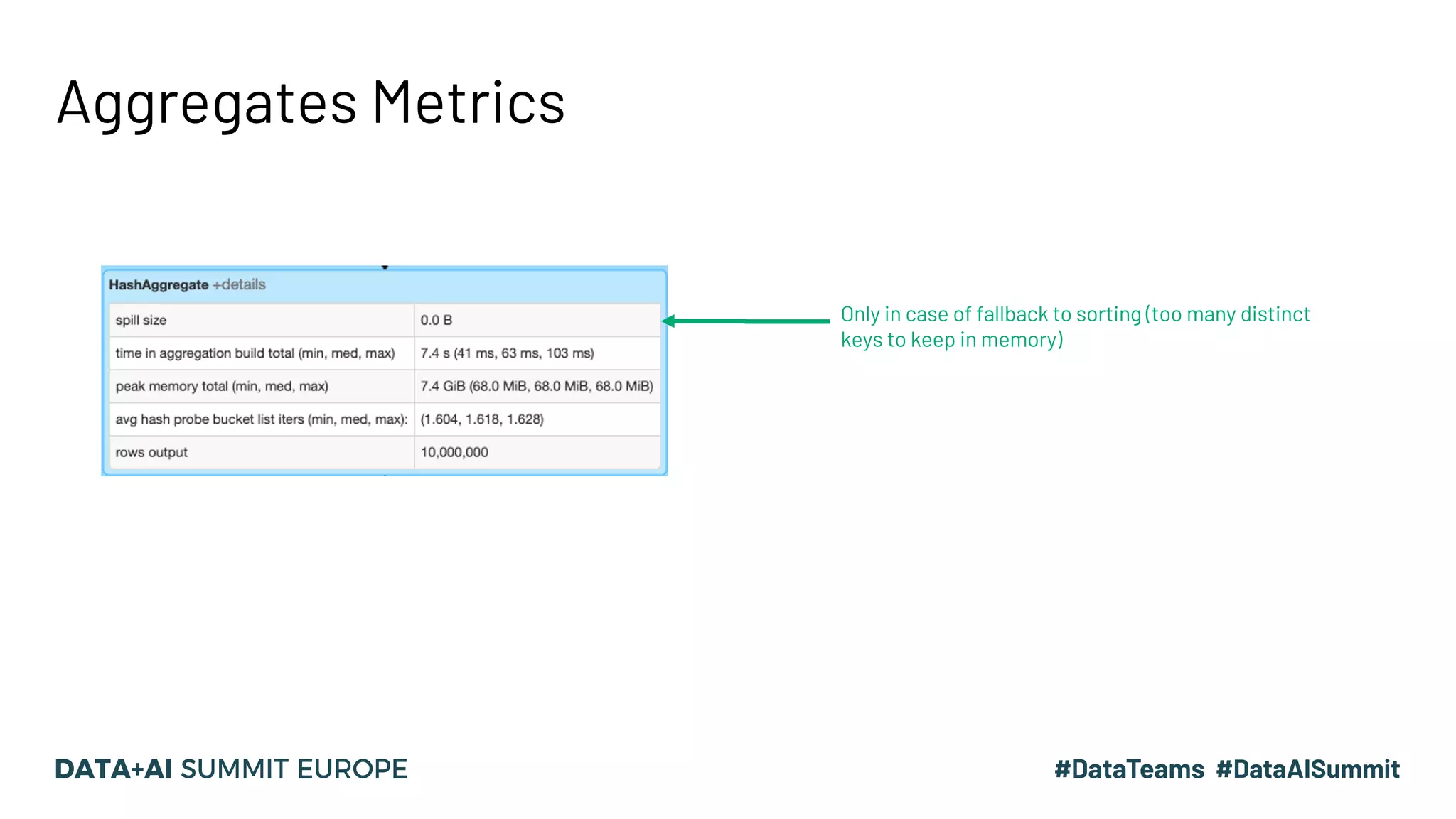

35. Aggregates Metrics
Only in case of fallback to sorting (too many distinct
keys to keep in memory)

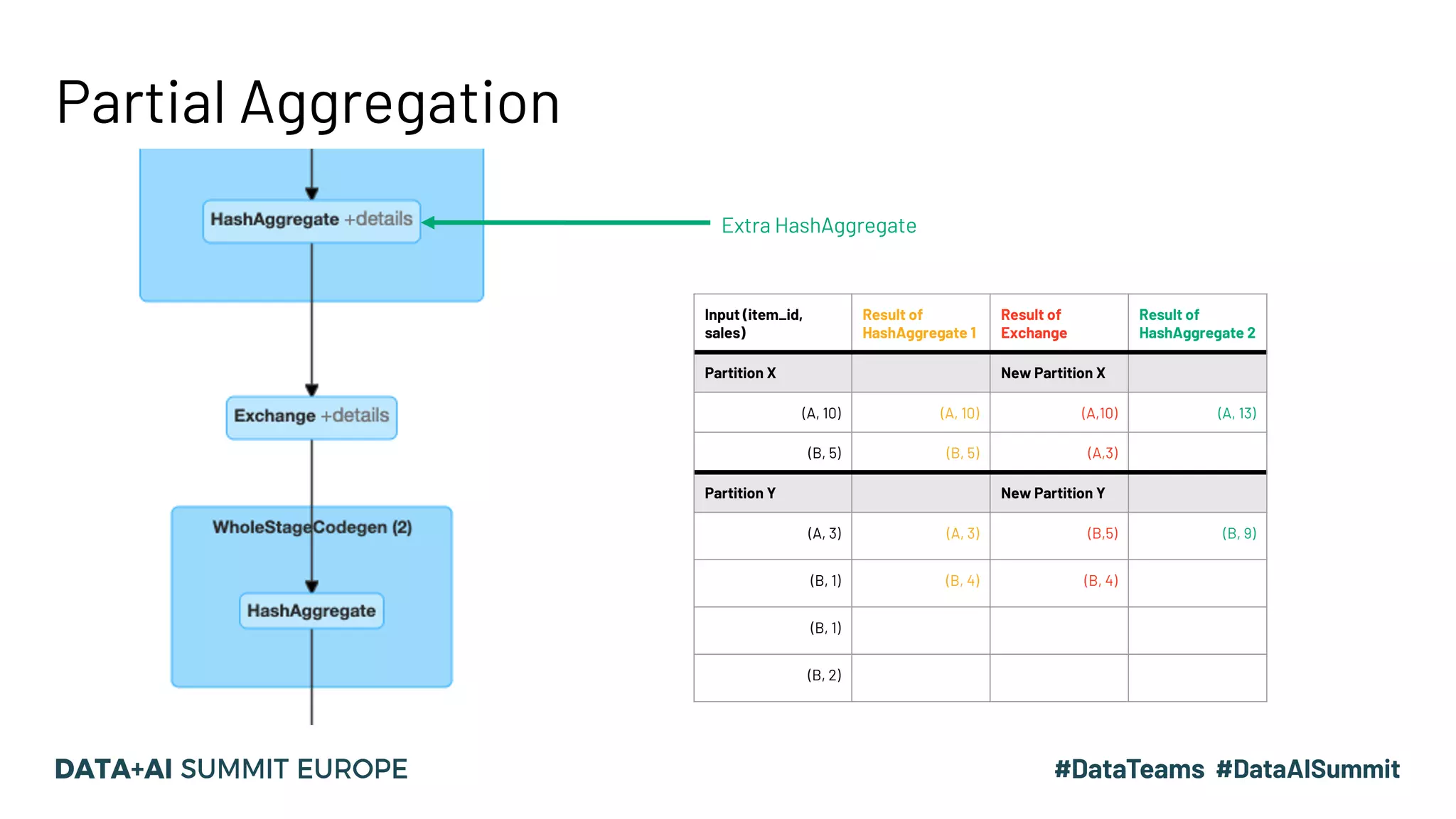

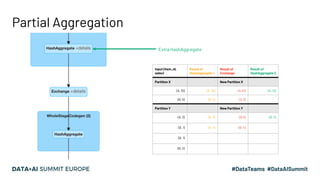

36. Partial Aggregation
Extra HashAggregate
Input (item_id,
sales)
Result of
HashAggregate 1
Result of
Exchange
Result of
HashAggregate 2
Partition X New Partition X
(A, 10) (A, 10) (A,10) (A, 13)
(B, 5) (B, 5) (A,3)
Partition Y New Partition Y
(A, 3) (A, 3) (B,5) (B, 9)
(B, 1) (B, 4) (B, 4)
(B, 1)
(B, 2)

37. Zooming in on Joins

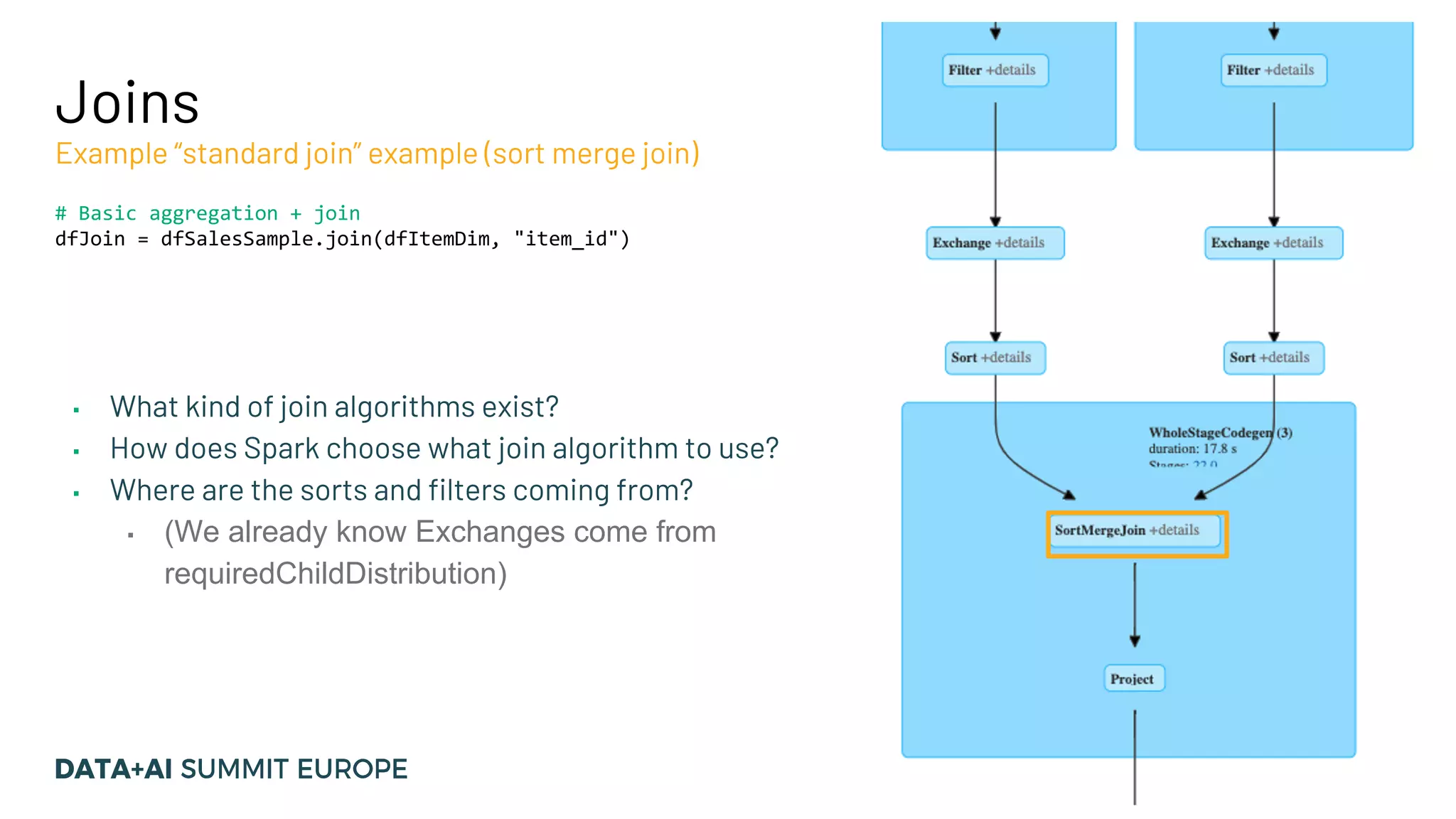

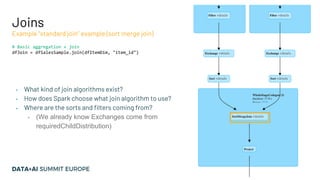

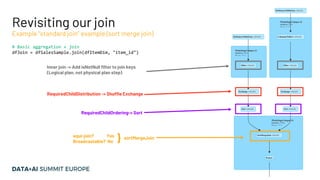

38. Joins
# Basic aggregation + join
dfJoin = dfSalesSample.join(dfItemDim, "item_id")
Example “standard join” example (sort merge join)
▪ What kind of join algorithms exist?
▪ How does Spark choose what join algorithm to use?
▪ Where are the sorts and filters coming from?
▪ (We already know Exchanges come from
requiredChildDistribution)

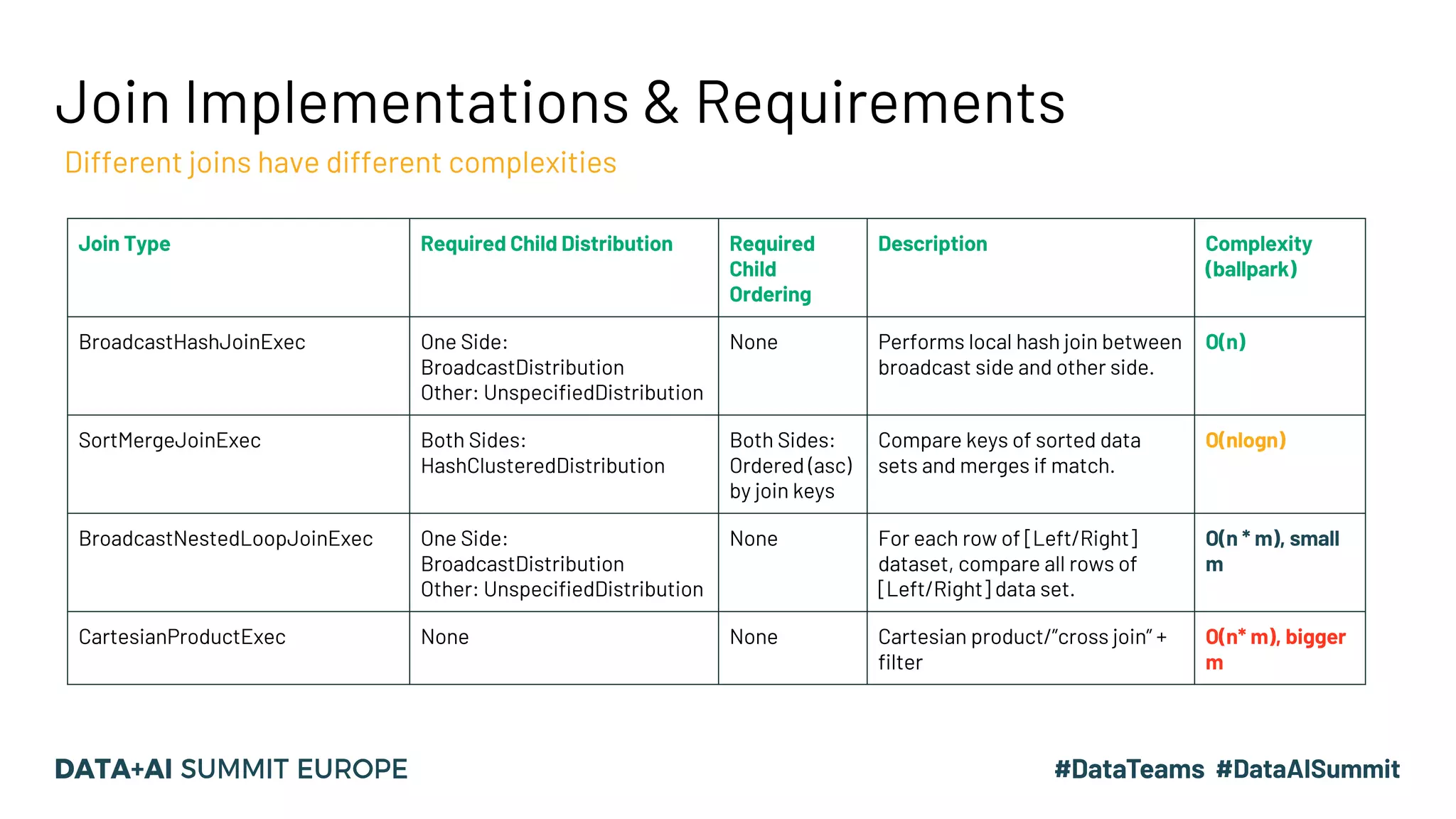

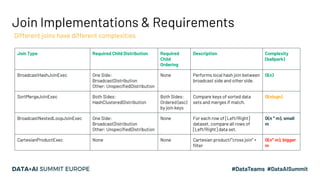

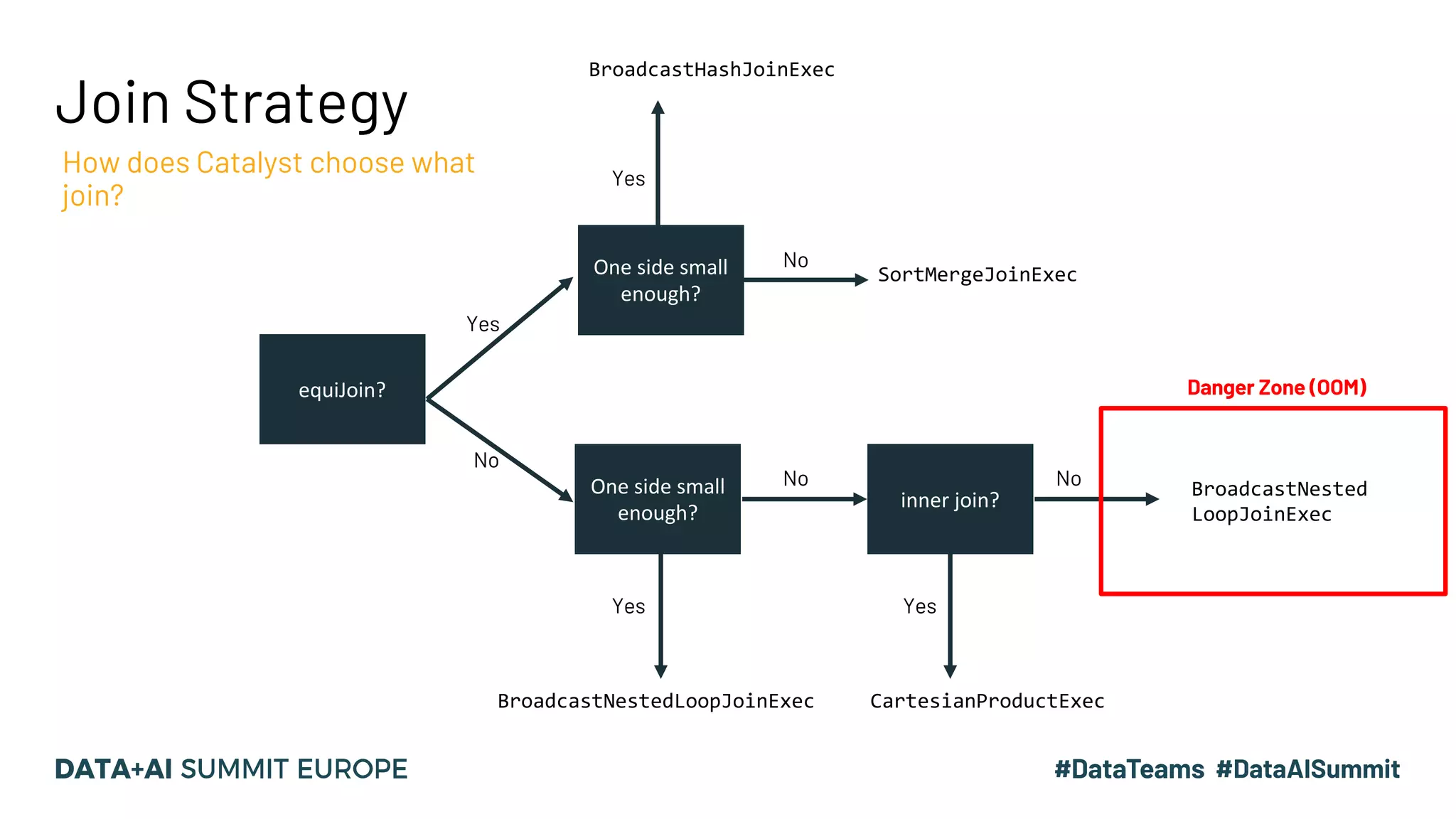

39. Join Implementations & Requirements
Different joins have different complexities
Join Type Required Child Distribution Required
Child
Ordering
Description Complexity
(ballpark)
BroadcastHashJoinExec One Side:
BroadcastDistribution
Other: UnspecifiedDistribution
None Performs local hash join between
broadcast side and other side.
O(n)
SortMergeJoinExec Both Sides:
HashClusteredDistribution
Both Sides:
Ordered (asc)
by join keys
Compare keys of sorted data
sets and merges if match.
O(nlogn)
BroadcastNestedLoopJoinExec One Side:
BroadcastDistribution
Other: UnspecifiedDistribution
None For each row of [Left/Right]
dataset, compare all rows of
[Left/Right] data set.
O(n * m), small
m
CartesianProductExec None None Cartesian product/”cross join” +
filter
O(n* m), bigger
m

40. Join Strategy
How does Catalyst choose what
join?
equiJoin?
One side small
enough?
One side small
enough?
inner join?
BroadcastHashJoinExec
SortMergeJoinExec
BroadcastNestedLoopJoinExec CartesianProductExec
BroadcastNested
LoopJoinExec
Danger Zone (OOM)
No
Yes
Yes
Yes Yes
No
No No

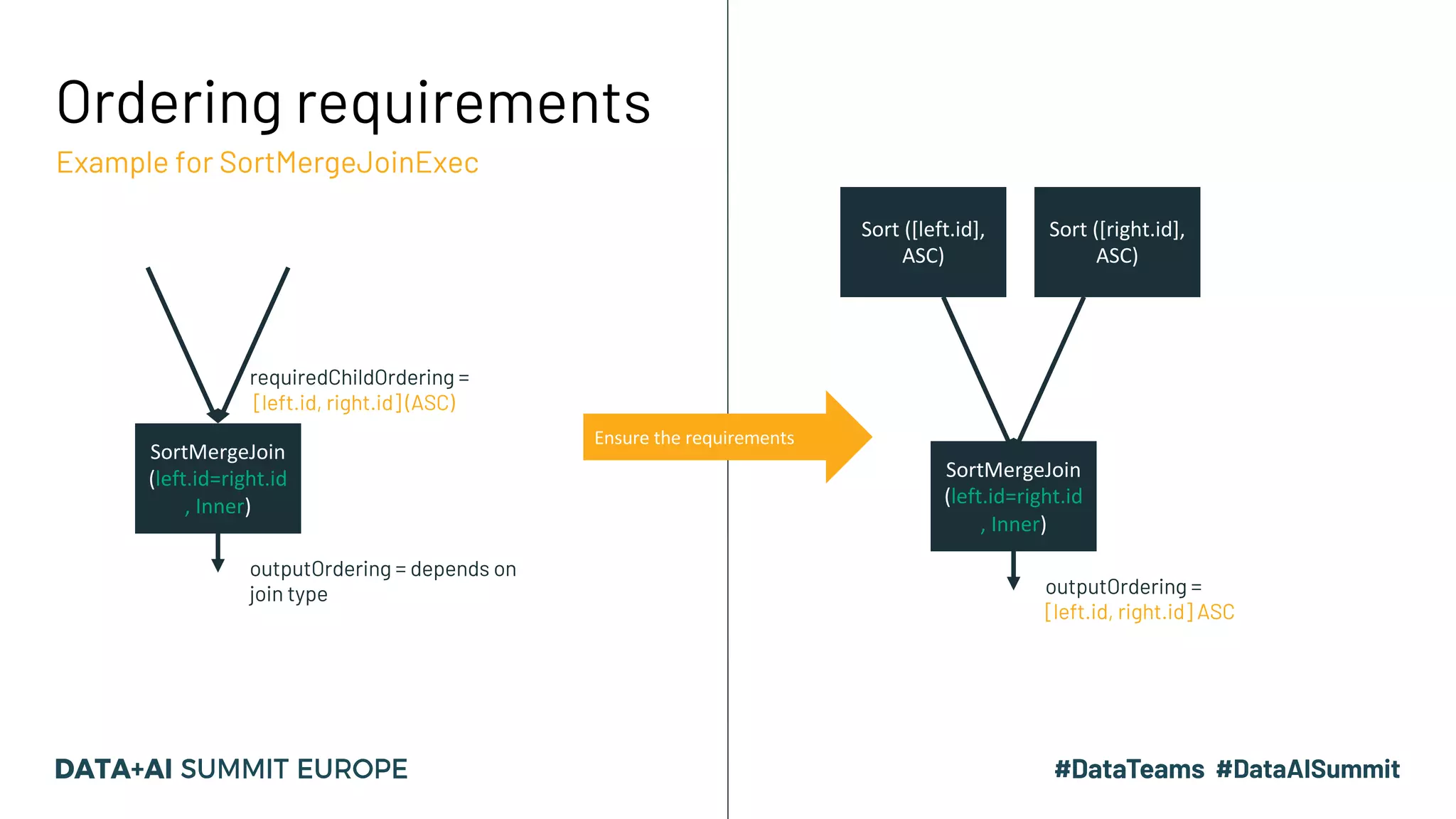

41. Ordering requirements
Example for SortMergeJoinExec
SortMergeJoin
(left.id=right.id
, Inner)
outputOrdering =
[left.id, right.id] ASC
Sort ([left.id],
ASC)
SortMergeJoin
(left.id=right.id
, Inner)
requiredChildOrdering =
[left.id, right.id] (ASC)
outputOrdering = depends on
join type
Ensure the requirements
Sort ([right.id],
ASC)

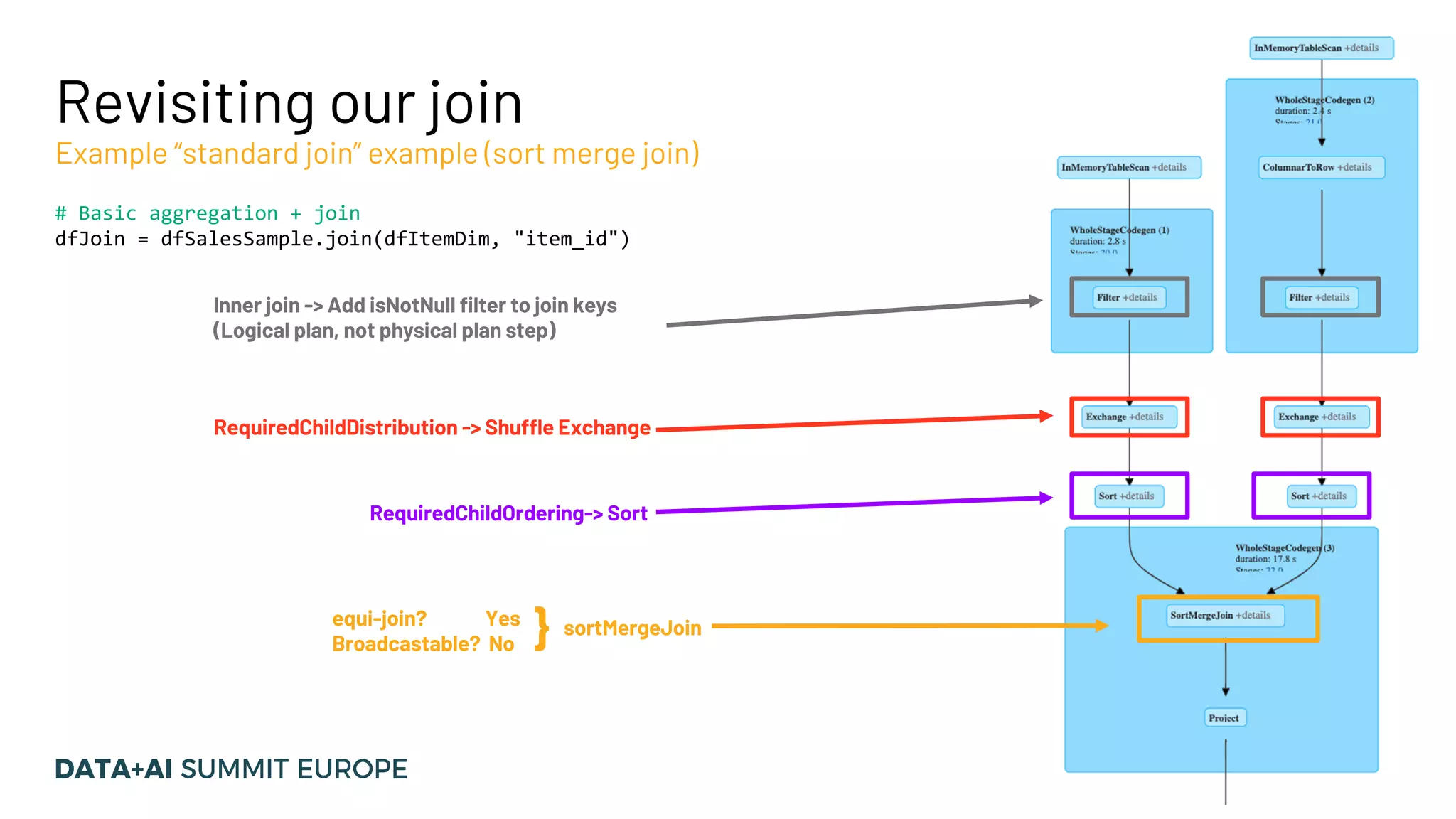

42. Revisiting our join
# Basic aggregation + join
dfJoin = dfSalesSample.join(dfItemDim, "item_id")
Example “standard join” example (sort merge join)
equi-join? Yes
Broadcastable? No
RequiredChildDistribution -> Shuffle Exchange
RequiredChildOrdering-> Sort
} sortMergeJoin
Inner join -> Add isNotNull filter to join keys
(Logical plan, not physical plan step)

43. Supercharge your Spark Queries

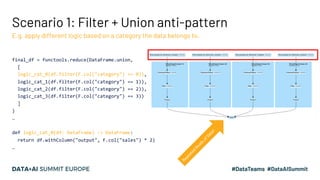

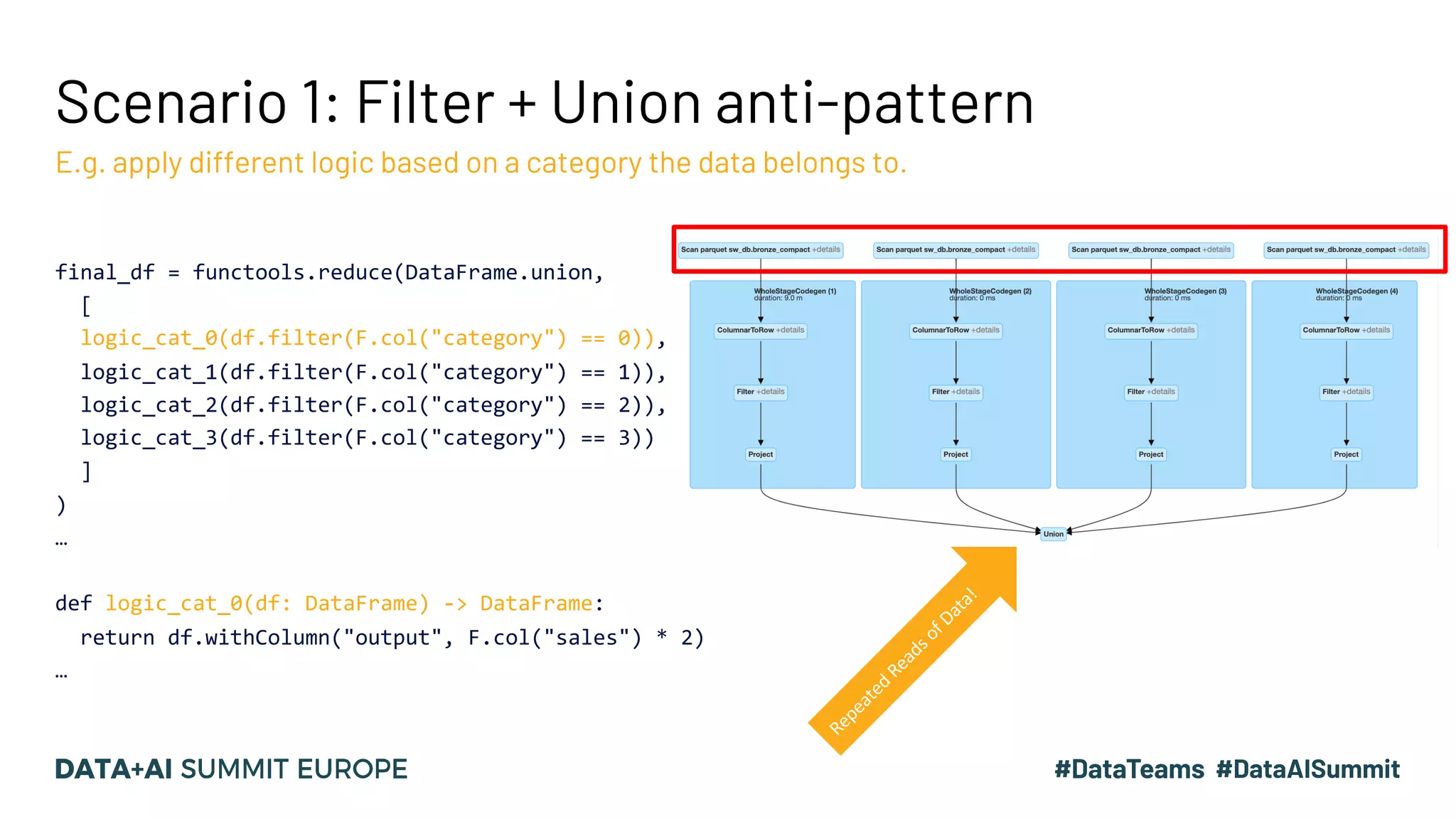

44. Scenario 1: Filter + Union anti-pattern
E.g. apply different logic based on a category the data belongs to.
final_df = functools.reduce(DataFrame.union,
[
logic_cat_0(df.filter(F.col("category") == 0)),
logic_cat_1(df.filter(F.col("category") == 1)),
logic_cat_2(df.filter(F.col("category") == 2)),
logic_cat_3(df.filter(F.col("category") == 3))
]
)
…
def logic_cat_0(df: DataFrame) -> DataFrame:
return df.withColumn("output", F.col("sales") * 2)
…
Repeated
ReadsofData!

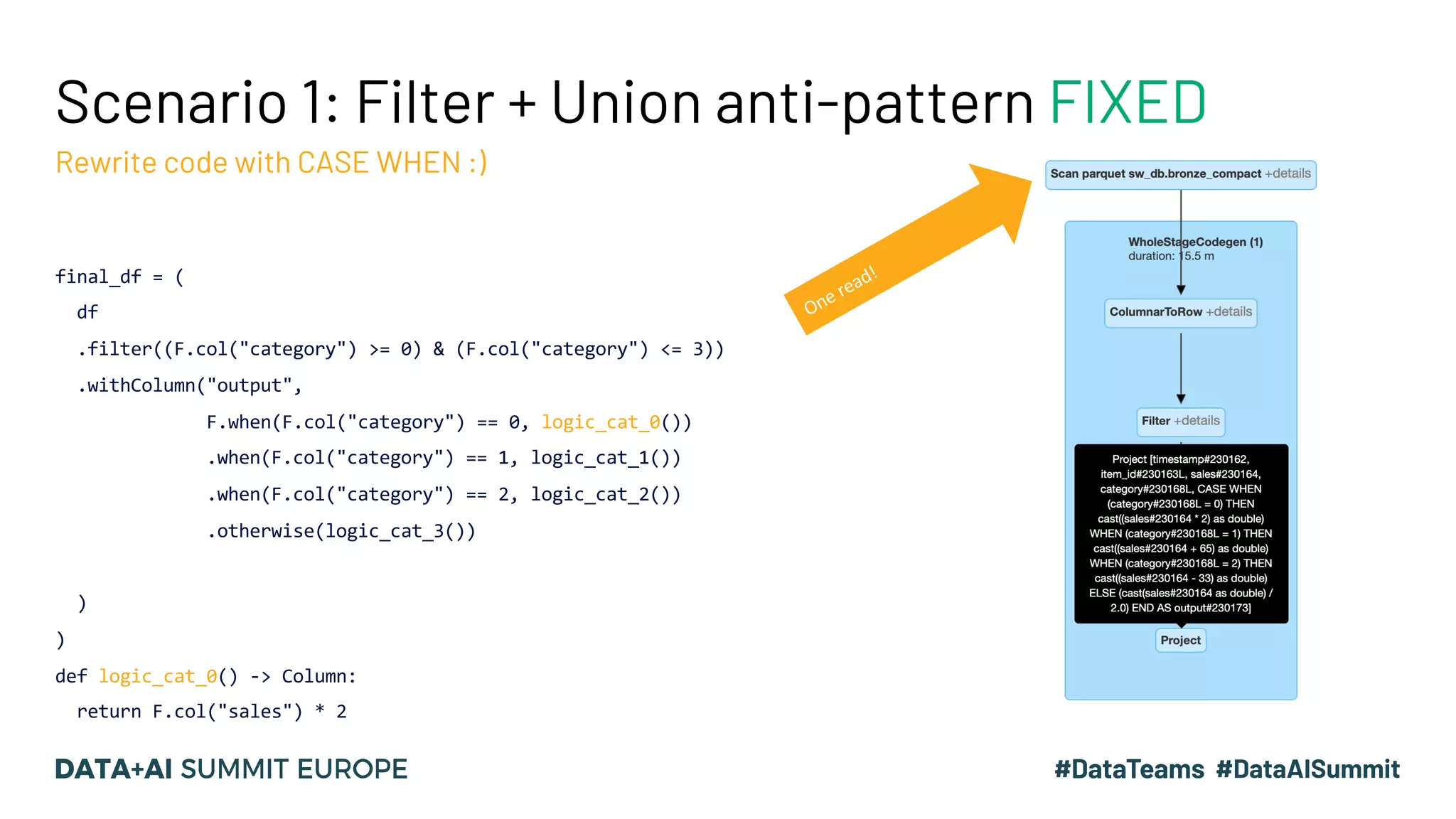

45. Scenario 1: Filter + Union anti-pattern FIXED
Rewrite code with CASE WHEN :)
final_df = (
df
.filter((F.col("category") >= 0) & (F.col("category") <= 3))
.withColumn("output",
F.when(F.col("category") == 0, logic_cat_0())
.when(F.col("category") == 1, logic_cat_1())
.when(F.col("category") == 2, logic_cat_2())
.otherwise(logic_cat_3())
)
)
def logic_cat_0() -> Column:
return F.col("sales") * 2
One read!

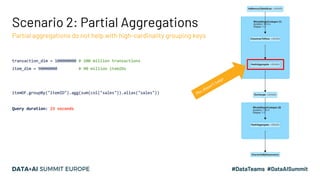

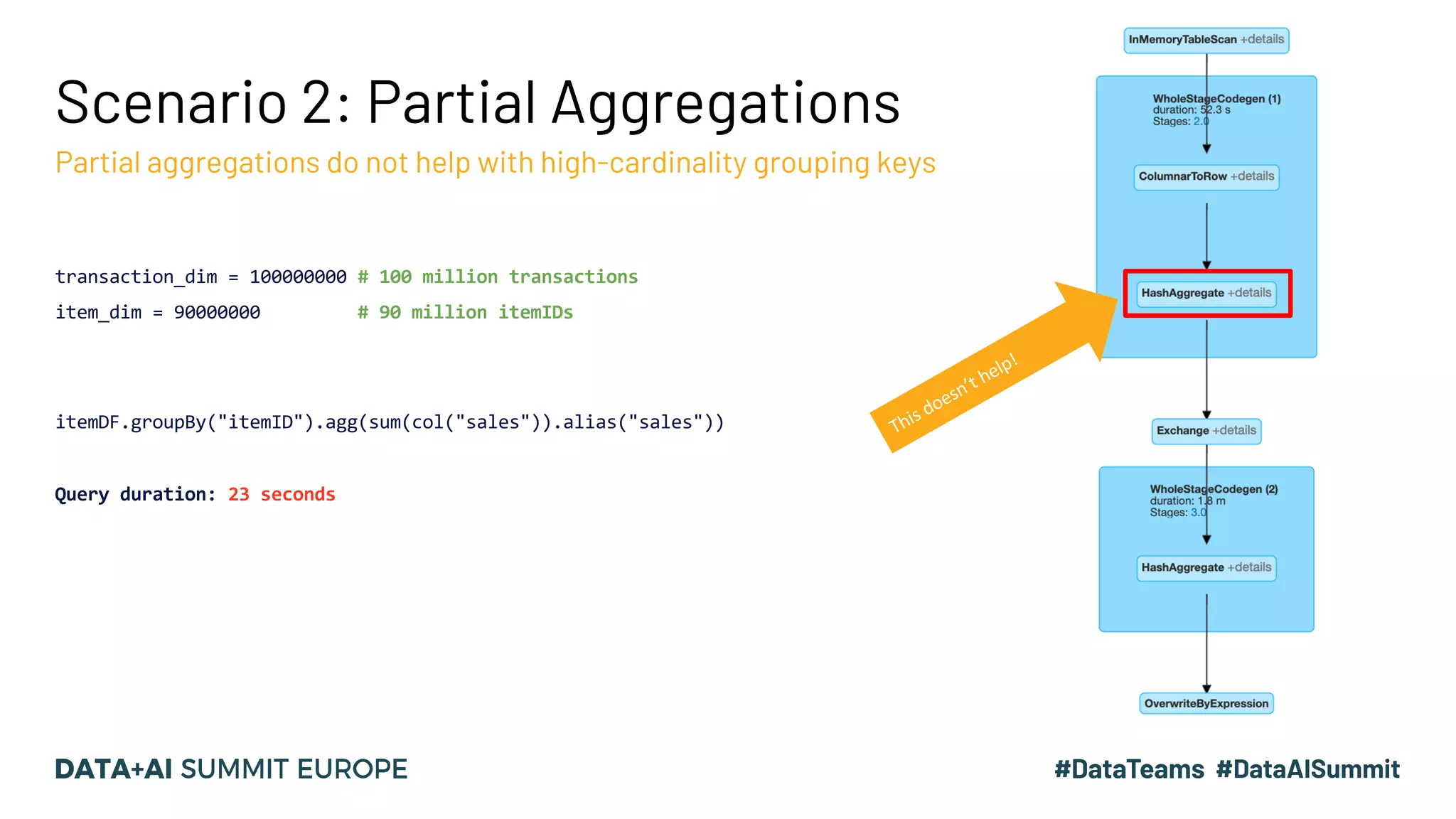

46. Scenario 2: Partial Aggregations
Partial aggregations do not help with high-cardinality grouping keys
transaction_dim = 100000000 # 100 million transactions
item_dim = 90000000 # 90 million itemIDs
itemDF.groupBy("itemID").agg(sum(col("sales")).alias("sales"))
Query duration: 23 seconds
This doesn’t help!

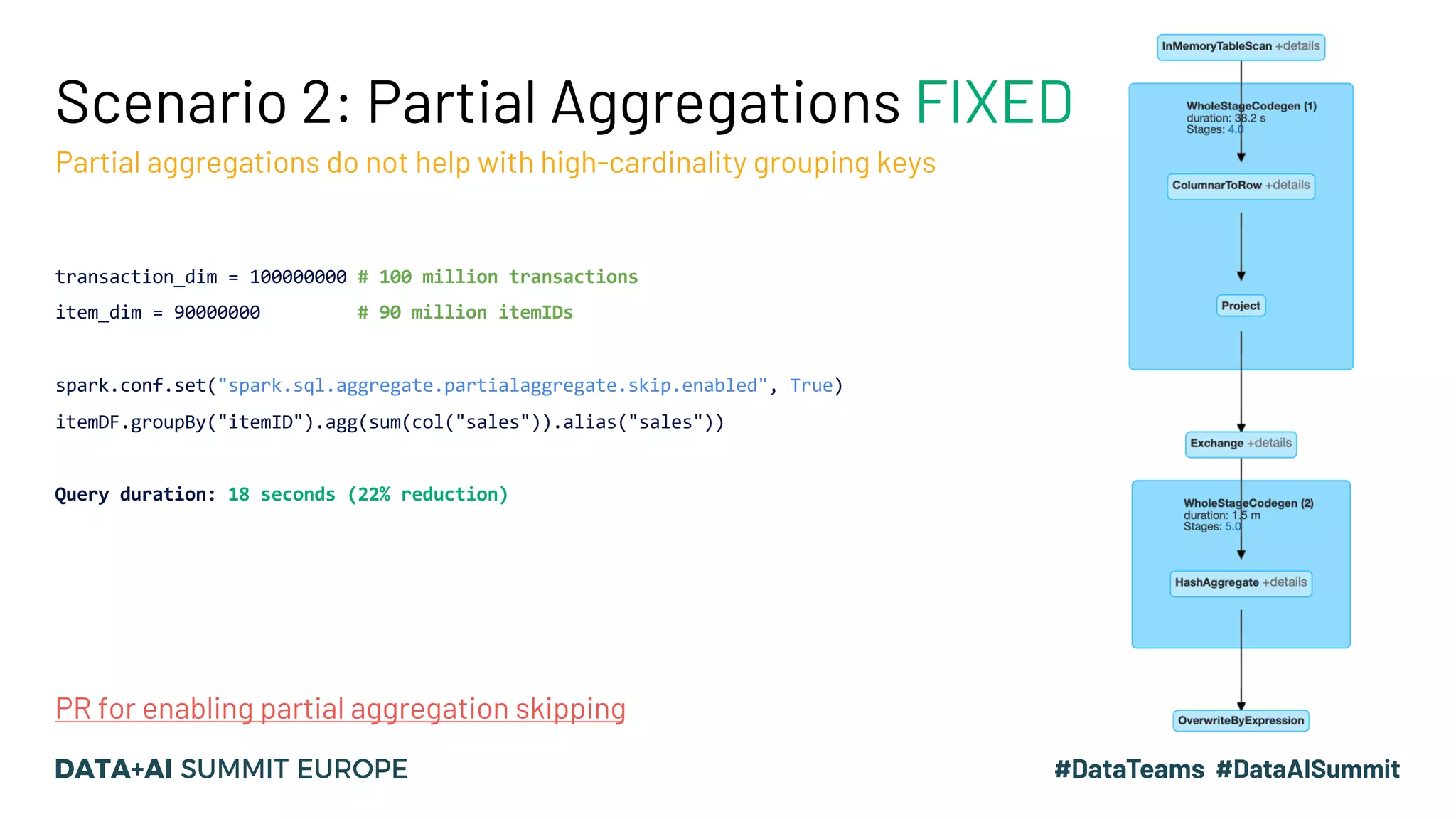

47. Scenario 2: Partial Aggregations FIXED
Partial aggregations do not help with high-cardinality grouping keys
transaction_dim = 100000000 # 100 million transactions
item_dim = 90000000 # 90 million itemIDs
spark.conf.set("spark.sql.aggregate.partialaggregate.skip.enabled", True)
itemDF.groupBy("itemID").agg(sum(col("sales")).alias("sales"))
Query duration: 18 seconds (22% reduction)
PR for enabling partial aggregation skipping

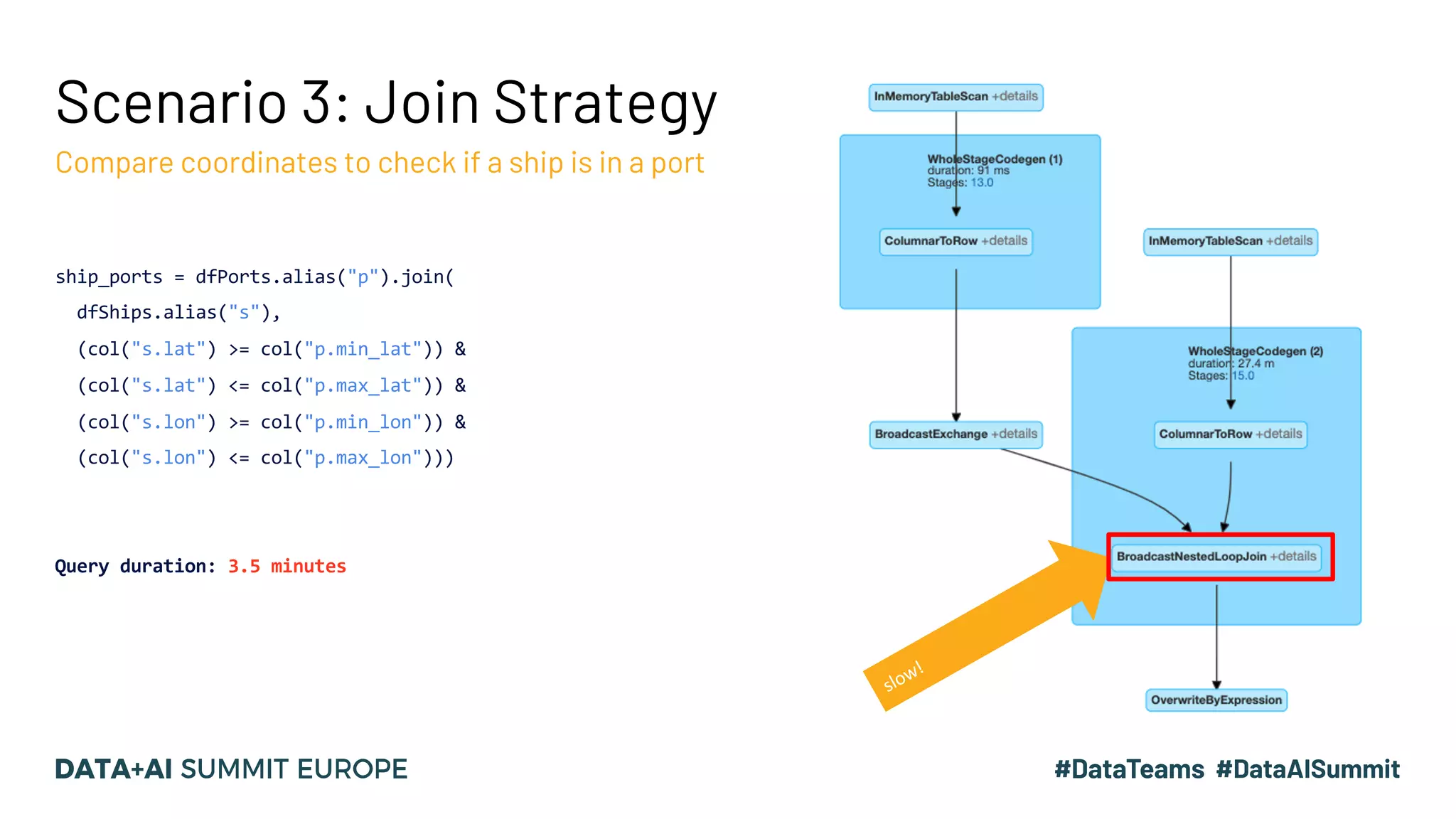

48. Scenario 3: Join Strategy
ship_ports = dfPorts.alias("p").join(
dfShips.alias("s"),
(col("s.lat") >= col("p.min_lat")) &
(col("s.lat") <= col("p.max_lat")) &
(col("s.lon") >= col("p.min_lon")) &
(col("s.lon") <= col("p.max_lon")))
Query duration: 3.5 minutes
Compare coordinates to check if a ship is in a port
slow!

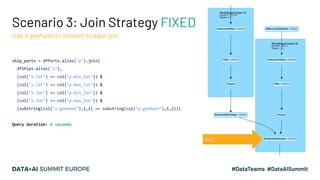

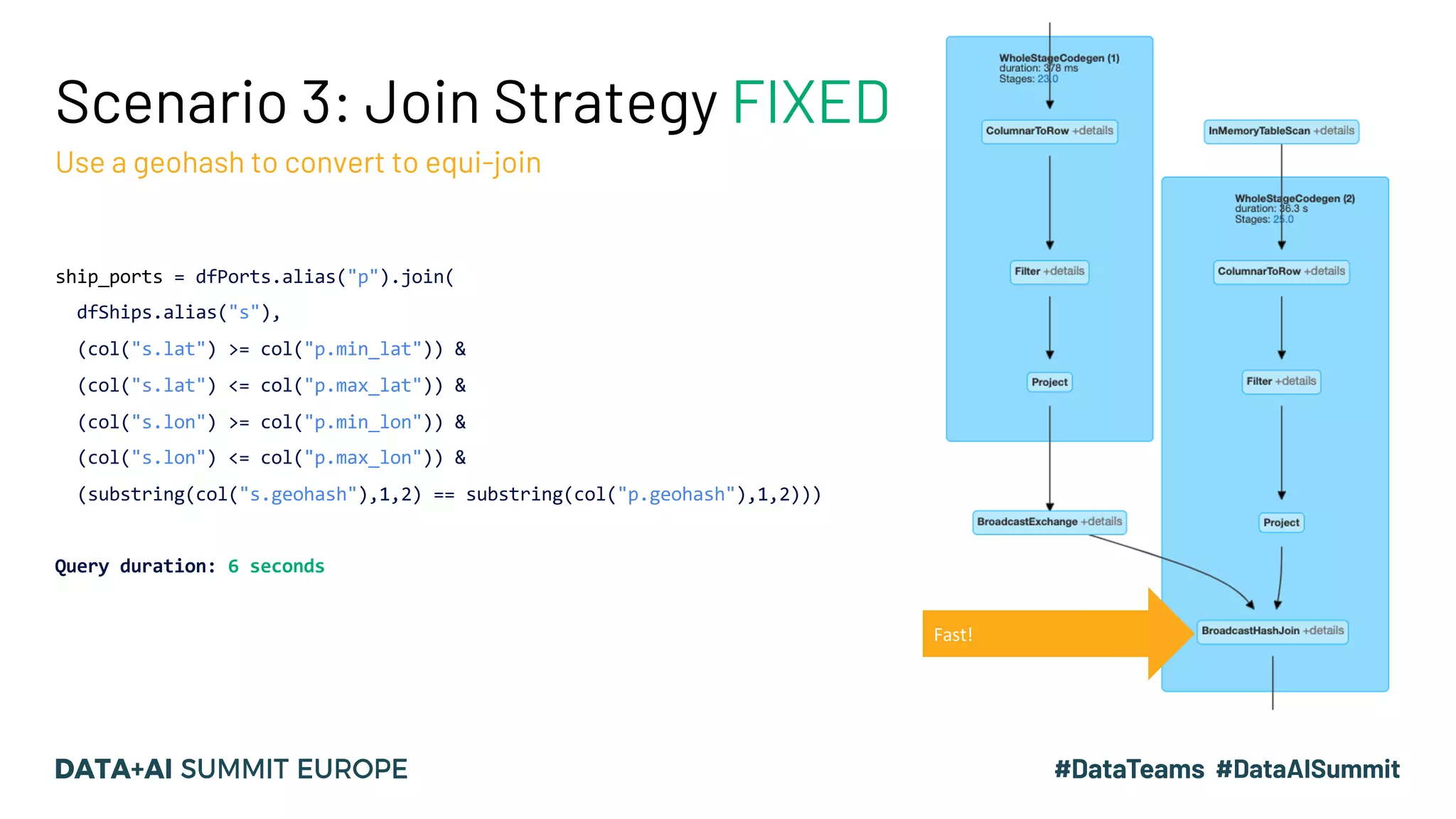

49. Scenario 3: Join Strategy FIXED
Use a geohash to convert to equi-join
ship_ports = dfPorts.alias("p").join(
dfShips.alias("s"),
(col("s.lat") >= col("p.min_lat")) &
(col("s.lat") <= col("p.max_lat")) &
(col("s.lon") >= col("p.min_lon")) &
(col("s.lon") <= col("p.max_lon")) &
(substring(col("s.geohash"),1,2) == substring(col("p.geohash"),1,2)))
Query duration: 6 seconds
Fast!

50. In Summary

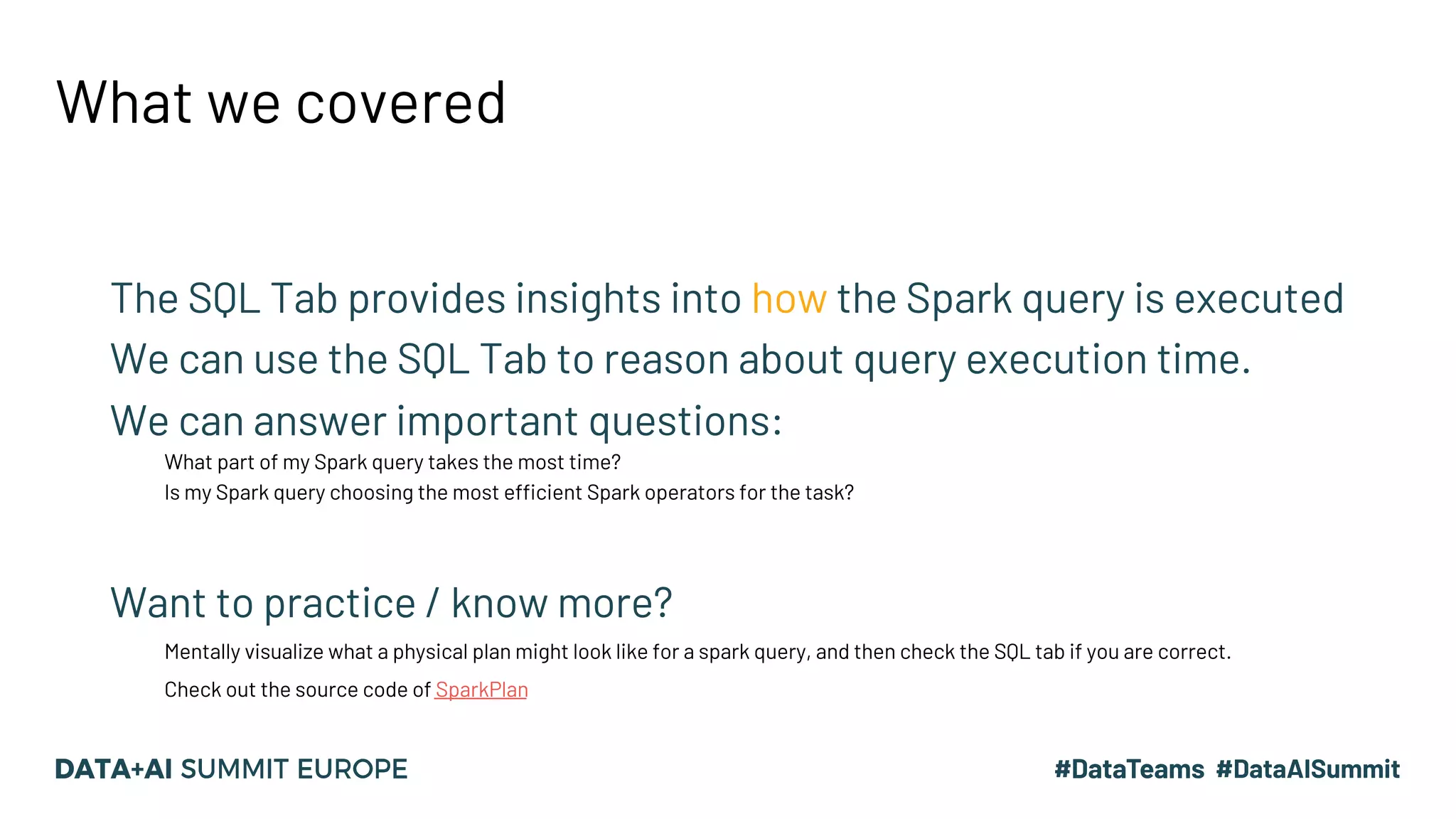

51. What we covered
The SQL Tab provides insights into how the Spark query is executed
We can use the SQL Tab to reason about query execution time.
We can answer important questions:
What part of my Spark query takes the most time?
Is my Spark query choosing the most efficient Spark operators for the task?
Want to practice / know more?
Mentally visualize what a physical plan might look like for a spark query, and then check the SQL tab if you are correct.
Check out the source code of SparkPlan

52. Feedback
Your feedback is important to us.
Don’t forget to rate
and review the sessions.
