Over the years, there has been extensive and continuous effort on improving Spark SQL’s query optimizer and planner, in order to generate high quality query execution plans. One of the biggest improvements is the cost-based optimization framework that collects and leverages a variety of data statistics (e.g., row count, number of distinct values, NULL values, max/min values, etc.) to help Spark make better decisions in picking the most optimal query plan.

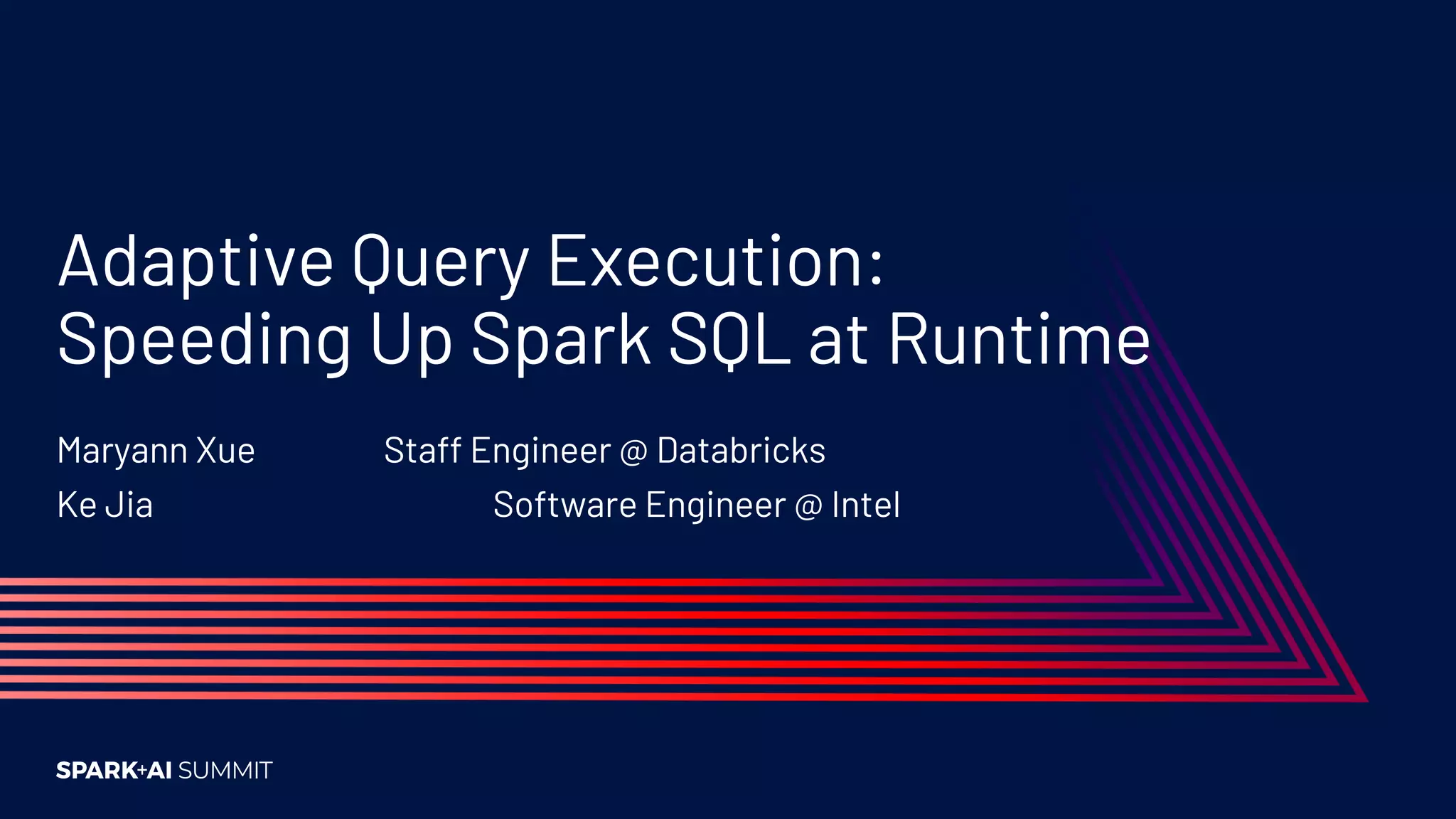

2. Adaptive Query Execution:
Speeding Up Spark SQL at Runtime
Maryann Xue Staff Engineer @ Databricks
Ke Jia Software Engineer @ Intel

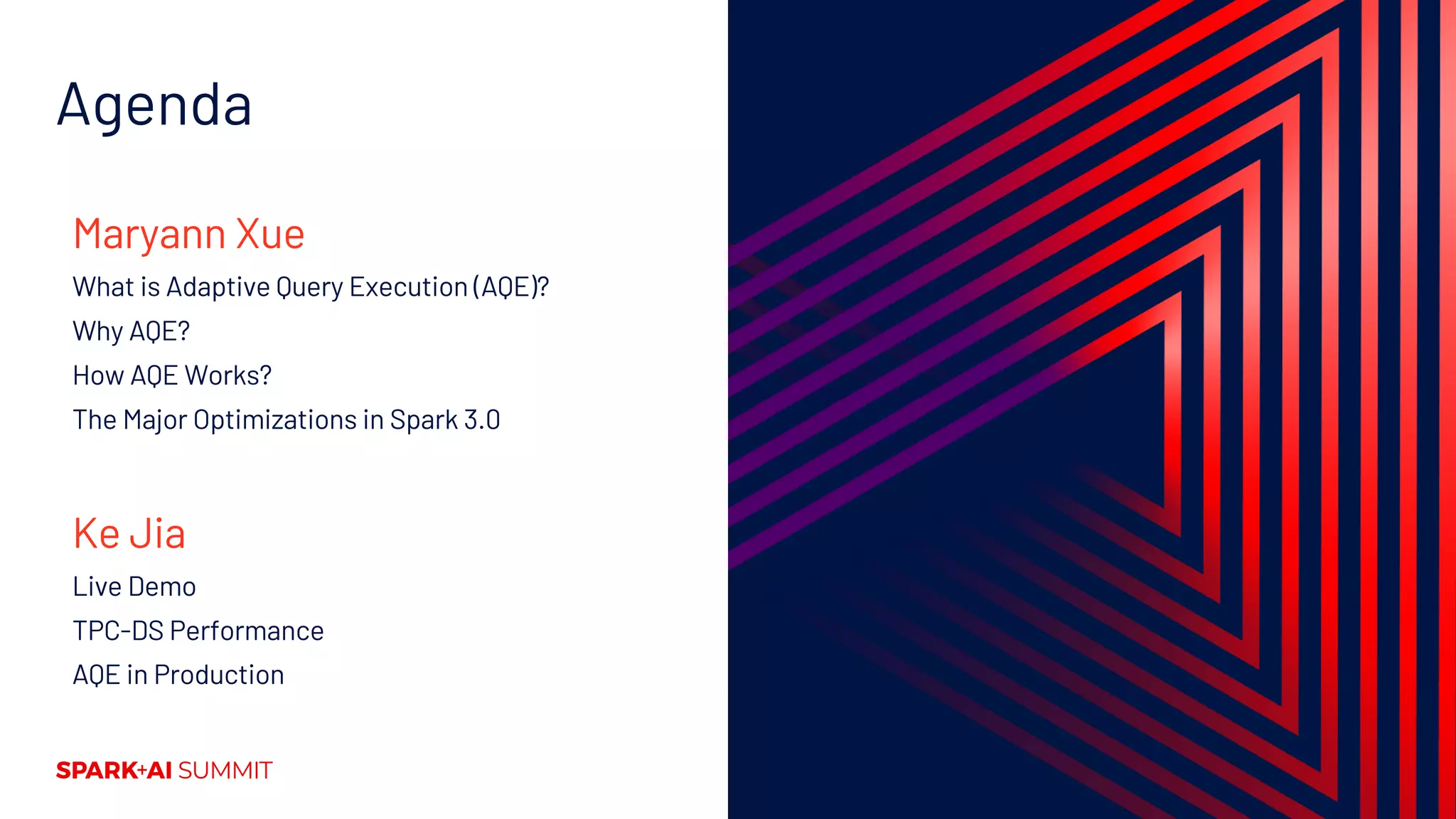

3. Agenda
Maryann Xue
What is Adaptive Query Execution (AQE)?
Why AQE?
How AQE Works?
The Major Optimizations in Spark 3.0
Ke Jia
Live Demo
TPC-DS Performance
AQE in Production

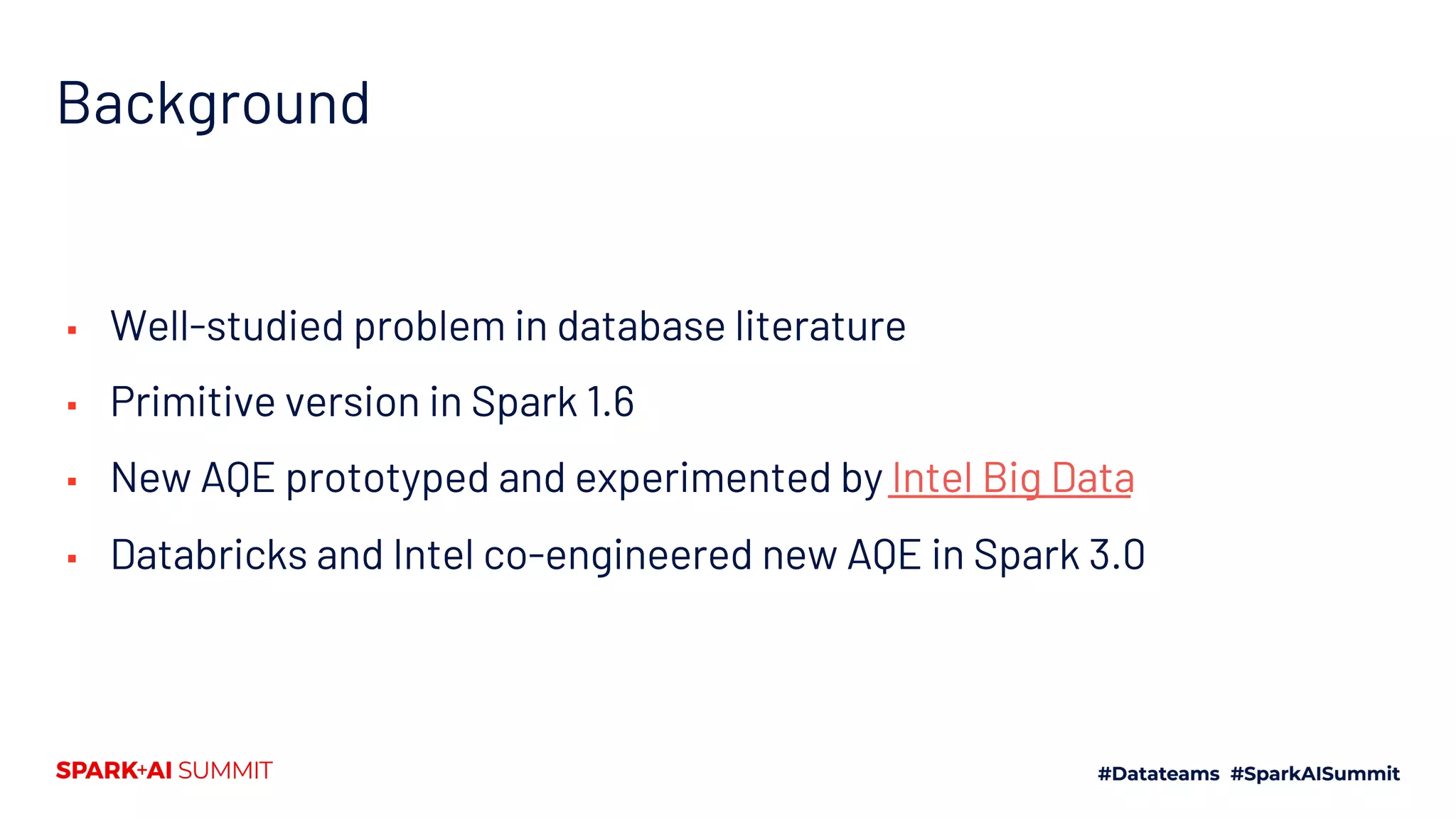

4. Background
▪ Well-studied problem in database literature
▪ Primitive version in Spark 1.6
▪ New AQE prototyped and experimented by Intel Big Data
▪ Databricks and Intel co-engineered new AQE in Spark 3.0

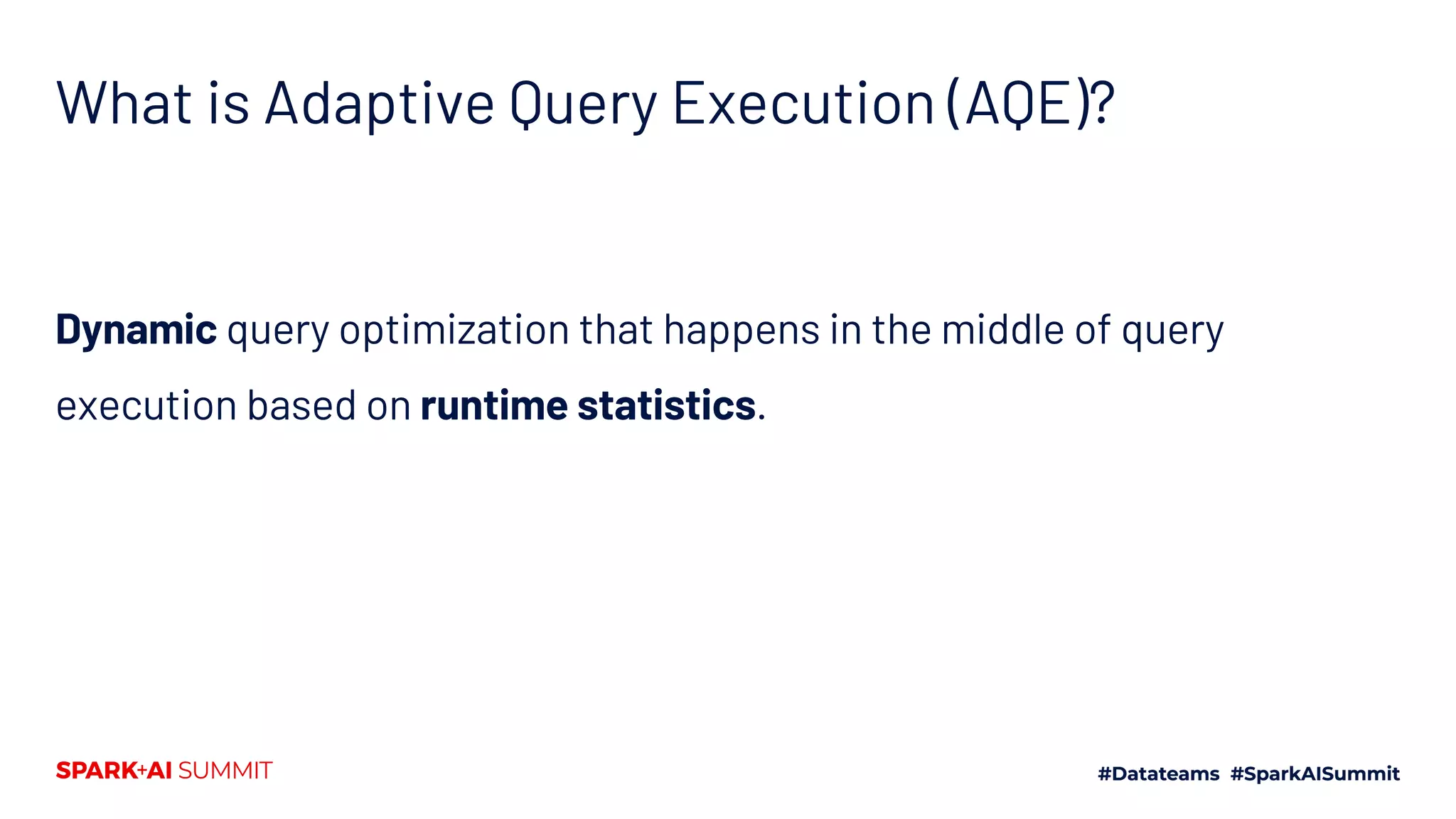

5. What is Adaptive Query Execution (AQE)?
Dynamic query optimization that happens in the middle of query
execution based on runtime statistics.

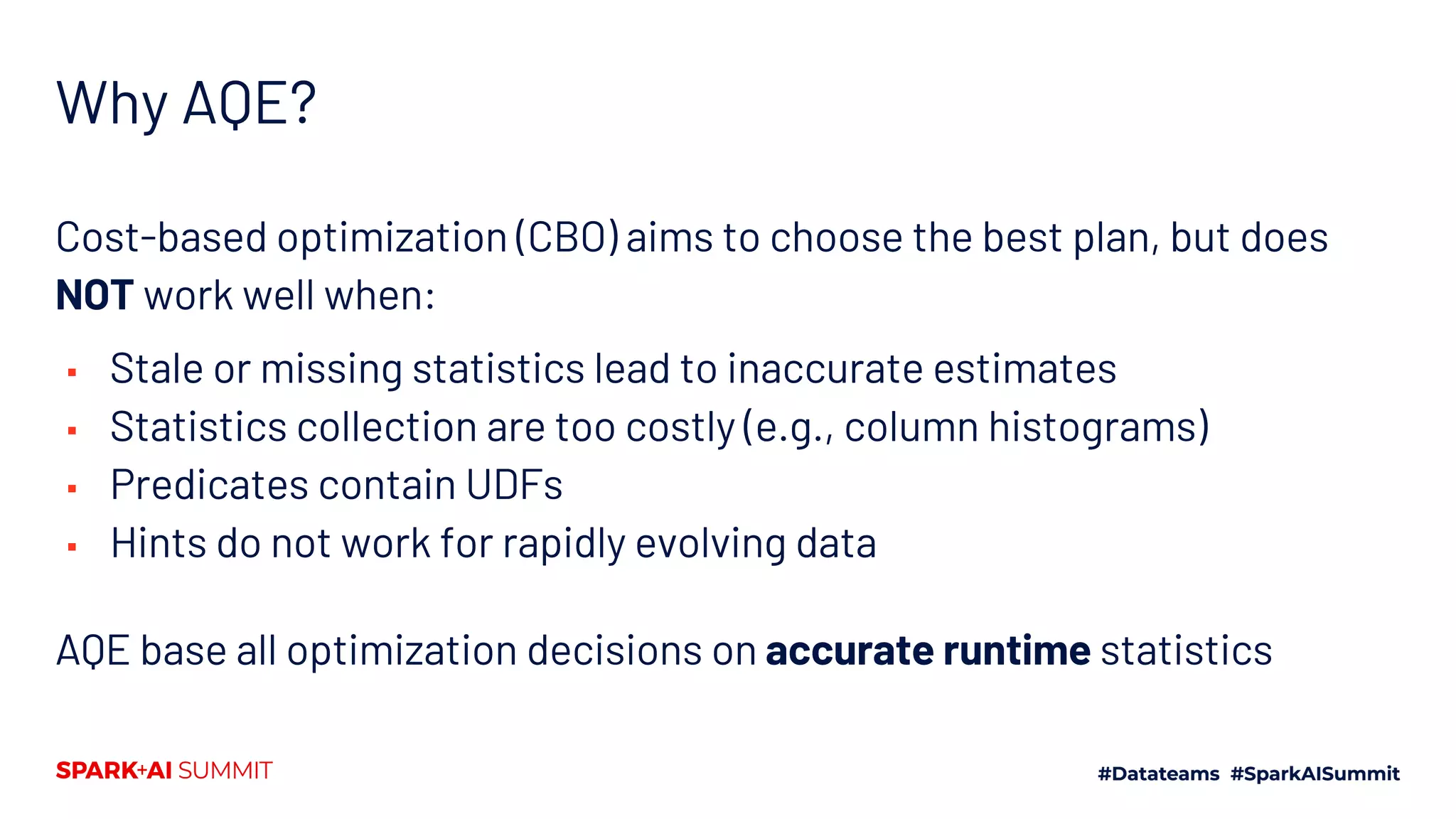

6. Why AQE?
Cost-based optimization (CBO) aims to choose the best plan, but does
NOT work well when:
▪ Stale or missing statistics lead to inaccurate estimates
▪ Statistics collection are too costly (e.g., column histograms)
▪ Predicates contain UDFs
▪ Hints do not work for rapidly evolving data
AQE base all optimization decisions on accurate runtime statistics

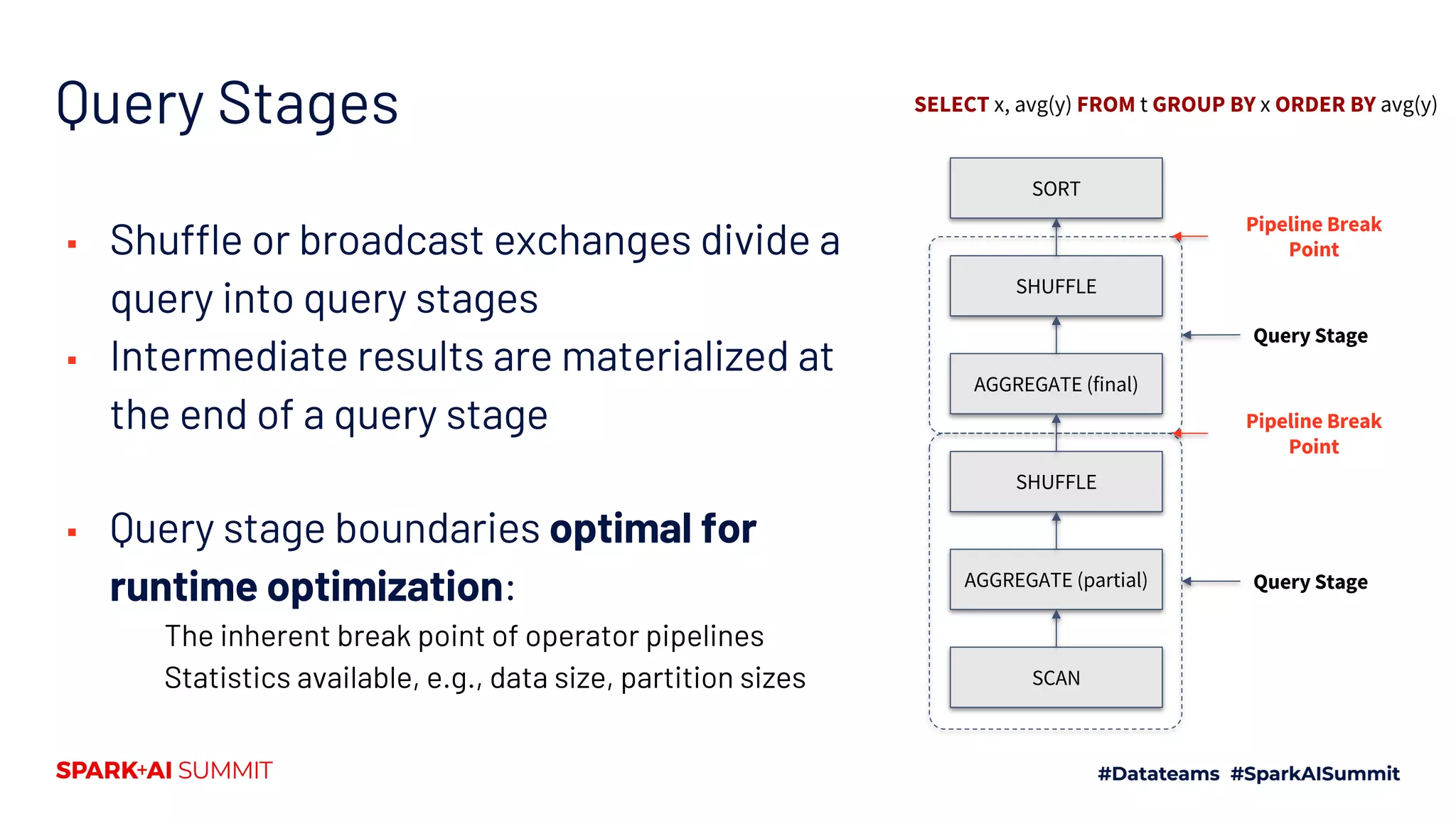

7. ▪ Shuffle or broadcast exchanges divide a
query into query stages
▪ Intermediate results are materialized at
the end of a query stage
▪ Query stage boundaries optimal for
runtime optimization:
The inherent break point of operator pipelines
Statistics available, e.g., data size, partition sizes
Query Stages
AGGREGATE (final)
SHUFFLE
AGGREGATE (partial)
SCAN
Query Stage
SORT
SHUFFLE
Pipeline Break
Point
Query Stage
Pipeline Break
Point
SELECT x, avg(y) FROM t GROUP BY x ORDER BY avg(y)

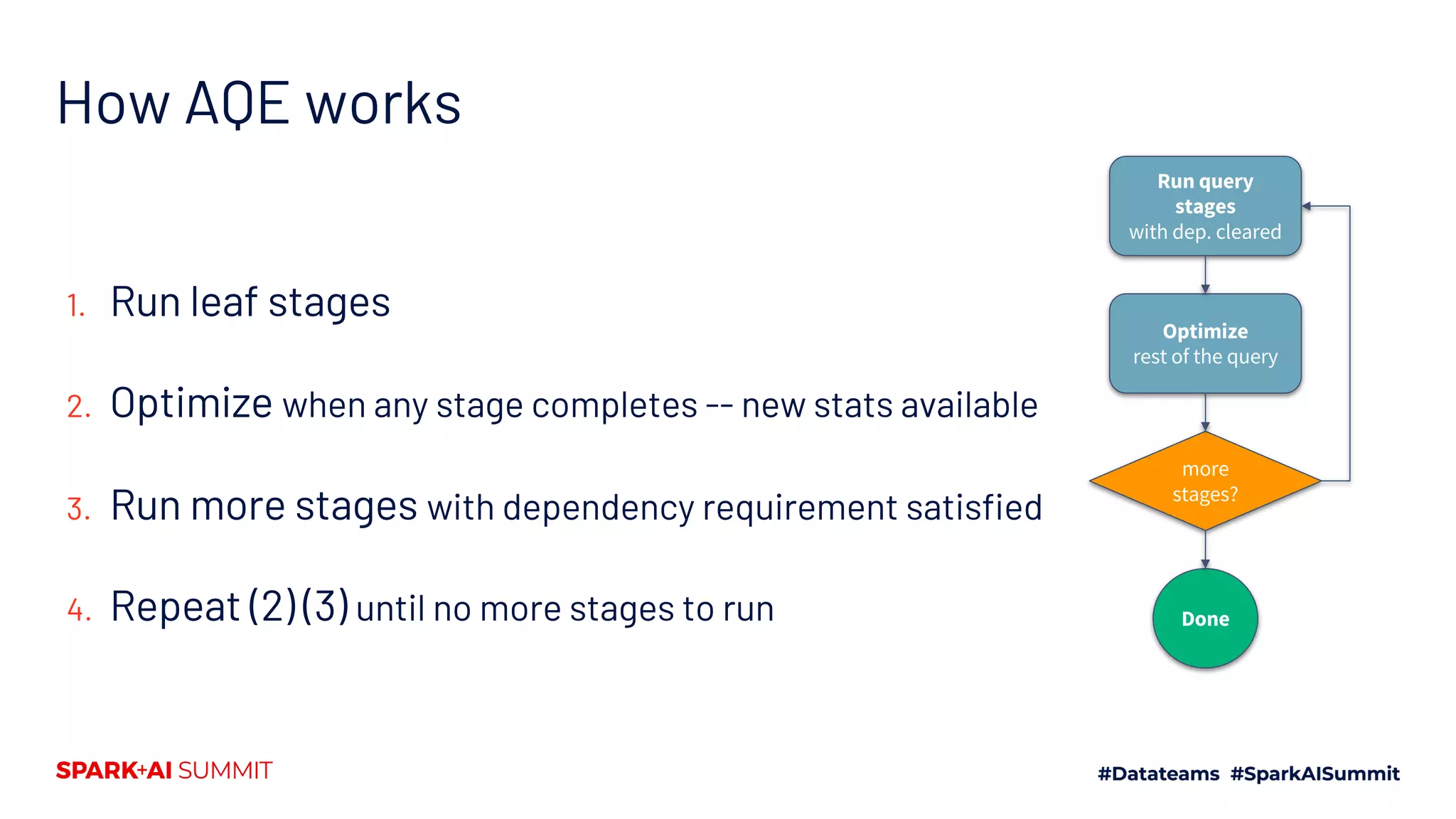

8. How AQE works
1. Run leaf stages
2. Optimize when any stage completes -- new stats available
3. Run more stages with dependency requirement satisfied
4. Repeat (2) (3) until no more stages to run
Run query
stages
with dep. cleared
Optimize
rest of the query
more
stages?
Done

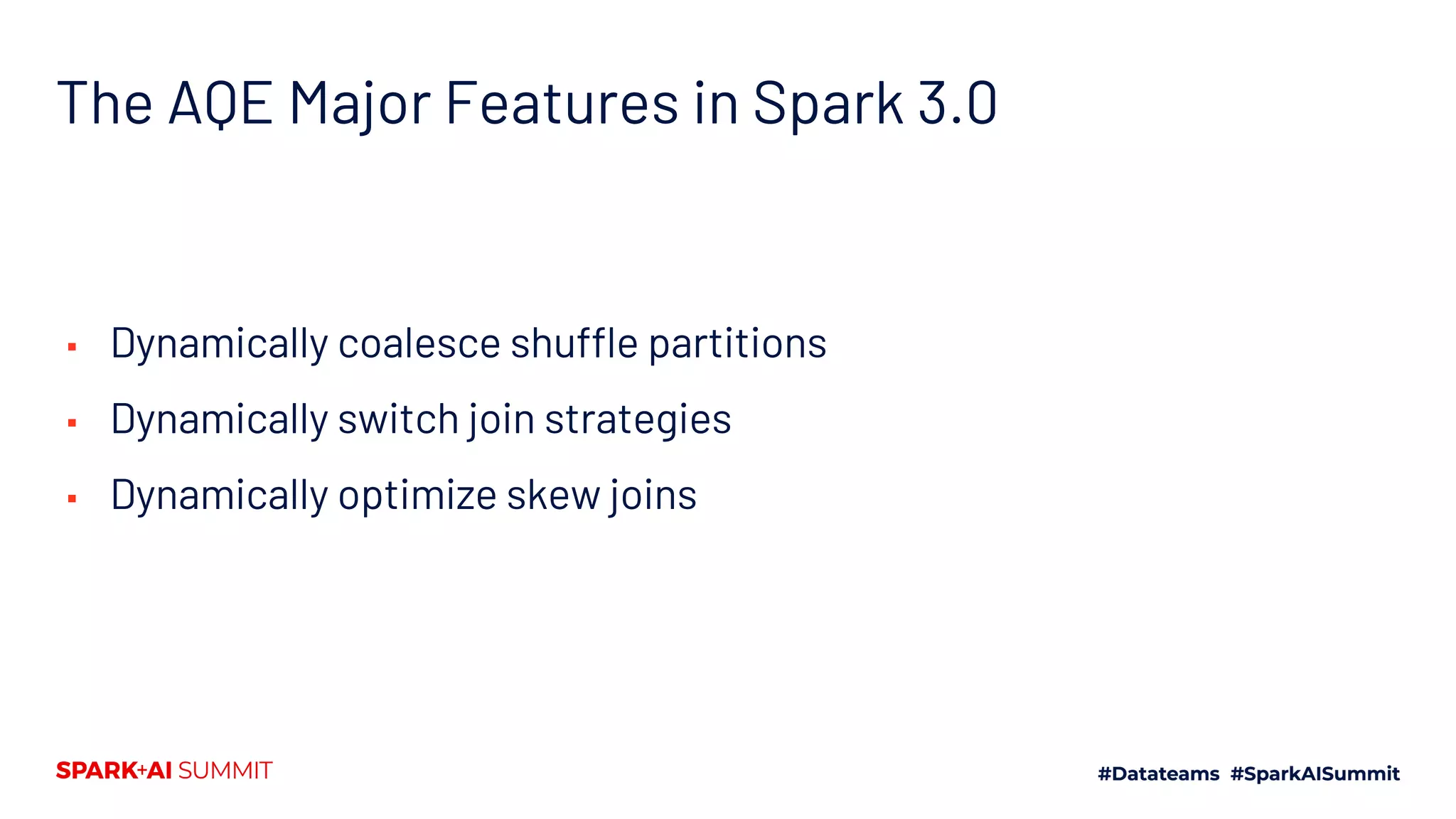

9. The AQE Major Features in Spark 3.0
▪ Dynamically coalesce shuffle partitions
▪ Dynamically switch join strategies
▪ Dynamically optimize skew joins

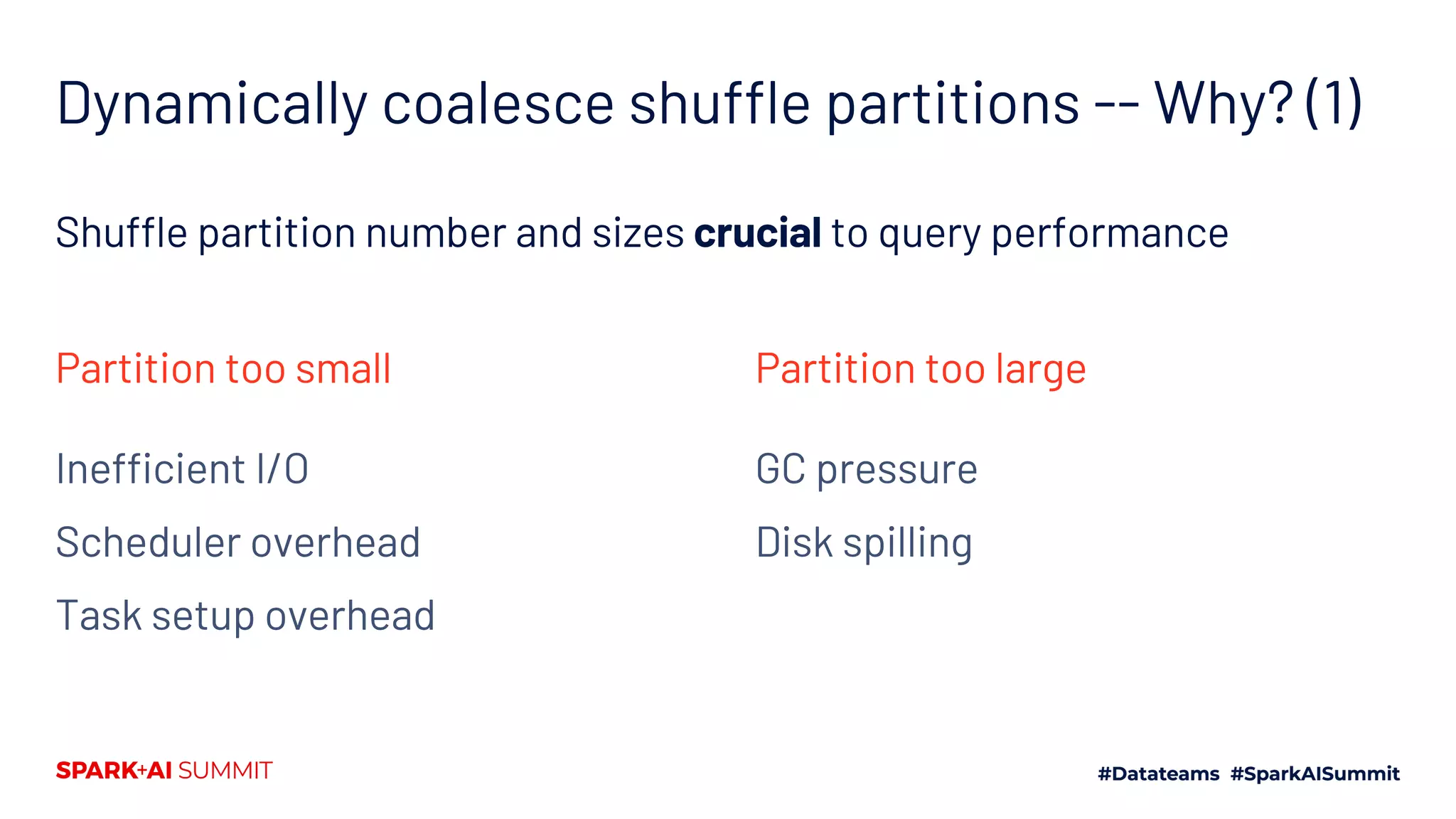

10. Dynamically coalesce shuffle partitions -- Why? (1)
Shuffle partition number and sizes crucial to query performance
Inefficient I/O
Scheduler overhead
Task setup overhead
Partition too largePartition too small
GC pressure
Disk spilling

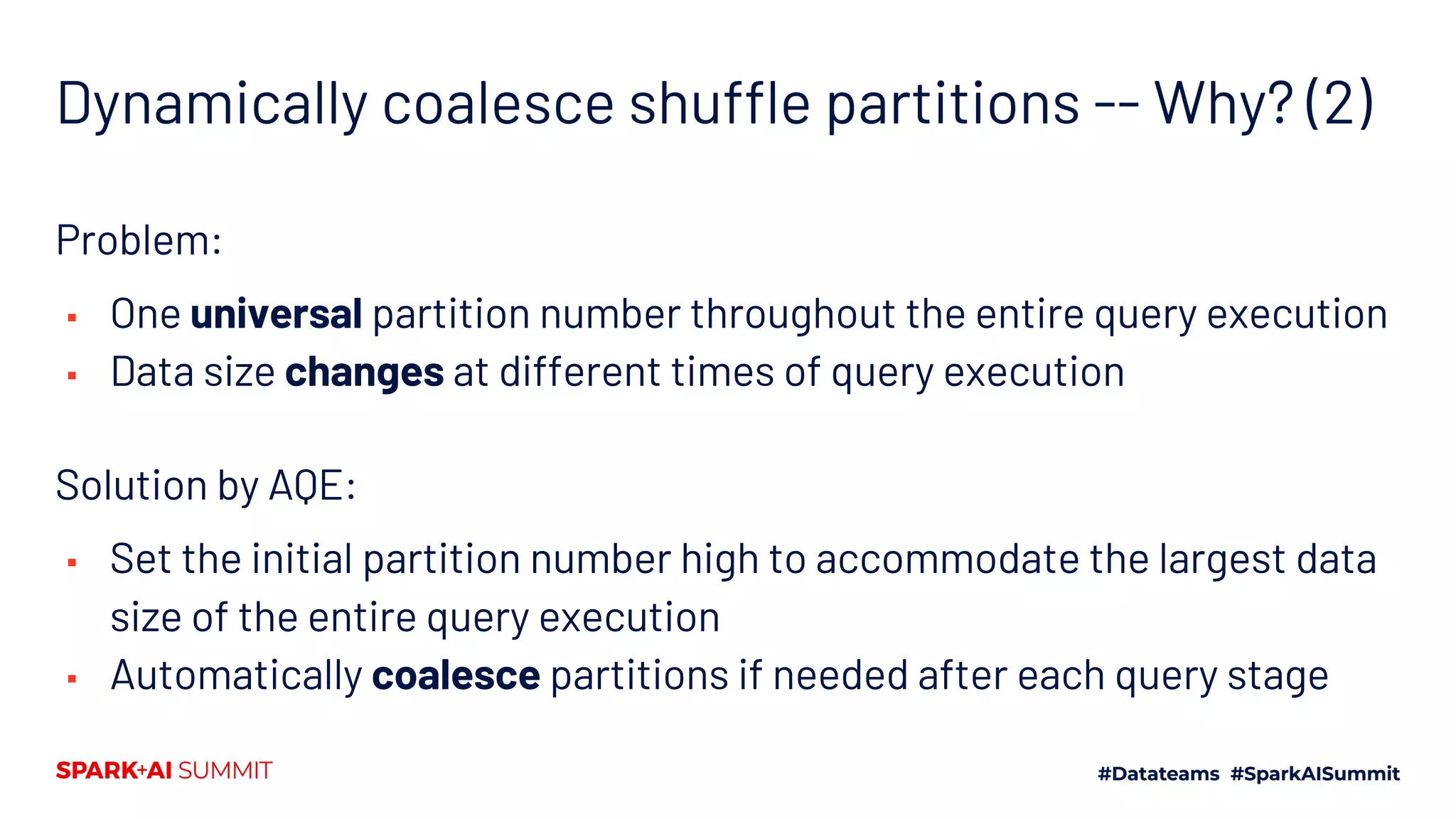

11. Dynamically coalesce shuffle partitions -- Why? (2)
Problem:
▪ One universal partition number throughout the entire query execution
▪ Data size changes at different times of query execution
Solution by AQE:
▪ Set the initial partition number high to accommodate the largest data
size of the entire query execution
▪ Automatically coalesce partitions if needed after each query stage

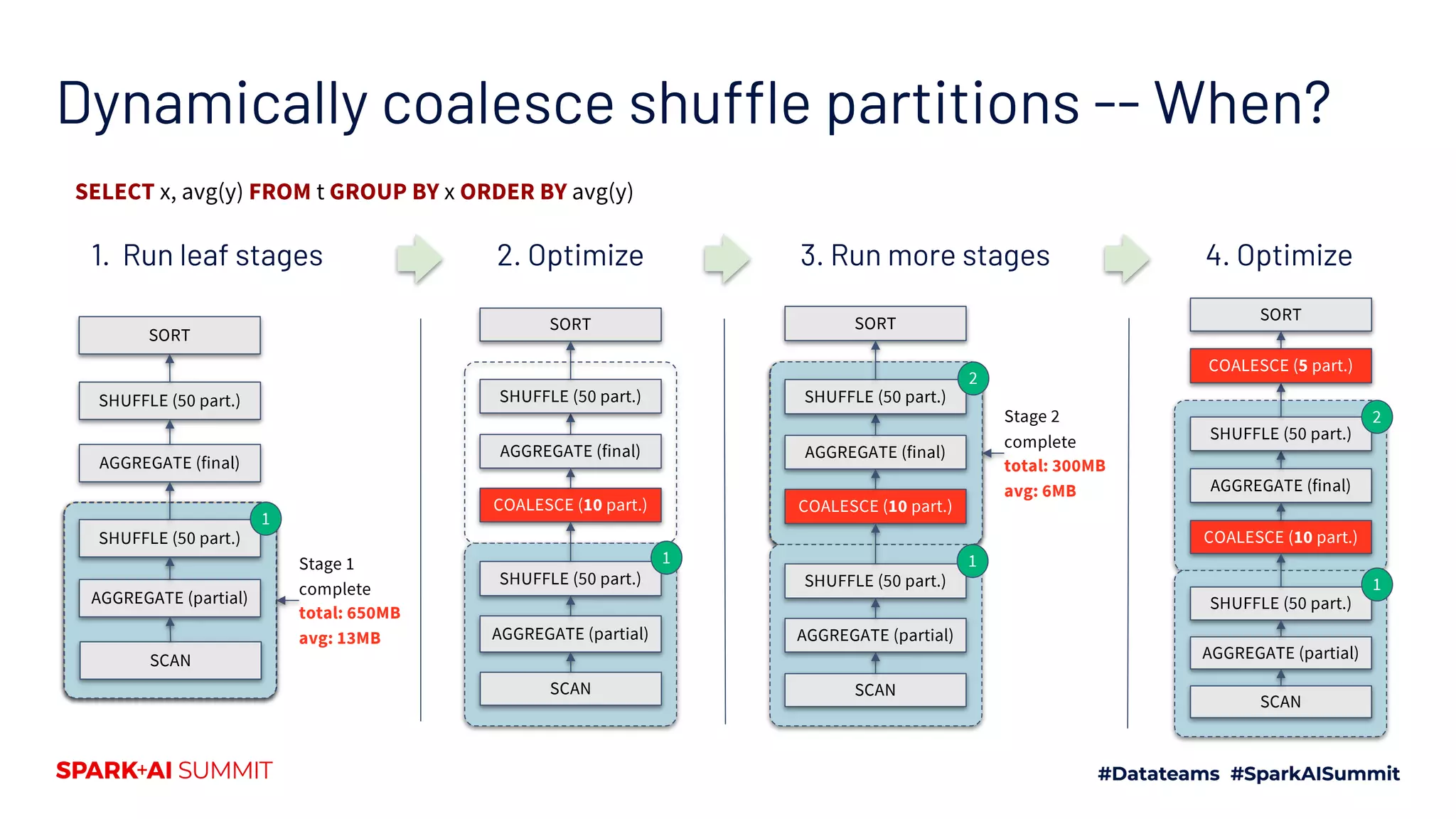

12. Dynamically coalesce shuffle partitions -- When?
AGGREGATE (final)
SHUFFLE (50 part.)
AGGREGATE (partial)
SCAN
Stage 1
complete
total: 650MB
avg: 13MB
SORT
SHUFFLE (50 part.)
2. Optimize1. Run leaf stages 3. Run more stages 4. Optimize
COALESCE (10 part.)
SHUFFLE (50 part.)
AGGREGATE (partial)
SCAN
SORT
AGGREGATE (final)
SHUFFLE (50 part.)
COALESCE (10 part.)
SHUFFLE (50 part.)
AGGREGATE (partial)
SCAN
SORT
AGGREGATE (final)
SHUFFLE (50 part.)
Stage 2
complete
total: 300MB
avg: 6MB
COALESCE (10 part.)
SHUFFLE (50 part.)
AGGREGATE (partial)
SCAN
SORT
AGGREGATE (final)
SHUFFLE (50 part.)
COALESCE (5 part.)
1
1 1
2
1
2
SELECT x, avg(y) FROM t GROUP BY x ORDER BY avg(y)

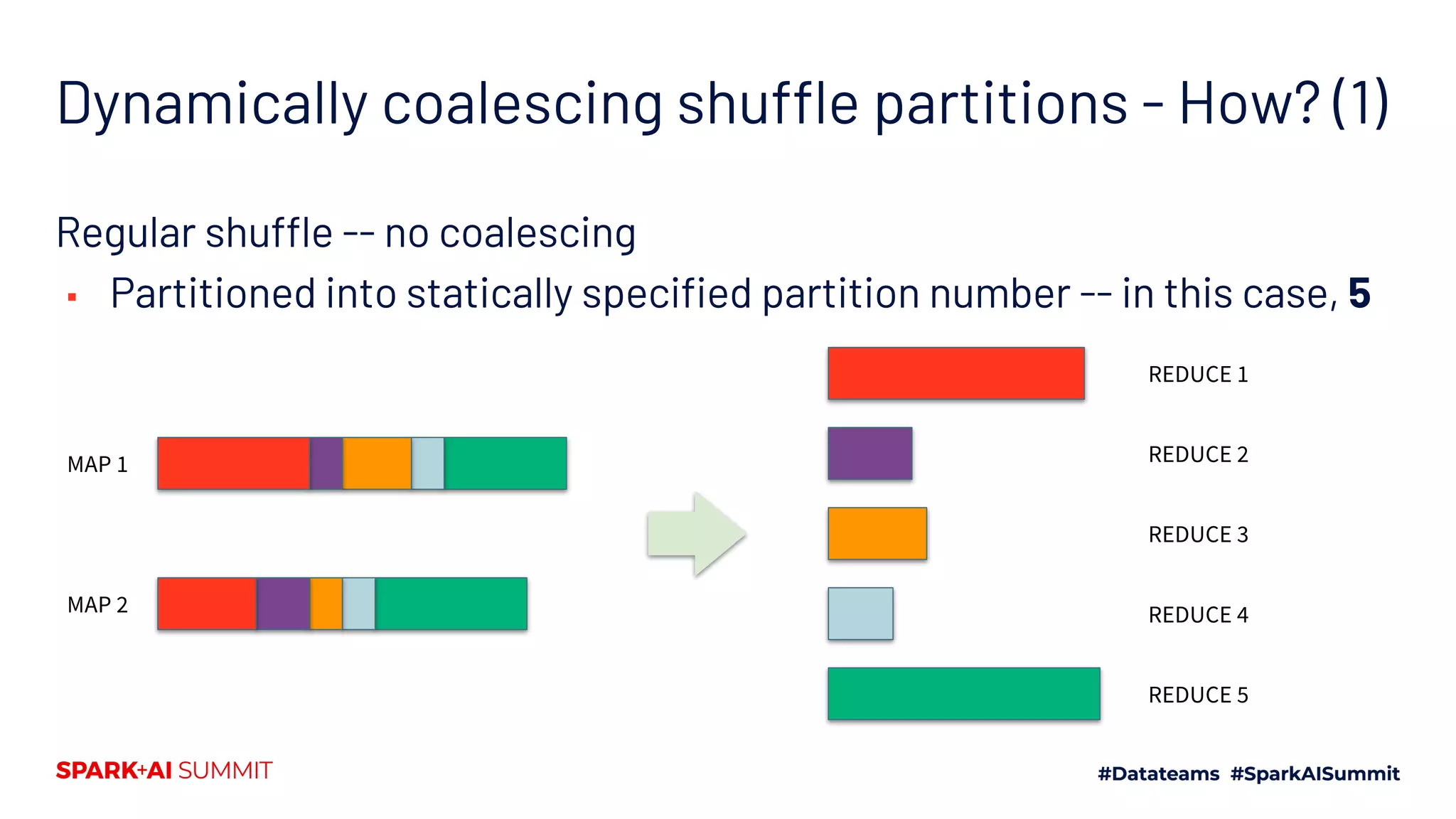

13. Dynamically coalescing shuffle partitions - How? (1)
Regular shuffle -- no coalescing
▪ Partitioned into statically specified partition number -- in this case, 5
MAP 1
MAP 2
REDUCE 1
REDUCE 2
REDUCE 3
REDUCE 4
REDUCE 5

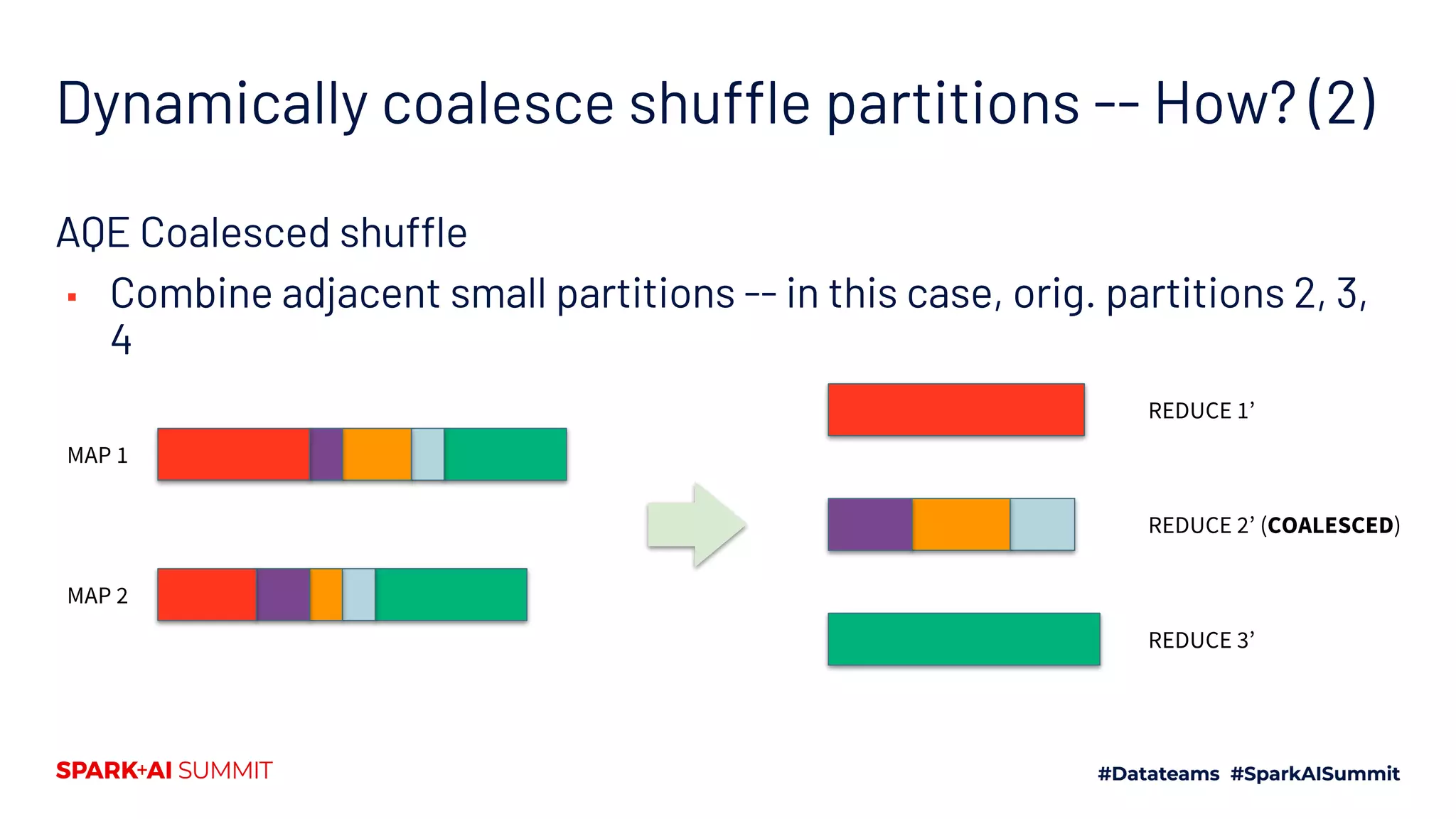

14. Dynamically coalesce shuffle partitions -- How? (2)
REDUCE 2’ (COALESCED)
AQE Coalesced shuffle
▪ Combine adjacent small partitions -- in this case, orig. partitions 2, 3,
4
REDUCE 3’
MAP 1
MAP 2
REDUCE 1’

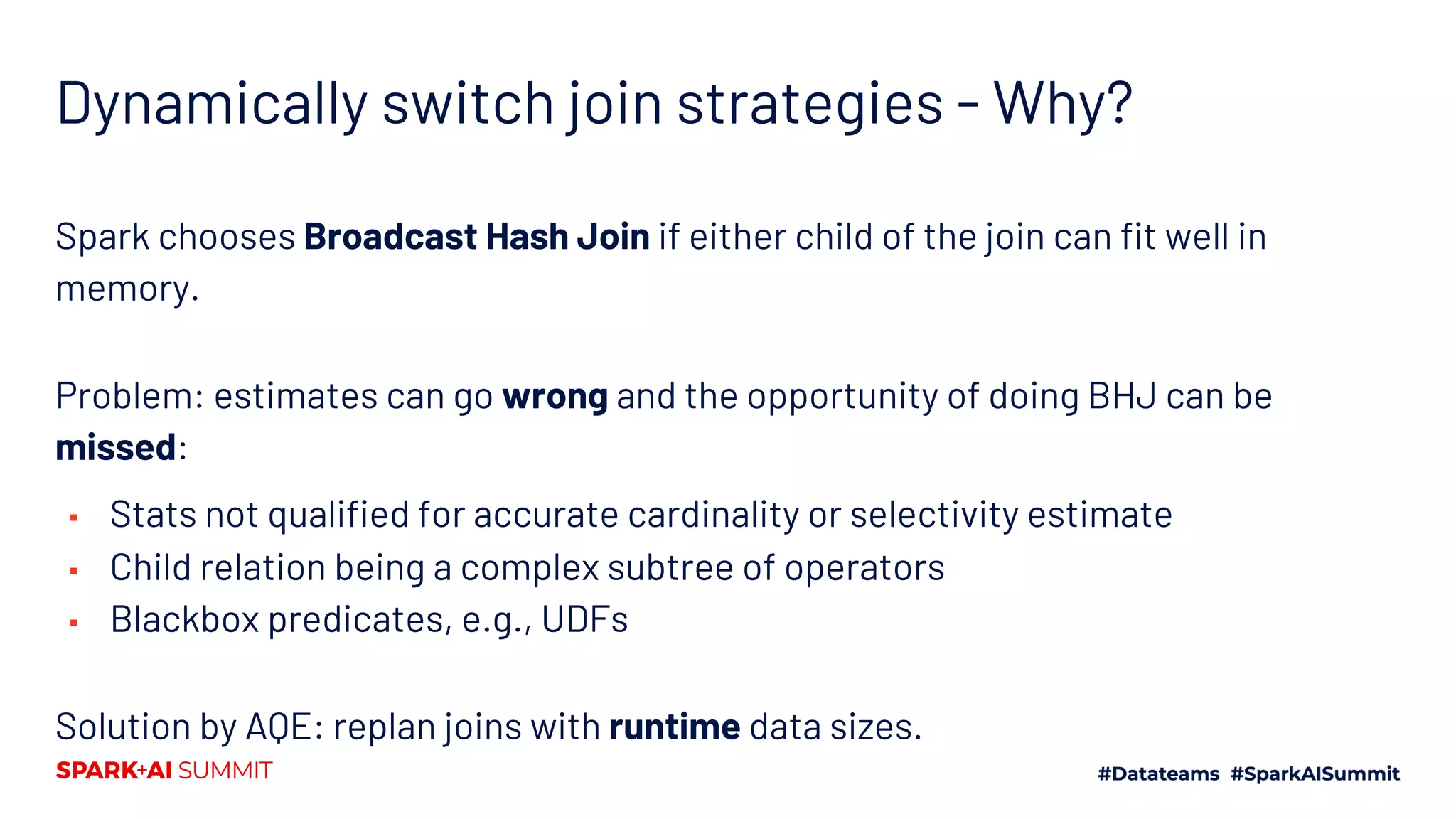

15. Dynamically switch join strategies - Why?
Spark chooses Broadcast Hash Join if either child of the join can fit well in
memory.
Problem: estimates can go wrong and the opportunity of doing BHJ can be
missed:
▪ Stats not qualified for accurate cardinality or selectivity estimate
▪ Child relation being a complex subtree of operators
▪ Blackbox predicates, e.g., UDFs
Solution by AQE: replan joins with runtime data sizes.

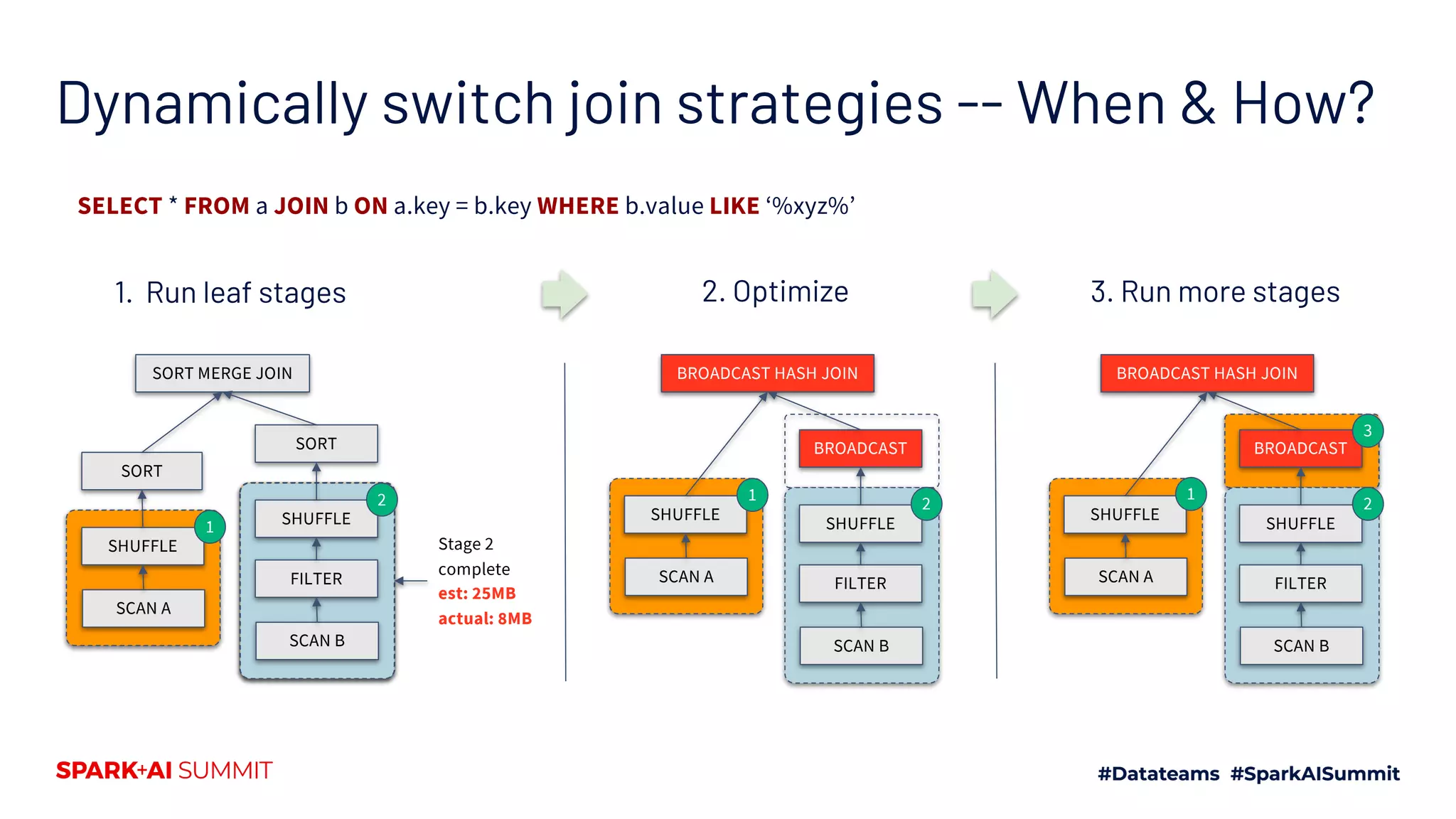

16. Dynamically switch join strategies -- When & How?
SORT
SHUFFLE
SCAN A
SORT MERGE JOIN
SORT
2. Optimize1. Run leaf stages 3. Run more stages
SHUFFLE
FILTER
SCAN B
Stage 2
complete
est: 25MB
actual: 8MB
SHUFFLE
SCAN A
BROADCAST HASH JOIN
BROADCAST
SHUFFLE
FILTER
SCAN B
SHUFFLE
SCAN A
BROADCAST HASH JOIN
BROADCAST
SHUFFLE
FILTER
SCAN B
1
2 1 2
1
3
2
SELECT * FROM a JOIN b ON a.key = b.key WHERE b.value LIKE ‘%xyz%’

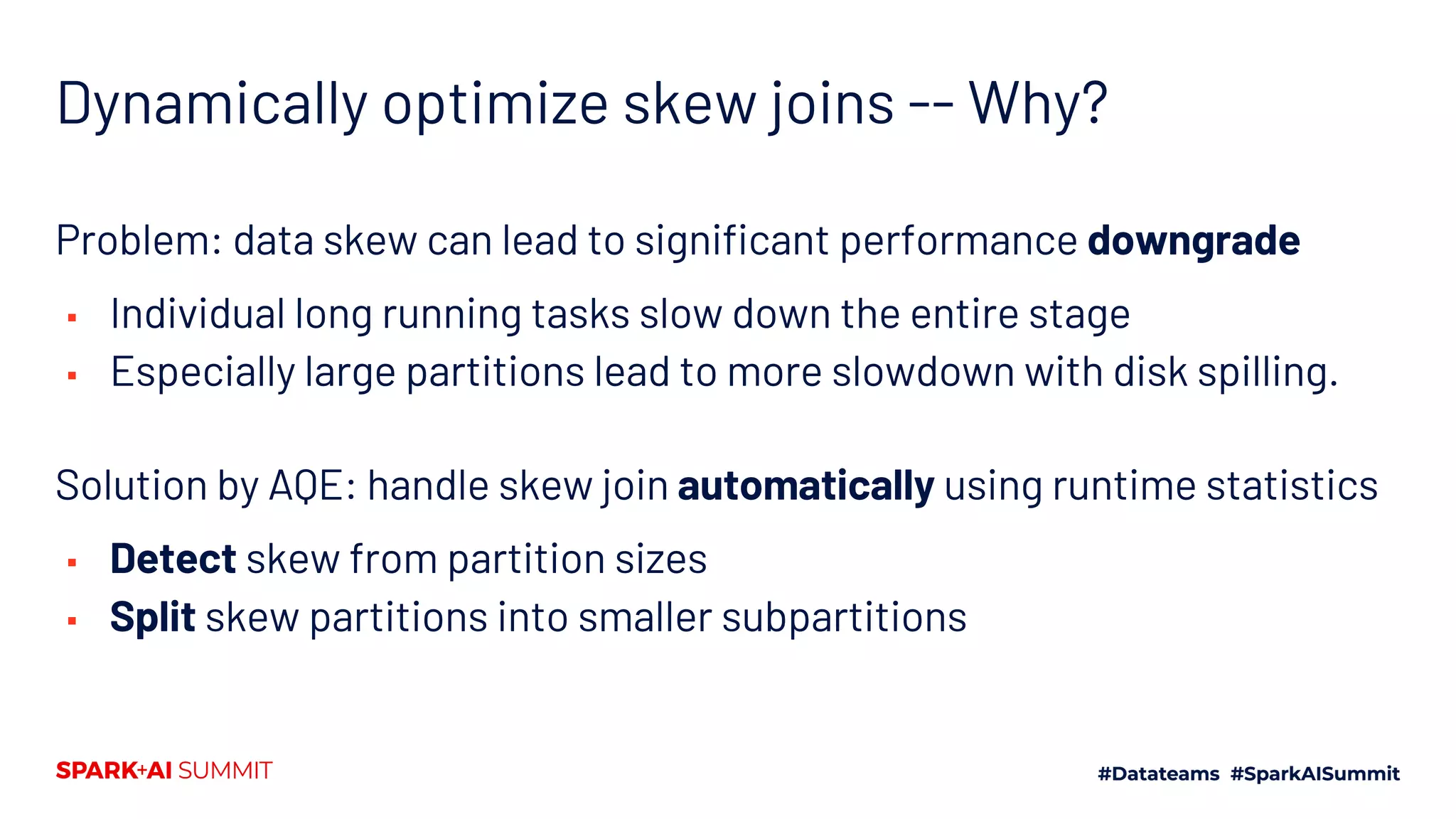

17. Dynamically optimize skew joins -- Why?
Problem: data skew can lead to significant performance downgrade
▪ Individual long running tasks slow down the entire stage
▪ Especially large partitions lead to more slowdown with disk spilling.
Solution by AQE: handle skew join automatically using runtime statistics
▪ Detect skew from partition sizes
▪ Split skew partitions into smaller subpartitions

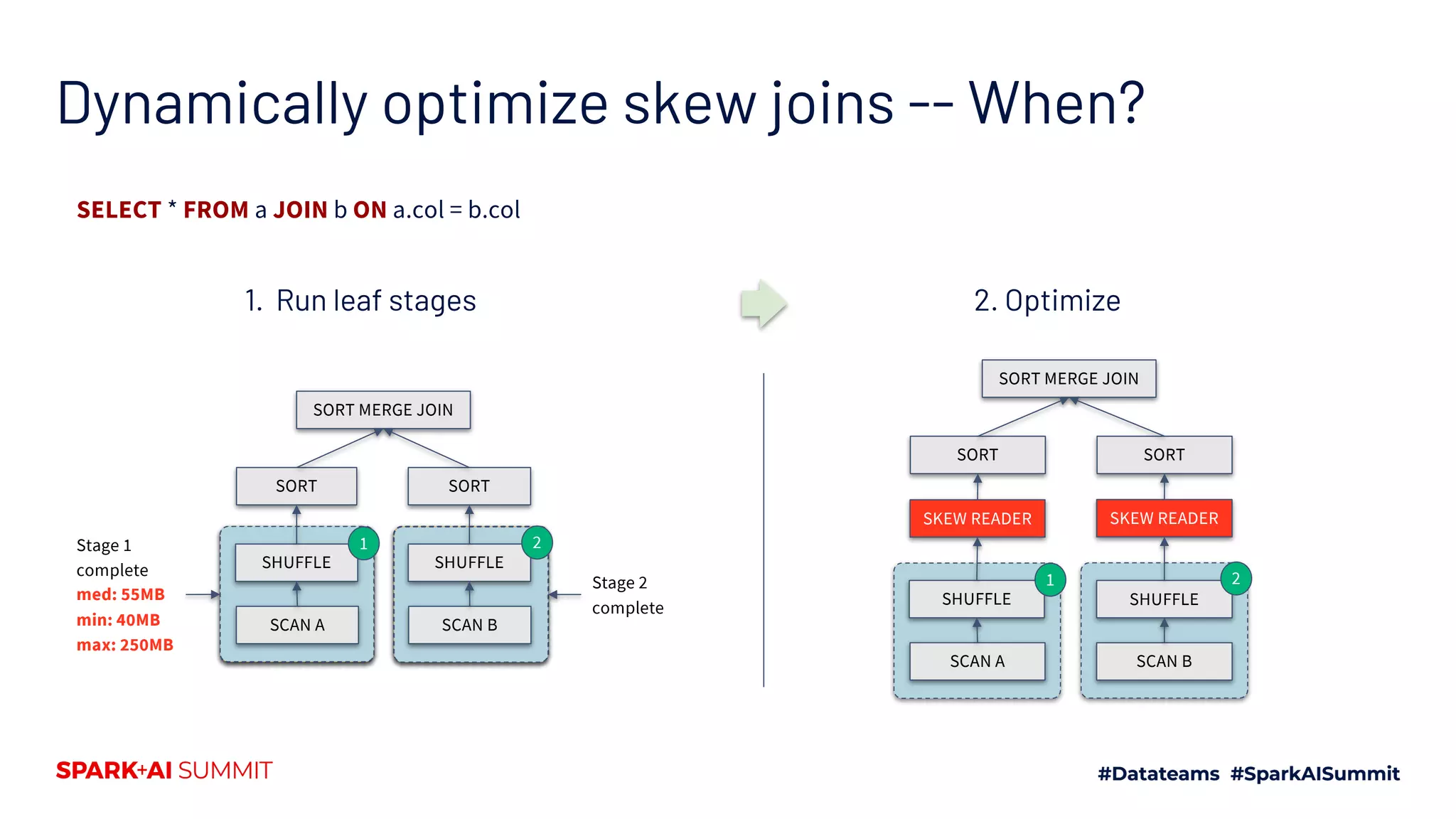

18. Dynamically optimize skew joins -- When?
SORT
SHUFFLE
SCAN A
SORT MERGE JOIN
SORT
2. Optimize1. Run leaf stages
SHUFFLE
SCAN B
Stage 2
complete
1 2Stage 1
complete
med: 55MB
min: 40MB
max: 250MB
SORT
SHUFFLE
SCAN A
SORT MERGE JOIN
SORT
SHUFFLE
SCAN B
1 2
SKEW READER SKEW READER
SELECT * FROM a JOIN b ON a.col = b.col

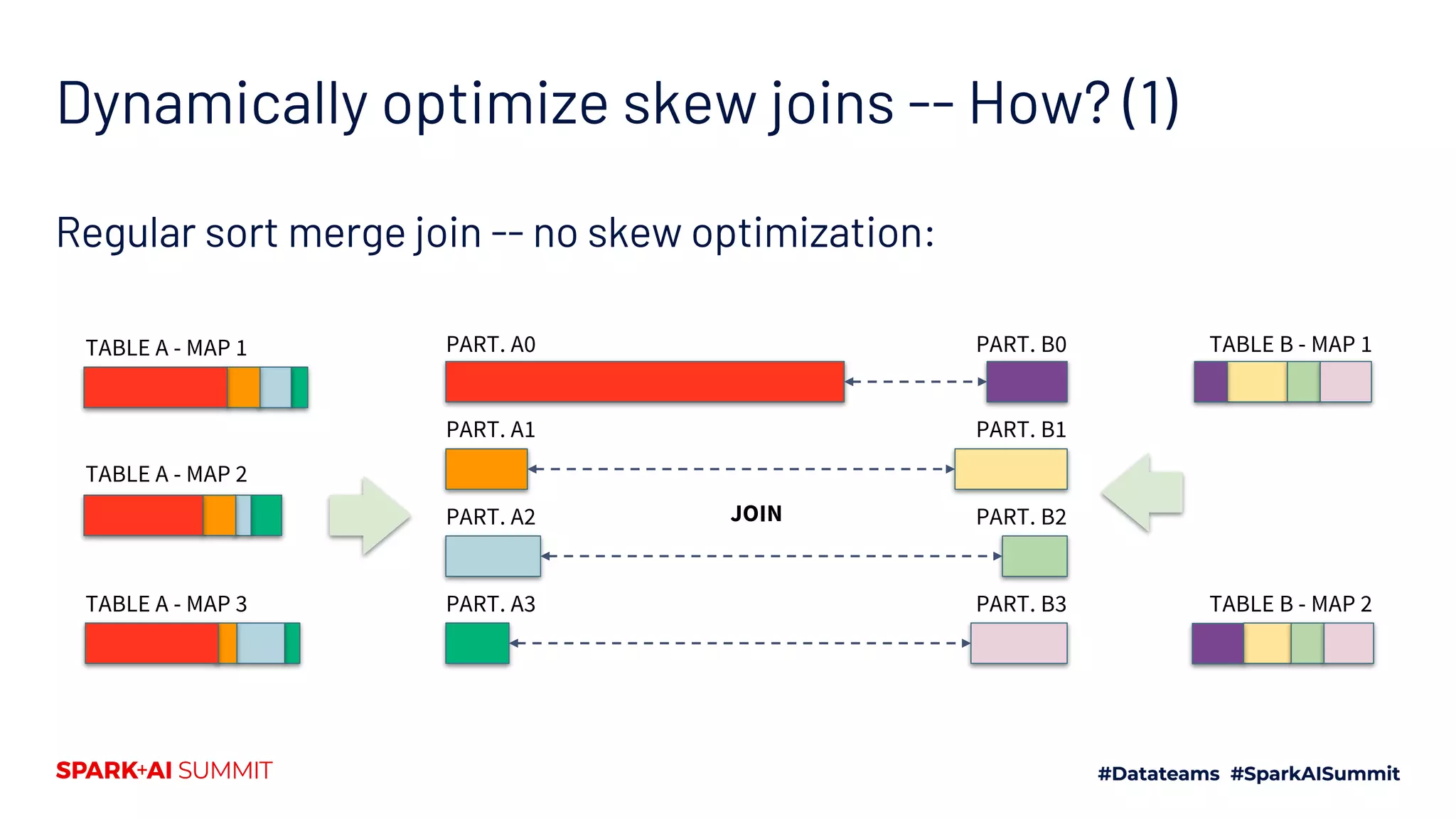

19. Dynamically optimize skew joins -- How? (1)
Regular sort merge join -- no skew optimization:
TABLE A - MAP 1
TABLE A - MAP 2
TABLE A - MAP 3
PART. A0
PART. A1
PART. A2
PART. A3
PART. B0
PART. B1
PART. B2
PART. B3
TABLE B - MAP 1
TABLE B - MAP 2
JOIN

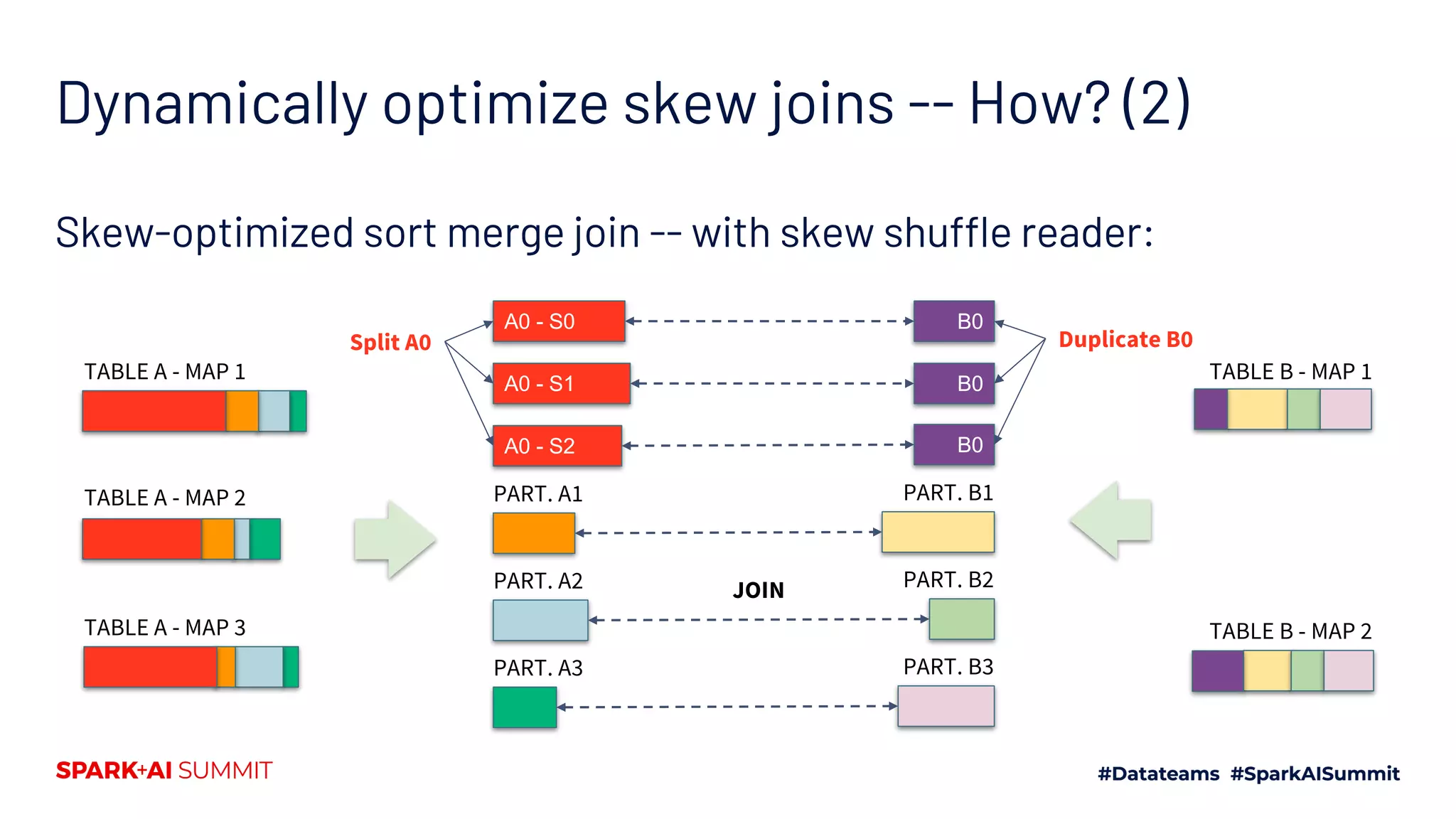

20. Dynamically optimize skew joins -- How? (2)
Skew-optimized sort merge join -- with skew shuffle reader:
A0 - S2
TABLE A - MAP 1
B0
TABLE A - MAP 2
TABLE A - MAP 3
Split A0
PART. A1
PART. A2
PART. A3
PART. B1
PART. B2
PART. B3
TABLE B - MAP 1
TABLE B - MAP 2
A0 - S1
A0 - S0
B0
B0
Duplicate B0
JOIN

21. About Me
Ke Jia
Big Data Product Engineer at Intel
Contributor of Spark, OAP and Hive

22. About Me
Ke Jia
Big Data Product Engineer at Intel
Contributor of Spark, OAP and Hive

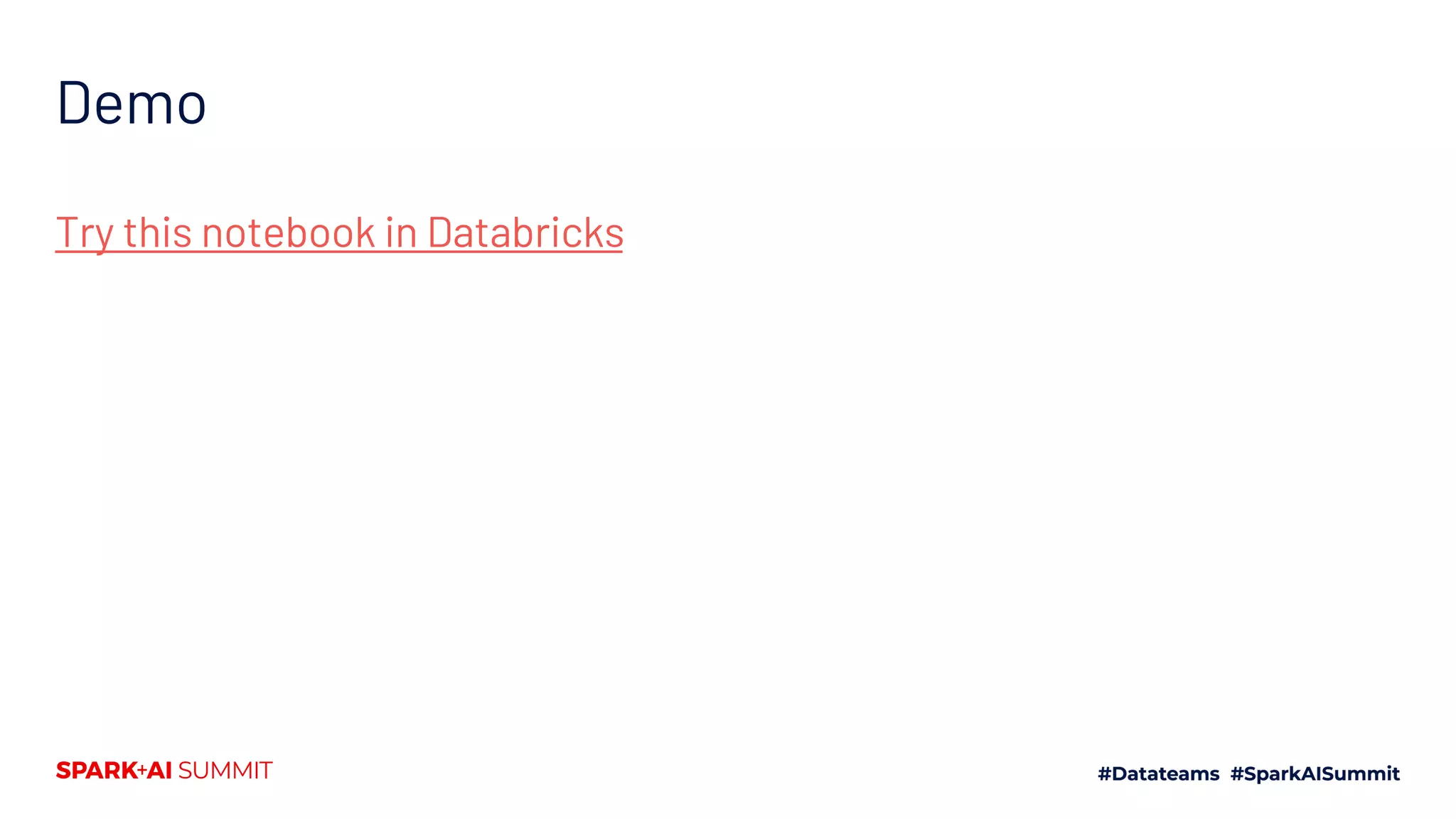

23. Demo
Try this notebook in Databricks

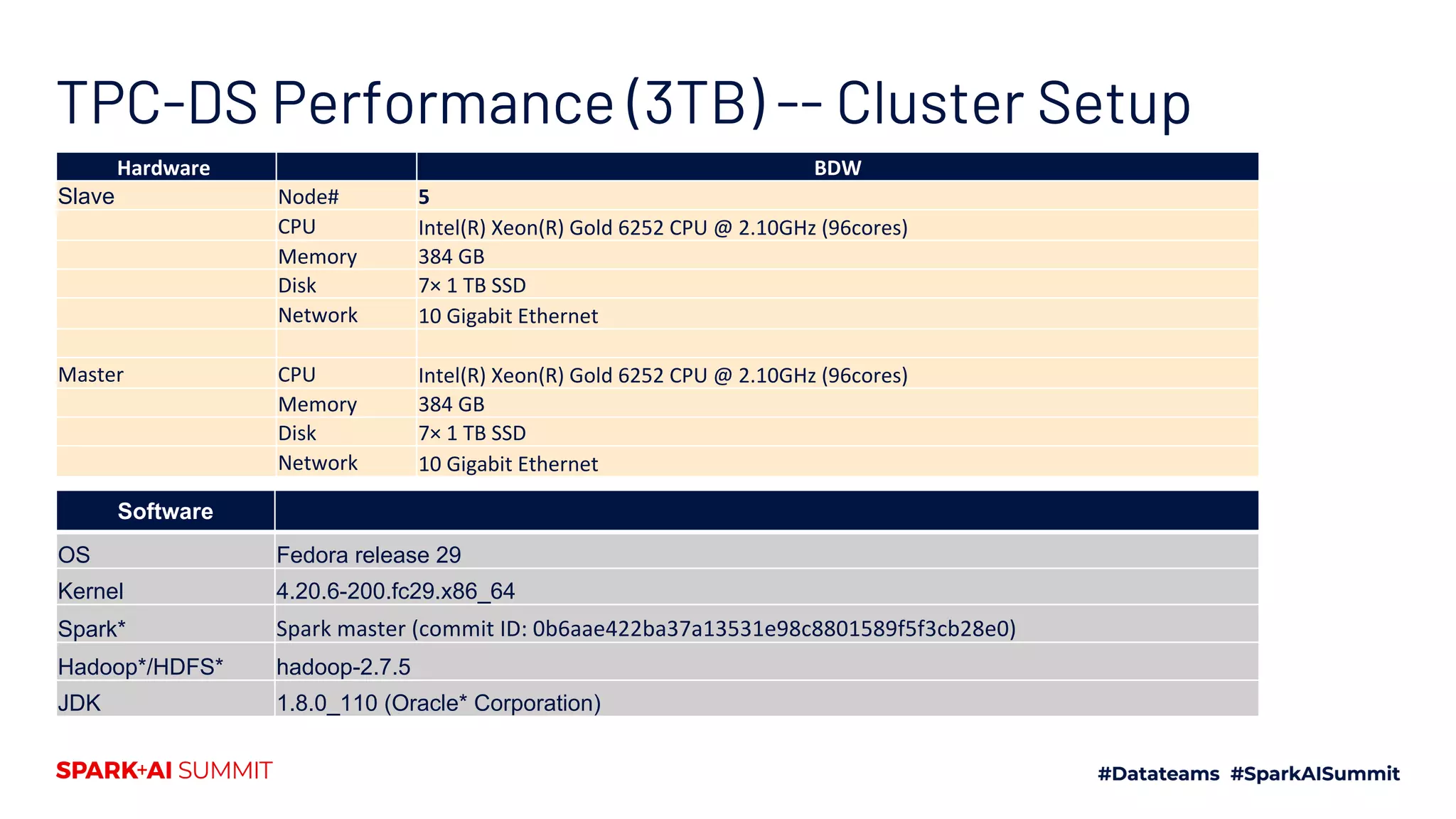

24. TPC-DS Performance (3TB) -- Cluster Setup
Hardware BDW
Slave Node# 5
CPU Intel(R) Xeon(R) Gold 6252 CPU @ 2.10GHz (96cores)
Memory 384 GB
Disk 7× 1 TB SSD
Network 10 Gigabit Ethernet
Master CPU Intel(R) Xeon(R) Gold 6252 CPU @ 2.10GHz (96cores)
Memory 384 GB
Disk 7× 1 TB SSD
Network 10 Gigabit Ethernet
Software
OS Fedora release 29
Kernel 4.20.6-200.fc29.x86_64
Spark* Spark master (commit ID: 0b6aae422ba37a13531e98c8801589f5f3cb28e0)
Hadoop*/HDFS* hadoop-2.7.5
JDK 1.8.0_110 (Oracle* Corporation)

25. TPC-DS Performance (3TB) -- Results
1.76x
1.5x
1.41x 1.4x
1.38x
1.28x
1.27x
1.22x
1.21x
1.19x
▪ Over 1.5x speedup on 2 queries; over 1.1x speedup on 37 queries

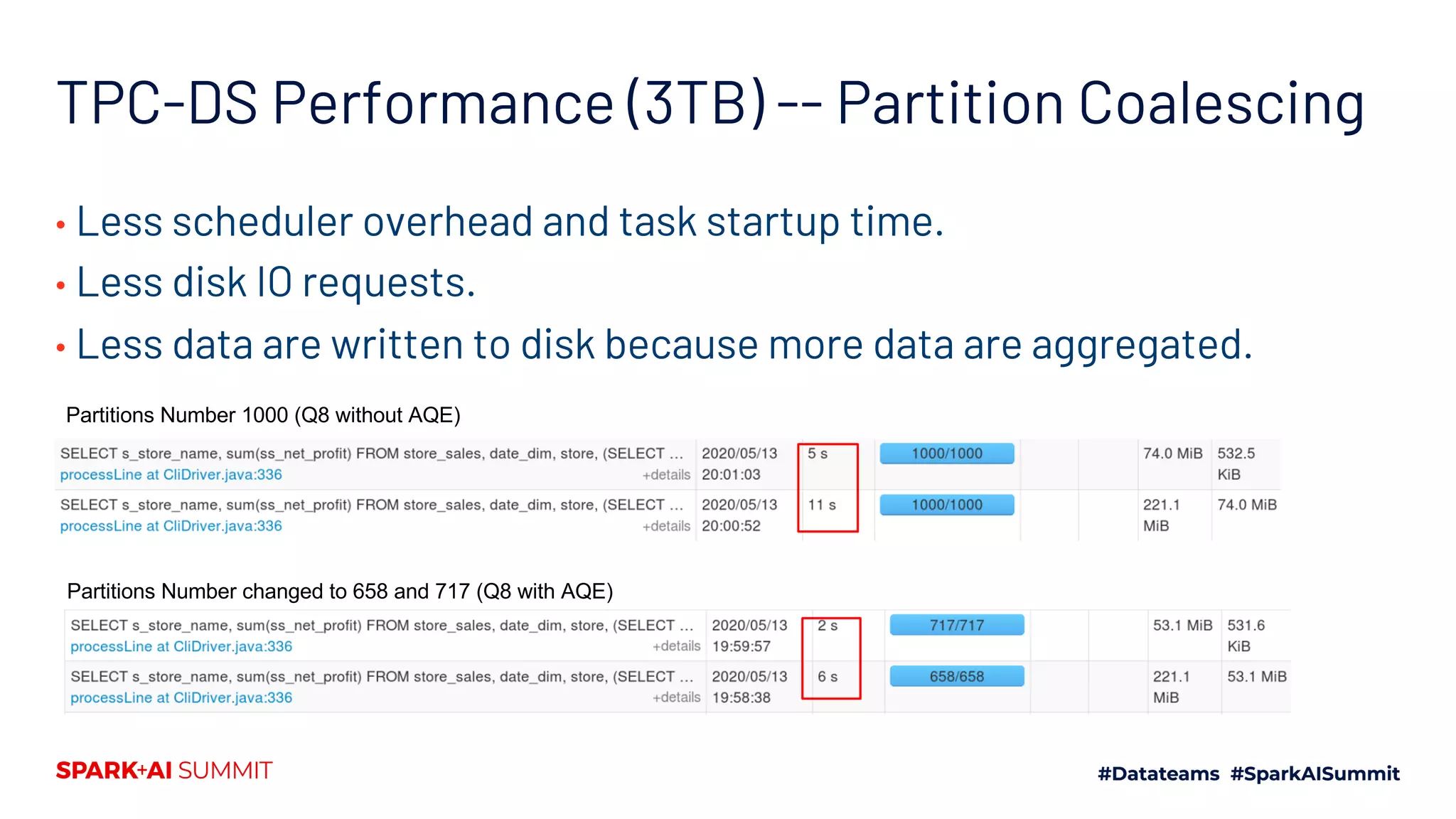

26. TPC-DS Performance (3TB) -- Partition Coalescing
• Less scheduler overhead and task startup time.
• Less disk IO requests.
• Less data are written to disk because more data are aggregated.
Partitions Number 1000 (Q8 without AQE)
Partitions Number changed to 658 and 717 (Q8 with AQE)

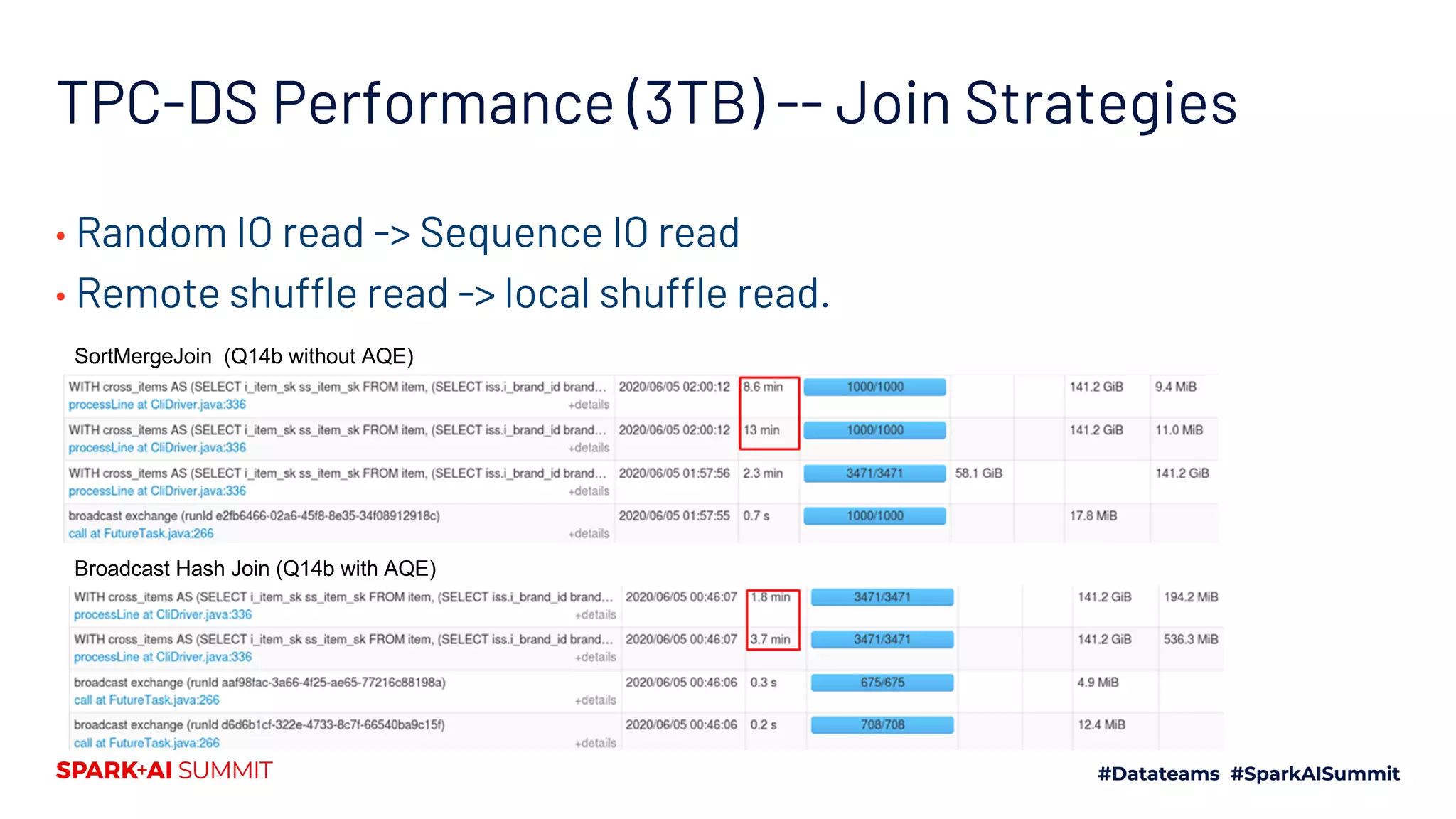

27. TPC-DS Performance (3TB) -- Join Strategies
• Random IO read -> Sequence IO read
• Remote shuffle read -> local shuffle read.
SortMergeJoin (Q14b without AQE)
Broadcast Hash Join (Q14b with AQE)

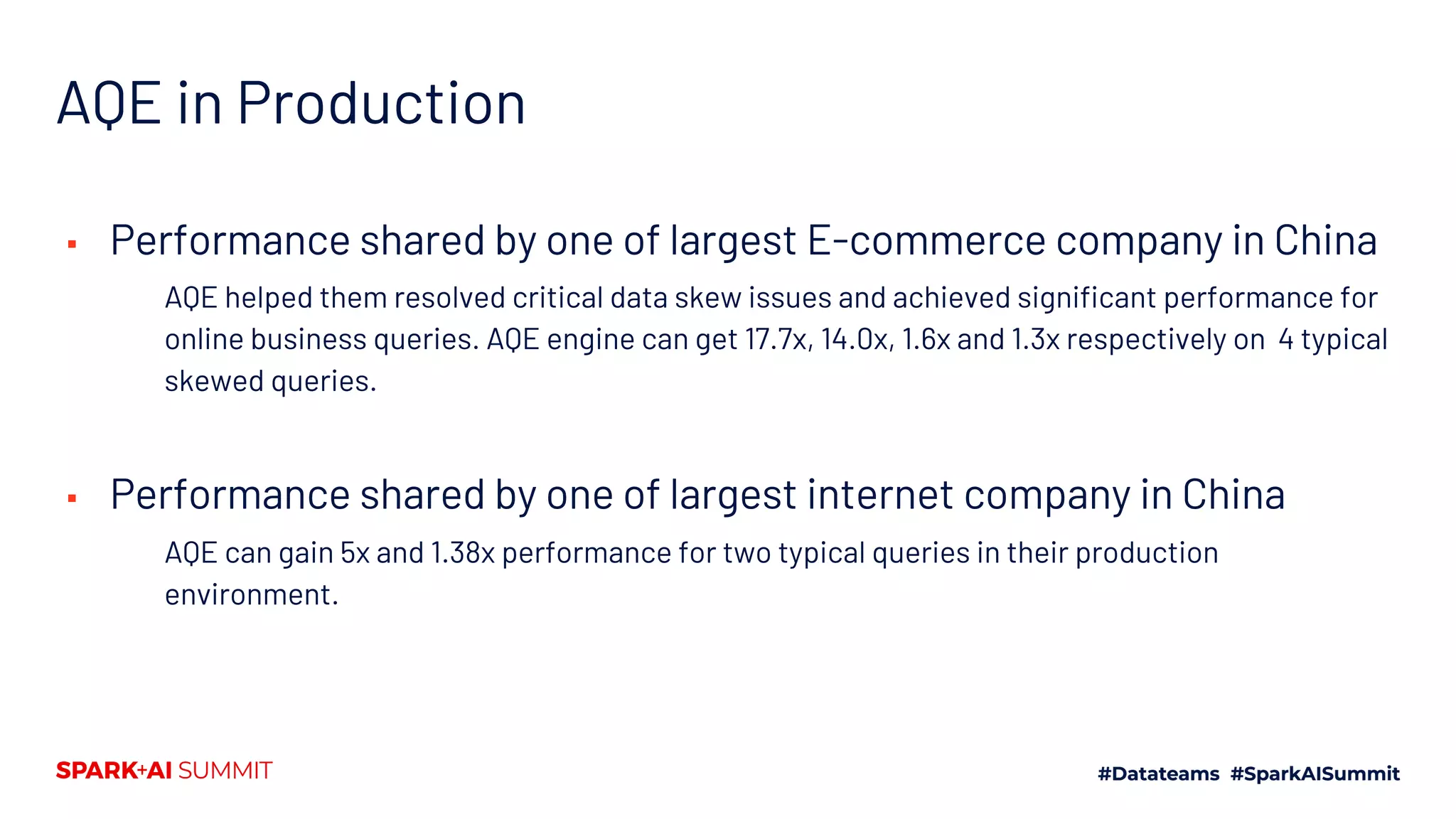

28. AQE in Production
▪ Performance shared by one of largest E-commerce company in China
AQE helped them resolved critical data skew issues and achieved significant performance for
online business queries. AQE engine can get 17.7x, 14.0x, 1.6x and 1.3x respectively on 4 typical
skewed queries.
▪ Performance shared by one of largest internet company in China
AQE can gain 5x and 1.38x performance for two typical queries in their production
environment.

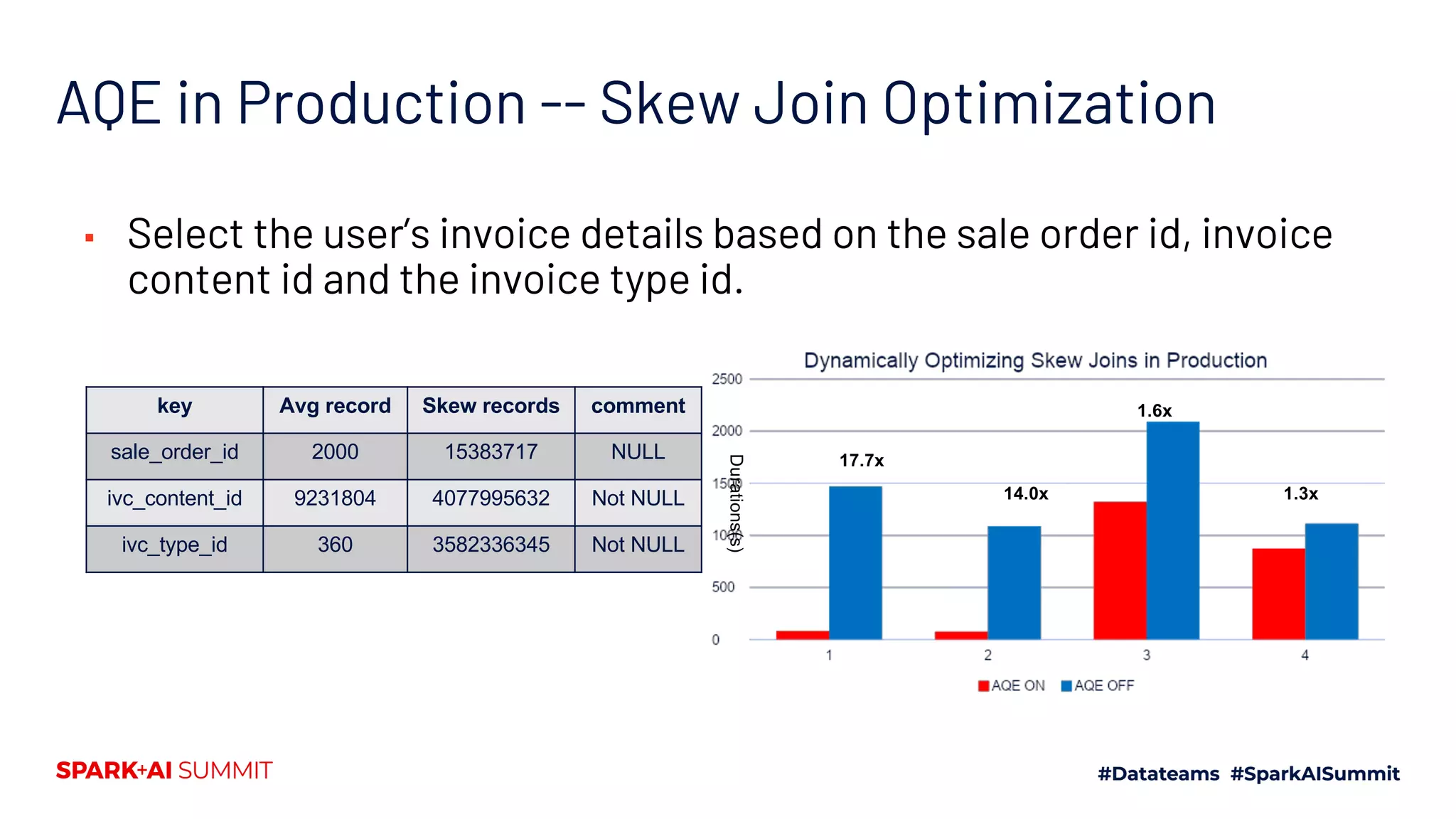

29. AQE in Production -- Skew Join Optimization
17.7x
14.0x
1.6x
1.3x
key Avg record Skew records comment
sale_order_id 2000 15383717 NULL
ivc_content_id 9231804 4077995632 Not NULL
ivc_type_id 360 3582336345 Not NULL
▪ Select the user’s invoice details based on the sale order id, invoice
content id and the invoice type id.
Durations(s)

30. Feedback
Your feedback is important to us.
Don’t forget to rate and
review the sessions.
