1. New Trends with VME/VPX – Part 1
An historical perspective with a look at the future

2. Overview
Part 1
• VME: how it all started
• VME: motivations
• VME: electrical features
• VME: mechanical features
• VME: enhancements (VME64,
2eSST, etc)
• VME64: An example - Advme8028
• VME64x + 2eSST: An example -
Advme8027
• VME: CPU architectures
Part 2
• From VME to VPX
• VPX - OpenVPX
• OpenVPX: basics
• OpenVPX: MultiGig RT2
connector
• OpenVPX: planes and profiles
• OpenVPX: 2 level maintenance
• OpenVPX: an example

3. VME: how it all started
1980: Motorola + Mostek + Signetics
VME begins as the sum of two standards:
Eurocard (mechanical) + VERSAbus (electrical)
In that moment, many different proprietary solutions existed
Lack of standardization was inhibiting cross-compatibility, etc
With VME, an open standard was created.
Its adoption generated a multibillion market that is still very strong.
Being open, VME has been adopted by a significant number of
vendors that offer interoperable platforms

4. VME: motivations
VME promised and delivered great value to the customer:
• Simple maintenance
• Rugged and reliable systems
• Lots of flexibility in configurations
• Interoperability
• Support for real time control
These qualities have made VME a choice in many high end and
long term applications, including: defense, transportation, medical,
aerospace, high end industrial

5. VME: electrical features
Historically, the first concept of VME was very close to an
extension of the Motorola 68K CPU
It gradually became standardized and incorporated some important
features (IEEE-1014-1987):
• MASTER/SLAVE architecture.
• Asynchronous bus (no clocks are used to coordinate data transfers).
• Variable speed handshaking protocol.
• Non-multiplexed bus.
• Addressing range between 16 and 32-bits.
• Data path widths of between 8 and 32-bits.
• Bandwidths up to 40 Mbyte/second.
• Multiprocessing capability.
• Interrupt capability.

6. VME: mechanical features
VME is a backplane pluggable standard that has been designed
with the Eurocard form factors (IEEE 1101.1):
• 3U, 6U or 9U height – 9U not common today
• Single or double width (1 or two slots)
• Length: 160mm or 340mm
• One backplane can have up to 21 slots (19”)
6U
P1
P2
3U P1

7. VME: mechanical features
In VME, two types of connectors to the backplane are defined:
96 pins (VME and VME64) or 160 pins (VME64x)
P1 (3U&6U) P2 (6U only)
VME, VME64 96 pins (16D+24A) 96 pins (16D+8A ext; 64
user defined)
VME64x 160 pins (more user I/O) 160 pins (more user I/O)
Note: The 68K CPU had 32/32 internal busses, but 24/16 external busses
VME, VME64
VME64x
Note: VME64x allows also one 95 pin connector (P0) for high speed signals

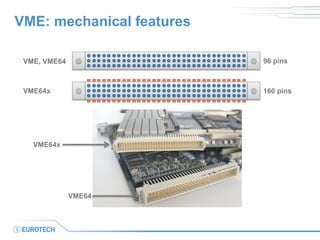

8. VME: mechanical features
VME, VME64
VME64x
96 pins
160 pins
VME64x
VME64

9. VME: enhancements (VME64, 2eSST, etc)
VME has been improved and extended over time; some examples:
• VME64 (ANSI/VITA 1-1994)
– 64D/64A for 6U boards.
– 32D/ 40A for 3U boards.
– Twice the bandwidth (up to 80 Mbytes/sec).
– Automatic 'plug-and-play' features.
• VME64x (1997)
– A new 160 pin connector family.
– A 95 pin P0/J0 connector.
– Higher bandwidth bus cycles (up to 160 Mbytes/sec).
– 141 more user-defined I/O pins.
– Rear plug-in units (transition modules).
– Live insertion / hot-swap capability.
• VME320 [2eSST] (1997/98)
– 320MB/s and new backplane technology

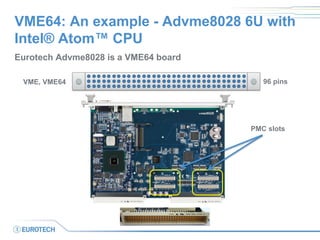

10. VME64: An example - Advme8028 6U with
Intel® Atom™ CPU
Eurotech Advme8028 is a VME64 board
VME, VME64 96 pins
PMC slots

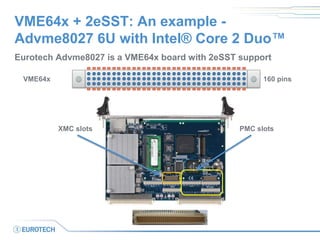

11. VME64x + 2eSST: An example -
Advme8027 6U with Intel® Core 2 Duo™
Eurotech Advme8027 is a VME64x board with 2eSST support
VME64x 160 pins
PMC slotsXMC slots

12. VME: CPU architectures
VME was born to support the Motorola 68K, but it is versatile:
• PPC
– PPC based designs are very popular
– E.g. Altivec support (PPC) + VME ruggedness and easy maintenance = great
success in Defense applications
• X86
– Many designs have incorporated x86 CPUs
– Large software base and lots of tools
For examples of VME boards, please check: www.eurotech.com
