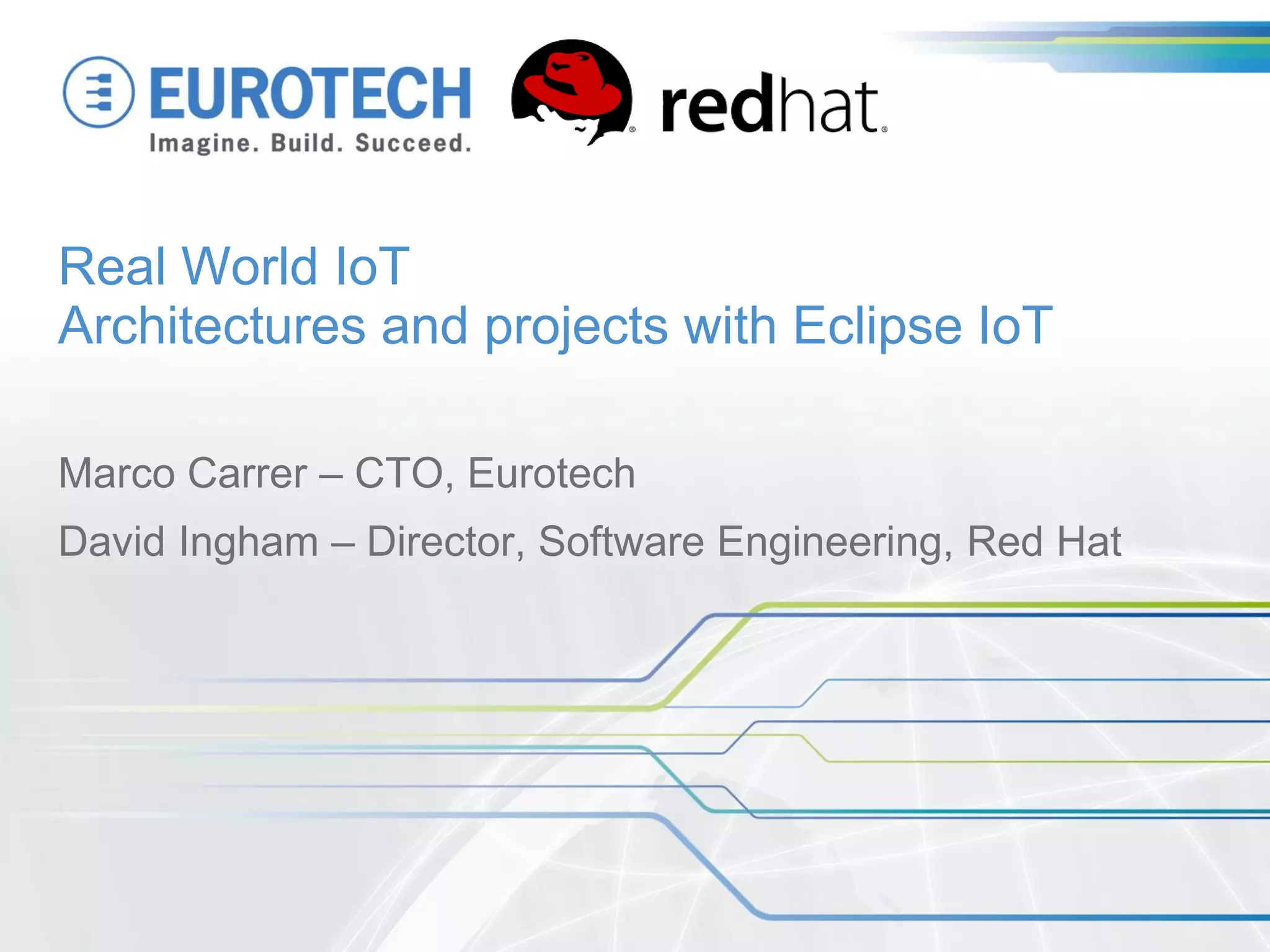

EclipseCon Europe 2016 - Presentation by Marco Carrer - CTO, Eurotech and David Ingham - Director, Software Engineering, Red Hat

1. Real World IoT
Architectures and projects with Eclipse IoT
Marco Carrer – CTO, Eurotech
David Ingham – Director, Software Engineering, Red Hat

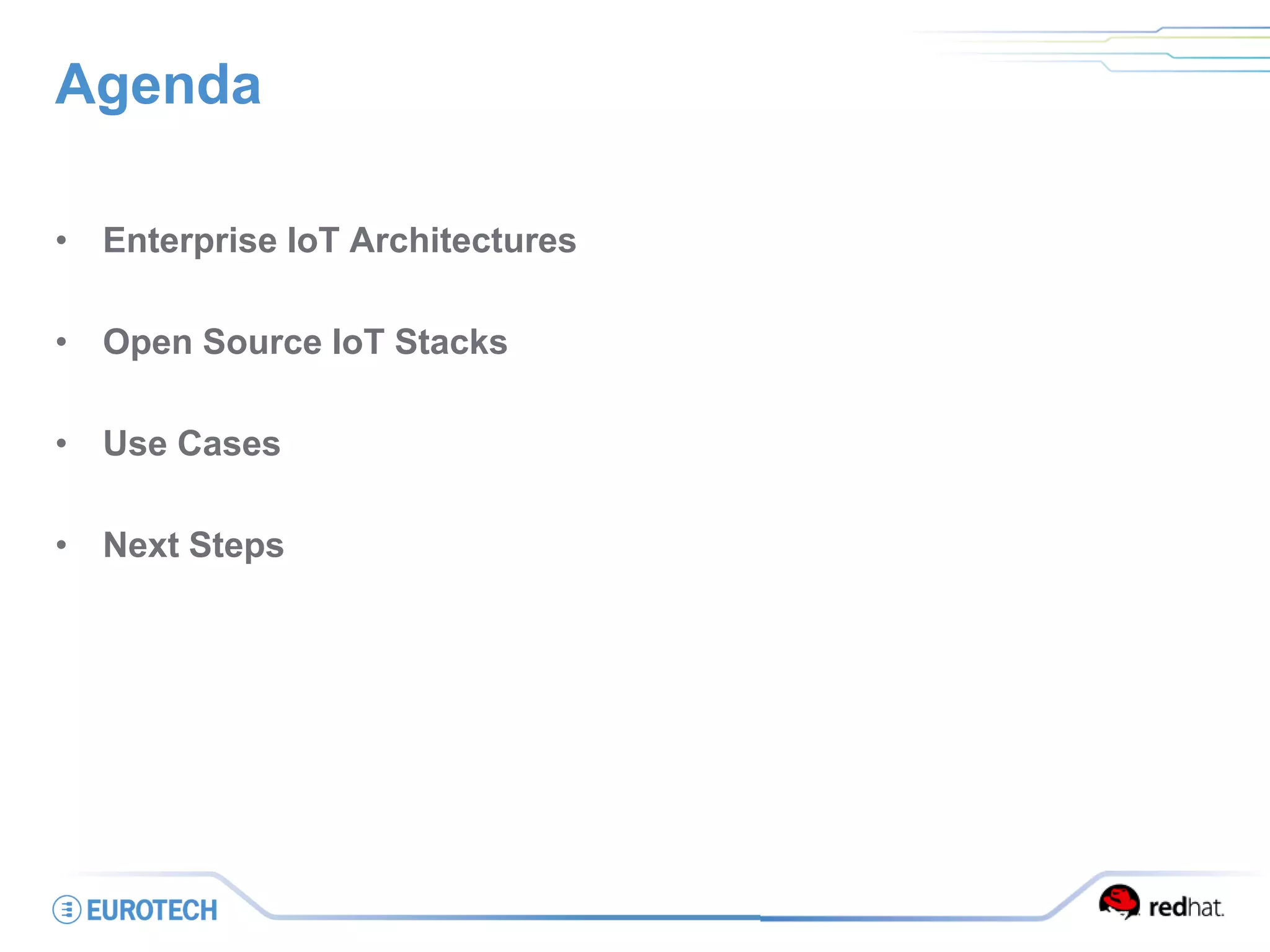

2. Agenda
• Enterprise IoT Architectures
• Open Source IoT Stacks
• Use Cases
• Next Steps

3. The IT/OT Challenge
Connecting Diverse Worlds
DataDevices Business Models

4. IoT Information Lifecycle
Information triggers
pre-defined business
rules
Summarized information
sent to back office
for deep analysis
New rules created and pushed to
business rules engine
New data analysis
optimizations
Controlled and
augmented by
domain experts
Field level
data analysis
DATA
Data emitted from
sensors, control panels,
actuators, human
interfaces, etc.
INTELLIGENCE
Actions driven from
information
INFORMATION
Data analyzed to drive
tactical action
KNOWLEDGE
Information stored in DB
and analyzed, yielding
optimized tactical tools.

5. Why Enterprise IoT needs Three Tiers
BANDWIDTH AND NETWORK
TRANSPORTS A CONCERN
TRANSMISSION COSTS
PAID BY ENTERPRISE
DATA ANALYSIS AND
RESPONSE IS CRITICAL
COMPLEX NETWORK
COMMUNICATIONS
LARGE AMOUNTS
OF DATA
NEED FOR DATA
SUMMARIZATION

6. Enterprise-Class IoT Architecture & Stack
IoT Gateway
IoT Cloud Platform
Business Applications
• Connectivity / Message Routing
• Device Registry and Management
• Data Management and Storage
• Event Management
• Application Enablement
• Communications/messaging
• Data pre-processing
• Real-time data analytics
• Real-time actions/rules
• Application Container
• Remote management
• Communications/messaging
• Data acquisition

7. IoT Stacks*
* Eclipse IoT White Paper - The Three Software Stacks Required for IoT Architectures

8. Eclipse Kura
Drivers
CANbus
ModbusOPC UA
S7
Assets
Wire Asset
Java SE 7 / 8 (OpenJDK)
OSGi Application Container (Eclipse Equinox, Concierge)
Device Abstraction
javax.comm
Basic Gateway Services
DB Service
Clock Service
Device Profile
Watchdog
Network ConfigurationNetwork Configuration
Connectivity and Delivery
Data Services MQTT Paho
AdministrationGUI
Applications
Your Application
RemoteManagement
Configuration
Management
javax.usb
w/ udev access
Cloud Services
Firewall, Port
Forwarding
Link Monitors
Cellular, Wi-Fi,
Ethernet
GPS Position GPIO / SPI / PWM / I2C
jdk.dio
Custom Protocols
Updates
Management
RemoteAccess
Java HID APIs javax.bluetooth / BLE
Your Application
Kura Wires
...

9. Application Integration
Security
Device Management
Data Management
DeviceConnectivity
Eclipse Kapua Mobile &
Enterprise
Applications
@
Alerts &
Notifications
MessageRouting
Enterprise
Integration
Patterns
Administration
Real-Time Analytics
Data
Dashboards
Business
Intelligence
ETL Hooks
Device Registry
MQTTCoAP
Storage
…
Account Management Access Control
RESTAPIDeviceMgmtConsole
Device Mgmt Protocols
MQTT, LWM2M
Device Provisioning Device Batch Operations
IoT Devices
and Gateways

10. Use Case: Ariston Net
IOT APPLICATION
IOT PLATFORM
CONSUMER
SERVICE CENTER
Data Acquisition App
Onboarding App
Remote Control
Flexible Updates
Network Management
Portable Framework
Open Standard Connectivity
Device Provisioning
Data Collection
Event Management
Remote Control
Application Enablement

11. Use Case: Remote Maintenance
INDUSTRIAL
IOT GATEWAY
IOT APPLICATION
IOT PLATFORM
Data Acquisition App
Onboarding App
Remote Access VPN
Port Forwarding
IP Forwarding
3g Connectivity
Portable Framework
Open Standard Connectivity
Device Provisioning
Remote Access VPN
Data Collection
Event Management
Application Enablement
NURSE
APPLICATION
REMOTE
MAINTENANCE
AND SUPPORT
DATA ANALYTICS

12. Use Case: Industry 4.0
INDUSTRIAL
IOT GATEWAY
IOT CLOUD
PLATFORM
Data Acquisition App
Industrial Protocols
Edge Analytics
Multiple Cloud Connections
Portable Framework
Open Standard Connectivity
Message Routing
Flexible Deployments
Modular Architecture
Application Enablement
REMOTE
MAINTENANCE
AND SUPPORT
ON-SITE
DATA ANALYTICS
IOT ON-SITE
PLATFORM

13. Use Case: Smarter Train Technology
RESULTS:
New architecture changed business approach,
enabling the collection, transmission and
transformation of data to automate actions and
meet regulatory requirements.
Additional value to rail customers:
Increased safety, speed controls, predictive
maintenance, efficiency improvements, reduced
costs.
Data communications platform, using Red Hat Enterprise Linux and AMQP-based messaging technologies, created to
prevent train-to-train collisions, over-speed derailments, improper movements, work zone incursions
“This project is highly complex. It introduces a reliability concept of 5 9s into the rail industry’s wireless
communication infrastructure”
— Robert Turnbull, CEO, Meteorcomm.
TRAIN MASTER
CONTROL DATA CENTER

14. Datacenter / Cloud
UI
Real
Time
Alerts
IoT beacon
Intelligent
Gateway
Use Case: Logistics

15. More Features and Project Integrations
eclipse.org/kura
github.com/eclipse/kura
eclipse.org/kapua
github.com/eclipse/kapua
More features soon:
Device Provisioning
Data Store
Device Jobs

16. Linux containers, Kubernetes, OpenShift
Target IoT Architecture
AMQP
Adapters
MQTT, HTTP, CoAP, …
Adapters
AMQP
MQTT, HTTP, CoAP, …
AMQP-SparkAMQP-Kafka
Dispatch
Router
Broker
Broker
