1. Simplify Internet of Things with an intelligent
gateway
Red Hat and Eurotech collaboration simplifies Internet of Things
integration and accelerates implementations
Marco Carrer – CTO, Eurotech
James Kirkland – Chief Architect for IoT, Red Hat

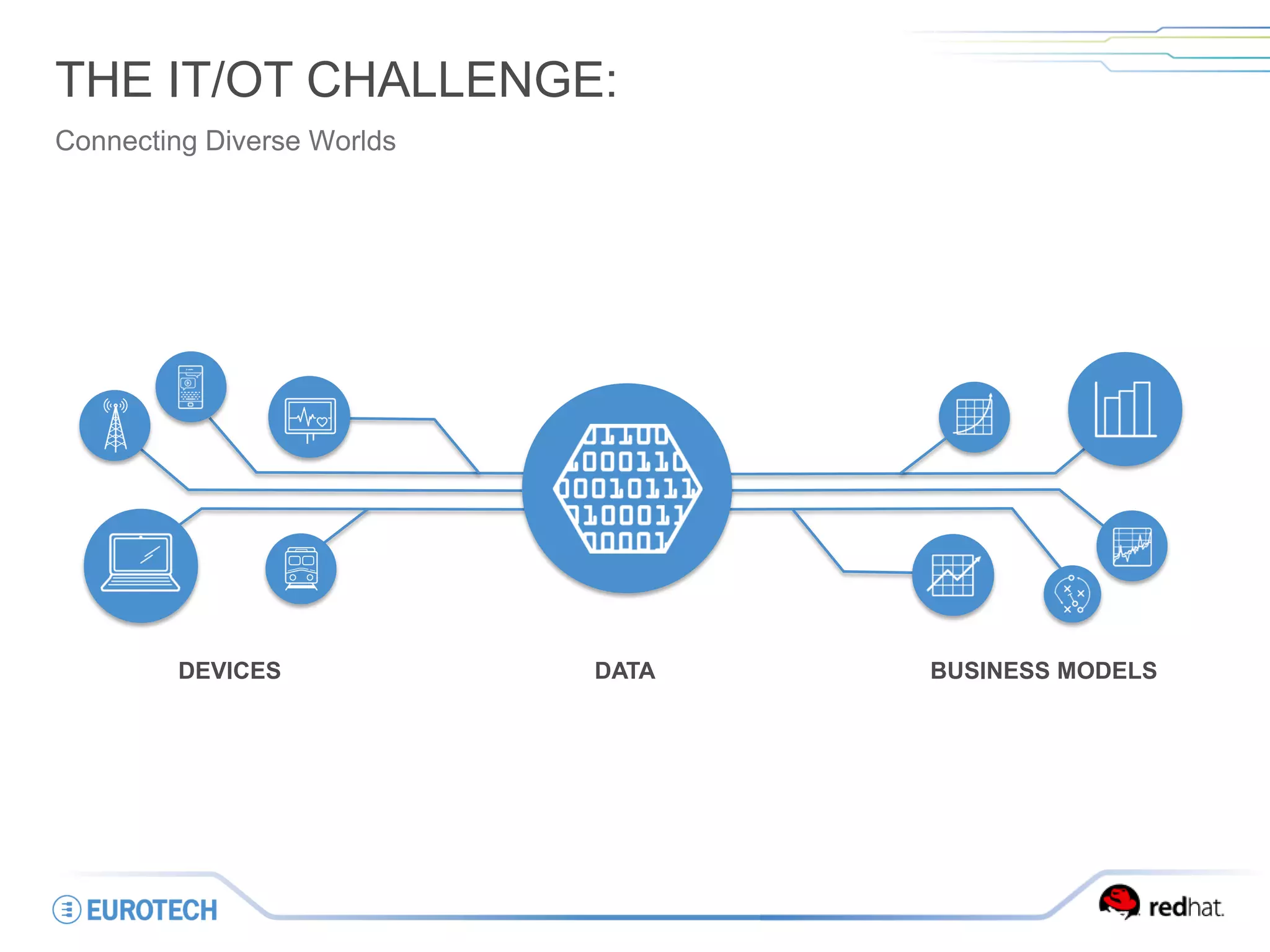

2. THE IT/OT CHALLENGE:
Connecting Diverse Worlds
DATADEVICES BUSINESS MODELS

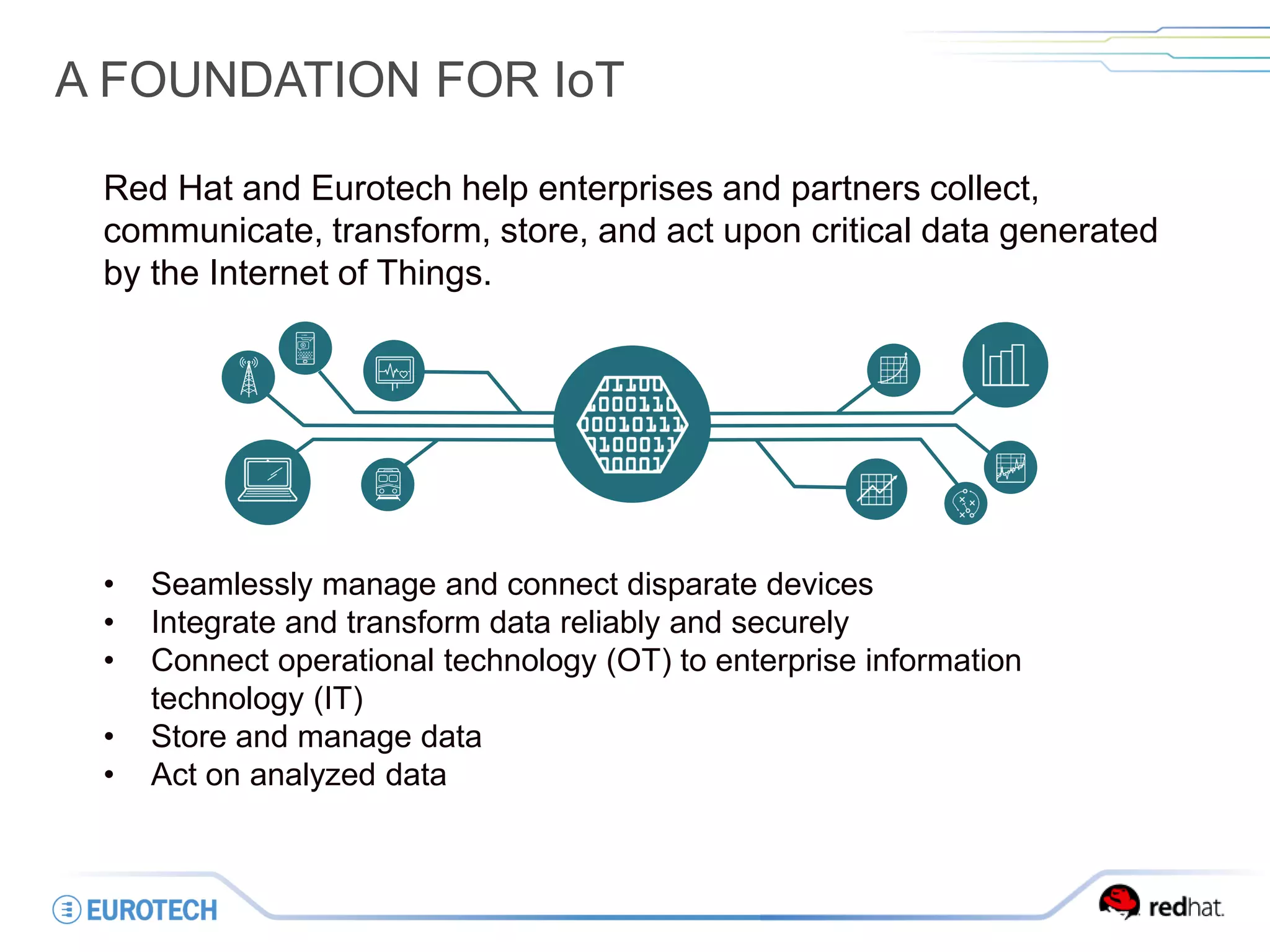

3. A FOUNDATION FOR IoT
Red Hat and Eurotech help enterprises and partners collect,
communicate, transform, store, and act upon critical data generated
by the Internet of Things.
• Seamlessly manage and connect disparate devices
• Integrate and transform data reliably and securely
• Connect operational technology (OT) to enterprise information
technology (IT)
• Store and manage data
• Act on analyzed data

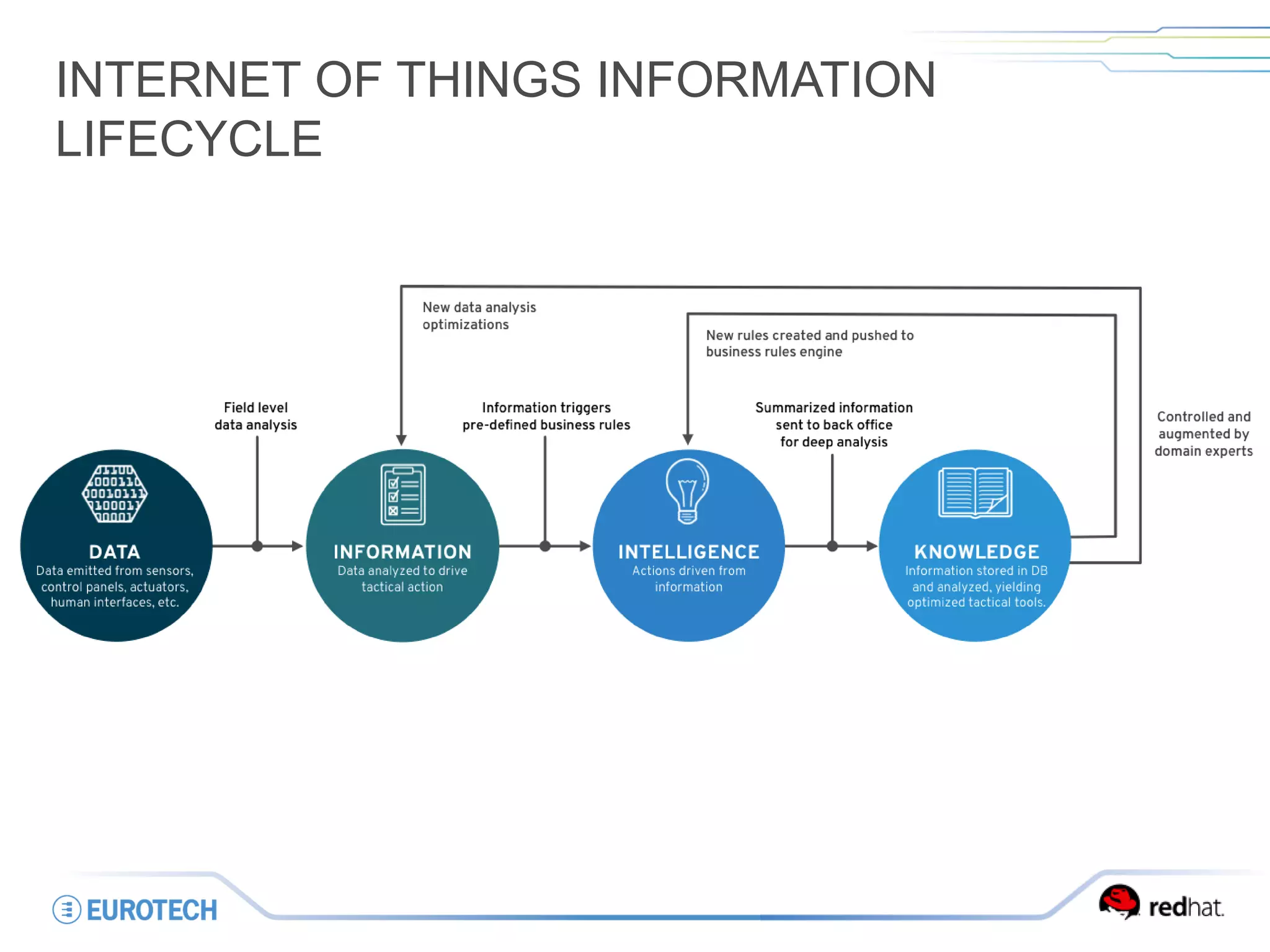

4. INTERNET OF THINGS INFORMATION
LIFECYCLE

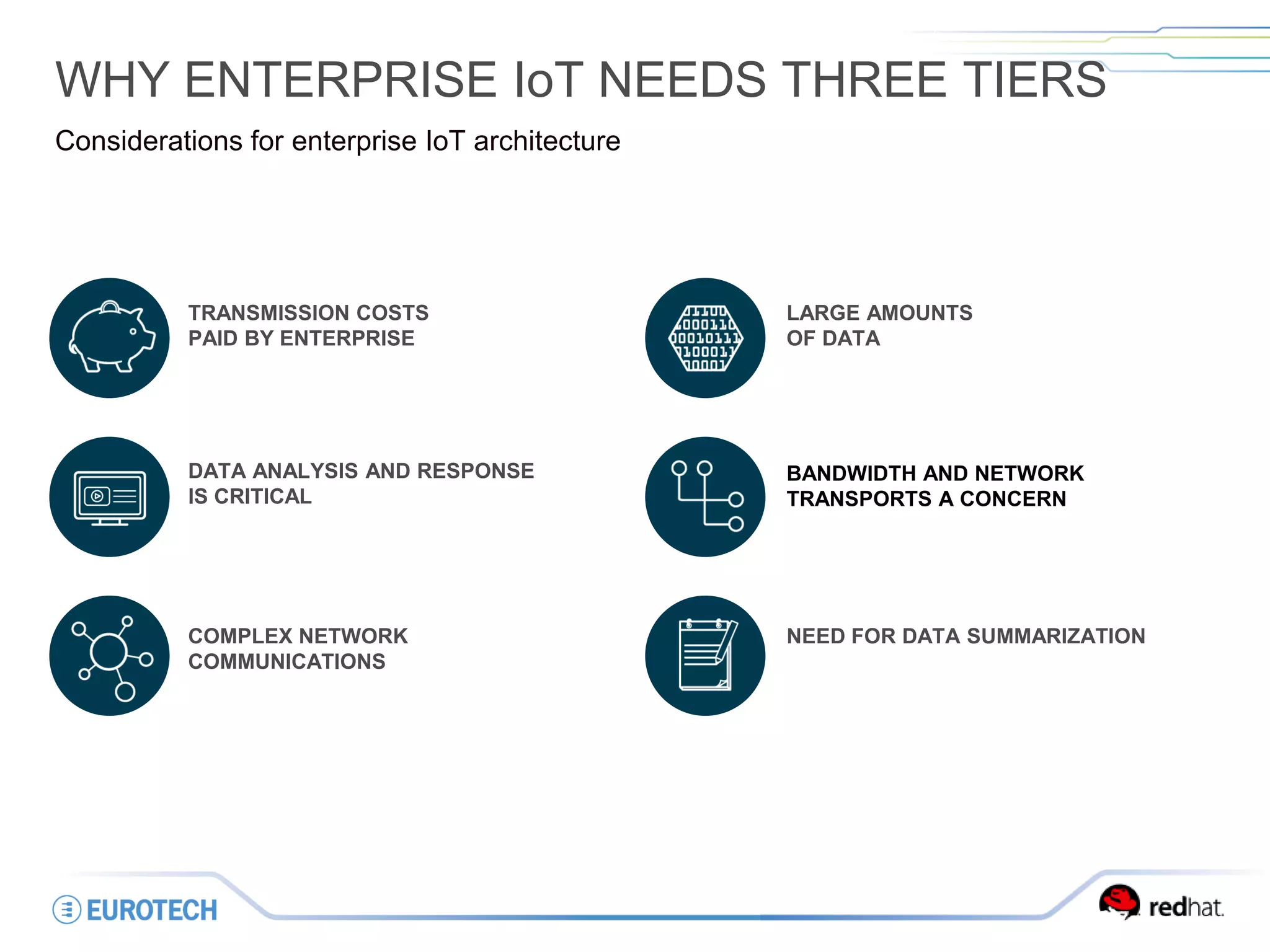

5. WHY ENTERPRISE IoT NEEDS THREE TIERS
Considerations for enterprise IoT architecture
BANDWIDTH AND NETWORK
TRANSPORTS A CONCERN
TRANSMISSION COSTS
PAID BY ENTERPRISE
DATA ANALYSIS AND RESPONSE
IS CRITICAL
COMPLEX NETWORK
COMMUNICATIONS
LARGE AMOUNTS
OF DATA
NEED FOR DATA SUMMARIZATION

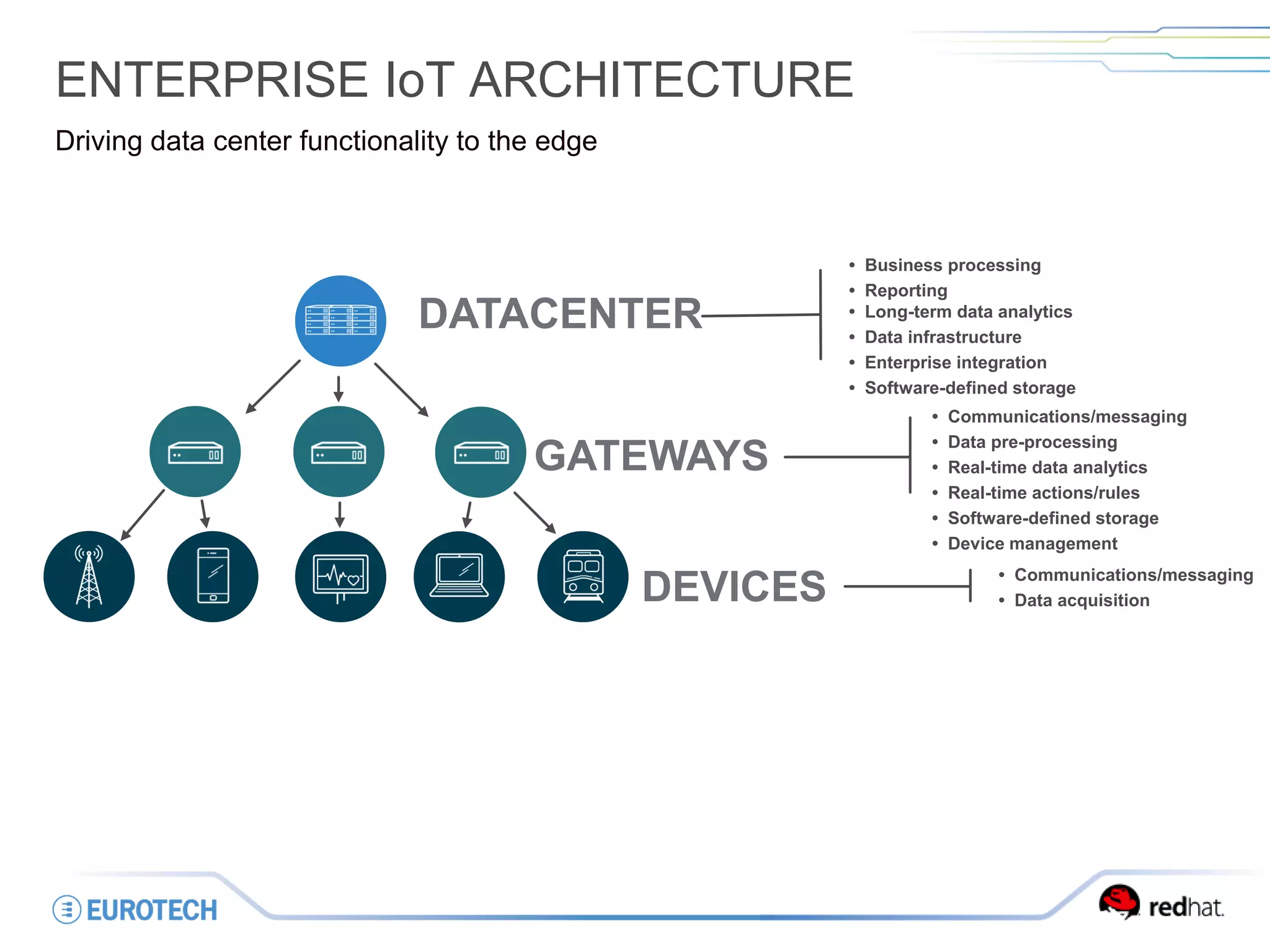

6. ENTERPRISE IoT ARCHITECTURE
Driving data center functionality to the edge
• Business processing
• Reporting
• Long-term data analytics
• Data infrastructure
• Enterprise integration
• Software-defined storage
• Communications/messaging
• Data pre-processing
• Real-time data analytics
• Real-time actions/rules
• Software-defined storage
• Device management
• Communications/messaging
• Data acquisition
DATACENTER
GATEWAYS
DEVICES

7. M2M / IoT Challenges
High Level
Fragmentation
Complexity
Lock-in

8. Processor
Architectures
Mobile Carrier Offerings
Proprietary Technology
Business
Models
Programming Environment
Monolithic Solutions

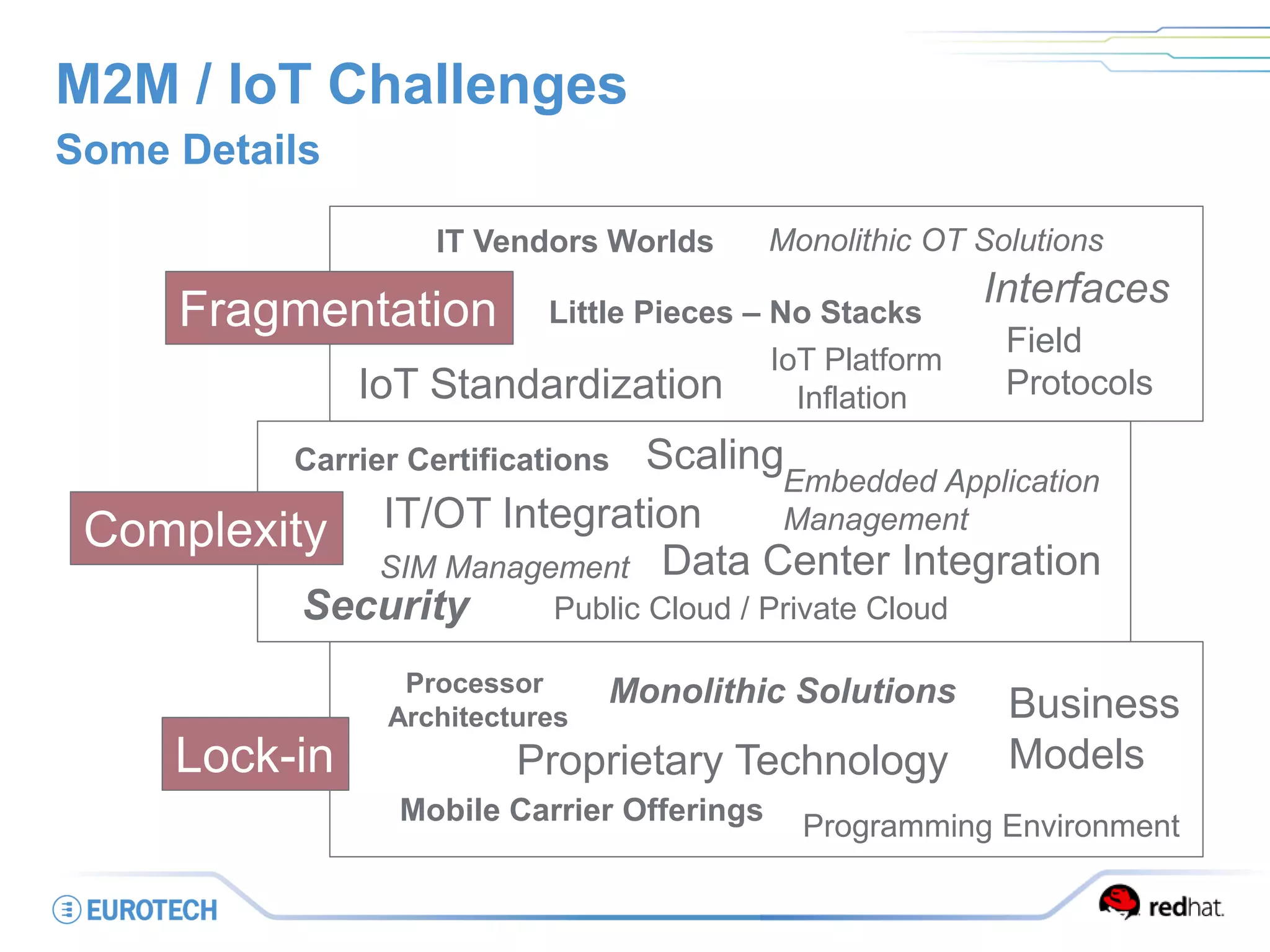

M2M / IoT Challenges
Some Details
Fragmentation
Complexity
Lock-in
IT Vendors Worlds
Carrier Certifications
Monolithic OT Solutions
Security
Little Pieces – No Stacks
IoT Platform
Inflation
Interfaces
IoT Standardization
Data Center Integration
Public Cloud / Private Cloud
IT/OT Integration
SIM Management
Embedded Application
Management
Scaling
Field
Protocols

9. Processor
Architectures
Mobile Carrier Offerings
Proprietary Technology
Business
Models
Programming Environment
Monolithic Solutions
M2M / IoT Challenges

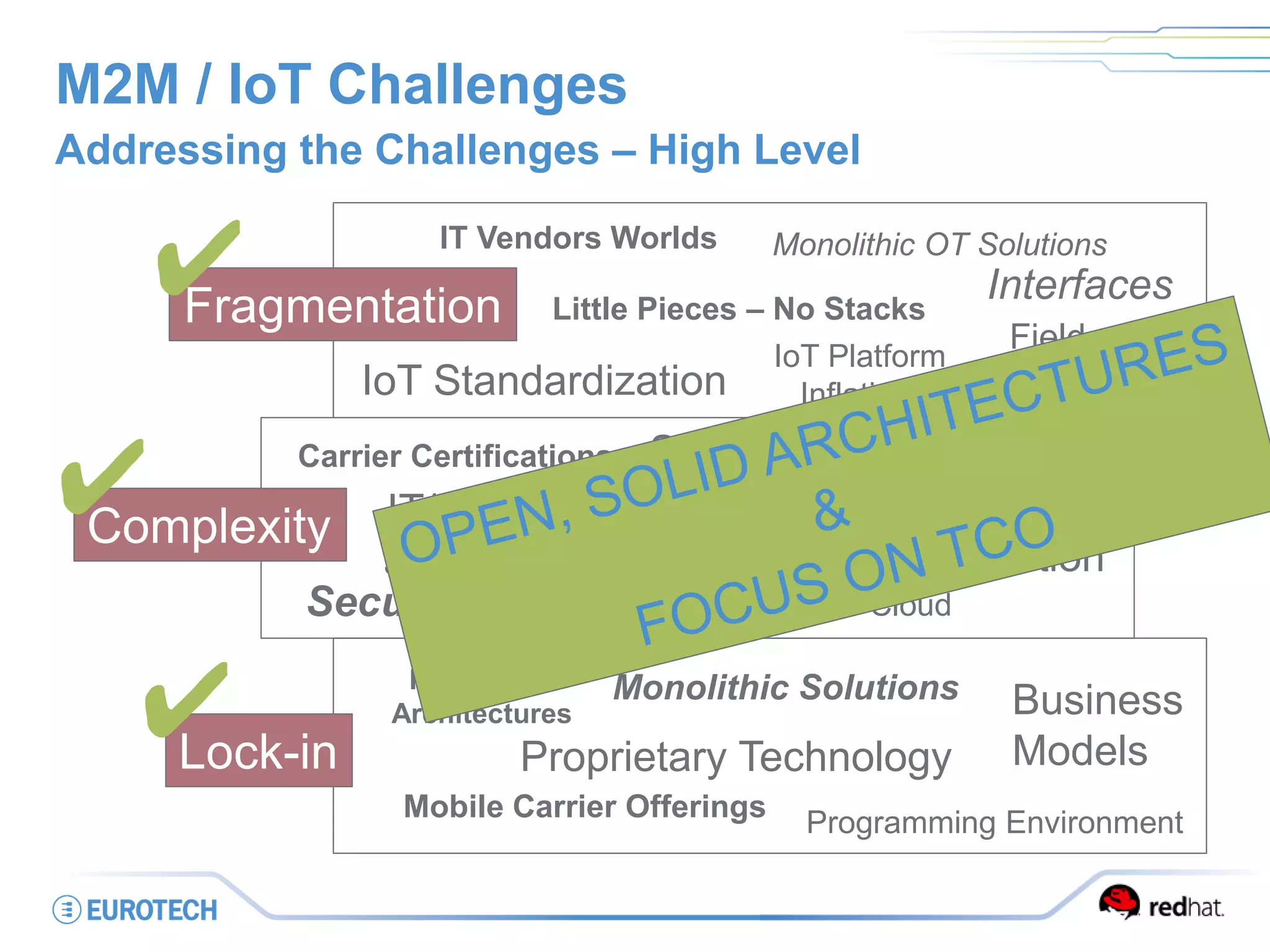

Addressing the Challenges – High Level
Fragmentation
Complexity
Lock-in
IT Vendors Worlds
Carrier Certifications
Monolithic OT Solutions
Security
Little Pieces – No Stacks
IoT Platform
Inflation
Interfaces
IoT Standardization
Data Center Integration
Public Cloud / Private Cloud
IT/OT Integration
SIM Management
Embedded Application
Management
Scaling
Field
Protocols
✔
✔
✔

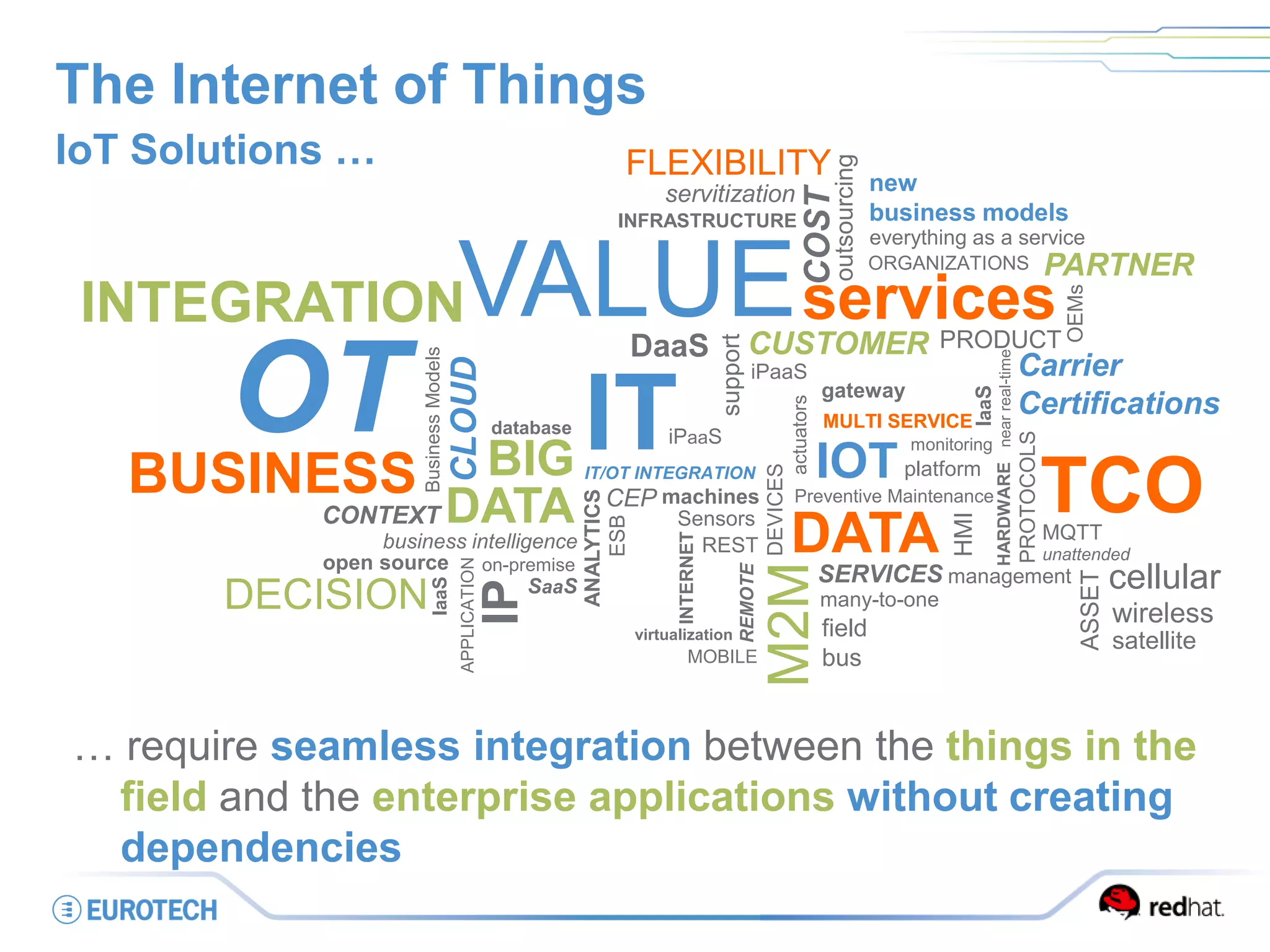

10. The Internet of Things
IoT Solutions …
DATA
IOT
Sensors
SERVICES
platform
M2M
monitoring
management
REMOTE
Preventive Maintenance
many-to-one
machines
DEVICES
actuators
HMI
nearreal-time
MQTT
PROTOCOLS
field
bus
HARDWARE
gateway
MULTI SERVICE
REST unattended
OT IT/OT INTEGRATION
iPaaS
IaaS
BIG
DATA
ANALYTICS
business intelligence
IT
CEP
CLOUD
on-premise
database
ESB
SaaS
MOBILE
APPLICATION
INTERNET
virtualization
IaaS
IP
open source
CONTEXT
DECISION
BusinessModels
ASSET
cellular
wireless
satellite
BUSINESS
INTEGRATION services
servitization
COST
CUSTOMER
PARTNER
OEMs
ORGANIZATIONS
PRODUCT
VALUE
support
INFRASTRUCTURE
outsourcing
new
business models
everything as a service
DaaS
iPaaS
TCO
FLEXIBILITY
Carrier
Certifications
… require seamless integration between the things in the
field and the enterprise applications without creating
dependencies

11. The Internet of Things
• Performance constrains
• Hardly any standards
• Human resource constrains (C++)
• Expensive, limited communication
• Monolithic approach
• Single-purpose devices
• Hardware-defined systems
• Store-and-Forward communication
• Operations-centric approach

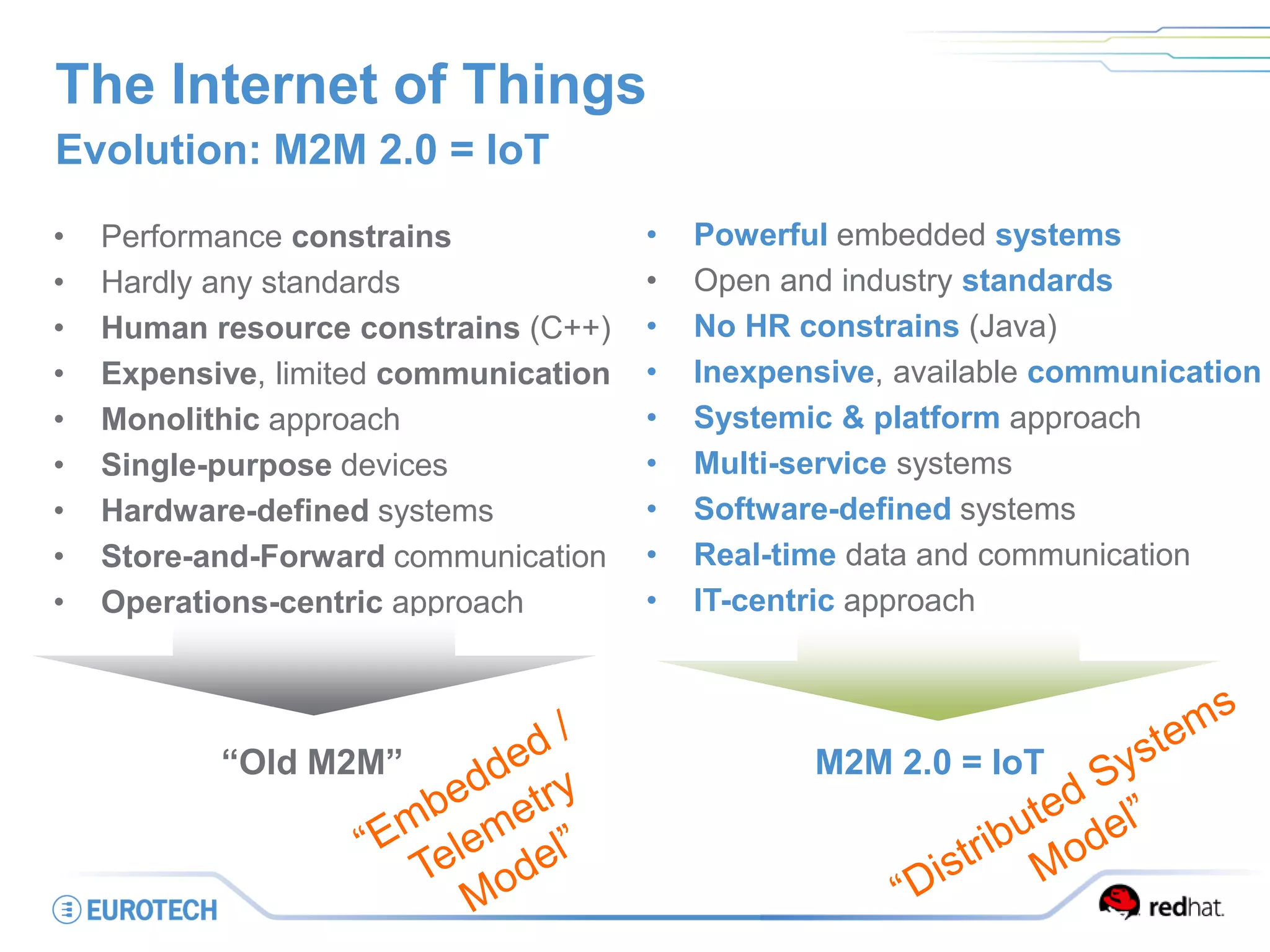

Evolution: M2M 2.0 = IoT
• Powerful embedded systems
• Open and industry standards
• No HR constrains (Java)
• Inexpensive, available communication
• Systemic & platform approach
• Multi-service systems
• Software-defined systems
• Real-time data and communication
• IT-centric approach
“Old M2M” M2M 2.0 = IoT

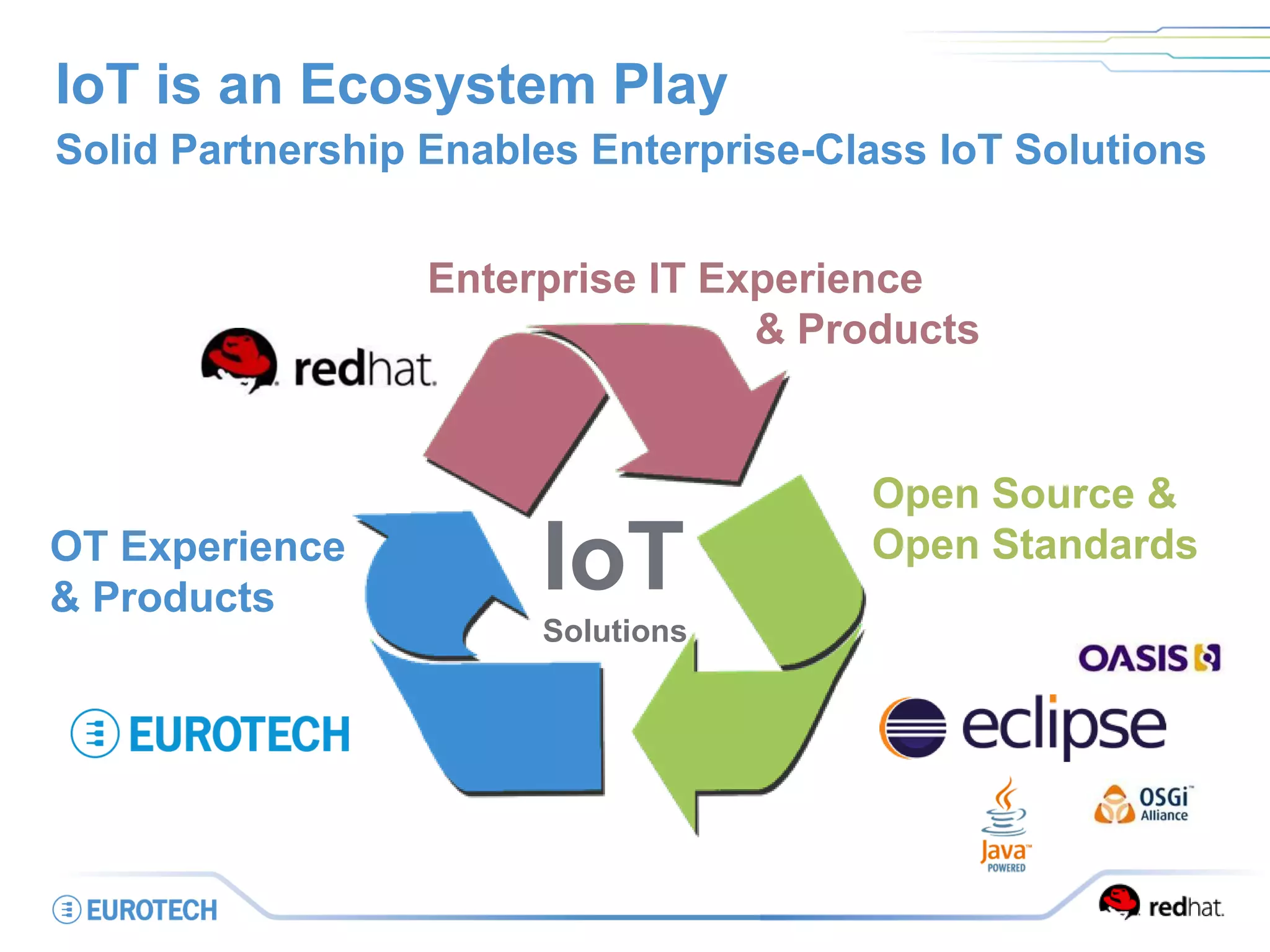

12. IoT is an Ecosystem Play
Solid Partnership Enables Enterprise-Class IoT Solutions
Open Source &
Open Standards
Enterprise IT Experience
& Products
OT Experience
& Products
IoT
Solutions

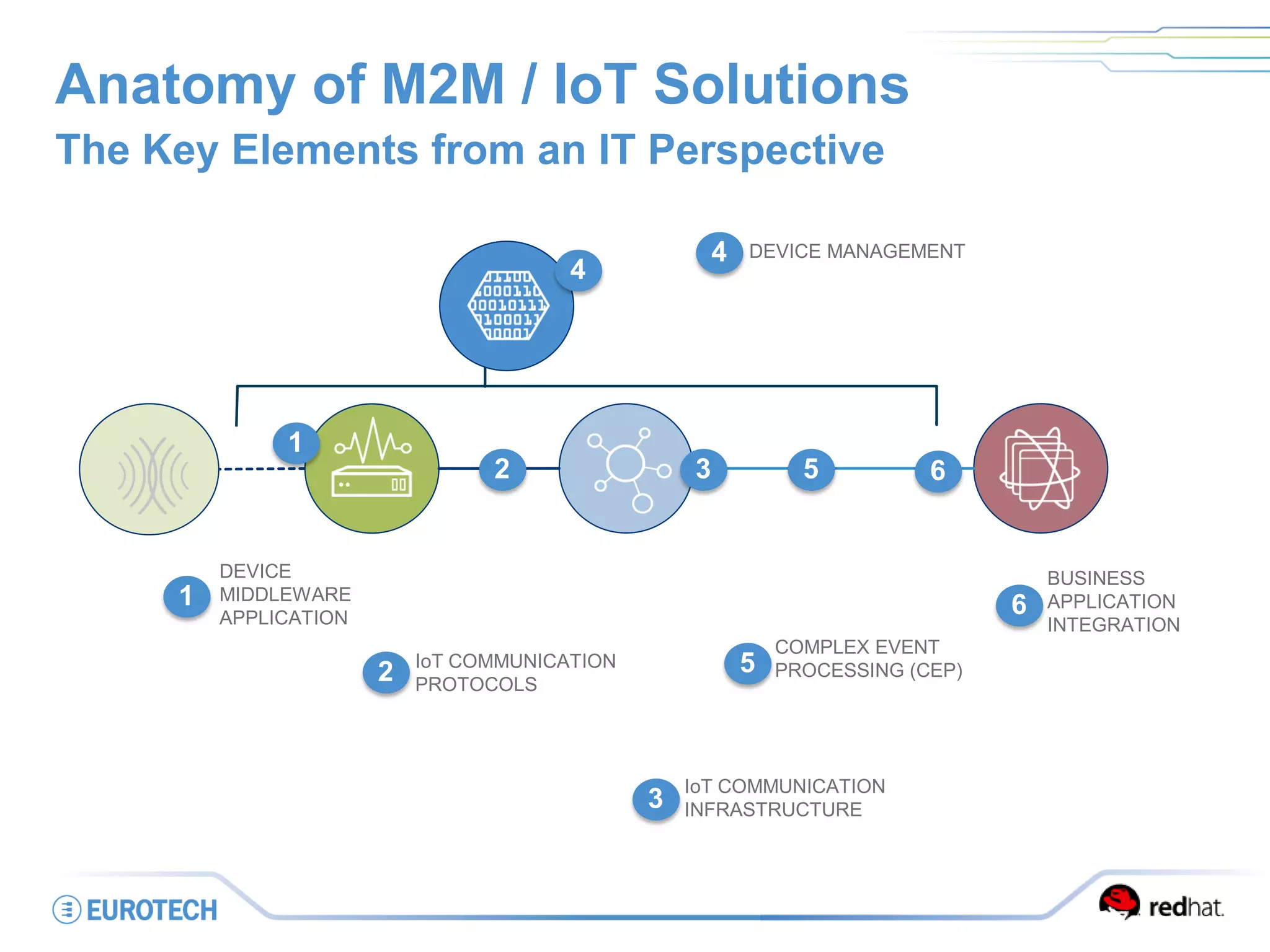

13. Anatomy of M2M / IoT Solutions
The Key Elements from an IT Perspective
IoT COMMUNICATION
PROTOCOLS
DEVICE
MIDDLEWARE
APPLICATION
IoT COMMUNICATION
INFRASTRUCTURE
BUSINESS
APPLICATION
INTEGRATION
COMPLEX EVENT
PROCESSING (CEP)
DEVICE MANAGEMENT
1
2 3
4
5 6
1
4
6
5
3
2

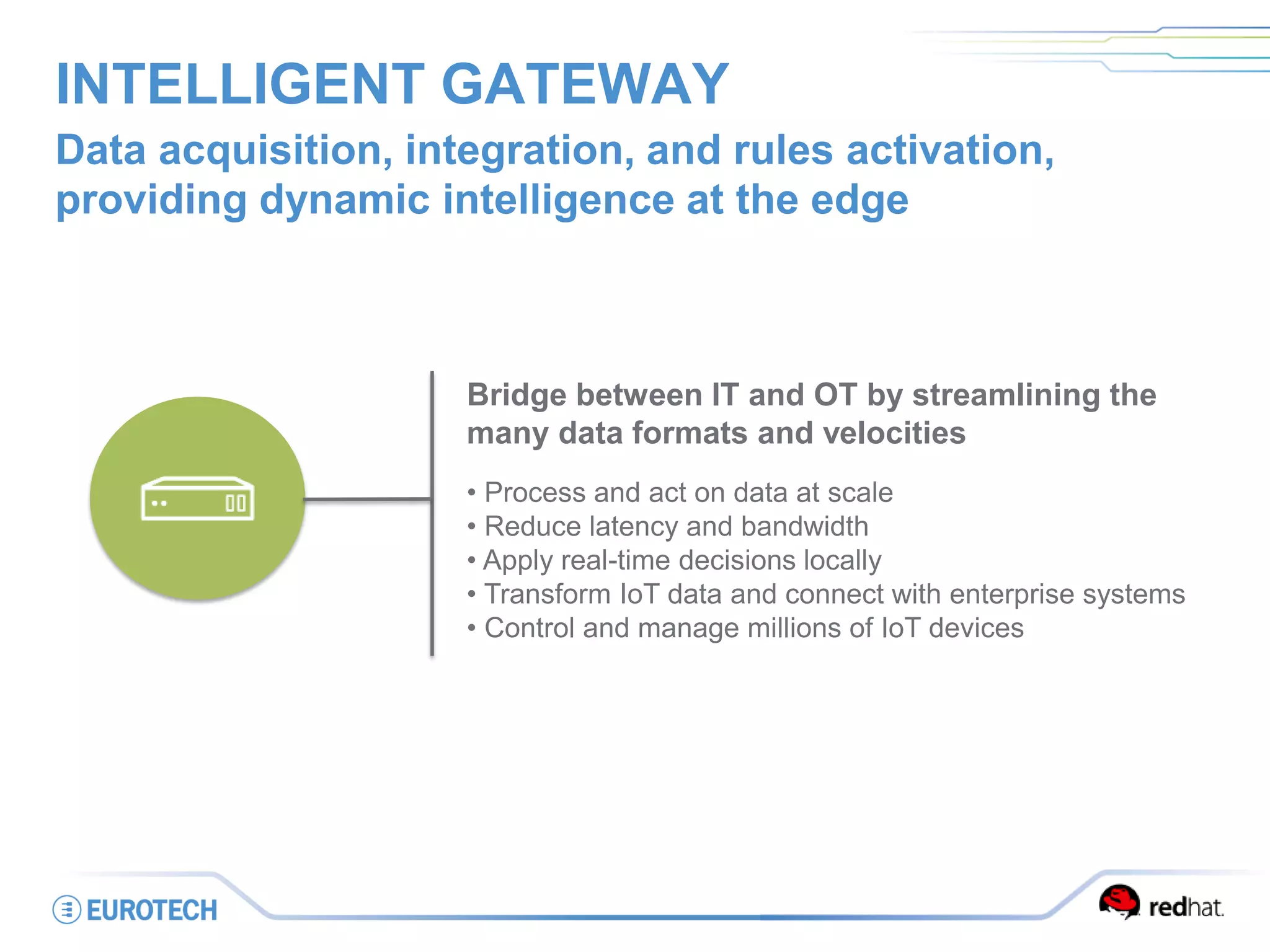

14. INTELLIGENT GATEWAY
Data acquisition, integration, and rules activation,
providing dynamic intelligence at the edge
Bridge between IT and OT by streamlining the
many data formats and velocities
• Process and act on data at scale
• Reduce latency and bandwidth
• Apply real-time decisions locally
• Transform IoT data and connect with enterprise systems
• Control and manage millions of IoT devices

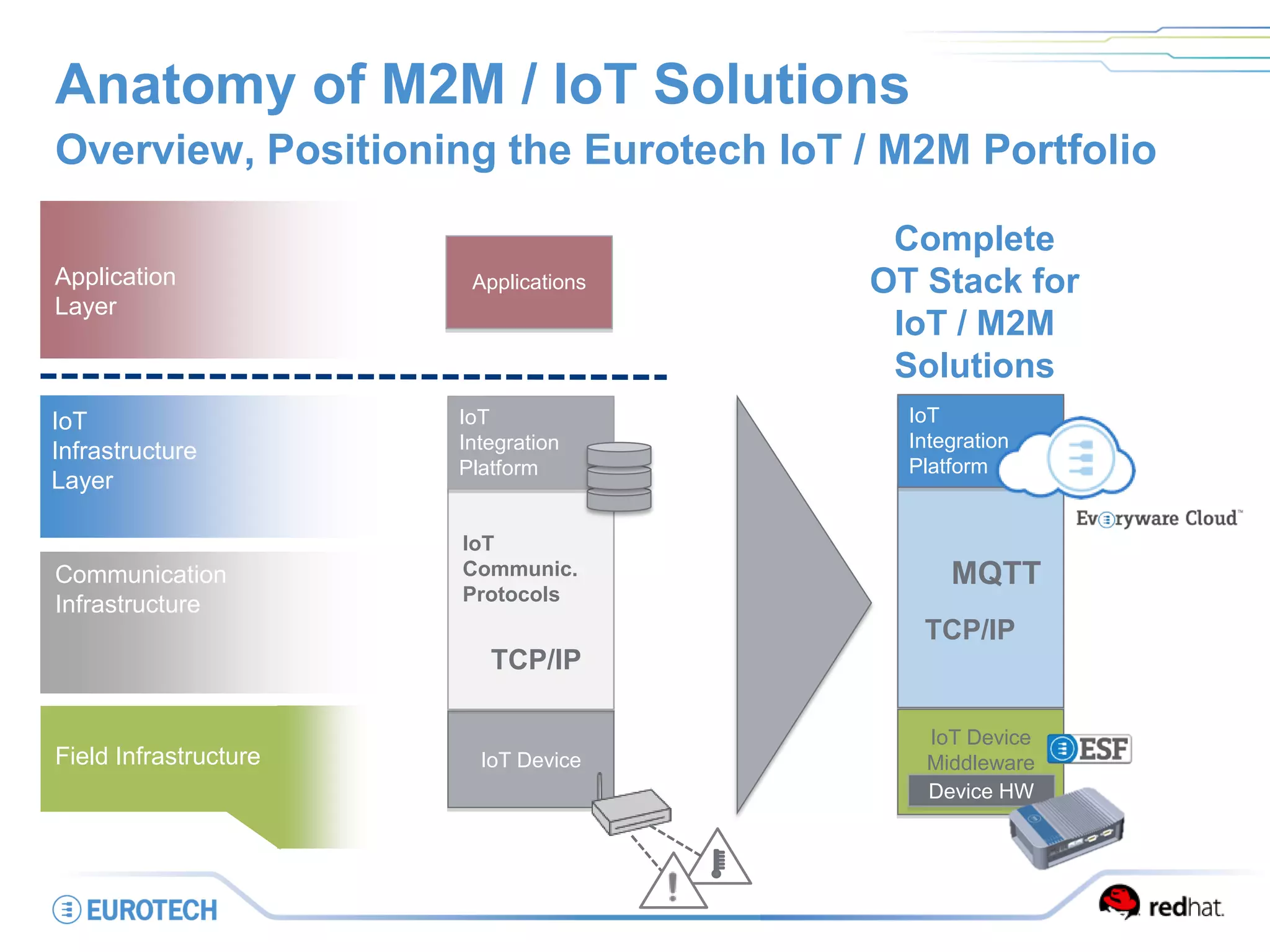

15. IoT Device
Anatomy of M2M / IoT Solutions
Overview, Positioning the Eurotech IoT / M2M Portfolio
IoT
Infrastructure
Layer
Application
Layer
Communication
Infrastructure
Field Infrastructure
TCP/IP
IoT
Integration
Platform
Applications
IoT
Communic.
Protocols
IoT Device
Middleware
TCP/IP
IoT
Integration
Platform
Device HW
MQTT
Complete
OT Stack for
IoT / M2M
Solutions

16. Eurotech Overview
• One of the world top players in the global Embedded Computers market
• Behind the products & services of more than 20 Global 500 companies
• 20+ Years of experience in “M2M” systems
– 20+ Years experience in OT / embedded / gateway hardware & software
– 16 Years ago co-developed MQTT with IBM
– 10+ Years experience with Java in embedded
– 6+ Years history in M2M/IoT cloud platforms
• Strong vertical market competencies:
– Industrial & Logistics
– Transportation
– Defense & Security
– Healthcare & Medical
16

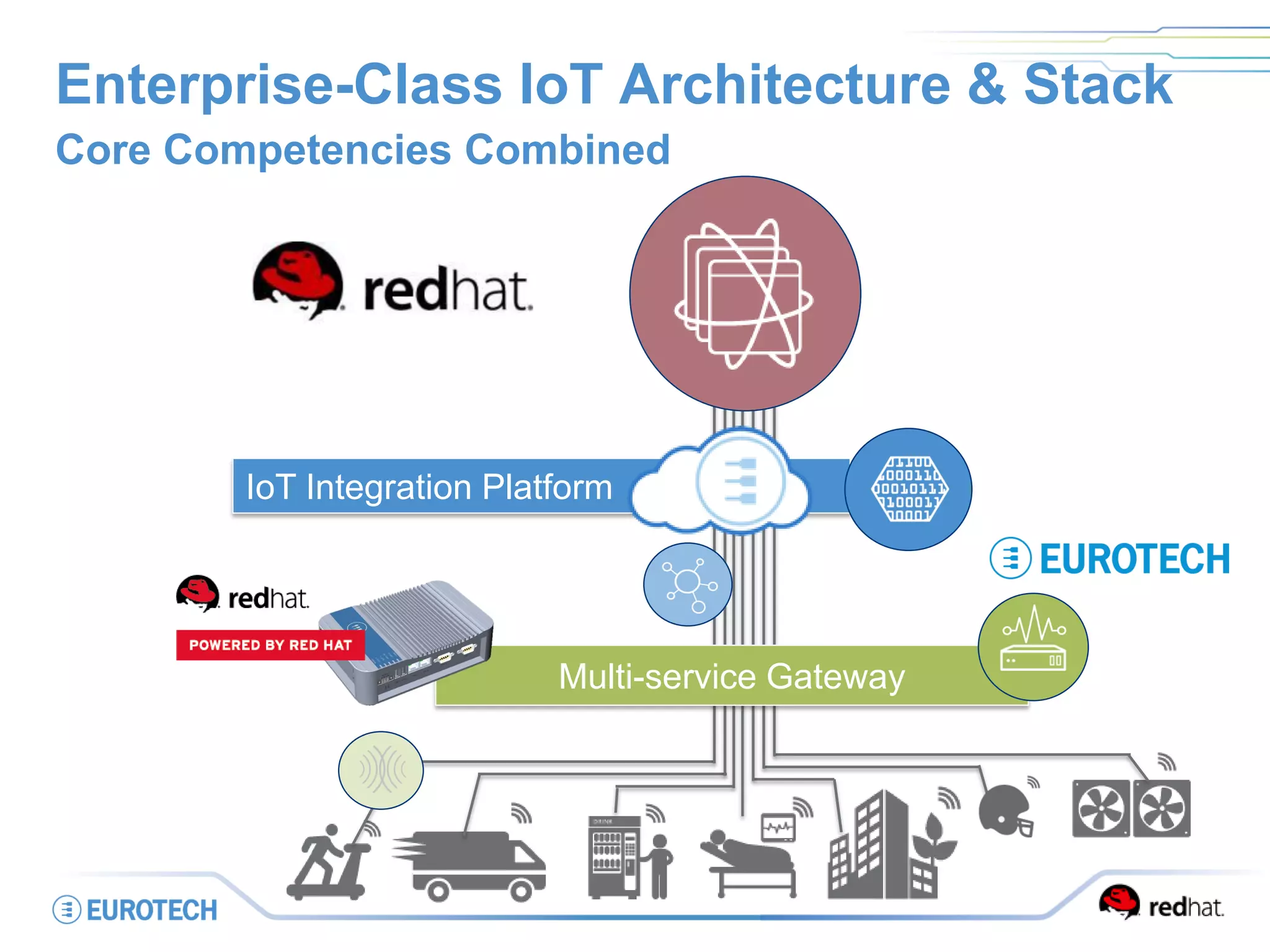

17. Enterprise-Class IoT Architecture & Stack
Core Competencies Combined
Multi-service Gateway
IoT Integration Platform

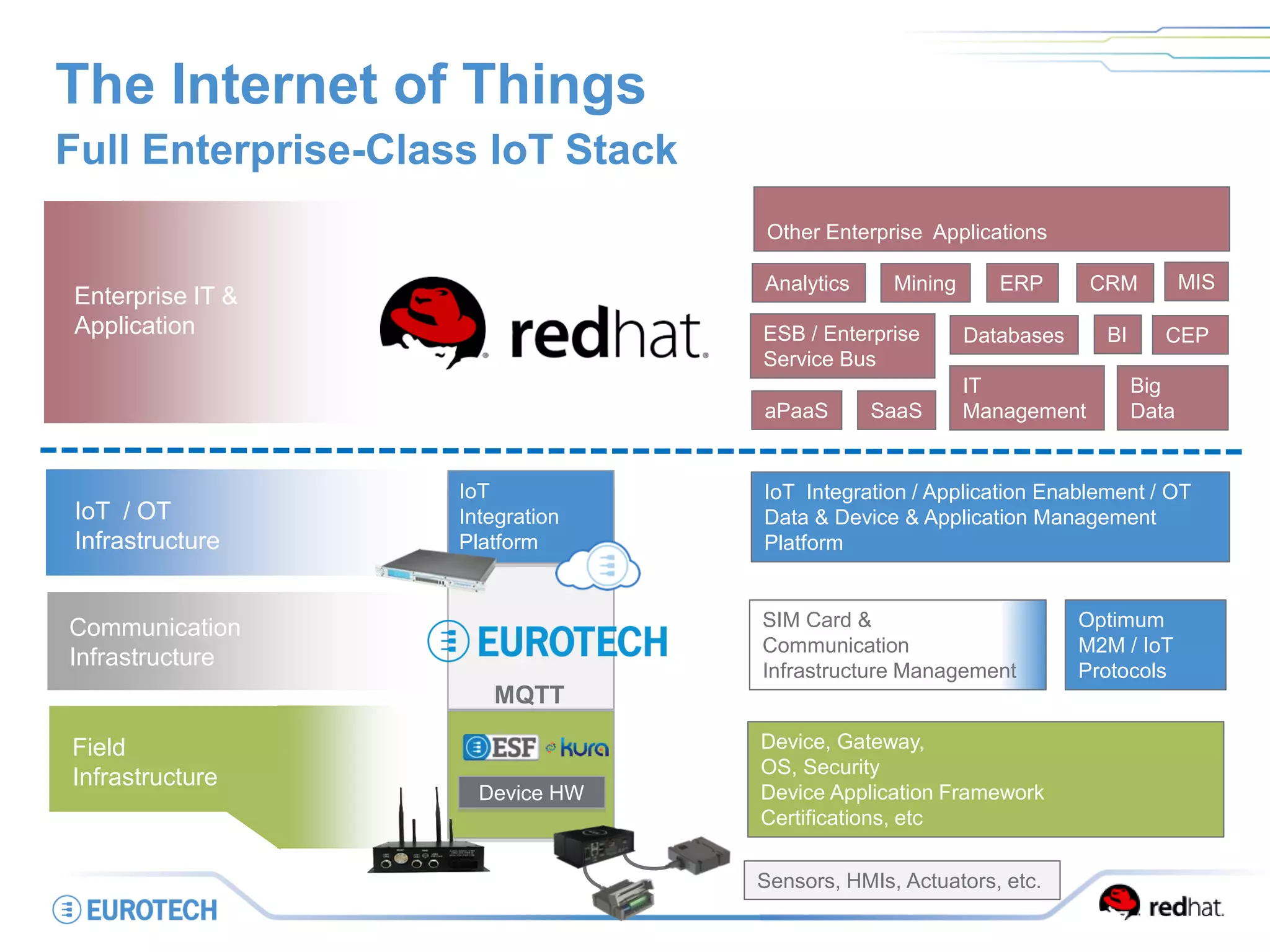

18. The Internet of Things
Full Enterprise-Class IoT Stack
IoT / OT
Infrastructure
Enterprise IT &
Application
Communication
Infrastructure
Field
Infrastructure
MQTT
IoT
Integration
Platform
Device HW
Device, Gateway,
OS, Security
Device Application Framework
Certifications, etc
IoT Integration / Application Enablement / OT
Data & Device & Application Management
Platform
SIM Card &
Communication
Infrastructure Management
Optimum
M2M / IoT
Protocols
Sensors, HMIs, Actuators, etc.
aPaaS SaaS
Other Enterprise Applications
Big
Data
Databases
Analytics
IT
Management
Mining
CEP
ERP CRM MIS
ESB / Enterprise
Service Bus
BI

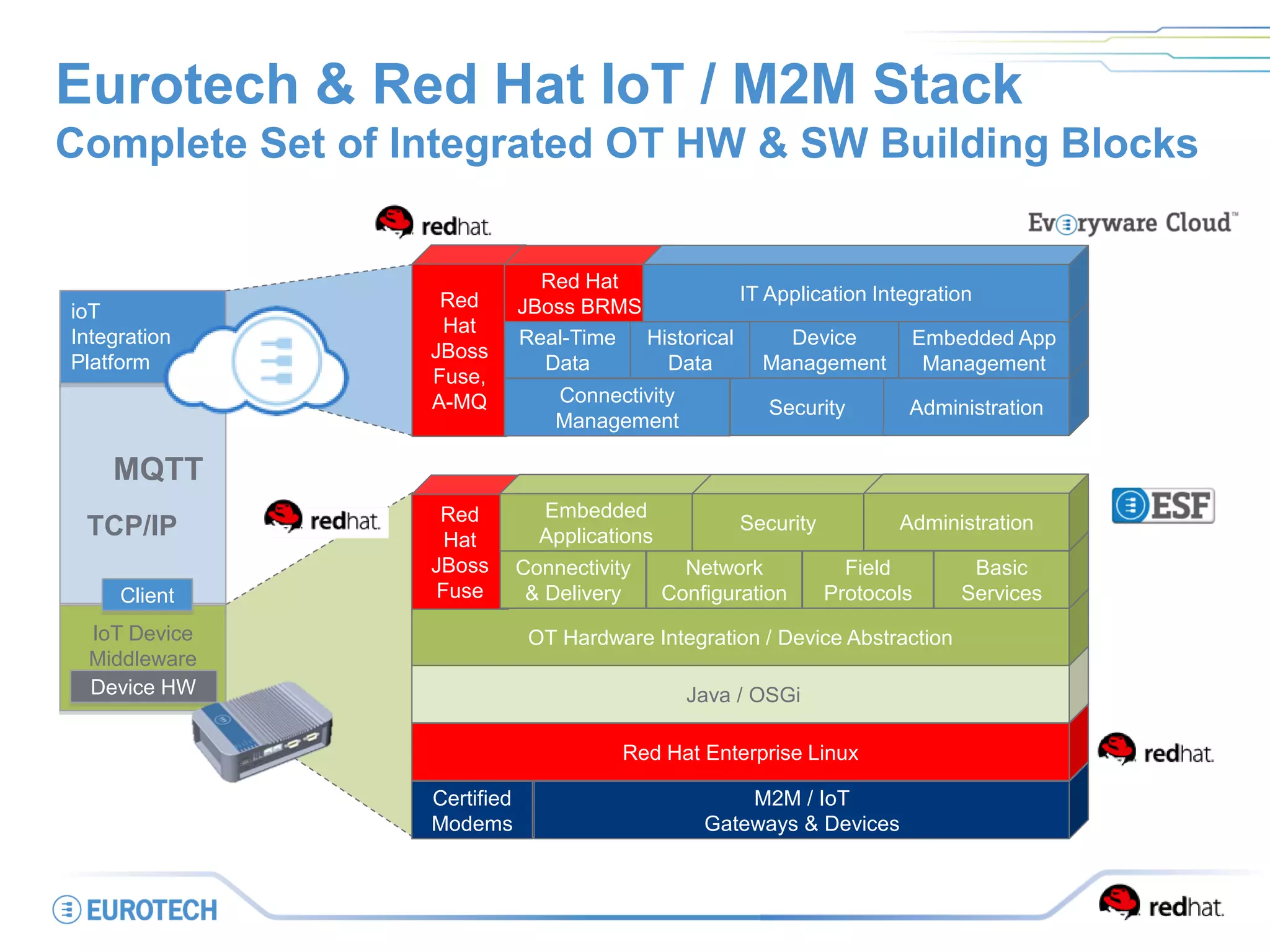

19. Certified
Modems
M2M / IoT
Gateways & Devices
Red Hat Enterprise Linux
Java / OSGi
OT Hardware Integration / Device Abstraction
Eurotech & Red Hat IoT / M2M Stack
Complete Set of Integrated OT HW & SW Building Blocks
IoT Device
Middleware
TCP/IP
ioT
Integration
Platform
Client
Device HW
MQTT
Red
Hat
JBoss
Fuse
Connectivity
& Delivery
Network
Configuration
Field
Protocols
Basic
Services
Embedded
Applications
Security Administration
Red
Hat
JBoss
Fuse,
A-MQ Connectivity
Management
Real-Time
Data
Security Administration
Historical
Data
Device
Management
Embedded App
Management
Red Hat
JBoss BRMS
IT Application Integration

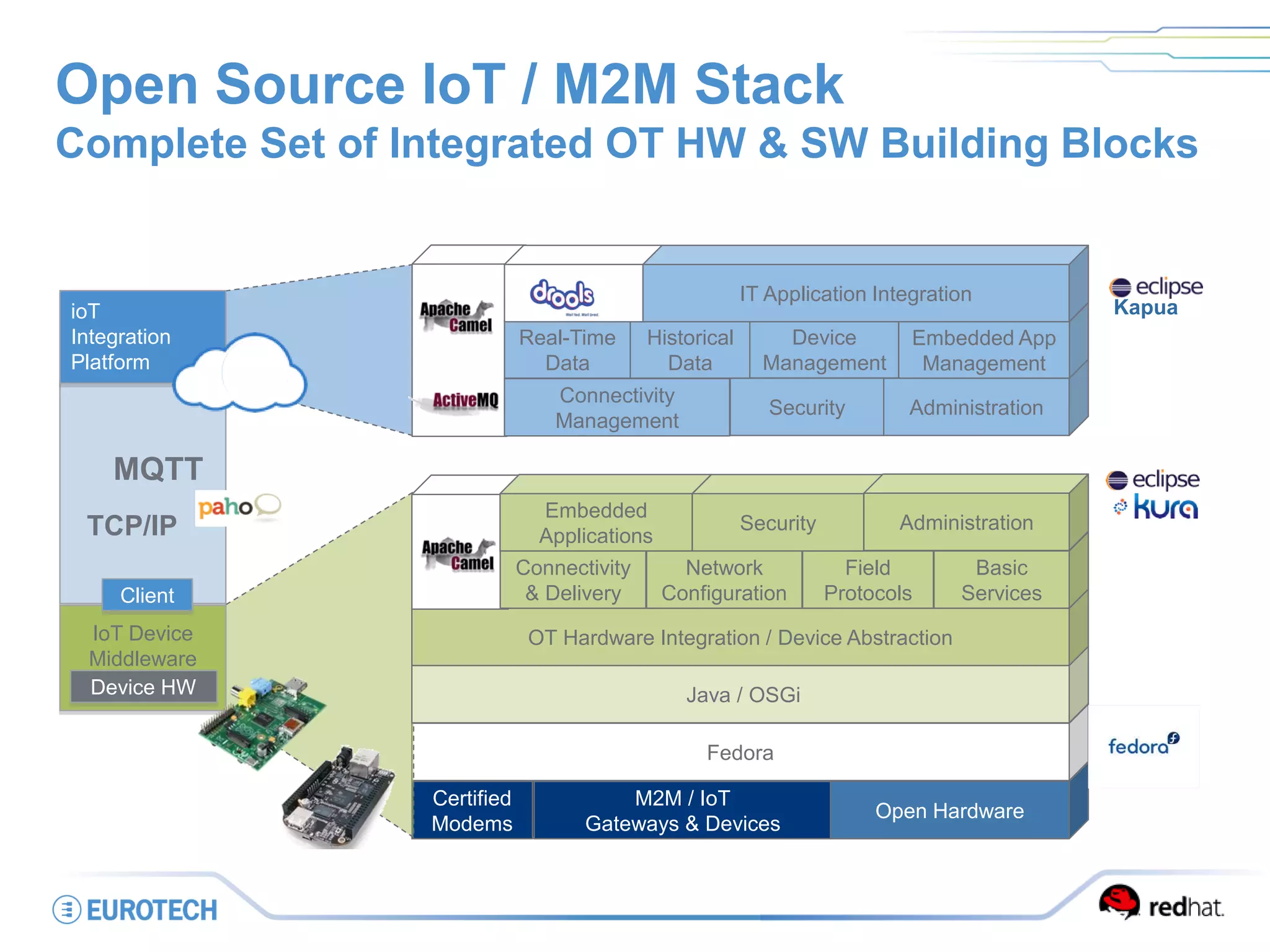

20. Certified
Modems
M2M / IoT
Gateways & Devices
Open Hardware
Fedora
Java / OSGi
OT Hardware Integration / Device Abstraction
Open Source IoT / M2M Stack
Complete Set of Integrated OT HW & SW Building Blocks
IoT Device
Middleware
TCP/IP
ioT
Integration
Platform
Client
Device HW
MQTT
Connectivity
& Delivery
Network
Configuration
Field
Protocols
Basic
Services
Embedded
Applications
Security Administration
Connectivity
Management
Real-Time
Data
Security Administration
Historical
Data
Device
Management
Embedded App
Management
BRMS IT Application Integration
Kapua

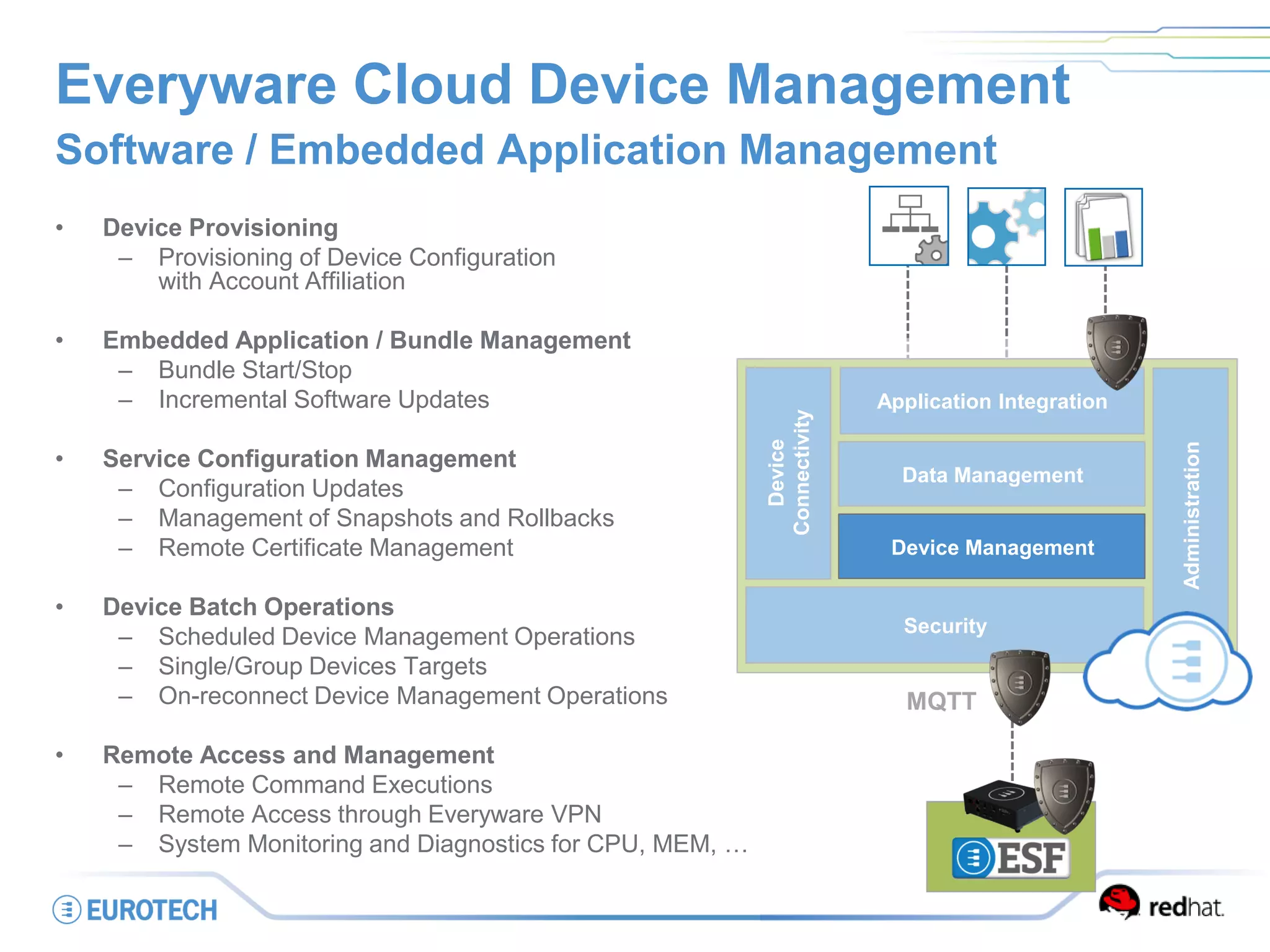

21. Everyware Cloud Device Management
• Device Provisioning
– Provisioning of Device Configuration
with Account Affiliation
• Embedded Application / Bundle Management
– Bundle Start/Stop
– Incremental Software Updates
• Service Configuration Management
– Configuration Updates
– Management of Snapshots and Rollbacks
– Remote Certificate Management
• Device Batch Operations
– Scheduled Device Management Operations
– Single/Group Devices Targets
– On-reconnect Device Management Operations
• Remote Access and Management
– Remote Command Executions
– Remote Access through Everyware VPN
– System Monitoring and Diagnostics for CPU, MEM, …
Software / Embedded Application Management
MQTT
on
Security
Administration
Device
Connectivity
Application Integration
Data Management
Device Management

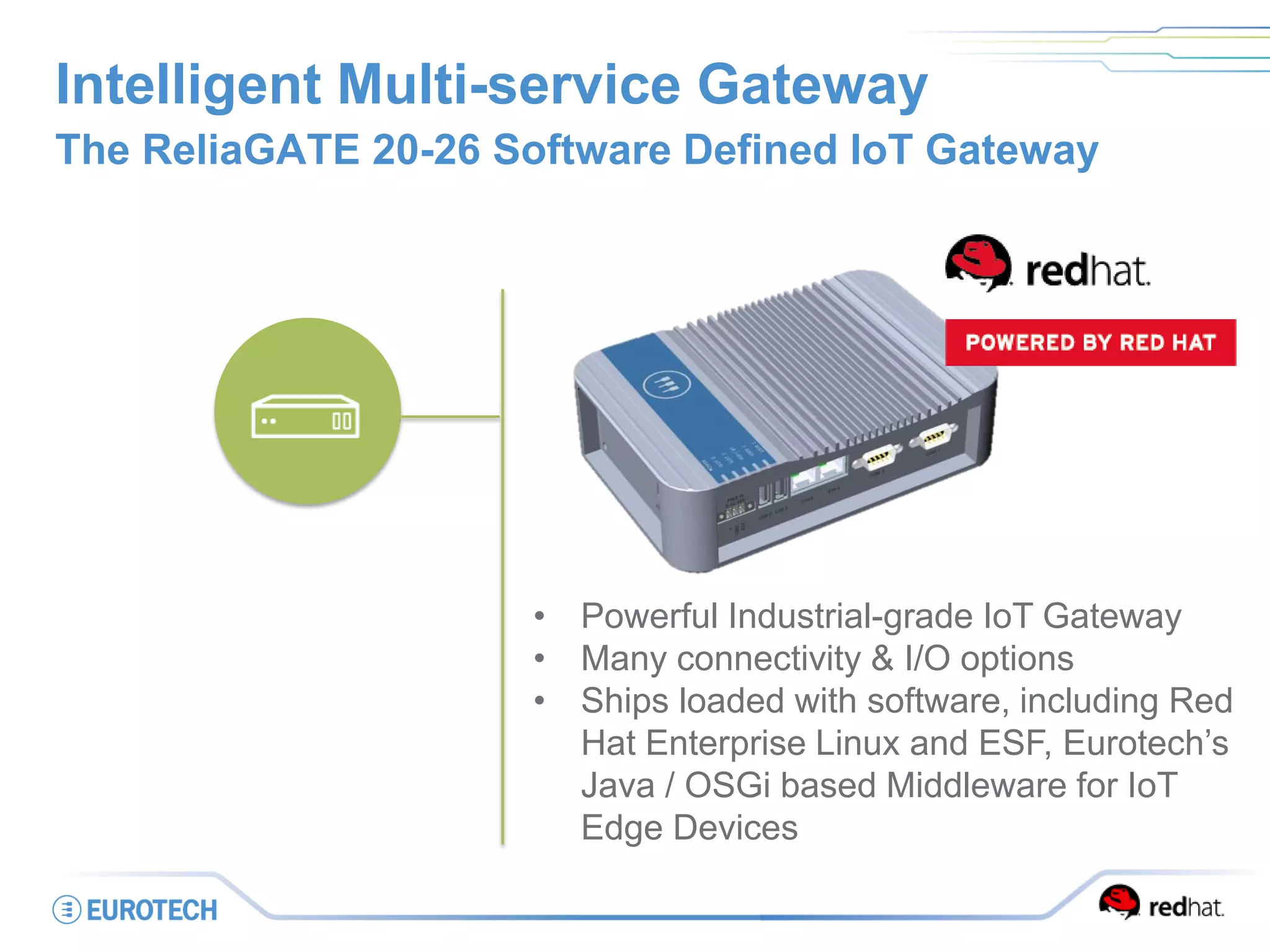

22. Intelligent Multi-service Gateway
The ReliaGATE 20-26 Software Defined IoT Gateway
• Powerful Industrial-grade IoT Gateway
• Many connectivity & I/O options
• Ships loaded with software, including Red
Hat Enterprise Linux and ESF, Eurotech’s
Java / OSGi based Middleware for IoT
Edge Devices

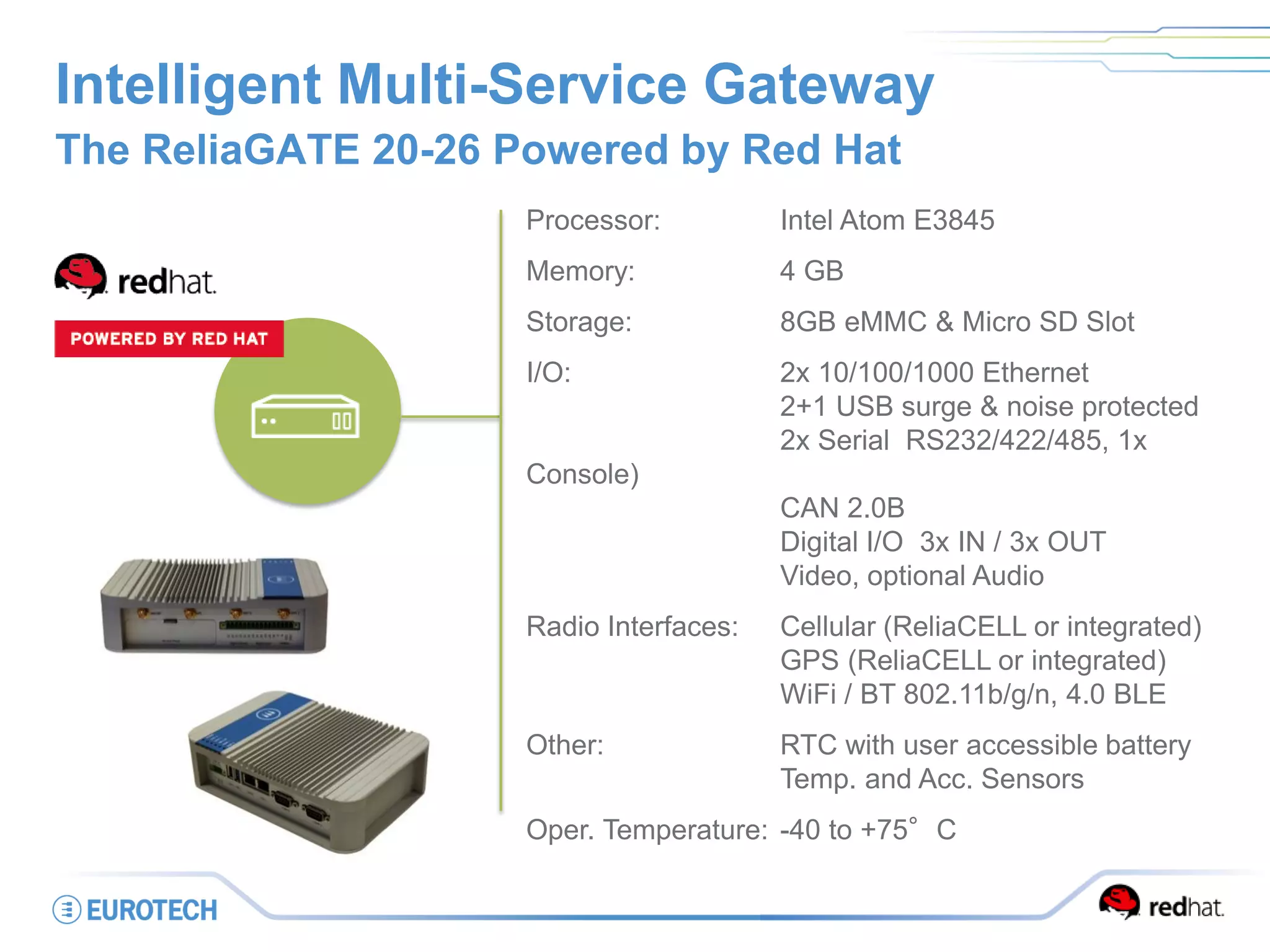

23. Intelligent Multi-Service Gateway
The ReliaGATE 20-26 Powered by Red Hat
Processor: Intel Atom E3845
Memory: 4 GB
Storage: 8GB eMMC & Micro SD Slot
I/O: 2x 10/100/1000 Ethernet
2+1 USB surge & noise protected
2x Serial RS232/422/485, 1x
Console)
CAN 2.0B
Digital I/O 3x IN / 3x OUT
Video, optional Audio
Radio Interfaces: Cellular (ReliaCELL or integrated)
GPS (ReliaCELL or integrated)
WiFi / BT 802.11b/g/n, 4.0 BLE
Other: RTC with user accessible battery
Temp. and Acc. Sensors
Oper. Temperature: -40 to +75°C

24. IoT Use Cases
Many Customers & Applications

25. Vertical Market Example Use Case
Elco: Boilers & Heaters
Application:
The customer, Ariston Thermo (including ELCO their German brand), a
leading company in the global market for heaters and boilers required an
IoT solution that would allow them to develop and offer new services.
One goal is for end users to remote control their own thermo-devices but
also for technical assistance operators to perform remote diagnostics. In
addition valuable data for the R&D, service, marketing departments of the
Customer to develop & sell new products and services.
Key Success Factors:
Service-oriented business model
Open and industry standards based solution
ESF hardware abstraction, Java/OSGi
Remote device & embedded applic. management
Real time data
M2M / IoT know how in Eurotech
Eurotech worldwide footprint
SW
Development
Services
Product:
3rd Party HW

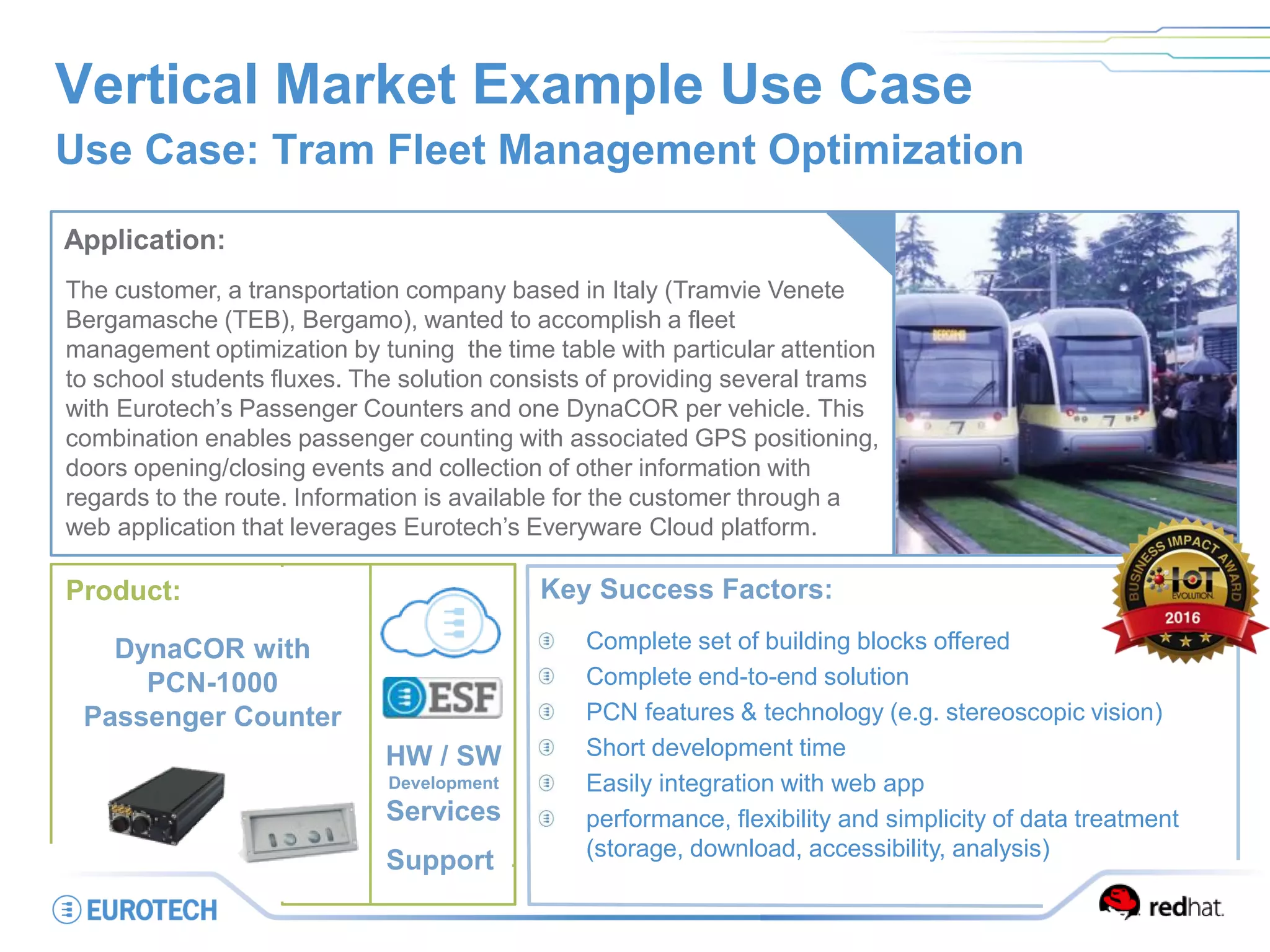

26. Vertical Market Example Use Case
Use Case: Tram Fleet Management Optimization
Application:
The customer, a transportation company based in Italy (Tramvie Venete
Bergamasche (TEB), Bergamo), wanted to accomplish a fleet
management optimization by tuning the time table with particular attention
to school students fluxes. The solution consists of providing several trams
with Eurotech’s Passenger Counters and one DynaCOR per vehicle. This
combination enables passenger counting with associated GPS positioning,
doors opening/closing events and collection of other information with
regards to the route. Information is available for the customer through a
web application that leverages Eurotech’s Everyware Cloud platform.
Key Success Factors:
Complete set of building blocks offered
Complete end-to-end solution
PCN features & technology (e.g. stereoscopic vision)
Short development time
Easily integration with web app
performance, flexibility and simplicity of data treatment
(storage, download, accessibility, analysis)
Product:
DynaCOR with
PCN-1000
Passenger Counter
HW / SW
Development
Services
Support

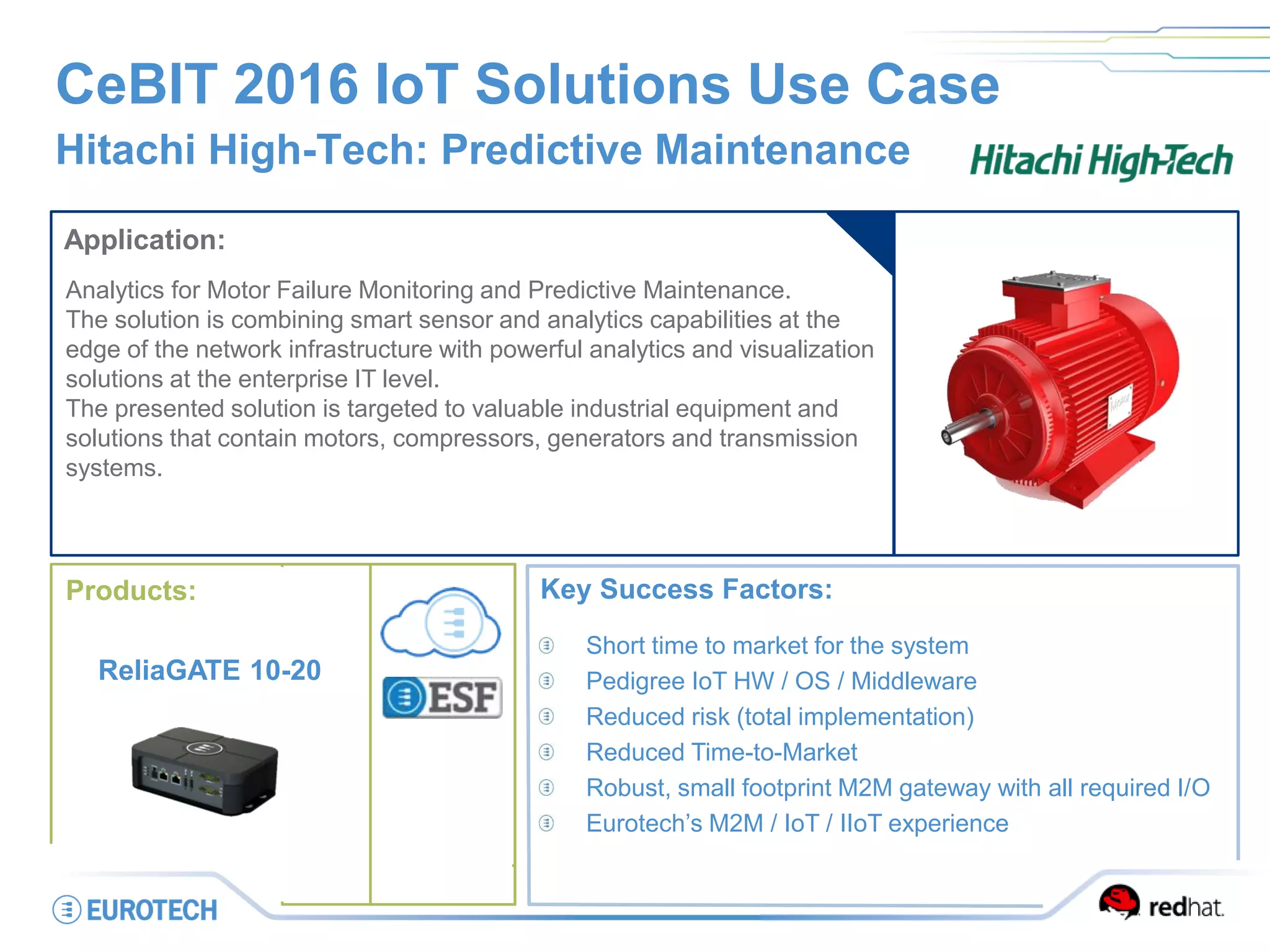

27. CeBIT 2016 IoT Solutions Use Case
Hitachi High-Tech: Predictive Maintenance
Application:
Analytics for Motor Failure Monitoring and Predictive Maintenance.
The solution is combining smart sensor and analytics capabilities at the
edge of the network infrastructure with powerful analytics and visualization
solutions at the enterprise IT level.
The presented solution is targeted to valuable industrial equipment and
solutions that contain motors, compressors, generators and transmission
systems.
Key Success Factors:
Short time to market for the system
Pedigree IoT HW / OS / Middleware
Reduced risk (total implementation)
Reduced Time-to-Market
Robust, small footprint M2M gateway with all required I/O
Eurotech’s M2M / IoT / IIoT experience
Products:
ReliaGATE 10-20

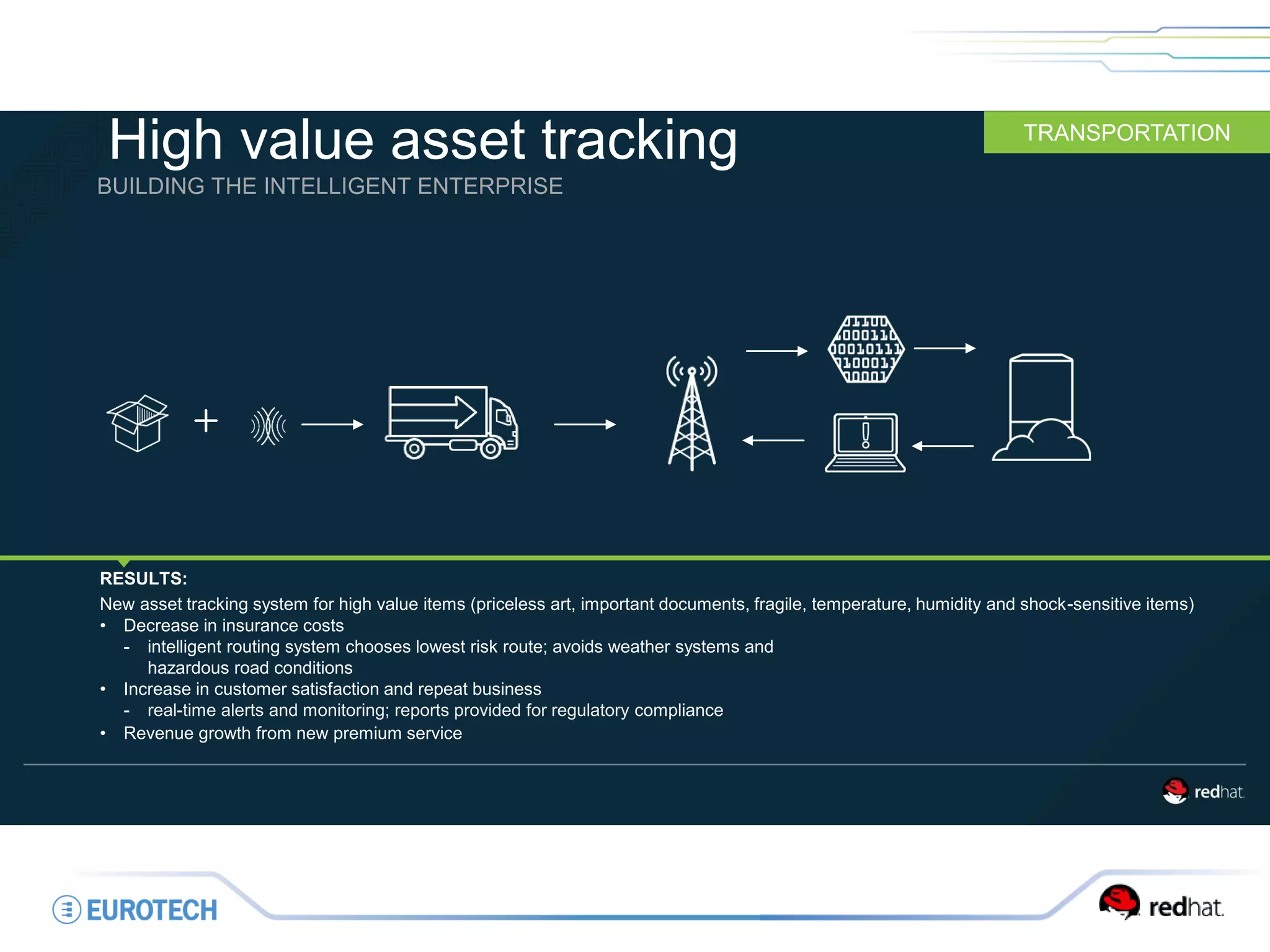

28. High value asset tracking
BUILDING THE INTELLIGENT ENTERPRISE
RESULTS:
New asset tracking system for high value items (priceless art, important documents, fragile, temperature, humidity and shock-sensitive items)
TRANSPORTATION
• Decrease in insurance costs
- intelligent routing system chooses lowest risk route; avoids weather systems and
hazardous road conditions
• Increase in customer satisfaction and repeat business
- real-time alerts and monitoring; reports provided for regulatory compliance
• Revenue growth from new premium service

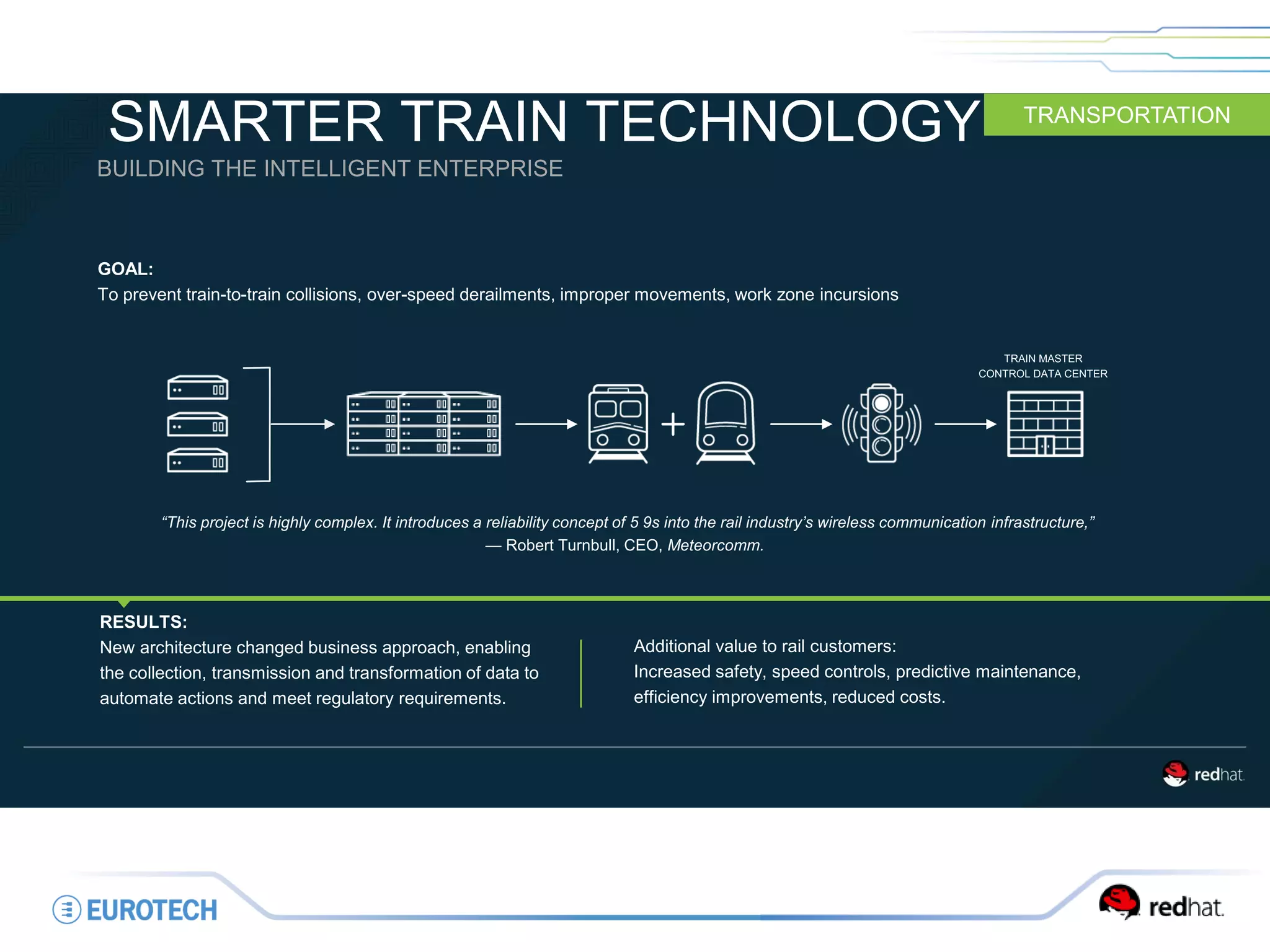

29. SMARTER TRAIN TECHNOLOGY
BUILDING THE INTELLIGENT ENTERPRISE
RESULTS:
New architecture changed business approach, enabling
the collection, transmission and transformation of data to
automate actions and meet regulatory requirements.
TRANSPORTATION
Additional value to rail customers:
Increased safety, speed controls, predictive maintenance,
efficiency improvements, reduced costs.
GOAL:
To prevent train-to-train collisions, over-speed derailments, improper movements, work zone incursions
“This project is highly complex. It introduces a reliability concept of 5 9s into the rail industry’s wireless communication infrastructure,”
— Robert Turnbull, CEO, Meteorcomm.
TRAIN MASTER
CONTROL DATA CENTER

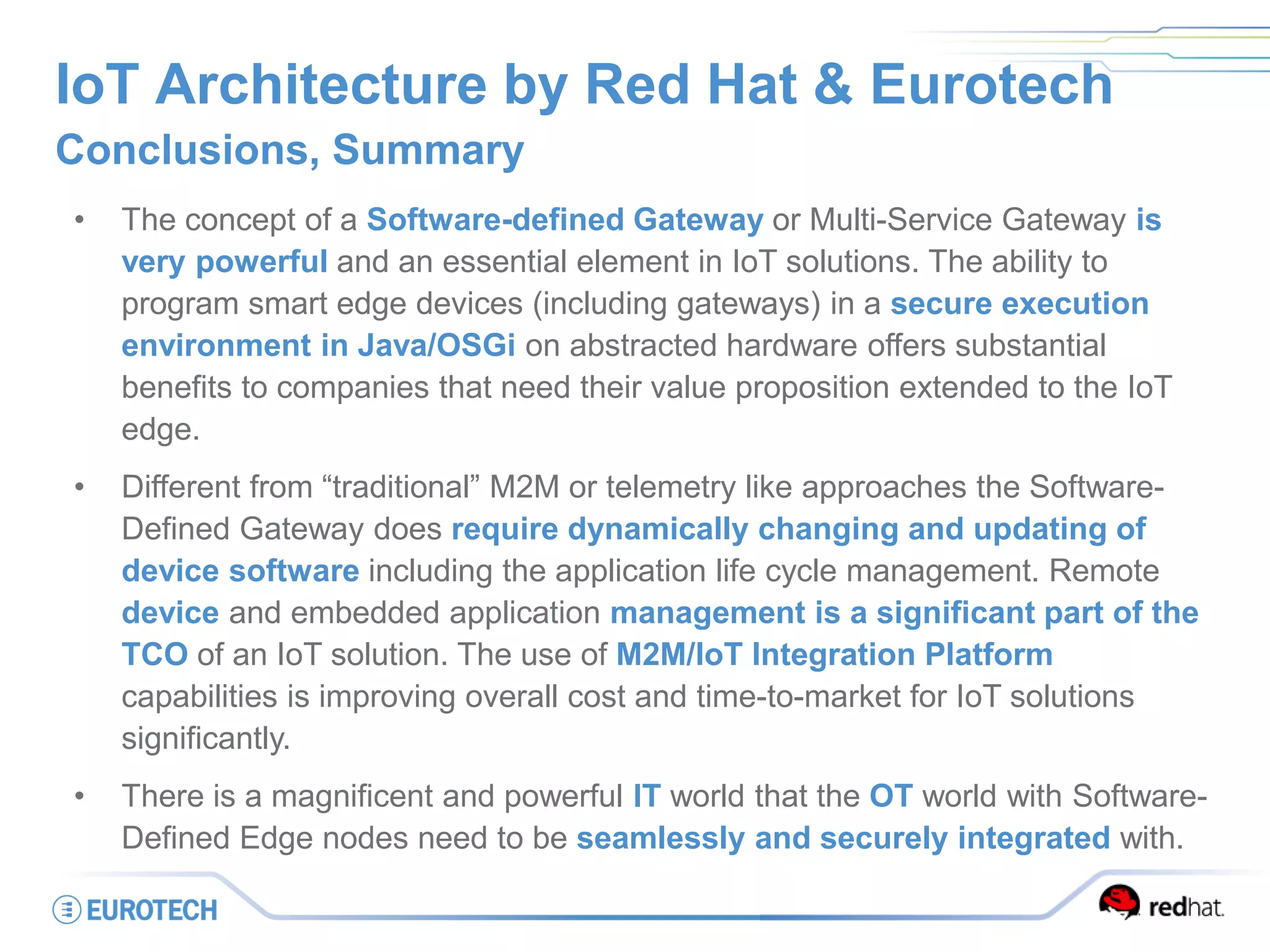

30. IoT Architecture by Red Hat & Eurotech
Conclusions, Summary
• The concept of a Software-defined Gateway or Multi-Service Gateway is
very powerful and an essential element in IoT solutions. The ability to
program smart edge devices (including gateways) in a secure execution
environment in Java/OSGi on abstracted hardware offers substantial
benefits to companies that need their value proposition extended to the IoT
edge.
• Different from “traditional” M2M or telemetry like approaches the Software-
Defined Gateway does require dynamically changing and updating of
device software including the application life cycle management. Remote
device and embedded application management is a significant part of the
TCO of an IoT solution. The use of M2M/IoT Integration Platform
capabilities is improving overall cost and time-to-market for IoT solutions
significantly.
• There is a magnificent and powerful IT world that the OT world with Software-
Defined Edge nodes need to be seamlessly and securely integrated with.

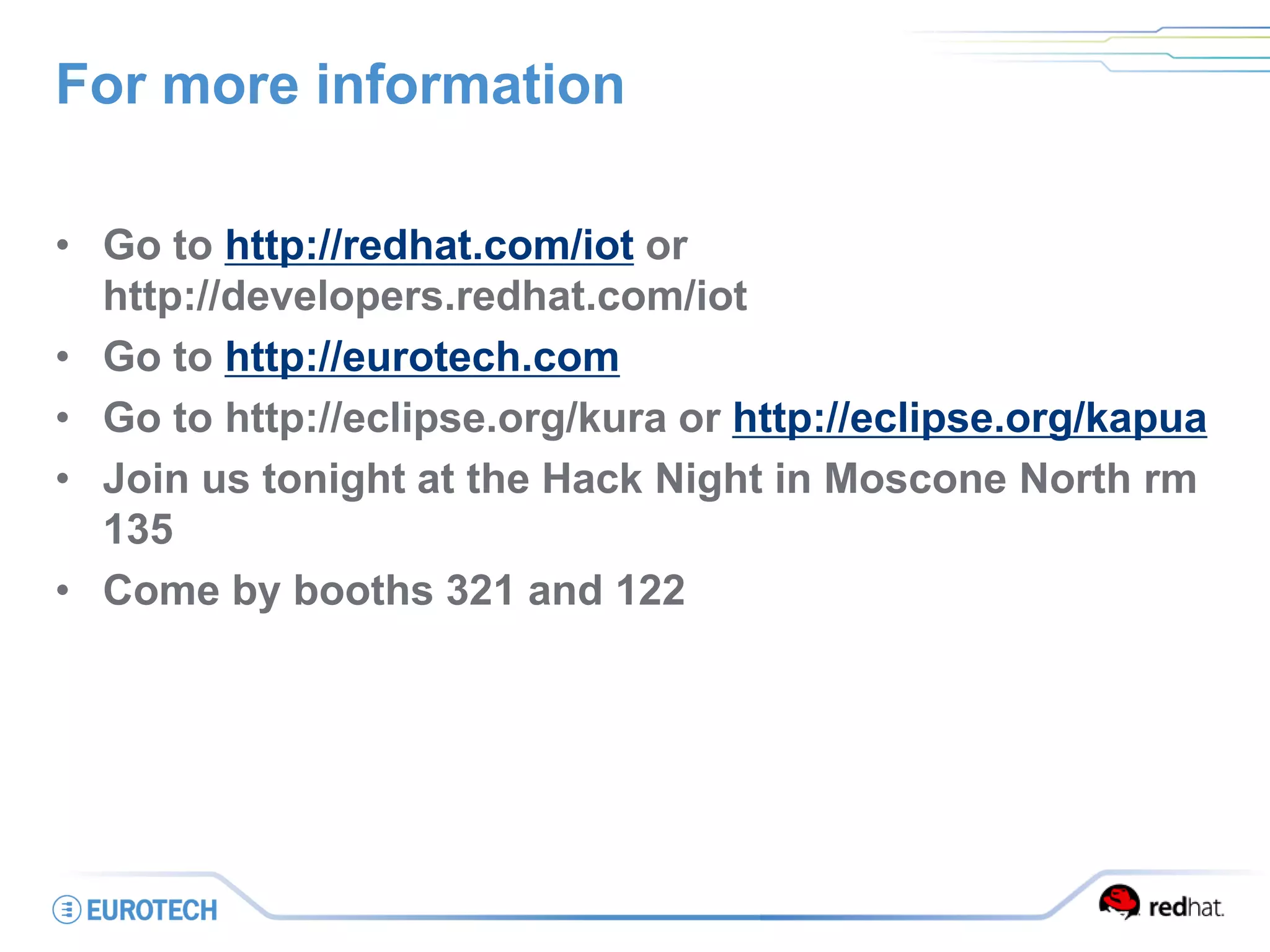

31. For more information
• Go to http://redhat.com/iot or
http://developers.redhat.com/iot
• Go to http://eurotech.com
• Go to http://eclipse.org/kura or http://eclipse.org/kapua
• Join us tonight at the Hack Night in Moscone North rm
135
• Come by booths 321 and 122

32. Hack Night
IoT CodeStarter w/ Eurotech
Tuesday, June 28 @ 6:30 PM
http://bit.ly/DevNationEurotech
or register with us in the Red Hat IoT booth 321

33. www.eurotech.com
Thank You!
