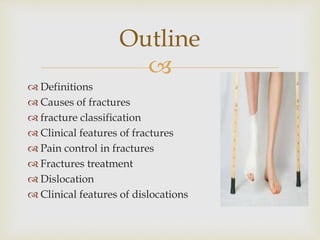

3.
Definitions
Causes of fractures
fracture classification
Clinical features of fractures
Pain control in fractures
Fractures treatment
Dislocation
Clinical features of dislocations
Outline
4.

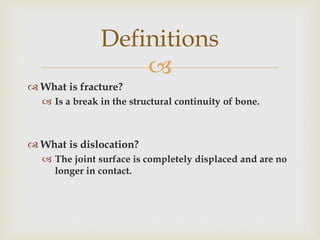

What is fracture?
Is a break in the structural continuity of bone.
What is dislocation?
The joint surface is completely displaced and are no
longer in contact.
Definitions
5.

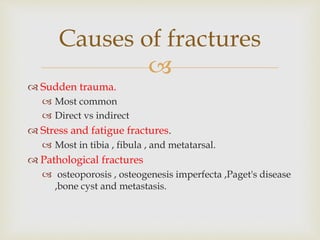

Sudden trauma.
Most common
Direct vs indirect
Stress and fatigue fractures.
Most in tibia , fibula , and metatarsal.
Pathological fractures
osteoporosis , osteogenesis imperfecta ,Paget's disease
,bone cyst and metastasis.
Causes of fractures
7.
Closed (simple)
skin/soft tissue over and near fracture is intact
open (compound )
skin/soft tissue over and near fracture is lacerated or
abraded, fracture exposed to outside environment
Integrity of Skin and Soft
Tissue

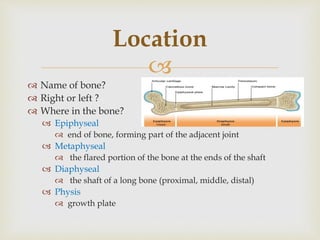

8.
Name of bone?
Right or left ?
Where in the bone?
Epiphyseal
end of bone, forming part of the adjacent joint
Metaphyseal
the flared portion of the bone at the ends of the shaft
Diaphyseal
the shaft of a long bone (proximal, middle, distal)
Physis
growth plate
Location
15.
Distracted : fracture fragments are separated by a
gap
Translated percentage of overlapping bone at
fracture site
Displacement
16.

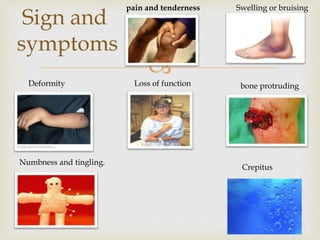

Sign and
symptoms
pain and tenderness Swelling or bruising
Deformity Loss of function bone protruding
Numbness and tingling.
Crepitus

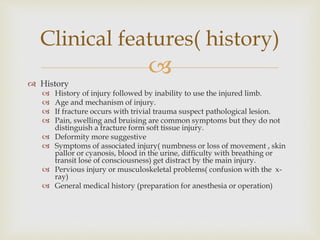

17.
History
History of injury followed by inability to use the injured limb.
Age and mechanism of injury.
If fracture occurs with trivial trauma suspect pathological lesion.
Pain, swelling and bruising are common symptoms but they do not
distinguish a fracture form soft tissue injury.
Deformity more suggestive
Symptoms of associated injury( numbness or loss of movement , skin
pallor or cyanosis, blood in the urine, difficulty with breathing or
transit lose of consciousness) get distract by the main injury.
Pervious injury or musculoskeletal problems( confusion with the x-
ray)
General medical history (preparation for anesthesia or operation)
Clinical features( history)
19.
Look:
Swelling, bruising and deformity
skin is intact?
posture of the distal extremity and the color of the skin
(for tell-tale signs of nerve or vessel damage).
Feel:
Palpate for tenderness
Test for vascular and peripheral nerve abnormalities
Move:
Crepitus and abnormal movement
Examination
20.
Crepitus and abnormal movement should be tested
for only in unconscious patient. Usually it is more
important to ask if the patient can move the joint
distal to the injury.
Move

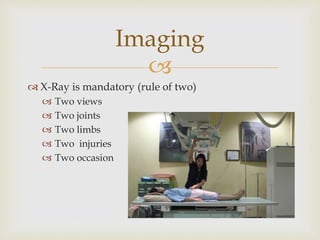

21.
X-Ray is mandatory (rule of two)
Two views
Two joints
Two limbs
Two injuries
Two occasion
Imaging

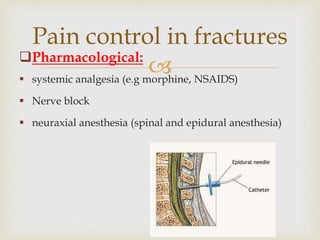

22.
Pain control in fractures
Pharmacological:
systemic analgesia (e.g morphine, NSAIDS)
Nerve block
neuraxial anesthesia (spinal and epidural anesthesia)

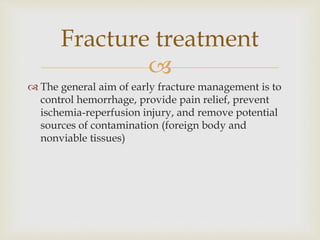

24.
The general aim of early fracture management is to
control hemorrhage, provide pain relief, prevent
ischemia-reperfusion injury, and remove potential
sources of contamination (foreign body and
nonviable tissues)
Fracture treatment

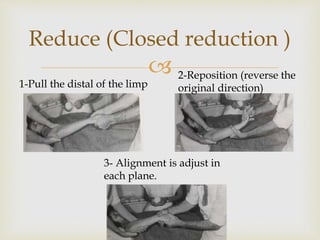

26.
Reduce (Closed reduction )
1-Pull the distal of the limp
2-Reposition (reverse the
original direction)
3- Alignment is adjust in
each plane.
27.

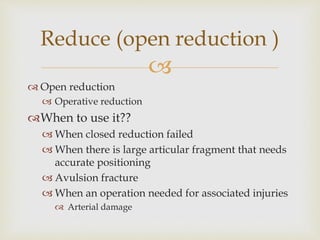

Open reduction
Operative reduction
When to use it??
When closed reduction failed
When there is large articular fragment that needs
accurate positioning
Avulsion fracture
When an operation needed for associated injuries
Arterial damage
Reduce (open reduction )
28. The aim is to Splint the fracture, not necessarily
entire limp.
Hold
Sustained traction Cast splintage Functional bracing
Internal fixation external fixation
29.

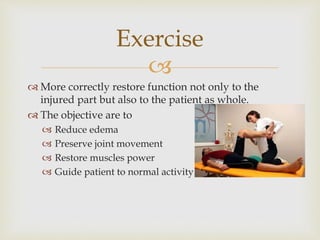

More correctly restore function not only to the
injured part but also to the patient as whole.
The objective are to
Reduce edema
Preserve joint movement
Restore muscles power
Guide patient to normal activity
Exercise

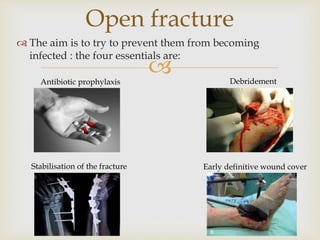

30.
The aim is to try to prevent them from becoming
infected : the four essentials are:
Open fracture
Early definitive wound coverStabilisation of the fracture
DebridementAntibiotic prophylaxis

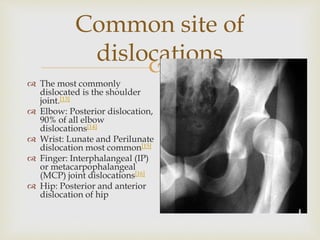

31.
Common site of
dislocations
The most commonly
dislocated is the shoulder
joint.[13]
Elbow: Posterior dislocation,
90% of all elbow
dislocations[14]
Wrist: Lunate and Perilunate
dislocation most common[15]
Finger: Interphalangeal (IP)
or metacarpophalangeal
(MCP) joint dislocations[16]
Hip: Posterior and anterior
dislocation of hip
32.

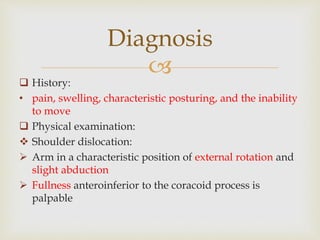

Diagnosis
History:
• pain, swelling, characteristic posturing, and the inability
to move
Physical examination:
Shoulder dislocation:
Arm in a characteristic position of external rotation and
slight abduction
Fullness anteroinferior to the coracoid process is
palpable
33.

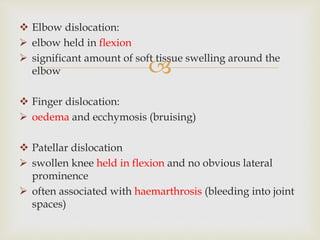

Elbow dislocation:
elbow held in flexion
significant amount of soft tissue swelling around the
elbow
Finger dislocation:
oedema and ecchymosis (bruising)
Patellar dislocation
swollen knee held in flexion and no obvious lateral
prominence
often associated with haemarthrosis (bleeding into joint
spaces)
34.

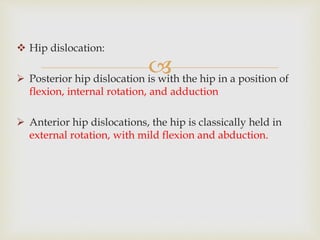

Hip dislocation:
Posterior hip dislocation is with the hip in a position of
flexion, internal rotation, and adduction
Anterior hip dislocations, the hip is classically held in
external rotation, with mild flexion and abduction.
38.

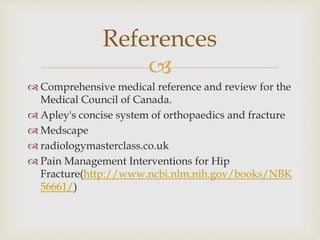

Comprehensive medical reference and review for the
Medical Council of Canada.
Apley's concise system of orthopaedics and fracture
Medscape
radiologymasterclass.co.uk
Pain Management Interventions for Hip
Fracture(http://www.ncbi.nlm.nih.gov/books/NBK
56661/)
References
Editor's Notes
Most fractures are caused by sudden and excessive force, which may be direct or indirect.
With direct force
the bone breaks at the point of impact and the surrounding soft tissues are also damaged.
With indirect force
the bone breaks at a distance from where the force is applied: a common example is a fracture of the femoral neck due to a blow on the bended knee; soft-tissue damage at the fracture site is not inevitable.
Picture for questions

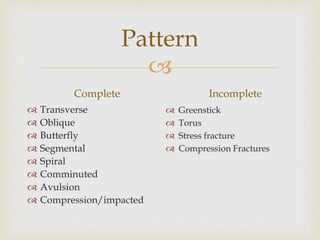

Orientation/Fracture Pattern (Figure 6)
• transverse: fracture line perpendicular to long axis of bone; direct high energy force
• oblique: angular fracture line; angular or rotational force
• butterfly: fracture site fragment which looks like a butterfly
• segmental: a separate segment of bone bordered by fracture lines; high energy
• spiral: complex, multi-planar fracture line; rotational force, low energy
• comminuted/multi-fragmentary: more than 2 fracture fragments
• intra-articular: fracture line crosses articular cartilage and enters joint
• avulsion: tendon or ligament tears/pulls fragment off bone; often in children, high energy
• compression/impacted: impaction of bone, e.g. vertebrae, proximal tibia
• torus: a buckle fracture of one cortex, often in children (Figure 51, OR38)
• green-stick: an incomplete fracture of one cortex, often in children (Figure 51, OR38)
• pathologic: fracture through bone weakened by disease/tumour
Displacement (Figure 6)
• nondisplaced: fracture fragments are in anatomic alignment
• displaced: fracture fragments are not in anatomic alignment
• • angulated: direction of fracture apex, e.g. varus/valgus
• translated: percentage of overlapping bone at fracture site
• rotated: fracture fragment rotated about long axis of bone
.
in the injured area.
In open fractures, from the skin.
Severe pain and tenderness , but the bone is not sensitive to pain !!?
The bone tissue itself not contains nociceptors, however bone fracture is painful for several reasons:
Breaking of the periosteum, with or without endosteum, as both contain multiple nociceptors.
Edema of nearby soft tissues caused by bleeding of torn periosteal blood vessels evokes pressure pain.
Muscle spasms trying to hold bone fragments in place
Beaware the fracture maybe a way from the site of injury.
Note on page 329
Perarticular fractures
TENS uses electrodes to apply electrical energy to peripheral nerves to treat acute and chronic musculoskeletal pain. Electrical stimulation can be administered at varying amplitudes and frequencies, depending on the indication
The treatment of the fractures consist of manipulation to improve the positon of the fragment followed by splintage to hold them together , joint movemnt
Shoulder dislocation
In standard AP views, the humeral head rests anteroinferiorly to the coracoid in anterior shoulder dislocations.(see image)
--------------------------------
Elbow dislocation
Dislocations are posterior in more than 90% of cases
In a posterior dislocation, these show the radius and ulna lying posterior to the distal humerus.(see image)
