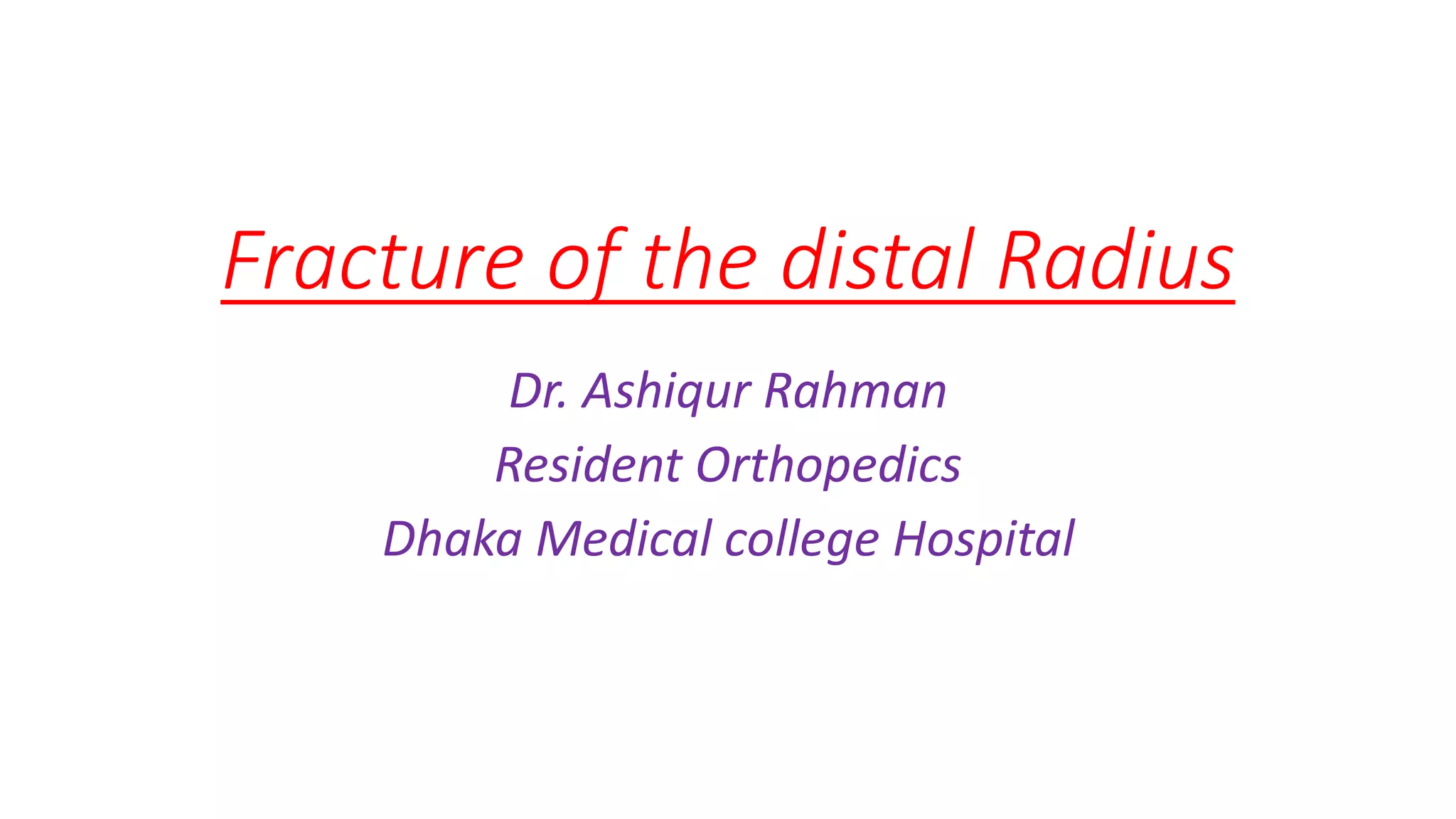

1. Fracture of the distal Radius
Dr. Ashiqur Rahman
Resident Orthopedics
Dhaka Medical college Hospital

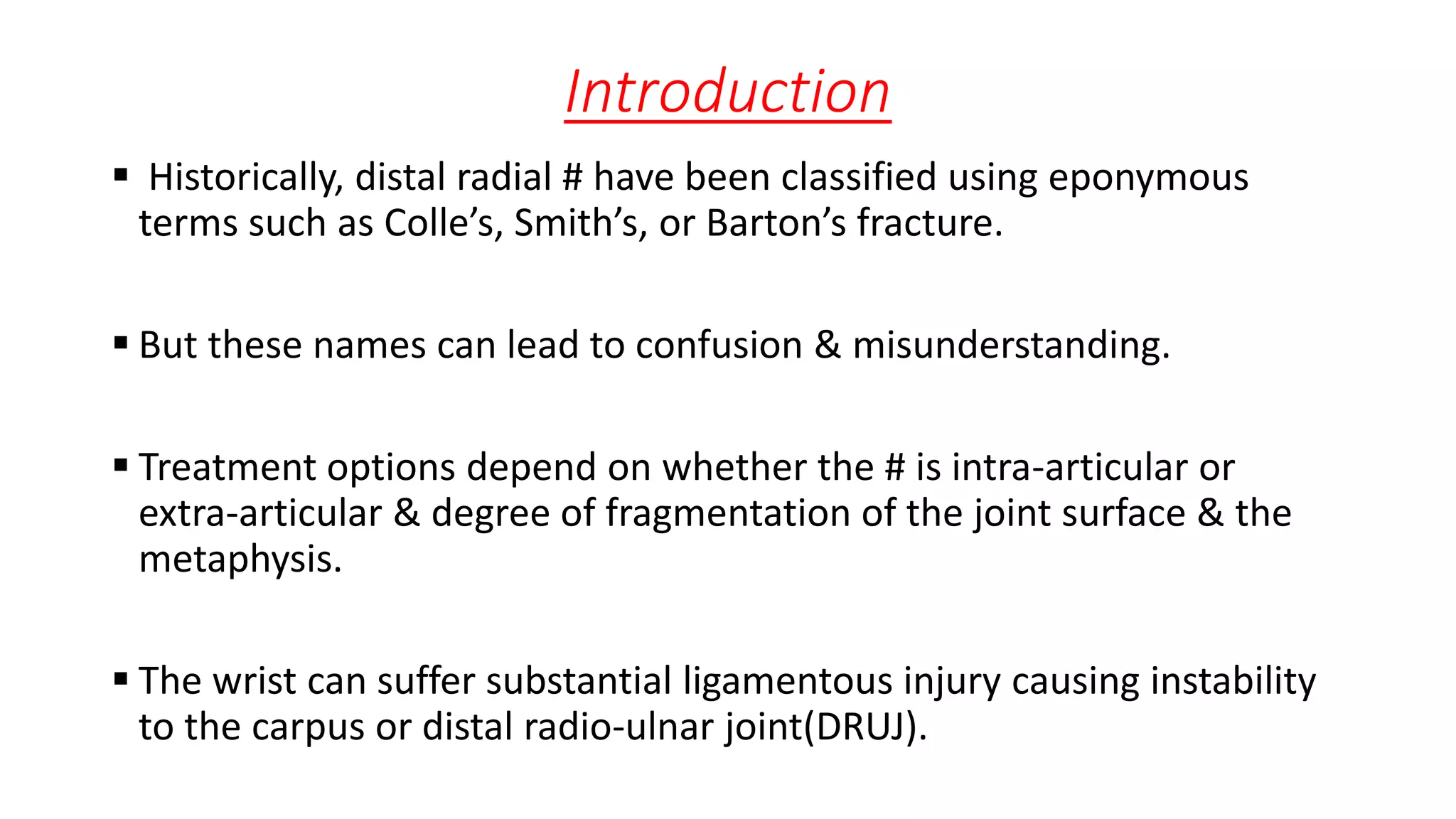

2. Introduction
 Historically, distal radial # have been classified using eponymous
terms such as Colle’s, Smith’s, or Barton’s fracture.
 But these names can lead to confusion & misunderstanding.
 Treatment options depend on whether the # is intra-articular or
extra-articular & degree of fragmentation of the joint surface & the
metaphysis.
 The wrist can suffer substantial ligamentous injury causing instability
to the carpus or distal radio-ulnar joint(DRUJ).

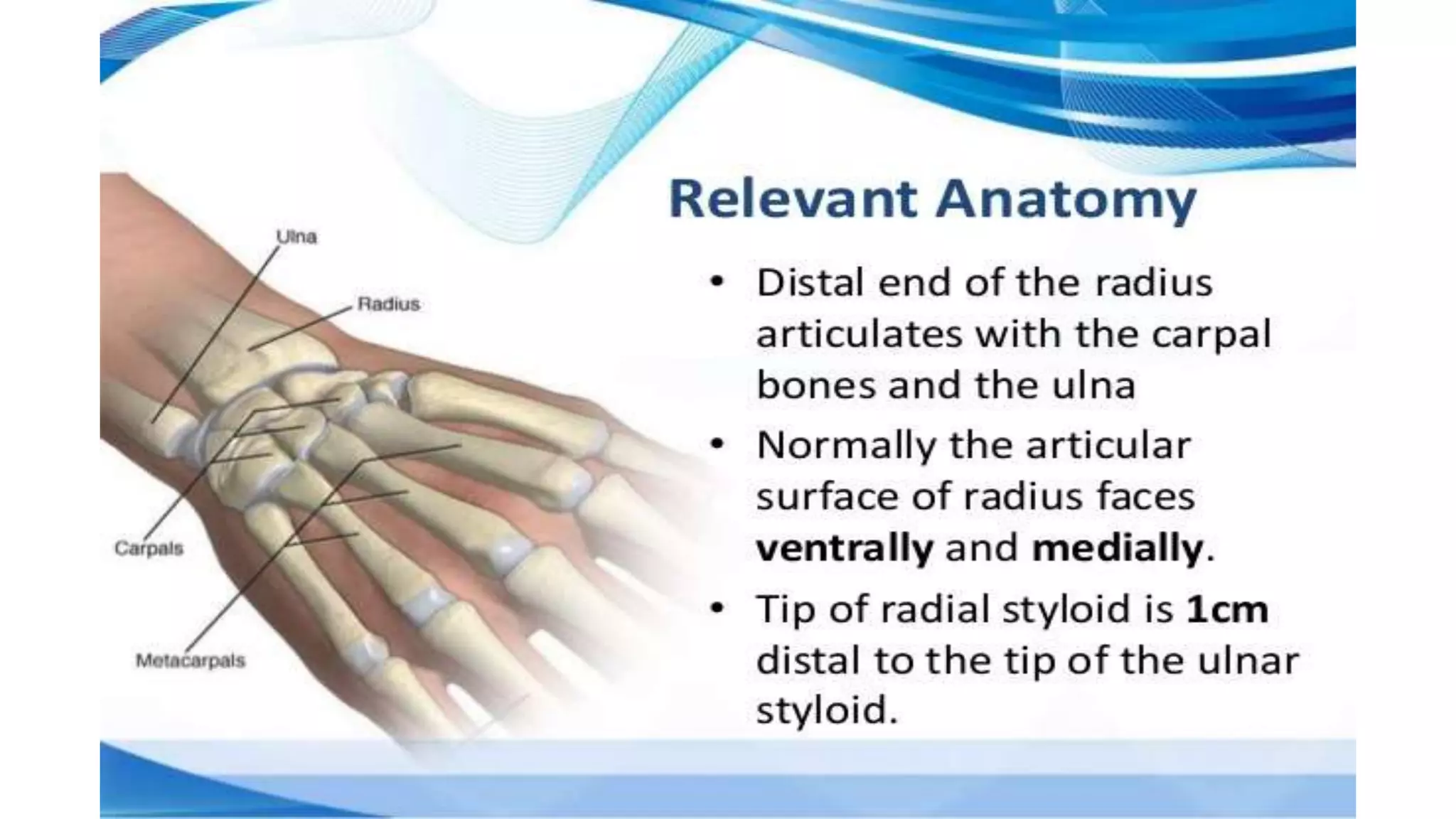

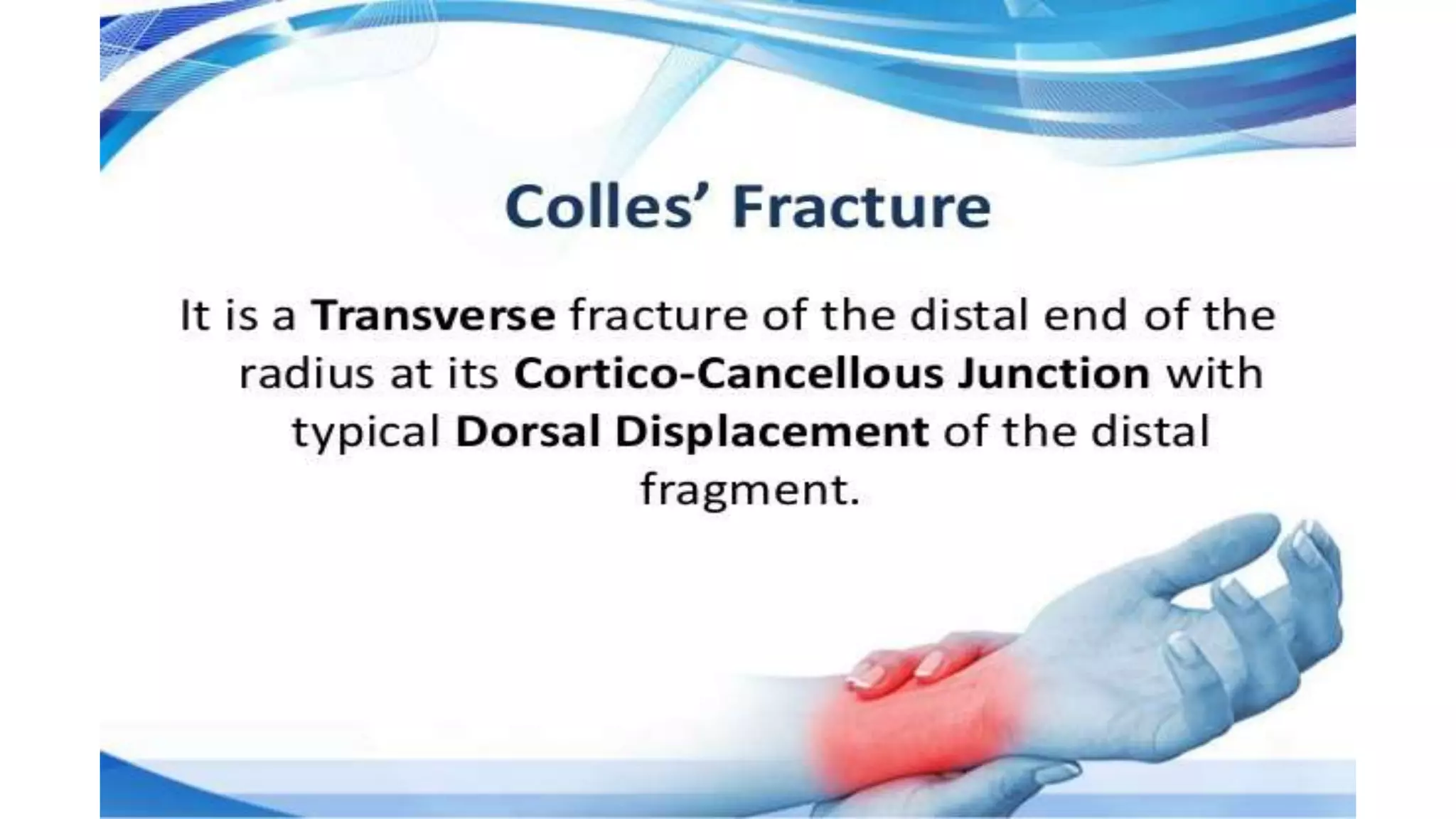

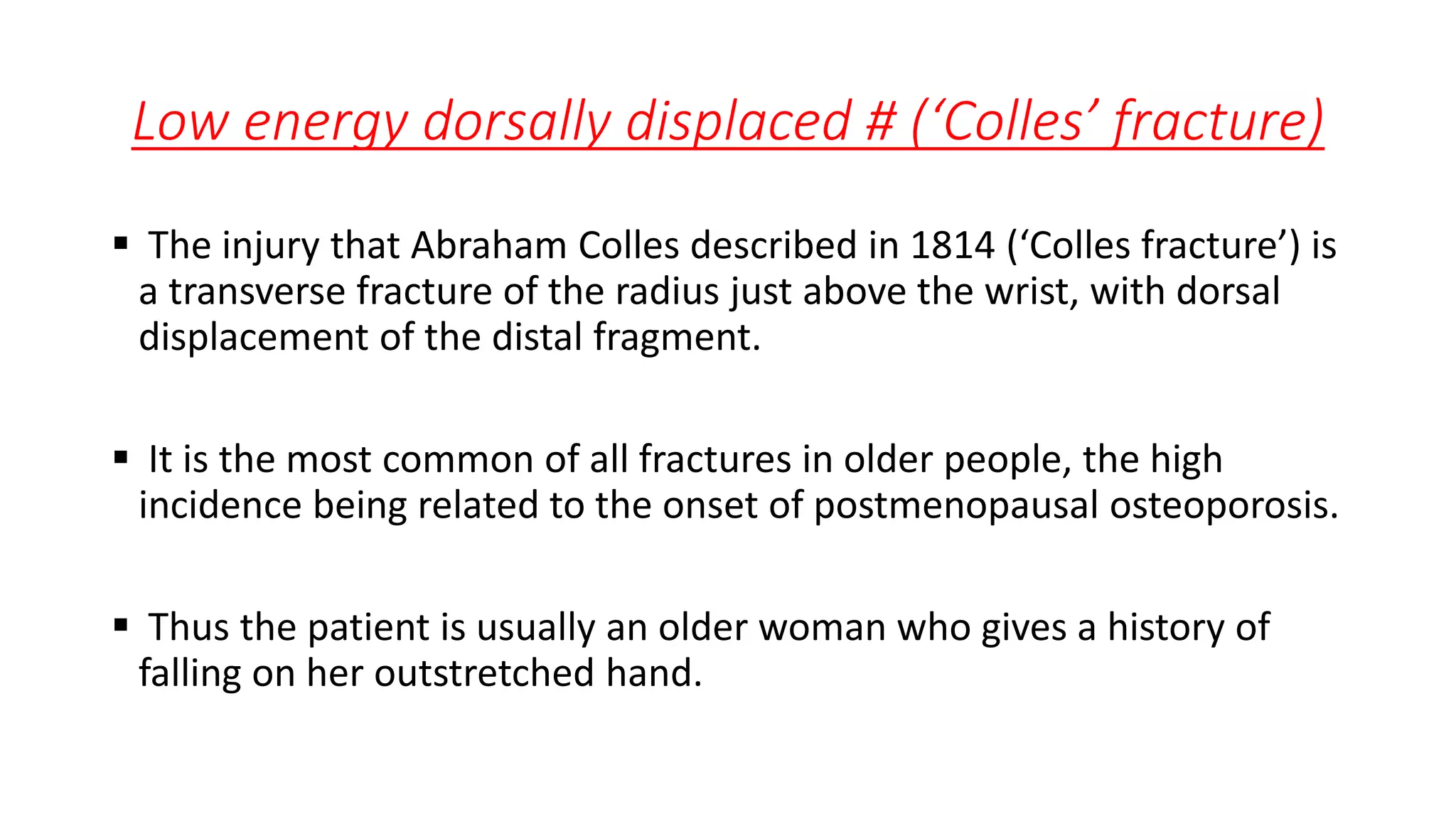

4. Low energy dorsally displaced # (‘Colles’ fracture)
 The injury that Abraham Colles described in 1814 (‘Colles fracture’) is
a transverse fracture of the radius just above the wrist, with dorsal
displacement of the distal fragment.
 It is the most common of all fractures in older people, the high
incidence being related to the onset of postmenopausal osteoporosis.
 Thus the patient is usually an older woman who gives a history of
falling on her outstretched hand.

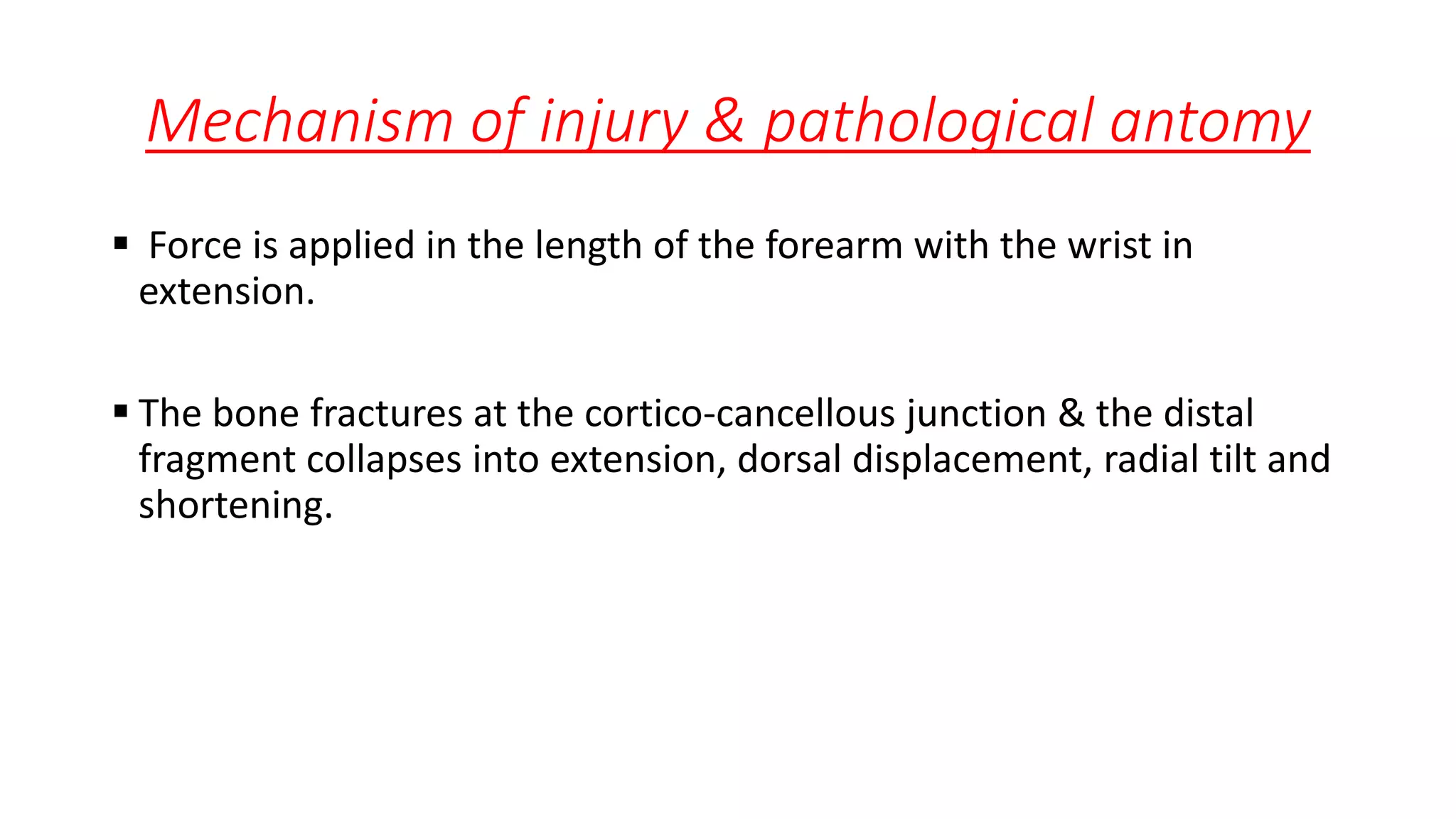

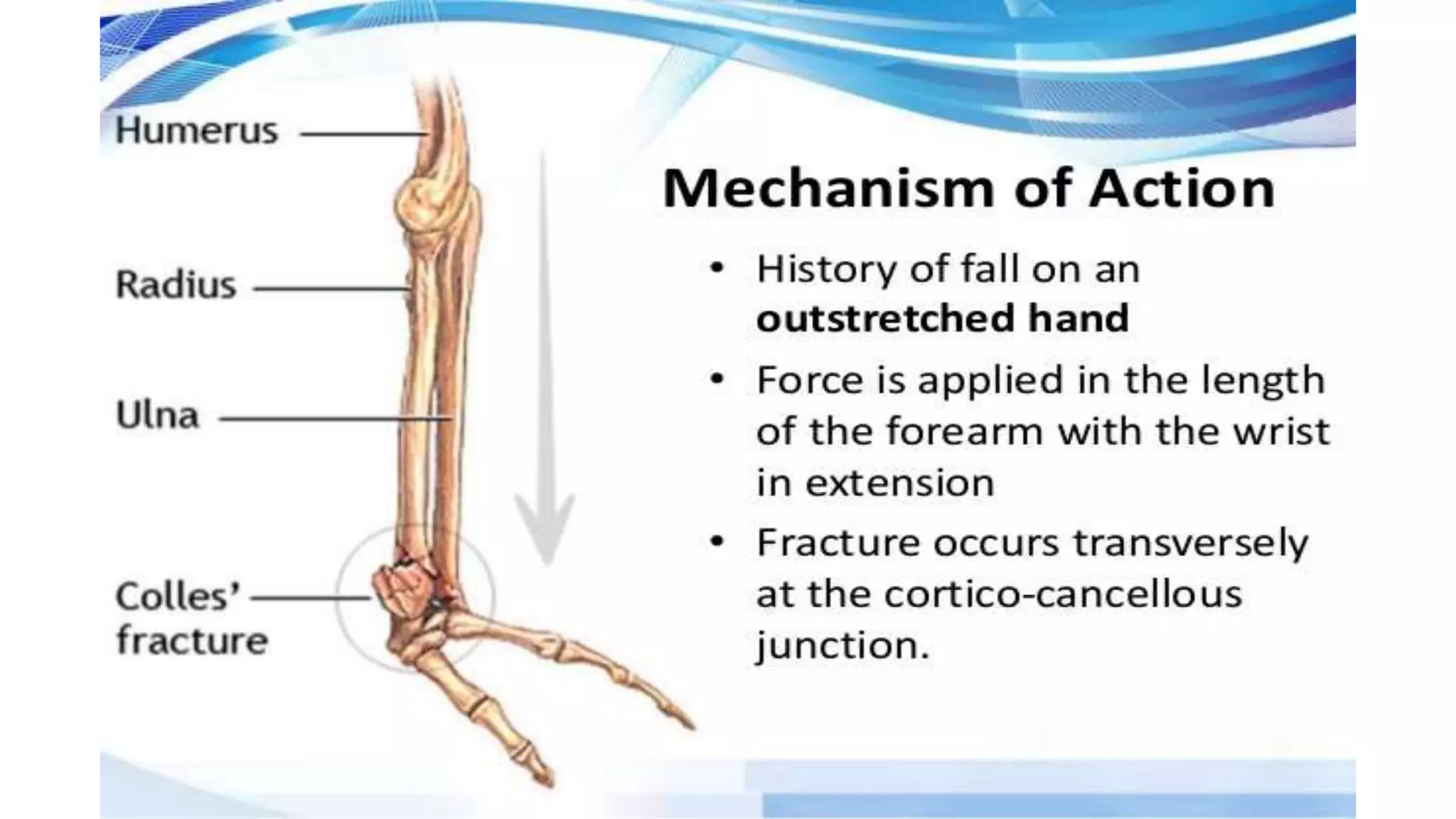

11. Mechanism of injury & pathological antomy
 Force is applied in the length of the forearm with the wrist in
extension.

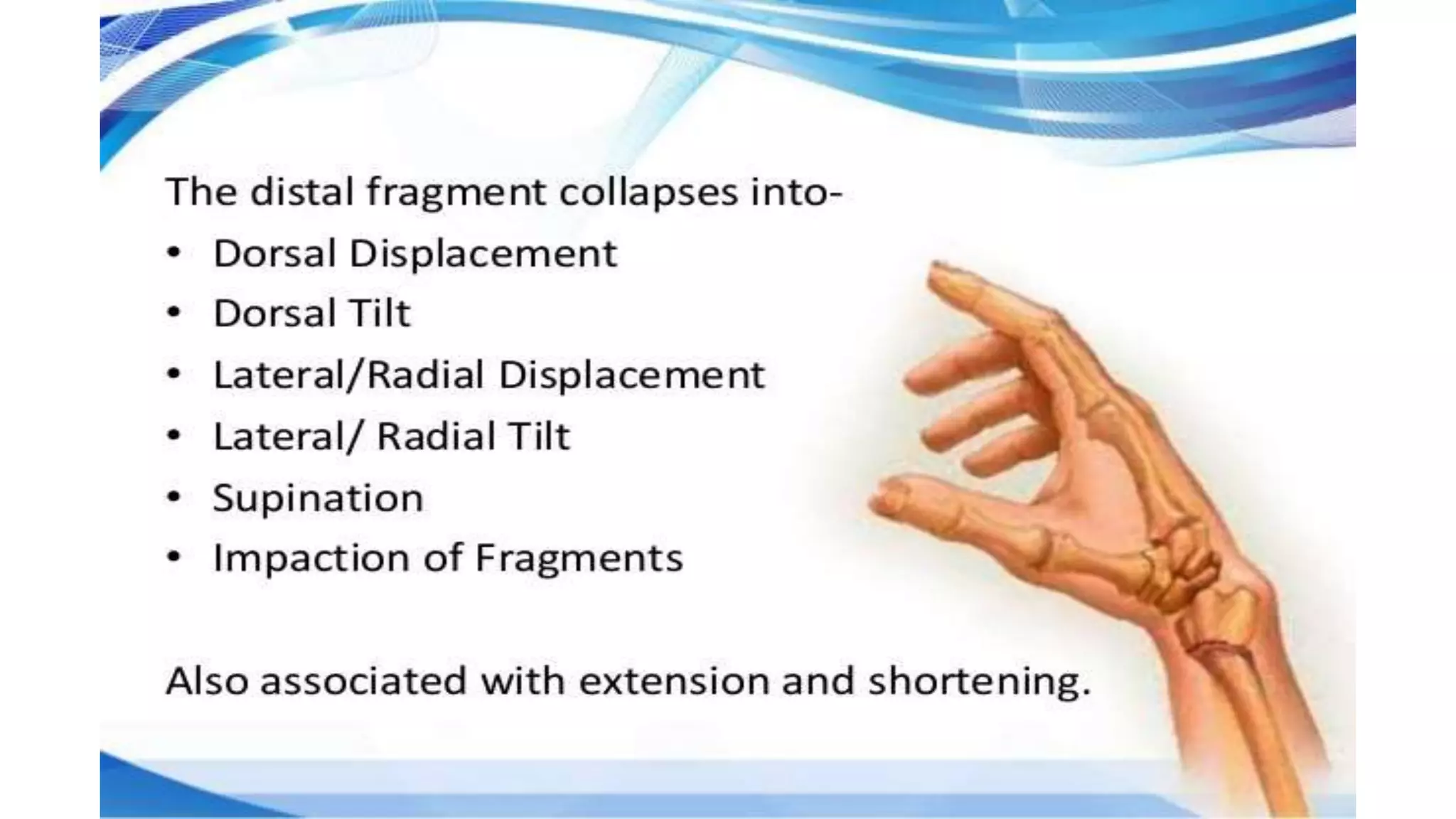

 The bone fractures at the cortico-cancellous junction & the distal
fragment collapses into extension, dorsal displacement, radial tilt and
shortening.

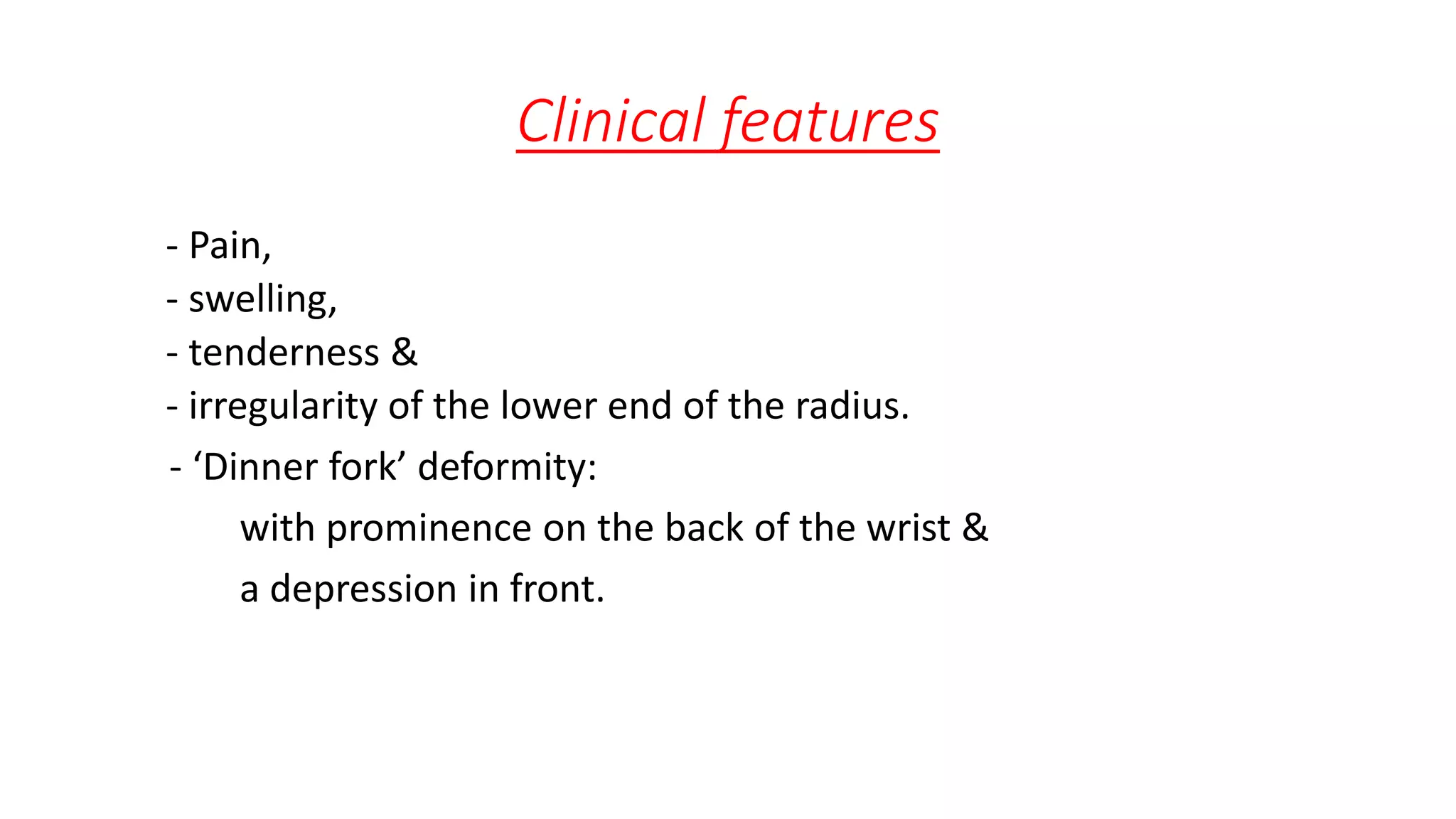

14. Clinical features
- Pain,
- swelling,
- tenderness &
- irregularity of the lower end of the radius.

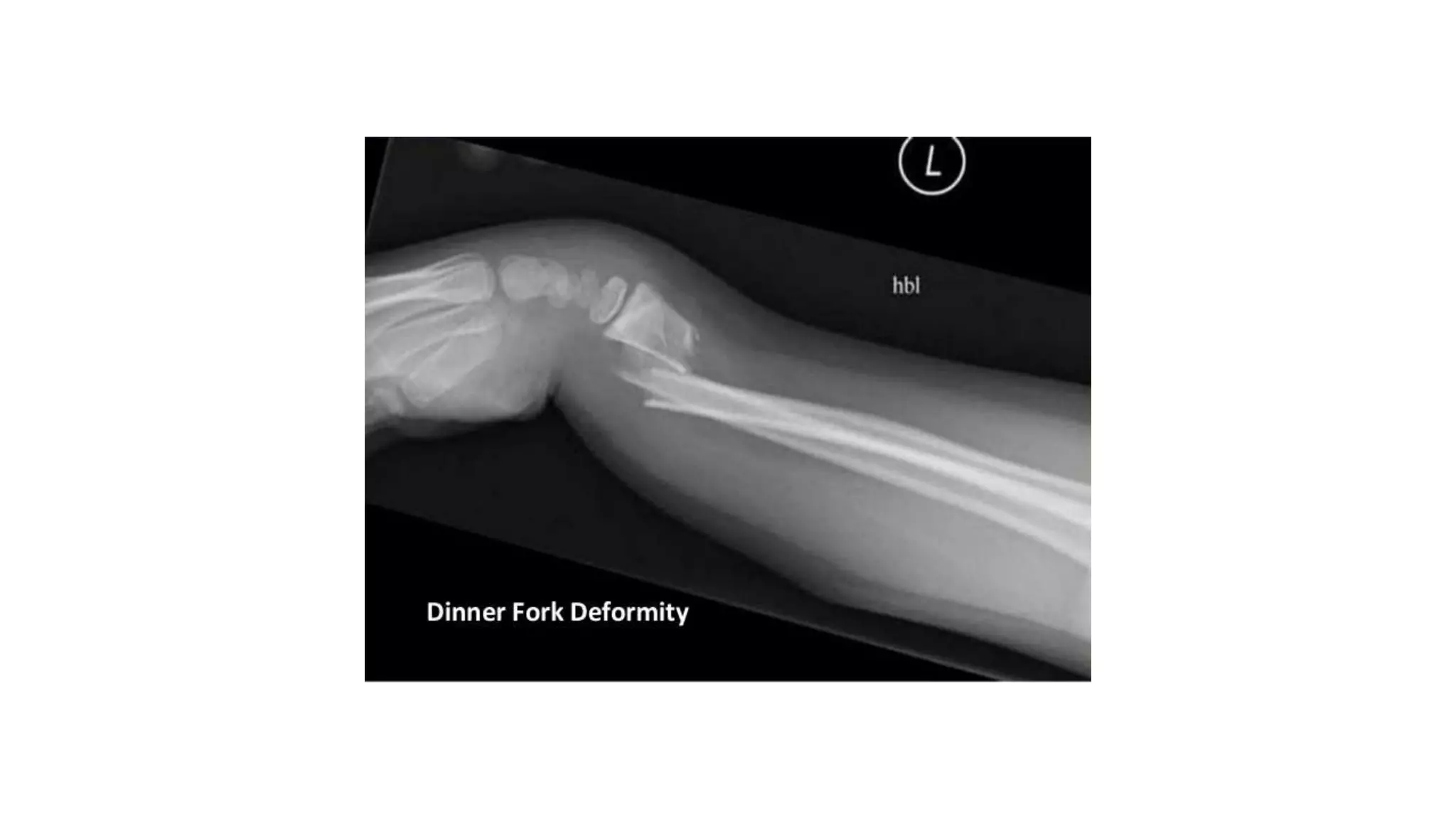

- ‘Dinner fork’ deformity:
with prominence on the back of the wrist &
a depression in front.

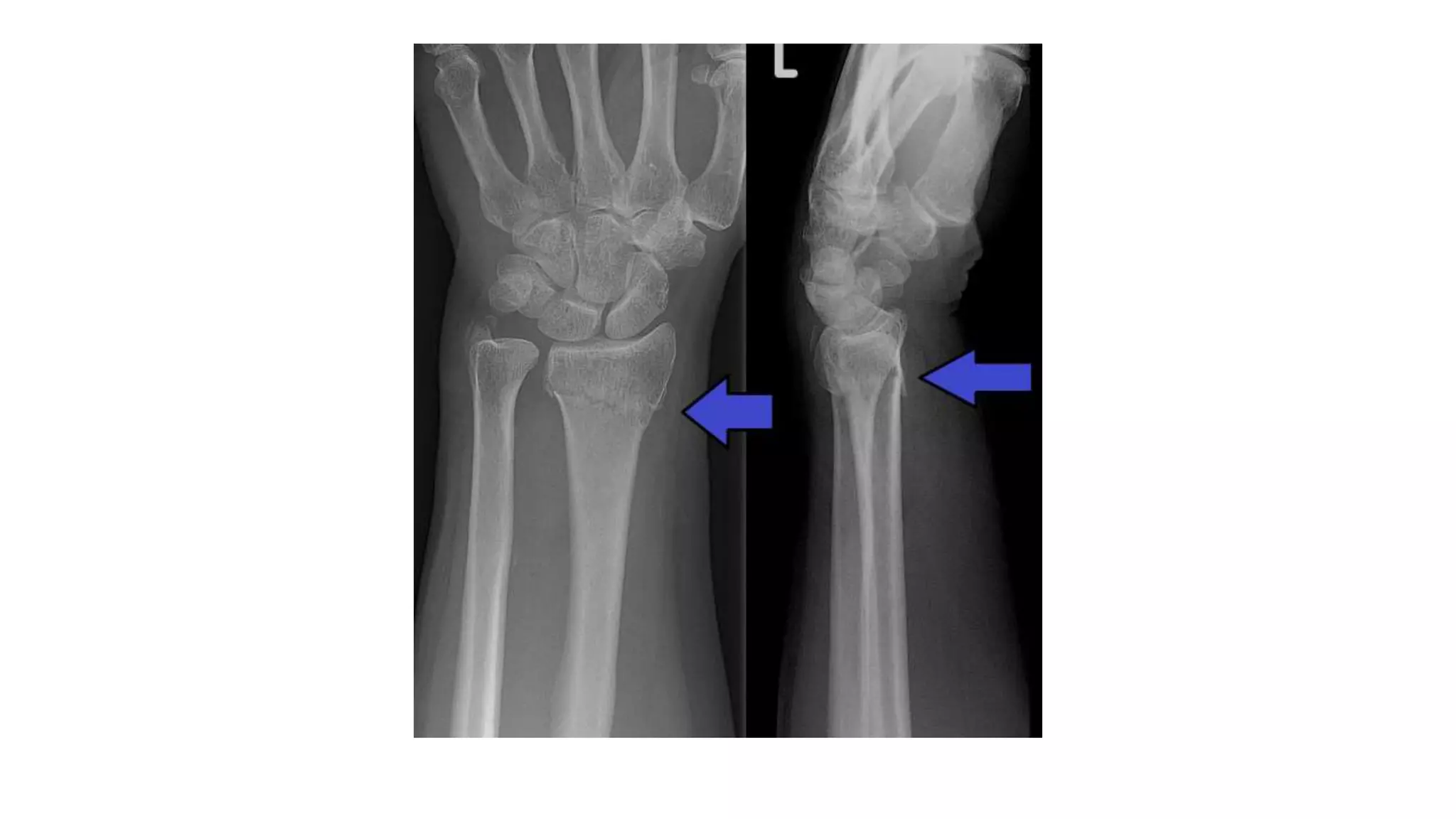

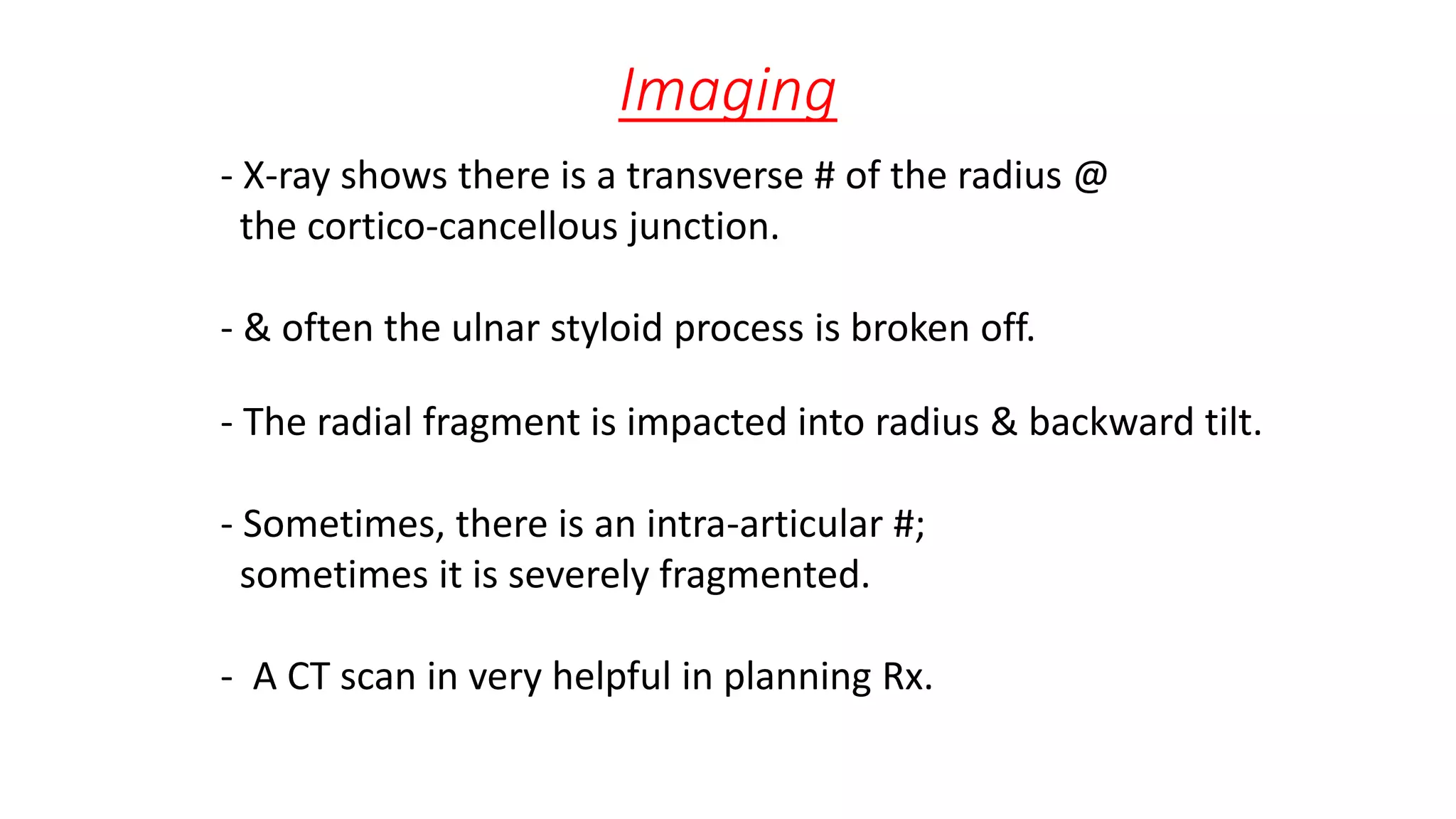

15. Imaging

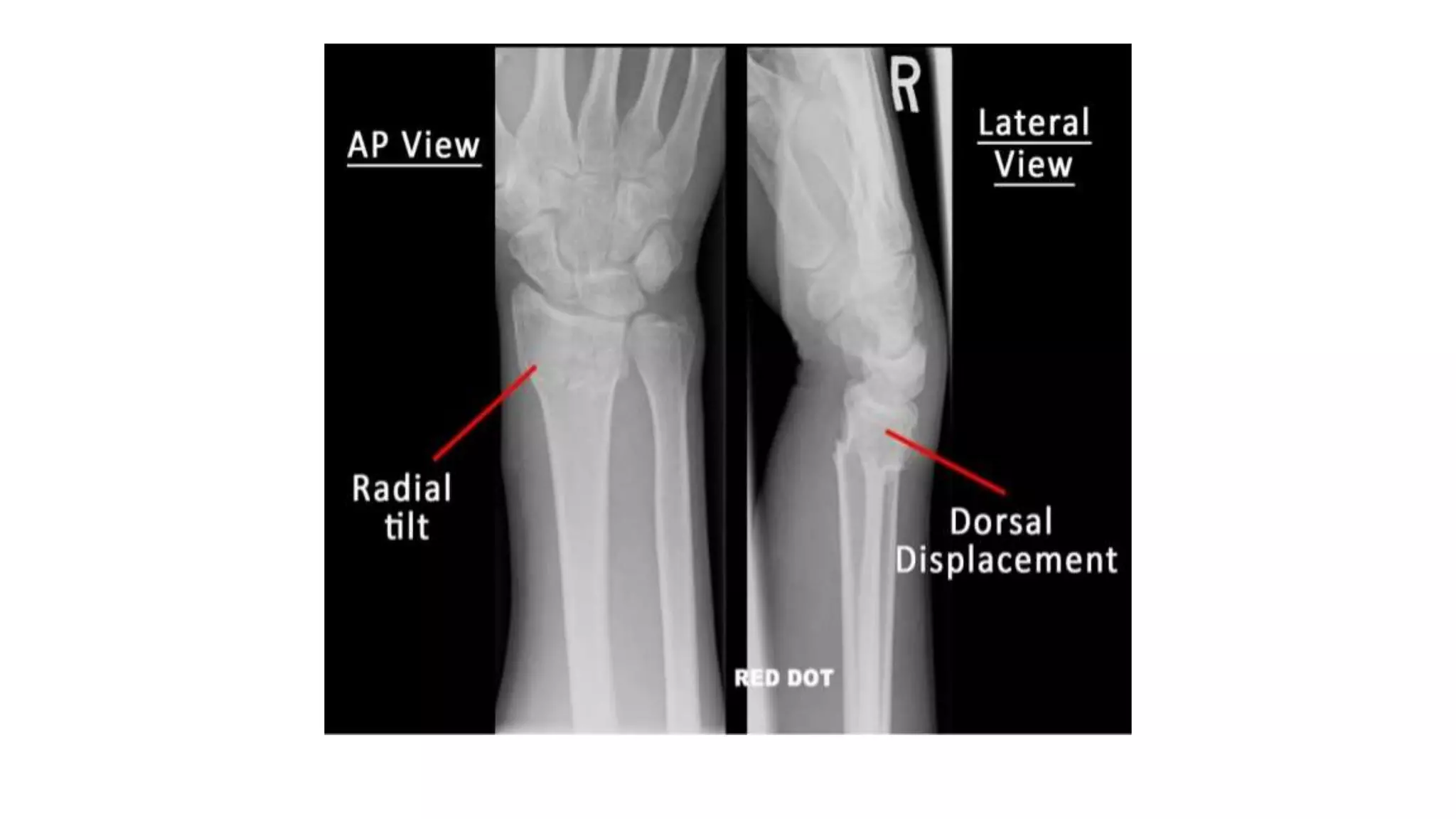

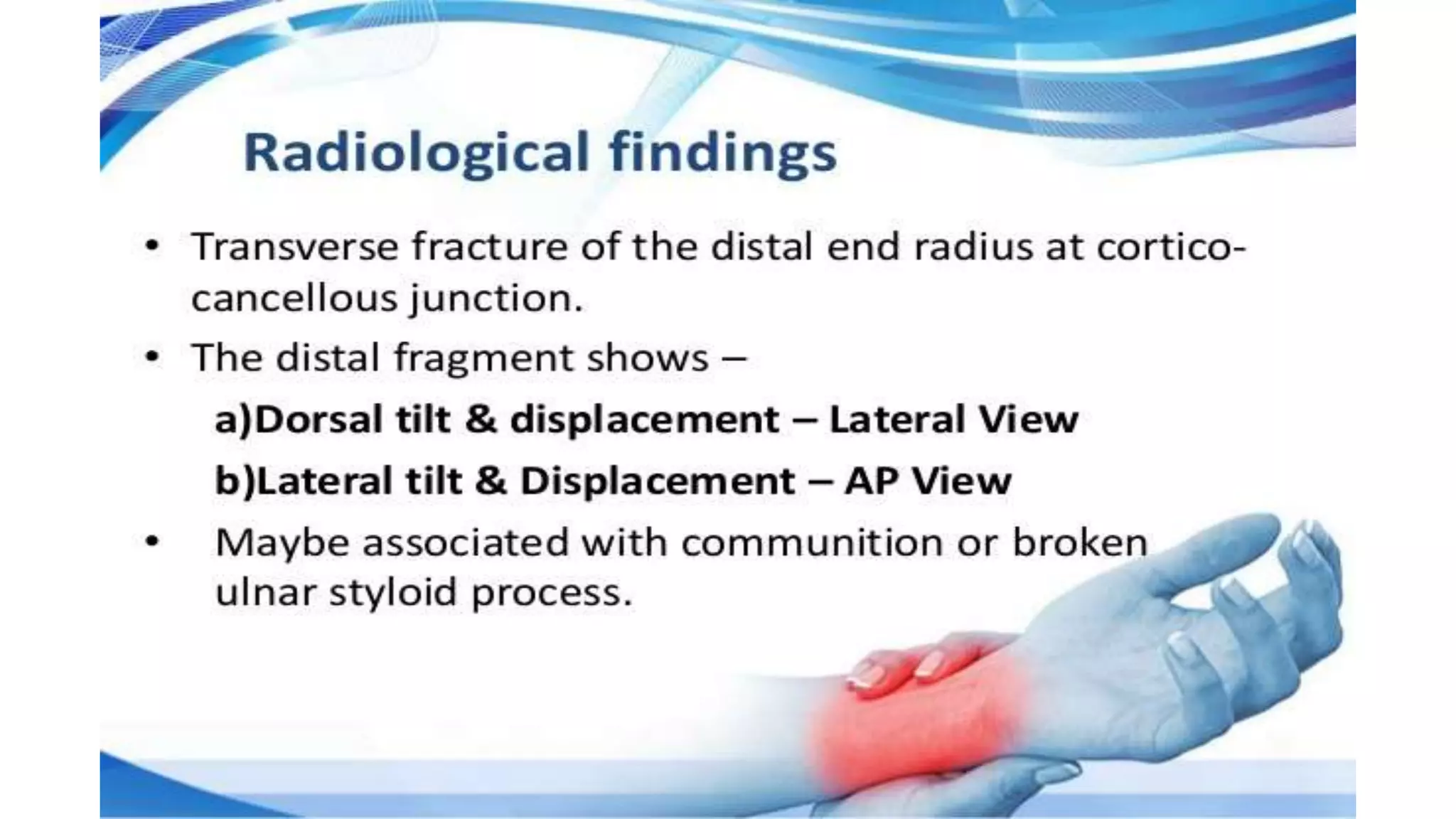

- X-ray shows there is a transverse # of the radius @
the cortico-cancellous junction.
- & often the ulnar styloid process is broken off.
- The radial fragment is impacted into radius & backward tilt.
- Sometimes, there is an intra-articular #;
sometimes it is severely fragmented.
- A CT scan in very helpful in planning Rx.

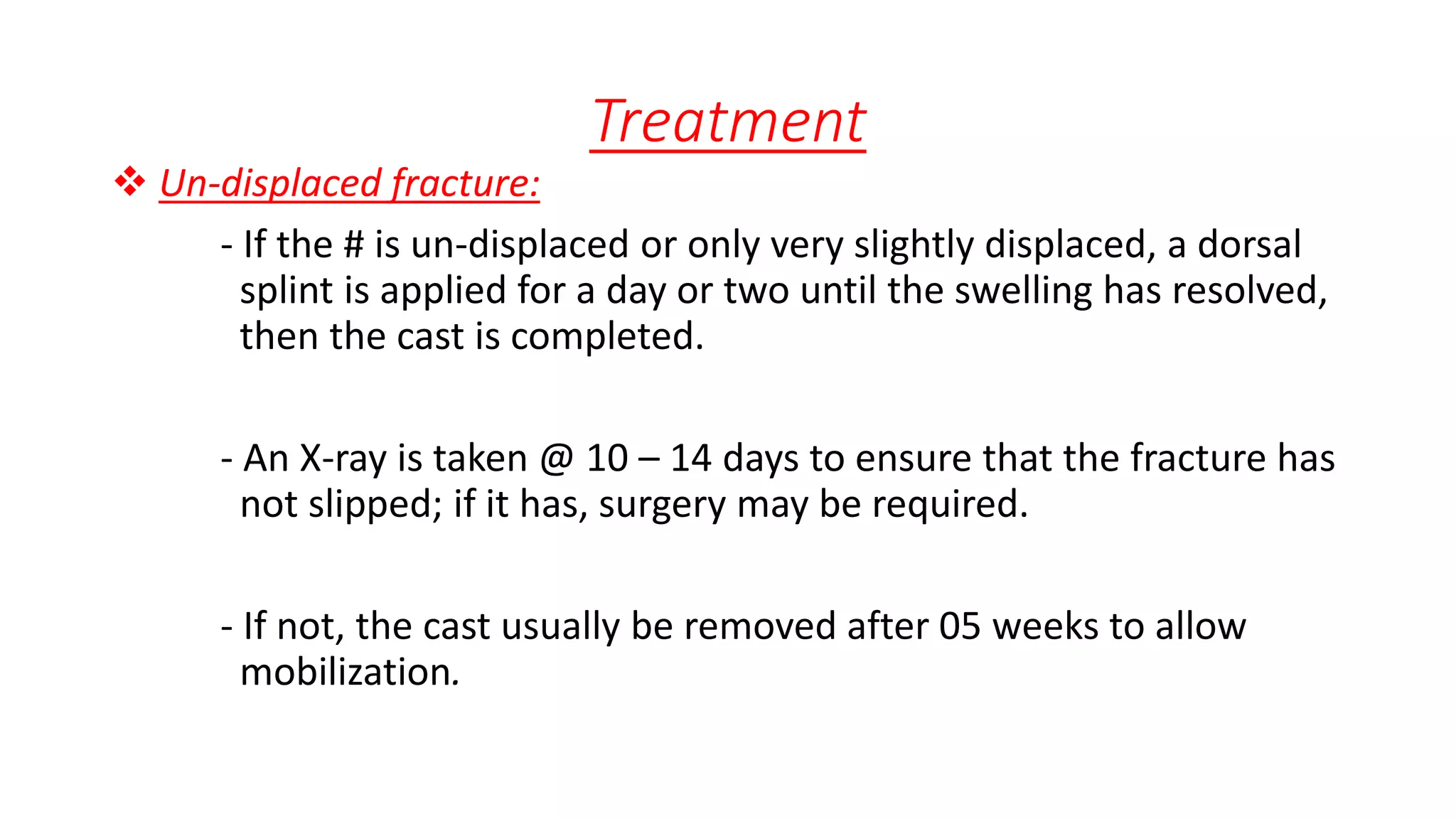

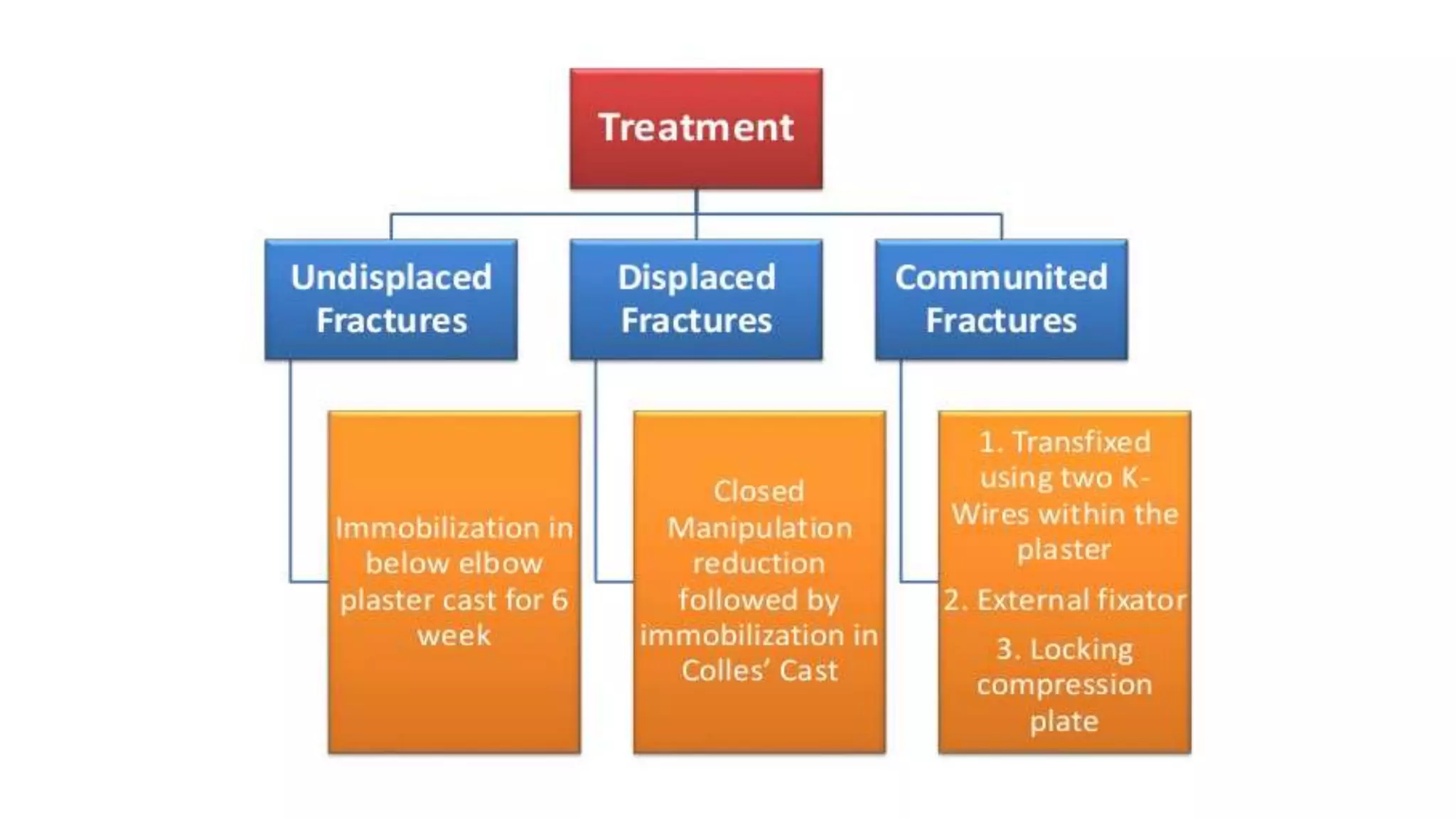

17. Treatment
 Un-displaced fracture:
- If the # is un-displaced or only very slightly displaced, a dorsal
splint is applied for a day or two until the swelling has resolved,
then the cast is completed.
- An X-ray is taken @ 10 – 14 days to ensure that the fracture has
not slipped; if it has, surgery may be required.
- If not, the cast usually be removed after 05 weeks to allow
mobilization.

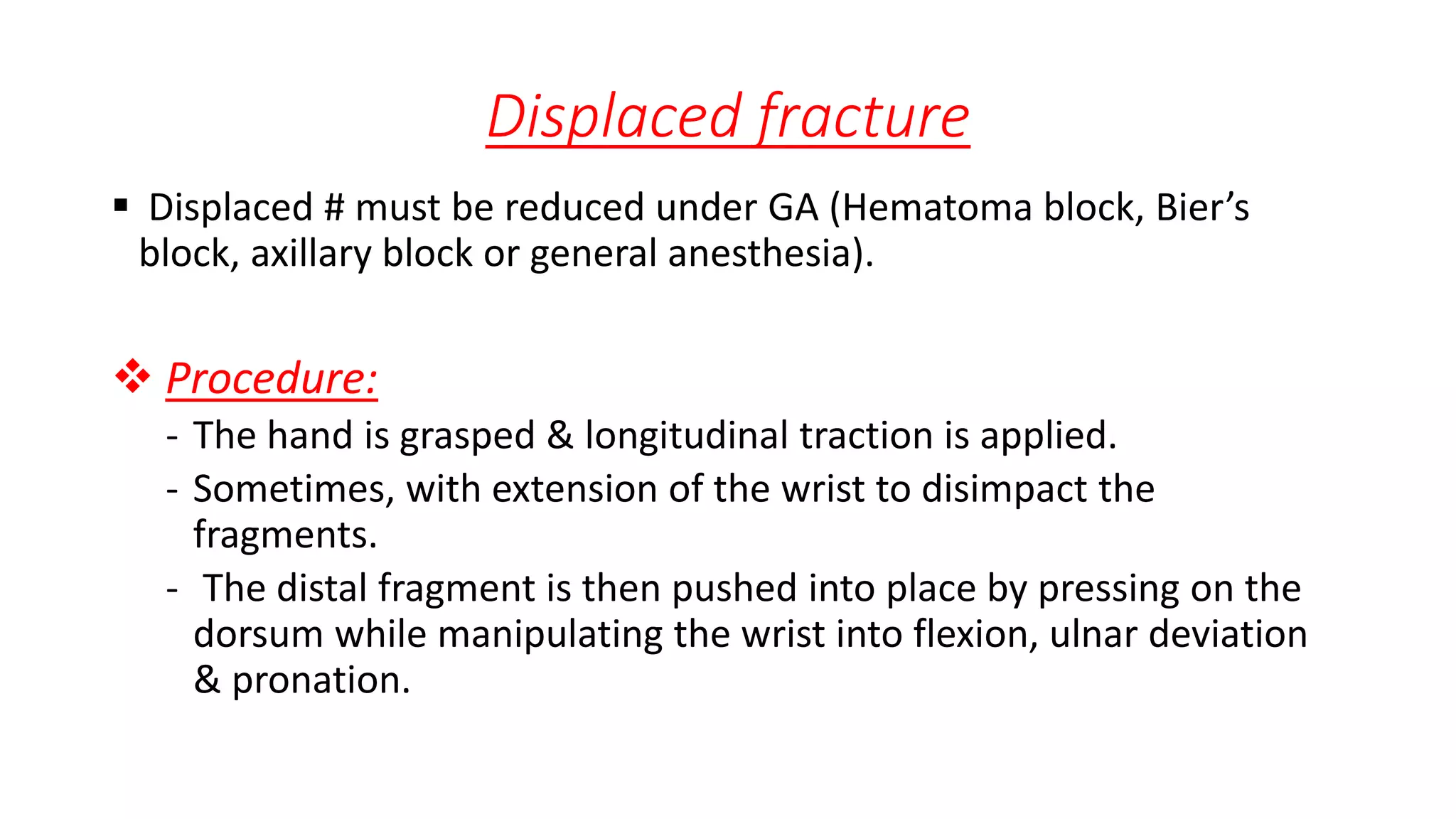

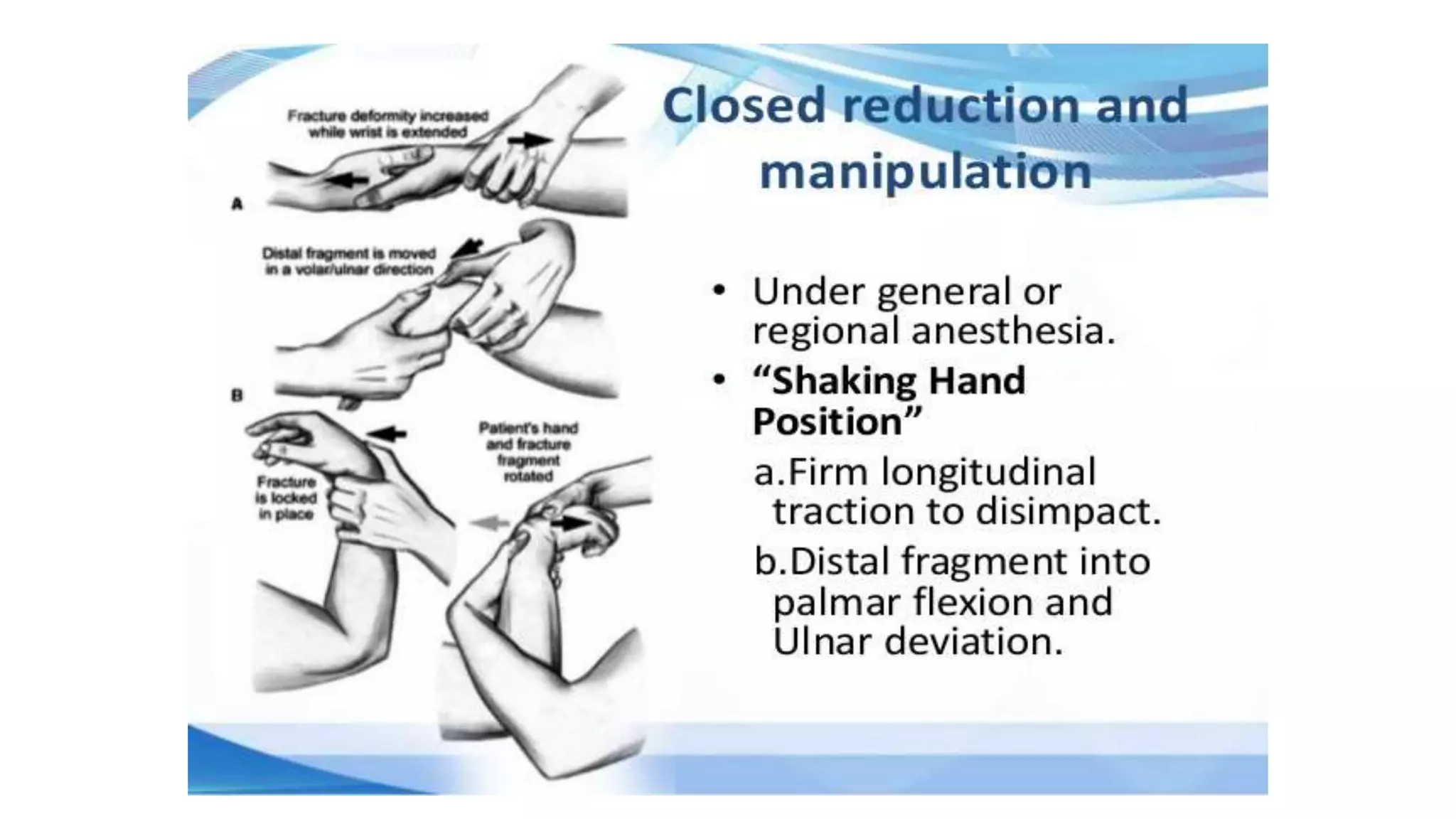

19. Displaced fracture
 Displaced # must be reduced under GA (Hematoma block, Bier’s
block, axillary block or general anesthesia).
 Procedure:
- The hand is grasped & longitudinal traction is applied.
- Sometimes, with extension of the wrist to disimpact the
fragments.
- The distal fragment is then pushed into place by pressing on the
dorsum while manipulating the wrist into flexion, ulnar deviation
& pronation.

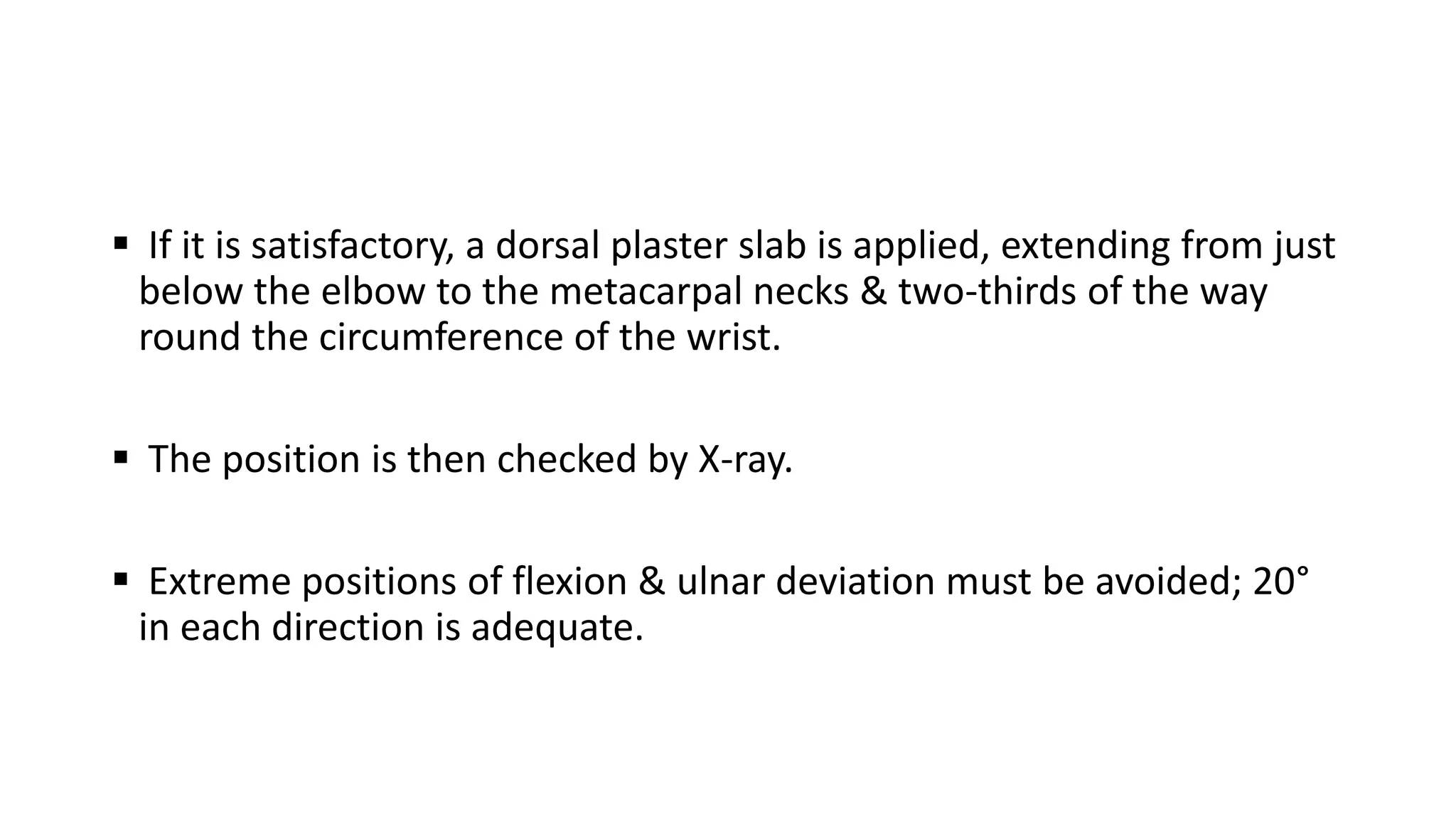

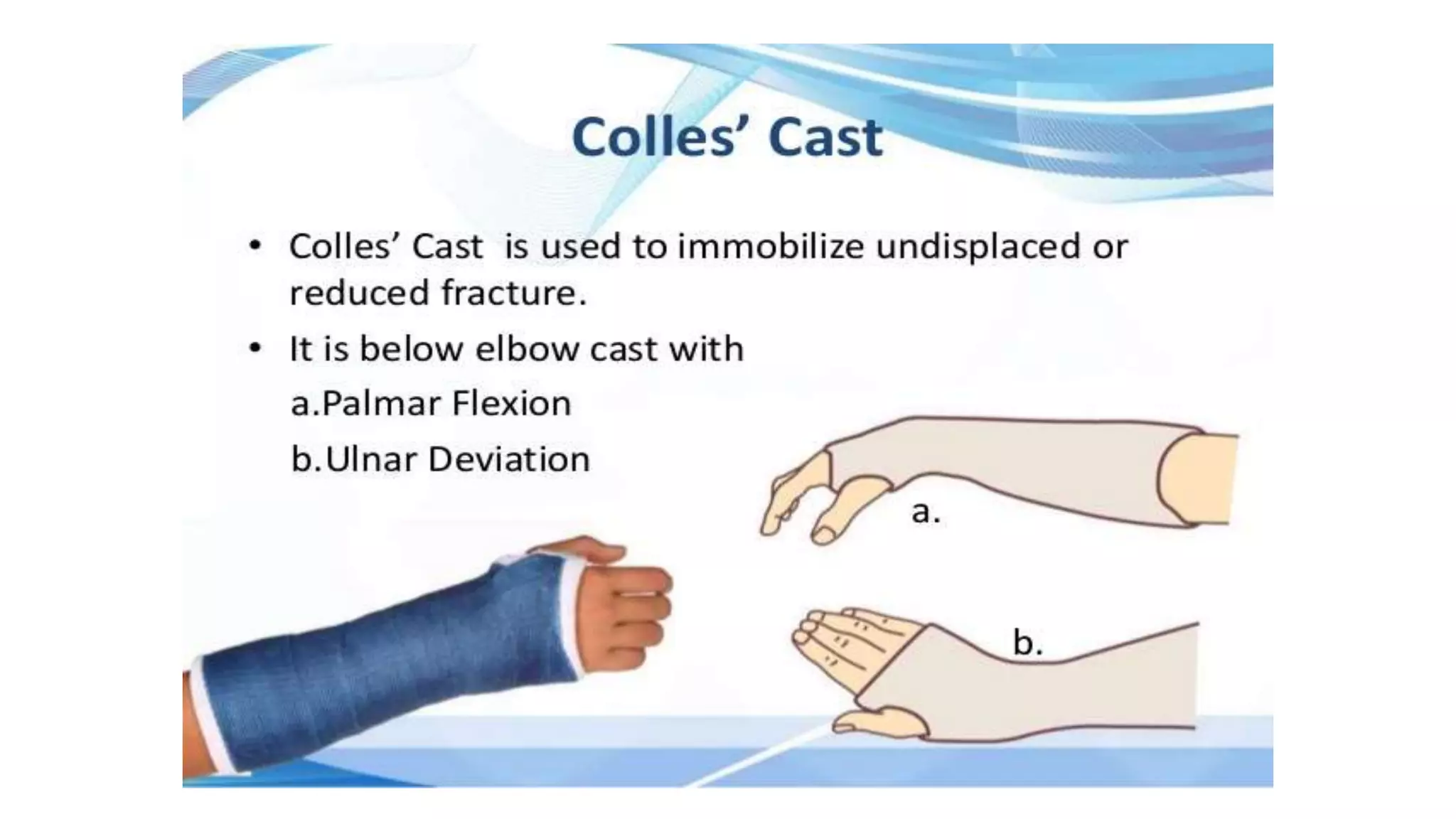

21.  If it is satisfactory, a dorsal plaster slab is applied, extending from just
below the elbow to the metacarpal necks & two-thirds of the way
round the circumference of the wrist.
 The position is then checked by X-ray.
 Extreme positions of flexion & ulnar deviation must be avoided; 20°
in each direction is adequate.

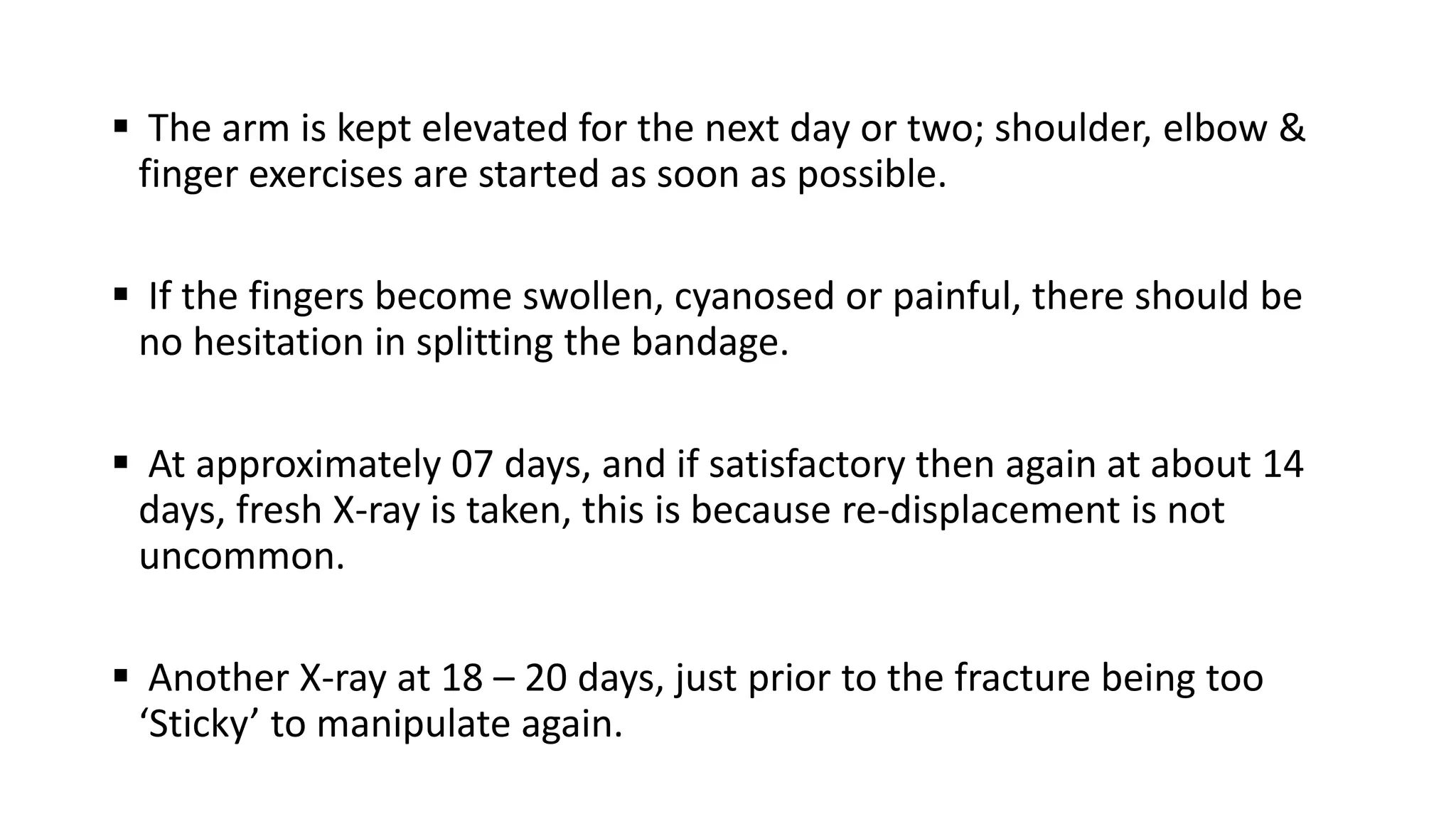

22.  The arm is kept elevated for the next day or two; shoulder, elbow &
finger exercises are started as soon as possible.
 If the fingers become swollen, cyanosed or painful, there should be
no hesitation in splitting the bandage.
 At approximately 07 days, and if satisfactory then again at about 14
days, fresh X-ray is taken, this is because re-displacement is not
uncommon.
 Another X-ray at 18 – 20 days, just prior to the fracture being too
‘Sticky’ to manipulate again.

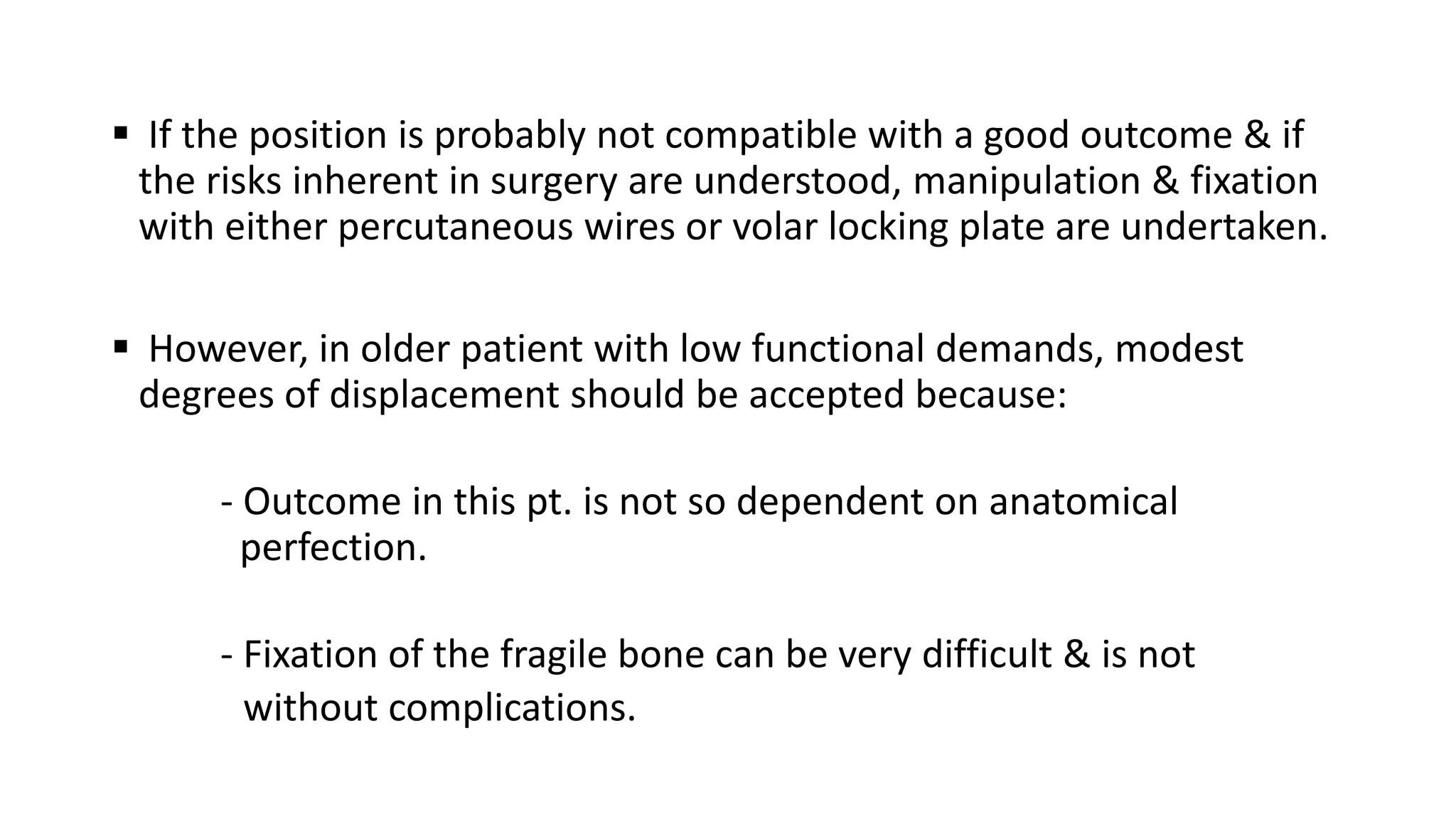

23.  If the position is probably not compatible with a good outcome & if
the risks inherent in surgery are understood, manipulation & fixation
with either percutaneous wires or volar locking plate are undertaken.
 However, in older patient with low functional demands, modest
degrees of displacement should be accepted because:
- Outcome in this pt. is not so dependent on anatomical
perfection.
- Fixation of the fragile bone can be very difficult & is not
without complications.

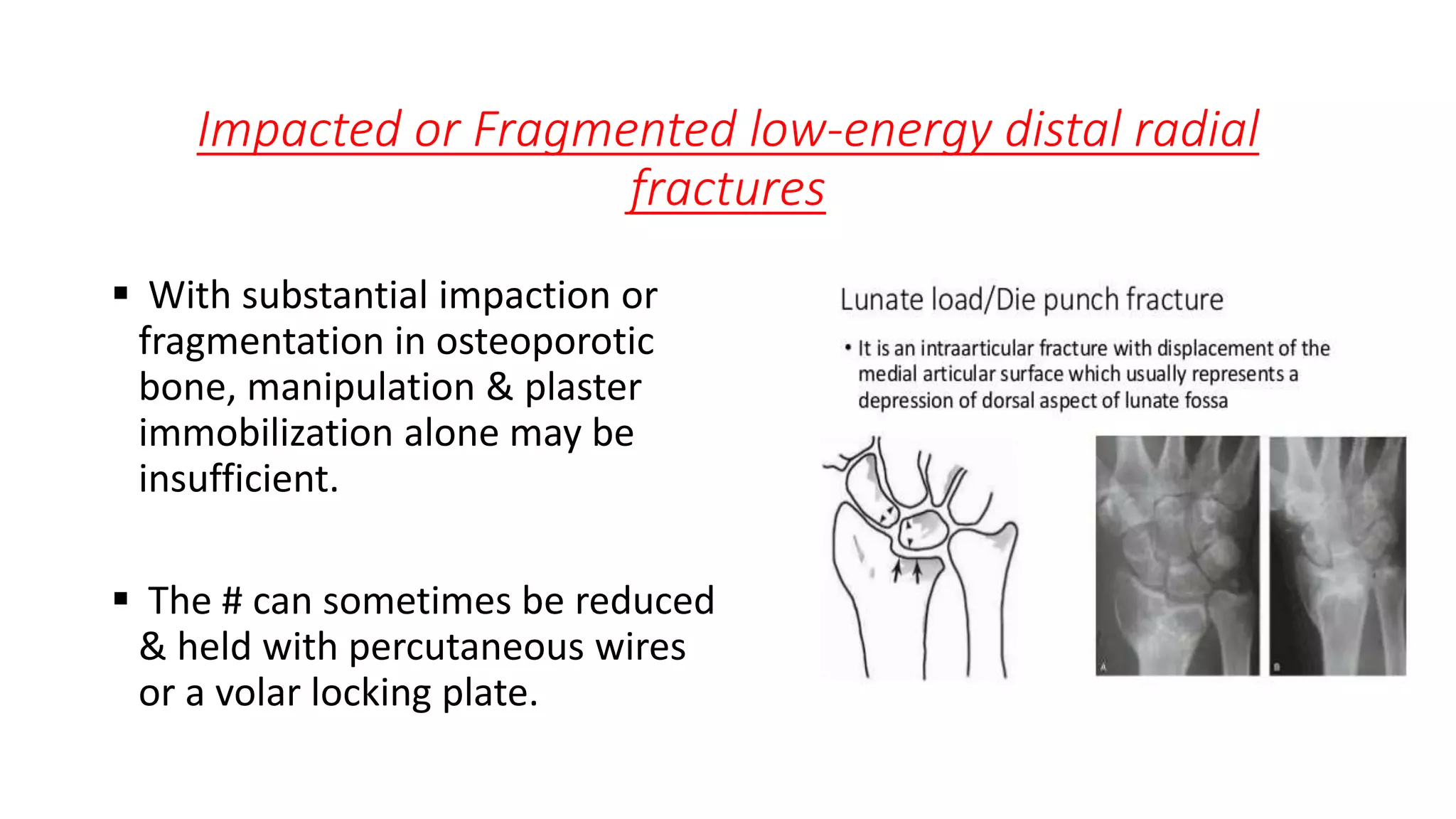

24. Impacted or Fragmented low-energy distal radial
fractures
 With substantial impaction or
fragmentation in osteoporotic
bone, manipulation & plaster
immobilization alone may be
insufficient.

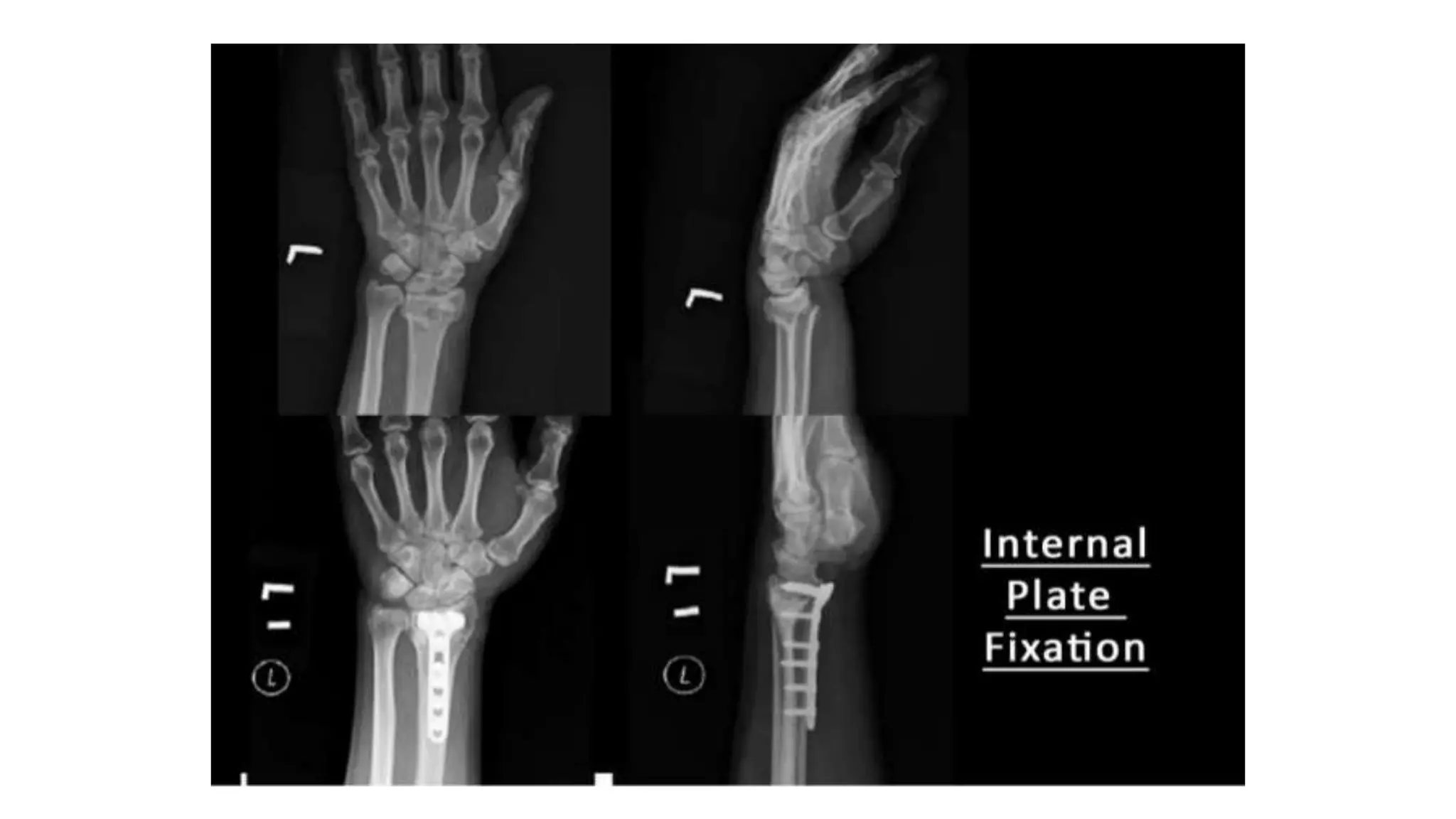

 The # can sometimes be reduced
& held with percutaneous wires
or a volar locking plate.

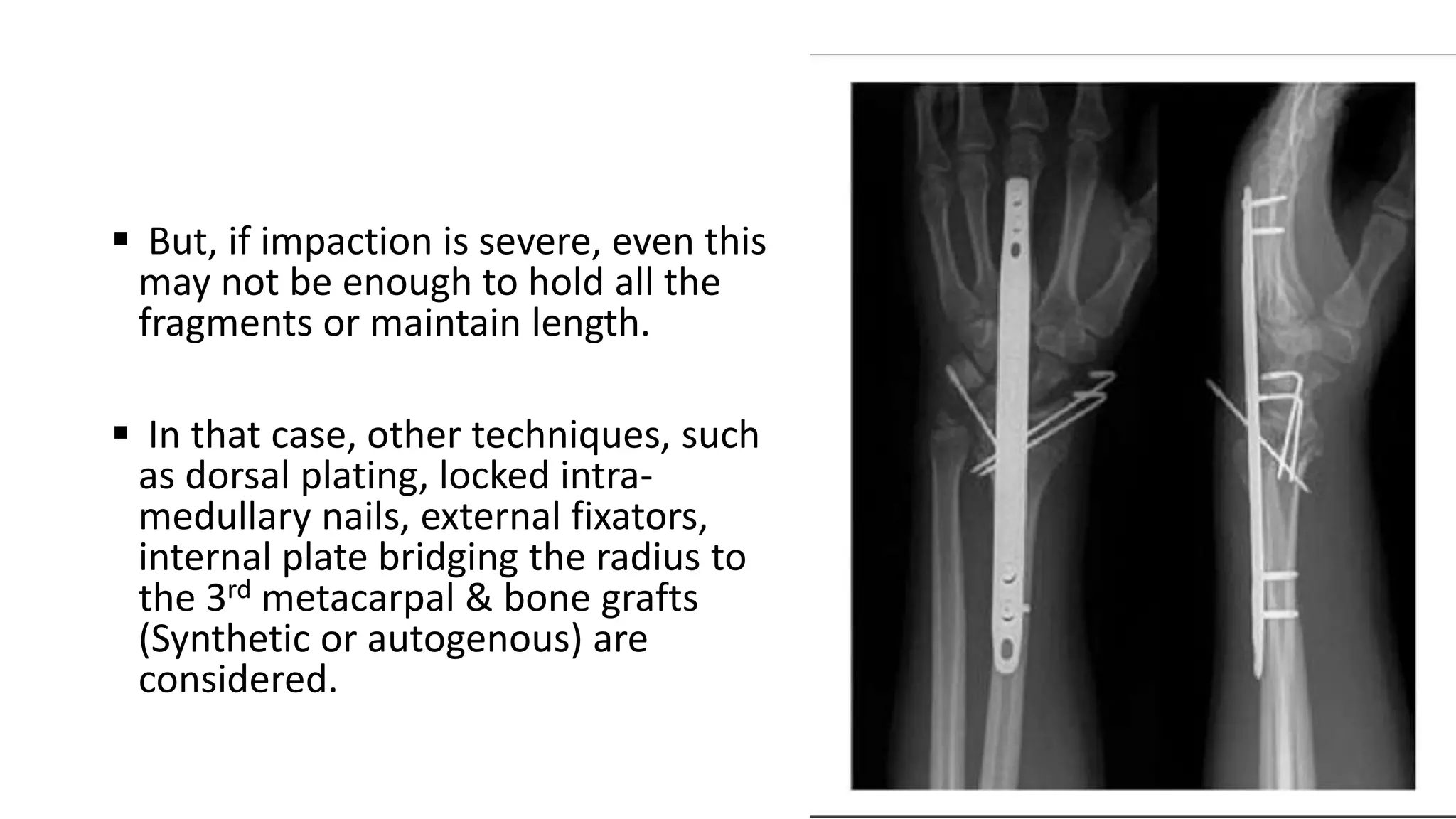

25.  But, if impaction is severe, even this
may not be enough to hold all the
fragments or maintain length.

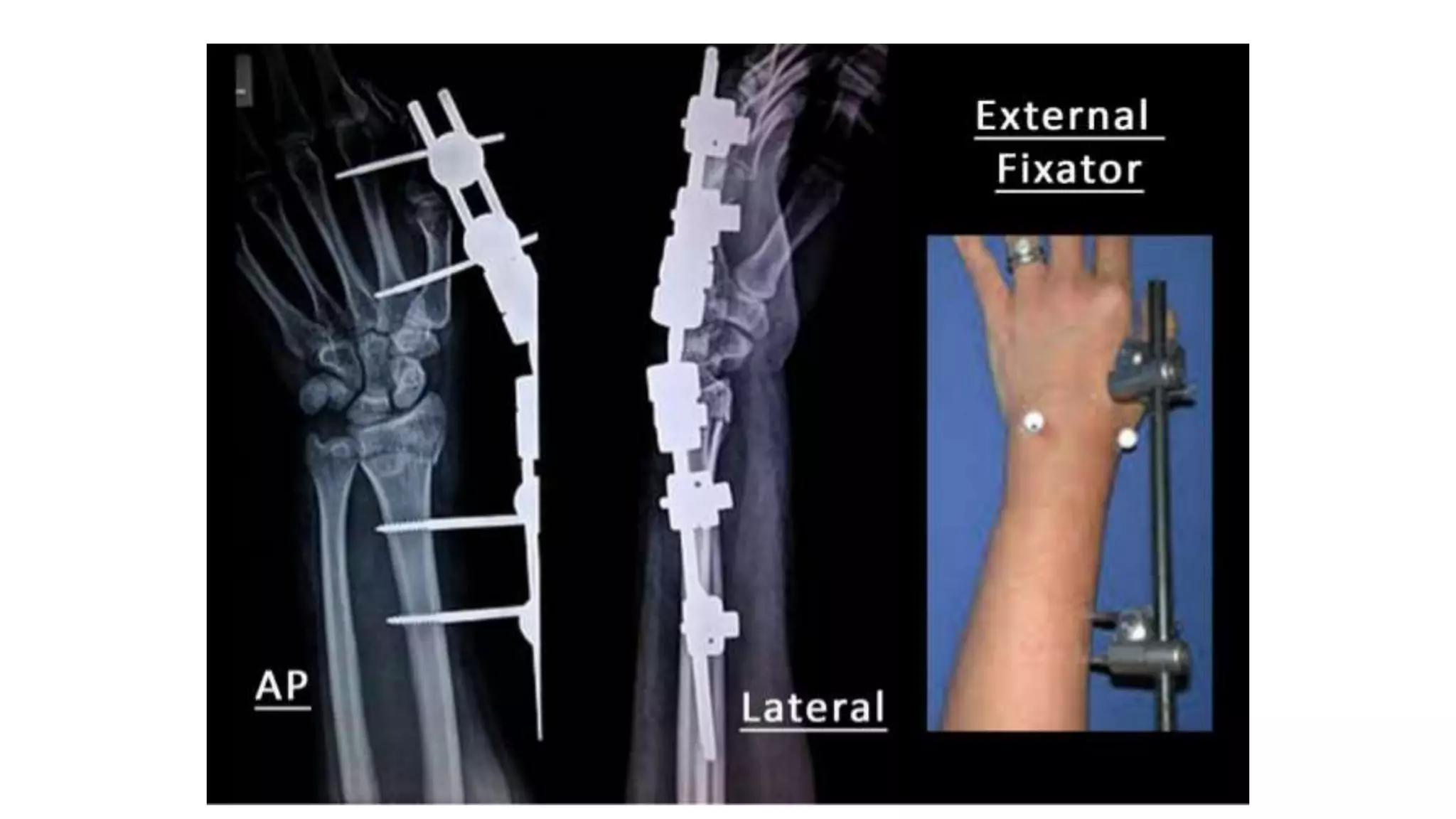

 In that case, other techniques, such
as dorsal plating, locked intra-
medullary nails, external fixators,
internal plate bridging the radius to
the 3rd metacarpal & bone grafts
(Synthetic or autogenous) are
considered.

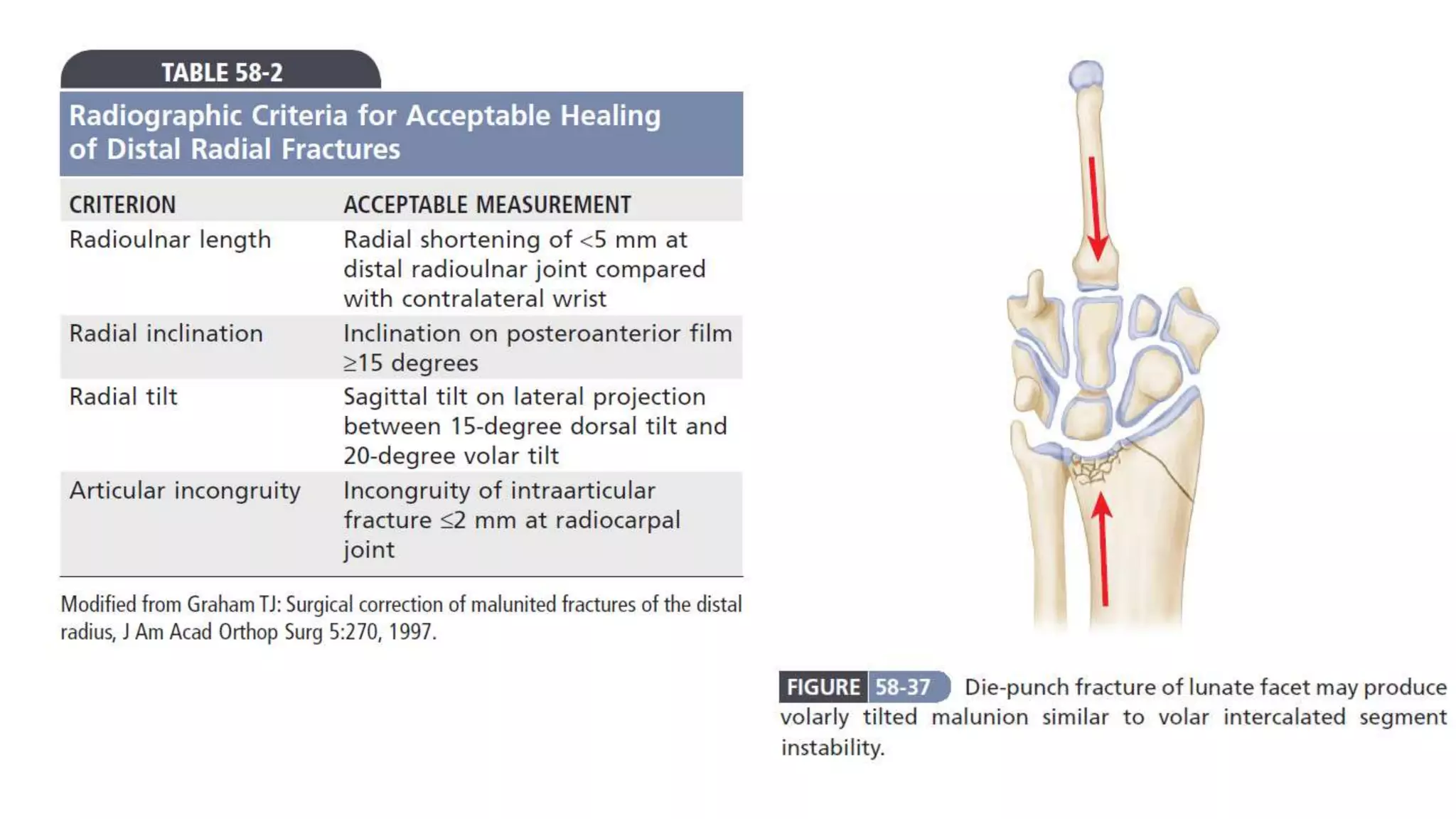

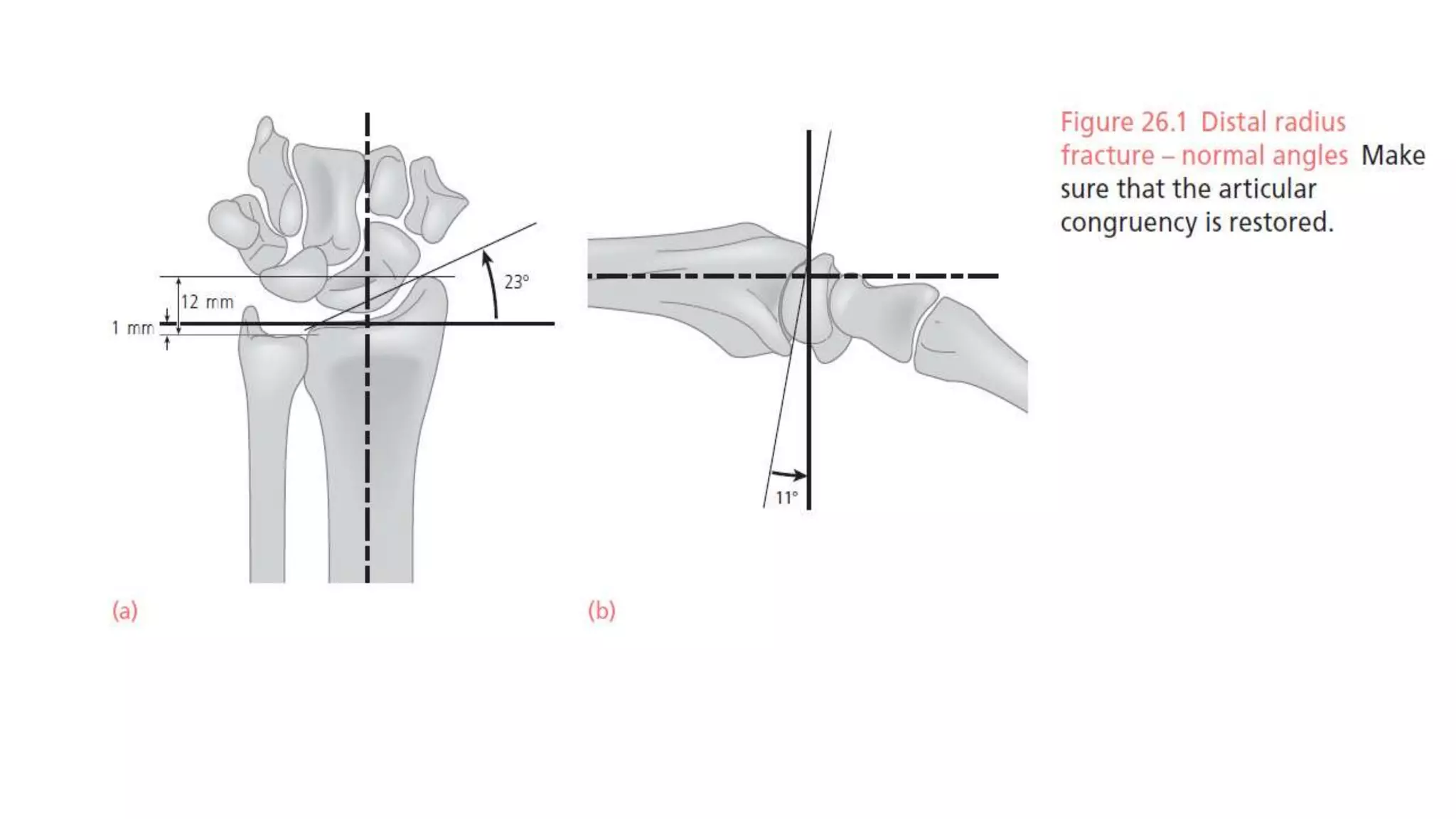

34. Poor outcome is associated with:
(i) Loss of radial length >3mm.
(ii) Dorsal tilt >15° from neutral depending on age & function.
(iii) Palmar tilt >20° from neutral.

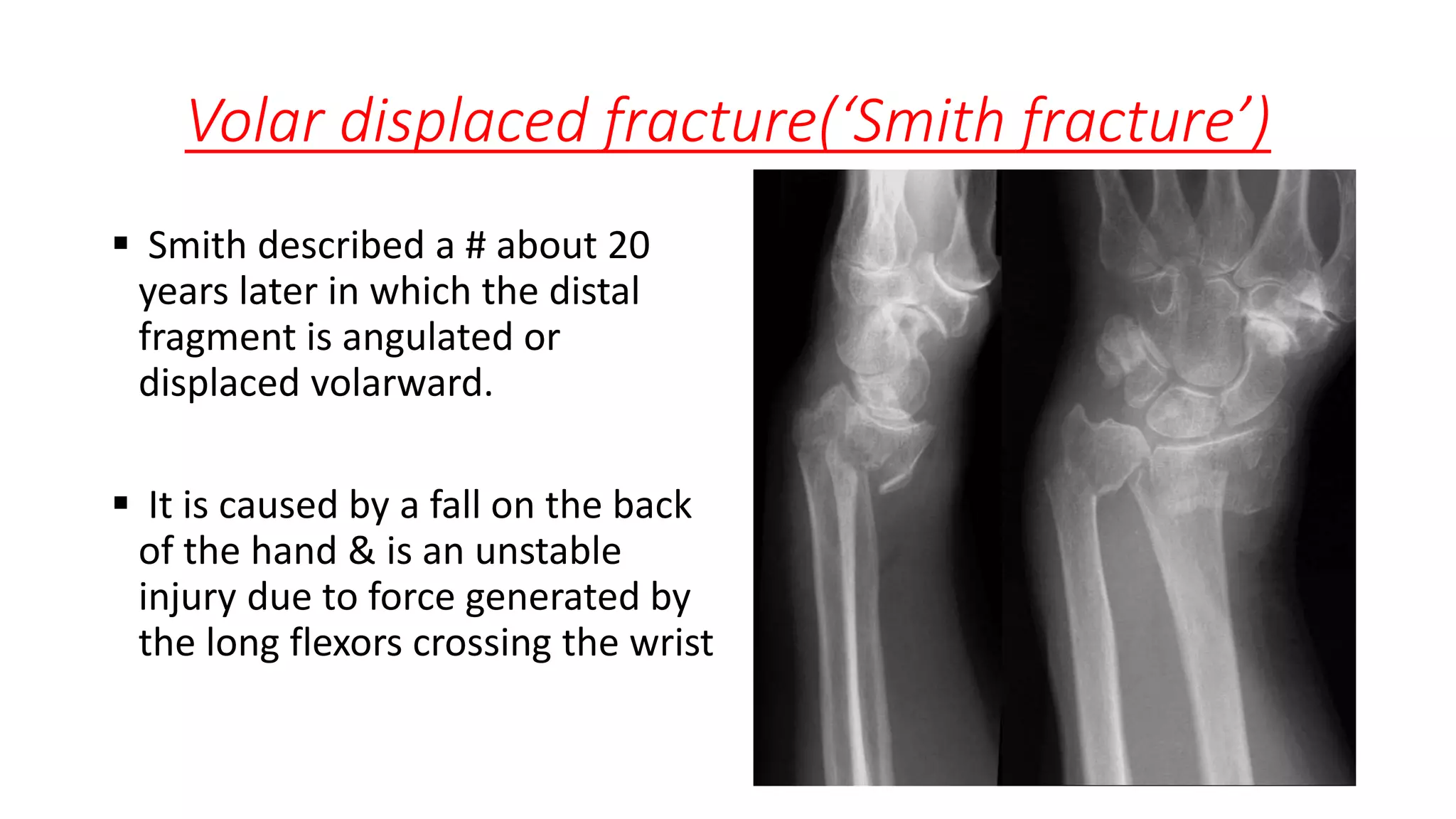

37. Volar displaced fracture(‘Smith fracture’)
 Smith described a # about 20
years later in which the distal
fragment is angulated or
displaced volarward.
 It is caused by a fall on the back
of the hand & is an unstable
injury due to force generated by
the long flexors crossing the wrist

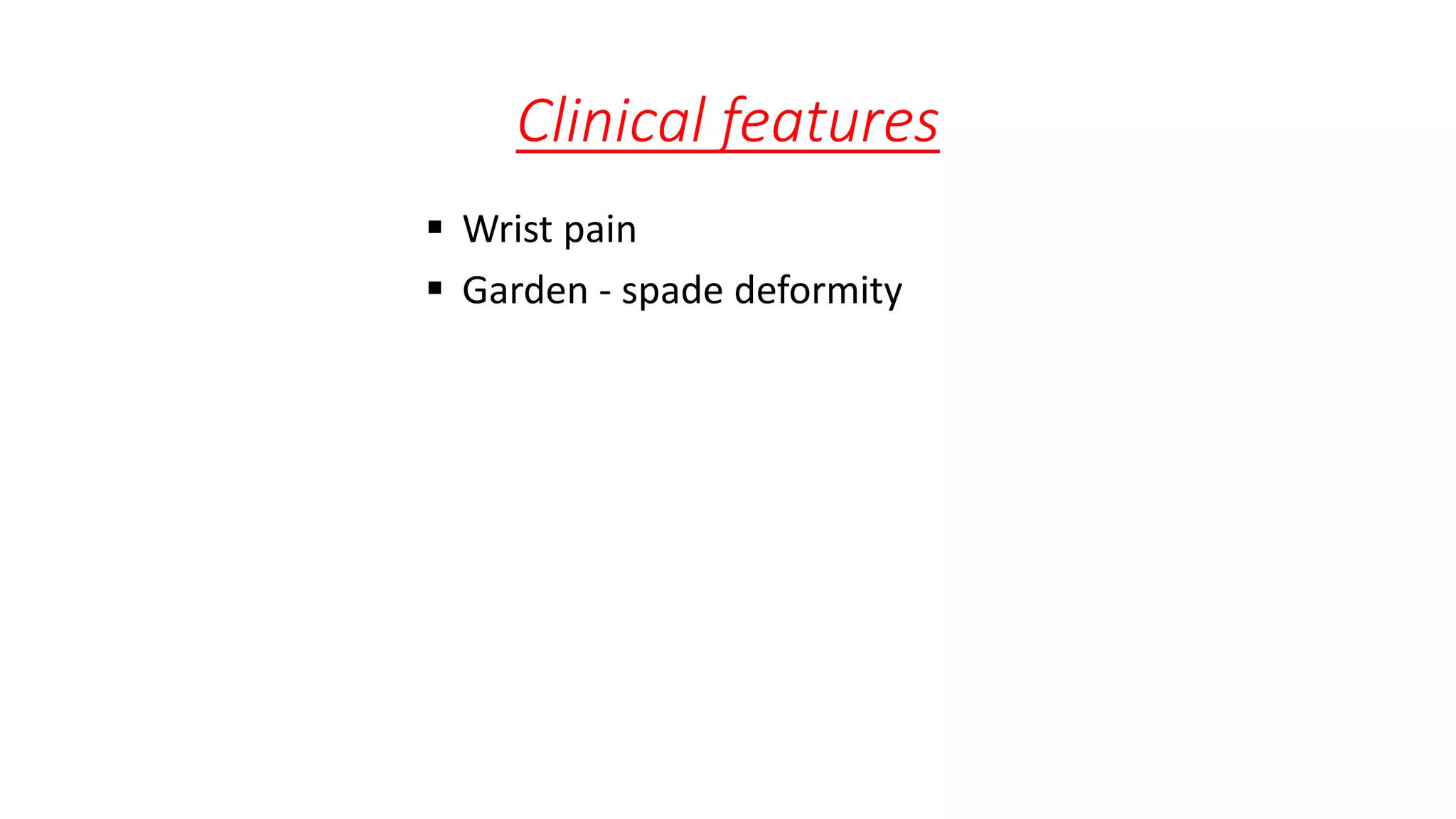

38. Clinical features
 Wrist pain
 Garden - spade deformity

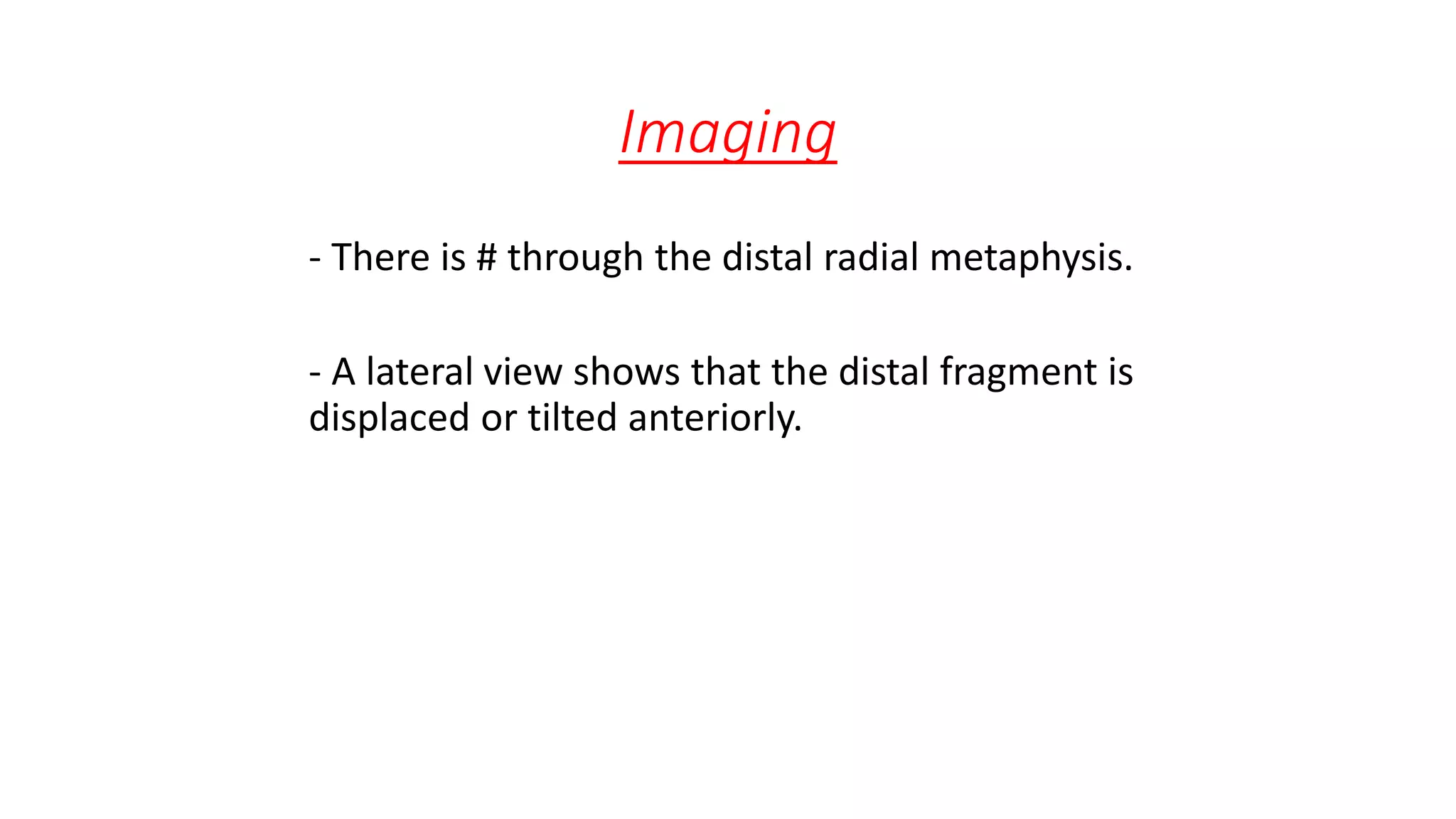

39. Imaging
- There is # through the distal radial metaphysis.
- A lateral view shows that the distal fragment is
displaced or tilted anteriorly.

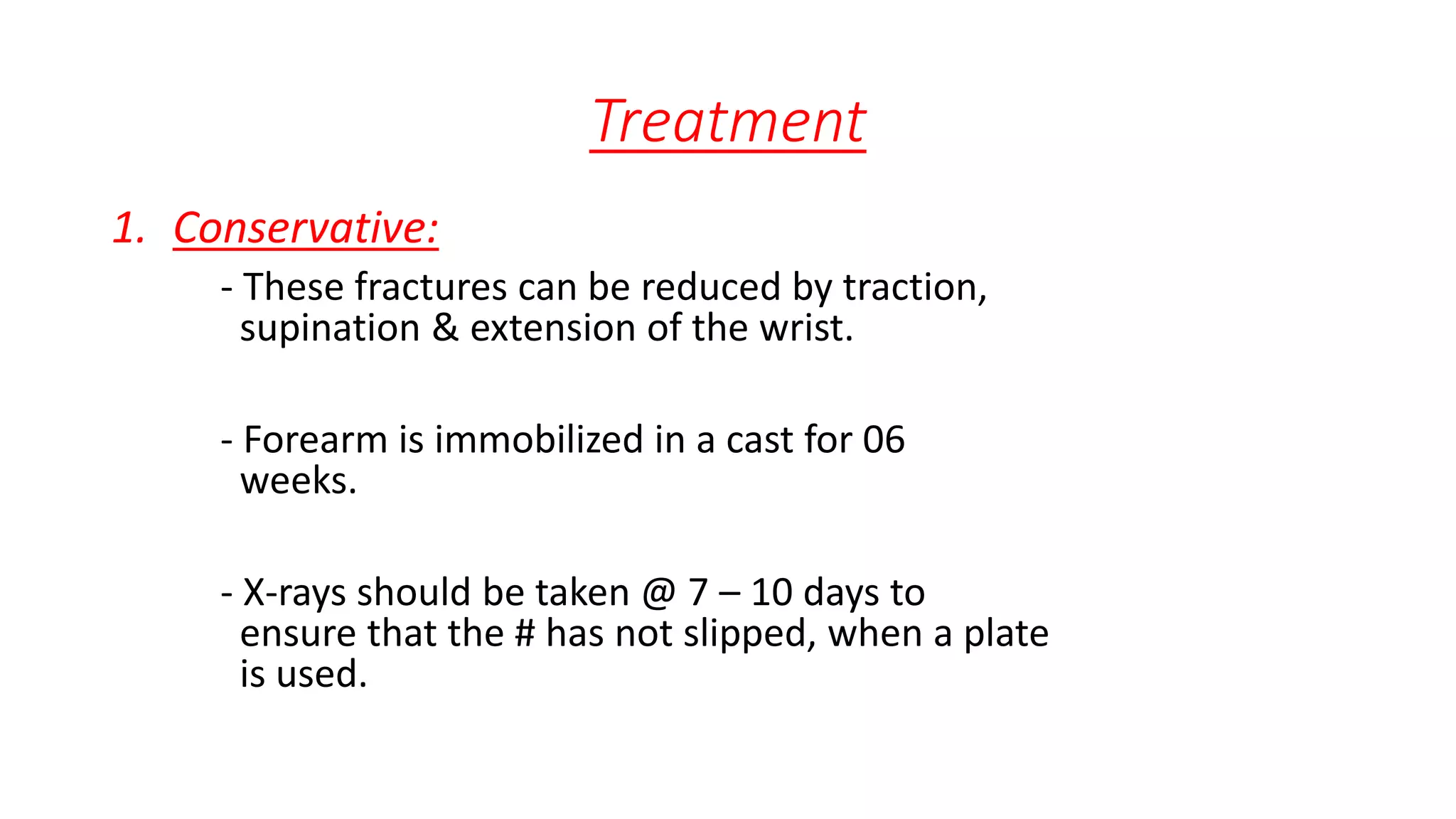

40. Treatment
1. Conservative:
- These fractures can be reduced by traction,
supination & extension of the wrist.
- Forearm is immobilized in a cast for 06
weeks.
- X-rays should be taken @ 7 – 10 days to
ensure that the # has not slipped, when a plate
is used.

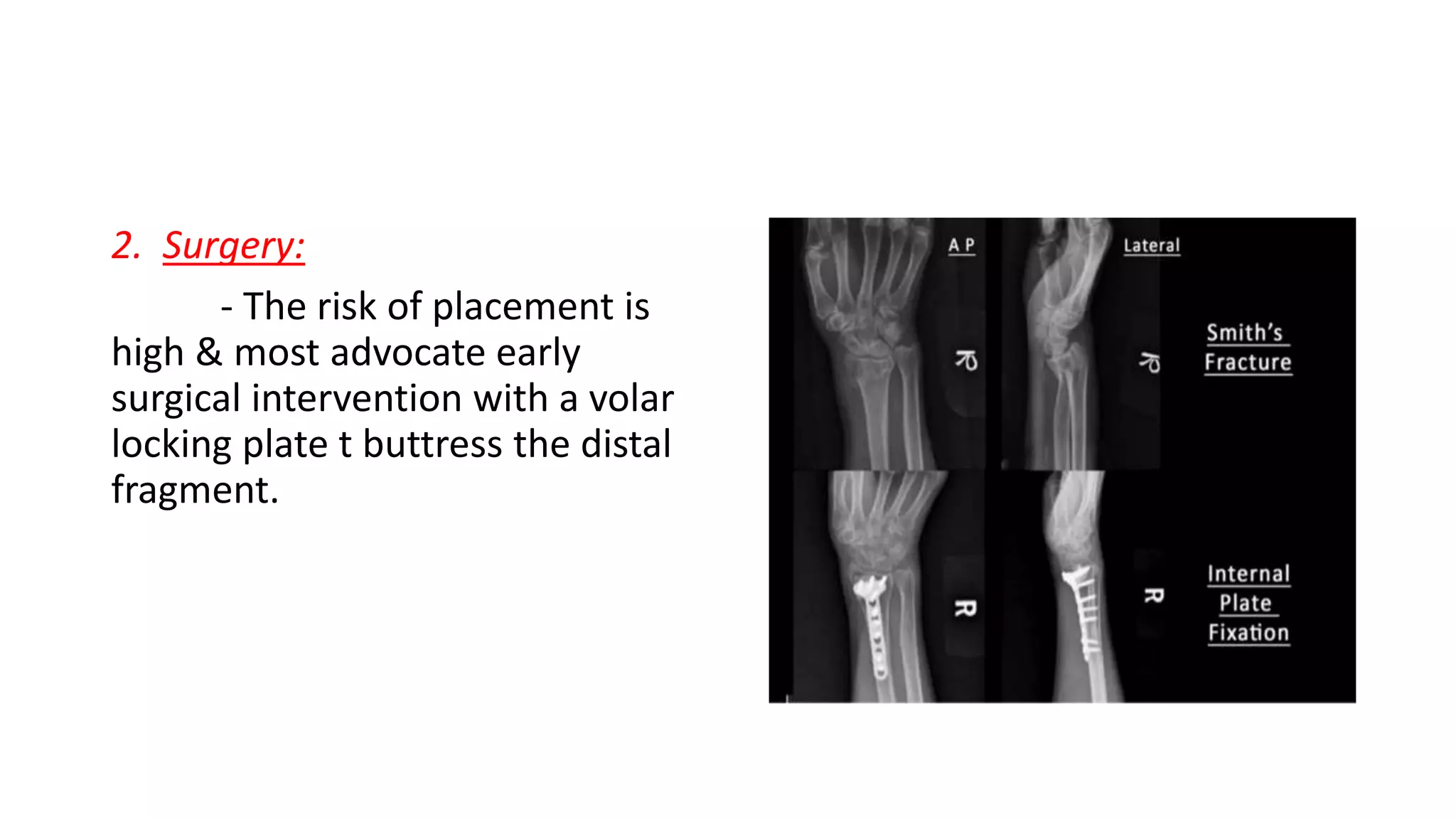

41. 2. Surgery:
- The risk of placement is
high & most advocate early
surgical intervention with a volar
locking plate t buttress the distal
fragment.

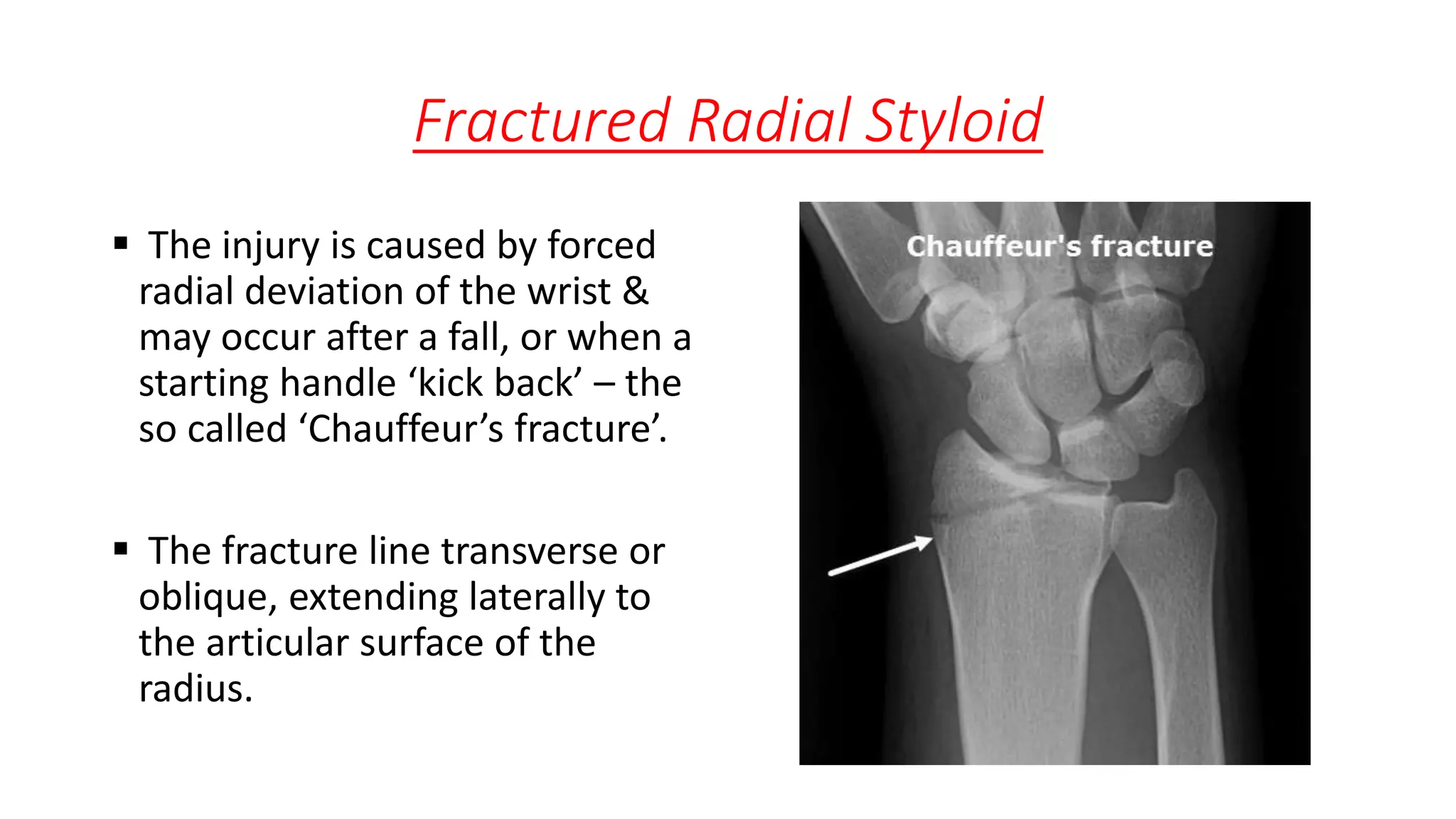

42. Fractured Radial Styloid
 The injury is caused by forced
radial deviation of the wrist &
may occur after a fall, or when a
starting handle ‘kick back’ – the
so called ‘Chauffeur’s fracture’.
 The fracture line transverse or
oblique, extending laterally to
the articular surface of the
radius.

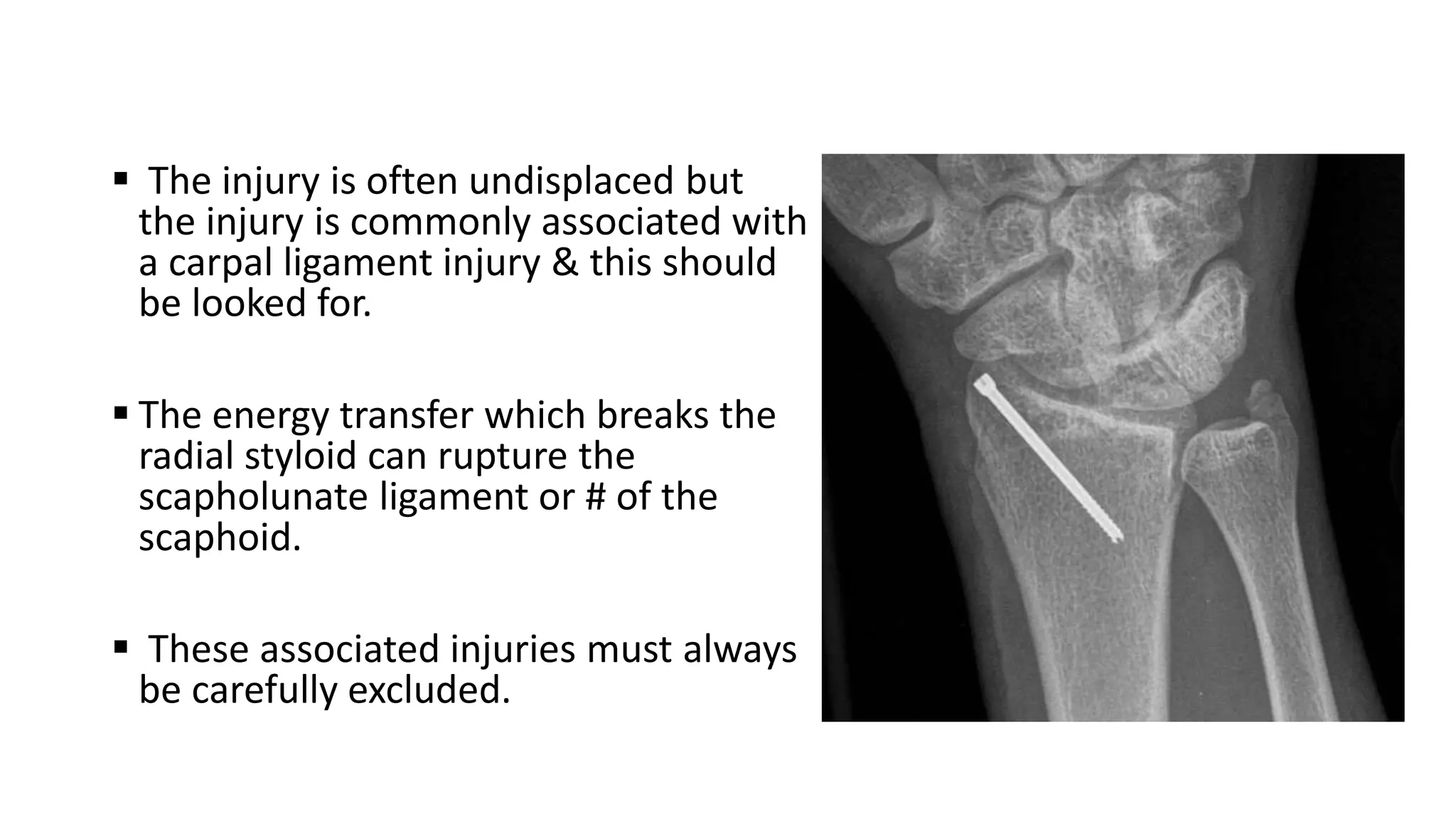

43.  The injury is often undisplaced but
the injury is commonly associated with
a carpal ligament injury & this should
be looked for.
 The energy transfer which breaks the
radial styloid can rupture the
scapholunate ligament or # of the
scaphoid.
 These associated injuries must always
be carefully excluded.

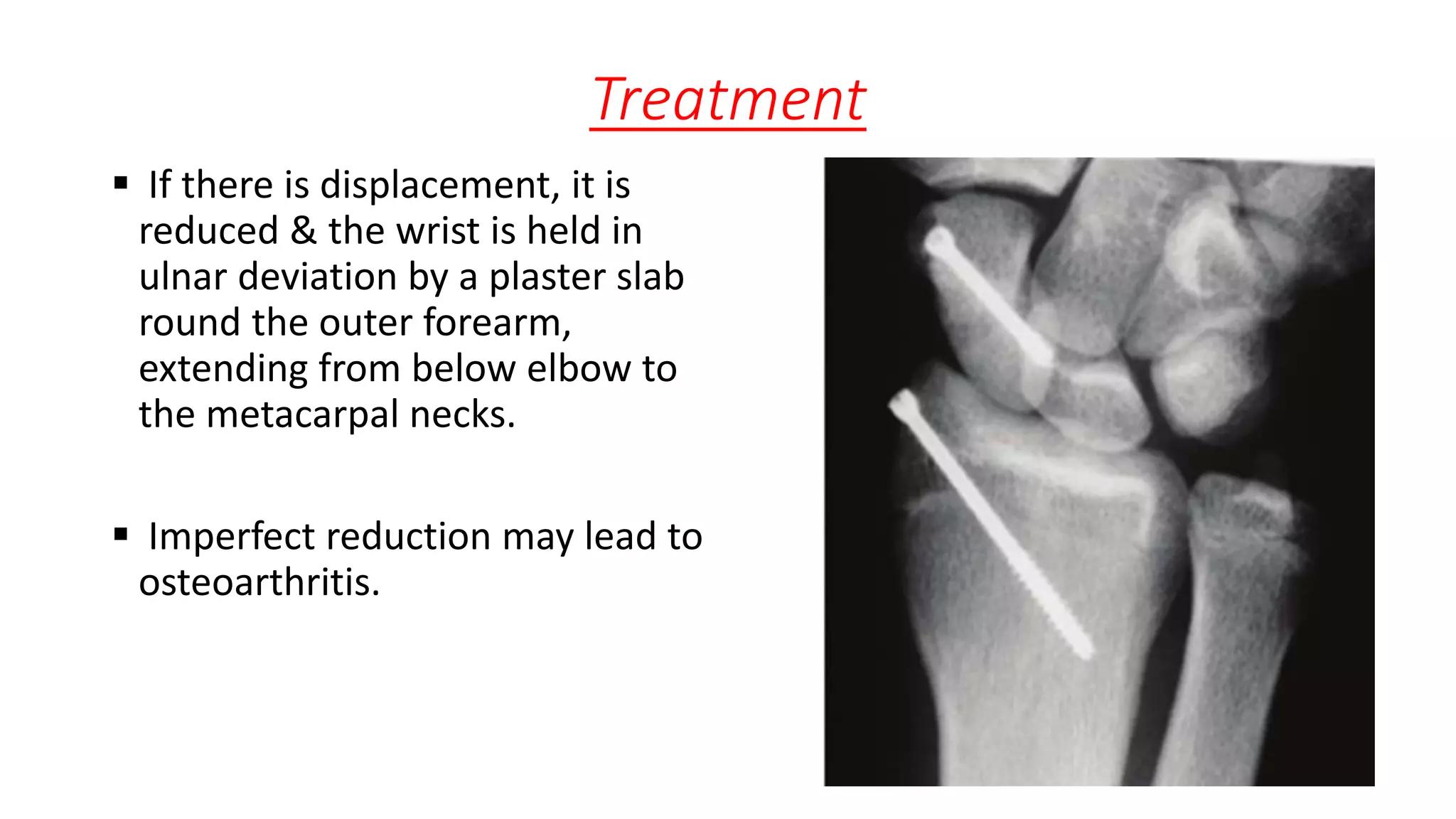

44. Treatment
 If there is displacement, it is
reduced & the wrist is held in
ulnar deviation by a plaster slab
round the outer forearm,
extending from below elbow to
the metacarpal necks.
 Imperfect reduction may lead to
osteoarthritis.

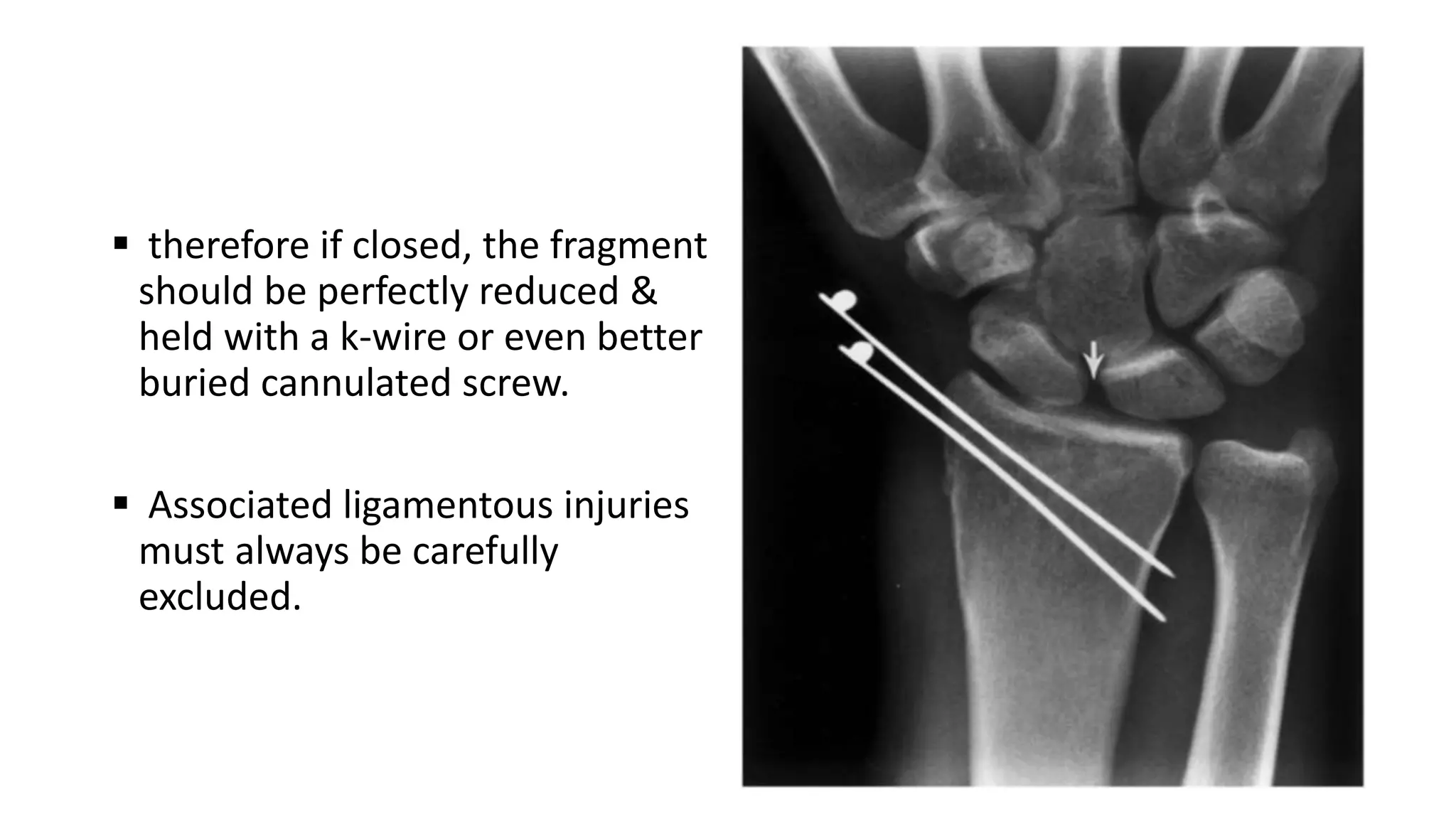

45.  therefore if closed, the fragment
should be perfectly reduced &
held with a k-wire or even better
buried cannulated screw.
 Associated ligamentous injuries
must always be carefully
excluded.

46. Fragmented intra-articular fractures
 In the young adult, a fragmented intra-articular fracture is a high-
energy injury.
 A poor outcome will probably result unless intra-articular congruity,
fracture alignment & length are restored & movements started as
soon as possible.

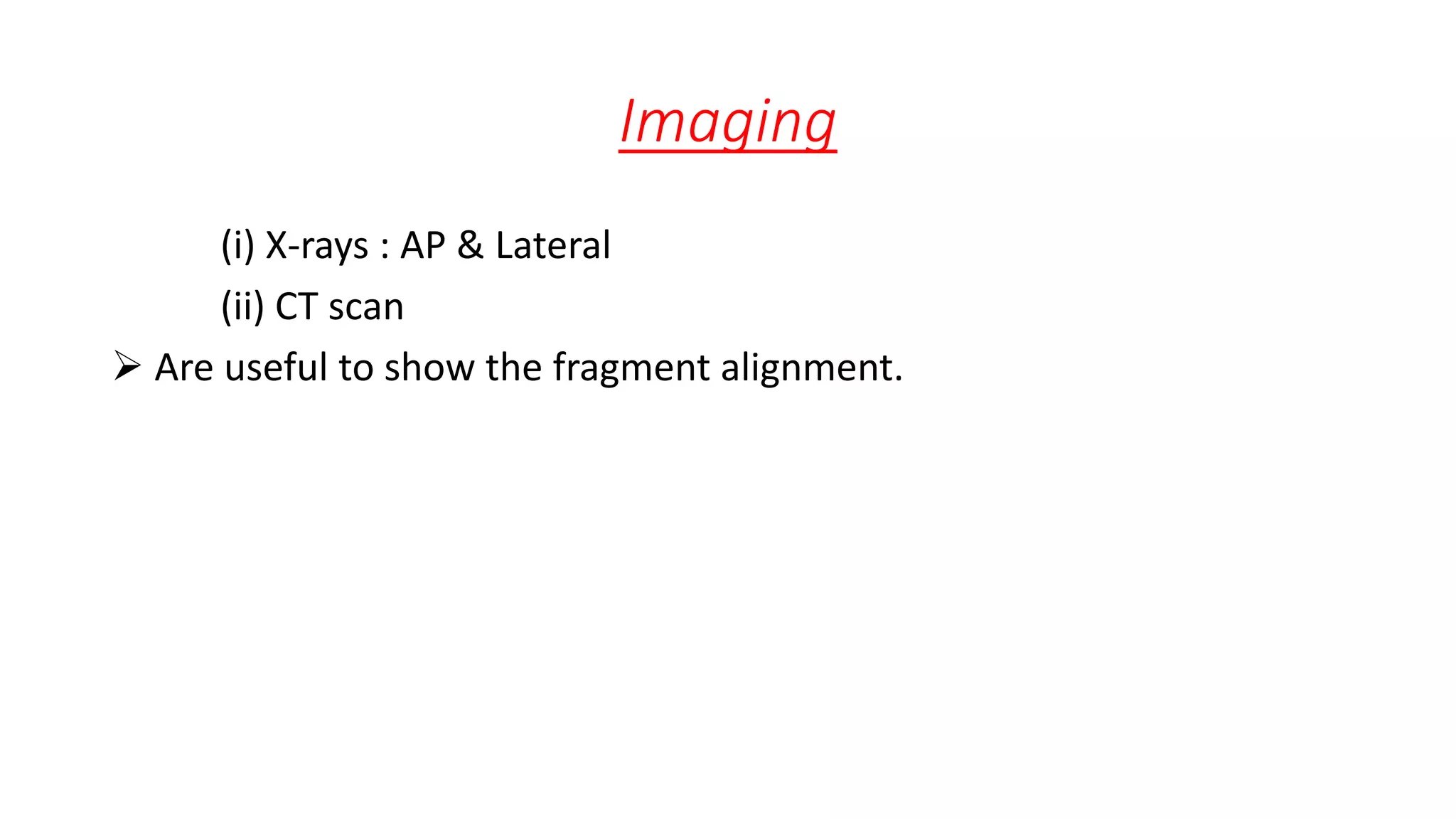

47. Imaging
(i) X-rays : AP & Lateral
(ii) CT scan
 Are useful to show the fragment alignment.

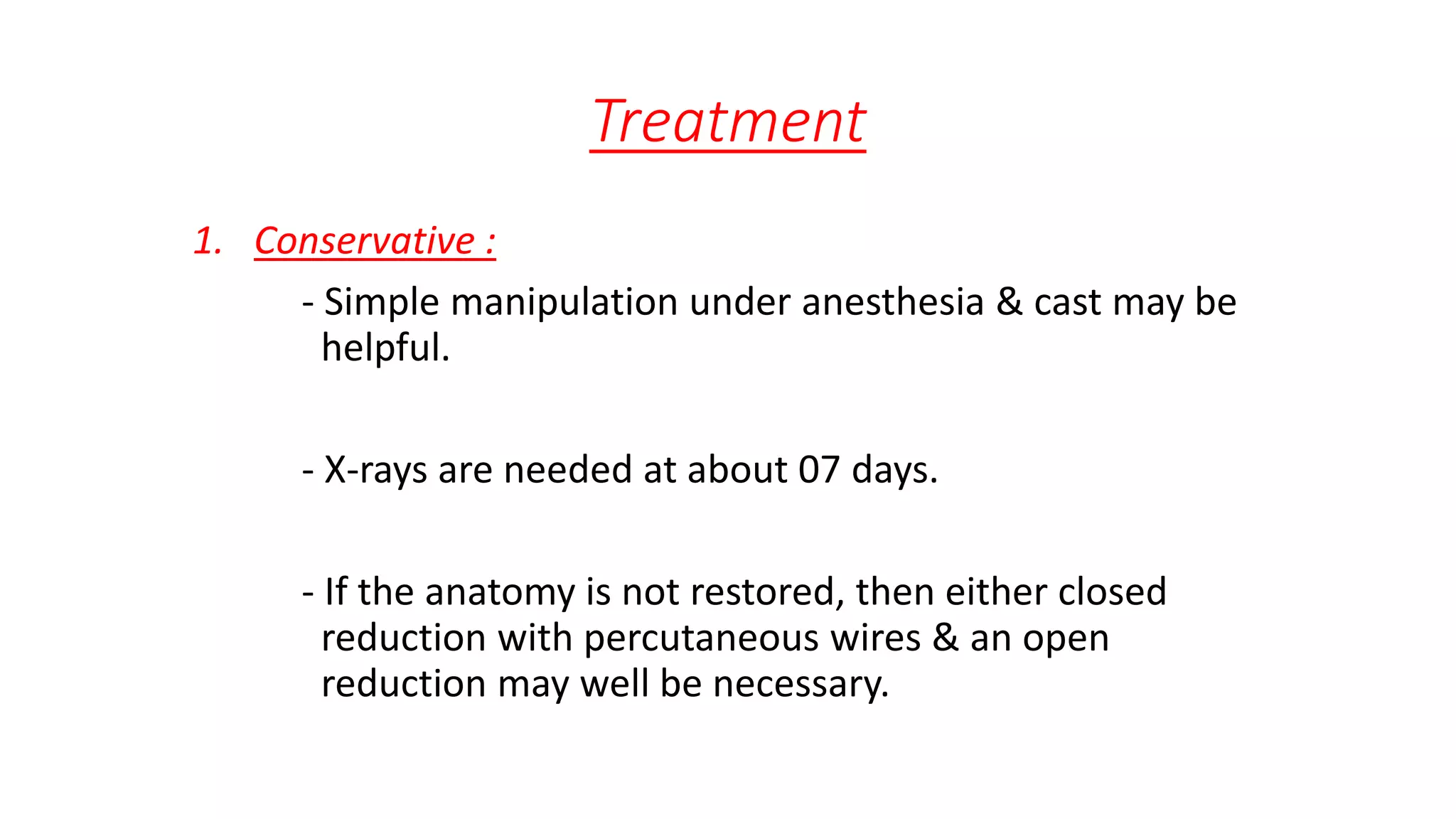

48. Treatment
1. Conservative :
- Simple manipulation under anesthesia & cast may be
helpful.
- X-rays are needed at about 07 days.
- If the anatomy is not restored, then either closed
reduction with percutaneous wires & an open
reduction may well be necessary.

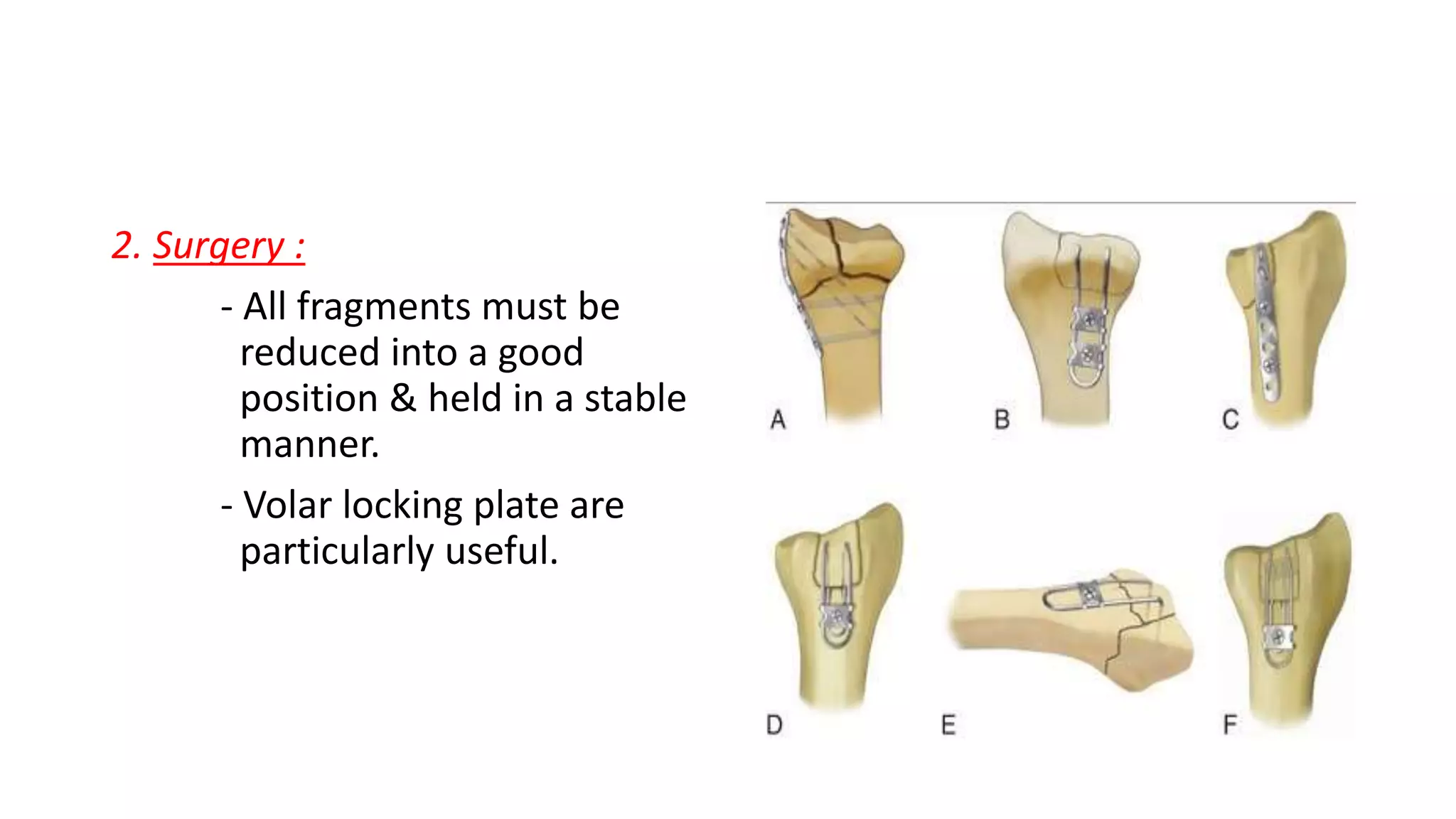

49. 2. Surgery :
- All fragments must be
reduced into a good
position & held in a stable
manner.
- Volar locking plate are
particularly useful.

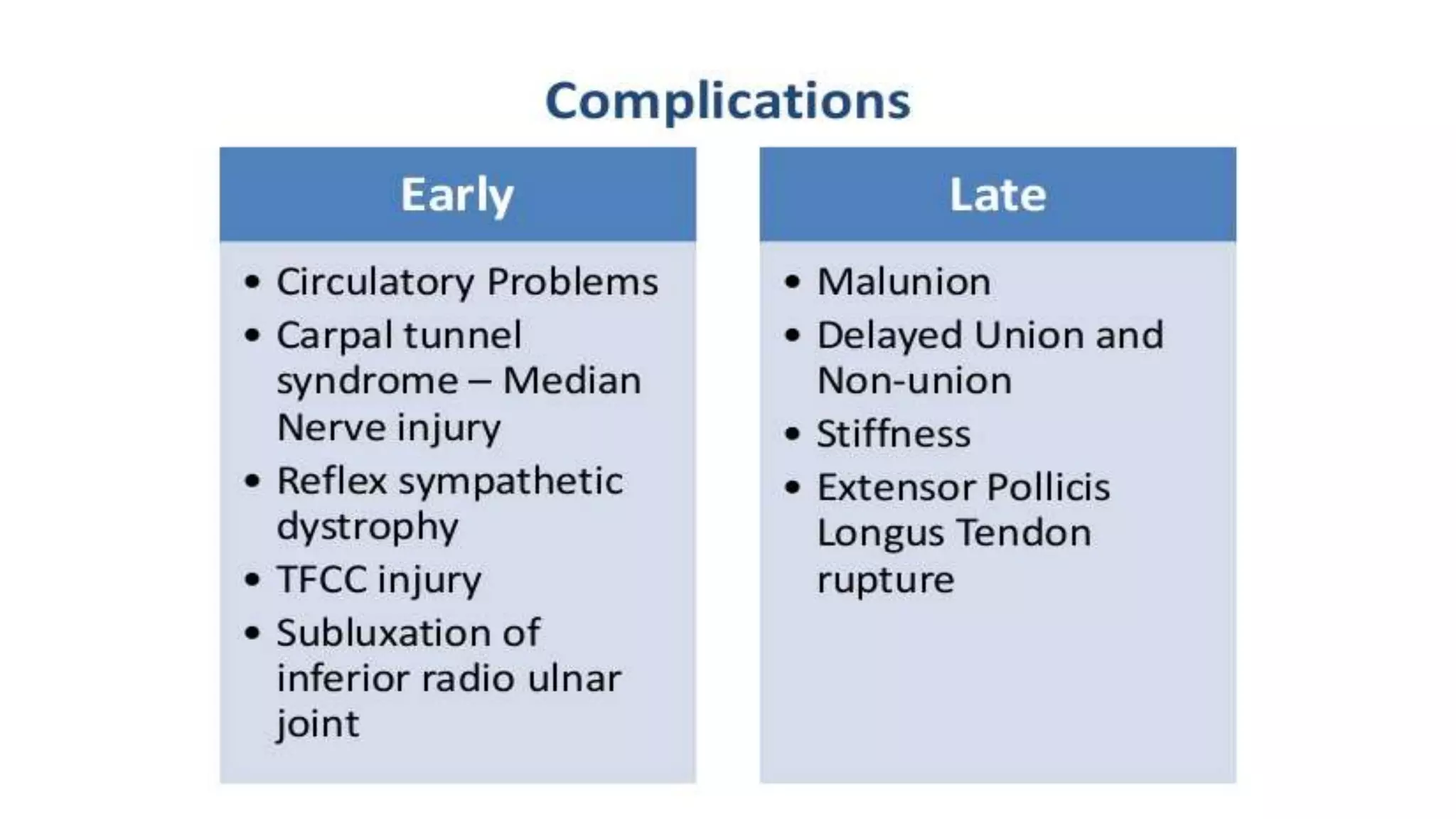

50. Complications
A. Early :
(i) Circulatory problem:
- Early finger movements & avoiding undue flexion of the
elbow are important to encourage venous drainage.
(ii) Nerve injury:
- Compression of the median nerve in the carpal tunnel is
fairly common.
(iii) Complex regional pain syndrome(CRPS):
- Previously known as Reflex sympathetic dystrophy or
sudeck’s atrophy.

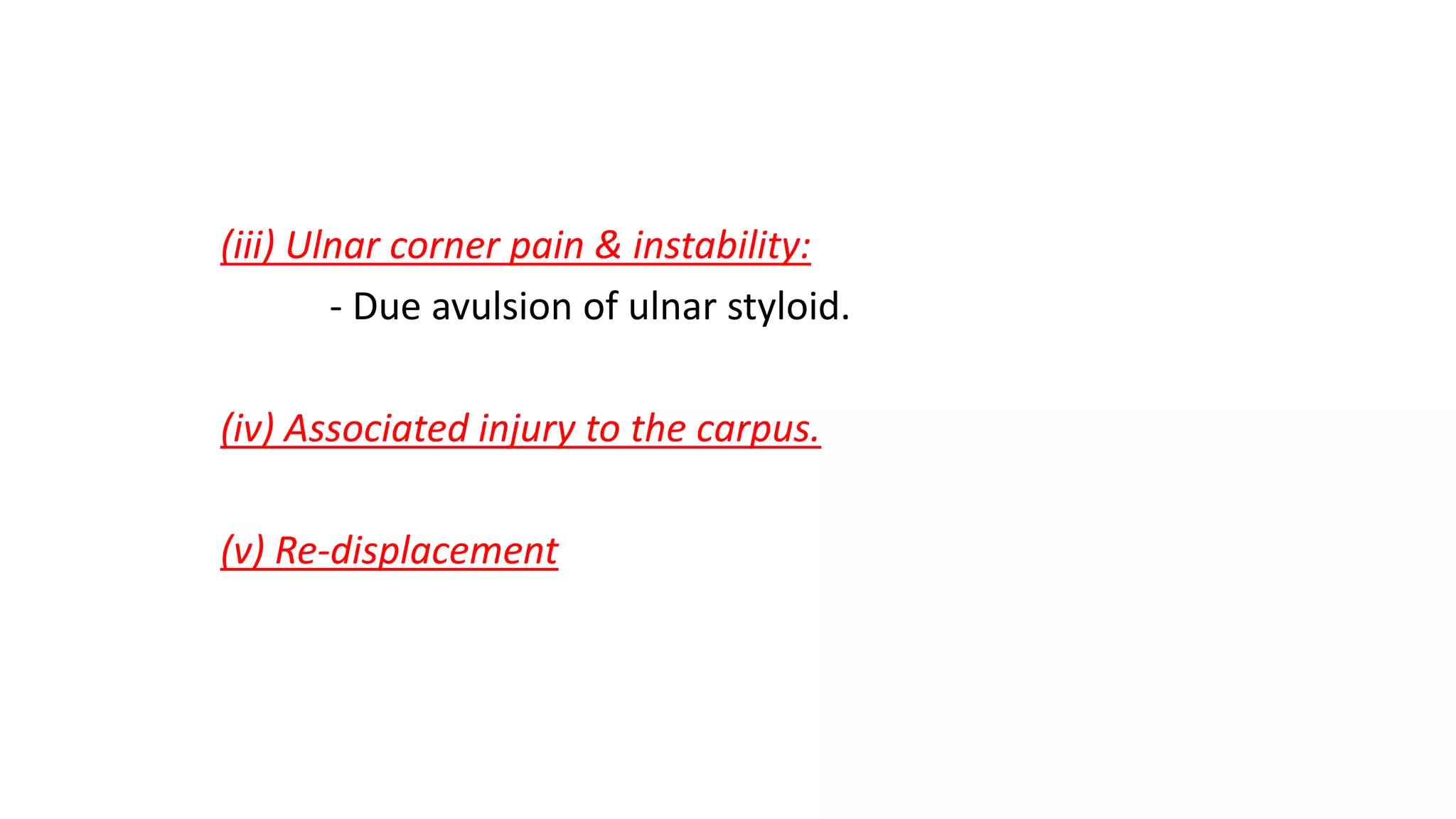

51. (iii) Ulnar corner pain & instability:
- Due avulsion of ulnar styloid.
(iv) Associated injury to the carpus.
(v) Re-displacement

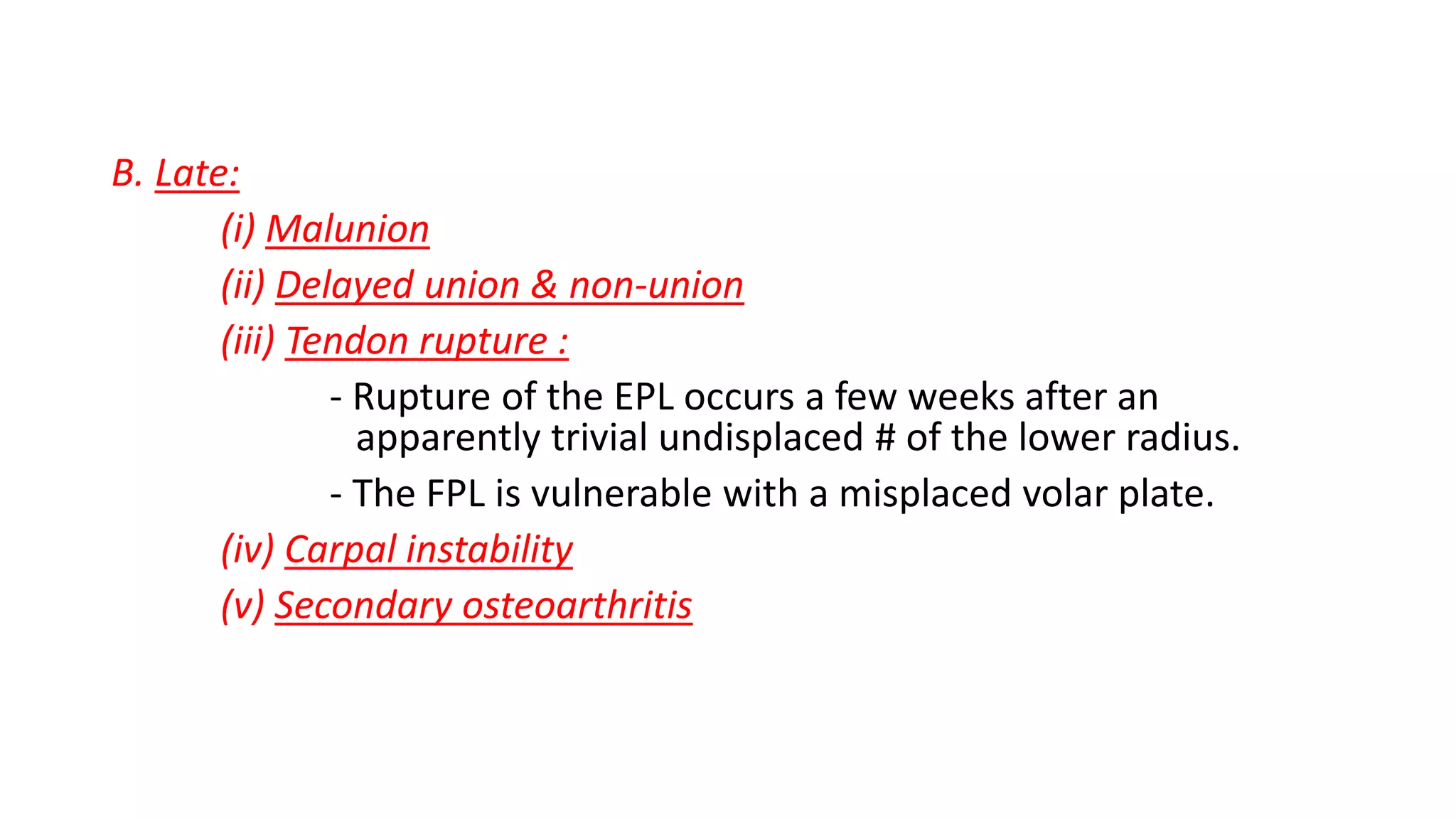

52. B. Late:
(i) Malunion
(ii) Delayed union & non-union
(iii) Tendon rupture :
- Rupture of the EPL occurs a few weeks after an
apparently trivial undisplaced # of the lower radius.
- The FPL is vulnerable with a misplaced volar plate.
(iv) Carpal instability
(v) Secondary osteoarthritis

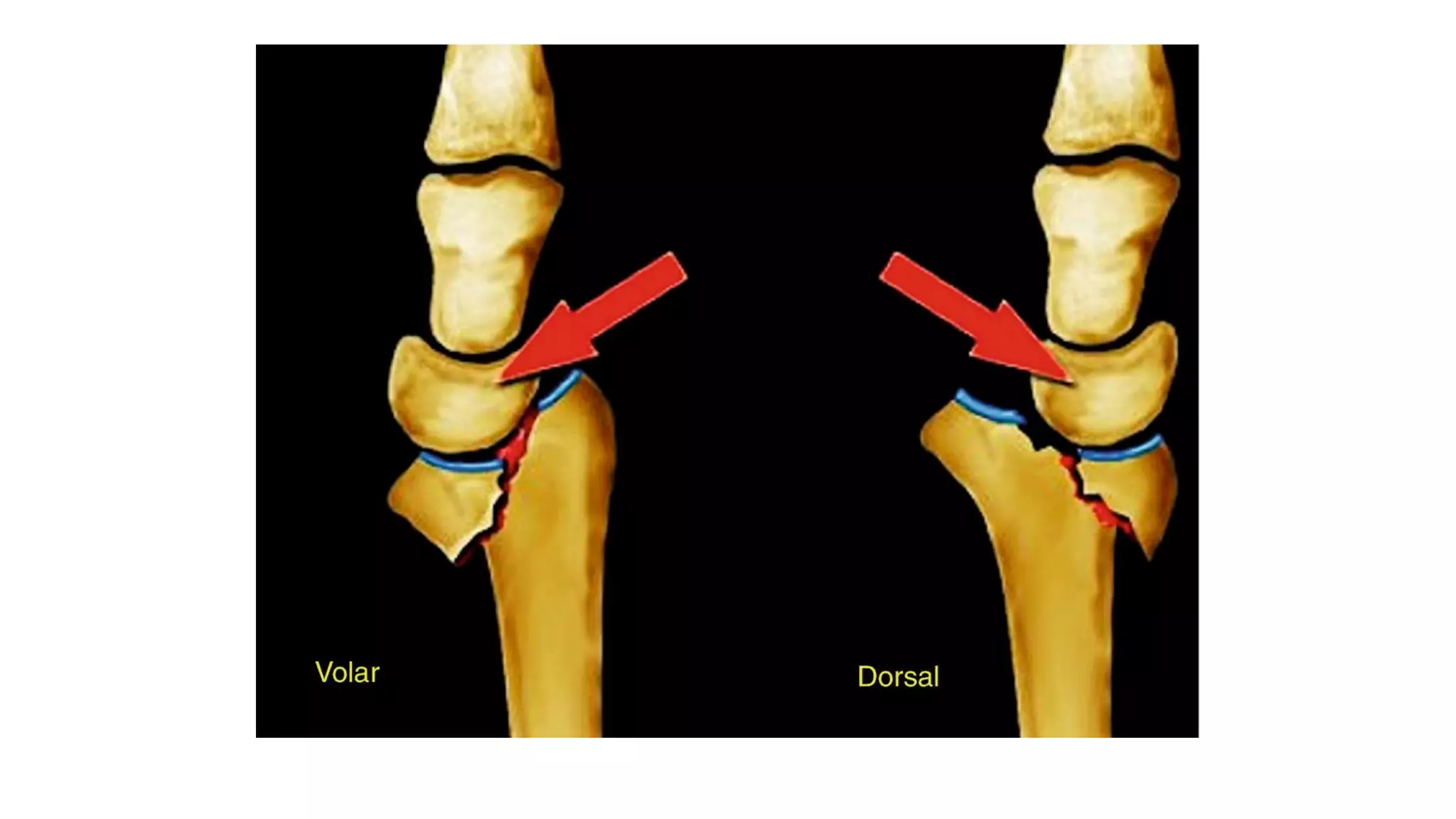

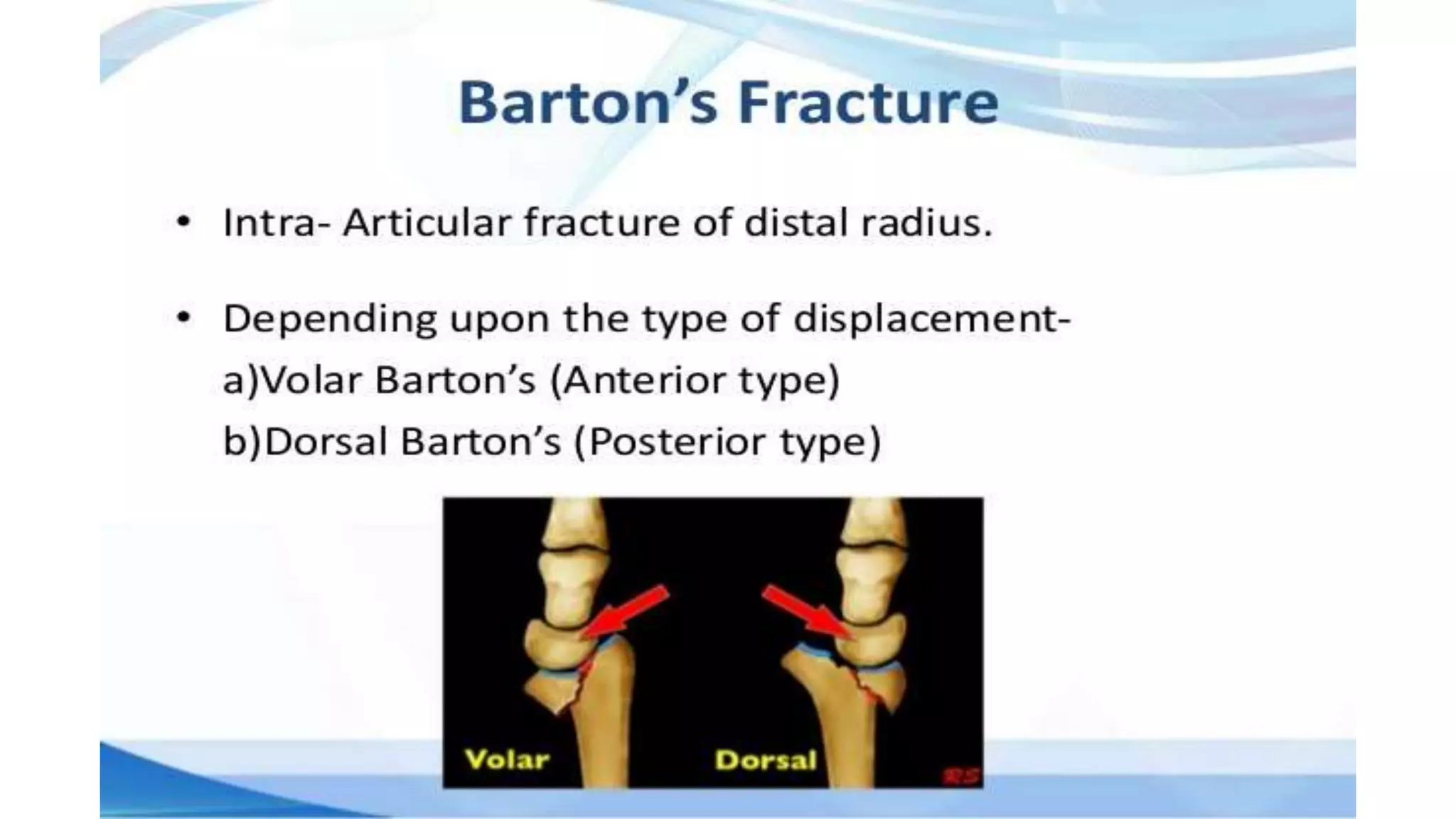

55. Dorsal Barton’s Fracture
Rim avulsion fractures of the distal radius in which dorsal half of the
distal radius sheaf off with intact volar half & the fragment moves
dorsally carrying the carpus with it.
Mechanism:
- Fall with dorsiflexion and pronation of the distal forearm on a
flexed wrist.
Clinical Features:
- Pain swelling
- tenderness over the wrist
- restricted wrist movements with painful dorsiflexion

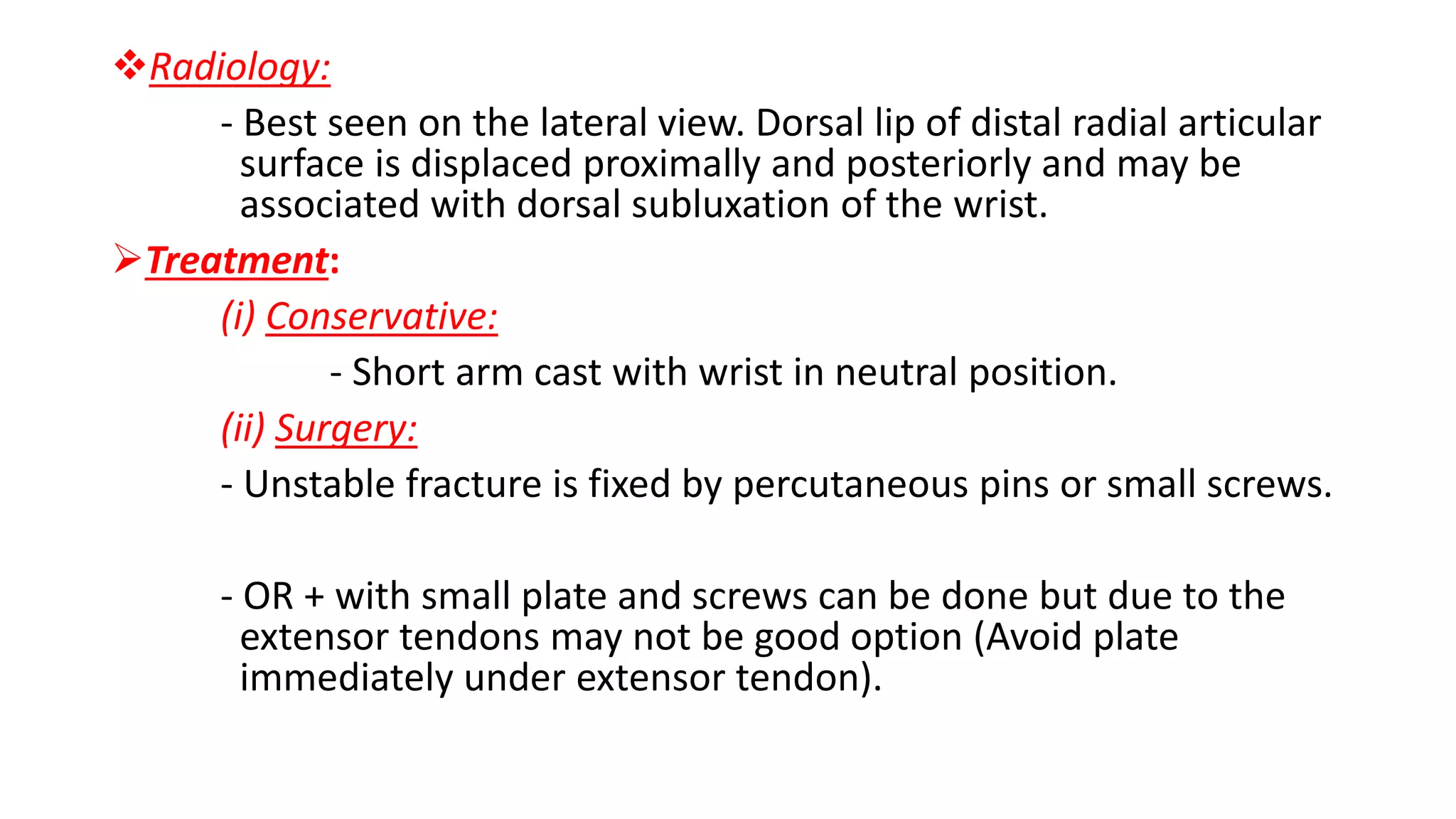

56. Radiology:
- Best seen on the lateral view. Dorsal lip of distal radial articular
surface is displaced proximally and posteriorly and may be
associated with dorsal subluxation of the wrist.
Treatment:
(i) Conservative:
- Short arm cast with wrist in neutral position.
(ii) Surgery:
- Unstable fracture is fixed by percutaneous pins or small screws.
- OR + with small plate and screws can be done but due to the
extensor tendons may not be good option (Avoid plate
immediately under extensor tendon).

58. Volar Barton fracture
Rim avulsion fracture of the distal radius in which volar half of the
distal radius shear off with intact dorsal half & the fragment moves
forwards carrying the carpus with it.
Mechanism:
• It is due to palmar tensile stress and dorsal shear stress and is usually
combined with Radial styloid fracture.
Clinical Features
• It consists of pain, swelling, tenderness and loss of wrist movements.
Palmar flexion is grossly restricted and painful.

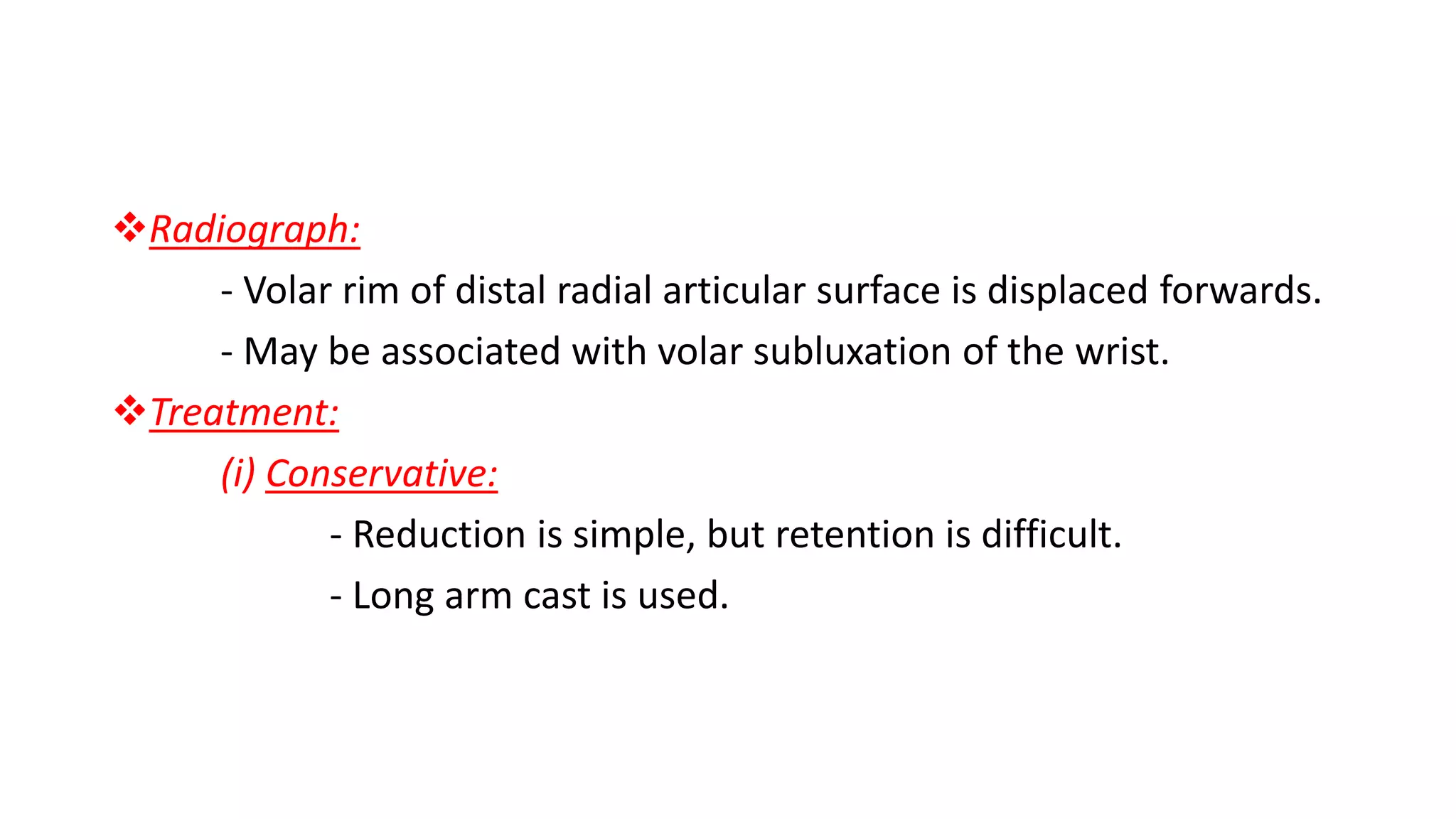

59. Radiograph:
- Volar rim of distal radial articular surface is displaced forwards.
- May be associated with volar subluxation of the wrist.
Treatment:
(i) Conservative:
- Reduction is simple, but retention is difficult.
- Long arm cast is used.

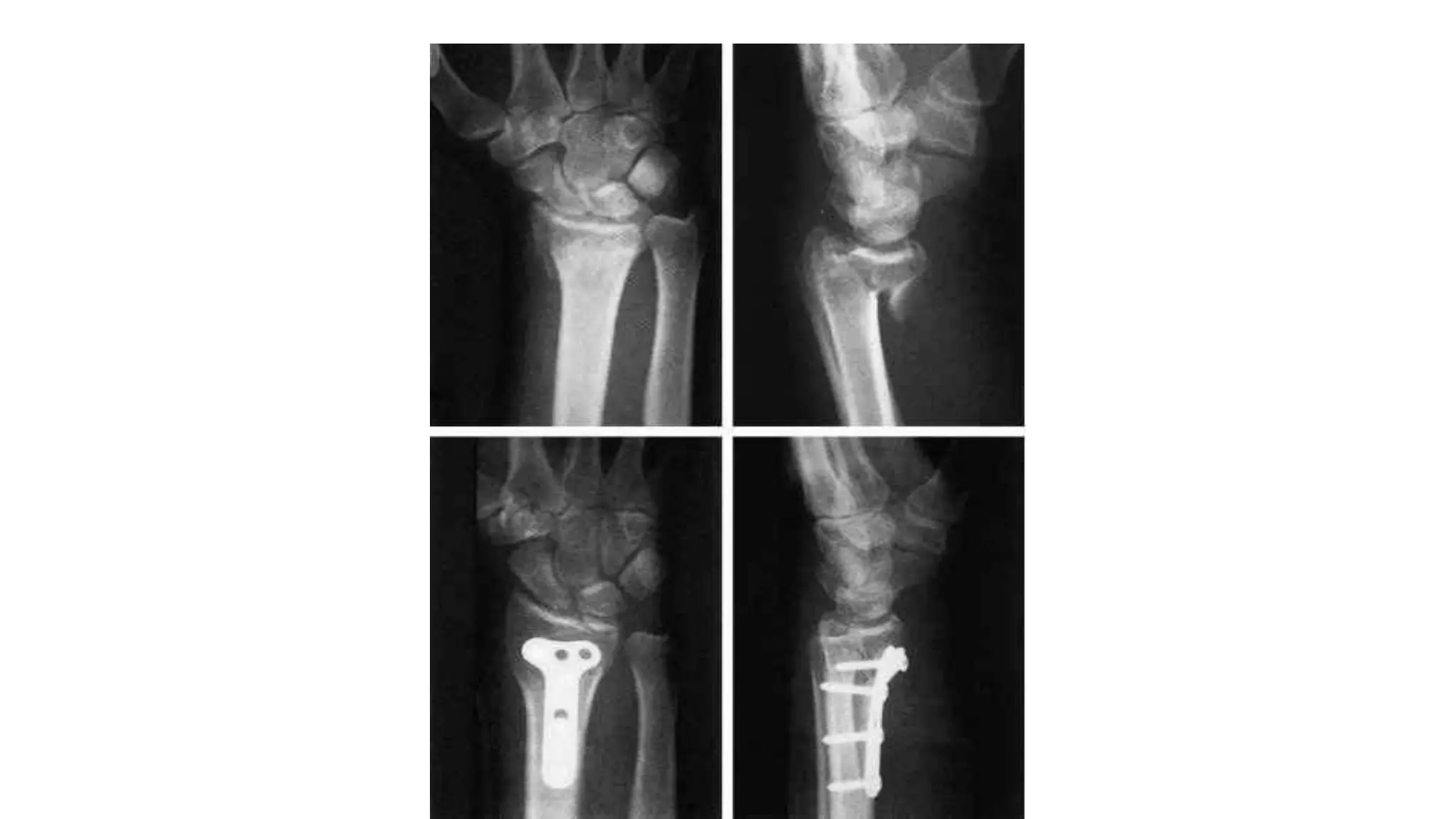

60. Surgery:
- If reduction does not remain satisfactorily then fixation
with K wire.
- External fixators and buttress plate, etc. may be done.
- Ellis T-shaped buttress plate fixation is the preferred
method of treatment.
