Firmware Extraction & Fuzzing - Jatan Raval

•
•
NSConclave
NSConclave

The Firmware extraction and fuzzing workshop will cover the ways of extracting the firmware from the IoT devices and set up the dynamic fuzzer in the emulated firmware to find the bugs. https://nsconclave.net-square.com/firmware-extraction-and-fuzzing.html

Technology
1 of 21
Firmware Extraction & Fuzzing Jatan Raval

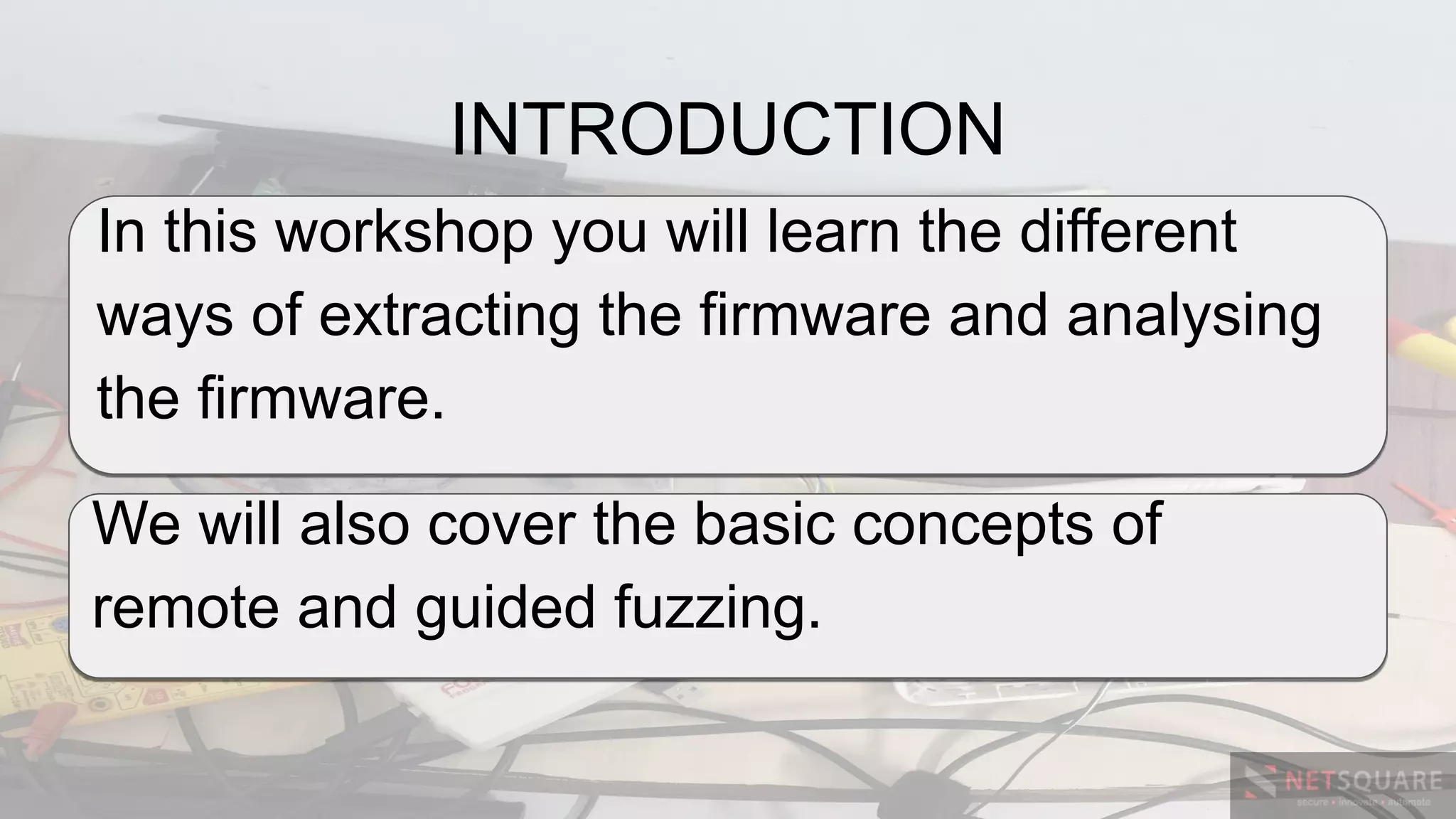

INTRODUCTION In this workshop you will learn the different ways of extracting the firmware and analysing the firmware. We will also cover the basic concepts of remote and guided fuzzing.
My #firmware details ● Jatan K Raval ● Trainer ● M.Tech. in Cyber Security & Incident Response, GFSU. ● OSCP, OSCE ● Twitter: @jatankraval

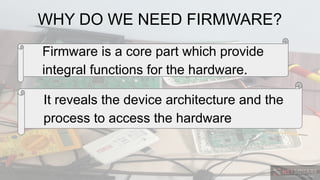

WHY DO WE NEED FIRMWARE? Firmware is a core part which provide integral functions for the hardware. It reveals the device architecture and the process to access the hardware

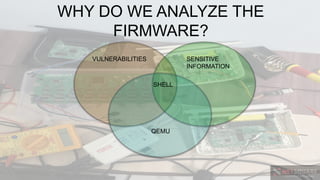

WHY DO WE ANALYZE THE FIRMWARE? VULNERABILITIES SENSITIVE INFORMATION QEMU SHELL
Firmware Extraction ● Serial Console ● Bin file dump ● SSH & Telnet

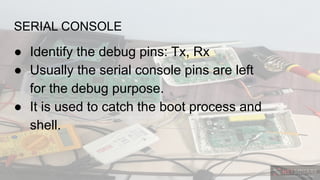

SERIAL CONSOLE ● Identify the debug pins: Tx, Rx ● Usually the serial console pins are left for the debug purpose. ● It is used to catch the boot process and shell.
SERIAL CONSOLE

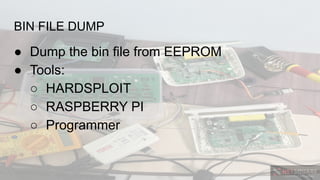

BIN FILE DUMP ● Dump the bin file from EEPROM ● Tools: ○ HARDSPLOIT ○ RASPBERRY PI ○ Programmer

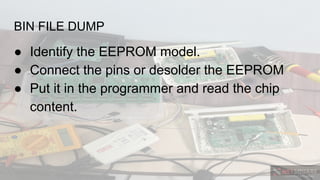

BIN FILE DUMP ● Identify the EEPROM model. ● Connect the pins or desolder the EEPROM ● Put it in the programmer and read the chip content.

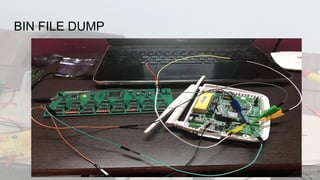

BIN FILE DUMP
BIN FILE DUMP

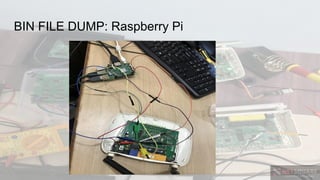

BIN FILE DUMP: Raspberry Pi

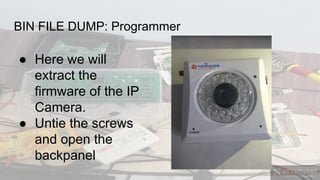

BIN FILE DUMP: Programmer ● Here we will extract the firmware of the IP Camera. ● Untie the screws and open the backpanel

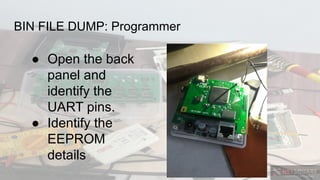

BIN FILE DUMP: Programmer ● Open the back panel and identify the UART pins. ● Identify the EEPROM details

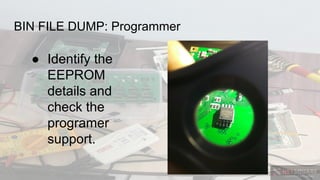

BIN FILE DUMP: Programmer ● Identify the EEPROM details and check the programer support.

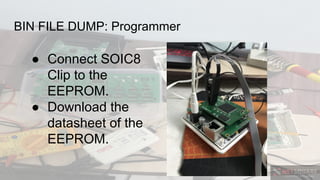

BIN FILE DUMP: Programmer ● Connect SOIC8 Clip to the EEPROM. ● Download the datasheet of the EEPROM.

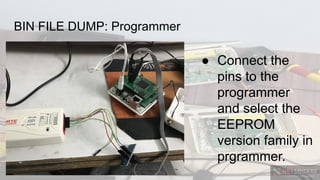

BIN FILE DUMP: Programmer ● Connect the pins to the programmer and select the EEPROM version family in prgrammer.

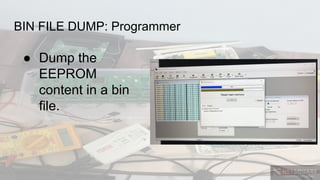

BIN FILE DUMP: Programmer ● Dump the EEPROM content in a bin file.

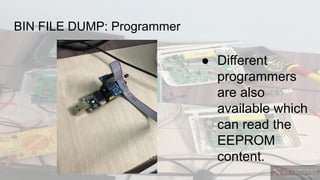

BIN FILE DUMP: Programmer ● Different programmers are also available which can read the EEPROM content.

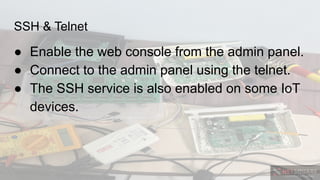

SSH & Telnet ● Enable the web console from the admin panel. ● Connect to the admin panel using the telnet. ● The SSH service is also enabled on some IoT devices.
