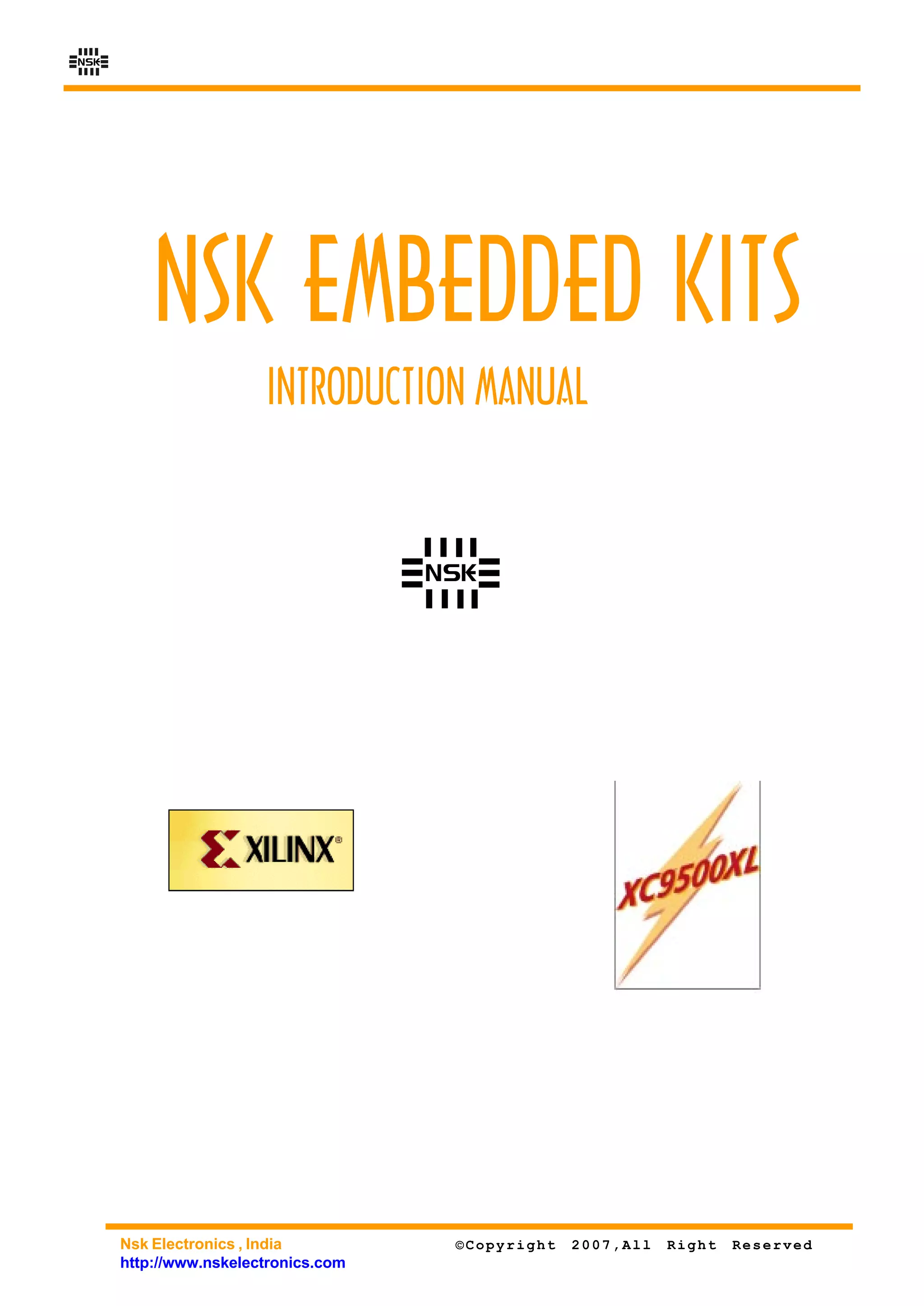

NSK EMBEDDED KITS
INTRODUCTION MANUAL

NSK

Nsk Electronics , India ©Copyright 2007,All Right Reserved
http://www.nskelectronics.com

NSK

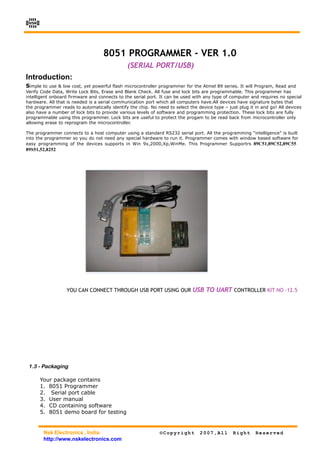

8051 PROGRAMMER - VER 1.0
(SERIAL PORT/USB)
Introduction:
Simple to use & low cost, yet powerful flash microcontroller programmer for the Atmel 89 series. It will Program, Read and
Verify Code Data, Write Lock Bits, Erase and Blank Check. All fuse and lock bits are programmable. This programmer has
intelligent onboard firmware and connects to the serial port. It can be used with any type of computer and requires no special
hardware. All that is needed is a serial communication port which all computers have.All devices have signature bytes that
the programmer reads to automatically identify the chip. No need to select the device type – just plug it in and go! All devices
also have a number of lock bits to provide various levels of software and programming protection. These lock bits are fully
programmable using this programmer. Lock bits are useful to protect the progam to be read back from microcontroller only
allowing erase to reprogram the microcontroller.

The programmer connects to a host computer using a standard RS232 serial port. All the programming “intelligence” is built
into the programmer so you do not need any special hardware to run it. Programmer comes with window based software for
easy programming of the devices supports in Win 9x,2000,Xp,WinMe. This Programmer Supportrs 89C51,89C52,89C55
89S51,52,8252

YOU CAN CONNECT THROUGH USB PORT USING OUR USB TO UART CONTROLLER KIT NO -12.5

1.3 - Packaging

Your package contains
1. 8051 Programmer
2. Serial port cable
3. User manual
4. CD containing software
5. 8051 demo board for testing


NSK

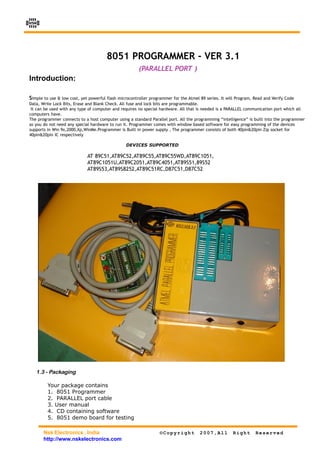

8051 PROGRAMMER - VER 3.1
(PARALLEL PORT )
Introduction:

Simple to use & low cost, yet powerful flash microcontroller programmer for the Atmel 89 series. It will Program, Read and Verify Code
Data, Write Lock Bits, Erase and Blank Check. All fuse and lock bits are programmable.
It can be used with any type of computer and requires no special hardware. All that is needed is a PARALLEL communication port which all
computers have.
The programmer connects to a host computer using a standard Parallel port. All the programming “intelligence” is built into the programmer
so you do not need any special hardware to run it. Programmer comes with window based software for easy programming of the devices
supports in Win 9x,2000,Xp,WinMe.Programmer is Built in power supply , The programmer consists of both 40pin&20pin Zip socket for
40pin&20pin IC respectively

DEVICES SUPPORTED

AT 89C51,AT89C52,AT89C55,AT89C55WD,AT89C1051,
AT89C1051U,AT89C2051,AT89C4051,AT89S51,89S52
AT89S53,AT89S8252,AT89C51RC,D87C51,D87C52
i1

1.3 - Packaging

1. 8051 Programmer
2. PARALLEL port cable
3. User manual
5. 8051 demo board for testing


NSK

PIC PROGRAMMER - PIC PROG
Introduction:

Simple to use & low cost, yet powerful flash microcontroller programmer for the PIC series. It will Program, Read and Verify
Code Data, Write Lock Bits, Erase and Blank Check. All fuse and lock bits are programmable. This programmer has intelligent
onboard firmware and connects to the serial port. It can be used with any type of computer and requires no special hard-
ware. All that is needed is a serial communication port which all computers have.All devices have signature bytes that the
programmer reads to automatically identify the chip. No need to select the device type – just plug it in and go! All devices
also have a number of lock bits to provide various levels of software and programming protection. These lock bits are fully
programmable using this programmer. Lock bits are useful to protect the progam to be read back from microcontroller only
allowing erase to reprogram the microcontroller.

The programmer connects to a host computer using a standard RS232 serial port. All the programming “intelligence” is built
into the programmer so you do not need any special hardware to run it. Programmer comes with window based software for
easy programming of the devices supports in Win 9x,2000,Xp,WinMe.

This Programmer Supportrs i1

12C508,508A,509,509A,671,672,10F200,202,204,206,12CE518,519,673,674,12F675,629,635,683,16C433,54,56,58,61,62A,62B,63,63A,64A,65A,65B,66,67,71,
16C72,72A,73A,73B,74A,74B,76,77,84,505,620,620A,621,16C621A,622,622A,711,712,715,716,717,745,765,770,771,16C773,774,781,782,923,924,16CE623,624,625,
16F72,73,74,76,77,83,84,84A,88,627,628A,630,648A,676,16F818,819,870,871,872,873,873A,874,874A,876,876A,877,877A
18F242,248,252,258,442,448,452,458,1220,1320,2320,2220.4220,2331,2431,18F4431,4320,4539,6620,6720,8620,8720,6520,8520,2410,2420,2455,2480,
2510,2515,2520,2525,2550,2580,2585,2610,2620,2680,4410,4420,4455,4480,4510,4515,4520,4525,4550,4580,4585,4610,4620,4680,

PIC PROG

1.3 - Packaging

1. PIC Programmer
3. User manual
5. Demo board for testing


NSK

USB PIC PROGRAMMER - PIC PLUS
Introduction:

Simple to use & low cost, yet powerful flash microcontroller programmer for the PIC series. It will Program, Read and Verify
Code Data, Write Lock Bits, Erase,and Blank Check,Auto programming mode - this allows you to program chips without
having to touch the Windows interface.When active, the software will detect when a chip is inserted into the socket and
automatically commence the program/verify process.Once the chip is programmed, the software will wait until the next chip
is inserted before programming continues.
All fuse and lock bits are programmable. This programmer has intelligent onboard firmware and connects to the USB port
As a virtual COM prot . It can be used with any type of computer and requires no special hardware. All that is needed is a
USB communication port which all computers have.All devices have signature bytes that the programmer reads to automati-
cally identify the chip. No need to select the device type – just plug it in and go! All devices also have a number of lock bits to
provide various levels of software and programming protection. These lock bits are fully programmable using this program-
mer. Lock bits are useful to protect the progam to be read back from microcontroller only allowing erase to reprogram the
microcontroller.

The programmer connects to a host computer using a standard USB port. All the programming “intelligence” is built into the
programmer so you do not need any special hardware to run it. Programmer comes with window based software for easy
programming of the devices supports in Win 9x,2000,Xp,WinMe.

This Programmer Supportrs

12C508, 12C508A, 12C509, 12C509A,12C671, 12C672, 12CE673, 12CE674,
12F629,12F675,16C505,16C554,16C558,16C61,16C62,16C62A,16C62B
16C63,16C63A,16C64,16C64A,16C65,16C65A,16C65B,16C66, 16C66A,16C67, 16C620,
16C620A,16C622,16C622A,16C71,16C71A,16C72,16C72A,16C73,16C73A,16C74,16C74A
16C71,16C71A,16C72,16C72A,16C73,16C73A,16C74,16C74A,16C74B,16C76,16C77,16C710,
16C711,16C712,16C716,16C745,16C765,16C773,16C774,16C83,16C84,16F627,16F627A,16F628
16F628A,16F630,16F648A,16F676,16F,72,73,16F74,16F76,16F77,16F737,16F747,16F767,
16F777,16F83,16F84,16F84A,16F87,16F88,16F818,16F819,16F870,16F871,16F872,16F873,16F873A
16F874,16F874A,16F876,16F876A,16F877,16F877A,18F242,18F248,18F252,18F258,18F442,18F448,
18F452,18F458,18F1220,18F1320,18F2220,18F2320,18F4220,18F4320,2550,4550

1.3 - Packaging

1. Programmer
2. USB port cable
3. User manual
5. Demo board for testing


NSK

MPLAB ICD2 PIC PROGRAMMER & DEBUGGER

What is MPLAB ICD 2?

The MPLAB ICD 2 is a low-cost in-circuit debugger (ICD) and in-circuit serial programmer
(ICSP). MPLAB ICD 2 is intended to be used as an evaluation, debugging and programming aid
In a laboratory environment. The MPLAB ICD 2 offers these features:
· Real-time and single-step code execution
· Breakpoints, Register and Variable Watch/Modify
· In-circuit debugging
· Target Vdd monitor
· Diagnostic LEDs
· MPLAB IDE user interface
· RS-232 serial interface to a host PC

How MPLAB ICD 2 Helps You

The MPLAB ICD 2 allows you to:
· Debug your source code in your own application
· Debug your hardware in real-time
· Program a supported device using Microchip’s ICSP protocol through RJ 11
cable supplied with this kit

1.3 - Packaging

1. PIC ICD2 Programmer
3. User manual
5. PIC demo board for testing with RJ11 Socket
6. RJ 11 cable crimped on both sides


NSK

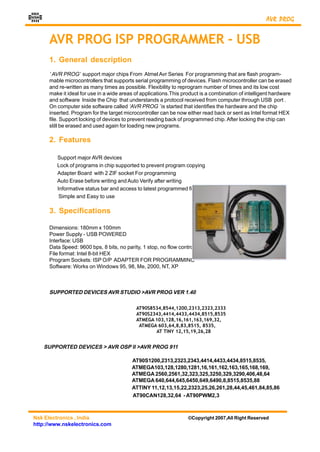

AVR PROG

AVR PROG ISP PROGRAMMER - USB
1. General description
‘ AVR PROG’ support major chips From Atmel Avr Series For programming that are flash program-
mable microcontrollers that supports serial programming of devices. Flash microcontroller can be erased
and re-written as many times as possible. Flexibility to reprogram number of times and its low cost
make it ideal for use in a wide areas of applications.This product is a combination of intelligent hardware
and software Inside the Chip that understands a protocol received from computer through USB port .
On computer side software called ‘AVR PROG ’ is started that identifies the hardware and the chip
inserted. Program for the target microcontroller can be now either read back or sent as Intel format HEX
file. Support locking of devices to prevent reading back of programmed chip. After locking the chip can
still be erased and used again for loading new programs.

2. Features

Support major AVR devices
Lock of programs in chip supported to prevent program copying
Adapter Board with 2 ZIF socket For programming
Auto Erase before writing and Auto Verify after writing
Informative status bar and access to latest programmed file
Simple and Easy to use

3. Specifications

Dimensions: 180mm x 100mm
Power Supply - USB POWERED
Interface: USB
Data Speed: 9600 bps, 8 bits, no parity, 1 stop, no flow control
File format: Intel 8-bit HEX
Program Sockets: ISP O/P ADAPTER FOR PROGRAMMING
Software: Works on Windows 95, 98, Me, 2000, NT, XP

SUPPORTED DEVICES AVR STUDIO >AVR PROG VER 1.40

AT90S8534,8544,1200,2313,2323,2333
AT90S2343,4414,4433,4434,8515,8535
ATMEGA 103,128,16,161,163,169,32,
ATMEGA 603,64,8,83,8515, 8535,
AT TINY 12,15,19,26,28

SUPPORTED DEVICES > AVR OSP II >AVR PROG 911

AT90S1200,2313,2323,2343,4414,4433,4434,8515,8535,
ATMEGA103,128,1280,1281,16,161,162,163,165,168,169,
ATMEGA 2560,2561,32,323,325,3250,329,3290,406,48,64
ATMEGA 640,644,645,6450,649,6490,8,8515,8535,88
ATTINY 11,12,13,15,22,2323,25,26,261,28,44,45,461,84,85,86
AT90CAN128,32,64 - AT90PWM2,3


NSK

CPLD TRAINER KIT
Xilinx XC9572XL

Introduction and Features:
• The CPLD Development kit based on Xilinx XC9572XL is a low cost
evaluation platform for training, testing and developing designs
based on the Xilinx 9500XL family of CPLD.
• The board contains the 1600 gate, 72 macro cells, 100 Pin XC9572XL
CPLD with 72 user I/O’s.
• An on-board power supply includes 3.3V regulator, which regulates
Vcc internal & Vcc I/O for the CPLD.
• A 40 MHz Crystal Oscillator provides clock source that is directly
connected to GCK1 clock input on the 9572XL device.
• All user I/O pins are brought out of the 9572XL device.
• Peripheral interfaces like LEDs, 7 Segment Displays, Key Switches&
Buzzer are provided on board.
• Separate Jumper settings have been provided for accessing the I/Os
for other external applications.
• A built-in JTAG programmer board is also available for programming
the XC9572XL.
• The HDL code can easily be implemented using the Webpack software
available on the Xilinx Website.
• Datasheets are provided in the CD-ROM accompanying the Kit and a
softcopy of the user manual is also included in the CD as well.

Packaging

1. CPLD kit
2. JTAG Parallel port cable
3. User manual
4. CD containing software (XILINX ISE webpack)


NSK

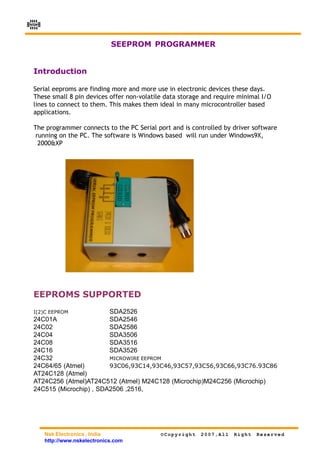

SEEPROM PROGRAMMER

Introduction

Serial eeproms are finding more and more use in electronic devices these days.
These small 8 pin devices offer non-volatile data storage and require minimal I/O
lines to connect to them. This makes them ideal in many microcontroller based
applications.

The programmer connects to the PC Serial port and is controlled by driver software
running on the PC. The software is Windows based will run under Windows9X,
2000&XP

EEPROMS SUPPORTED
I(2)C EEPROM SDA2526
24C01A SDA2546
24C02 SDA2586
24C04 SDA3506
24C08 SDA3516
24C16 SDA3526
24C32 MICROWIRE EEPROM
24C64/65 (Atmel) 93C06,93C14,93C46,93C57,93C56,93C66,93C76.93C86
AT24C128 (Atmel)
AT24C256 (Atmel)AT24C512 (Atmel) M24C128 (Microchip)M24C256 (Microchip)
24C515 (Microchip) , SDA2506 ,2516,


NSK

ARM DEVOLOPMENT KIT (LPC2129)
ON BOARD ISP &JTAG

1. Board Features:
1. LPC 2129 Single-chip 16/32-bit microcontrollers 256KB Flash/128KB RAM
2. 4 Channel 10-bit ADC
3. 7-Segment LED Display(Multiplexed x4)
4. 2 CAN Ports with 2CAN TransRecivers
5. A Serial Port for ISP
6. An RS232 Serial Port
7. On Board JTAG Wiggler for Debugging
8. DC Power Supply Connector(12v Ac or Dc)
9. Optional USB Socket for Power Supply
10. LCD display 2linex16Character
11. 24Cxx I2C EEPROM
12. 8 LED array
13. Matrix Key Pad
14. 4 Intruupt Switches
15. Buzzer

1.2 Package Contents:

1. ARM Starter evaluation board
2. Serial port Cable
3. ARM Starter Kit CD
4. Parralel port Cable
5. Burg connectors 20 Nos


NSK

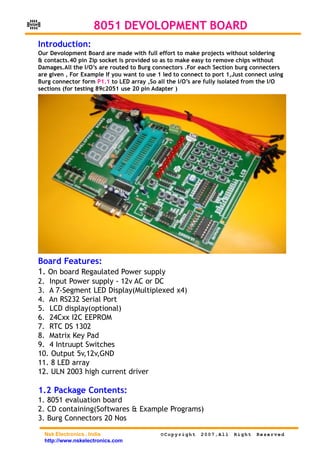

8051 DEVOLOPMENT BOARD
Introduction:
Our Devolopment Board are made with full effort to make projects without soldering
& contacts.40 pin Zip socket is provided so as to make easy to remove chips without
Damages.All the I/O’s are routed to Burg connectors .For each Section burg connecters
are given , For Example If you want to use 1 led to connect to port 1,Just connect using
Burg connector form P1.1 to LED array ,So all the I/O’s are fully isolated from the I/O
sections (for testing 89c2051 use 20 pin Adapter )

Board Features:
1. On board Regaulated Power supply
2. Input Power supply - 12v AC or DC
3. A 7-Segment LED Display(Multiplexed x4)
5. LCD display(optional)
6. 24Cxx I2C EEPROM
7. RTC DS 1302
8. Matrix Key Pad
10. Output 5v,12v,GND
11. 8 LED array
12. ULN 2003 high current driver

1.2 Package Contents:
1. 8051 evaluation board
2. CD containing(Softwares & Example Programs)
3. Burg Connectors 20 Nos


NSK

RFID Reader Introduction:

The DT125R series RFID Proximity OEM Reader Module has a built-in antenna in minimized form factor.
It is designed to work on the industrystandard carrier frequency of 125 kHz.

This LF reader module with an internal or an external antenna facilitates communication with Read-Only
transponders—type UNIQUE or TK5530 via the air interface. The tag data is sent to the host systems
via thewired communication interface with a protocol selected from the modulepinout.

The LF DT125R module is best suited for applications in Access Control,Time and Attendance, Asset
Management, Handheld Readers,Immobilizers, and other RFID enabled applications.

Features

! Selectable UART or Wigand26
! Plug-and-Play, needs +5V to become a reader
! No repeat reads
! LED/Beeper indicates tag reading operation
! Excellent read performance without an external circuit
! Compact size and cost-effective
! A very efficient module for portable readers.

GSM/GPRS Modem Introduction:

Introduction

This document describes the hardware interface of the SIMCOM SIM300 module that
connects to the specific application and the air interface. As SIM300 can be integrated
with a wide range of applications, all functional components of SIM300 are described in
great detail.

Product concept
Designed for global market, SIM300 is a Tri-band GSM/GPRS engine that works on
frequencies EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. SIM300 features GPRS
multi-slot class 10/ class 8 (optional) and supports the GPRS coding schemes CS-1, CS-
2, CS-3 and CS-4.

SIM card interface
You can use AT Command to get information in SIM card.
The SIM interface supports the functionality of the GSM Phase 1 specification and also
supports the functionality of the new GSM Phase 2+ specification for FAST 64 kbps SIM
(intended for use with a SIM application Tool-kit).Both 1.8V and 3.0V SIM Cards are
supported.The SIM interface is powered from an internal regulator in the module
having nominal voltage 2.8V. All pins reset as outputs driving low. Logic levels are as
described in table


NSK
PIC DEVOLOPMENT BOARD
Introduction:
Our Devolopment Board are made with full effort to make projects without soldering,lose
contacts.40 pin Zip socket is provided so it make easy to remove chips without Damages.
All the I/O’s are routed to Burg connectors .For each Section burg connecters are given ,
For Example If you want to use 1 led to connect to port 1,Just connect using Burg connec-
tor form P1.1 to LED array ,So all the I/O’s are fully isolated from the I/O sections
RJ-11 Socket is provided for in circuit serial programming through our PIC programmers
( FOR TESTING 8,18,28 PIN CHIPS USE ADAPTERS )

Board Features:
1. On board Regaulated Power supply
2. Input Power supply - 12v AC or DC
3. A 7-Segment LED Display(Multiplexed x4)
5. LCD display 2linex16Character
6. 24Cxx I2C EEPROM ,ULN 2003 high current driver
7. RTC DS 1302
8. Matrix Key Pad
10. Output 5v,12v,GND

Package Contents:
1. 8051 evaluation board
2. CD containing(Softwares,Example Programs)
3. Burg Connectors 20 Nos

NSK I/O INTERFACE BOARDS
12.1 - 4X4 MATRIX KEYPAD 12.2 - MULTIPLEXED7 SEG DISPLAY
(com cathode)

12.4 - DC SOLID SATAE RELAY
12.3 - AC SOLID SATAE & STEPPER MOTER DRIVE
RELAY (O/P Load-10 Amps) (O/P Load- 5 Amps)
I/P - 5-12V I/P - 5-12V

12.5 - USB TO UART CONVERTER 12.6- AT89C2051 DEMO BAORD WITH
WITH RX&TX O/P ULN 2003 (CAN BE USED FOR STEPPER
&RS-232 LEVEL O/P MOTOR DRIVES UPTO 0.5 A


NSK

12.7 - 8 CHANNEL RELAY CONTROL BOARD 12.8- LCD DISPLAY INTERFACED BOARD WITH 8 O/P
with Power Supply & ULN 2003 I/P HIGH CURRENT DRIVER USING ULN 2003 ,8 I/P
& RS -232 CONVERTER

12.9 Embedded Power Supply +5,-5,+12,-12
Variable output from 0 - 24volts
Input Voltage 12-0-12

Introduction: MINI PLC

The Mini PLC is fully isolated with opto couplers Inputs may be from 5v to 12 volts
(under request 24v) . the Outputs will be 12 or 5 VDC (100 MA)
This board is very useful for mini Automation .Regulated power supply is Built in


NSK

13- STEPPER MOTOR DRIVER
Introduction:

The A/D Stepper Motor Controller IC1 generates four phase drive signals
for two phase bipolar and four phase unipolar step motors in microcontroller
controlled applications. The motor can be driven in half step, normal and
wawe drive modes and on-chip PWM chopper circuits permit switchmode
control of the current in the windings. A feature of this device is that it
requires only clock,direction and mode input signals. Since the phase are
generated internally the burden on the microcontroler and the programmer
is greatly reduced. IC2 is a monolithic bridge high current driver

Specifications:

Input Power Required : 24V DC / 2A
Max Power Dissipation : 50 Watts
Drive Type : Bipolar Chopper Drive
Chop Frequency : 20 Khz Min(Above Audiable Range)
Output Device Type : Integrated Monilithitic Circuit
Phases : Two Phase
Output Current : 0.5 to 2Amps By 0.5A increments
Current Setting : Dip Switch
Output Resolution : Full Step @ 200 PPR
Half Step @ 400 PPR
Pulse Input : TTL Level
MIn Rise Time: 1 Microsecond
MIn Fall Time : 1 Microsecond
Signal Active : From Low to High Transition
All other Inputs : TTL level sinking type
Home Output Type : Open cpllector output
Min phase inductance : 0.5 MH
Operating Temparature : 0 to 50 c


NSK

Contact information

For software Downloads &additional information, please visit http://www.nskelectronics.com
For sales office addresses, send e-mail to: info@nskelectronics.com

NSK Electronics
No 66/3 , Sabari Complex
S.P. Road , Bangalore - 560 002
Karnataka , India

PH NO : 91- 080 - 41575115 , 22892194
Mobile : 09945263589,09740374373


Nsk products

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Nsk products

Similar to Nsk products (20)

Recently uploaded

Recently uploaded (20)

Nsk products
