This document summarizes a seminar presentation on estimating channels in OFDM systems using a cyclic prefix and two dimensional prolate function. The presentation covers an introduction to OFDM, a literature review on channel estimation techniques for OFDM, identified issues with OFDM including synchronization and phase noise, the motivation and need for research into new channel estimation methods. It describes defining the problem to develop a low complexity channel estimation algorithm, the proposed methodology using pilot-aided channel estimation with QAM modulation, and simulations to test the system. The presentation shows results on BER performance and compares estimation using a cyclic prefix versus unique word. It concludes that comb pilot channel estimation performs better in fast fading channels.

1. A SEMINAR ON
TERNA COLLEGE OF ENGINEERING
Department of Electronics & Telecommunication
Engineering
Presented By-
Manisha Mohite
ME (E & TC)
Estimation of Channels in OFDM Systems Employing Cyclic Prefix Using
Prolate Function
GUIDE
Prof.N.S.Killarikar
CO-GUIDE
Dr.L.K.Ragha

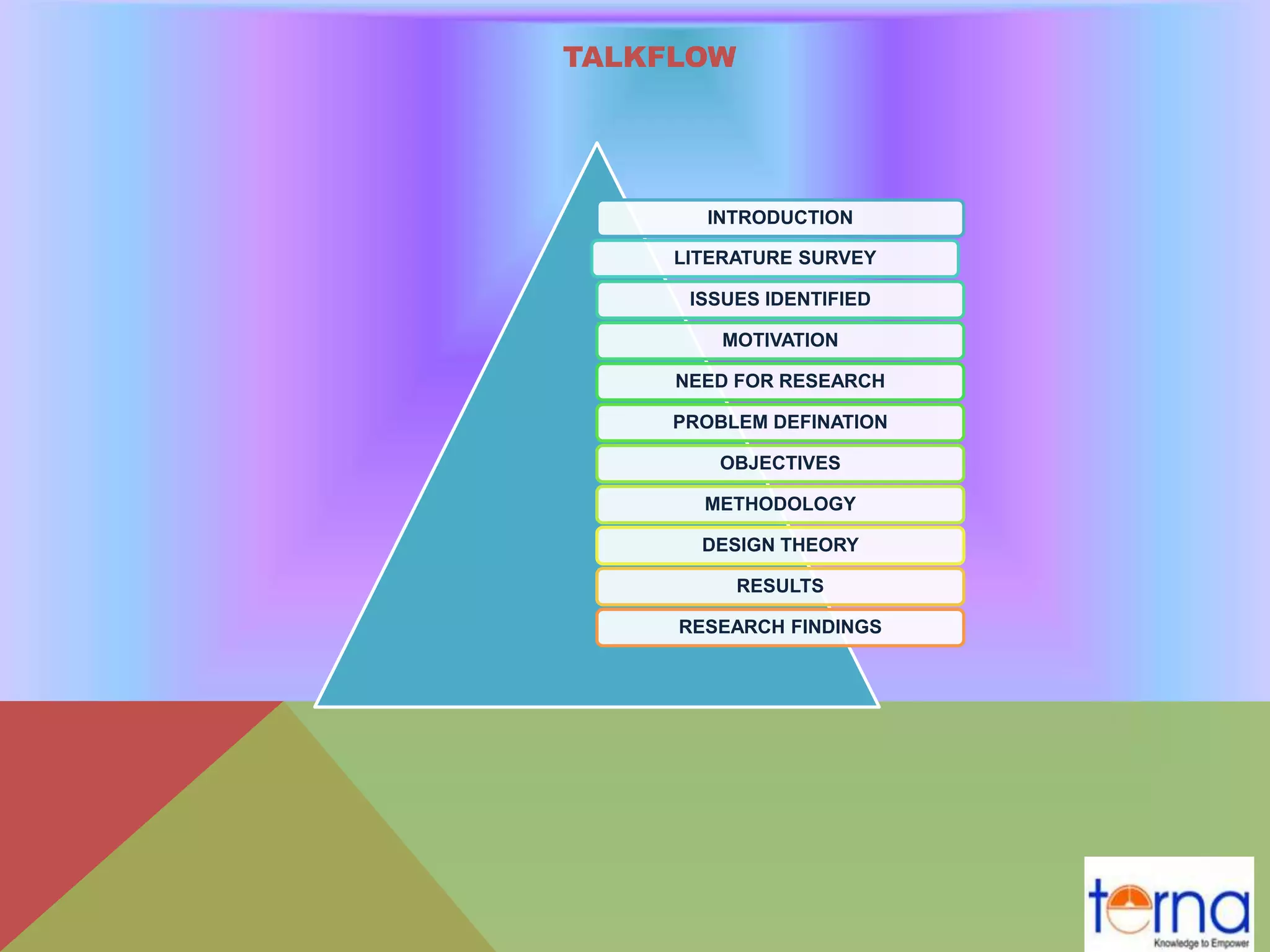

2. TALKFLOW
INTRODUCTION
LITERATURE SURVEY
ISSUES IDENTIFIED
MOTIVATION
NEED FOR RESEARCH
PROBLEM DEFINATION
OBJECTIVES
METHODOLOGY
DESIGN THEORY
RESULTS
RESEARCH FINDINGS

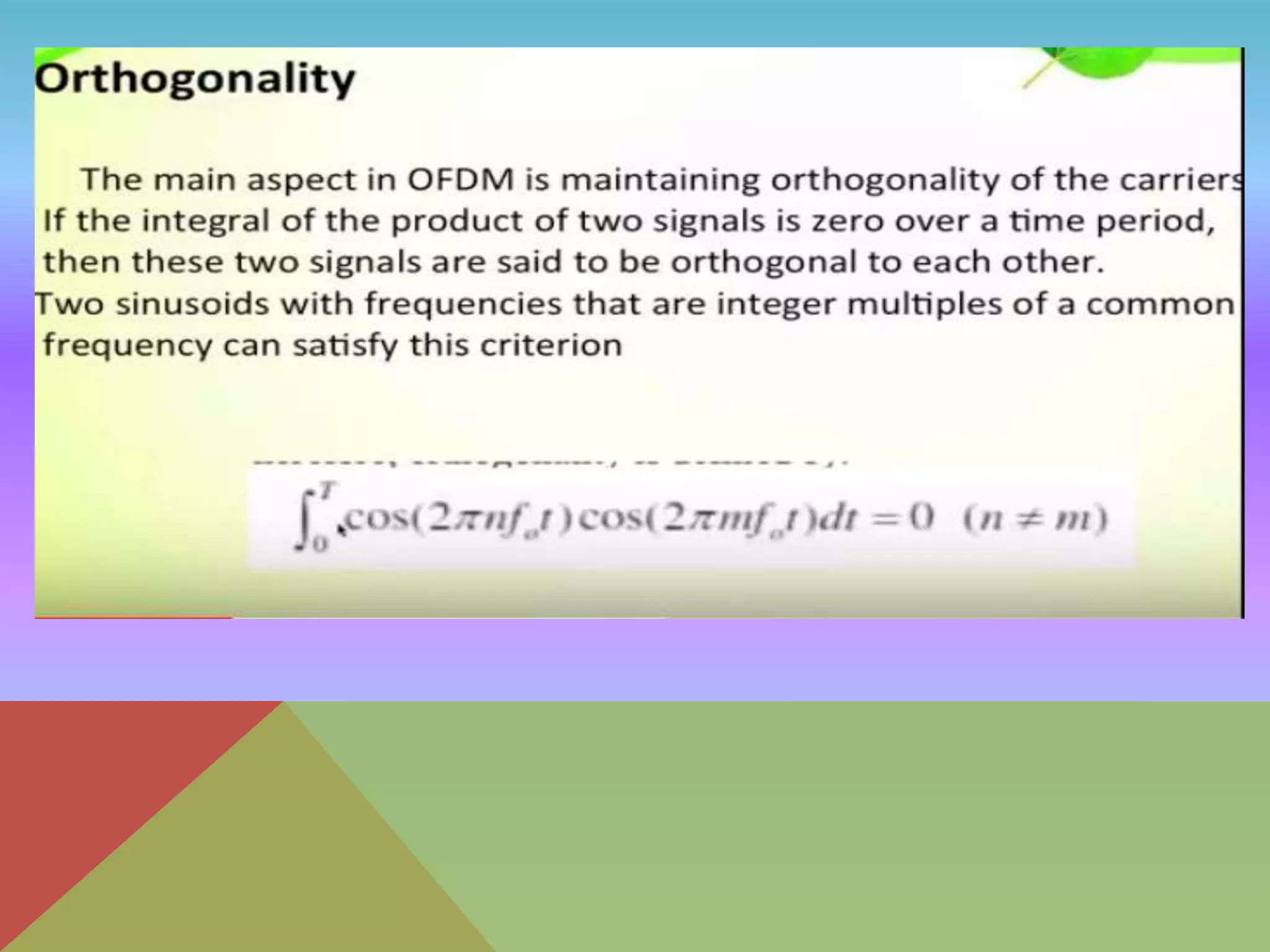

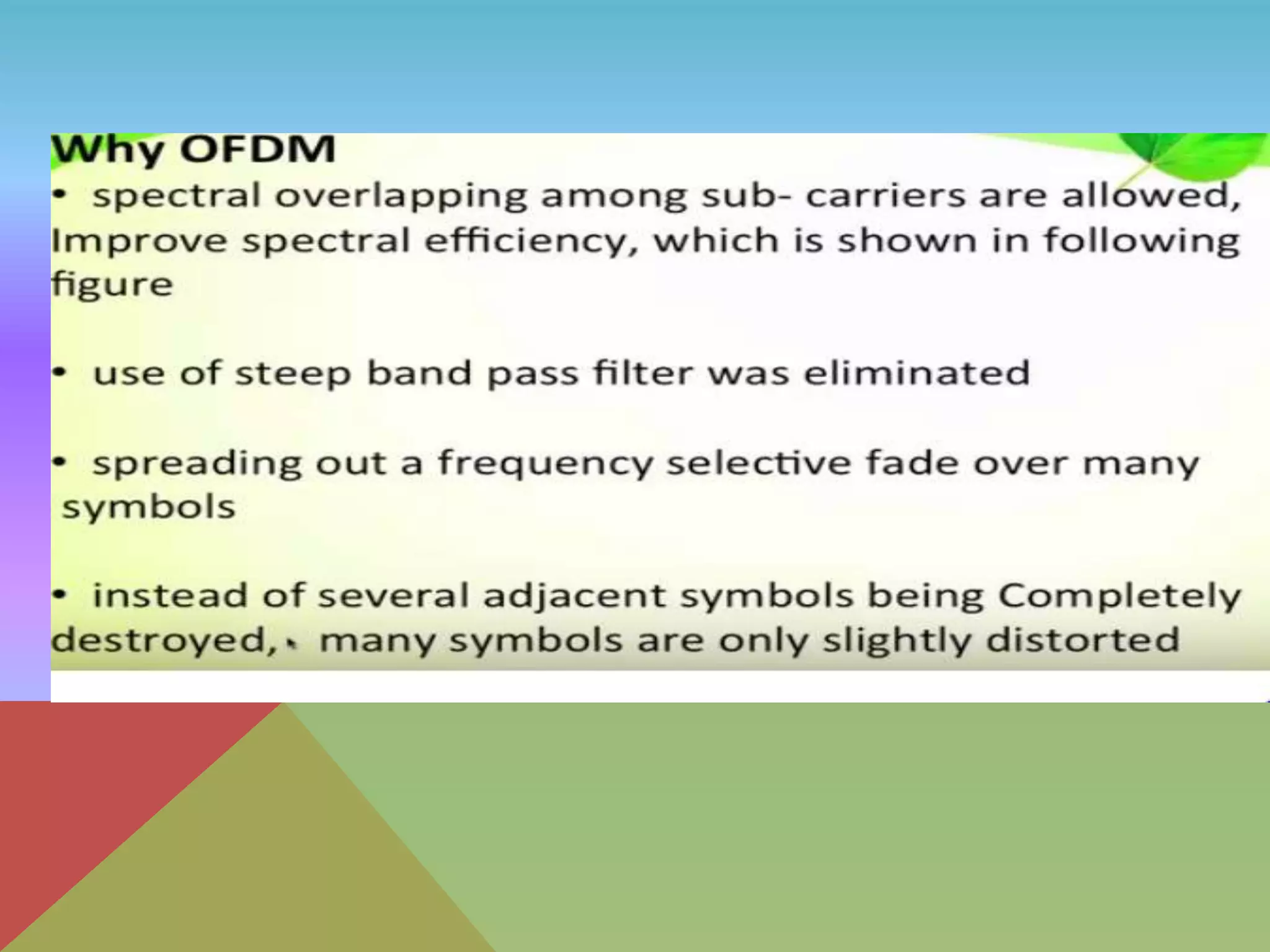

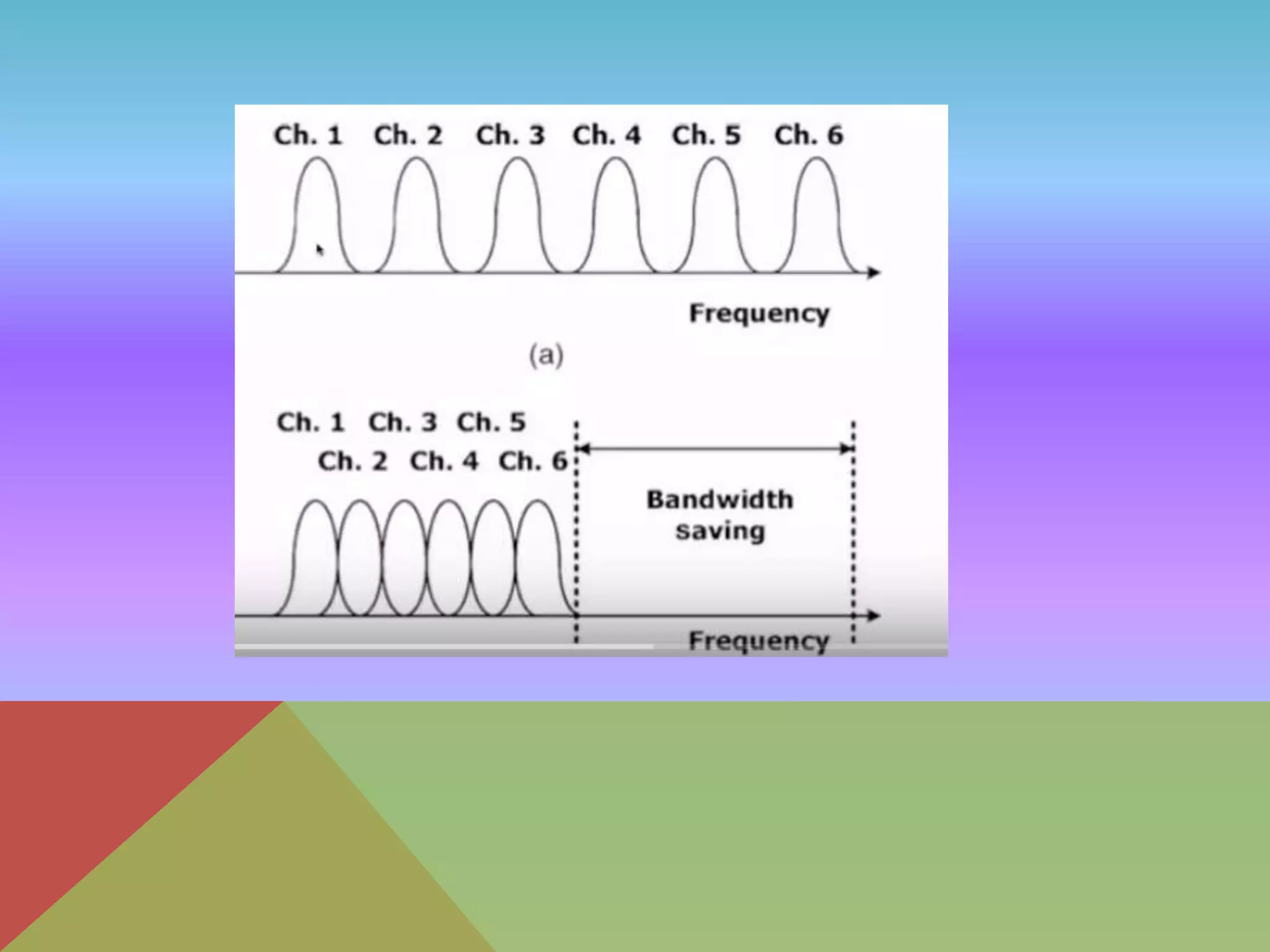

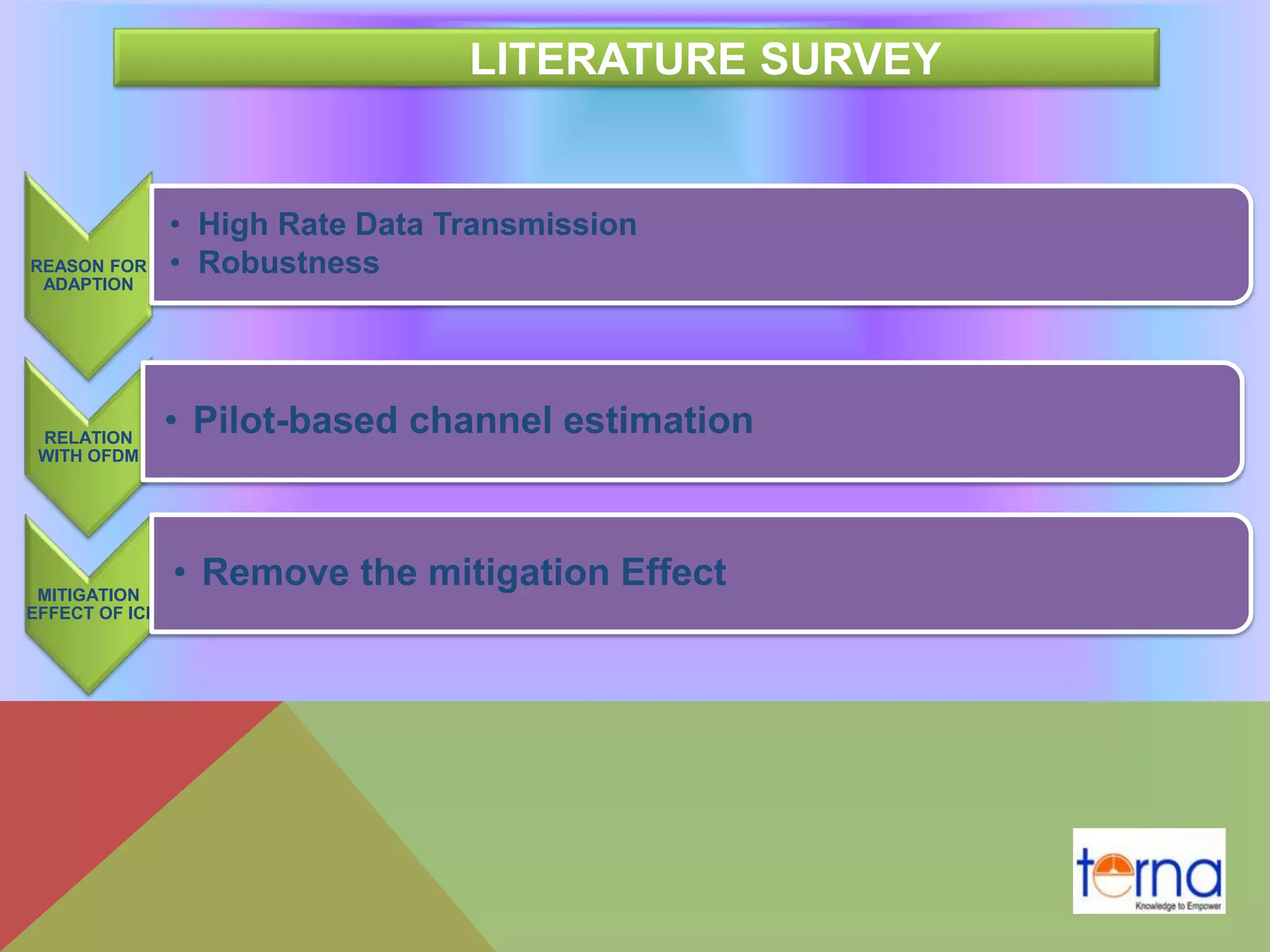

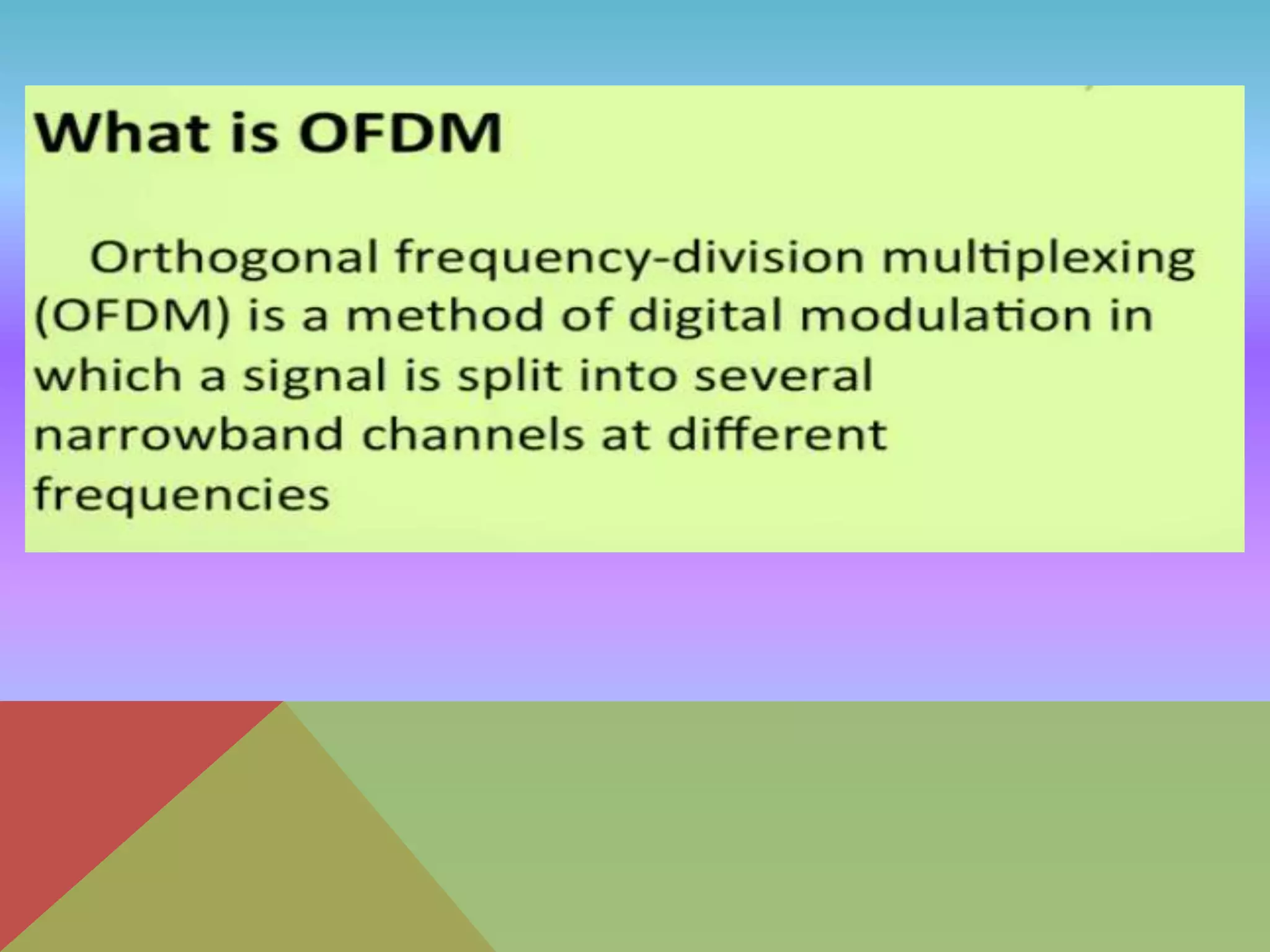

8. LITERATURE SURVEY
REASON FOR
ADAPTION
• High Rate Data Transmission
• Robustness
RELATION
WITH OFDM
• Pilot-based channel estimation
MITIGATION
EFFECT OF ICI
• Remove the mitigation Effect

9. ISSUES IDENTIFIED IN OFDM
1.Synchronization:
2.Phase Noise:
3.Inter Carrier Interference

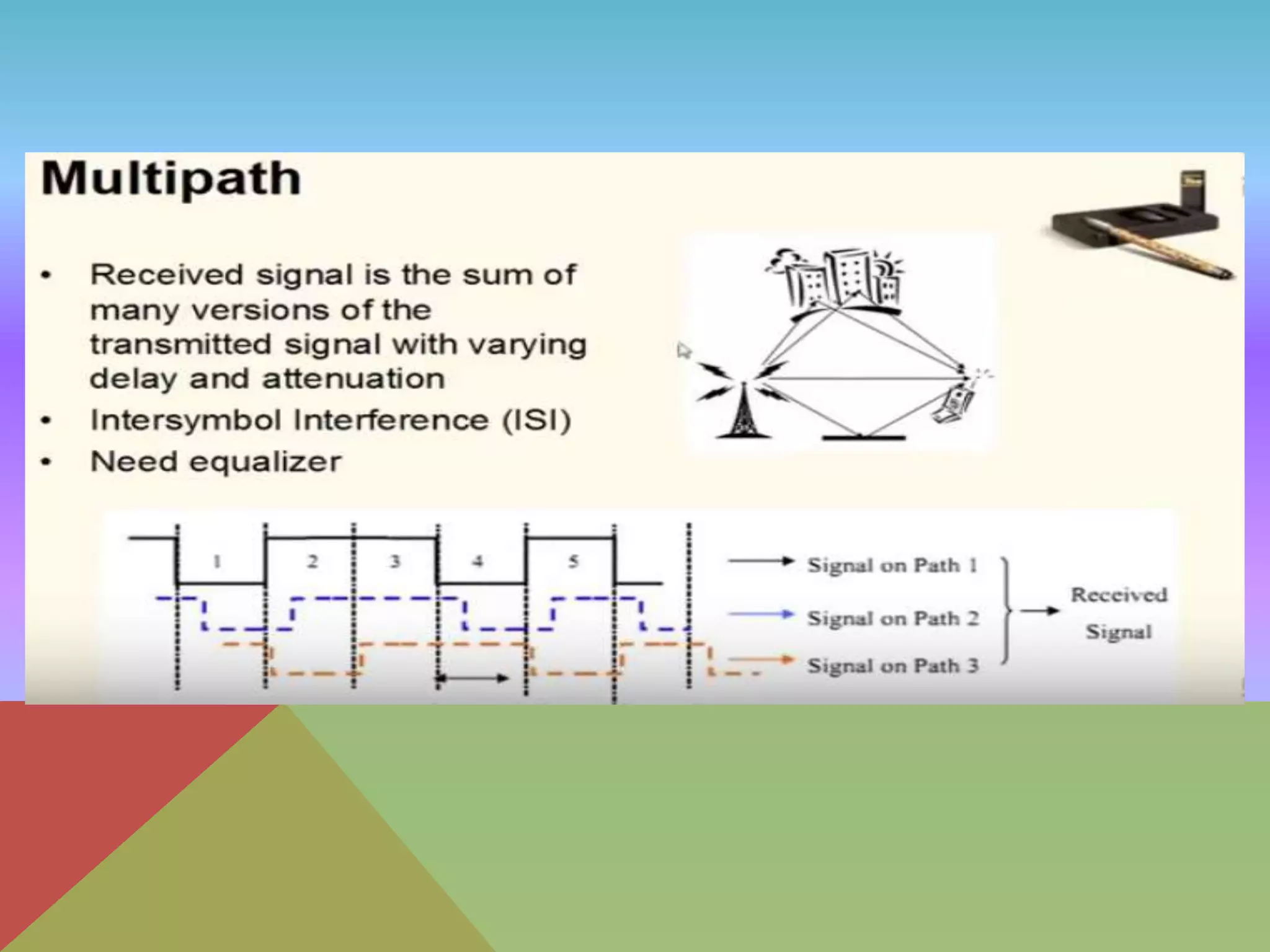

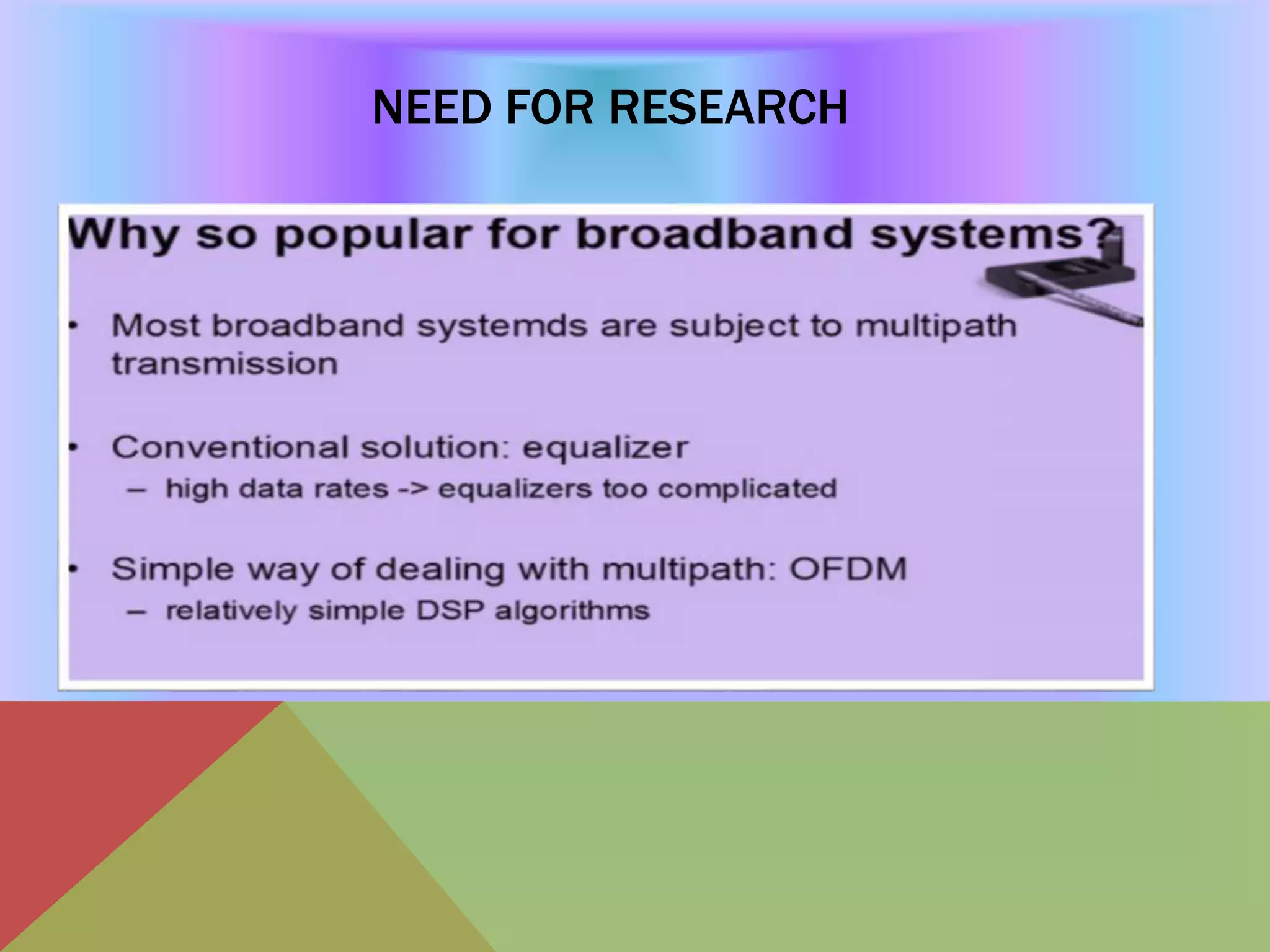

11. NEED FOR RESEARCH

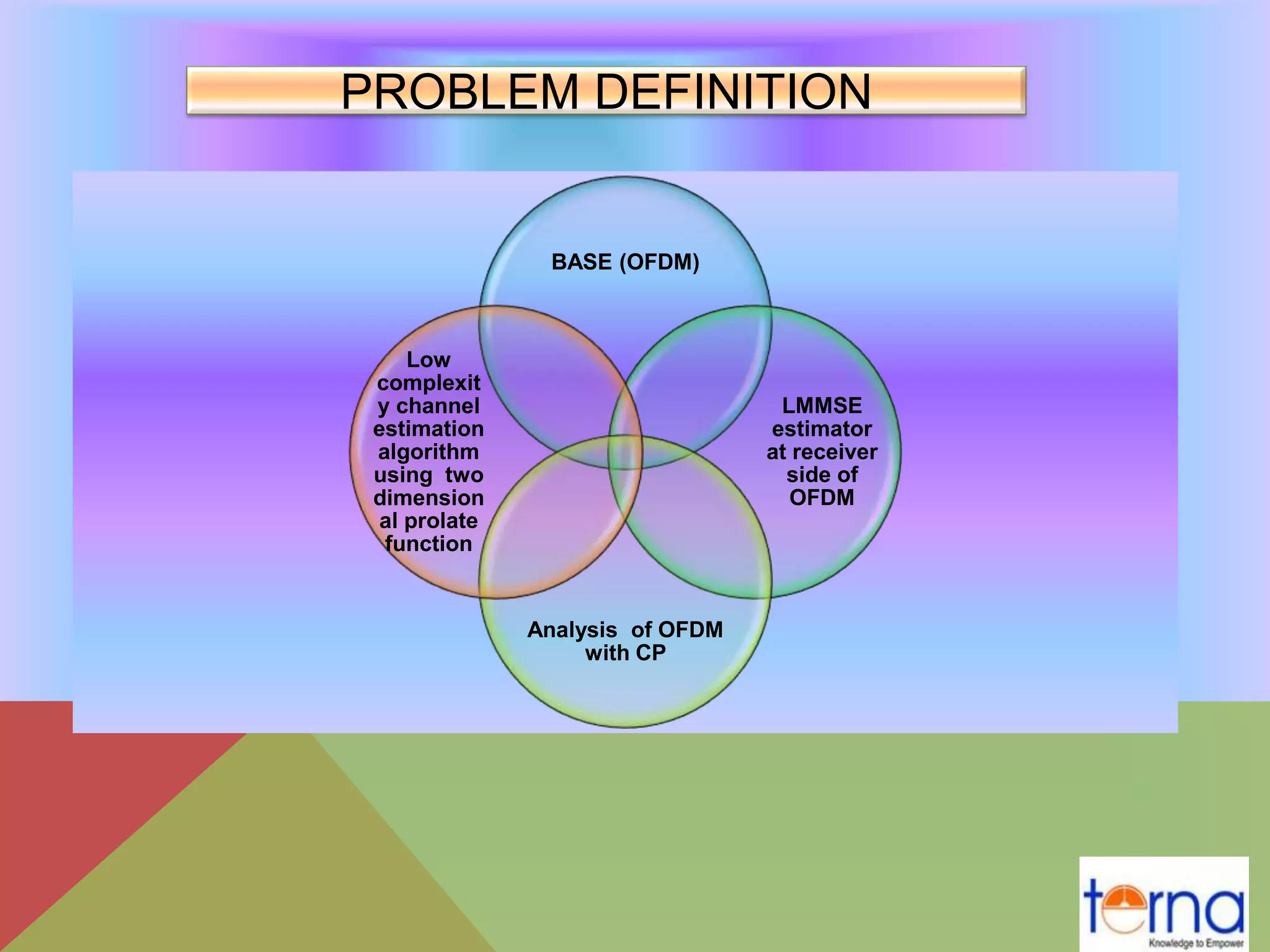

14. PROBLEM DEFINITION
BASE (OFDM)
LMMSE
estimator
at receiver
side of
OFDM
Analysis of OFDM
with CP
Low
complexit
y channel
estimation
algorithm
using two
dimension
al prolate
function

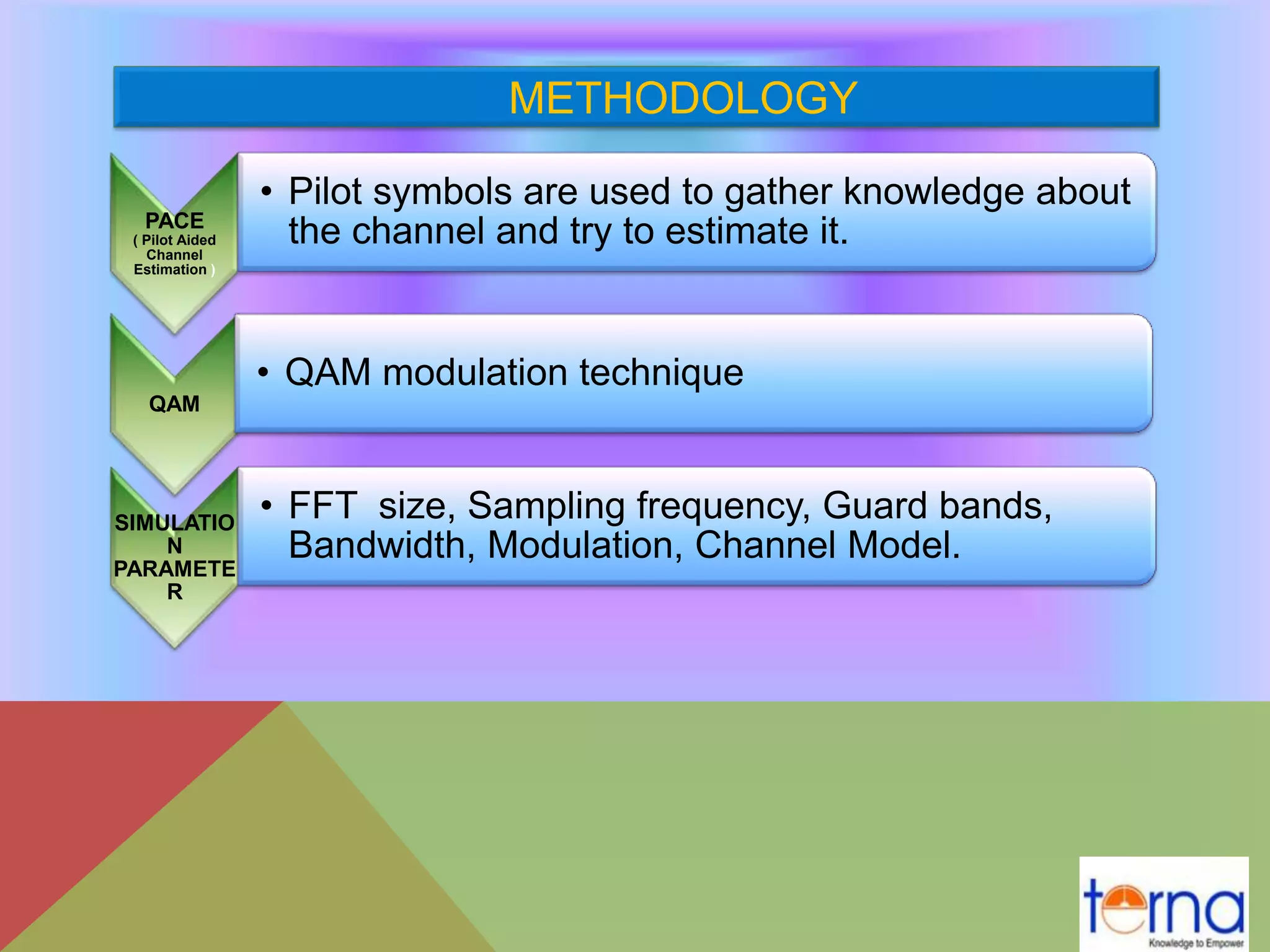

15. METHODOLOGY
PACE
( Pilot Aided
Channel
Estimation )
• Pilot symbols are used to gather knowledge about
the channel and try to estimate it.
QAM
• QAM modulation technique
SIMULATIO
N
PARAMETE
R
• FFT size, Sampling frequency, Guard bands,
Bandwidth, Modulation, Channel Model.

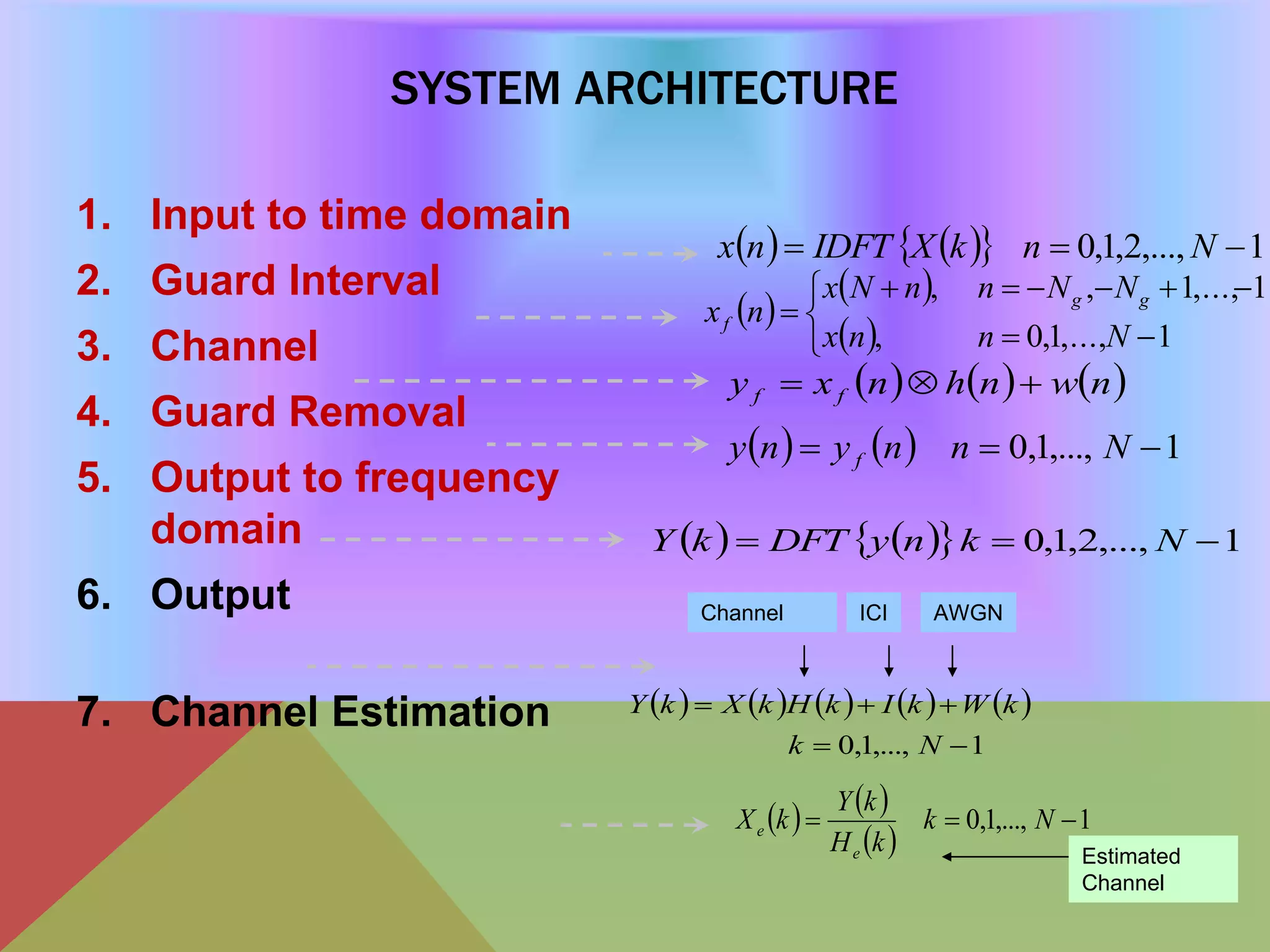

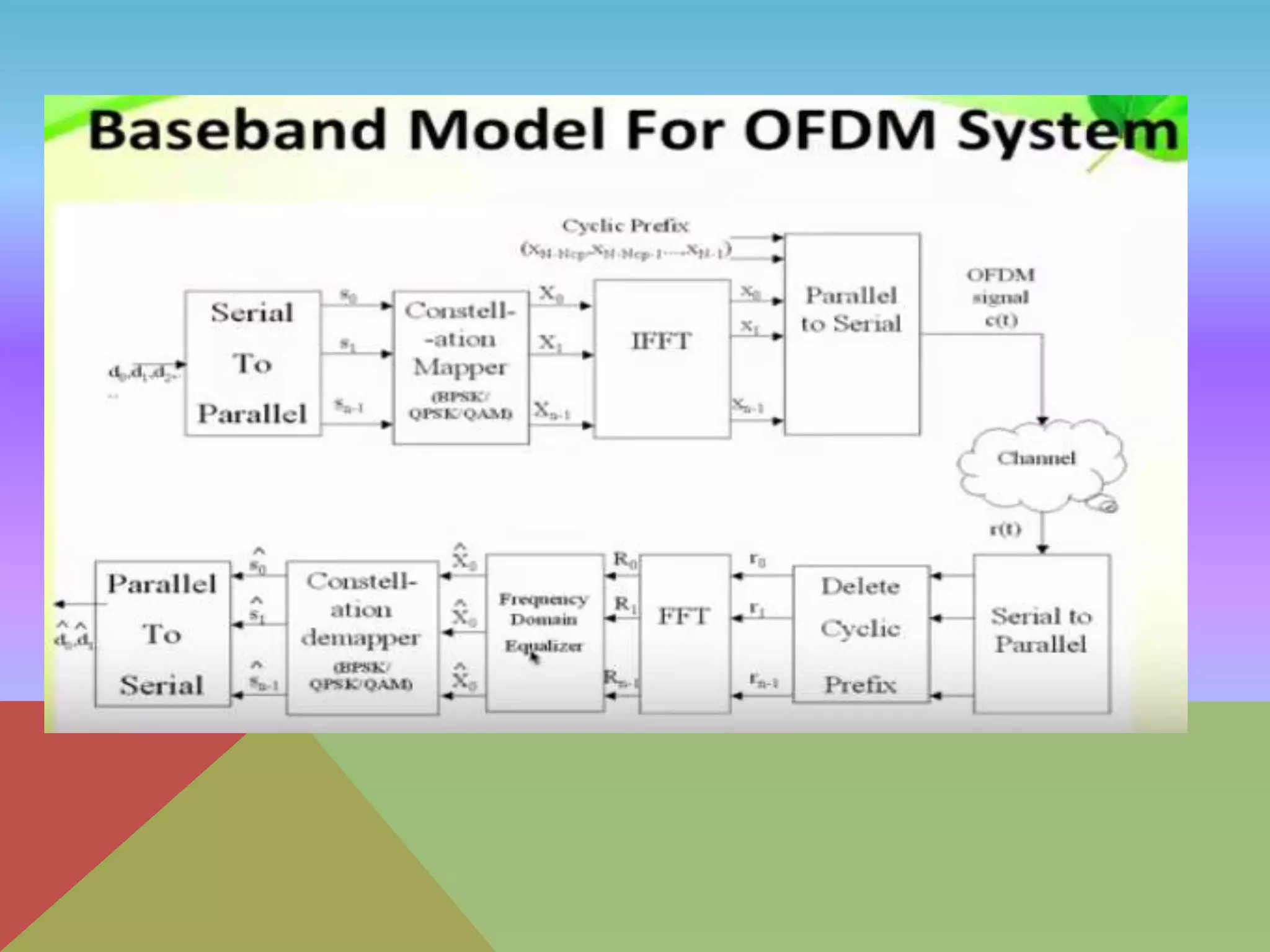

17. SYSTEM ARCHITECTURE
1. Input to time domain
2. Guard Interval
3. Channel
4. Guard Removal
5. Output to frequency
domain
6. Output
7. Channel Estimation
     1,...,2,1,0  NnkXIDFTnx
 
 
 





1,...,1,0,
1,...,1,,
Nnnx
NNnnNx
nx gg
f
     nwnhnxy ff 
    1,...,1,0  Nnnyny f
     1,...,2,1,0  NknyDFTkY
         
1,...,1,0 

Nk
kWkIkHkXkY
ICI AWGNChannel
   
 
1,...,1,0  Nk
kH
kY
kX
e
e
Estimated
Channel

18. DESIGN THEORY

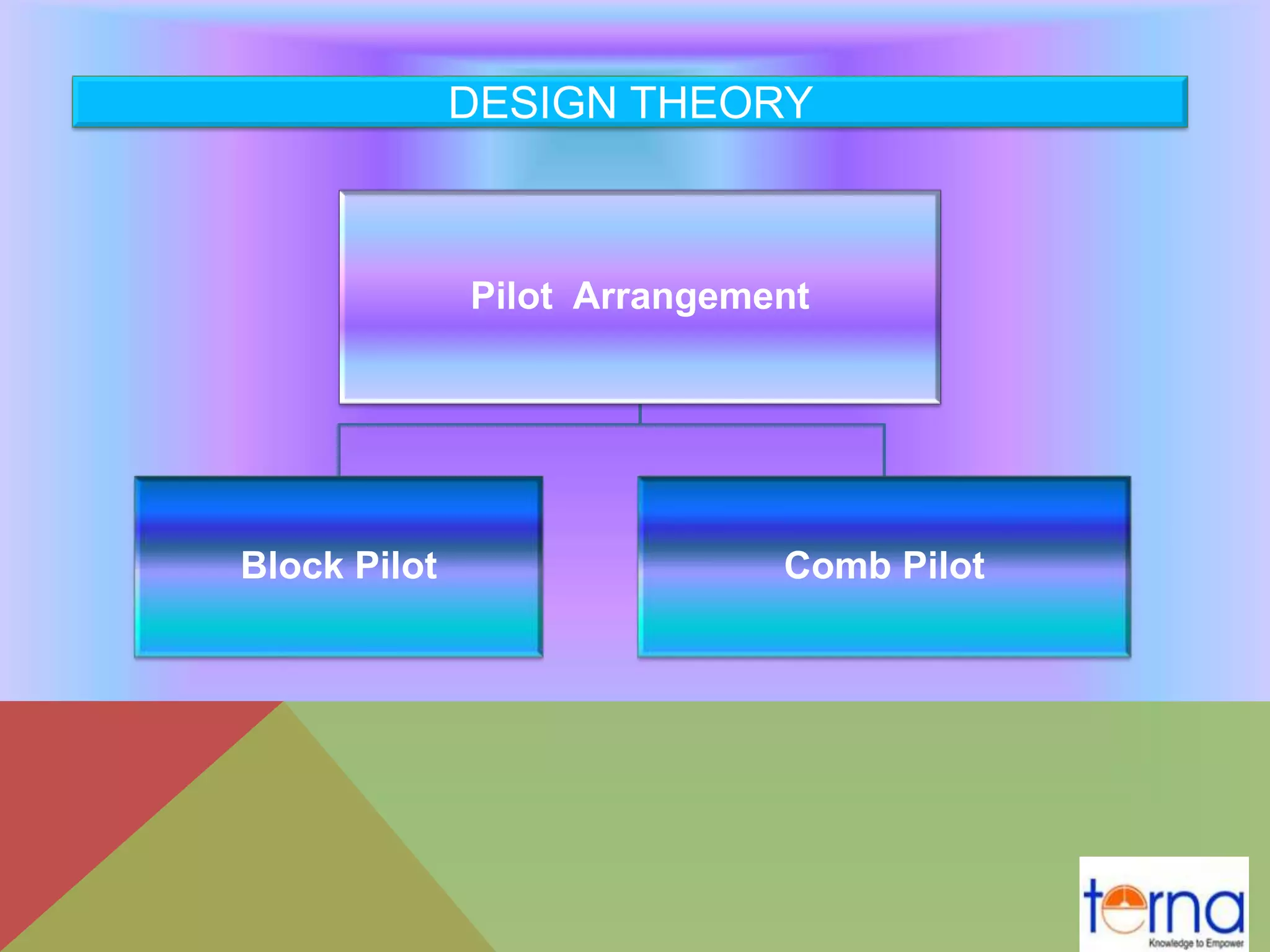

Pilot Arrangement
Block Pilot Comb Pilot

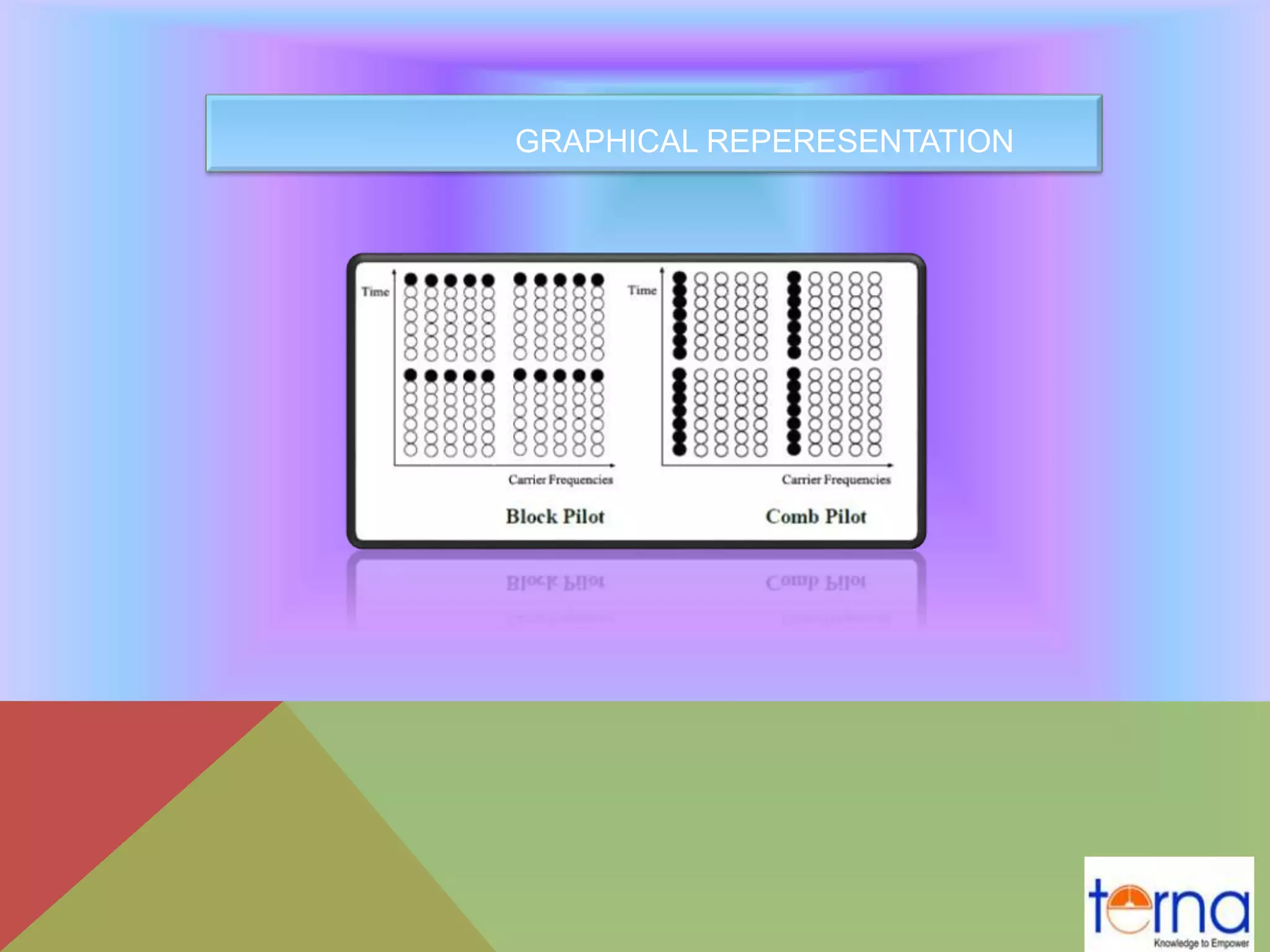

19. GRAPHICAL REPERESENTATION

20. RESULTS

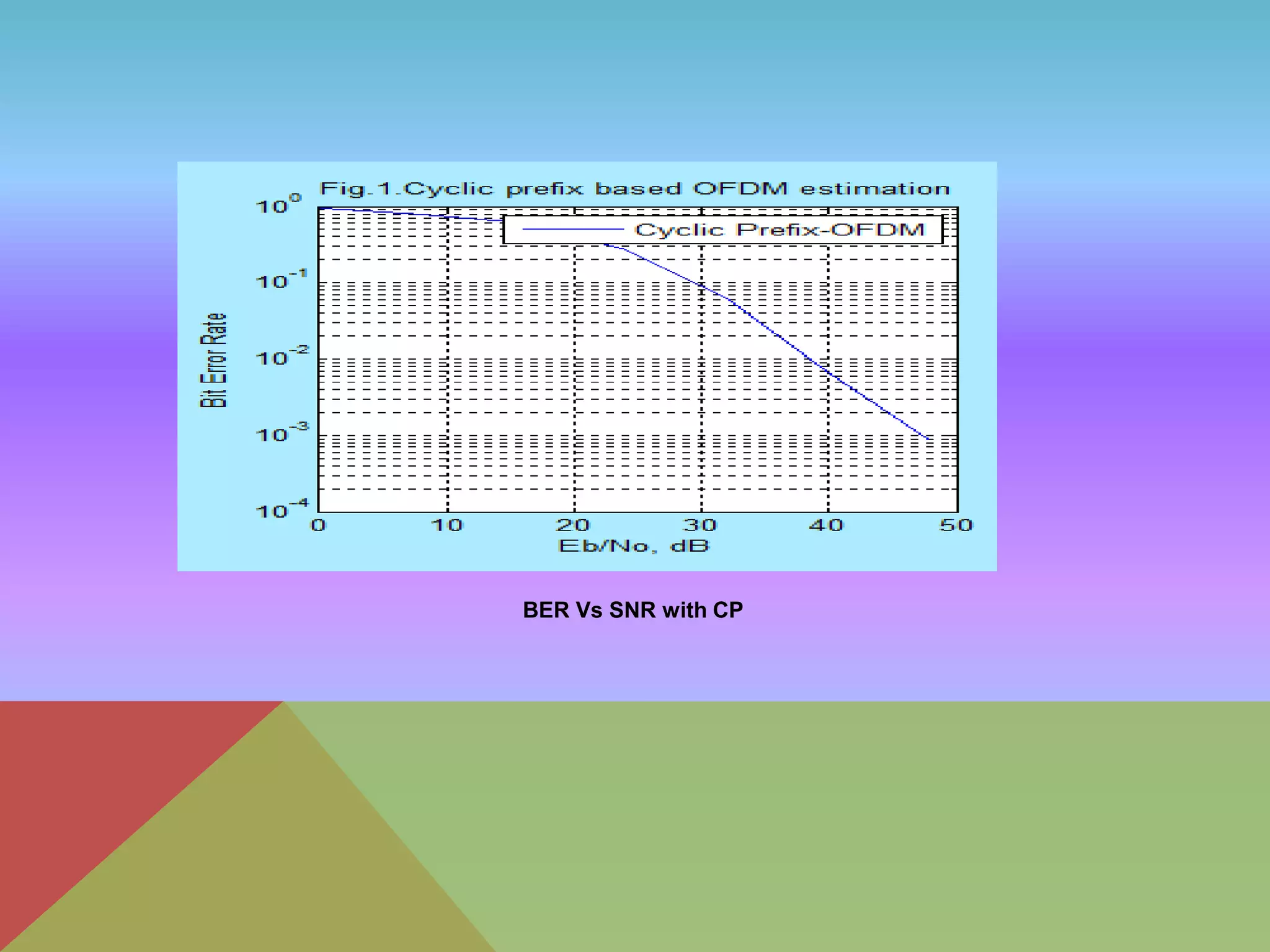

21. BER Vs SNR with CP

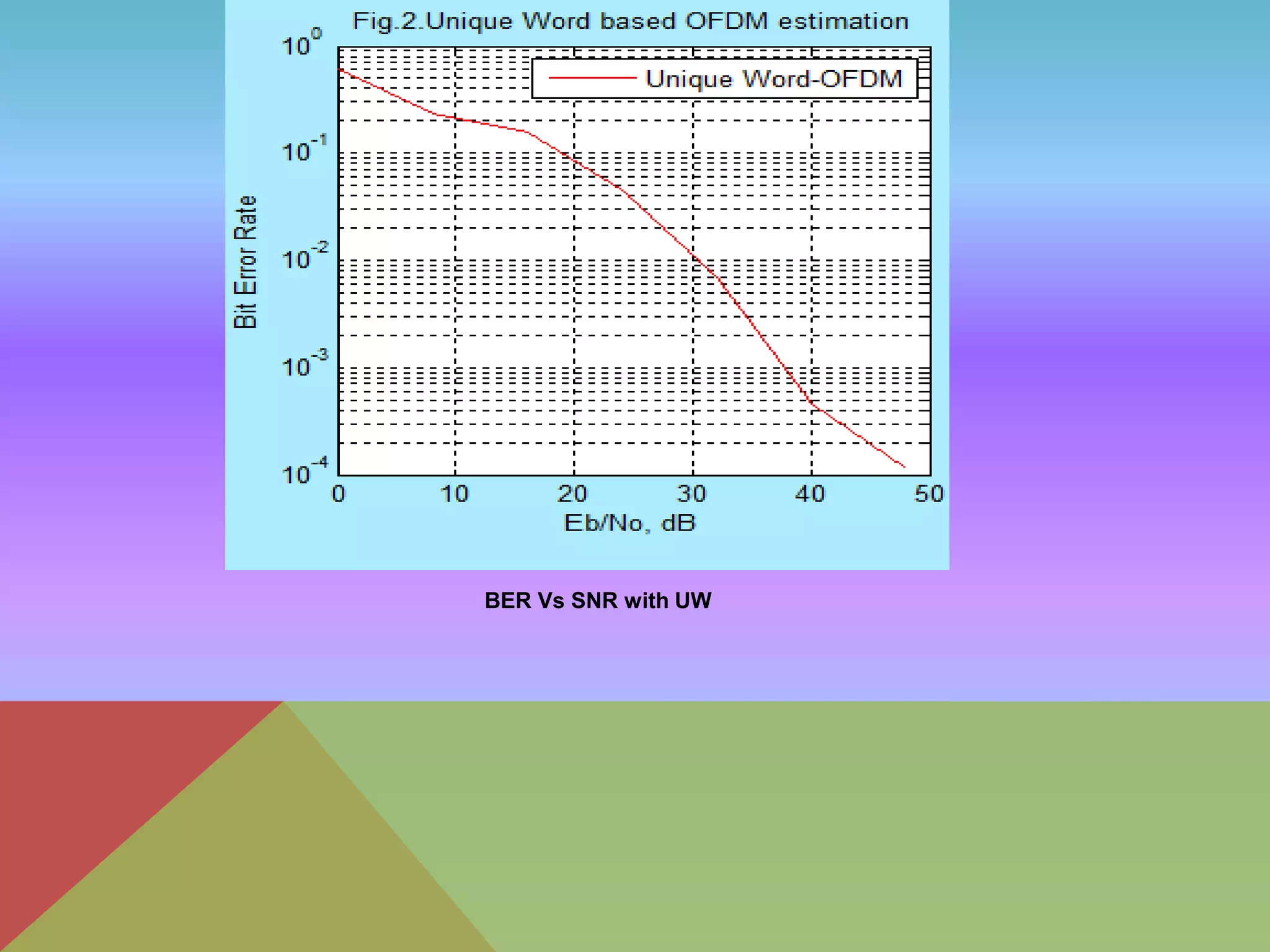

22. BER Vs SNR with UW

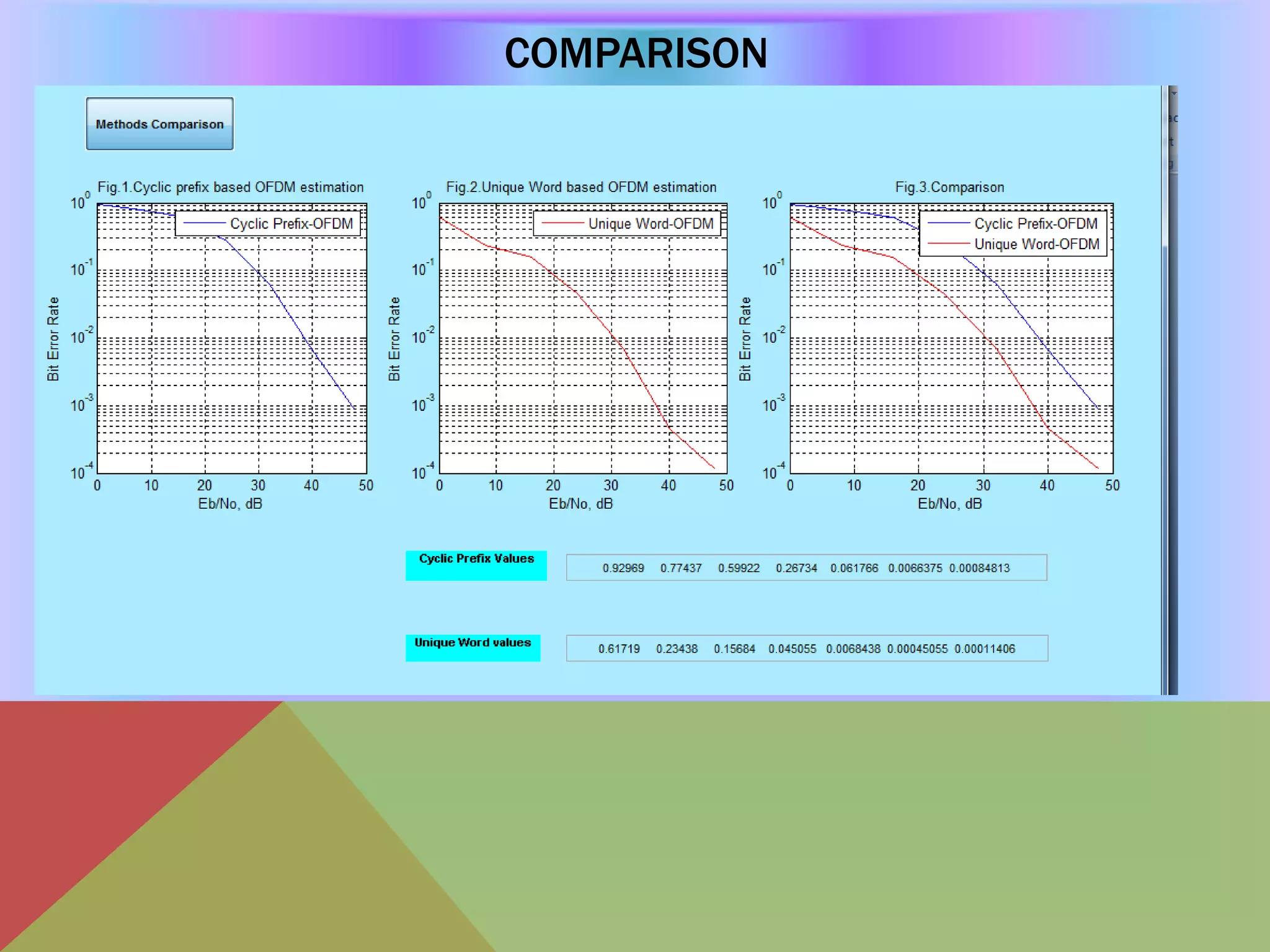

23. COMPARISON

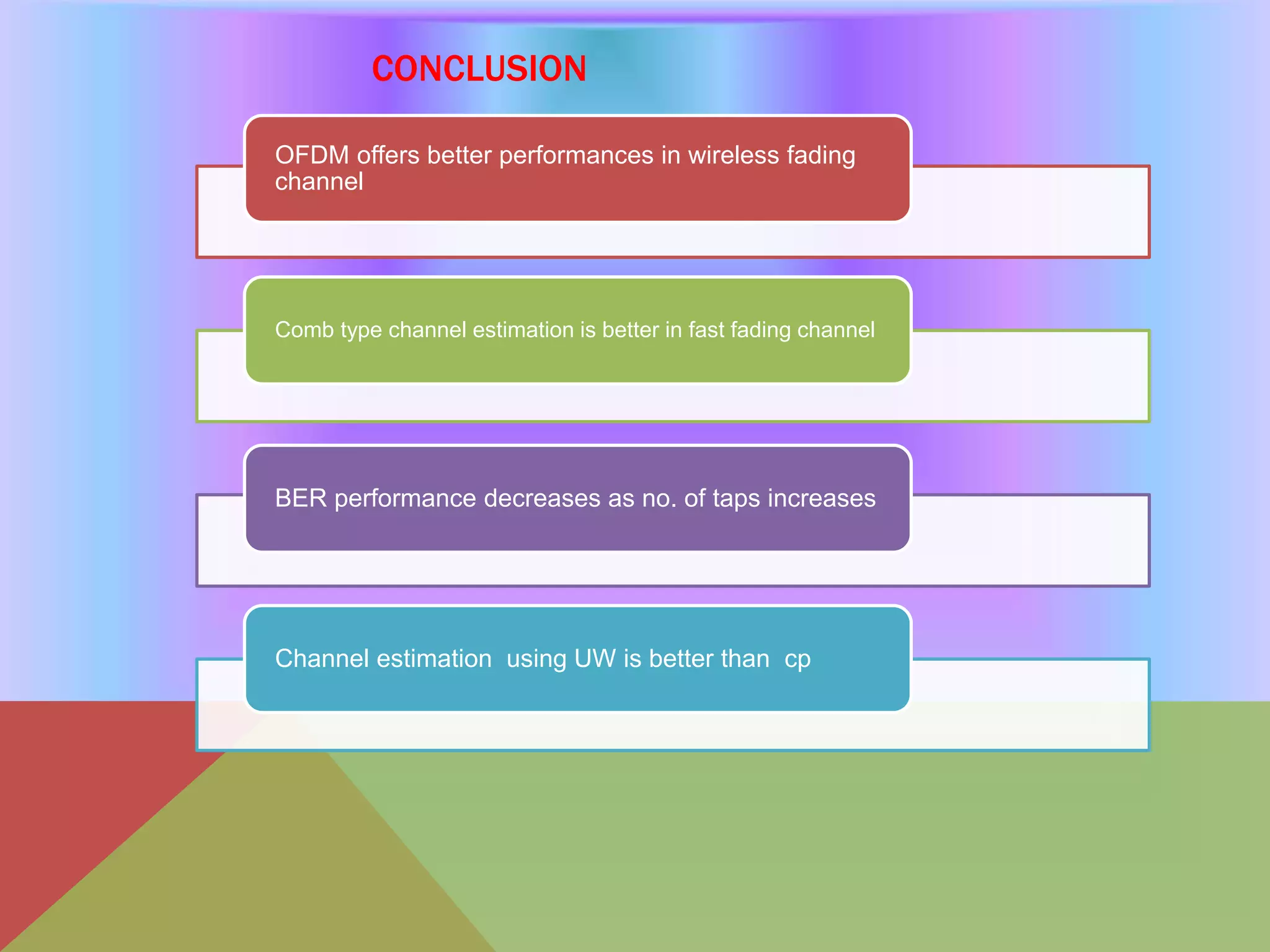

24. OFDM offers better performances in wireless fading
channel
Comb type channel estimation is better in fast fading channel
BER performance decreases as no. of taps increases
Channel estimation using UW is better than cp
CONCLUSION

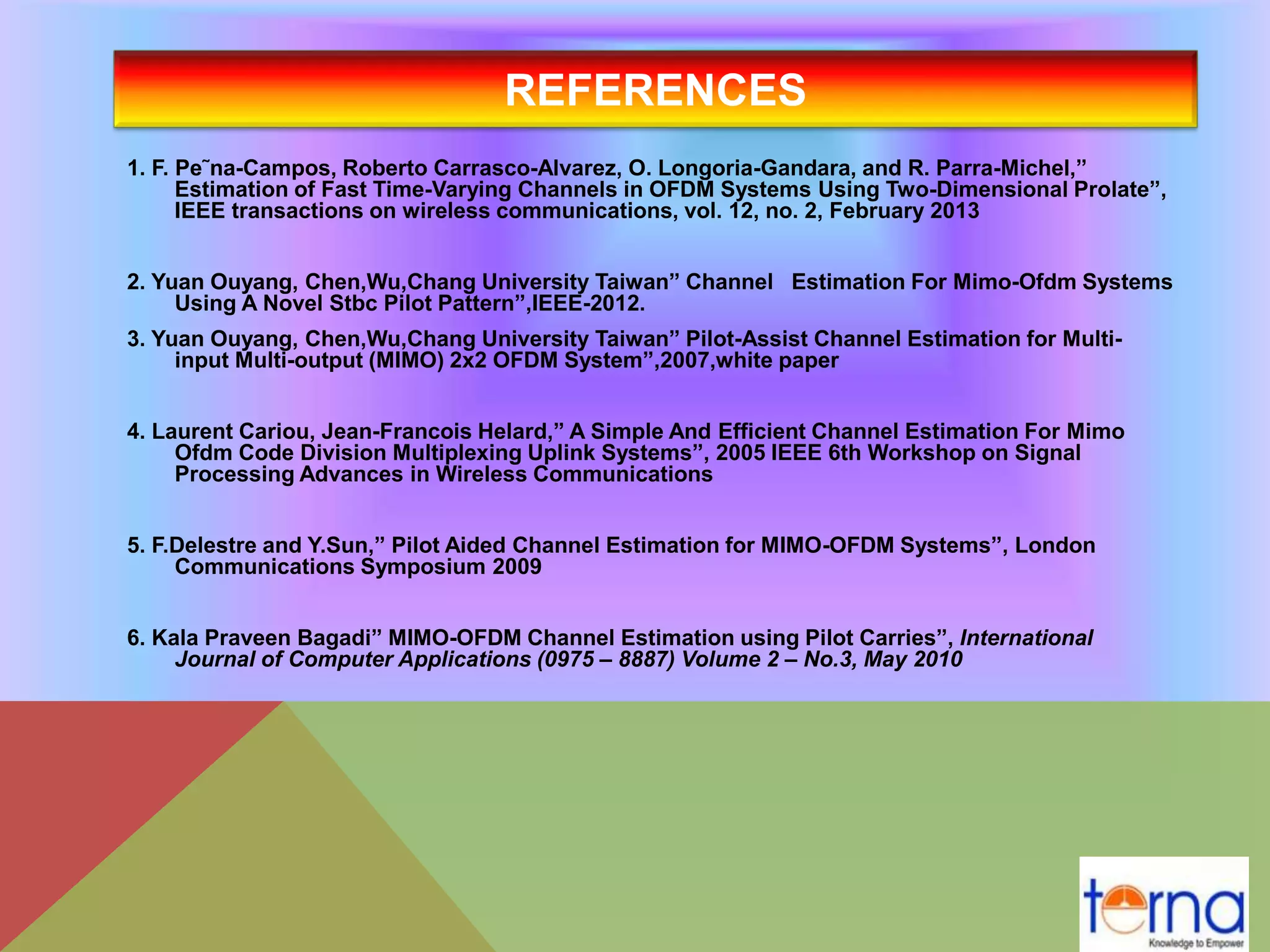

25. REFERENCES
