The document presents a wireless sensor network-based detection and warning system for fireworks warehouses, focusing on fire detection through a fire sensor interfaced with an ARM7 microcontroller. When a fire is detected, the microcontroller activates a water sprinkler and communicates through a GSM module for immediate alerts. The project highlights advantages such as reliability, low power consumption, and applicability in various environments like industries and public buildings.

1. Detection and warning system for fireworks
warehouse based on wireless sensor networks
Presented by
T.Prasad --11HM1A0482
S.Md.Suhail --11HM1A0473
M.Nagarjuna --11HM1A0447
P.Sai Kumar --11HM1A0461
Under the guidance of
K.Mahammad HaneefM.Tech
Assistant Professor
A project review on
Annamacharya Institute of Technology & Sciences, KADAPA

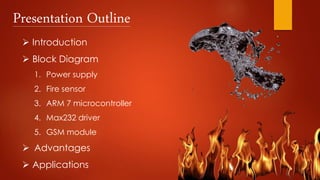

2. Presentation Outline
 Introduction
 Block Diagram
1. Power supply
2. Fire sensor
3. ARM 7 microcontroller
4. Max232 driver
5. GSM module
 Advantages
 Applications

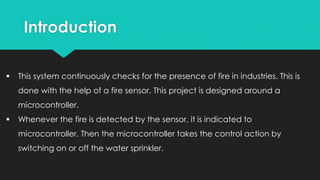

3. Introduction
 This system continuously checks for the presence of fire in industries. This is
done with the help of a fire sensor. This project is designed around a
microcontroller.
 Whenever the fire is detected by the sensor, it is indicated to
microcontroller. Then the microcontroller takes the control action by
switching on or off the water sprinkler.

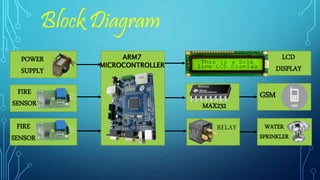

4. ARM7
MICROCONTROLLER
POWER
SUPPLY
WATER
SPRINKLER
GSM
LCD
DISPLAY
FIRE
SENSOR
RELAY
MAX232
FIRE
SENSOR
Block Diagram

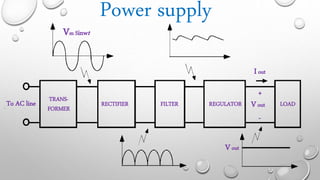

5. Power supply
TRANS-
FORMER
RECTIFIER FILTER REGULATOR LOAD
Vout
Vm Sinwt
Vout
+
-
Iout
To AC line

6. sensor
 The Fire sensor, as the name suggests, is used as a simple and compact
device for protection against fire(range is up to 1-2m).
 It has got three pins gnd, vcc and out. Whenever fire is detected by IR
sensor LED glows, and out pin is set high.
Pin Name Details
1 Out Active high output
2 +5V Power supply input
3 ground Power supply ground
Pin diagram table
Basic figure

7. ARM 7Micro controller
 12.00 MHz crystal
 Dual Power supply (either through
USB or using external power adapter).
 Three on-board voltage regulators 1.8V,
3.3V and 5V with up to 800mA current
 USB Ports.
 CAN controller interfacing.
 MMC/SD card interfacing.
 8 Bit LED interfacing.
 EEPROM Interfacing.
 On board UART.

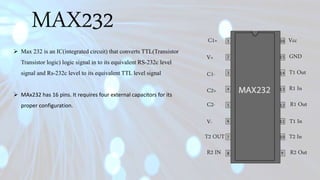

8. MAX232 C1+
C2-
V-
T2 OUT
R2 IN R2 Out
T2 In
T1 In
R1 Out
R1 In
T1 Out
GND
Vcc
V+
C1-
C2+
 Max 232 is an IC(integrated circuit) that converts TTL(Transistor
Transistor logic) logic signal in to its equivalent RS-232c level
signal and Rs-232c level to its equivalent TTL level signal
 MAx232 has 16 pins. It requires four external capacitors for its
proper configuration.

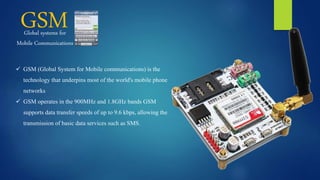

9. GSMGlobal systems for
Mobile Communications
 GSM (Global System for Mobile communications) is the
technology that underpins most of the world's mobile phone
networks
 GSM operates in the 900MHz and 1.8GHz bands GSM
supports data transfer speeds of up to 9.6 kbps, allowing the
transmission of basic data services such as SMS.

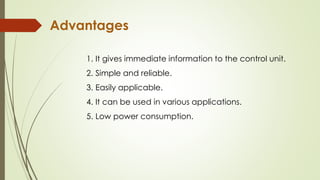

10. 1. It gives immediate information to the control unit.
2. Simple and reliable.
3. Easily applicable.
4. It can be used in various applications.
5. Low power consumption.
Advantages

11. VOLVO BUSES
HOUSES
AIRPORTS
OFFICES
Applications

12. Thank you
