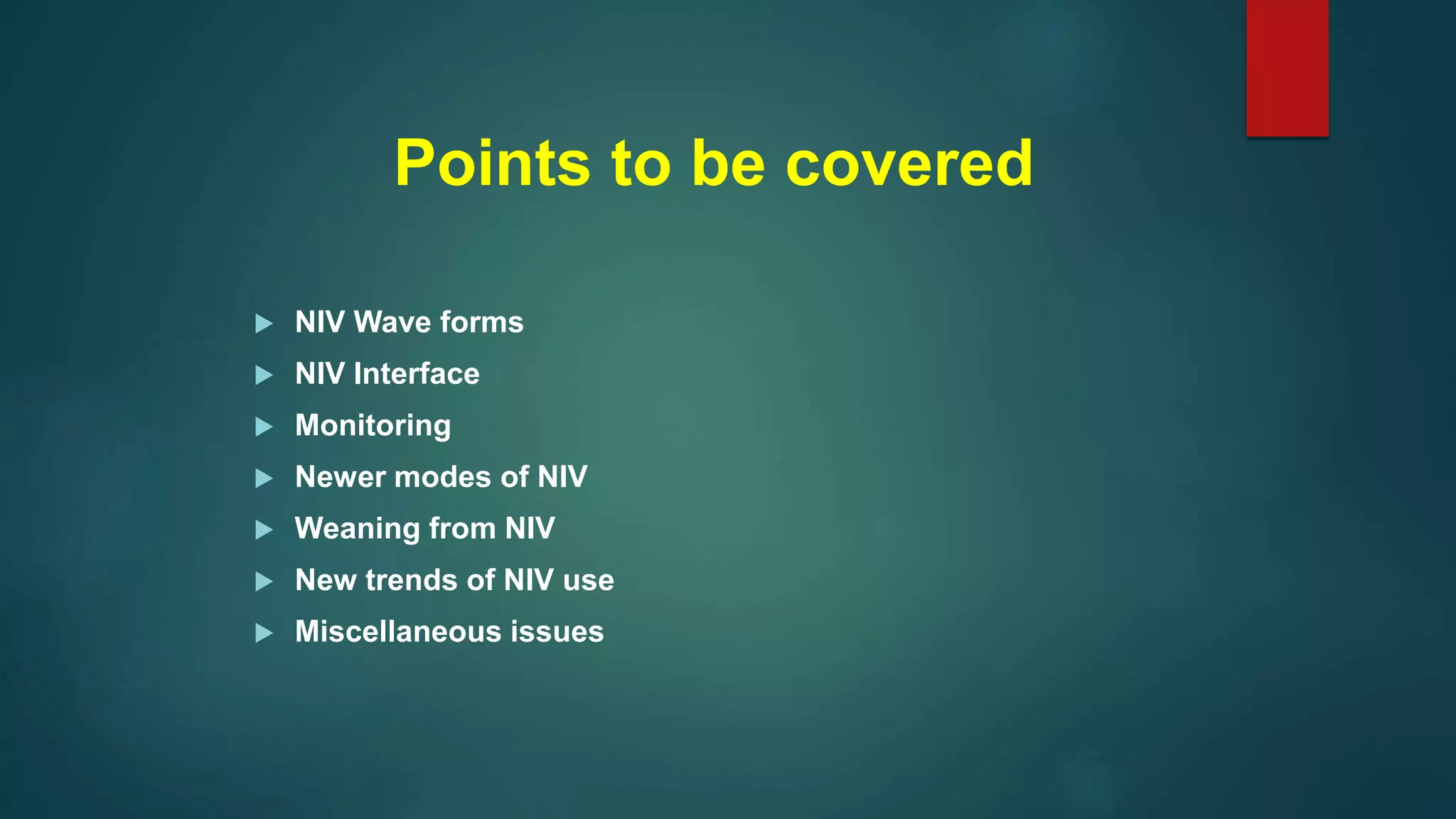

2. Points to be covered
NIV Wave forms
NIV Interface
Monitoring
Newer modes of NIV
Weaning from NIV
New trends of NIV use
Miscellaneous issues

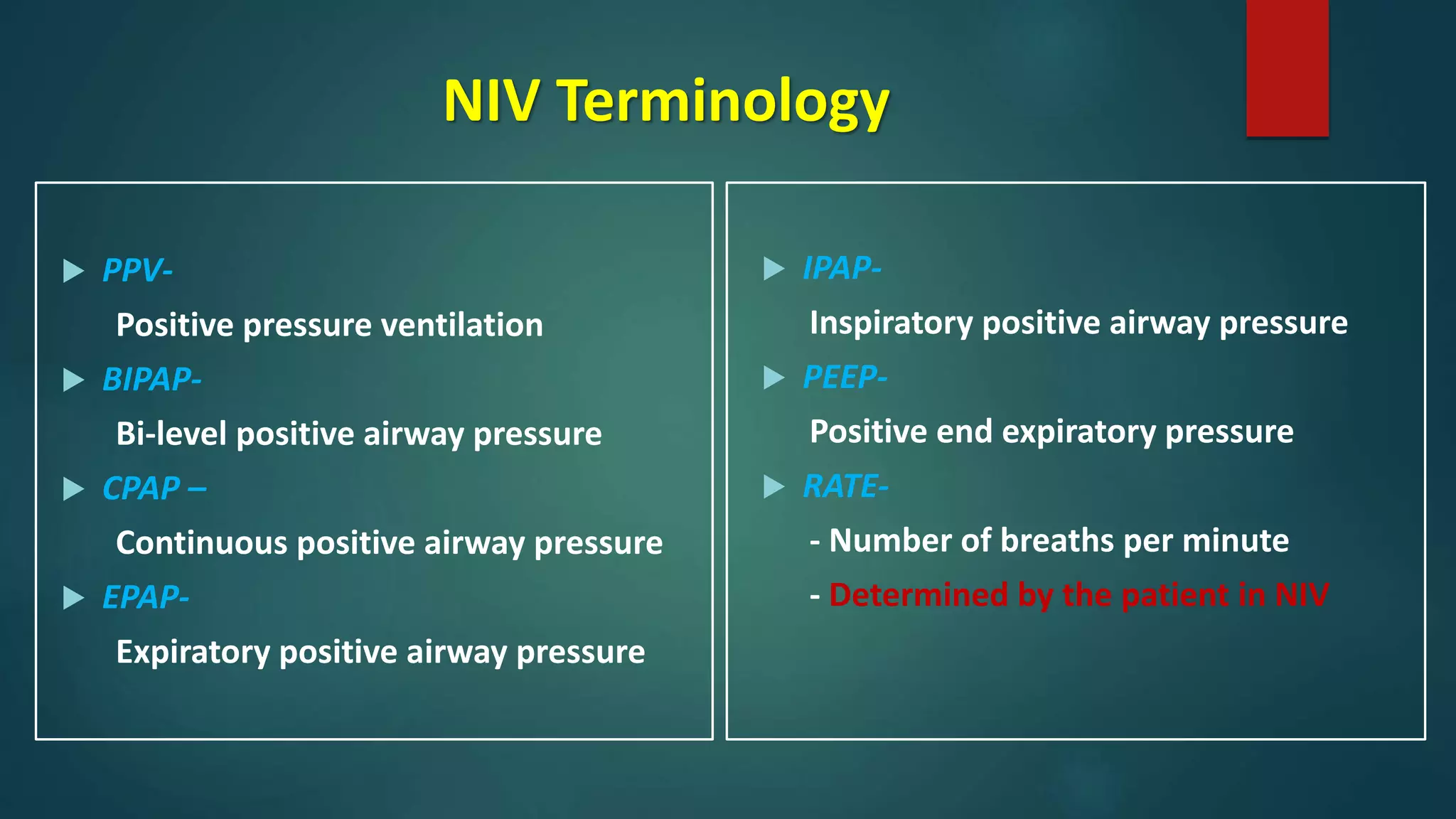

3. NIV Terminology
PPV-
Positive pressure ventilation
BIPAP-
Bi-level positive airway pressure
CPAP –
Continuous positive airway pressure
EPAP-
Expiratory positive airway pressure
IPAP-
Inspiratory positive airway pressure
PEEP-
Positive end expiratory pressure
RATE-
- Number of breaths per minute
- Determined by the patient in NIV

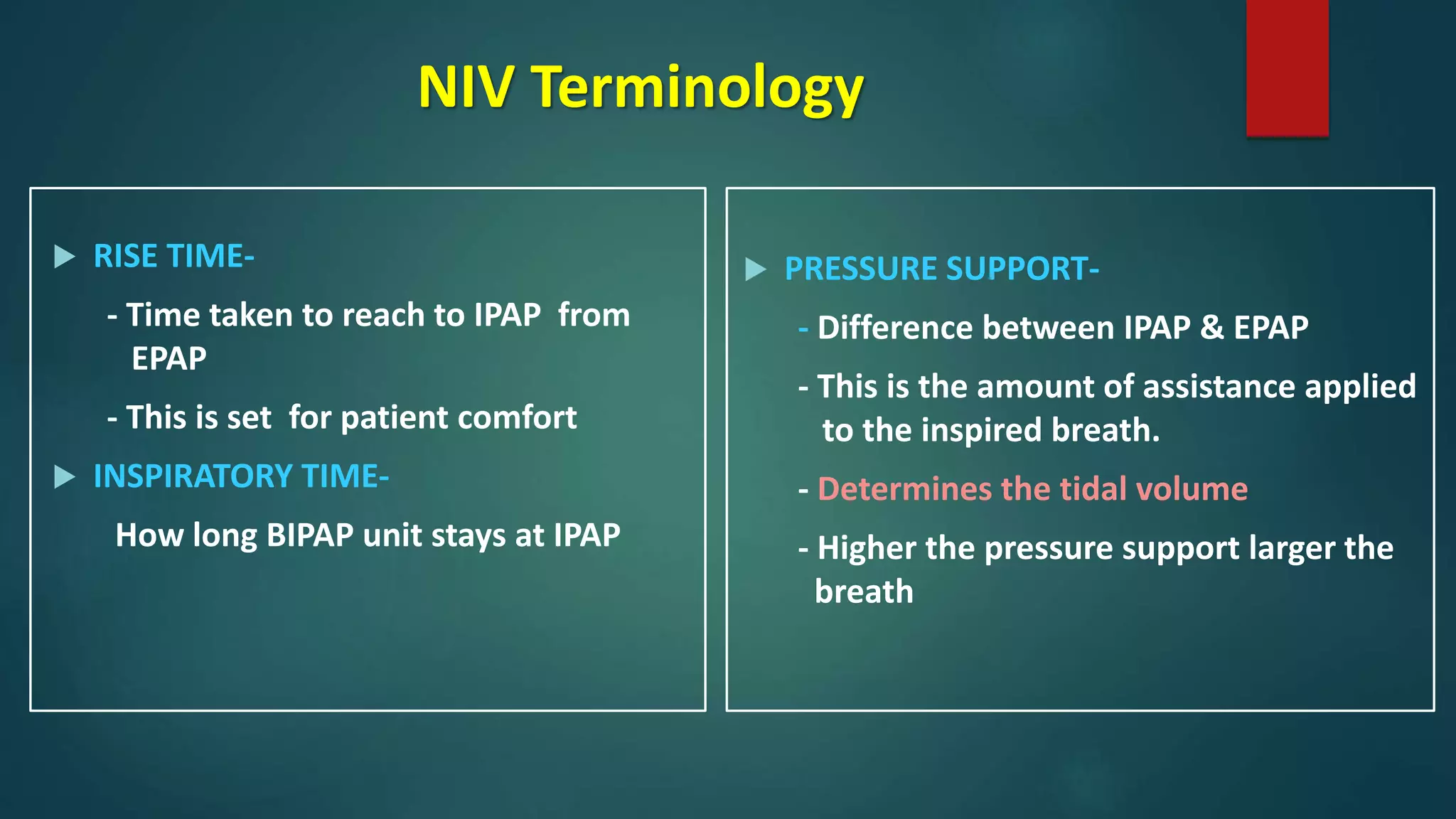

4. NIV Terminology

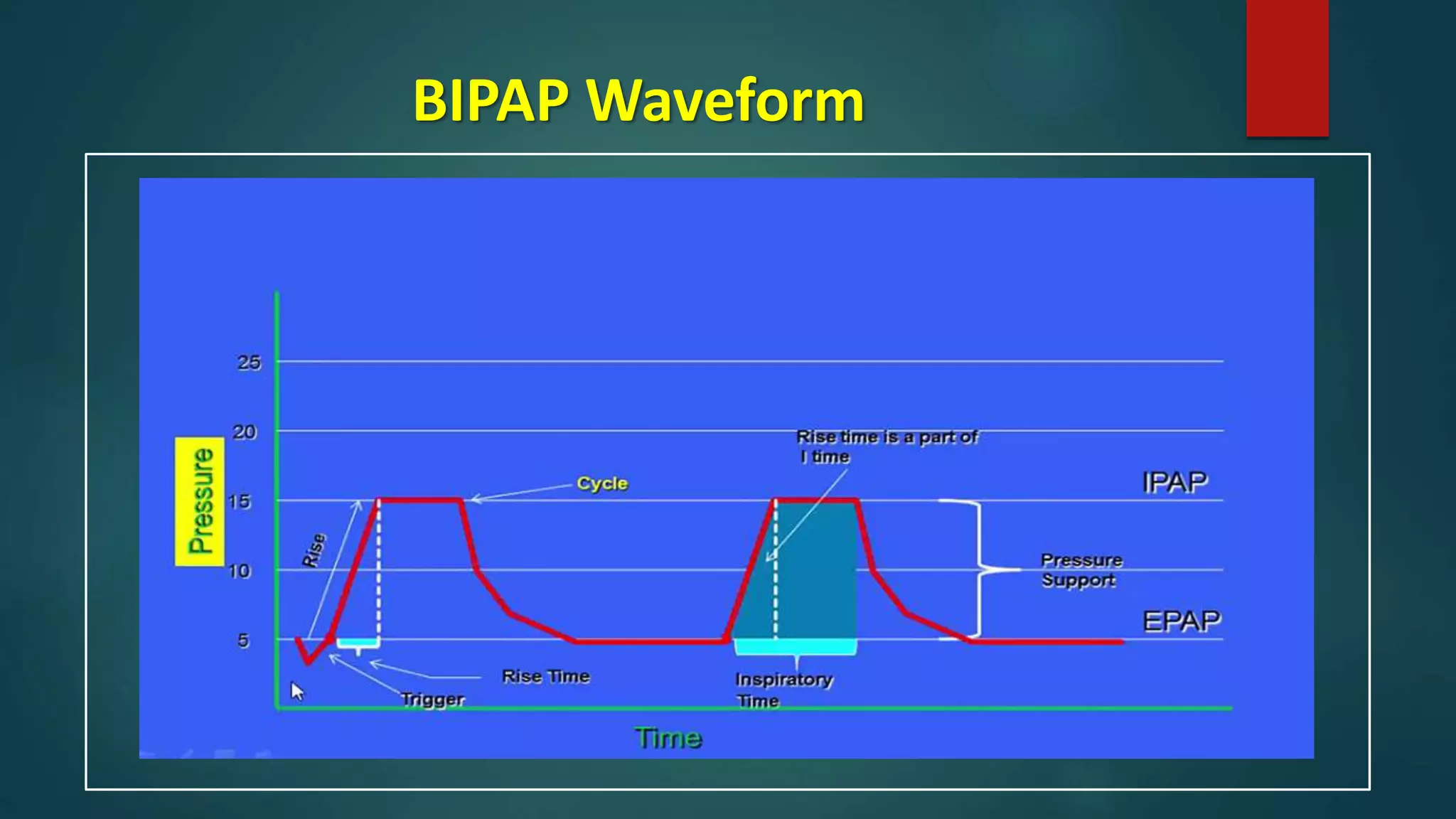

RISE TIME-
- Time taken to reach to IPAP from
EPAP
- This is set for patient comfort
INSPIRATORY TIME-
How long BIPAP unit stays at IPAP
PRESSURE SUPPORT-
- Difference between IPAP & EPAP
- This is the amount of assistance applied
to the inspired breath.
- Determines the tidal volume
- Higher the pressure support larger the
breath

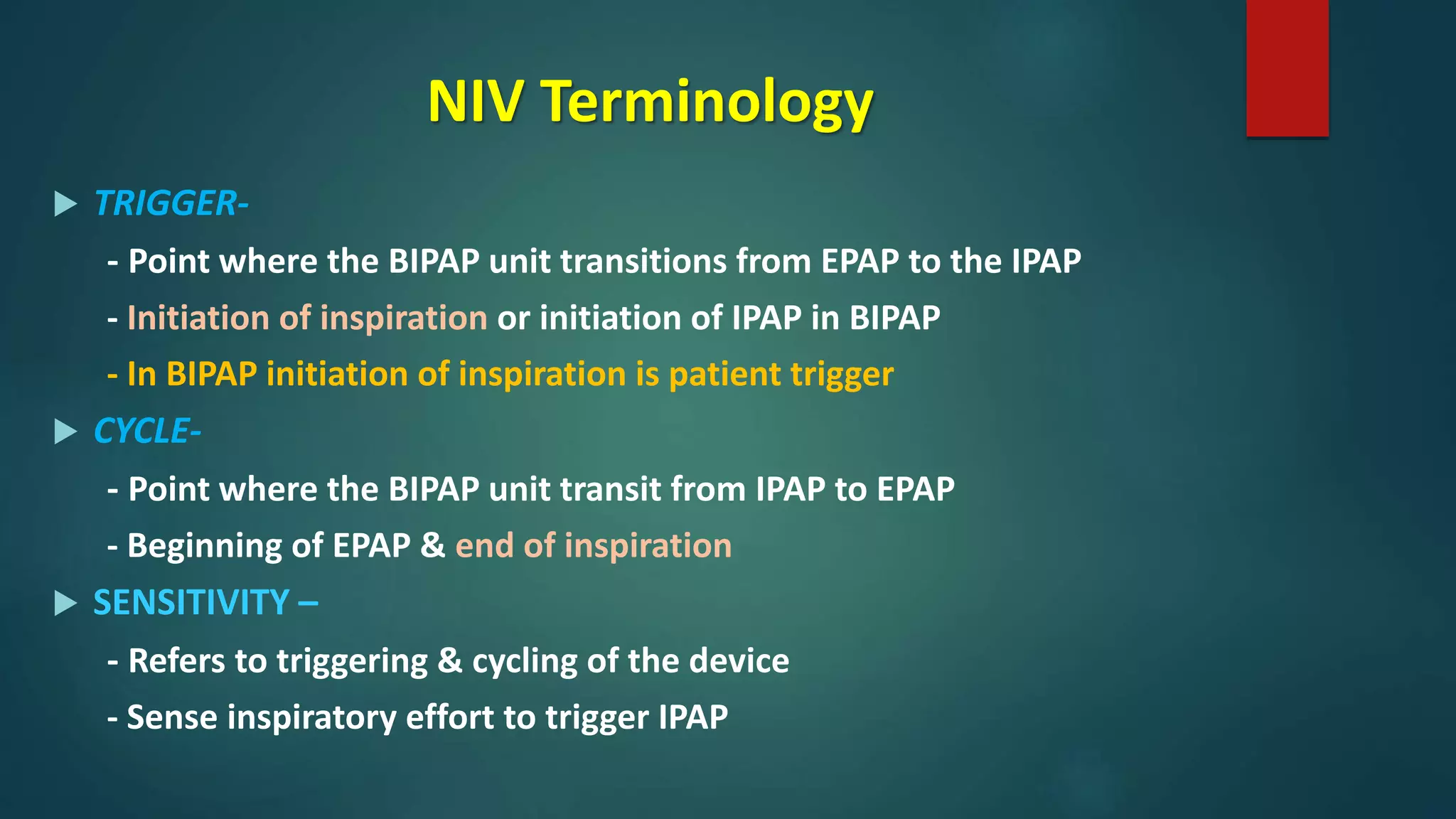

5. NIV Terminology
TRIGGER-
- Point where the BIPAP unit transitions from EPAP to the IPAP
- Initiation of inspiration or initiation of IPAP in BIPAP
- In BIPAP initiation of inspiration is patient trigger
CYCLE-
- Point where the BIPAP unit transit from IPAP to EPAP
- Beginning of EPAP & end of inspiration
SENSITIVITY –
- Refers to triggering & cycling of the device
- Sense inspiratory effort to trigger IPAP

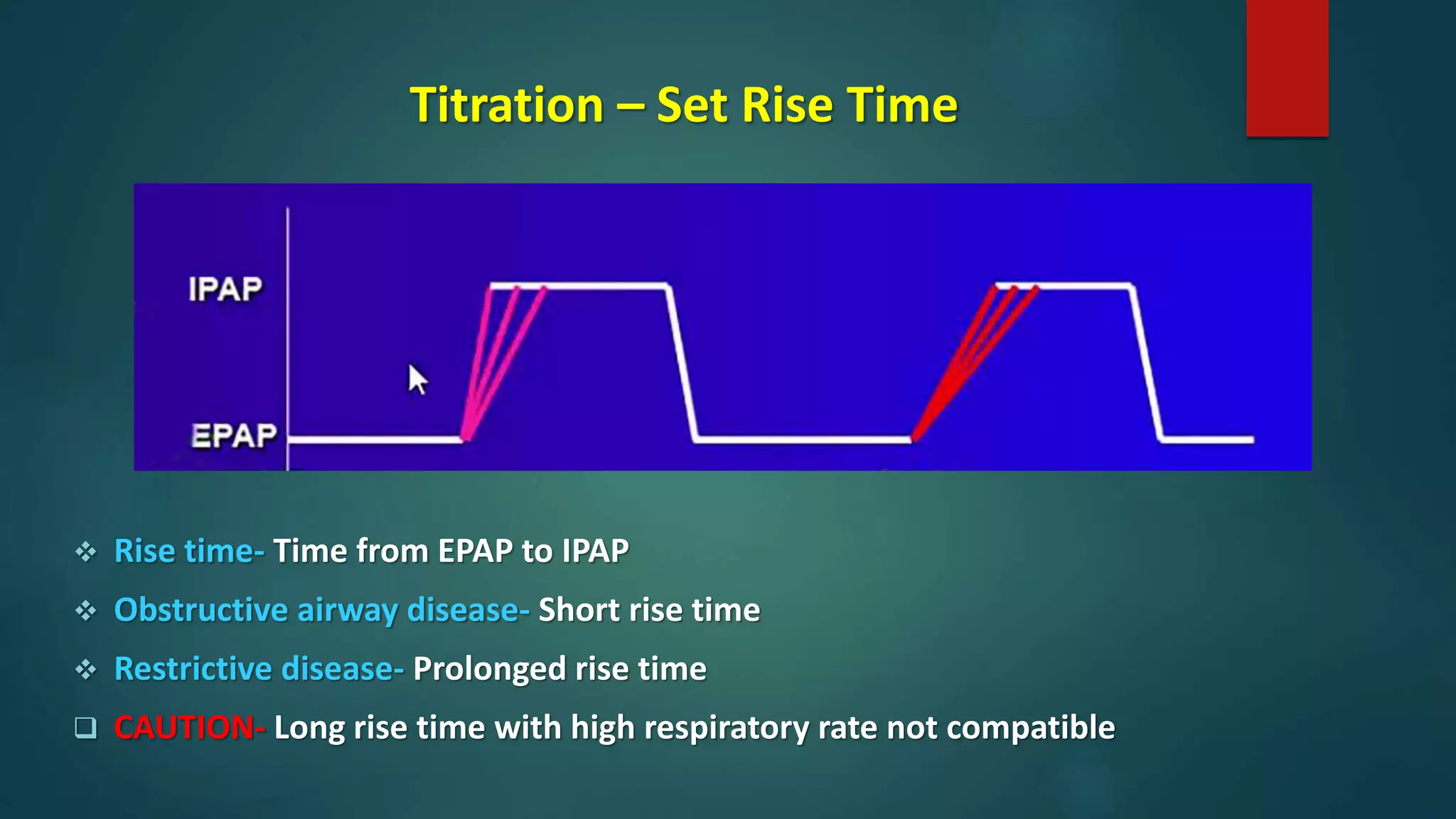

7. Titration – Set Rise Time
Rise time- Time from EPAP to IPAP
Obstructive airway disease- Short rise time
Restrictive disease- Prolonged rise time
CAUTION- Long rise time with high respiratory rate not compatible

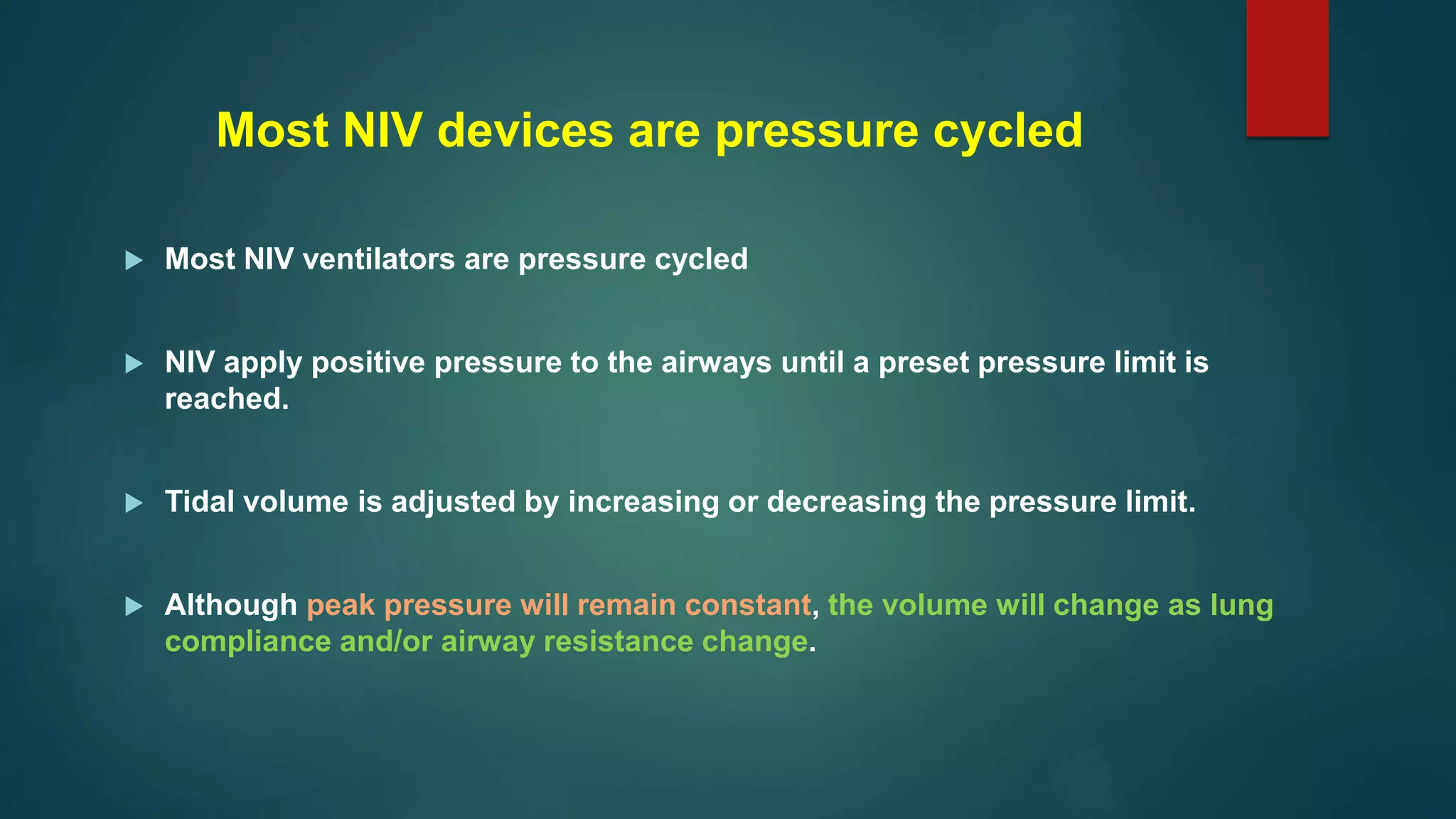

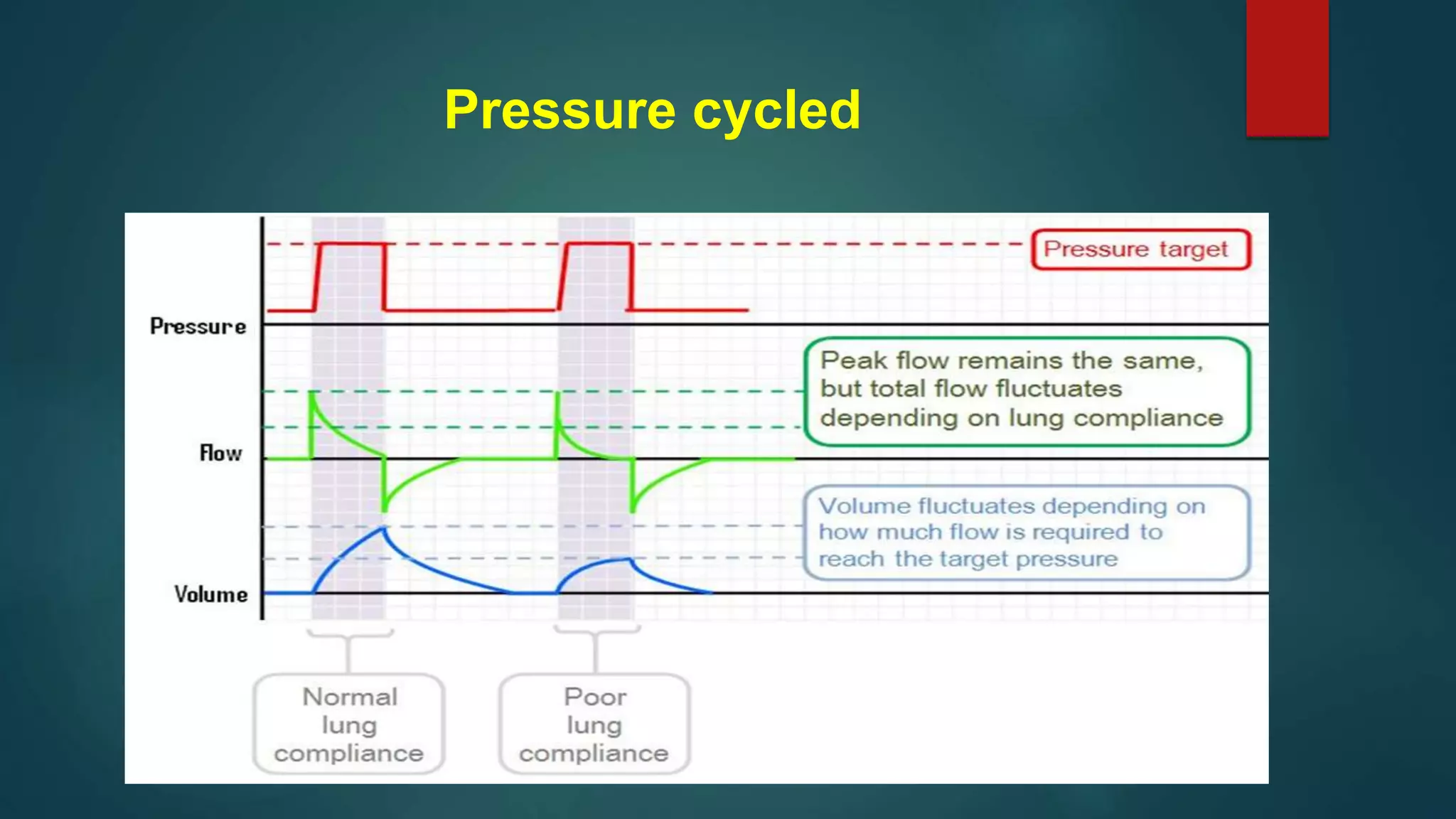

8. Most NIV devices are pressure cycled
Most NIV ventilators are pressure cycled
NIV apply positive pressure to the airways until a preset pressure limit is
reached.
Tidal volume is adjusted by increasing or decreasing the pressure limit.
Although peak pressure will remain constant, the volume will change as lung
compliance and/or airway resistance change.

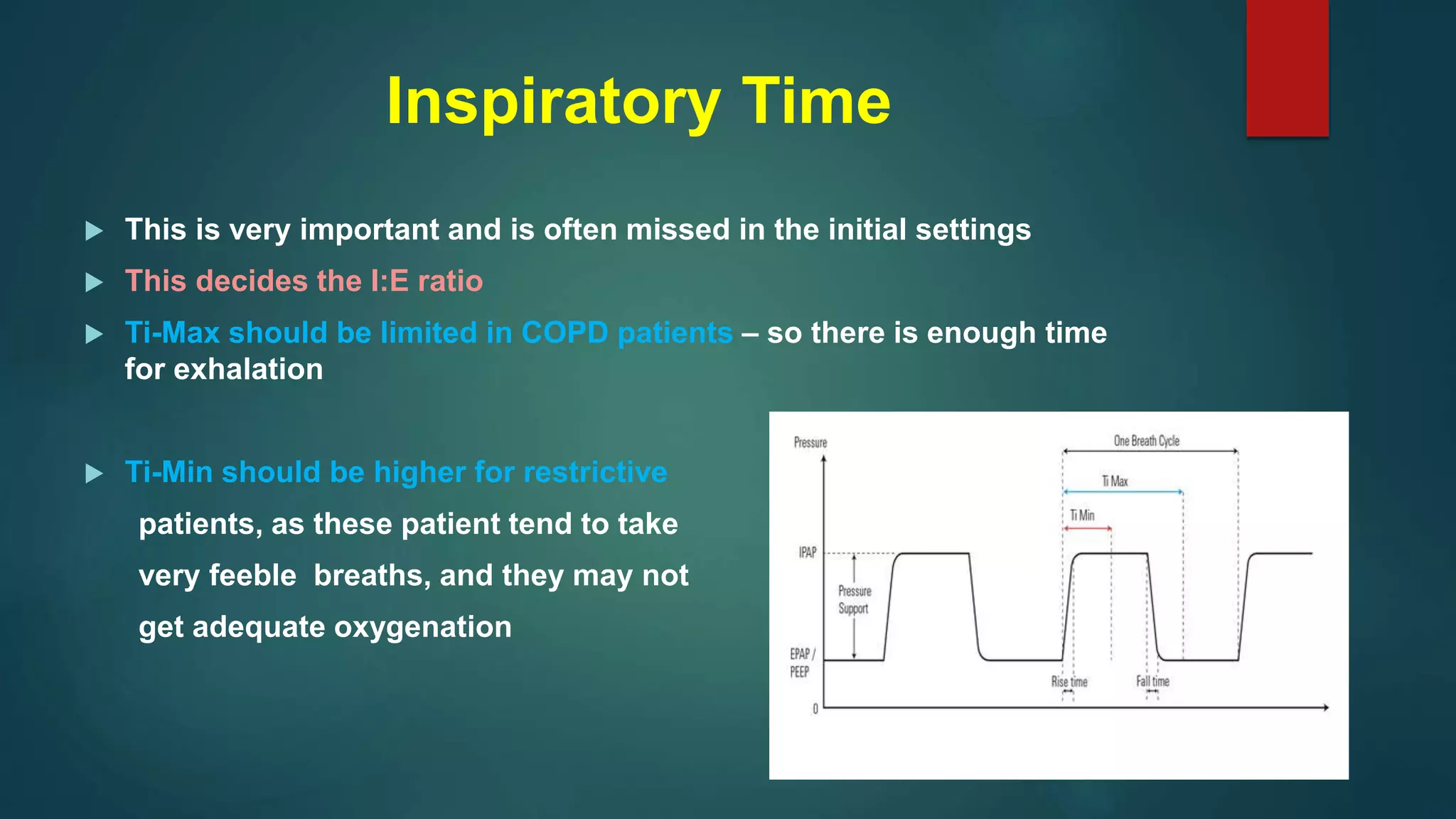

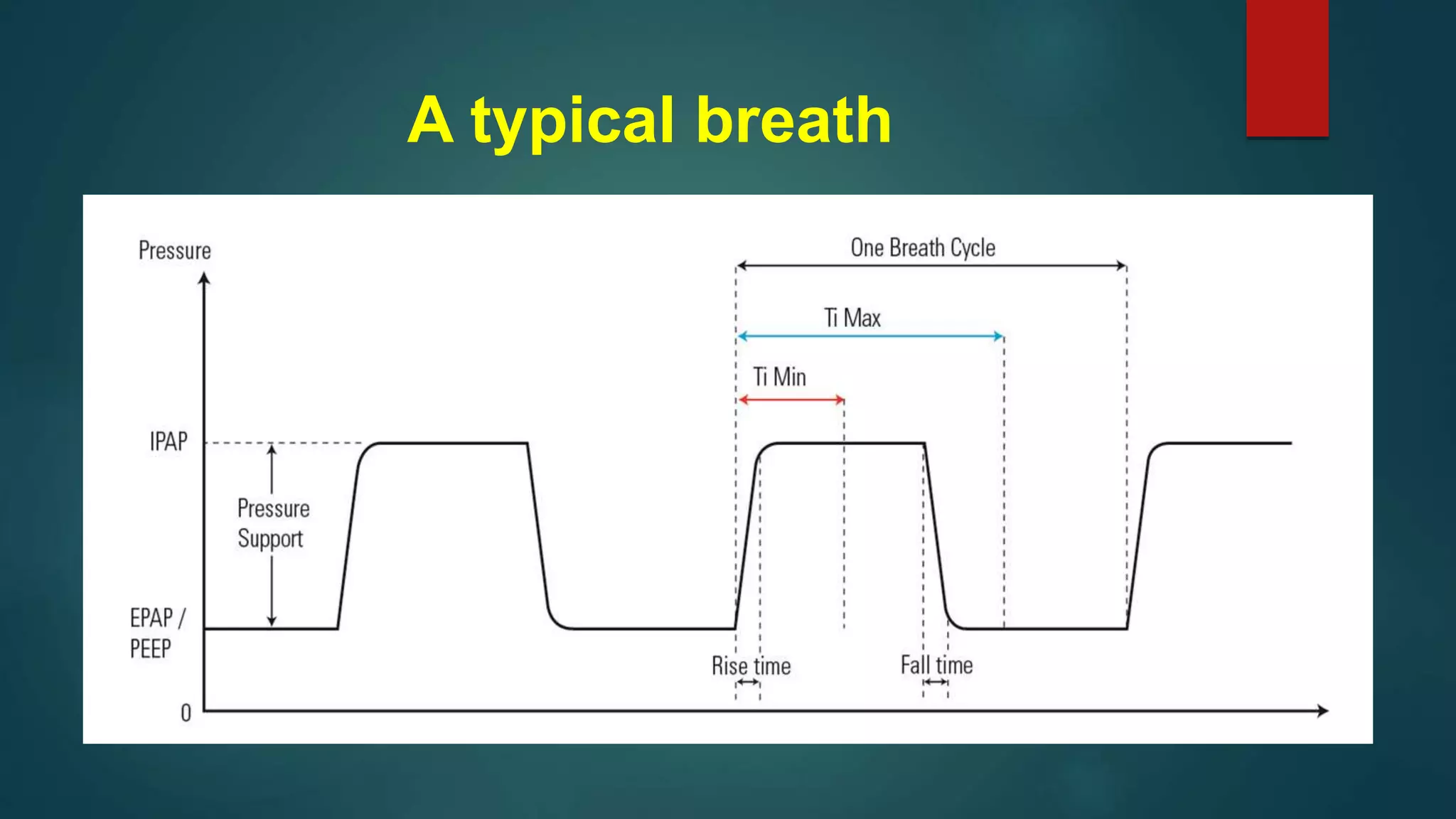

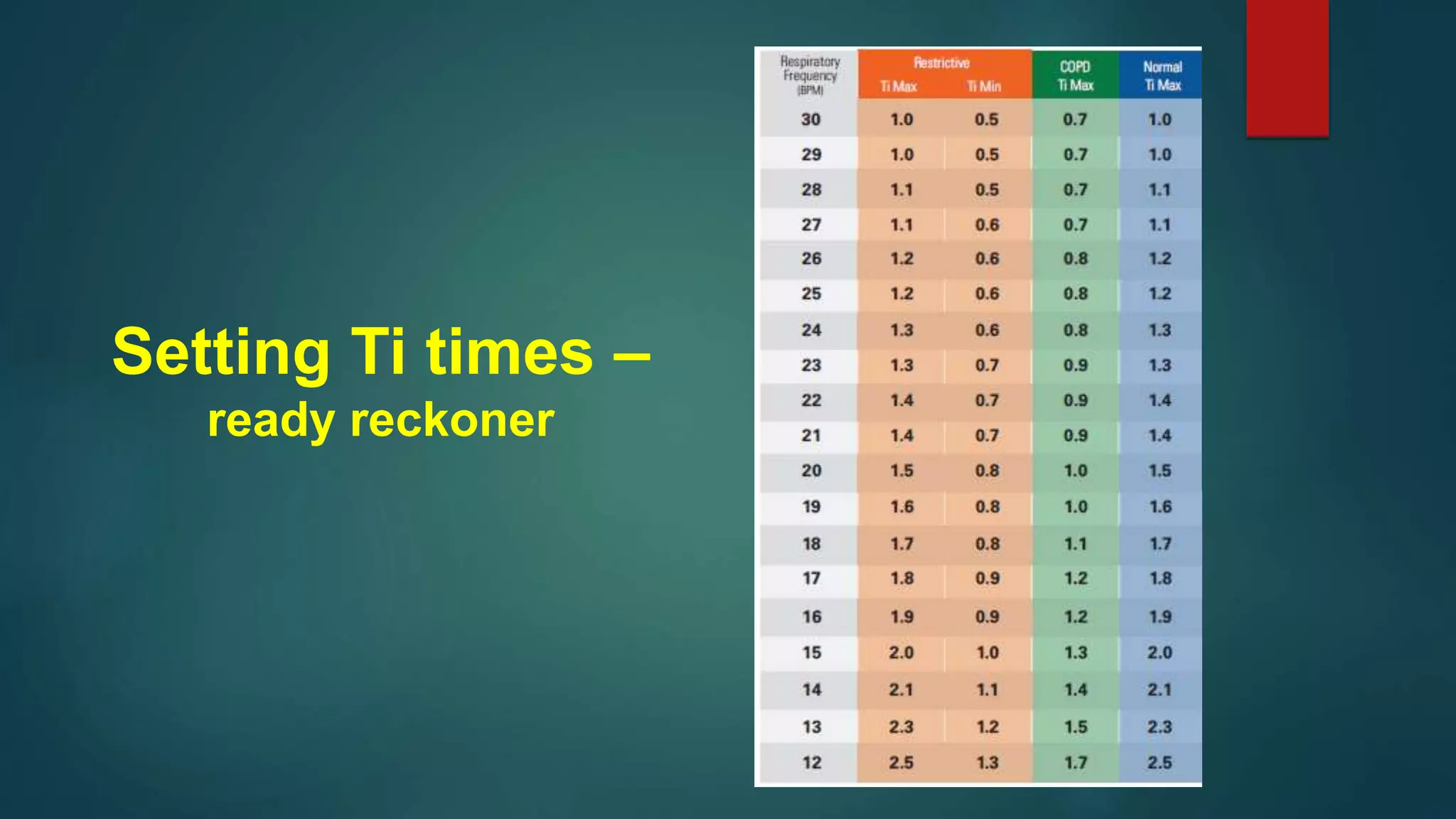

11. Inspiratory Time
This is very important and is often missed in the initial settings
This decides the I:E ratio
Ti-Max should be limited in COPD patients – so there is enough time
for exhalation
Ti-Min should be higher for restrictive
patients, as these patient tend to take
very feeble breaths, and they may not
get adequate oxygenation

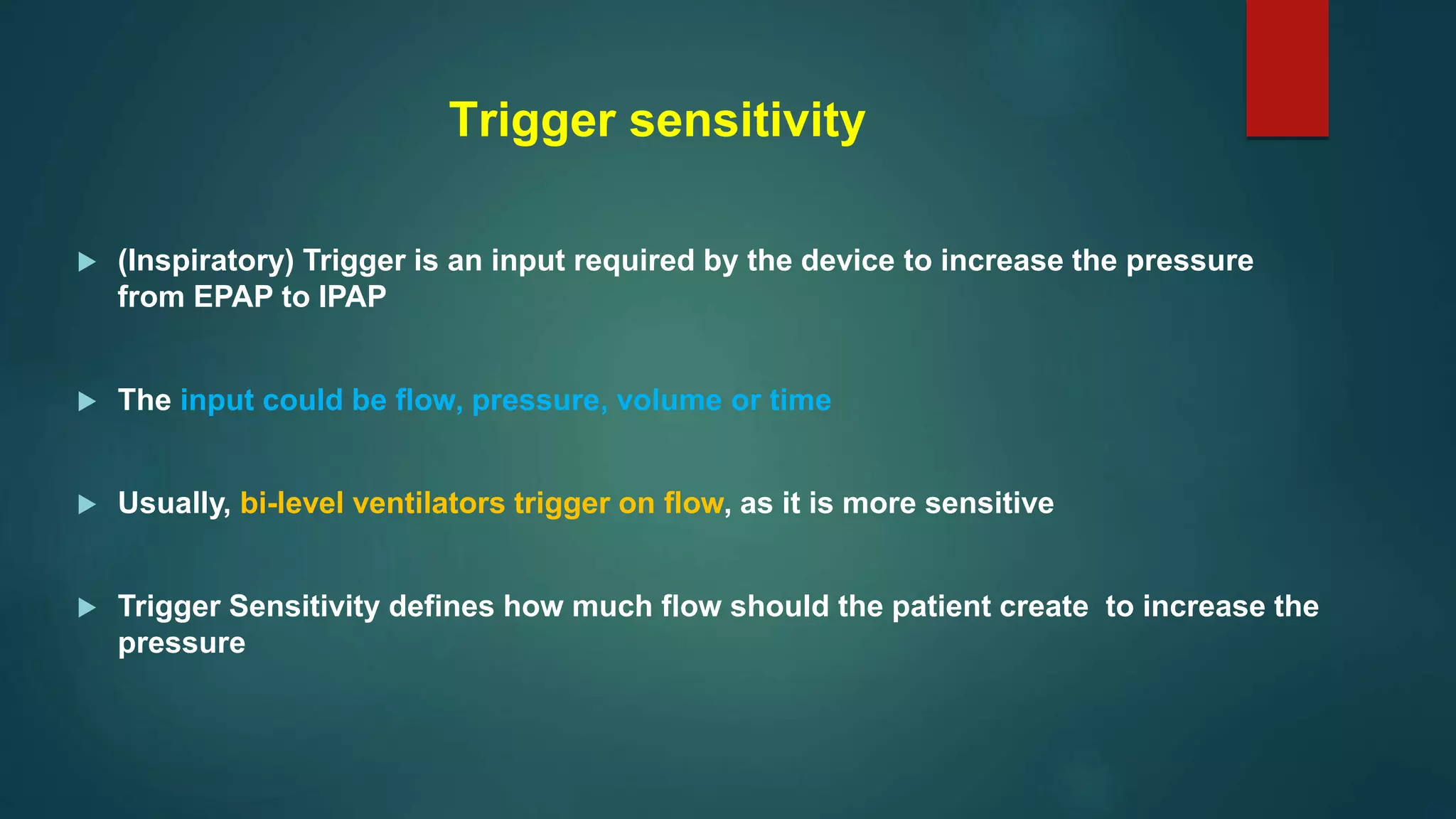

13. Trigger sensitivity

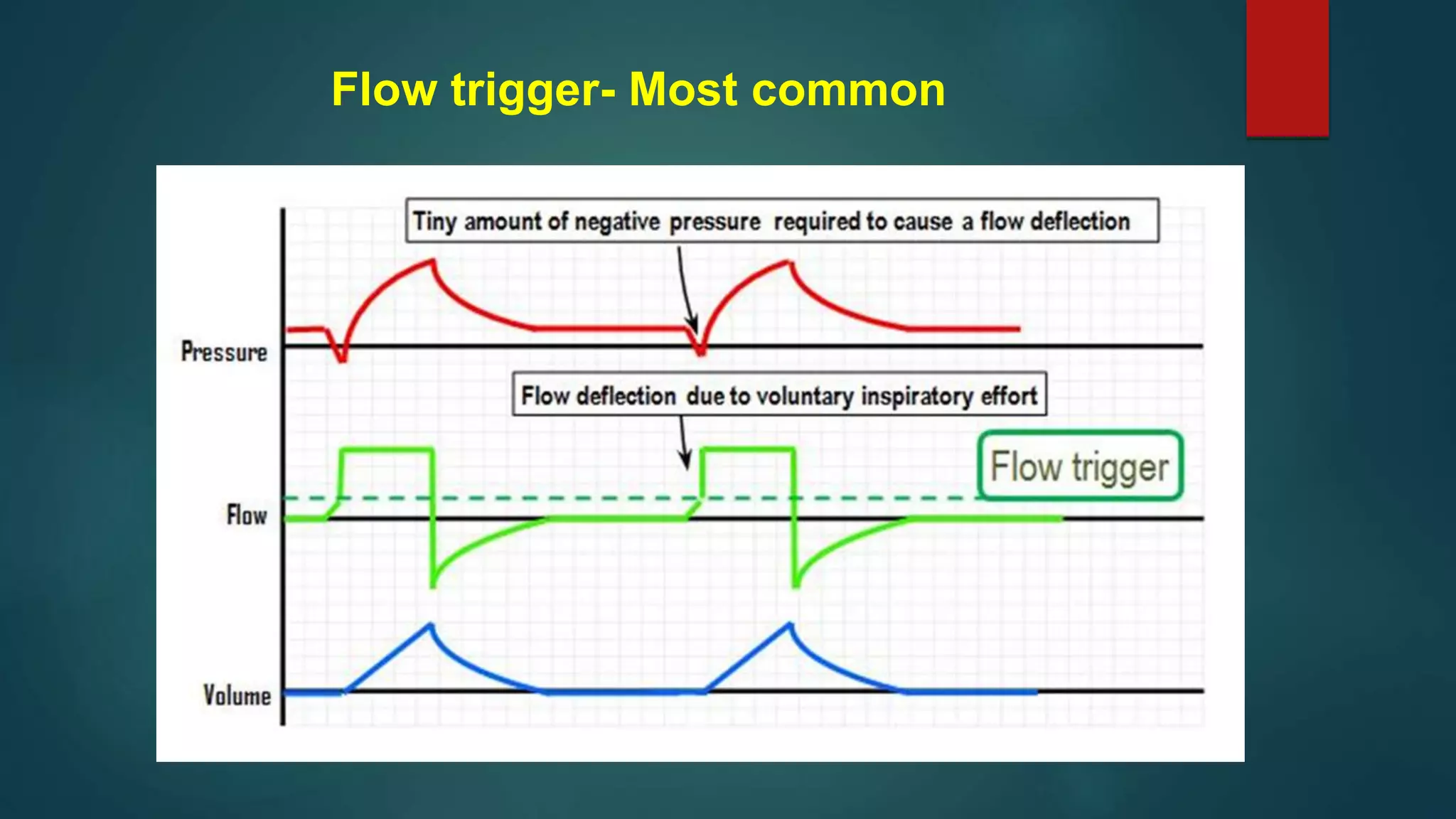

(Inspiratory) Trigger is an input required by the device to increase the pressure
from EPAP to IPAP
The input could be flow, pressure, volume or time
Usually, bi-level ventilators trigger on flow, as it is more sensitive
Trigger Sensitivity defines how much flow should the patient create to increase the
pressure

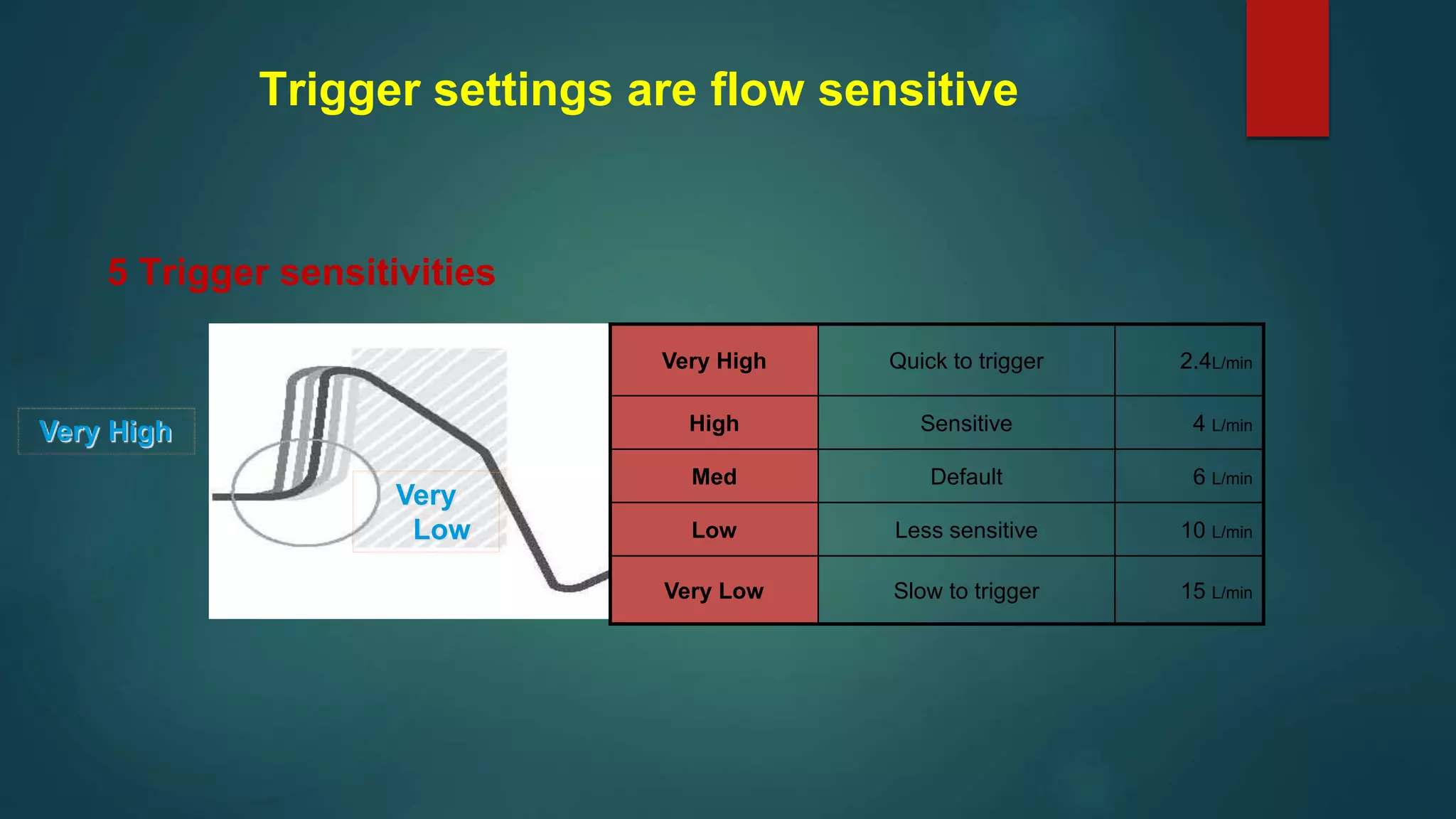

15. Trigger settings are flow sensitive
5 Trigger sensitivities
Very High Quick to trigger 2.4L/min
High Sensitive 4 L/min
Med Default 6 L/min
Low Less sensitive 10 L/min
Very Low Slow to trigger 15 L/min
Very High
Very
Low

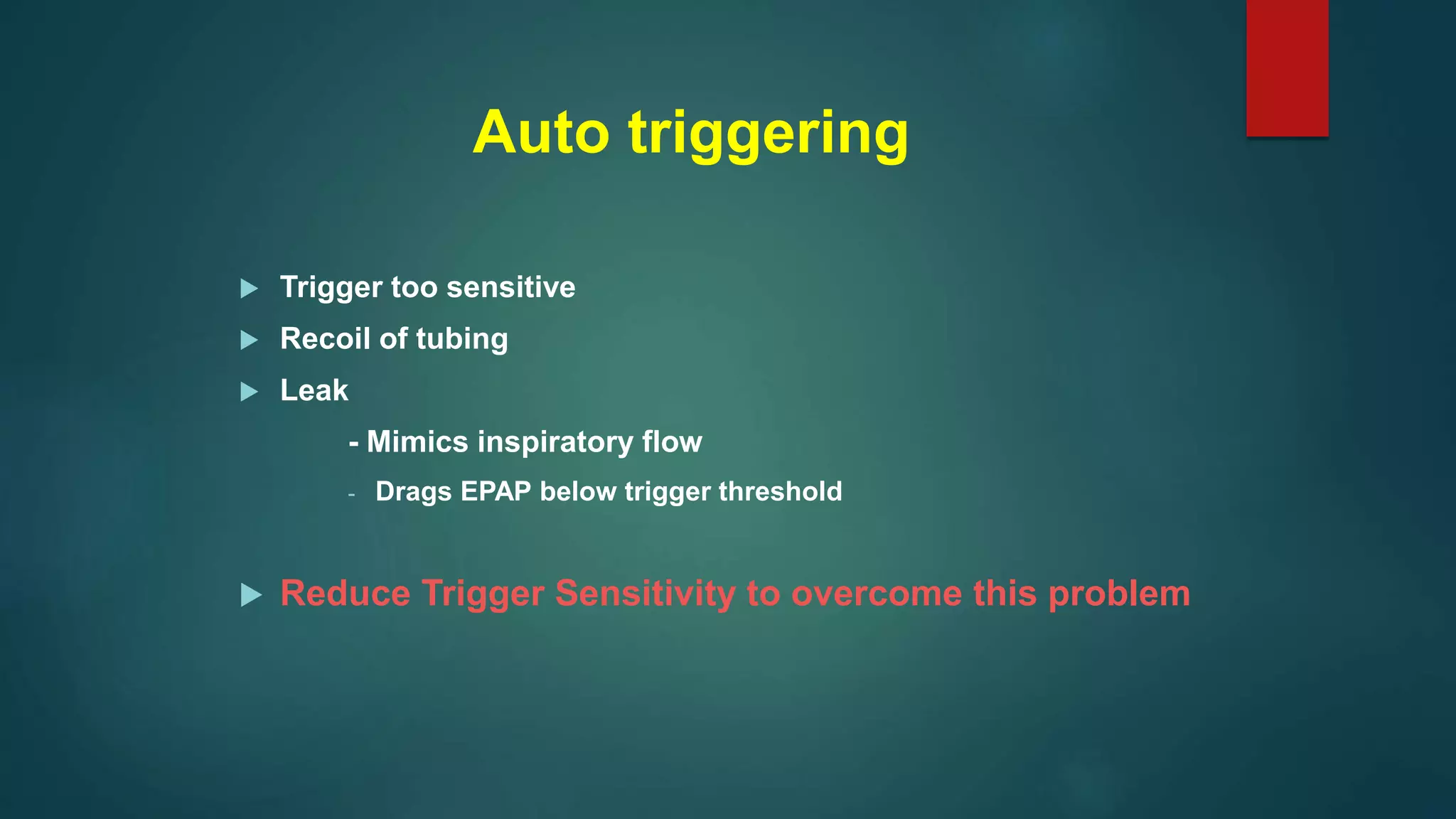

17. Auto triggering
Trigger too sensitive
Recoil of tubing
Leak
- Mimics inspiratory flow
- Drags EPAP below trigger threshold
Reduce Trigger Sensitivity to overcome this problem

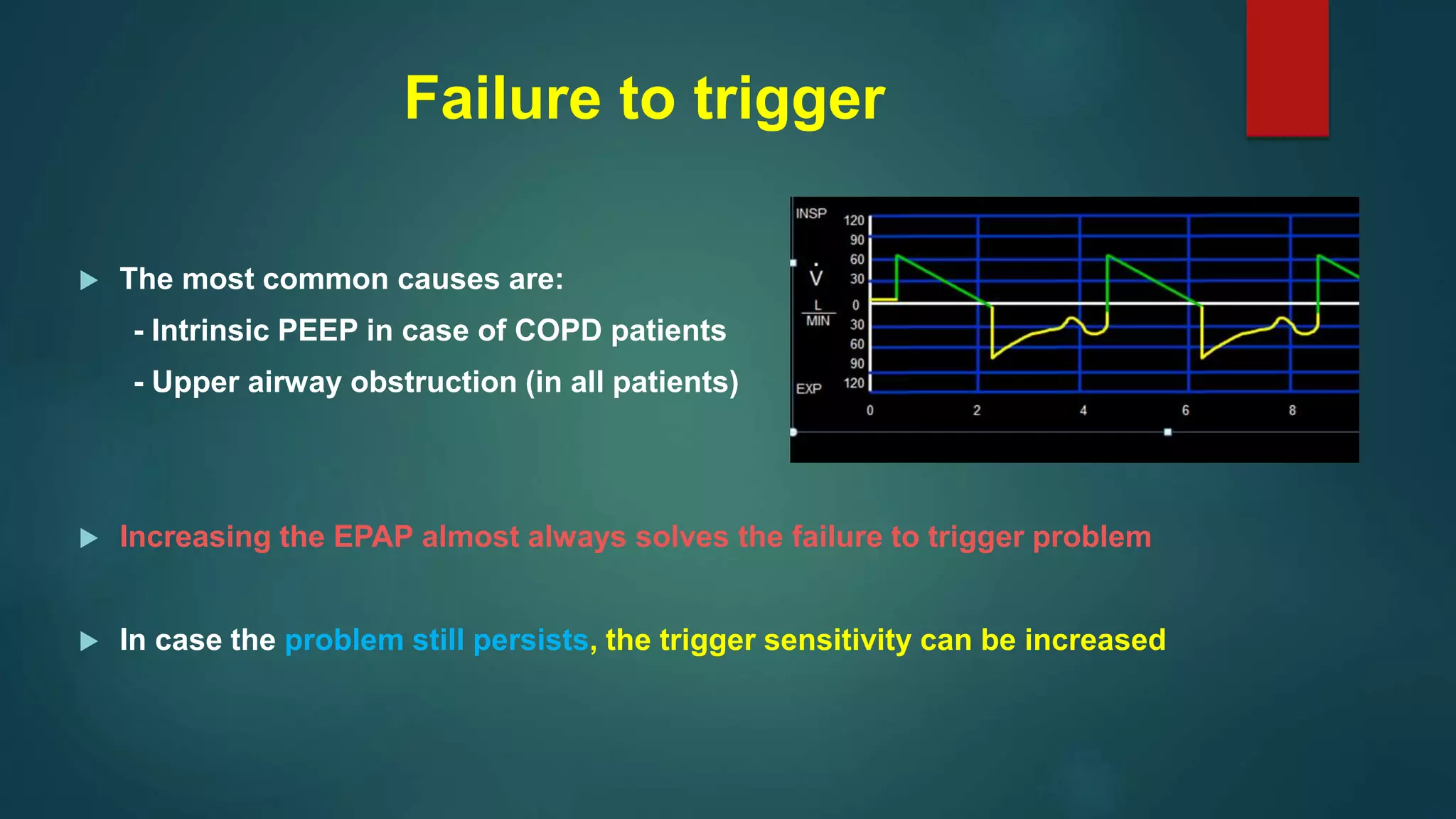

18. Failure to trigger
The most common causes are:
- Intrinsic PEEP in case of COPD patients
- Upper airway obstruction (in all patients)
Increasing the EPAP almost always solves the failure to trigger problem
In case the problem still persists, the trigger sensitivity can be increased

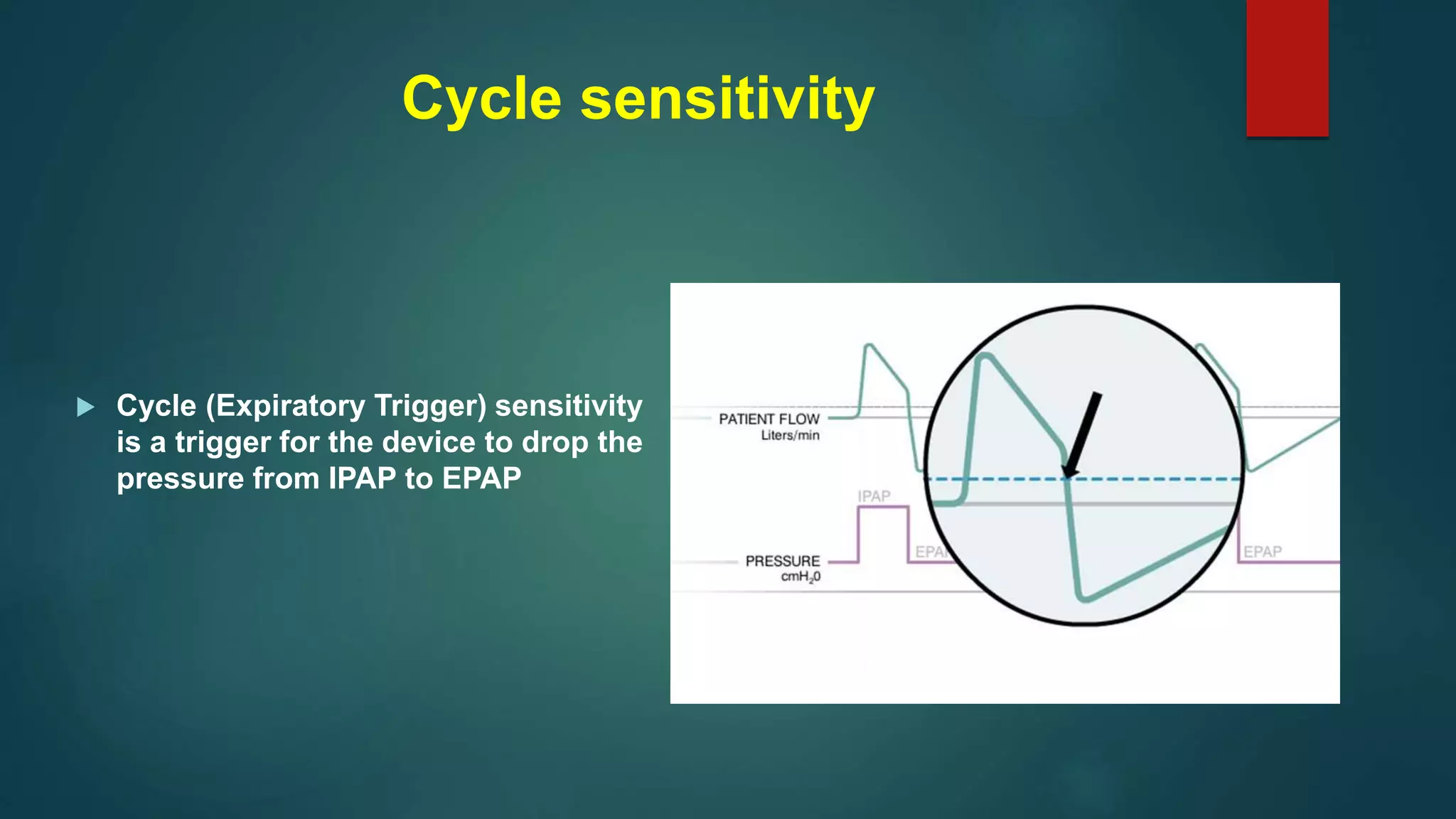

19. Cycle sensitivity
Cycle (Expiratory Trigger) sensitivity
is a trigger for the device to drop the
pressure from IPAP to EPAP

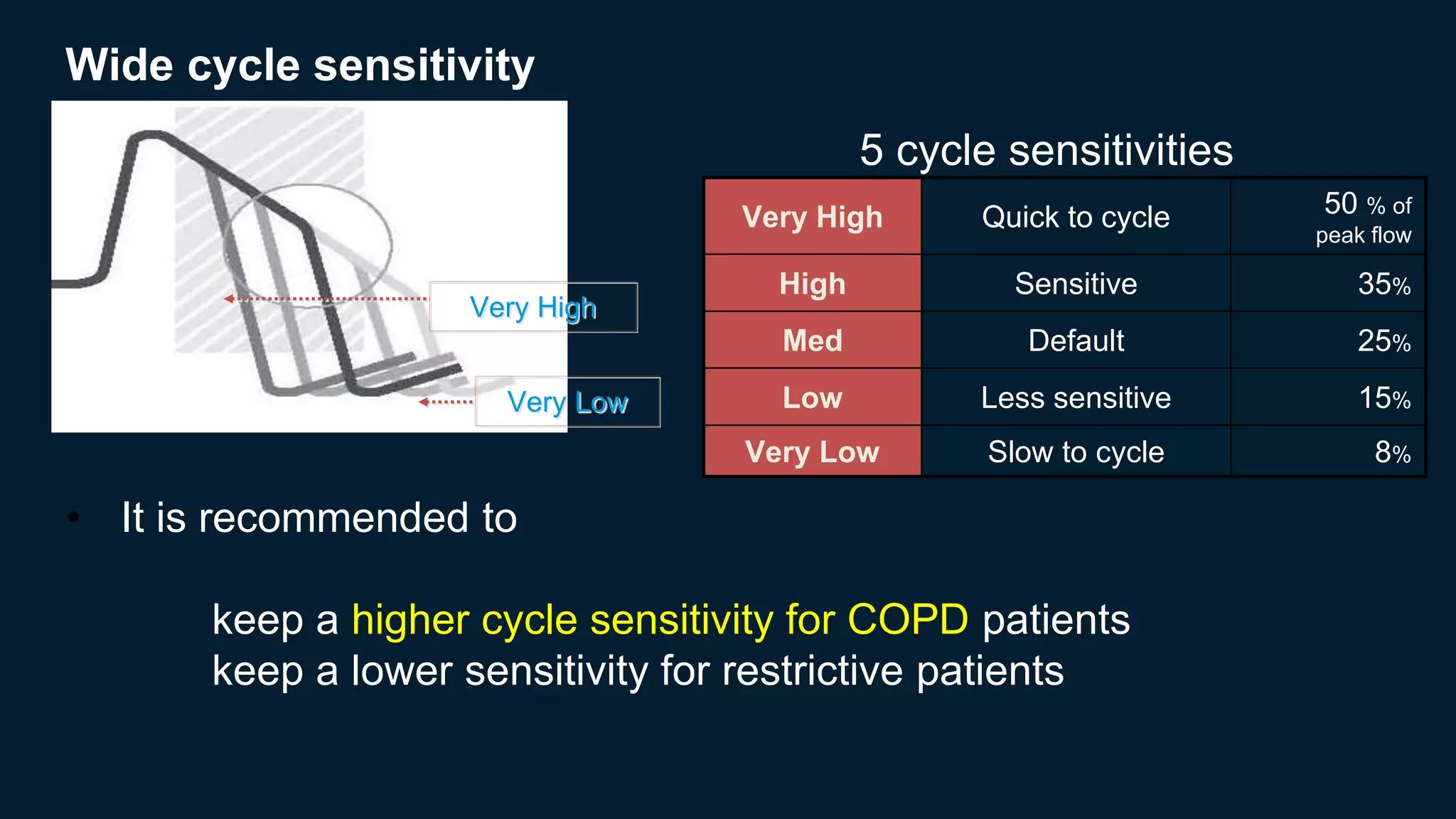

20. Very High Quick to cycle 50 % of
peak flow
High Sensitive 35%
Med Default 25%
Low Less sensitive 15%
Very Low Slow to cycle 8%
Wide cycle sensitivity
Very High
Very Low
5 cycle sensitivities
• It is recommended to
keep a higher cycle sensitivity for COPD patients
keep a lower sensitivity for restrictive patients

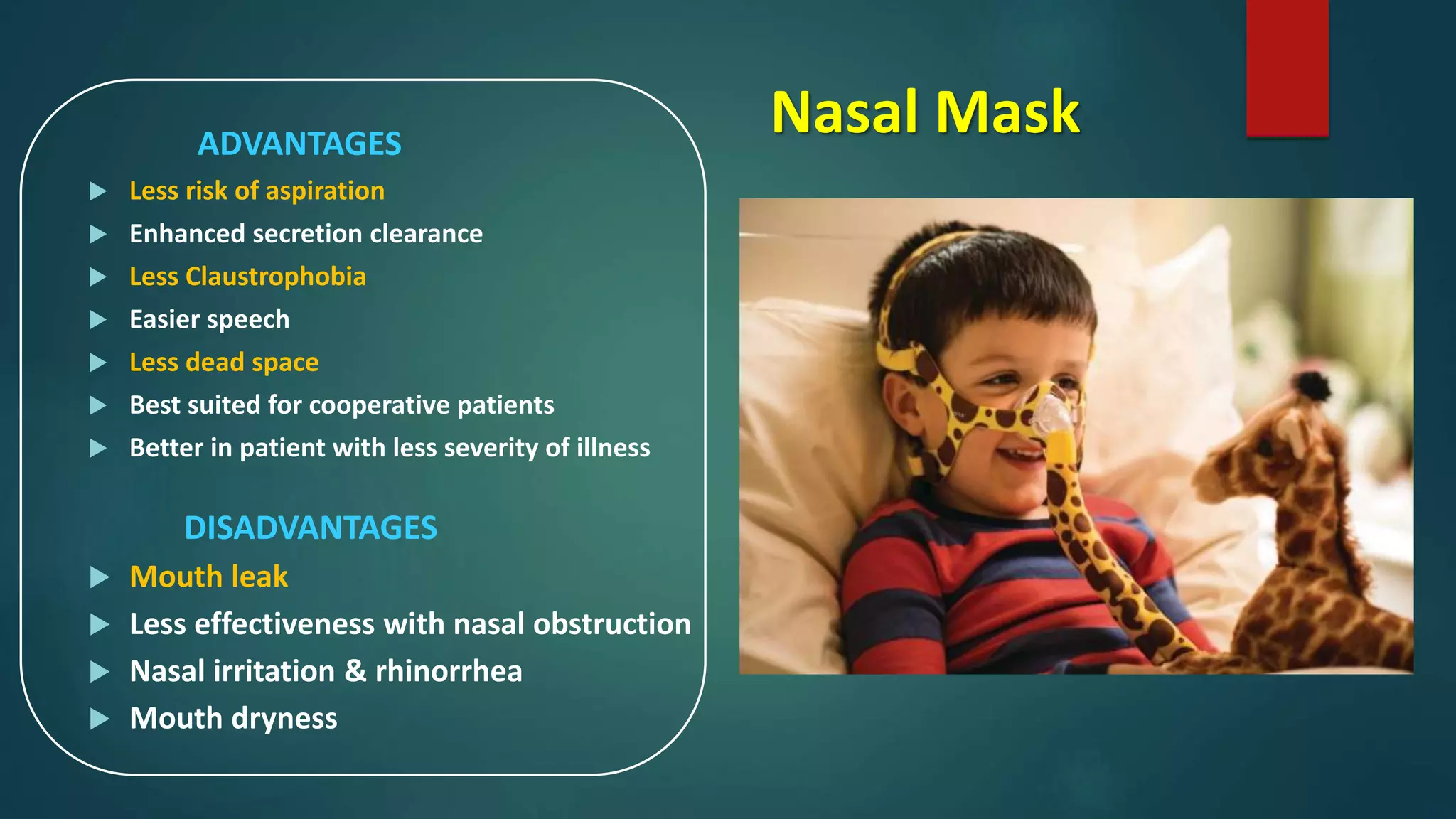

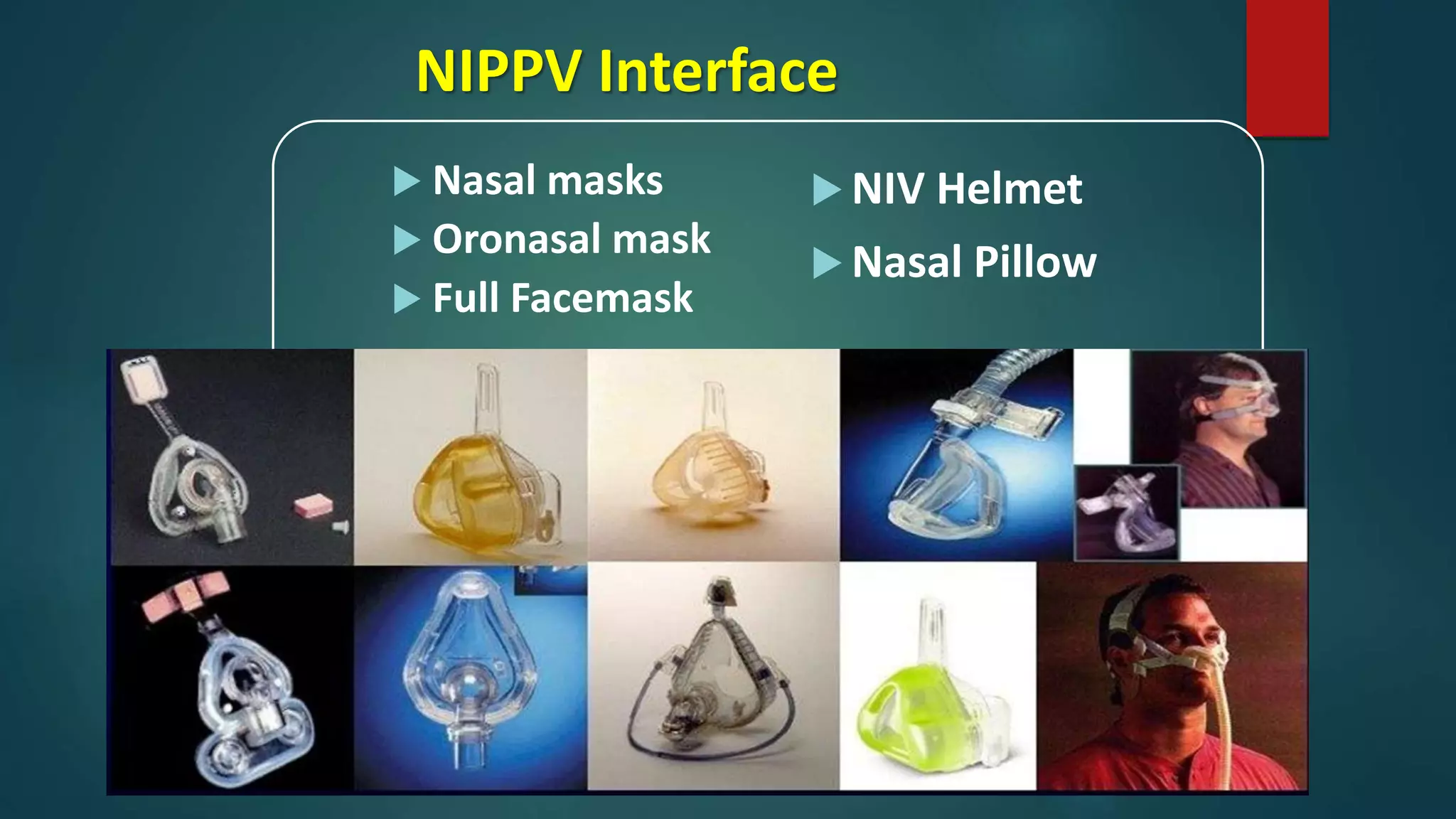

22. Nasal MaskADVANTAGES
Less risk of aspiration
Enhanced secretion clearance
Less Claustrophobia
Easier speech
Less dead space
Best suited for cooperative patients
Better in patient with less severity of illness
DISADVANTAGES
Mouth leak
Less effectiveness with nasal obstruction
Nasal irritation & rhinorrhea
Mouth dryness

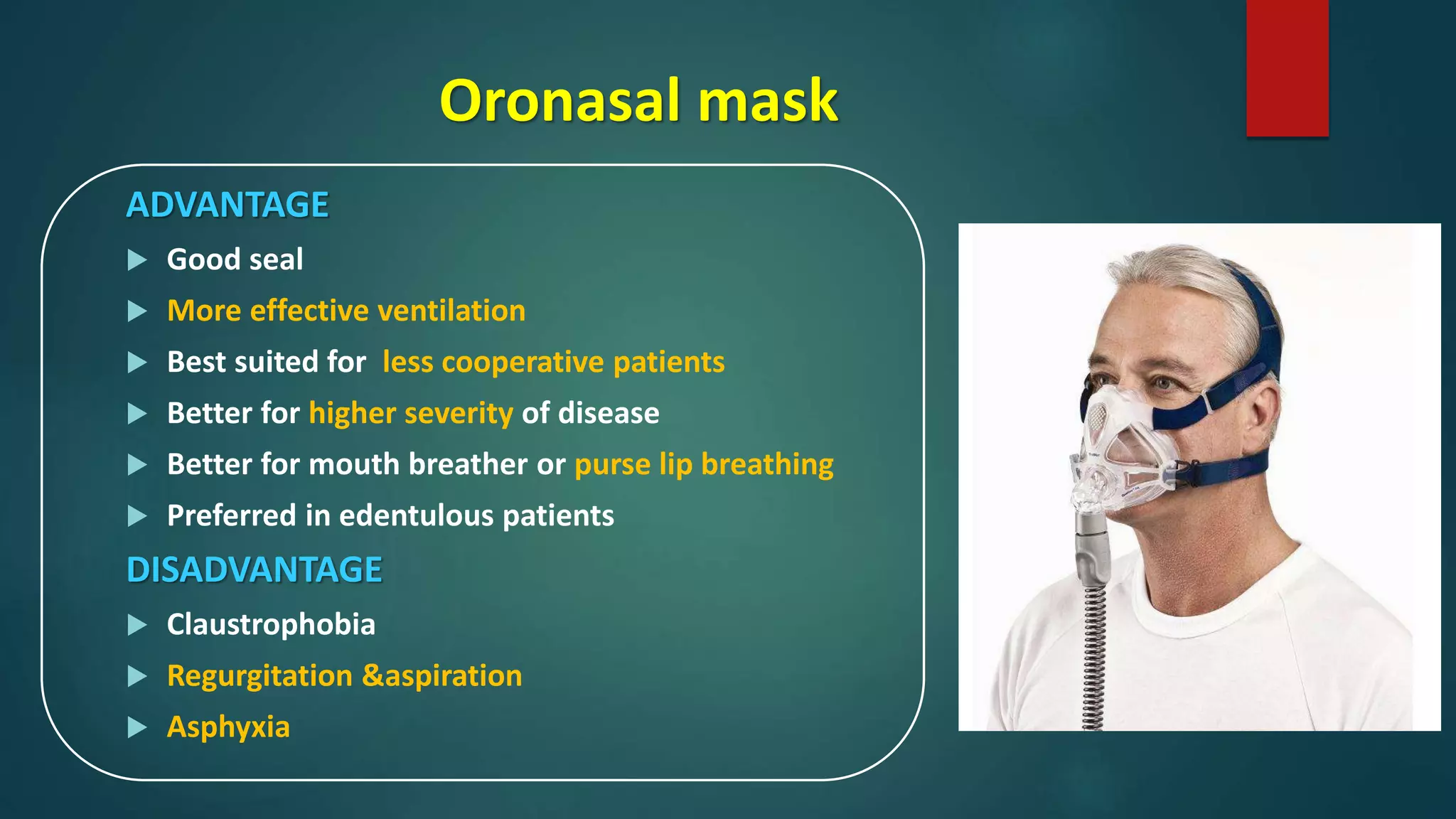

23. Oronasal mask
ADVANTAGE
Good seal
More effective ventilation
Best suited for less cooperative patients
Better for higher severity of disease
Better for mouth breather or purse lip breathing
Preferred in edentulous patients
DISADVANTAGE
Claustrophobia
Regurgitation &aspiration
Asphyxia

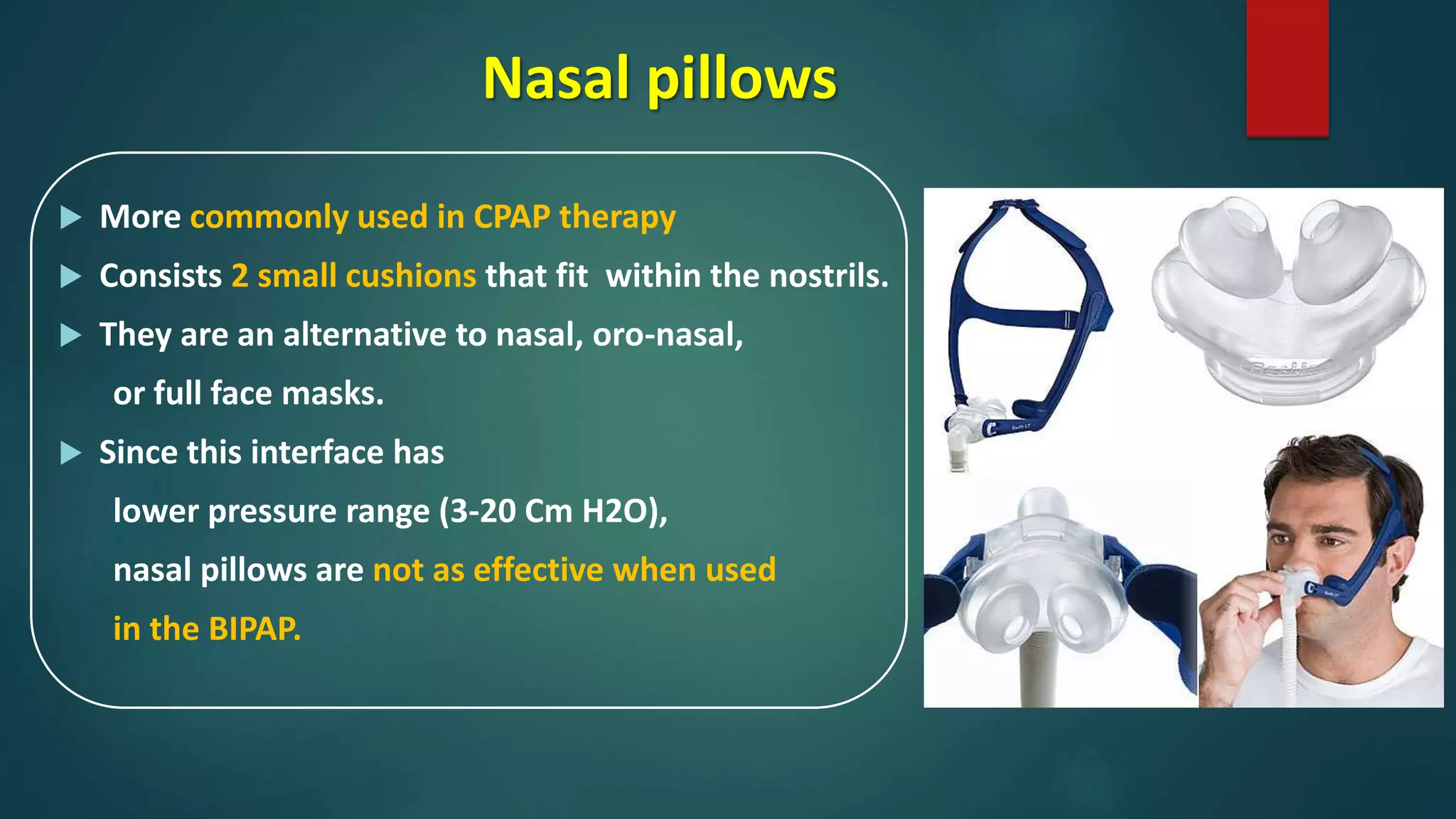

24. Nasal pillows
More commonly used in CPAP therapy
Consists 2 small cushions that fit within the nostrils.
They are an alternative to nasal, oro-nasal,
or full face masks.
Since this interface has
lower pressure range (3-20 Cm H2O),
nasal pillows are not as effective when used
in the BIPAP.

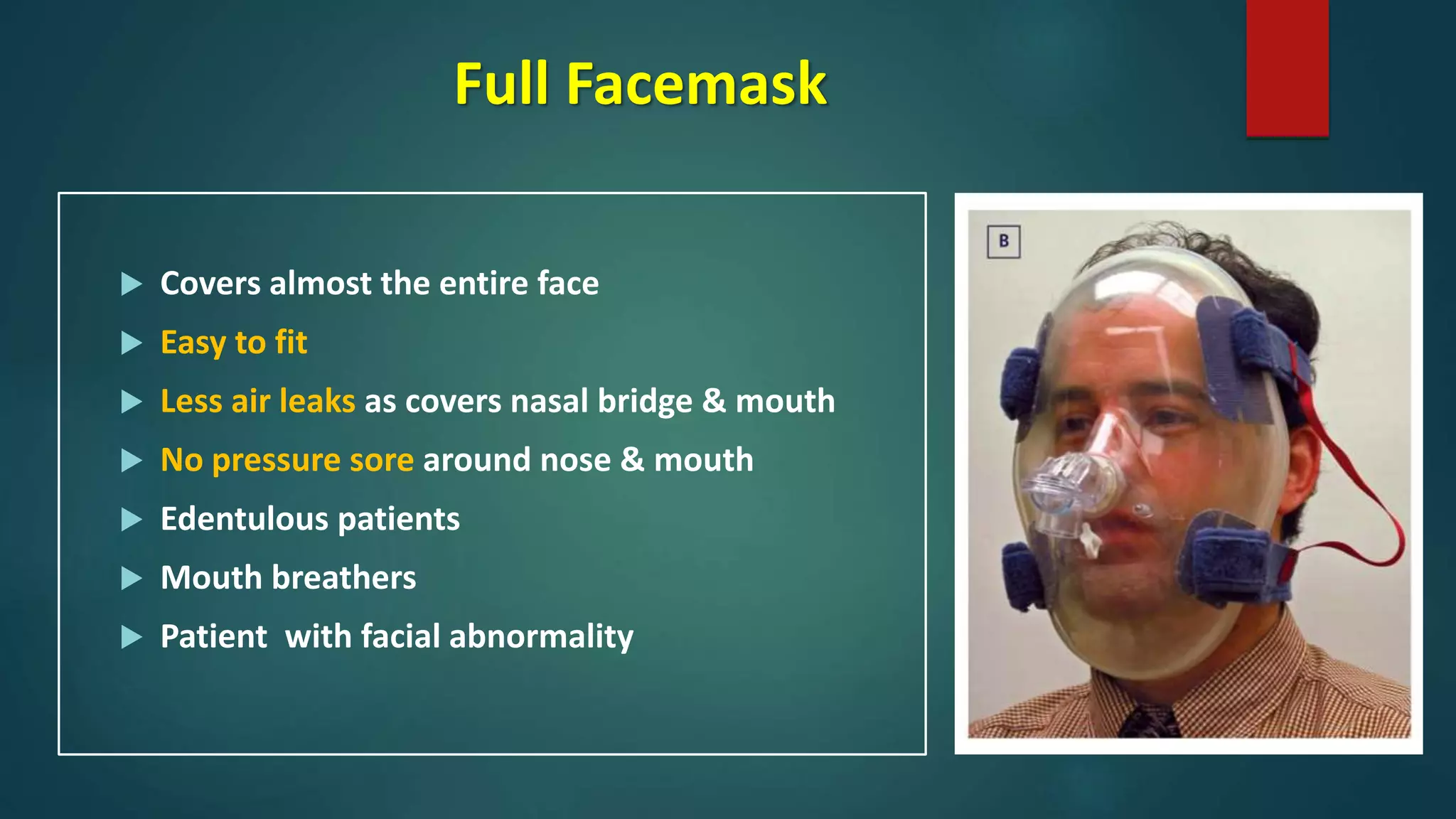

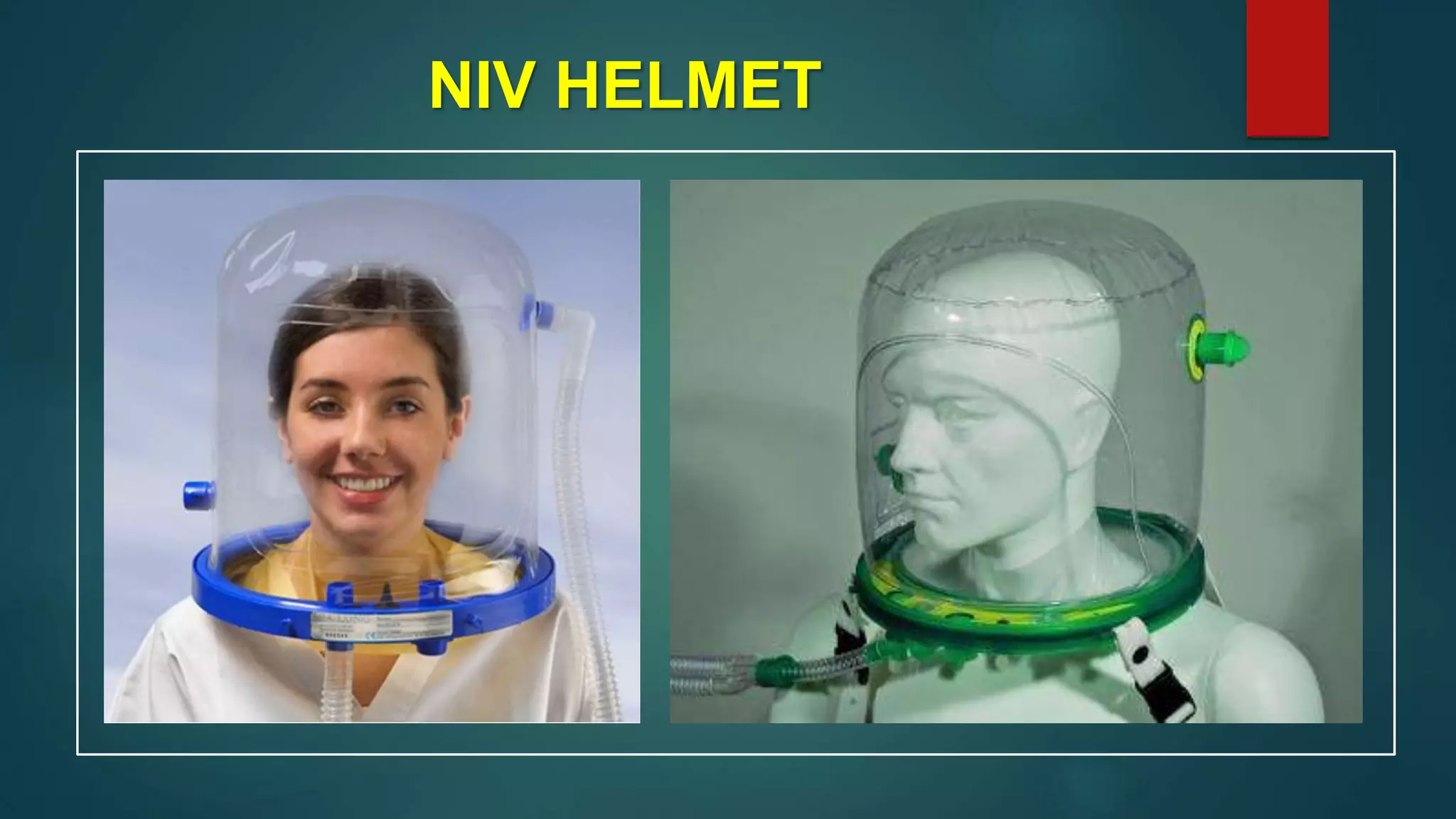

25. Full Facemask
Covers almost the entire face
Easy to fit
Less air leaks as covers nasal bridge & mouth
No pressure sore around nose & mouth
Edentulous patients
Mouth breathers
Patient with facial abnormality

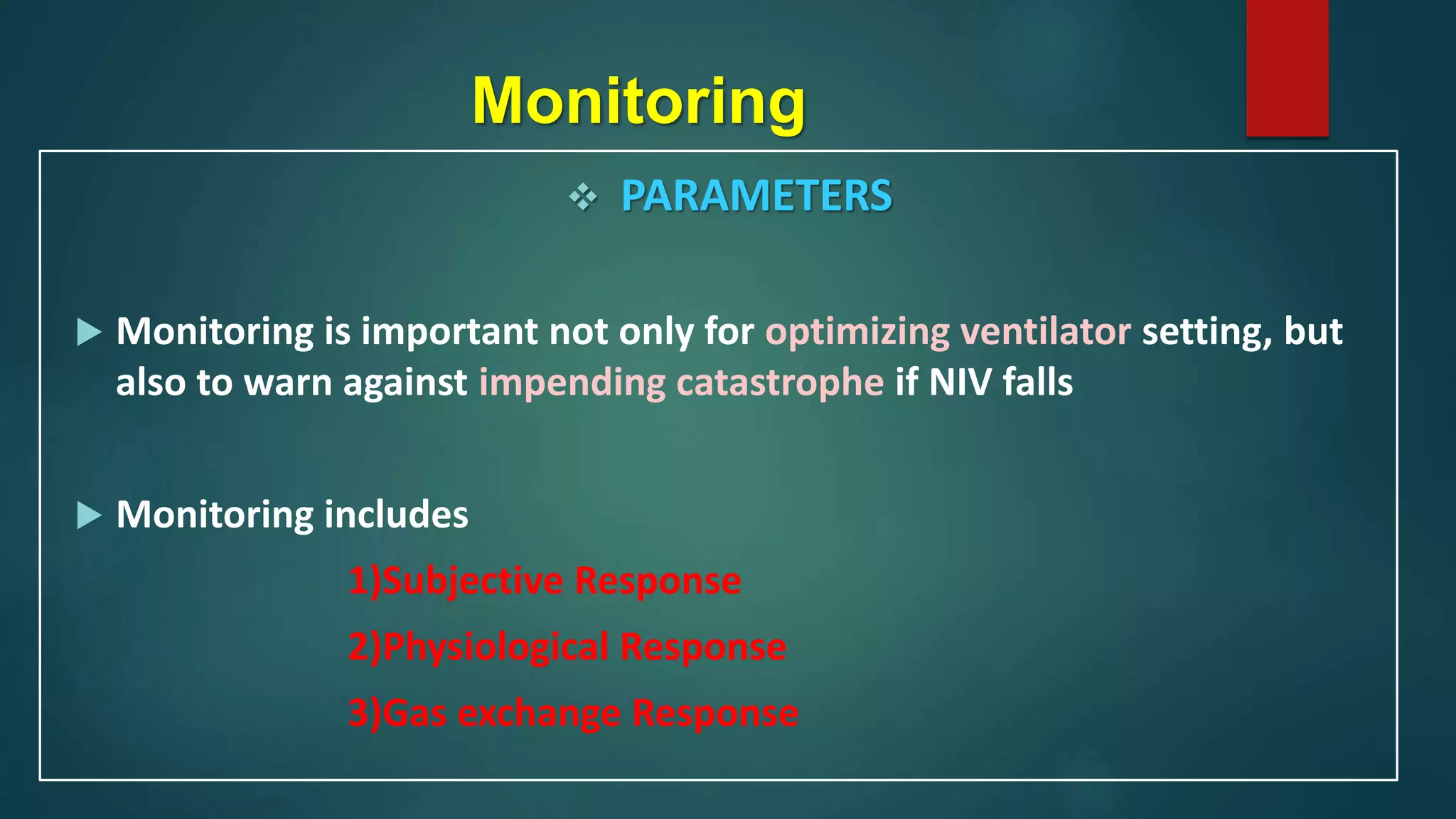

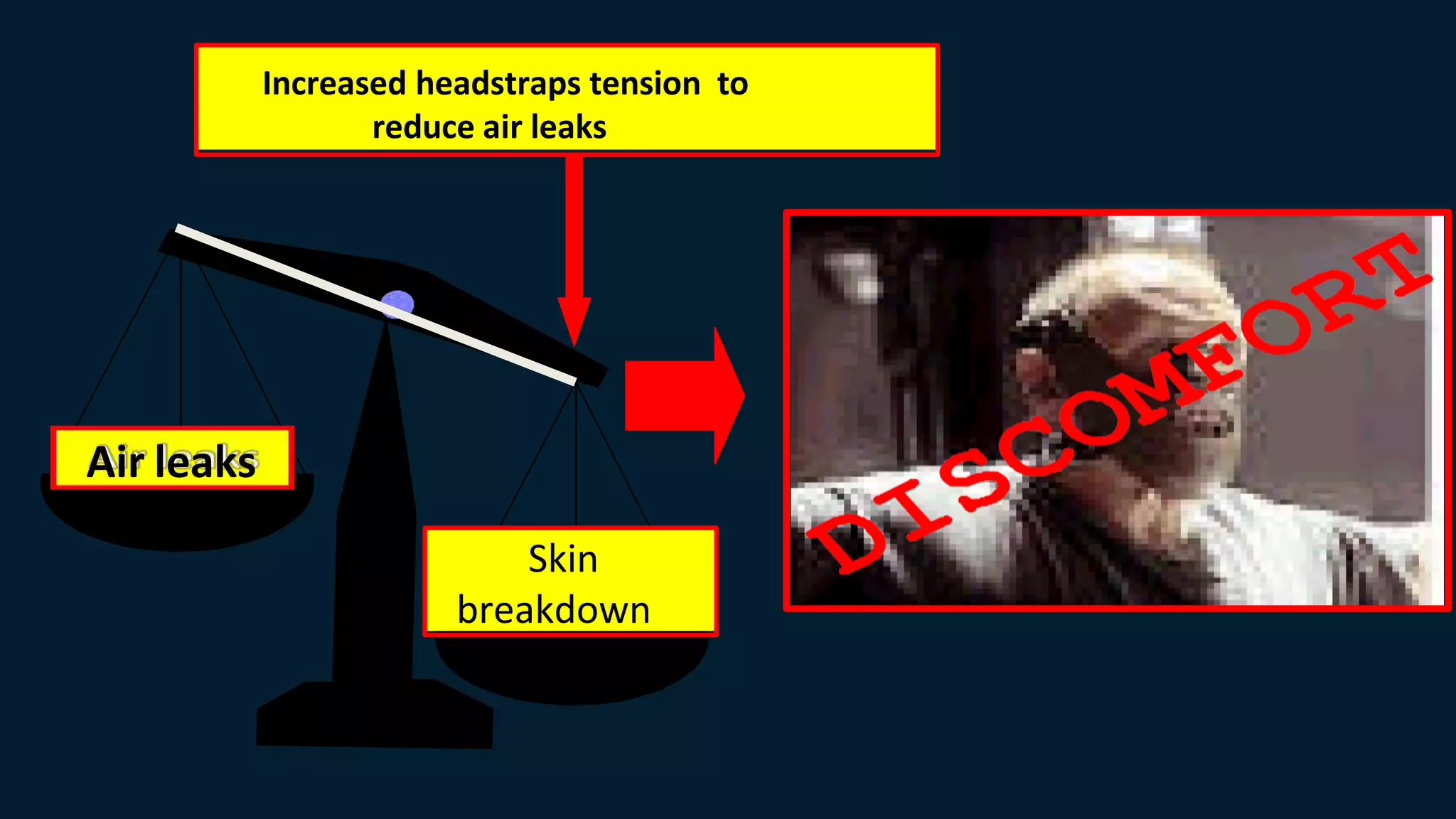

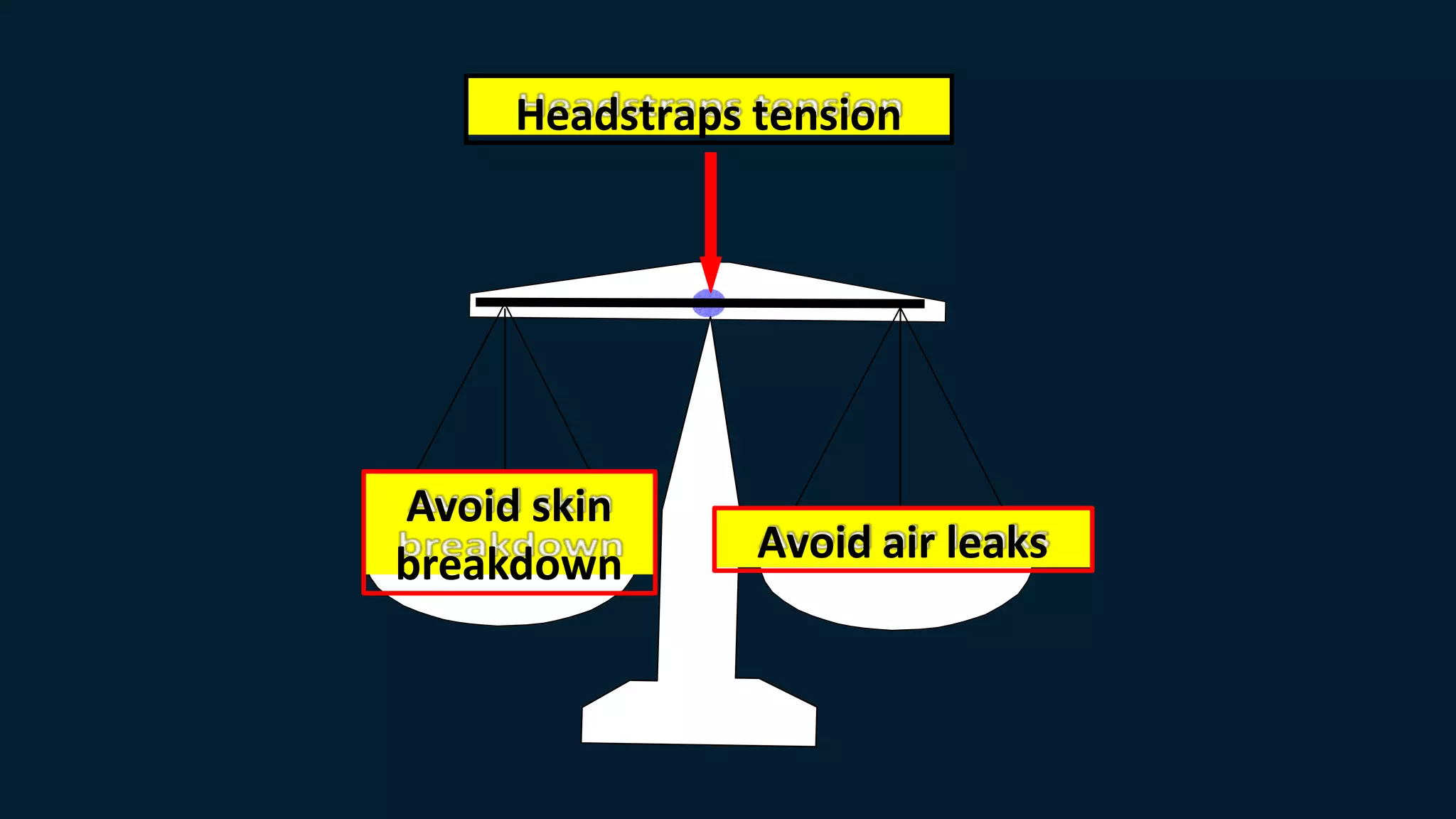

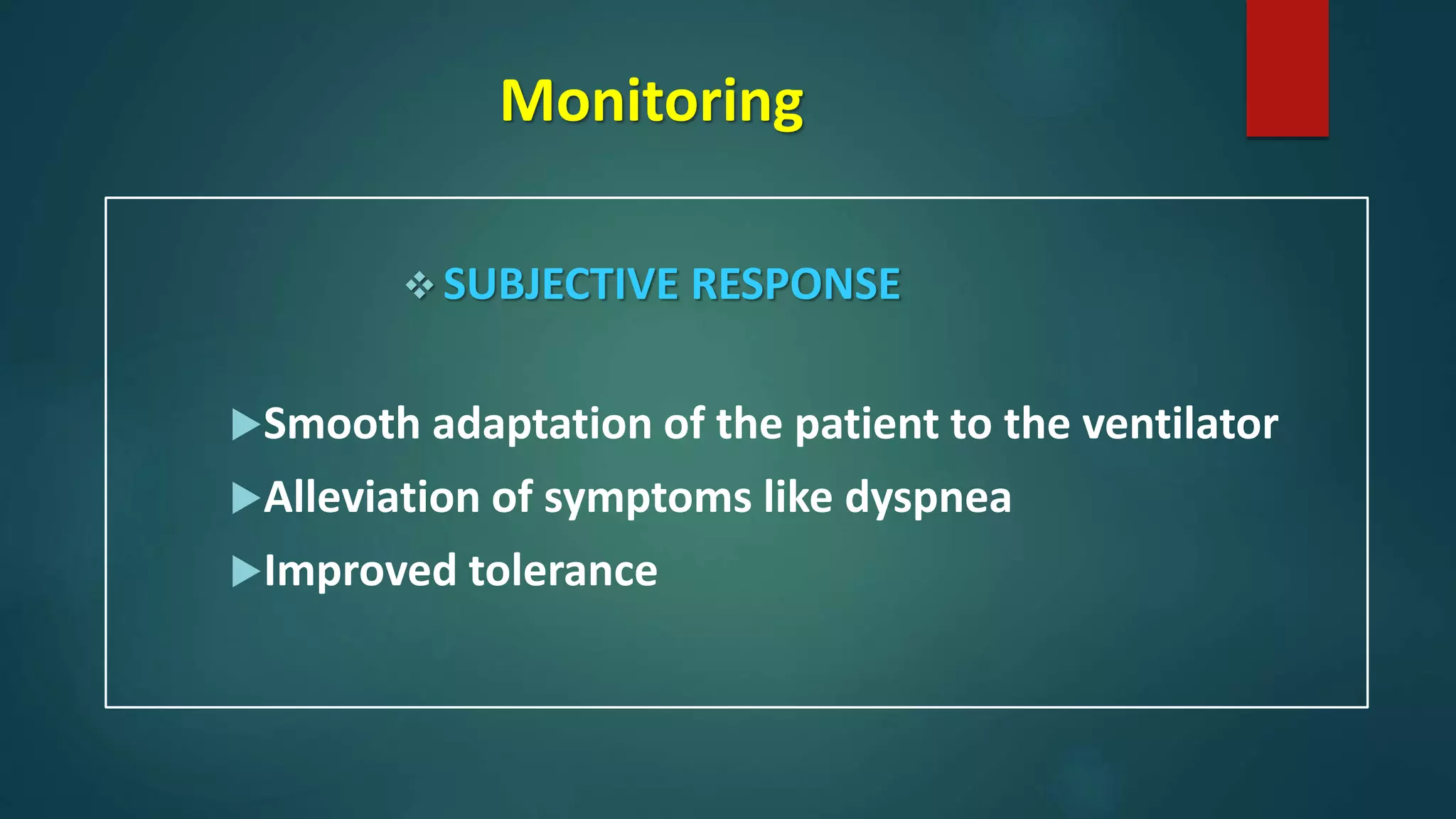

28. Monitoring
PARAMETERS
Monitoring is important not only for optimizing ventilator setting, but
also to warn against impending catastrophe if NIV falls
Monitoring includes
1)Subjective Response
2)Physiological Response
3)Gas exchange Response
30. Monitoring

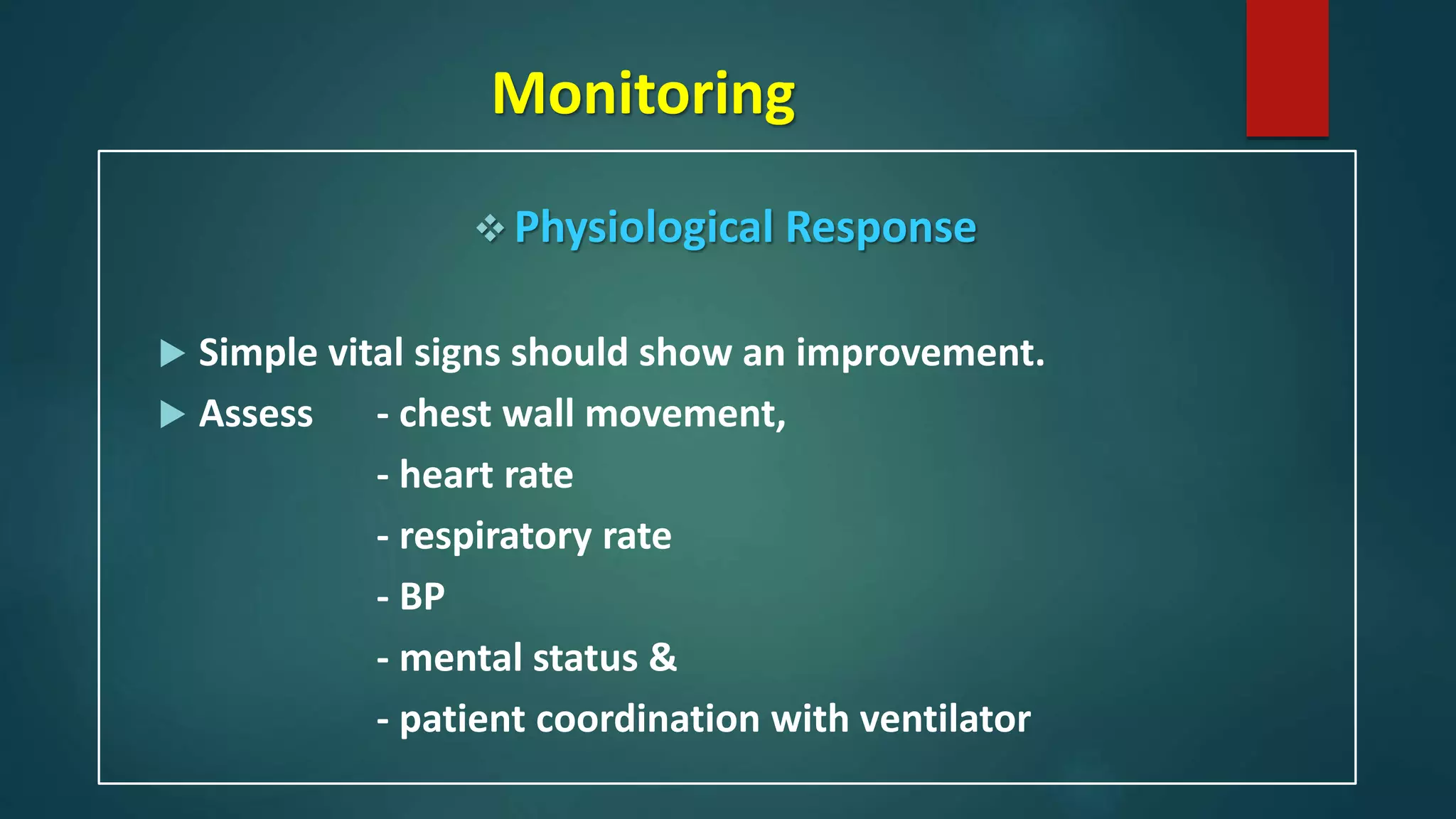

Physiological Response
Simple vital signs should show an improvement.
Assess - chest wall movement,
- heart rate
- respiratory rate
- BP
- mental status &
- patient coordination with ventilator
31. Monitoring

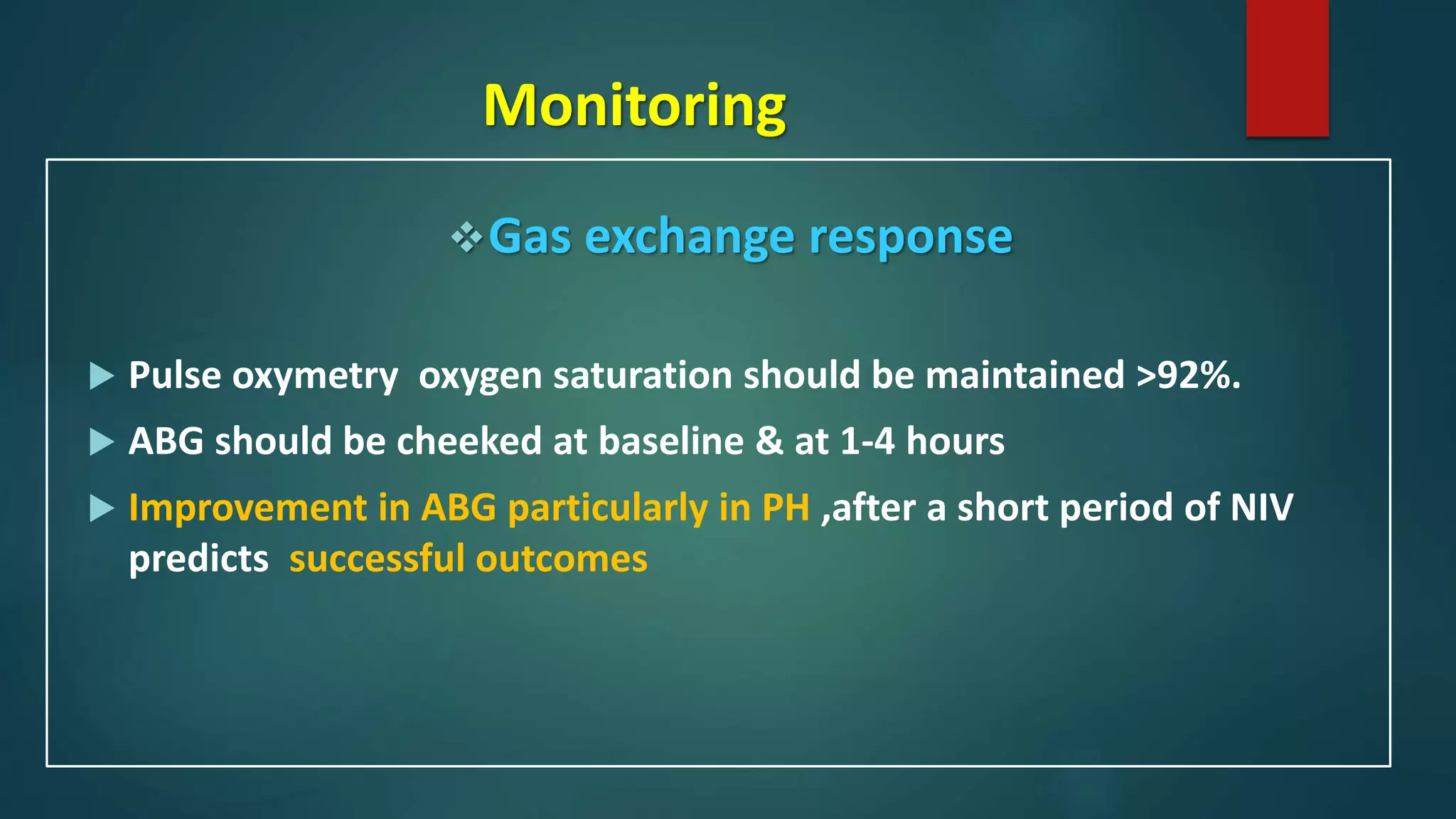

Gas exchange response
Pulse oxymetry oxygen saturation should be maintained >92%.
ABG should be cheeked at baseline & at 1-4 hours
Improvement in ABG particularly in PH ,after a short period of NIV
predicts successful outcomes

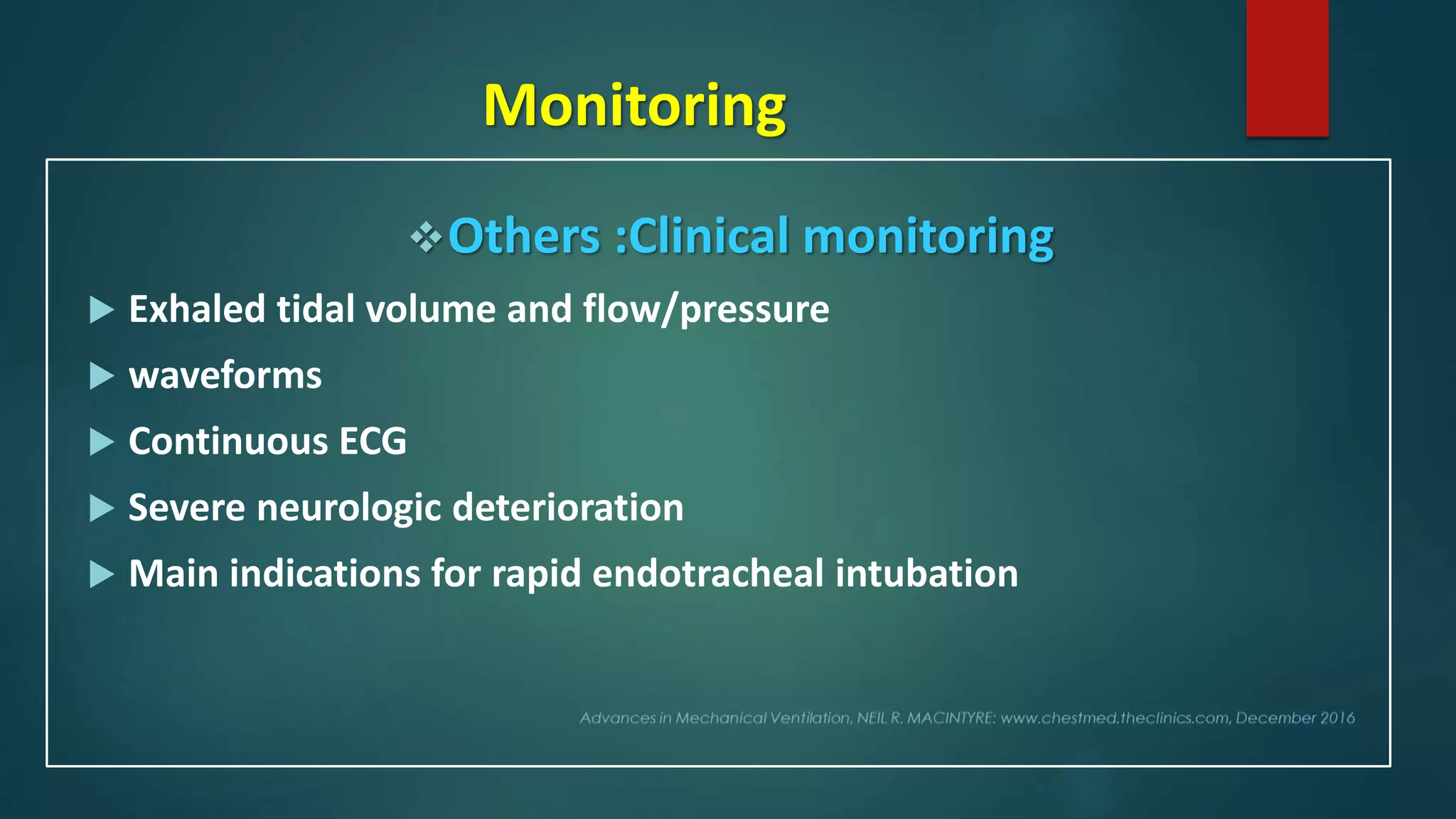

32. Monitoring
Others :Clinical monitoring
Exhaled tidal volume and flow/pressure
waveforms
Continuous ECG
Severe neurologic deterioration
Main indications for rapid endotracheal intubation

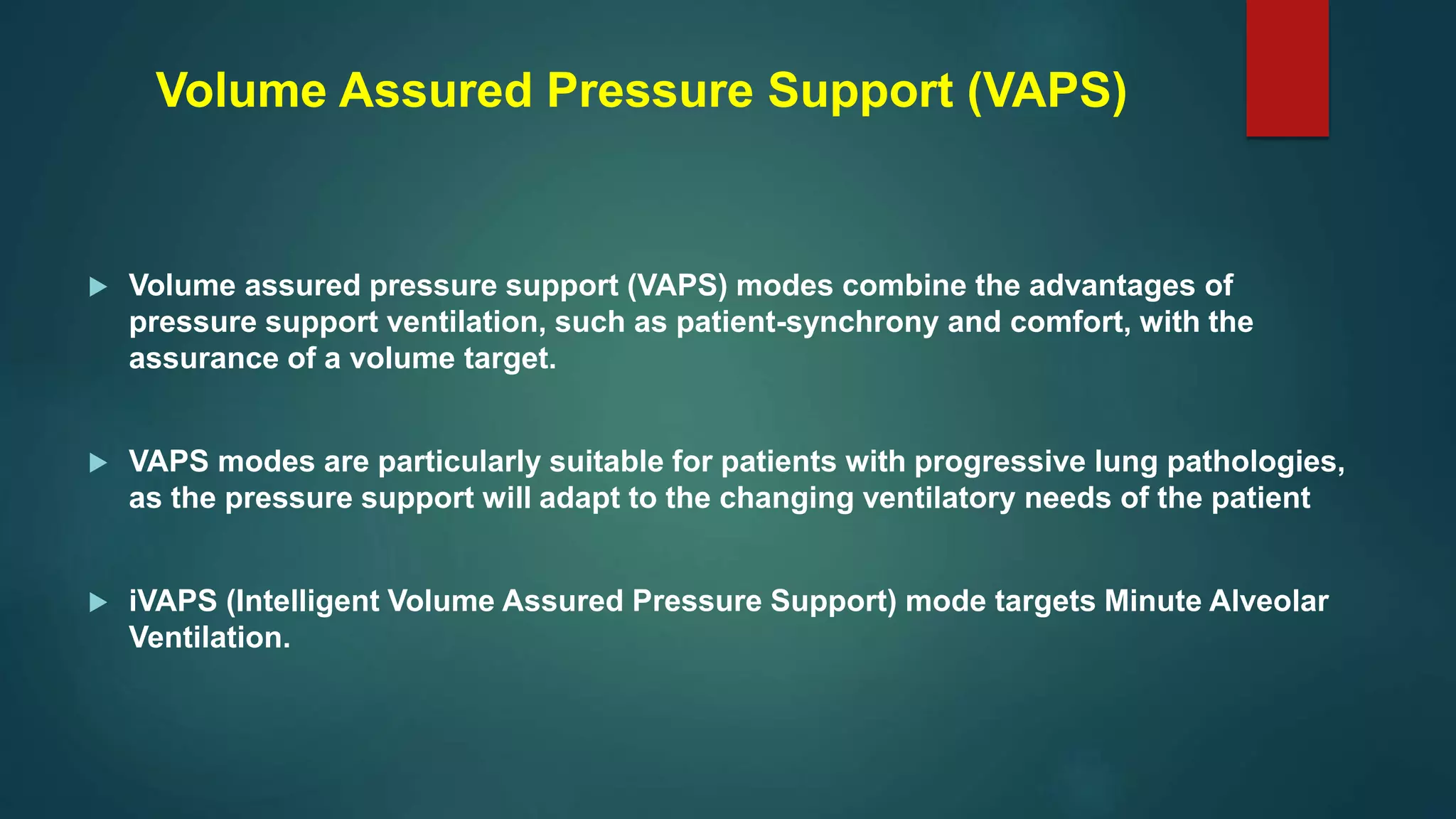

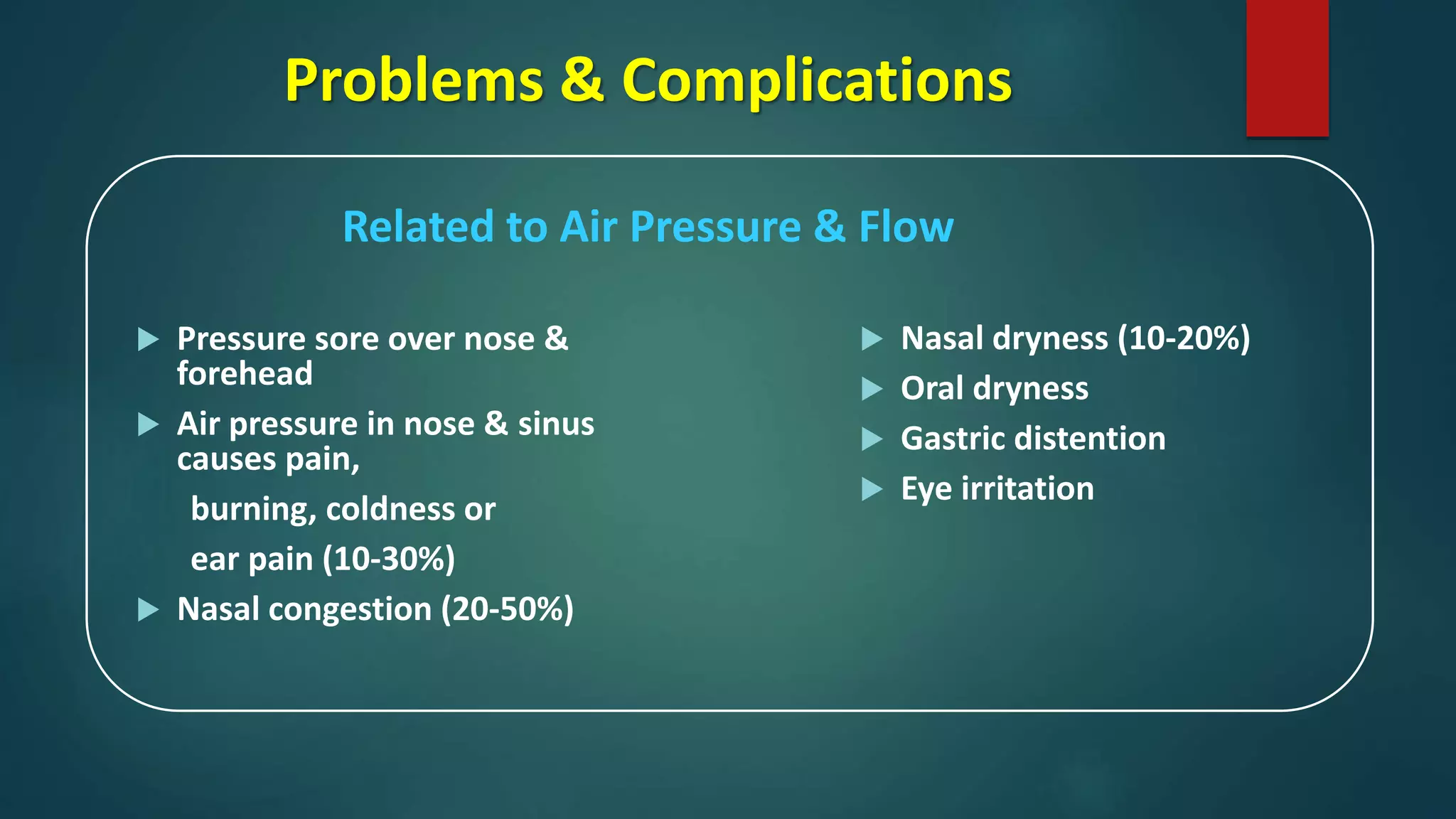

41. Volume assured pressure support (VAPS) modes combine the advantages of
pressure support ventilation, such as patient-synchrony and comfort, with the
assurance of a volume target.
VAPS modes are particularly suitable for patients with progressive lung pathologies,
as the pressure support will adapt to the changing ventilatory needs of the patient
iVAPS (Intelligent Volume Assured Pressure Support) mode targets Minute Alveolar
Ventilation.
Volume Assured Pressure Support (VAPS)

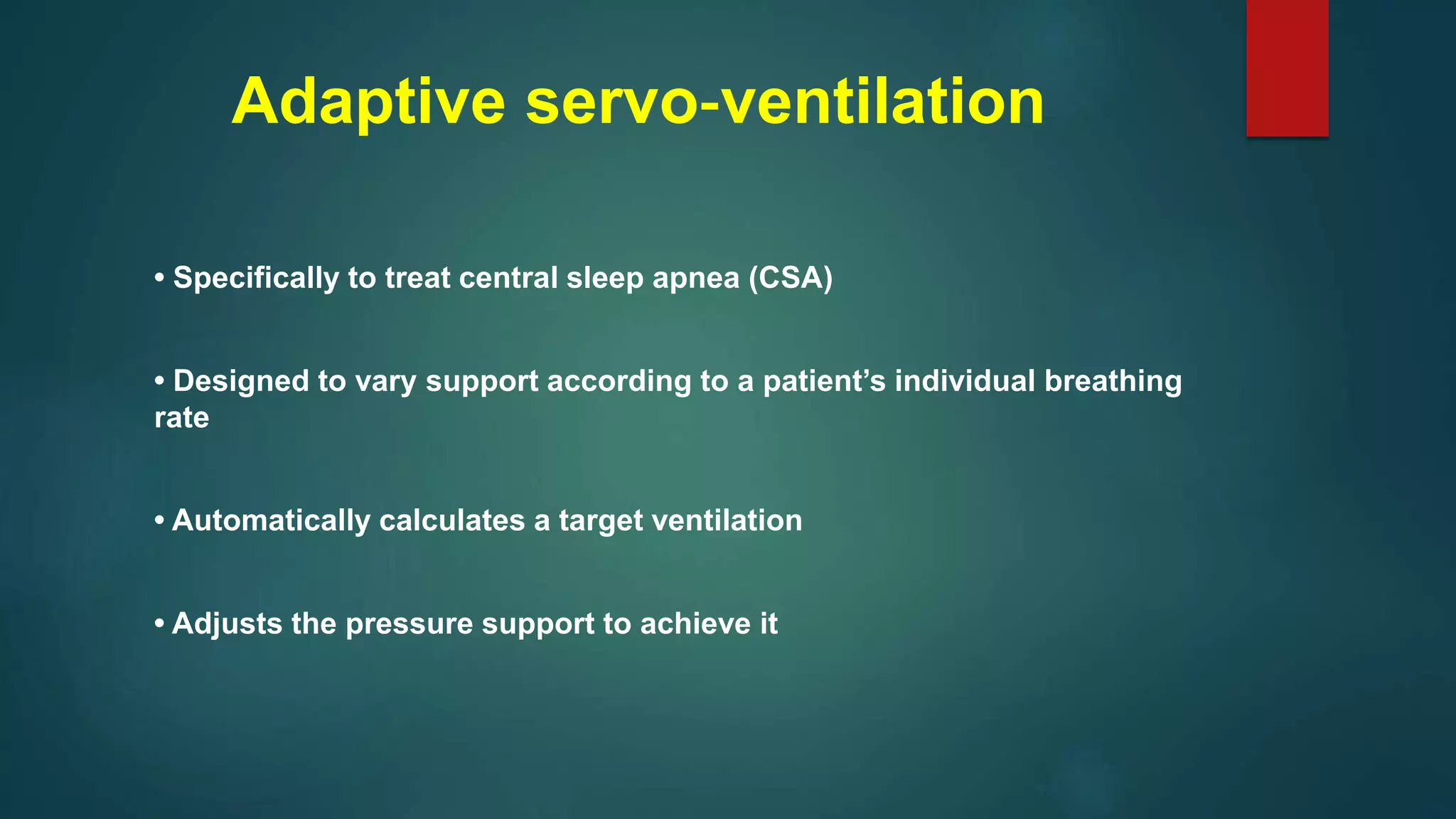

42. Adaptive servo‐ventilation
• Specifically to treat central sleep apnea (CSA)
• Designed to vary support according to a patient’s individual breathing
rate
• Automatically calculates a target ventilation
• Adjusts the pressure support to achieve it

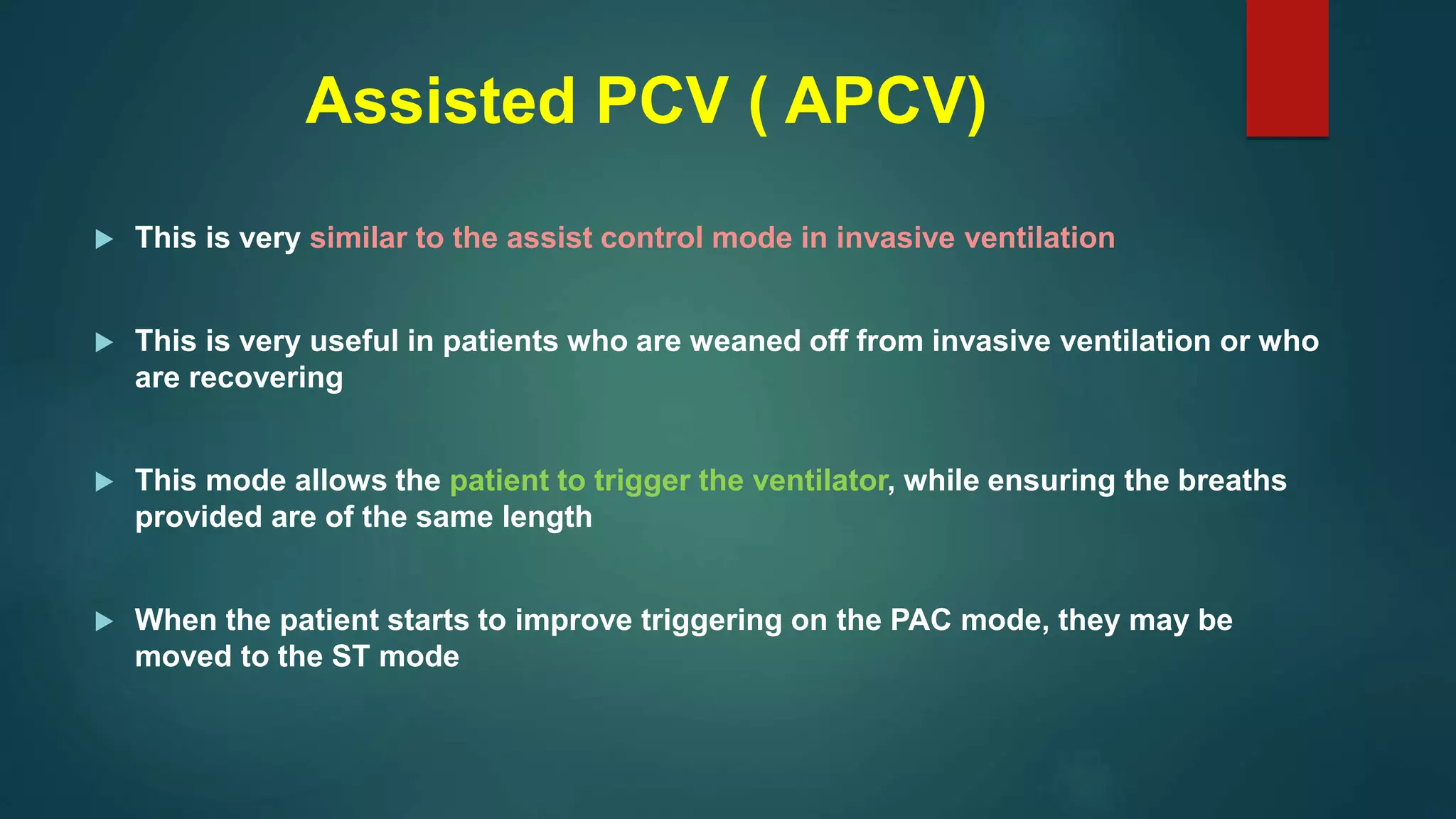

43. Assisted PCV ( APCV)
This is very similar to the assist control mode in invasive ventilation
This is very useful in patients who are weaned off from invasive ventilation or who
are recovering
This mode allows the patient to trigger the ventilator, while ensuring the breaths
provided are of the same length
When the patient starts to improve triggering on the PAC mode, they may be
moved to the ST mode

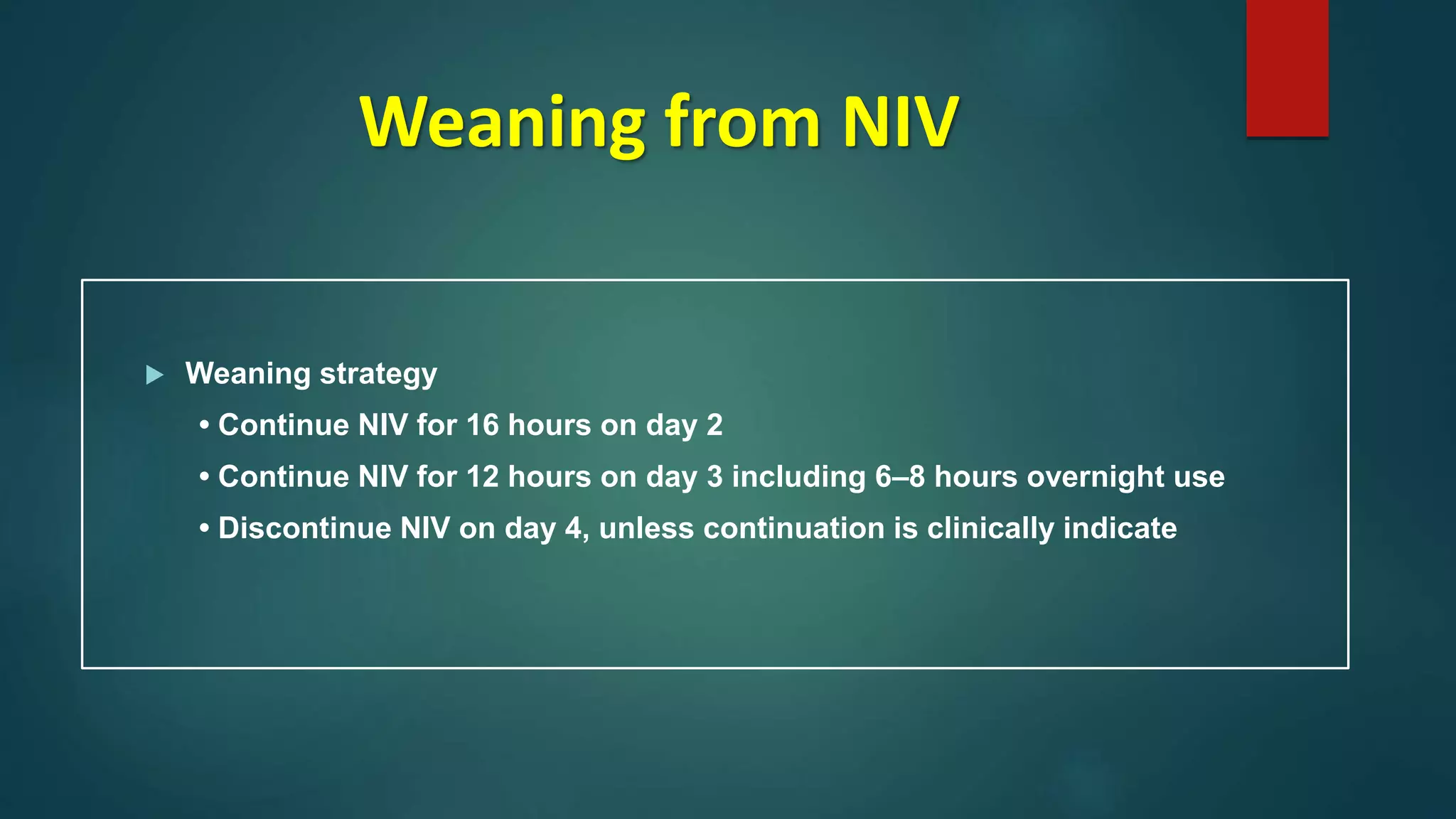

44. Weaning from NIV
Weaning strategy
• Continue NIV for 16 hours on day 2
• Continue NIV for 12 hours on day 3 including 6–8 hours overnight use
• Discontinue NIV on day 4, unless continuation is clinically indicate

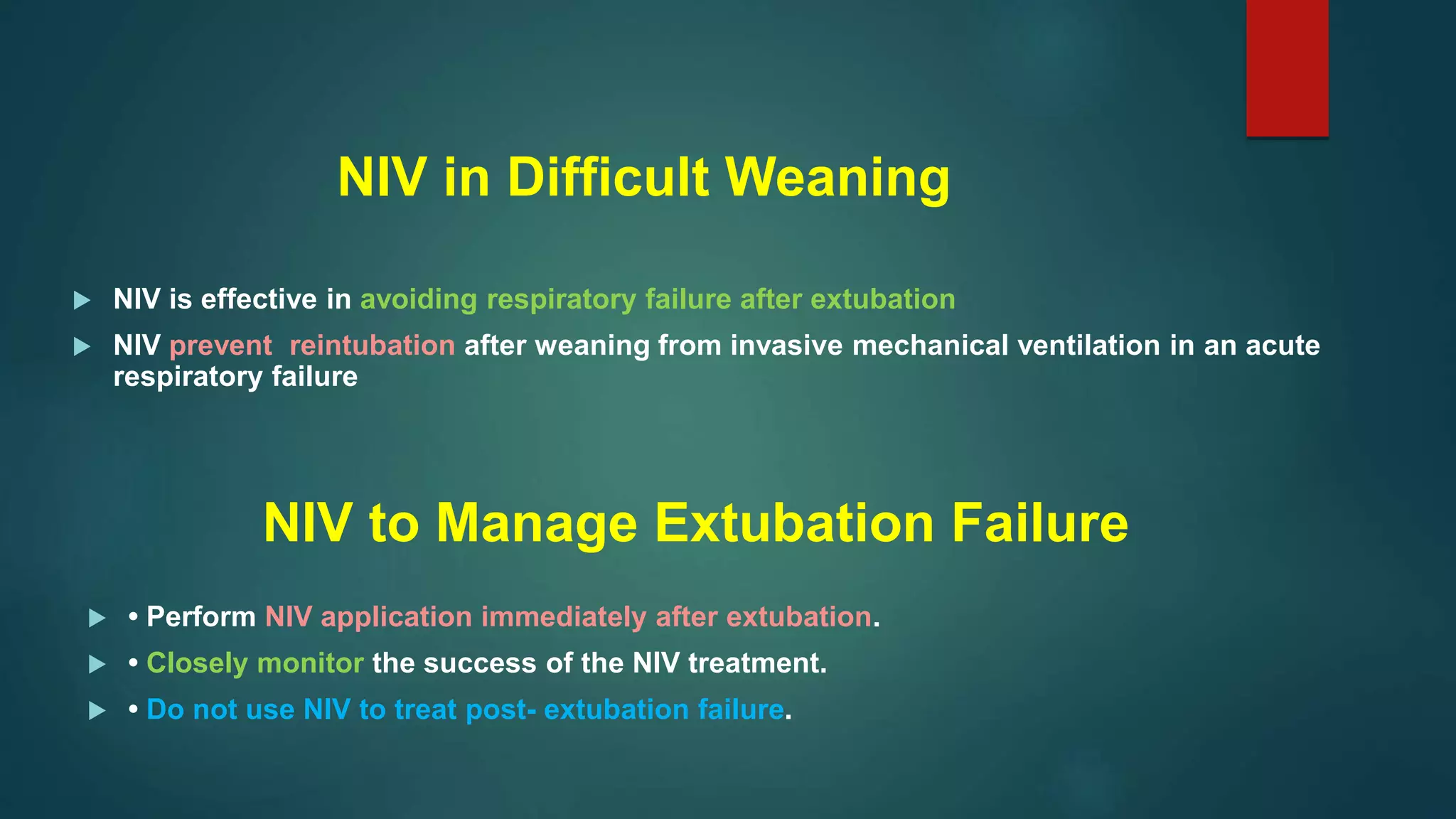

46. NIV in Difficult Weaning
NIV is effective in avoiding respiratory failure after extubation
NIV prevent reintubation after weaning from invasive mechanical ventilation in an acute
respiratory failure
NIV to Manage Extubation Failure
• Perform NIV application immediately after extubation.
• Closely monitor the success of the NIV treatment.
• Do not use NIV to treat post- extubation failure.

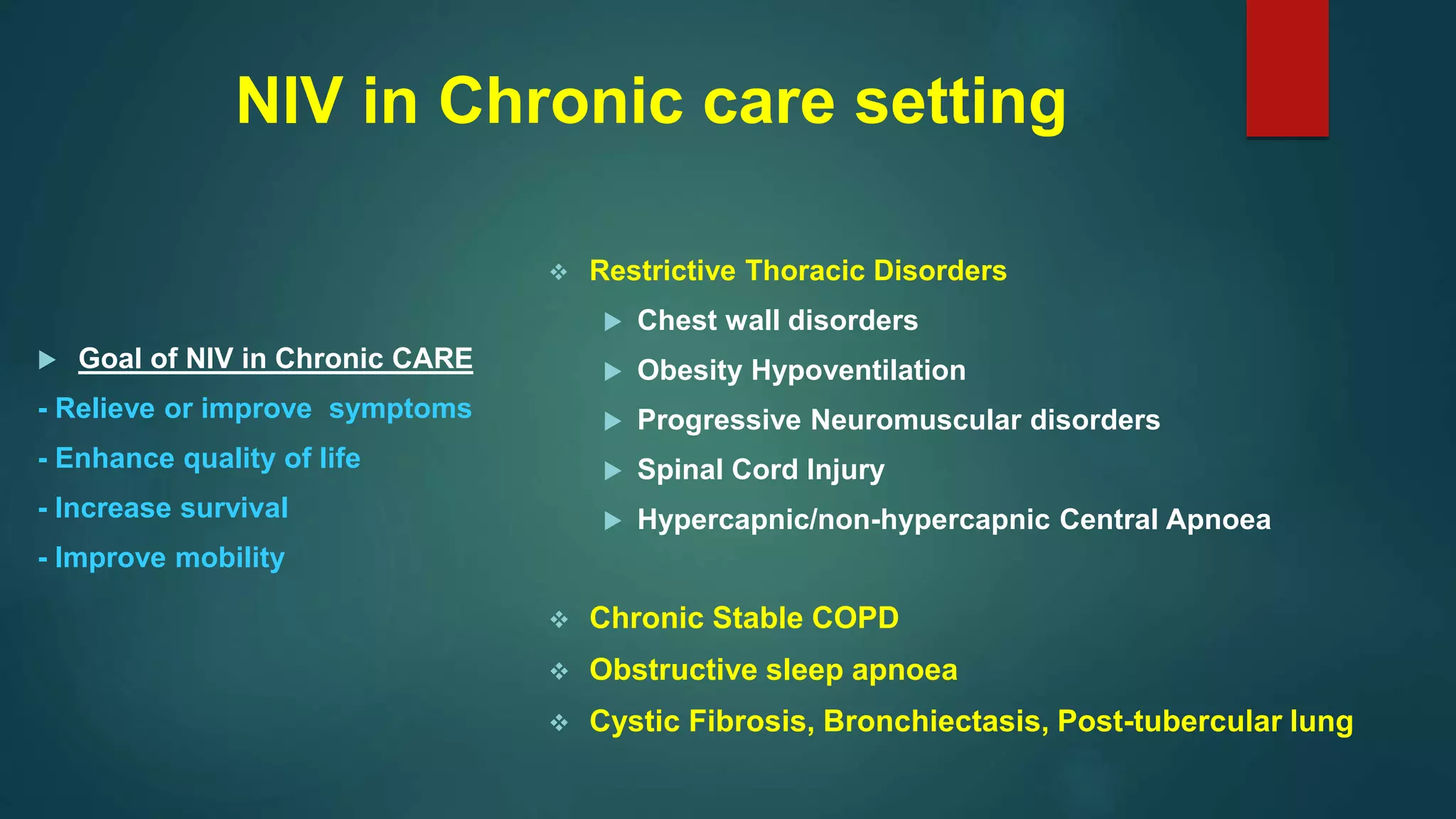

47. Restrictive Thoracic Disorders
Chest wall disorders
Obesity Hypoventilation
Progressive Neuromuscular disorders
Spinal Cord Injury
Hypercapnic/non-hypercapnic Central Apnoea
Chronic Stable COPD
Obstructive sleep apnoea
Cystic Fibrosis, Bronchiectasis, Post-tubercular lung
NIV in Chronic care setting
Goal of NIV in Chronic CARE
- Relieve or improve symptoms
- Enhance quality of life
- Increase survival
- Improve mobility

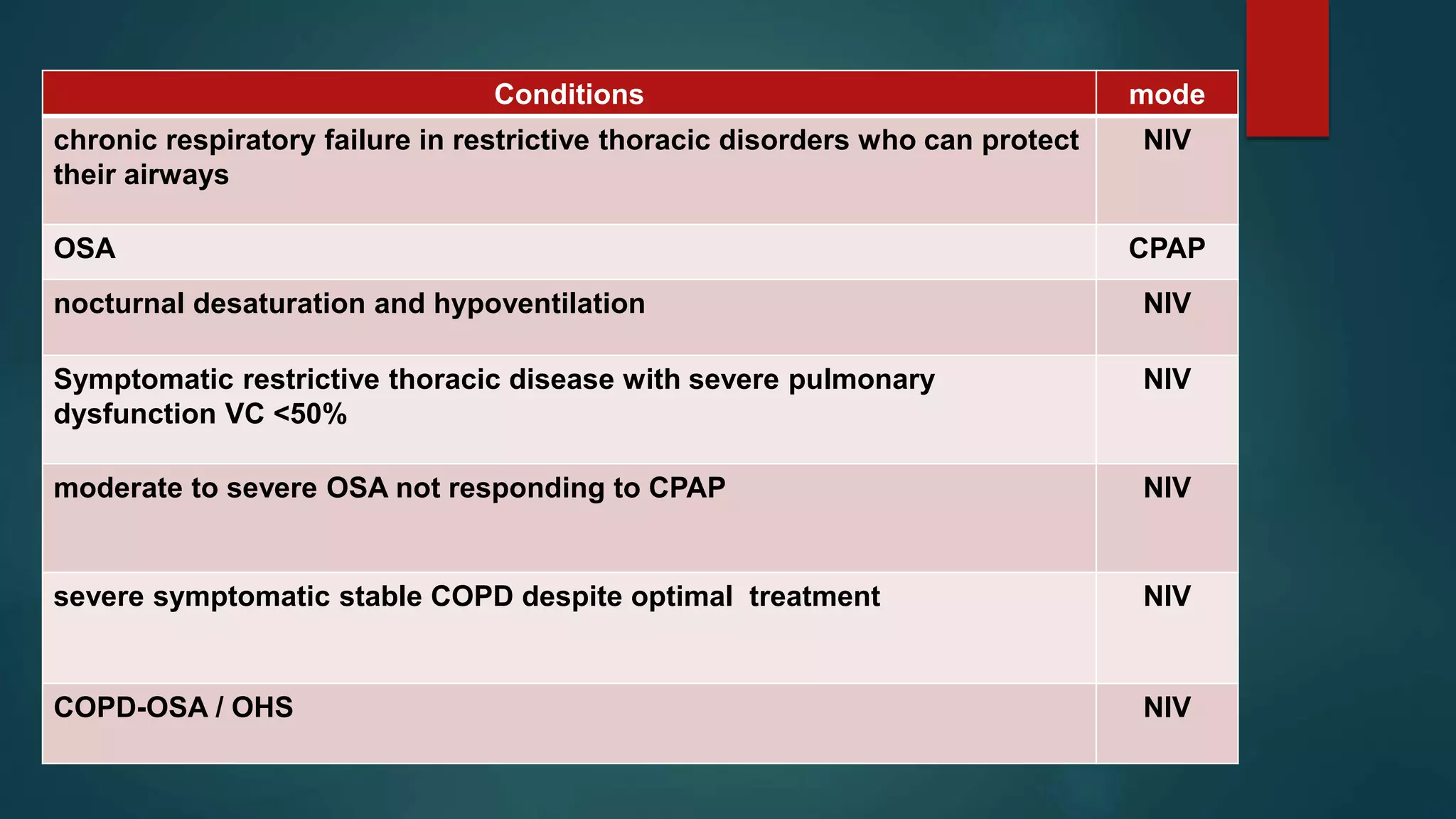

48. Conditions mode
chronic respiratory failure in restrictive thoracic disorders who can protect
their airways
NIV
OSA CPAP
nocturnal desaturation and hypoventilation NIV
Symptomatic restrictive thoracic disease with severe pulmonary
dysfunction VC <50%
NIV
moderate to severe OSA not responding to CPAP NIV
severe symptomatic stable COPD despite optimal treatment NIV
COPD-OSA / OHS NIV

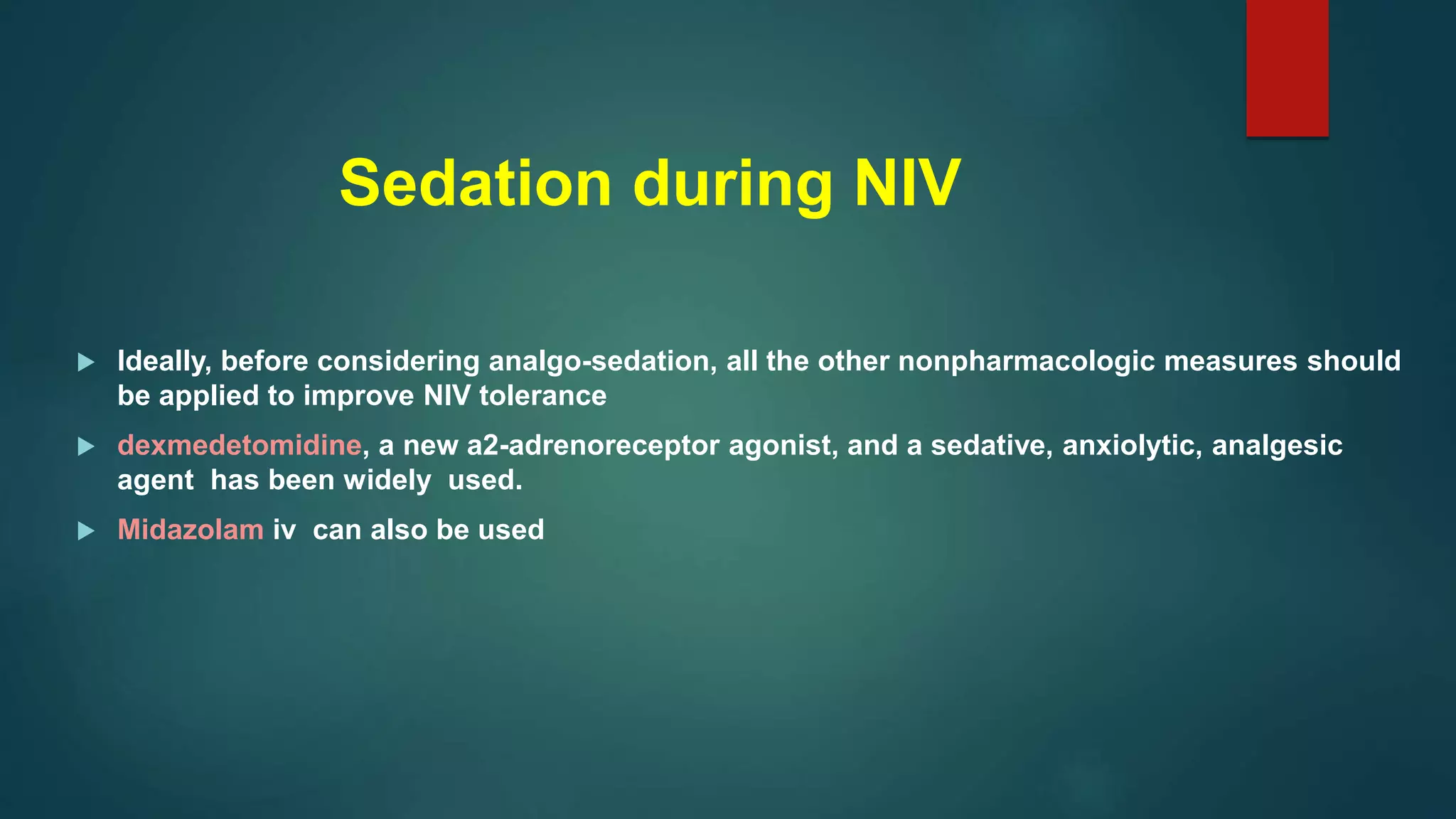

50. Sedation during NIV
Ideally, before considering analgo-sedation, all the other nonpharmacologic measures should
be applied to improve NIV tolerance
dexmedetomidine, a new a2-adrenoreceptor agonist, and a sedative, anxiolytic, analgesic
agent has been widely used.
Midazolam iv can also be used

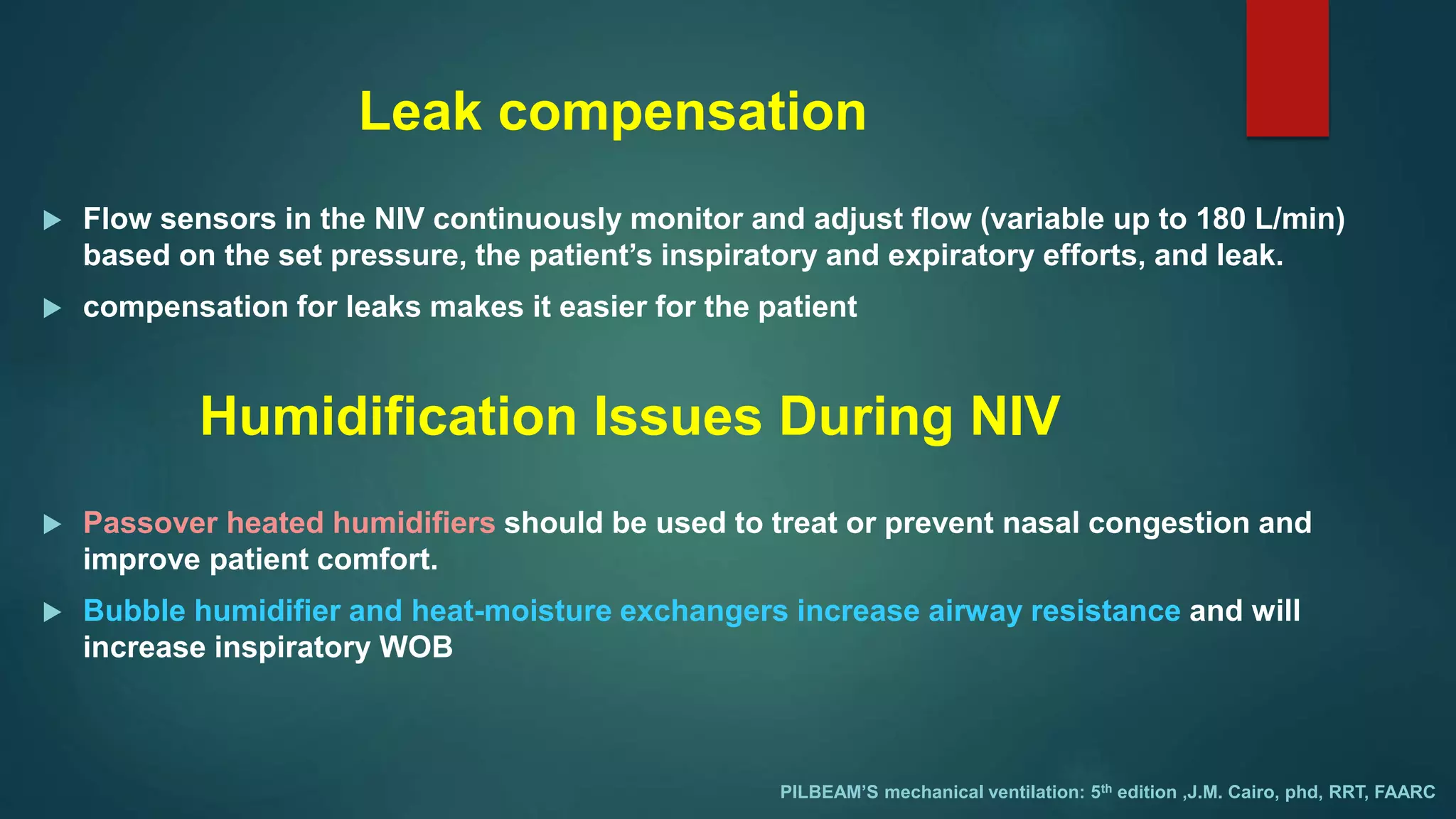

51. Leak compensation
Flow sensors in the NIV continuously monitor and adjust flow (variable up to 180 L/min)
based on the set pressure, the patient’s inspiratory and expiratory efforts, and leak.
compensation for leaks makes it easier for the patient
PILBEAM’S mechanical ventilation: 5th edition ,J.M. Cairo, phd, RRT, FAARC
Humidification Issues During NIV
Passover heated humidifiers should be used to treat or prevent nasal congestion and
improve patient comfort.
Bubble humidifier and heat-moisture exchangers increase airway resistance and will
increase inspiratory WOB
52. PILBEAM’S mechanical ventilation: 5th edition ,J.M. Cairo, phd, RRT, FAARC
Oxygen delivery
FIO2 can vary and is affected by four factors:
1. Oxygen flow rate
2. Type of leak port in the system
3. Site where oxygen is bled into the circuit
Max FiO2 achieved
- If leak port is in the circuit, the oxygen is blend into the patient’s mask
- If leak port is in the mask, the oxygen is blend into the circuit at the machine outlet.
lowest FiO2
- leak port is in the mask and oxygen is bled into the mask.
4. IPAP and EPAP-Lower IPAP and EPAP levels also yield higher oxygen concentrations.

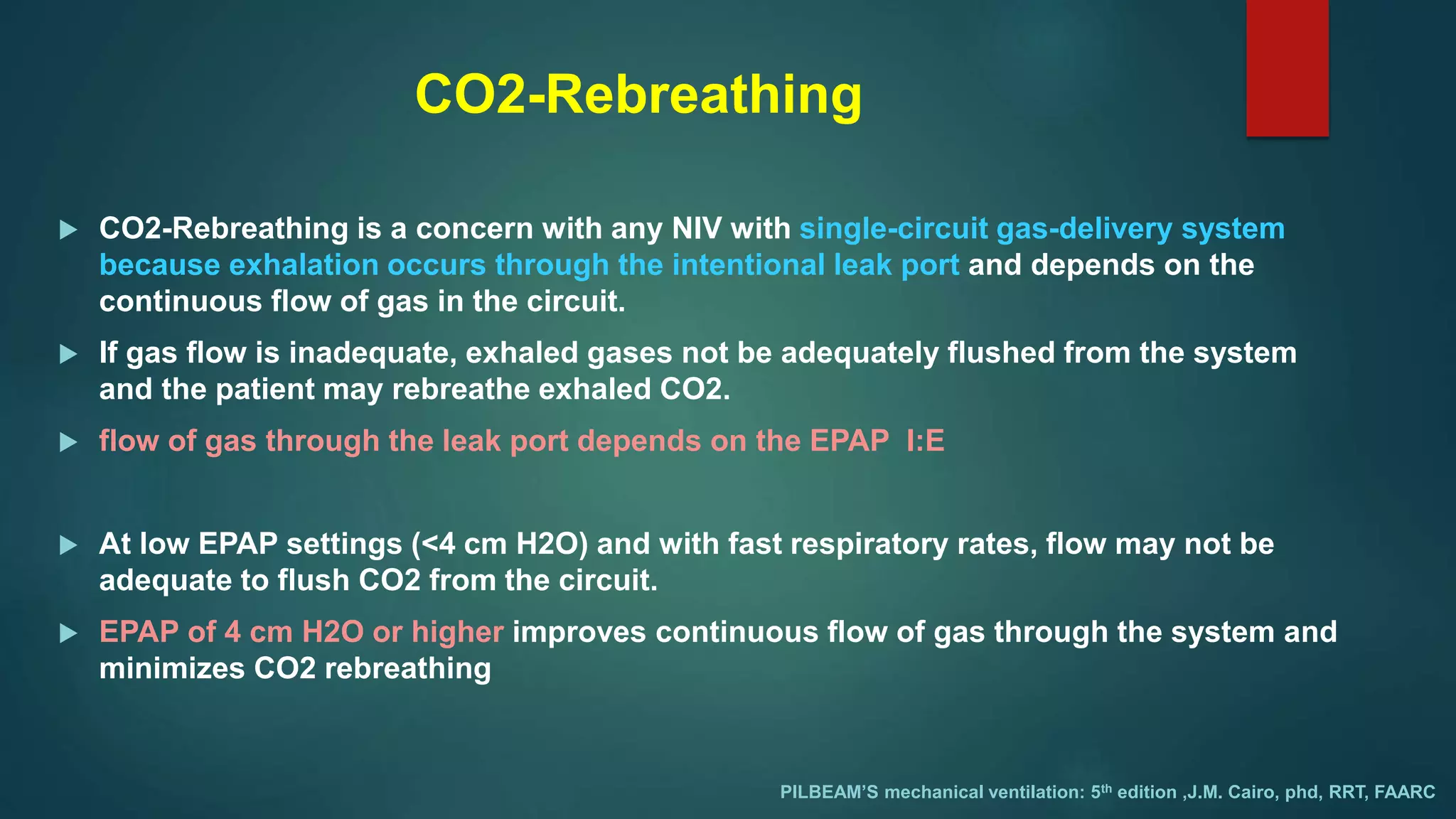

53. CO2-Rebreathing
CO2-Rebreathing is a concern with any NIV with single-circuit gas-delivery system
because exhalation occurs through the intentional leak port and depends on the
continuous flow of gas in the circuit.
If gas flow is inadequate, exhaled gases not be adequately flushed from the system
and the patient may rebreathe exhaled CO2.
flow of gas through the leak port depends on the EPAP I:E
At low EPAP settings (<4 cm H2O) and with fast respiratory rates, flow may not be
adequate to flush CO2 from the circuit.
EPAP of 4 cm H2O or higher improves continuous flow of gas through the system and
minimizes CO2 rebreathing
PILBEAM’S mechanical ventilation: 5th edition ,J.M. Cairo, phd, RRT, FAARC

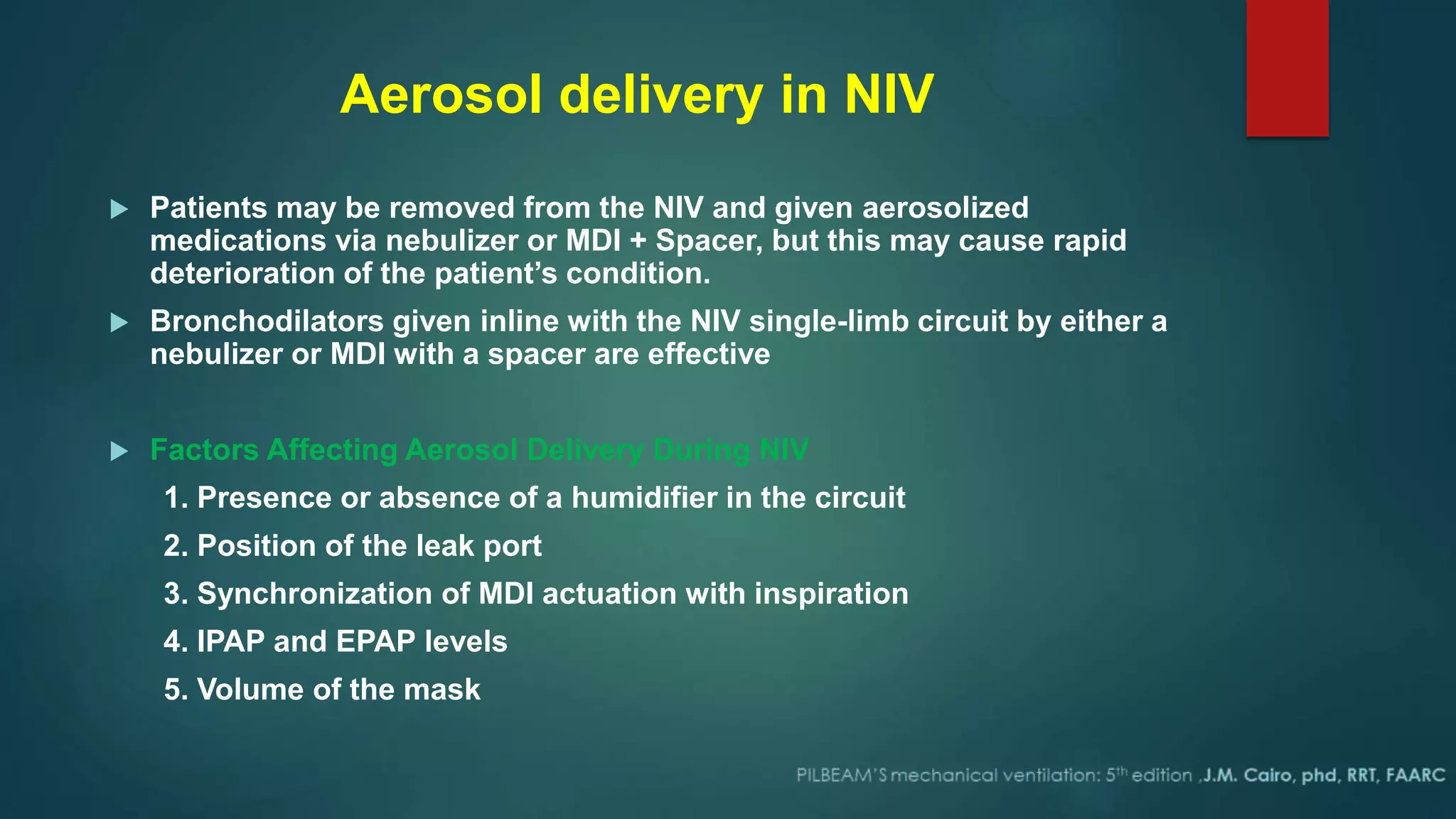

54. Aerosol delivery in NIV
Patients may be removed from the NIV and given aerosolized
medications via nebulizer or MDI + Spacer, but this may cause rapid
deterioration of the patient’s condition.
Bronchodilators given inline with the NIV single-limb circuit by either a
nebulizer or MDI with a spacer are effective
Factors Affecting Aerosol Delivery During NIV
1. Presence or absence of a humidifier in the circuit
2. Position of the leak port
3. Synchronization of MDI actuation with inspiration
4. IPAP and EPAP levels
5. Volume of the mask

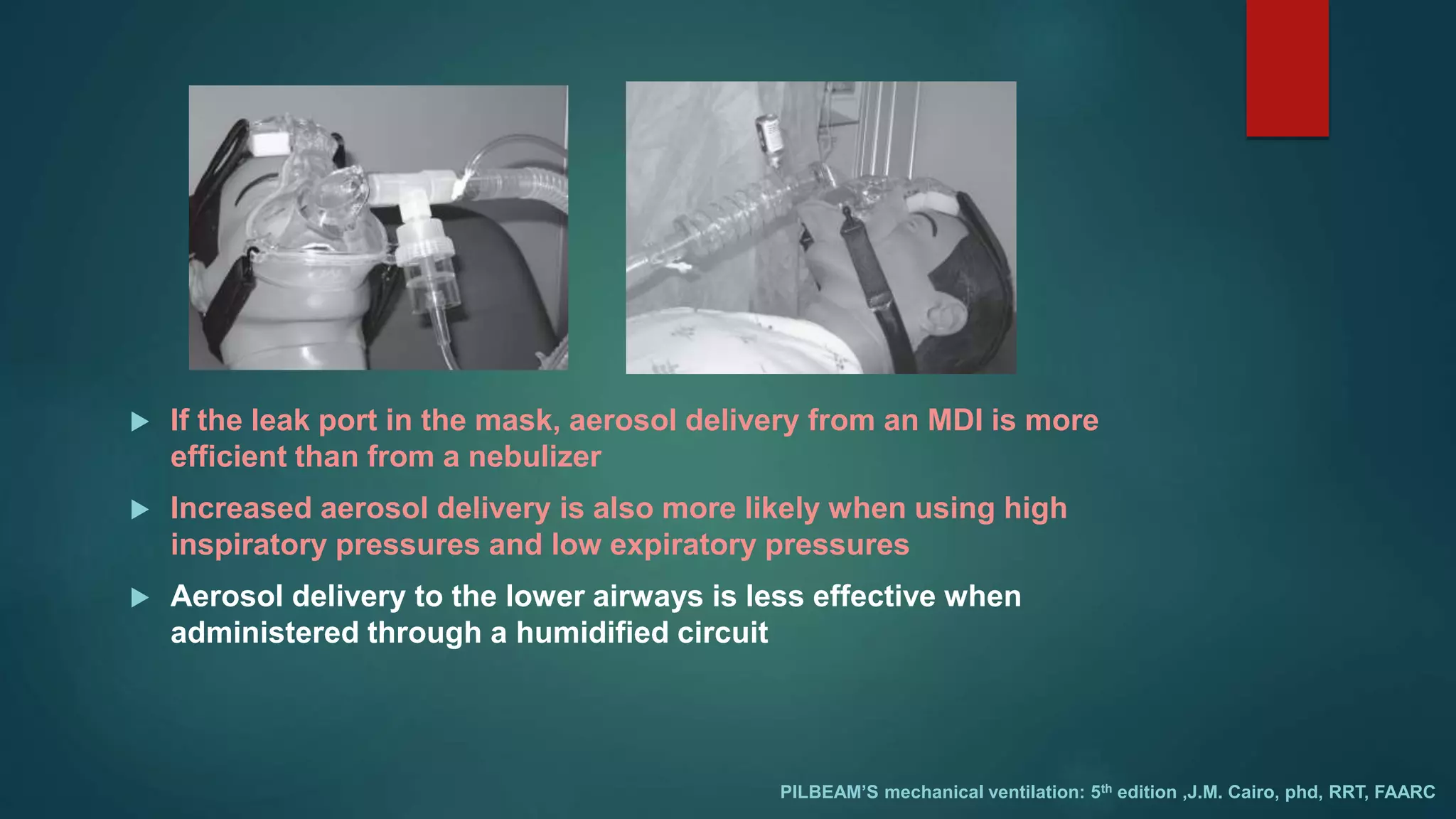

55. If the leak port in the mask, aerosol delivery from an MDI is more
efficient than from a nebulizer
Increased aerosol delivery is also more likely when using high
inspiratory pressures and low expiratory pressures
Aerosol delivery to the lower airways is less effective when
administered through a humidified circuit
PILBEAM’S mechanical ventilation: 5th edition ,J.M. Cairo, phd, RRT, FAARC
The default setting is at 25% of peak flow.
This % is not an absolute value rather it is based on the mechanics of the device. According to a study by Patitis the default setting of 25% is ok for COPD patients but for restrictive patients it is advisable to extend it out so that the cycle occurs at 15% or 8% of peak flow.
