EQ RESISTANCE

•Download as PPTX, PDF•

3 likes•1,347 views

The document discusses the earthquake resistance of load bearing masonry structures. It notes that traditionally built masonry structures are vulnerable during earthquakes due to lack of structural integrity and proper connections between building components. Specifically, it highlights issues like inadequate wall anchorage, instability of slender walls, separation of wall wythes, and collapse of walls supporting roof structures. The document provides suggestions for improving earthquake resistance, such as introducing horizontal bands, use of ring beams, improving wall robustness. It emphasizes the importance of overall building shape and size, and proper distribution of mass and lateral loads.

Education

EARTHQUAKE RESISTANCE OF LOAD
BEARING STRUCTURES

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
6/15

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
7/15

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
8/15

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
9/15

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
10/15

2005 NPEEE Earthquake Design
Concept : Lecture 5:
Earthquake Load on Simple
11/15

2005 NPEEE Earthquake Design
Concept : Lecture 6: Seismic
Design Philosophy & Code
13/16

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
14/23

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
15/23

Non-engineered constructions… mere death traps

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
18/23
1
2
3
5
4
6
7
8
9
10

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
20/23
64 x 23x23/400 = 84.64 cm.

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
22/23

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
24/23
8 x 30 = 240 cm

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
25/23

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
26/23

2005 NPEEE Earthquake Design
Concept : Lecture 10: Earthen
& Stone Wall Building
27/23
two courses of burnt brick instead of adobe for
resting of roof structure

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
29/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
30/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
31/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
32/30
Damage due to inadequate
connection between the wall

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
33/30
Mangalore tiles roof with out gable bend (BHUJ)

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
34/30
Thick wall with small size rubble
& no THROUGH _ STONE
Splitting of walls

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
35/30
Lack of Structural Integrity….
Lack of proper connections capable of withstanding
compression and tension forces between various building
components

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
36/30
Out-of-plane Wall Weaknesses…..
Out-of-plane failures …………..
•Due to inadequate wall-diaphragm anchorage & instability of
slender walls
• Dynamic instability of long unsupported walls such as gable end
walls.
Separation of WythesGable & Cross Walls

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
37/30
• Loss of support for roof trusses and joists
Collapse of wall supporting roof structure

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
38/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
39/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
40/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
41/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
42/30

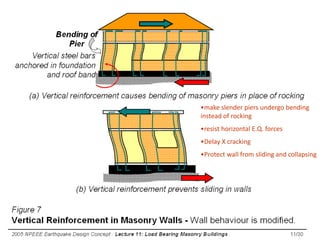

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
44/30
•make slender piers undergo bending
instead of rocking
•resist horizontal E.Q. forces
•Delay X cracking
•Protect wall from sliding and collapsing

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
45/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
46/30

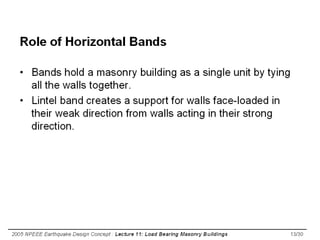

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
47/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
48/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
49/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
50/30

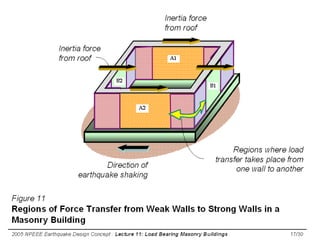

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
51/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
52/30
BHUJ EARTH QUAKE

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
54/30
2
3
4
1
5
6
•overall shape and size of
building
•distribution of mass and
horizontal lateral load

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
55/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
56/30
(L,T,E,Y shapes)

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
57/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
58/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
59/30
conclude...

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
60/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
61/30

2005 NPEEE Earthquake Design
Concept : Lecture 11: Load
Bearing Masonry Buildings
62/30
