The document discusses three educational institutions, focusing on their architectural design and features. Key attributes include the use of local materials, integration of natural light and ventilation, and incorporation of open courtyards for community interaction. Specific design elements such as sloping roofs, colonnades, and sustainable practices are highlighted to optimize the learning environment in each institution.

1. DESIGN
VII
A D Y A S H A P R I Y A D A R S H I N I
1 1 6 A R 0 0 1 5
1. Birla global university
2.Pearl fashion academy
3. Brick school of architecture
Case study presentation

2. • Climate: hot and semi-
arid climate
• Architect: Girish Doshi,
navkaar architects
• Site area: 36421.70 sqm
• Built-up area: 1100 sqm
• Construction type:
exposed brickwork and
exposed concrete
SMEF’s BRICK SCHOOL OF
ARCHITECTURE

3. Access from main road

5. CONCEPT

6. Spaces occupancy
Faculty cabins 7
Meeting area 40
Administration space 5
Studios 40
Classrooms 40
Library 20
Seminar room 100
Ground floor:
1. Faculty cabins
2. Meeting room
3. Administration rooms
4. 4 studios
First floor:
1. Classrooms
2. Library
3. Seminar room
4. 4 studios

7. Entrance view
OAT outside
Panchatantra entrance plaza

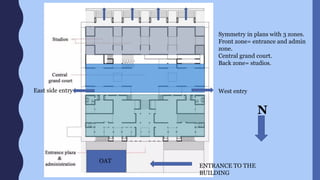

8. ENTRANCE TO THE
BUILDING
West entryEast side entry
OAT
N
Symmetry in plans with 3 zones.
Front zone= entrance and admin
zone.
Central grand court.
Back zone= studios.

9. Faculty meeting room and
administration room
Faculty rooms
offices
Courtyard
Water body
Administration block view

10. offices
offices
Courtyard
Water body
Meeting room
• Faculty room view
• Courtyard providing light.
• Connected with admin room
and entrance.
• Courtyards designed inside the
admin area with water body.
• Vertical openings to allow
daylight inside the block not
the heat.

11. • Sloping roof merges with the mountains in the background.
• Its design to wash off rain water off the structure.
• Structure is inspired by local Wada architecture.
• Spaces planned around an open central court.

12. West
entry
East
entry
rampOAT

13. Central grand court ( main interaction space) Entrance from west side
Entrance from east side Charles correa library

14. Classrooms:
• Two classrooms are places exactly
mirror of each other.
• One can be accessed by ramp and
another through stairs.
• Classrooms connected by balconies.
• Vertical openings.
Nari Gandhi classrooms

15. Bridge joining two blocks of building.

16. • Studios are placed along the central
courtyard.
• Every studios has its storage.
• Studios are well lit and ventilated.
• Max daylight come from courtyard.
• It has provision of expansion and can
connect with the outdoor.
• Large projections provided on south
walls to prevent bright sunlight.
• Studios have balconies connected with
bridges, allow the students and faculties
to pass through from one studio to
another without disturbing the people
down.
• Wind shaft provided.
• Open classroom are provided at the
backside of each studios.

17. Interior view of studios Ramp leading to studios

18. Section through studios
Stepped wall and ramps leading to studios
Courtyards inside studios

19. First floor has
Library and
seminar hall.

20. Interaction spaces on the terrace

21. Streets going along with the building
Balconies placed just after the classrooms
Corridors connecting spaces

22. OAT is located outside of the building Courtyard inside of library
Entrance lobby having courtyard Courtyard and waterbody inside admin block

23. Sloping roof having sitting arrangements
Corridors and projected balconies
Interaction space on terrace

24. Observations:
• The structure is constructed by using and experimenting new form through structural
concrete.
• The open spaces are used in many purposes like cultural activity, interactive spaces, open
studios, and central plaza.
• Plenty of light and ventilation in studios and office spaces taken intermediate courtyard
attach to office spaces.
• The open and closed spaces are connected to each other both visually and physically to
create cloud environment to study purpose.
• Intermediate courtyards and entrance court bring the nature inside of building.

25. BIRLA GLOBAL UNIVERSITY
Located at Bhubaneswar.
Site area 30 acres.
Established in 2013.

26. Cricket
ground PG block
UG block
Administrative
block
Law
school Mess 1
Basket
ball
ground
Boys hostel
Girls hostel
faculty
Mess 2
Rock
garden
Landscaping
Volleybal
l court
Parking area
ATM
Staff rooms
Main vehicular path
pedestrian
Main vehicular pathMainvehicularpath
Mainvehicularpath
pedestrian
Students entry Faculty entry
Security
room 1
Security
room 2
Students
parking
Faculty parking
SITE
PLAN

27. Form and orientation:
▪ Form optimization led to the formation of a perfect rectangular
volume with minimum exposed surface area.
▪ The site has a level changes.
▪ Building blocks including classrooms and lecture halls have
been raised by levels for landscaping purposes.
▪ Thicker wall prevents classrooms from the outer heat in
summer seasons also due to that less use of mechanical
equipment.
▪ The building blocks allotted for under graduates and post
graduates are single storey but the administration blocks is
double storey building.
▪ Academic block’s exterior is completely made by stone
cladding.
▪ Its not only looks attractive and given a rough surface.
▪ Series of columns outside the building creates colonnade.
▪ Colonnade distinct spaces between inside and outside area.
▪ Projected roofs create a light and shadow effect.
▪ Corridor created along with building but outside. Which meld
seamlessly with outer landscaping.
▪ The lawn space can be used as a sitting space making a
informal interactive space.
▪ Also the corridor itself creating a informal interactive space.

28. ▪ Main building: 2 storey
Ground floor:
▪ Dean office
▪ Vice chancellor office
▪ Register office
▪ 2 seminar hall
▪ Library continuing up to 1st floor.
First floor: administrative blocks

29. Activities:
After class sitting place
Volleyball court

30. Activities:
Interaction place
Informal space for professors and students

31. Activates:
Seminar hall
Library room ( 2 storey)

32. School of communication and
management:
▪ 5 classrooms = 70 students capacity
▪ 1 classroom = 40 students capacity
▪ 2 common rooms.
▪ 1 common room is serves sitting purpose after
class.
▪ Another common room has table tennis, music
instruments etc.
▪ 9 faculty cabins.
▪ Staff cafeteria for faculties.
▪ Separate washrooms for faculty and students.

33. Interaction after class
Sitting on sloping lawn
Talking in corridor

34. Post graduate block:
▪ 6 classrooms = 40 capacity
▪ No common rooms.
▪ 15 faculty cabins.
▪ Separate washrooms for faculty and students.

35. Formal learning activities
1. Post graduation classrooms
2. Seminar rooms
3. Under graduate classrooms

36. Besides the main building and two
academic block there is another
building block.
School of law:
Ground floor:
▪ Canteen
▪ Health care
▪ Salon
▪ Gym
▪ Laundry
▪ Stationary shop
First floor and second floor: law school

37. HOSTEL PREMISES

38. ▪ Boys hostel
▪ Ladies hostel
▪ Roads connecting main
road, hostels and
students vehicle
parking.
▪ In between two hostels
there is a garden, which
act as an interactive
place.
▪ Faculty residence
▪ 2 dean residence
▪ They have separate
parking for faculties
vehicle.

39. ▪ 2 dinning hall.
▪ Dining hall has its exterior made of glass and also it
has landscaping behind the building so students
can enjoy the outside view while having food.
▪ Between dinning area and law school block there is
specially created rock garden.
▪ So many sculptures and sitting spaces have been
provided so it’s a complete formal interactive space.
▪ For sports activity this college has volleyball court,
basket ball court, cricket ground.

40. LANDSCAPING AREAS

41. Sports activities:
Volleyball
Cricket
Football
Basket ball

42. Formal interactive space
Activity plaza inside admin block
Formal interactive space
Formal interaction space
Backside space of admin block
Interior of institute canteen
Formal learning spaces

43. ▪ Location : 20 km away from Jaipur
▪ Climate: typical hot, dry and desert type
▪ Design of the building inspired of formal
geometry.
▪ Cost effective design
▪ challenge to control the micro climate within the
building.
▪ modern adaption of traditional Indo-Islamic
architectural elements and passive cooling
strategies.
▪ Use of open courtyards, water body, a step wall ,
jaalis to maintain a micro climate within the
project.
▪ All these elements manifest themselves through
the built form and become an intrinsic part of the
daily life of the design student.
Pearl fashion academy

44. Form optimization, morphology and
orientation:
▪ a perfect rectangular volume with minimumexposed
surface area.
▪ The site was excavated to a depth of 4 metre, to create an
underbelly and the two stories of classrooms, studios, and
offices were raised on pilots above the voids.
▪ the underbelly, which is thermally banked on all sides, has a
ramp designed to be used during fashion shows and forms
the anchor for the entire project.
▪ serves as a large recreation and exhibition zone, houses the
cafeteria and spill out areas for the student population.
▪ This curvilinear geometry is generated through a
computerized shadow analysis that tracks the precise
movement of the sun through the day and across the
season.
▪ The self shading sliver courtyards help to control the
temperature of internal spaces and open step-wells, while
allowing sufficient day lighting inside studios and
classrooms.

45. Various
interaction
spaces

48. Materials used:
▪ mix of local stone, steel, glass and concrete chosen keeping in mind the
climate needs of the region while retaining the progressive design intent.
▪ The exterior is painted orange to set off the white jaali but the interior
surfaces are white, to reduce heat asportation.
Courtyards and stepwells
▪ Thermally banked on all sides, a space for sacred
congregation within an academic institution: for students, for
activity and chances activity, for recreation ,exhibition and
interaction amidst the organic setting or green and water.
▪ The water body id fed by the recycled water from the sewage
treatment plant and helps in the creation of a microclimate
through evaporative cooling.
Ventilation and structural grid:
▪ The courtyards get indirect light into classrooms.
▪ The entire building is on 9m grid, single bay, naturally lit and
cross- ventilated.
