1. Electrical SafetyElectrical Safety

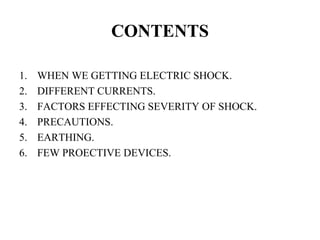

2. CONTENTS

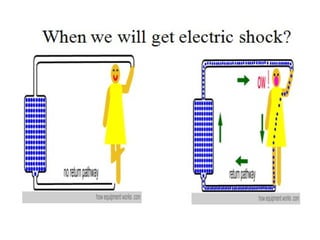

1. WHEN WE GETTING ELECTRIC SHOCK.
2. DIFFERENT CURRENTS.
3. FACTORS EFFECTING SEVERITY OF SHOCK.
4. PRECAUTIONS.
5. EARTHING.
6. FEW PROECTIVE DEVICES.

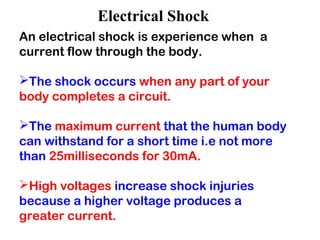

6. Electrical Shock
An electrical shock is experience when a
current flow through the body.
The shock occurs when any part of your
body completes a circuit.
The maximum current that the human body
can withstand for a short time i.e not more
than 25milliseconds for 30mA.
High voltages increase shock injuries
because a higher voltage produces a
greater current.

7. Electricity - The Dangers
Shock
Burns
Falls
Finally death of a person

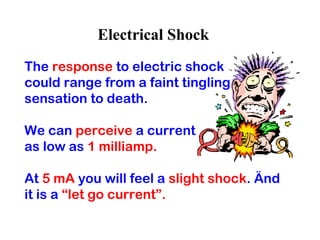

8. Electrical Shock
The response to electric shock
could range from a faint tingling
sensation to death.
We can perceive a current
as low as 1 milliamp.
At 5 mA you will feel a slight shock. Änd
it is a “let go current”.

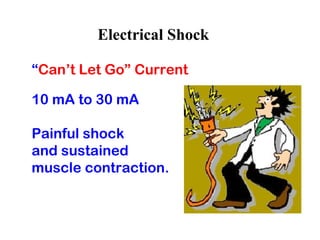

9. Electrical Shock
“Can’t Let Go” Current
10 mA to 30 mA
Painful shock
and sustained
muscle contraction.

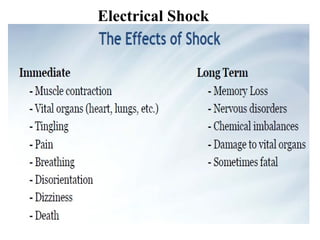

10. Electrical Shock

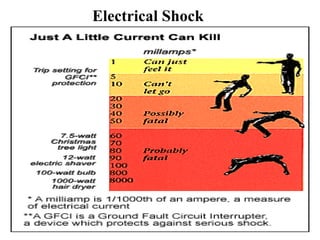

11. Electrical Shock

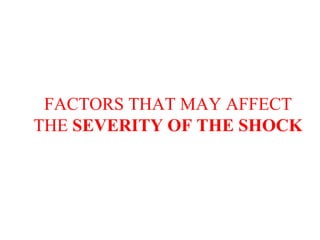

12. FACTORS THAT MAY AFFECT
THE SEVERITY OF THE SHOCK

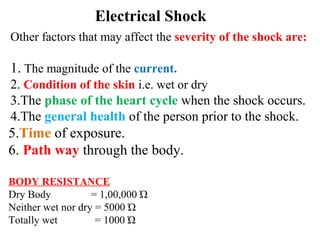

13. Electrical Shock
Other factors that may affect the severity of the shock are:
1. The magnitude of the current.
2. Condition of the skin i.e. wet or dry
3.The phase of the heart cycle when the shock occurs.
4.The general health of the person prior to the shock.
5.Time of exposure.
6. Path way through the body.
BODY RESISTANCE
Dry Body = 1,00,000 Ώ
Neither wet nor dry = 5000 Ώ
Totally wet = 1000 Ώ

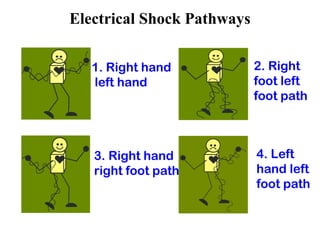

14. Electrical Shock Pathways
4. Left
hand left
foot path
3. Right hand
right foot path
2. Right
foot left
foot path
1. Right hand
left hand

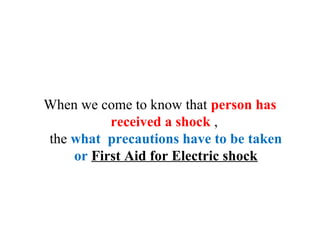

15. When we come to know that person has
received a shock ,
the what precautions have to be taken
or First Aid for Electric shock

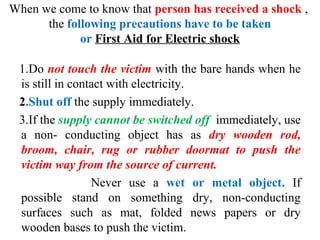

16. When we come to know that person has received a shock ,
the following precautions have to be taken
or First Aid for Electric shock
1.Do not touch the victim with the bare hands when he
is still in contact with electricity.
2.Shut off the supply immediately.
3.If the supply cannot be switched off immediately, use
a non- conducting object has as dry wooden rod,
broom, chair, rug or rubber doormat to push the
victim way from the source of current.
Never use a wet or metal object. If
possible stand on something dry, non-conducting
surfaces such as mat, folded news papers or dry
wooden bases to push the victim.

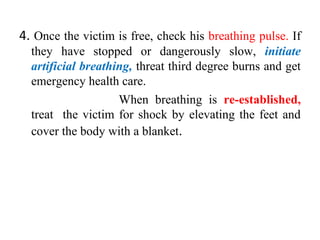

17. 4. Once the victim is free, check his breathing pulse. If
they have stopped or dangerously slow, initiate
artificial breathing, threat third degree burns and get
emergency health care.
When breathing is re-established,
treat the victim for shock by elevating the feet and
cover the body with a blanket.

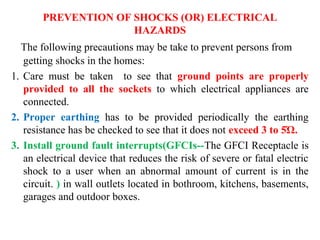

18. PREVENTION OF SHOCKS (OR) ELECTRICAL
HAZARDS
The following precautions may be take to prevent persons from
getting shocks in the homes:
1. Care must be taken to see that ground points are properly
provided to all the sockets to which electrical appliances are
connected.
2. Proper earthing has to be provided periodically the earthing
resistance has be checked to see that it does not exceed 3 to 5Ώ.
3. Install ground fault interrupts(GFCIs--The GFCI Receptacle is
an electrical device that reduces the risk of severe or fatal electric
shock to a user when an abnormal amount of current is in the
circuit. ) in wall outlets located in bothroom, kitchens, basements,
garages and outdoor boxes.

19. 4. Cover all electrical sockets with plastic safety caps
i.e proper insulation.
5. Replacement of damaged parts immediately.
6. Discouraging the permanent use of extension cords.
7.Completely avoiding spilling of water or chemical
near electrical apparatus.

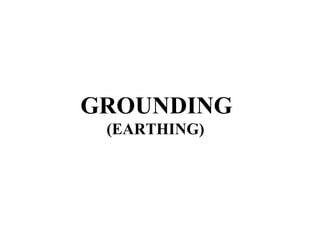

20. GROUNDING
(EARTHING)

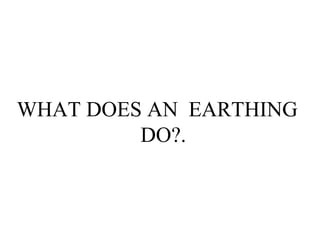

21. WHAT DOES AN EARTHING
DO?.

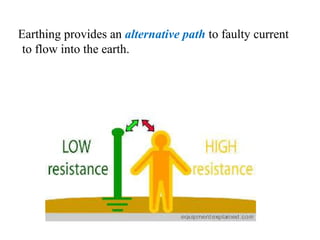

22. Earthing provides an alternative path to faulty current
to flow into the earth.

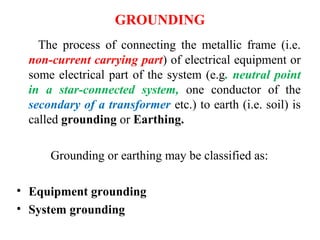

23. GROUNDING
The process of connecting the metallic frame (i.e.
non-current carrying part) of electrical equipment or
some electrical part of the system (e.g. neutral point
in a star-connected system, one conductor of the
secondary of a transformer etc.) to earth (i.e. soil) is
called grounding or Earthing.
Grounding or earthing may be classified as:
• Equipment grounding
• System grounding

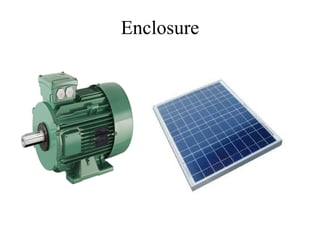

24. Enclosure

25. EQUIPMENT GROUNDING
The process of connecting non-current-carrying metal parts
(i.e. metallic enclosure) of the electrical equipment to earth
(i.e. soil) in such a way that in case of insulation failure, the
enclosure effectively remains at earth potential is called
equipment grounding.
(i) Ungrounded enclosure
(ii) Enclosure connected to neutral wire
(iii) Ground wire connected to enclosure
There can be three scenarios:

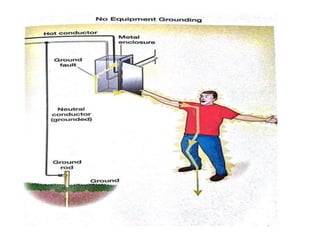

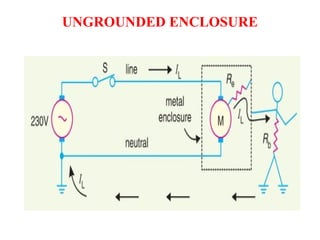

26. UNGROUNDED ENCLOSURE

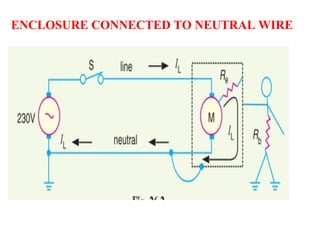

27. ENCLOSURE CONNECTED TO NEUTRAL WIRE

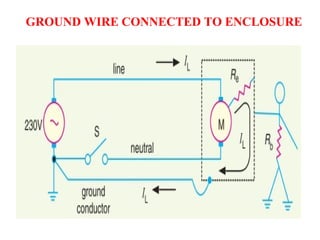

29. GROUND WIRE CONNECTED TO ENCLOSURE

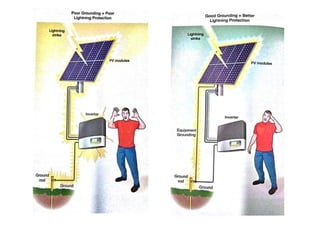

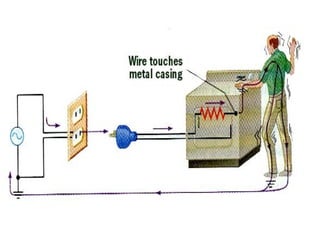

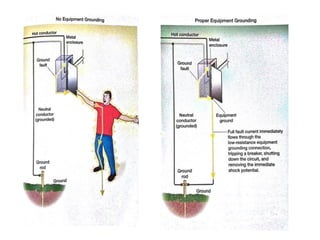

32. Improperly Grounded Appliance with Short

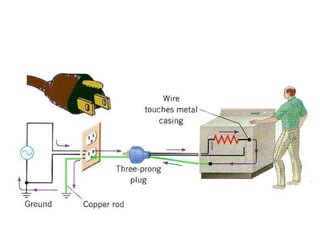

33. Grounded Appliance

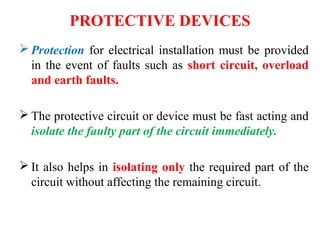

34. PROTECTIVE DEVICES
 Protection for electrical installation must be provided
in the event of faults such as short circuit, overload
and earth faults.
 The protective circuit or device must be fast acting and
isolate the faulty part of the circuit immediately.
 It also helps in isolating only the required part of the
circuit without affecting the remaining circuit.

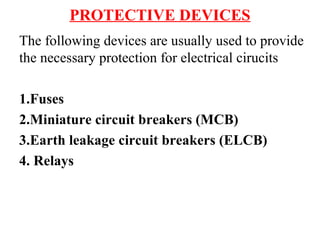

35. PROTECTIVE DEVICES
The following devices are usually used to provide
the necessary protection for electrical cirucits
1.Fuses
2.Miniature circuit breakers (MCB)
3.Earth leakage circuit breakers (ELCB)
4. Relays

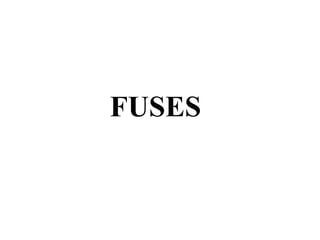

36. FUSES

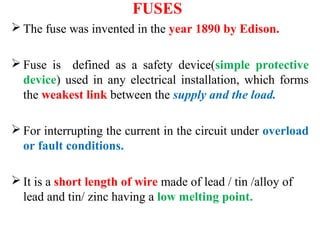

38. FUSES
 The fuse was invented in the year 1890 by Edison.
 Fuse is defined as a safety device(simple protective
device) used in any electrical installation, which forms
the weakest link between the supply and the load.
 For interrupting the current in the circuit under overload
or fault conditions.
 It is a short length of wire made of lead / tin /alloy of
lead and tin/ zinc having a low melting point.

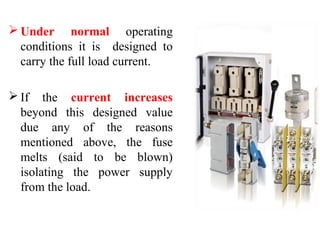

39.  Under normal operating
conditions it is designed to
carry the full load current.
 If the current increases
beyond this designed value
due any of the reasons
mentioned above, the fuse
melts (said to be blown)
isolating the power supply
from the load.

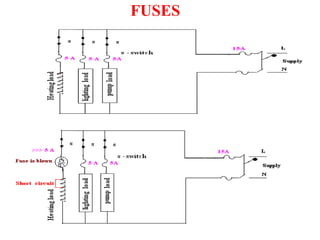

40. FUSES

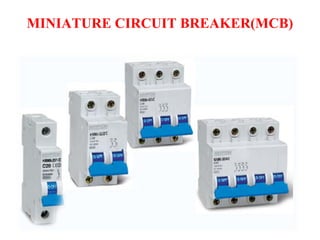

41. MINIATURE CIRCUIT BREAKER(MCB)

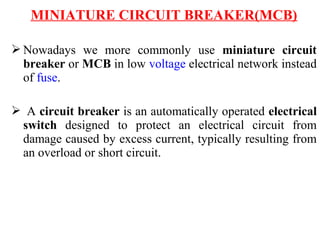

42. MINIATURE CIRCUIT BREAKER(MCB)
 Nowadays we more commonly use miniature circuit
breaker or MCB in low voltage electrical network instead
of fuse.
 A circuit breaker is an automatically operated electrical
switch designed to protect an electrical circuit from
damage caused by excess current, typically resulting from
an overload or short circuit.

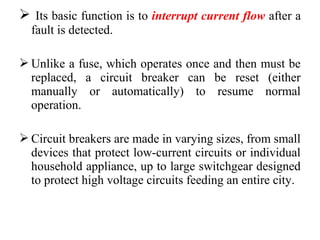

43.  Its basic function is to interrupt current flow after a
fault is detected.
 Unlike a fuse, which operates once and then must be
replaced, a circuit breaker can be reset (either
manually or automatically) to resume normal
operation.
 Circuit breakers are made in varying sizes, from small
devices that protect low-current circuits or individual
household appliance, up to large switchgear designed
to protect high voltage circuits feeding an entire city.

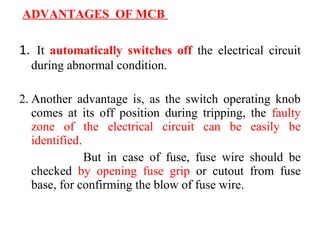

44. ADVANTAGES OF MCB
1. It automatically switches off the electrical circuit
during abnormal condition.
2. Another advantage is, as the switch operating knob
comes at its off position during tripping, the faulty
zone of the electrical circuit can be easily be
identified.
But in case of fuse, fuse wire should be
checked by opening fuse grip or cutout from fuse
base, for confirming the blow of fuse wire.

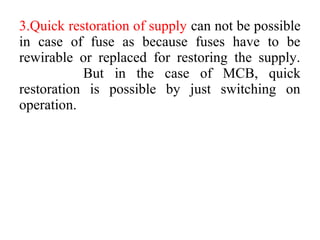

45. 3.Quick restoration of supply can not be possible
in case of fuse as because fuses have to be
rewirable or replaced for restoring the supply.
But in the case of MCB, quick
restoration is possible by just switching on
operation.

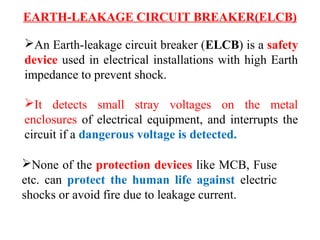

46. EARTH-LEAKAGE CIRCUIT BREAKER(ELCB)
An Earth-leakage circuit breaker (ELCB) is a safety
device used in electrical installations with high Earth
impedance to prevent shock.
It detects small stray voltages on the metal
enclosures of electrical equipment, and interrupts the
circuit if a dangerous voltage is detected.
None of the protection devices like MCB, Fuse
etc. can protect the human life against electric
shocks or avoid fire due to leakage current.

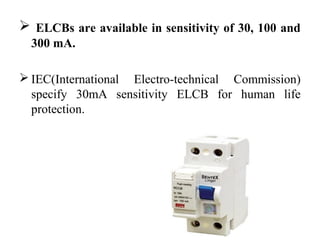

47.  ELCBs are available in sensitivity of 30, 100 and
300 mA.
 IEC(International Electro-technical Commission)
specify 30mA sensitivity ELCB for human life
protection.

48. RELAYS

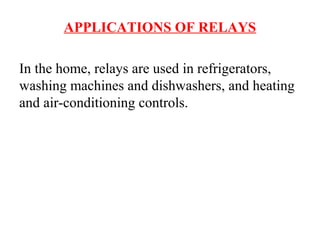

49. APPLICATIONS OF RELAYS
In the home, relays are used in refrigerators,
washing machines and dishwashers, and heating
and air-conditioning controls.

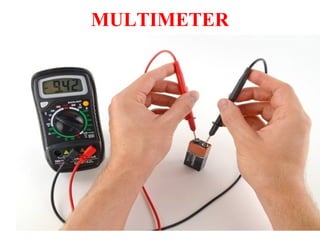

50. MULTIMETER

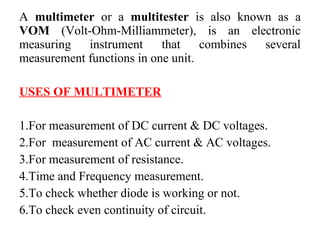

51. A multimeter or a multitester is also known as a
VOM (Volt-Ohm-Milliammeter), is an electronic
measuring instrument that combines several
measurement functions in one unit.
USES OF MULTIMETER
1.For measurement of DC current & DC voltages.
2.For measurement of AC current & AC voltages.
3.For measurement of resistance.
4.Time and Frequency measurement.
5.To check whether diode is working or not.
6.To check even continuity of circuit.
