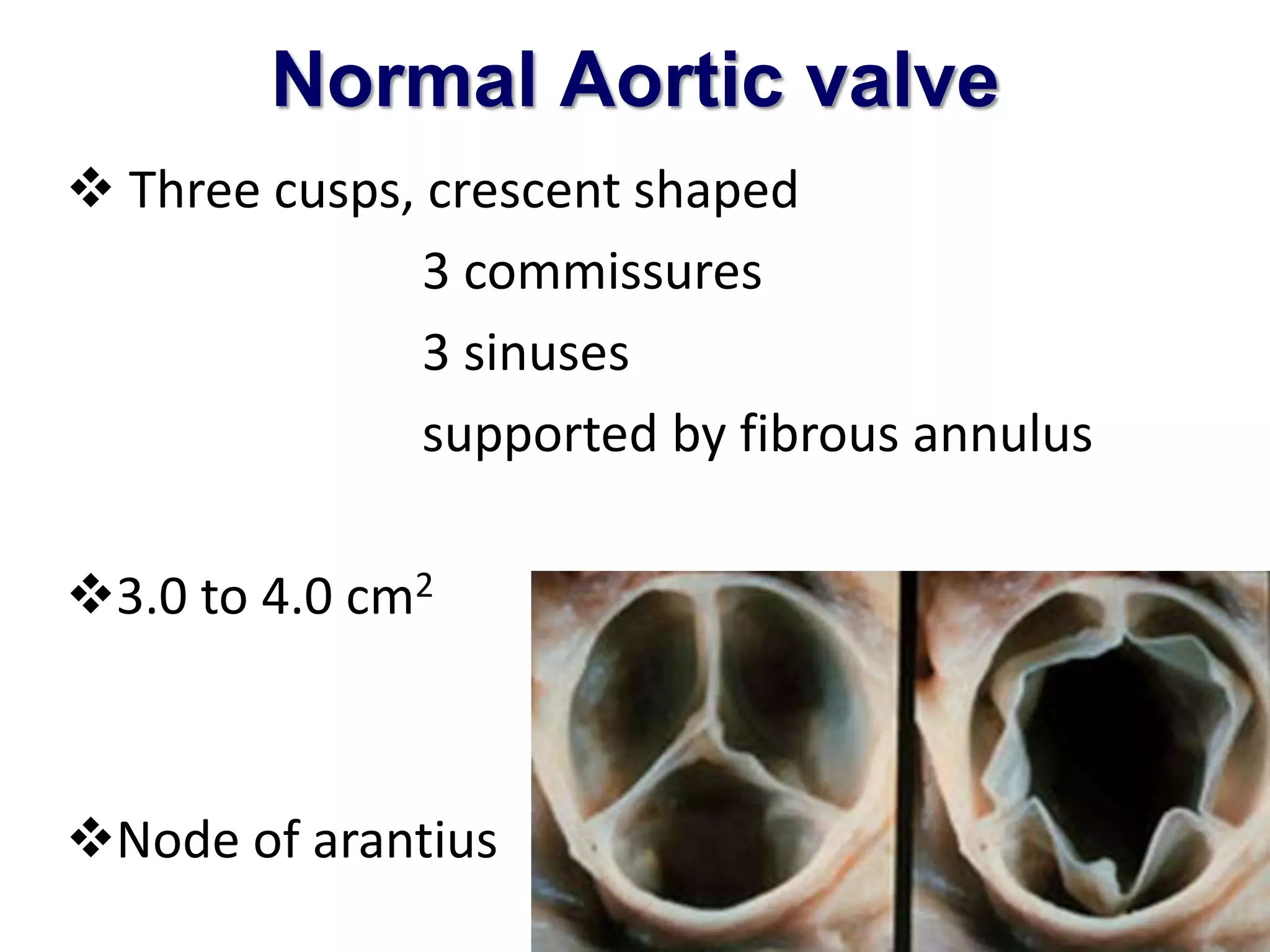

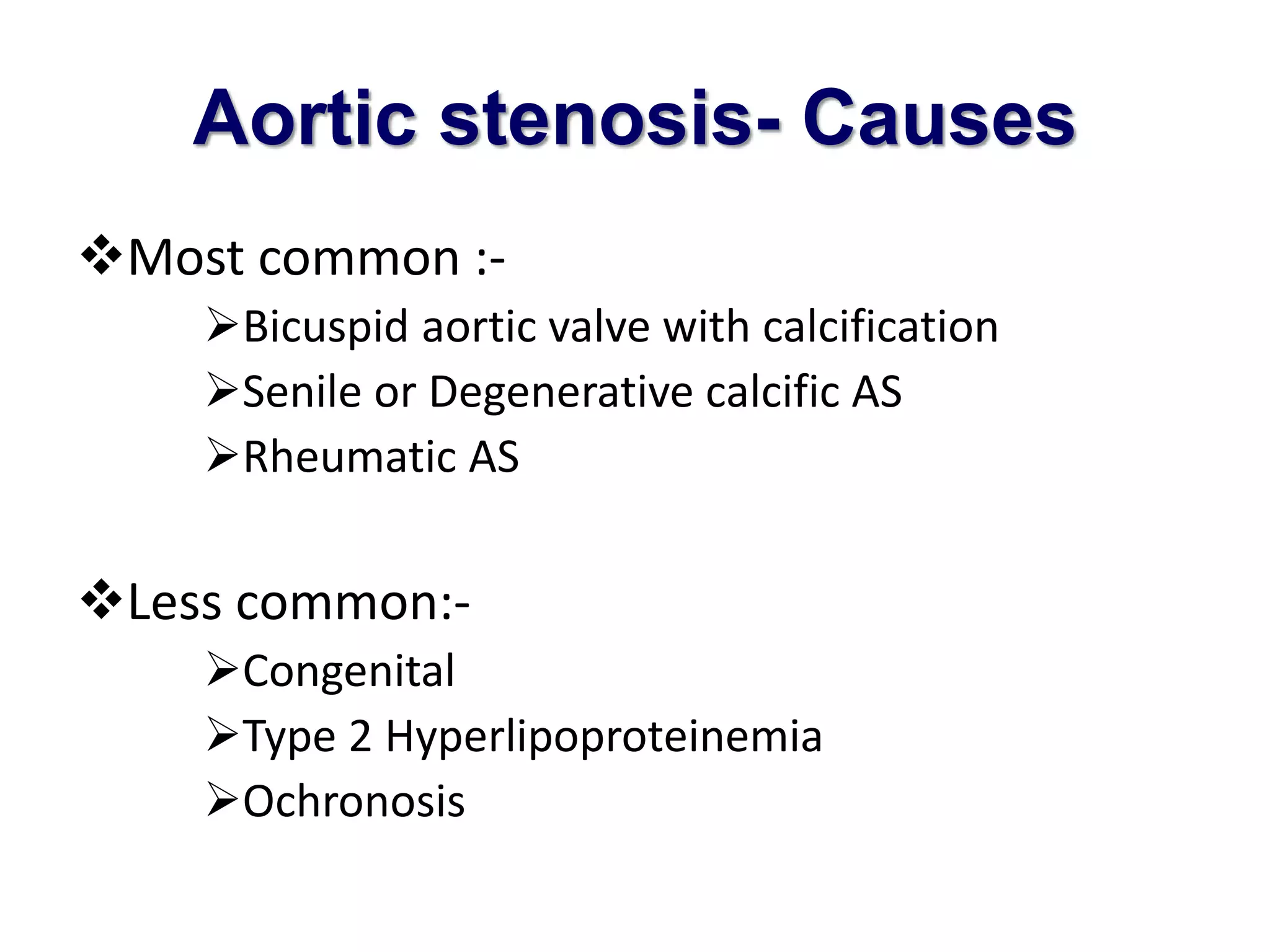

9. Aortic stenosis- Causes
Most common :-
Bicuspid aortic valve with calcification
Senile or Degenerative calcific AS
Rheumatic AS
Less common:-
Congenital
Type 2 Hyperlipoproteinemia
Ochronosis

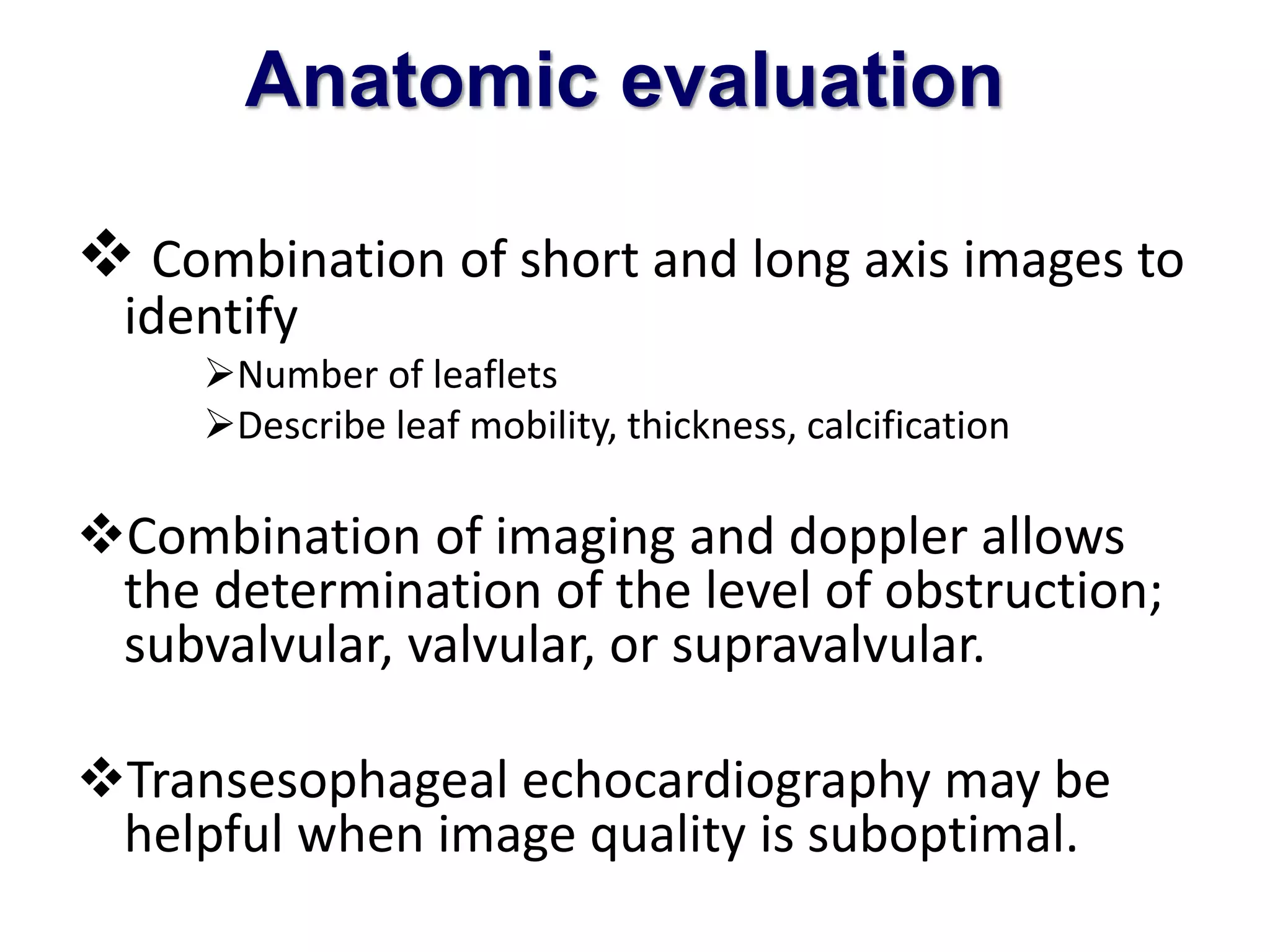

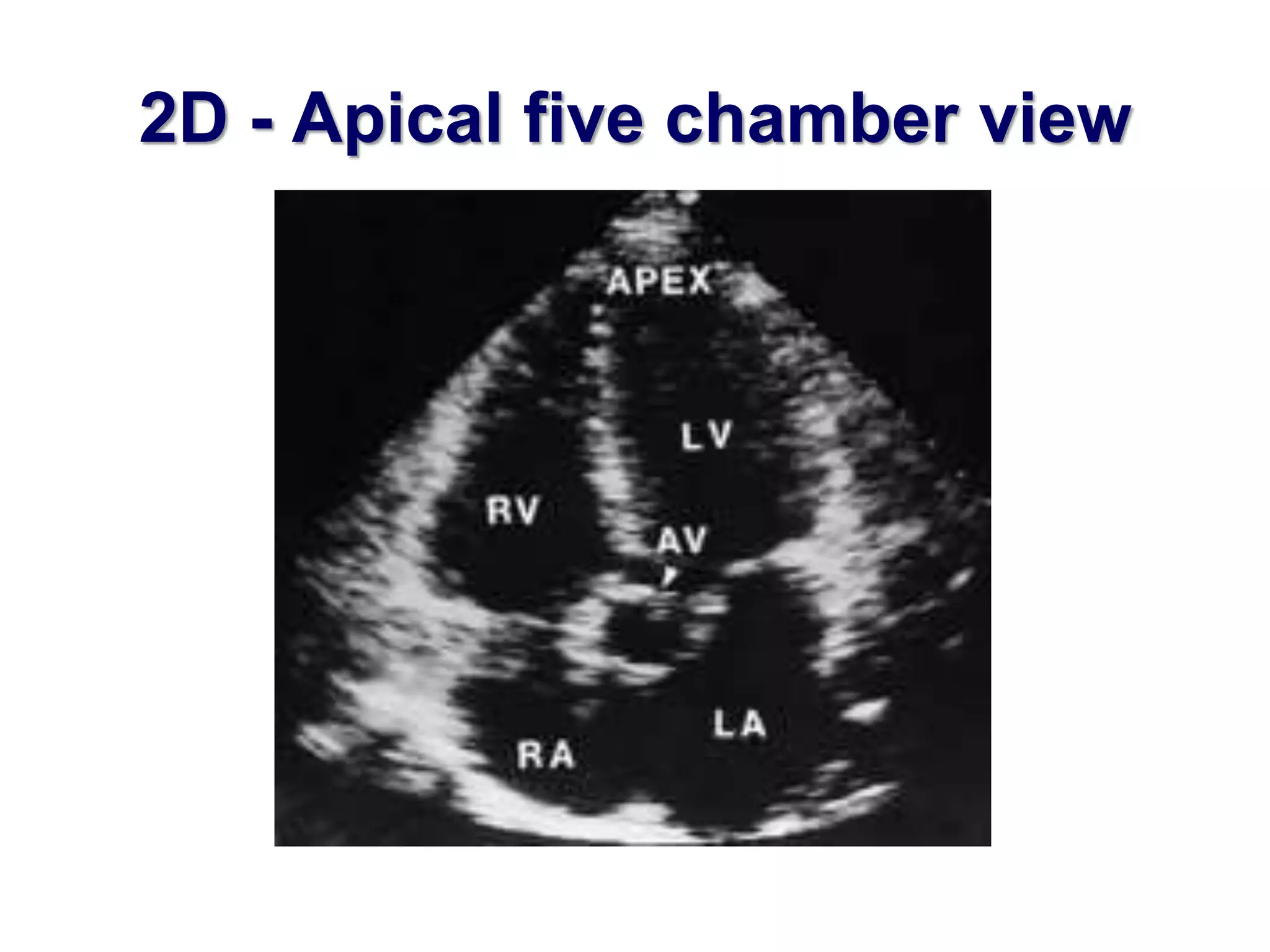

10. Anatomic evaluation

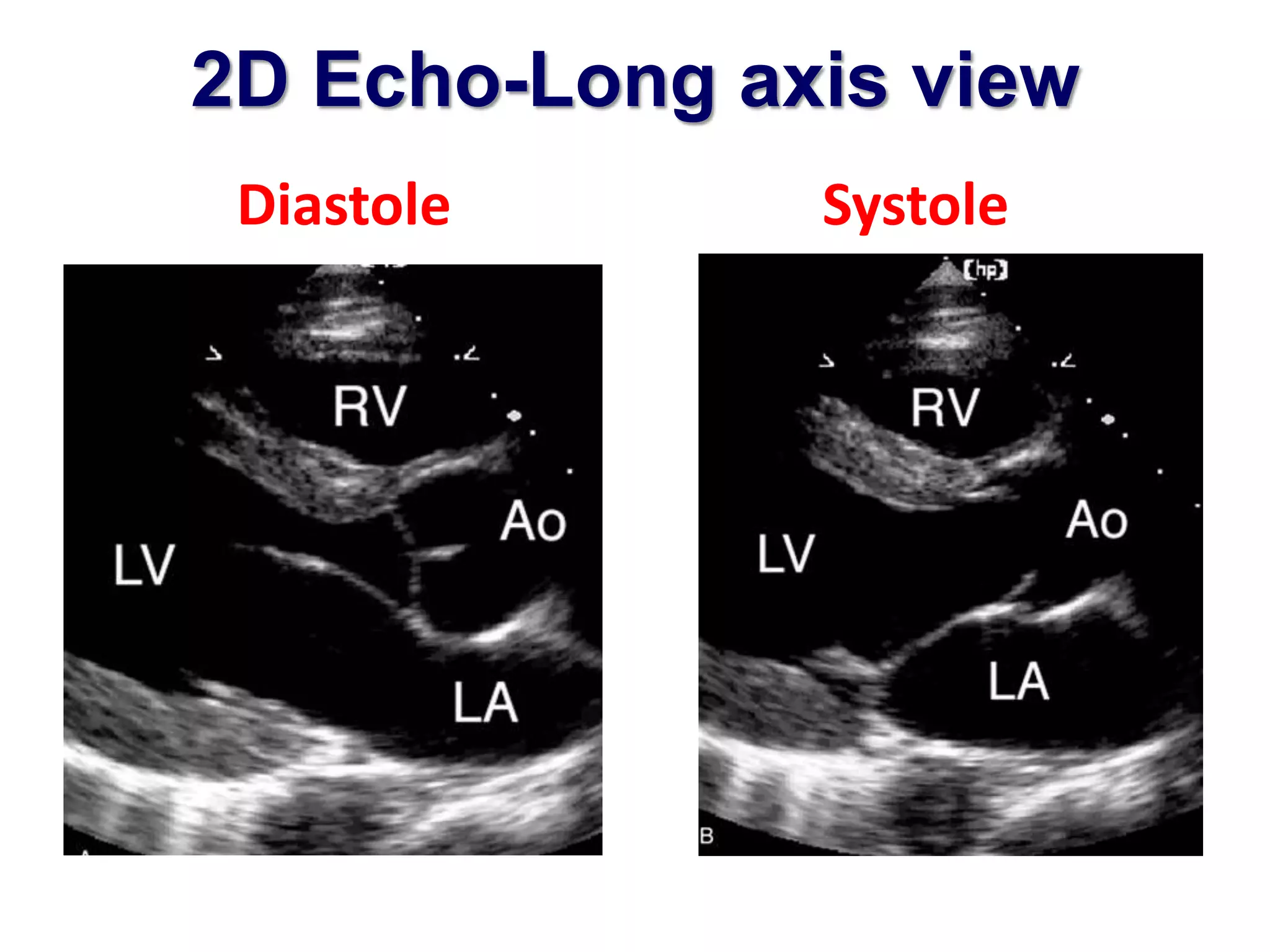

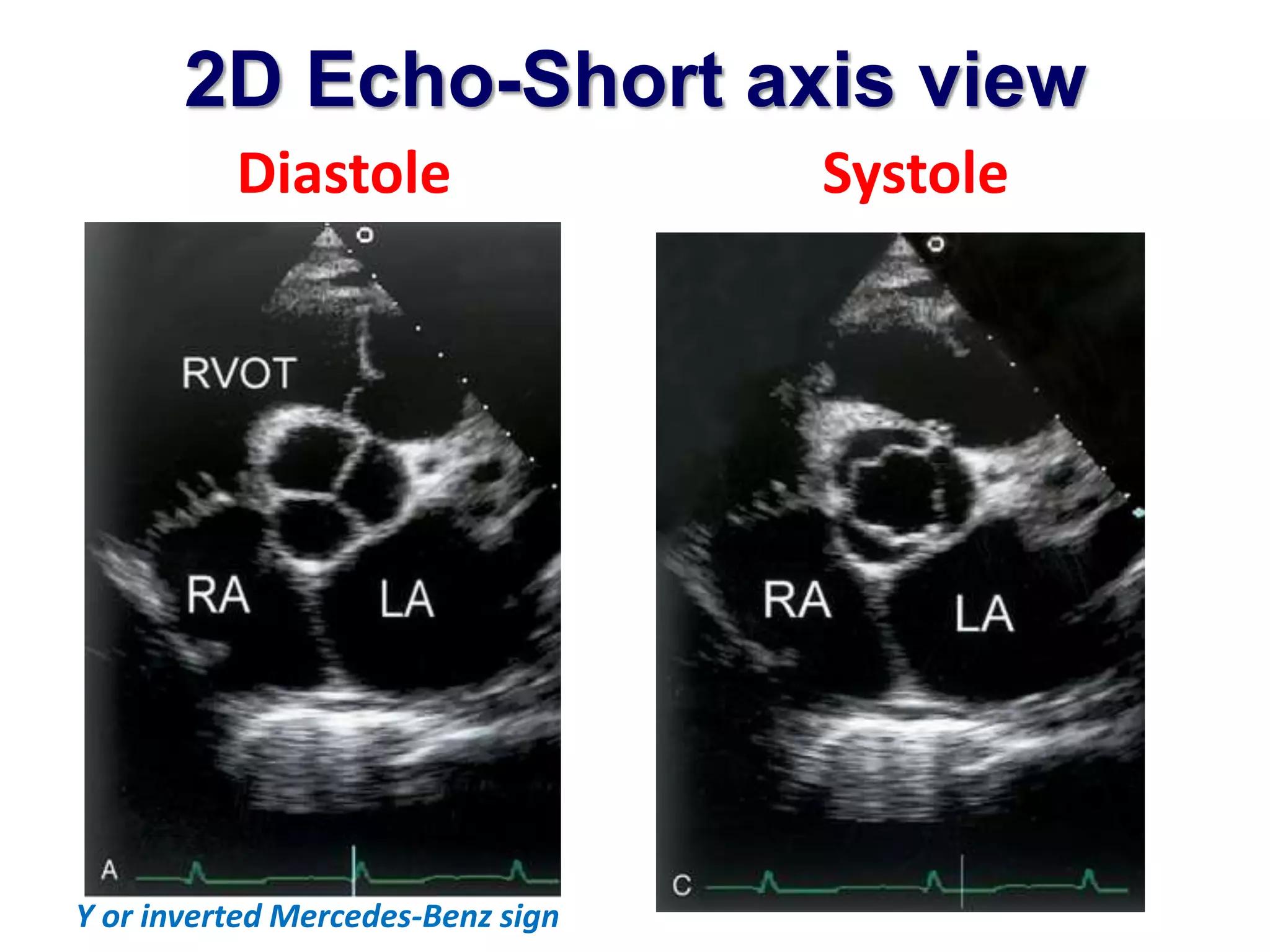

Combination of short and long axis images to
identify
Number of leaflets
Describe leaf mobility, thickness, calcification
Combination of imaging and doppler allows
the determination of the level of obstruction;
subvalvular, valvular, or supravalvular.
Transesophageal echocardiography may be
helpful when image quality is suboptimal.

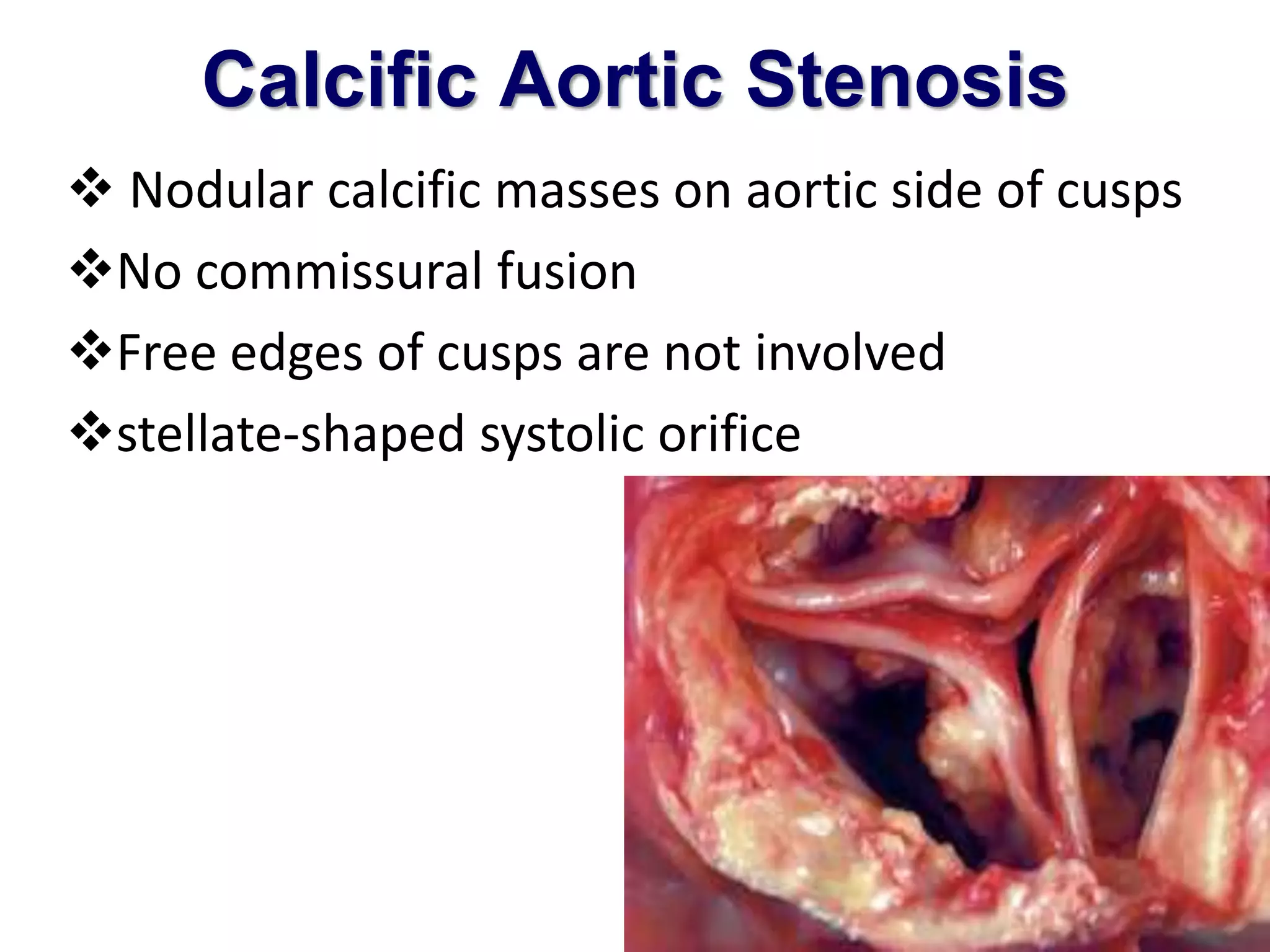

11. Calcific Aortic Stenosis
Nodular calcific masses on aortic side of cusps
No commissural fusion
Free edges of cusps are not involved
stellate-shaped systolic orifice

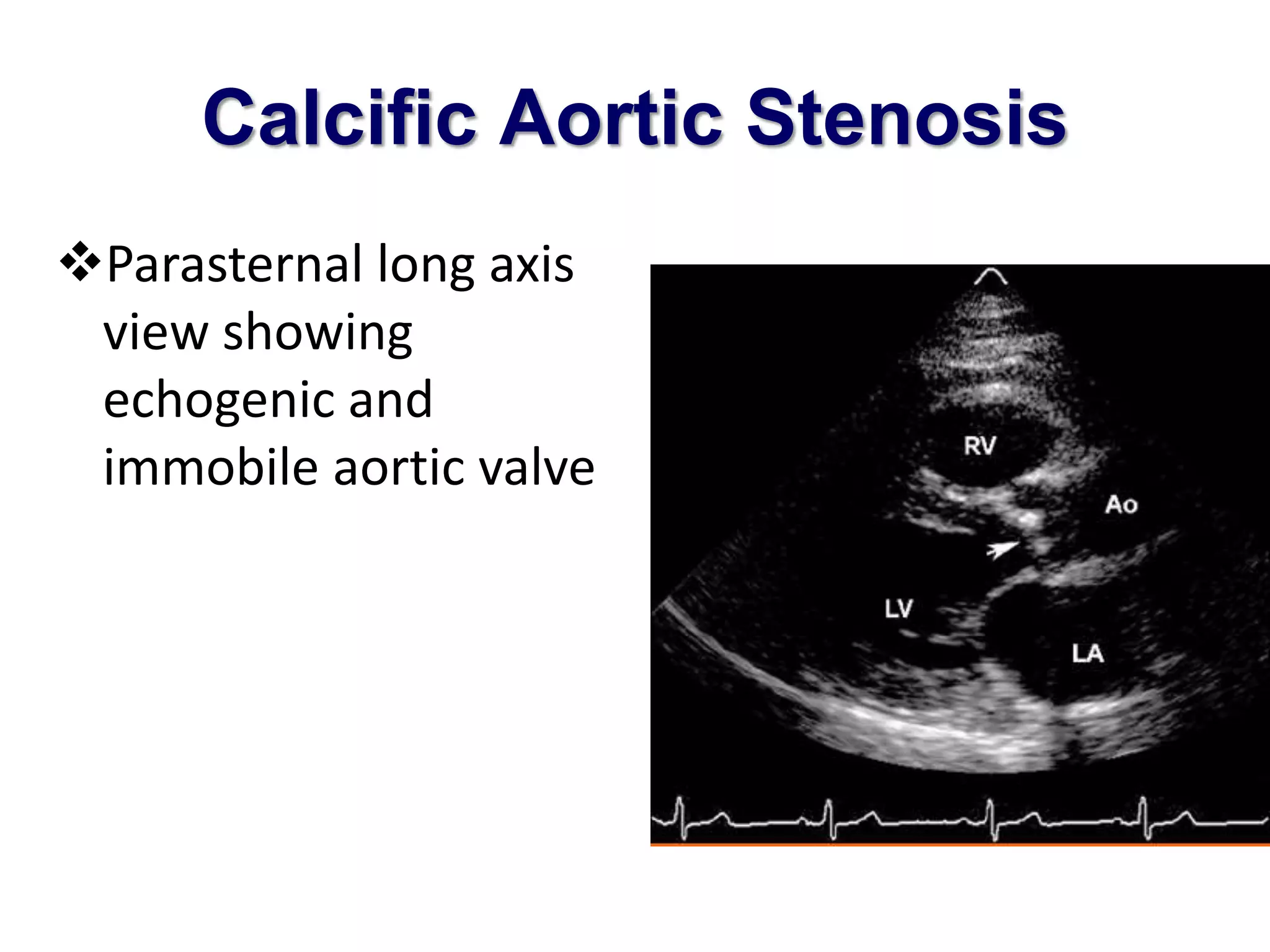

12. Calcific Aortic Stenosis
Parasternal long axis
view showing
echogenic and
immobile aortic valve
13. Calcific Aortic Stenosis

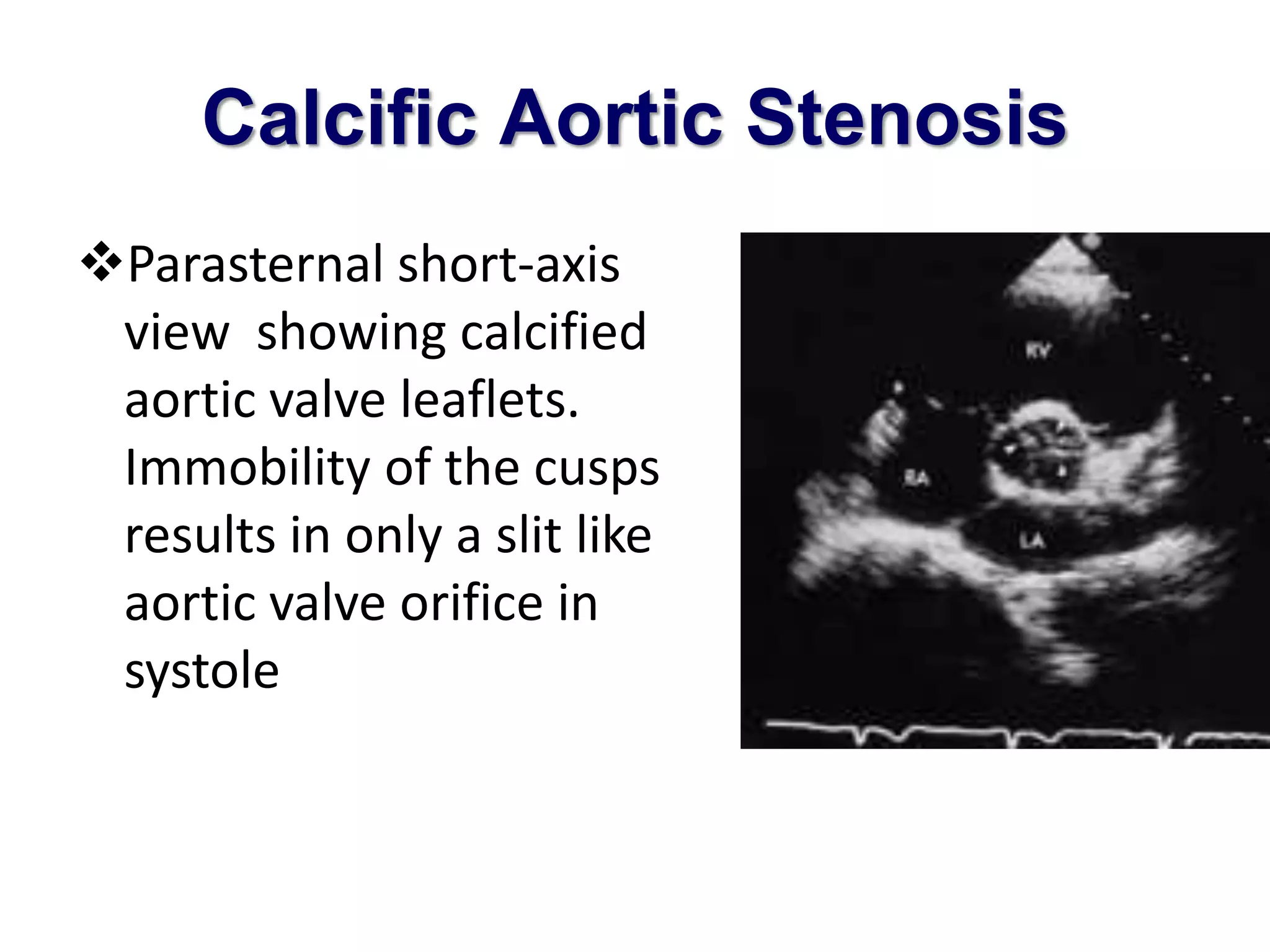

Parasternal short-axis
view showing calcified
aortic valve leaflets.
Immobility of the cusps
results in only a slit like
aortic valve orifice in
systole

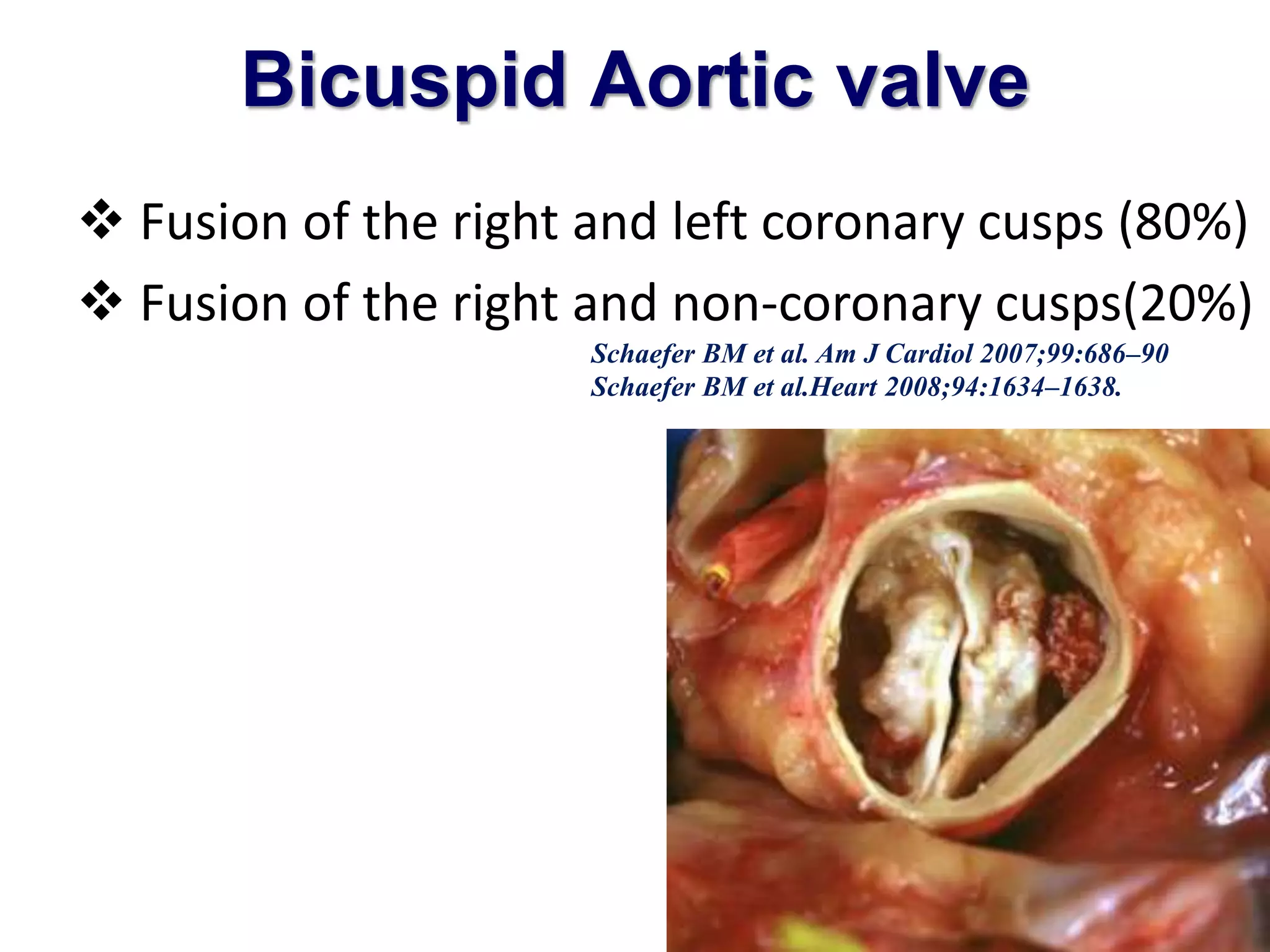

14. Bicuspid Aortic valve
Fusion of the right and left coronary cusps (80%)
Fusion of the right and non-coronary cusps(20%)
Schaefer BM et al. Am J Cardiol 2007;99:686–90
Schaefer BM et al.Heart 2008;94:1634–1638.

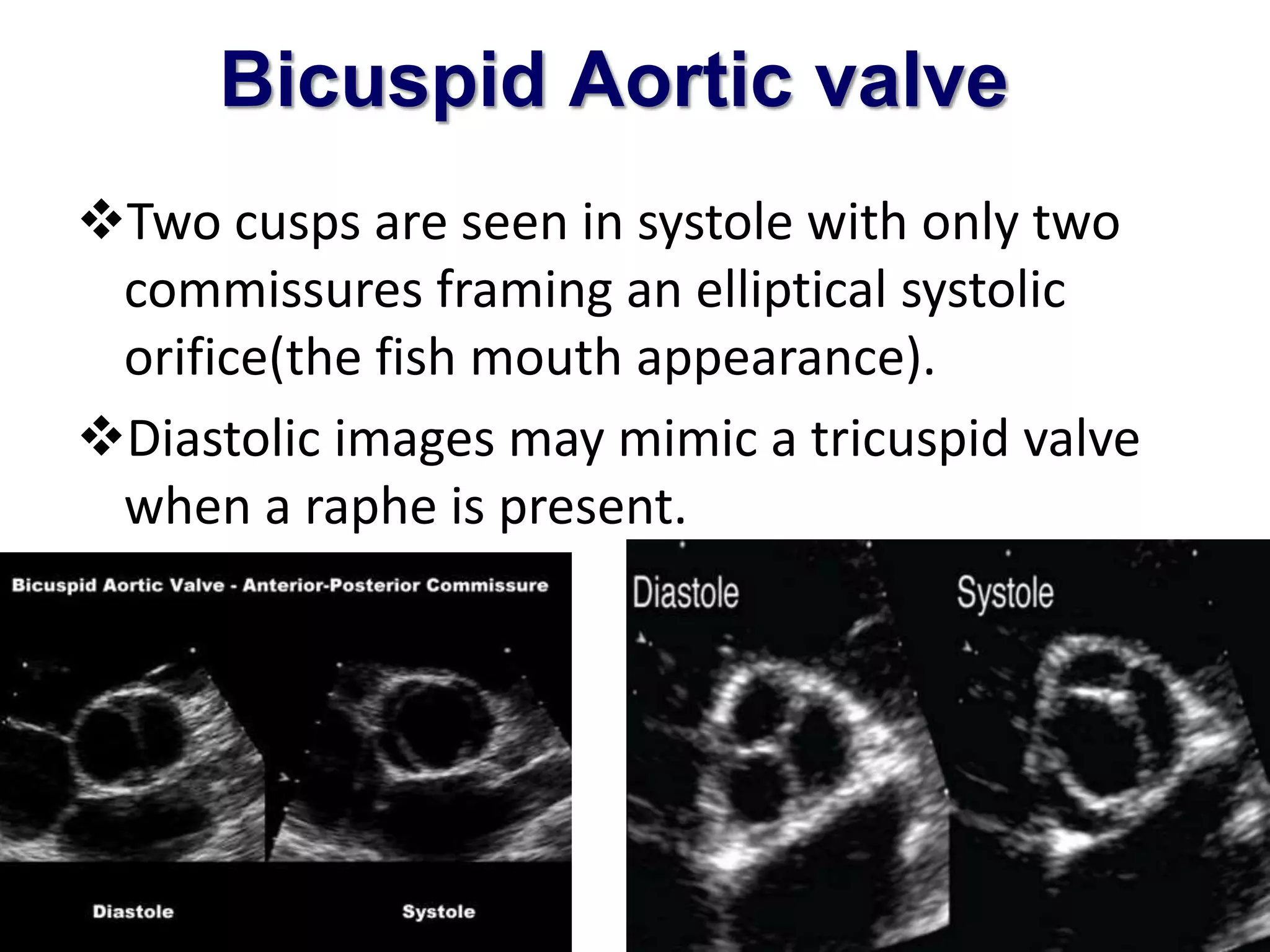

15. Bicuspid Aortic valve
Two cusps are seen in systole with only two
commissures framing an elliptical systolic
orifice(the fish mouth appearance).
Diastolic images may mimic a tricuspid valve
when a raphe is present.

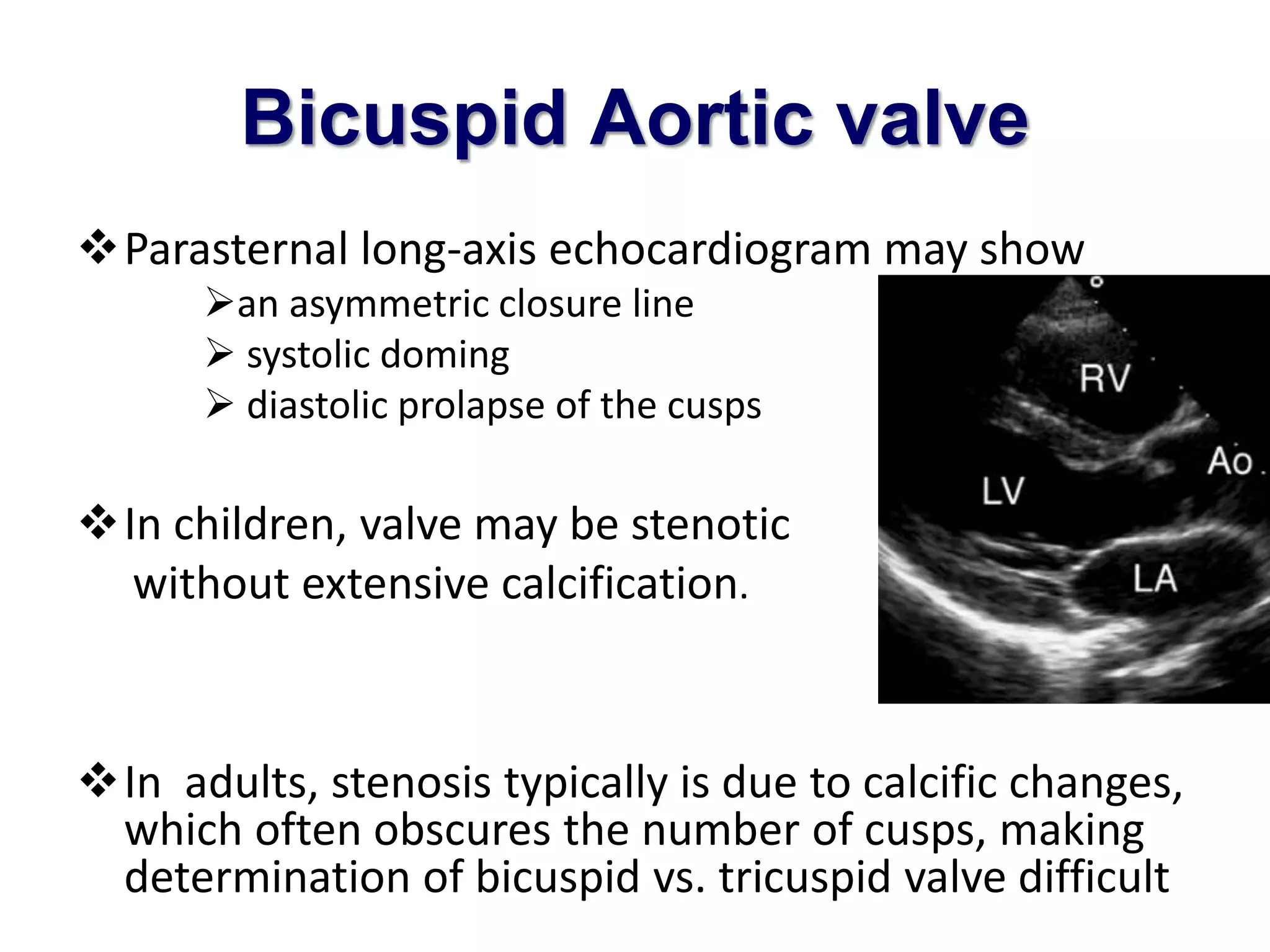

16. Bicuspid Aortic valve
Parasternal long-axis echocardiogram may show
an asymmetric closure line
systolic doming
diastolic prolapse of the cusps
In children, valve may be stenotic
without extensive calcification.
In adults, stenosis typically is due to calcific changes,
which often obscures the number of cusps, making
determination of bicuspid vs. tricuspid valve difficult

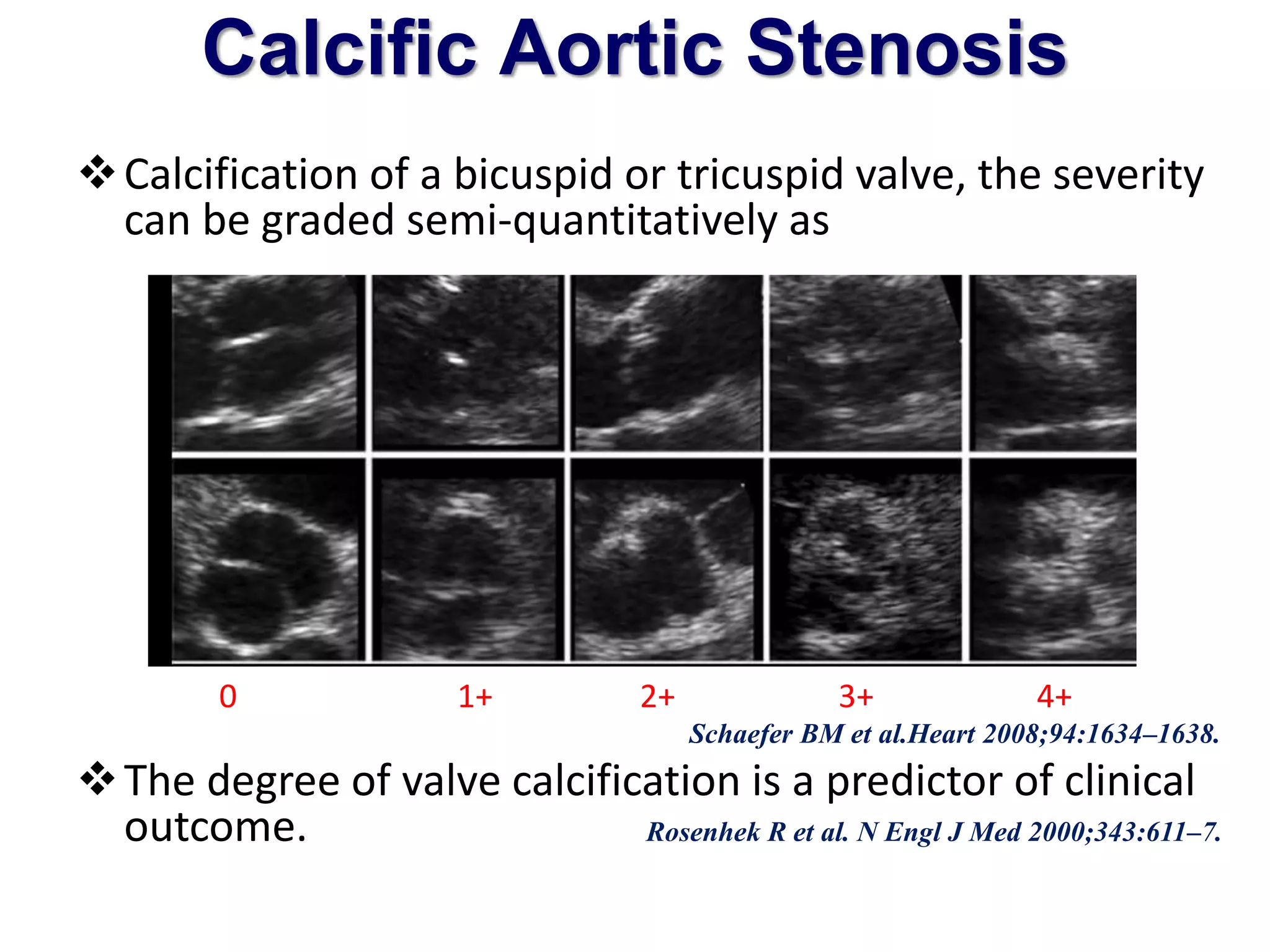

17. Calcific Aortic Stenosis
Calcification of a bicuspid or tricuspid valve, the severity
can be graded semi-quantitatively as
0 1+ 2+ 3+ 4+
Schaefer BM et al.Heart 2008;94:1634–1638.
The degree of valve calcification is a predictor of clinical
outcome. Rosenhek R et al. N Engl J Med 2000;343:611–7.

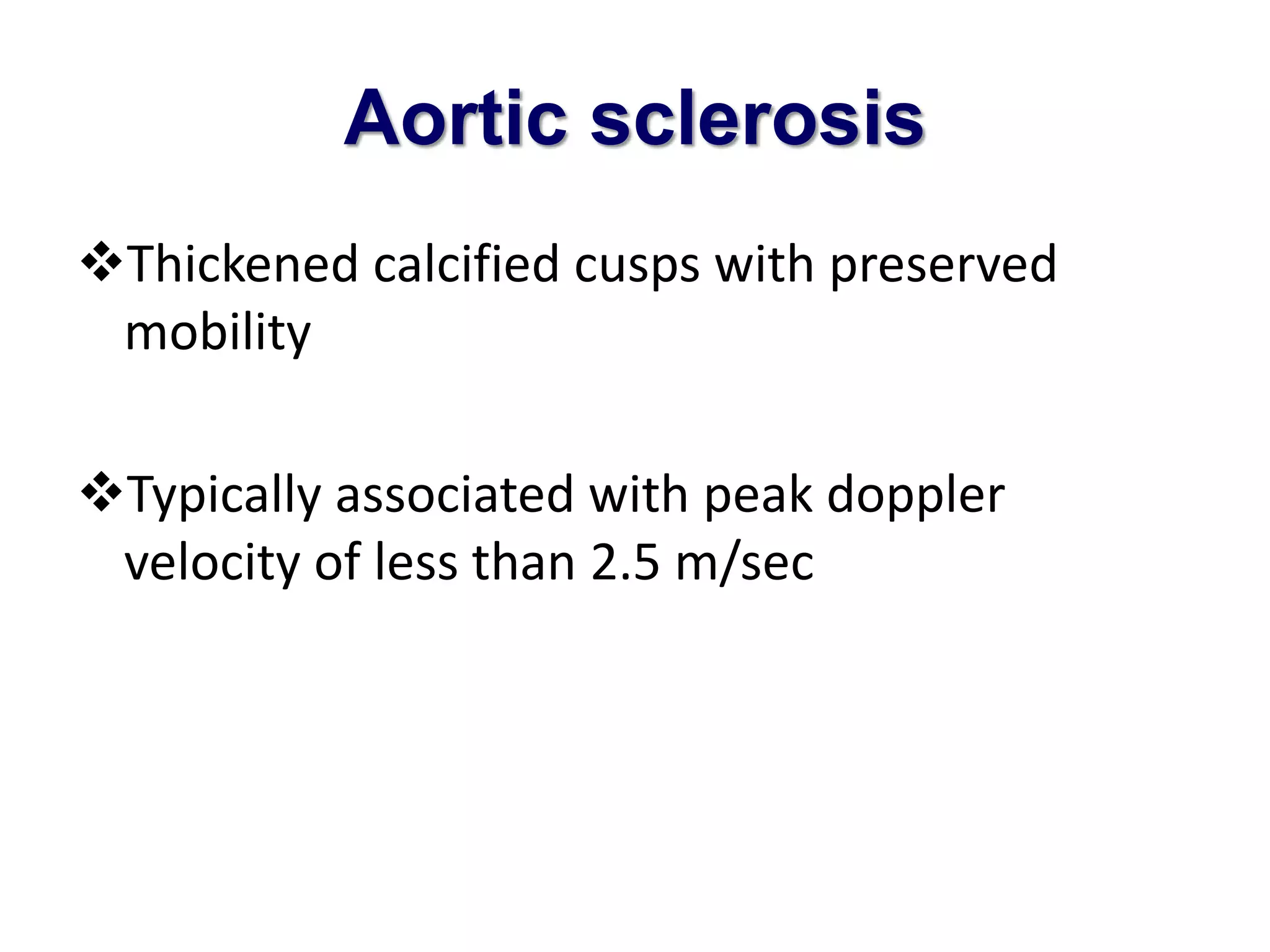

18. Aortic sclerosis
Thickened calcified cusps with preserved
mobility
Typically associated with peak doppler
velocity of less than 2.5 m/sec

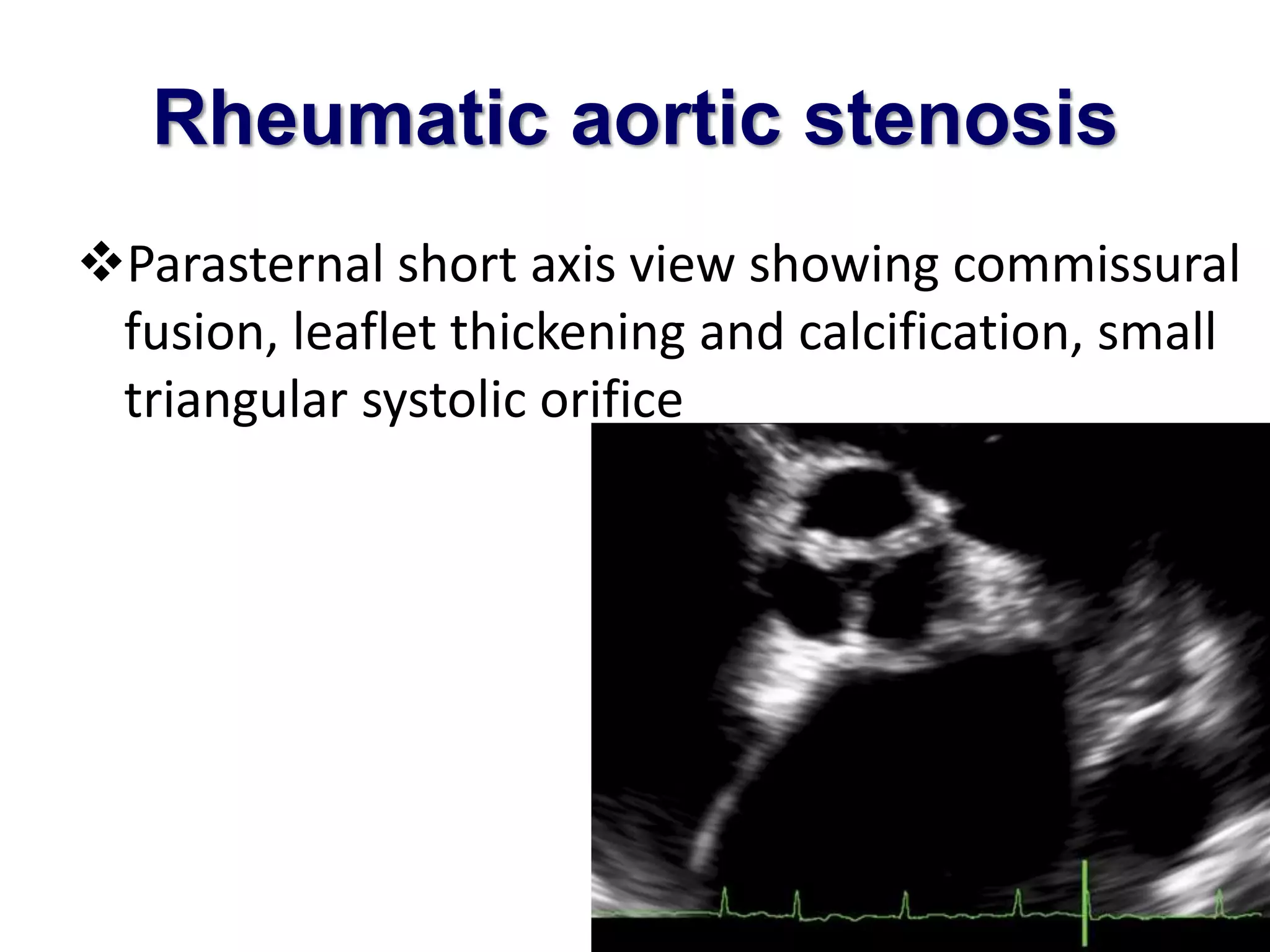

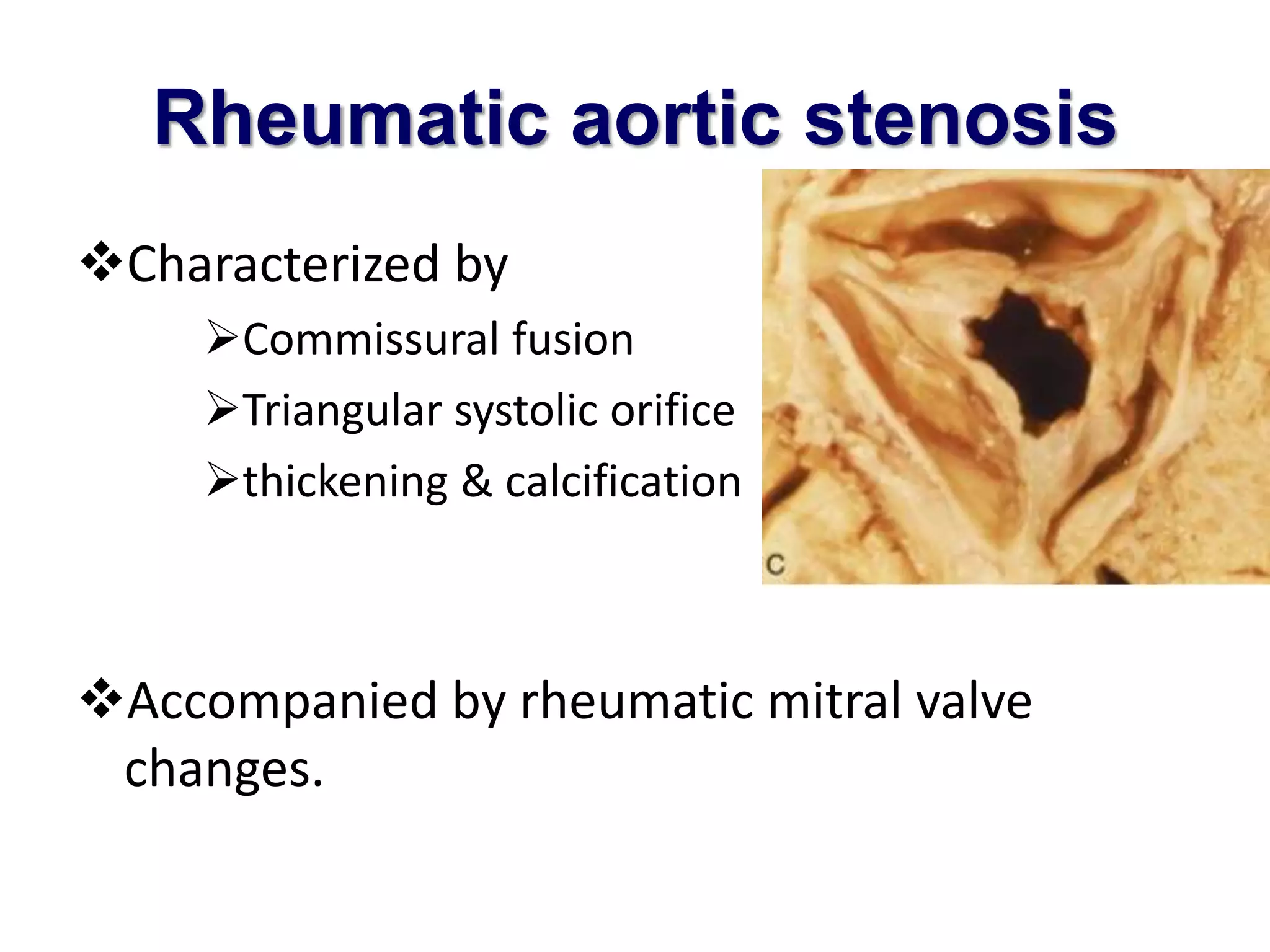

19. Rheumatic aortic stenosis
Characterized by
Commissural fusion
Triangular systolic orifice
thickening & calcification
Accompanied by rheumatic mitral valve
changes.
20. Rheumatic aortic stenosis
Parasternal short axis view showing commissural
fusion, leaflet thickening and calcification, small
triangular systolic orifice

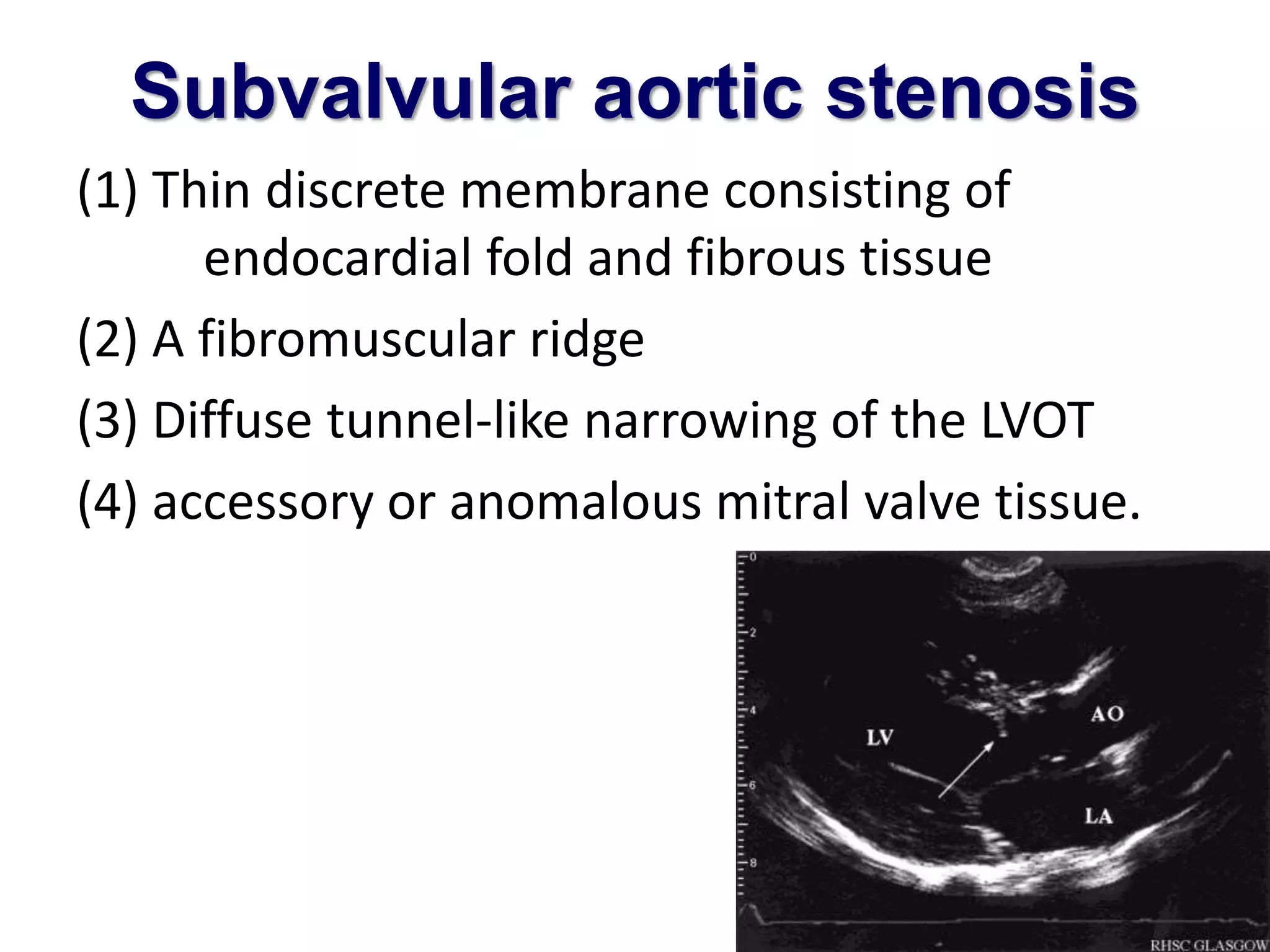

21. Subvalvular aortic stenosis
(1) Thin discrete membrane consisting of
endocardial fold and fibrous tissue
(2) A fibromuscular ridge
(3) Diffuse tunnel-like narrowing of the LVOT
(4) accessory or anomalous mitral valve tissue.

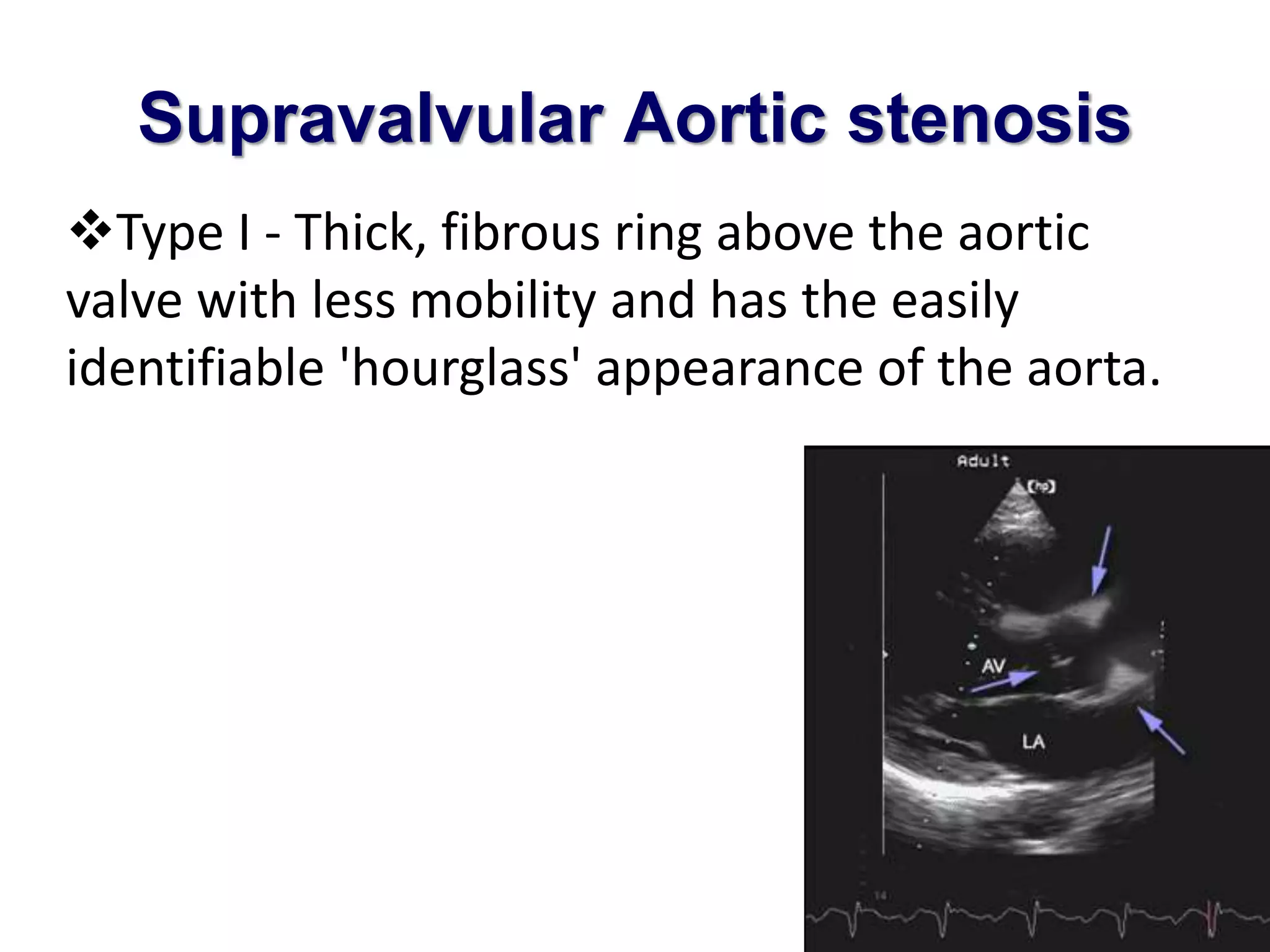

22. Supravalvular Aortic stenosis
Type I - Thick, fibrous ring above the aortic
valve with less mobility and has the easily
identifiable 'hourglass' appearance of the aorta.

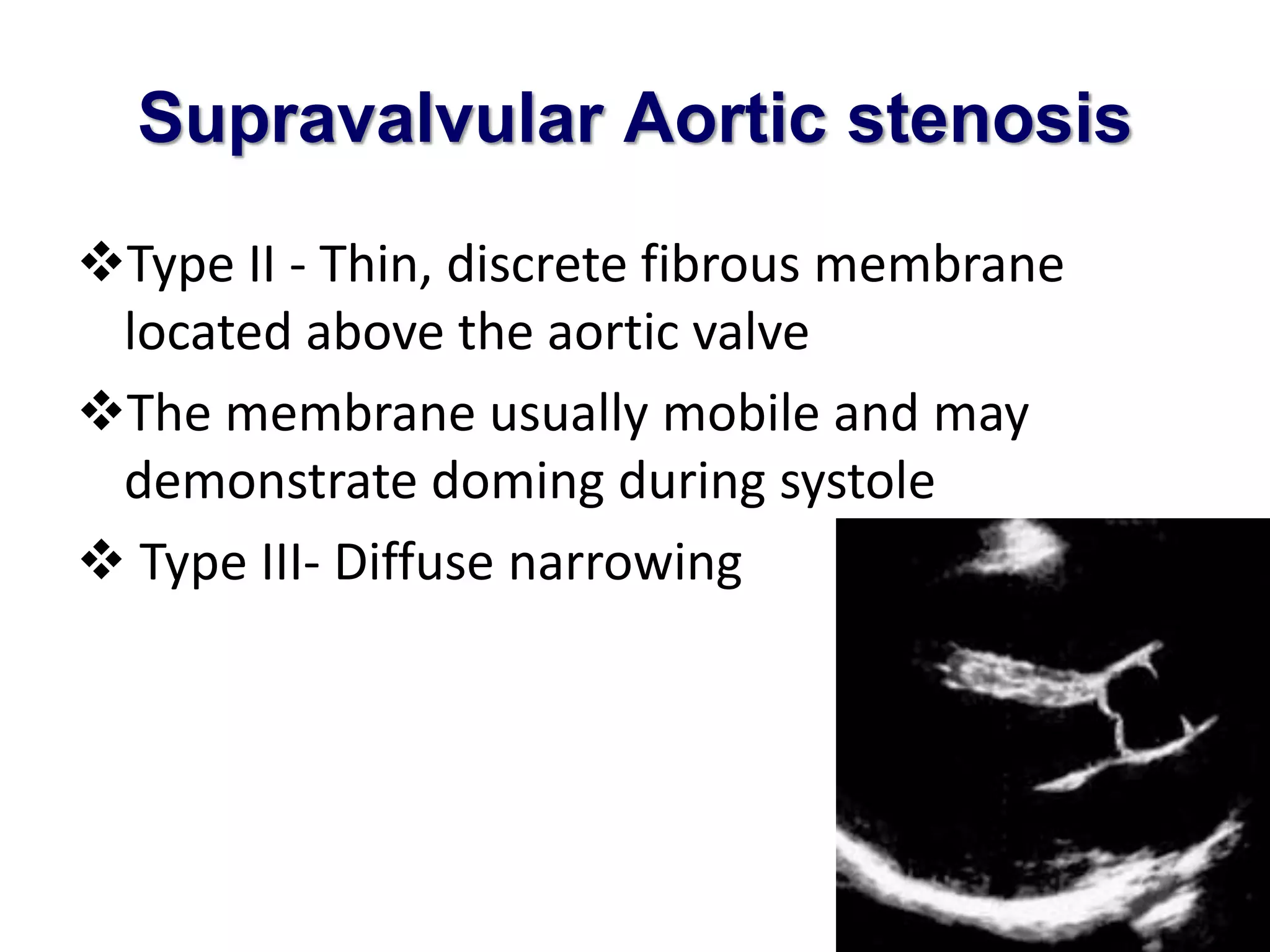

23. Supravalvular Aortic stenosis
Type II - Thin, discrete fibrous membrane
located above the aortic valve
The membrane usually mobile and may
demonstrate doming during systole
Type III- Diffuse narrowing

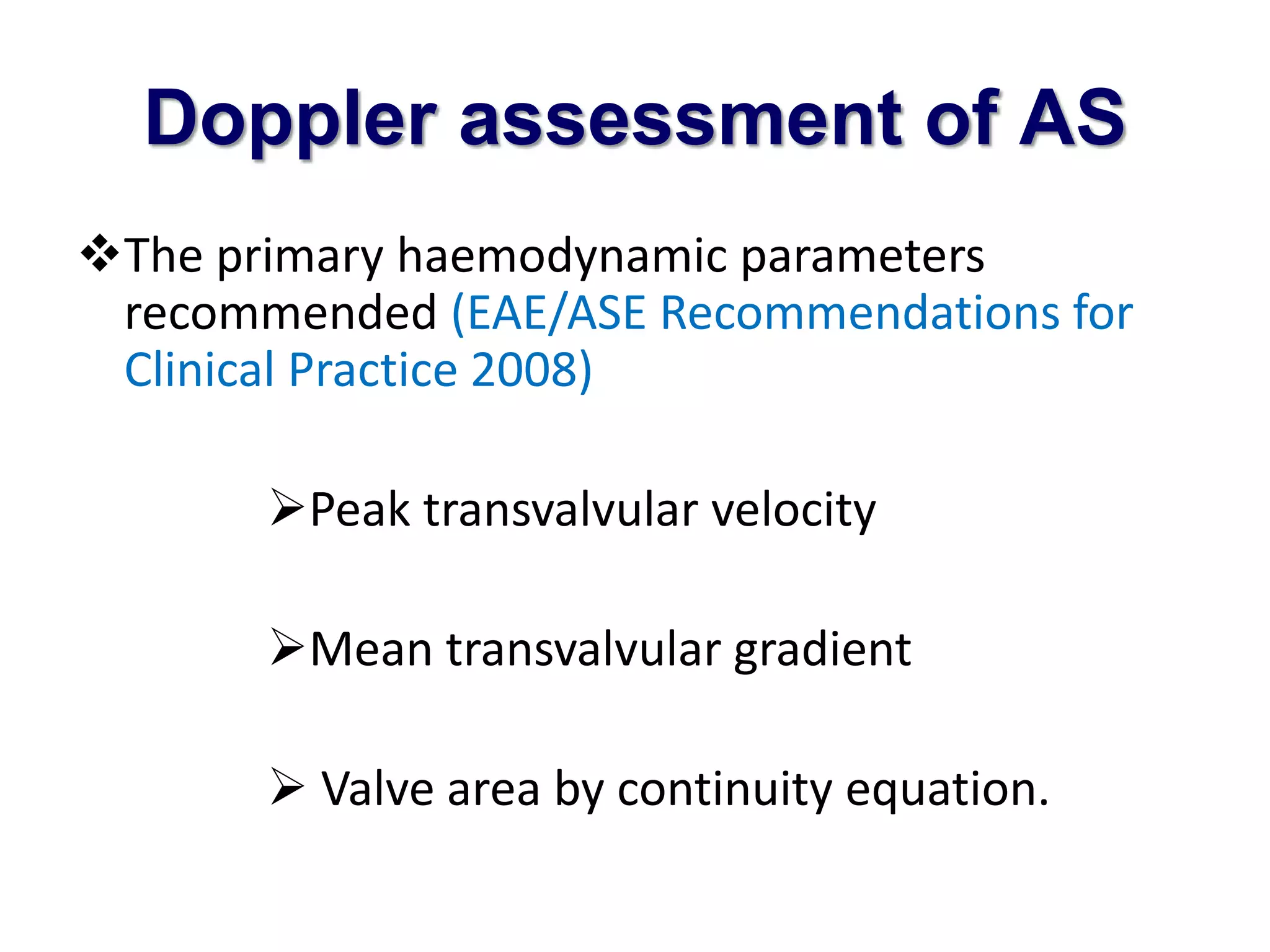

25. Doppler assessment of AS
The primary haemodynamic parameters
recommended (EAE/ASE Recommendations for
Clinical Practice 2008)
Peak transvalvular velocity
Mean transvalvular gradient
Valve area by continuity equation.

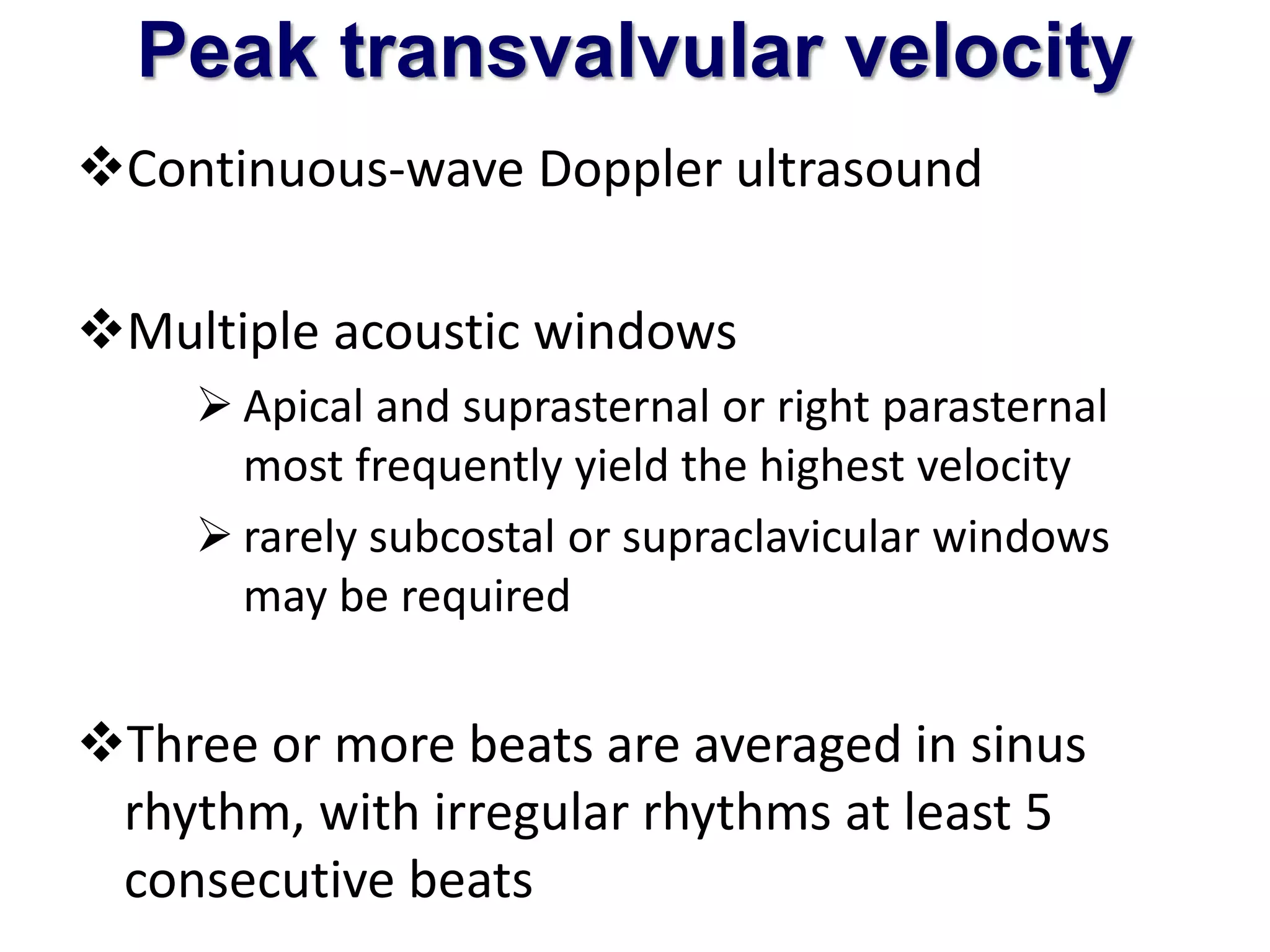

26. Peak transvalvular velocity
Continuous-wave Doppler ultrasound
Multiple acoustic windows
Apical and suprasternal or right parasternal
most frequently yield the highest velocity
rarely subcostal or supraclavicular windows
may be required
Three or more beats are averaged in sinus
rhythm, with irregular rhythms at least 5
consecutive beats

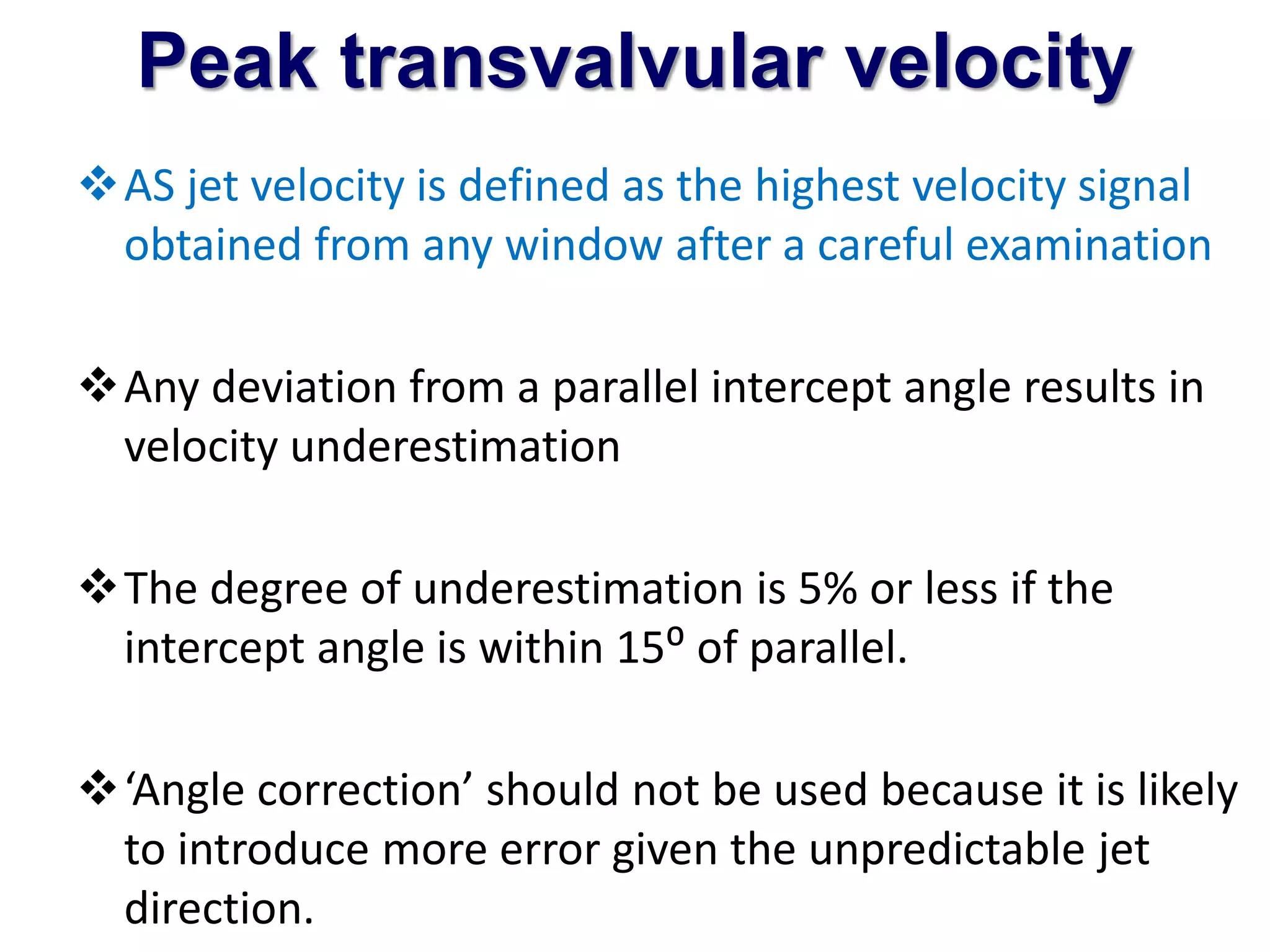

27. Peak transvalvular velocity
AS jet velocity is defined as the highest velocity signal
obtained from any window after a careful examination
Any deviation from a parallel intercept angle results in
velocity underestimation
The degree of underestimation is 5% or less if the
intercept angle is within 15⁰ of parallel.
‘Angle correction’ should not be used because it is likely
to introduce more error given the unpredictable jet
direction.

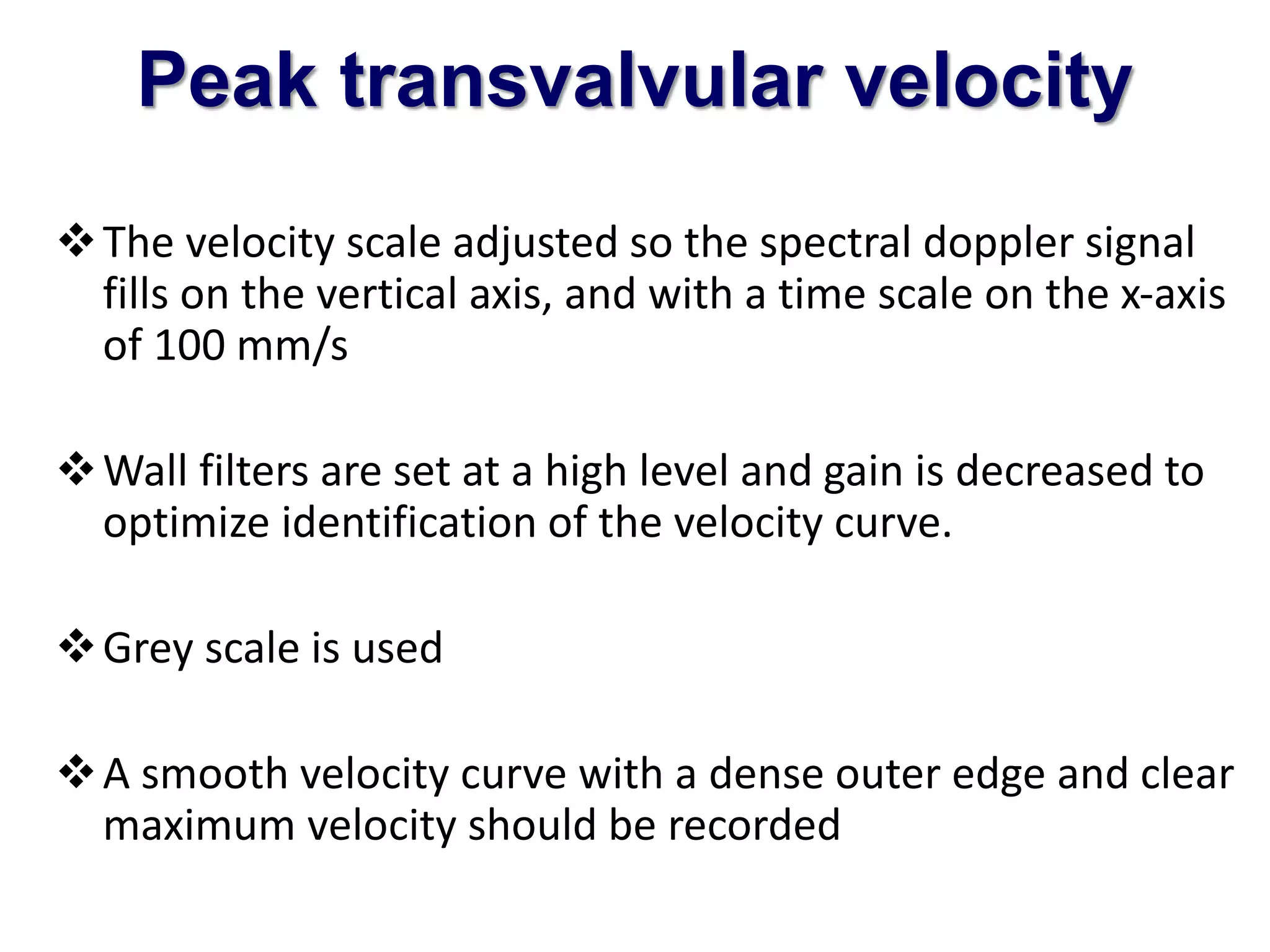

28. Peak transvalvular velocity
The velocity scale adjusted so the spectral doppler signal
fills on the vertical axis, and with a time scale on the x-axis
of 100 mm/s
Wall filters are set at a high level and gain is decreased to
optimize identification of the velocity curve.
Grey scale is used
A smooth velocity curve with a dense outer edge and clear
maximum velocity should be recorded

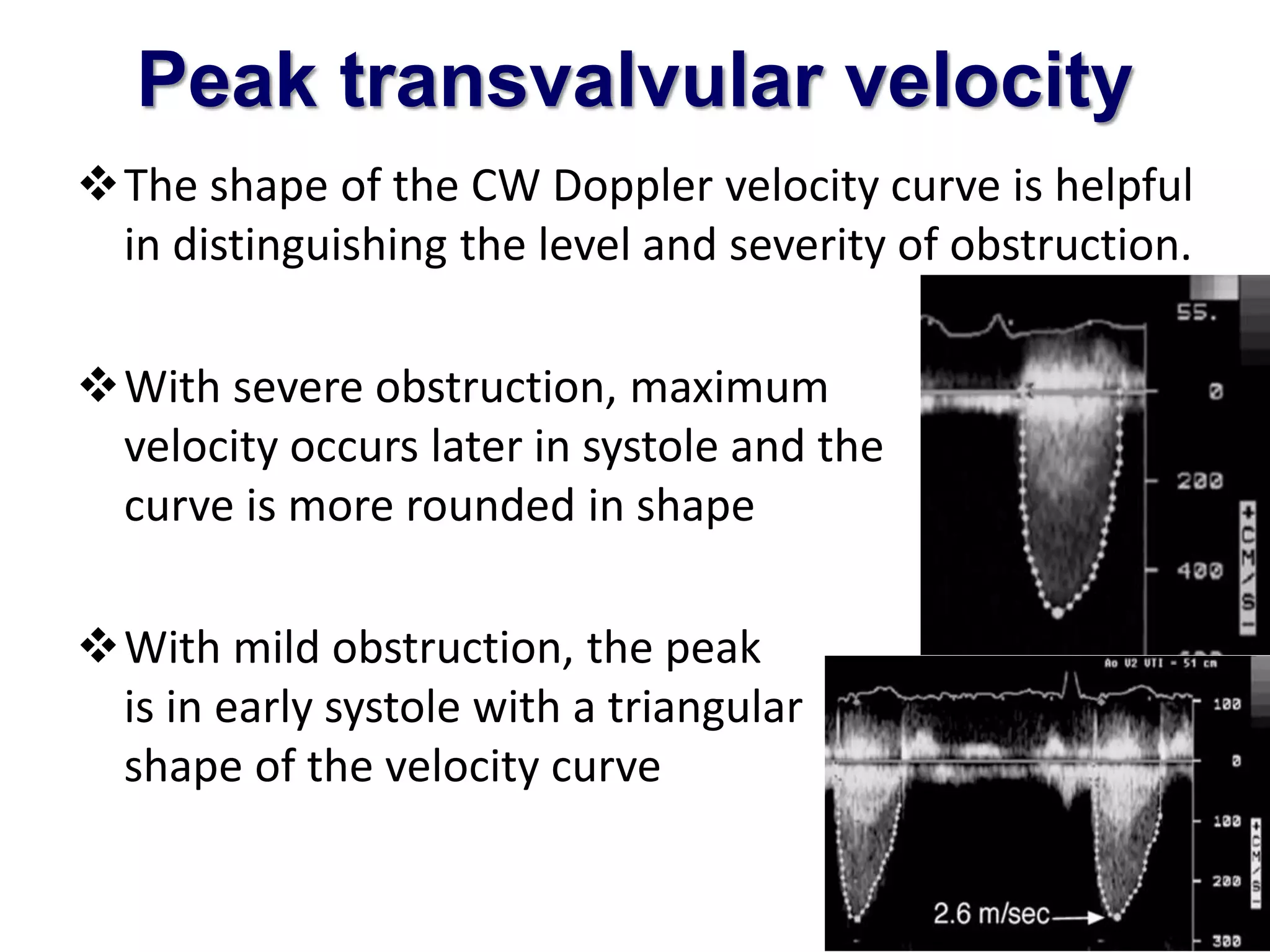

29. Peak transvalvular velocity
The shape of the CW Doppler velocity curve is helpful
in distinguishing the level and severity of obstruction.
With severe obstruction, maximum
velocity occurs later in systole and the
curve is more rounded in shape
With mild obstruction, the peak
is in early systole with a triangular
shape of the velocity curve

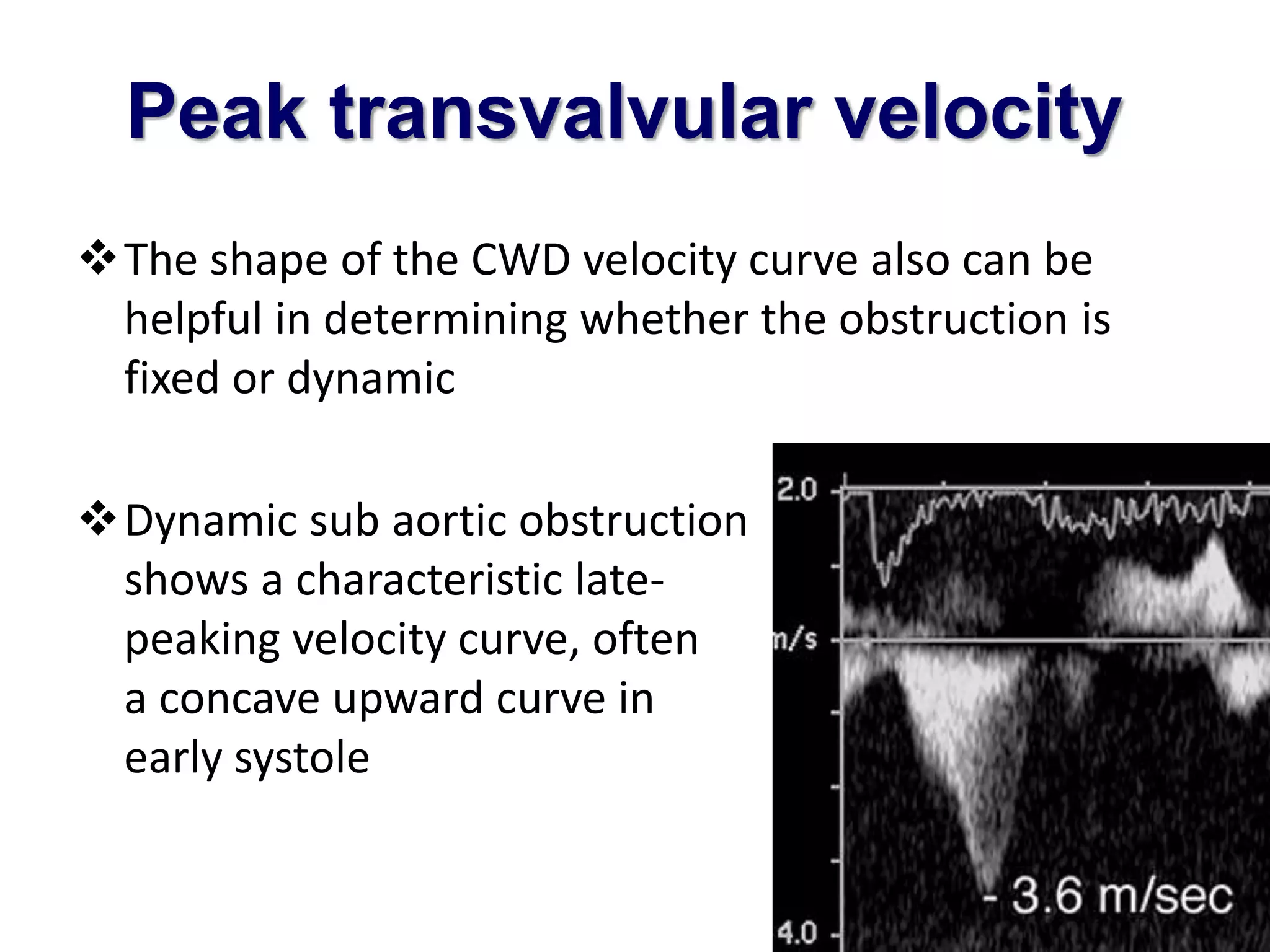

30. Peak transvalvular velocity
The shape of the CWD velocity curve also can be
helpful in determining whether the obstruction is
fixed or dynamic
Dynamic sub aortic obstruction
shows a characteristic late-peaking
velocity curve, often with
a concave upward curve in
early systole

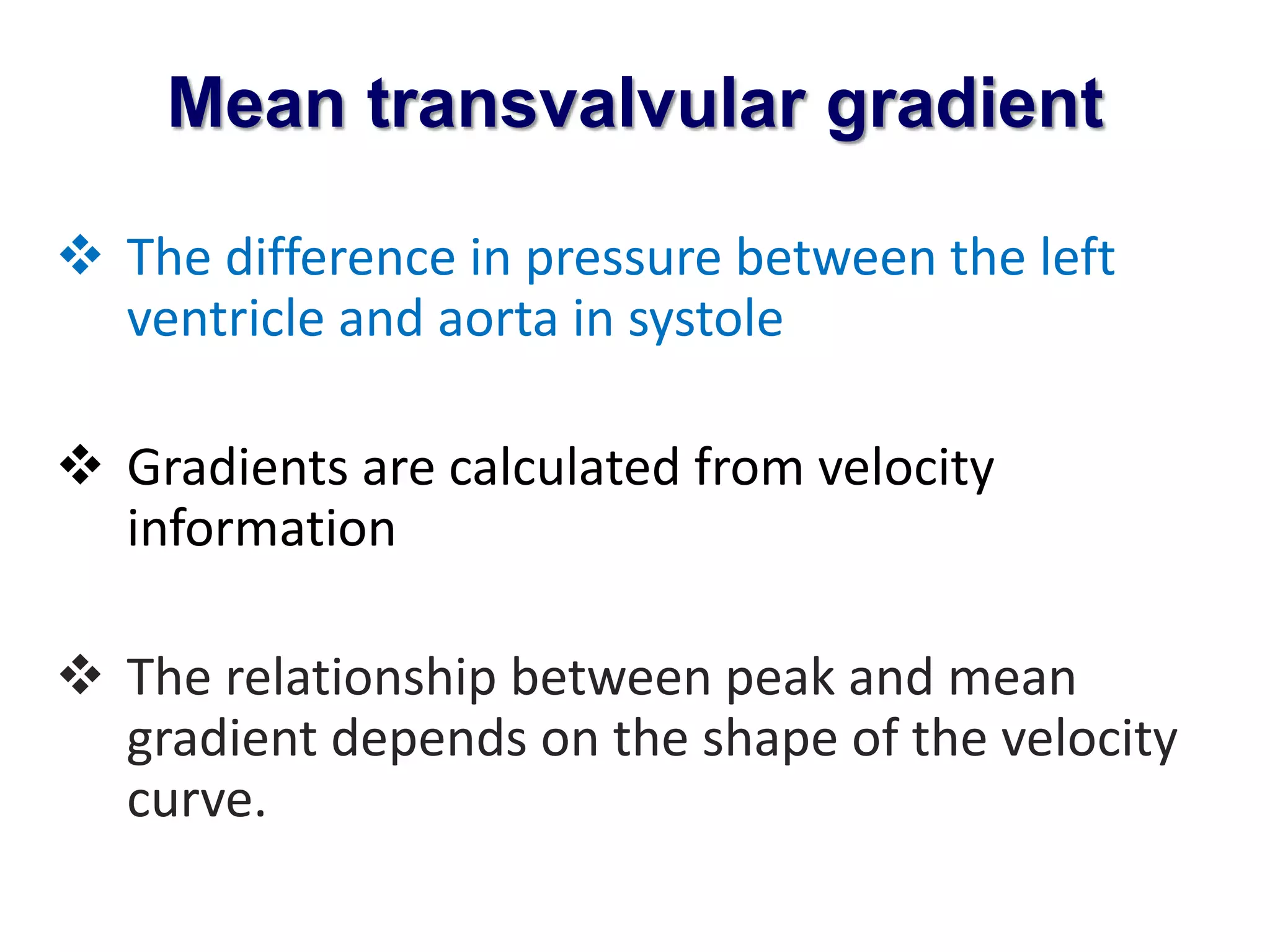

31. Mean transvalvular gradient
The difference in pressure between the left
ventricle and aorta in systole
Gradients are calculated from velocity
information
The relationship between peak and mean
gradient depends on the shape of the velocity
curve.
32. Mean transvalvular gradient
Bernoulli equations
ΔP =4v²
The maximum gradient is calculated from
maximum velocity
ΔP max =4v² max
The mean gradient is calculated by averaging
the instantaneous gradients over the ejection
period

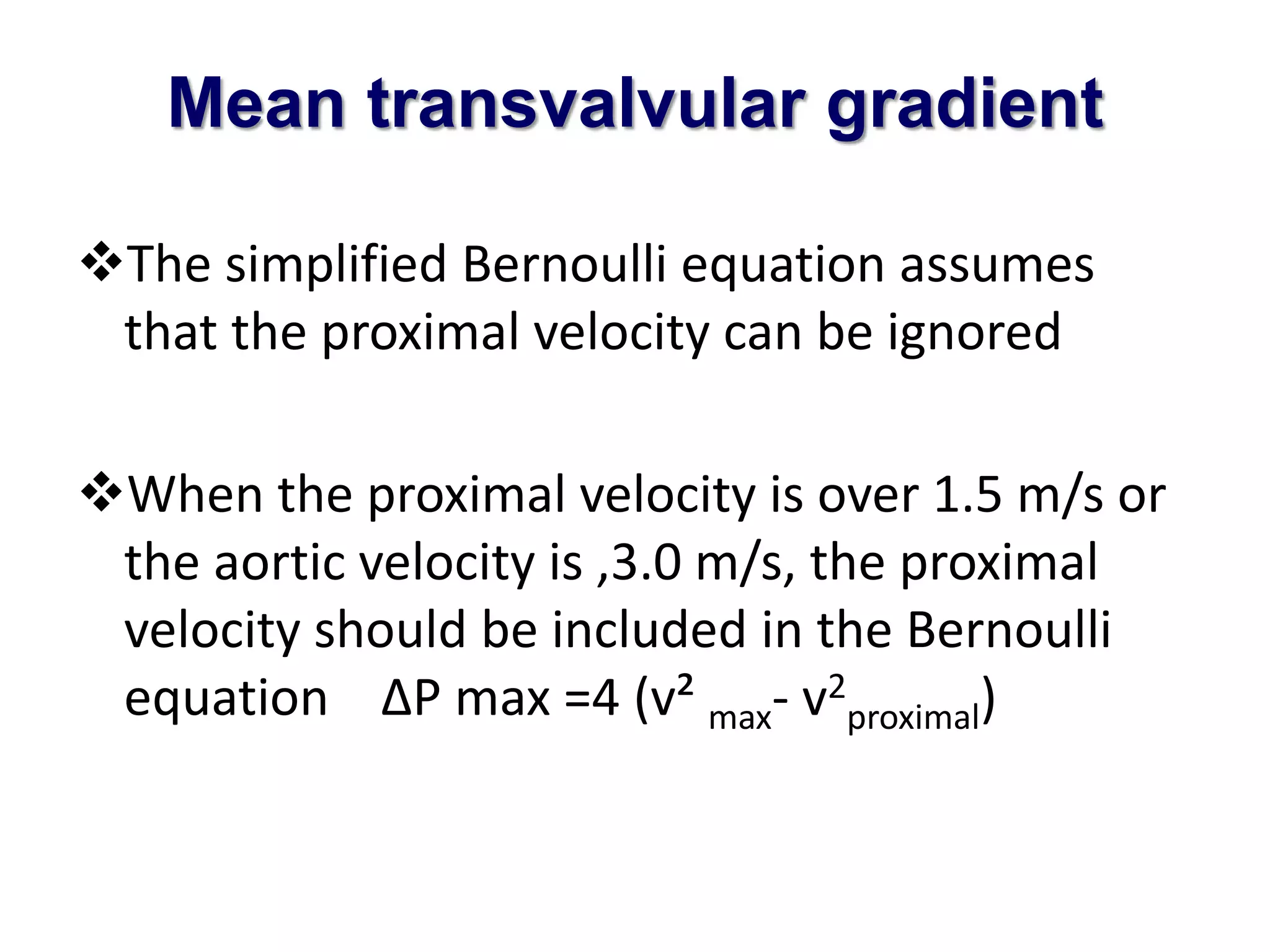

33. Mean transvalvular gradient
The simplified Bernoulli equation assumes
that the proximal velocity can be ignored
When the proximal velocity is over 1.5 m/s or
the aortic velocity is ,3.0 m/s, the proximal
velocity should be included in the Bernoulli
equation ΔP max =4 (v² max- v2
proximal)

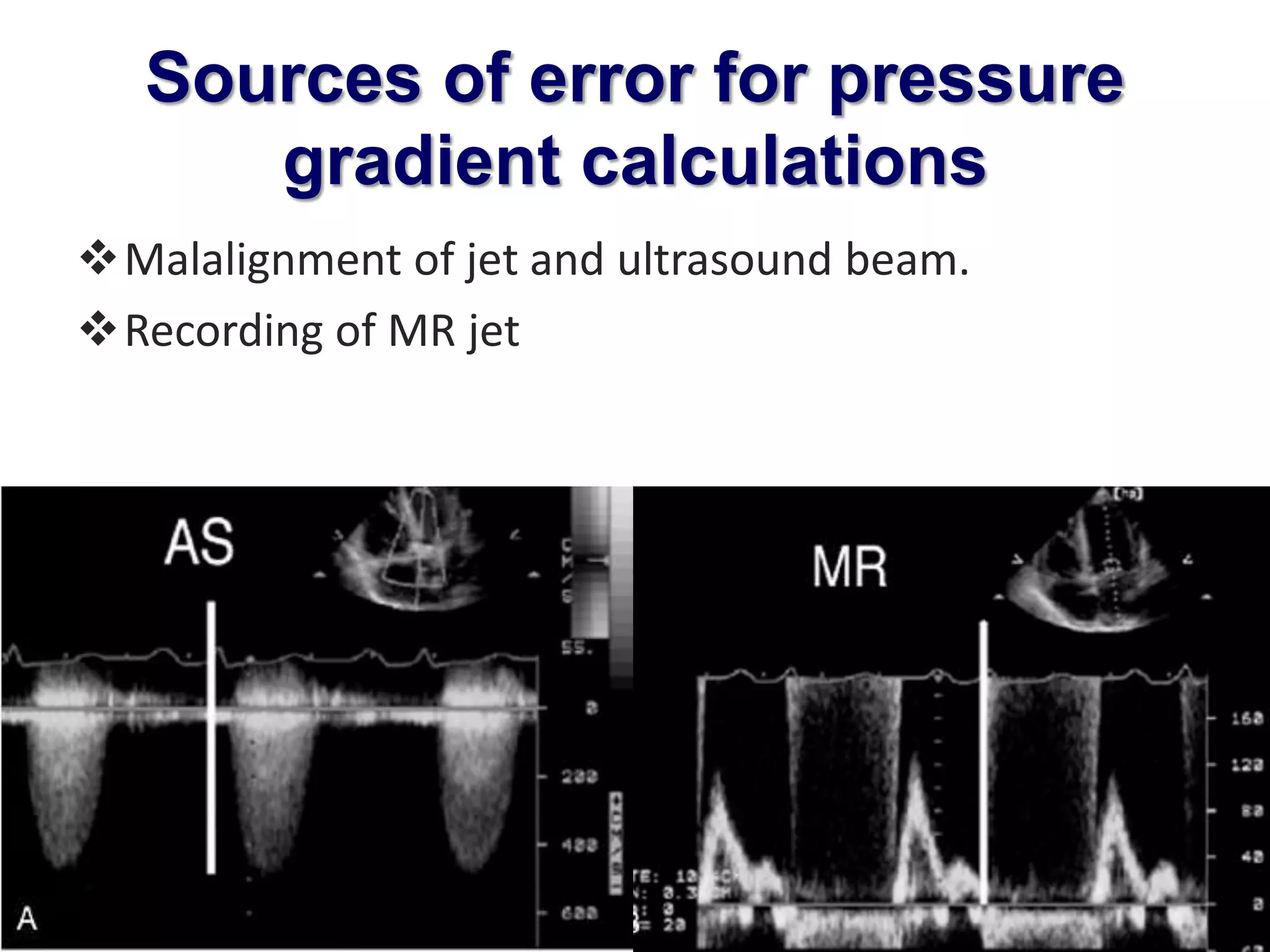

34. Sources of error for pressure
gradient calculations
Malalignment of jet and ultrasound beam.
Recording of MR jet

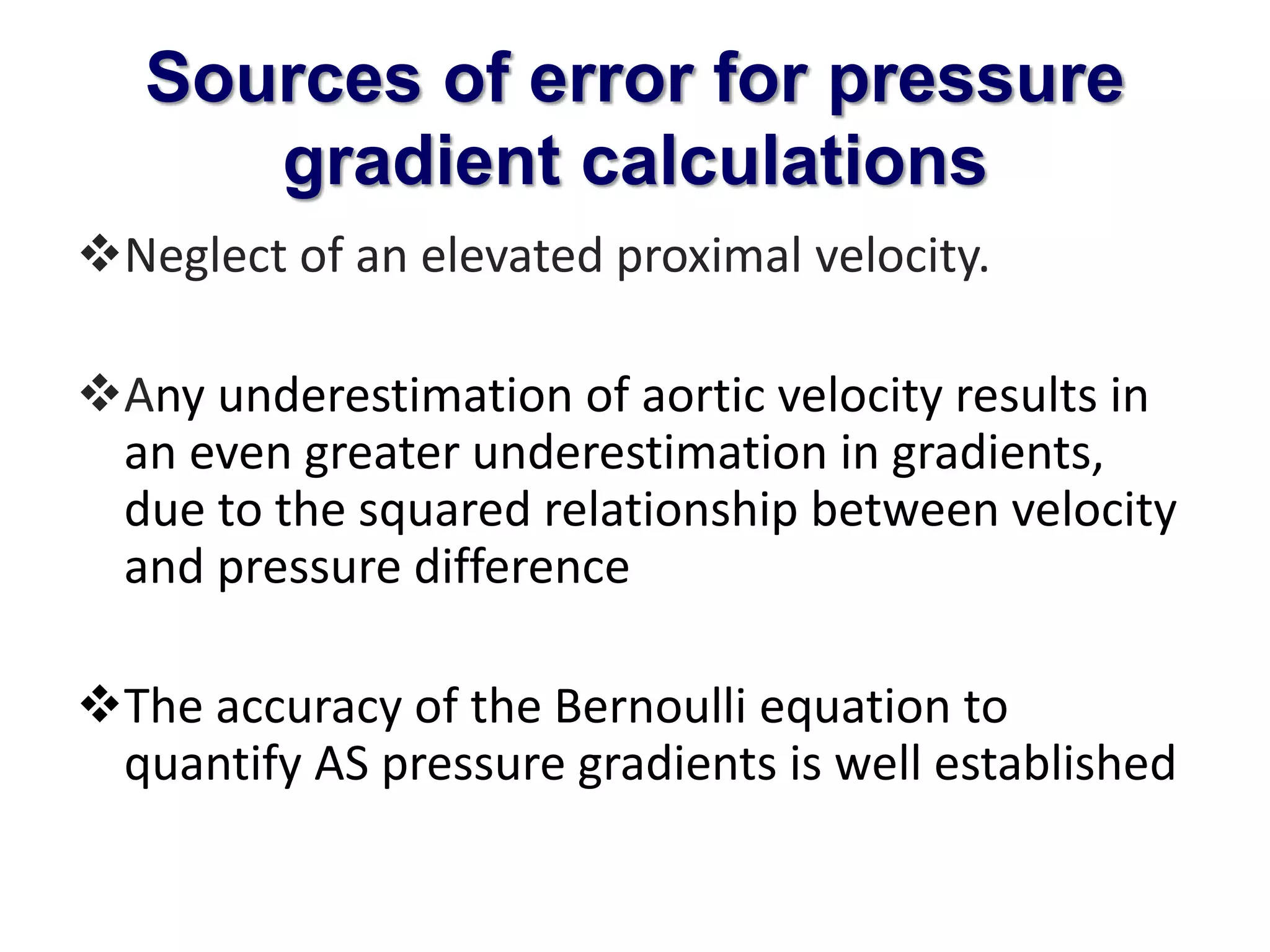

35. Sources of error for pressure
gradient calculations
Neglect of an elevated proximal velocity.
Any underestimation of aortic velocity results in
an even greater underestimation in gradients,
due to the squared relationship between velocity
and pressure difference
The accuracy of the Bernoulli equation to
quantify AS pressure gradients is well established

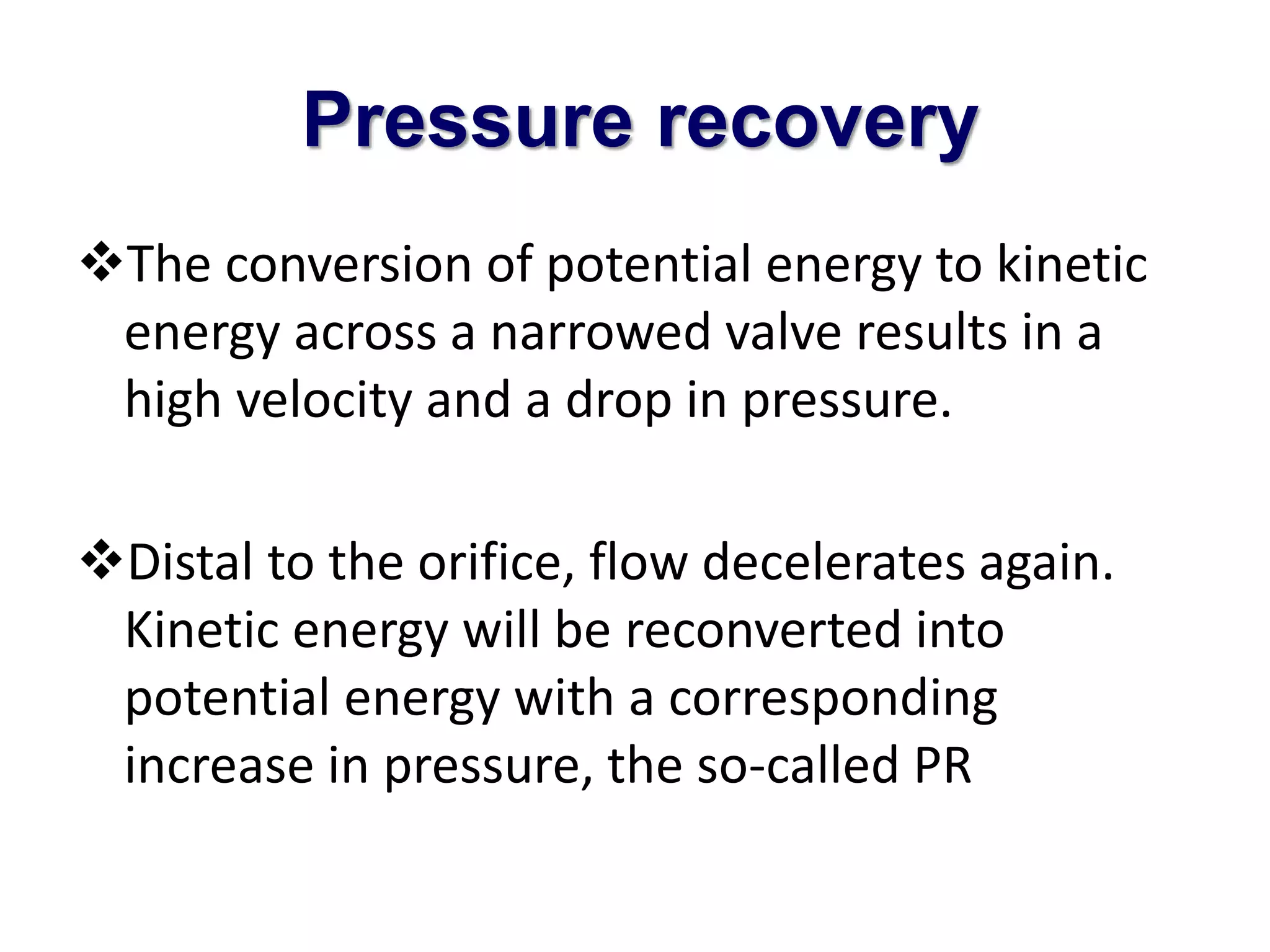

36. Pressure recovery
The conversion of potential energy to kinetic
energy across a narrowed valve results in a
high velocity and a drop in pressure.
Distal to the orifice, flow decelerates again.
Kinetic energy will be reconverted into
potential energy with a corresponding
increase in pressure, the so-called PR

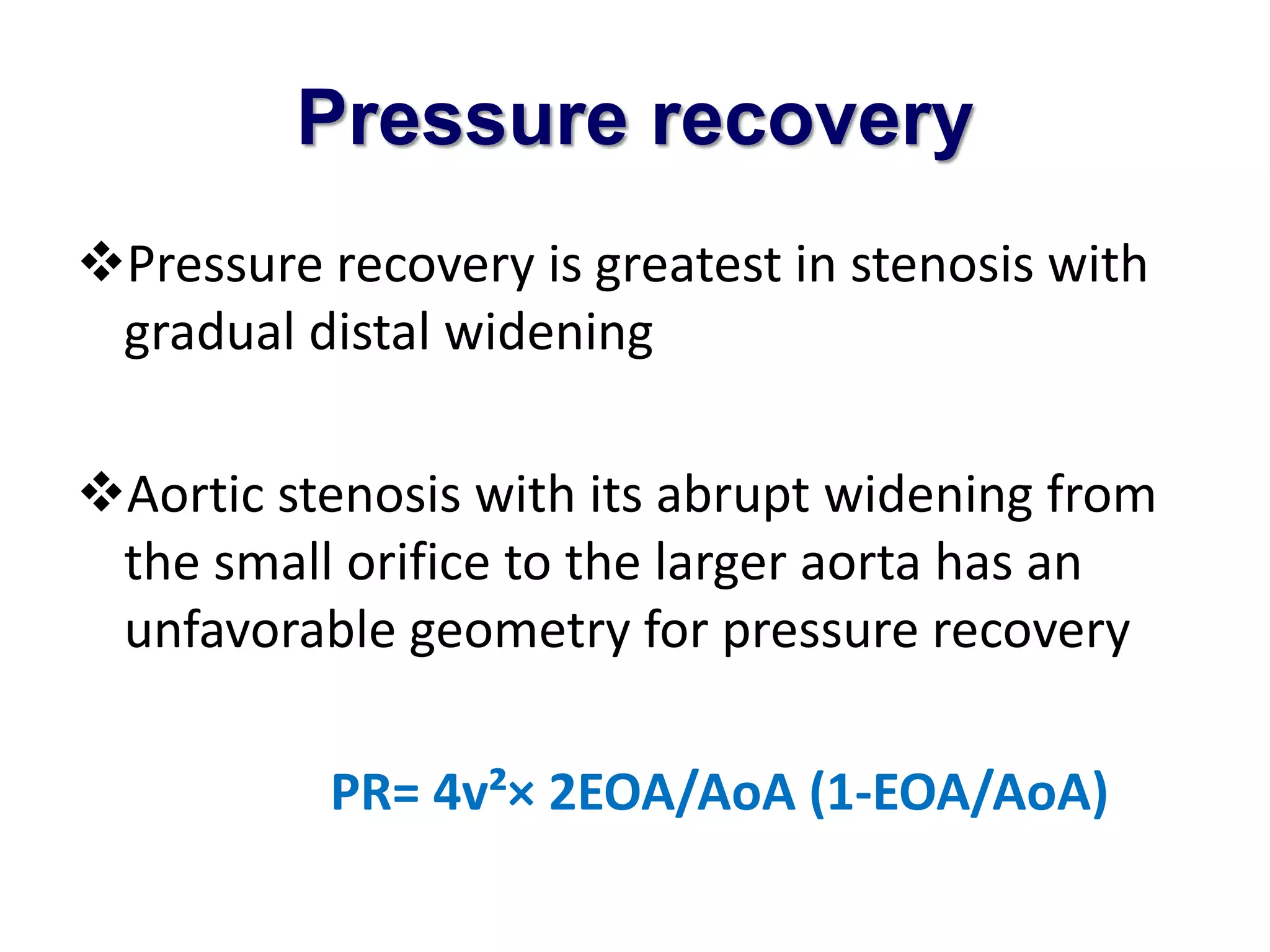

37. Pressure recovery
Pressure recovery is greatest in stenosis with
gradual distal widening
Aortic stenosis with its abrupt widening from
the small orifice to the larger aorta has an
unfavorable geometry for pressure recovery
PR= 4v²× 2EOA/AoA (1-EOA/AoA)

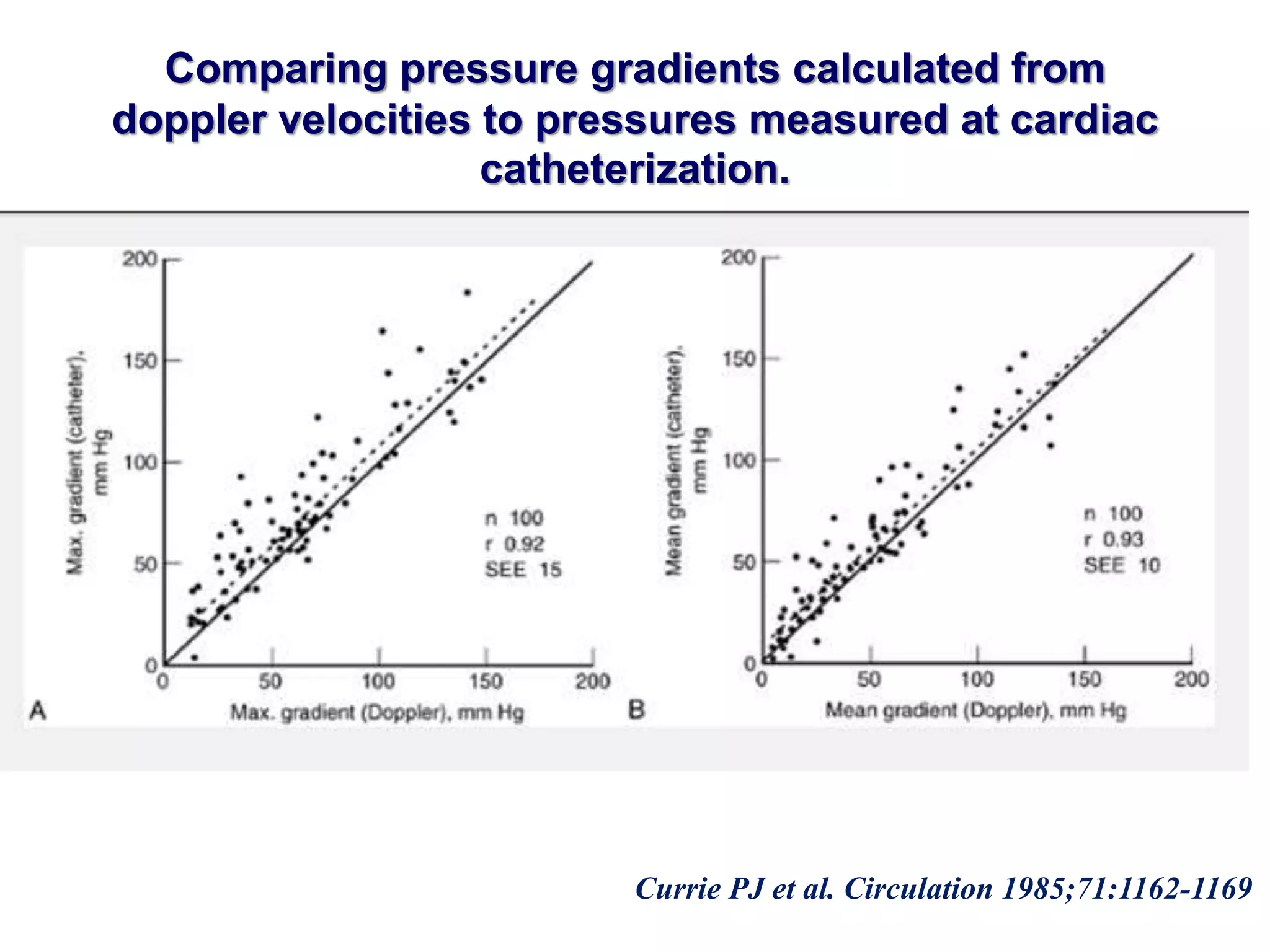

38. Comparing pressure gradients calculated from
doppler velocities to pressures measured at cardiac
catheterization.
39. Comparing pressure gradients calculated from
doppler velocities to pressures measured at cardiac
catheterization.
Currie PJ et al. Circulation 1985;71:1162-1169

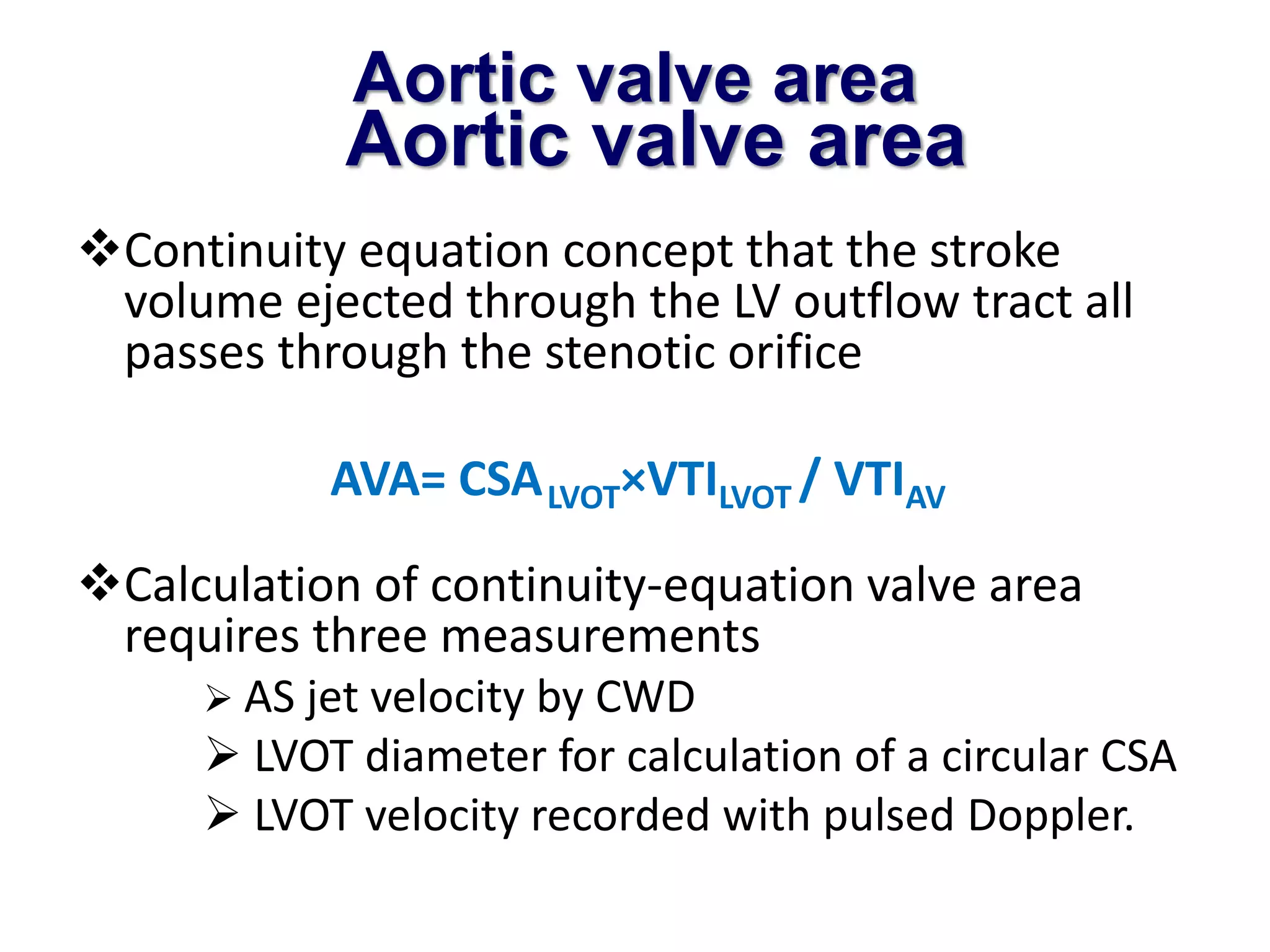

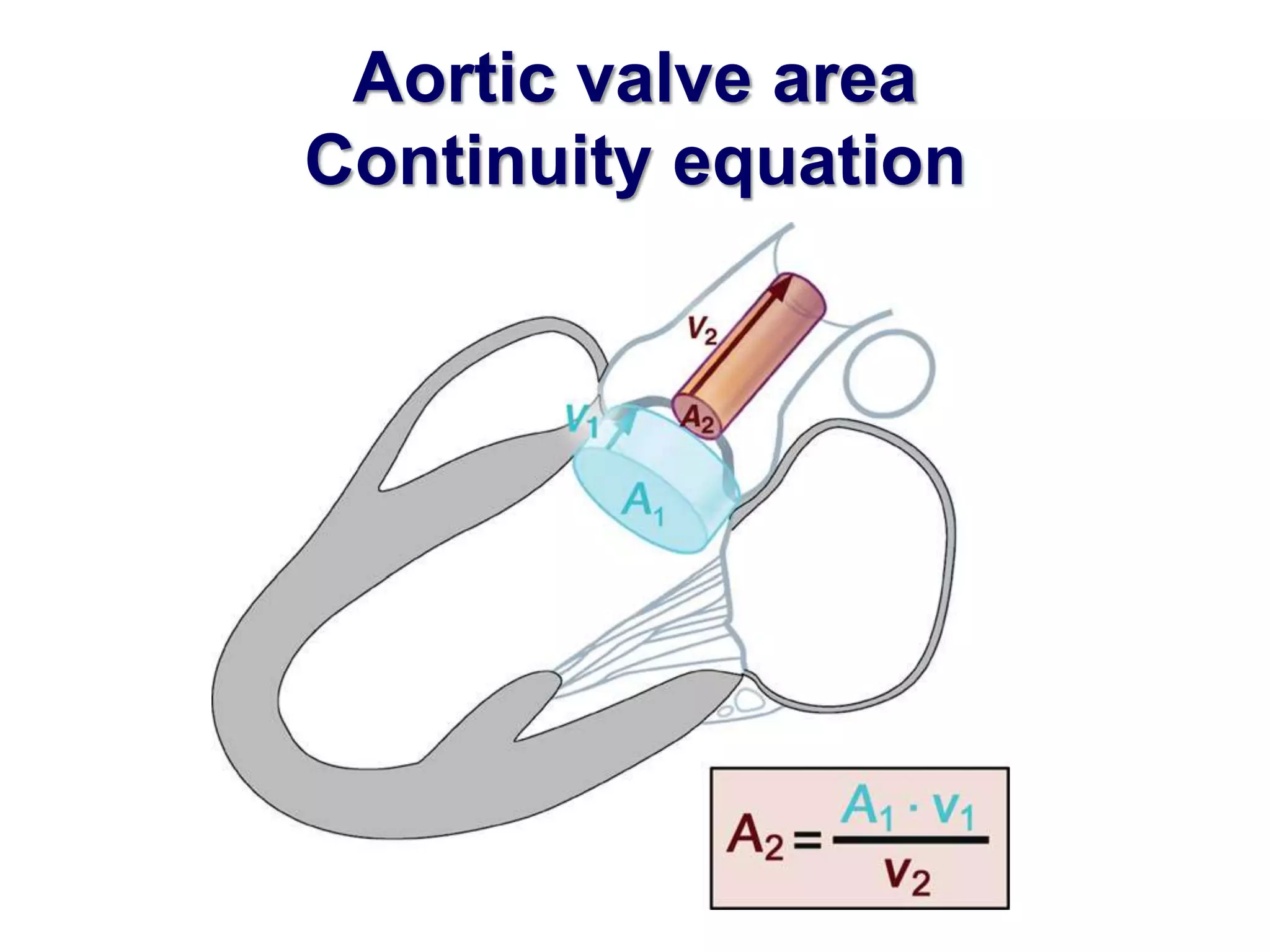

41. Aortic valve area
Aortic valve area
Continuity equation concept that the stroke
volume ejected through the LV outflow tract all
passes through the stenotic orifice
AVA= CSALVOT×VTILVOT / VTIAV
Calculation of continuity-equation valve area
requires three measurements
AS jet velocity by CWD
LVOT diameter for calculation of a circular CSA
LVOT velocity recorded with pulsed Doppler.

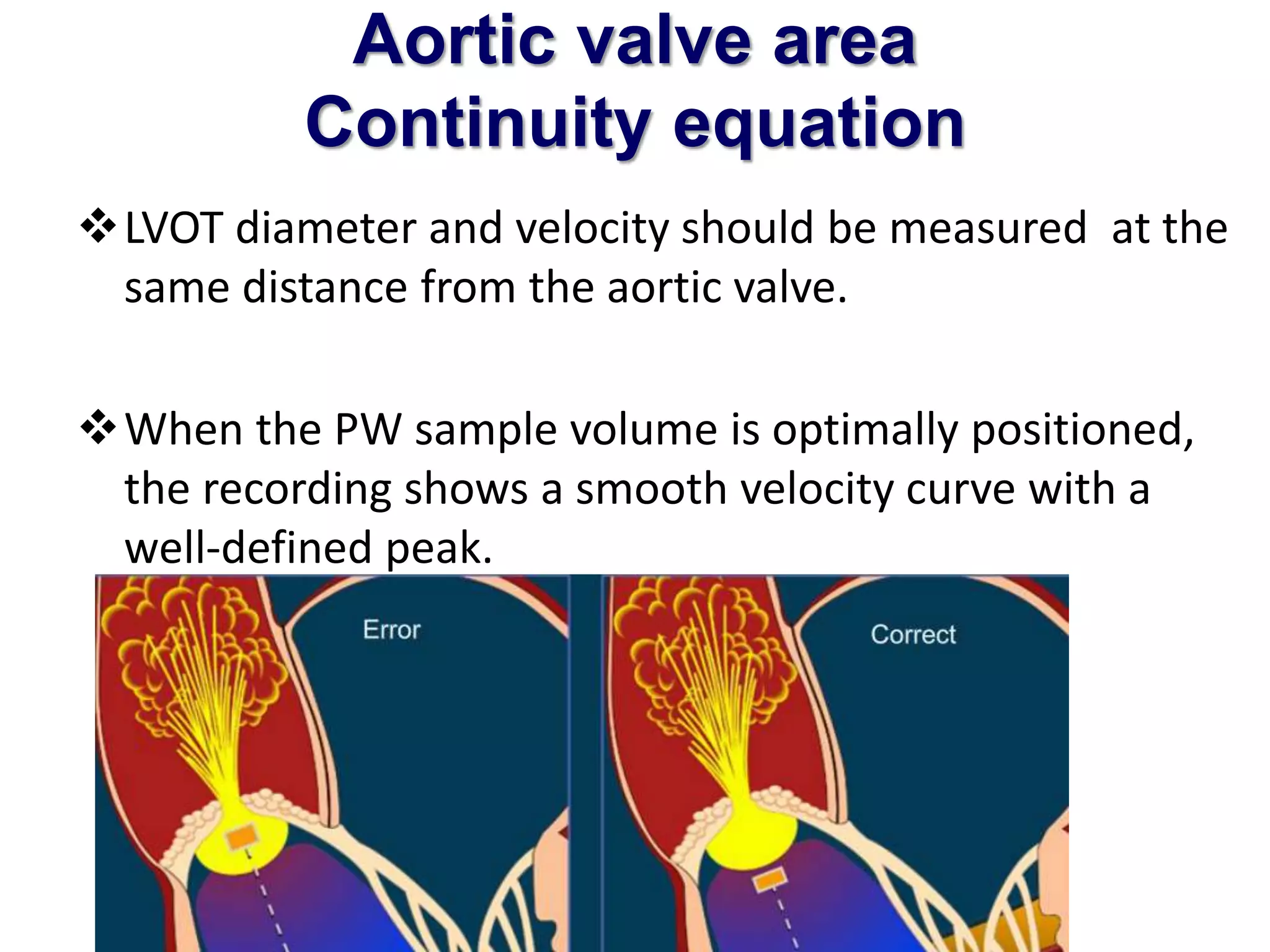

42. Aortic valve area
Continuity equation
LVOT diameter and velocity should be measured at the
same distance from the aortic valve.
When the PW sample volume is optimally positioned,
the recording shows a smooth velocity curve with a
well-defined peak.

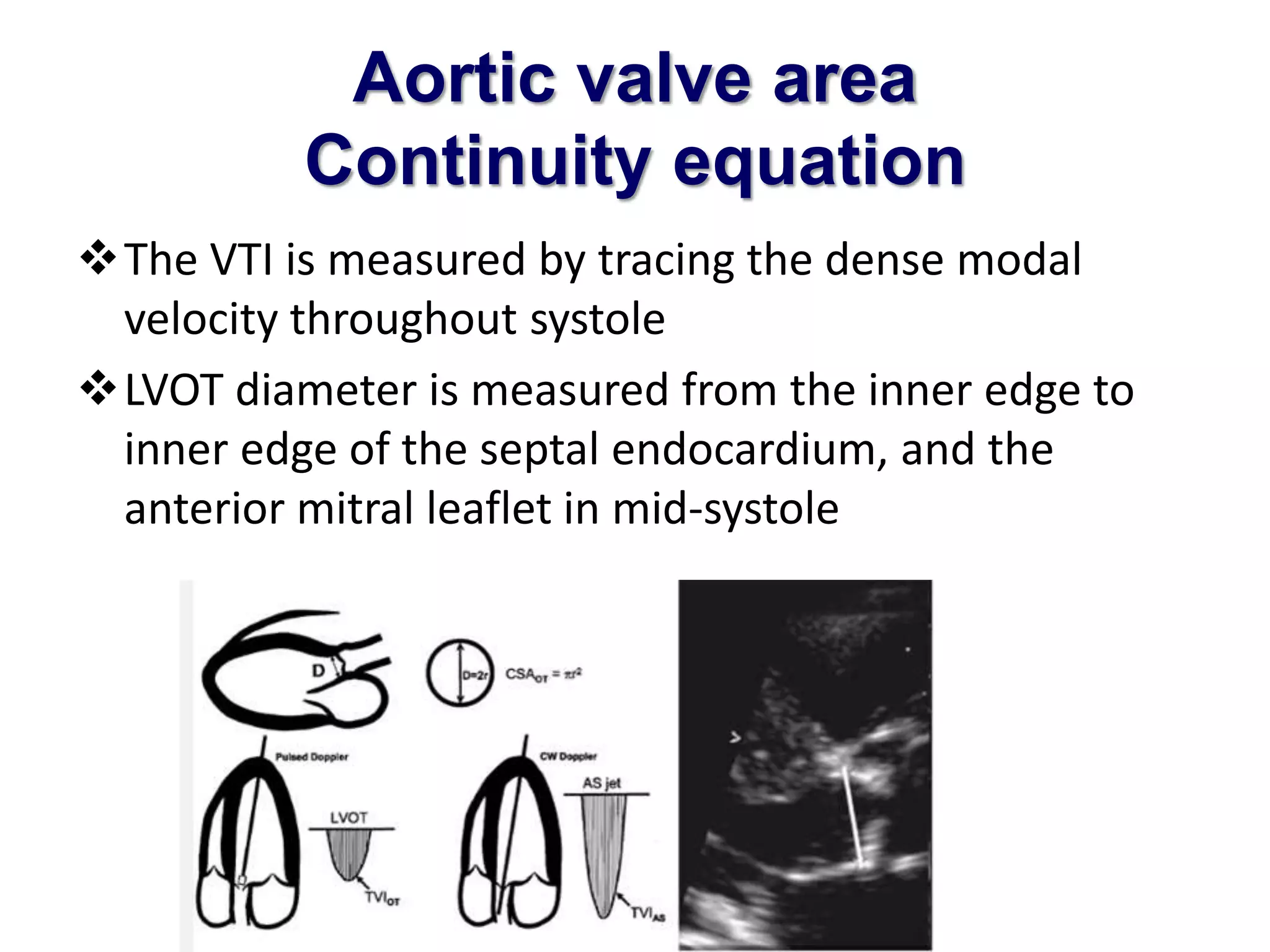

43. Aortic valve area
Continuity equation
The VTI is measured by tracing the dense modal
velocity throughout systole
LVOT diameter is measured from the inner edge to
inner edge of the septal endocardium, and the
anterior mitral leaflet in mid-systole

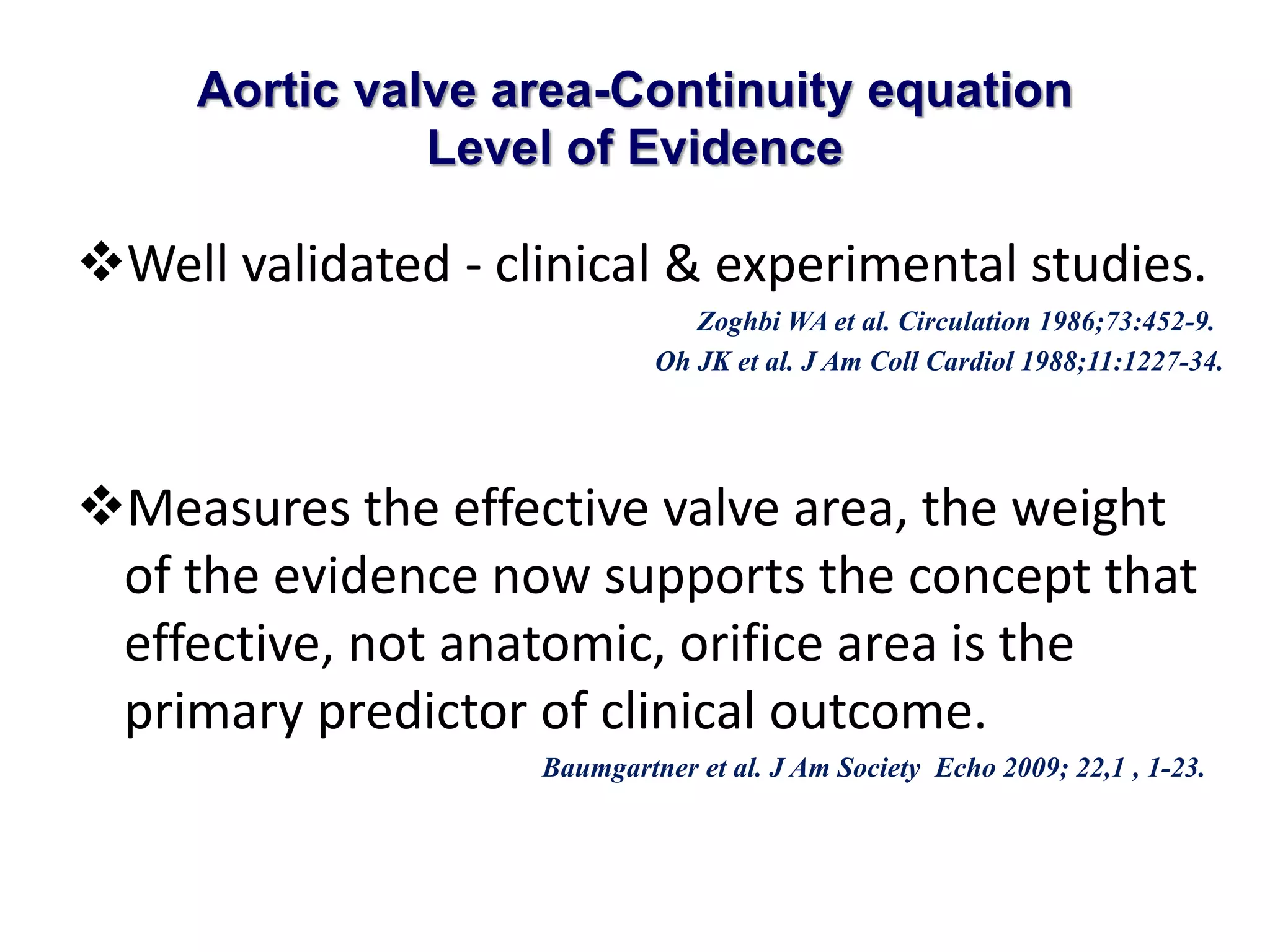

44. Aortic valve area-Continuity equation
Level of Evidence
Well validated - clinical & experimental studies.
Zoghbi WA et al. Circulation 1986;73:452-9.
Oh JK et al. J Am Coll Cardiol 1988;11:1227-34.
Measures the effective valve area, the weight
of the evidence now supports the concept that
effective, not anatomic, orifice area is the
primary predictor of clinical outcome.
Baumgartner et al. J Am Society Echo 2009; 22,1 , 1-23.

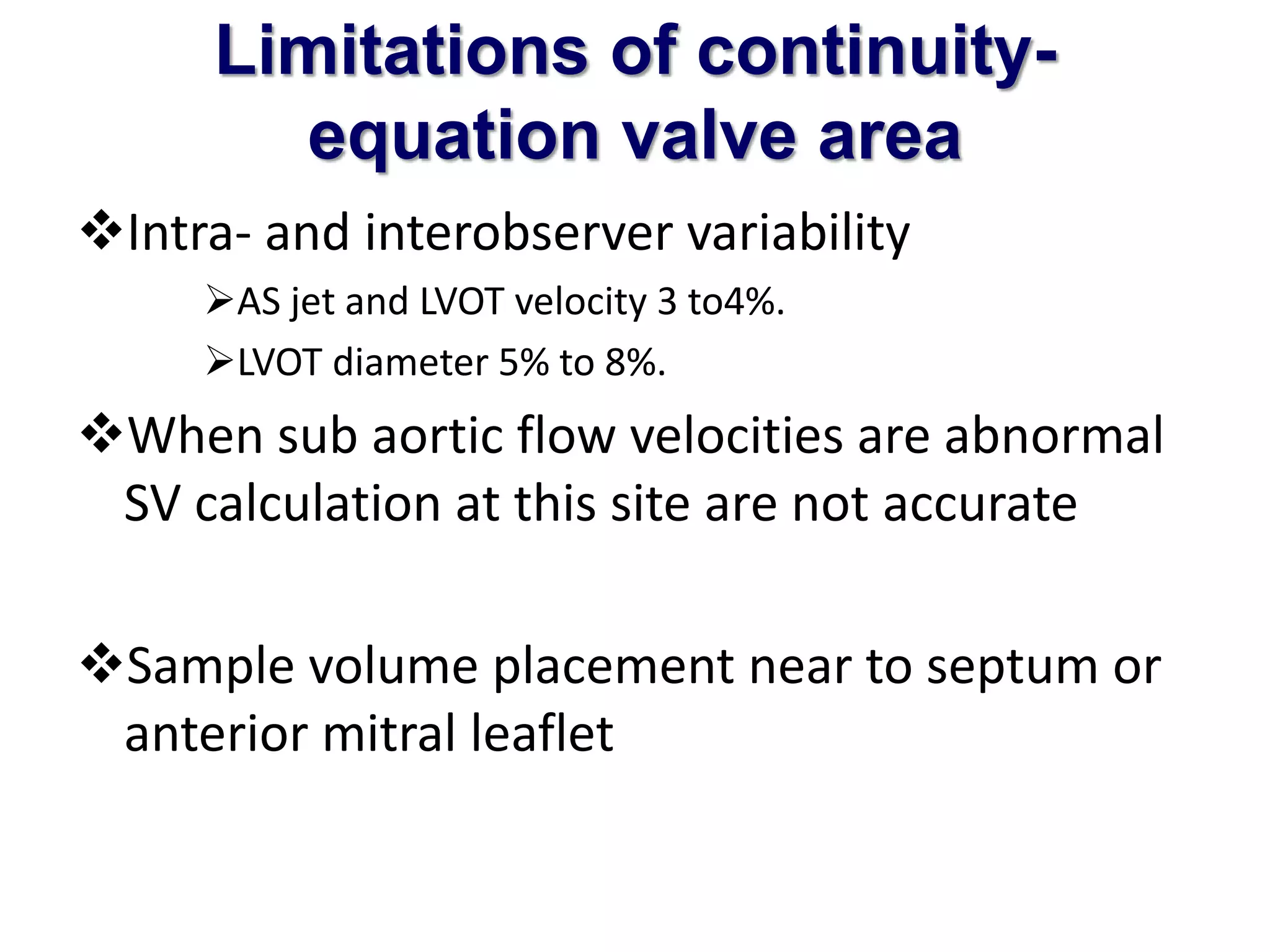

45. Limitations of continuity-equation
valve area
Intra- and interobserver variability
AS jet and LVOT velocity 3 to4%.
LVOT diameter 5% to 8%.
When sub aortic flow velocities are abnormal
SV calculation at this site are not accurate
Sample volume placement near to septum or
anterior mitral leaflet

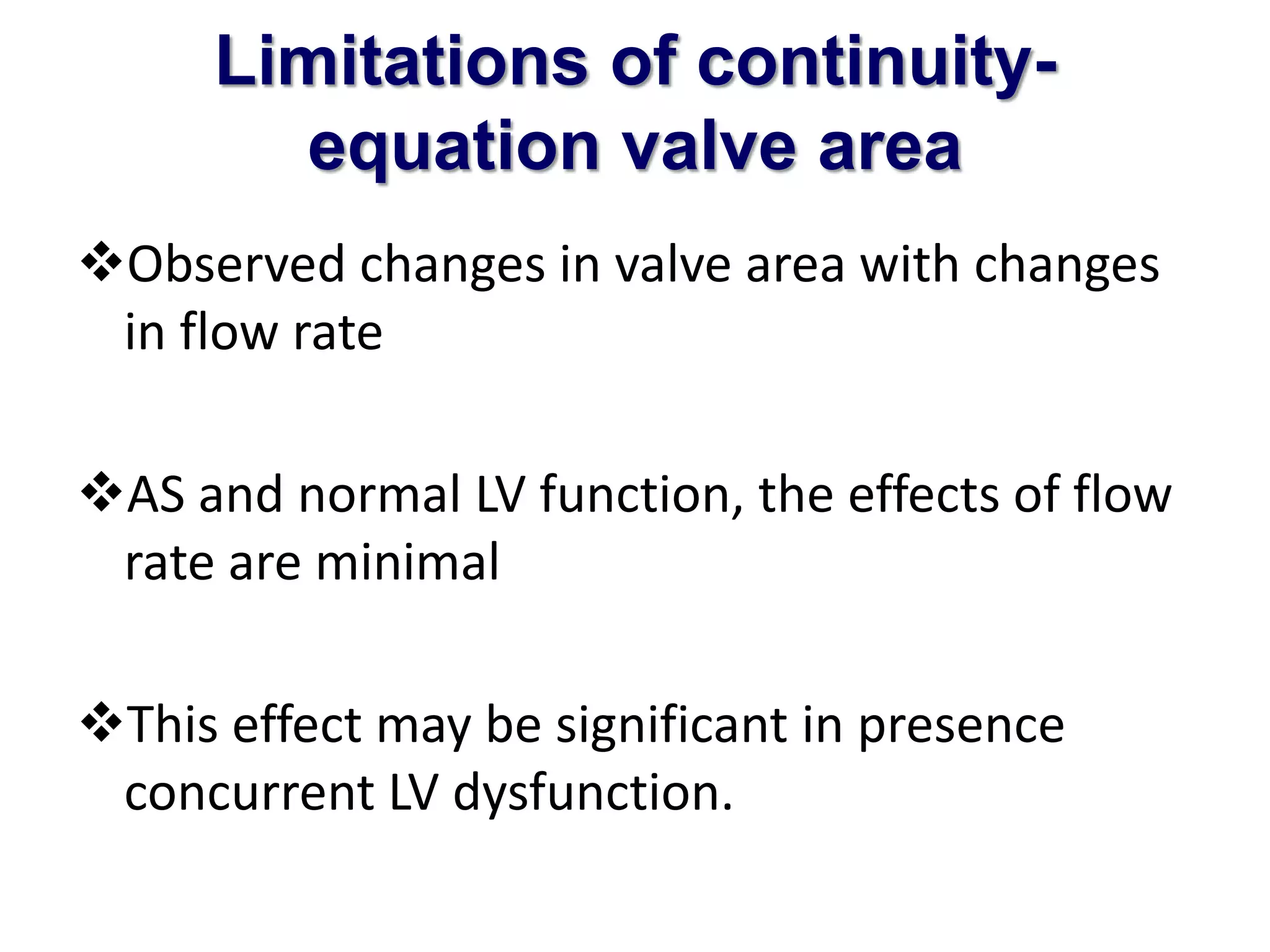

46. Limitations of continuity-equation
valve area
Observed changes in valve area with changes
in flow rate
AS and normal LV function, the effects of flow
rate are minimal
This effect may be significant in presence
concurrent LV dysfunction.

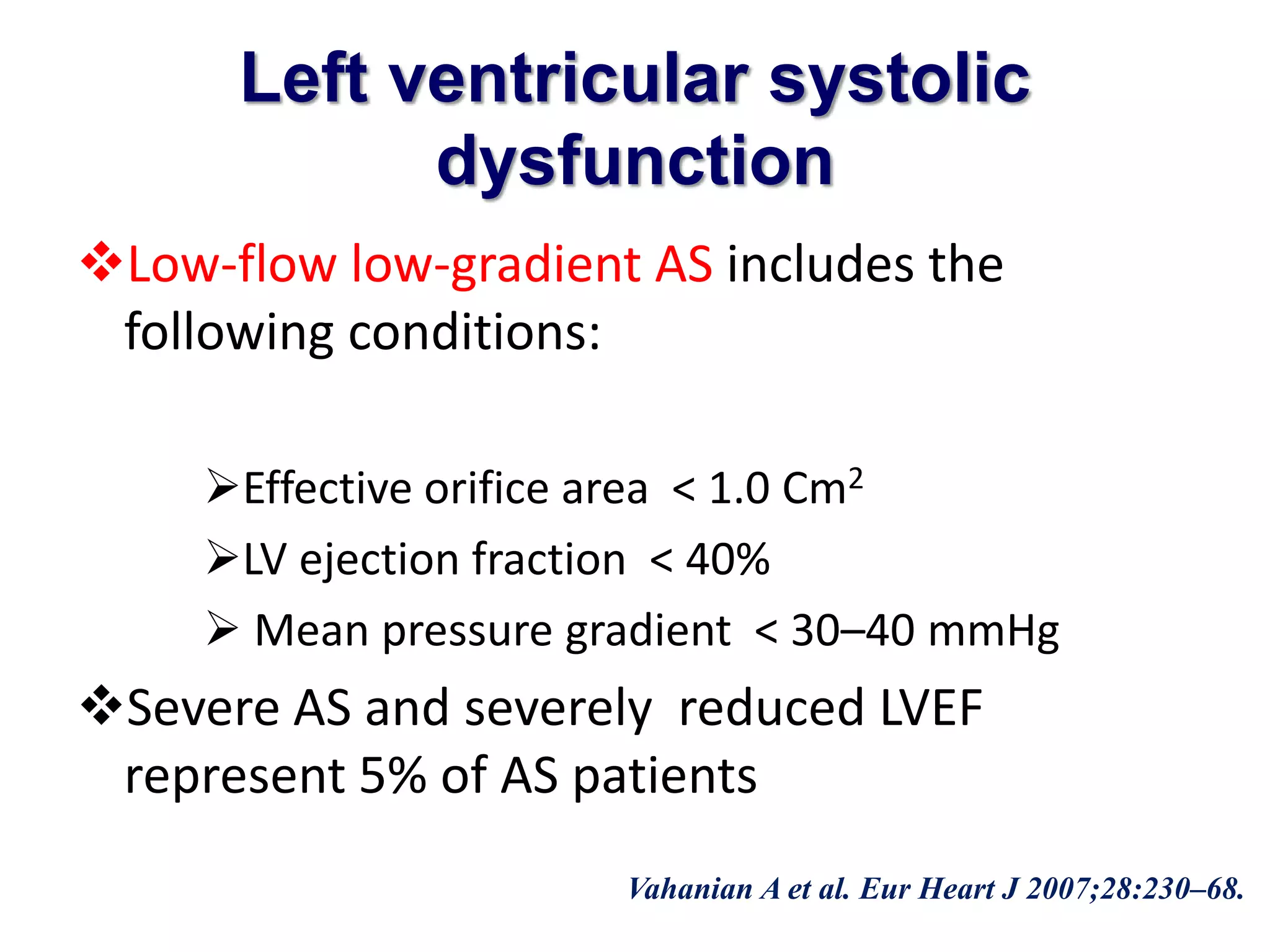

47. Left ventricular systolic
dysfunction
Low-flow low-gradient AS includes the
following conditions:
Effective orifice area < 1.0 Cm2
LV ejection fraction < 40%
Mean pressure gradient < 30–40 mmHg
Severe AS and severely reduced LVEF
represent 5% of AS patients
Vahanian A et al. Eur Heart J 2007;28:230–68.

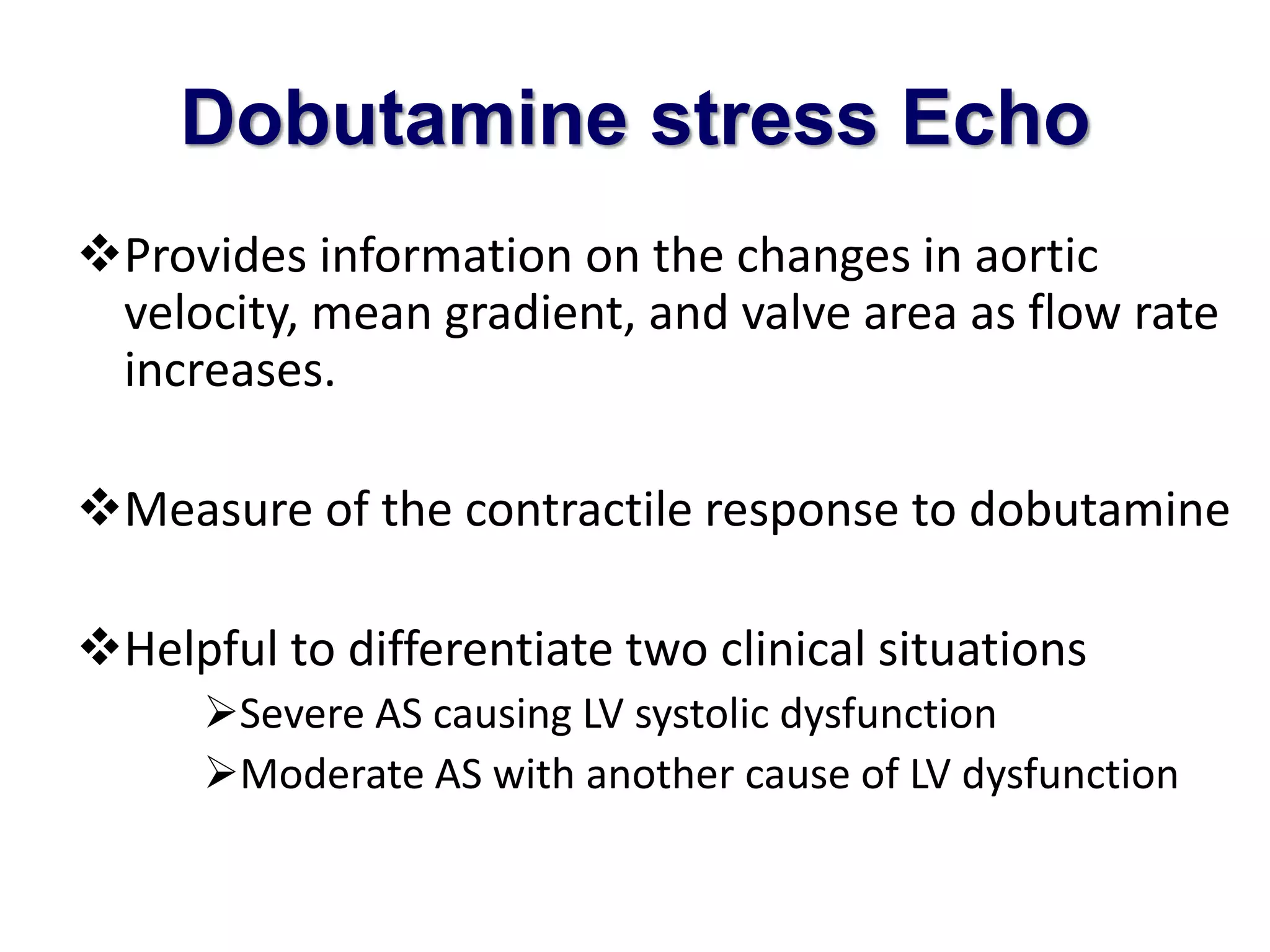

48. Dobutamine stress Echo
Provides information on the changes in aortic
velocity, mean gradient, and valve area as flow rate
increases.
Measure of the contractile response to dobutamine
Helpful to differentiate two clinical situations
Severe AS causing LV systolic dysfunction
Moderate AS with another cause of LV dysfunction

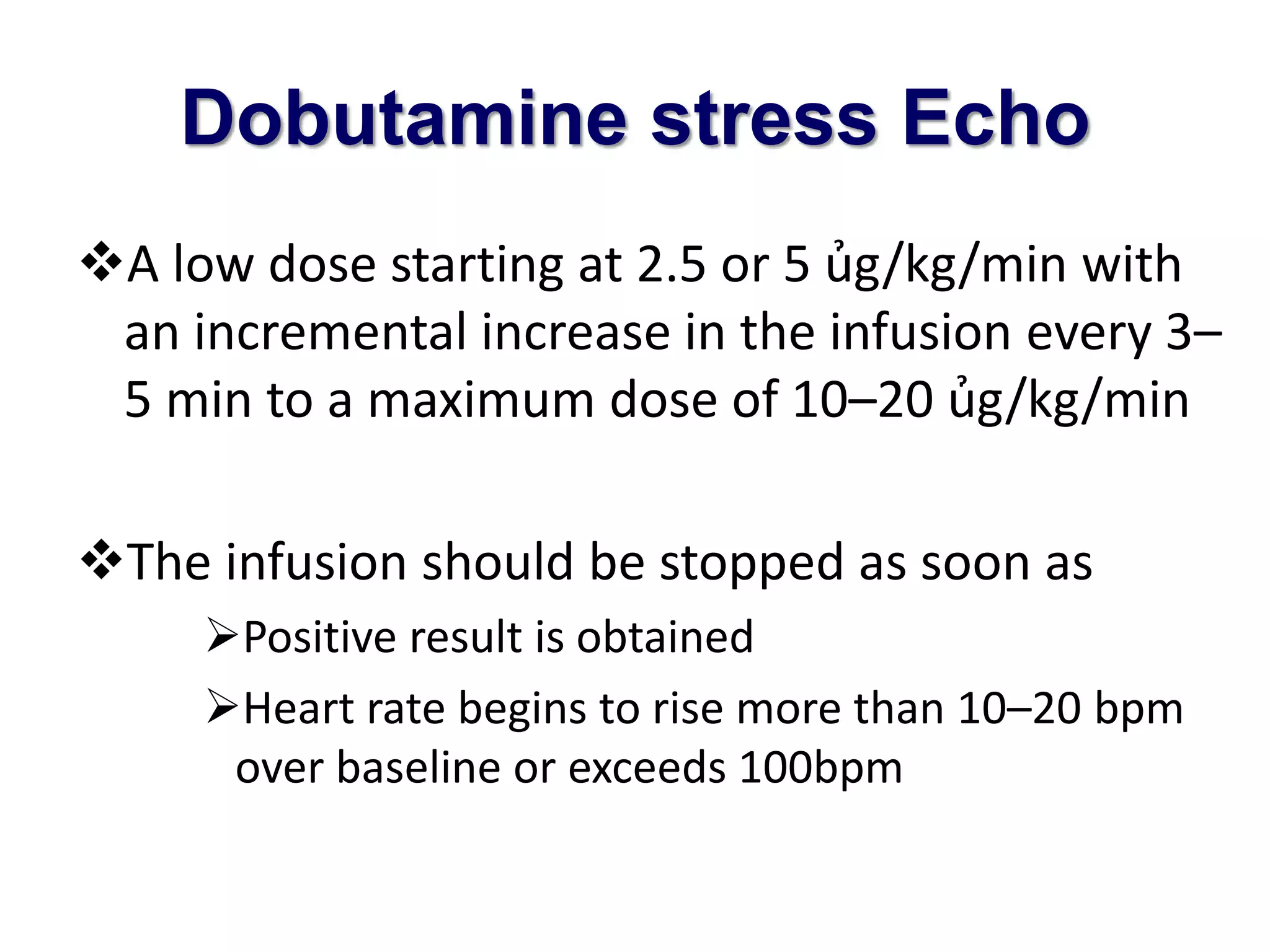

49. Dobutamine stress Echo
A low dose starting at 2.5 or 5 ủg/kg/min with
an incremental increase in the infusion every 3–
5 min to a maximum dose of 10–20 ủg/kg/min
The infusion should be stopped as soon as
Positive result is obtained
Heart rate begins to rise more than 10–20 bpm
over baseline or exceeds 100bpm

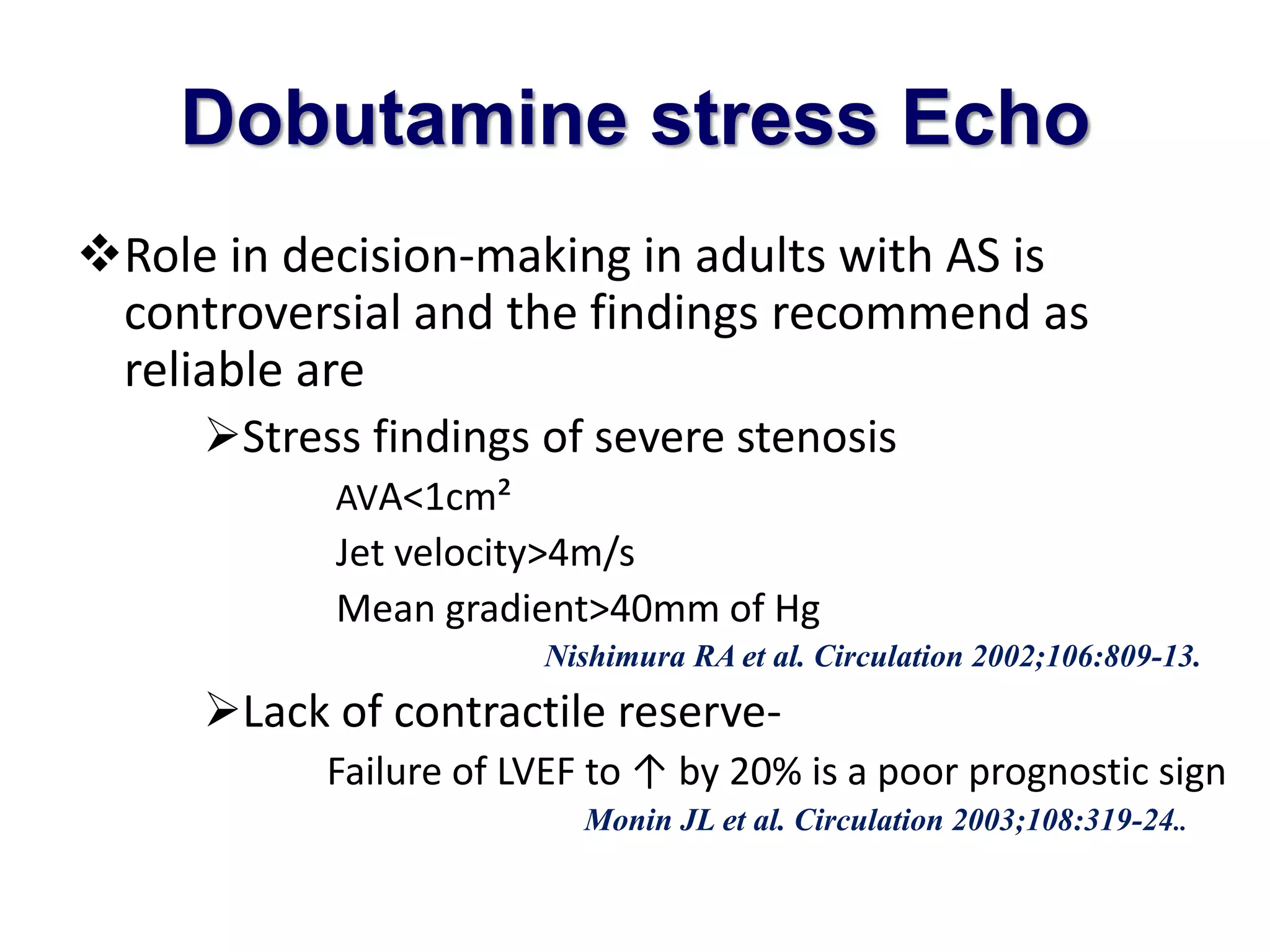

50. Dobutamine stress Echo
Role in decision-making in adults with AS is
controversial and the findings recommend as
reliable are
Stress findings of severe stenosis
AVA<1cm²
Jet velocity>4m/s
Mean gradient>40mm of Hg
Nishimura RA et al. Circulation 2002;106:809-13.
Lack of contractile reserve-
Failure of LVEF to ↑ by 20% is a poor prognostic sign
Monin JL et al. Circulation 2003;108:319-24..

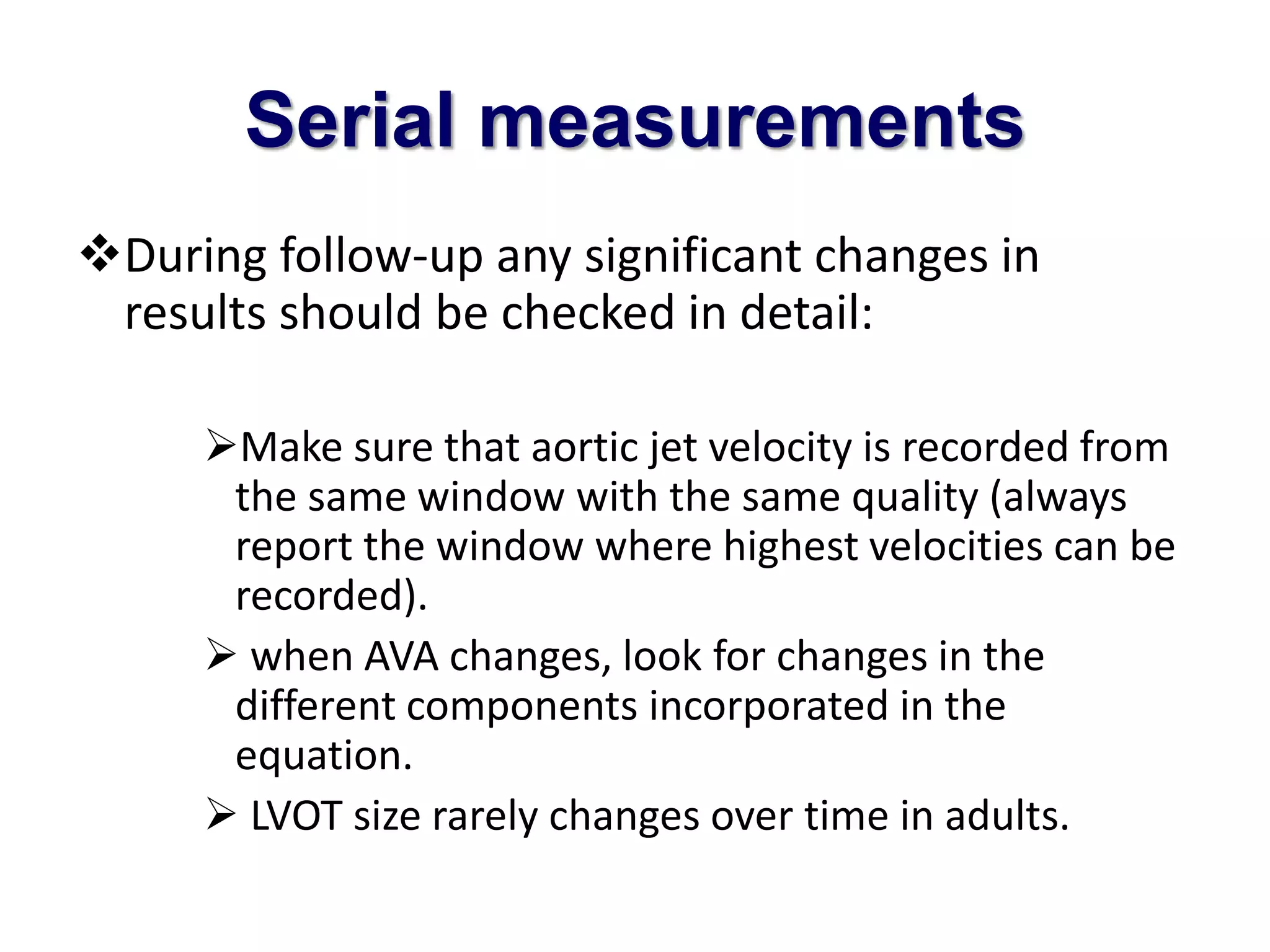

51. Serial measurements
During follow-up any significant changes in
results should be checked in detail:
Make sure that aortic jet velocity is recorded from
the same window with the same quality (always
report the window where highest velocities can be
recorded).
when AVA changes, look for changes in the
different components incorporated in the
equation.
LVOT size rarely changes over time in adults.

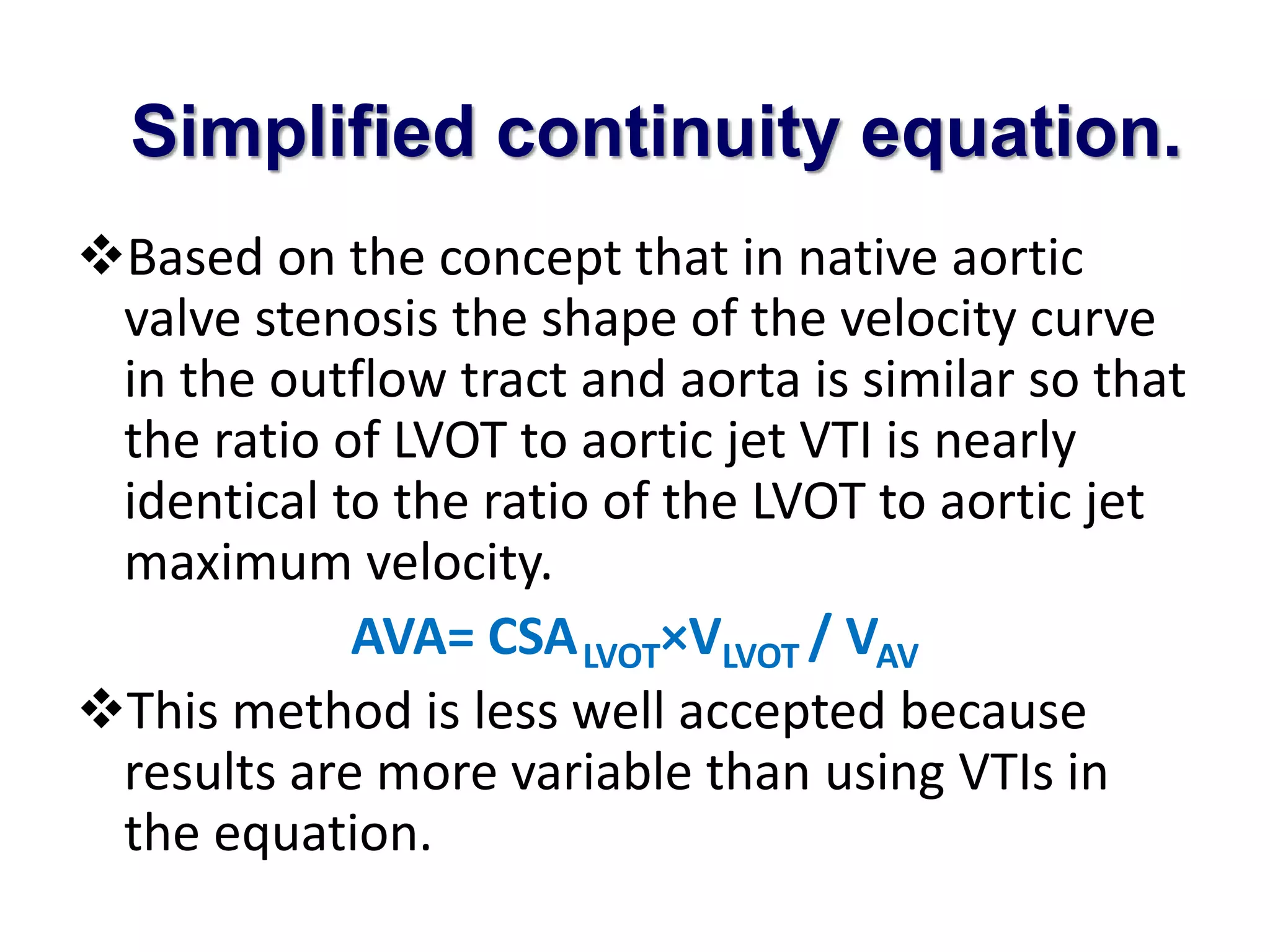

53. Simplified continuity equation.
Based on the concept that in native aortic
valve stenosis the shape of the velocity curve
in the outflow tract and aorta is similar so that
the ratio of LVOT to aortic jet VTI is nearly
identical to the ratio of the LVOT to aortic jet
maximum velocity.
AVA= CSALVOT×VLVOT / VAV
This method is less well accepted because
results are more variable than using VTIs in
the equation.

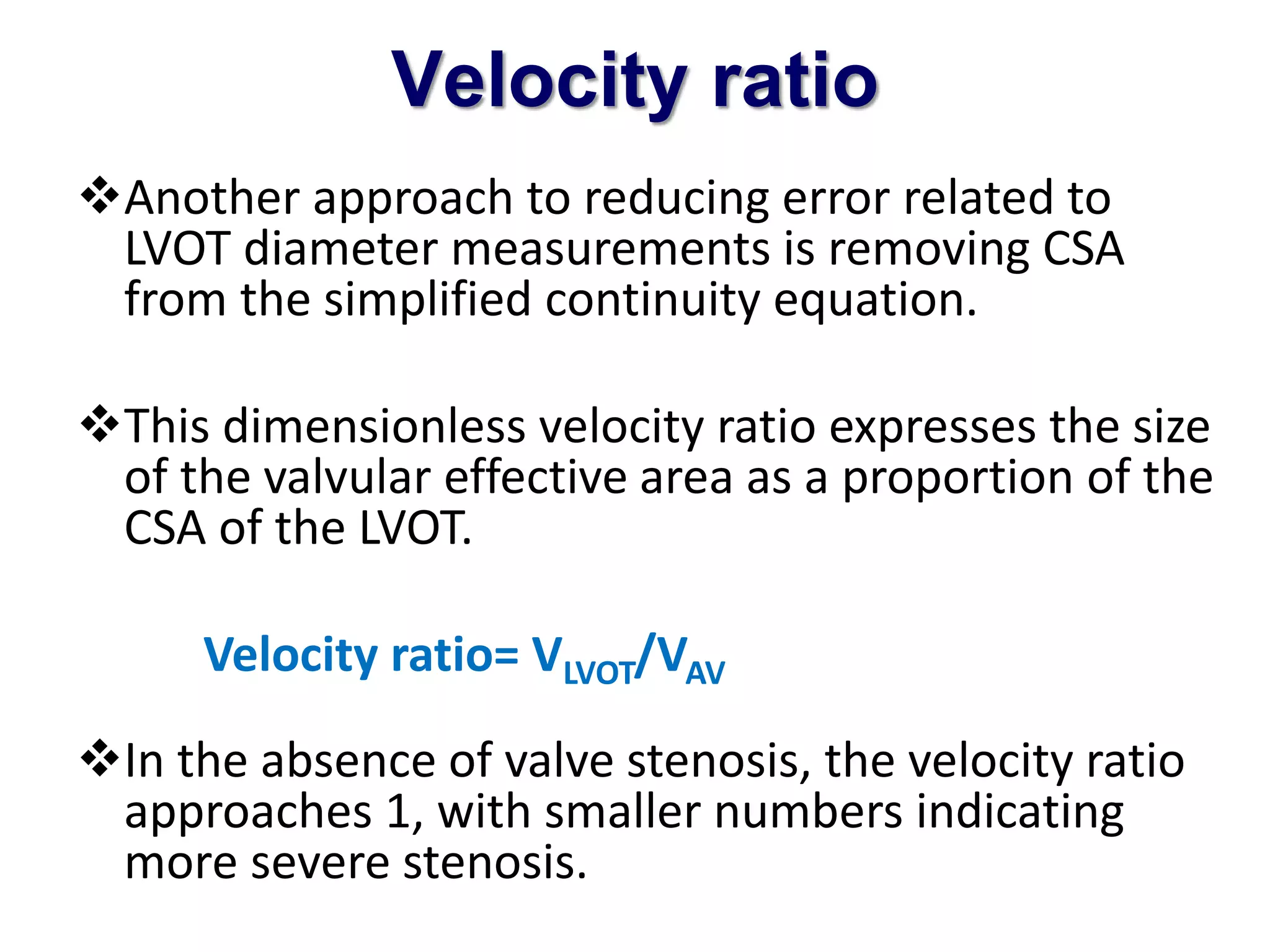

54. Velocity ratio
Another approach to reducing error related to
LVOT diameter measurements is removing CSA
from the simplified continuity equation.
This dimensionless velocity ratio expresses the size
of the valvular effective area as a proportion of the
CSA of the LVOT.
Velocity ratio= VLVOT/VAV
In the absence of valve stenosis, the velocity ratio
approaches 1, with smaller numbers indicating
more severe stenosis.

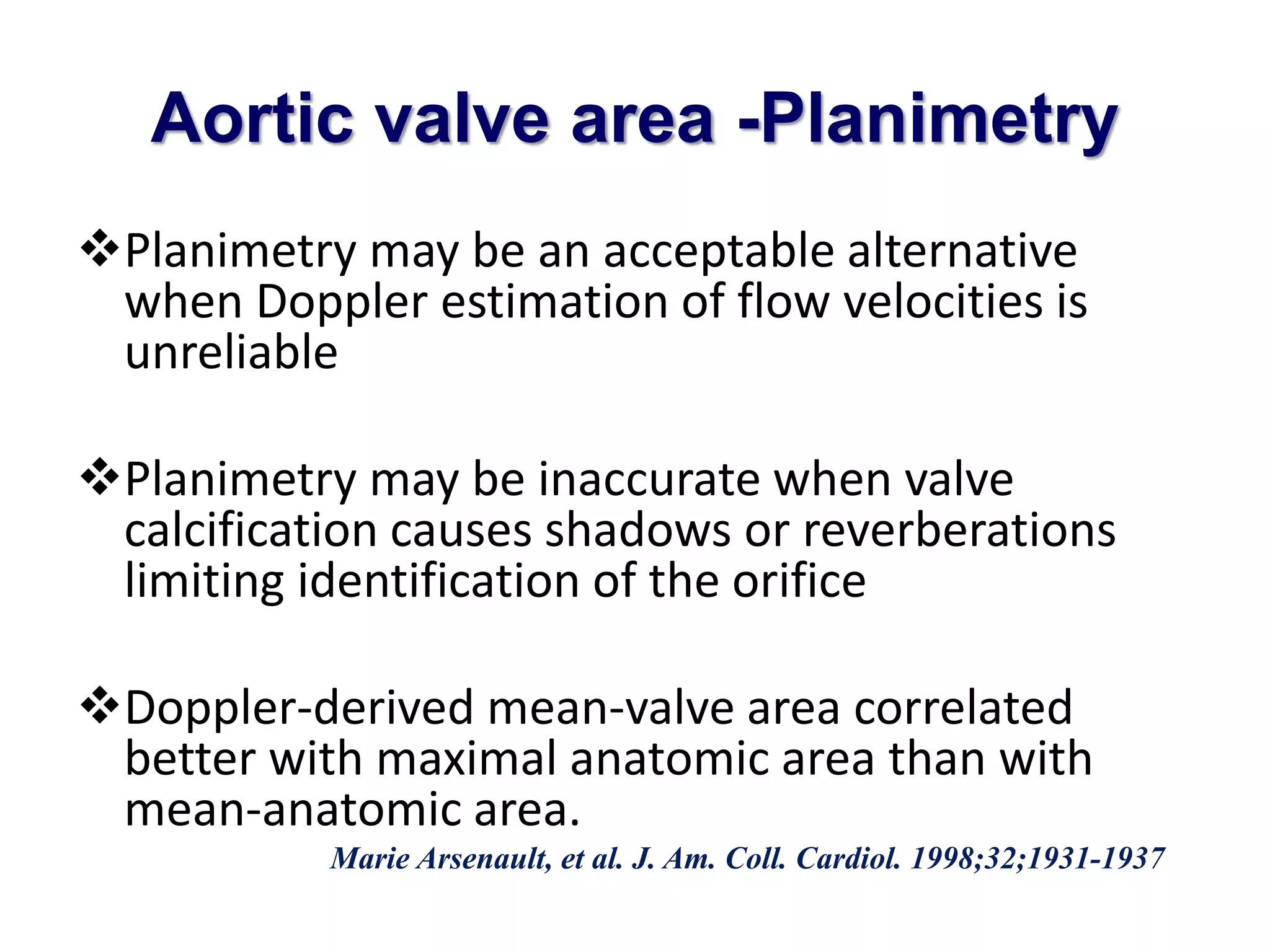

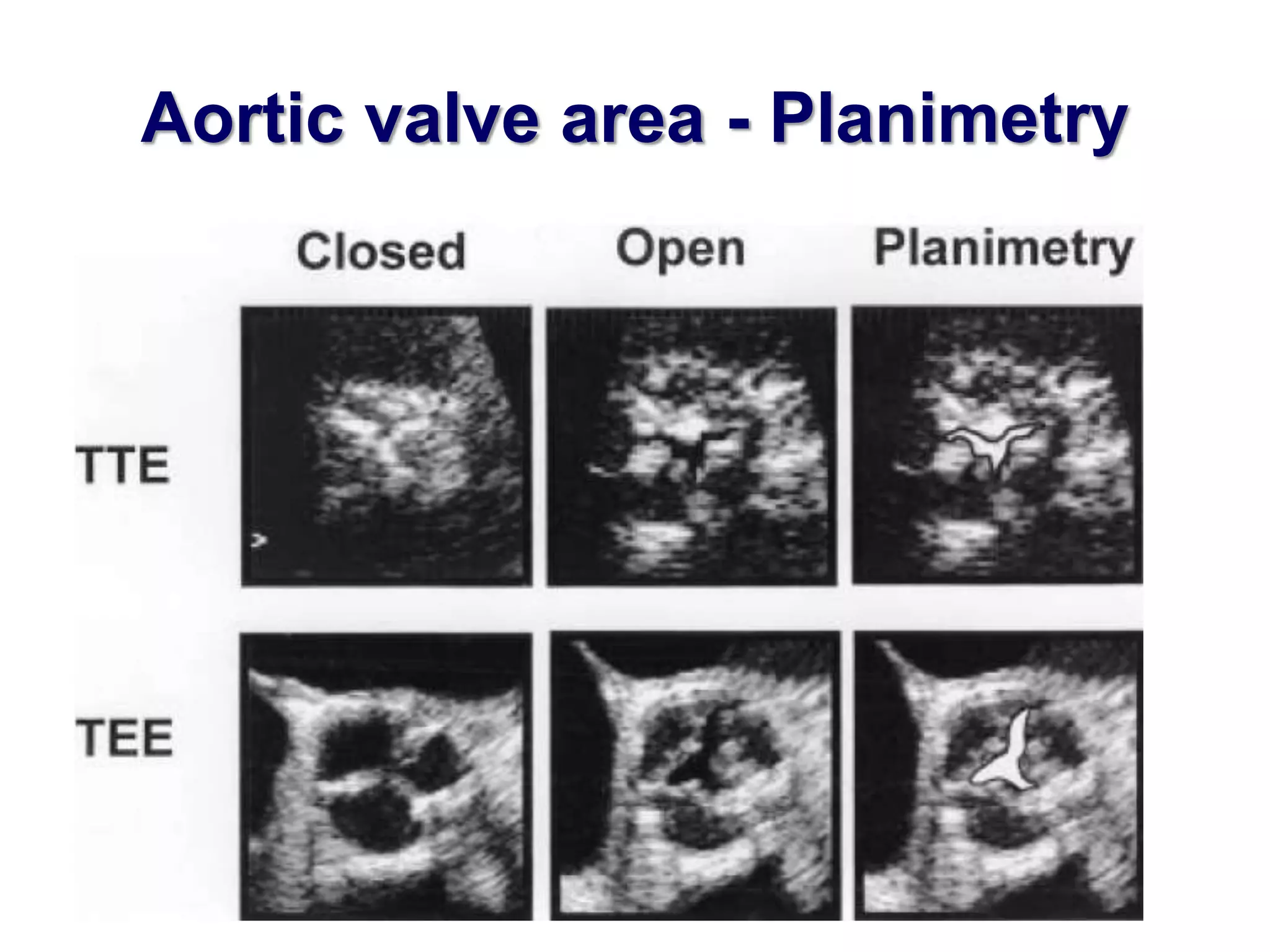

55. Aortic valve area -Planimetry
Planimetry may be an acceptable alternative
when Doppler estimation of flow velocities is
unreliable
Planimetry may be inaccurate when valve
calcification causes shadows or reverberations
limiting identification of the orifice
Doppler-derived mean-valve area correlated
better with maximal anatomic area than with
mean-anatomic area.
Marie Arsenault, et al. J. Am. Coll. Cardiol. 1998;32;1931-1937

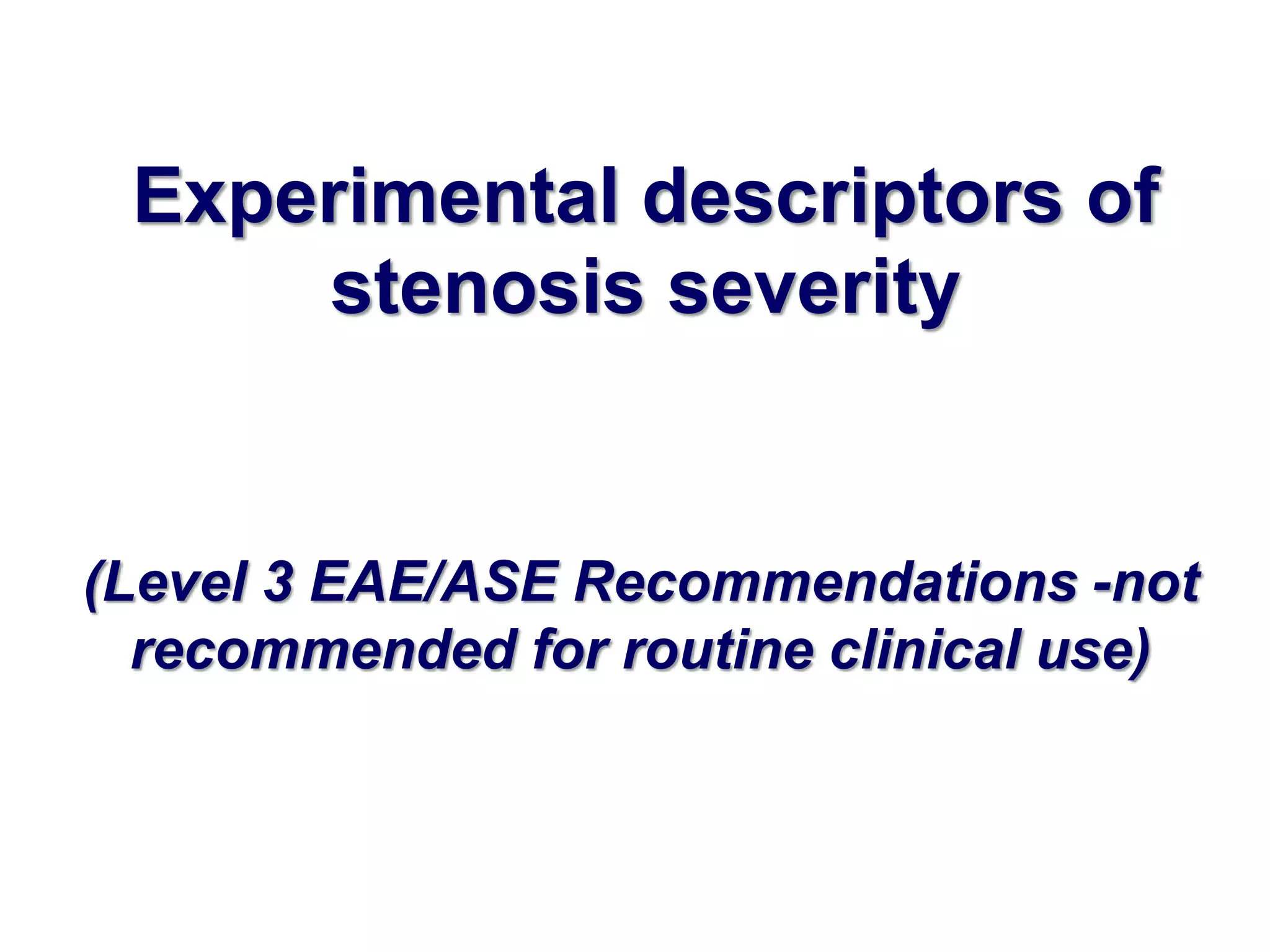

57. Experimental descriptors of
stenosis severity
(Level 3 EAE/ASE Recommendations -not
recommended for routine clinical use)

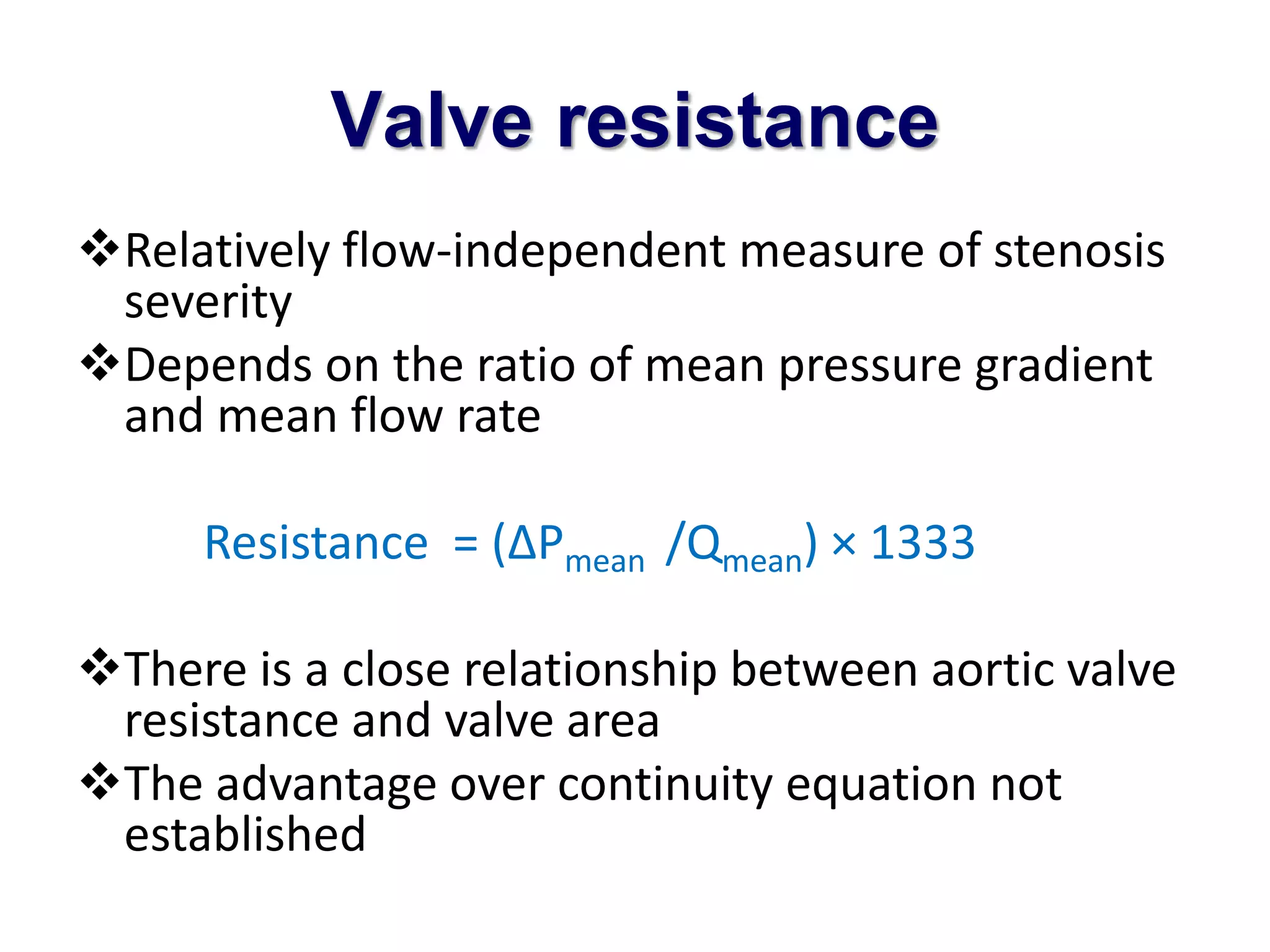

58. Valve resistance
Relatively flow-independent measure of stenosis
severity
Depends on the ratio of mean pressure gradient
and mean flow rate
Resistance = (ΔPmean /Qmean) × 1333
There is a close relationship between aortic valve
resistance and valve area
The advantage over continuity equation not
established

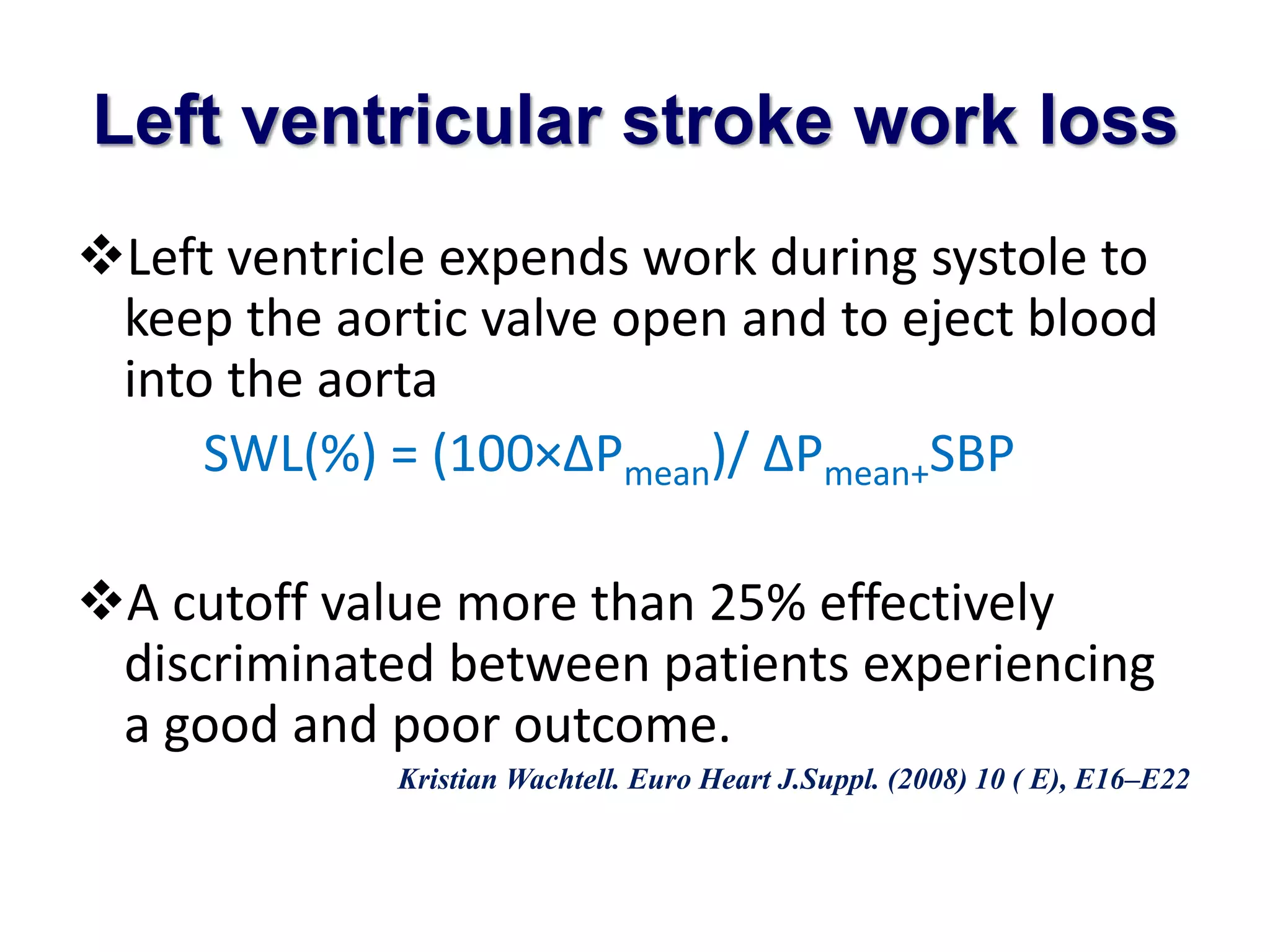

59. Left ventricular stroke work loss
Left ventricle expends work during systole to
keep the aortic valve open and to eject blood
into the aorta
SWL(%) = (100×ΔPmean)/ ΔPmean+SBP
A cutoff value more than 25% effectively
discriminated between patients experiencing
a good and poor outcome.
Kristian Wachtell. Euro Heart J.Suppl. (2008) 10 ( E), E16–E22
60. Energy loss index

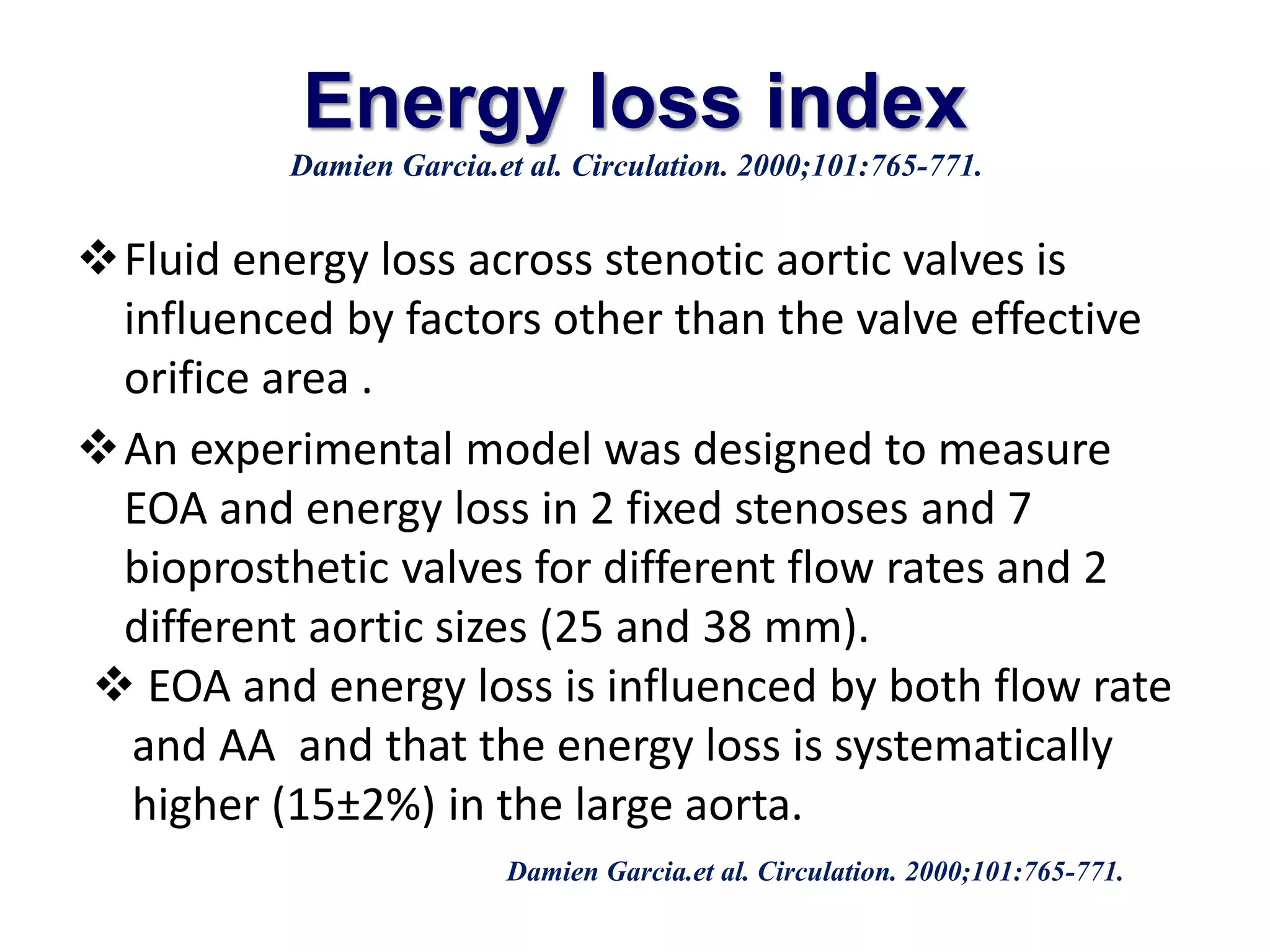

Damien Garcia.et al. Circulation. 2000;101:765-771.
Fluid energy loss across stenotic aortic valves is
influenced by factors other than the valve effective
orifice area .
An experimental model was designed to measure
EOA and energy loss in 2 fixed stenoses and 7
bioprosthetic valves for different flow rates and 2
different aortic sizes (25 and 38 mm).
EOA and energy loss is influenced by both flow rate
and AA and that the energy loss is systematically
higher (15±2%) in the large aorta.
Damien Garcia.et al. Circulation. 2000;101:765-771.

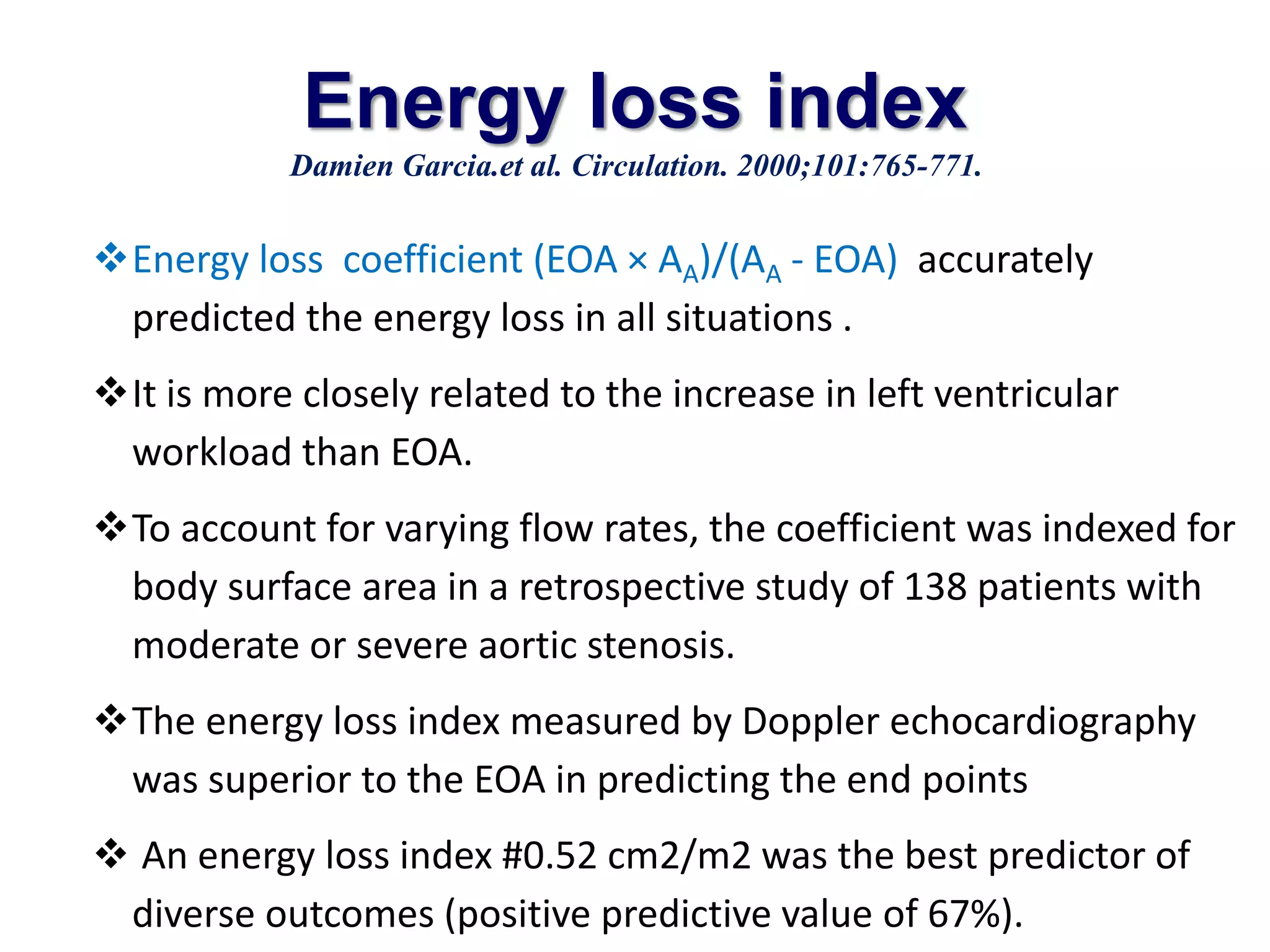

61. Energy loss index
Damien Garcia.et al. Circulation. 2000;101:765-771.
Energy loss coefficient (EOA × AA)/(AA - EOA) accurately
predicted the energy loss in all situations .
It is more closely related to the increase in left ventricular
workload than EOA.
To account for varying flow rates, the coefficient was indexed for
body surface area in a retrospective study of 138 patients with
moderate or severe aortic stenosis.
The energy loss index measured by Doppler echocardiography
was superior to the EOA in predicting the end points
An energy loss index #0.52 cm2/m2 was the best predictor of
diverse outcomes (positive predictive value of 67%).

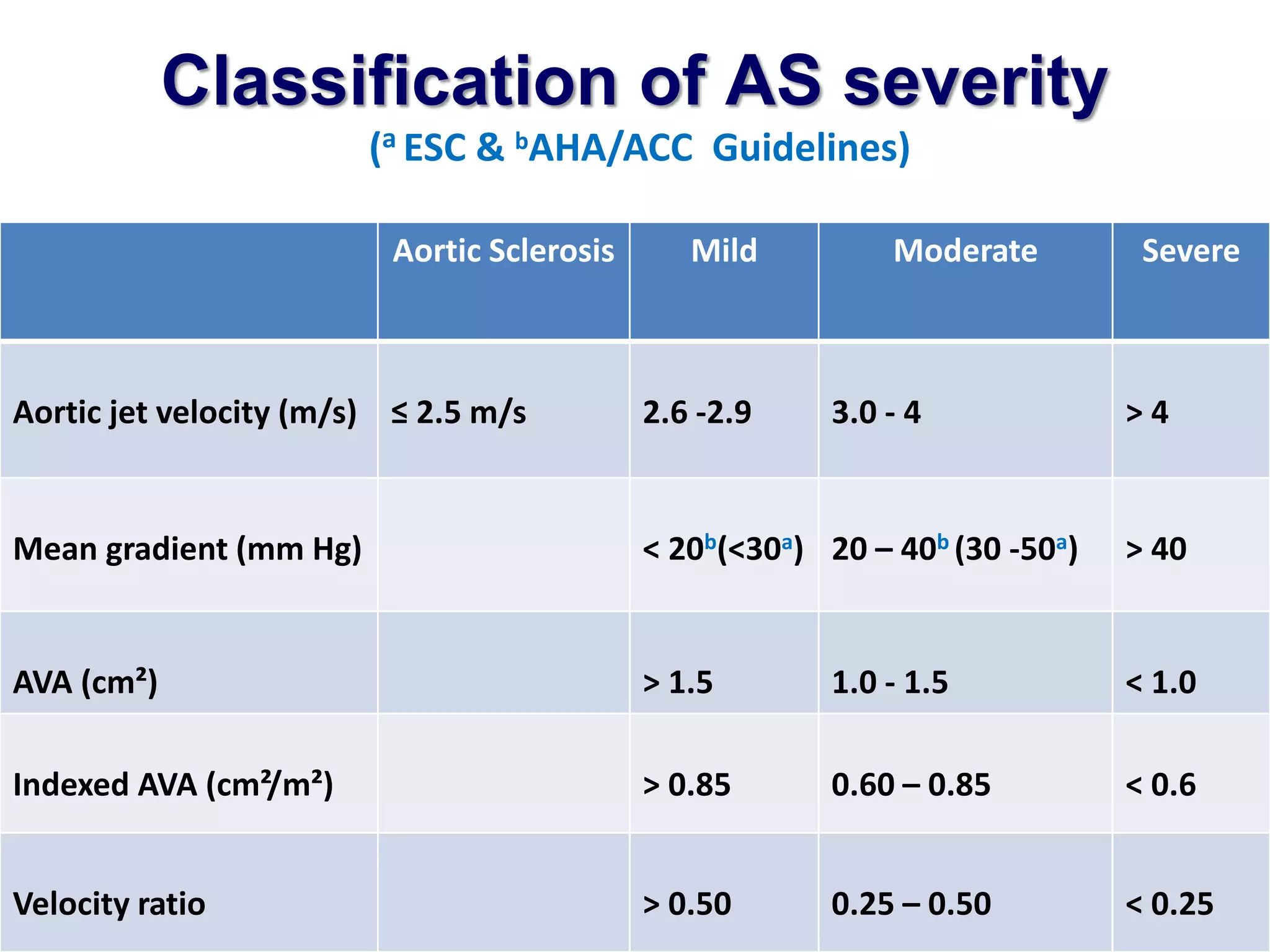

62. Classification of AS severity
(a ESC & bAHA/ACC Guidelines)
Aortic Sclerosis Mild Moderate Severe
Aortic jet velocity (m/s) ≤ 2.5 m/s 2.6 -2.9 3.0 - 4 > 4
Mean gradient (mm Hg) < 20b(<30a) 20 – 40b (30 -50a) > 40
AVA (cm²) > 1.5 1.0 - 1.5 < 1.0
Indexed AVA (cm²/m²) > 0.85 0.60 – 0.85 < 0.6
Velocity ratio > 0.50 0.25 – 0.50 < 0.25

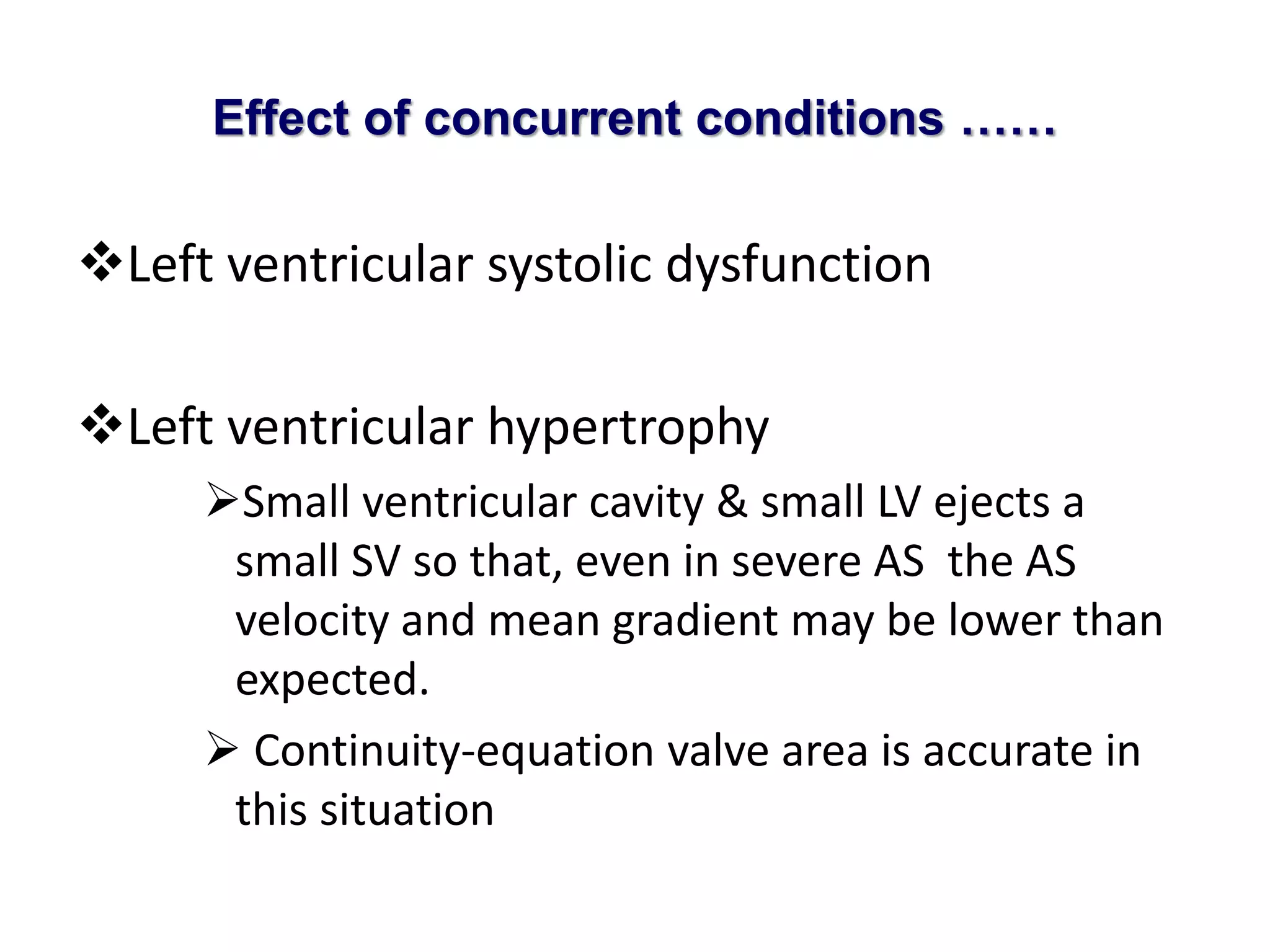

64. Effect of concurrent conditions ……
Left ventricular systolic dysfunction
Left ventricular hypertrophy
Small ventricular cavity & small LV ejects a
small SV so that, even in severe AS the AS
velocity and mean gradient may be lower than
expected.
Continuity-equation valve area is accurate in
this situation
65. Effect of concurrent conditions contd…

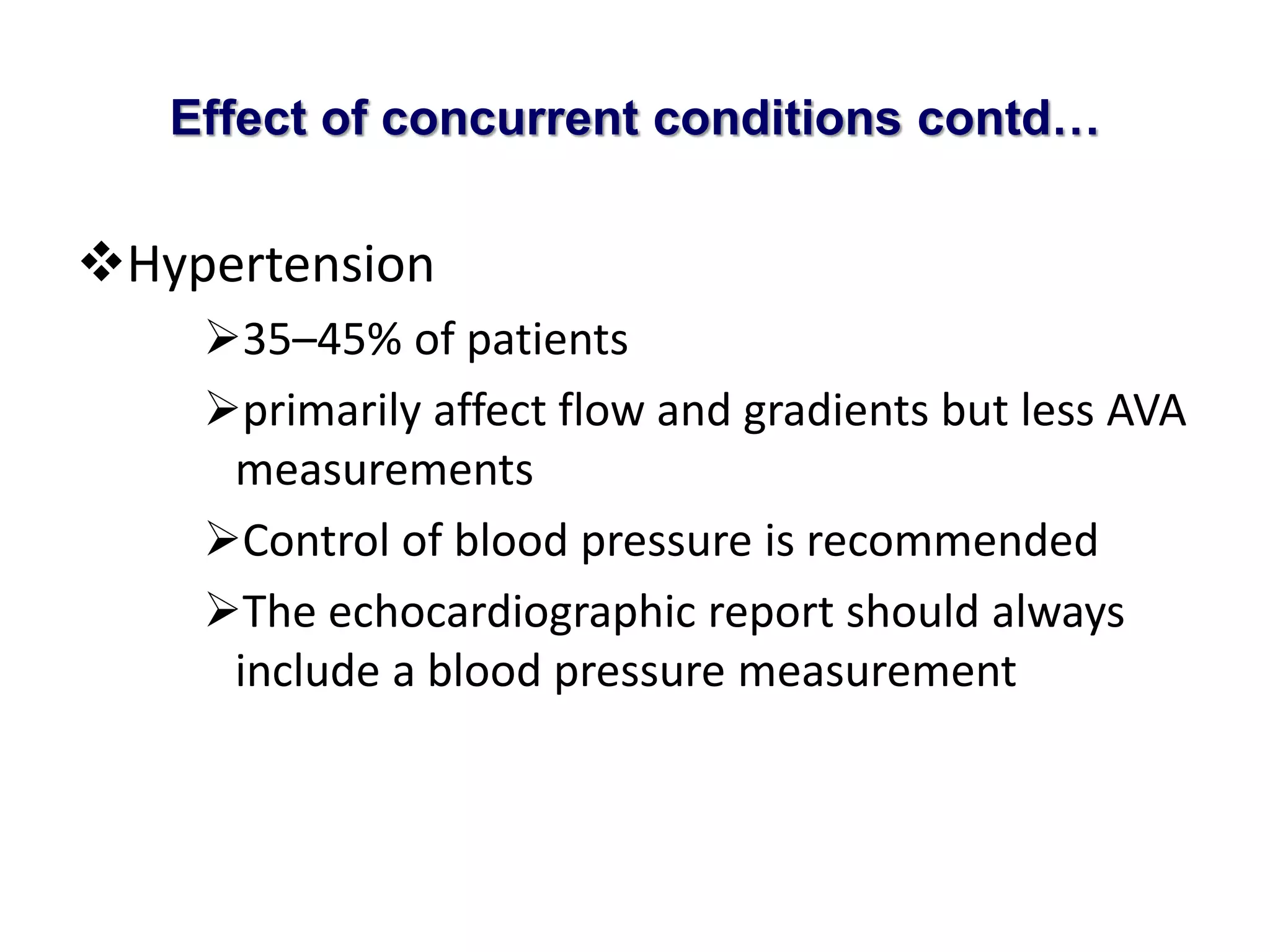

Hypertension
35–45% of patients
primarily affect flow and gradients but less AVA
measurements
Control of blood pressure is recommended
The echocardiographic report should always
include a blood pressure measurement
66. Effect of concurrent conditions contd…

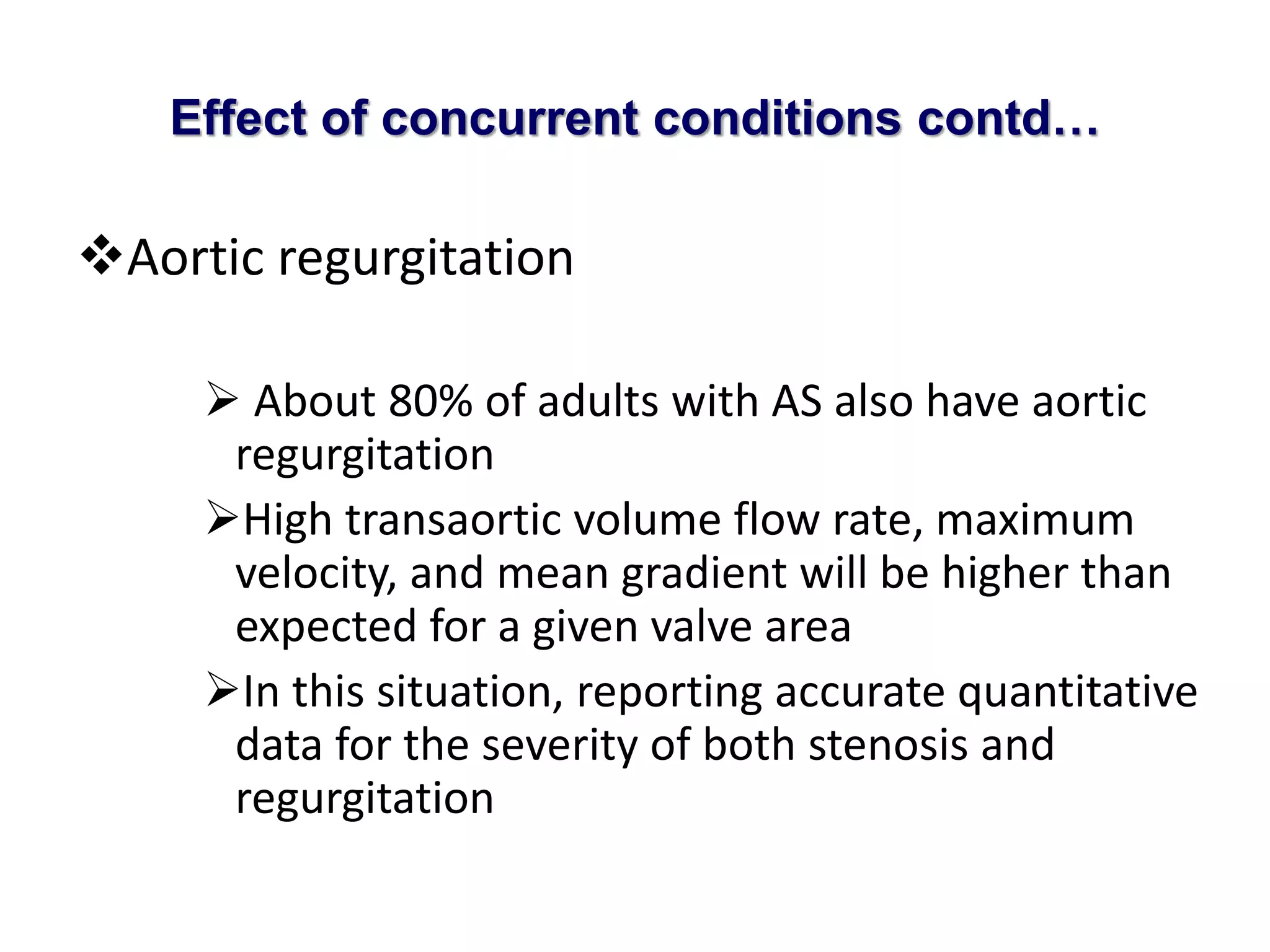

Aortic regurgitation
About 80% of adults with AS also have aortic
regurgitation
High transaortic volume flow rate, maximum
velocity, and mean gradient will be higher than
expected for a given valve area
In this situation, reporting accurate quantitative
data for the severity of both stenosis and
regurgitation
67. Effect of concurrent conditions contd…

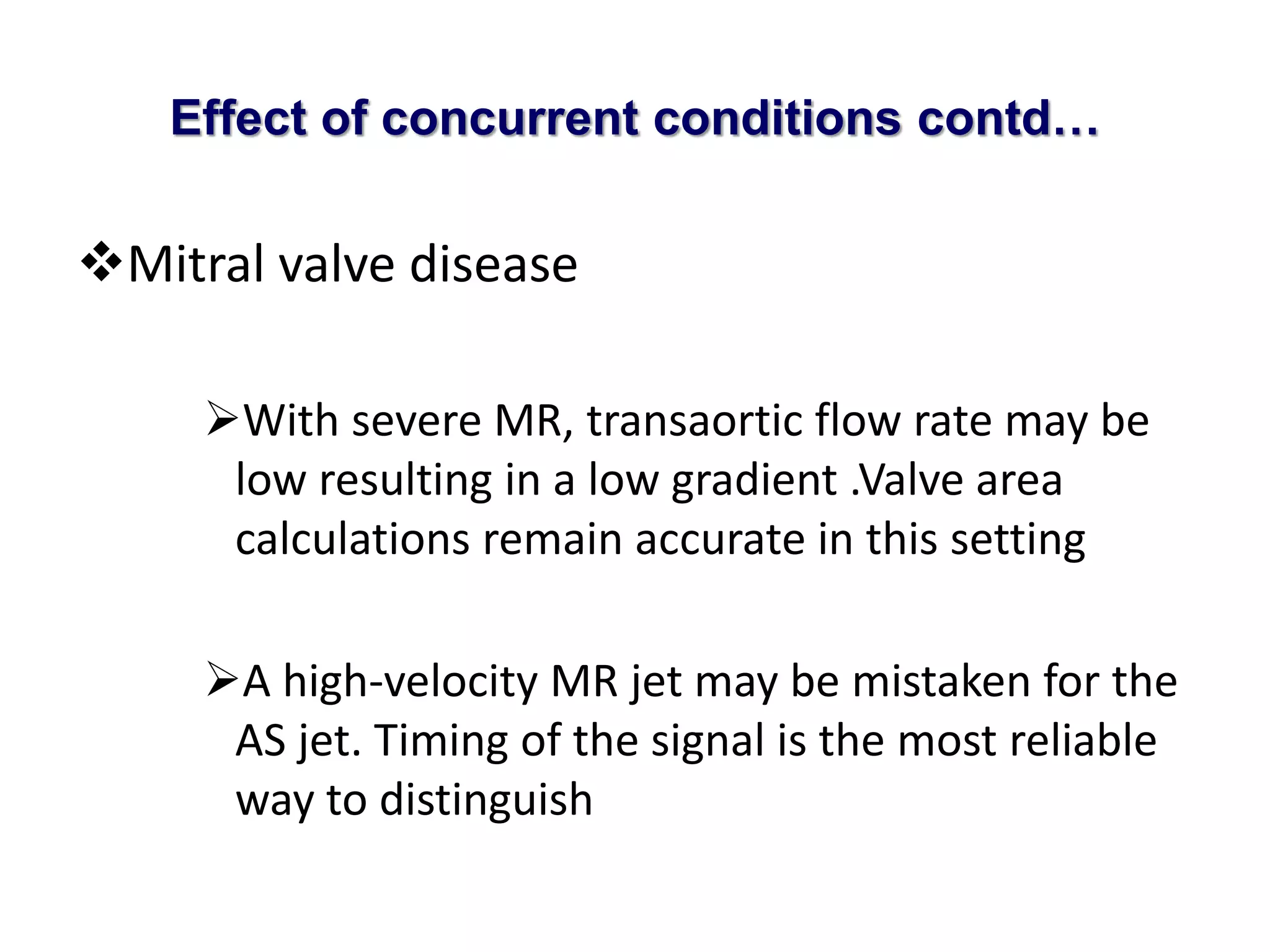

Mitral valve disease
With severe MR, transaortic flow rate may be
low resulting in a low gradient .Valve area
calculations remain accurate in this setting
A high-velocity MR jet may be mistaken for the
AS jet. Timing of the signal is the most reliable
way to distinguish
68. Effect of concurrent conditions contd…
High cardiac output
Relatively high gradients in the presence of
mild or moderate AS
The shape of the CWD spectrum with a very
early peak may help to quantify the severity
correctly

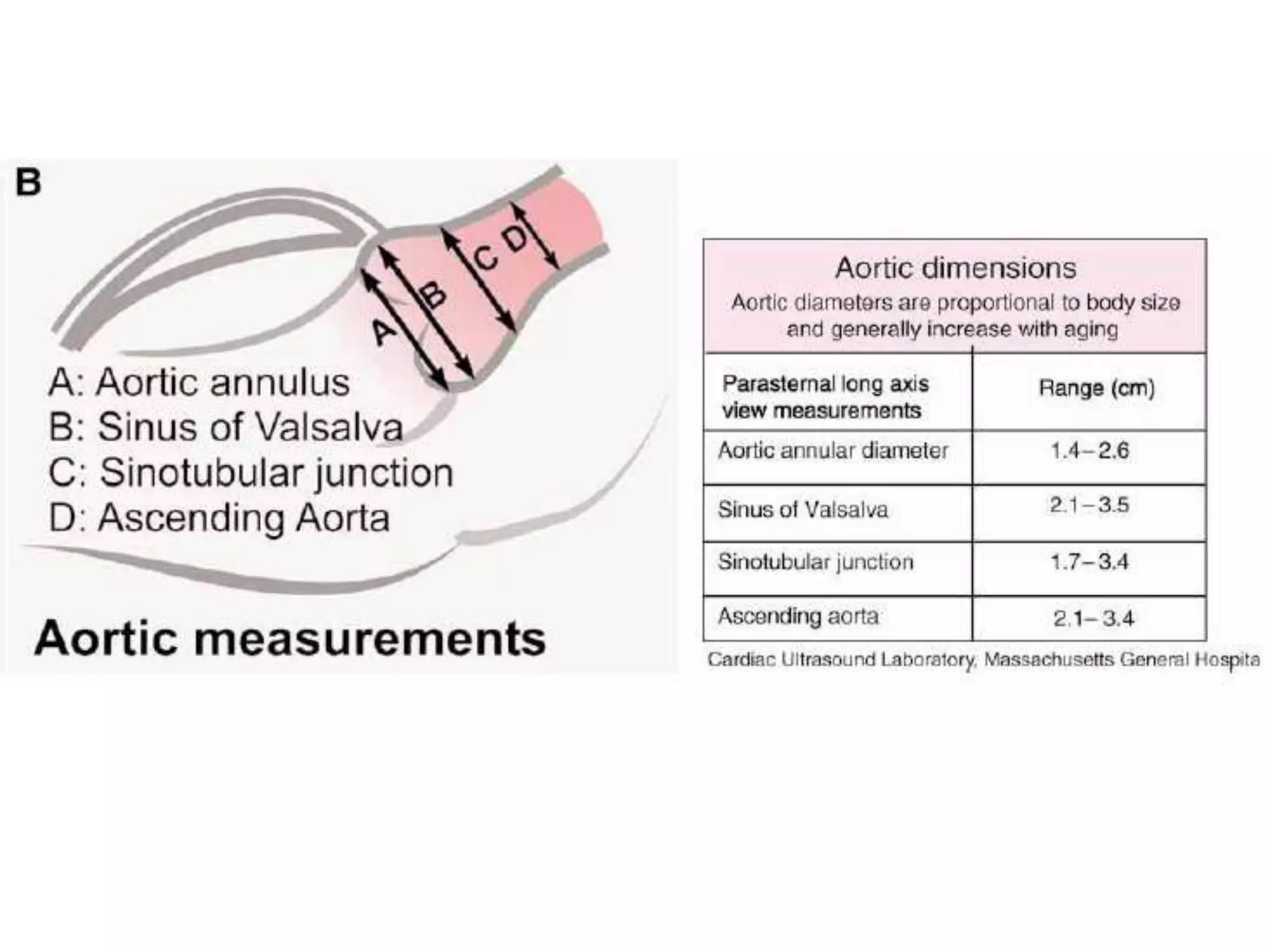

Ascending aorta
Aortic root dilation
Coarctation of aorta

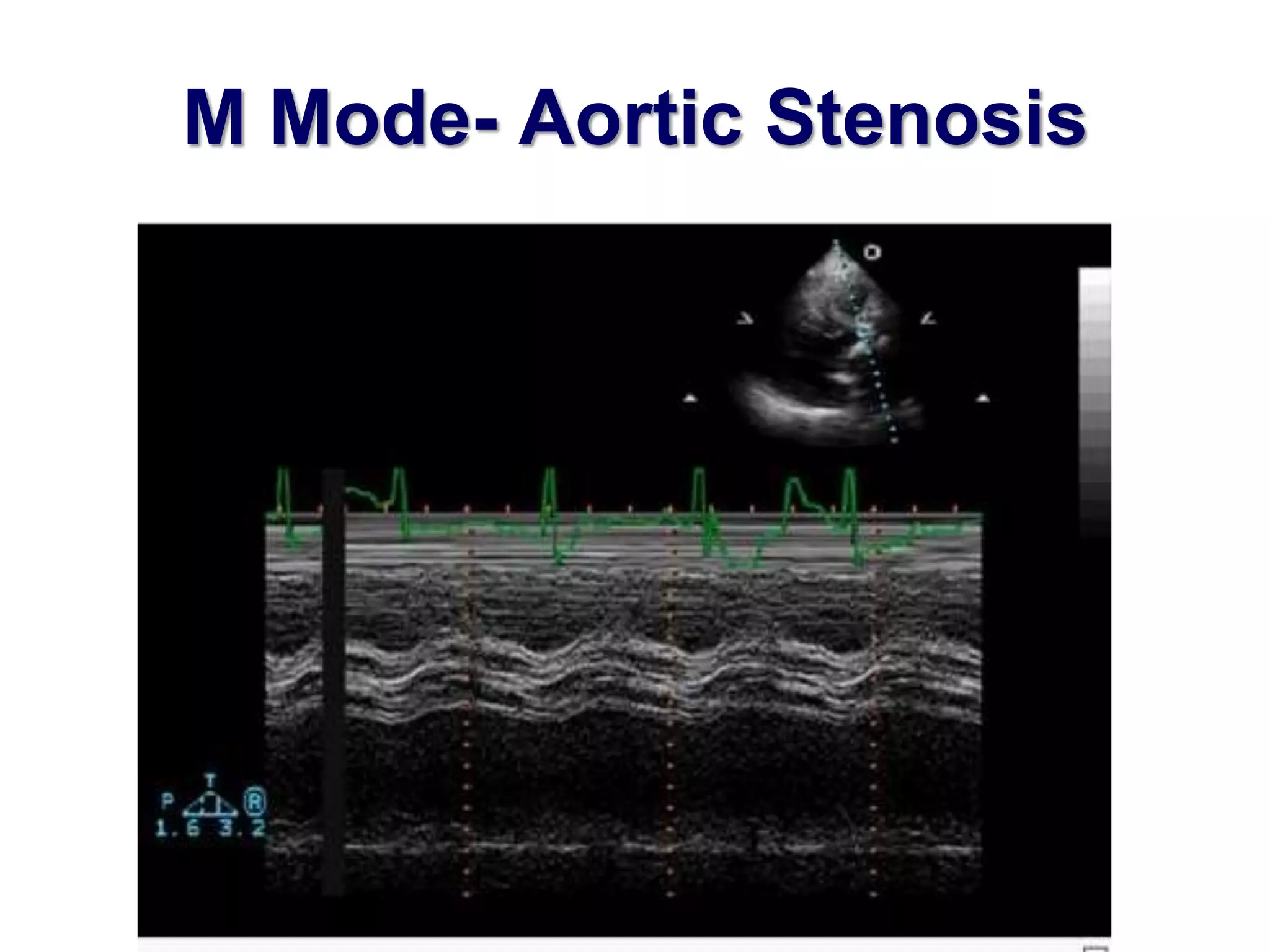

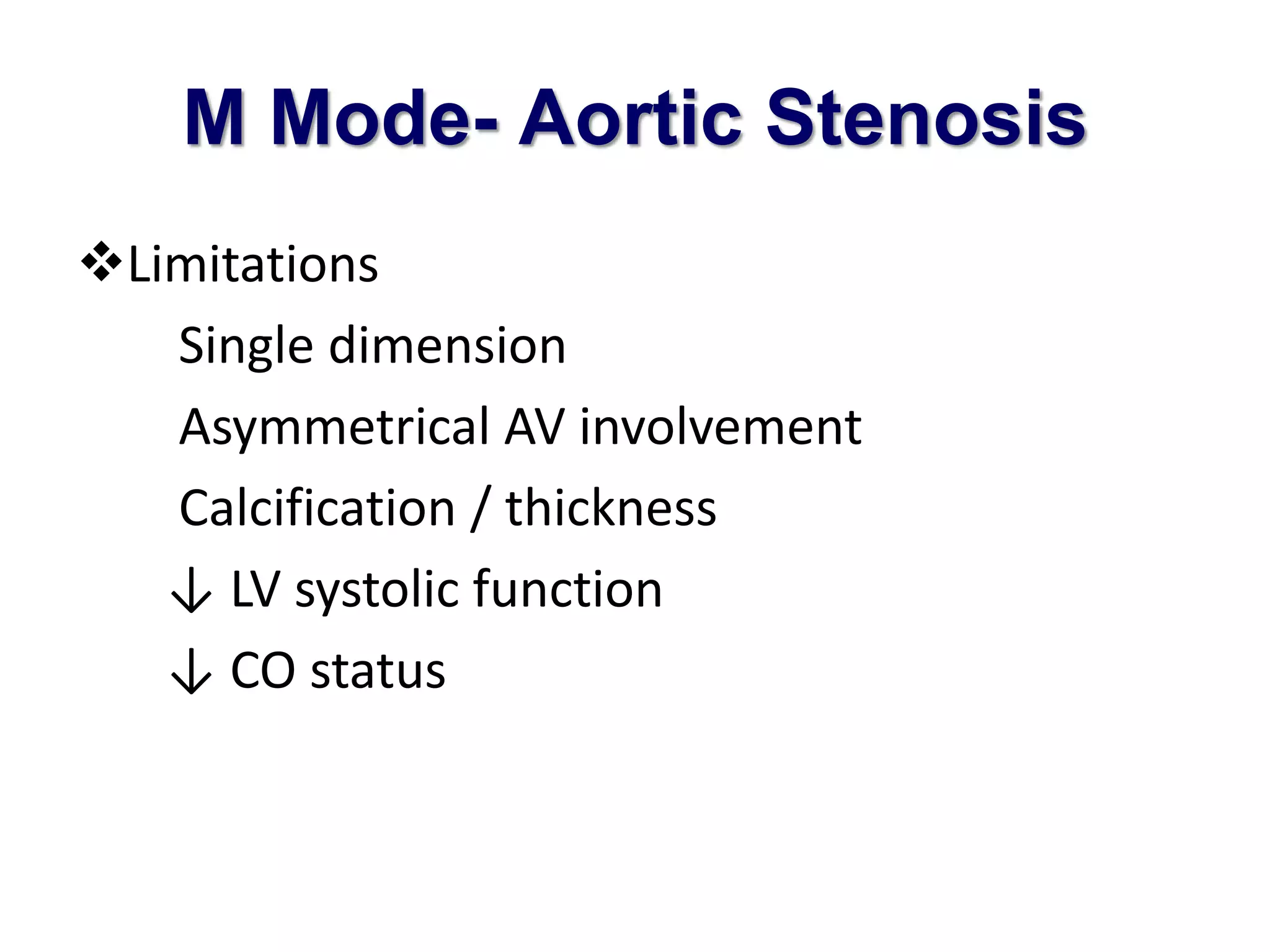

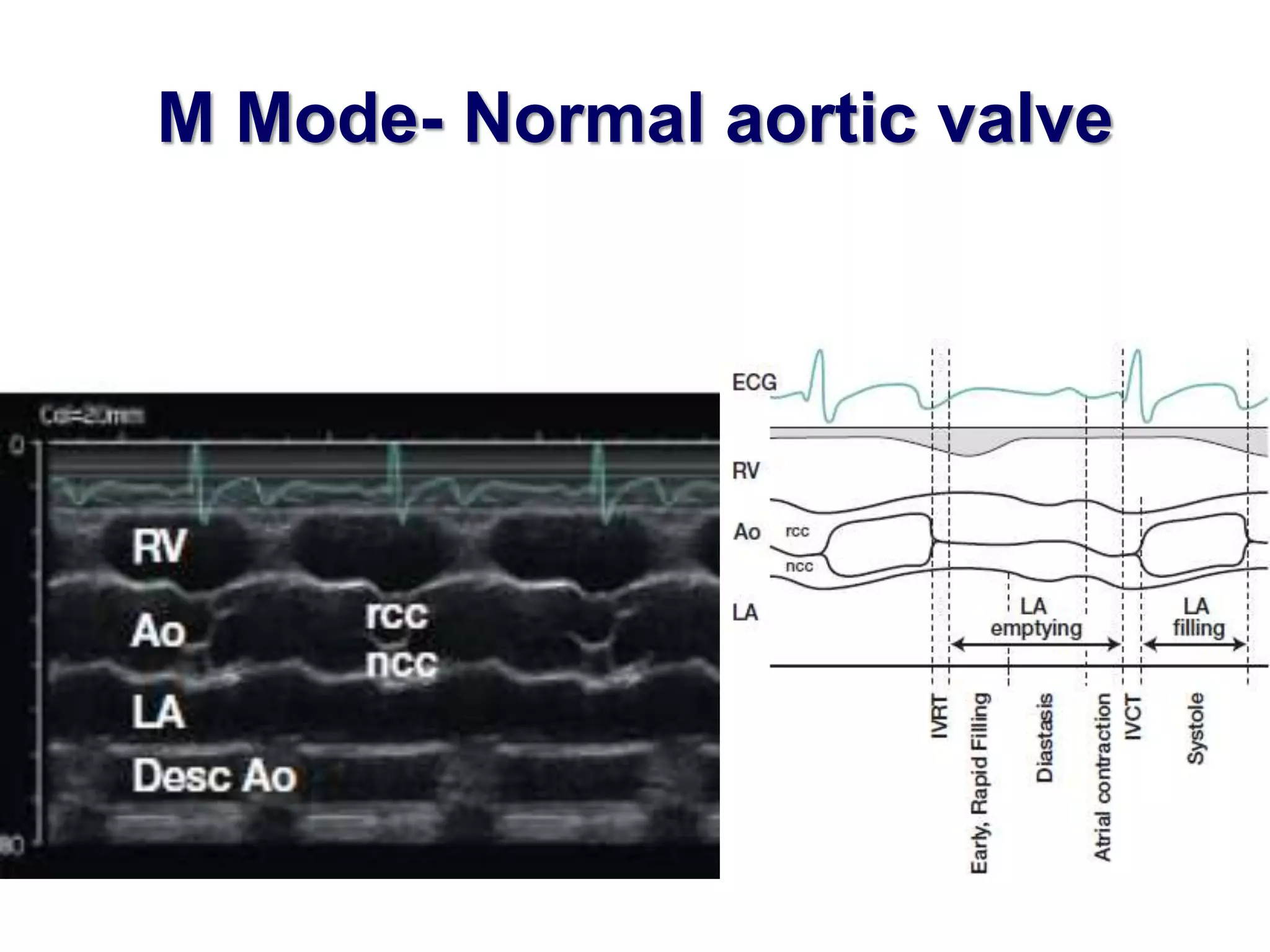

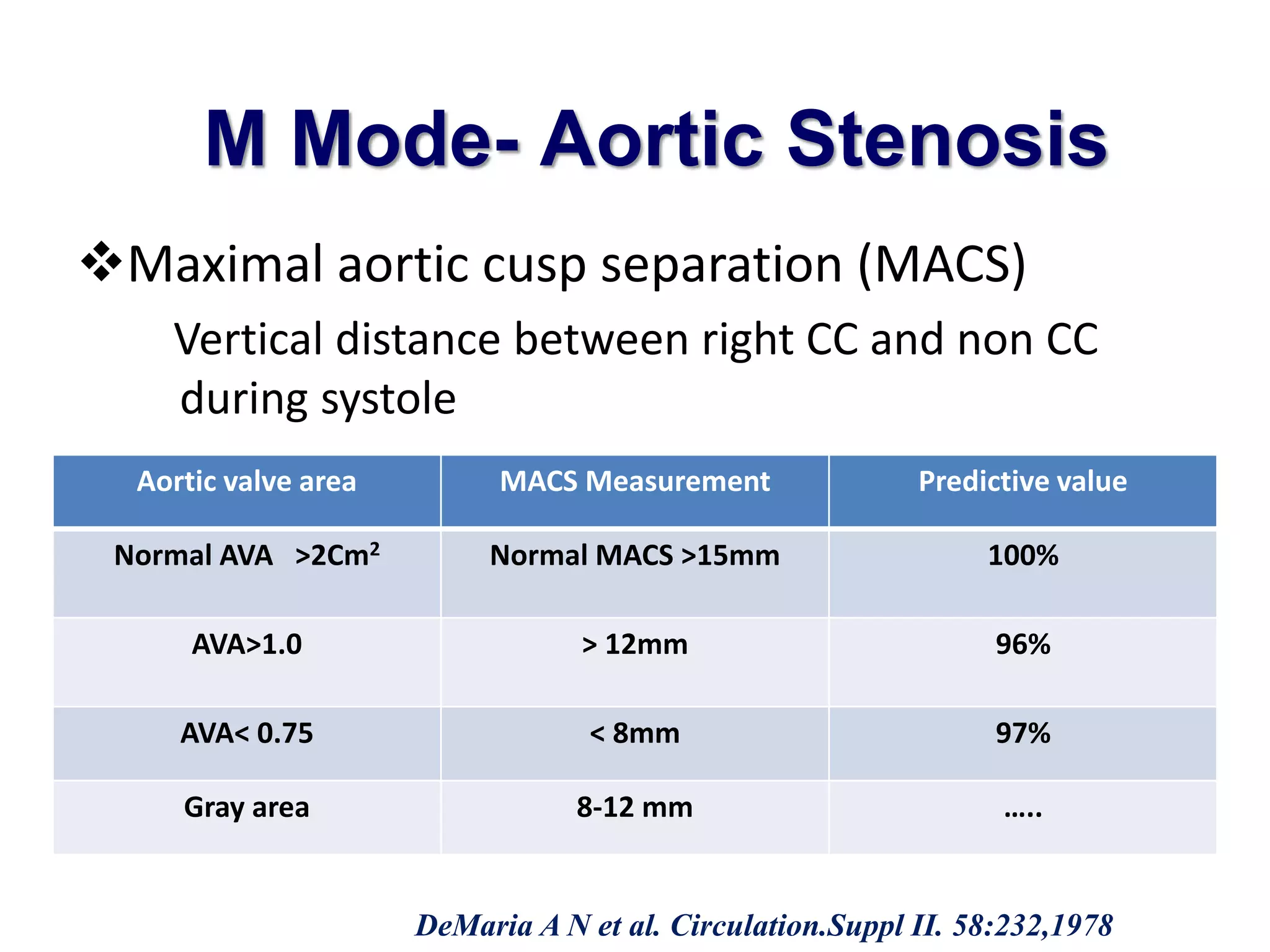

69. M Mode- Aortic Stenosis
Maximal aortic cusp separation (MACS)
Vertical distance between right CC and non CC
during systole
Aortic valve area MACS Measurement Predictive value
Normal AVA >2Cm2 Normal MACS >15mm 100%
AVA>1.0 > 12mm 96%
AVA< 0.75 < 8mm 97%
Gray area 8-12 mm …..
DeMaria A N et al. Circulation.Suppl II. 58:232,1978

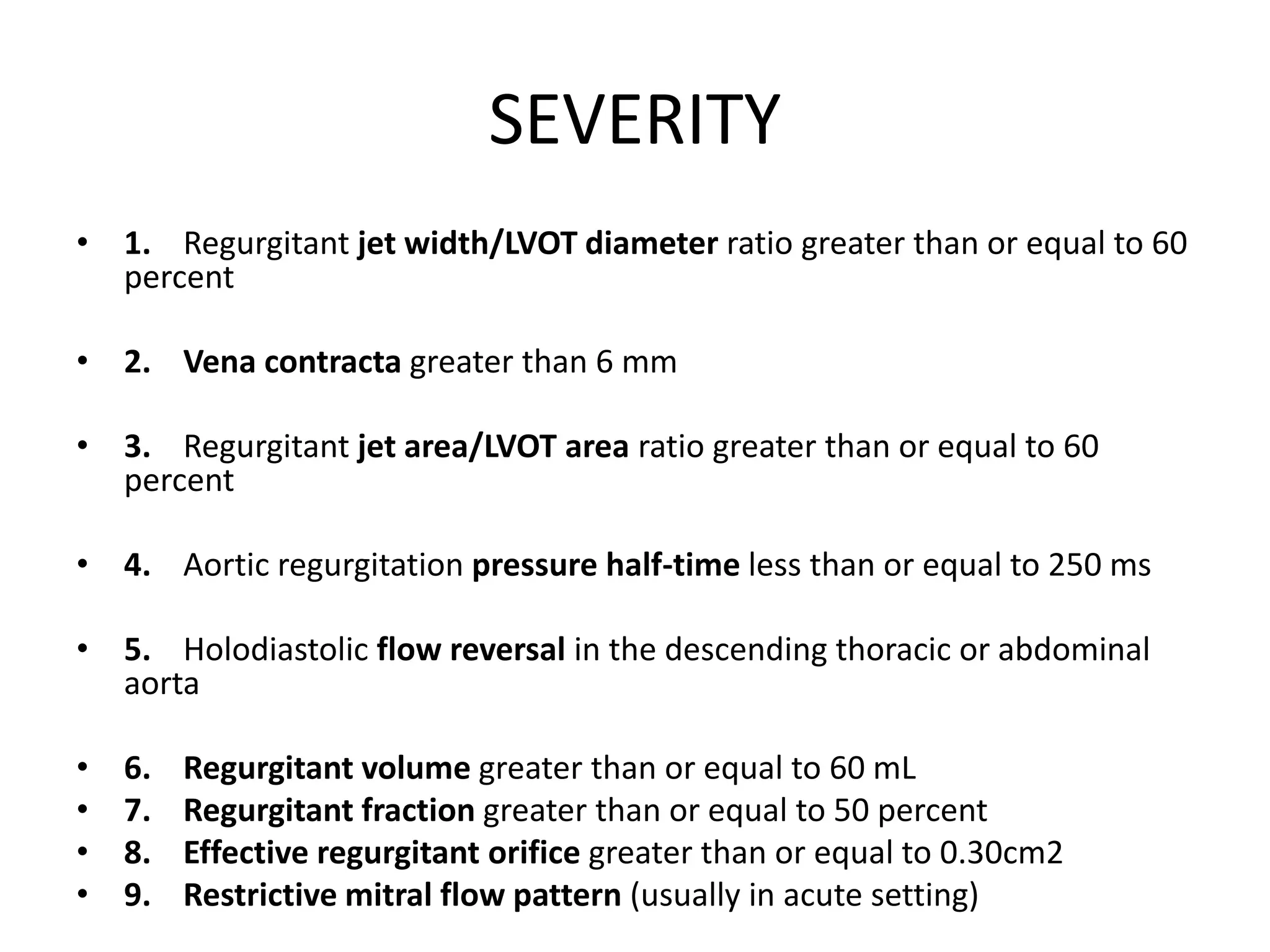

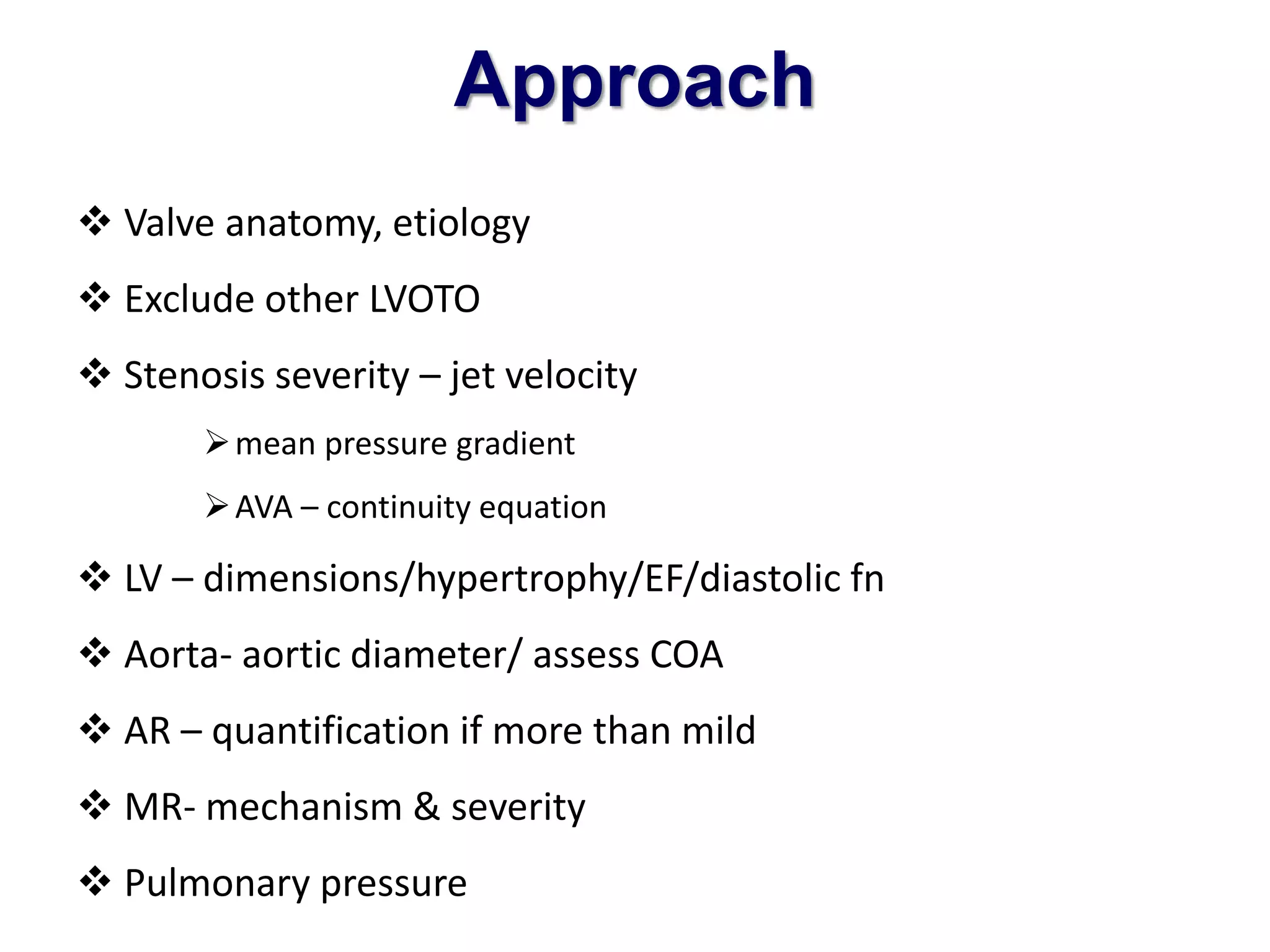

74. SEVERITY

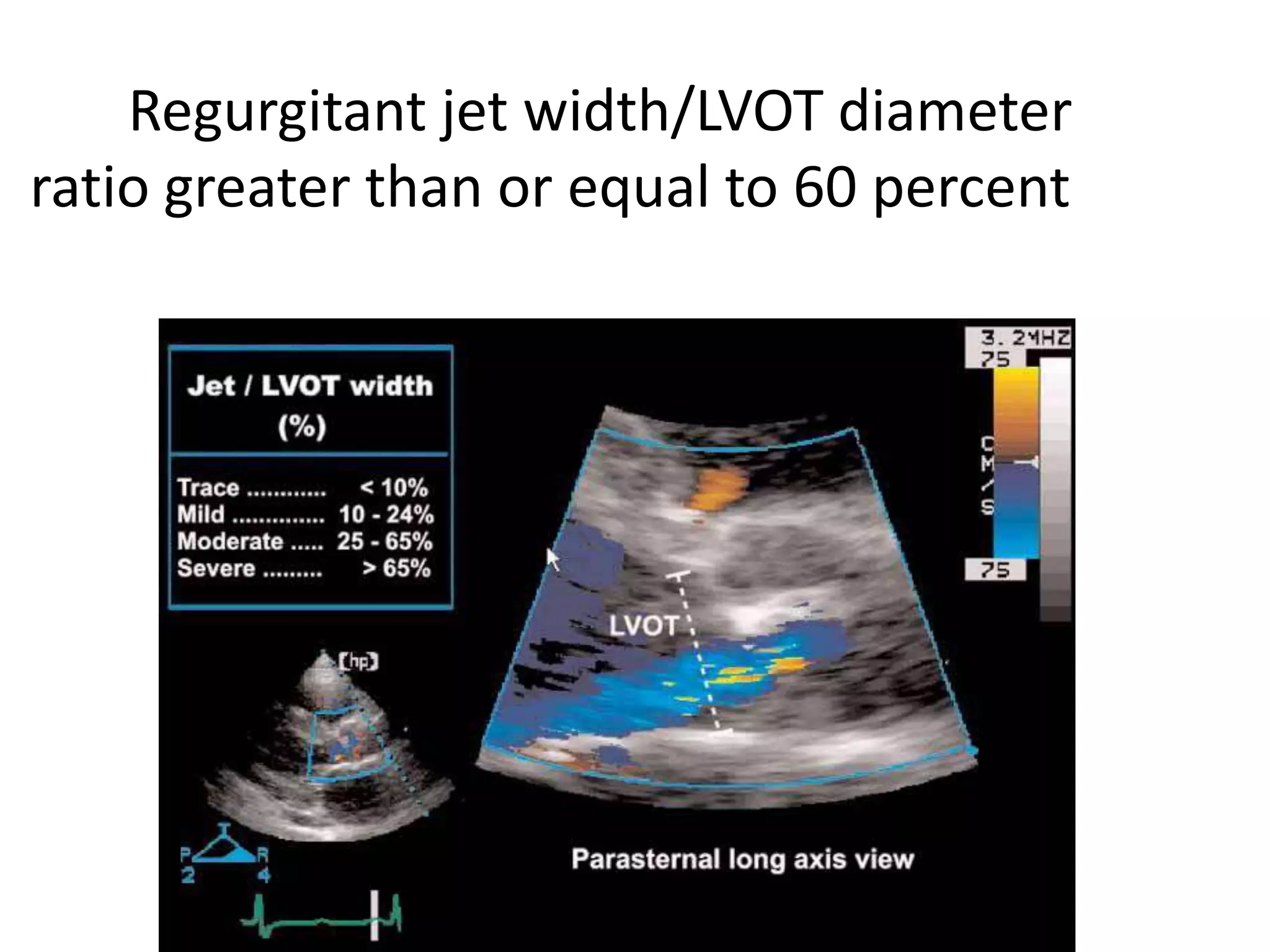

• 1. Regurgitant jet width/LVOT diameter ratio greater than or equal to 60
percent

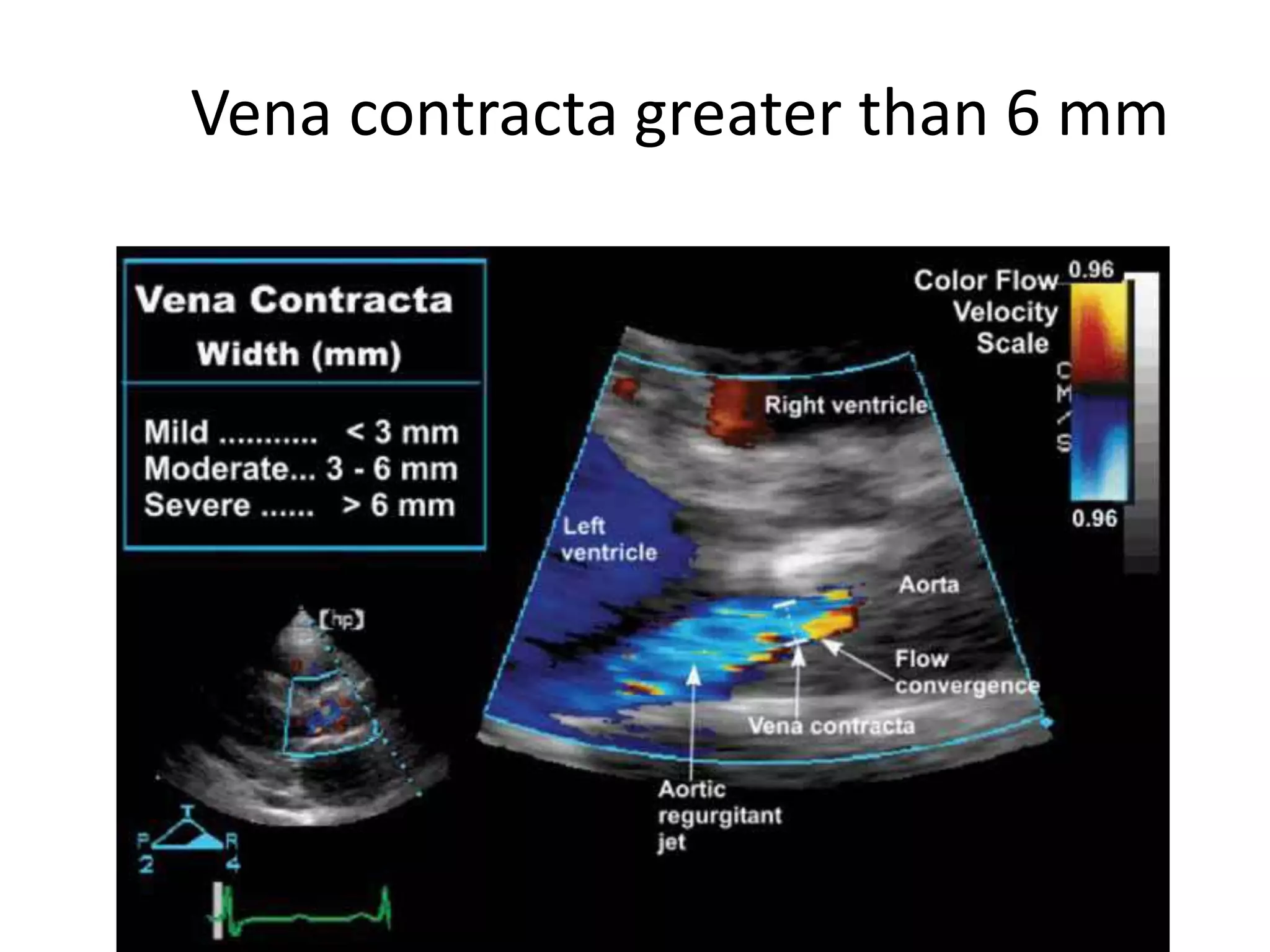

• 2. Vena contracta greater than 6 mm
• 3. Regurgitant jet area/LVOT area ratio greater than or equal to 60
percent
• 4. Aortic regurgitation pressure half-time less than or equal to 250 ms
• 5. Holodiastolic flow reversal in the descending thoracic or abdominal
aorta
• 6. Regurgitant volume greater than or equal to 60 mL
• 7. Regurgitant fraction greater than or equal to 50 percent
• 8. Effective regurgitant orifice greater than or equal to 0.30cm2
• 9. Restrictive mitral flow pattern (usually in acute setting)

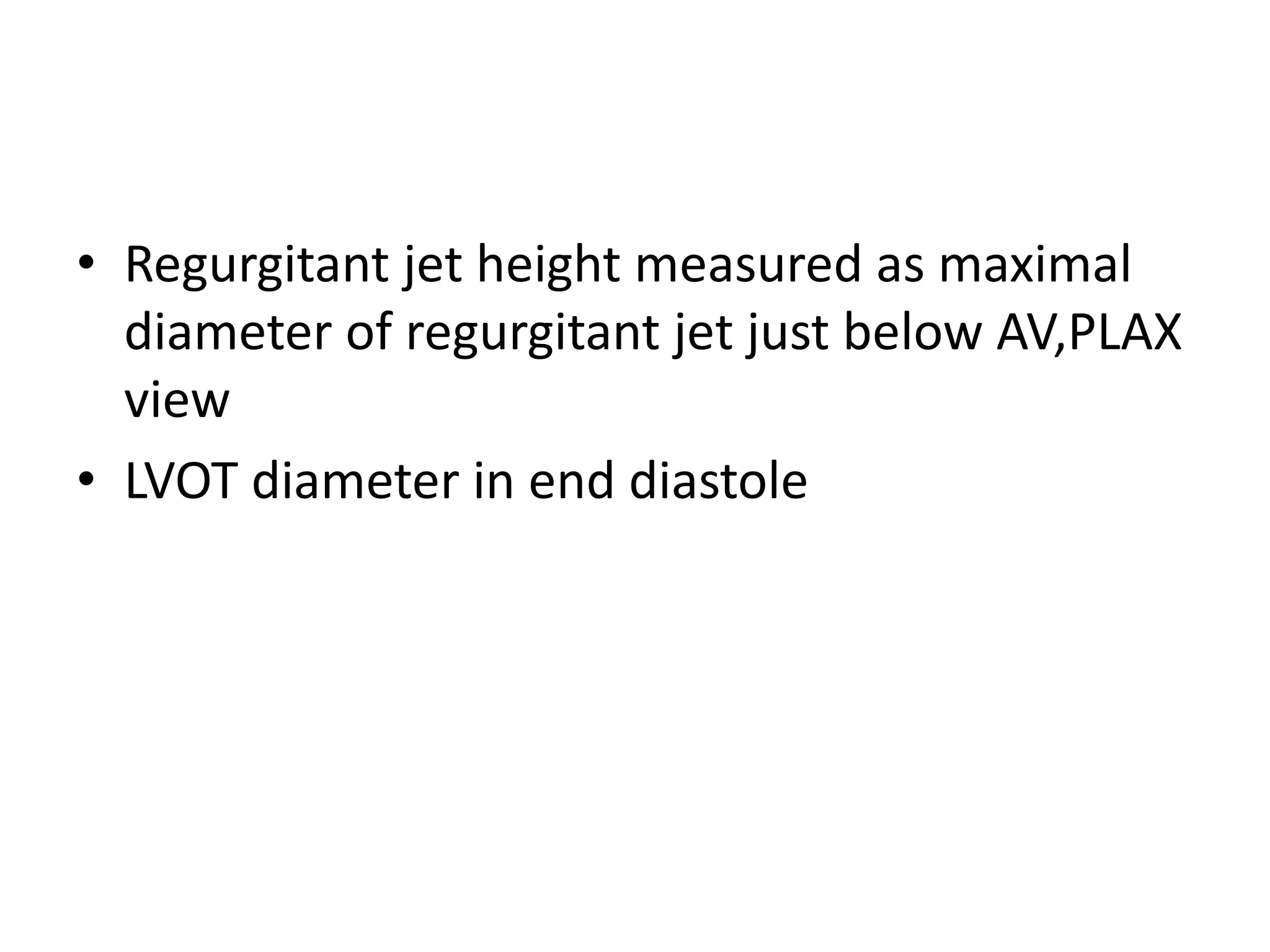

75. • Regurgitant jet height measured as maximal
diameter of regurgitant jet just below AV,PLAX
view
• LVOT diameter in end diastole

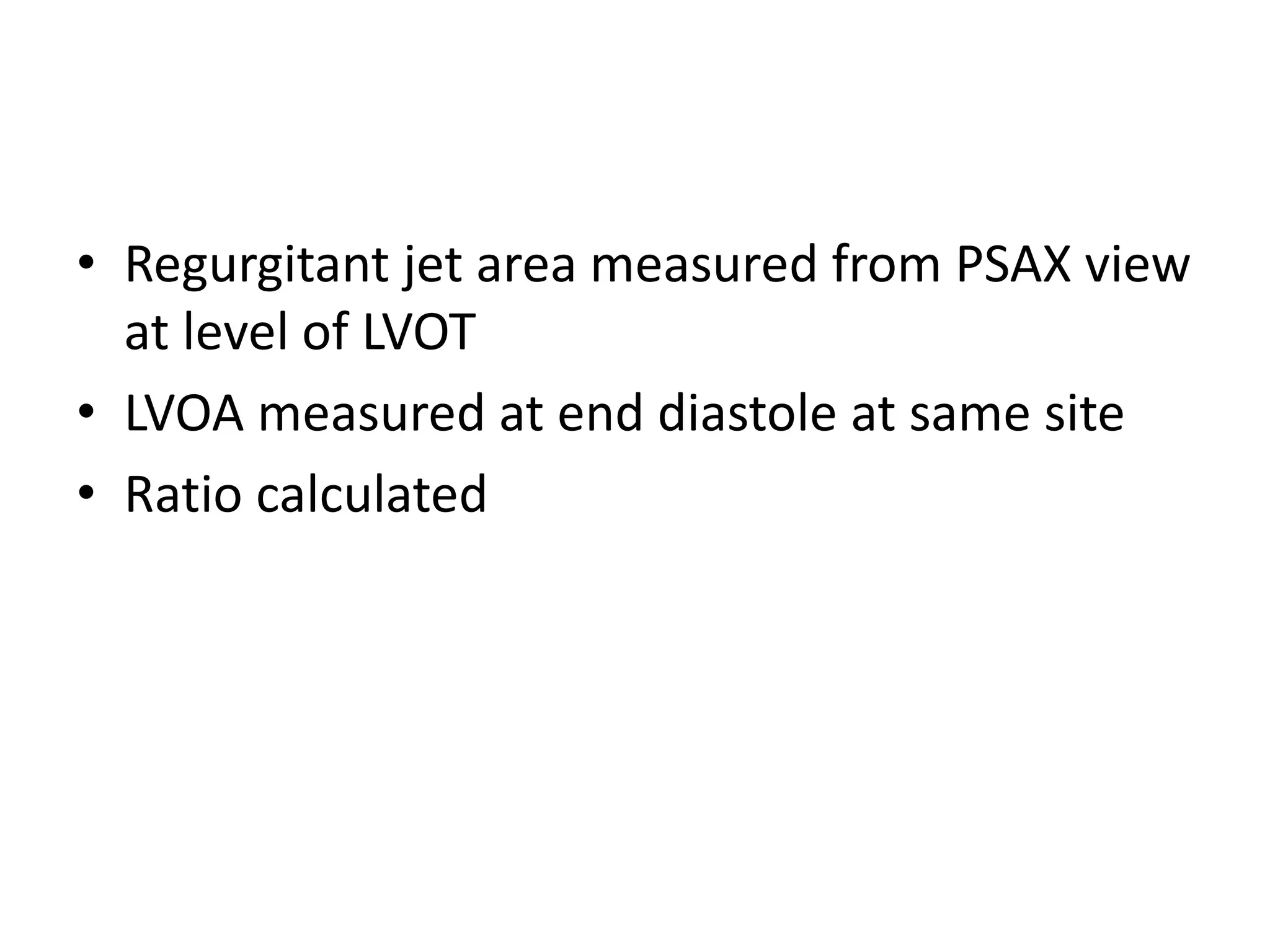

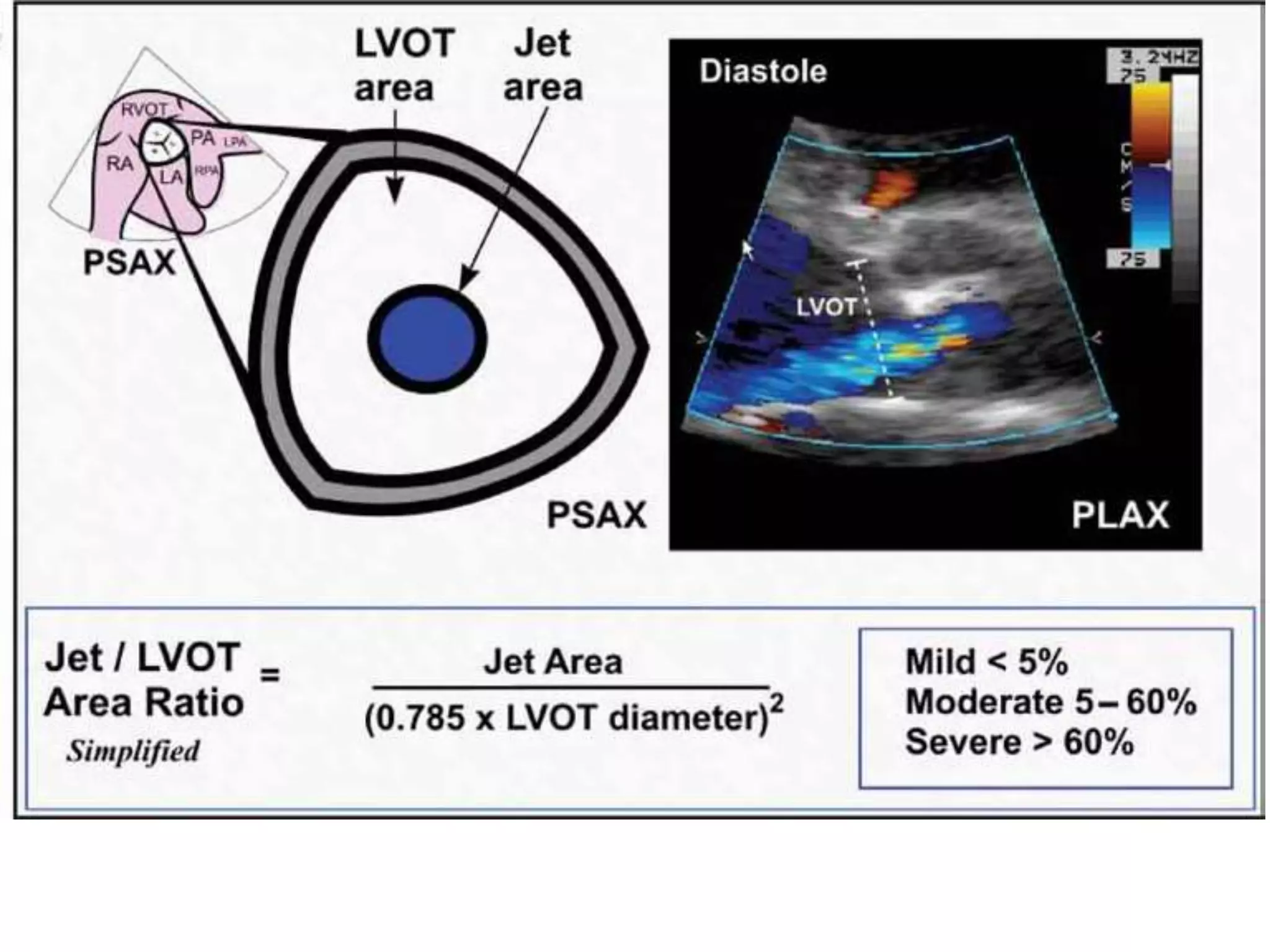

78. • Regurgitant jet area measured from PSAX view
at level of LVOT
• LVOA measured at end diastole at same site
• Ratio calculated

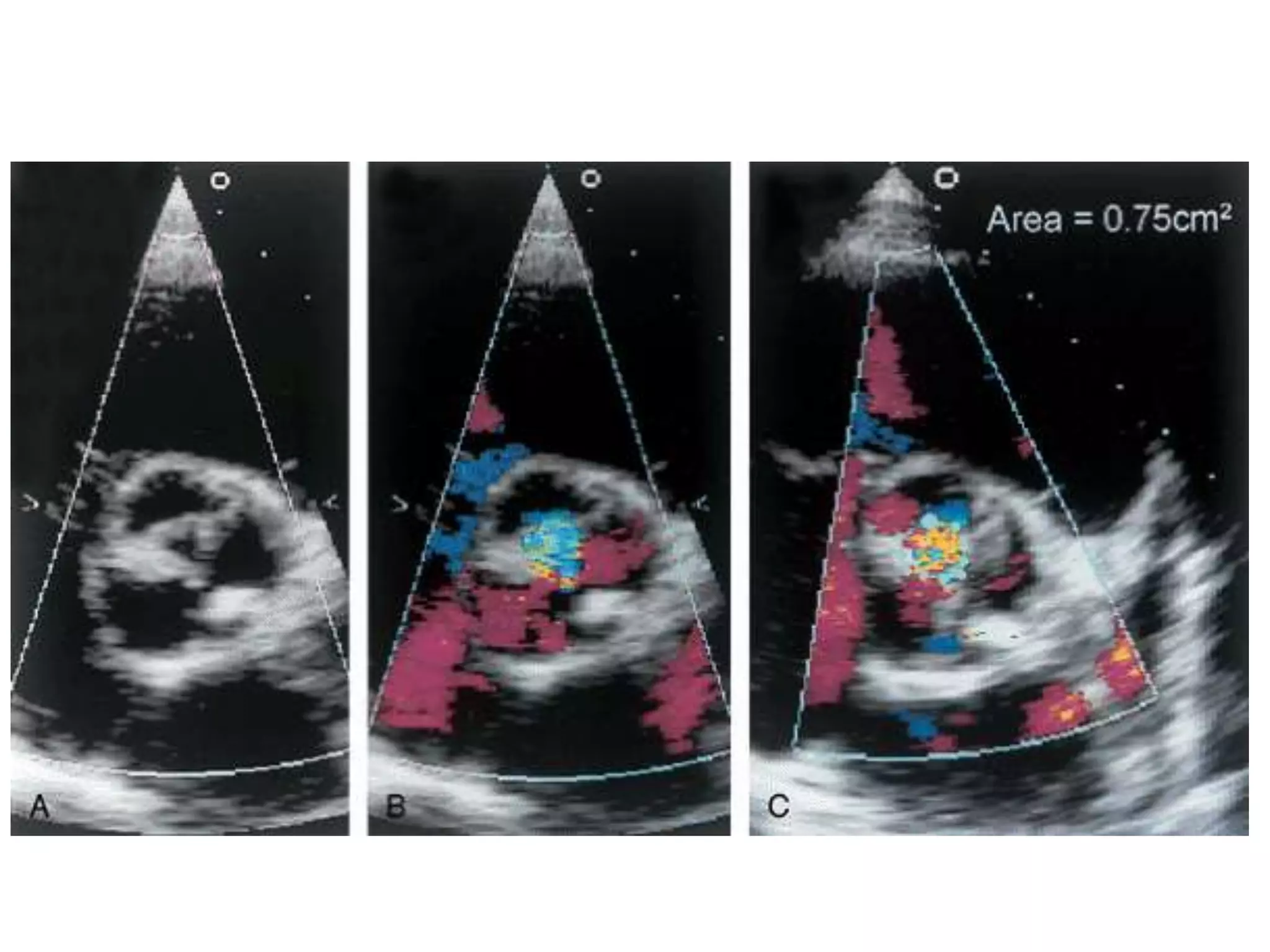

79.
80.

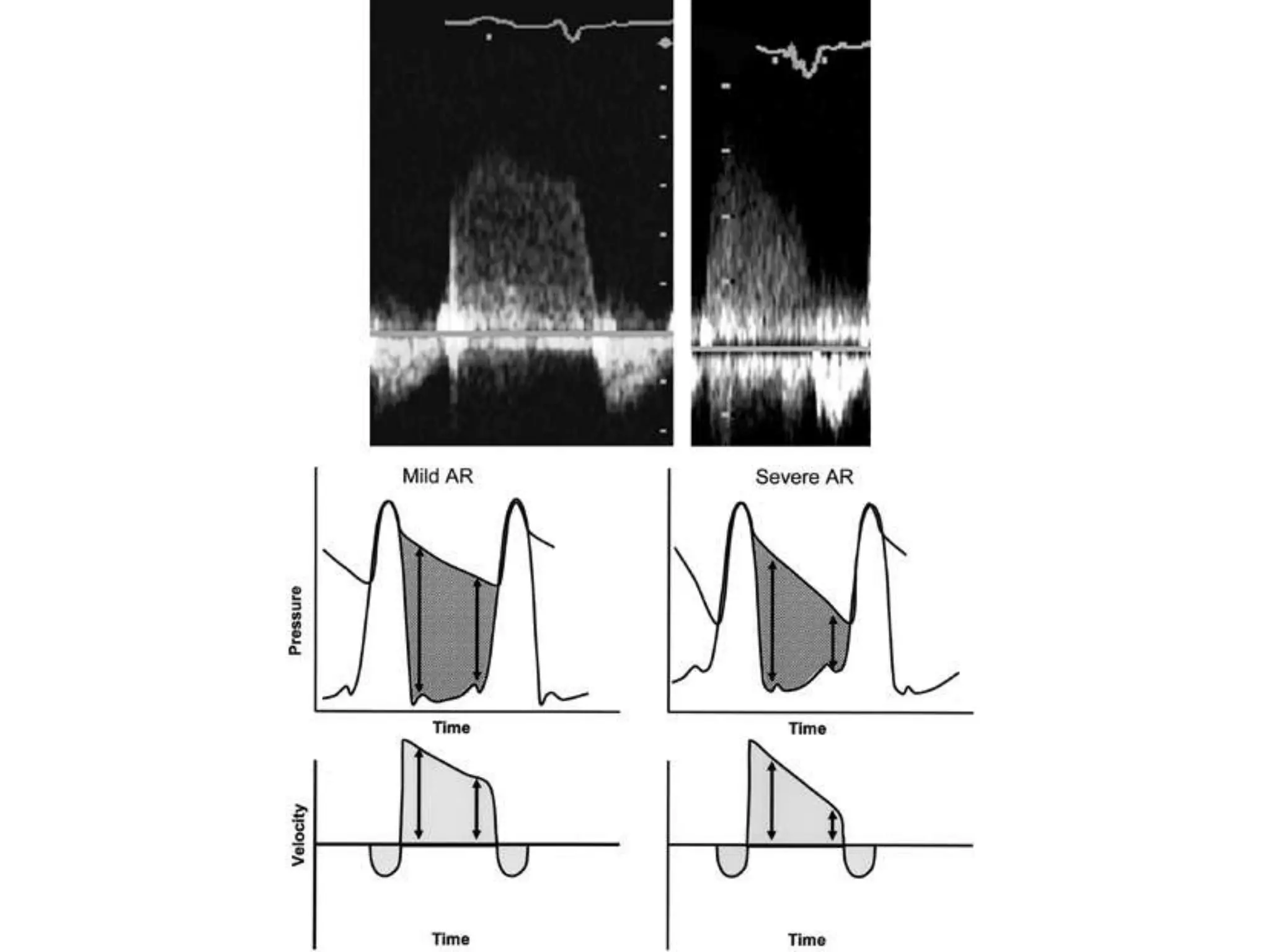

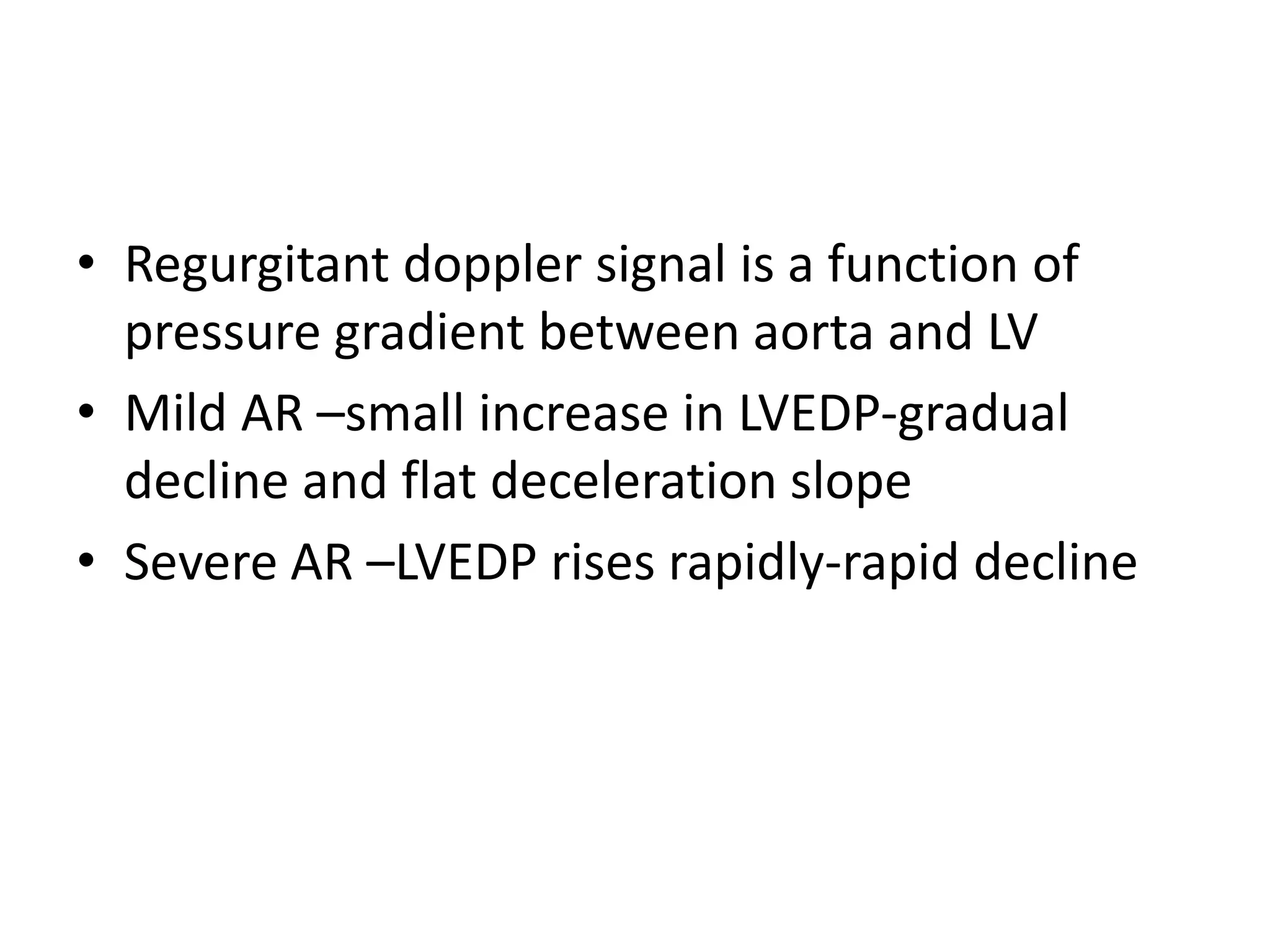

81. • Regurgitant doppler signal is a function of
pressure gradient between aorta and LV
• Mild AR –small increase in LVEDP-gradual
decline and flat deceleration slope
• Severe AR –LVEDP rises rapidly-rapid decline
82.
83.

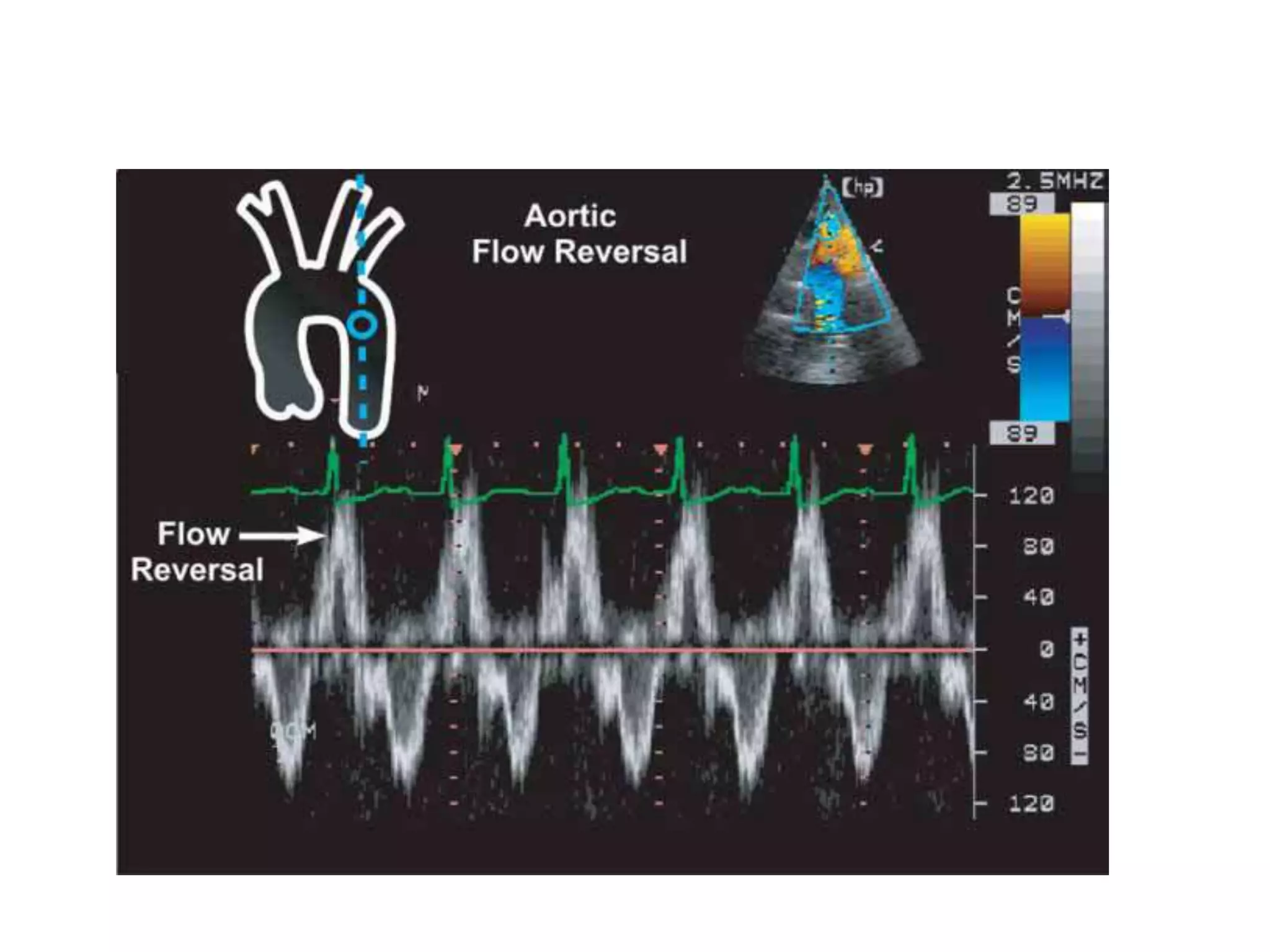

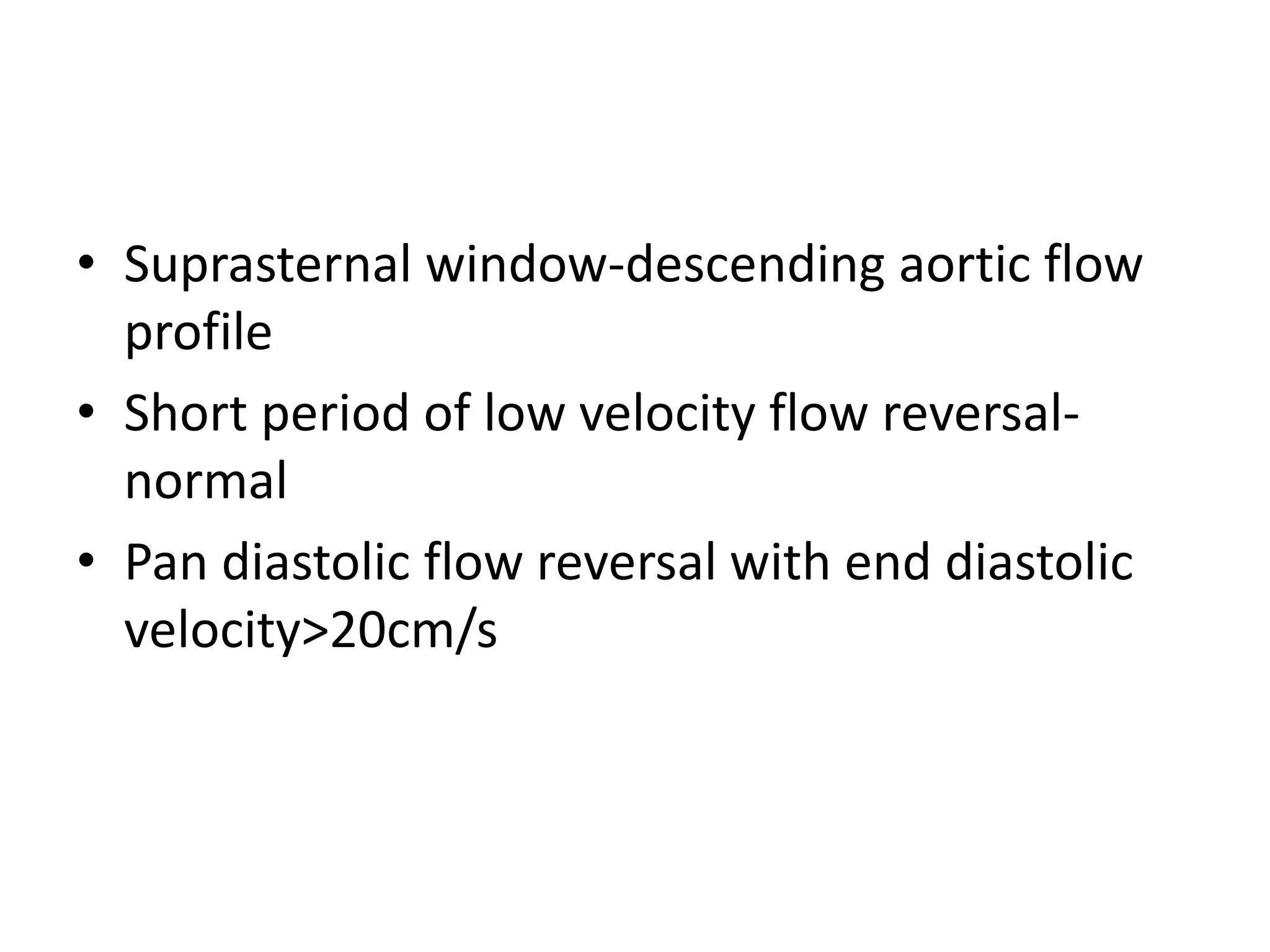

84. • Suprasternal window-descending aortic flow
profile

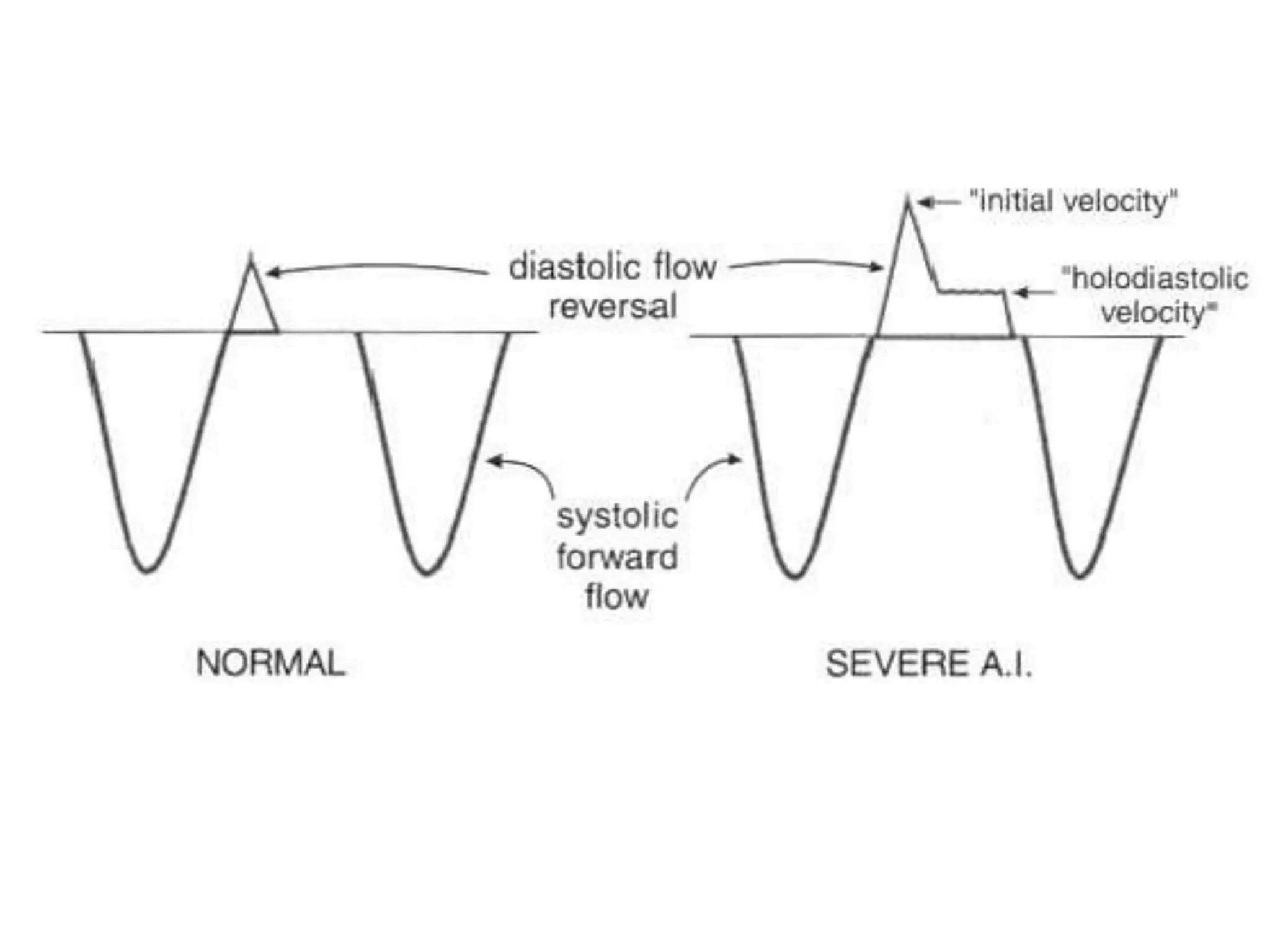

• Short period of low velocity flow reversal-normal
• Pan diastolic flow reversal with end diastolic
velocity>20cm/s
85.
86.

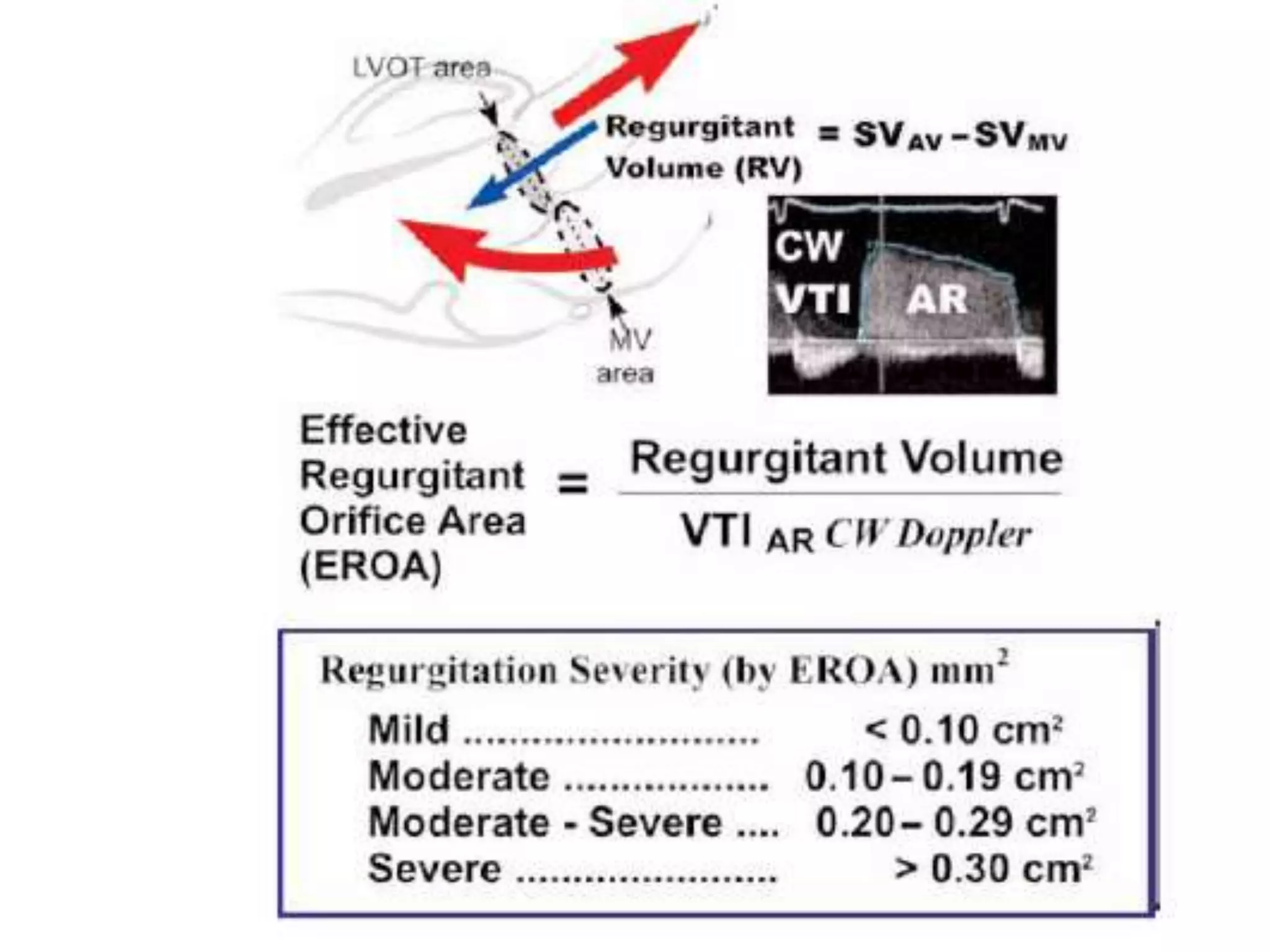

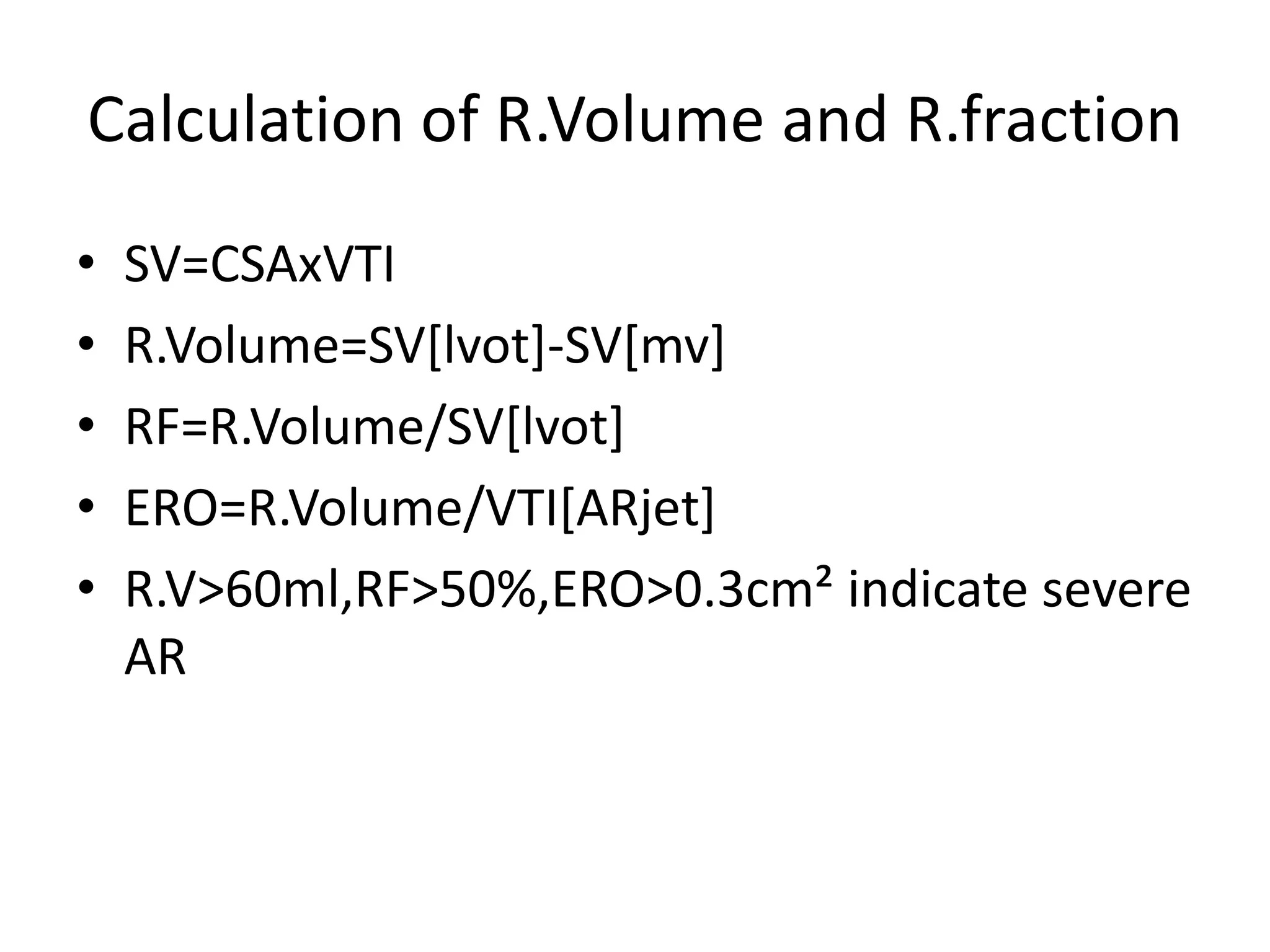

87. Calculation of R.Volume and R.fraction
• SV=CSAxVTI
• R.Volume=SV[lvot]-SV[mv]
• RF=R.Volume/SV[lvot]
• ERO=R.Volume/VTI[ARjet]
• R.V>60ml,RF>50%,ERO>0.3cm² indicate severe
AR
88.

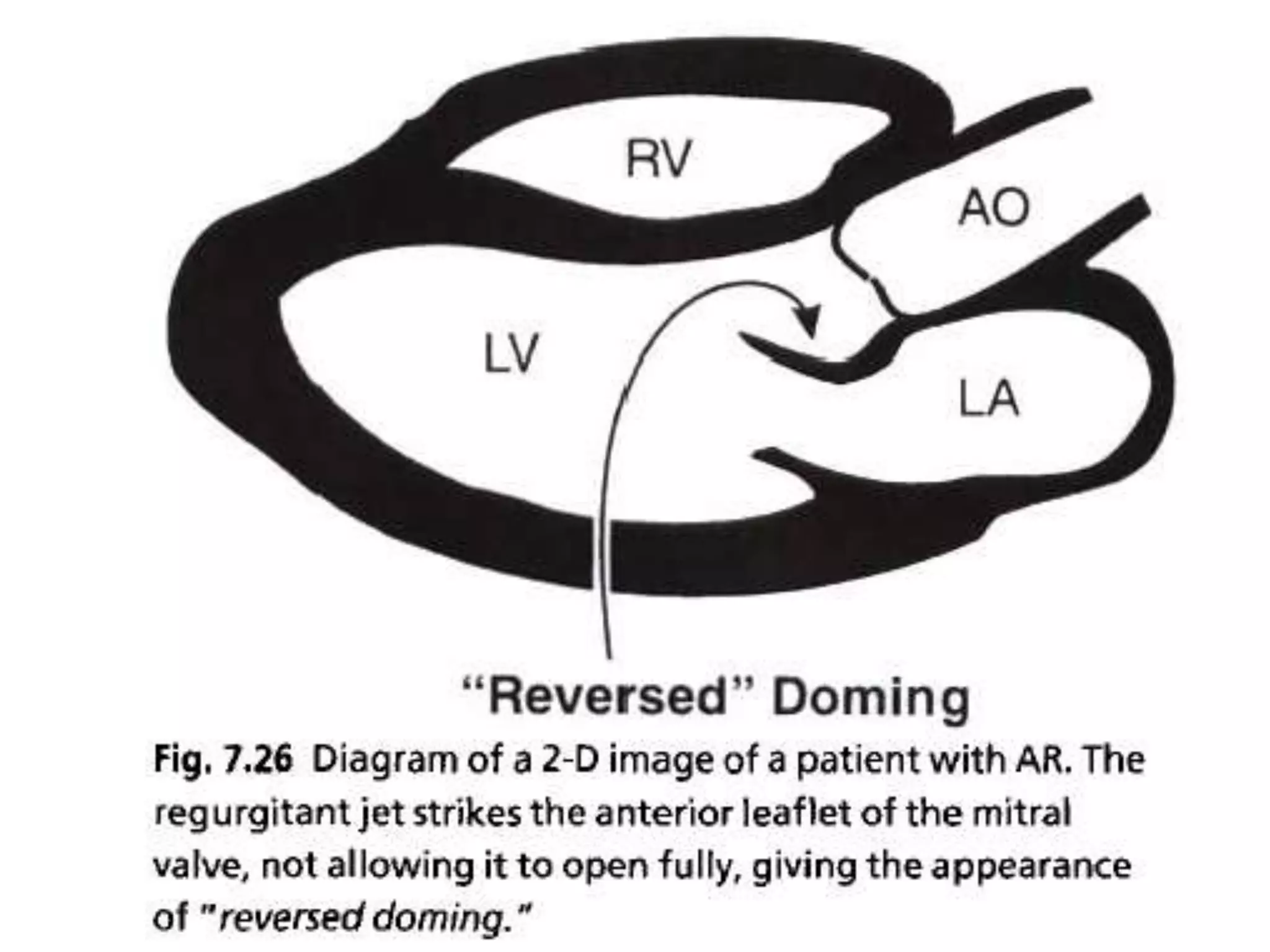

89.
90.

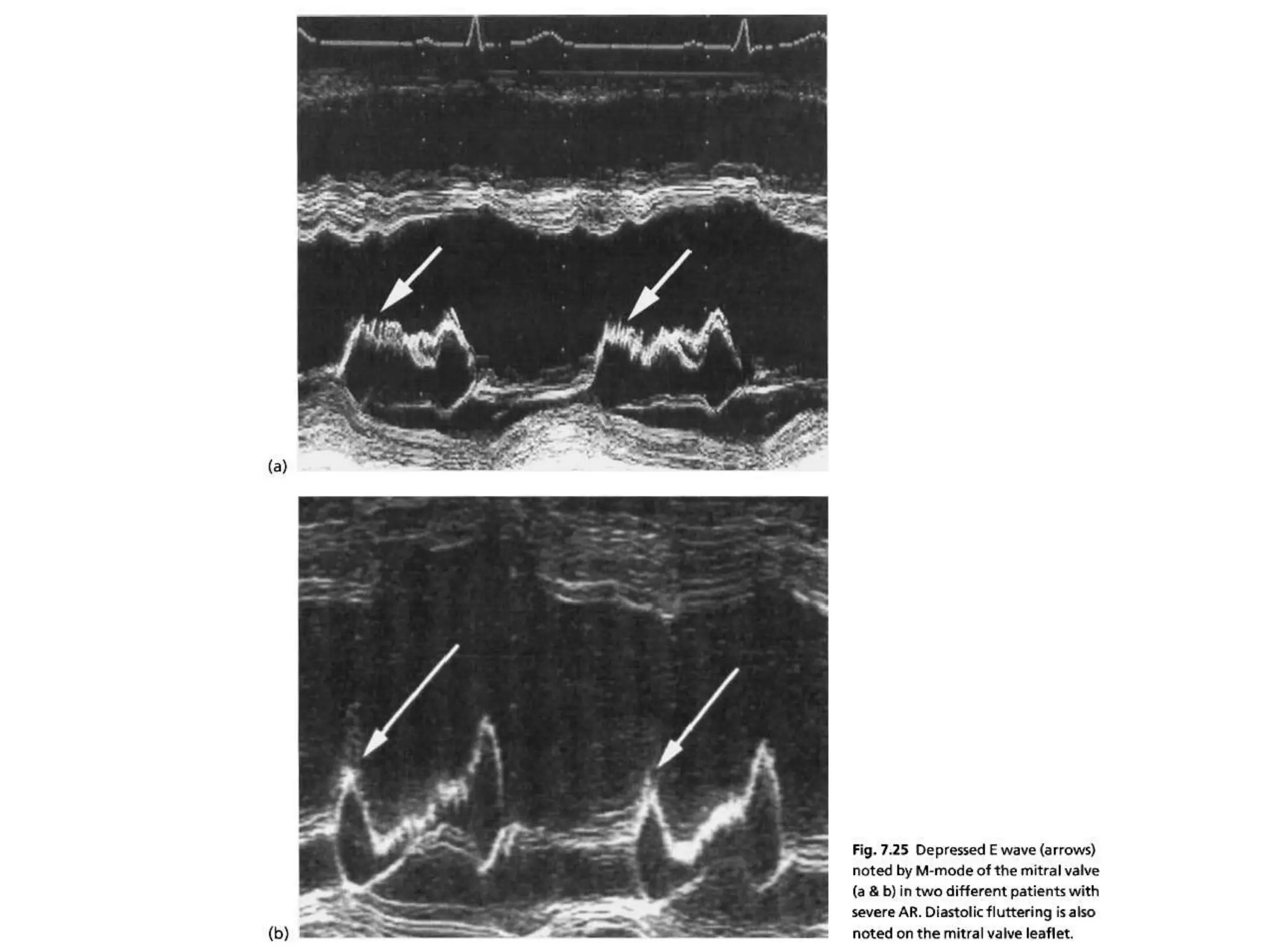

91.

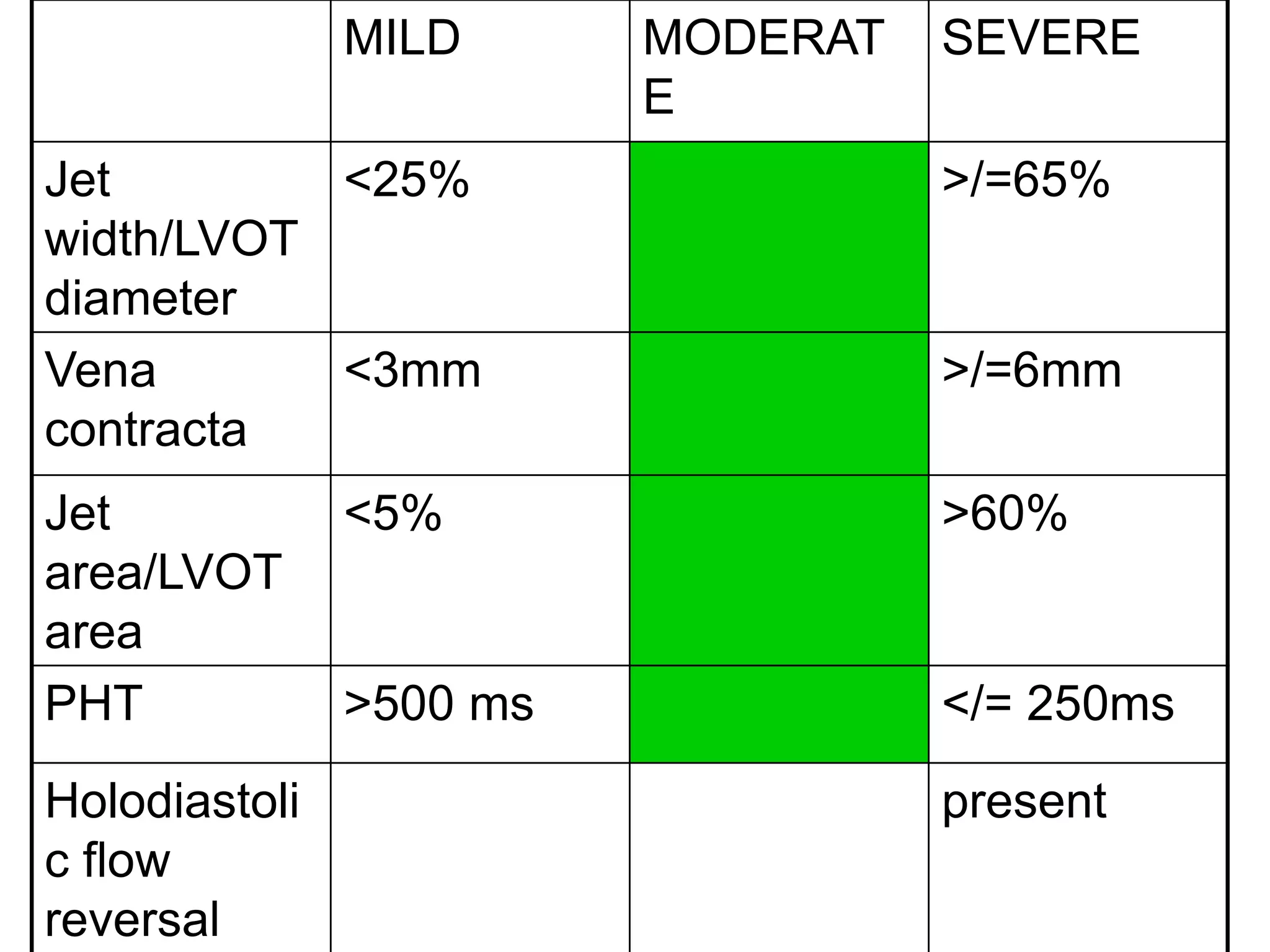

92. MILD MODERAT
E
SEVERE
Jet
width/LVOT
diameter
<25% >/=65%
Vena
contracta
<3mm >/=6mm
Jet
area/LVOT
area
<5% >60%
PHT >500 ms </= 250ms
Holodiastoli
c flow
reversal
present

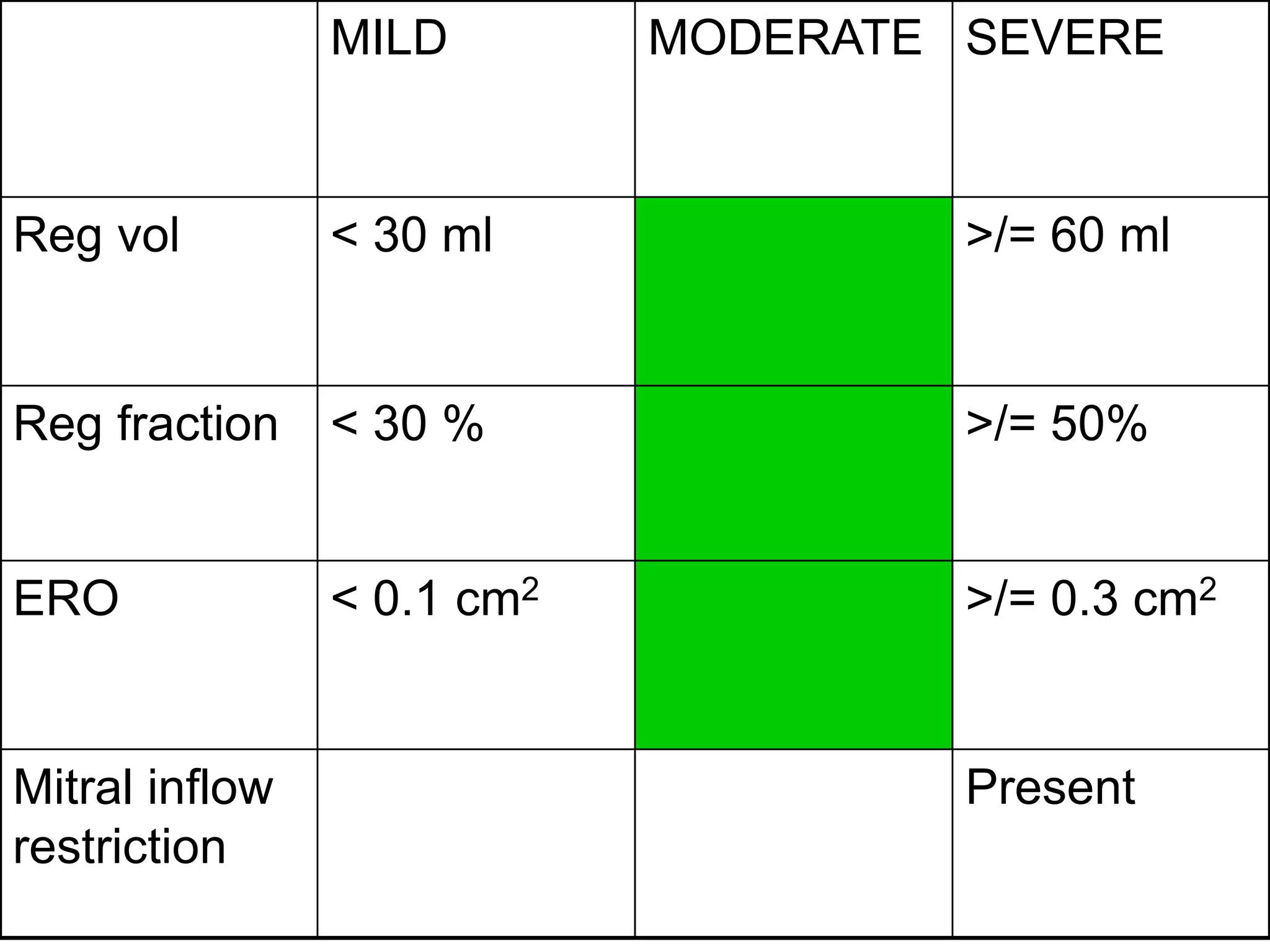

93. MILD MODERATE SEVERE
Reg vol < 30 ml >/= 60 ml
Reg fraction < 30 % >/= 50%
ERO < 0.1 cm2 >/= 0.3 cm2
Mitral inflow
restriction
Present

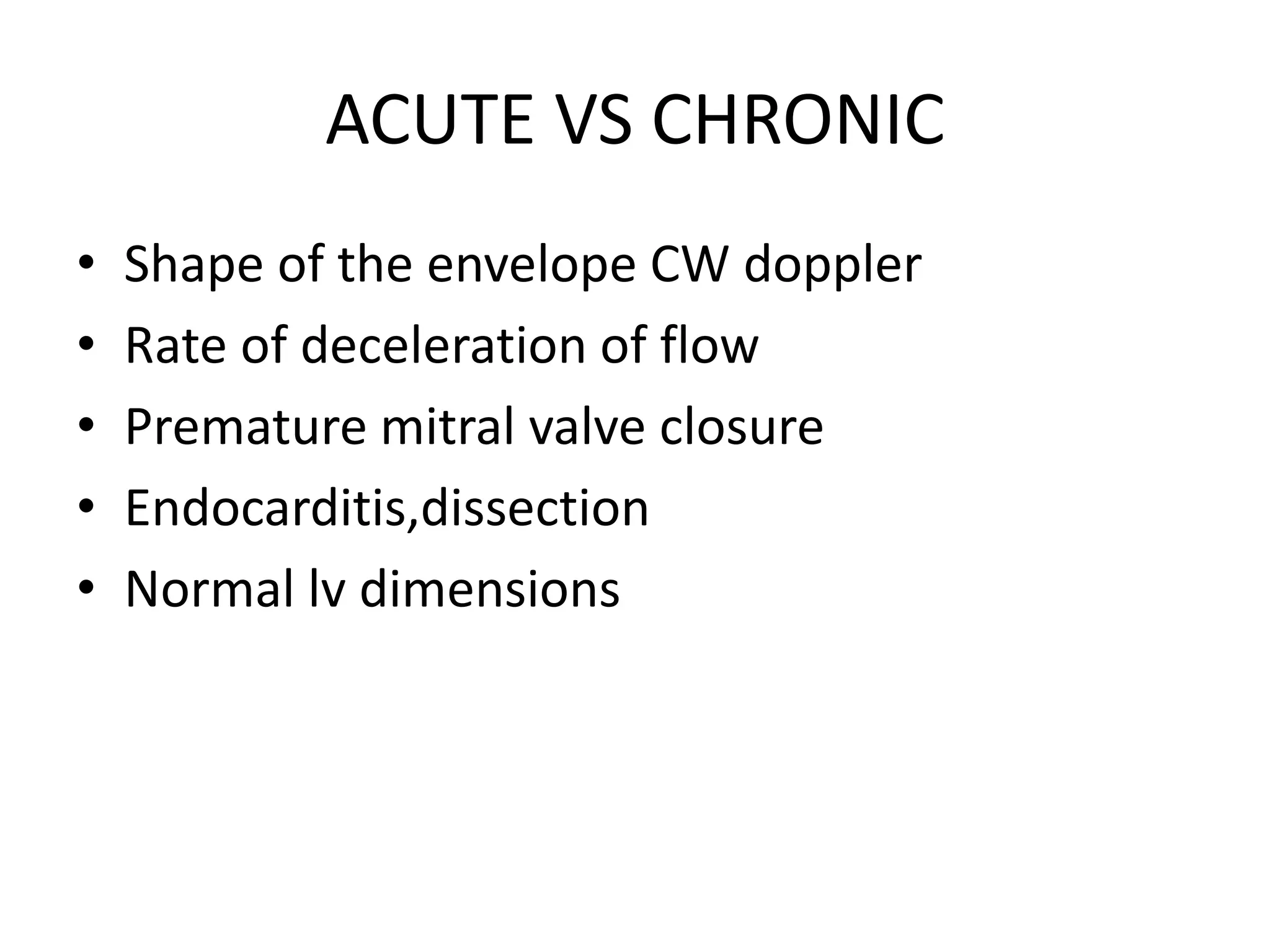

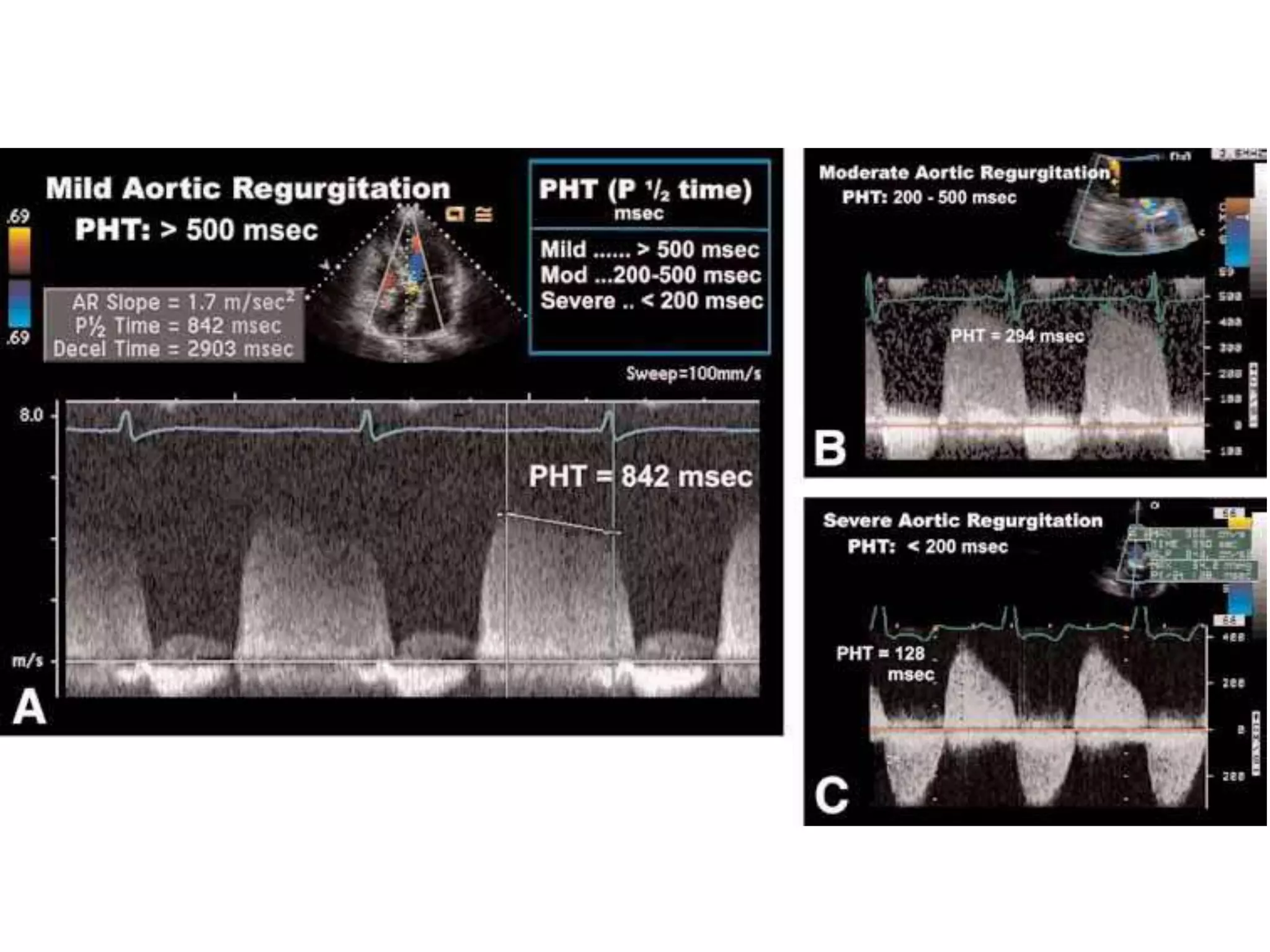

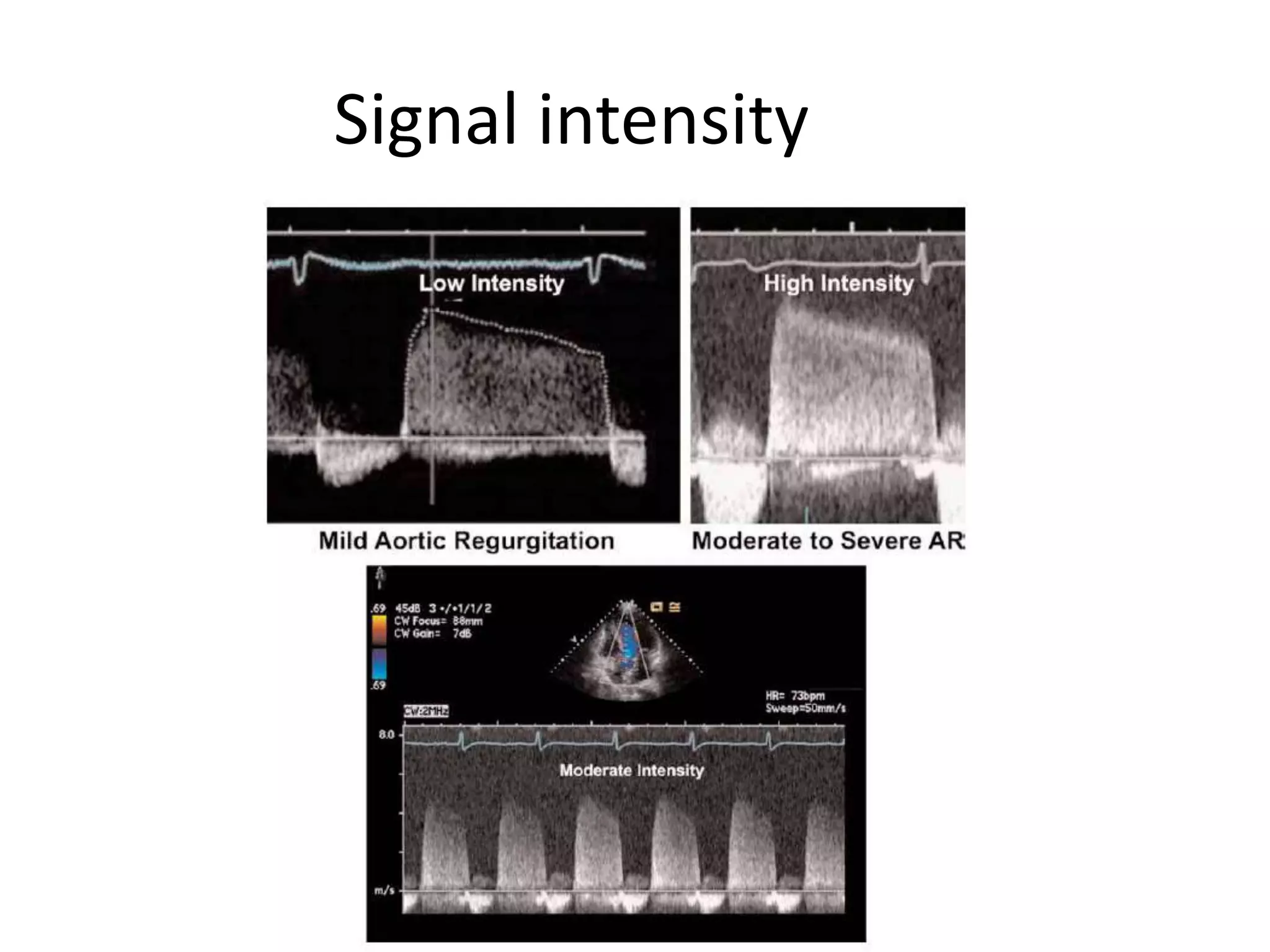

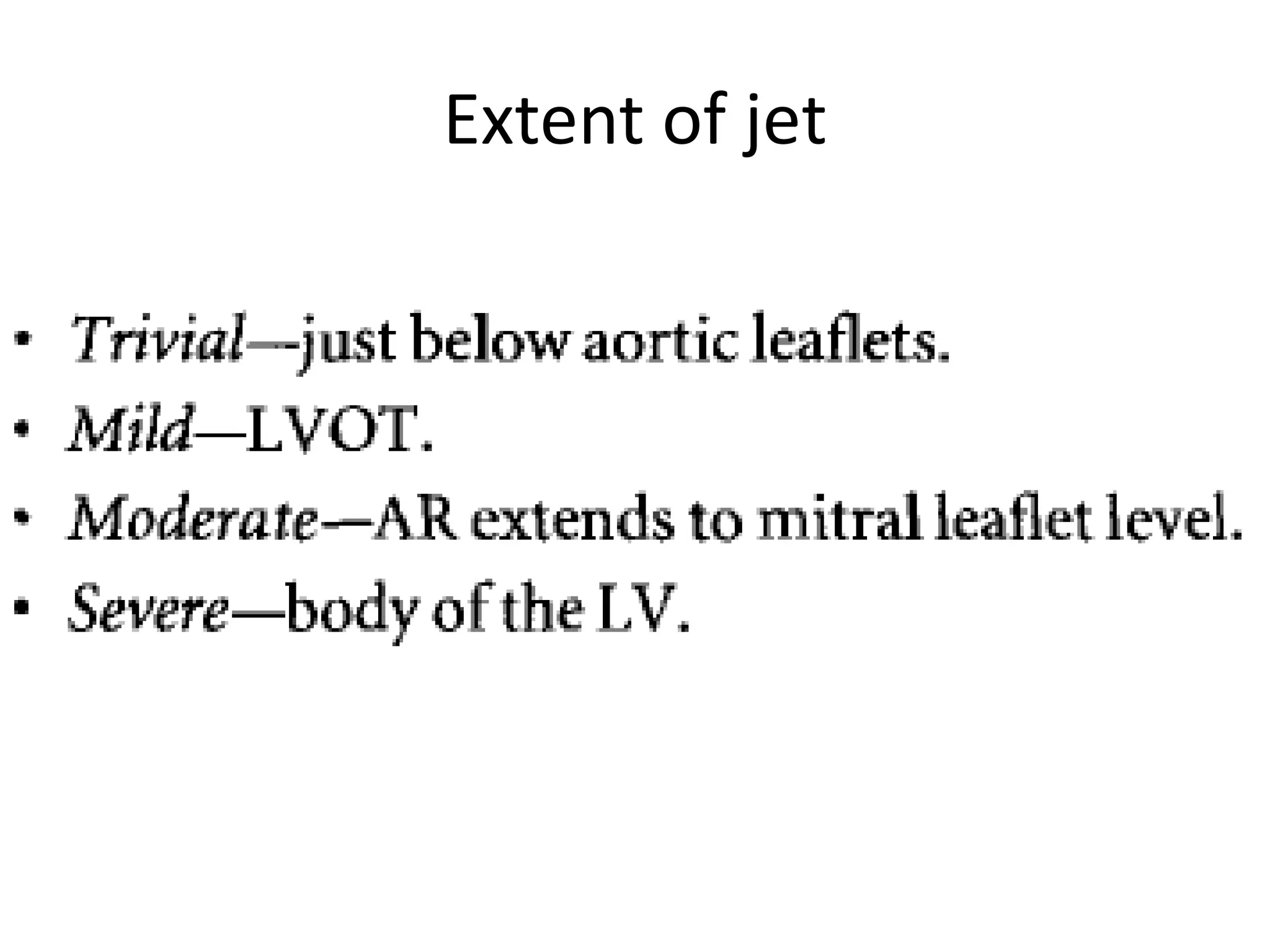

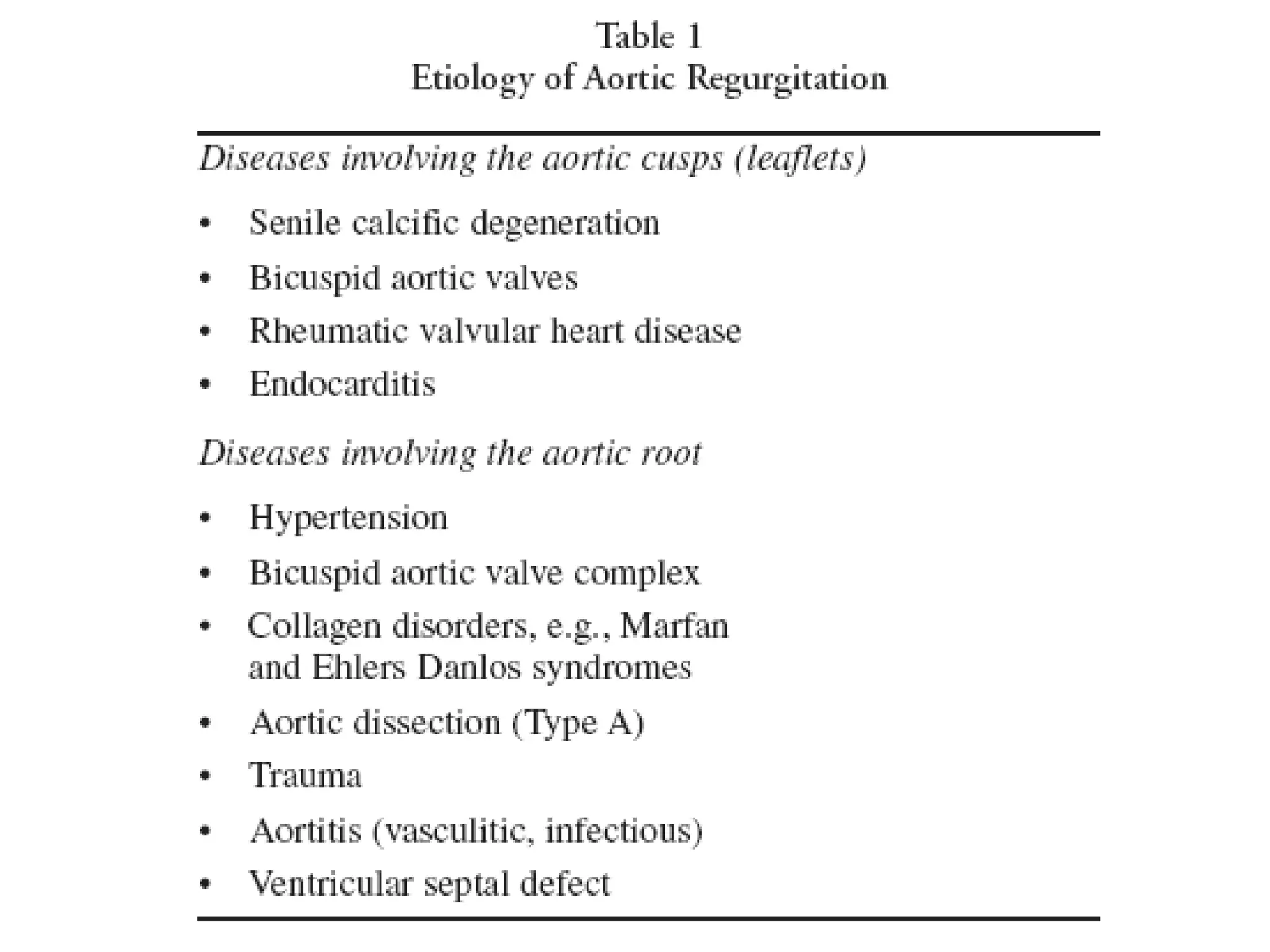

96. ACUTE VS CHRONIC
• Shape of the envelope CW doppler
• Rate of deceleration of flow

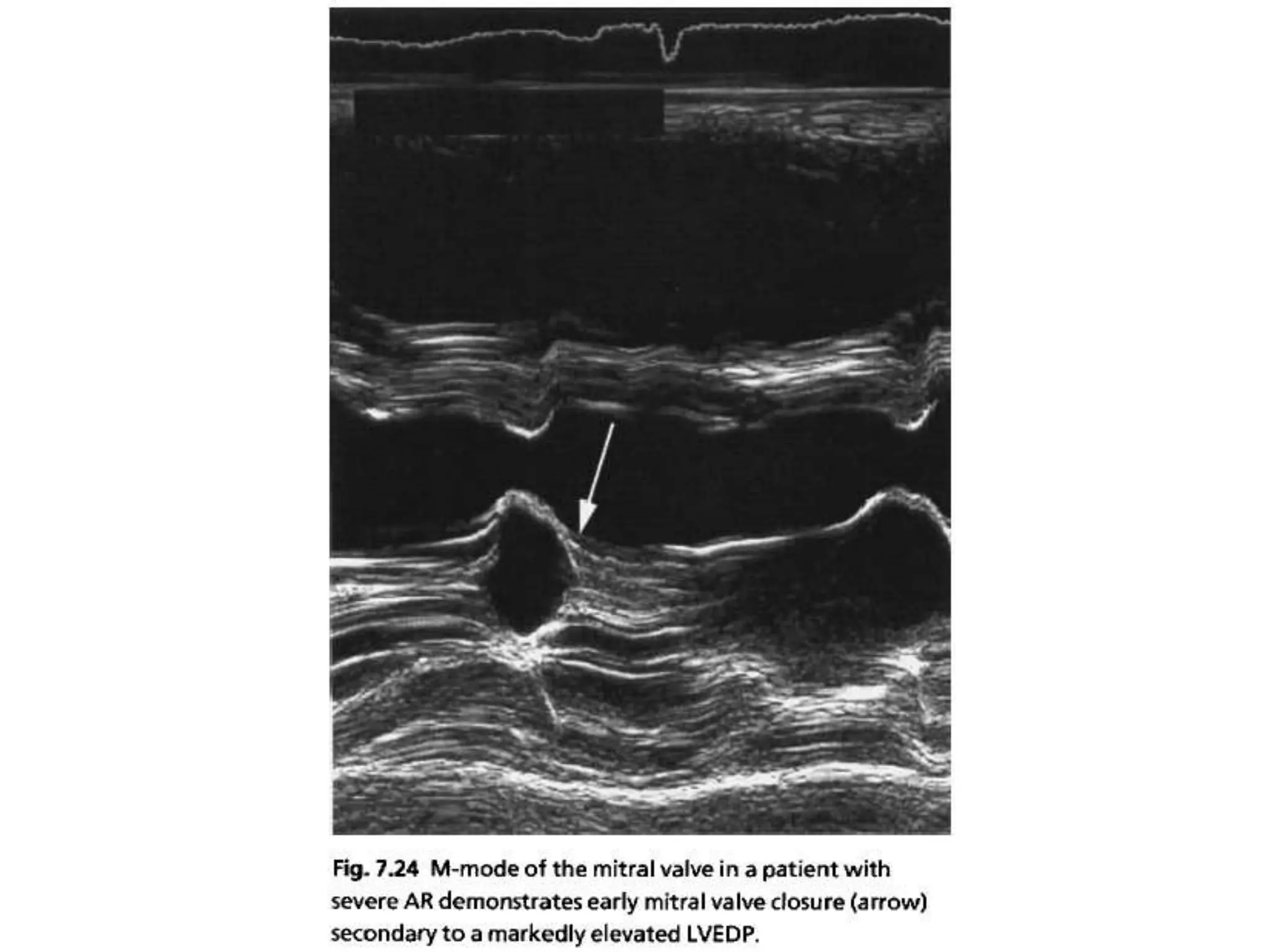

• Premature mitral valve closure
• Endocarditis,dissection

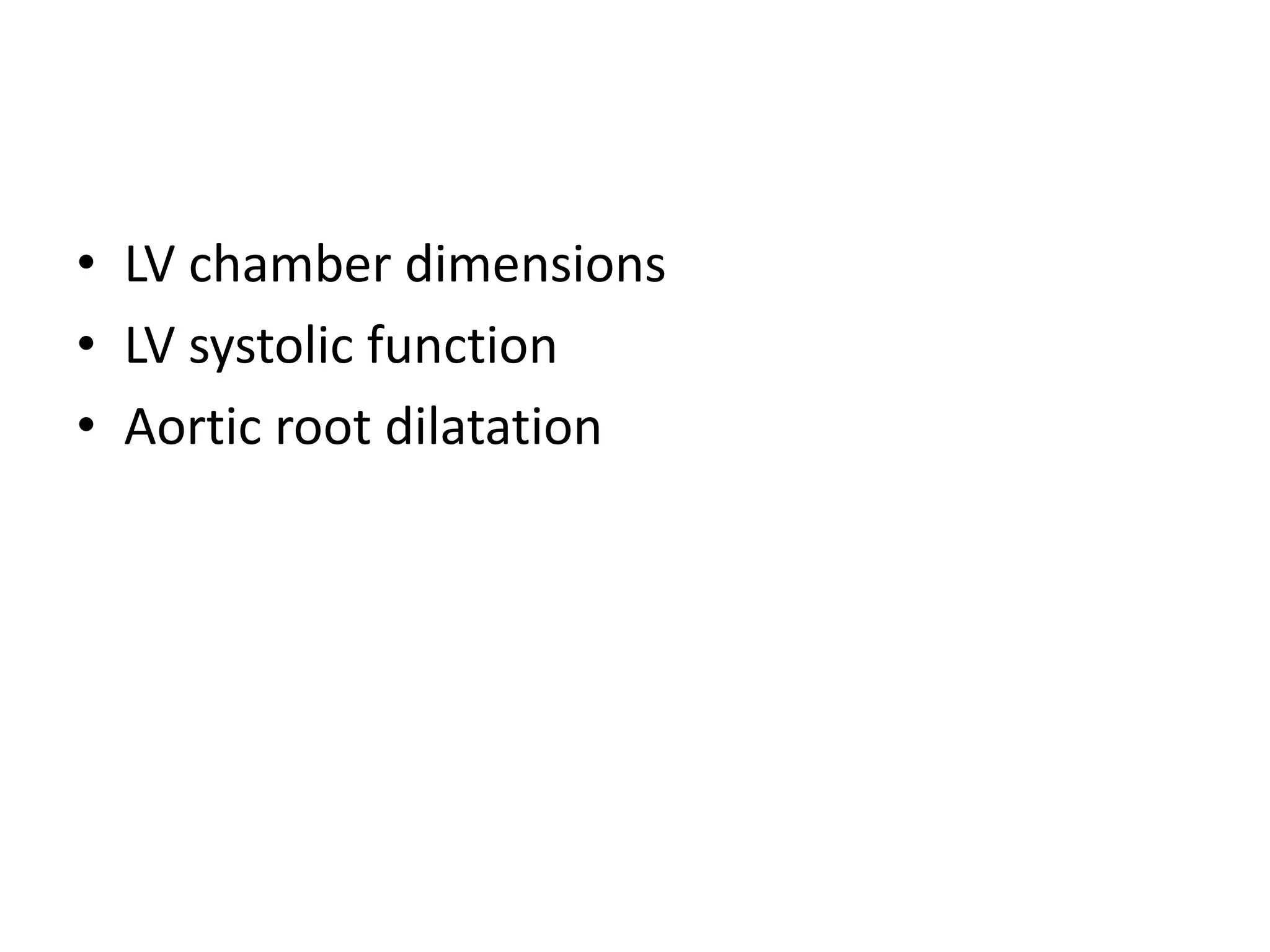

• Normal lv dimensions
