A 23-year-old female presented with episodes of feeling lightheaded and weak. She had a history of anorexia nervosa and had lost significant weight recently. Laboratory tests revealed low calcium, potassium, and other electrolyte abnormalities. During her emergency department stay, she experienced another episode where a rhythm strip was obtained. The rhythm strip showed a prolonged QT interval, likely the cause of her symptoms due to electrolyte abnormalities from her eating disorder.

1. ECG Workshop
Dr. Zohair Alaseri, MD
FRCPc, Emergency Medicine
FRCPc, Critical Care Medicine
Assistant Professor
Chairman, Department of Emergency Medicine
King Saud University Hospitals, Riyadh, KSA

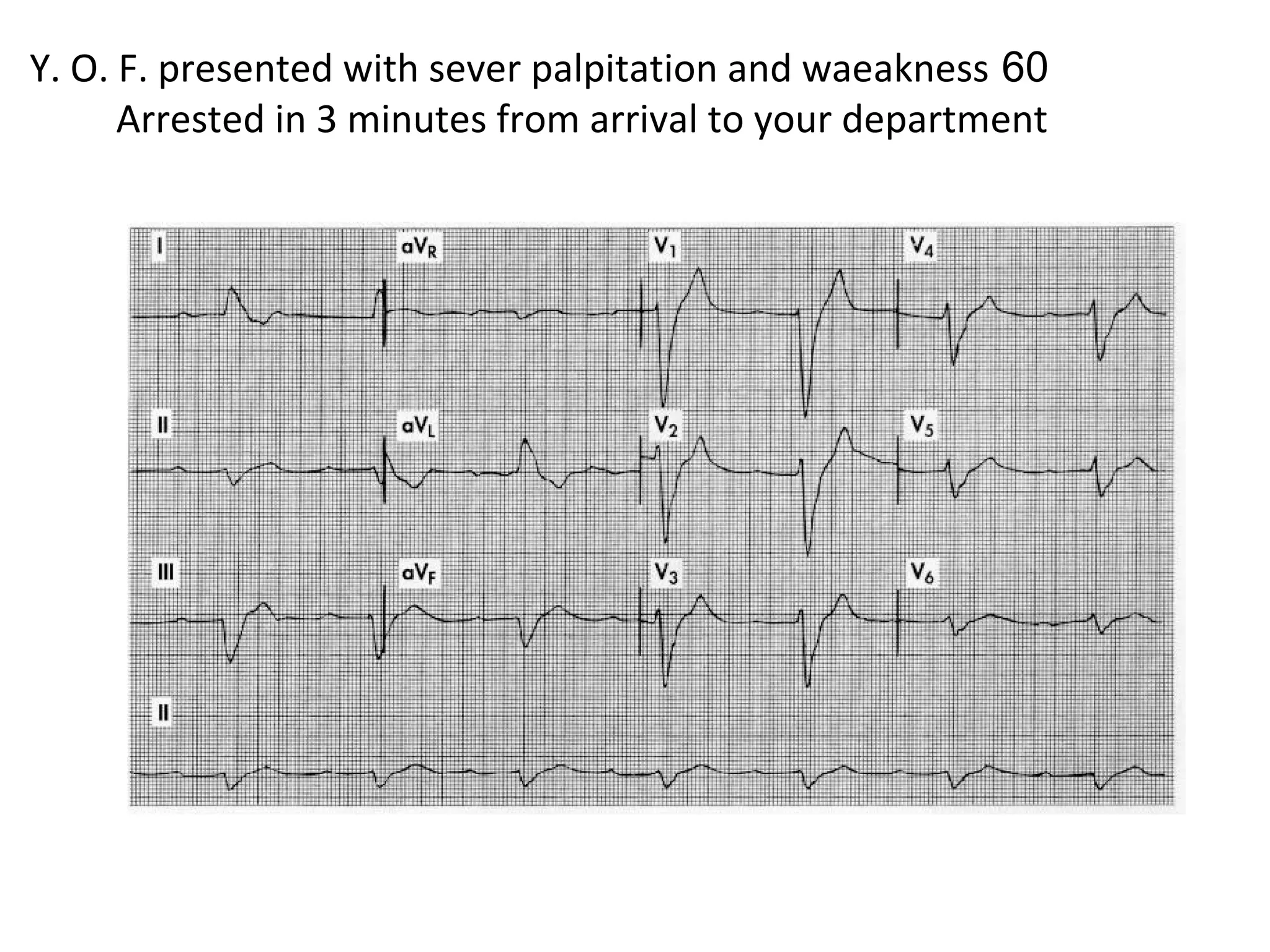

2. Y. O. F. presented with sever palpitation and waeakness 60
Arrested in 3 minutes from arrival to your department

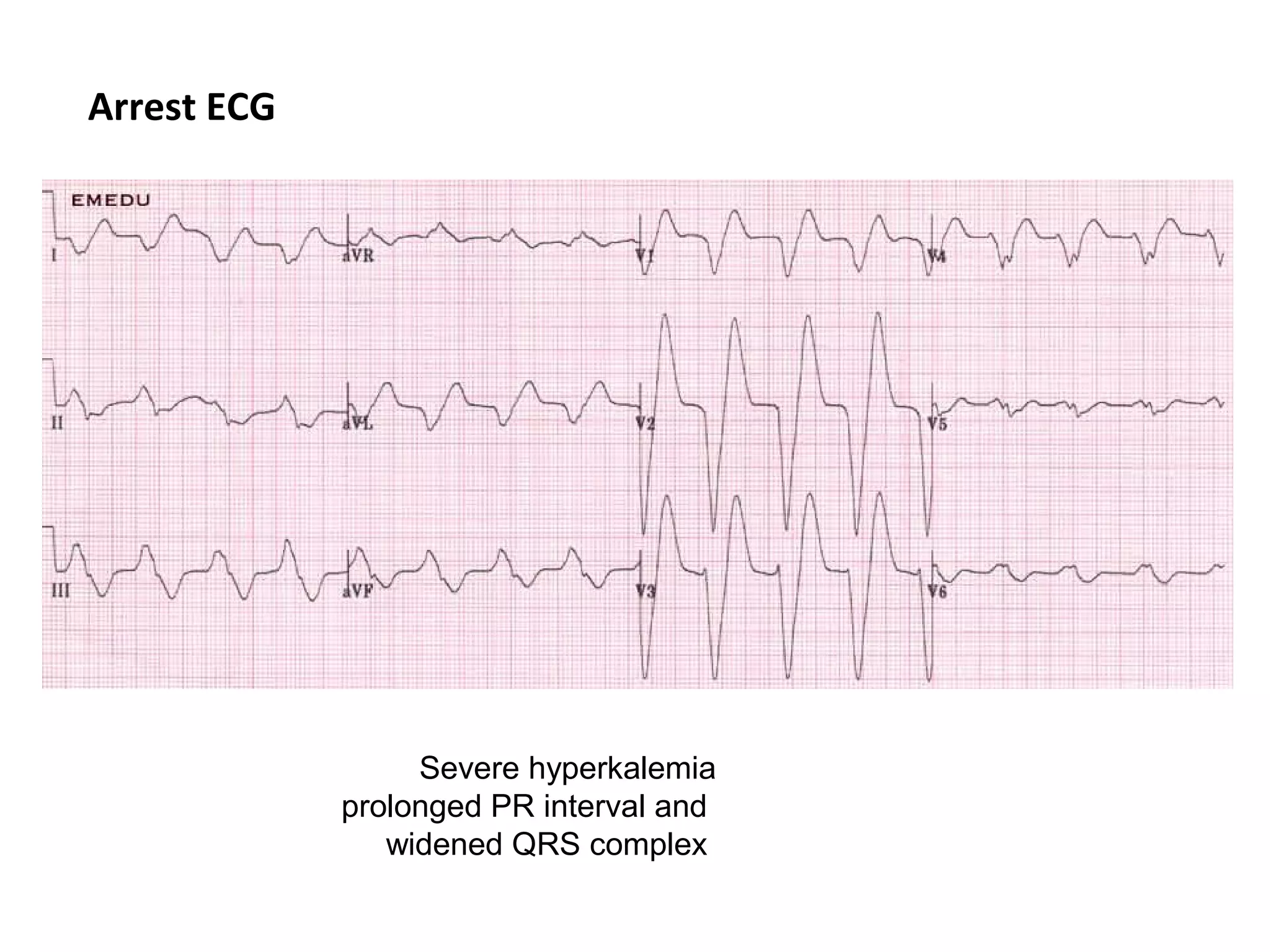

3. Arrest ECG
Severe hyperkalemia
prolonged PR interval and
widened QRS complex

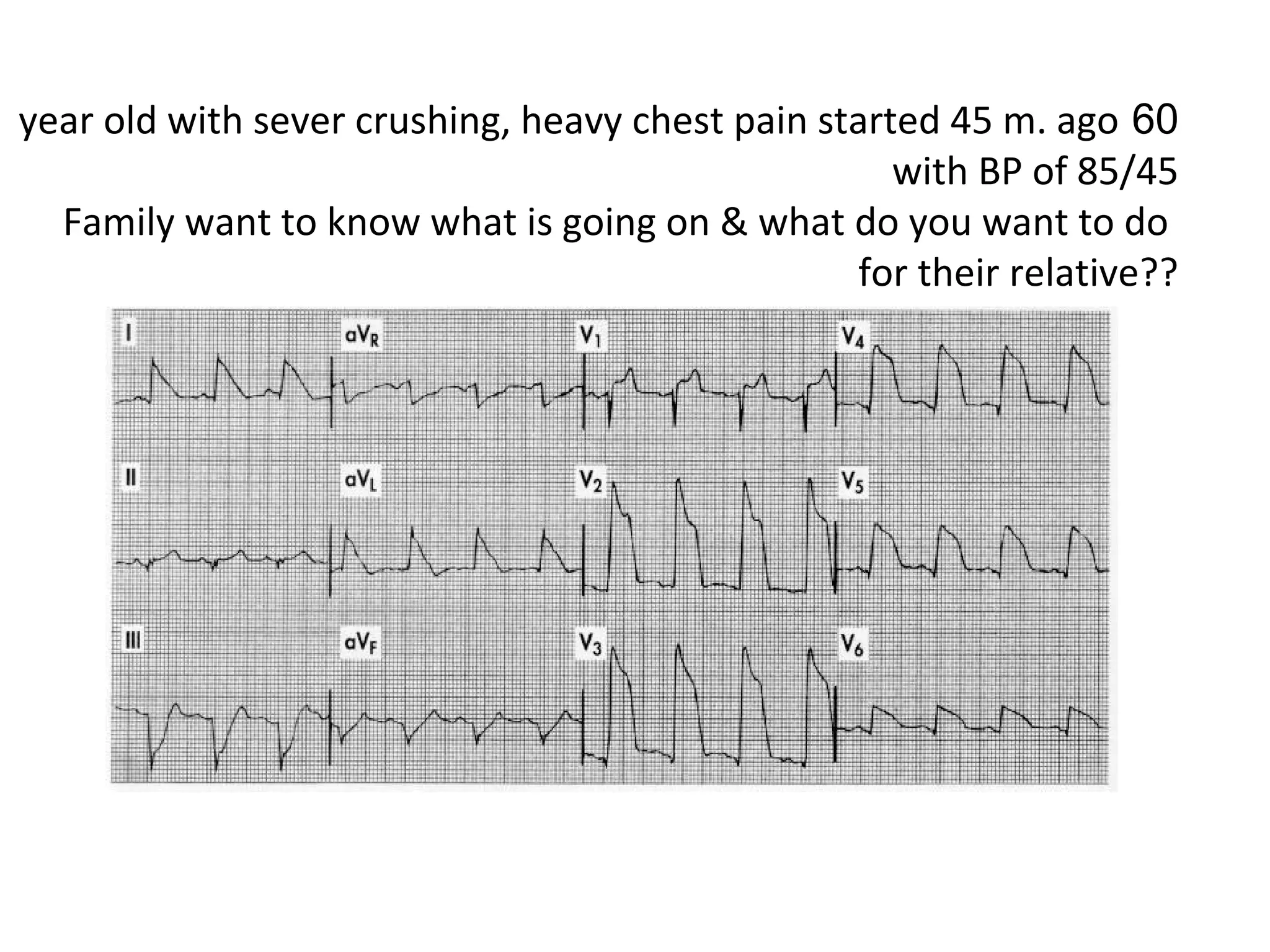

4. year old with sever crushing, heavy chest pain started 45 m. ago 60
with BP of 85/45
Family want to know what is going on & what do you want to do
for their relative??

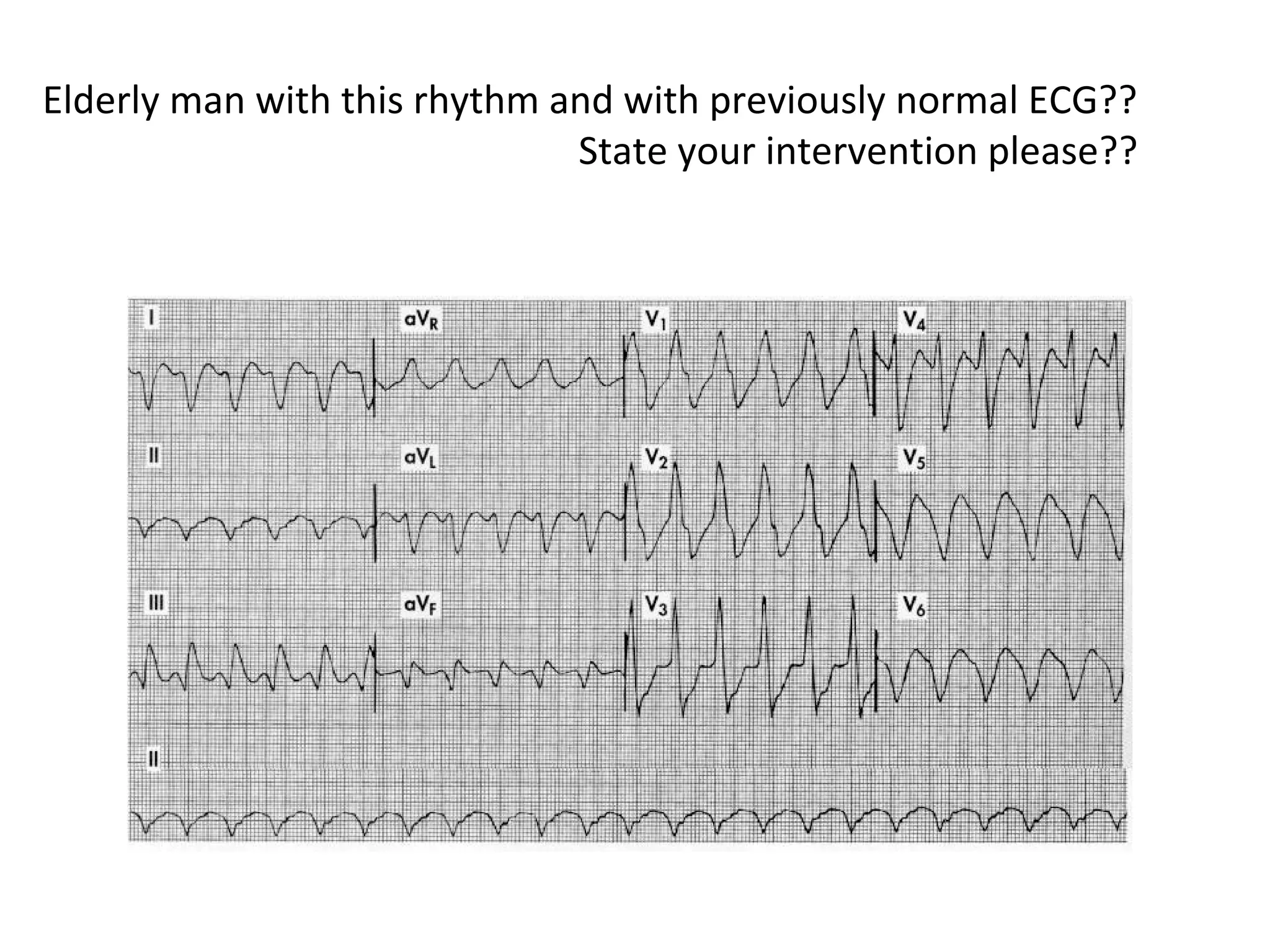

5. Elderly man with this rhythm and with previously normal ECG??
State your intervention please??

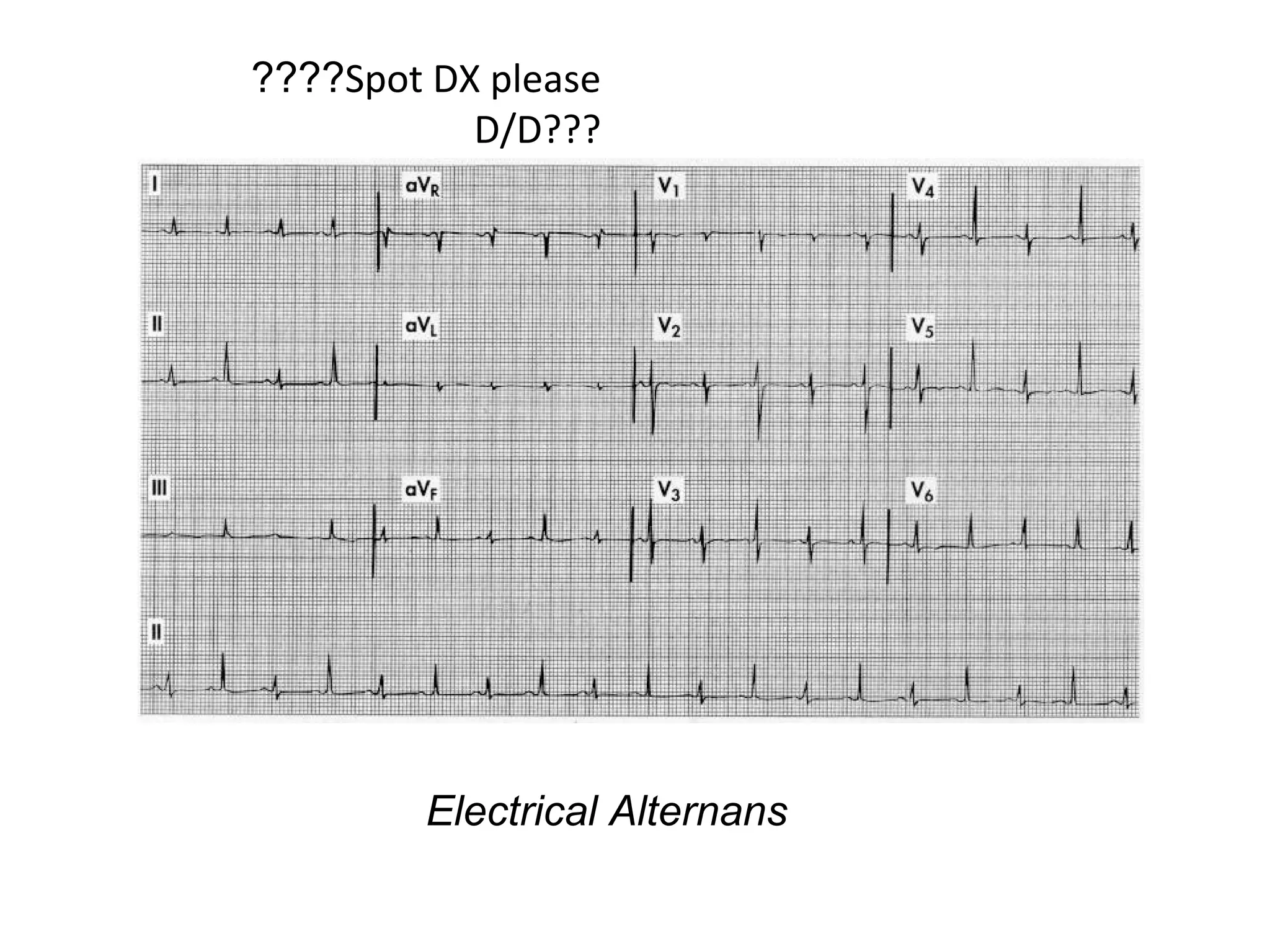

6. ????Spot DX please
D/D???
Electrical Alternans

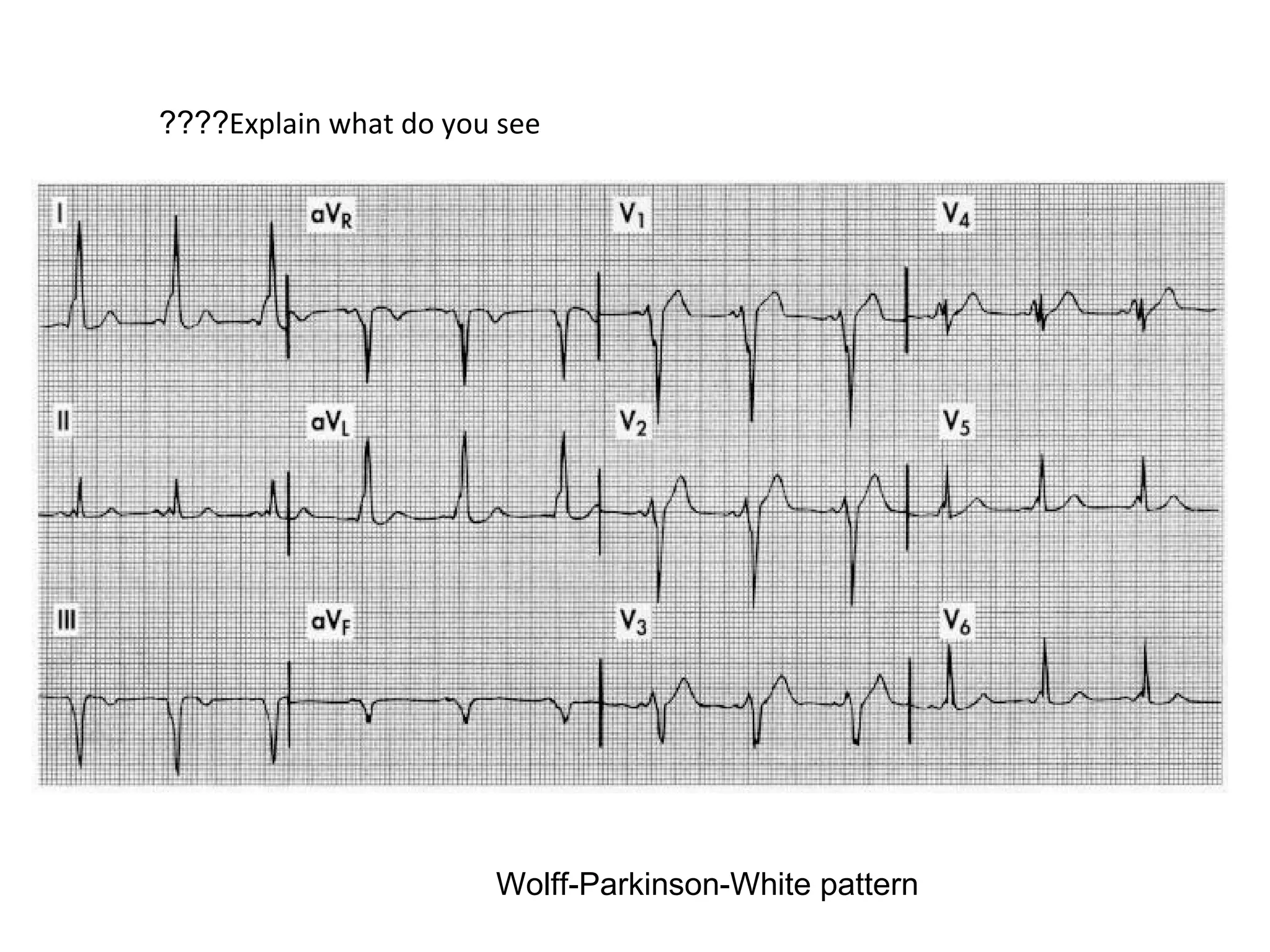

7. ????Explain what do you see
Wolff-Parkinson-White pattern

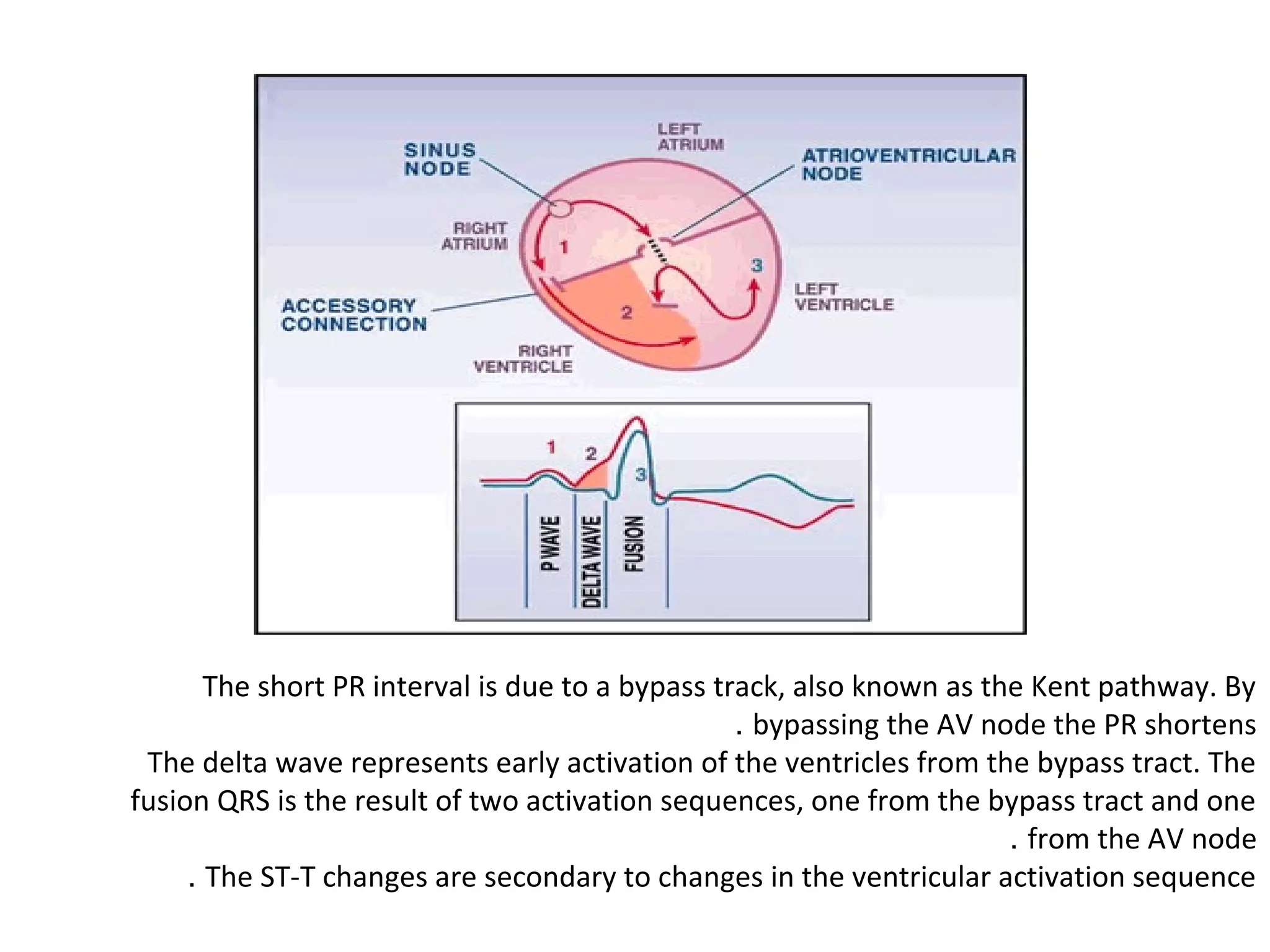

8. The short PR interval is due to a bypass track, also known as the Kent pathway. By
. bypassing the AV node the PR shortens
The delta wave represents early activation of the ventricles from the bypass tract. The
fusion QRS is the result of two activation sequences, one from the bypass tract and one
. from the AV node
. The ST-T changes are secondary to changes in the ventricular activation sequence

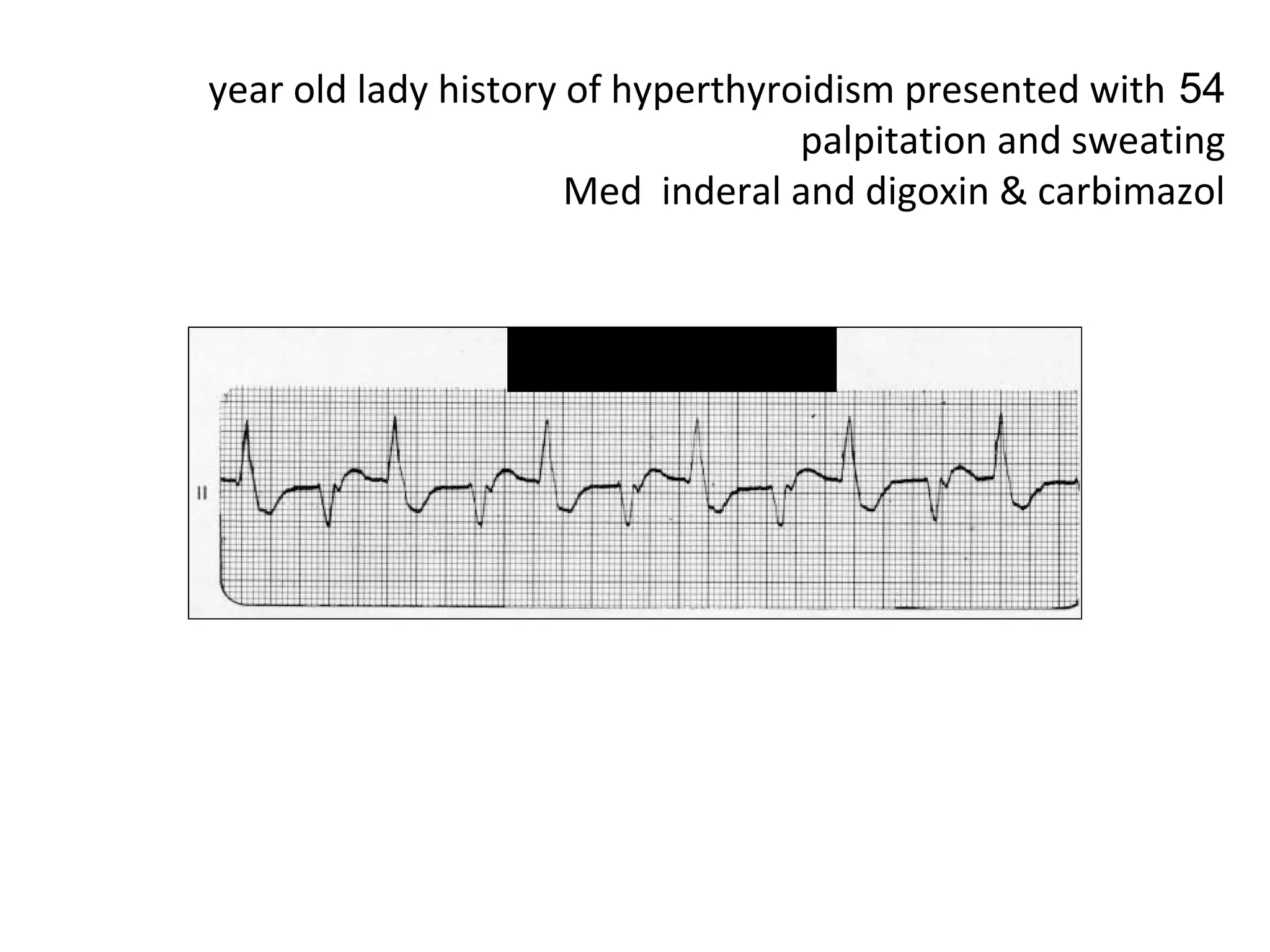

9. year old lady history of hyperthyroidism presented with 54
palpitation and sweating
Med inderal and digoxin & carbimazol

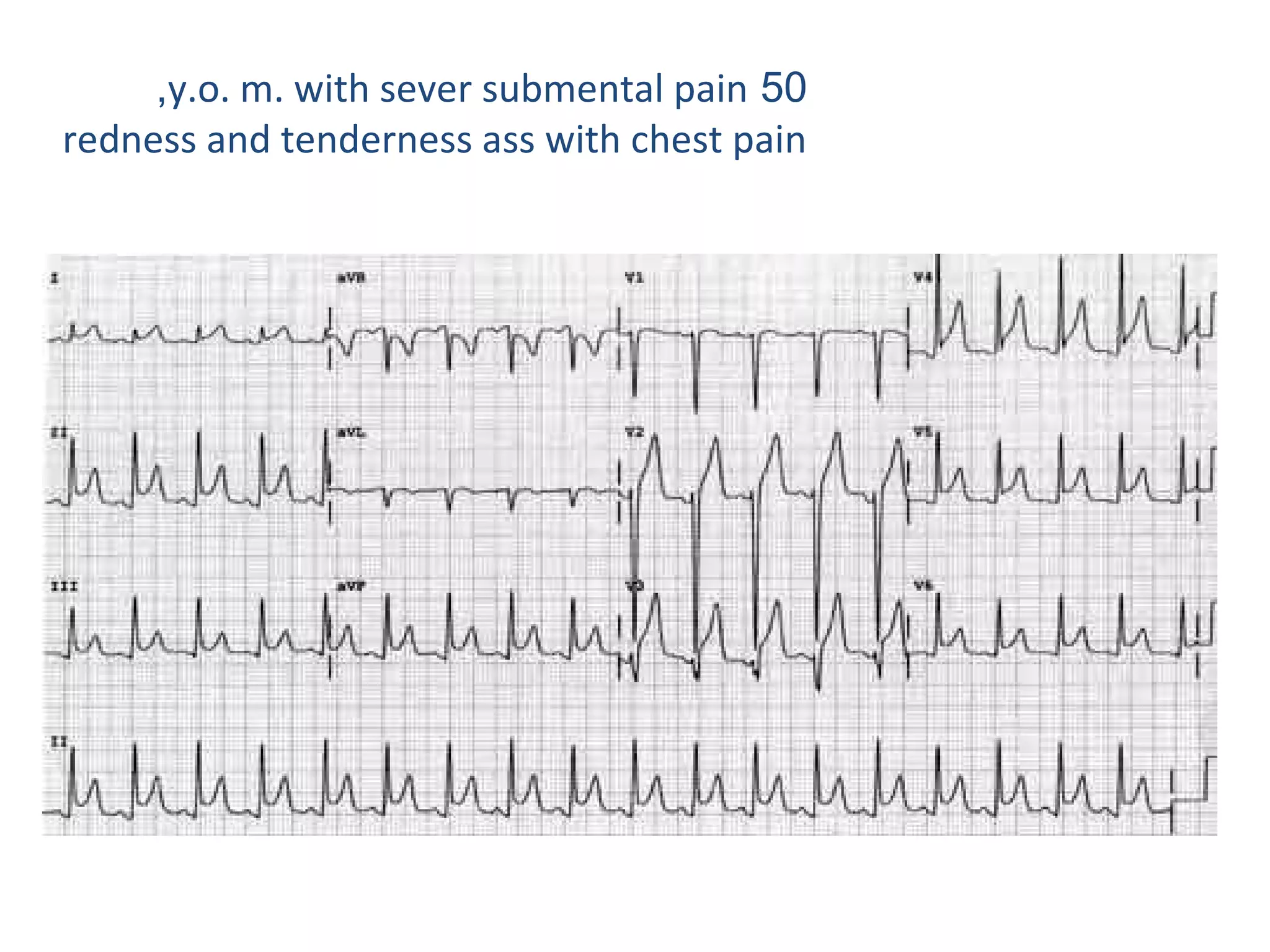

10. ,y.o. m. with sever submental pain 50
redness and tenderness ass with chest pain

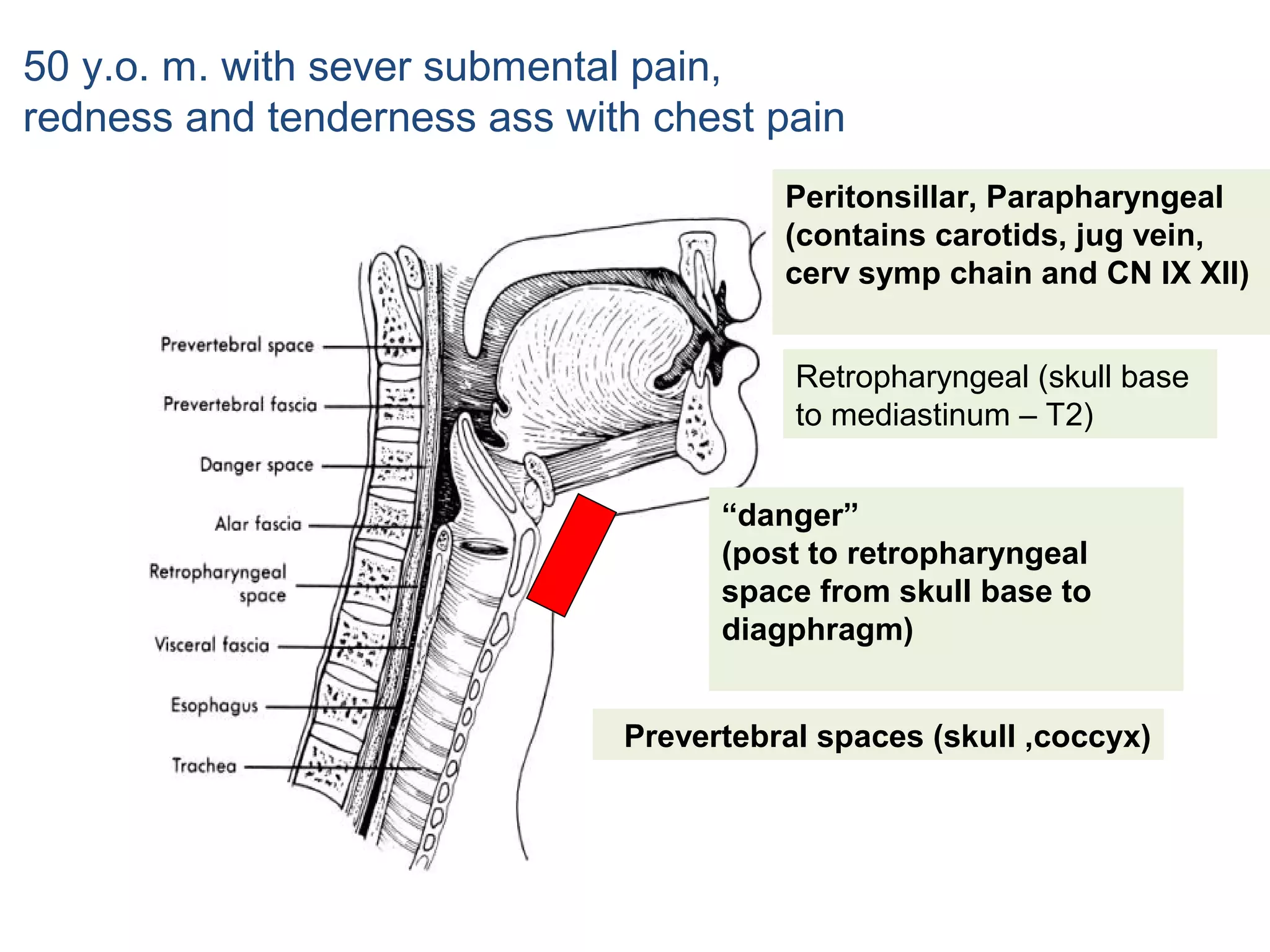

11. 50 y.o. m. with sever submental pain,
redness and tenderness ass with chest pain
Peritonsillar, Parapharyngeal
(contains carotids, jug vein,
cerv symp chain and CN IX XII)
Retropharyngeal (skull base
to mediastinum – T2)
“danger”
(post to retropharyngeal
space from skull base to
diagphragm)
Prevertebral spaces (skull ,coccyx)

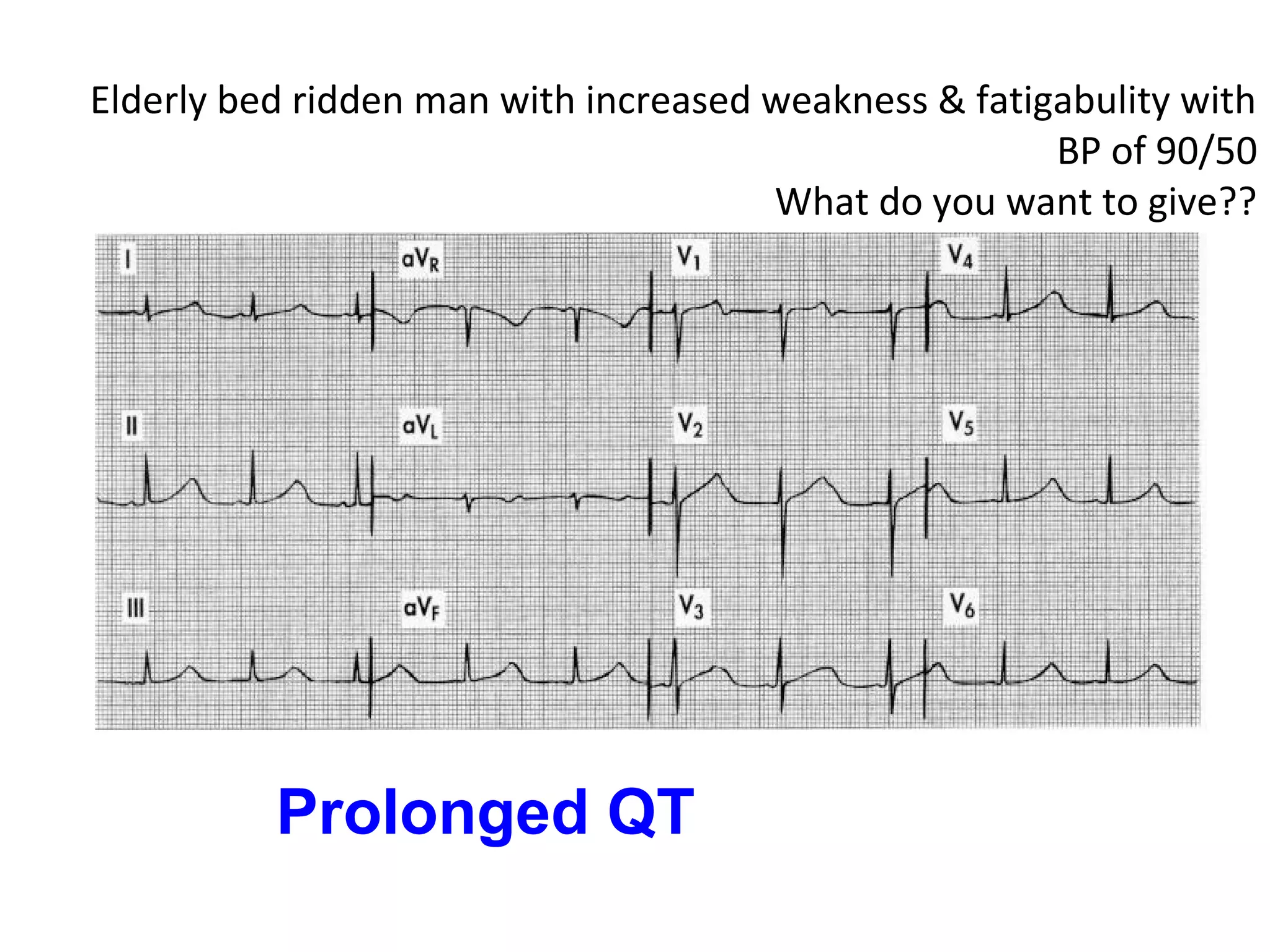

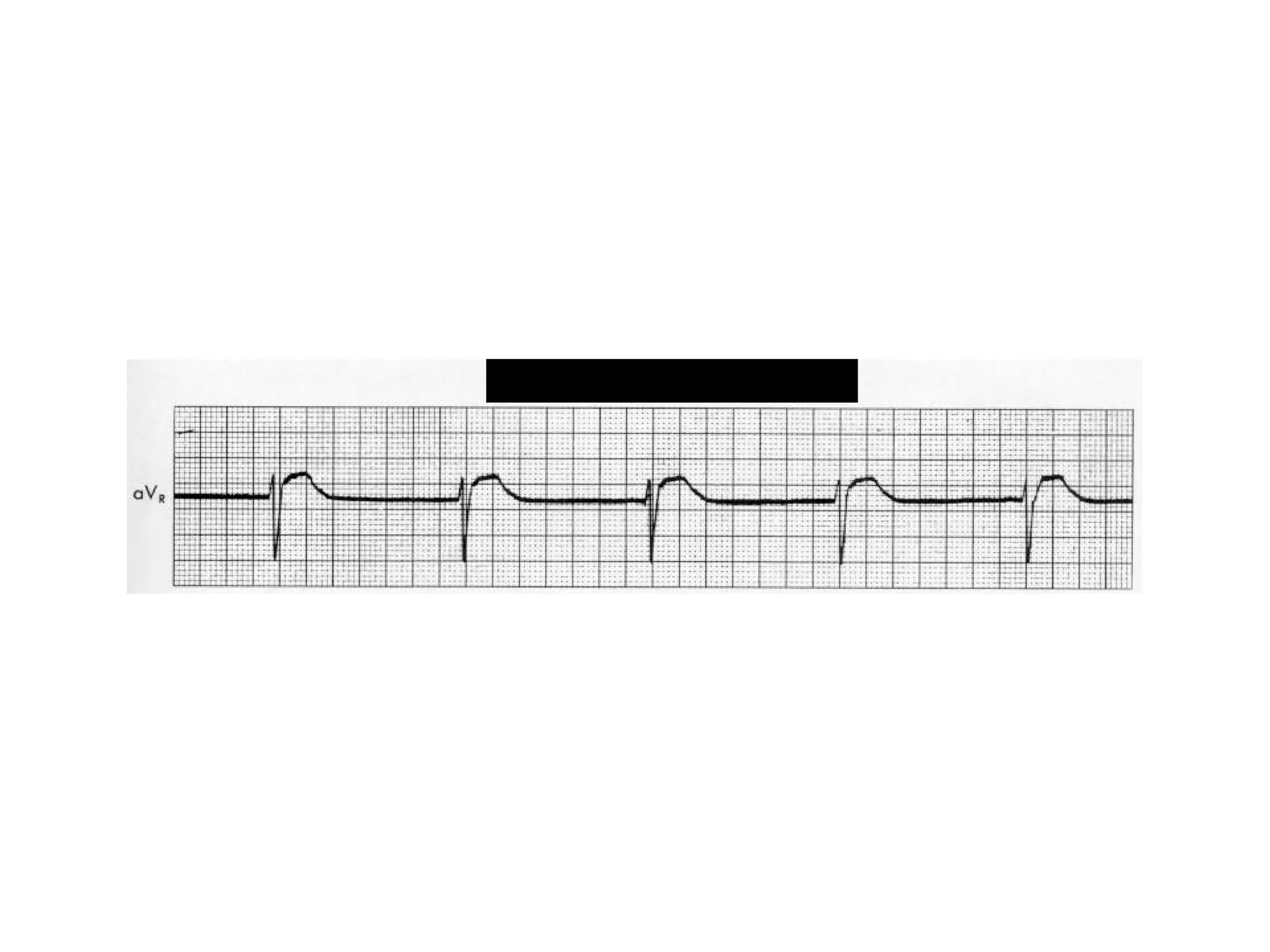

12. Elderly bed ridden man with increased weakness & fatigabulity with
BP of 90/50
What do you want to give??
Prolonged QT

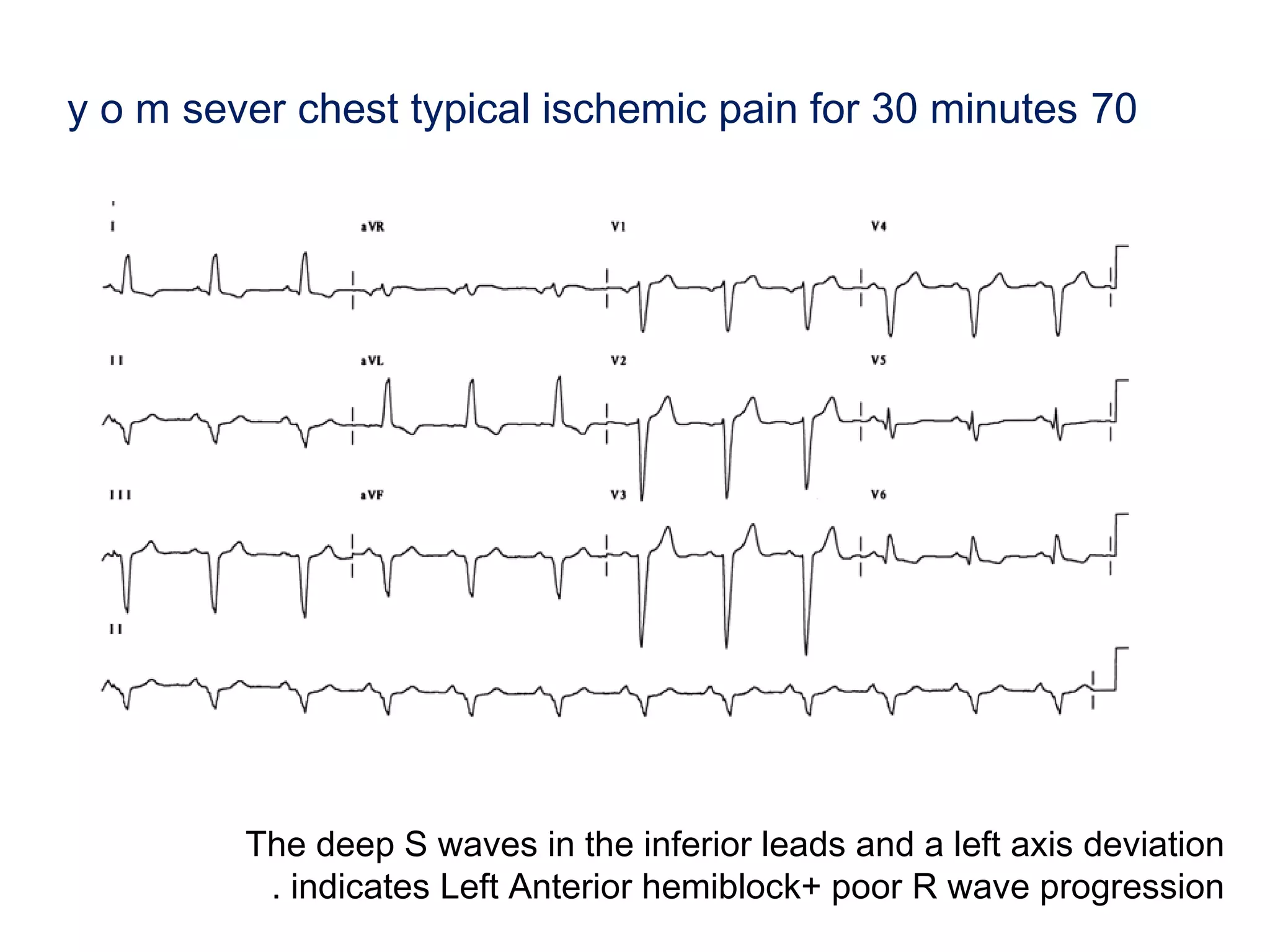

14. y o m sever chest typical ischemic pain for 30 minutes 70
The deep S waves in the inferior leads and a left axis deviation
. indicates Left Anterior hemiblock+ poor R wave progression

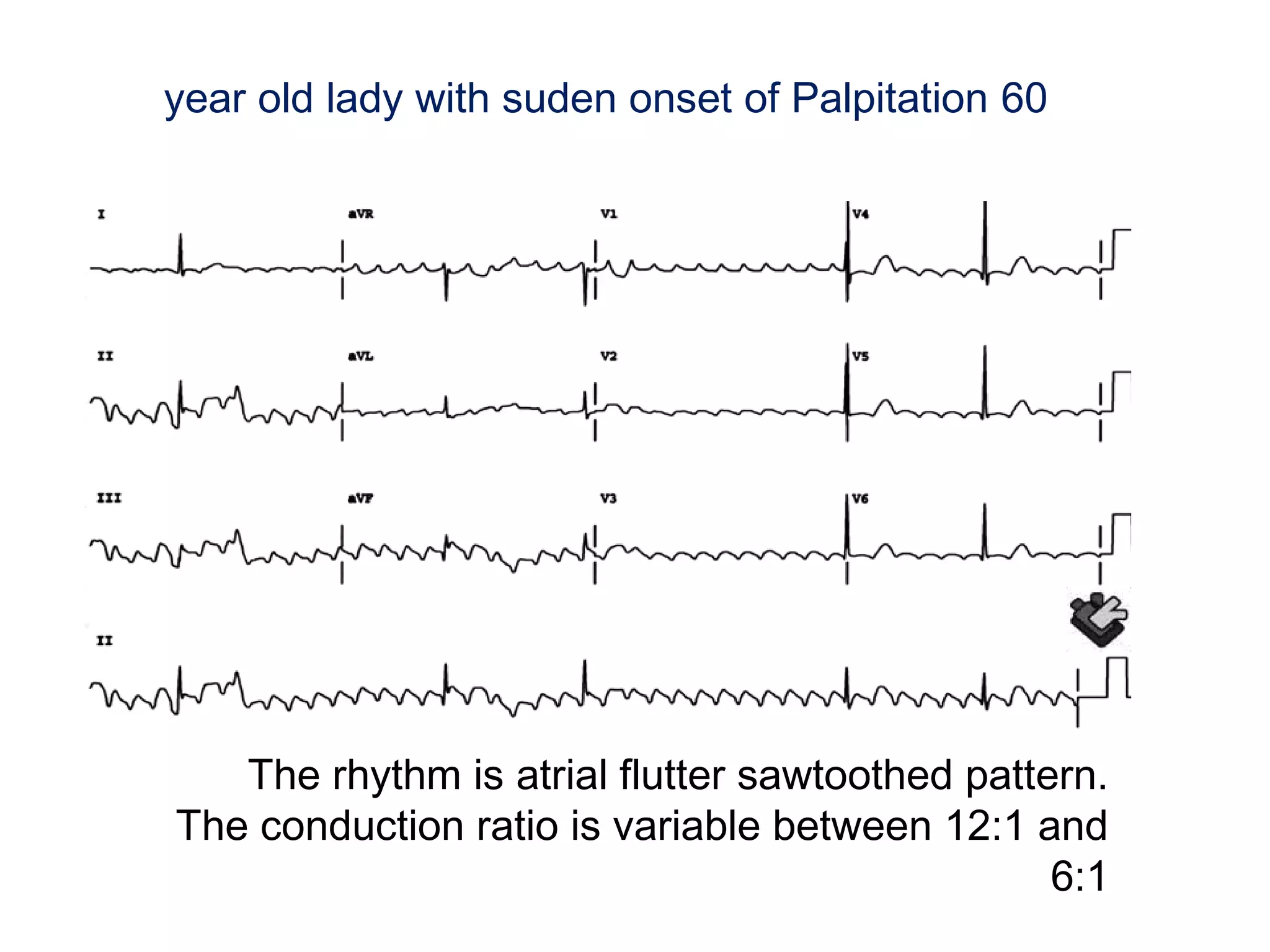

15. year old lady with suden onset of Palpitation 60
The rhythm is atrial flutter sawtoothed pattern.
The conduction ratio is variable between 12:1 and
6:1

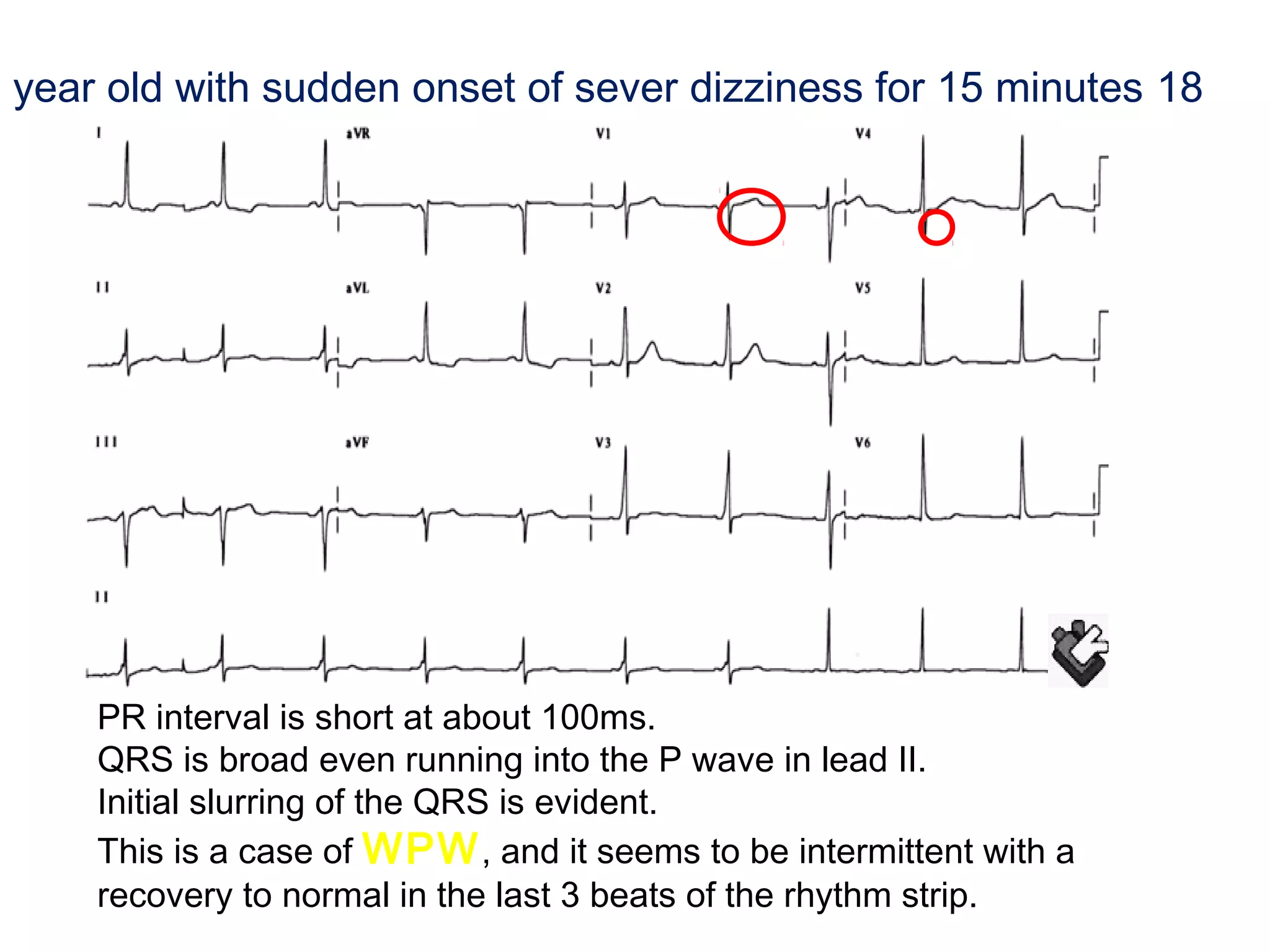

16. year old with sudden onset of sever dizziness for 15 minutes 18
PR interval is short at about 100ms.
QRS is broad even running into the P wave in lead II.
Initial slurring of the QRS is evident.
This is a case of WPW , and it seems to be intermittent with a
recovery to normal in the last 3 beats of the rhythm strip.

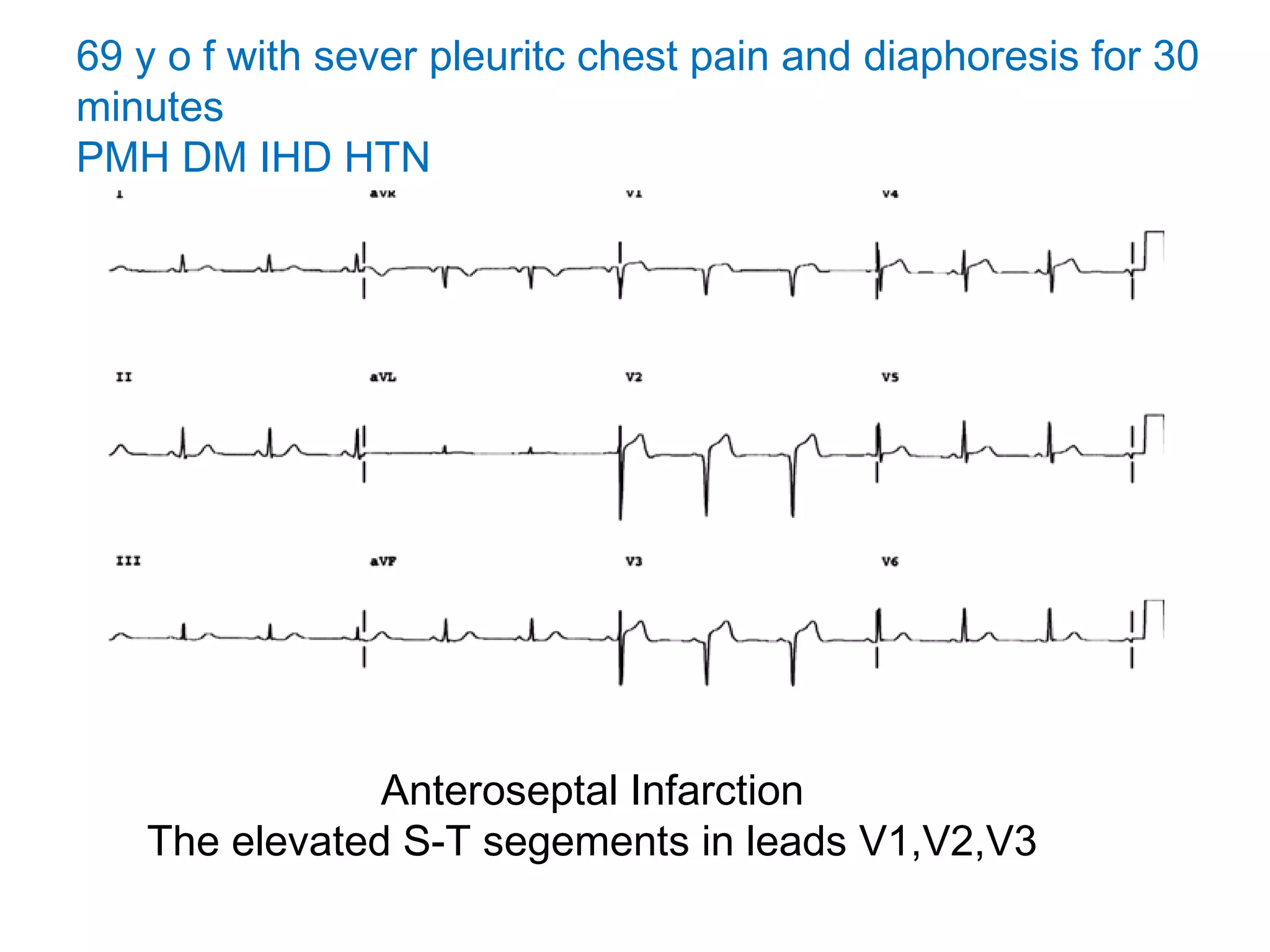

17. 69 y o f with sever pleuritc chest pain and diaphoresis for 30
minutes
PMH DM IHD HTN
Anteroseptal Infarction
The elevated S-T segements in leads V1,V2,V3

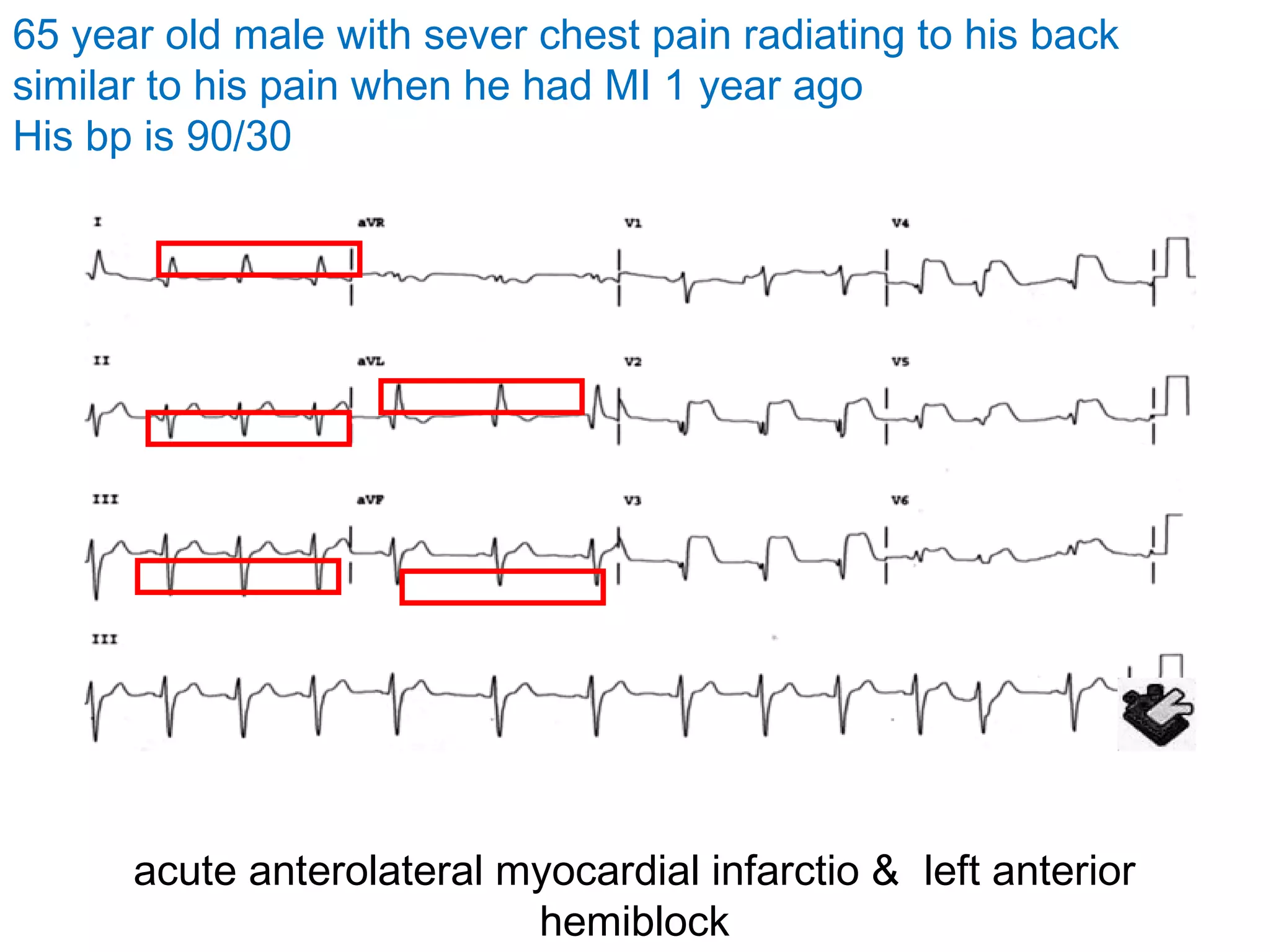

18. 65 year old male with sever chest pain radiating to his back
similar to his pain when he had MI 1 year ago
His bp is 90/30
acute anterolateral myocardial infarctio & left anterior
hemiblock

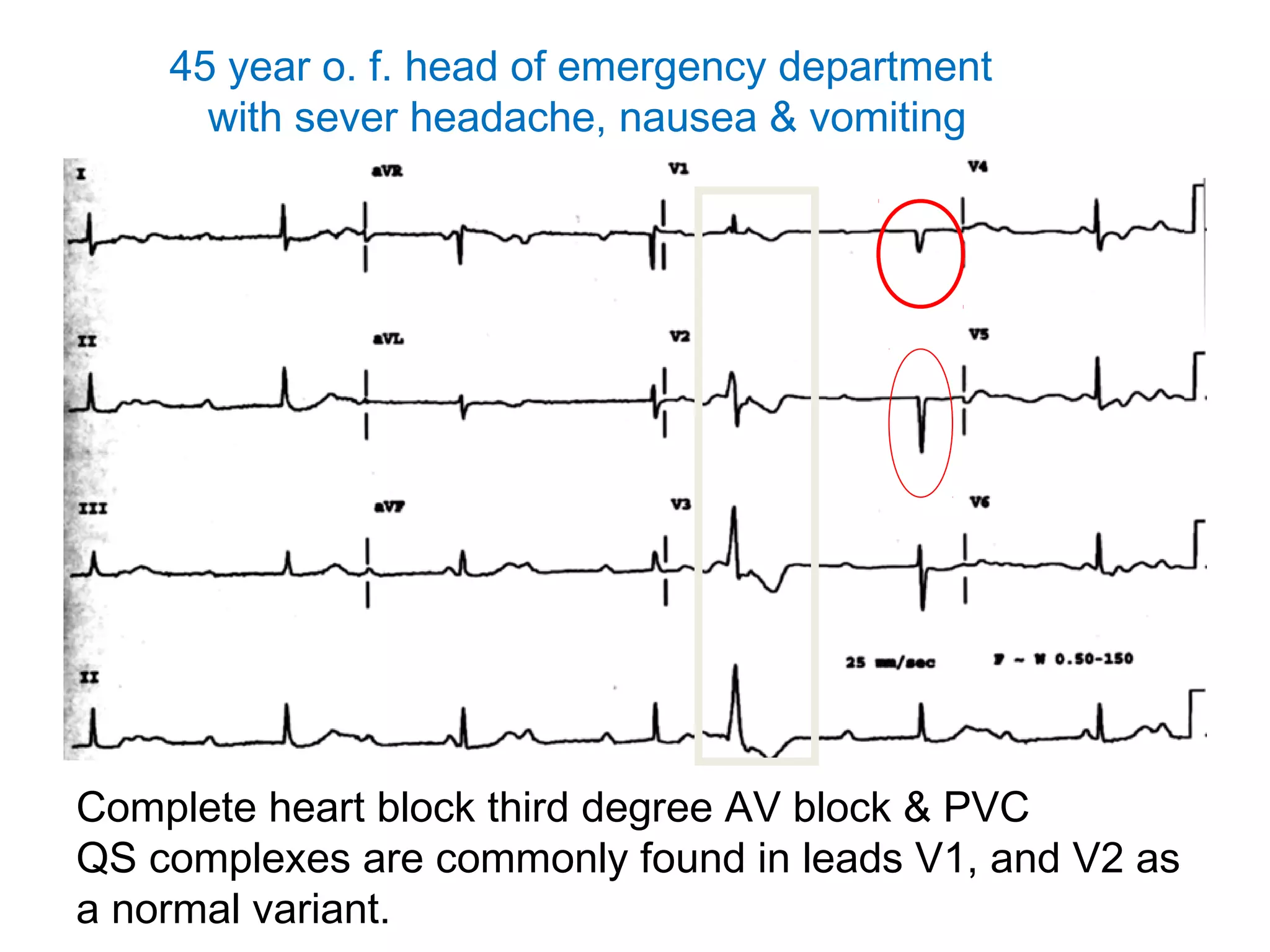

19. 45 year o. f. head of emergency department
with sever headache, nausea & vomiting
Complete heart block third degree AV block & PVC
QS complexes are commonly found in leads V1, and V2 as
a normal variant.

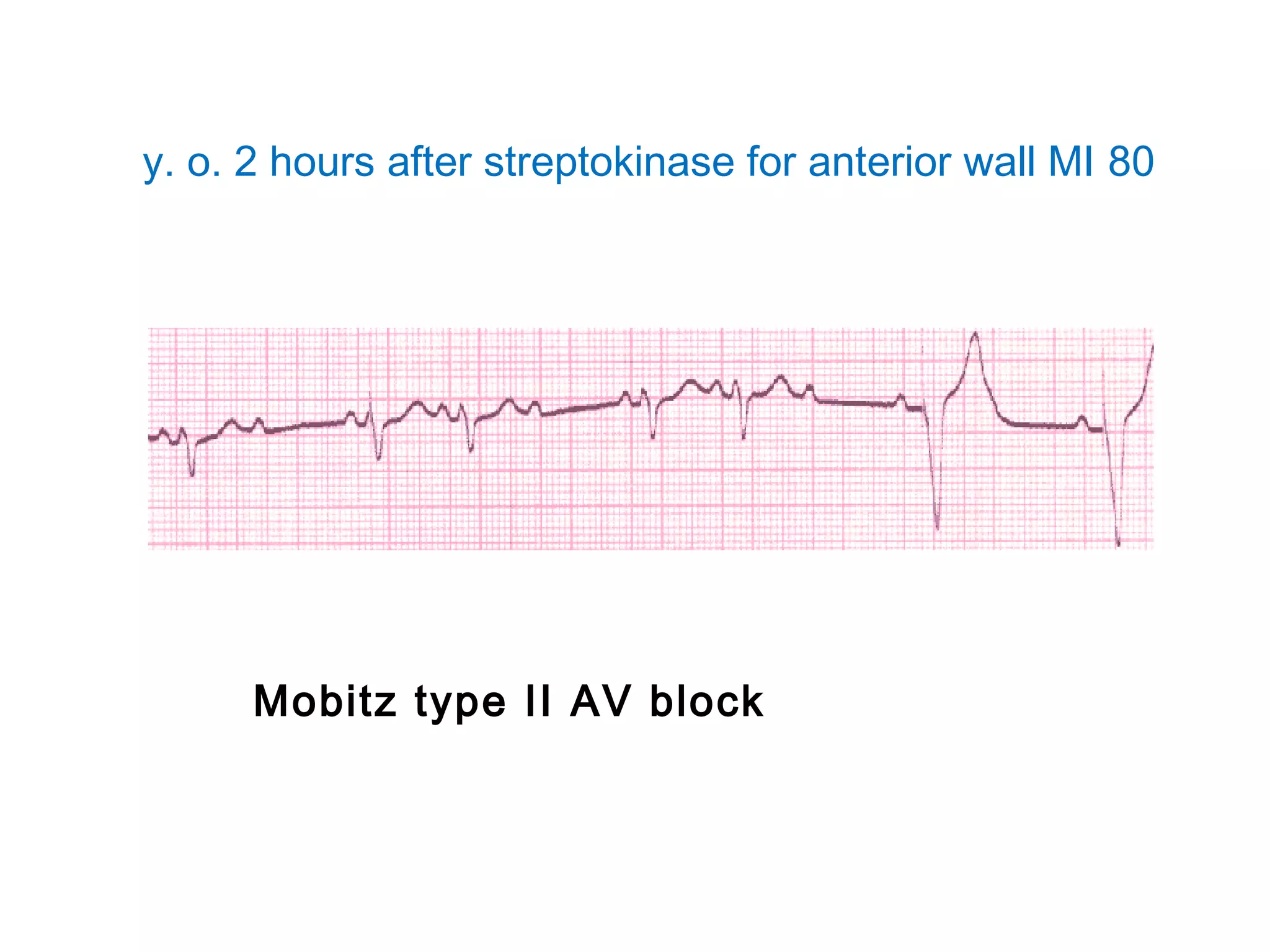

20. y. o. 2 hours after streptokinase for anterior wall MI 80
Mobitz type II AV block

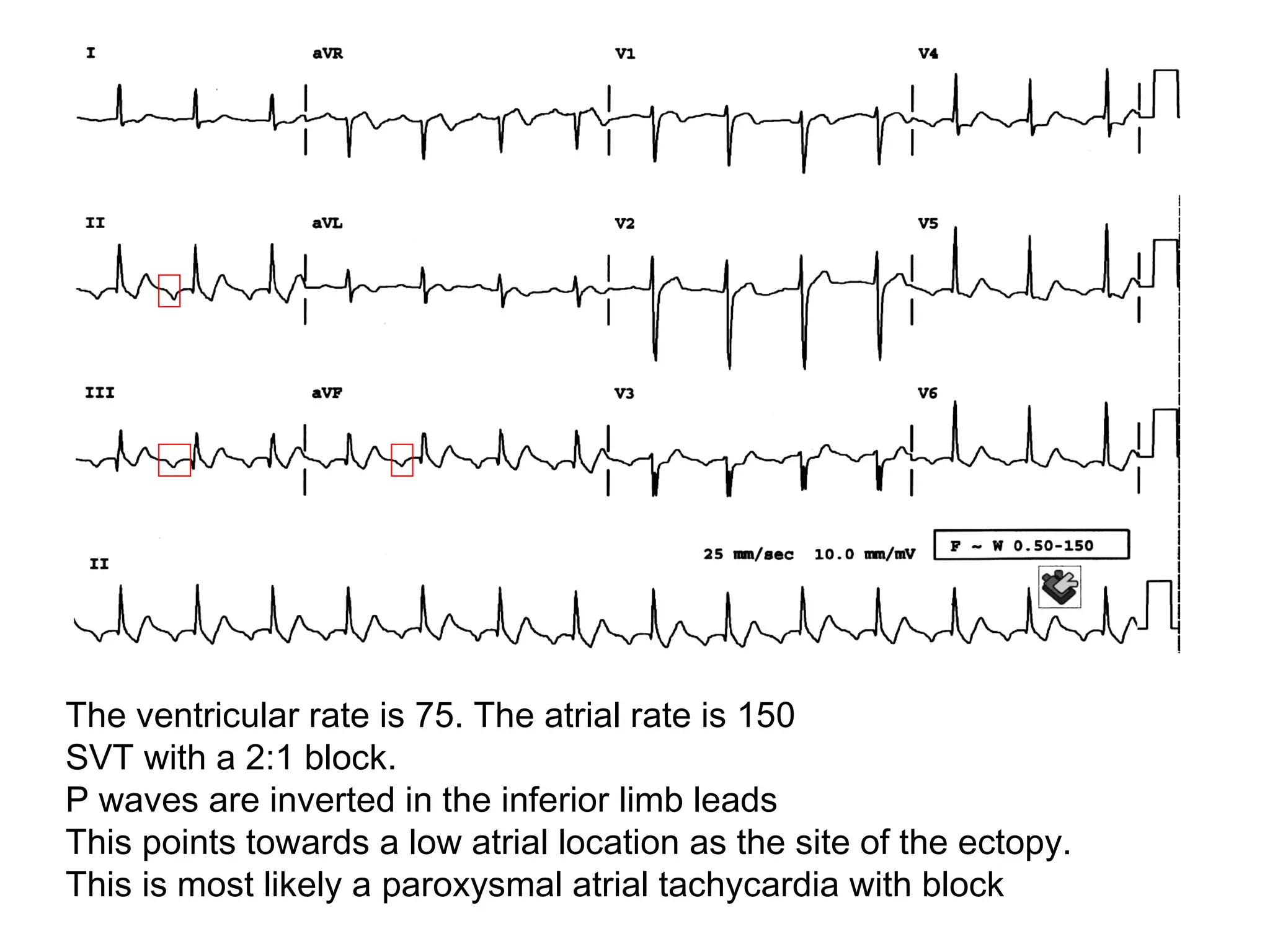

21. The ventricular rate is 75. The atrial rate is 150
SVT with a 2:1 block.
P waves are inverted in the inferior limb leads
This points towards a low atrial location as the site of the ectopy.
This is most likely a paroxysmal atrial tachycardia with block

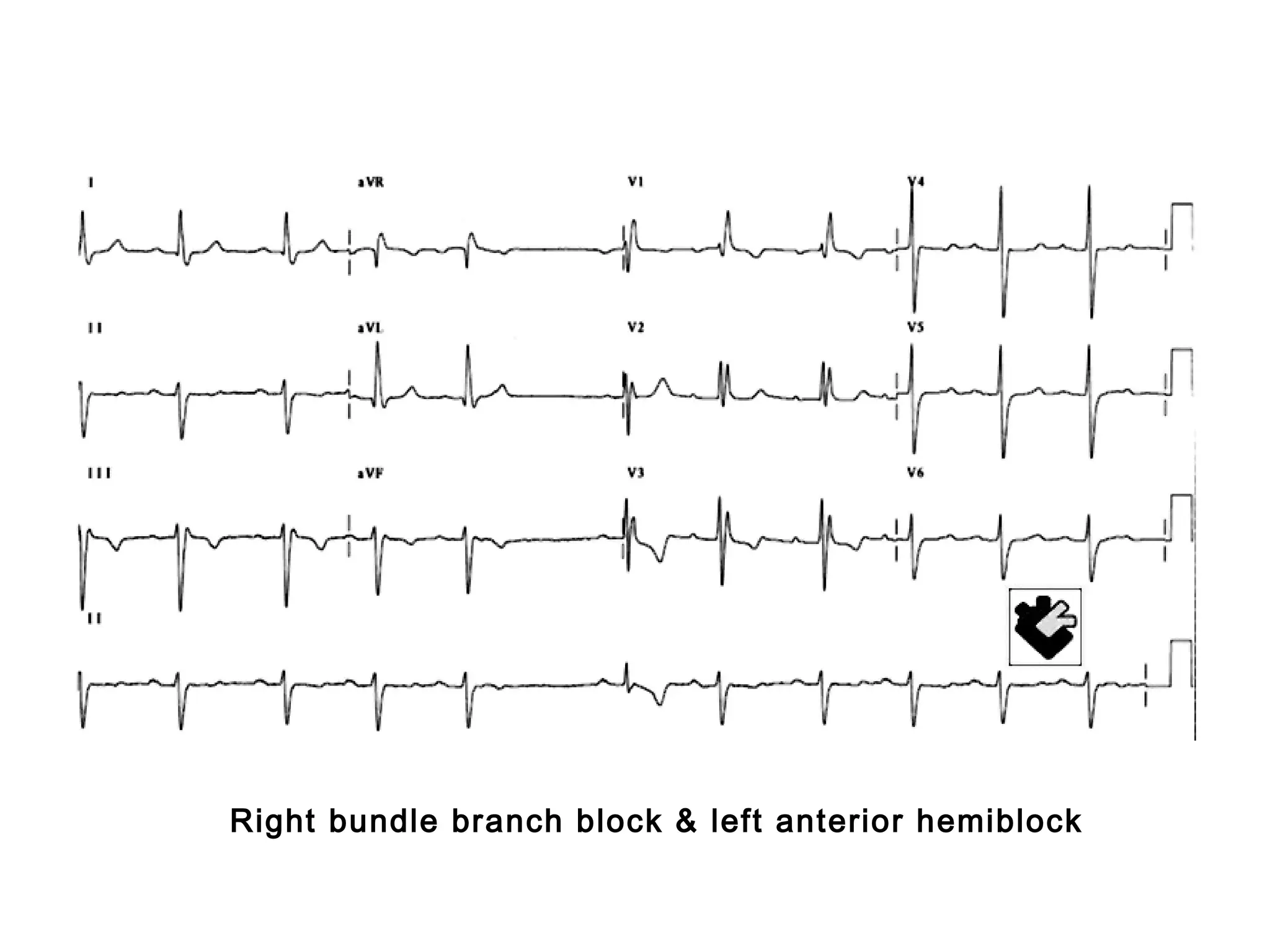

22. Right bundle branch block & left anterior hemiblock

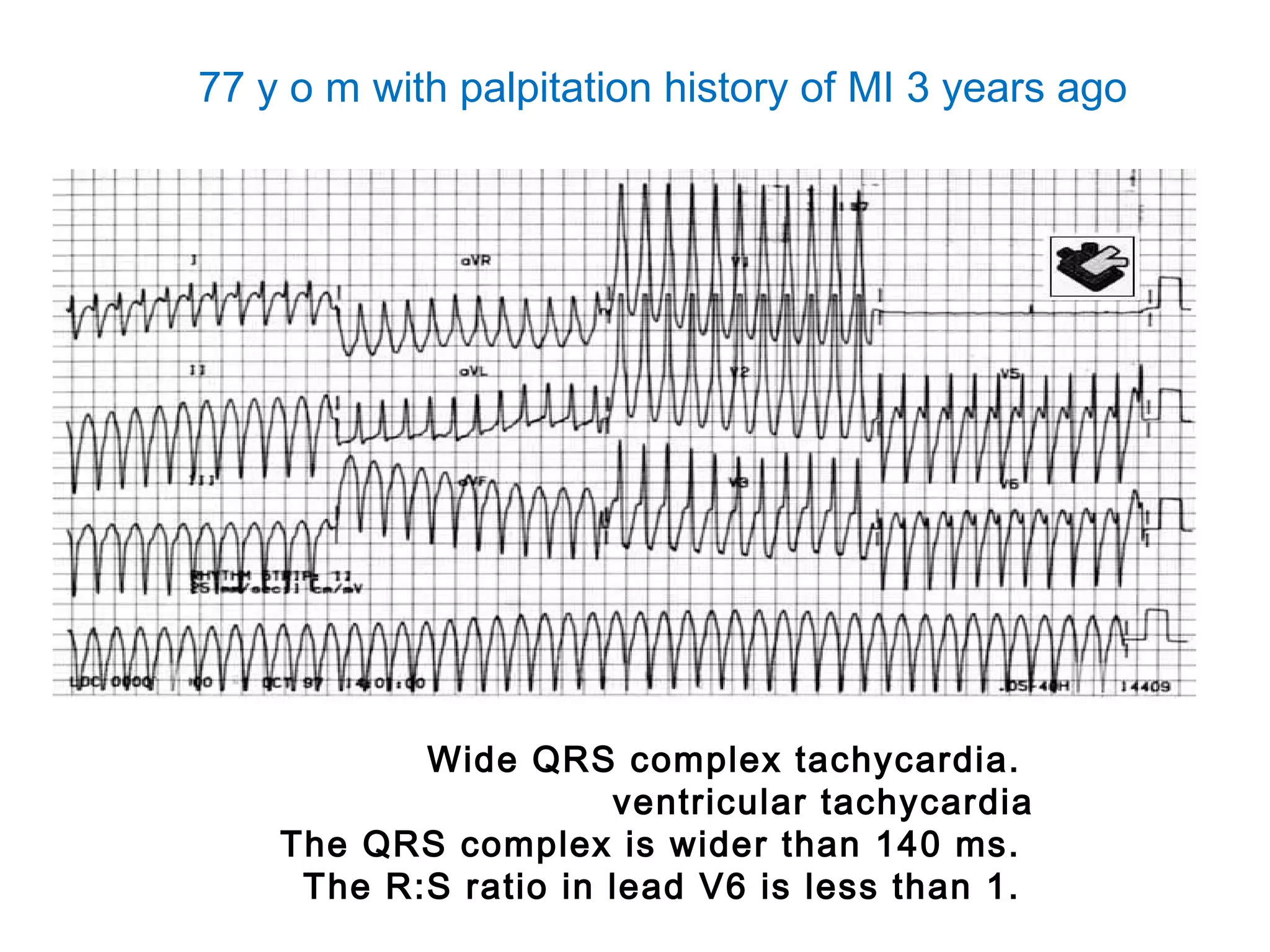

23. 77 y o m with palpitation history of MI 3 years ago
Wide QRS complex tachycardia.
ventricular tachycardia
The QRS complex is wider than 140 ms.
The R:S ratio in lead V6 is less than 1.

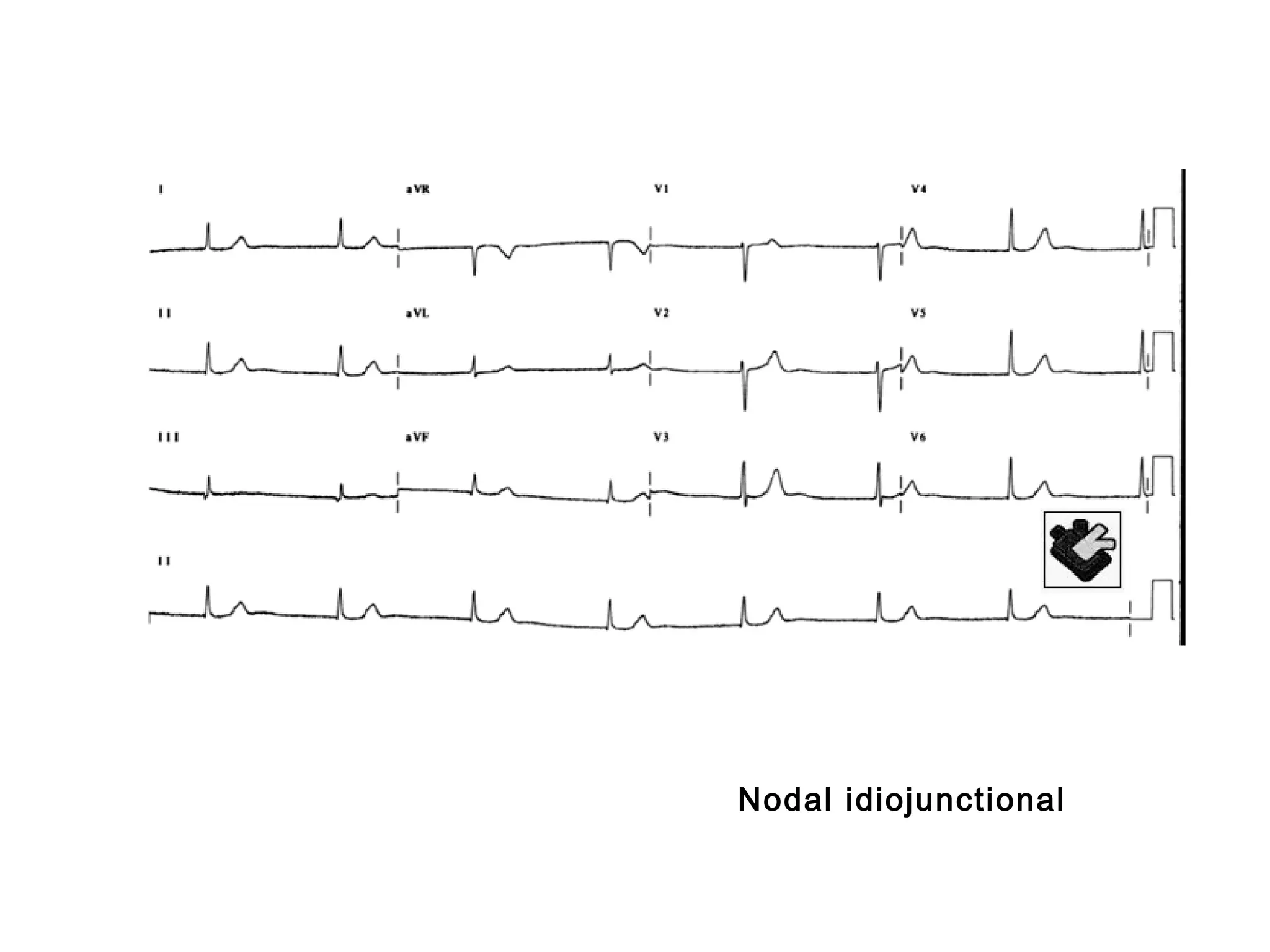

24. Nodal idiojunctional

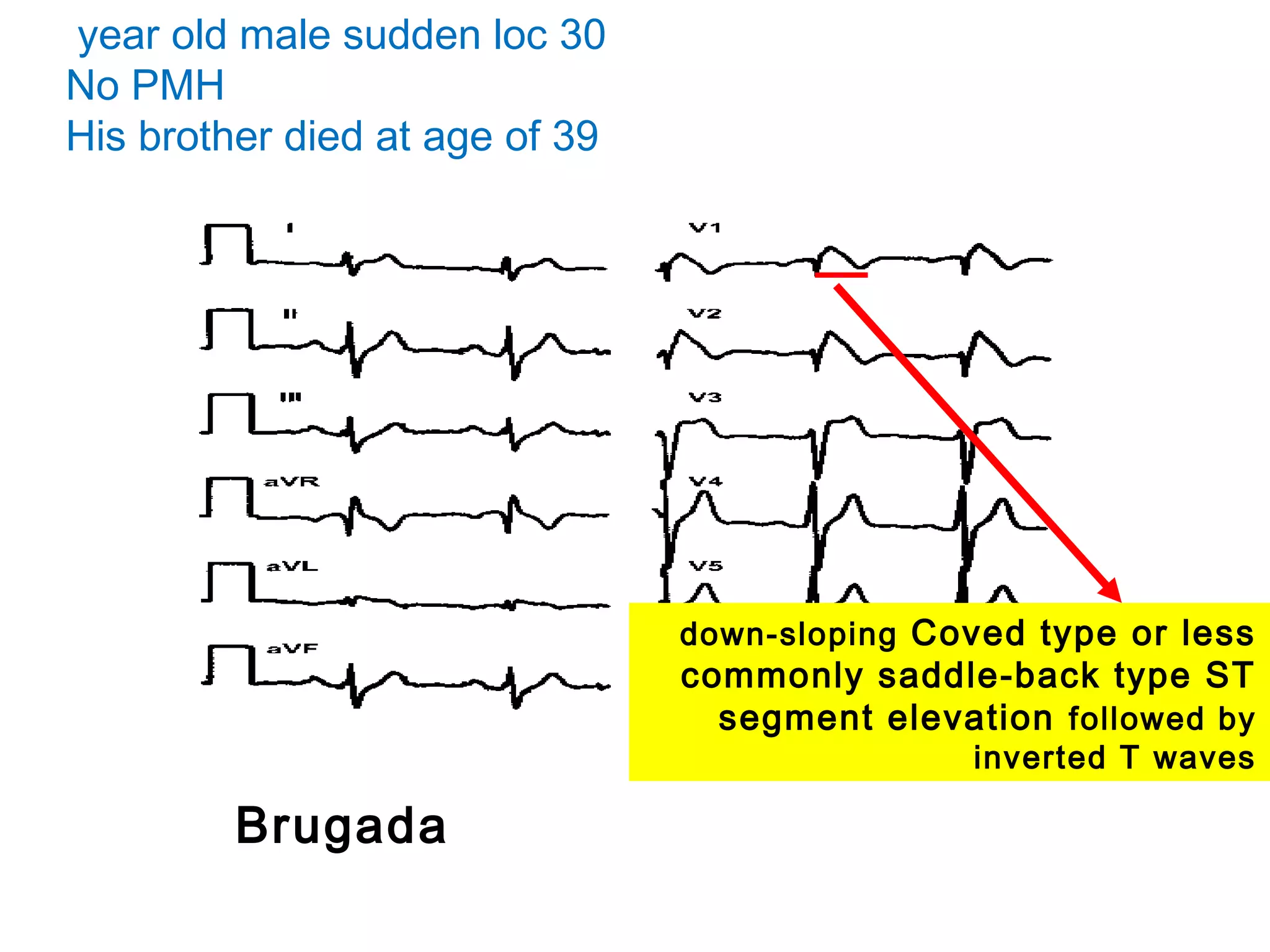

25. year old male sudden loc 30
No PMH
His brother died at age of 39
down-sloping Coved type or less
commonly saddle-back type ST
segment elevation followed by
inverted T waves
Brugada

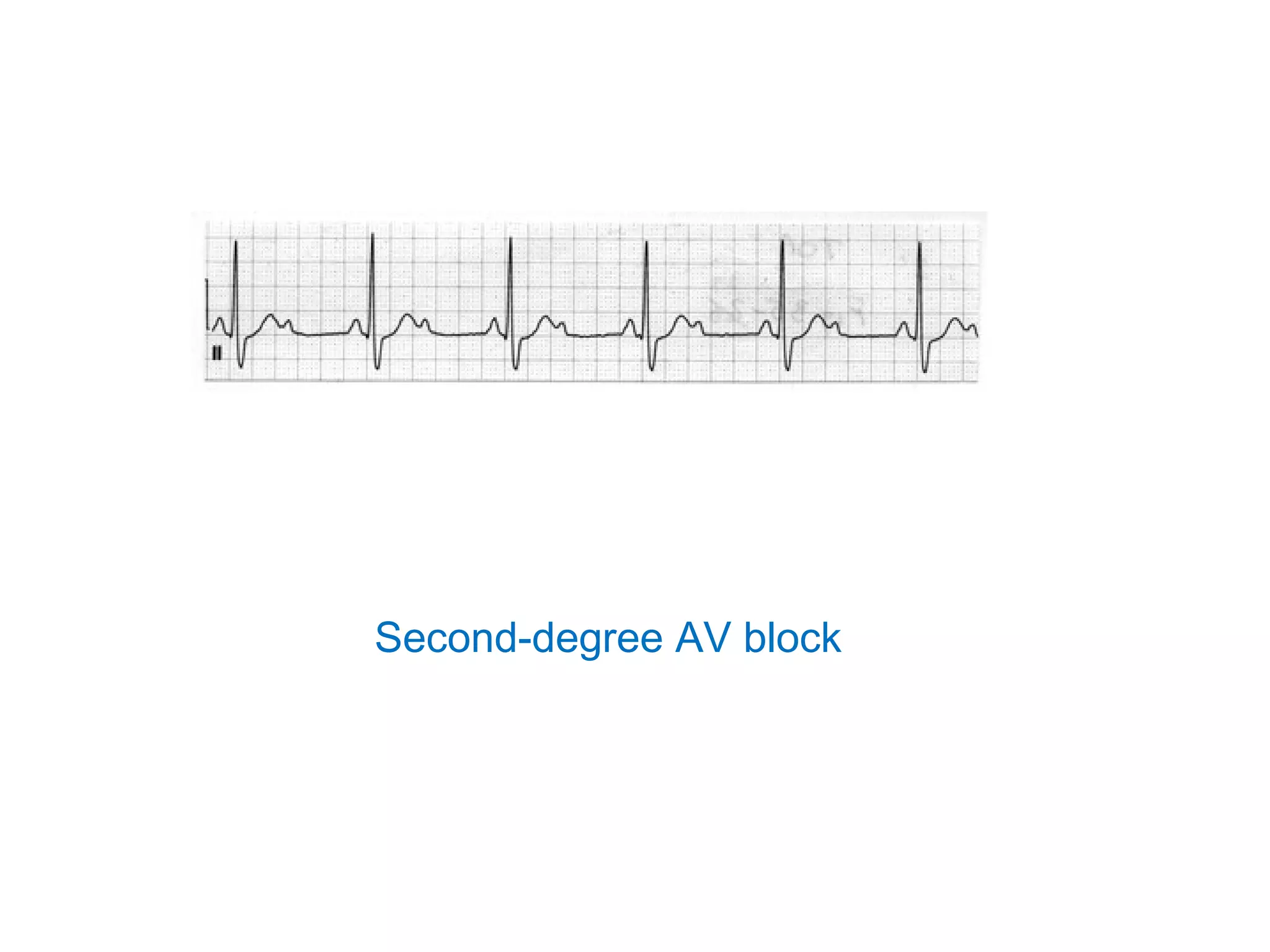

26. Second-degree AV block

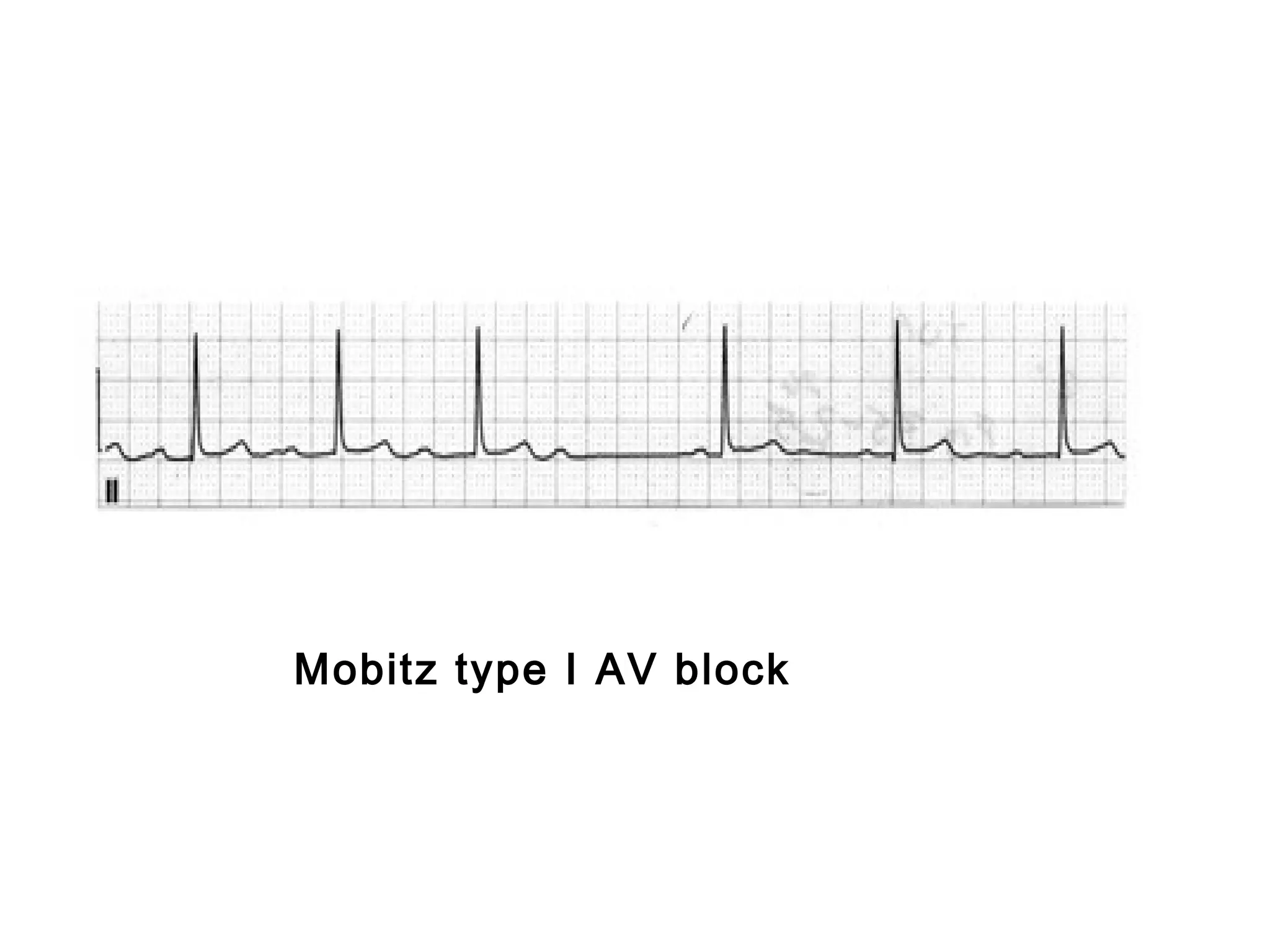

27. Mobitz type I AV block

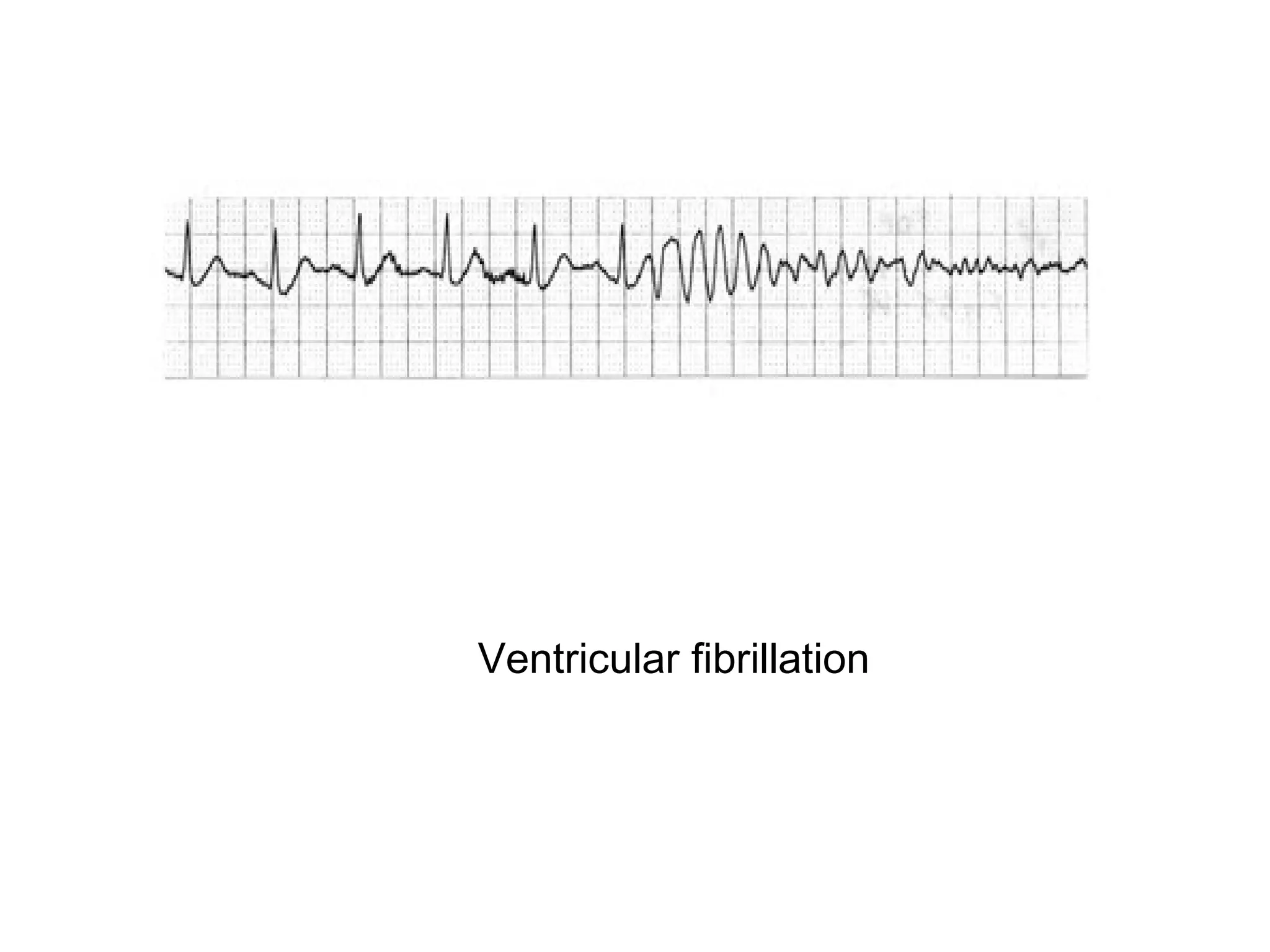

28. Ventricular fibrillation

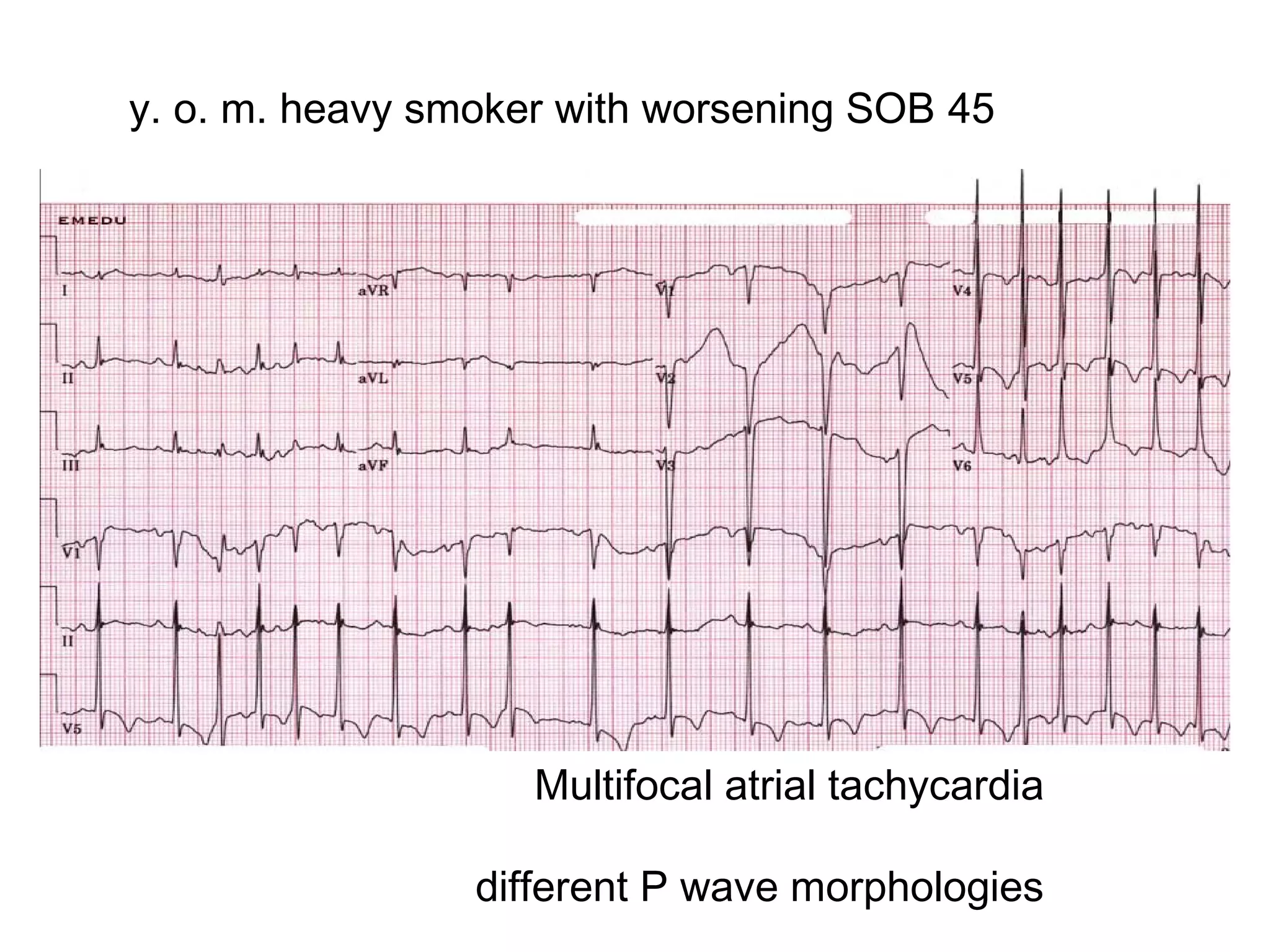

29. y. o. m. heavy smoker with worsening SOB 45
Multifocal atrial tachycardia
different P wave morphologies

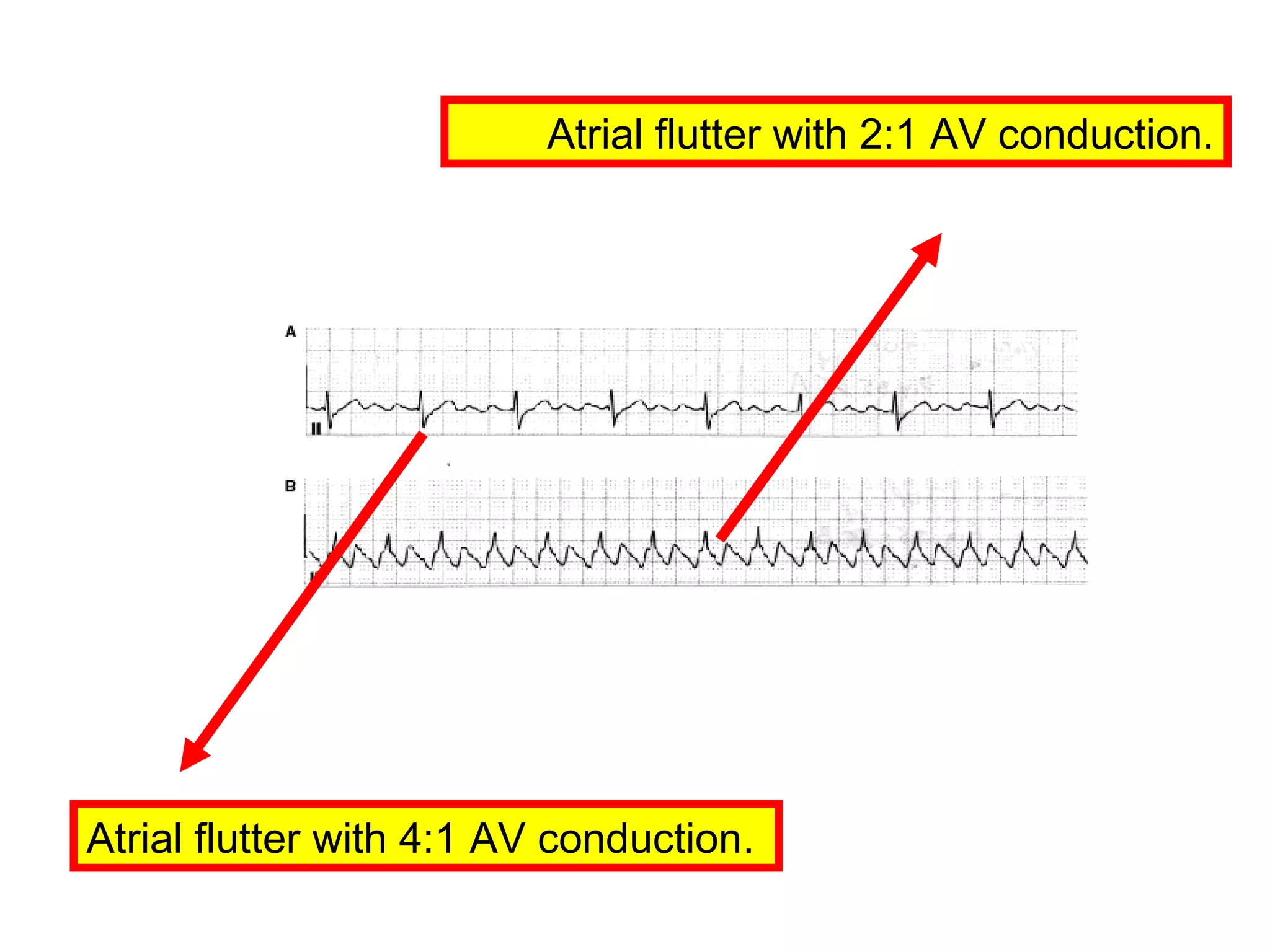

30. Atrial flutter with 2:1 AV conduction.
Atrial flutter with 4:1 AV conduction.

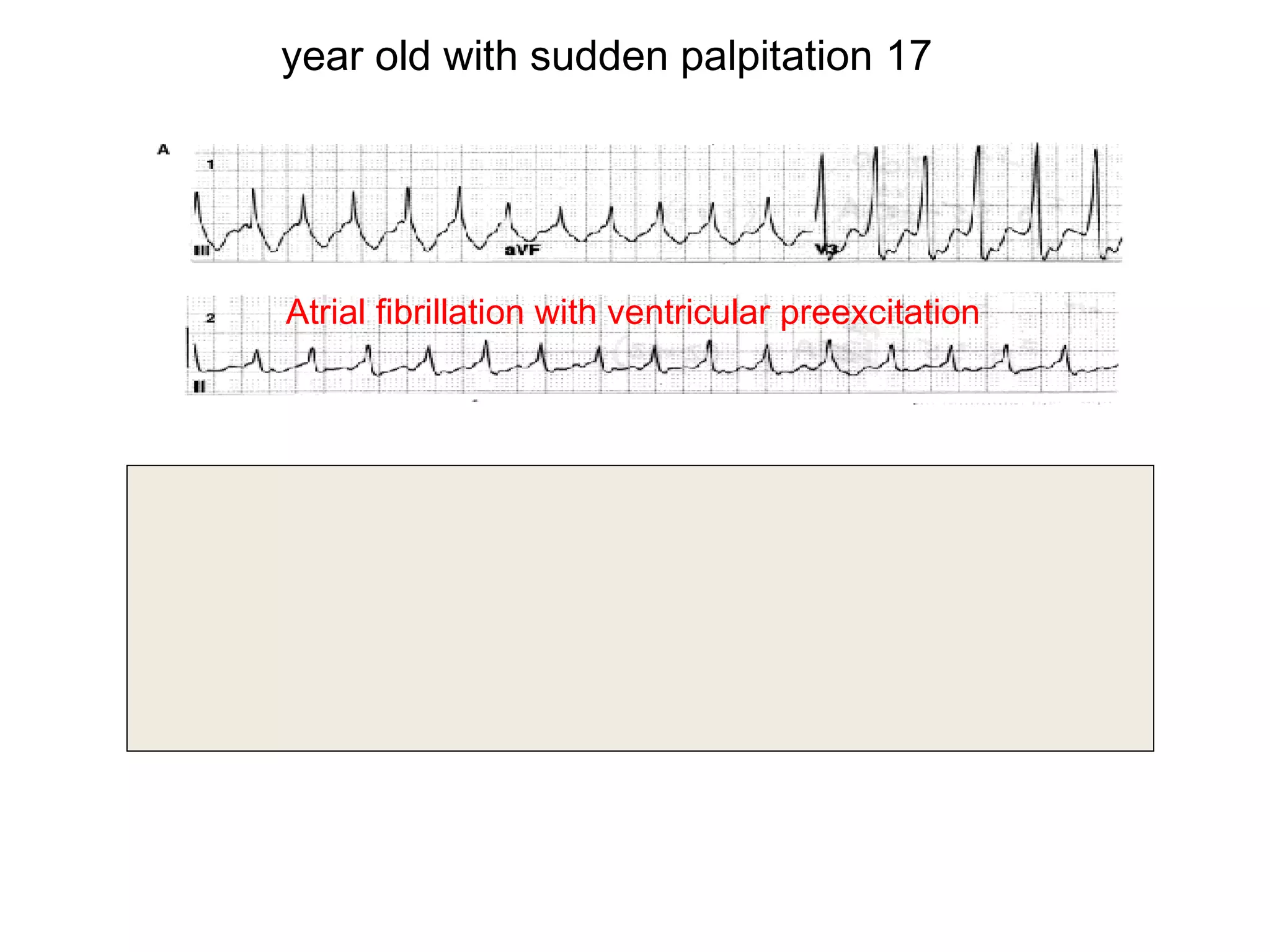

31. year old with sudden palpitation 17
Atrial fibrillation with ventricular preexcitation
.S. rhythm with ventricular preexcitation

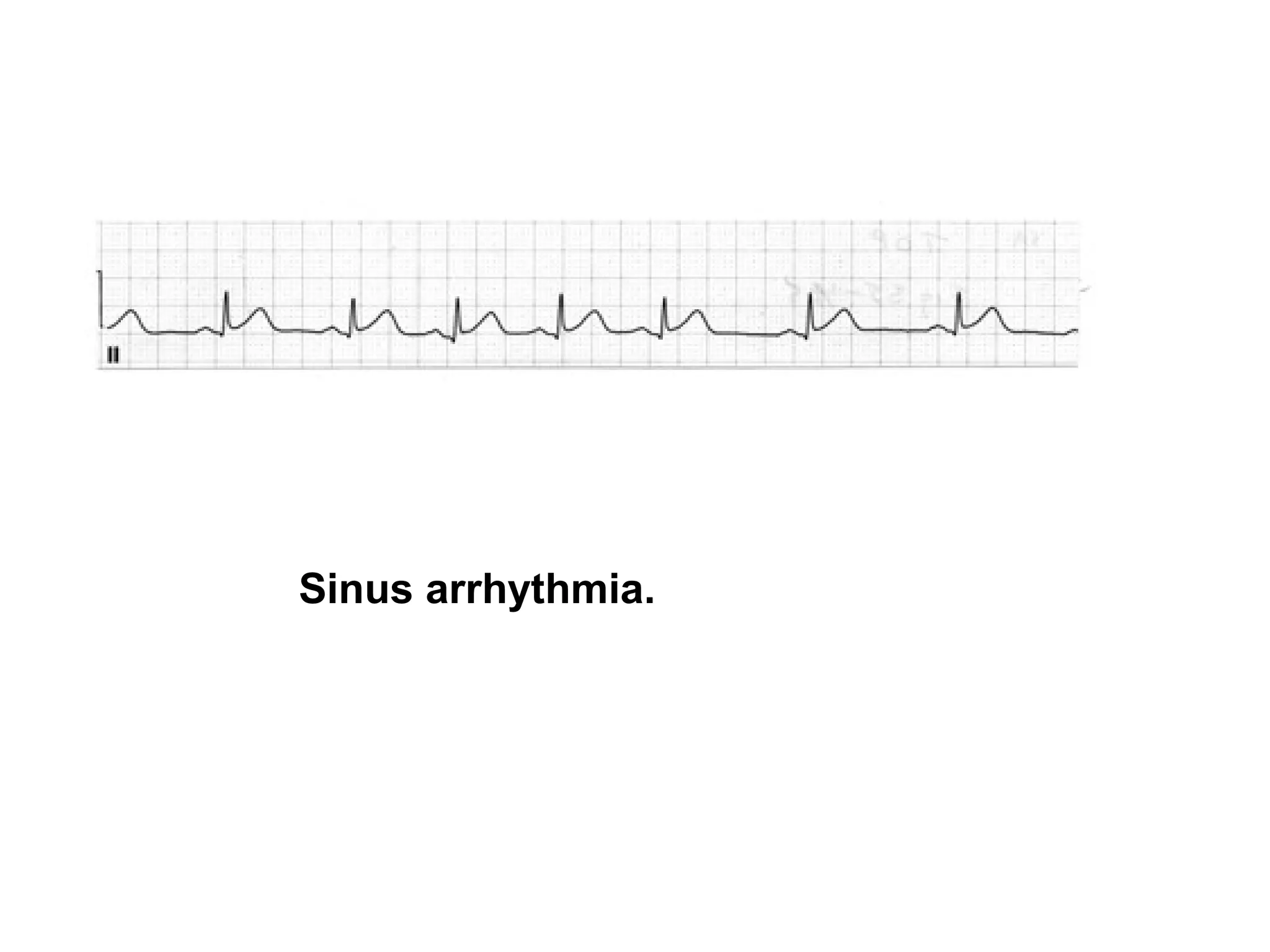

32. Sinus arrhythmia.

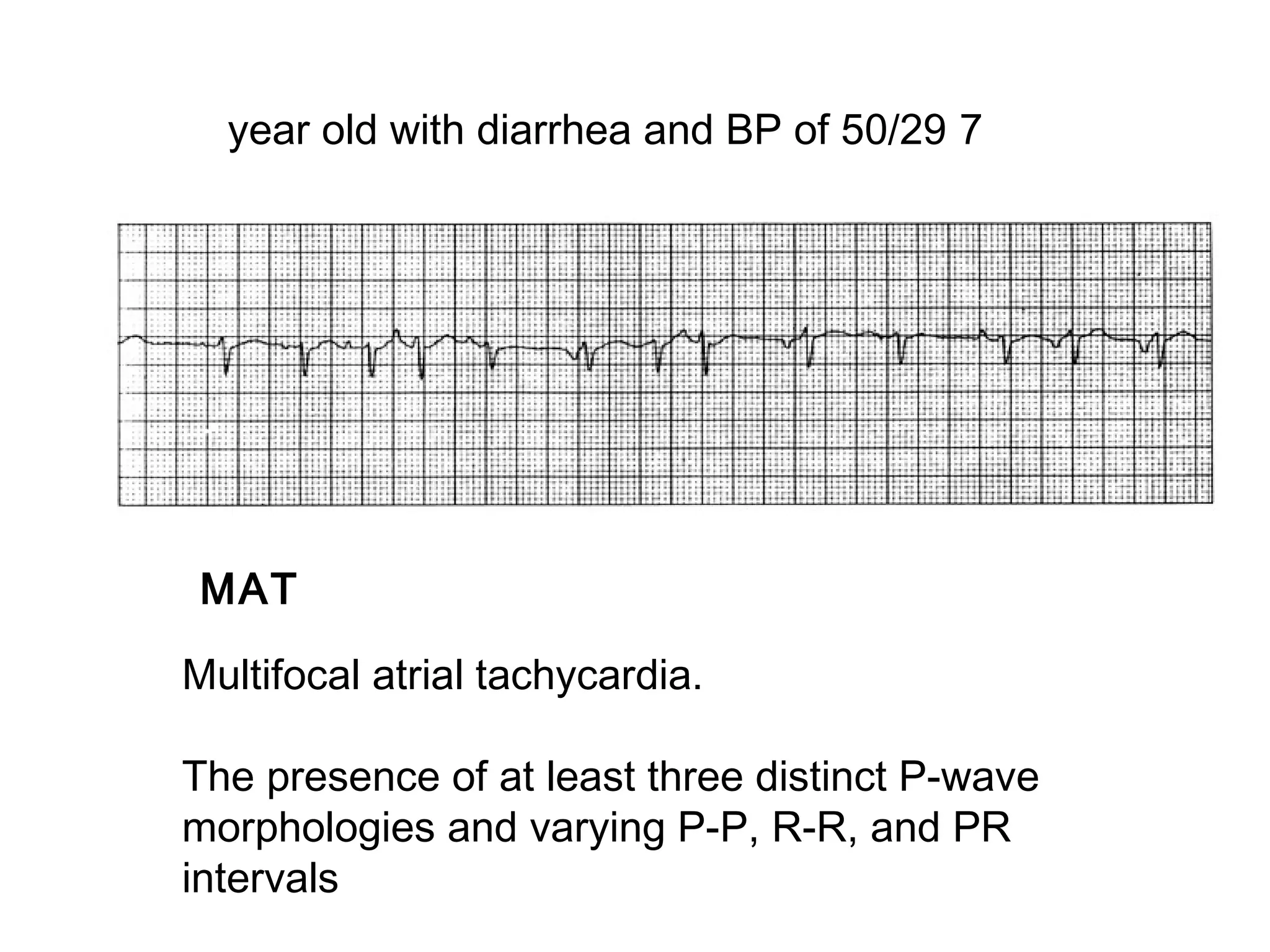

33. year old with diarrhea and BP of 50/29 7
MAT
Multifocal atrial tachycardia.
The presence of at least three distinct P-wave
morphologies and varying P-P, R-R, and PR
intervals

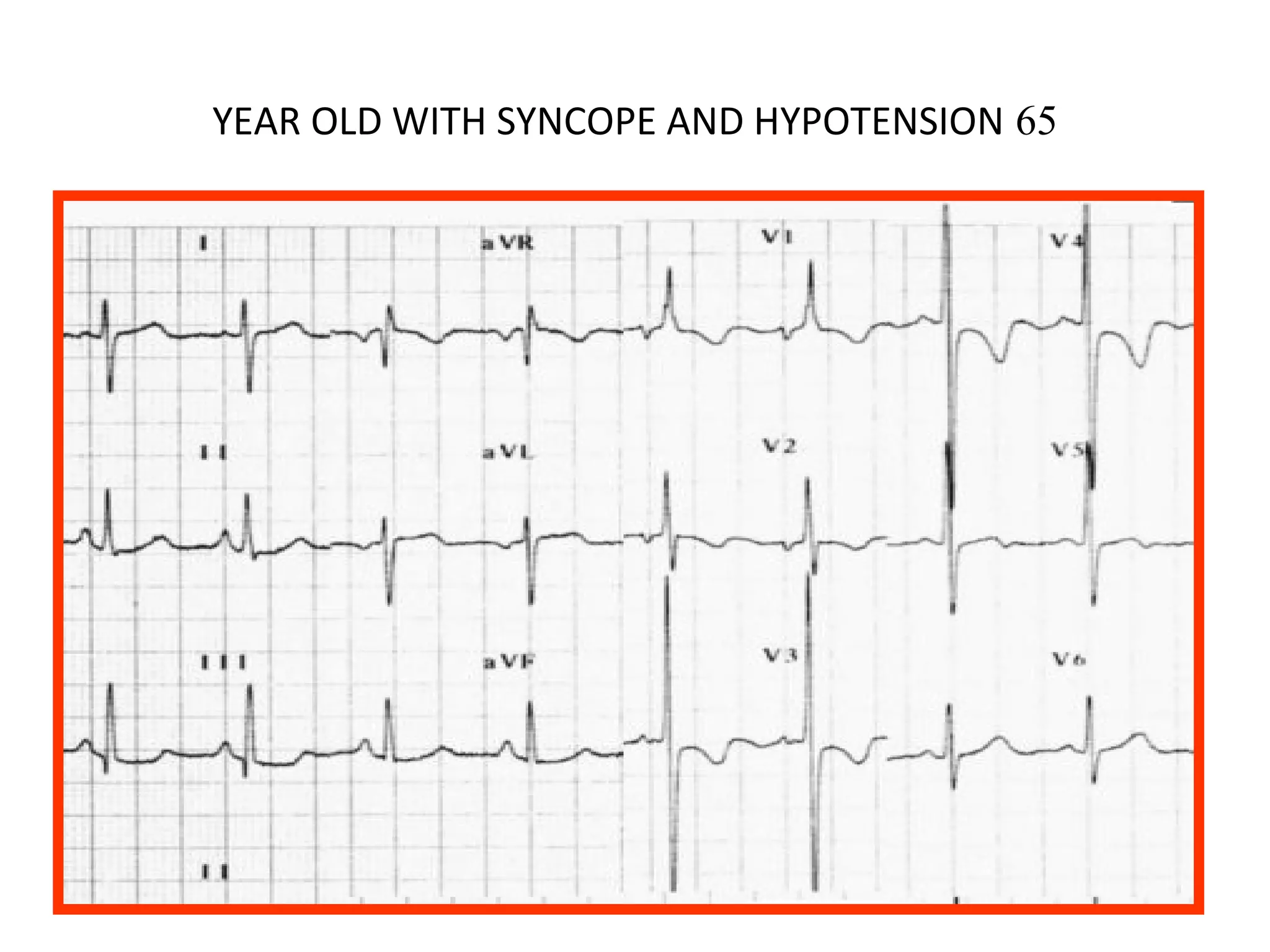

34. YEAR OLD WITH SYNCOPE AND HYPOTENSION 65

35. year old with on/off palpitation 19
WPW Type Preexcitation

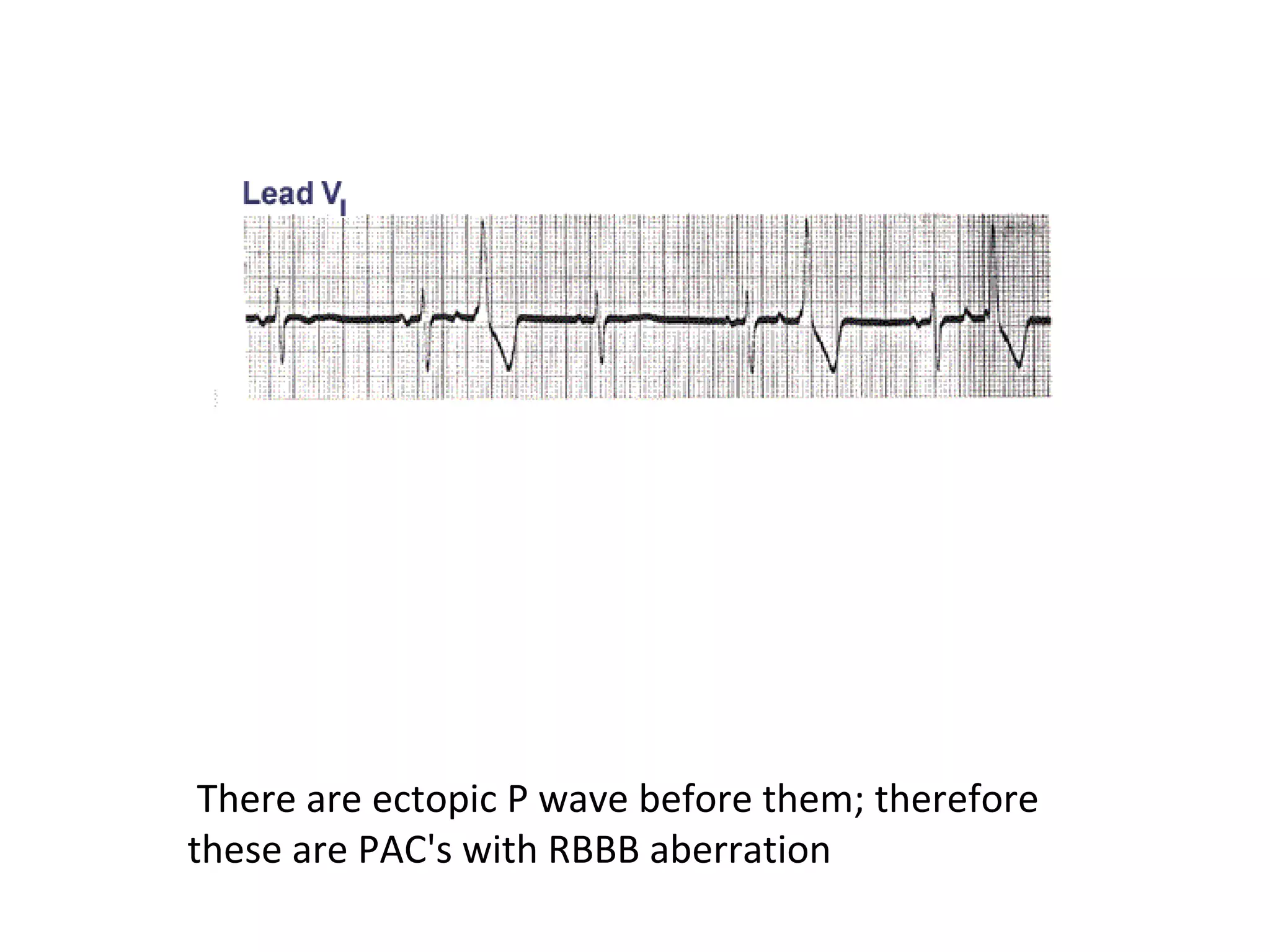

36. There are ectopic P wave before them; therefore
these are PAC's with RBBB aberration

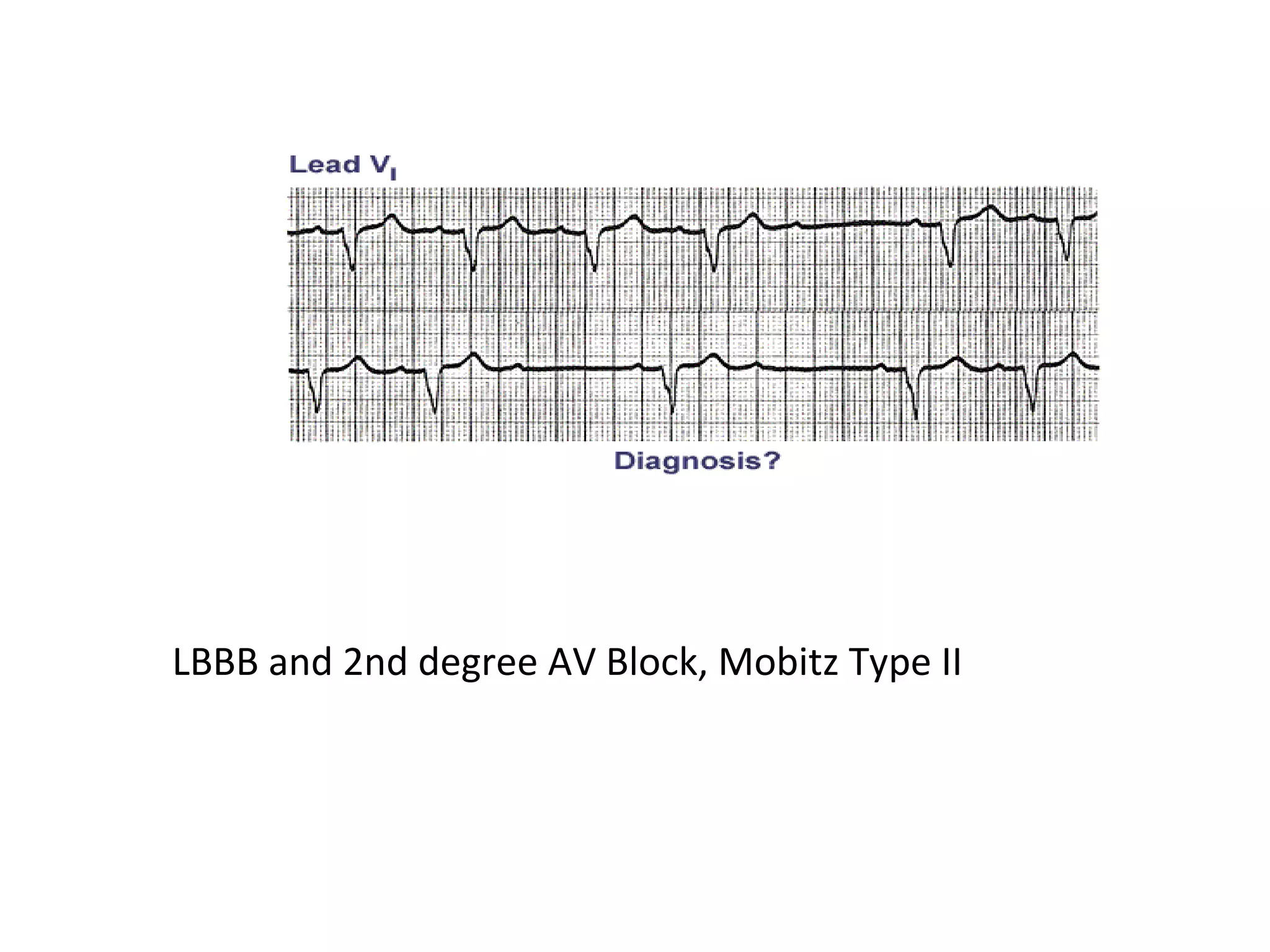

37. LBBB and 2nd degree AV Block, Mobitz Type II

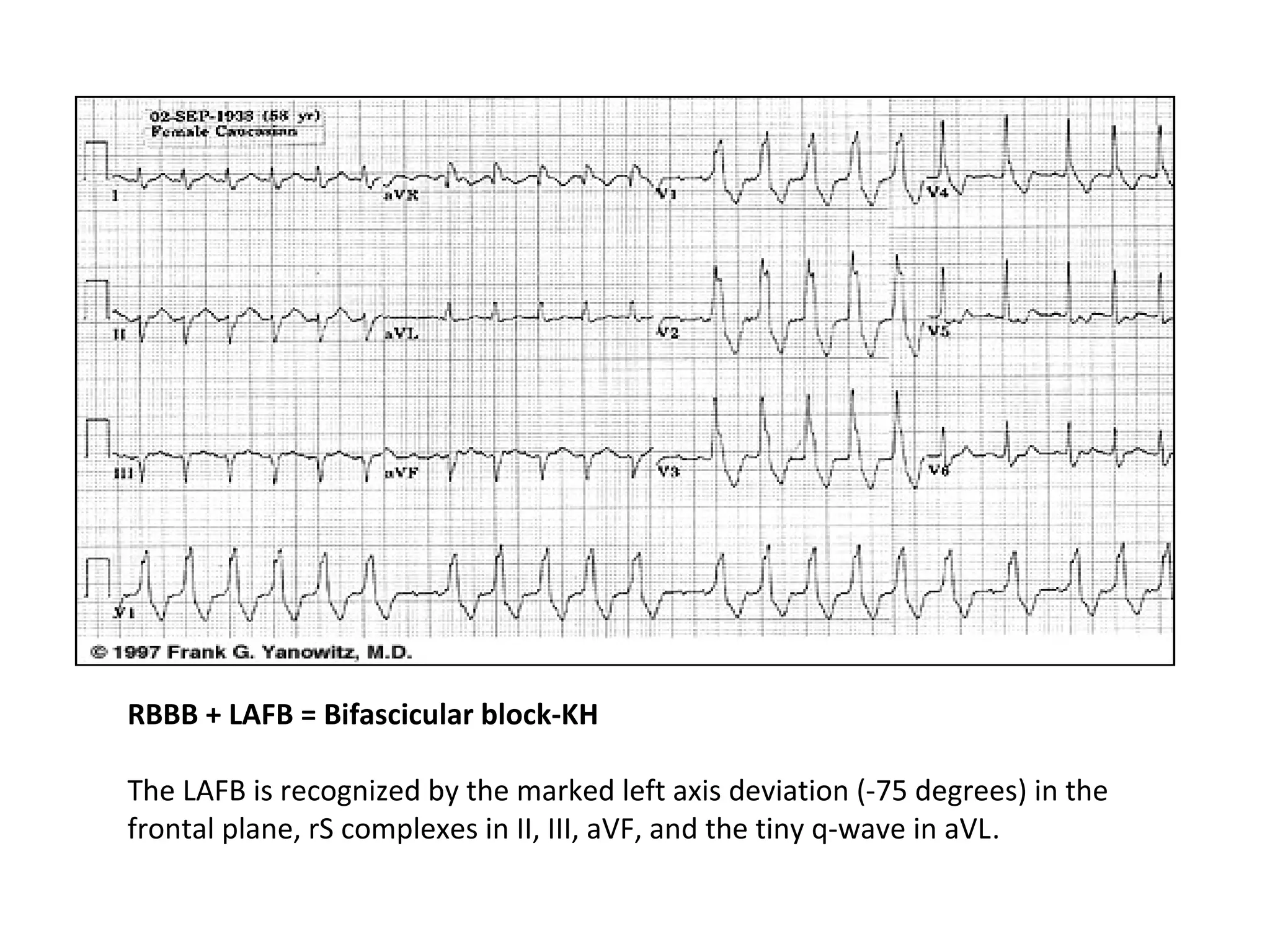

38. RBBB + LAFB = Bifascicular block-KH
The LAFB is recognized by the marked left axis deviation (-75 degrees) in the
frontal plane, rS complexes in II, III, aVF, and the tiny q-wave in aVL.

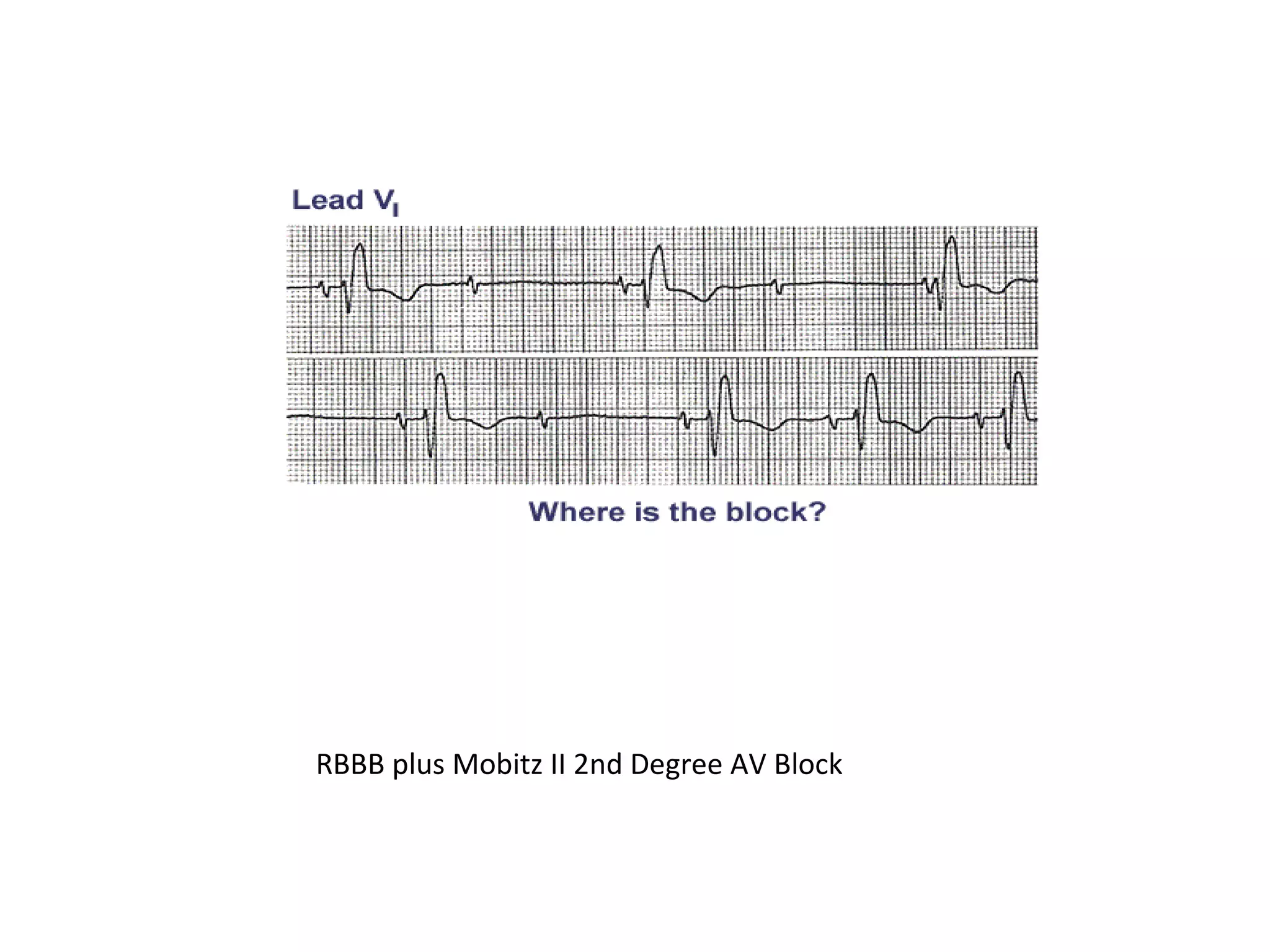

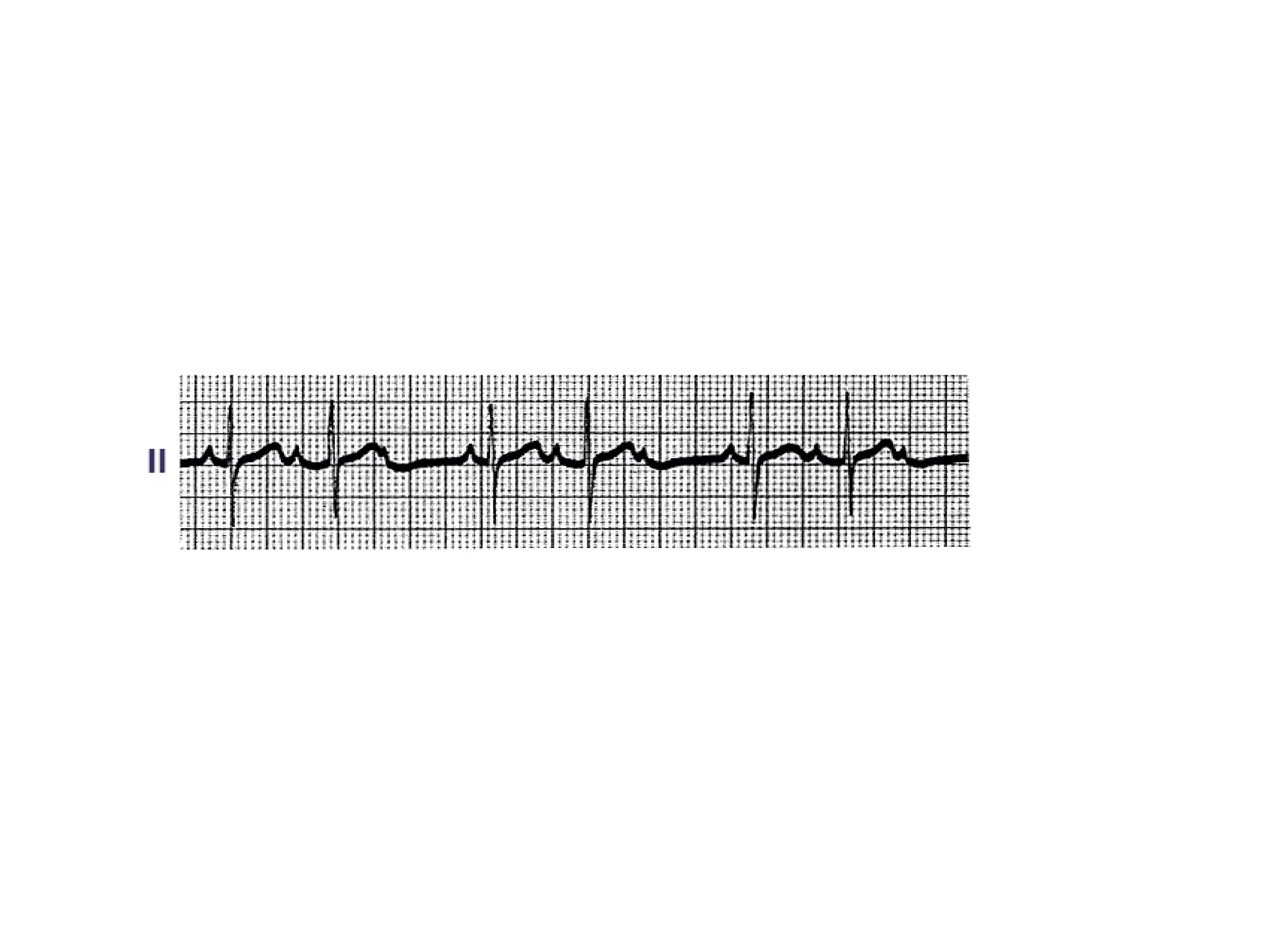

39. RBBB plus Mobitz II 2nd Degree AV Block

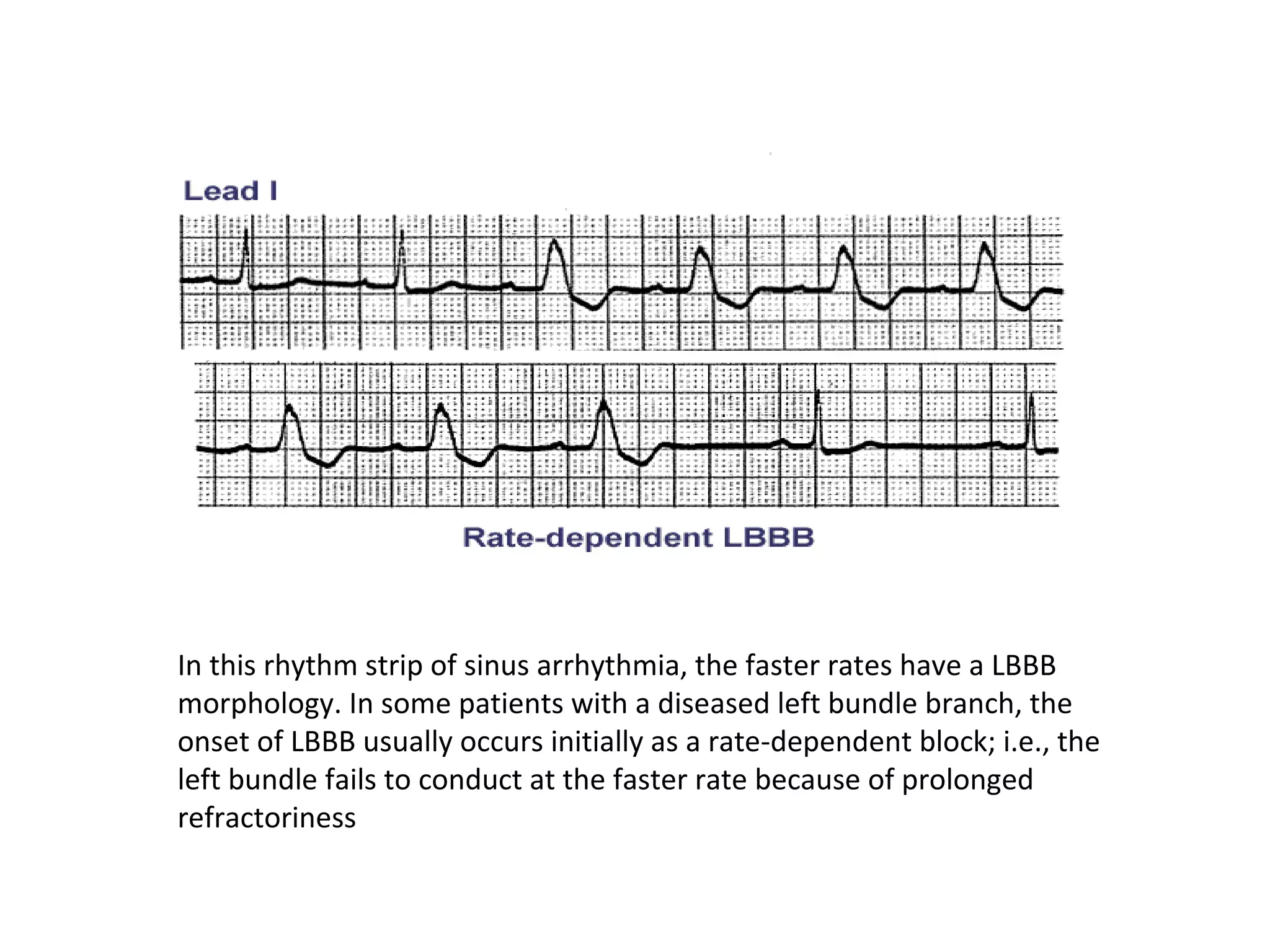

41. In this rhythm strip of sinus arrhythmia, the faster rates have a LBBB
morphology. In some patients with a diseased left bundle branch, the
onset of LBBB usually occurs initially as a rate-dependent block; i.e., the
left bundle fails to conduct at the faster rate because of prolonged
refractoriness

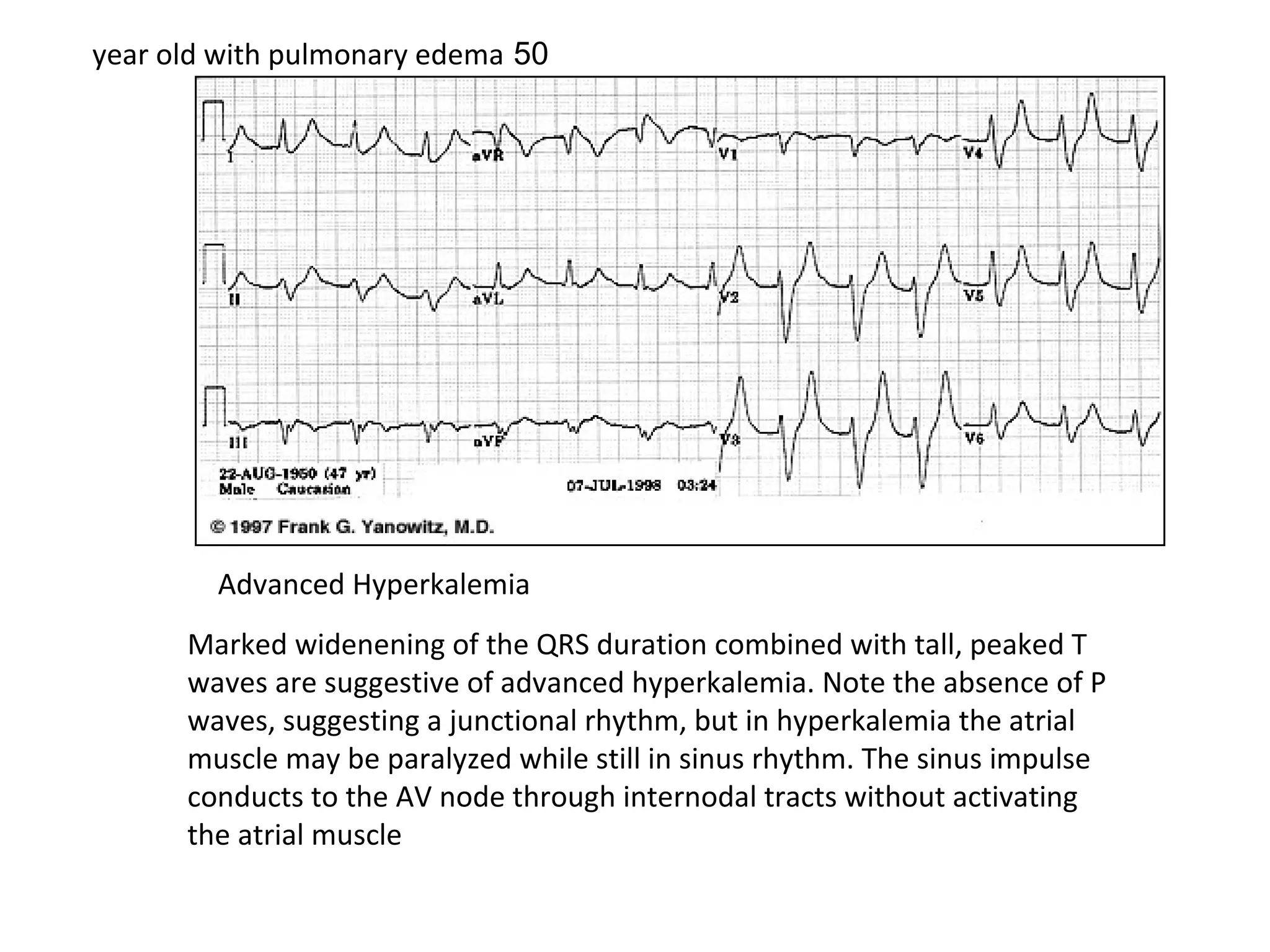

42. year old with pulmonary edema 50
Advanced Hyperkalemia
Marked widenening of the QRS duration combined with tall, peaked T
waves are suggestive of advanced hyperkalemia. Note the absence of P
waves, suggesting a junctional rhythm, but in hyperkalemia the atrial
muscle may be paralyzed while still in sinus rhythm. The sinus impulse
conducts to the AV node through internodal tracts without activating
the atrial muscle

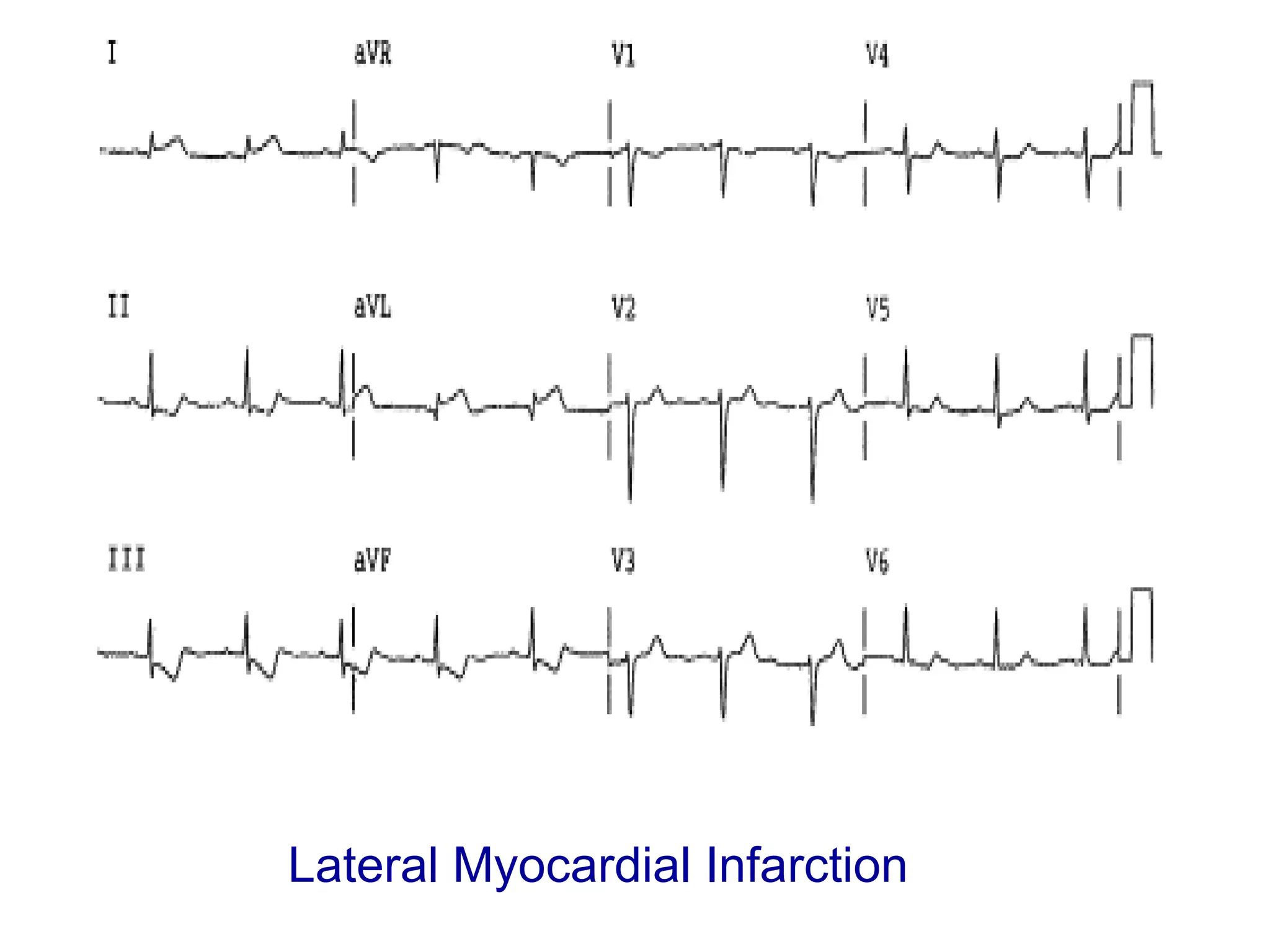

43. Lateral Myocardial Infarction

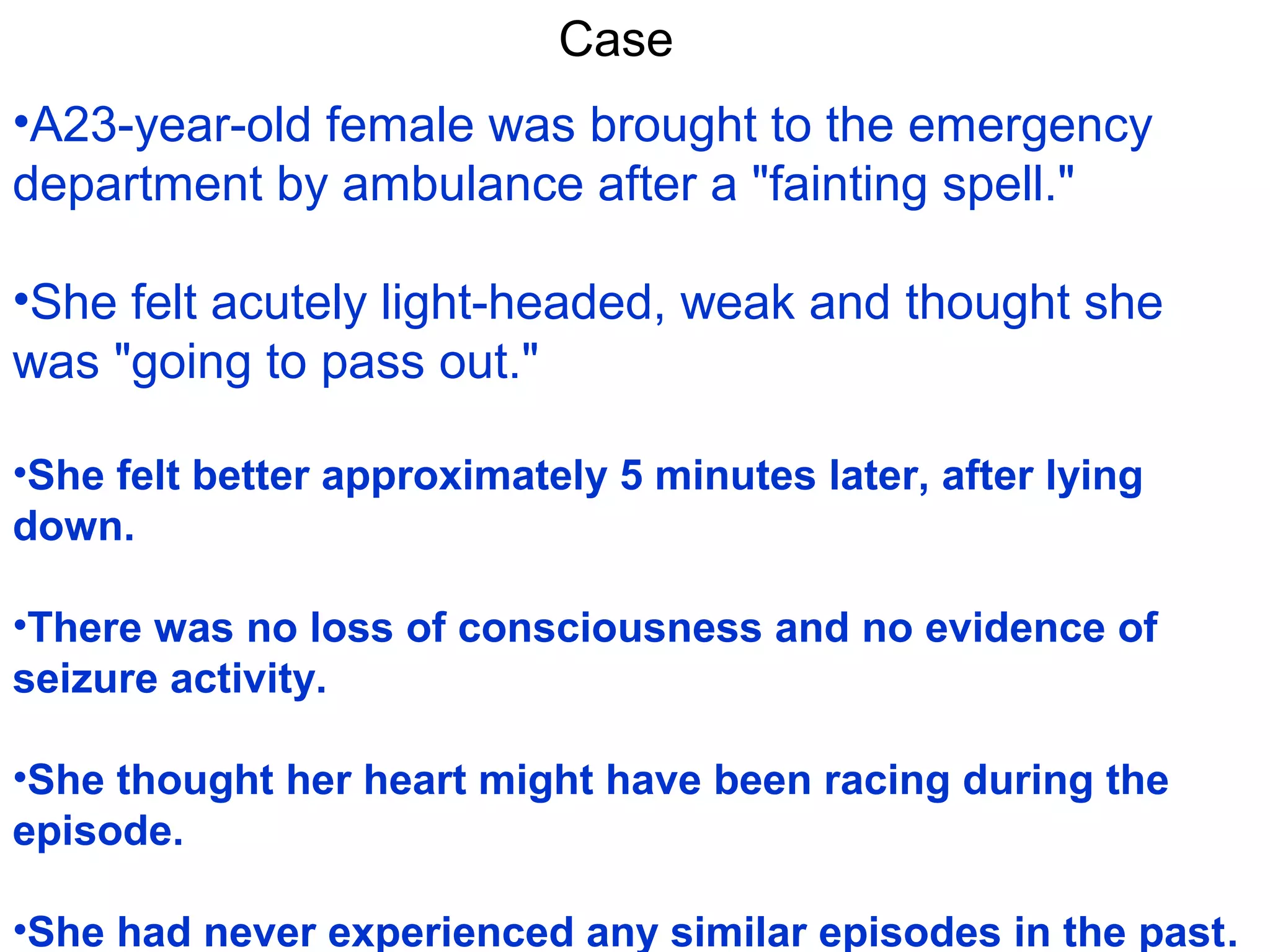

44. Case
•A23-year-old female was brought to the emergency
department by ambulance after a "fainting spell."
•She felt acutely light-headed, weak and thought she
was "going to pass out."
•She felt better approximately 5 minutes later, after lying
down.
•There was no loss of consciousness and no evidence of
seizure activity.
•She thought her heart might have been racing during the
episode.
•She had never experienced any similar episodes in the past.

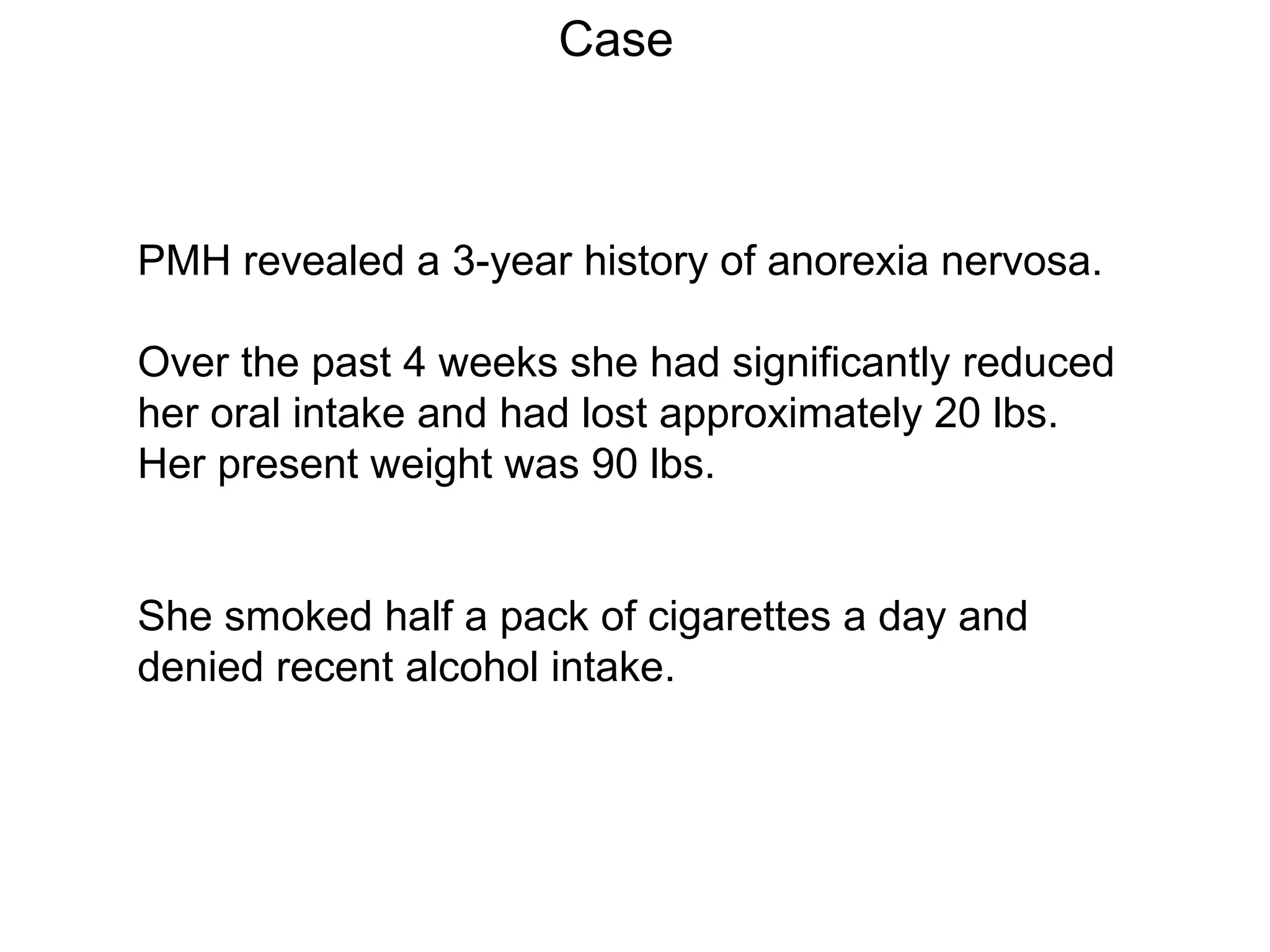

45. Case
PMH revealed a 3-year history of anorexia nervosa.
Over the past 4 weeks she had significantly reduced
her oral intake and had lost approximately 20 lbs.
Her present weight was 90 lbs.
She smoked half a pack of cigarettes a day and
denied recent alcohol intake.

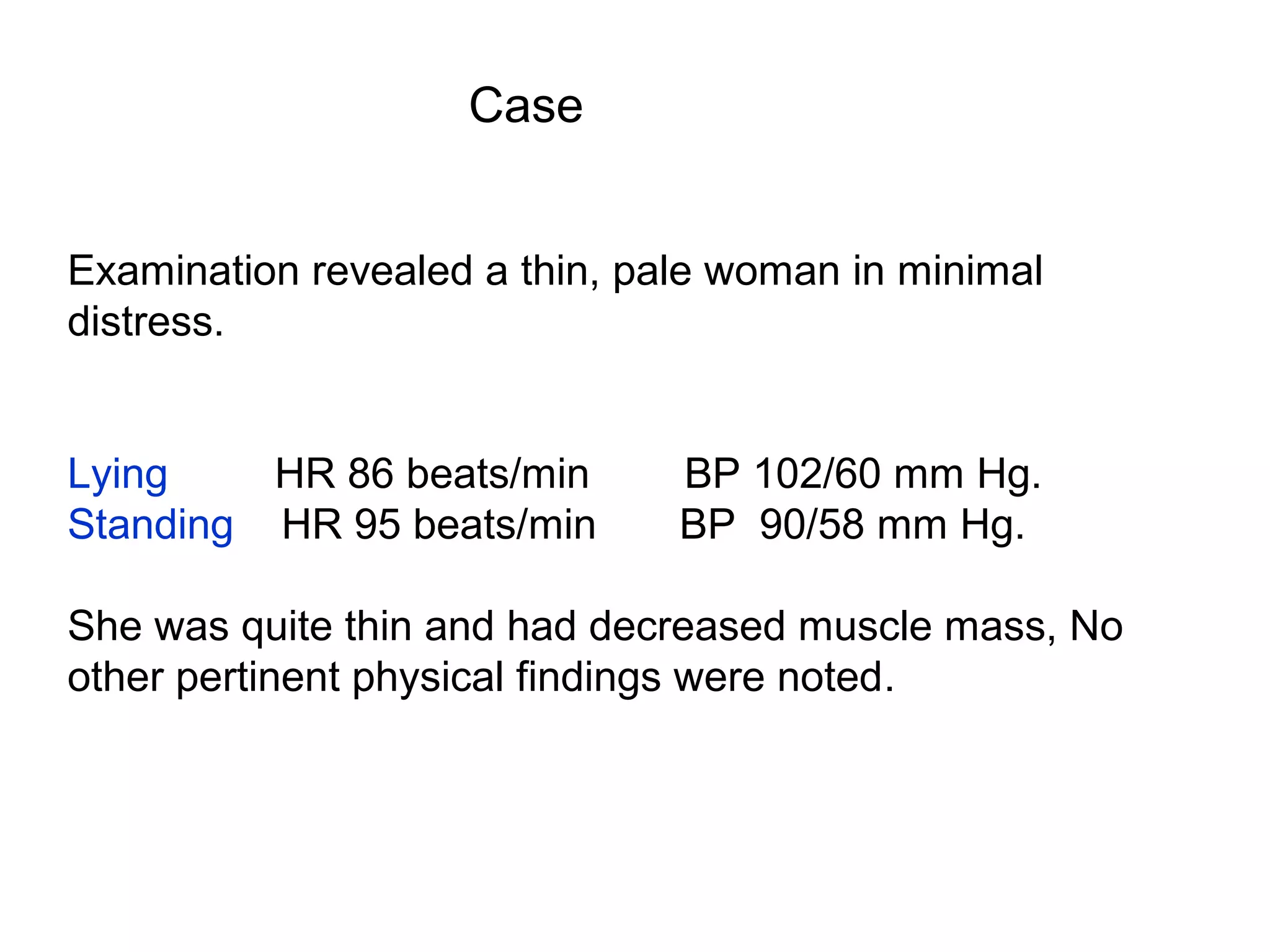

46. Case
Examination revealed a thin, pale woman in minimal
distress.
Lying
HR 86 beats/min
Standing HR 95 beats/min
BP 102/60 mm Hg.
BP 90/58 mm Hg.
She was quite thin and had decreased muscle mass, No
other pertinent physical findings were noted.

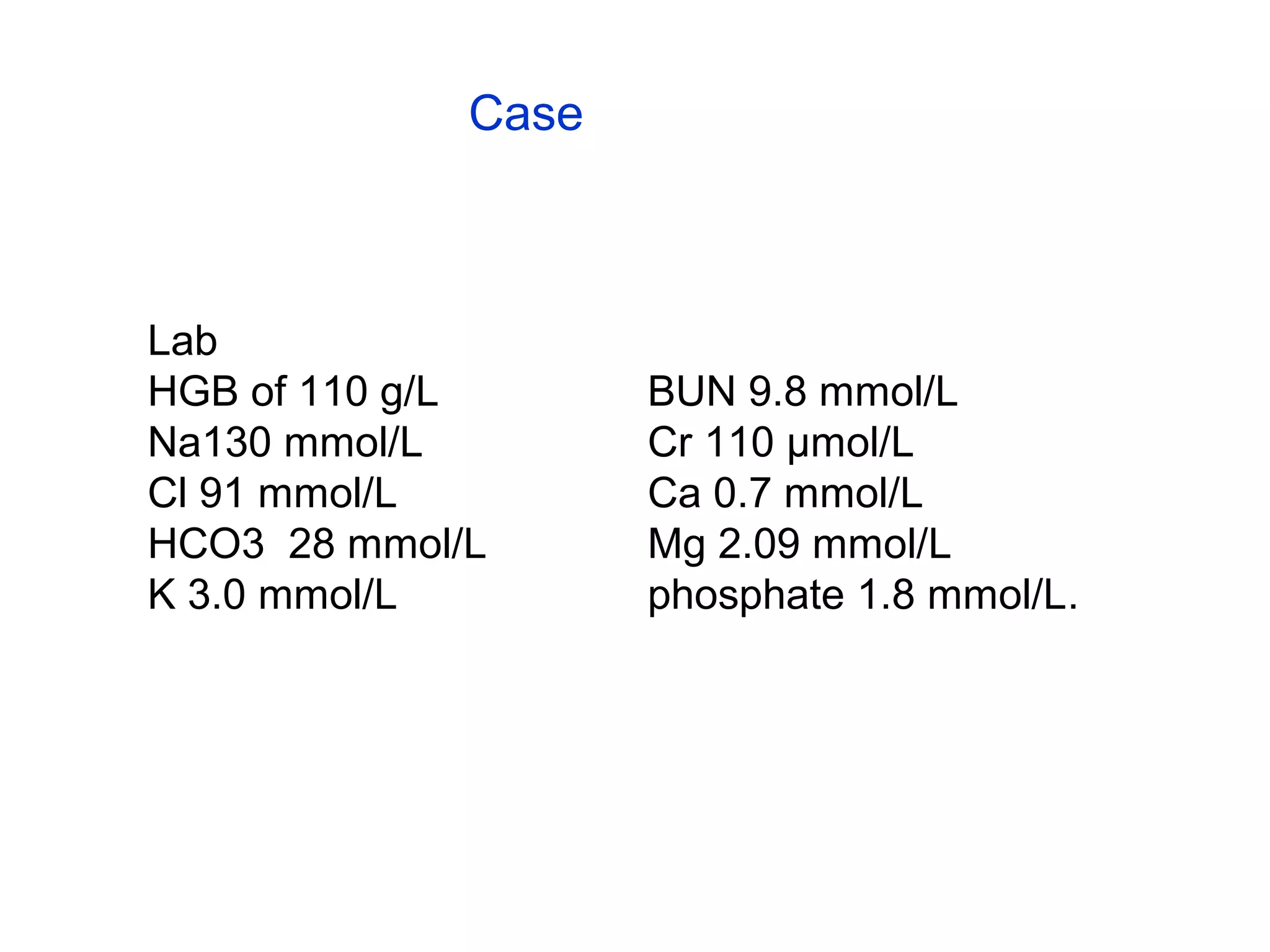

47. Case
Lab
HGB of 110 g/L
Na130 mmol/L
Cl 91 mmol/L
HCO3 28 mmol/L
K 3.0 mmol/L
BUN 9.8 mmol/L
Cr 110 µmol/L
Ca 0.7 mmol/L
Mg 2.09 mmol/L
phosphate 1.8 mmol/L.

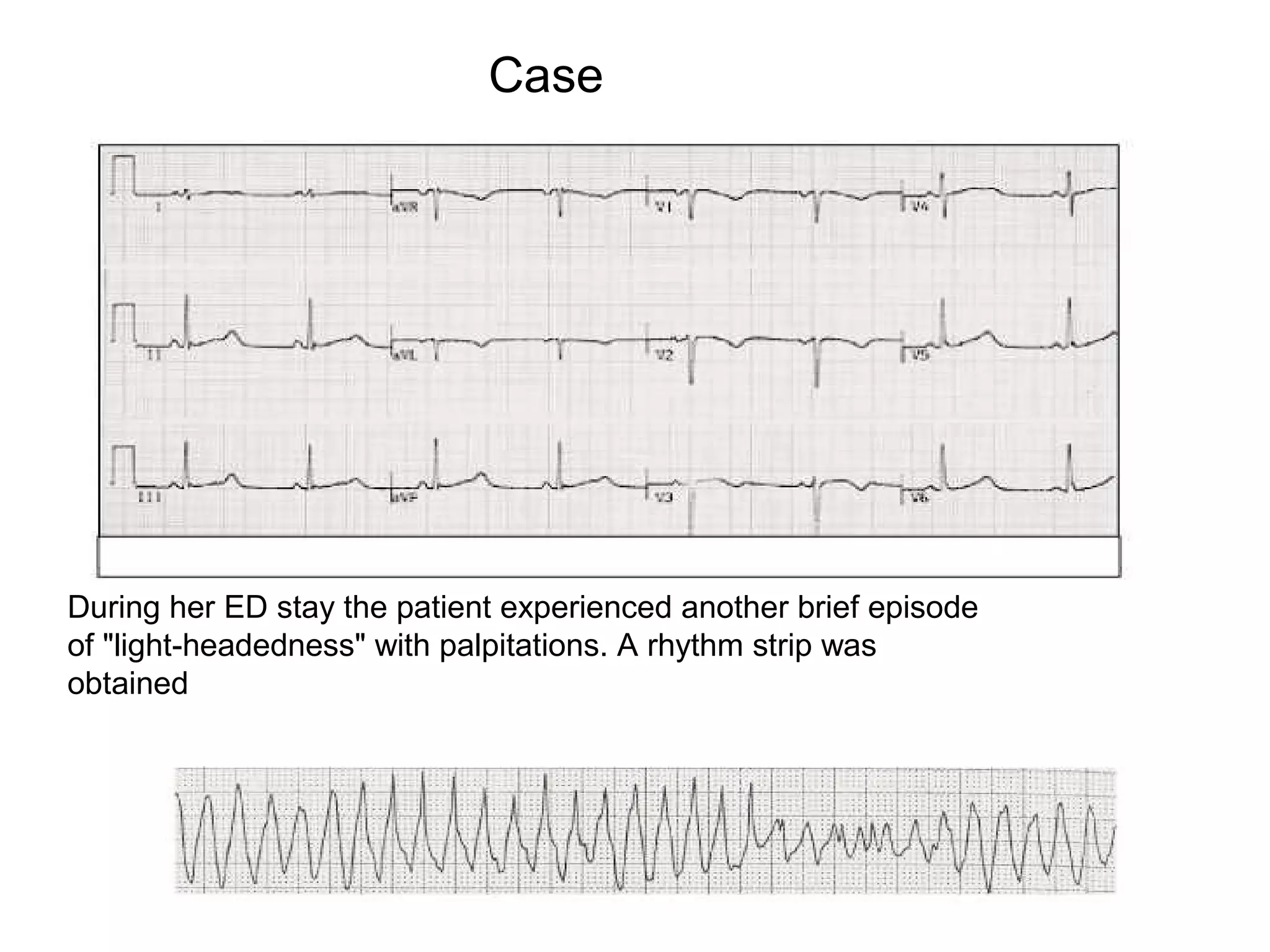

48. Case
During her ED stay the patient experienced another brief episode
of "light-headedness" with palpitations. A rhythm strip was
obtained

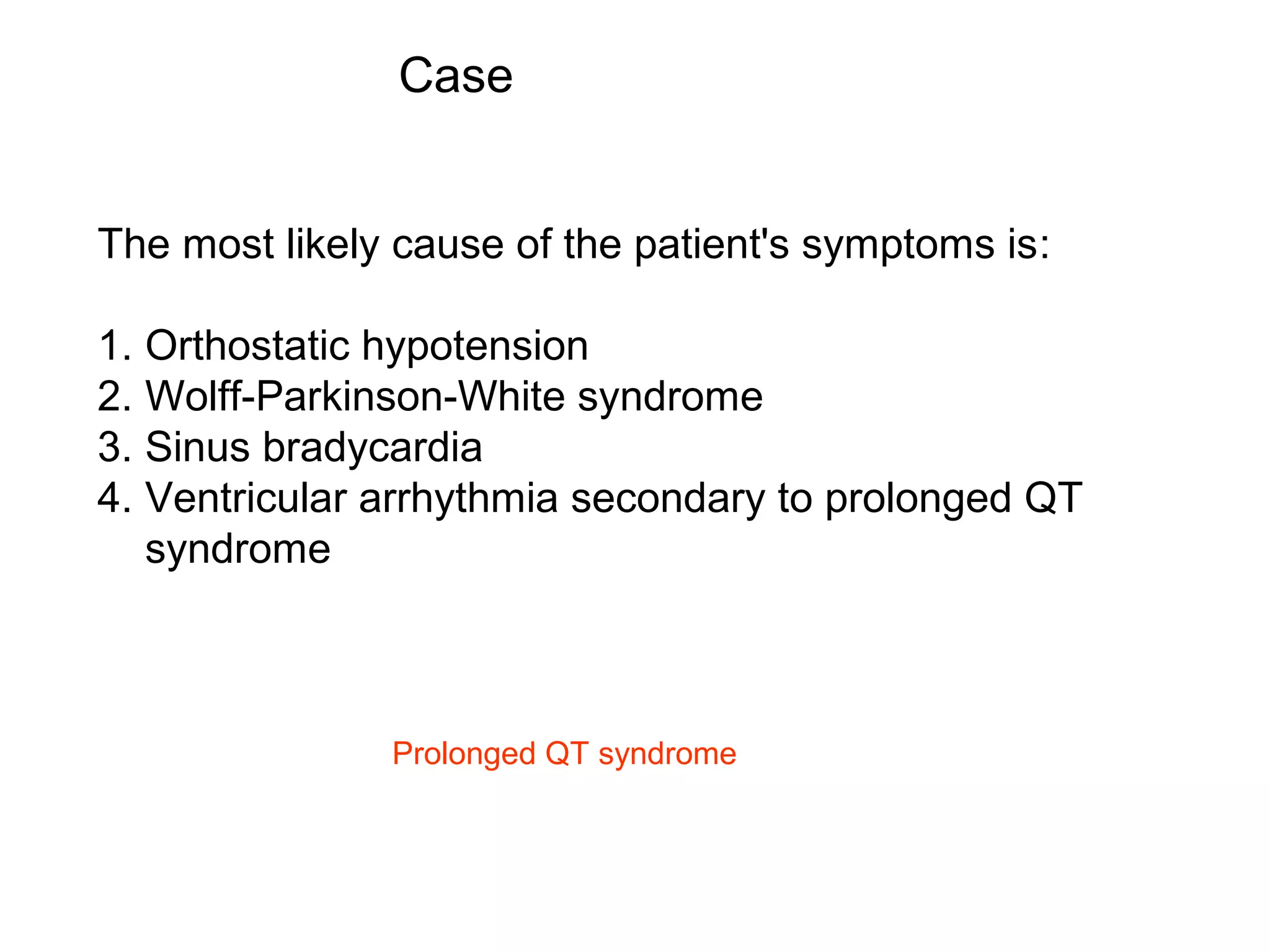

49. Case
The most likely cause of the patient's symptoms is:
1. Orthostatic hypotension
2. Wolff-Parkinson-White syndrome
3. Sinus bradycardia
4. Ventricular arrhythmia secondary to prolonged QT
syndrome
Prolonged QT syndrome

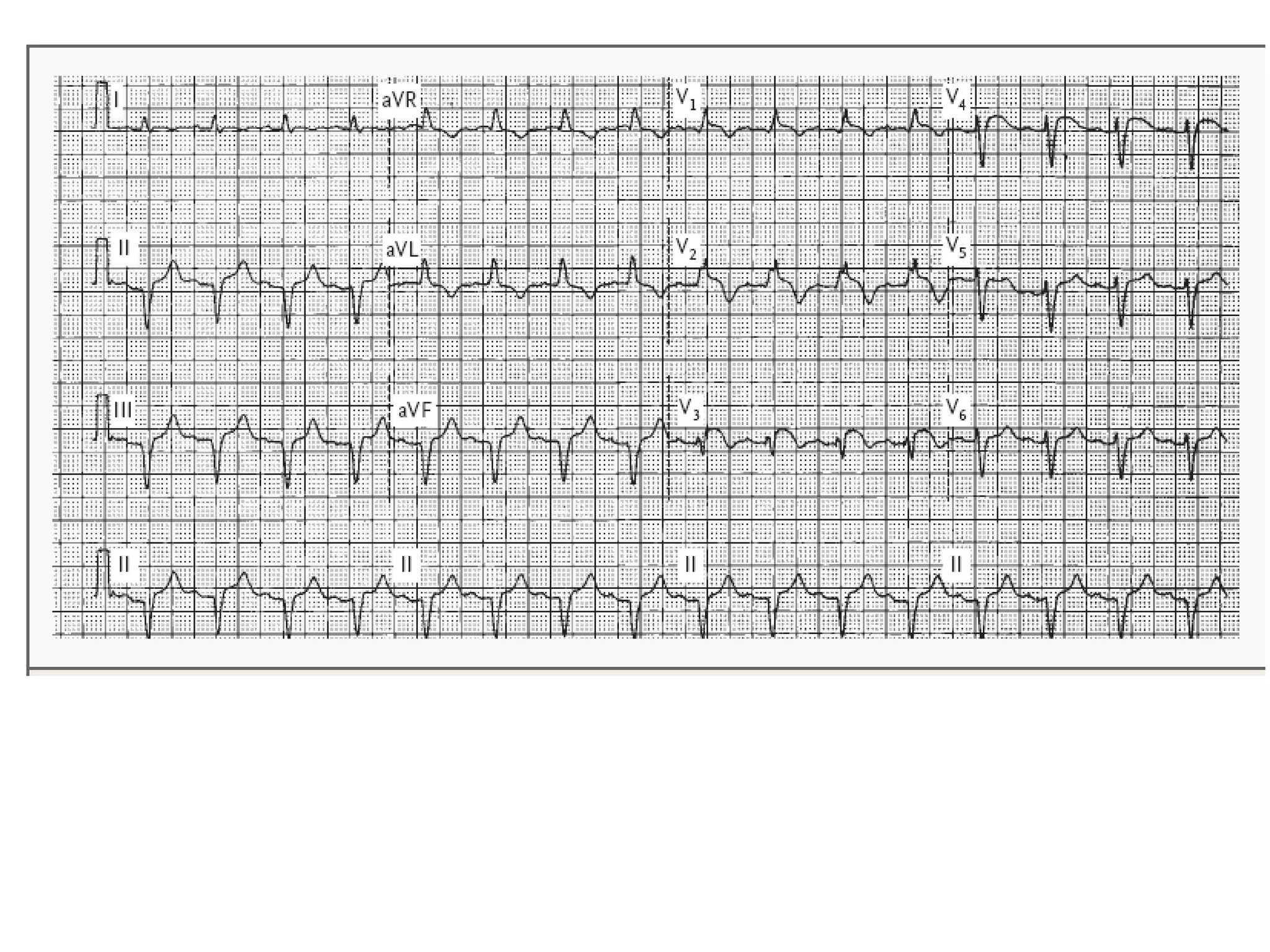

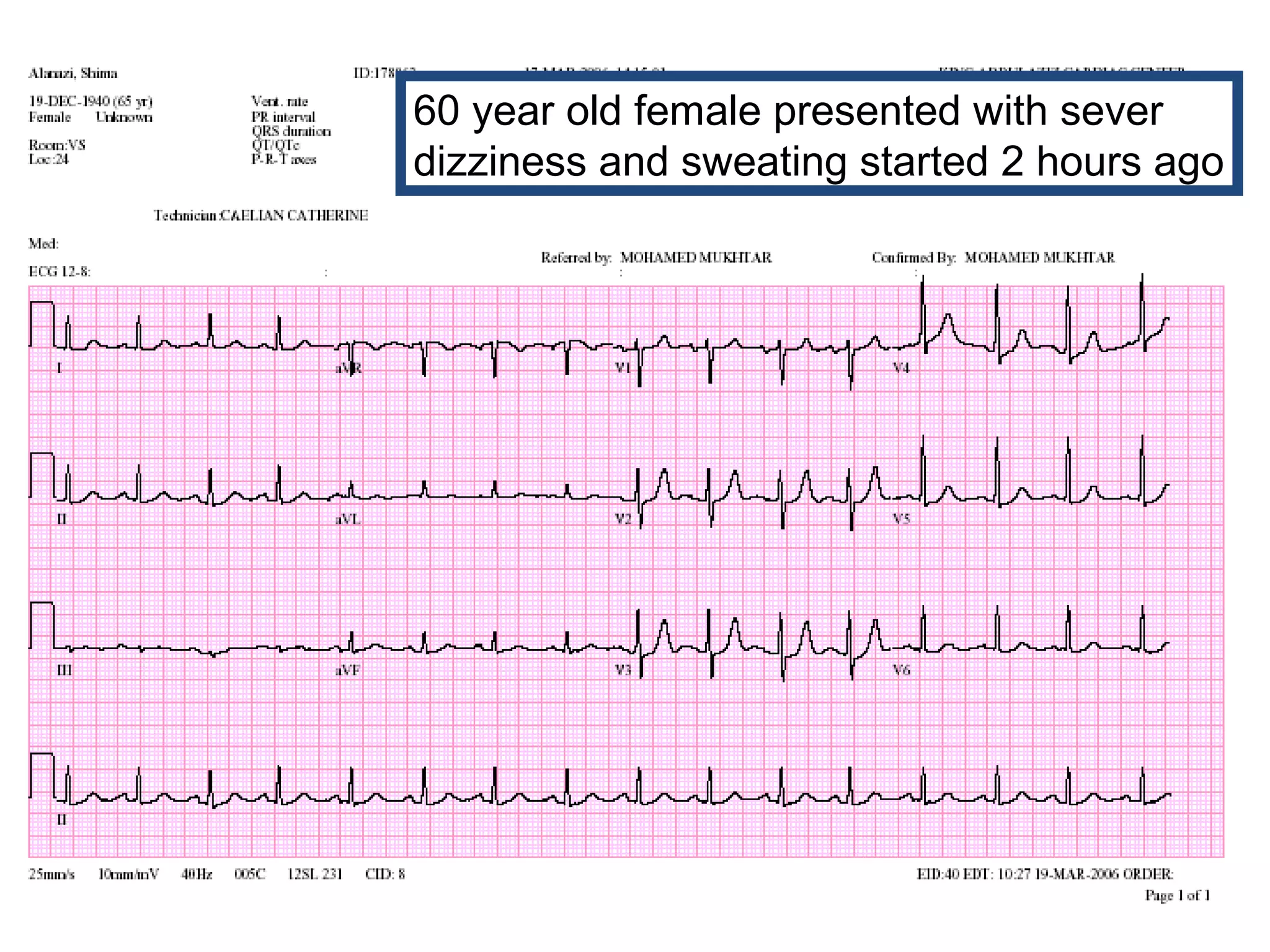

51. 60 year old female presented with sever
dizziness and sweating started 2 hours ago

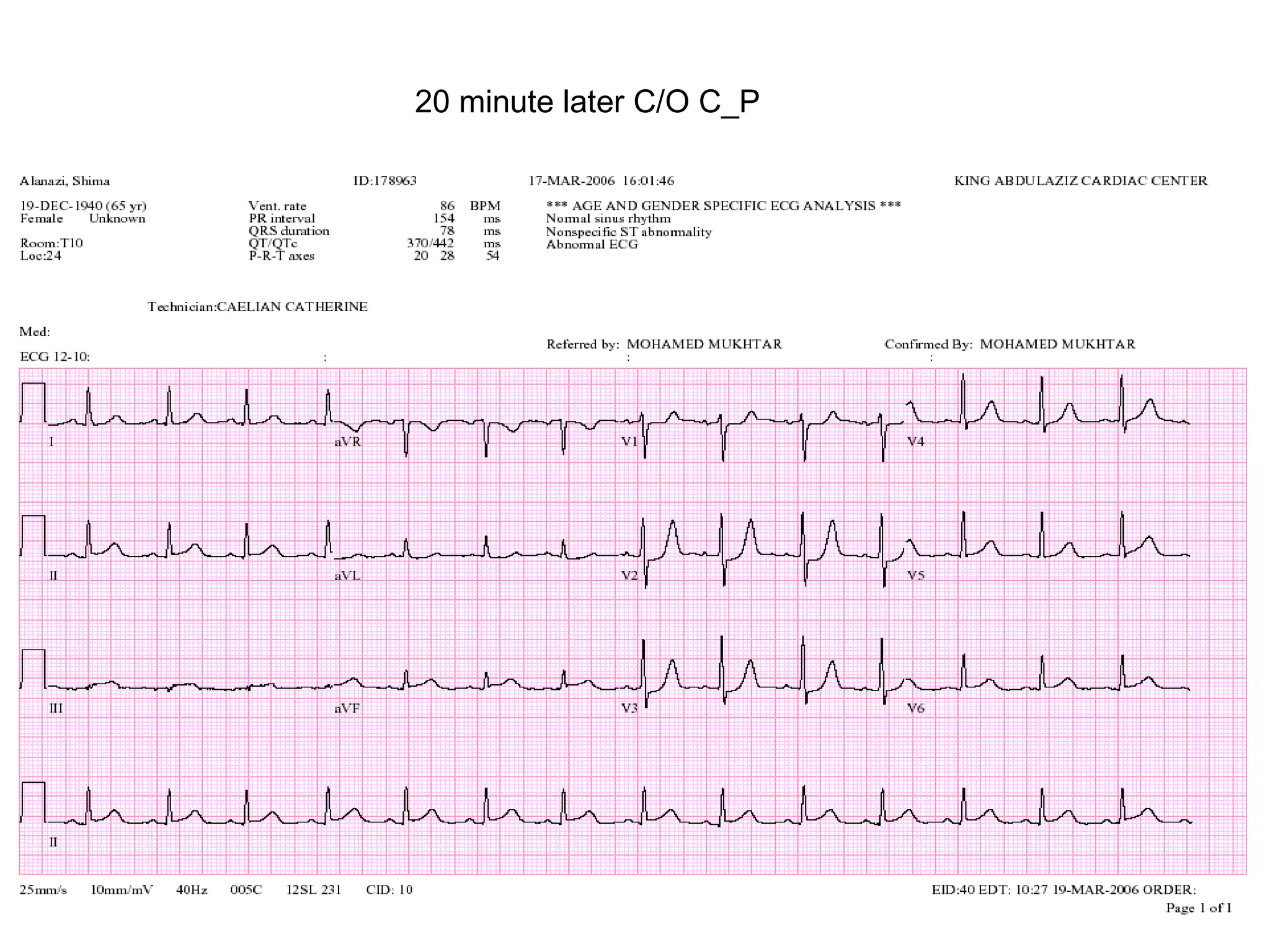

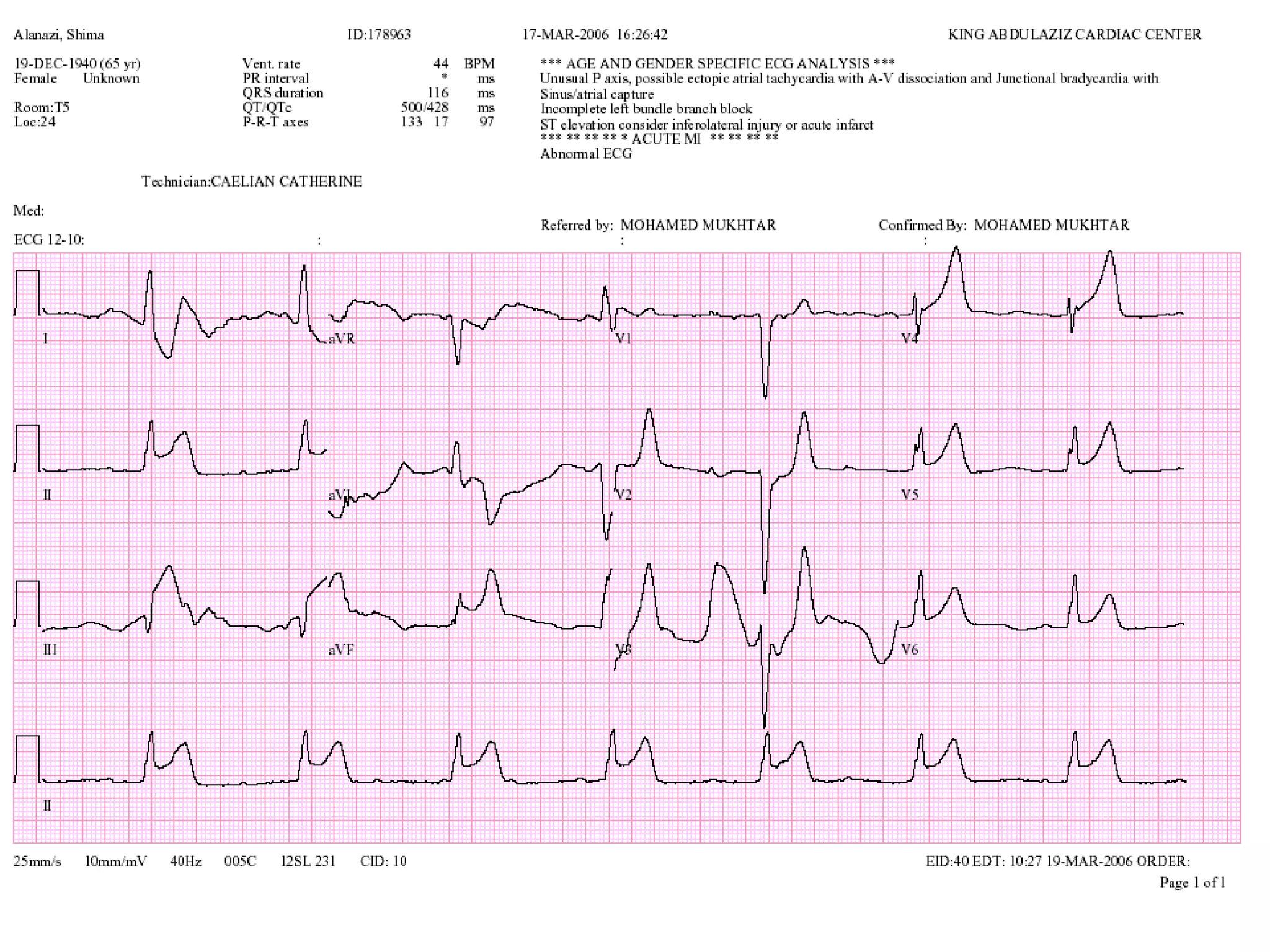

52. 20 minute later C/O C_P

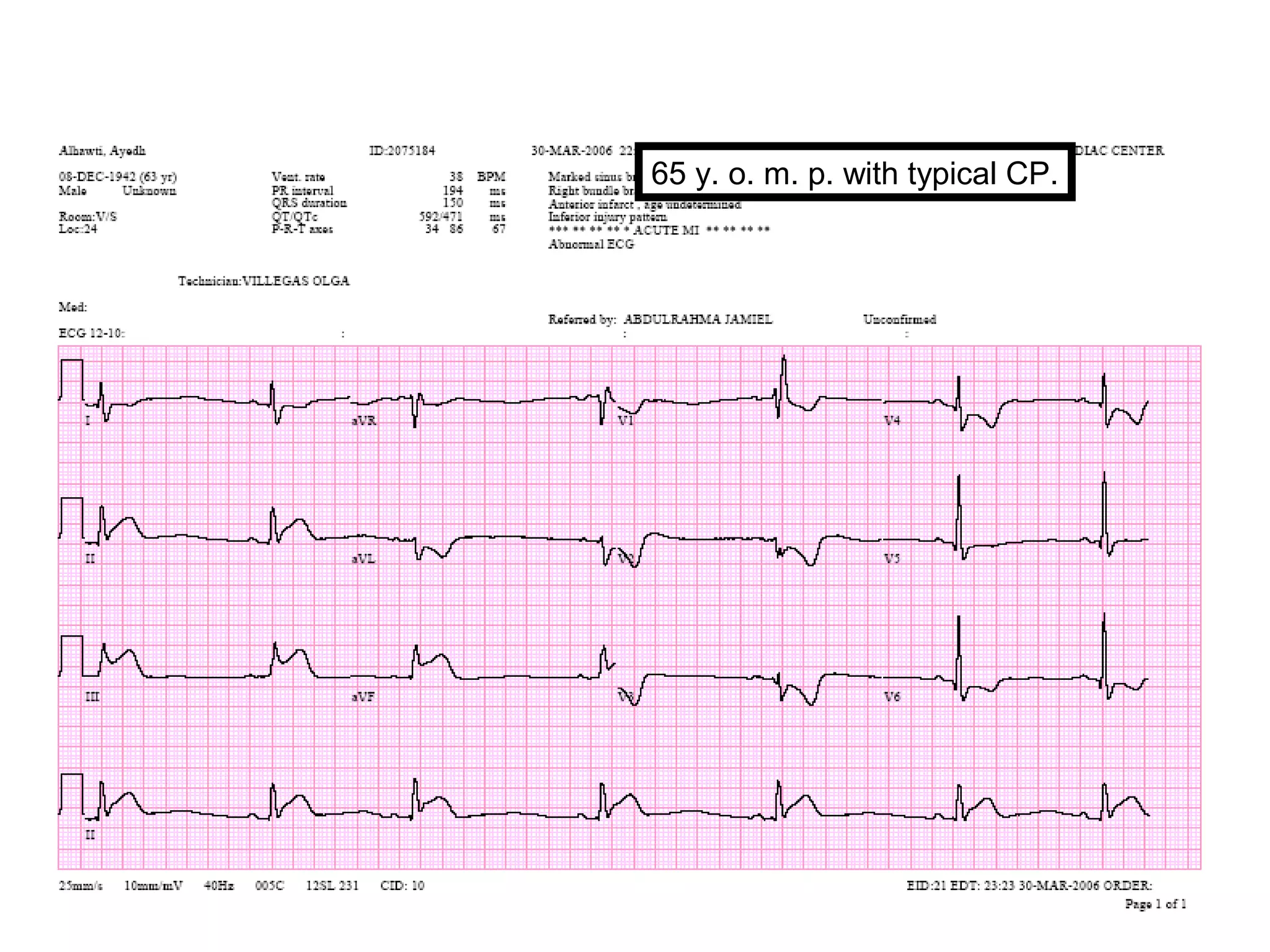

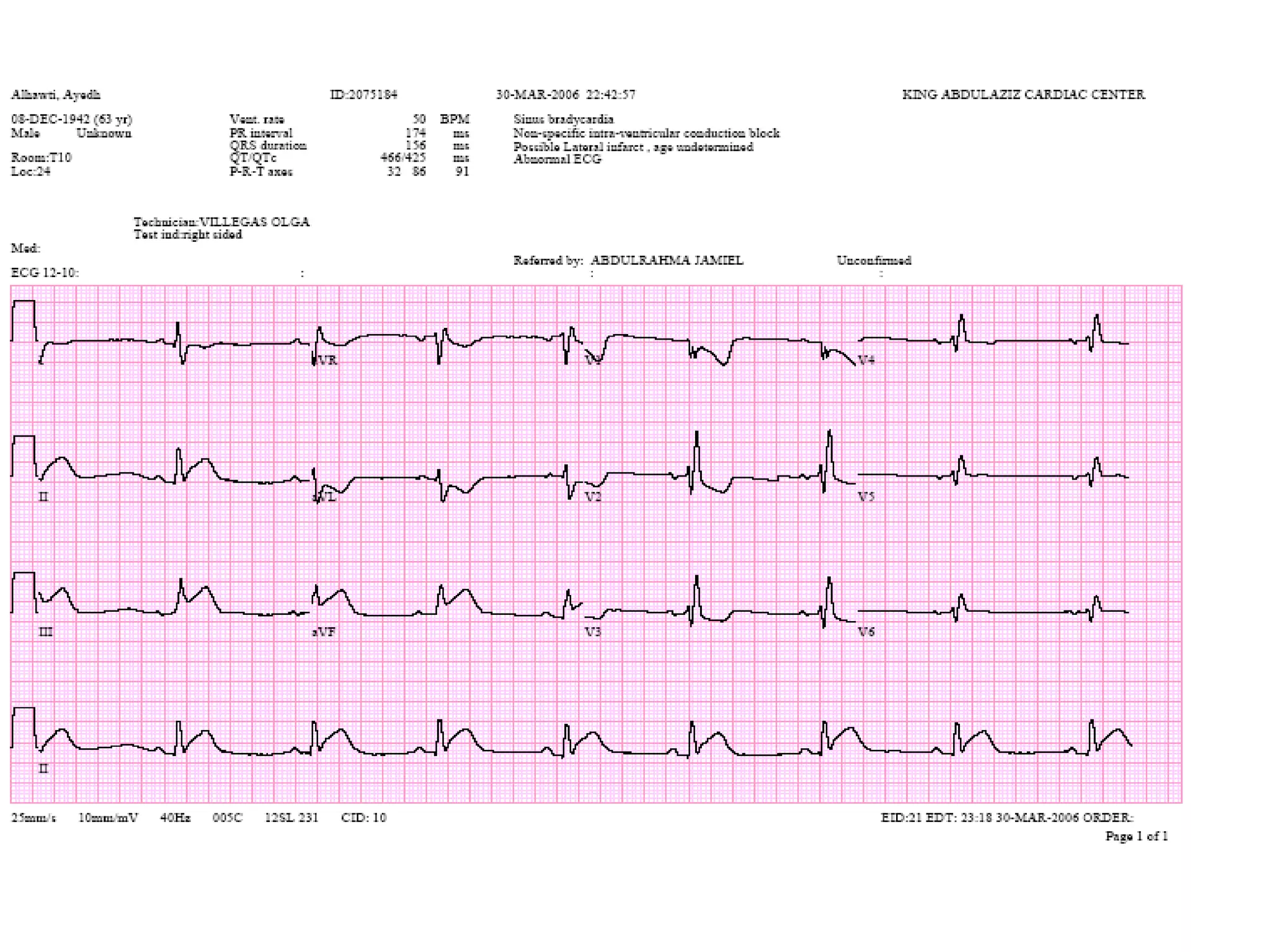

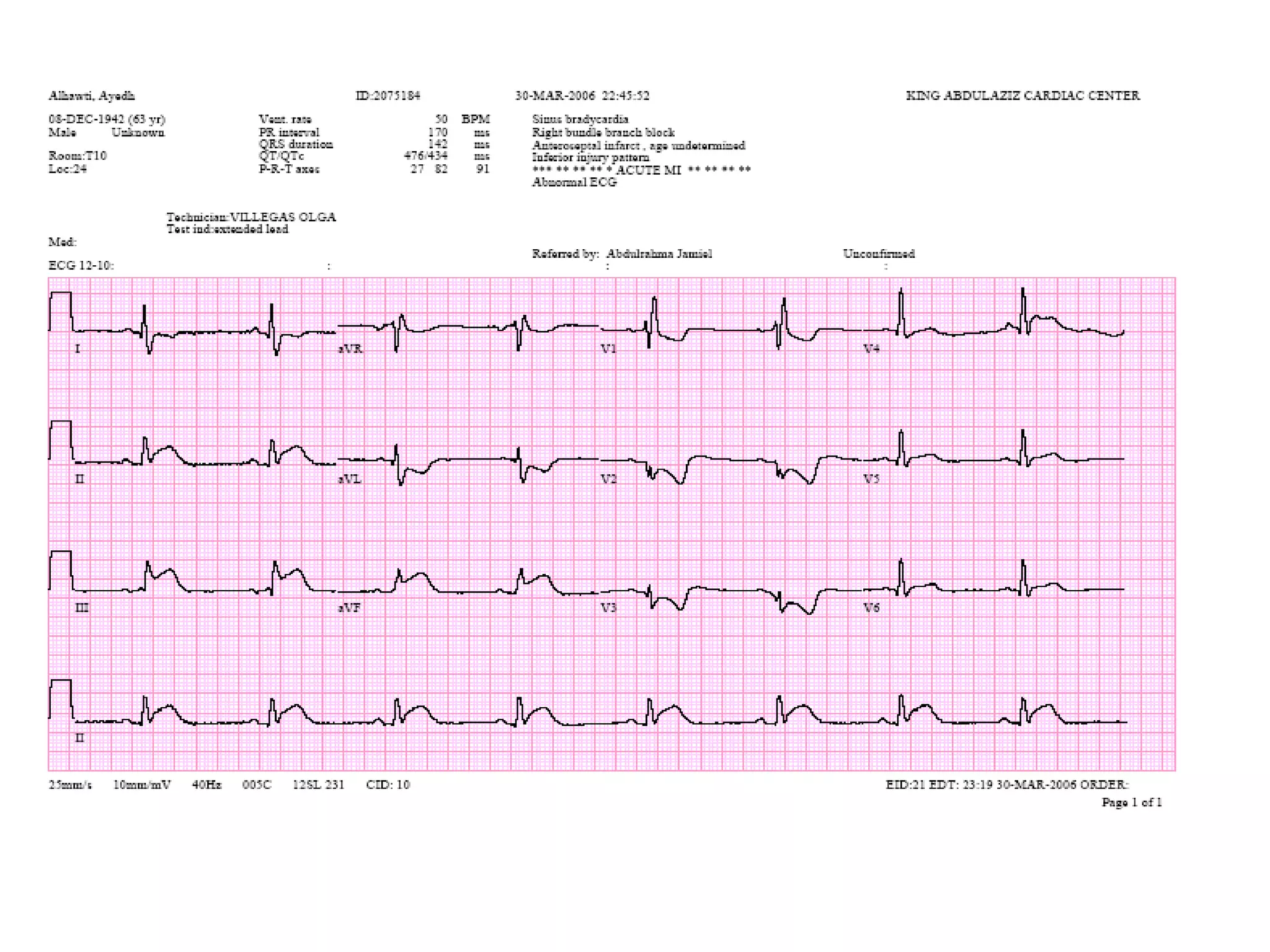

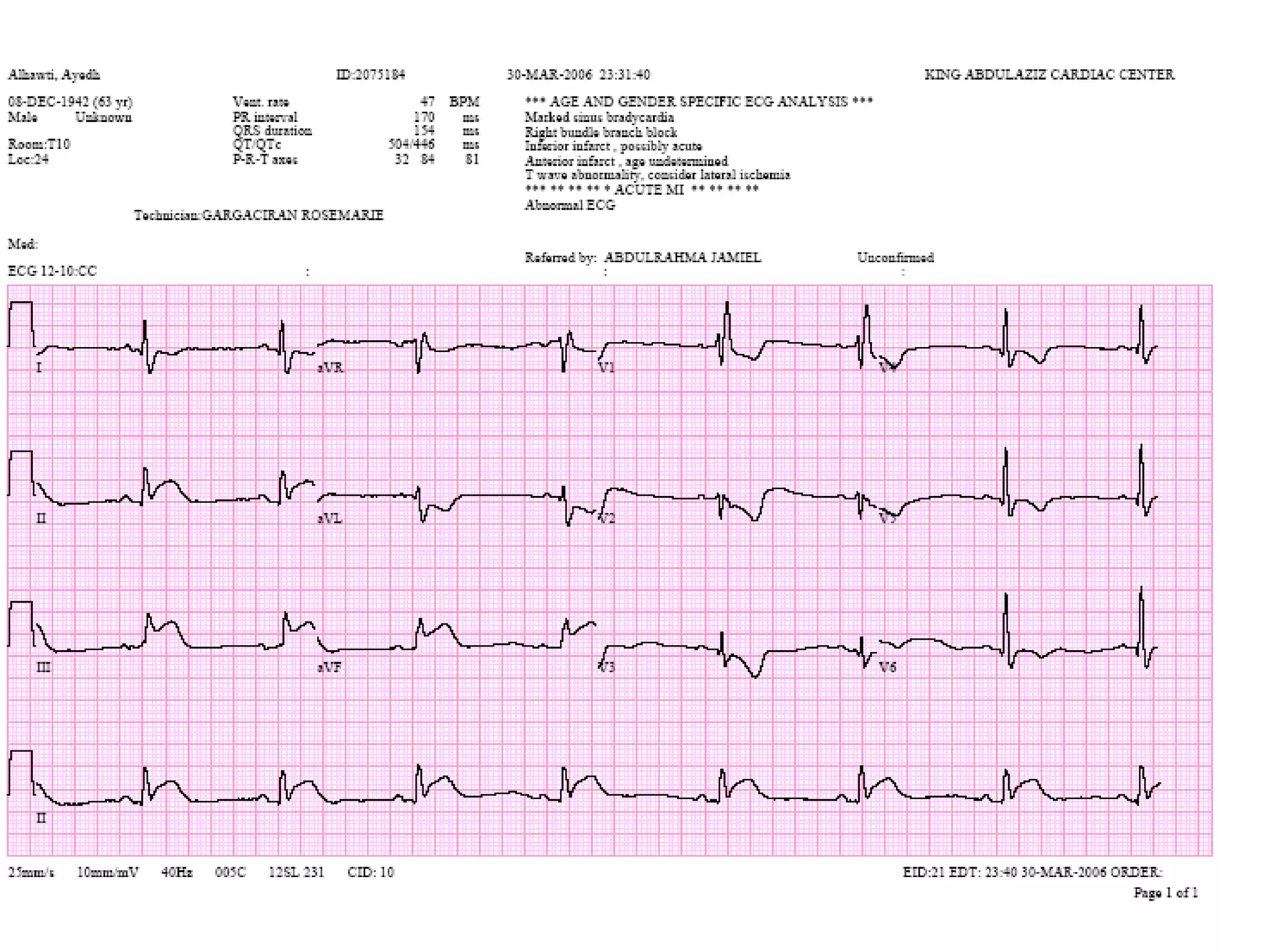

54. 65 y. o. m. p. with typical CP.

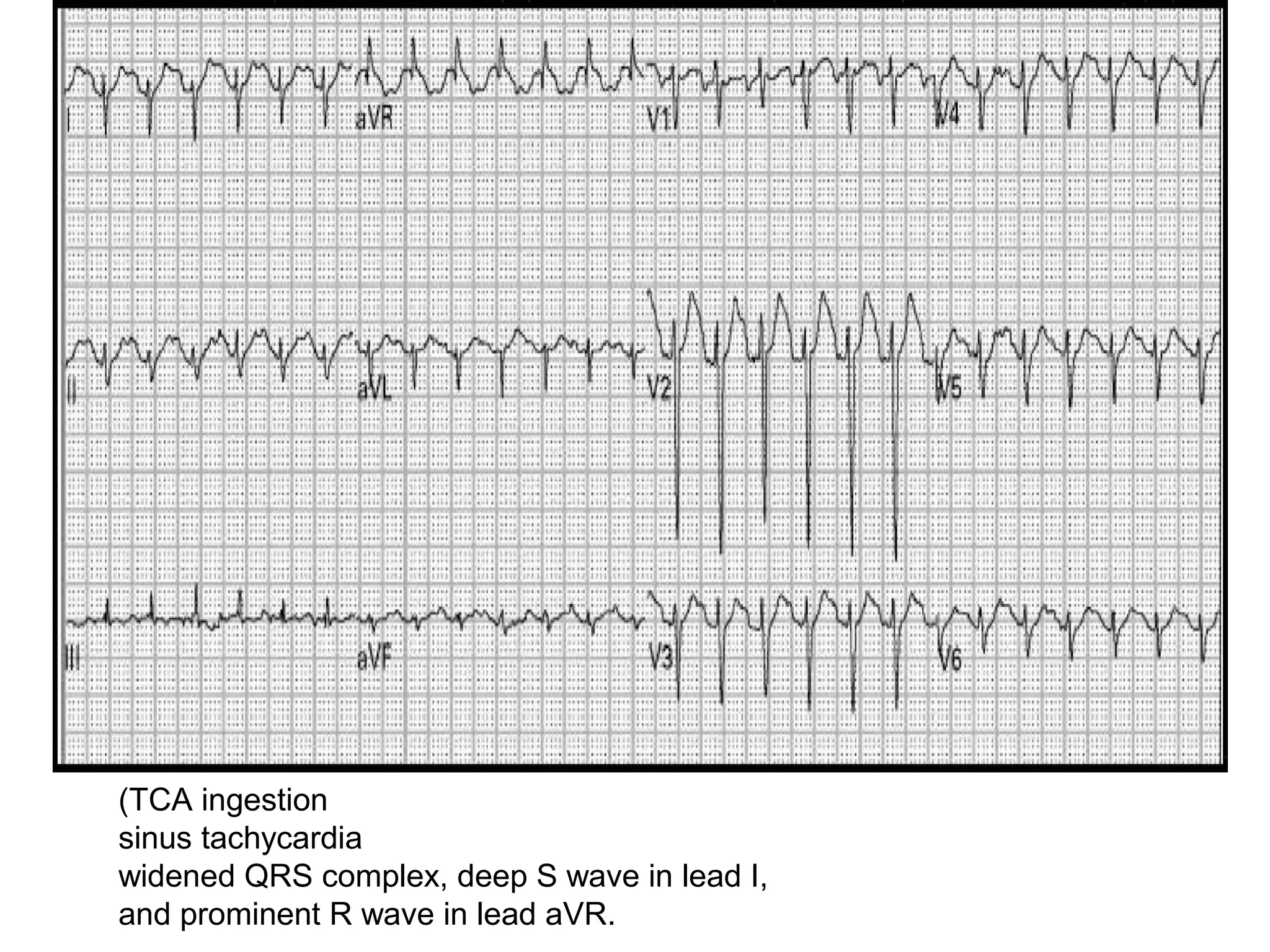

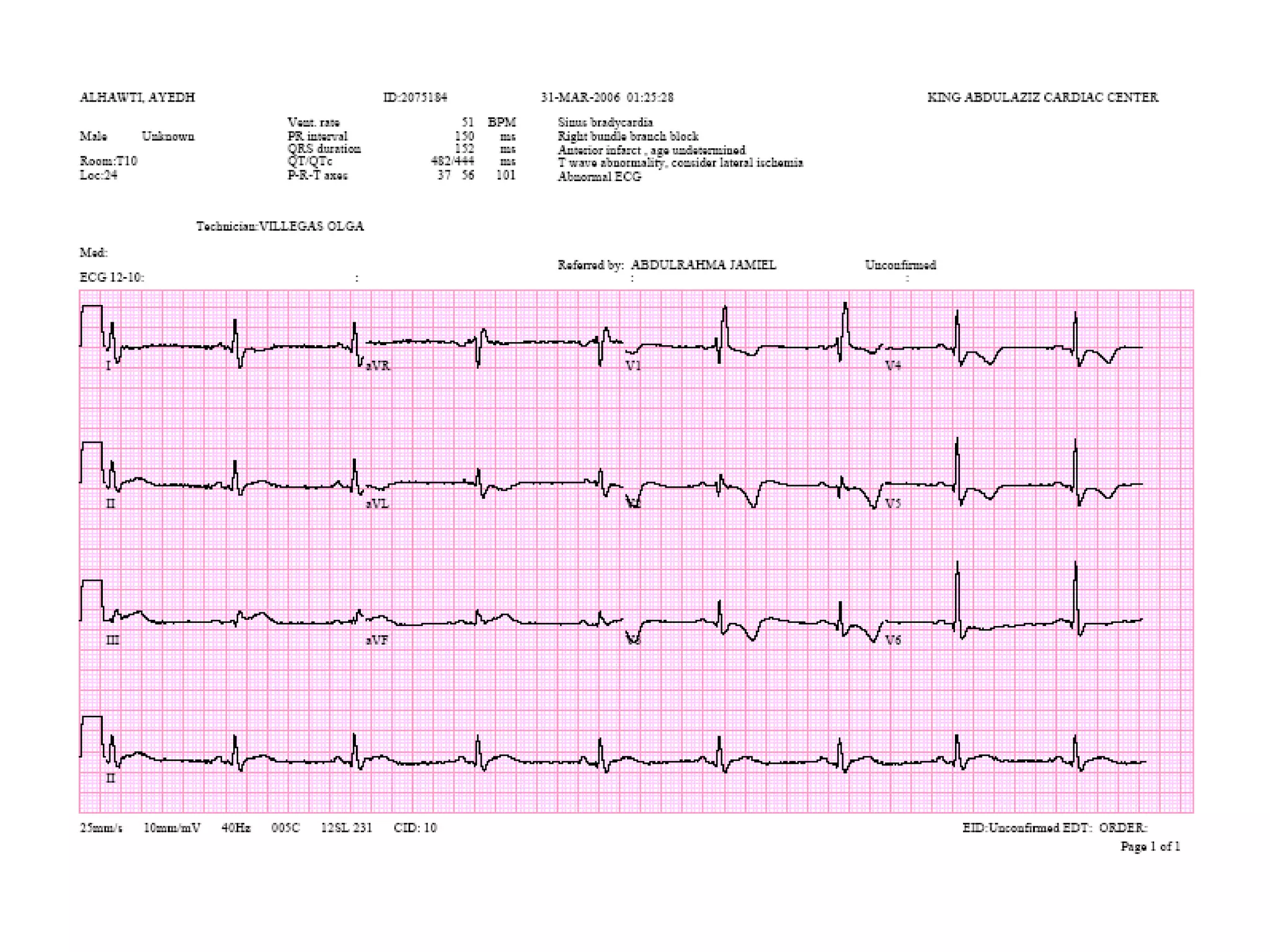

59. (TCA ingestion
sinus tachycardia
widened QRS complex, deep S wave in lead I,
and prominent R wave in lead aVR.

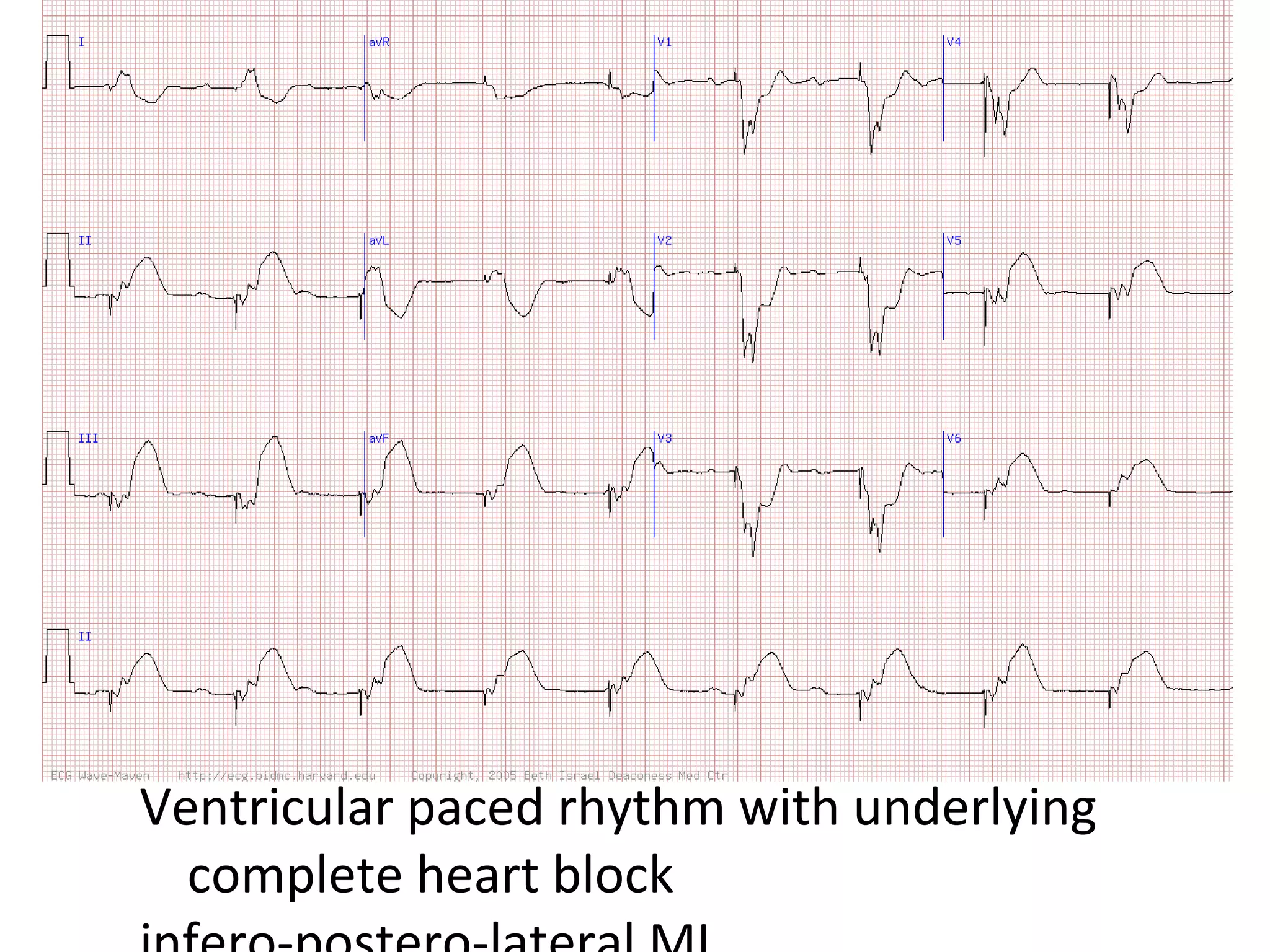

60. Ventricular paced rhythm with underlying
complete heart block

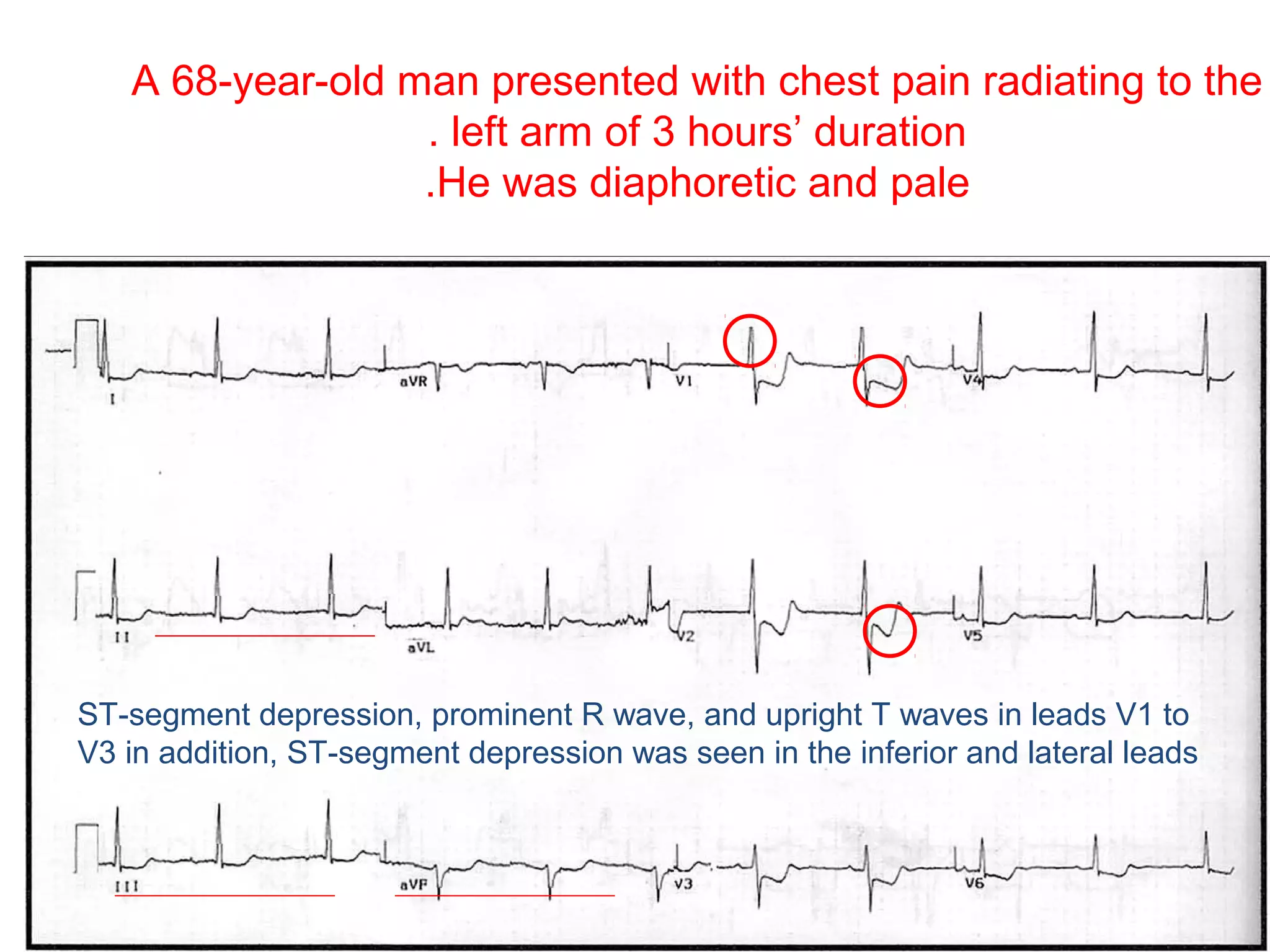

61. A 68-year-old man presented with chest pain radiating to the
. left arm of 3 hours’ duration
.He was diaphoretic and pale
ST-segment depression, prominent R wave, and upright T waves in leads V1 to
V3 in addition, ST-segment depression was seen in the inferior and lateral leads

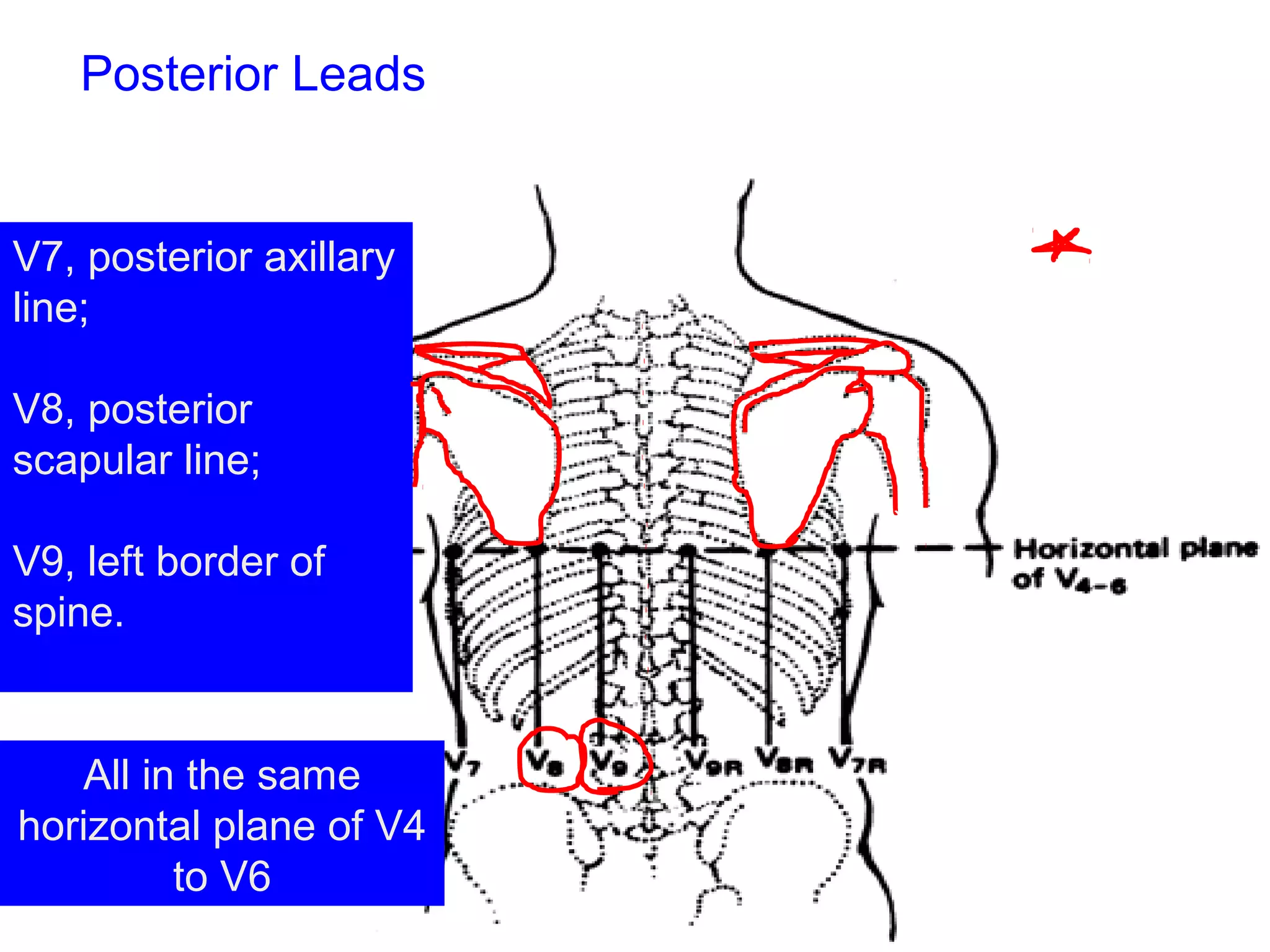

62. Posterior Leads
V7, posterior axillary
line;
V8, posterior
scapular line;
V9, left border of
spine.
All in the same
horizontal plane of V4
to V6

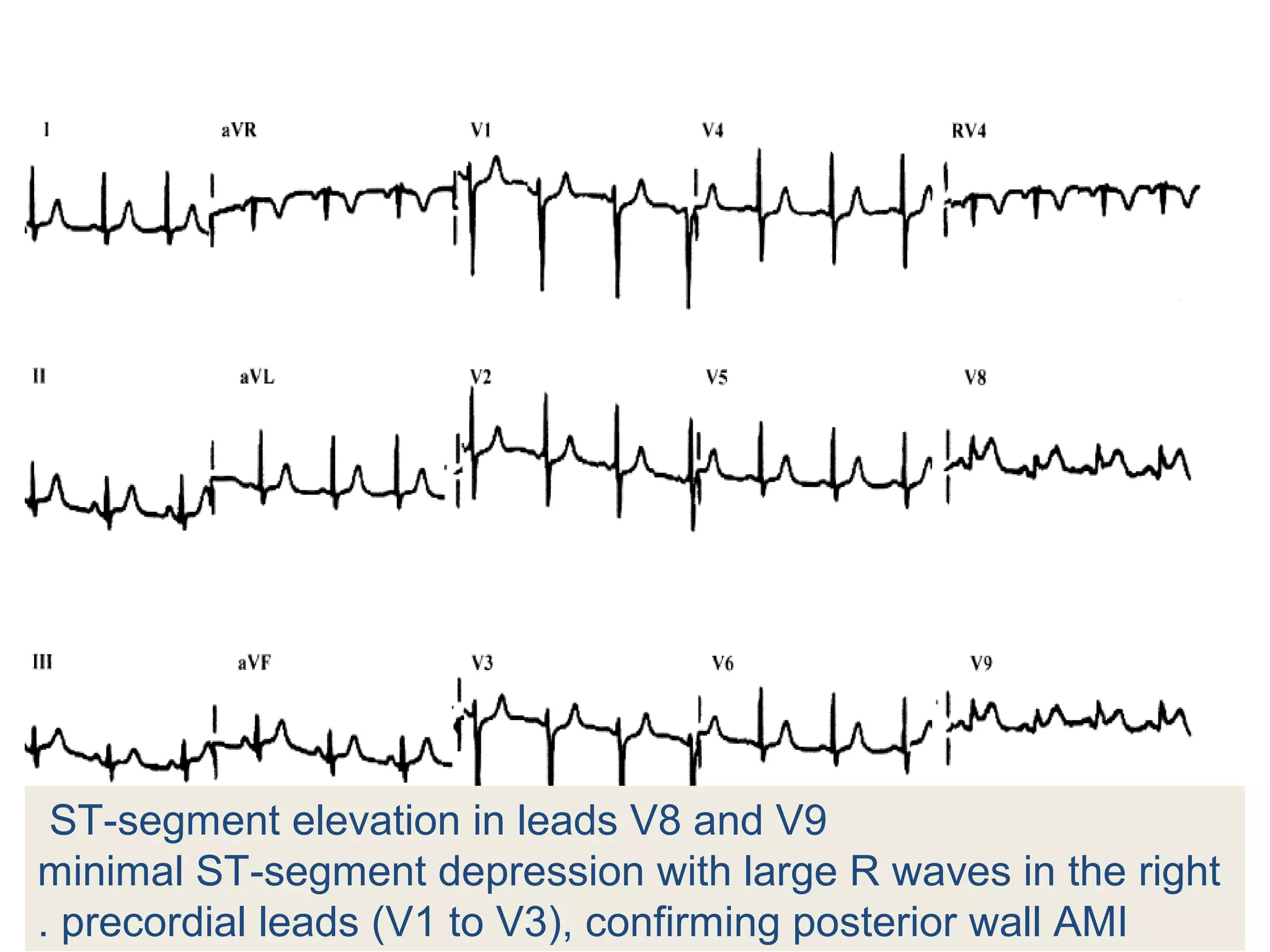

63. ST-segment elevation in leads V8 and V9
minimal ST-segment depression with large R waves in the right
. precordial leads (V1 to V3), confirming posterior wall AMI

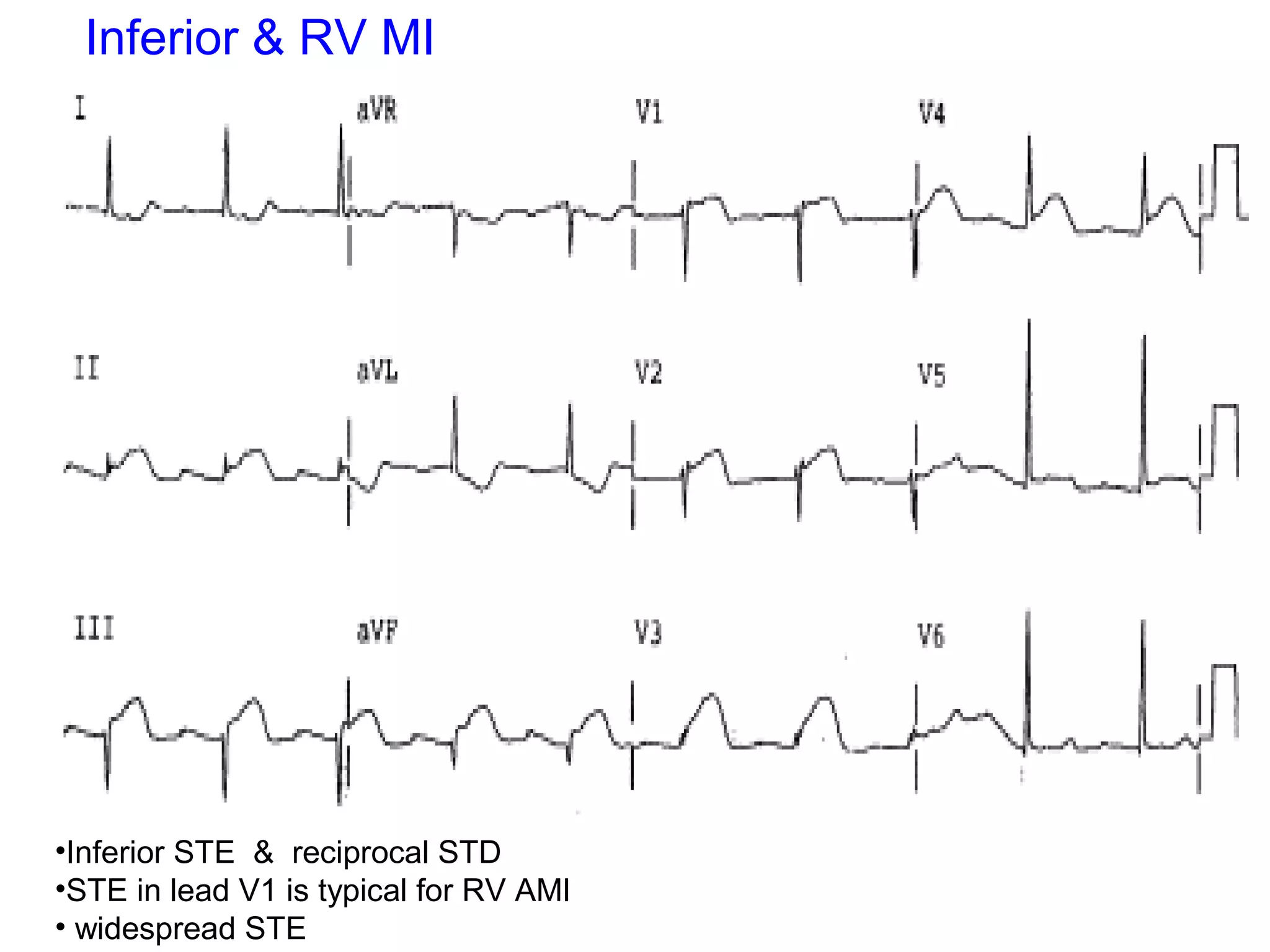

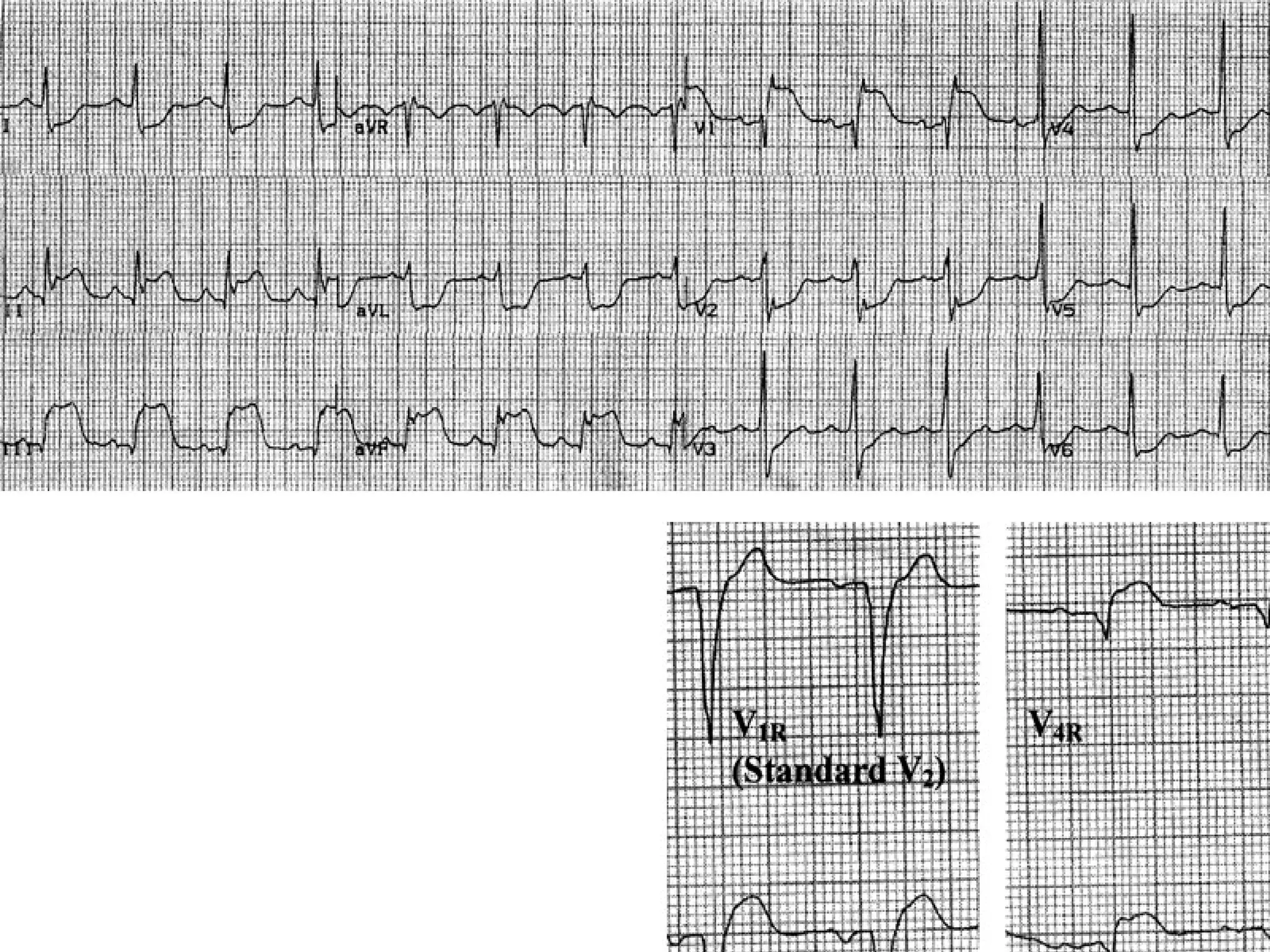

65. Inferior & RV MI
•Inferior STE & reciprocal STD
•STE in lead V1 is typical for RV AMI
• widespread STE

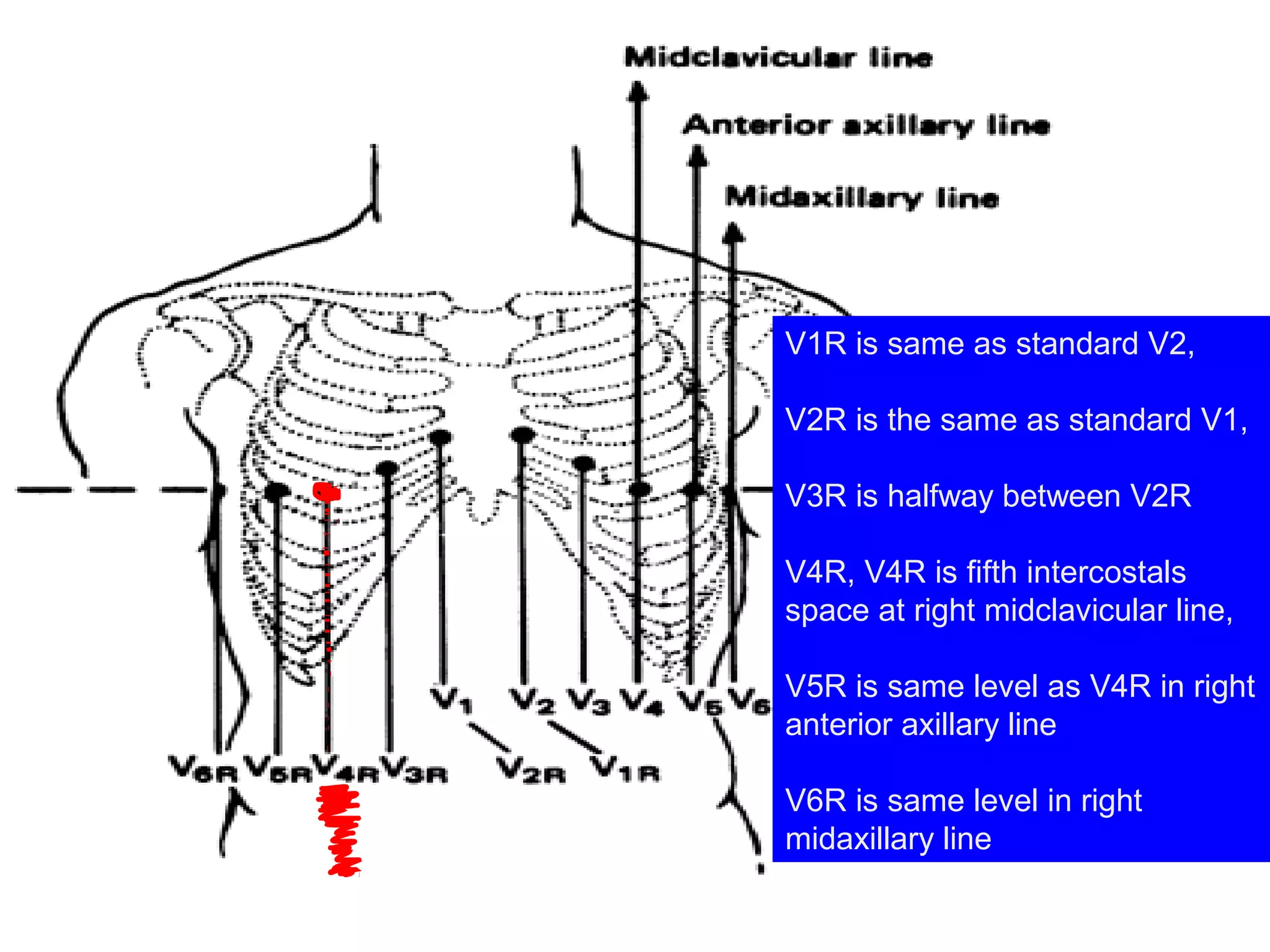

66. V1R is same as standard V2,
V2R is the same as standard V1,
V3R is halfway between V2R
V4R, V4R is fifth intercostals
space at right midclavicular line,
V5R is same level as V4R in right
anterior axillary line
V6R is same level in right
midaxillary line

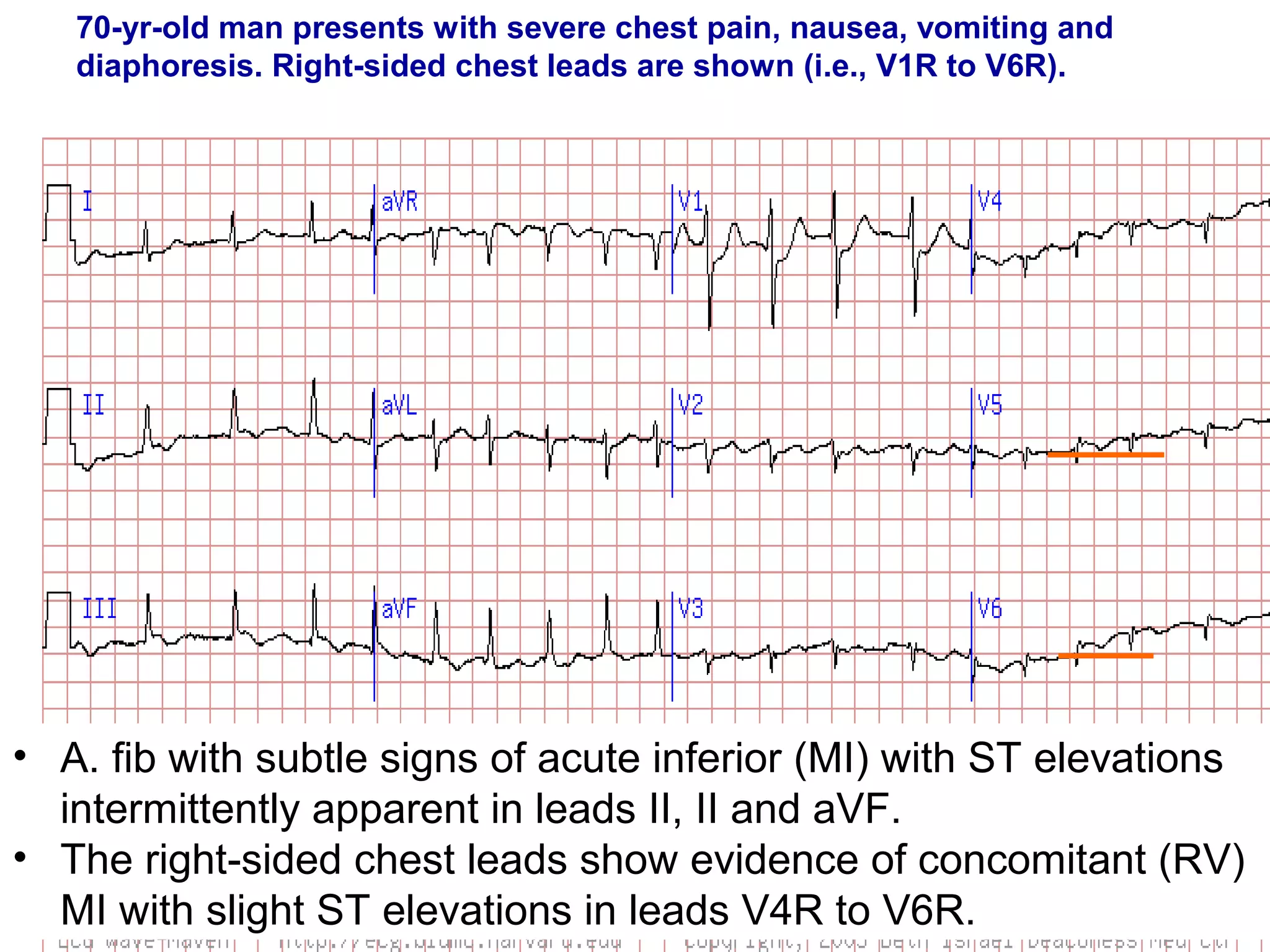

67. 70-yr-old man presents with severe chest pain, nausea, vomiting and
diaphoresis. Right-sided chest leads are shown (i.e., V1R to V6R).
• A. fib with subtle signs of acute inferior (MI) with ST elevations
intermittently apparent in leads II, II and aVF.
• The right-sided chest leads show evidence of concomitant (RV)
MI with slight ST elevations in leads V4R to V6R.

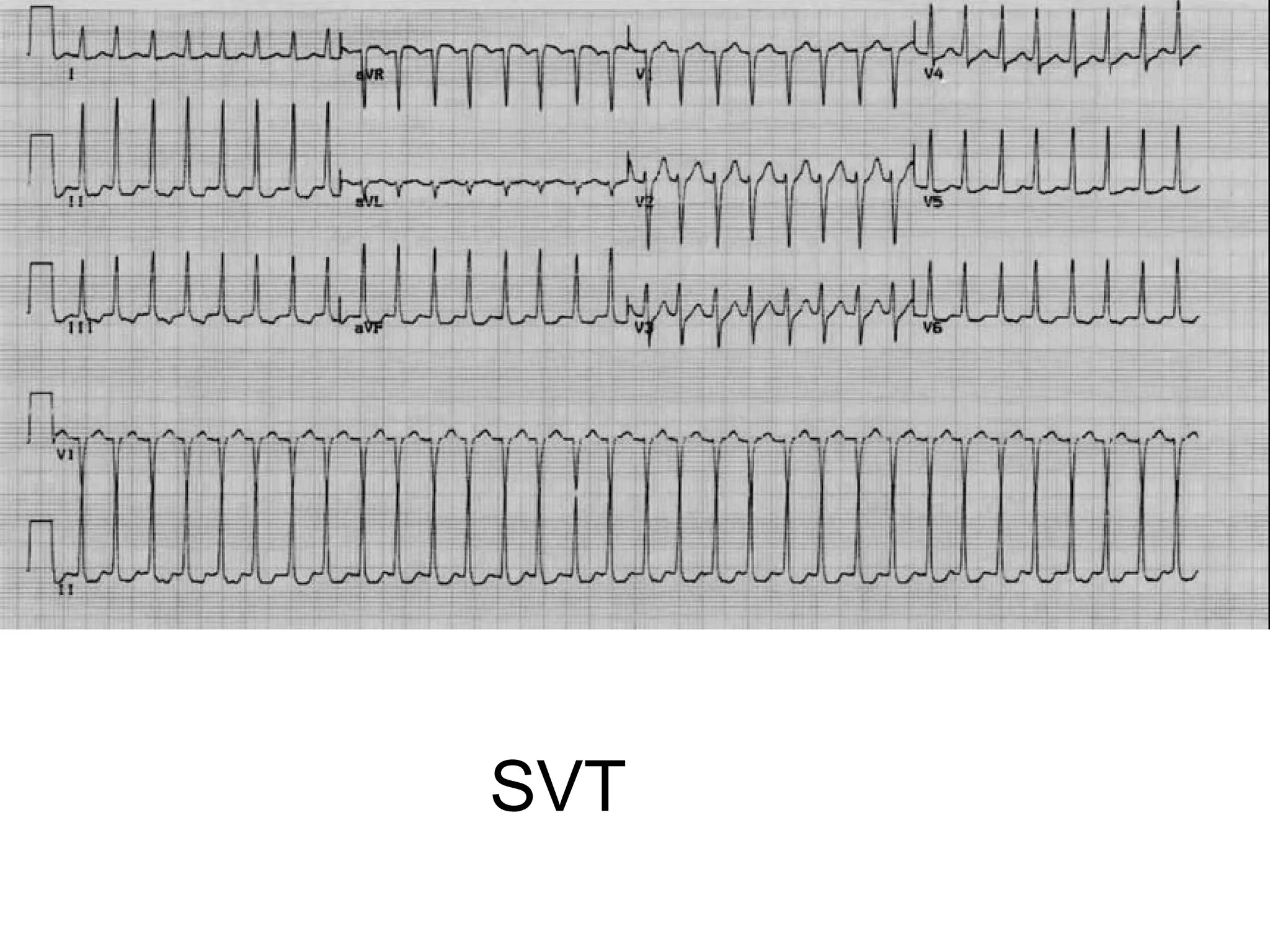

68. SVT

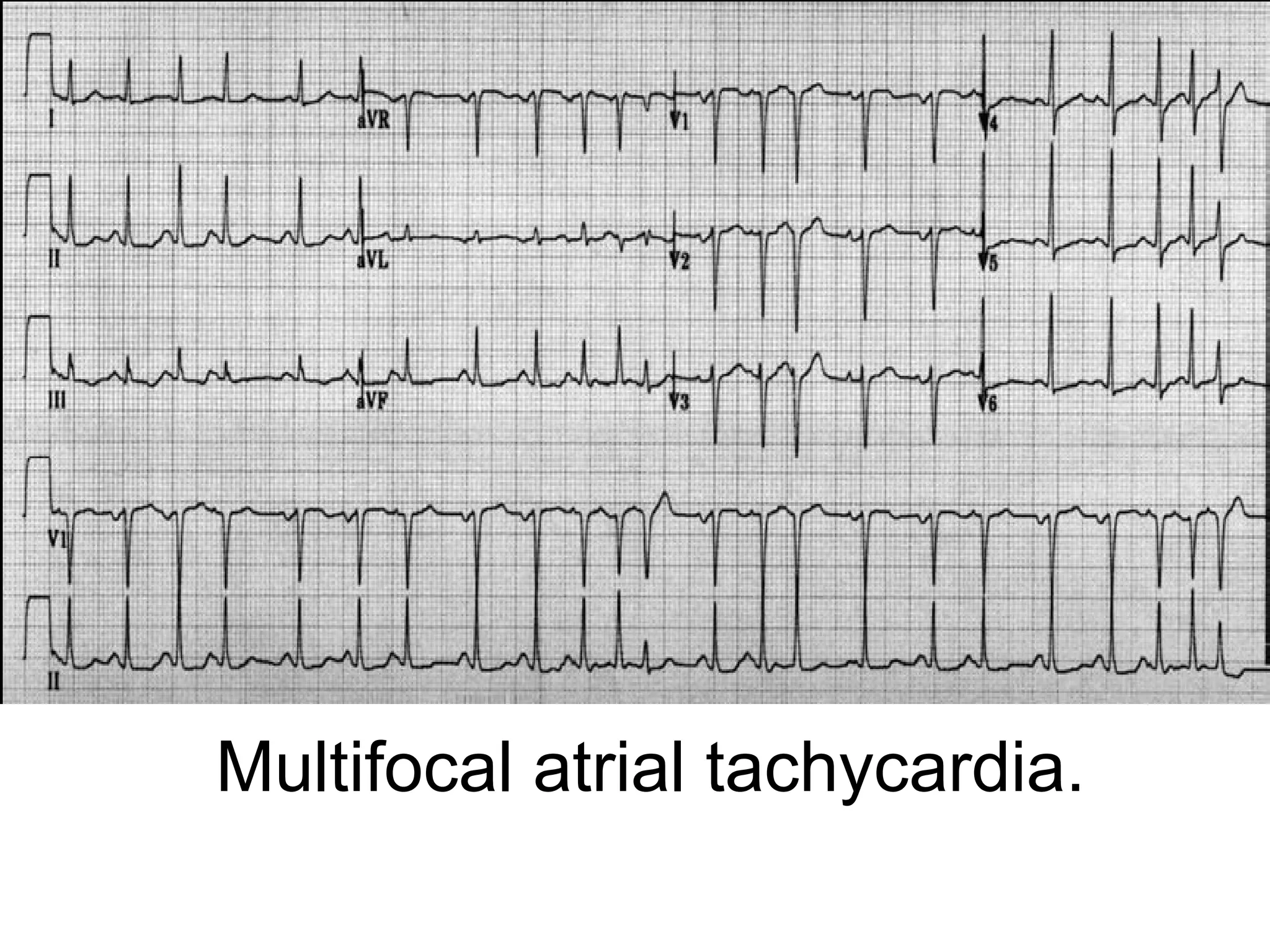

69. Multifocal atrial tachycardia.

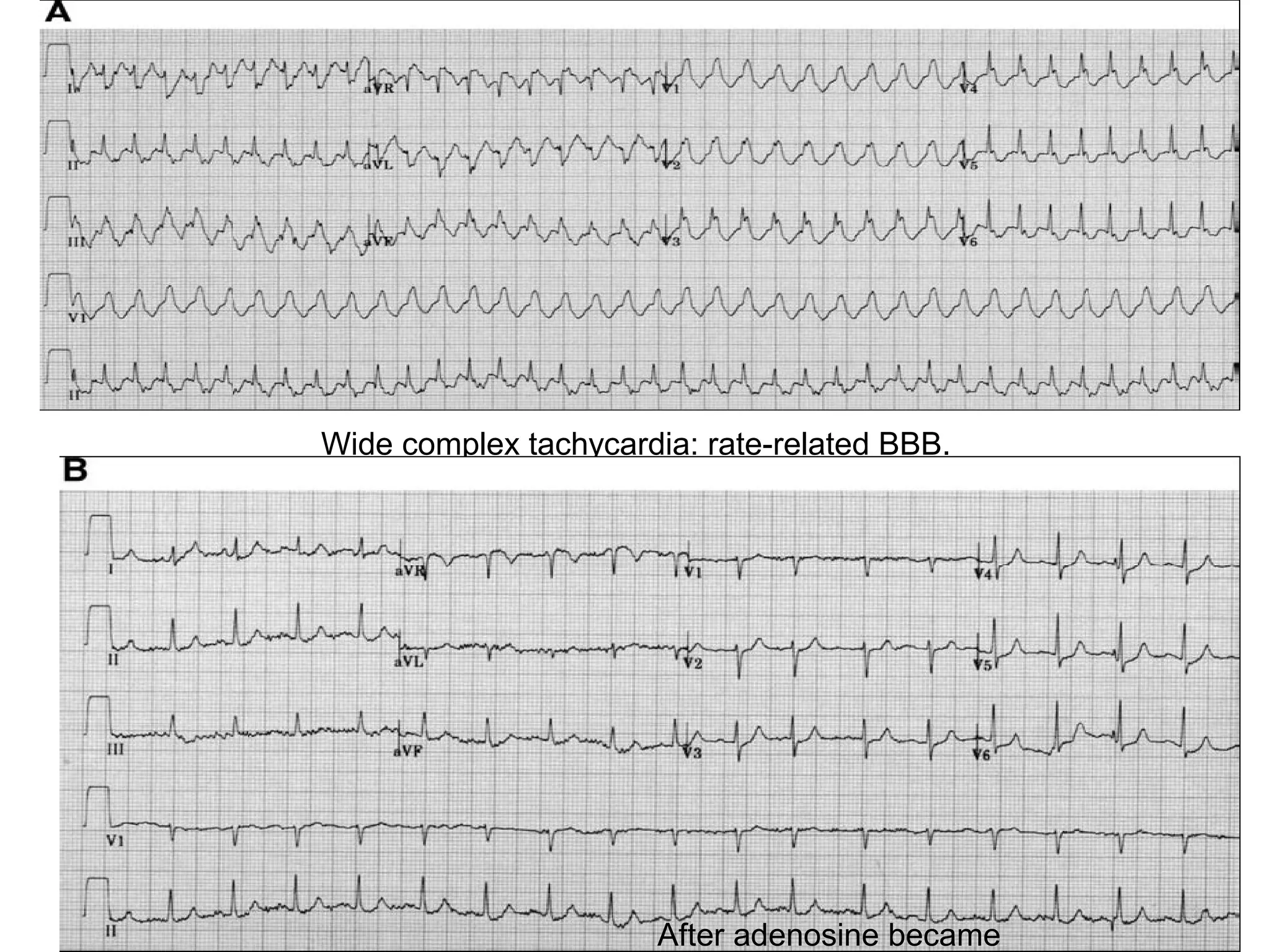

70. Wide complex tachycardia: rate-related BBB.
After adenosine became

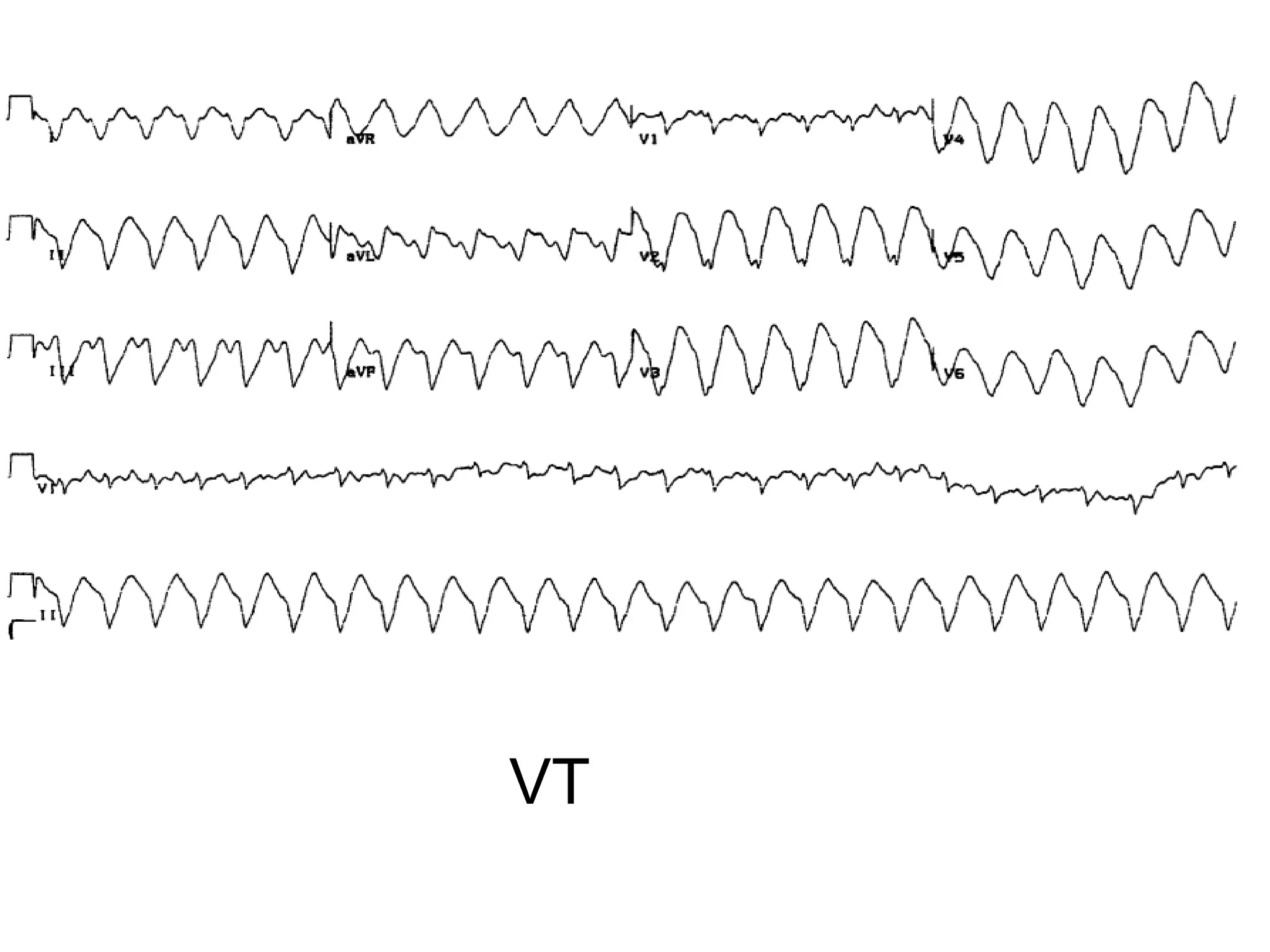

71. VT

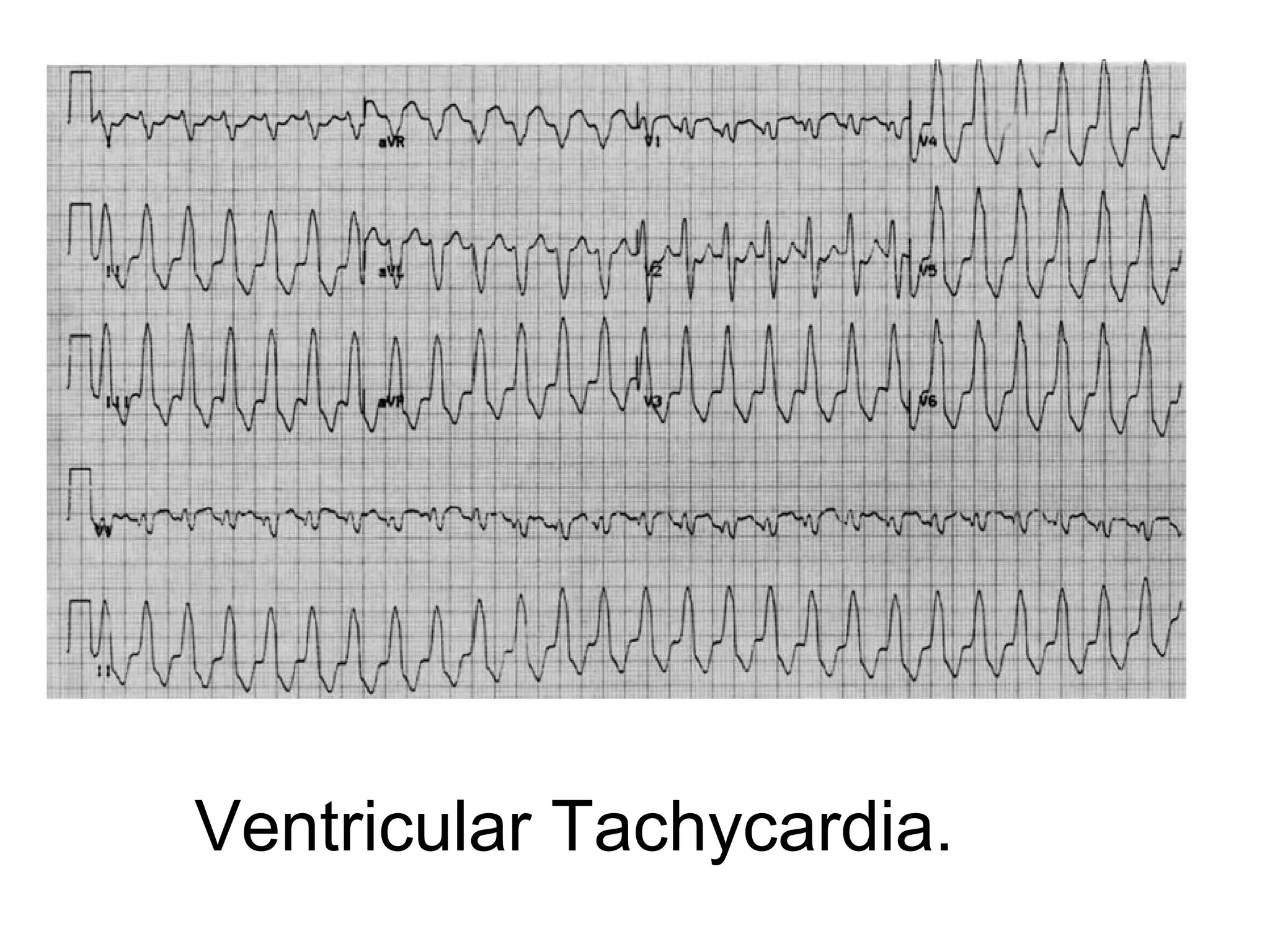

72. Ventricular Tachycardia.

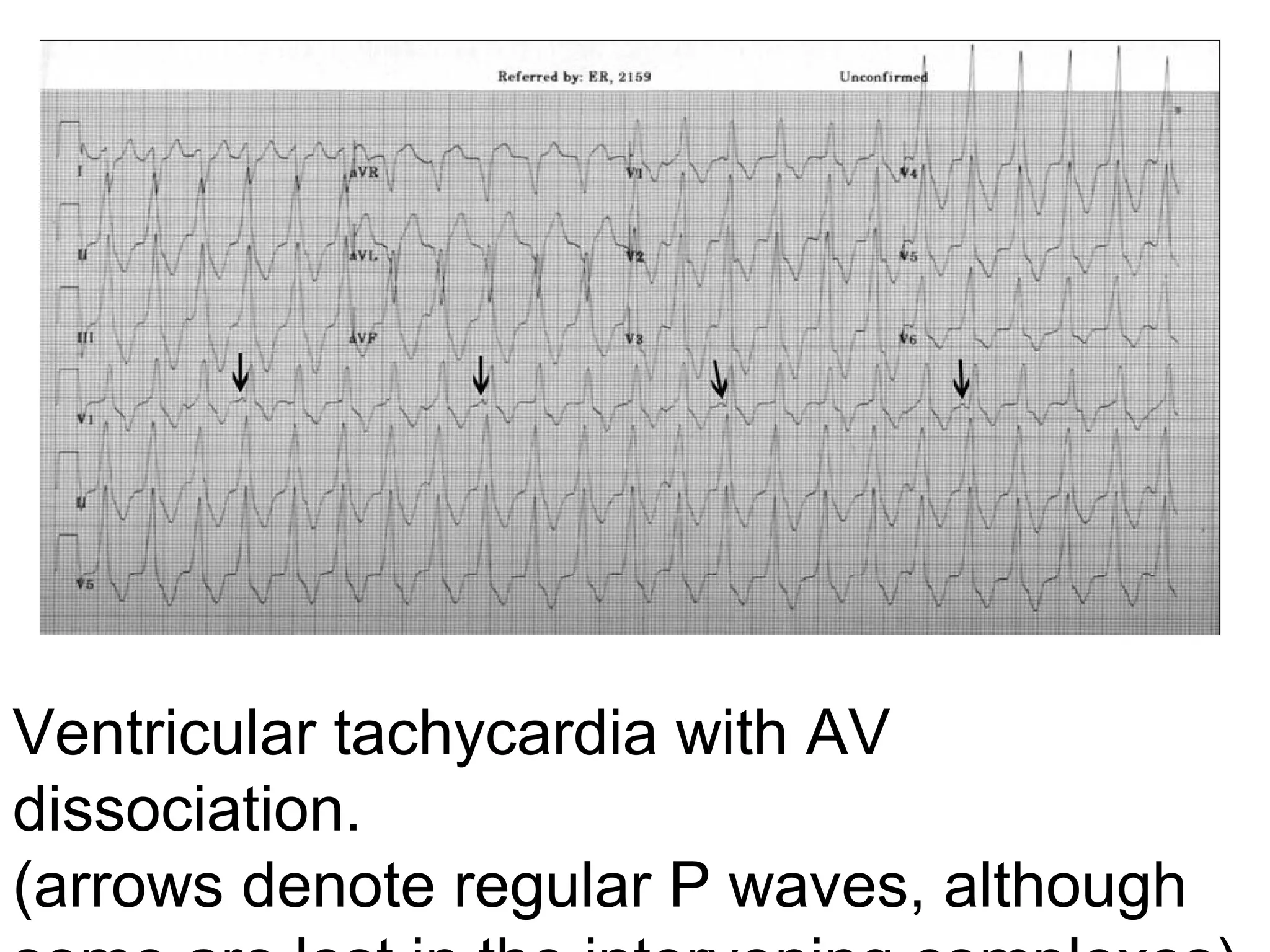

73. Ventricular tachycardia with AV
dissociation.
(arrows denote regular P waves, although

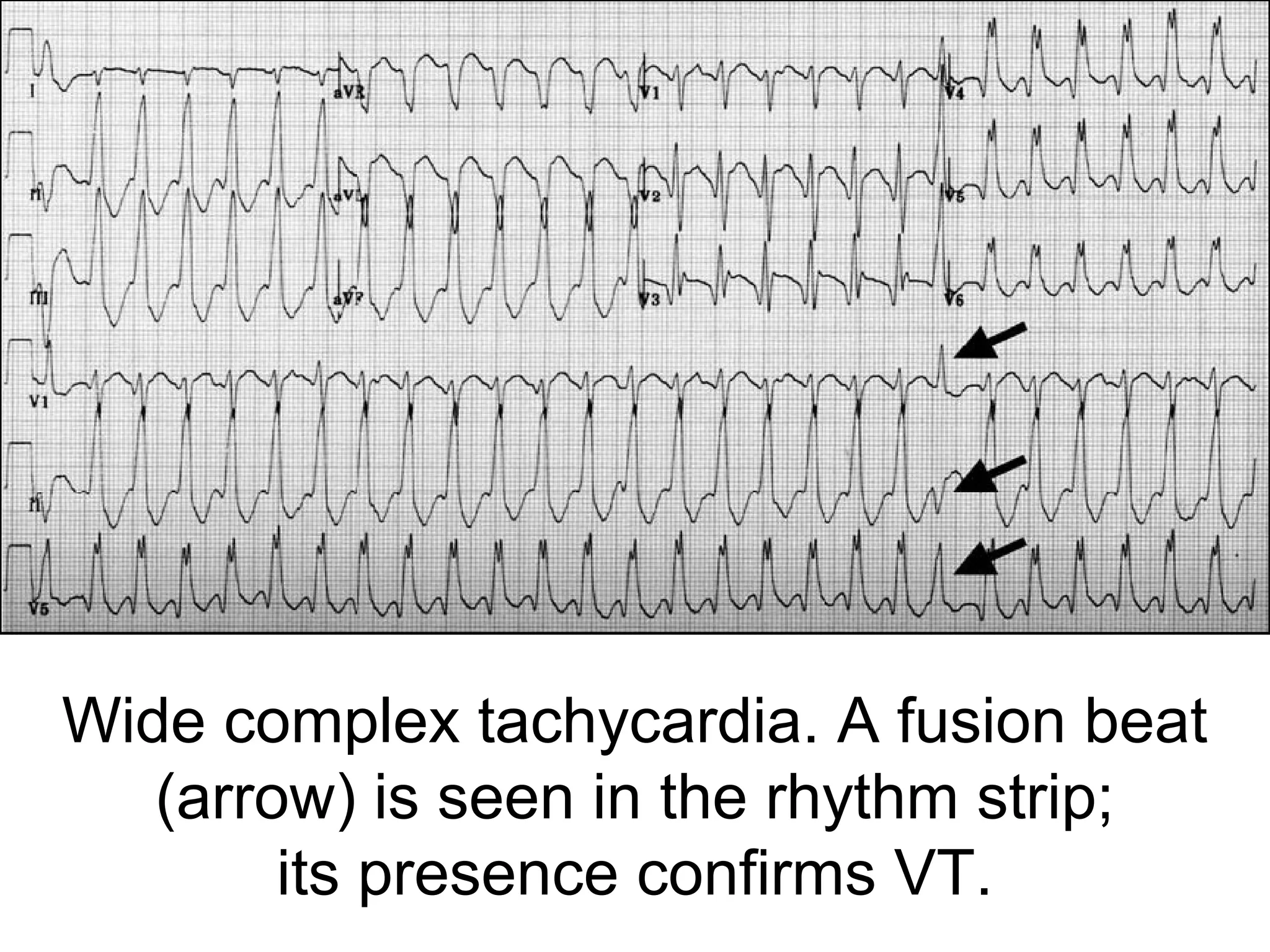

74. Wide complex tachycardia. A fusion beat
(arrow) is seen in the rhythm strip;
its presence confirms VT.

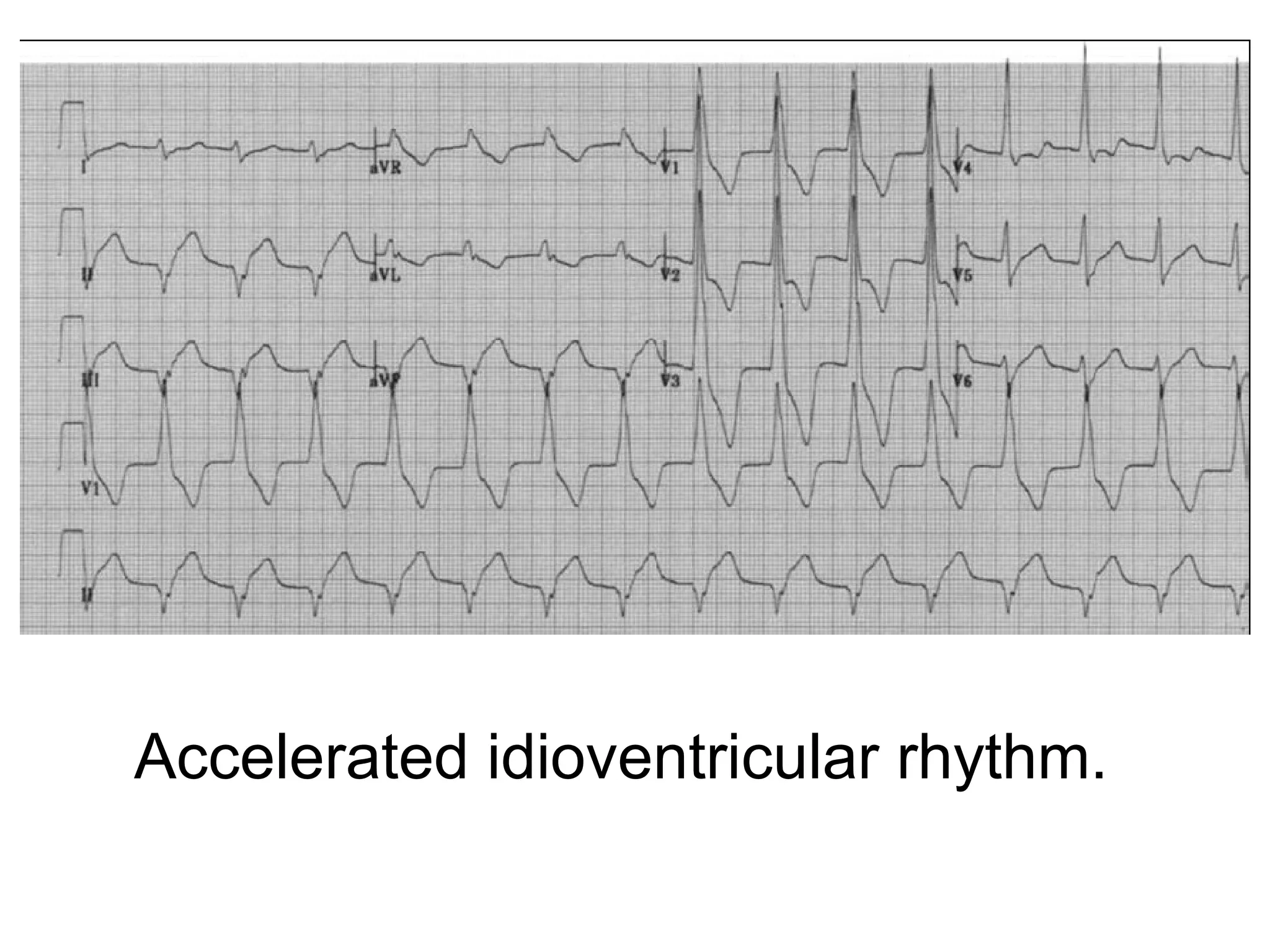

75. Accelerated idioventricular rhythm.

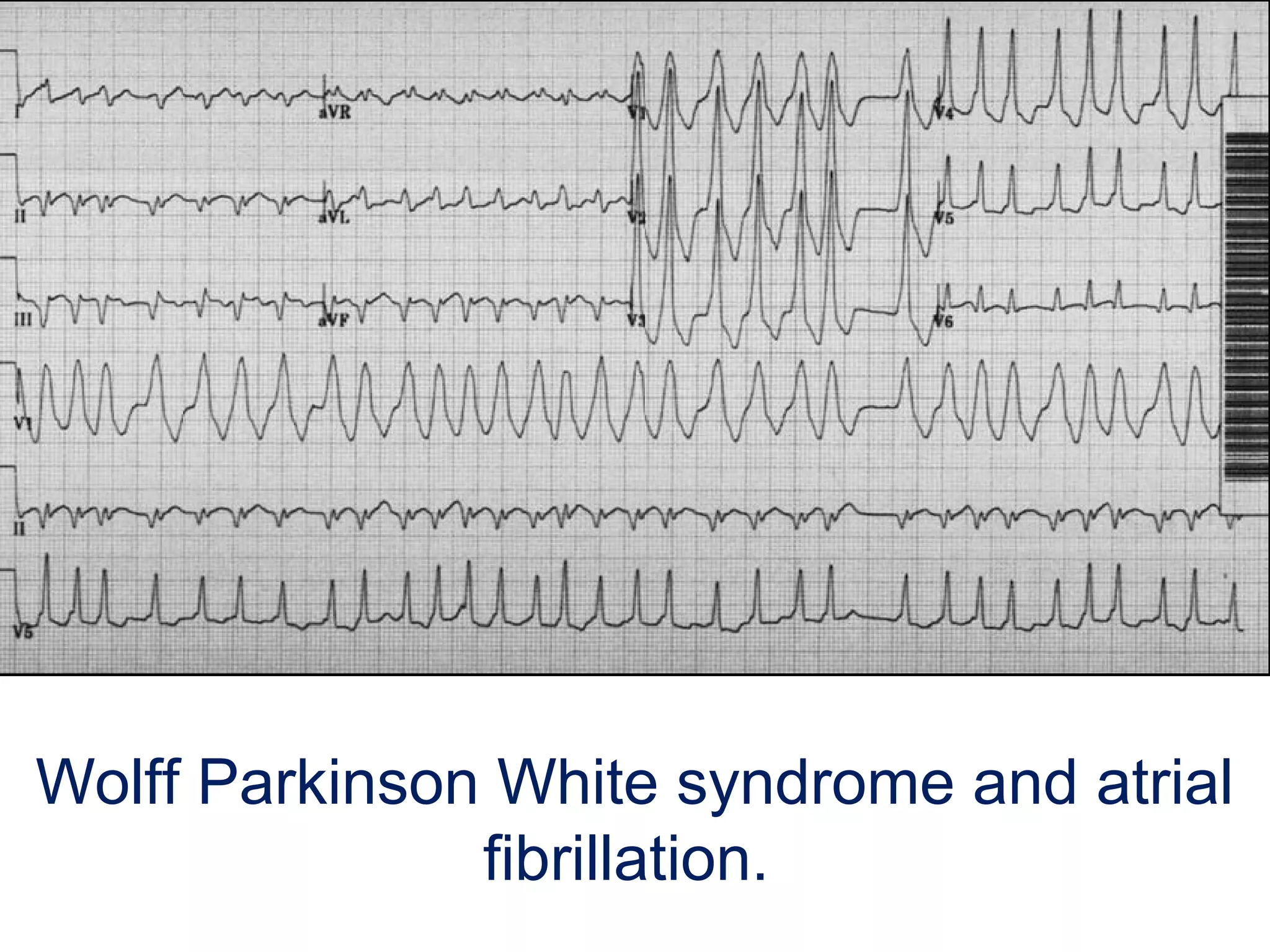

76. Wolff Parkinson White syndrome and atrial
fibrillation.

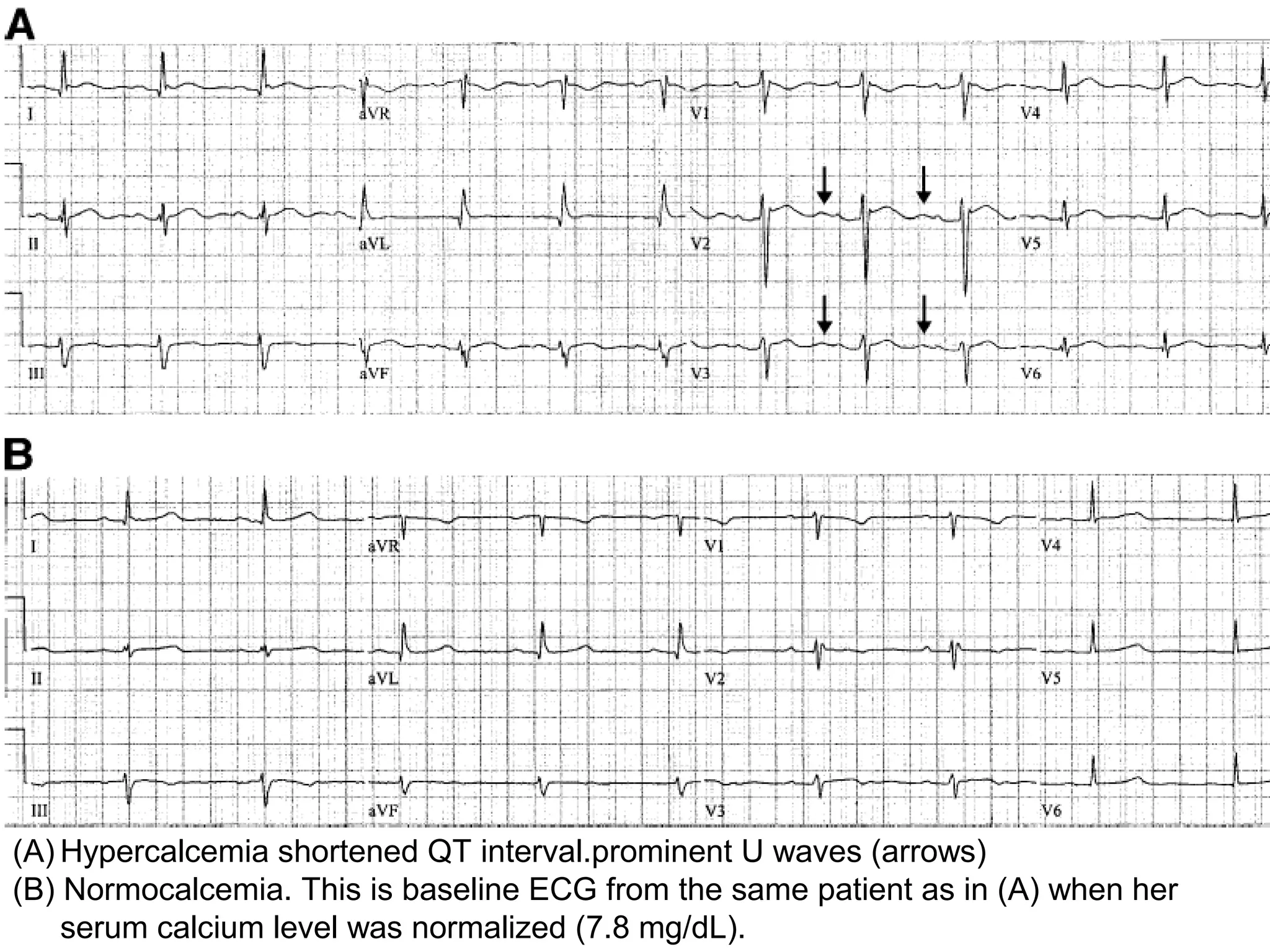

77. (A) Hypercalcemia shortened QT interval.prominent U waves (arrows)
(B) Normocalcemia. This is baseline ECG from the same patient as in (A) when her
serum calcium level was normalized (7.8 mg/dL).

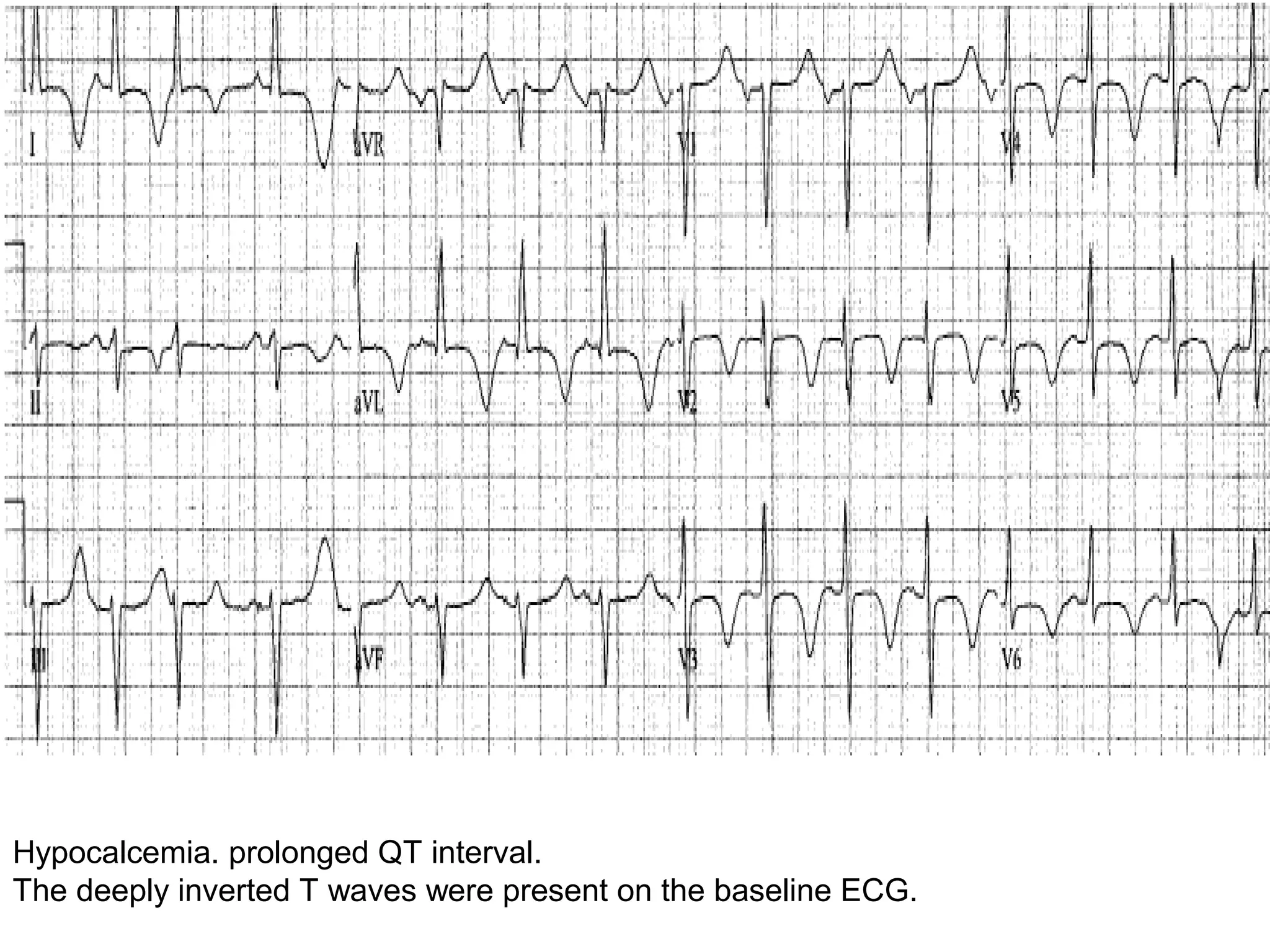

78. Hypocalcemia. prolonged QT interval.
The deeply inverted T waves were present on the baseline ECG.

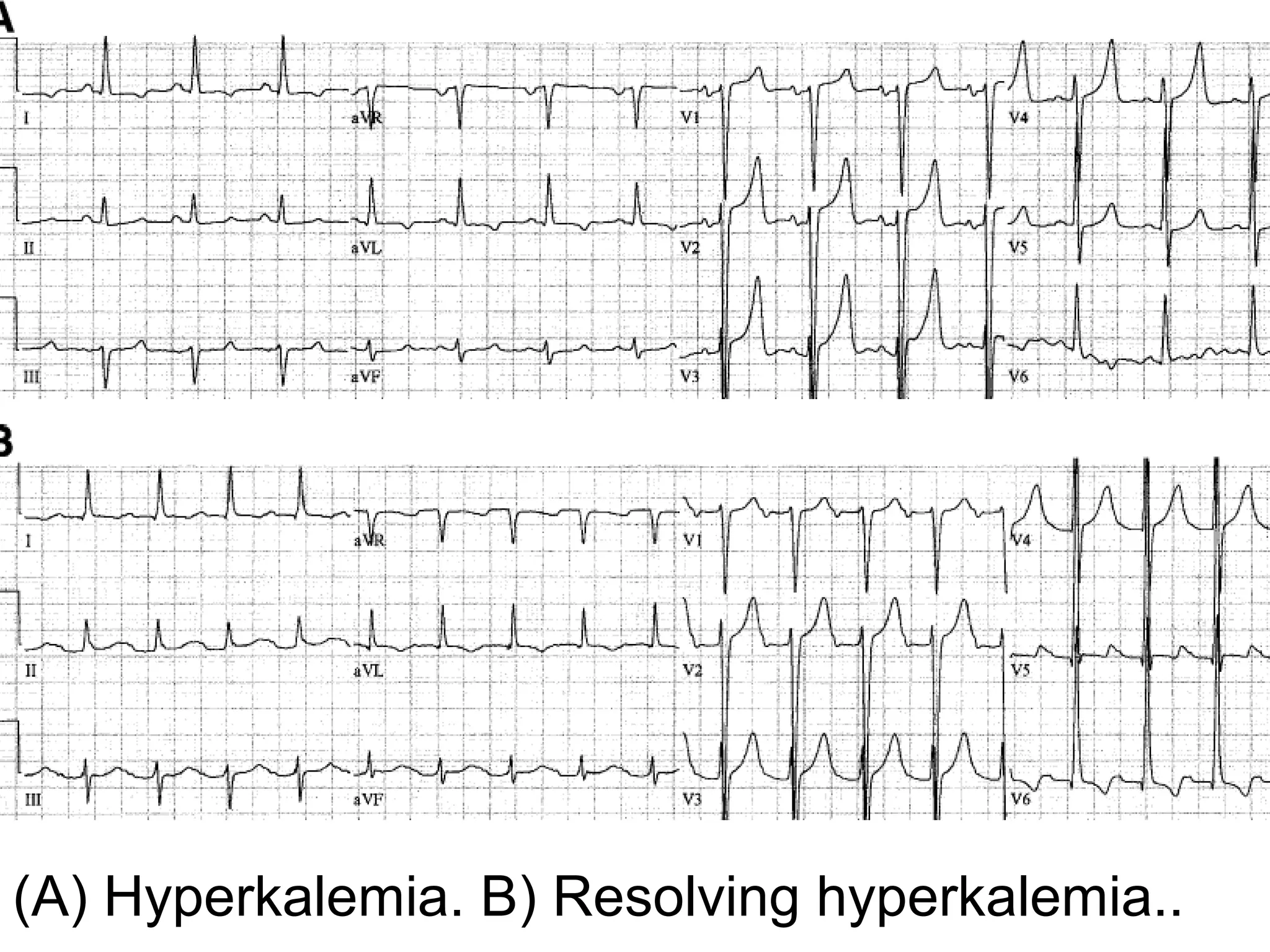

79. (A) Hyperkalemia. B) Resolving hyperkalemia..

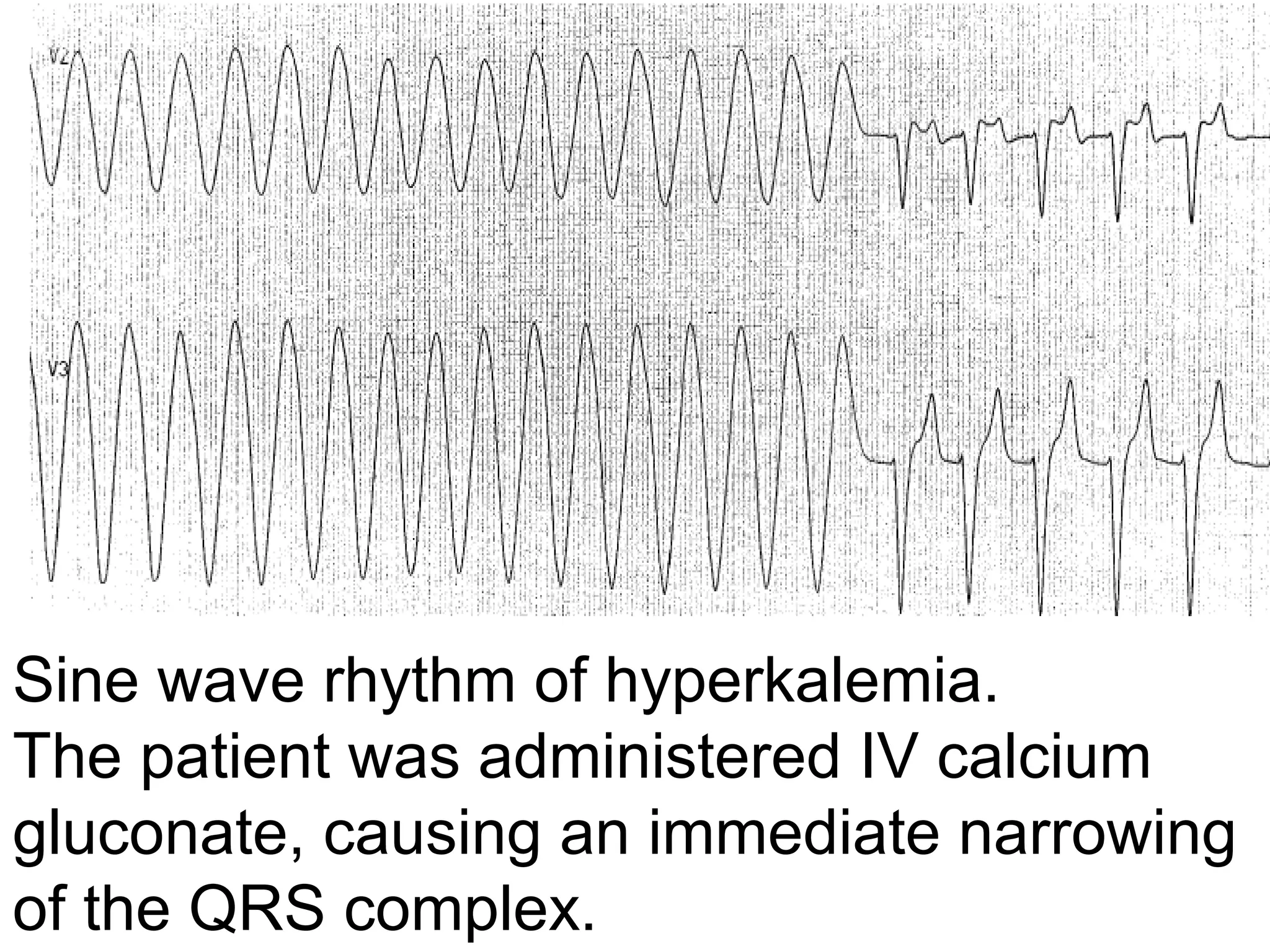

80. Sine wave rhythm of hyperkalemia.
The patient was administered IV calcium
gluconate, causing an immediate narrowing
of the QRS complex.

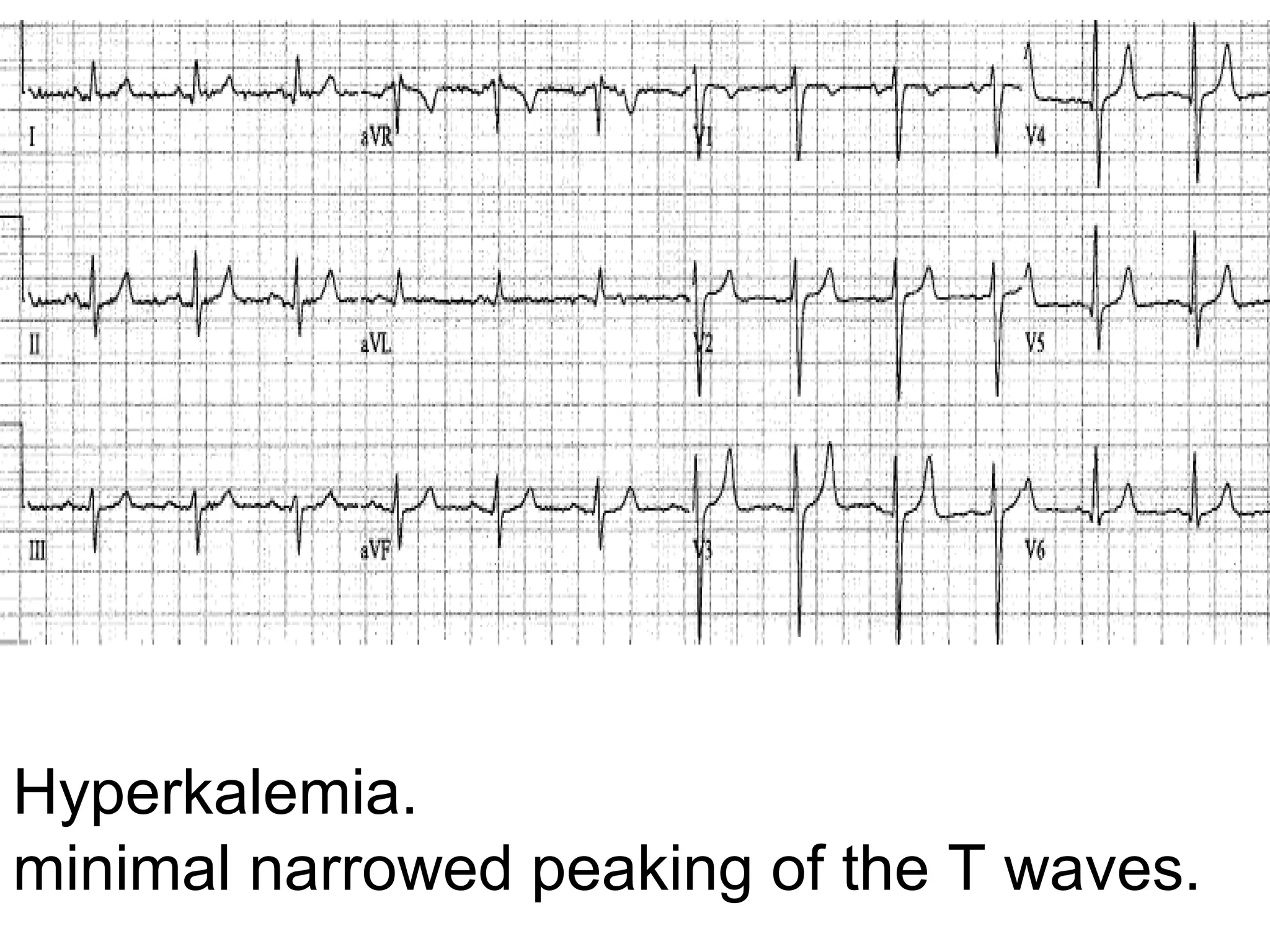

81. Hyperkalemia.
minimal narrowed peaking of the T waves.

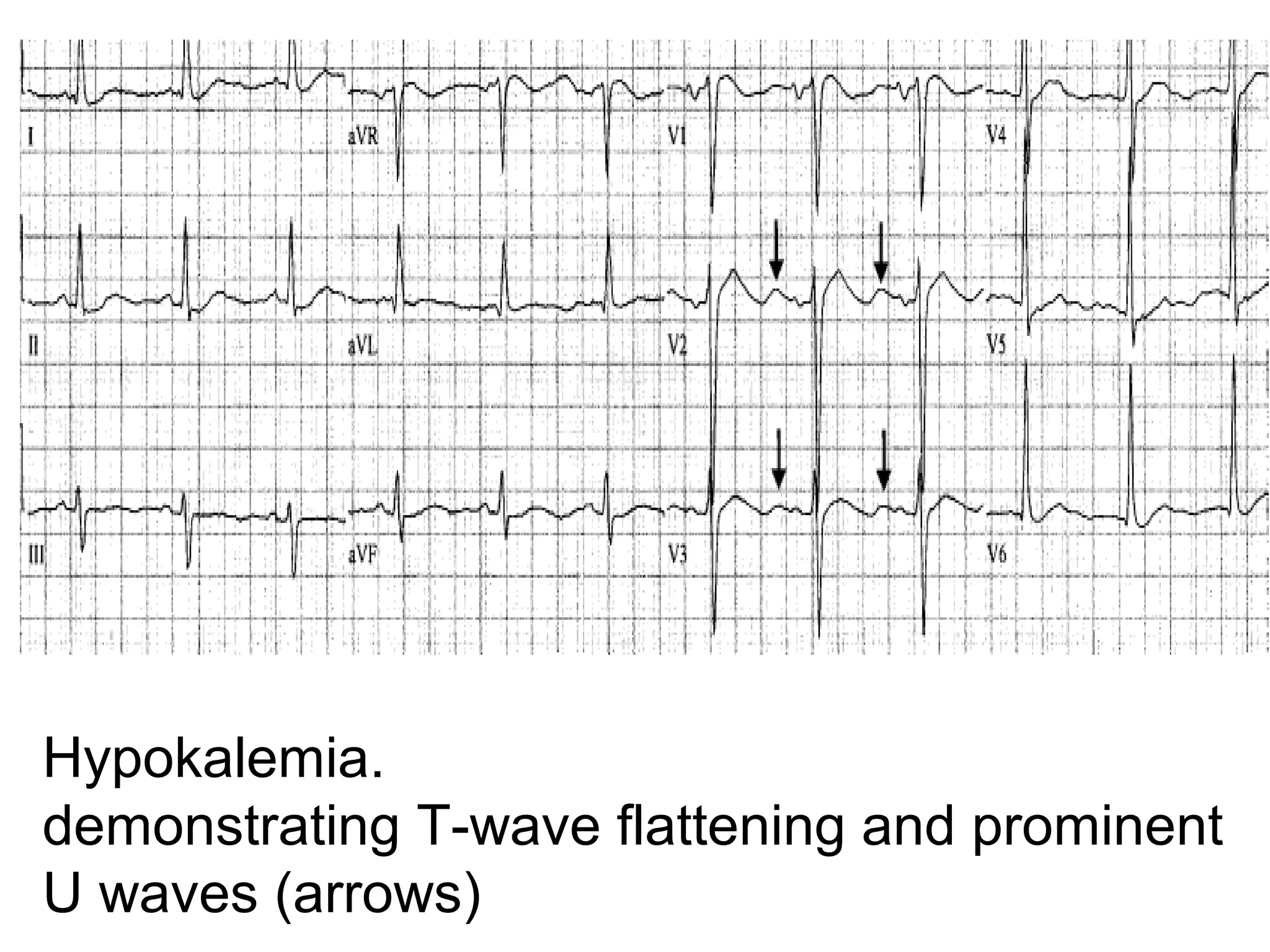

82. Hypokalemia.
demonstrating T-wave flattening and prominent
U waves (arrows)

83. Thank You
