1. DEVELOPING POLYGLOT
PERSISTENCE APPLICATIONS
Chris Richardson
Author of POJOs in Action
Founder of the original CloudFoundry.com
@crichardson chris.richardson@springsource.com
http://plainoldobjects.com

2. Presentation goal
The benefits and drawbacks of
polyglot persistence
and
How to design applications that
use this approach
@crichardson

3. About Chris
@crichardson

4. (About Chris)
@crichardson

5. About Chris()
@crichardson

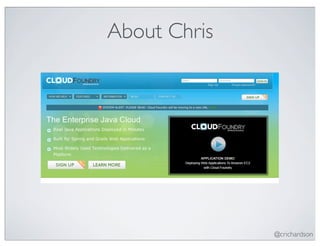

6. About Chris
@crichardson

7. About Chris
http://www.theregister.co.uk/2009/08/19/springsource_cloud_foundry/
@crichardson

8. vmc push About-Chris
Developer Advocate for
CloudFoundry.com
Signup at http://cloudfoundry.com
@crichardson

9. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

10. Food to Go
• Take-out food delivery
service
• “Launched” in 2006
@crichardson

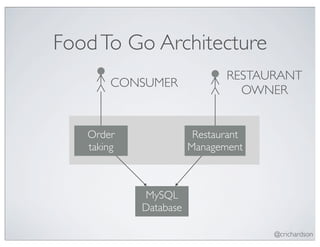

11. Food To Go Architecture
RESTAURANT
CONSUMER
OWNER
Order Restaurant
taking Management
MySQL
Database
@crichardson

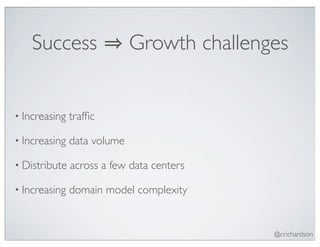

12. Success Growth challenges
• Increasing traffic
• Increasing data volume
• Distribute across a few data centers
• Increasing domain model complexity
@crichardson

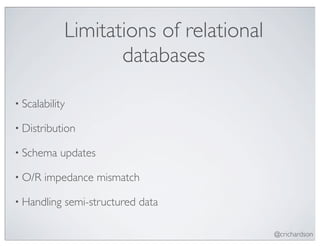

13. Limitations of relational
databases
• Scalability
• Distribution
• Schema updates
• O/R impedance mismatch
• Handling semi-structured data
@crichardson

14. Solution: Spend Money
http://upload.wikimedia.org/wikipedia/commons/e/e5/Rising_Sun_Yacht.JPG
OR
http://www.trekbikes.com/us/en/bikes/road/race_performance/madone_5_series/madone_5_2/#
@crichardson

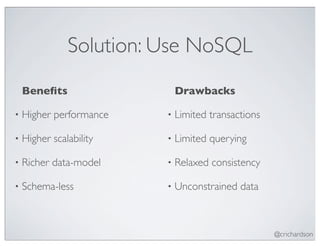

15. Solution: Use NoSQL
Benefits Drawbacks
• Higher performance • Limited transactions
• Higher scalability • Limited querying
• Richer data-model • Relaxed consistency
• Schema-less • Unconstrained data
@crichardson

16. Example NoSQL Databases
Database Key features
Cassandra Extensible column store, very scalable, distributed
Neo4j Graph database
Document-oriented, fast, scalable
MongoDB
Redis Key-value store, very fast
http://nosql-database.org/ lists 122+ NoSQL
databases @crichardson

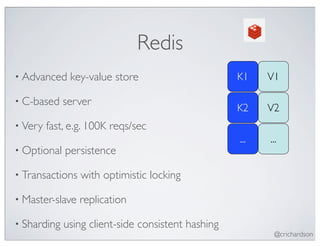

17. Redis
• Advanced key-value store K1 V1
• C-based server
K2 V2
• Very fast, e.g. 100K reqs/sec
... ...
• Optional persistence
• Transactions with optimistic locking
• Master-slave replication
• Sharding using client-side consistent hashing
@crichardson

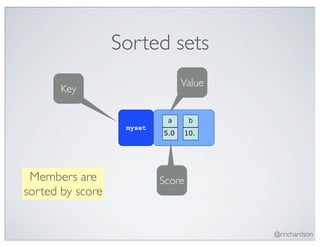

18. Sorted sets
Value
Key
a b
myset
5.0 10.
Members are Score
sorted by score
@crichardson

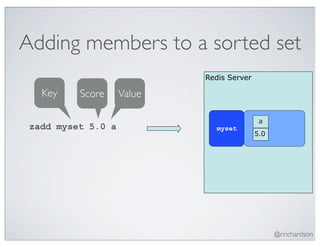

19. Adding members to a sorted set
Redis Server
Key Score Value
a
zadd myset 5.0 a myset
5.0
@crichardson

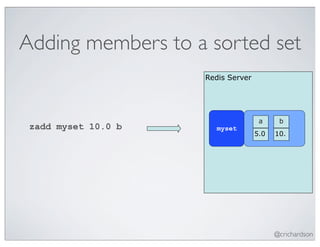

20. Adding members to a sorted set
Redis Server
a b
zadd myset 10.0 b myset
5.0 10.
@crichardson

21. Adding members to a sorted set
Redis Server
c a b
zadd myset 1.0 c myset
1.0 5.0 10.
@crichardson

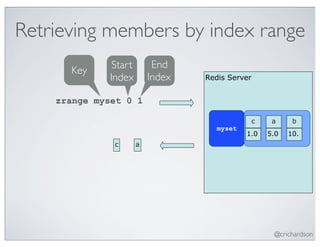

22. Retrieving members by index range
Start End
Key
Index Index Redis Server
zrange myset 0 1
c a b
myset
1.0 5.0 10.
c a
@crichardson

23. Retrieving members by score
Min Max
Key
value value Redis Server
zrangebyscore myset 1 6
c a b
myset
1.0 5.0 10.
c a
@crichardson

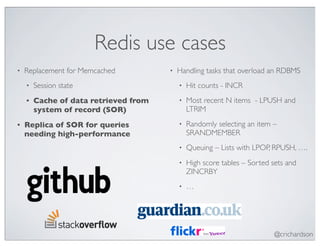

24. Redis use cases
• Replacement for Memcached • Handling tasks that overload an RDBMS
• Session state • Hit counts - INCR
• Cache of data retrieved from • Most recent N items - LPUSH and
system of record (SOR) LTRIM
• Replica of SOR for queries • Randomly selecting an item –
needing high-performance SRANDMEMBER
• Queuing – Lists with LPOP, RPUSH, ….
• High score tables – Sorted sets and
ZINCRBY
• …
@crichardson

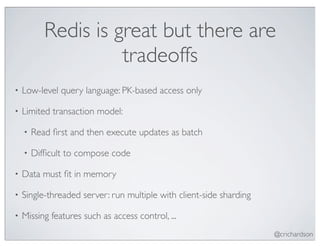

25. Redis is great but there are
tradeoffs
• Low-level query language: PK-based access only
• Limited transaction model:
• Read first and then execute updates as batch
• Difficult to compose code
• Data must fit in memory
• Single-threaded server: run multiple with client-side sharding
• Missing features such as access control, ...
@crichardson

26. And don’t forget:
An RDBMS is fine for many
applications
@crichardson

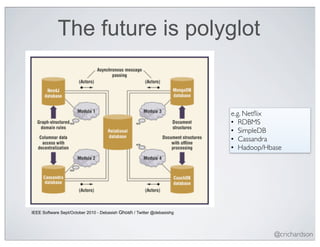

27. The future is polyglot
e.g. Netflix
• RDBMS
• SimpleDB
• Cassandra
• Hadoop/Hbase
IEEE Software Sept/October 2010 - Debasish Ghosh / Twitter @debasishg
@crichardson

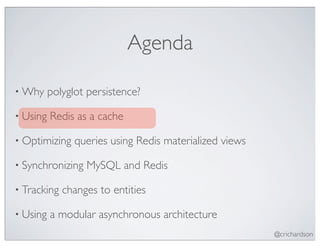

28. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

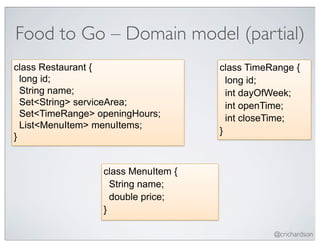

29. Food to Go – Domain model (partial)
class Restaurant { class TimeRange {
long id; long id;
String name; int dayOfWeek;
Set<String> serviceArea; int openTime;
Set<TimeRange> openingHours; int closeTime;
List<MenuItem> menuItems;
}
}
class MenuItem {
String name;
double price;
}
@crichardson

30. Database schema
ID Name …
RESTAURANT table
1 Ajanta
2 Montclair Eggshop
Restaurant_id zipcode
RESTAURANT_ZIPCODE table
1 94707
1 94619
2 94611
2 94619
RESTAURANT_TIME_RANGE table
Restaurant_id dayOfWeek openTime closeTime
1 Monday 1130 1430
1 Monday 1730 2130
2 Tuesday 1130 …
@crichardson

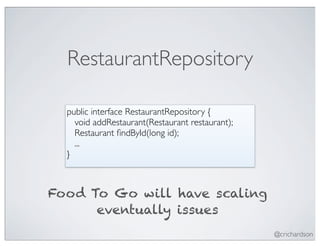

31. RestaurantRepository
public interface RestaurantRepository {
void addRestaurant(Restaurant restaurant);
Restaurant findById(long id);
...
}
Food To Go will have scaling
eventually issues
@crichardson

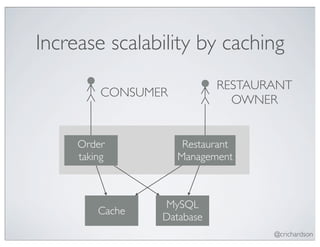

32. Increase scalability by caching
RESTAURANT
CONSUMER
OWNER
Order Restaurant
taking Management
MySQL
Cache
Database
@crichardson

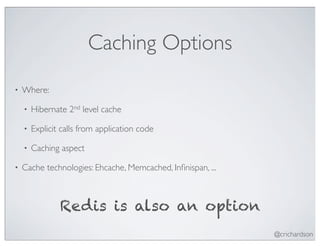

33. Caching Options
• Where:
• Hibernate 2nd level cache
• Explicit calls from application code
• Caching aspect
• Cache technologies: Ehcache, Memcached, Infinispan, ...
Redis is also an option
@crichardson

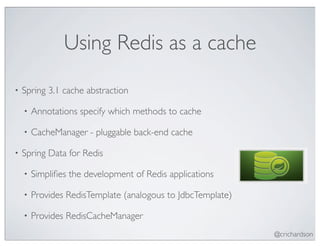

34. Using Redis as a cache
• Spring 3.1 cache abstraction
• Annotations specify which methods to cache
• CacheManager - pluggable back-end cache
• Spring Data for Redis
• Simplifies the development of Redis applications
• Provides RedisTemplate (analogous to JdbcTemplate)
• Provides RedisCacheManager
@crichardson

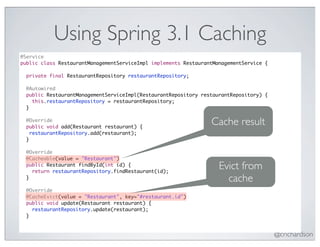

35. Using Spring 3.1 Caching
@Service
public class RestaurantManagementServiceImpl implements RestaurantManagementService {
private final RestaurantRepository restaurantRepository;
@Autowired
public RestaurantManagementServiceImpl(RestaurantRepository restaurantRepository) {
this.restaurantRepository = restaurantRepository;
}
@Override
public void add(Restaurant restaurant) {
Cache result
restaurantRepository.add(restaurant);
}
@Override
@Cacheable(value = "Restaurant")
public Restaurant findById(int id) {
return restaurantRepository.findRestaurant(id);
Evict from
} cache
@Override
@CacheEvict(value = "Restaurant", key="#restaurant.id")
public void update(Restaurant restaurant) {
restaurantRepository.update(restaurant);
}
@crichardson

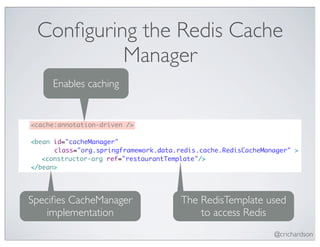

36. Configuring the Redis Cache
Manager
Enables caching
<cache:annotation-driven />
<bean id="cacheManager"
class="org.springframework.data.redis.cache.RedisCacheManager" >
<constructor-arg ref="restaurantTemplate"/>
</bean>
Specifies CacheManager The RedisTemplate used
implementation to access Redis
@crichardson

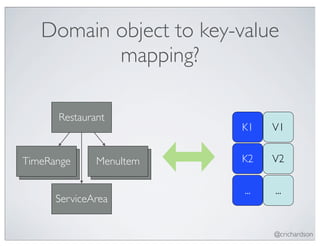

37. Domain object to key-value
mapping?
Restaurant
K1 V1
TimeRange
TimeRange MenuItem
MenuItem K2 V2
... ...
ServiceArea
@crichardson

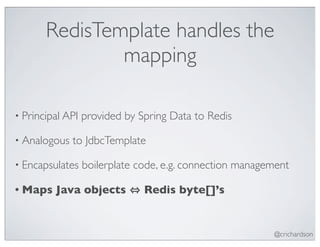

38. RedisTemplate handles the
mapping
• Principal API provided by Spring Data to Redis
• Analogous to JdbcTemplate
• Encapsulates boilerplate code, e.g. connection management
• Maps Java objects Redis byte[]’s
@crichardson

39. Serializers: object byte[]
• RedisTemplate has multiple serializers
• DefaultSerializer - defaults to JdkSerializationRedisSerializer
• KeySerializer
• ValueSerializer
• HashKeySerializer
• HashValueSerializer
@crichardson

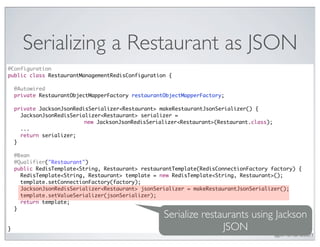

40. Serializing a Restaurant as JSON
@Configuration
public class RestaurantManagementRedisConfiguration {
@Autowired
private RestaurantObjectMapperFactory restaurantObjectMapperFactory;
private JacksonJsonRedisSerializer<Restaurant> makeRestaurantJsonSerializer() {
JacksonJsonRedisSerializer<Restaurant> serializer =
new JacksonJsonRedisSerializer<Restaurant>(Restaurant.class);
...
return serializer;
}
@Bean
@Qualifier("Restaurant")
public RedisTemplate<String, Restaurant> restaurantTemplate(RedisConnectionFactory factory) {
RedisTemplate<String, Restaurant> template = new RedisTemplate<String, Restaurant>();
template.setConnectionFactory(factory);
JacksonJsonRedisSerializer<Restaurant> jsonSerializer = makeRestaurantJsonSerializer();
template.setValueSerializer(jsonSerializer);
return template;
}
Serialize restaurants using Jackson
} JSON
@crichardson

41. Caching with Redis
RESTAURANT
CONSUMER
OWNER
Order Restaurant
taking Management
Redis MySQL
First Second
Cache Database
@crichardson

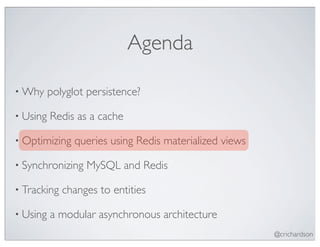

42. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

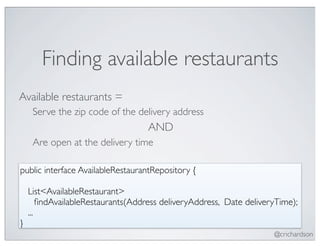

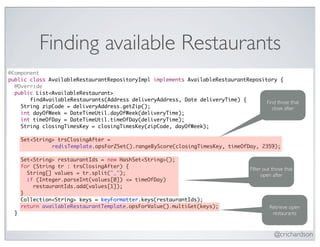

43. Finding available restaurants
Available restaurants =
Serve the zip code of the delivery address
AND
Are open at the delivery time
public interface AvailableRestaurantRepository {
List<AvailableRestaurant>
findAvailableRestaurants(Address deliveryAddress, Date deliveryTime);
...
}
@crichardson

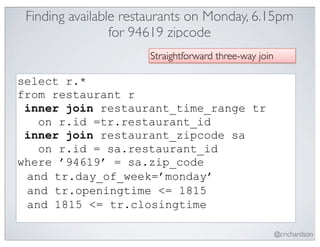

44. Finding available restaurants on Monday, 6.15pm
for 94619 zipcode
Straightforward three-way join
select r.*
from restaurant r
inner join restaurant_time_range tr
on r.id =tr.restaurant_id
inner join restaurant_zipcode sa
on r.id = sa.restaurant_id
where ’94619’ = sa.zip_code
and tr.day_of_week=’monday’
and tr.openingtime <= 1815
and 1815 <= tr.closingtime
@crichardson

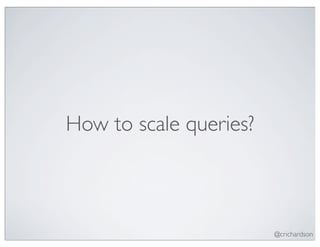

45. How to scale queries?
@crichardson

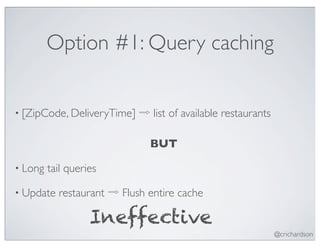

46. Option #1: Query caching
• [ZipCode, DeliveryTime] ⇨ list of available restaurants
BUT
• Long tail queries
• Update restaurant ⇨ Flush entire cache
Ineffective
@crichardson

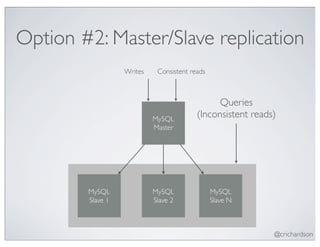

47. Option #2: Master/Slave replication
Writes Consistent reads
Queries
MySQL
(Inconsistent reads)
Master
MySQL MySQL MySQL
Slave 1 Slave 2 Slave N
@crichardson

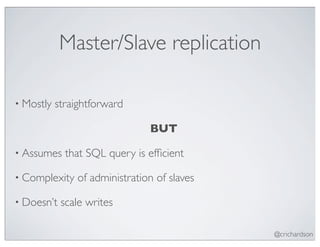

48. Master/Slave replication
• Mostly straightforward
BUT
• Assumes that SQL query is efficient
• Complexity of administration of slaves
• Doesn’t scale writes
@crichardson

49. Option #3: Redis materialized
views
RESTAURANT
CONSUMER
OWNER
Order Restaurant
taking Management System
of
Copy update() Record
findAvailable()
MySQL
Redis Cache
Database
@crichardson

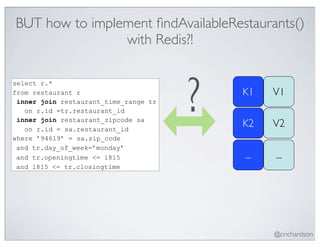

50. BUT how to implement findAvailableRestaurants()
with Redis?!
?
select r.*
from restaurant r K1 V1
inner join restaurant_time_range tr
on r.id =tr.restaurant_id
inner join restaurant_zipcode sa
on r.id = sa.restaurant_id
K2 V2
where ’94619’ = sa.zip_code
and tr.day_of_week=’monday’
and tr.openingtime <= 1815 ... ...
and 1815 <= tr.closingtime
@crichardson

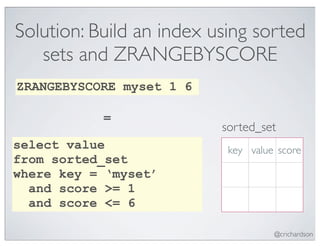

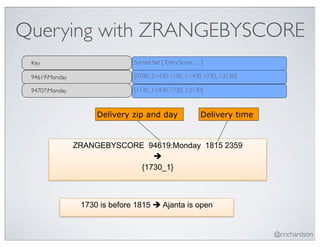

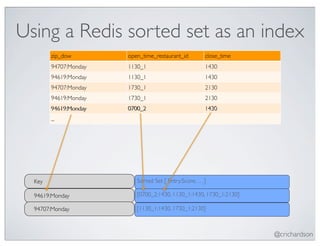

51. Solution: Build an index using sorted
sets and ZRANGEBYSCORE
ZRANGEBYSCORE myset 1 6
=
sorted_set
select value key value score
from sorted_set
where key = ‘myset’
and score >= 1
and score <= 6
@crichardson

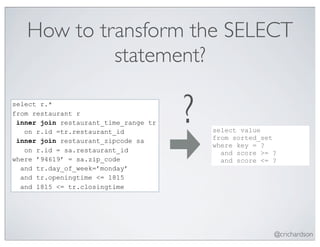

52. How to transform the SELECT
statement?
select r.*
from restaurant r
inner join restaurant_time_range tr
on r.id =tr.restaurant_id
inner join restaurant_zipcode sa
? select value
from sorted_set
where key = ?
on r.id = sa.restaurant_id and score >= ?
where ’94619’ = sa.zip_code and score <= ?
and tr.day_of_week=’monday’
and tr.openingtime <= 1815
and 1815 <= tr.closingtime
@crichardson

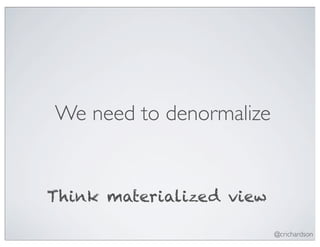

53. We need to denormalize
Think materialized view
@crichardson

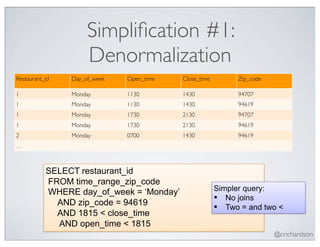

54. Simplification #1:
Denormalization
Restaurant_id Day_of_week Open_time Close_time Zip_code
1 Monday 1130 1430 94707
1 Monday 1130 1430 94619
1 Monday 1730 2130 94707
1 Monday 1730 2130 94619
2 Monday 0700 1430 94619
…
SELECT restaurant_id
FROM time_range_zip_code
WHERE day_of_week = ‘Monday’ Simpler query:
 No joins
AND zip_code = 94619  Two = and two <
AND 1815 < close_time
AND open_time < 1815
@crichardson

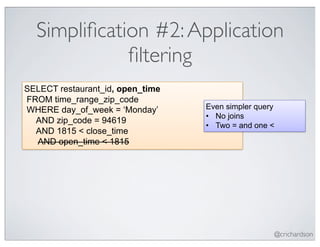

55. Simplification #2: Application
filtering
SELECT restaurant_id, open_time
FROM time_range_zip_code
WHERE day_of_week = ‘Monday’ Even simpler query
• No joins
AND zip_code = 94619
• Two = and one <
AND 1815 < close_time
AND open_time < 1815
@crichardson

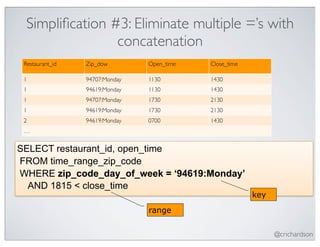

56. Simplification #3: Eliminate multiple =’s with
concatenation
Restaurant_id Zip_dow Open_time Close_time
1 94707:Monday 1130 1430
1 94619:Monday 1130 1430
1 94707:Monday 1730 2130
1 94619:Monday 1730 2130
2 94619:Monday 0700 1430
…
SELECT restaurant_id, open_time
FROM time_range_zip_code
WHERE zip_code_day_of_week = ‘94619:Monday’
AND 1815 < close_time
key
range
@crichardson

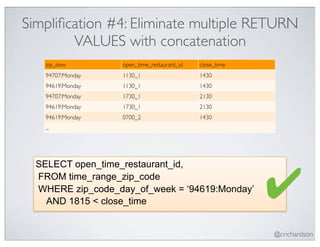

57. Simplification #4: Eliminate multiple RETURN
VALUES with concatenation
zip_dow open_time_restaurant_id close_time
94707:Monday 1130_1 1430
94619:Monday 1130_1 1430
94707:Monday 1730_1 2130
94619:Monday 1730_1 2130
94619:Monday 0700_2 1430
...
SELECT open_time_restaurant_id,
FROM time_range_zip_code
WHERE zip_code_day_of_week = ‘94619:Monday’
AND 1815 < close_time
✔
@crichardson

58. Using a Redis sorted set as an index
zip_dow open_time_restaurant_id close_time
94707:Monday 1130_1 1430
94619:Monday 1130_1 1430
94707:Monday 1730_1 2130
94619:Monday 1730_1 2130
94619:Monday 0700_2 1430
...
Key Sorted Set [ Entry:Score, …]
94619:Monday [0700_2:1430, 1130_1:1430, 1730_1:2130]
94707:Monday [1130_1:1430, 1730_1:2130]
@crichardson

59. Querying with ZRANGEBYSCORE
Key Sorted Set [ Entry:Score, …]
94619:Monday [0700_2:1430, 1130_1:1430, 1730_1:2130]
94707:Monday [1130_1:1430, 1730_1:2130]
Delivery zip and day Delivery time
ZRANGEBYSCORE 94619:Monday 1815 2359

{1730_1}
1730 is before 1815  Ajanta is open
@crichardson

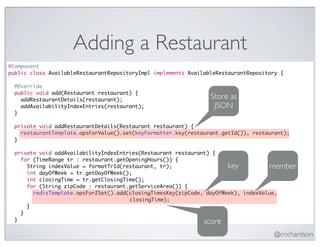

60. Adding a Restaurant
@Component
public class AvailableRestaurantRepositoryImpl implements AvailableRestaurantRepository {
@Override
public void add(Restaurant restaurant) {
addRestaurantDetails(restaurant);
Store as
addAvailabilityIndexEntries(restaurant); JSON
}
Text
private void addRestaurantDetails(Restaurant restaurant) {
restaurantTemplate.opsForValue().set(keyFormatter.key(restaurant.getId()), restaurant);
}
private void addAvailabilityIndexEntries(Restaurant restaurant) {
for (TimeRange tr : restaurant.getOpeningHours()) {
String indexValue = formatTrId(restaurant, tr); key member
int dayOfWeek = tr.getDayOfWeek();
int closingTime = tr.getClosingTime();
for (String zipCode : restaurant.getServiceArea()) {
redisTemplate.opsForZSet().add(closingTimesKey(zipCode, dayOfWeek), indexValue,
closingTime);
}
}
} score
@crichardson

61. Finding available Restaurants
@Component
public class AvailableRestaurantRepositoryImpl implements AvailableRestaurantRepository {
@Override
public List<AvailableRestaurant>
findAvailableRestaurants(Address deliveryAddress, Date deliveryTime) { Find those that
String zipCode = deliveryAddress.getZip(); close after
int dayOfWeek = DateTimeUtil.dayOfWeek(deliveryTime);
int timeOfDay = DateTimeUtil.timeOfDay(deliveryTime);
String closingTimesKey = closingTimesKey(zipCode, dayOfWeek);
Set<String> trsClosingAfter =
redisTemplate.opsForZSet().rangeByScore(closingTimesKey, timeOfDay, 2359);
Set<String> restaurantIds = new HashSet<String>();
for (String tr : trsClosingAfter) { Filter out those that
String[] values = tr.split("_"); open after
if (Integer.parseInt(values[0]) <= timeOfDay)
restaurantIds.add(values[1]);
}
Collection<String> keys = keyFormatter.keys(restaurantIds);
return availableRestaurantTemplate.opsForValue().multiGet(keys); Retrieve open
} restaurants
@crichardson

62. Sorry Ted!
http://en.wikipedia.org/wiki/Edgar_F._Codd
@crichardson

63. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

64. MySQL & Redis
need to be consistent
@crichardson

65. Two-Phase commit is not an
option
• Redis does not support it
• Even if it did, 2PC is best avoided http://www.infoq.com/articles/ebay-scalability-best-practices
@crichardson

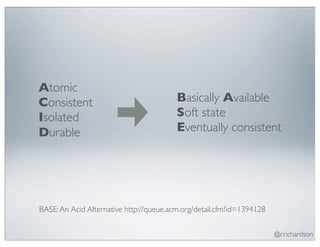

66. Atomic
Consistent Basically Available
Isolated Soft state
Durable Eventually consistent
BASE: An Acid Alternative http://queue.acm.org/detail.cfm?id=1394128
@crichardson

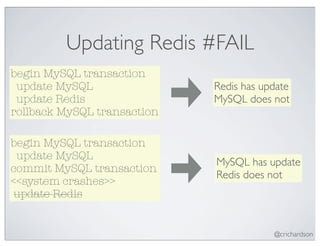

67. Updating Redis #FAIL
begin MySQL transaction
update MySQL Redis has update
update Redis MySQL does not
rollback MySQL transaction
begin MySQL transaction
update MySQL
MySQL has update
commit MySQL transaction
Redis does not
<<system crashes>>
update Redis
@crichardson

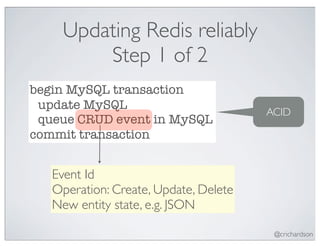

68. Updating Redis reliably
Step 1 of 2
begin MySQL transaction
update MySQL
ACID
queue CRUD event in MySQL
commit transaction
Event Id
Operation: Create, Update, Delete
New entity state, e.g. JSON
@crichardson

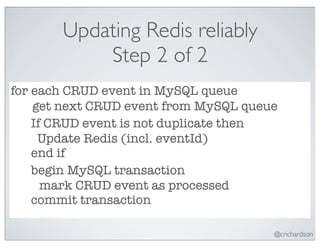

69. Updating Redis reliably
Step 2 of 2
for each CRUD event in MySQL queue
get next CRUD event from MySQL queue
If CRUD event is not duplicate then
Update Redis (incl. eventId)
end if
begin MySQL transaction
mark CRUD event as processed
commit transaction
@crichardson

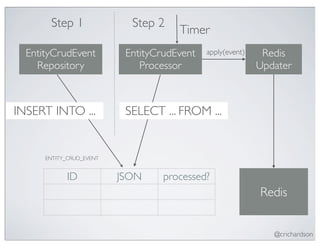

70. Step 1 Step 2
Timer
EntityCrudEvent EntityCrudEvent apply(event) Redis
Repository Processor Updater
INSERT INTO ... SELECT ... FROM ...
ENTITY_CRUD_EVENT
ID JSON processed?
Redis
@crichardson

71. Optimistic
locking Updating Redis
WATCH restaurant:lastSeenEventId:≪restaurantId≫
lastSeenEventId = GET restaurant:lastSeenEventId:≪restaurantId≫
Duplicate
if (lastSeenEventId >= eventId) return; detection
MULTI
SET restaurant:lastSeenEventId:≪restaurantId≫ eventId
Transaction
... update the restaurant data...
EXEC
@crichardson

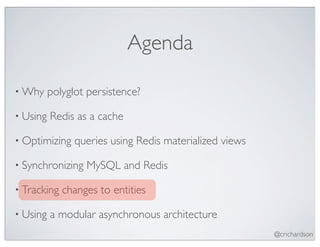

72. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

73. How do we generate CRUD
events?
@crichardson

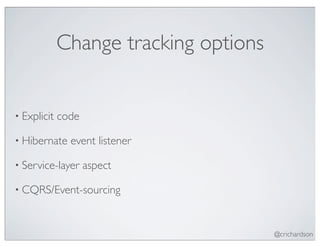

74. Change tracking options
• Explicit code
• Hibernate event listener
• Service-layer aspect
• CQRS/Event-sourcing
@crichardson

75. HibernateEvent EntityCrudEvent
Listener Repository
ENTITY_CRUD_EVENT
ID JSON processed?
@crichardson

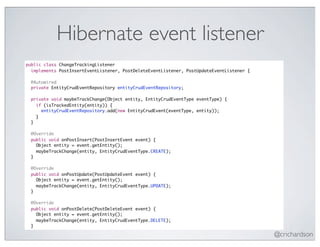

76. Hibernate event listener
public class ChangeTrackingListener
implements PostInsertEventListener, PostDeleteEventListener, PostUpdateEventListener {
@Autowired
private EntityCrudEventRepository entityCrudEventRepository;
private void maybeTrackChange(Object entity, EntityCrudEventType eventType) {
if (isTrackedEntity(entity)) {
entityCrudEventRepository.add(new EntityCrudEvent(eventType, entity));
}
}
@Override
public void onPostInsert(PostInsertEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.CREATE);
}
@Override
public void onPostUpdate(PostUpdateEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.UPDATE);
}
@Override
public void onPostDelete(PostDeleteEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.DELETE);
}
@crichardson

77. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture
@crichardson

78. Original architecture
WAR
Restaurant
Management
...
@crichardson

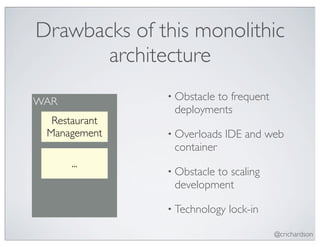

79. Drawbacks of this monolithic
architecture
• Obstacle
to frequent
WAR
deployments
Restaurant
Management • Overloads IDE and web
container
...
• Obstacle
to scaling
development
• Technology lock-in
@crichardson

80. Need a more modular
architecture
@crichardson

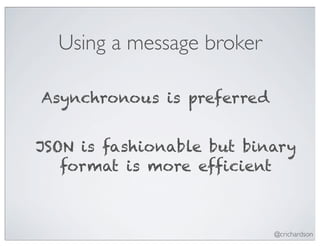

81. Using a message broker
Asynchronous is preferred
JSON is fashionable but binary
format is more efficient
@crichardson

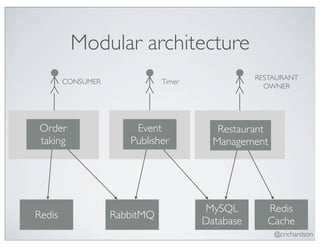

82. Modular architecture
RESTAURANT
CONSUMER Timer
OWNER
Order Event Restaurant
taking Publisher Management
MySQL Redis
Redis RabbitMQ
Database Cache
@crichardson

83. Benefits of a modular
asynchronous architecture
• Scales
development: develop, deploy and scale each service
independently
• Redeploy UI frequently/independently
• Improves fault isolation
• Eliminates long-term commitment to a single technology stack
• Message broker decouples producers and consumers
@crichardson

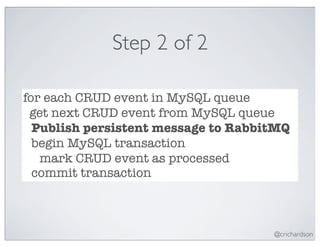

84. Step 2 of 2
for each CRUD event in MySQL queue
get next CRUD event from MySQL queue
Publish persistent message to RabbitMQ
begin MySQL transaction
mark CRUD event as processed
commit transaction
@crichardson

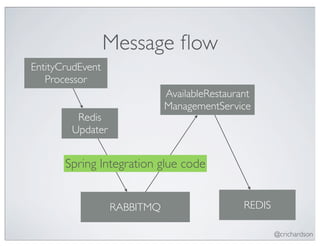

85. Message flow
EntityCrudEvent
Processor
AvailableRestaurant
ManagementService
Redis
Updater
Spring Integration glue code
RABBITMQ REDIS
@crichardson

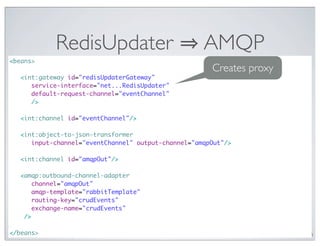

86. RedisUpdater AMQP
<beans>
Creates proxy
<int:gateway id="redisUpdaterGateway"
service-interface="net...RedisUpdater"
default-request-channel="eventChannel"
/>
<int:channel id="eventChannel"/>
<int:object-to-json-transformer
input-channel="eventChannel" output-channel="amqpOut"/>
<int:channel id="amqpOut"/>
<amqp:outbound-channel-adapter
channel="amqpOut"
amqp-template="rabbitTemplate"
routing-key="crudEvents"
exchange-name="crudEvents"
/>
</beans> @crichardson

87. AMQP Available...Service
<beans>
<amqp:inbound-channel-adapter
channel="inboundJsonEventsChannel"
connection-factory="rabbitConnectionFactory"
queue-names="crudEvents"/>
<int:channel id="inboundJsonEventsChannel"/>
<int:json-to-object-transformer
input-channel="inboundJsonEventsChannel"
type="net.chrisrichardson.foodToGo.common.JsonEntityCrudEvent"
output-channel="inboundEventsChannel"/>
<int:channel id="inboundEventsChannel"/> Invokes service
<int:service-activator
input-channel="inboundEventsChannel"
ref="availableRestaurantManagementServiceImpl"
method="processEvent"/>
</beans>
@crichardson

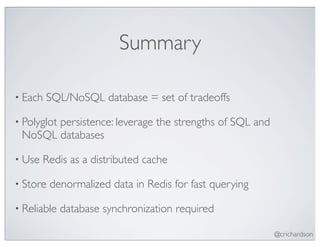

88. Summary
• Each SQL/NoSQL database = set of tradeoffs
• Polyglot
persistence: leverage the strengths of SQL and
NoSQL databases
• Use Redis as a distributed cache
• Store denormalized data in Redis for fast querying
• Reliable database synchronization required
@crichardson

89. @crichardson chris.richardson@springsource.com
http://plainoldobjects.com - code and slides
Sign up for CloudFoundry.com@crichardson
