The document discusses using Redis to optimize queries in polyglot persistence applications by creating materialized views that denormalize and index data from a relational database into Redis for faster access. It provides an example of using Redis sorted sets to index available restaurant data from a MySQL database in a way that allows fast retrieval of open restaurants for a given zip code and time. The approach simplifies queries by eliminating joins and reducing data returned through concatenation and indexing techniques.

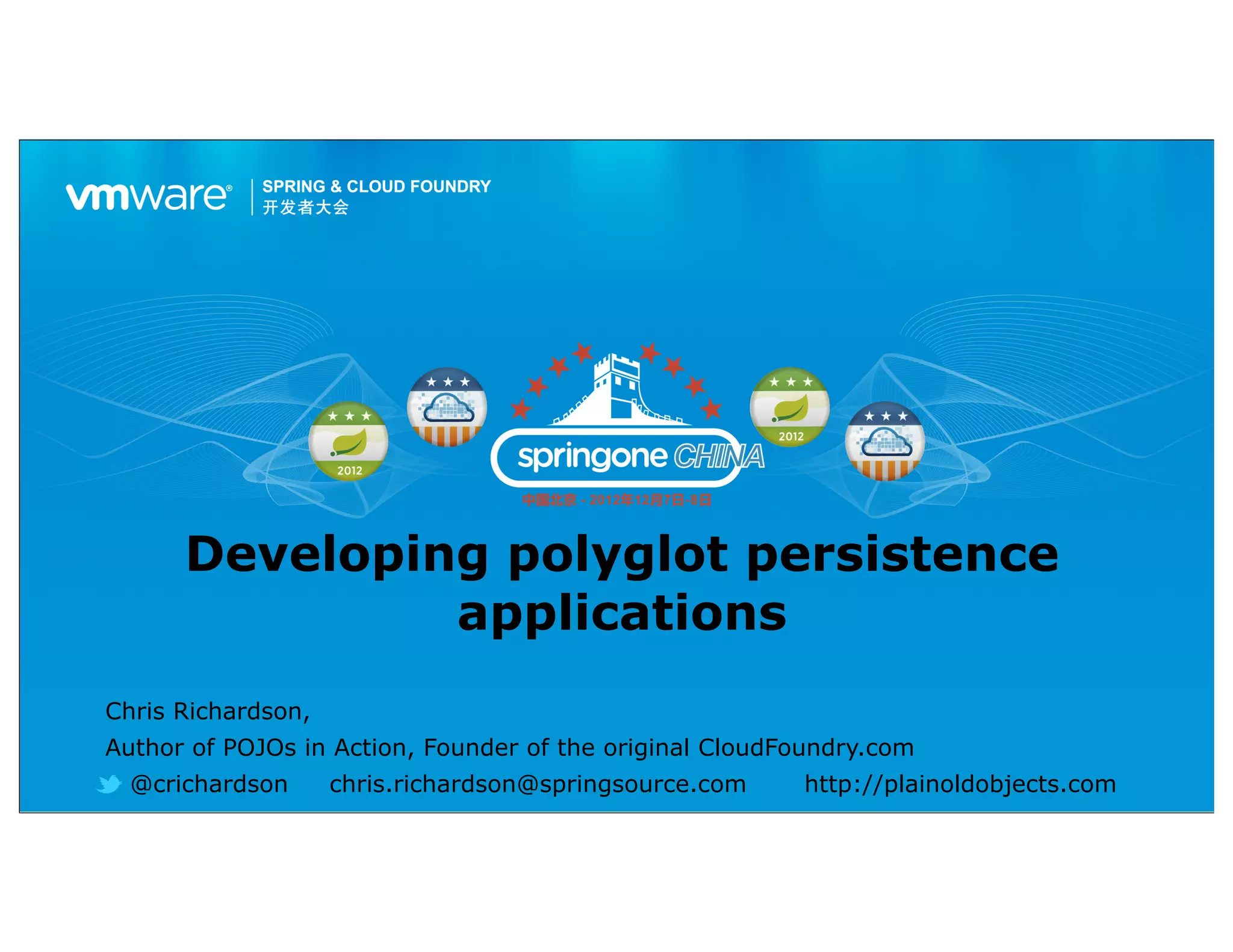

1. Developing polyglot persistence
applications
Chris Richardson,
Author of POJOs in Action, Founder of the original CloudFoundry.com
@crichardson chris.richardson@springsource.com http://plainoldobjects.com

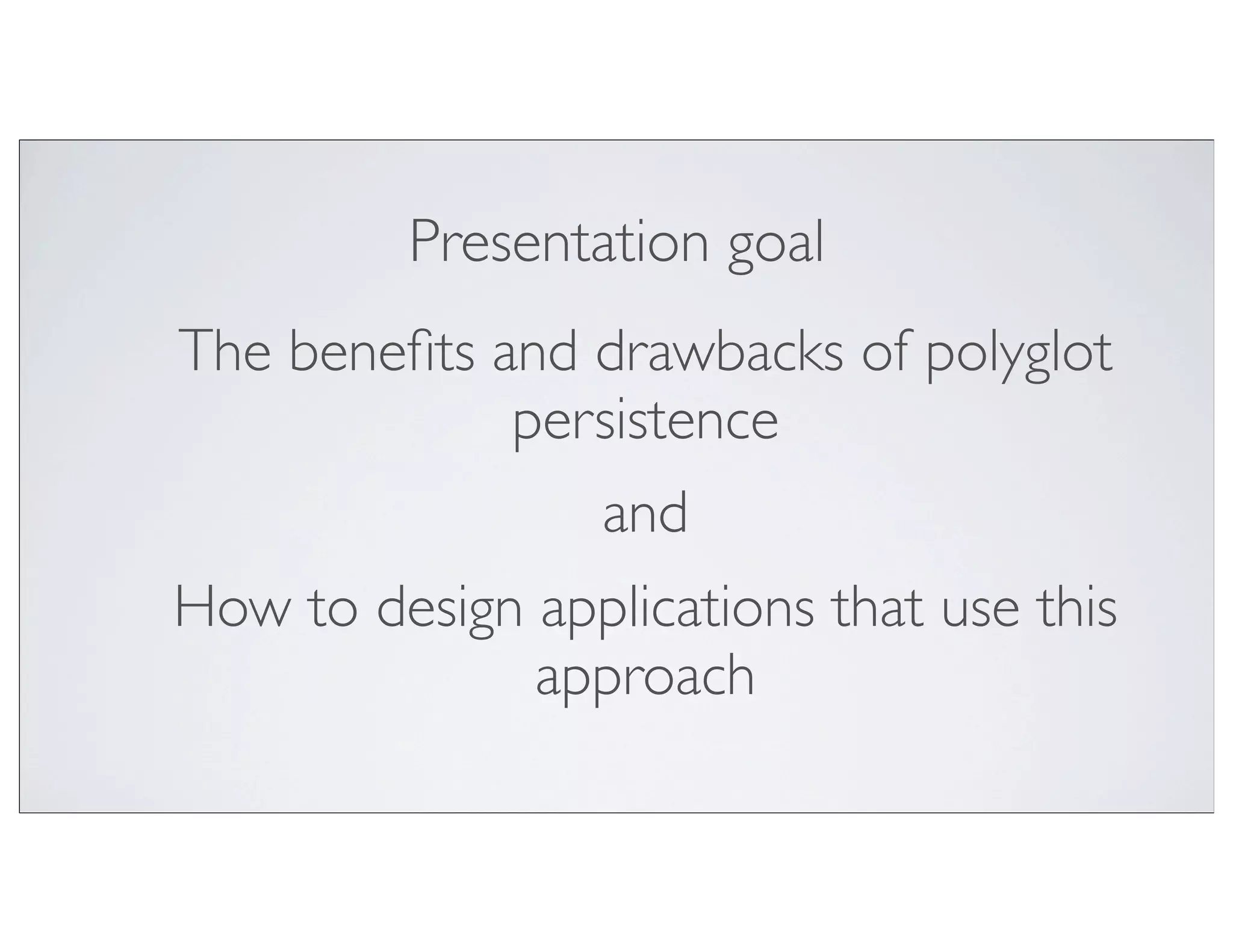

2. Presentation goal
The benefits and drawbacks of polyglot
persistence
and
How to design applications that use this
approach

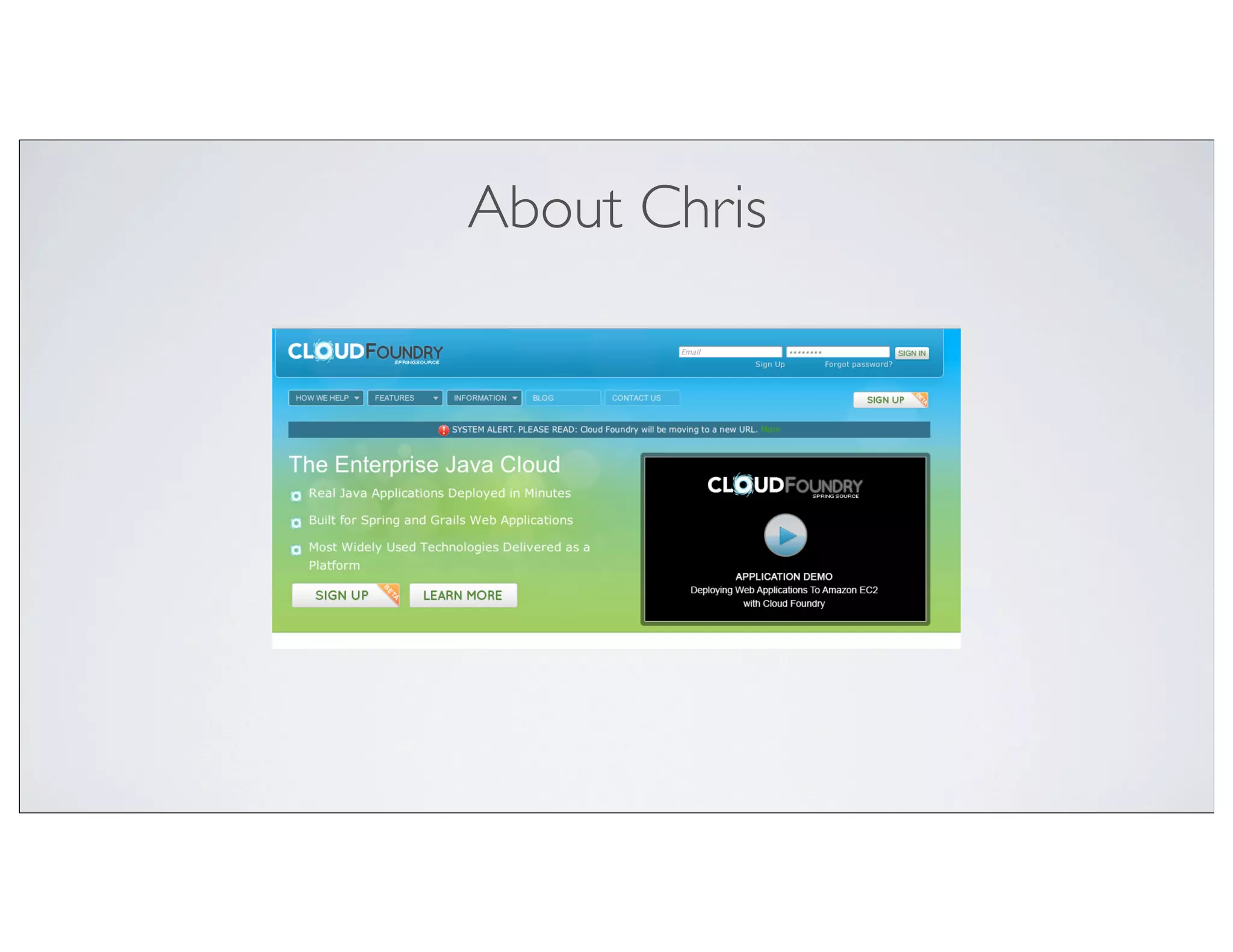

3. About Chris

4. (About Chris)

5. About Chris()

6. About Chris

7. About Chris
http://www.theregister.co.uk/2009/08/19/springsource_cloud_foundry/

8. vmc push About-Chris
Developer Advocate
Signup at http://cloudfoundry.com

9. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

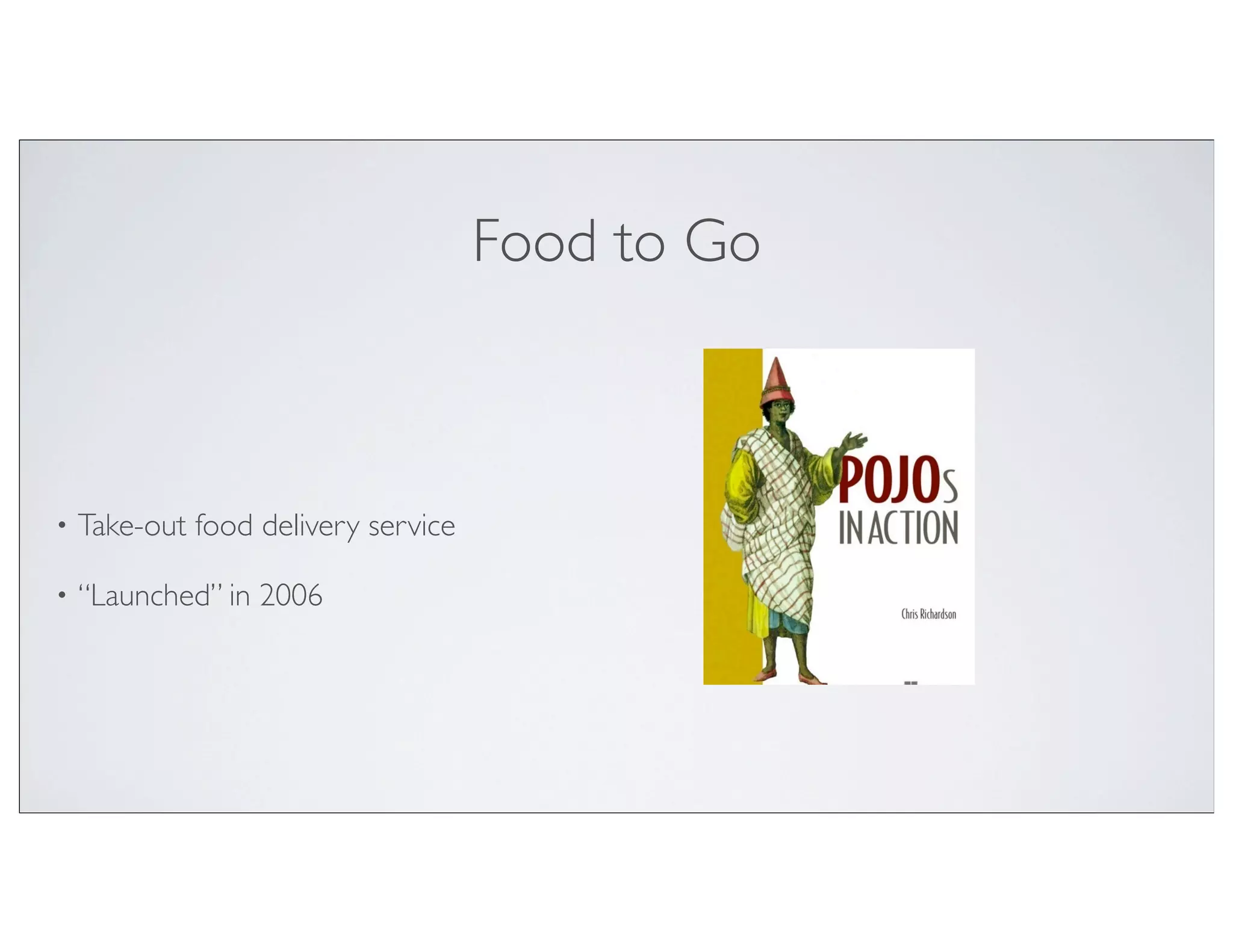

10. Food to Go
• Take-out food delivery service
• “Launched” in 2006

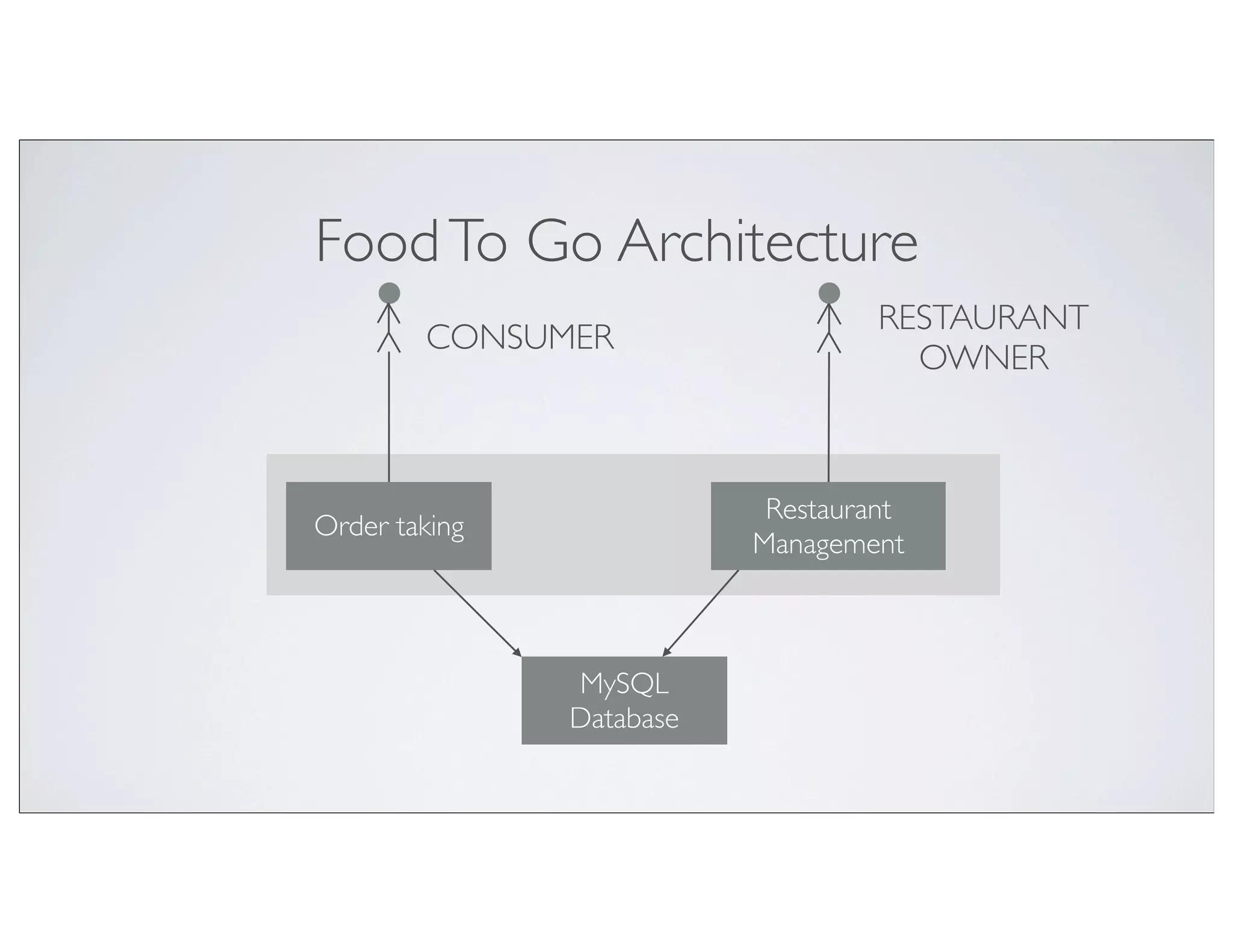

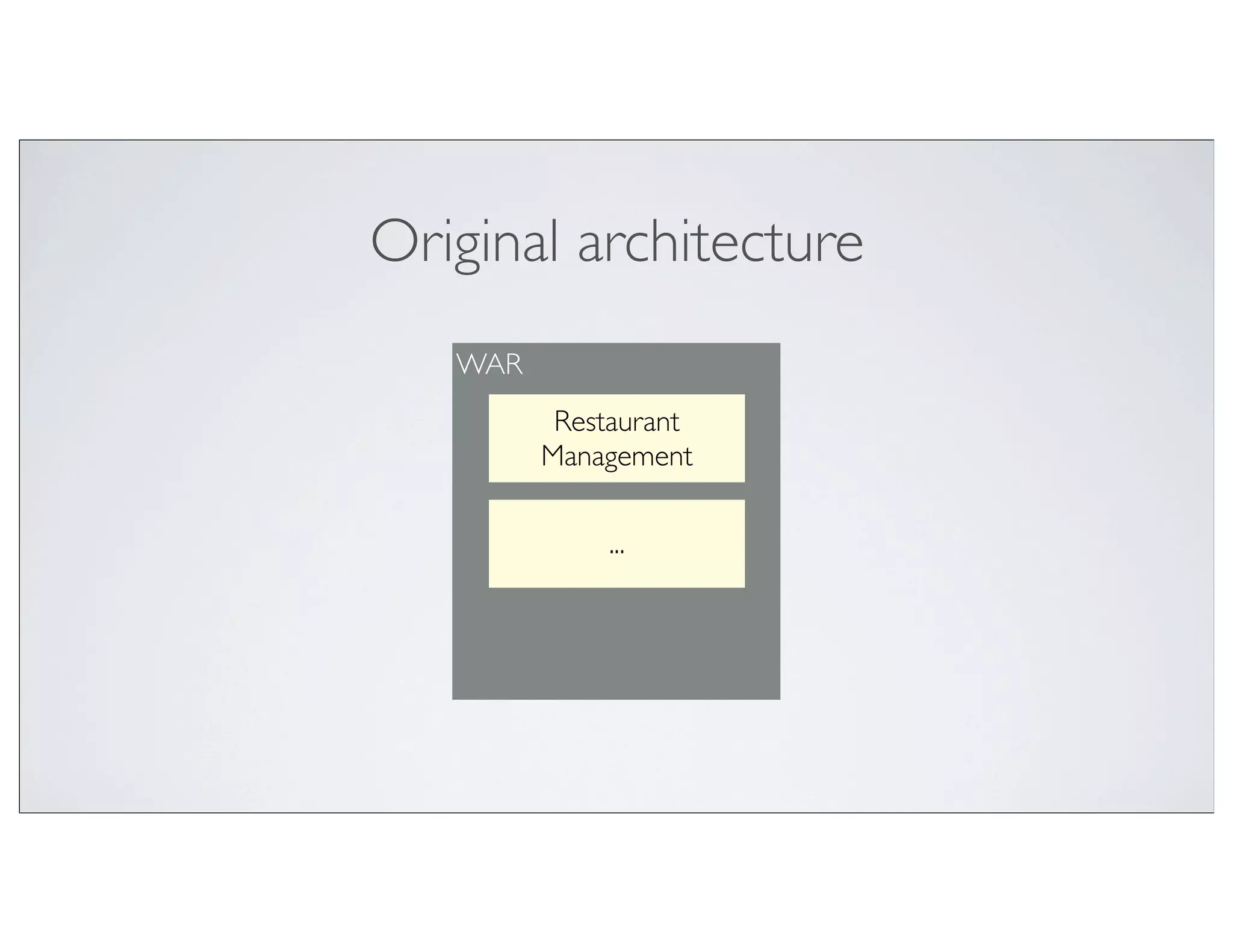

11. Food To Go Architecture
RESTAURANT
CONSUMER
OWNER
Restaurant
Order taking
Management
MySQL
Database

12. Success Growth challenges
• Increasing traffic
• Increasing data volume
• Distribute across a few data centers
• Increasing domain model complexity

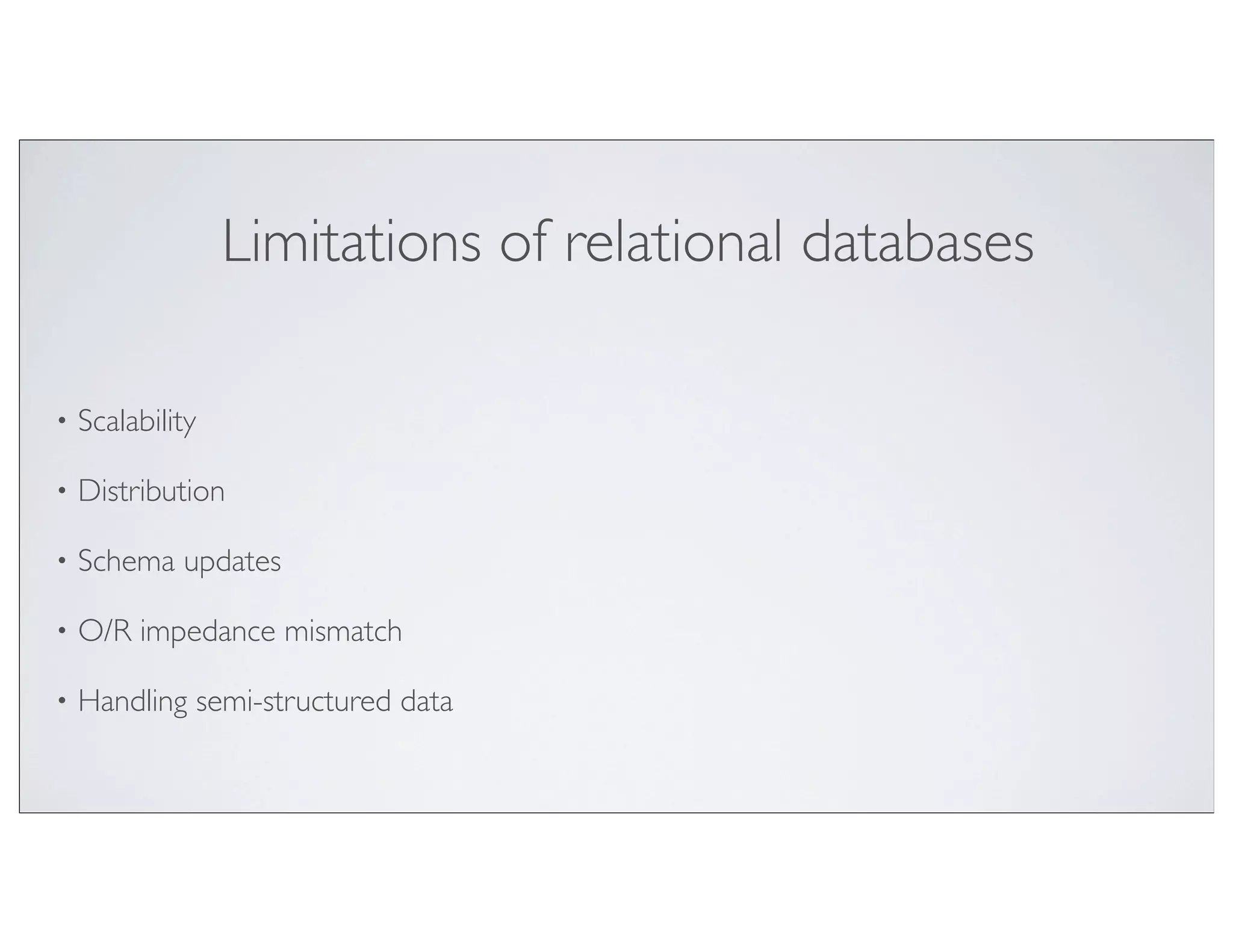

13. Limitations of relational databases
• Scalability
• Distribution
• Schema updates
• O/R impedance mismatch
• Handling semi-structured data

14. Solution: Spend Money
http://upload.wikimedia.org/wikipedia/commons/e/e5/Rising_Sun_Yacht.JPG
OR
http://www.trekbikes.com/us/en/bikes/road/race_performance/madone_5_series/madone_5_2/#

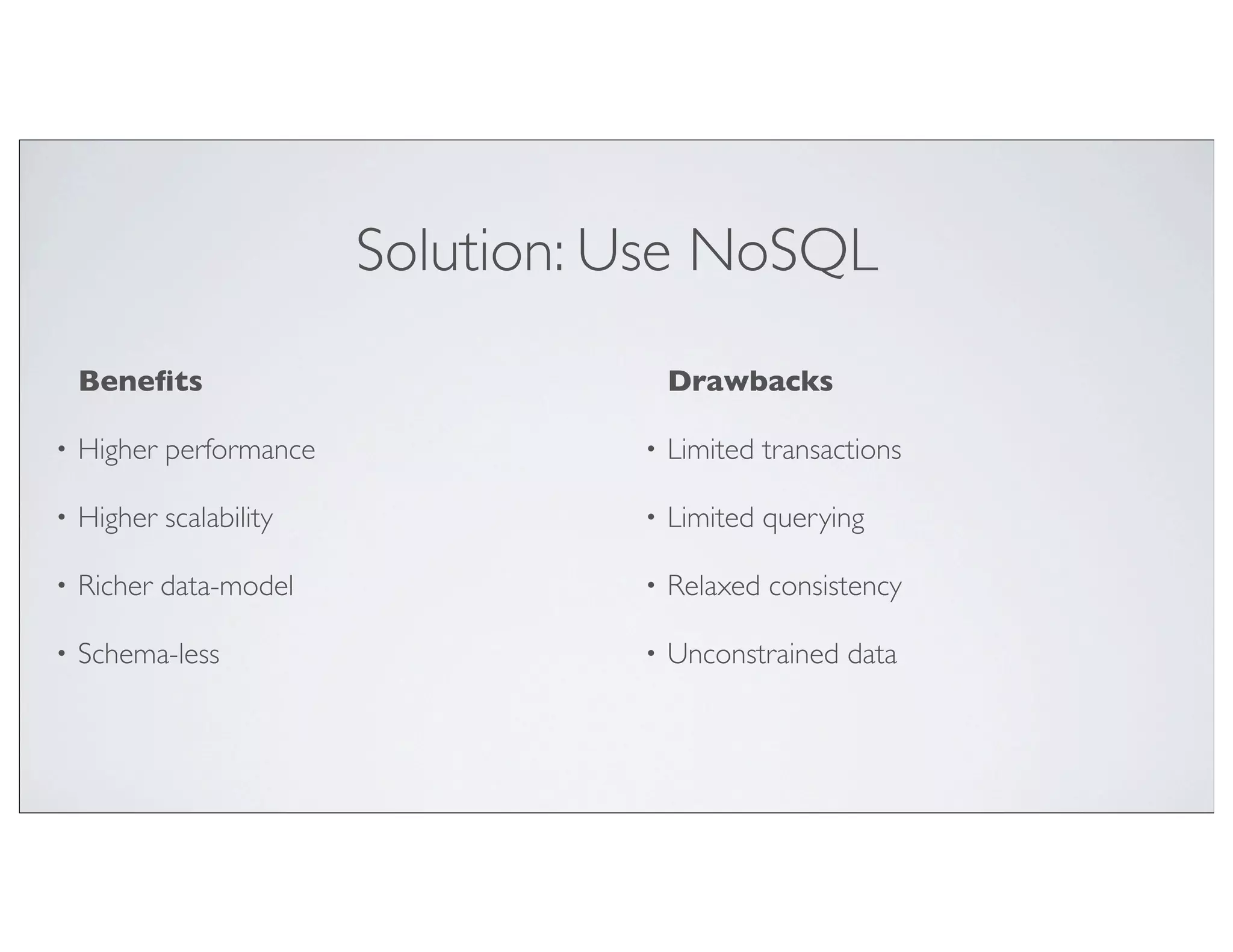

15. Solution: Use NoSQL
Benefits Drawbacks
• Higher performance • Limited transactions
• Higher scalability • Limited querying
• Richer data-model • Relaxed consistency
• Schema-less • Unconstrained data

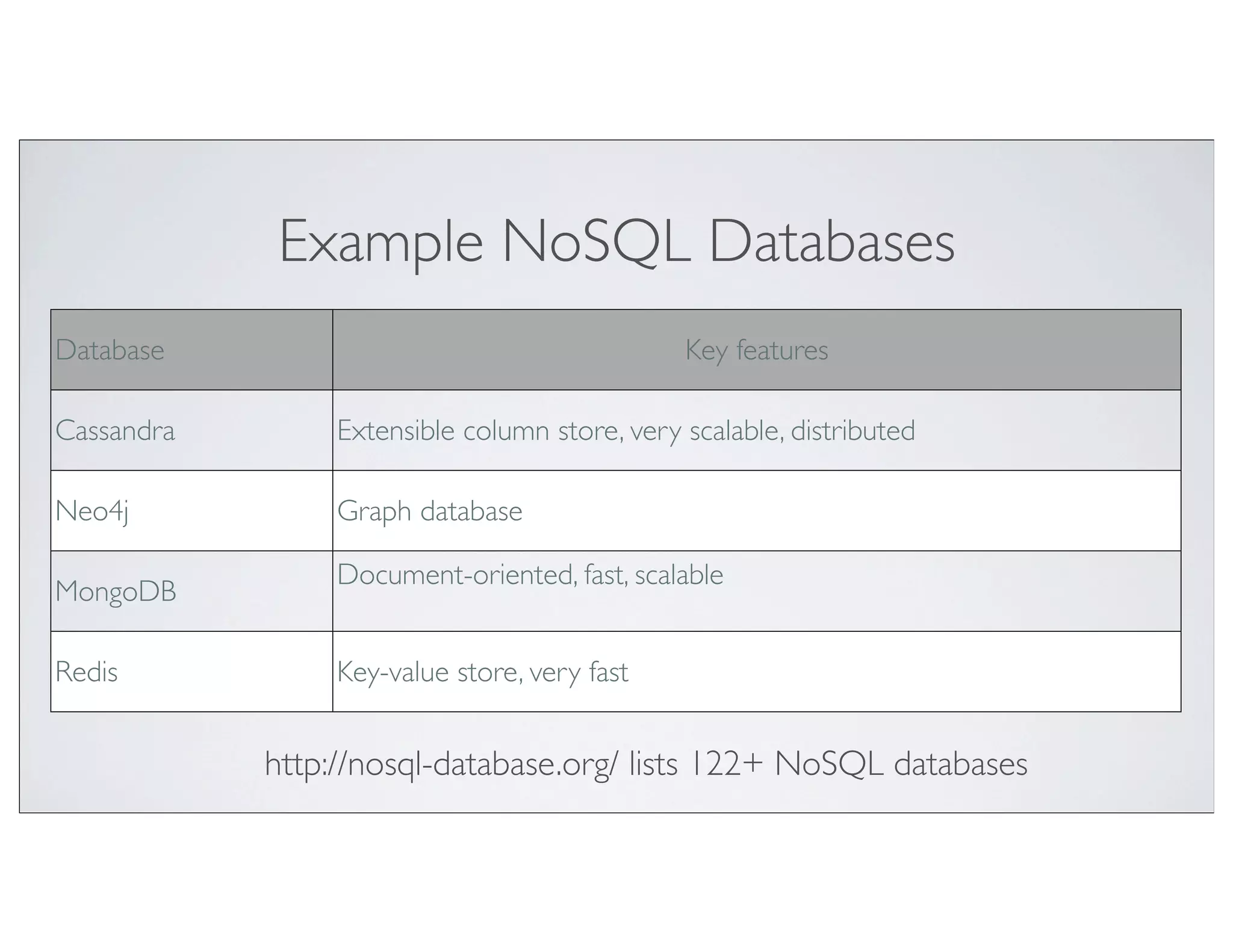

16. Example NoSQL Databases
Database Key features
Cassandra Extensible column store, very scalable, distributed
Neo4j Graph database
Document-oriented, fast, scalable
MongoDB
Redis Key-value store, very fast
http://nosql-database.org/ lists 122+ NoSQL databases

17. Redis
K1 V1
• Advanced key-value store
K2 V2
• Very fast, e.g. 100K reqs/sec
• Optional persistence ... ...
• Transactions with optimistic locking
• Master-slave replication
• Sharding using client-side consistent hashing

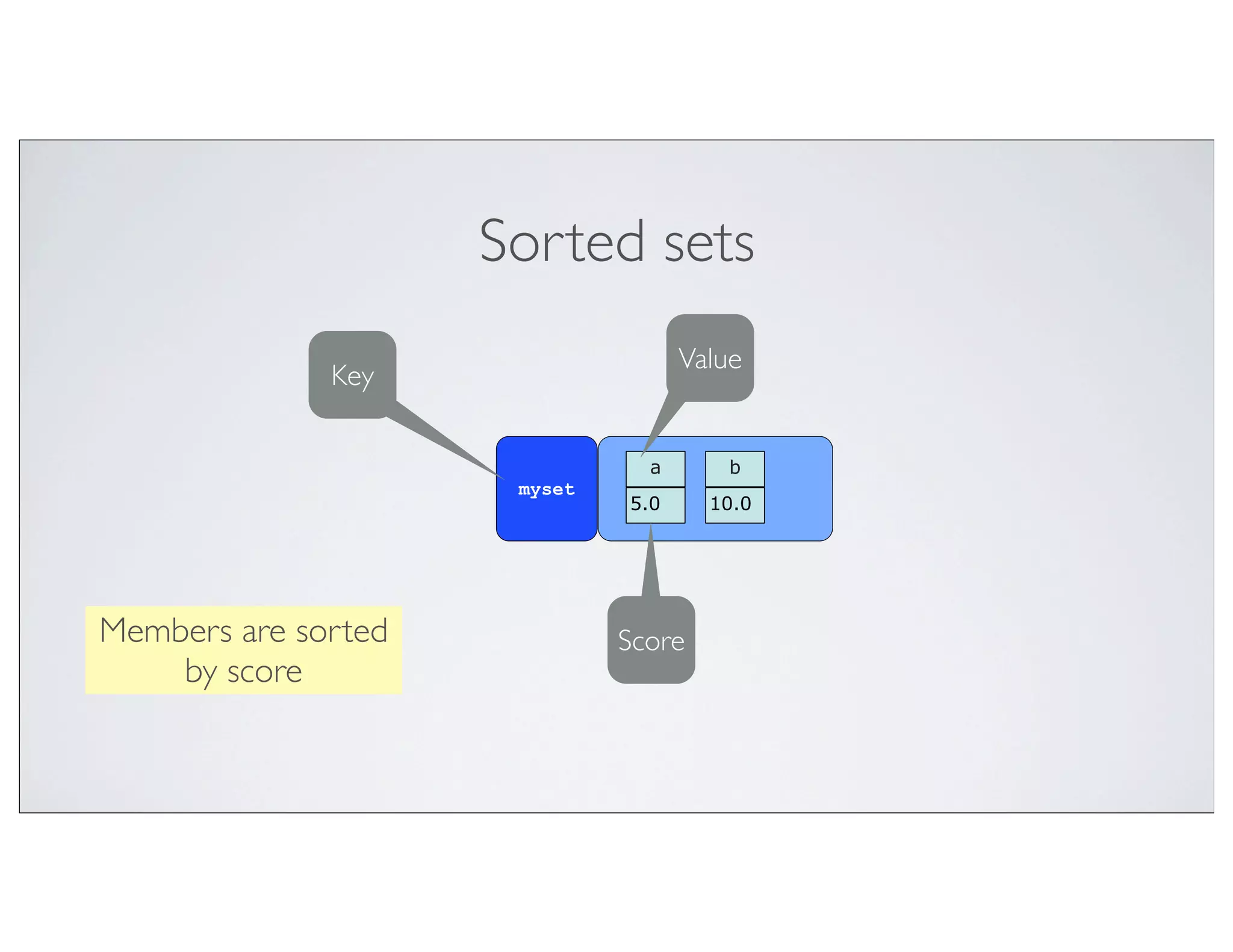

18. Sorted sets
Value
Key
a b
myset
5.0 10.0
Members are sorted Score
by score

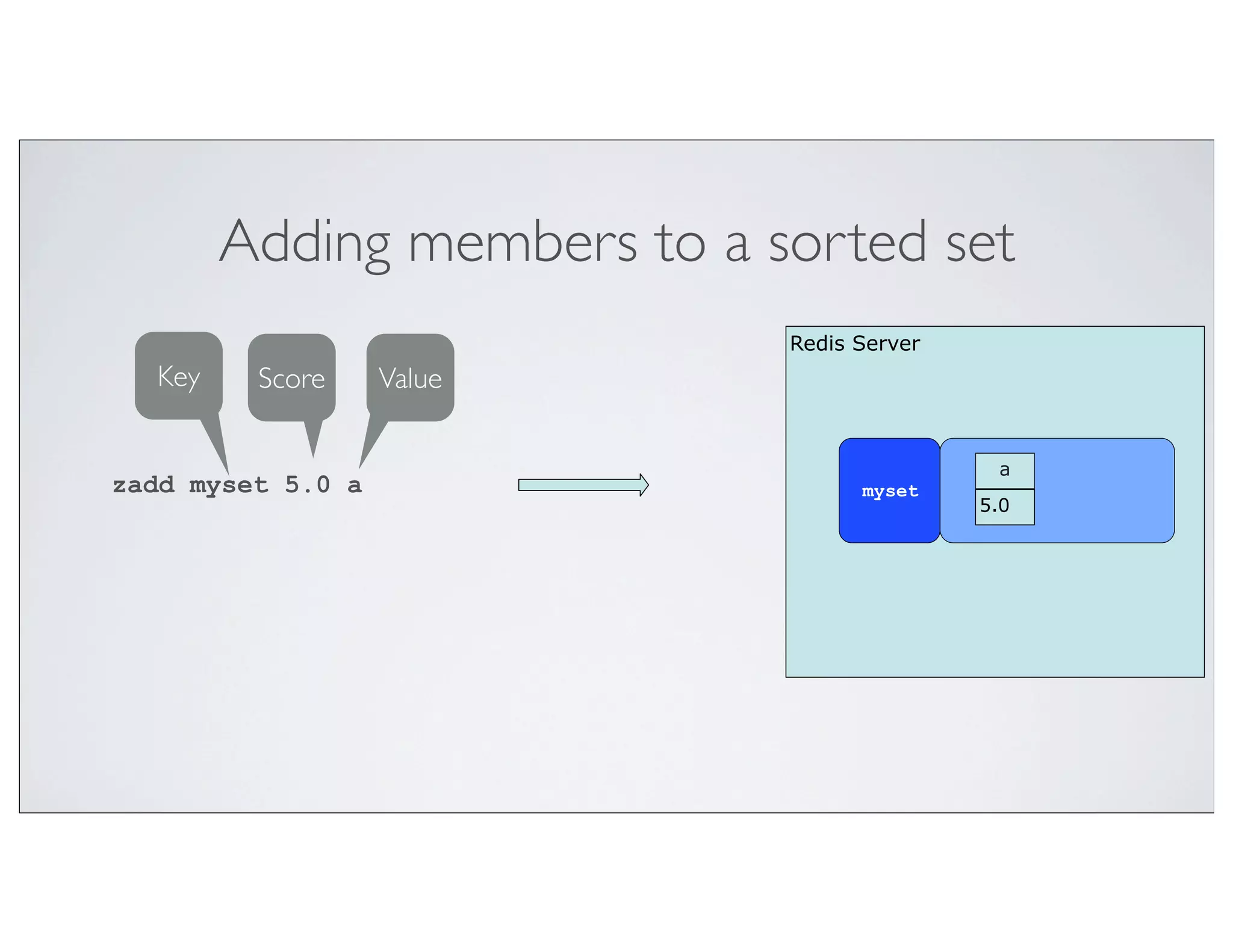

19. Adding members to a sorted set
Redis Server
Key Score Value
a
zadd myset 5.0 a myset
5.0

20. Adding members to a sorted set
Redis Server
a b
zadd myset 10.0 b myset
5.0 10.0

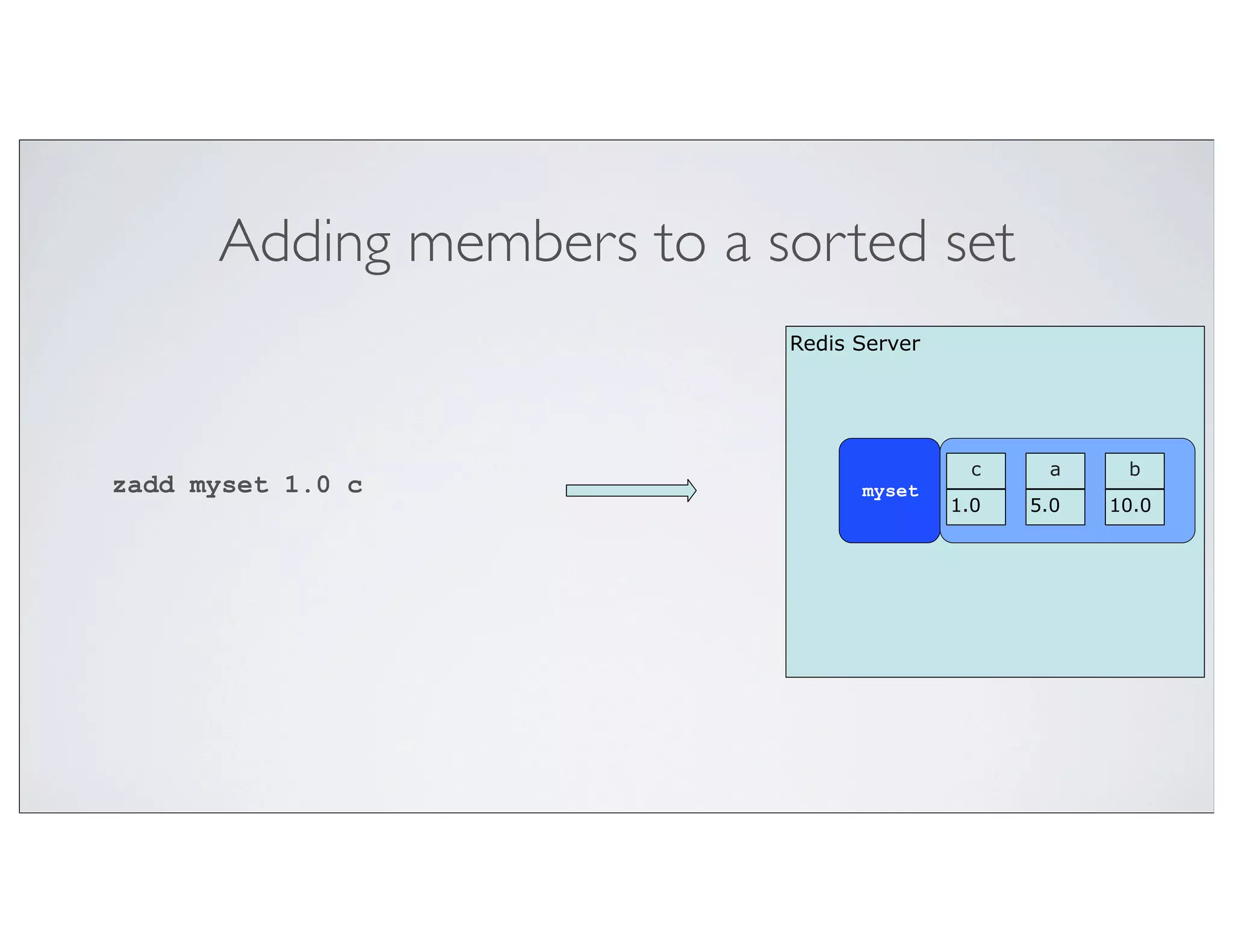

21. Adding members to a sorted set
Redis Server
c a b
zadd myset 1.0 c myset
1.0 5.0 10.0

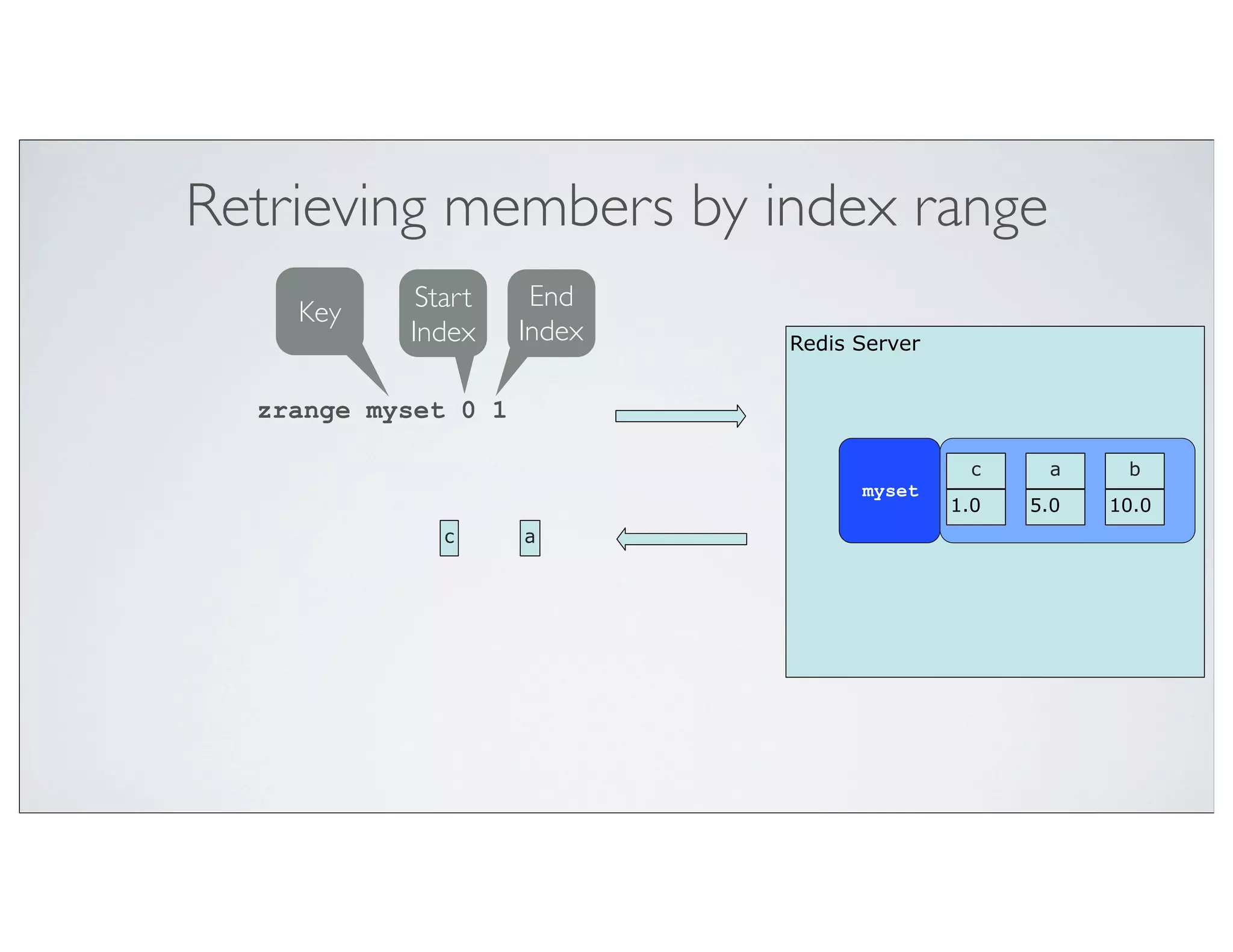

22. Retrieving members by index range
Start End
Key
Index Index Redis Server
zrange myset 0 1
c a b
myset
1.0 5.0 10.0
c a

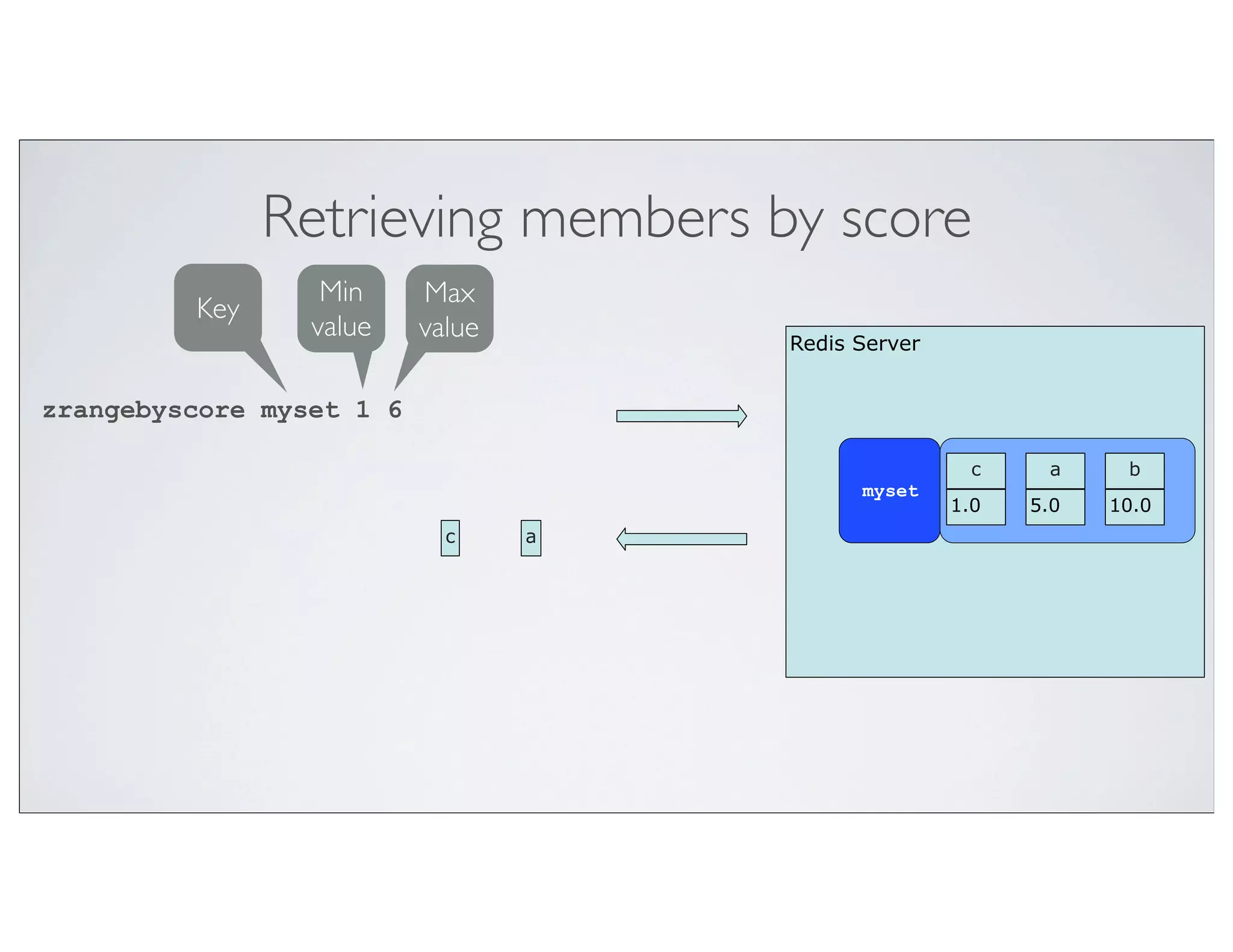

23. Retrieving members by score
Min Max
Key
value value Redis Server
zrangebyscore myset 1 6
c a b
myset
1.0 5.0 10.0
c a

24. Redis use cases
• Replacement for Memcached • Handling tasks that overload an RDBMS
• Session state • Hit counts - INCR
• Cache of data retrieved from • Most recent N items - LPUSH and LTRIM
system of record (SOR)
• Randomly selecting an item –
• Replica of SOR for queries needing SRANDMEMBER
high-performance
• Queuing – Lists with LPOP, RPUSH, ….
• High score tables – Sorted sets and ZINCRBY
• …

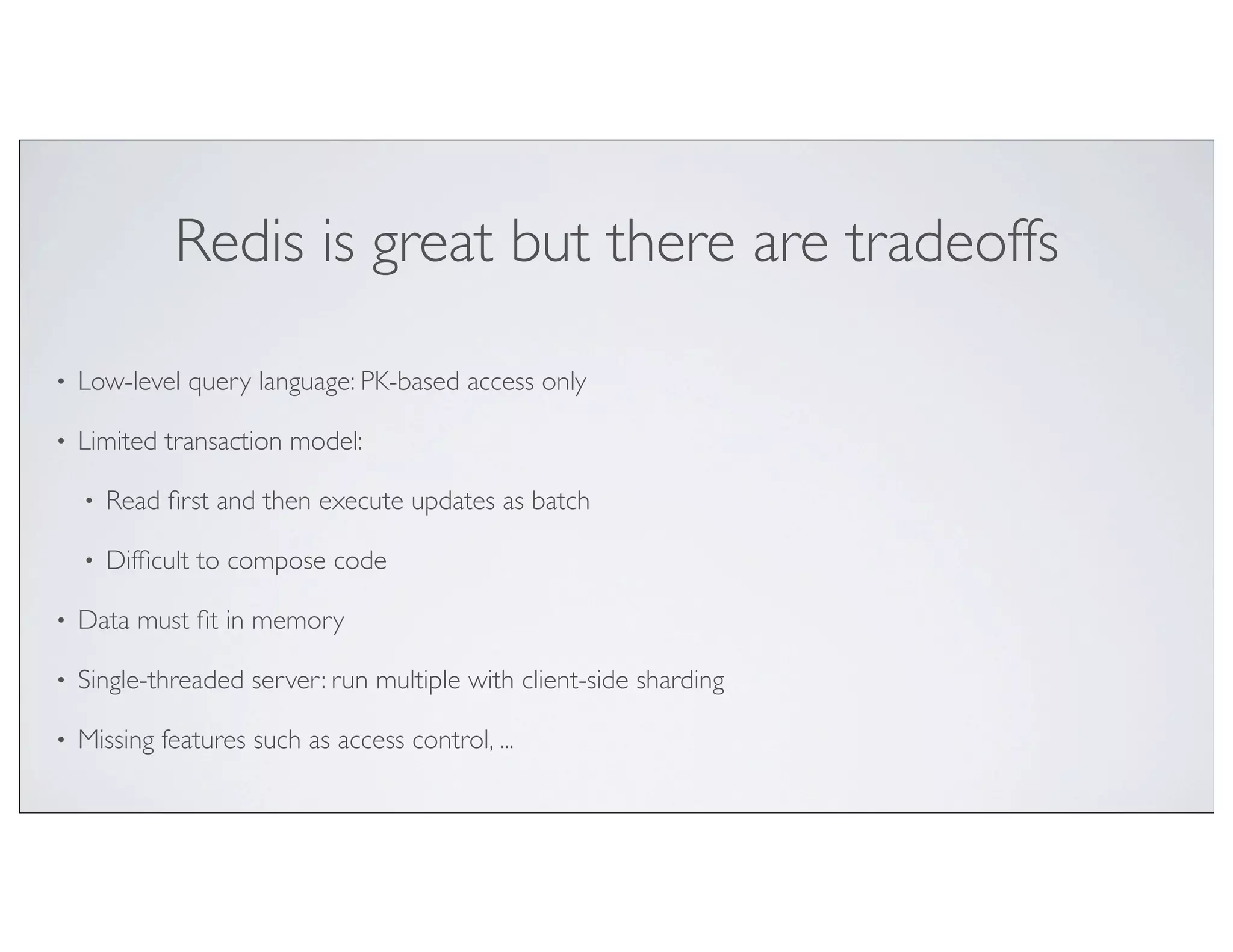

25. Redis is great but there are tradeoffs
• Low-level query language: PK-based access only
• Limited transaction model:
• Read first and then execute updates as batch
• Difficult to compose code
• Data must fit in memory
• Single-threaded server: run multiple with client-side sharding
• Missing features such as access control, ...

26. And don’t forget:
An RDBMS is fine for many applications

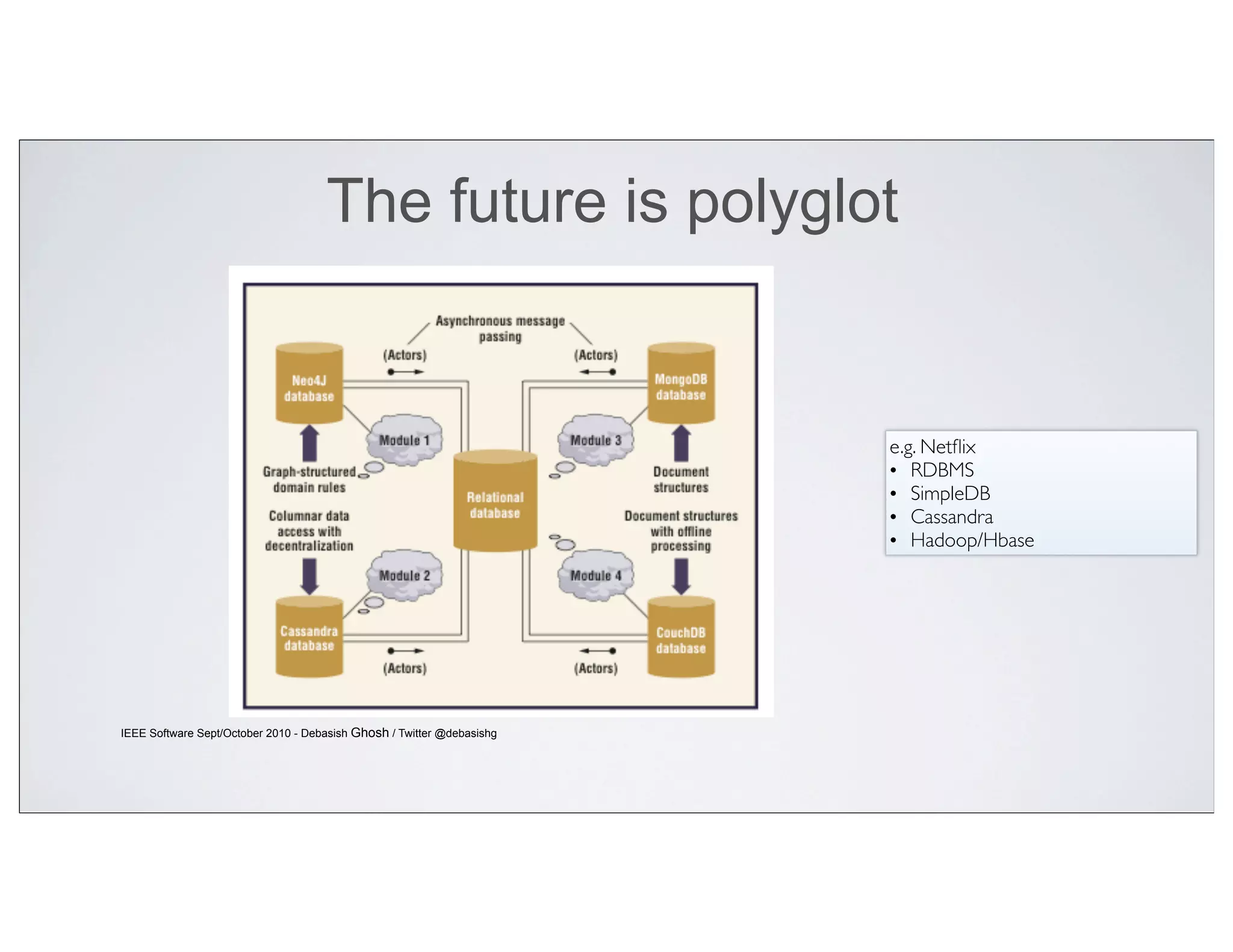

27. The future is polyglot
e.g. Netflix
• RDBMS
• SimpleDB
• Cassandra
• Hadoop/Hbase
IEEE Software Sept/October 2010 - Debasish Ghosh / Twitter @debasishg

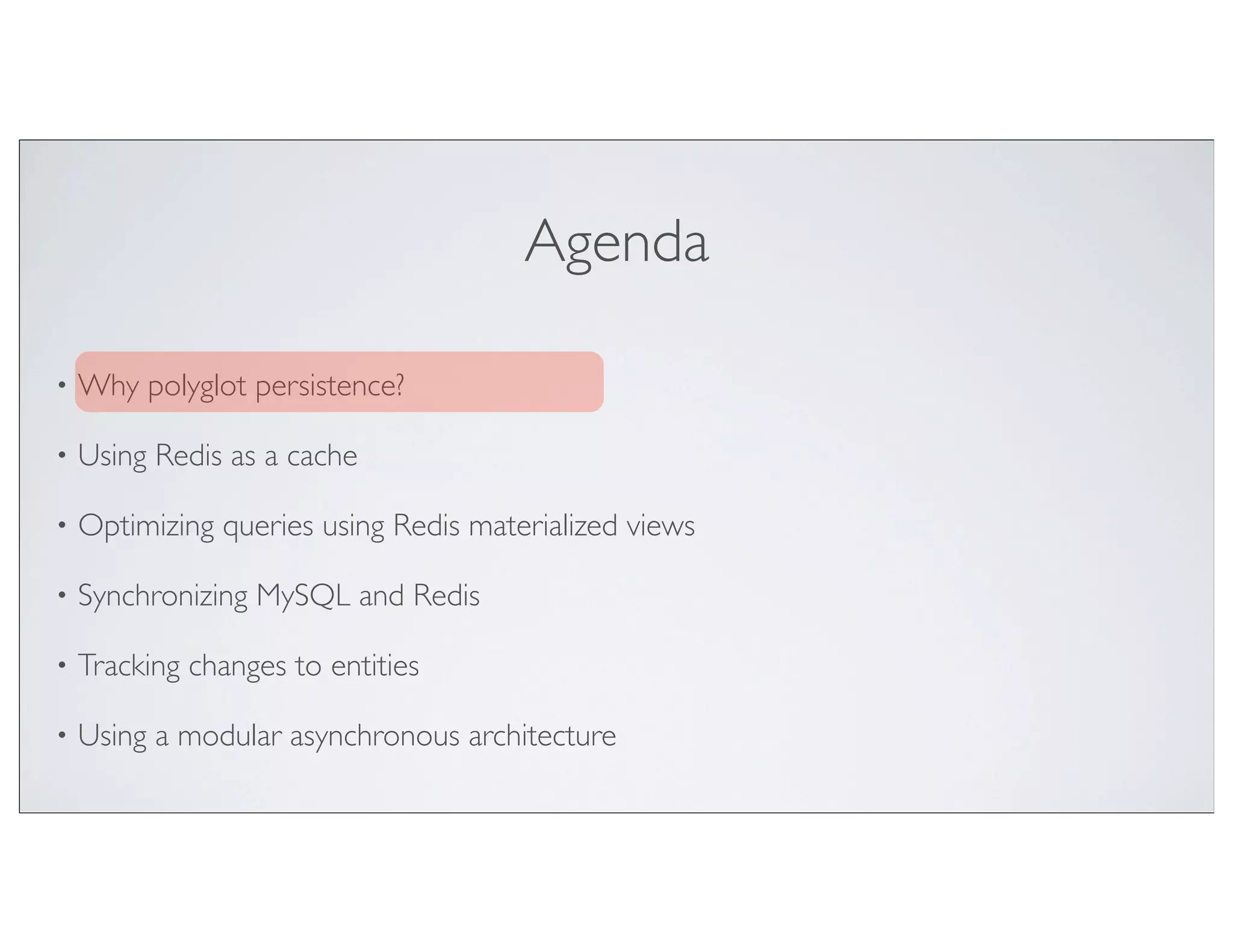

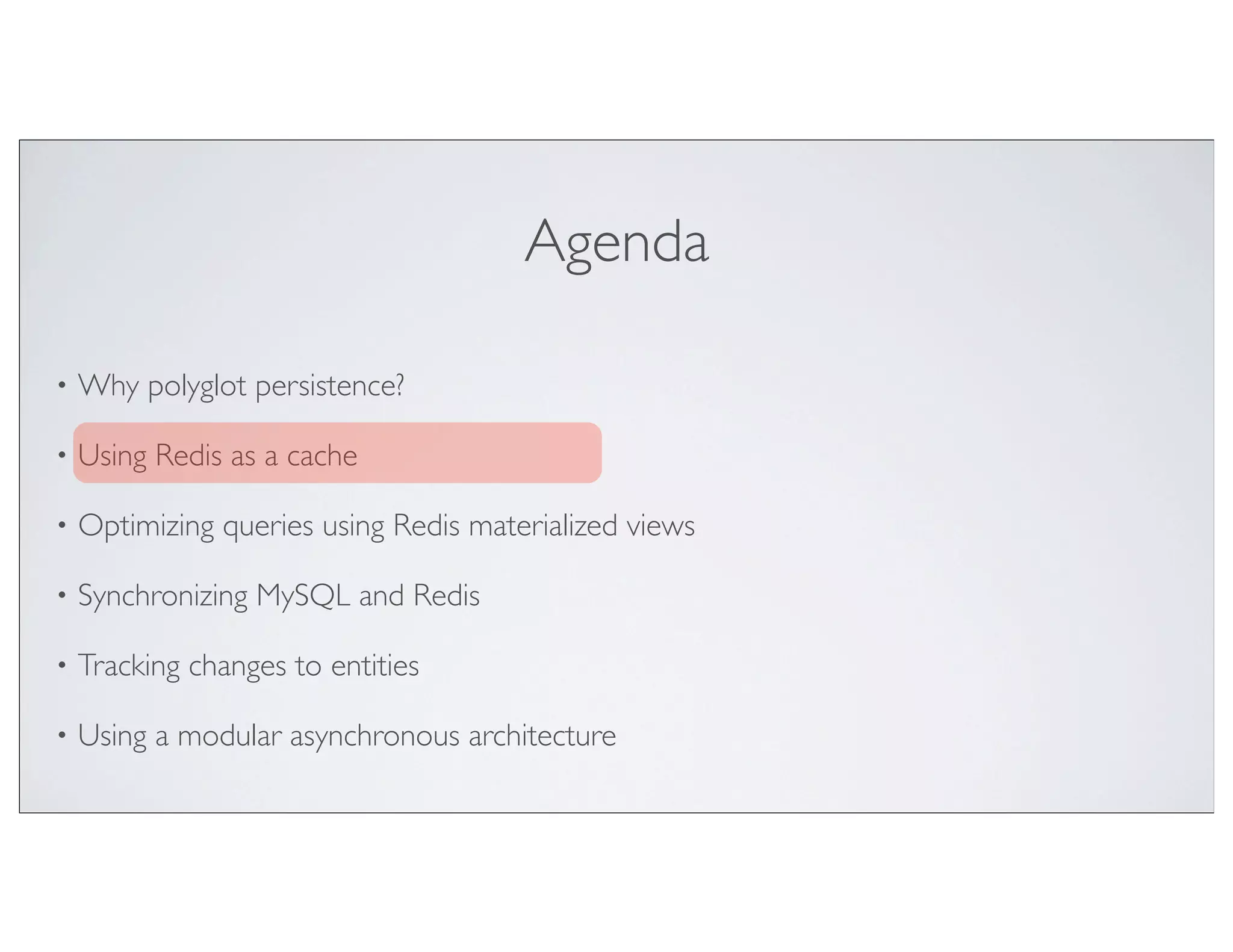

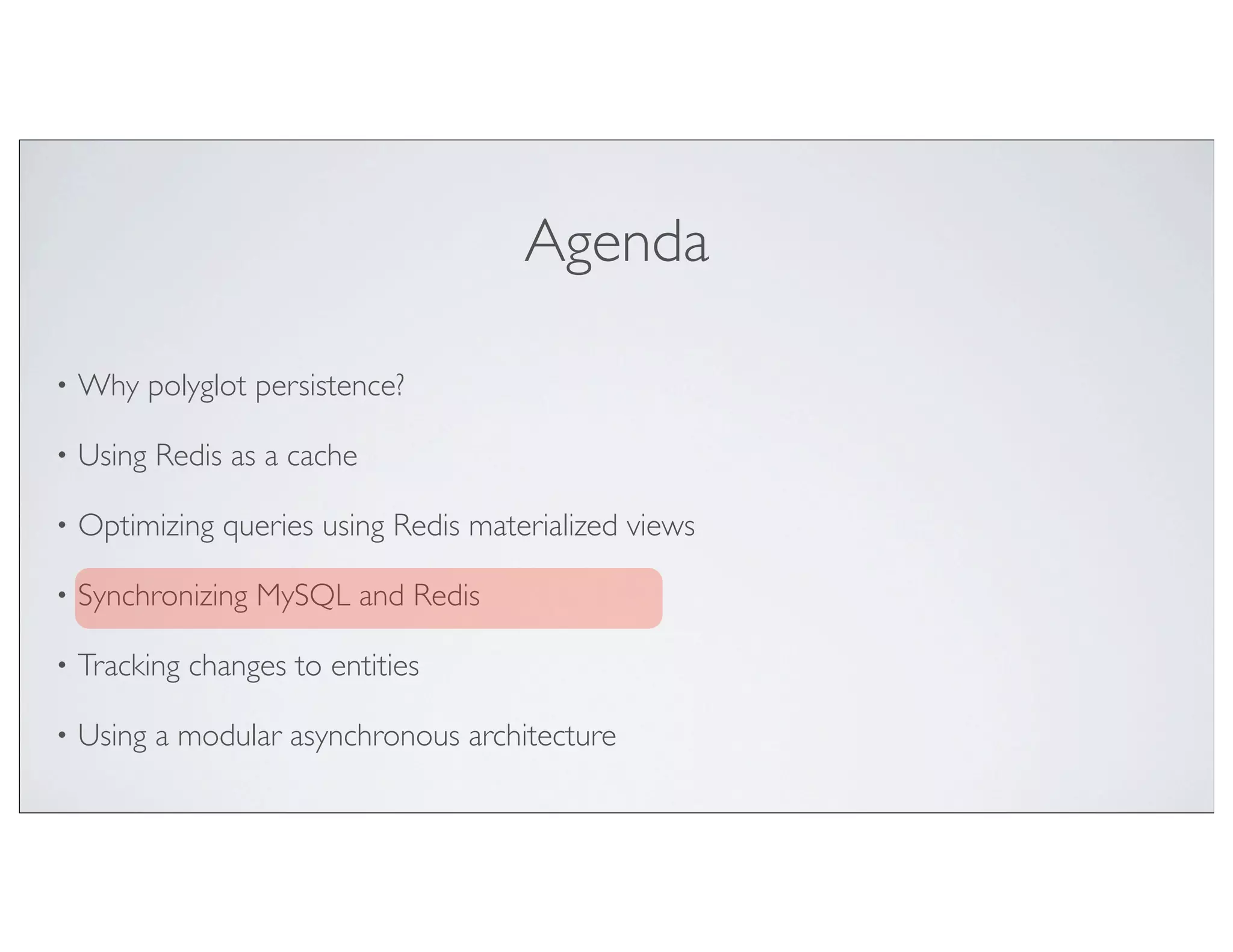

28. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

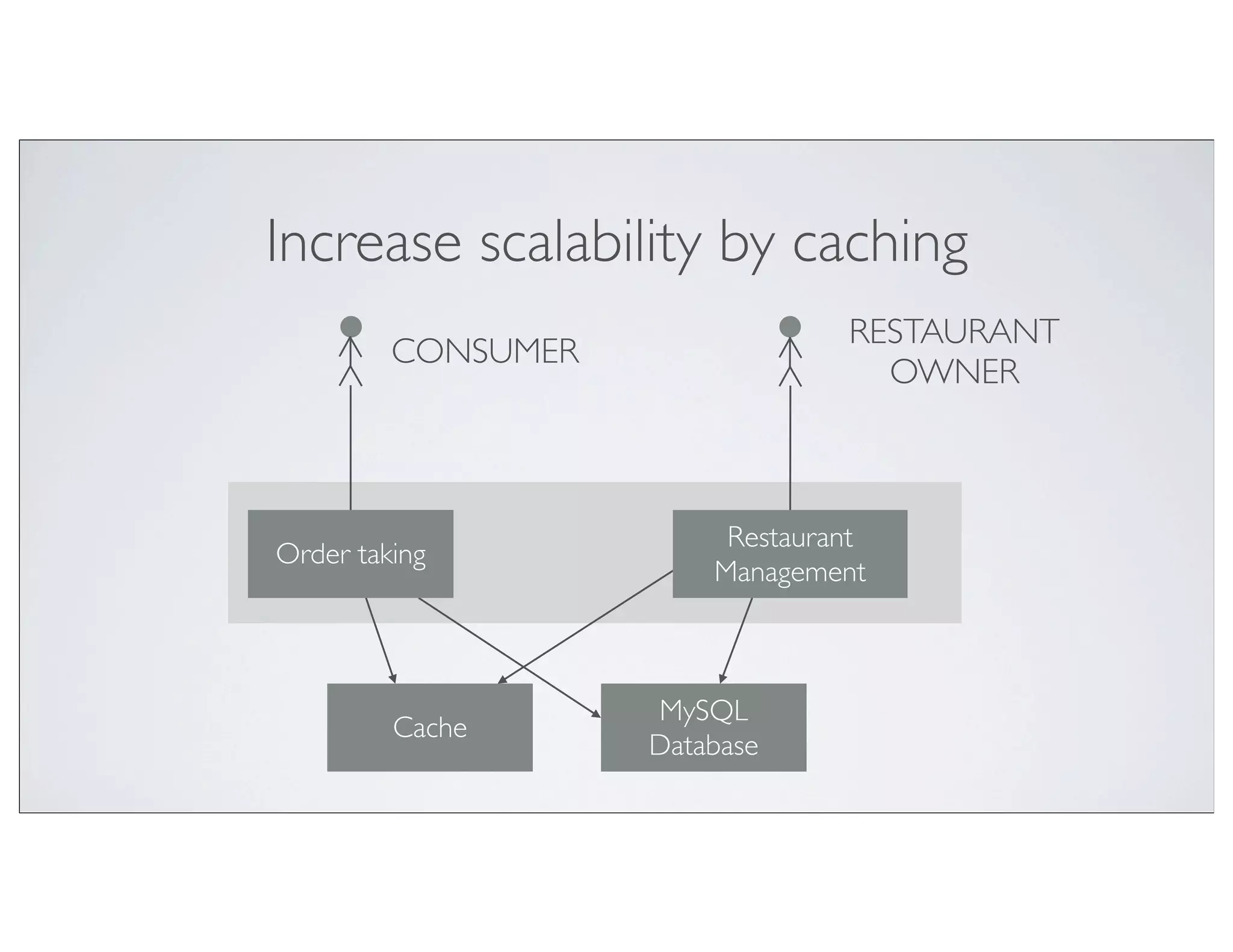

29. Increase scalability by caching
RESTAURANT
CONSUMER
OWNER
Restaurant
Order taking
Management
MySQL
Cache
Database

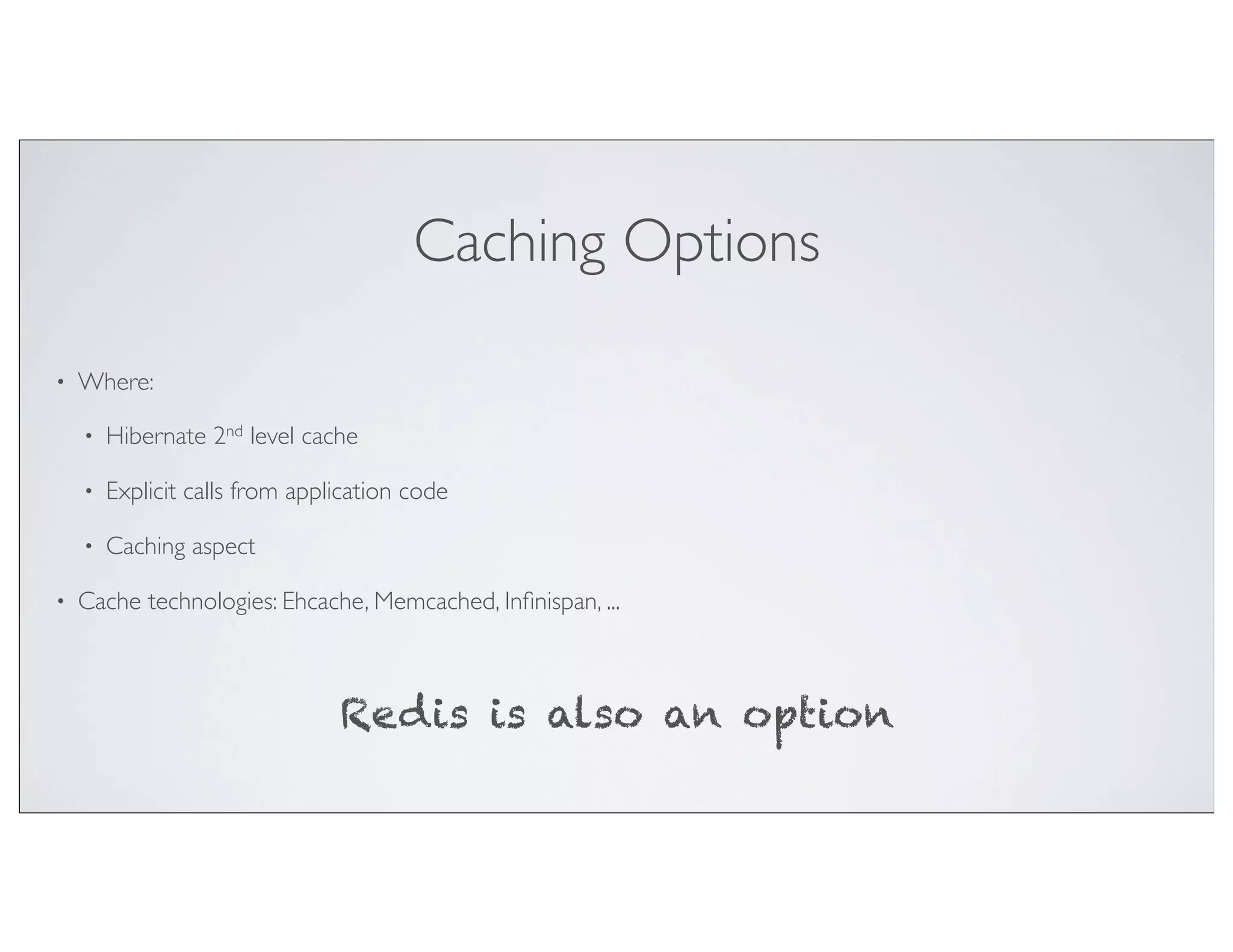

30. Caching Options
• Where:
• Hibernate 2nd level cache
• Explicit calls from application code
• Caching aspect
• Cache technologies: Ehcache, Memcached, Infinispan, ...
Redis is also an option

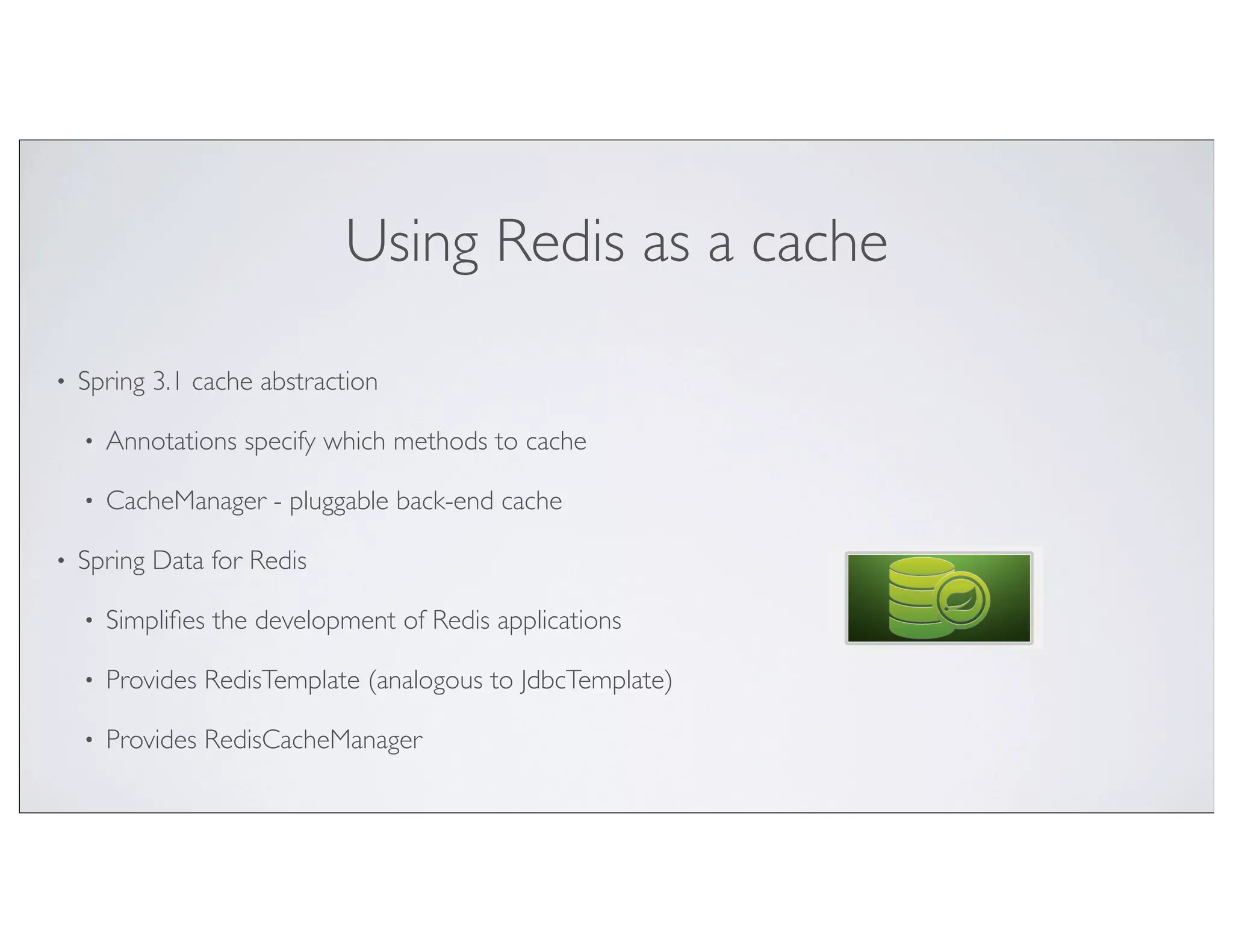

31. Using Redis as a cache
• Spring 3.1 cache abstraction
• Annotations specify which methods to cache
• CacheManager - pluggable back-end cache
• Spring Data for Redis
• Simplifies the development of Redis applications
• Provides RedisTemplate (analogous to JdbcTemplate)
• Provides RedisCacheManager

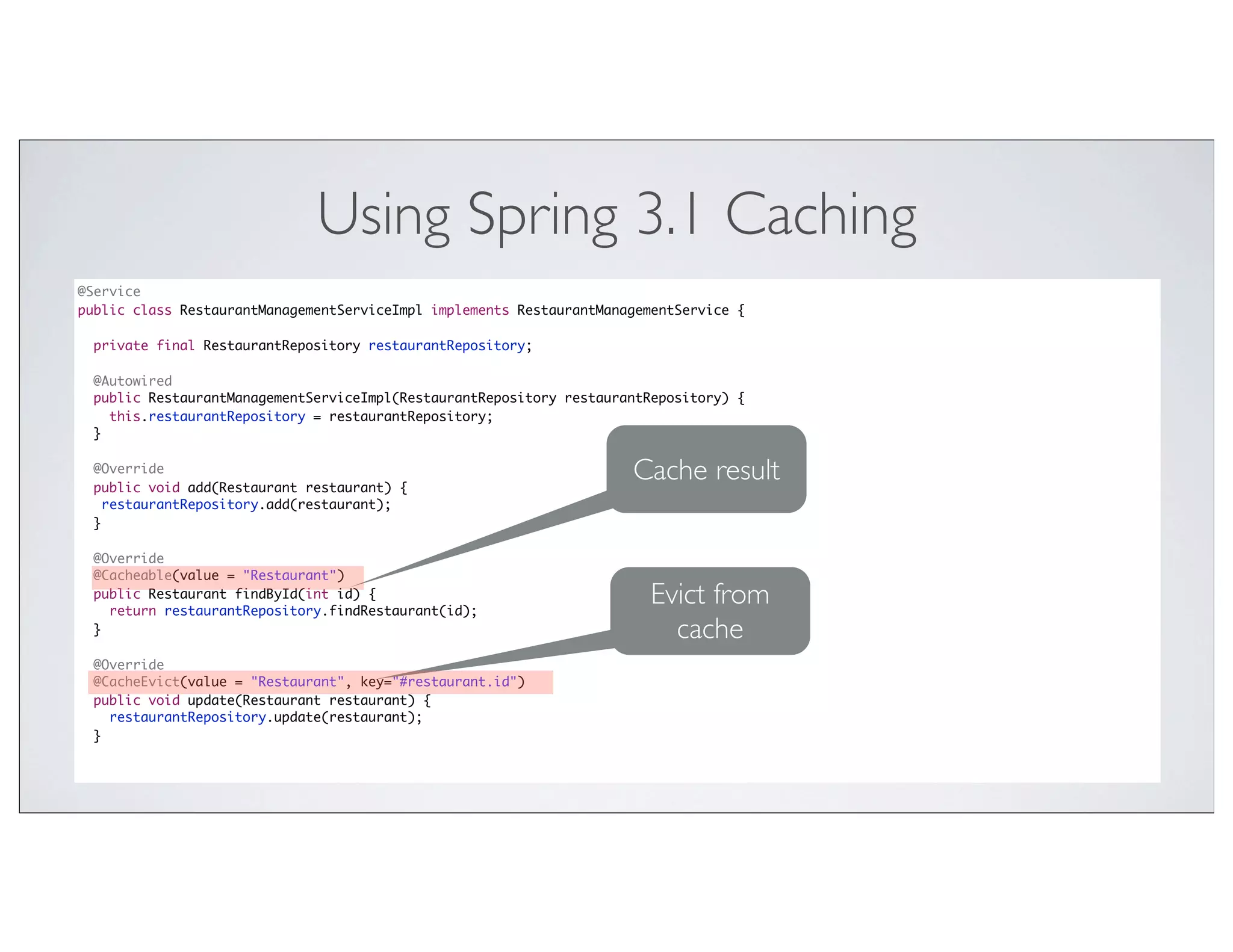

32. Using Spring 3.1 Caching
@Service
public class RestaurantManagementServiceImpl implements RestaurantManagementService {
private final RestaurantRepository restaurantRepository;
@Autowired
public RestaurantManagementServiceImpl(RestaurantRepository restaurantRepository) {
this.restaurantRepository = restaurantRepository;
}
@Override
public void add(Restaurant restaurant) {
Cache result
restaurantRepository.add(restaurant);
}
@Override
@Cacheable(value = "Restaurant")
public Restaurant findById(int id) {
return restaurantRepository.findRestaurant(id);
Evict from
} cache
@Override
@CacheEvict(value = "Restaurant", key="#restaurant.id")
public void update(Restaurant restaurant) {
restaurantRepository.update(restaurant);
}

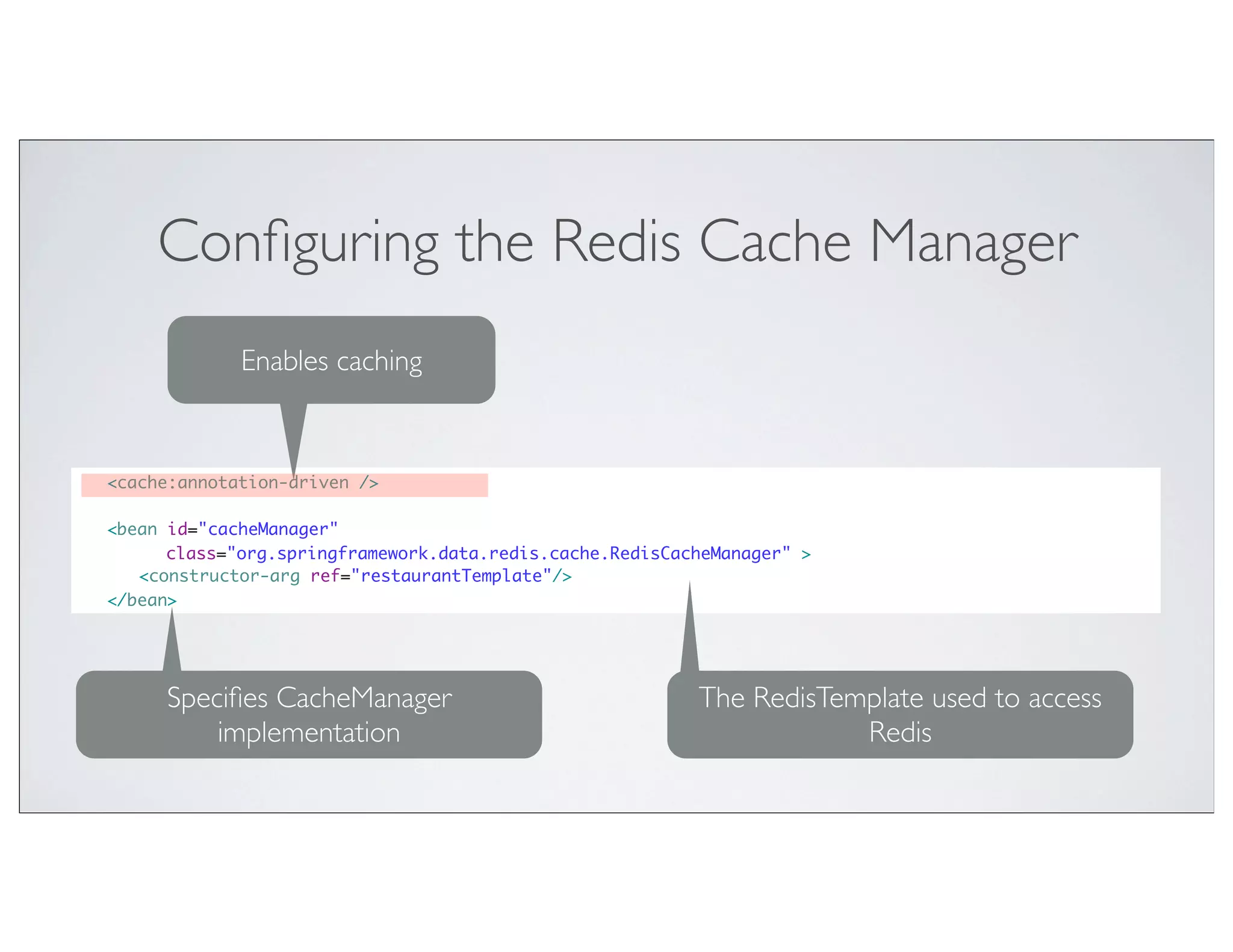

33. Configuring the Redis Cache Manager
Enables caching
<cache:annotation-driven />
<bean id="cacheManager"
class="org.springframework.data.redis.cache.RedisCacheManager" >
<constructor-arg ref="restaurantTemplate"/>
</bean>
Specifies CacheManager The RedisTemplate used to access
implementation Redis

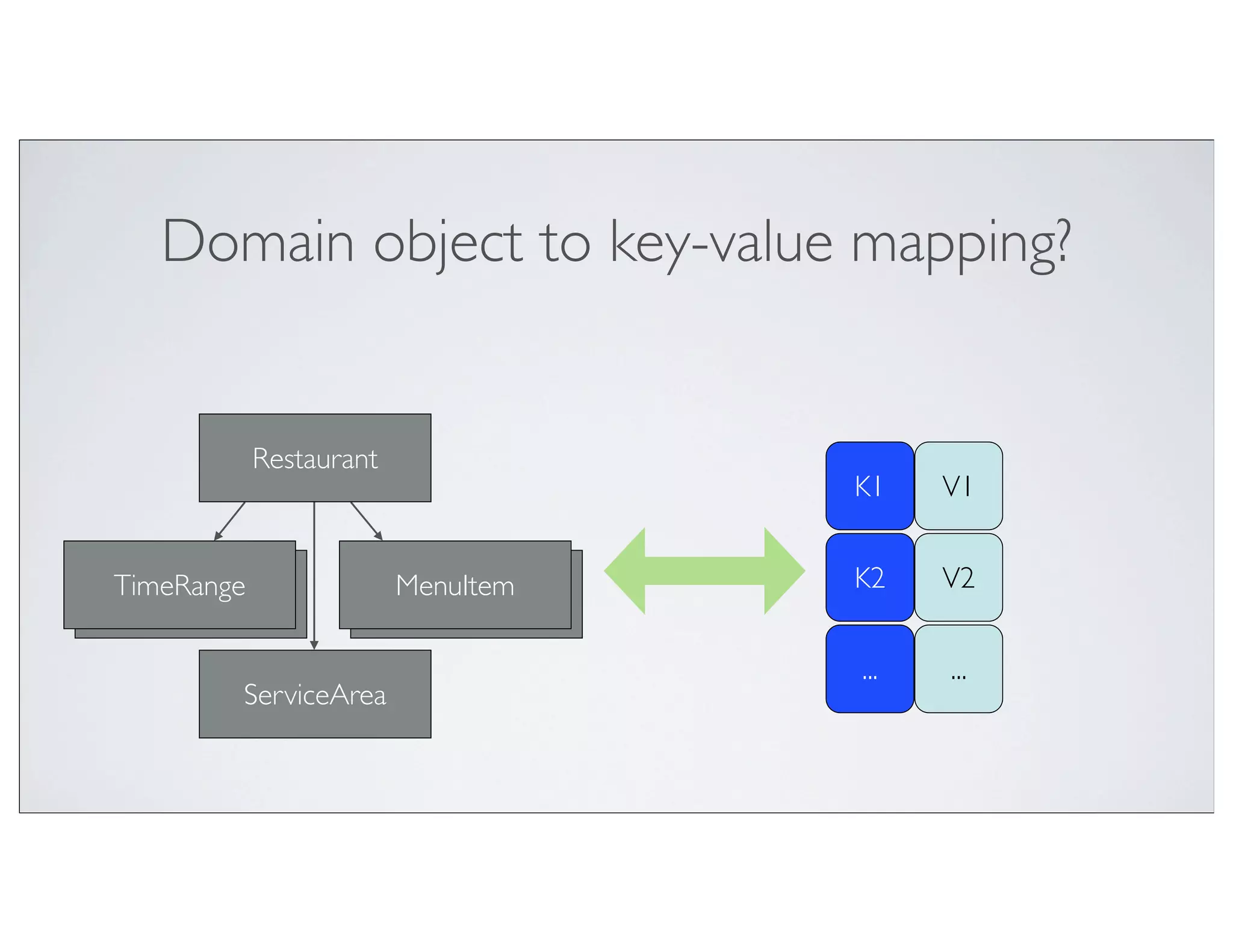

34. Domain object to key-value mapping?
Restaurant
K1 V1
TimeRange MenuItem K2 V2
TimeRange MenuItem
... ...
ServiceArea

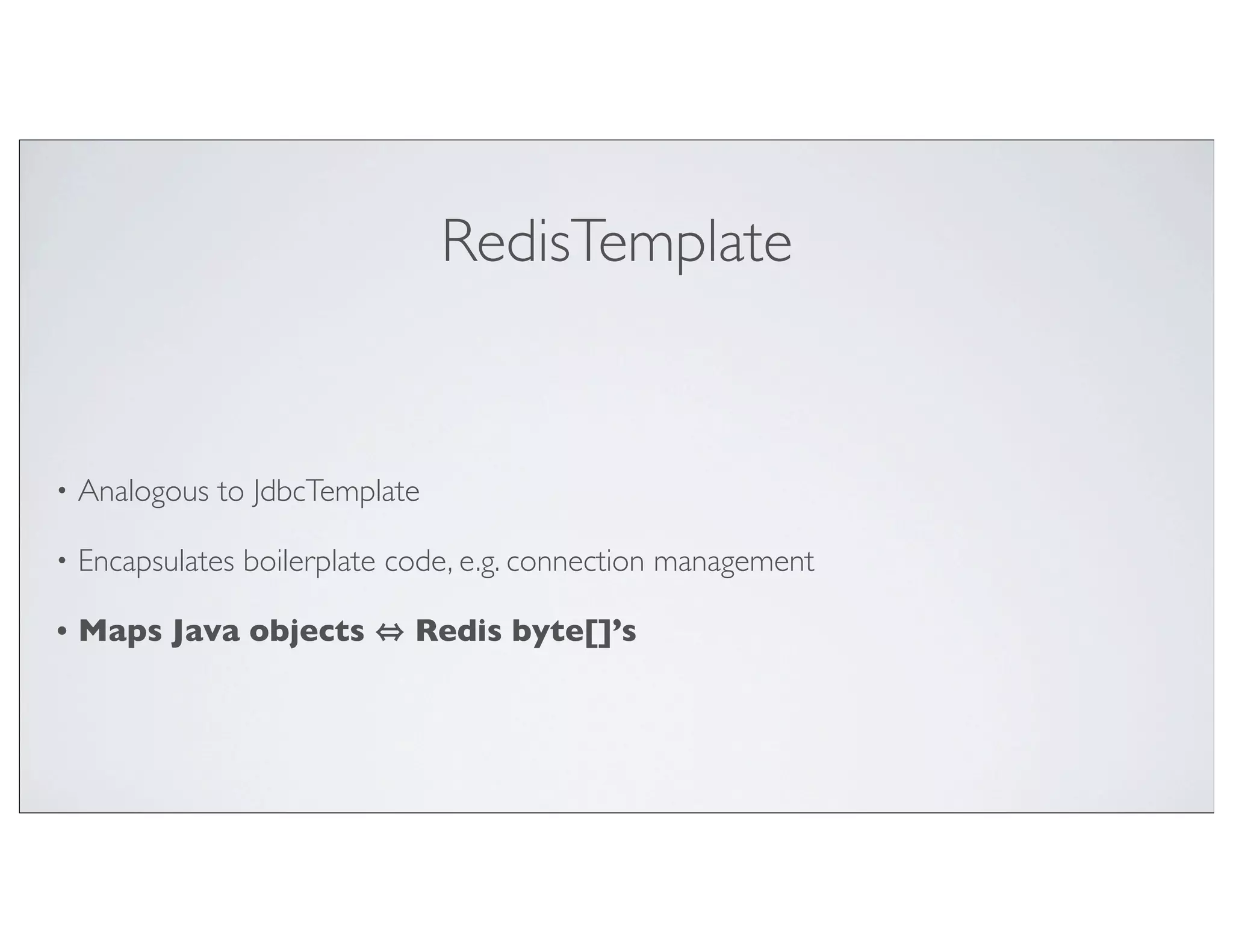

35. RedisTemplate
• Analogous to JdbcTemplate
• Encapsulates boilerplate code, e.g. connection management
• Maps Java objects Redis byte[]’s

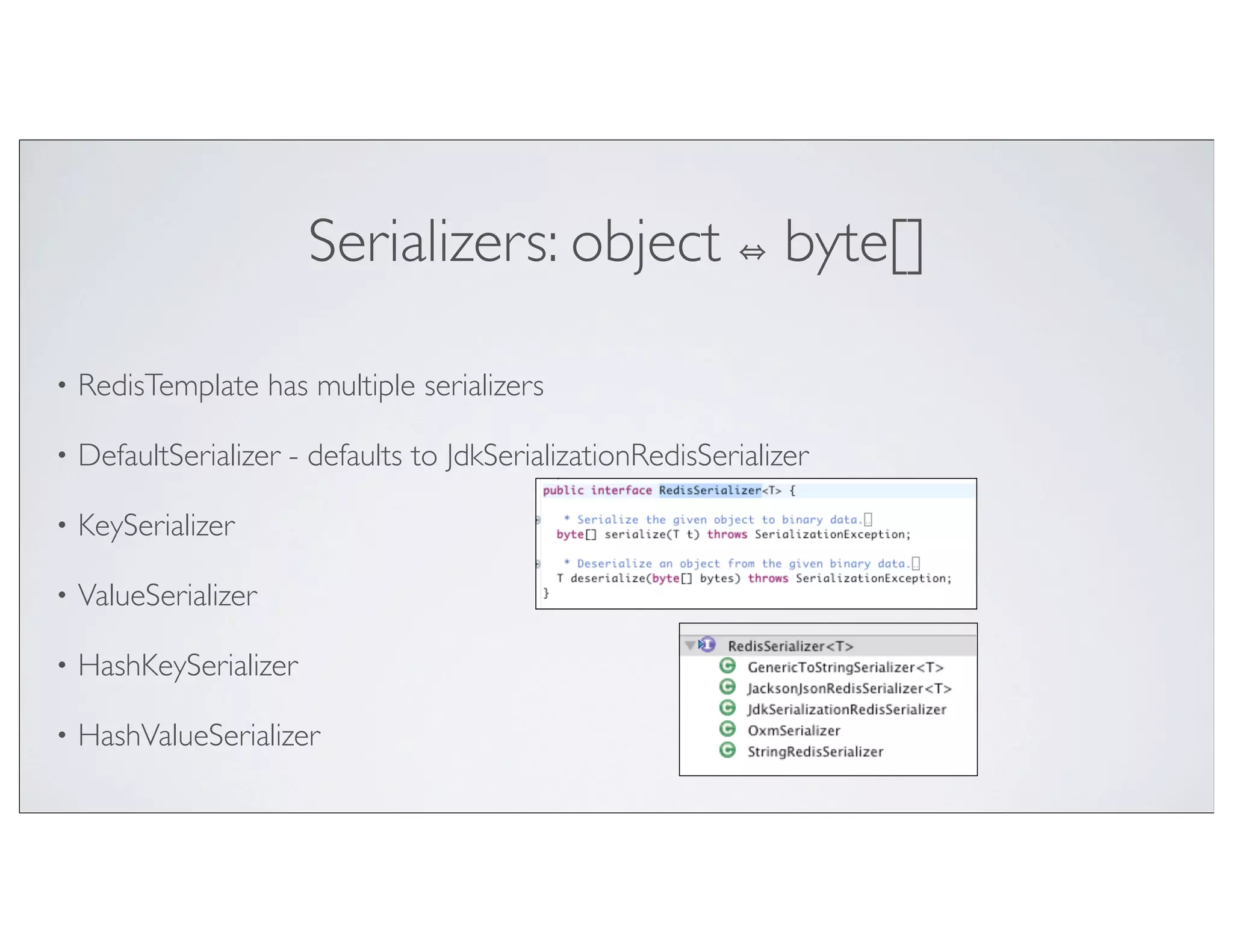

36. Serializers: object byte[]
• RedisTemplate has multiple serializers
• DefaultSerializer - defaults to JdkSerializationRedisSerializer
• KeySerializer
• ValueSerializer
• HashKeySerializer
• HashValueSerializer

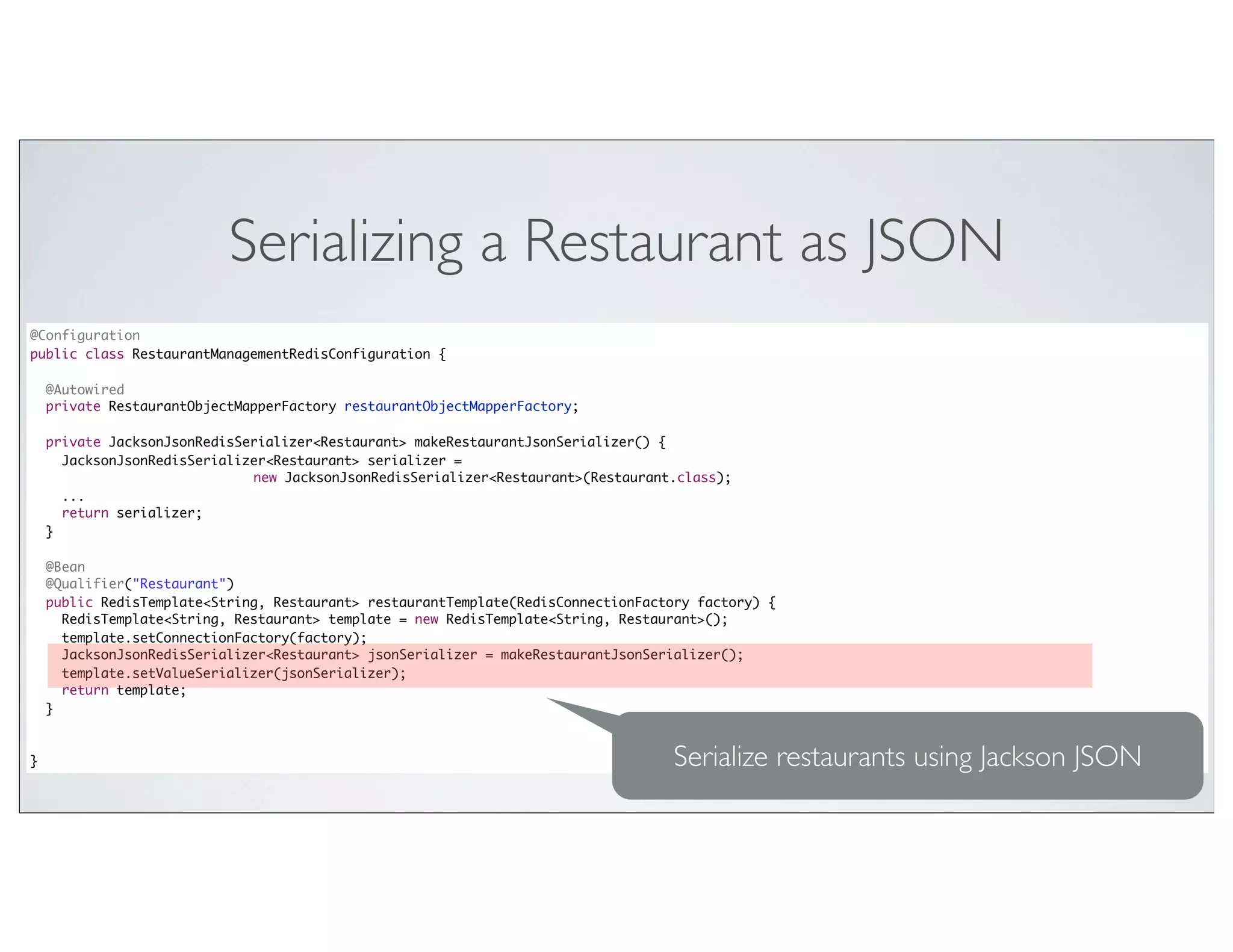

37. Serializing a Restaurant as JSON
@Configuration
public class RestaurantManagementRedisConfiguration {
@Autowired
private RestaurantObjectMapperFactory restaurantObjectMapperFactory;
private JacksonJsonRedisSerializer<Restaurant> makeRestaurantJsonSerializer() {
JacksonJsonRedisSerializer<Restaurant> serializer =
new JacksonJsonRedisSerializer<Restaurant>(Restaurant.class);
...
return serializer;
}
@Bean
@Qualifier("Restaurant")
public RedisTemplate<String, Restaurant> restaurantTemplate(RedisConnectionFactory factory) {
RedisTemplate<String, Restaurant> template = new RedisTemplate<String, Restaurant>();
template.setConnectionFactory(factory);
JacksonJsonRedisSerializer<Restaurant> jsonSerializer = makeRestaurantJsonSerializer();
template.setValueSerializer(jsonSerializer);
return template;
}
} Serialize restaurants using Jackson JSON

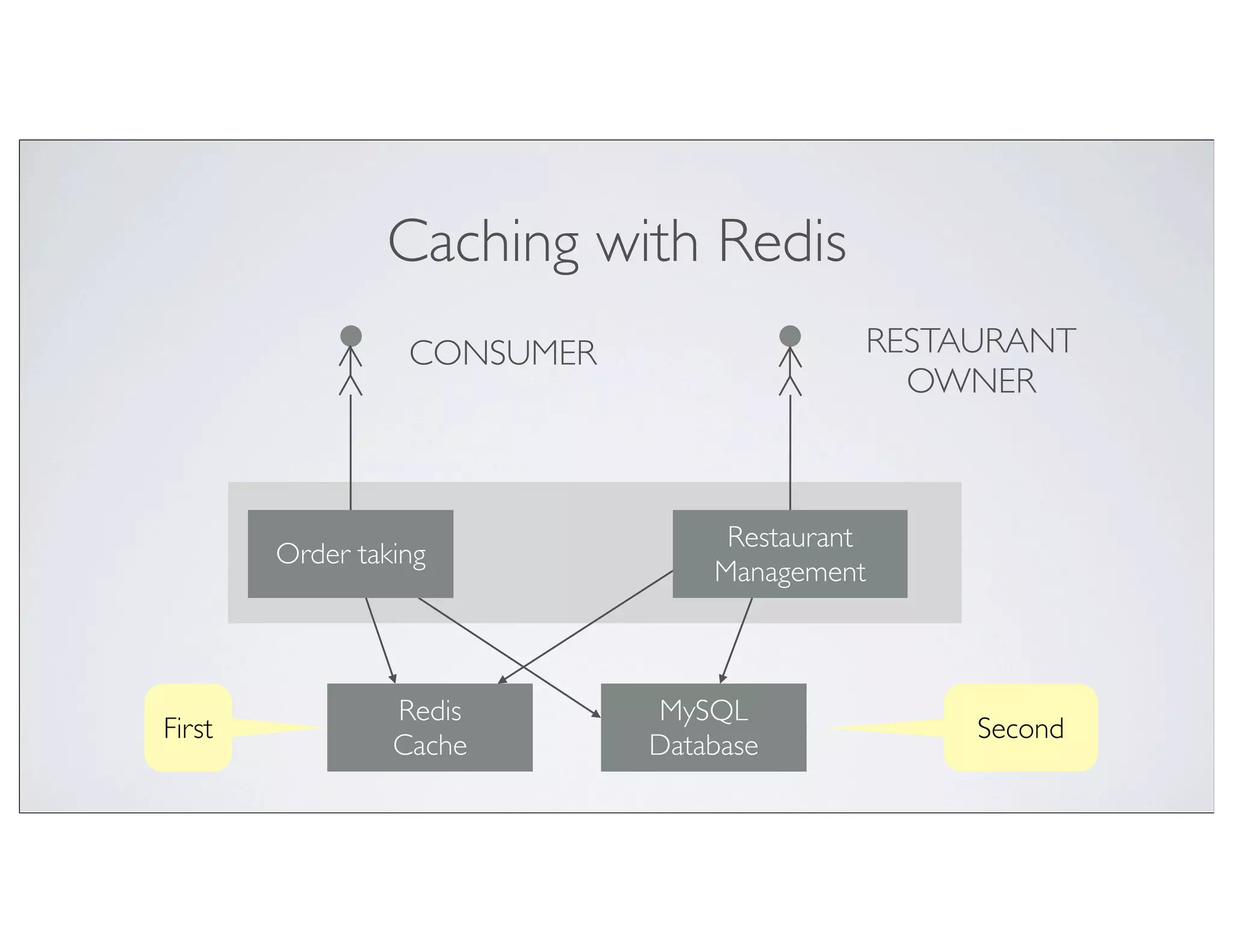

38. Caching with Redis
CONSUMER RESTAURANT
OWNER
Restaurant
Order taking
Management
Redis MySQL
First Second
Cache Database

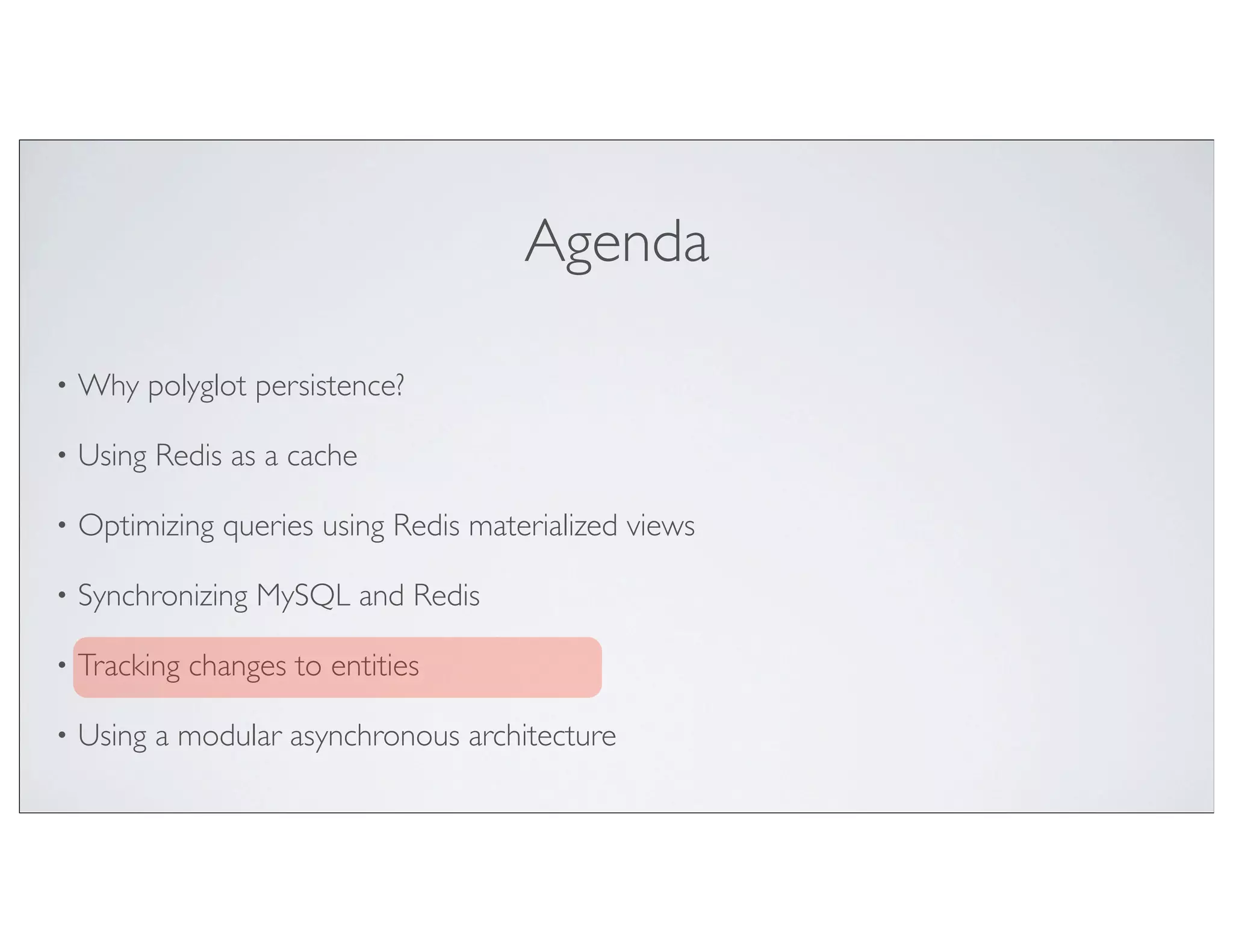

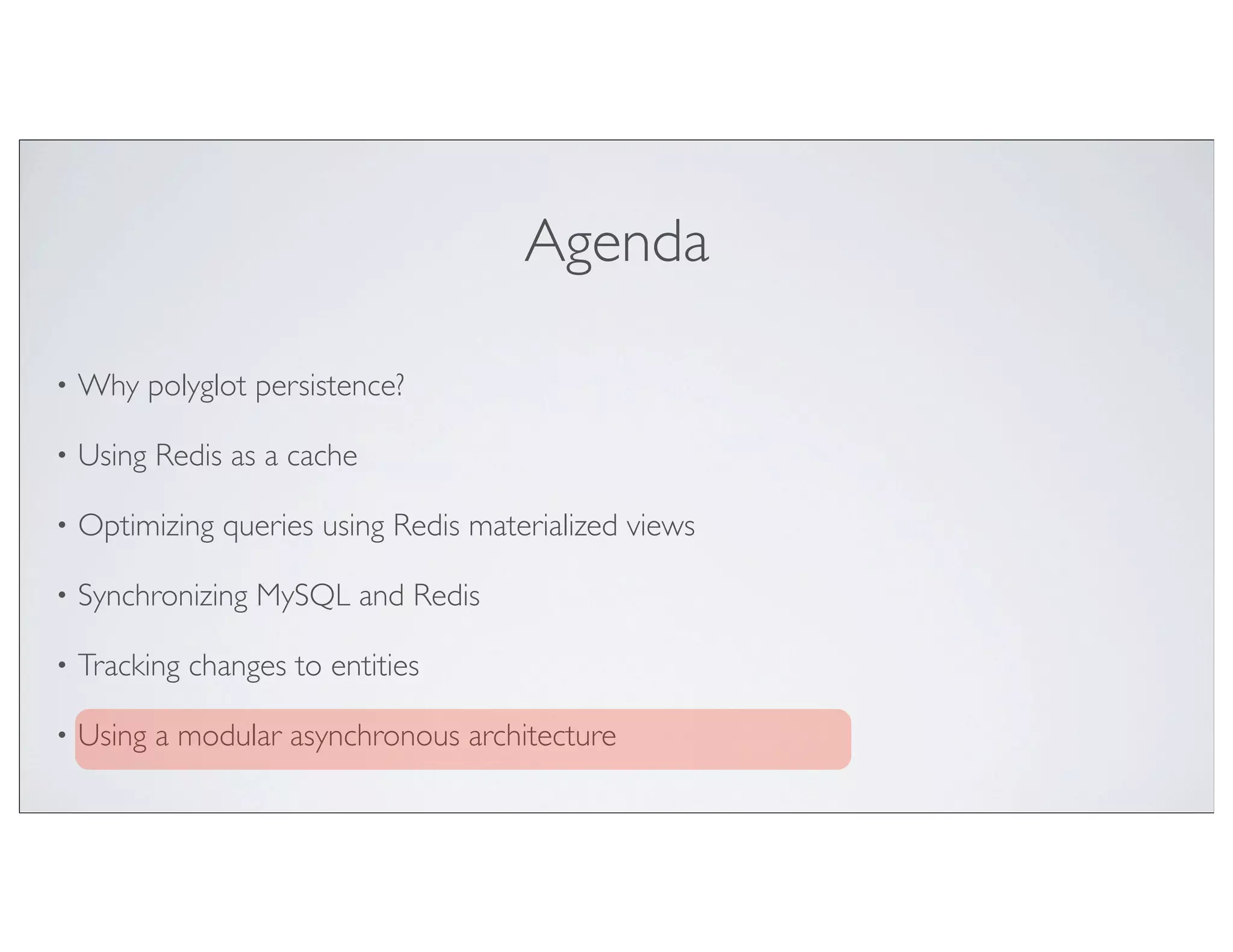

39. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

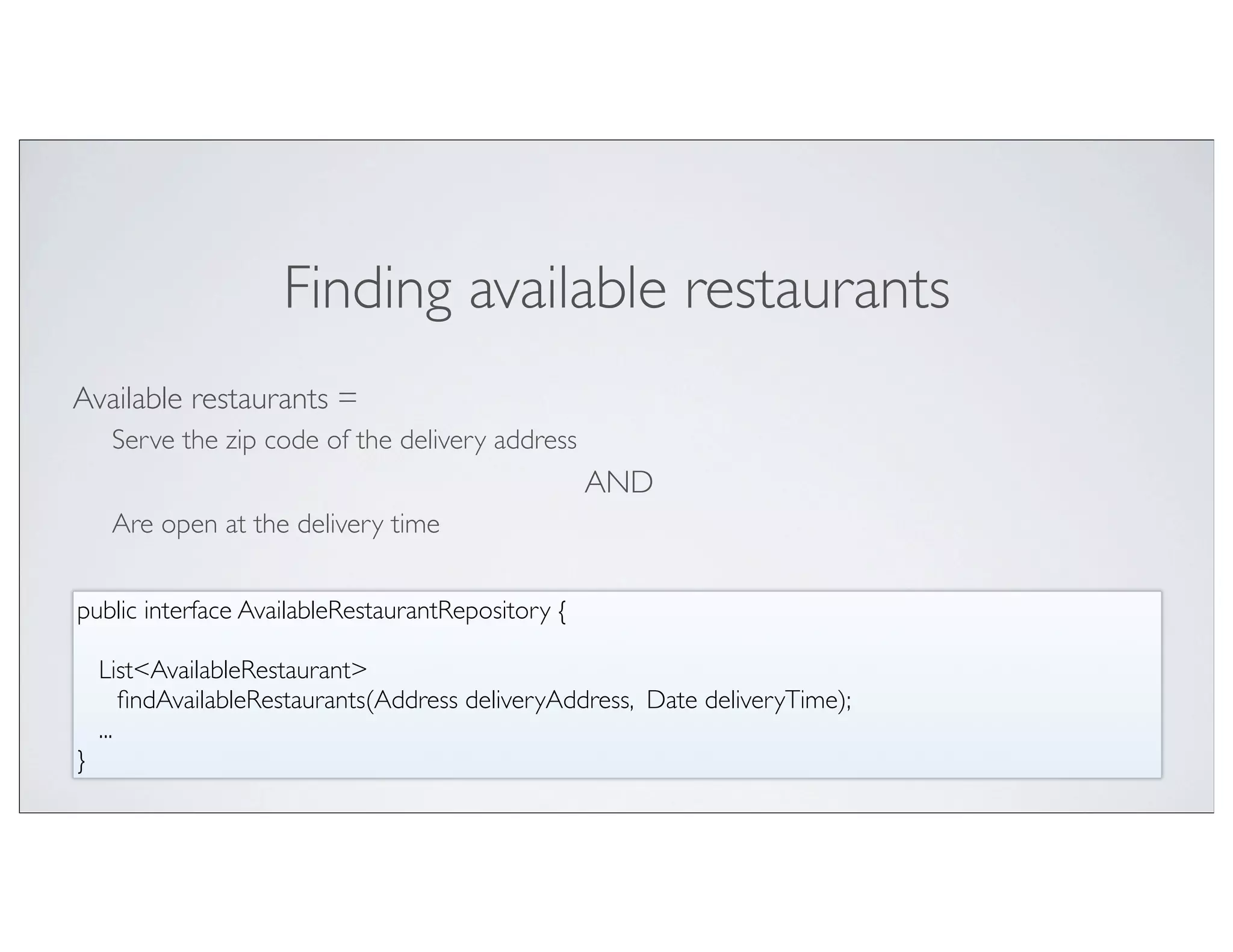

40. Finding available restaurants
Available restaurants =
Serve the zip code of the delivery address
AND
Are open at the delivery time
public interface AvailableRestaurantRepository {
List<AvailableRestaurant>
findAvailableRestaurants(Address deliveryAddress, Date deliveryTime);
...
}

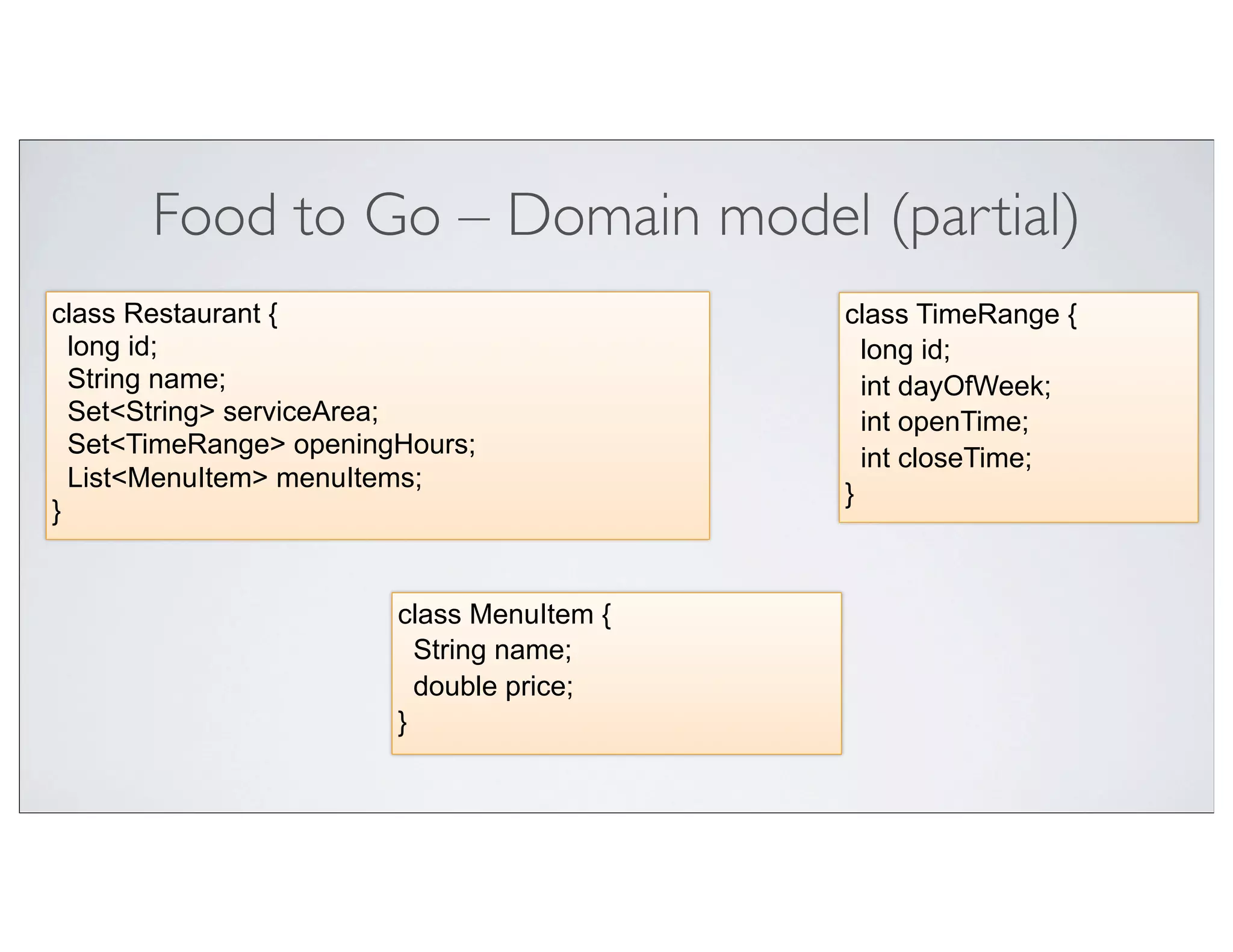

41. Food to Go – Domain model (partial)
class Restaurant { class TimeRange {
long id; long id;
String name; int dayOfWeek;
Set<String> serviceArea; int openTime;
Set<TimeRange> openingHours; int closeTime;
List<MenuItem> menuItems;
}
}
class MenuItem {
String name;
double price;
}

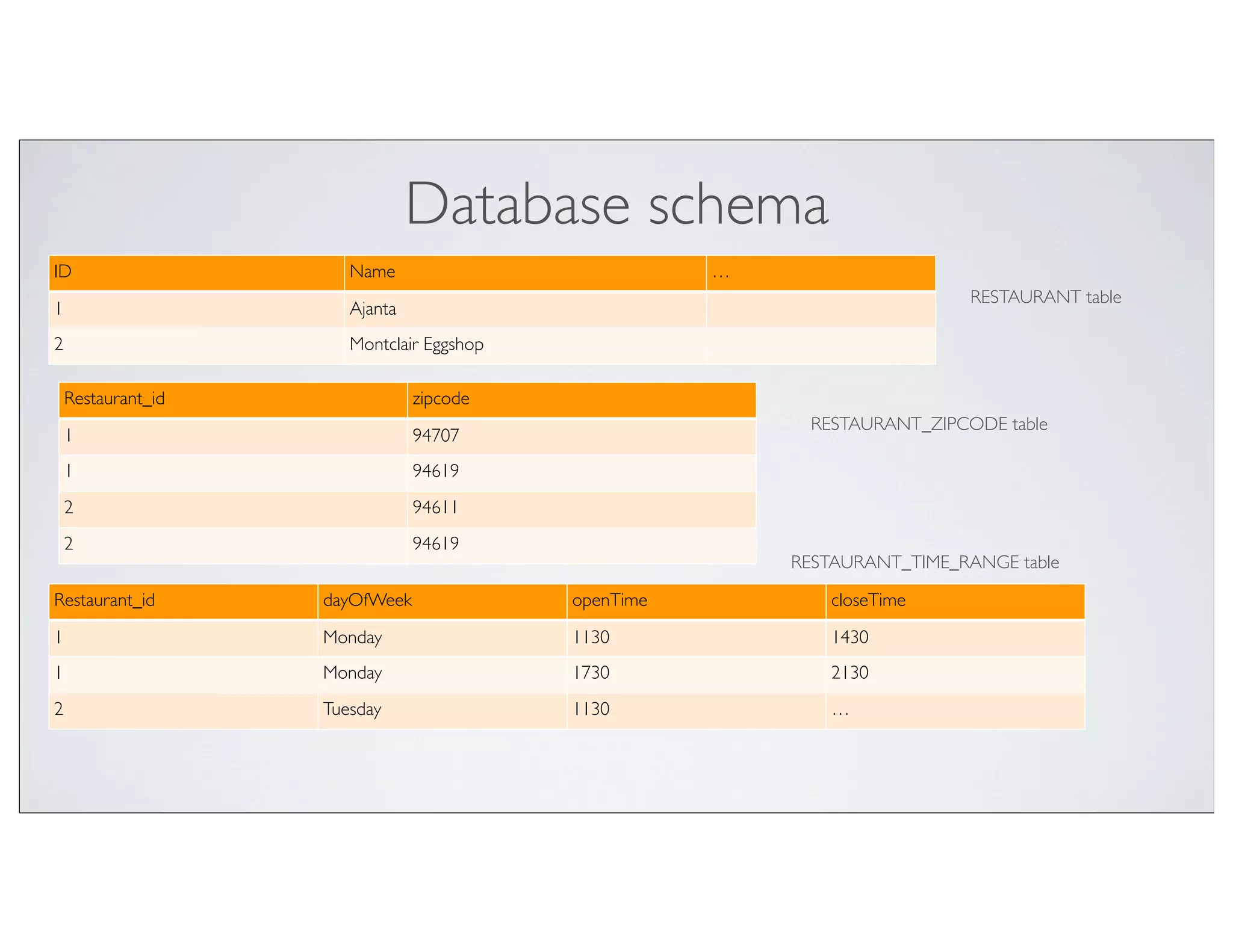

42. Database schema
ID Name …
RESTAURANT table
1 Ajanta
2 Montclair Eggshop
Restaurant_id zipcode
RESTAURANT_ZIPCODE table
1 94707
1 94619
2 94611
2 94619
RESTAURANT_TIME_RANGE table
Restaurant_id dayOfWeek openTime closeTime
1 Monday 1130 1430
1 Monday 1730 2130
2 Tuesday 1130 …

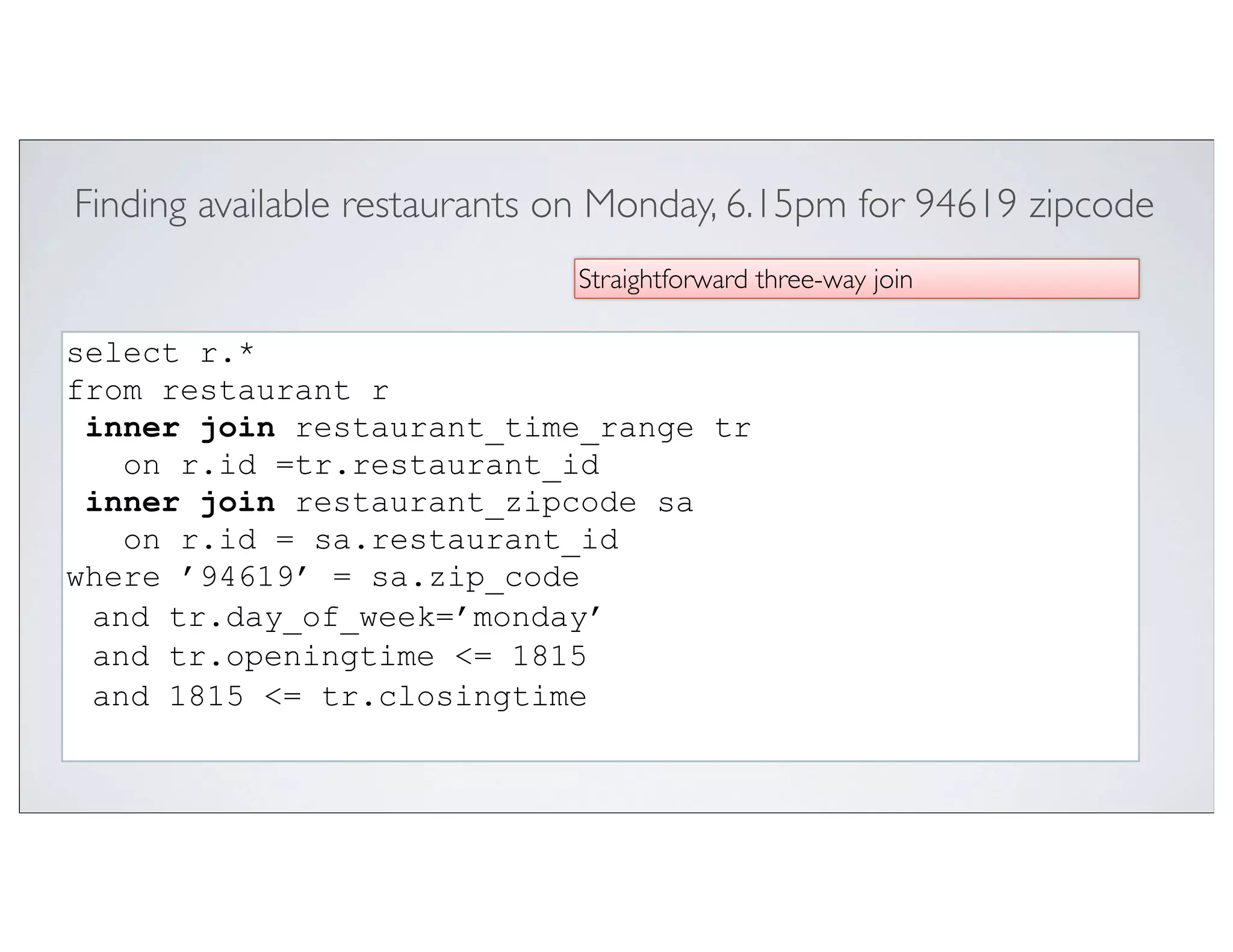

43. Finding available restaurants on Monday, 6.15pm for 94619 zipcode
Straightforward three-way join
select r.*
from restaurant r
inner join restaurant_time_range tr
on r.id =tr.restaurant_id
inner join restaurant_zipcode sa
on r.id = sa.restaurant_id
where ’94619’ = sa.zip_code
and tr.day_of_week=’monday’
and tr.openingtime <= 1815
and 1815 <= tr.closingtime

44. How to scale queries?

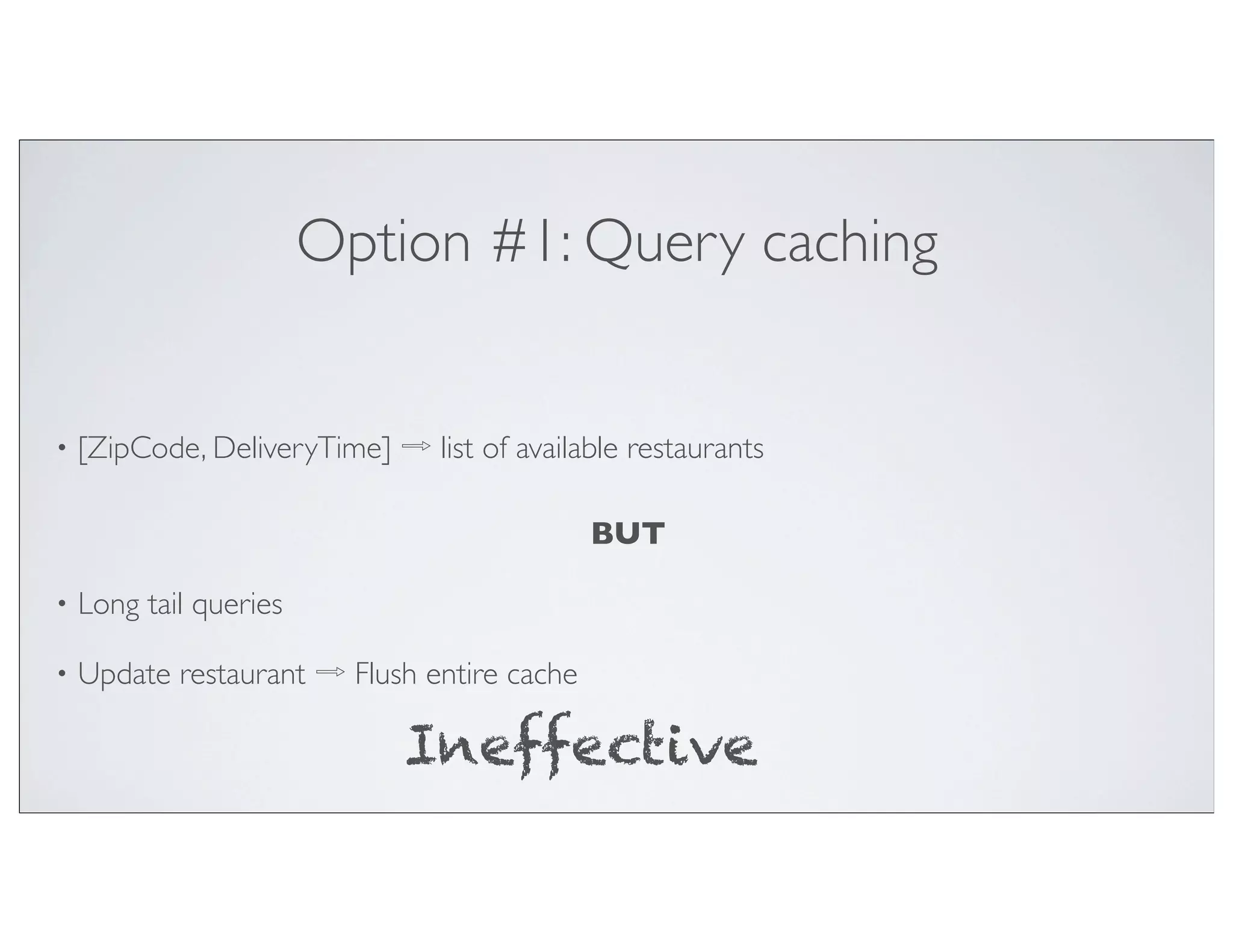

45. Option #1: Query caching
• [ZipCode, DeliveryTime] ⇨ list of available restaurants
BUT
• Long tail queries
• Update restaurant ⇨ Flush entire cache
Ineffective

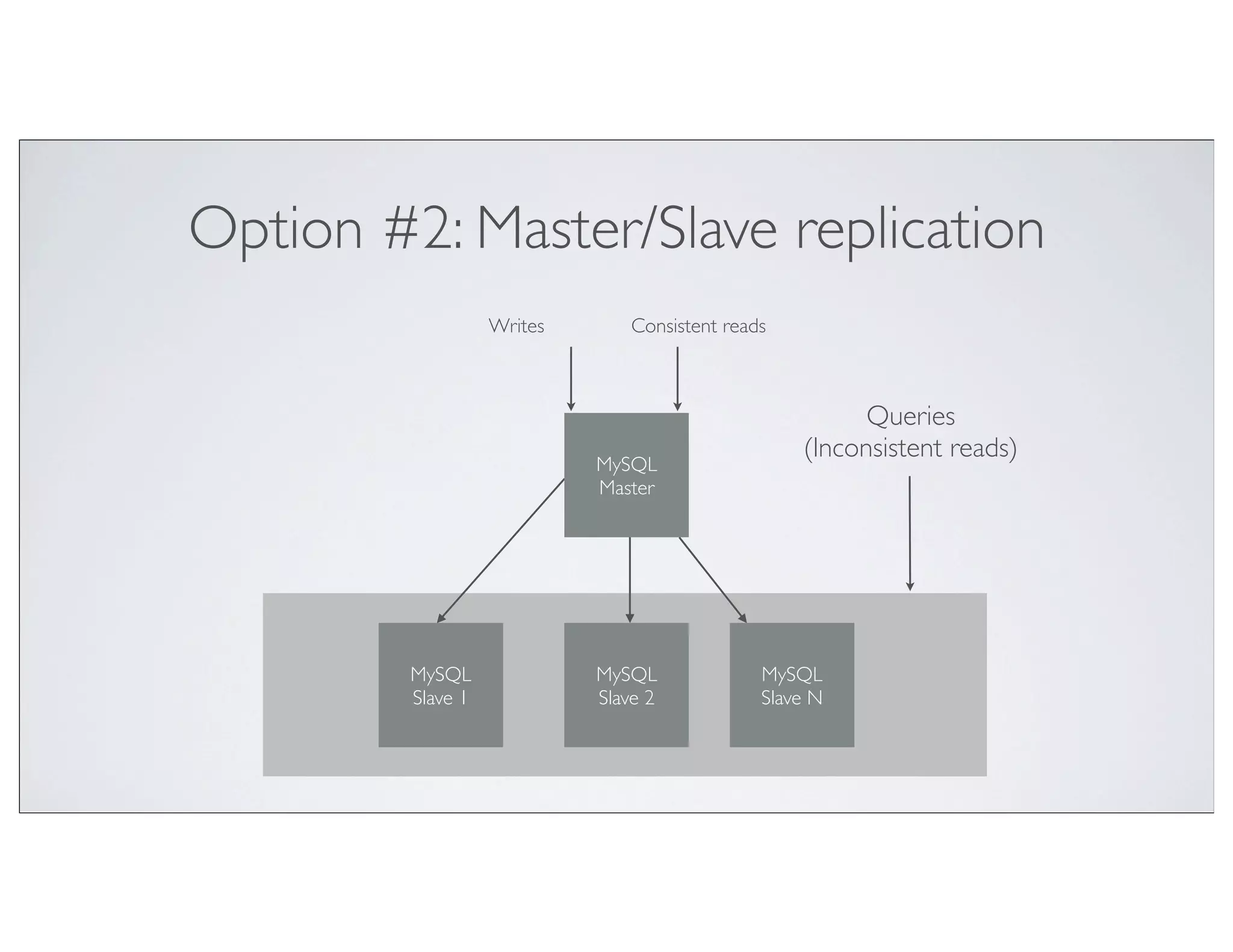

46. Option #2: Master/Slave replication
Writes Consistent reads
Queries
(Inconsistent reads)
MySQL
Master
MySQL MySQL MySQL
Slave 1 Slave 2 Slave N

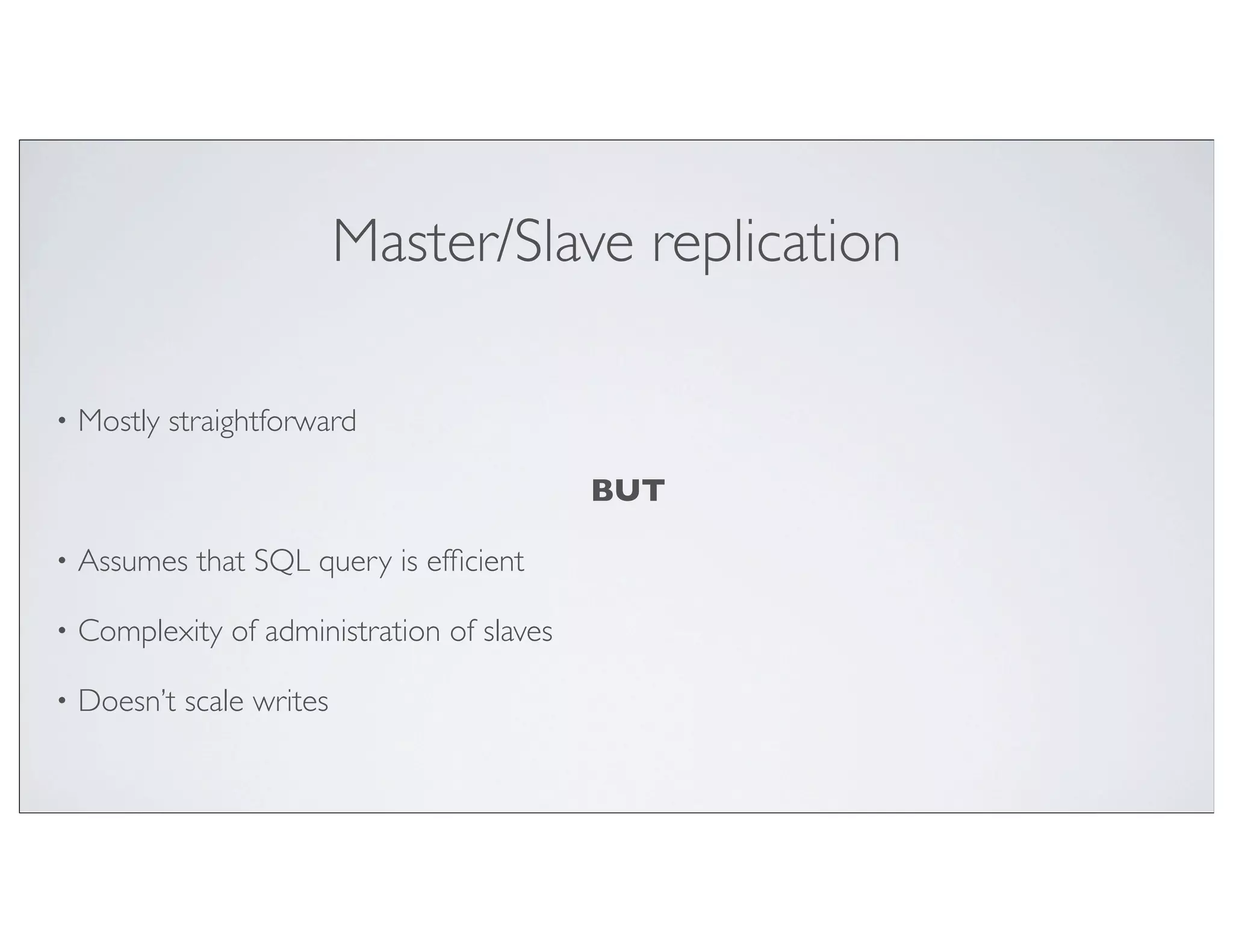

47. Master/Slave replication
• Mostly straightforward
BUT
• Assumes that SQL query is efficient
• Complexity of administration of slaves
• Doesn’t scale writes

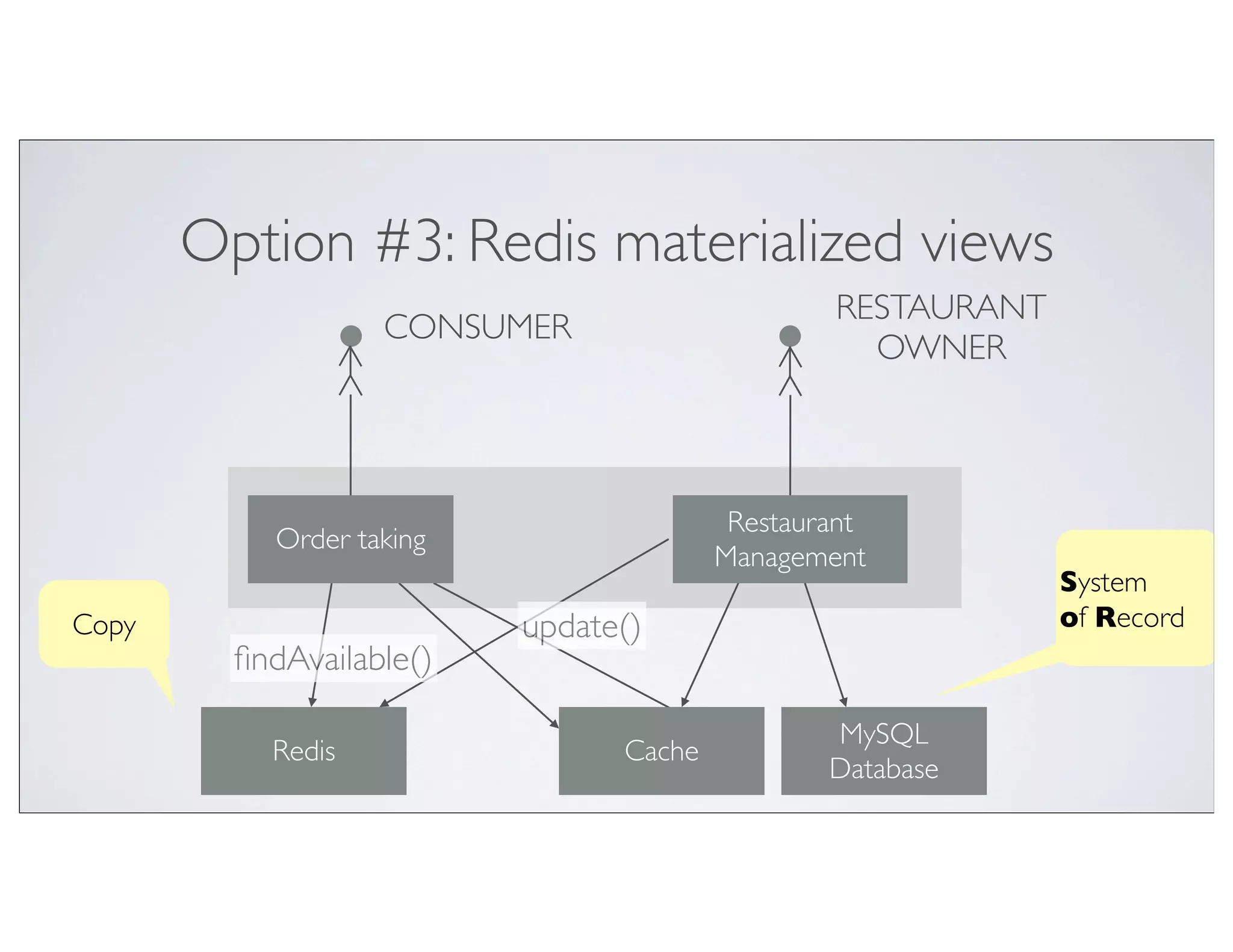

48. Option #3: Redis materialized views
RESTAURANT
CONSUMER
OWNER
Restaurant
Order taking
Management
System
Copy update() of Record
findAvailable()
MySQL
Redis Cache
Database

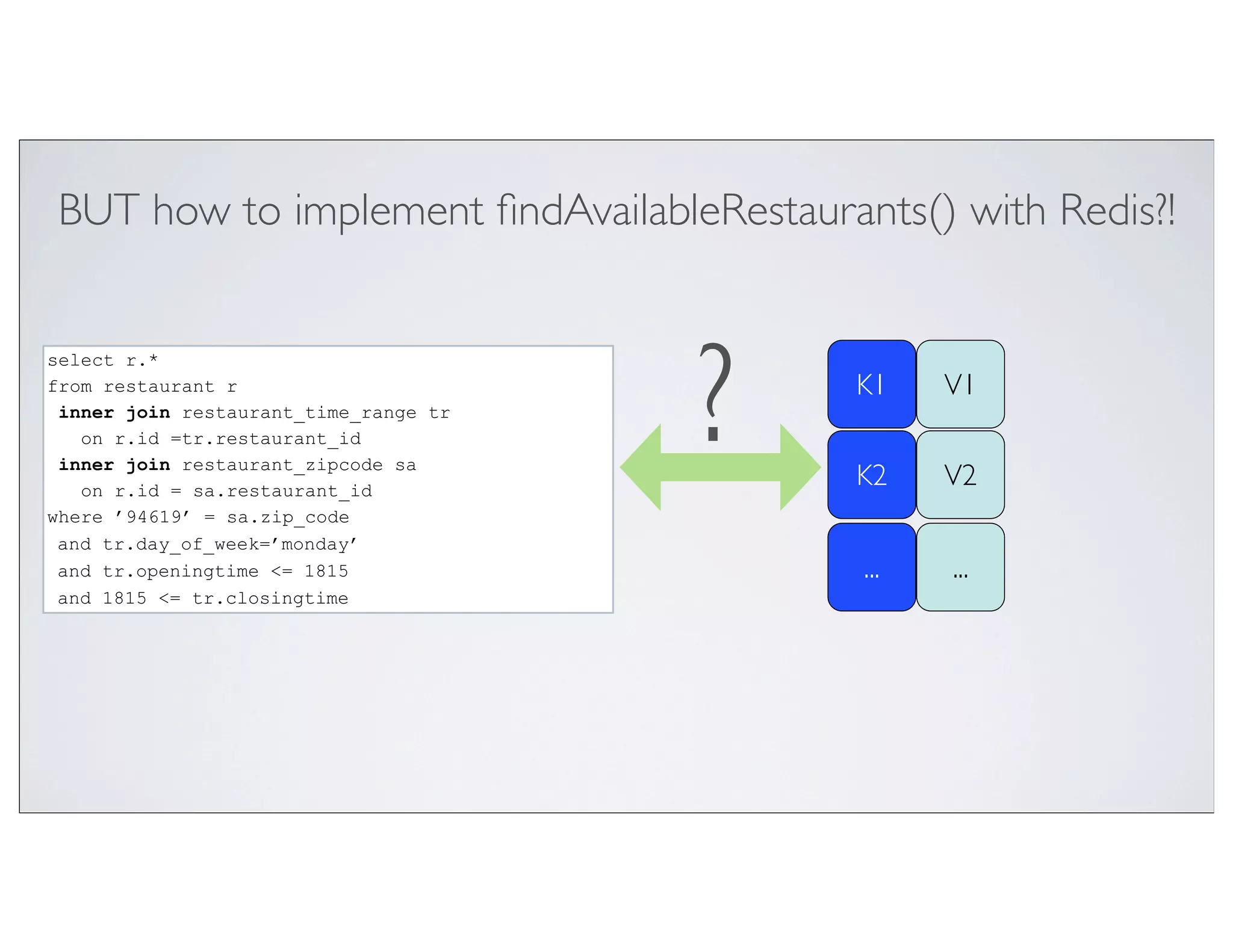

49. BUT how to implement findAvailableRestaurants() with Redis?!
?
select r.*
from restaurant r K1 V1
inner join restaurant_time_range tr
on r.id =tr.restaurant_id
inner join restaurant_zipcode sa
on r.id = sa.restaurant_id
K2 V2
where ’94619’ = sa.zip_code
and tr.day_of_week=’monday’
and tr.openingtime <= 1815 ... ...
and 1815 <= tr.closingtime

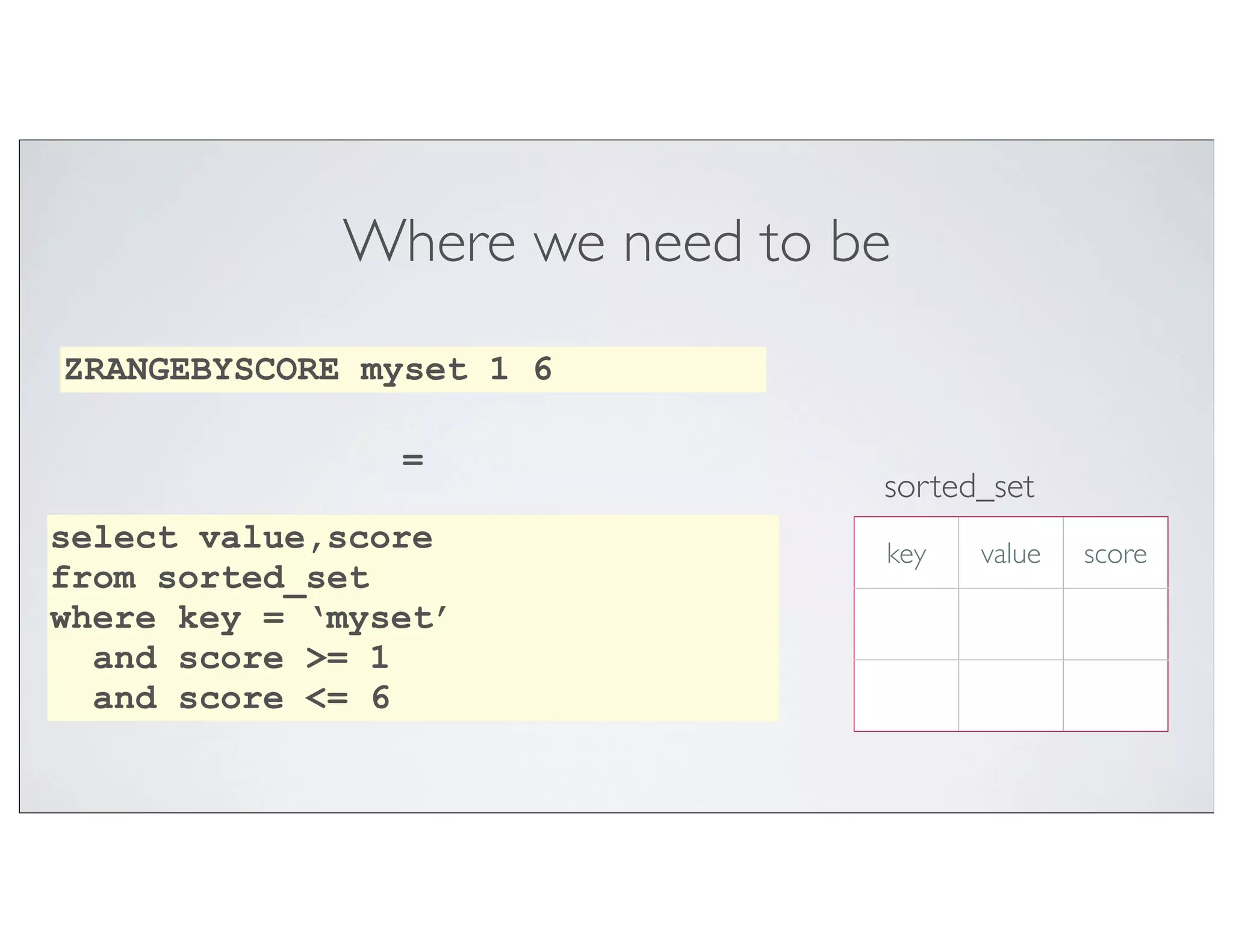

50. Where we need to be
ZRANGEBYSCORE myset 1 6
=
sorted_set
select value,score key value score
from sorted_set
where key = ‘myset’
and score >= 1
and score <= 6

51. We need to denormalize
Think materialized view

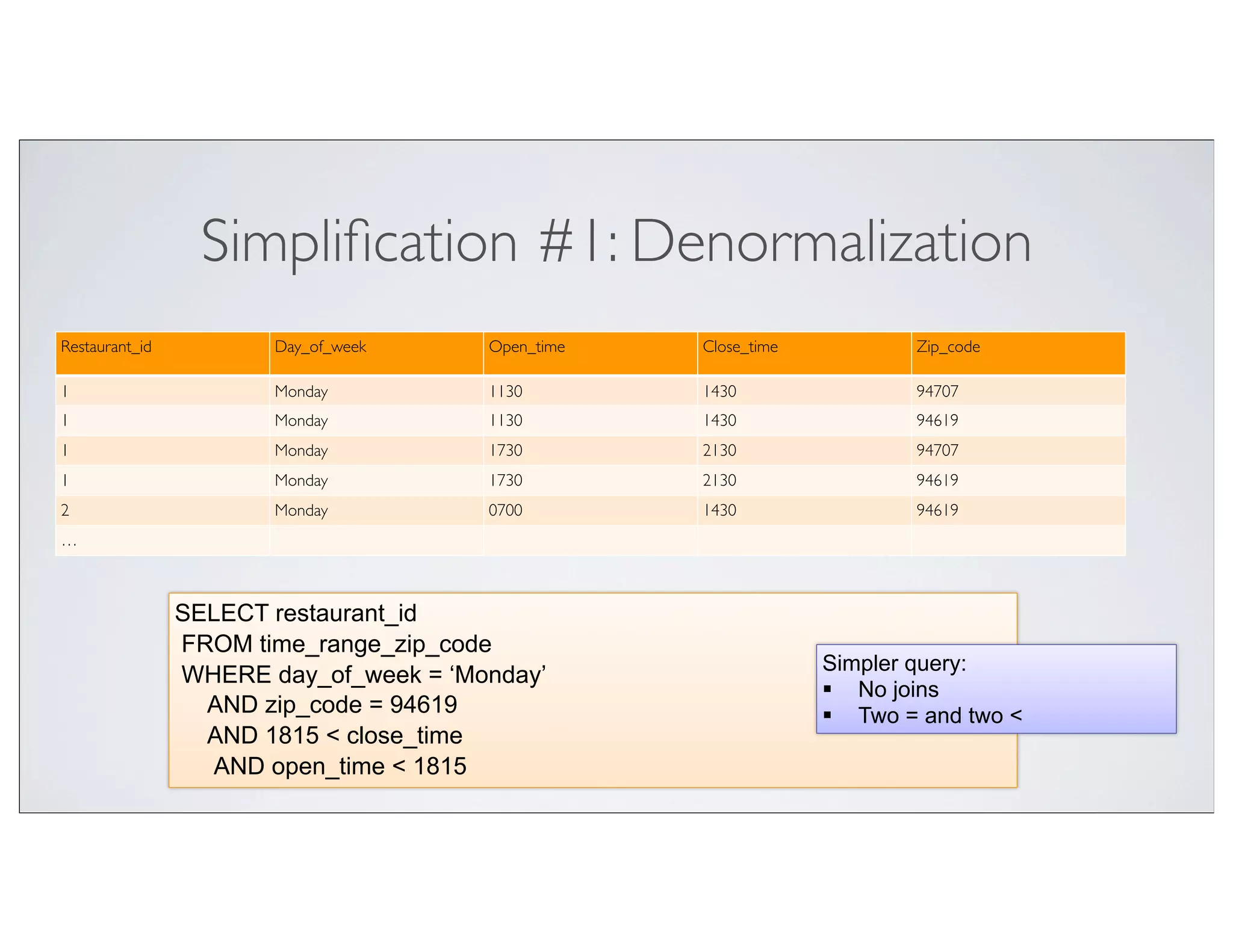

52. Simplification #1: Denormalization
Restaurant_id Day_of_week Open_time Close_time Zip_code
1 Monday 1130 1430 94707
1 Monday 1130 1430 94619
1 Monday 1730 2130 94707
1 Monday 1730 2130 94619
2 Monday 0700 1430 94619
…
SELECT restaurant_id
FROM time_range_zip_code
Simpler query:
WHERE day_of_week = ‘Monday’
§ No joins
AND zip_code = 94619 § Two = and two <
AND 1815 < close_time
AND open_time < 1815

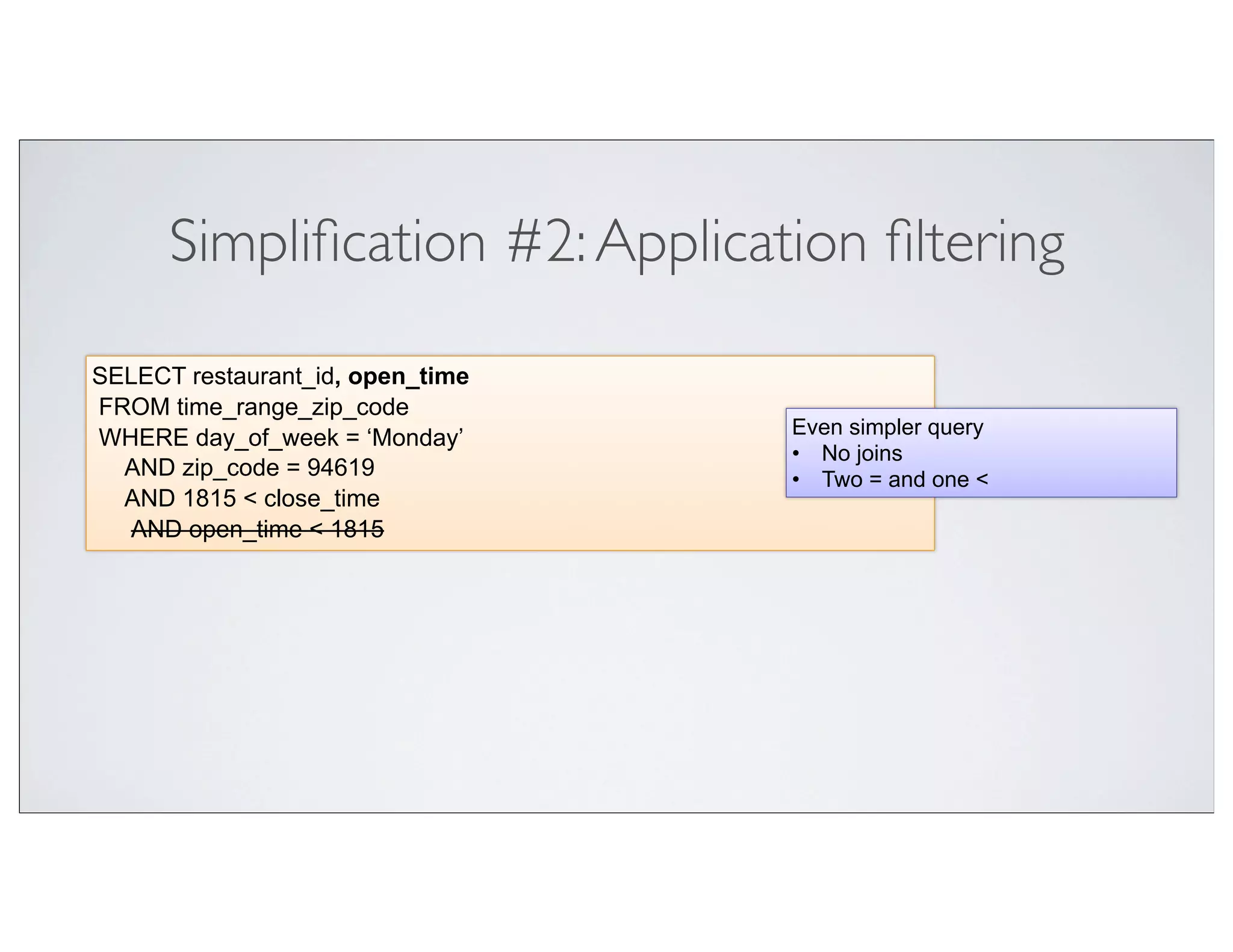

53. Simplification #2: Application filtering
SELECT restaurant_id, open_time
FROM time_range_zip_code
Even simpler query
WHERE day_of_week = ‘Monday’
• No joins
AND zip_code = 94619 • Two = and one <
AND 1815 < close_time
AND open_time < 1815

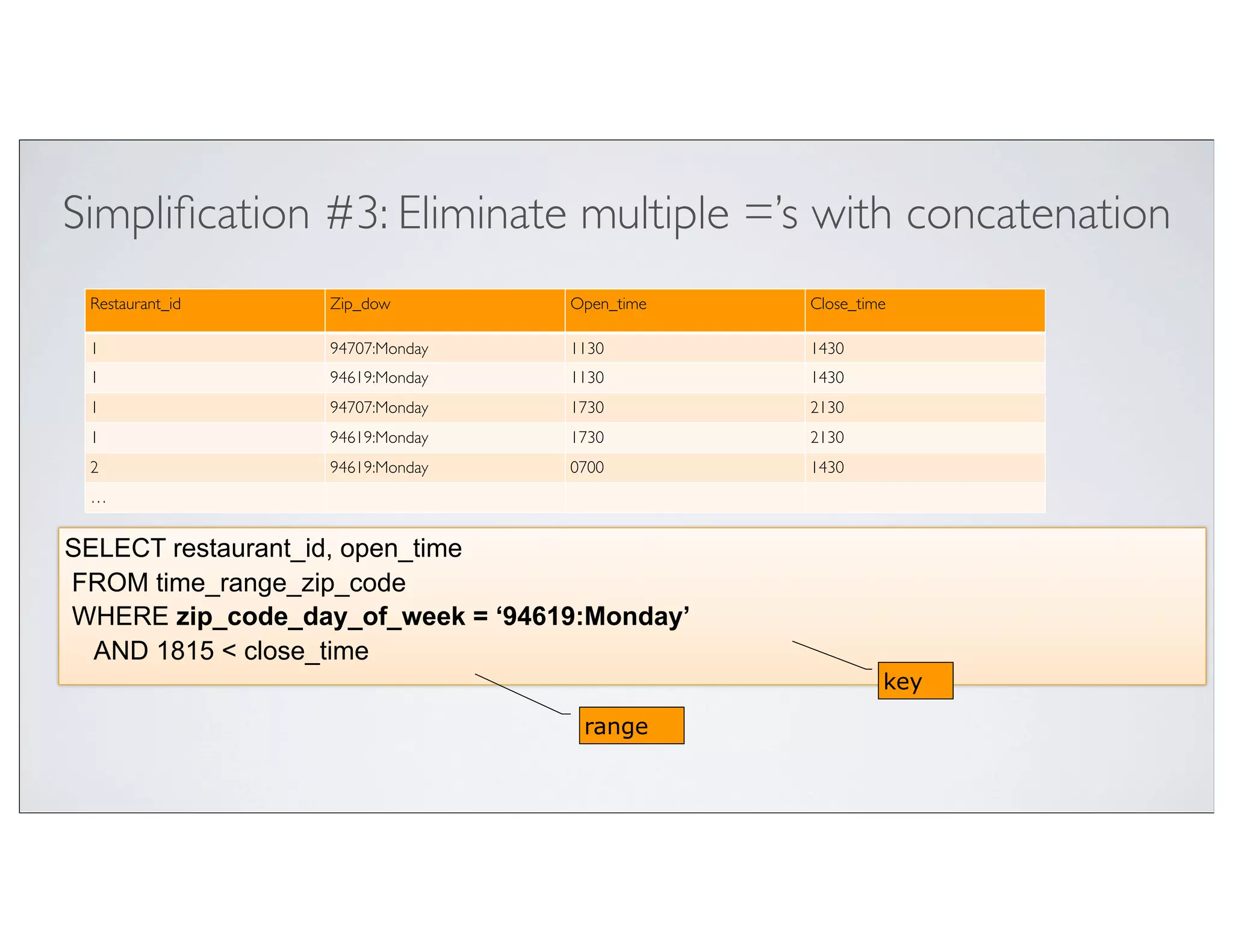

54. Simplification #3: Eliminate multiple =’s with concatenation
Restaurant_id Zip_dow Open_time Close_time
1 94707:Monday 1130 1430
1 94619:Monday 1130 1430
1 94707:Monday 1730 2130
1 94619:Monday 1730 2130
2 94619:Monday 0700 1430
…
SELECT restaurant_id, open_time
FROM time_range_zip_code
WHERE zip_code_day_of_week = ‘94619:Monday’
AND 1815 < close_time
key
range

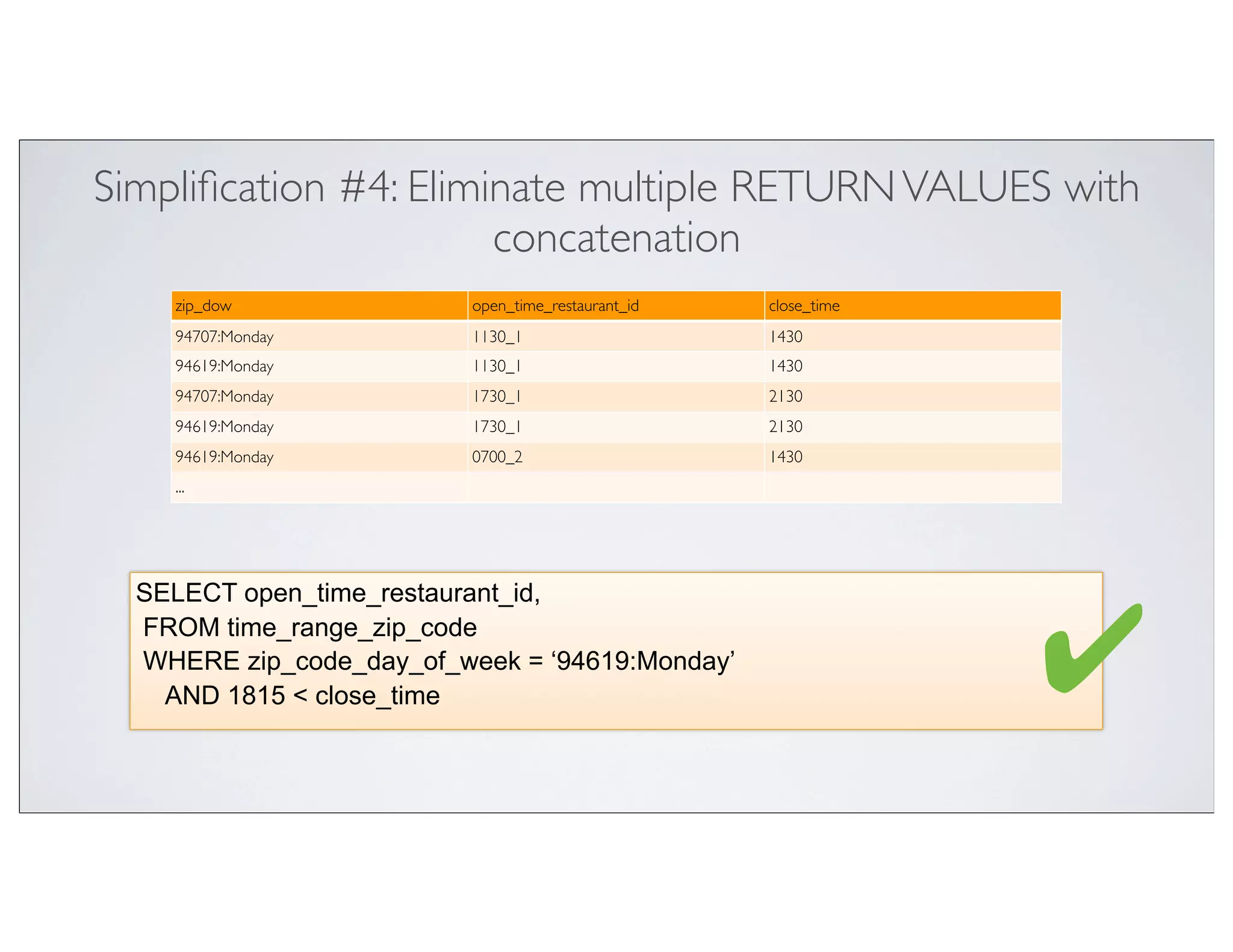

55. Simplification #4: Eliminate multiple RETURN VALUES with
concatenation
zip_dow open_time_restaurant_id close_time
94707:Monday 1130_1 1430
94619:Monday 1130_1 1430
94707:Monday 1730_1 2130
94619:Monday 1730_1 2130
94619:Monday 0700_2 1430
...
SELECT open_time_restaurant_id,
FROM time_range_zip_code
WHERE zip_code_day_of_week = ‘94619:Monday’
AND 1815 < close_time ✔

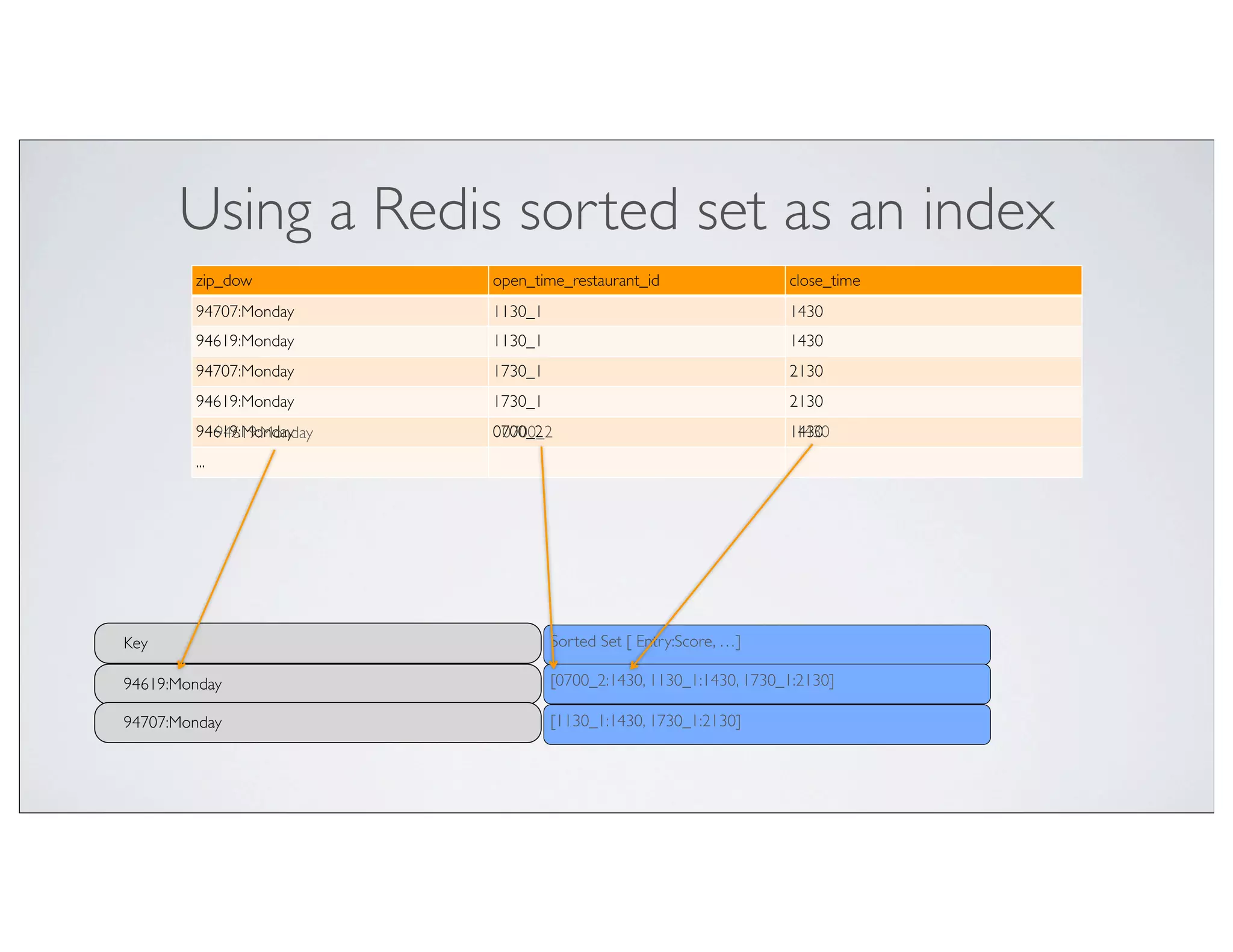

56. Using a Redis sorted set as an index
zip_dow open_time_restaurant_id close_time
94707:Monday 1130_1 1430
94619:Monday 1130_1 1430
94707:Monday 1730_1 2130
94619:Monday 1730_1 2130
94619:Monday
94619:Monday 0700_2
0700_2 1430
1430
...
Key Sorted Set [ Entry:Score, …]
94619:Monday [0700_2:1430, 1130_1:1430, 1730_1:2130]
94707:Monday [1130_1:1430, 1730_1:2130]

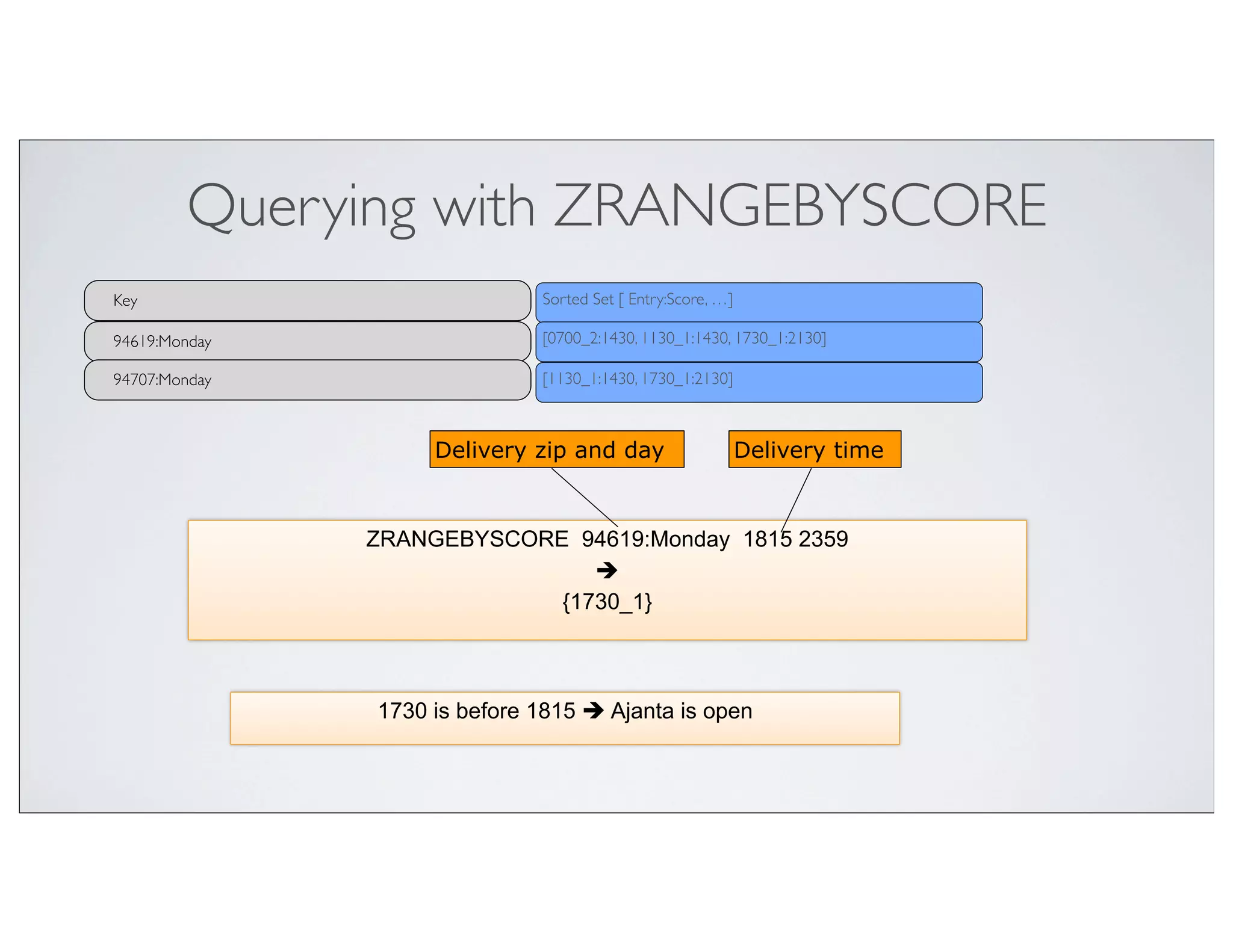

57. Querying with ZRANGEBYSCORE
Key Sorted Set [ Entry:Score, …]
94619:Monday [0700_2:1430, 1130_1:1430, 1730_1:2130]
94707:Monday [1130_1:1430, 1730_1:2130]
Delivery zip and day Delivery time
ZRANGEBYSCORE 94619:Monday 1815 2359
è
{1730_1}
1730 is before 1815 è Ajanta is open

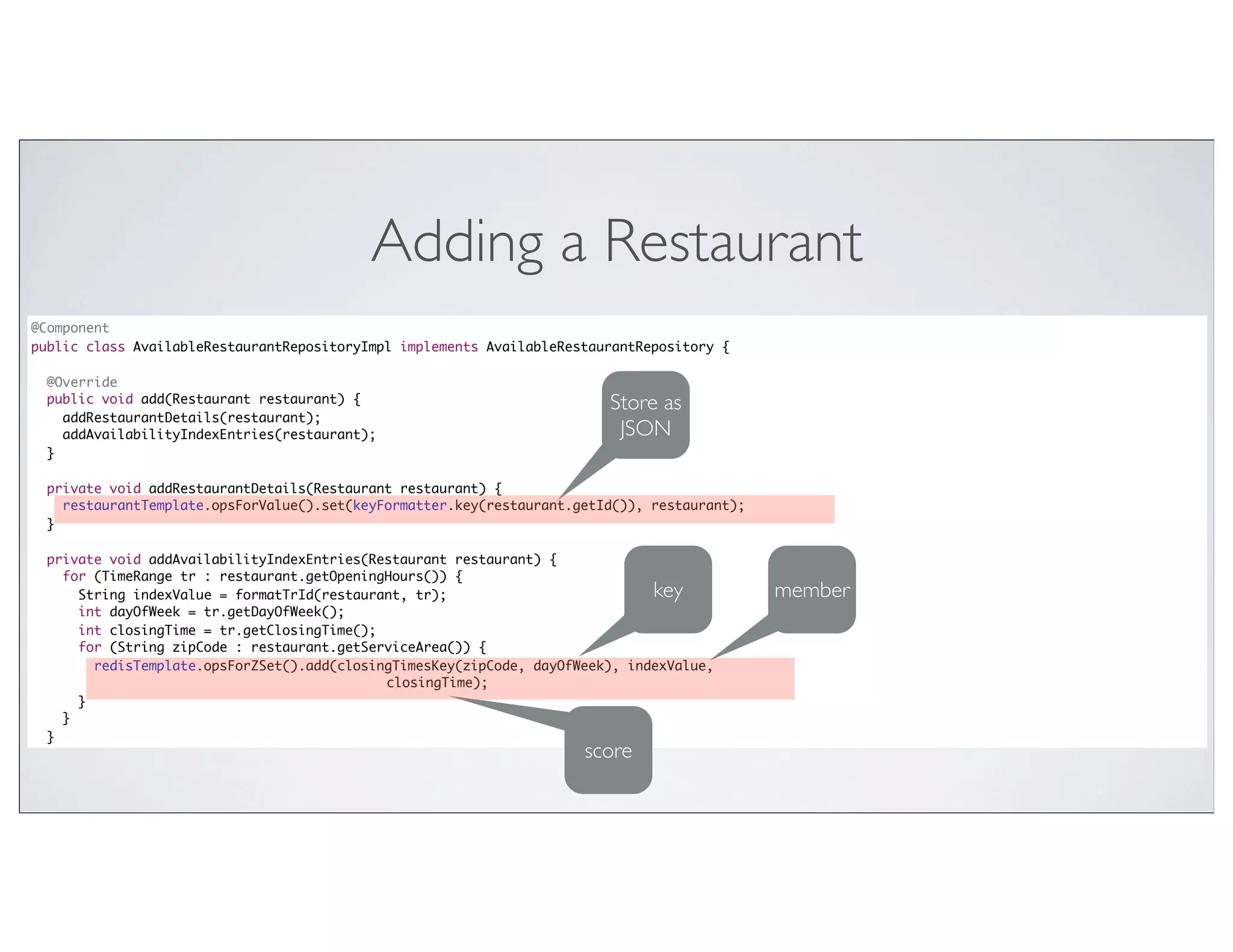

58. Adding a Restaurant
@Component
public class AvailableRestaurantRepositoryImpl implements AvailableRestaurantRepository {
@Override
public void add(Restaurant restaurant) { Store as
addRestaurantDetails(restaurant);
addAvailabilityIndexEntries(restaurant); JSON
}
private void addRestaurantDetails(Restaurant restaurant) { Text
restaurantTemplate.opsForValue().set(keyFormatter.key(restaurant.getId()), restaurant);
}
private void addAvailabilityIndexEntries(Restaurant restaurant) {
for (TimeRange tr : restaurant.getOpeningHours()) {
String indexValue = formatTrId(restaurant, tr); key member
int dayOfWeek = tr.getDayOfWeek();
int closingTime = tr.getClosingTime();
for (String zipCode : restaurant.getServiceArea()) {
redisTemplate.opsForZSet().add(closingTimesKey(zipCode, dayOfWeek), indexValue,
closingTime);
}
}
}
score

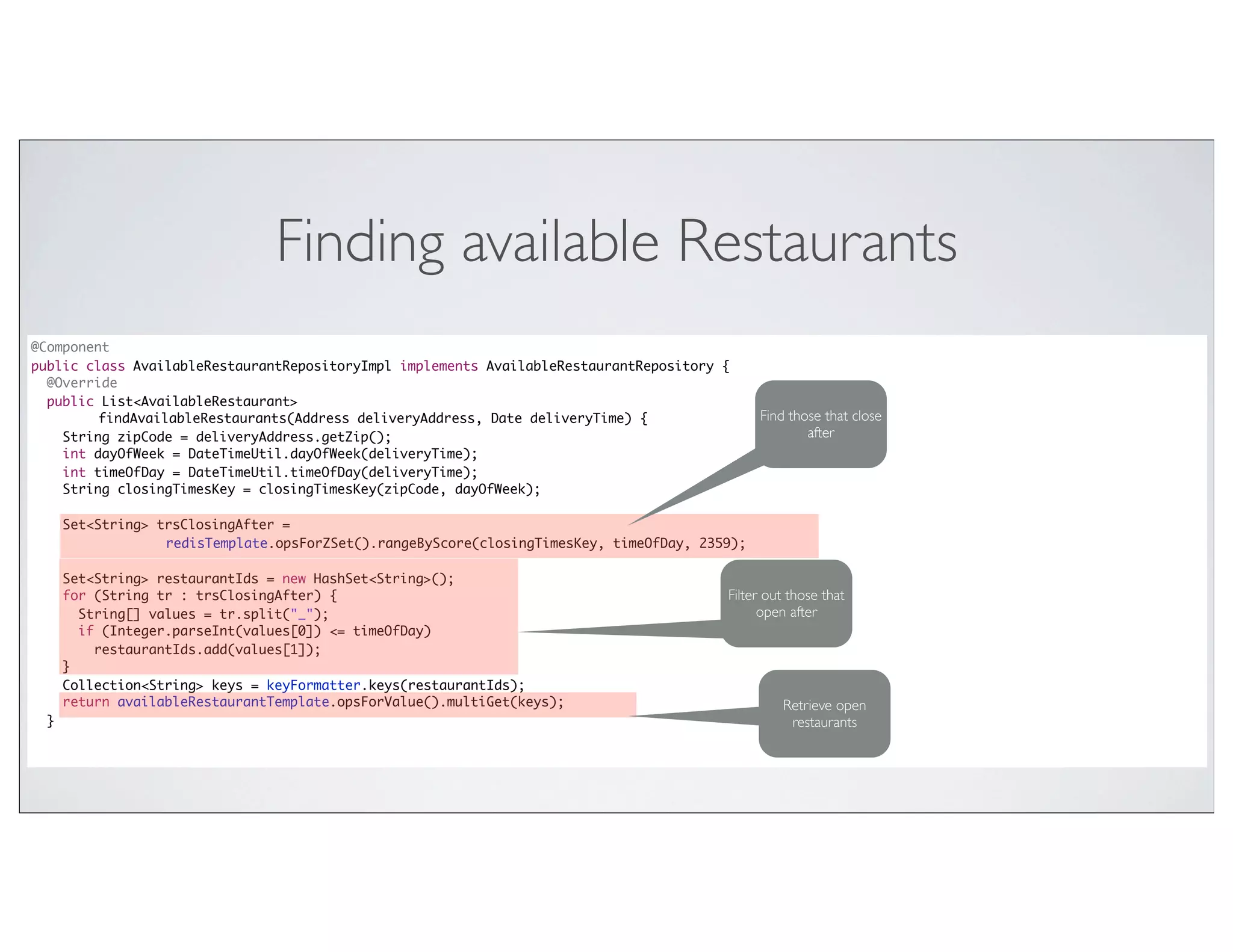

59. Finding available Restaurants
@Component
public class AvailableRestaurantRepositoryImpl implements AvailableRestaurantRepository {
@Override
public List<AvailableRestaurant>
findAvailableRestaurants(Address deliveryAddress, Date deliveryTime) { Find those that close
String zipCode = deliveryAddress.getZip(); after
int dayOfWeek = DateTimeUtil.dayOfWeek(deliveryTime);
int timeOfDay = DateTimeUtil.timeOfDay(deliveryTime);
String closingTimesKey = closingTimesKey(zipCode, dayOfWeek);
Set<String> trsClosingAfter =
redisTemplate.opsForZSet().rangeByScore(closingTimesKey, timeOfDay, 2359);
Set<String> restaurantIds = new HashSet<String>();
for (String tr : trsClosingAfter) { Filter out those that
String[] values = tr.split("_"); open after
if (Integer.parseInt(values[0]) <= timeOfDay)
restaurantIds.add(values[1]);
}
Collection<String> keys = keyFormatter.keys(restaurantIds);
return availableRestaurantTemplate.opsForValue().multiGet(keys); Retrieve open
} restaurants

60. Sorry Ted!
http://en.wikipedia.org/wiki/Edgar_F._Codd

61. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

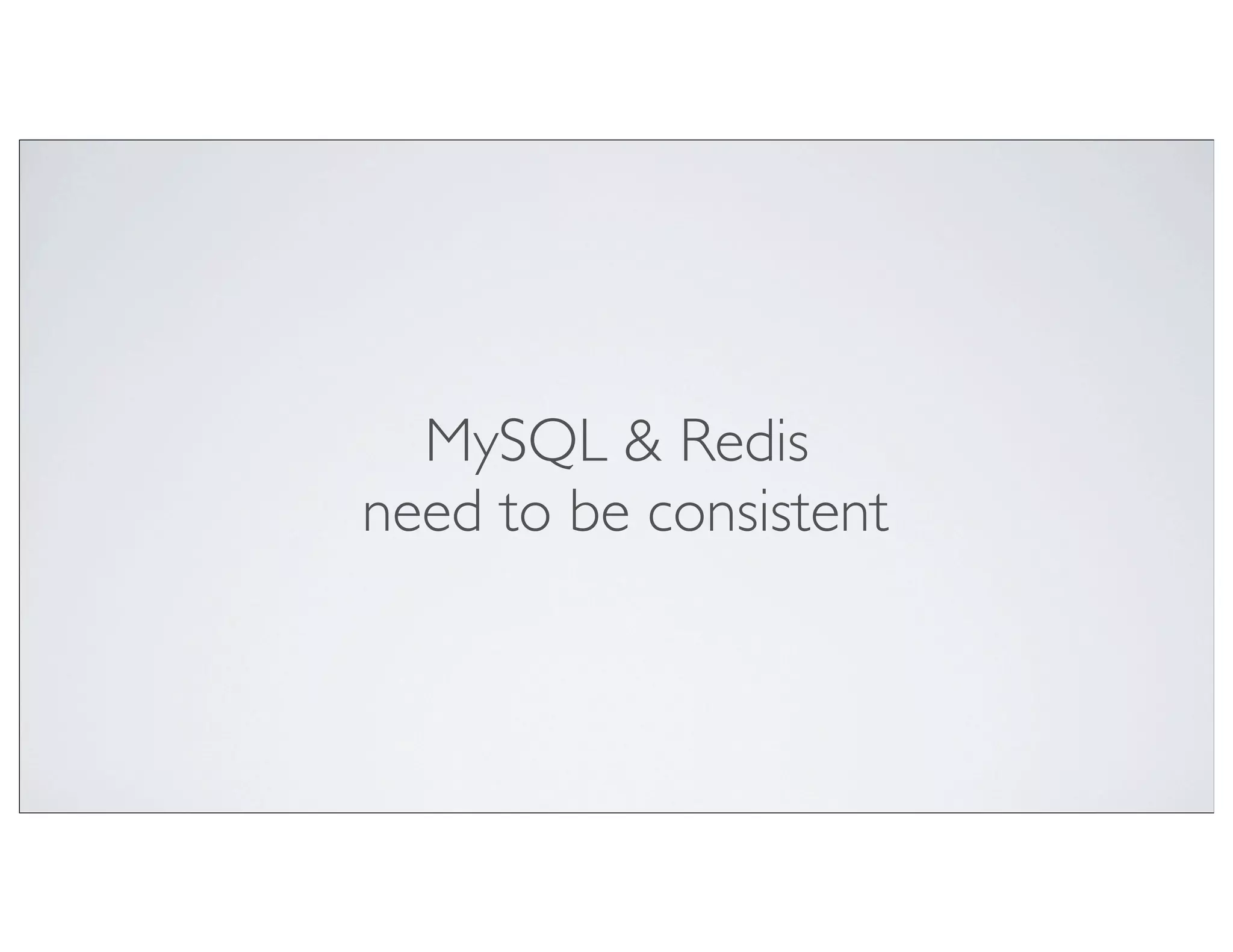

62. MySQL & Redis
need to be consistent

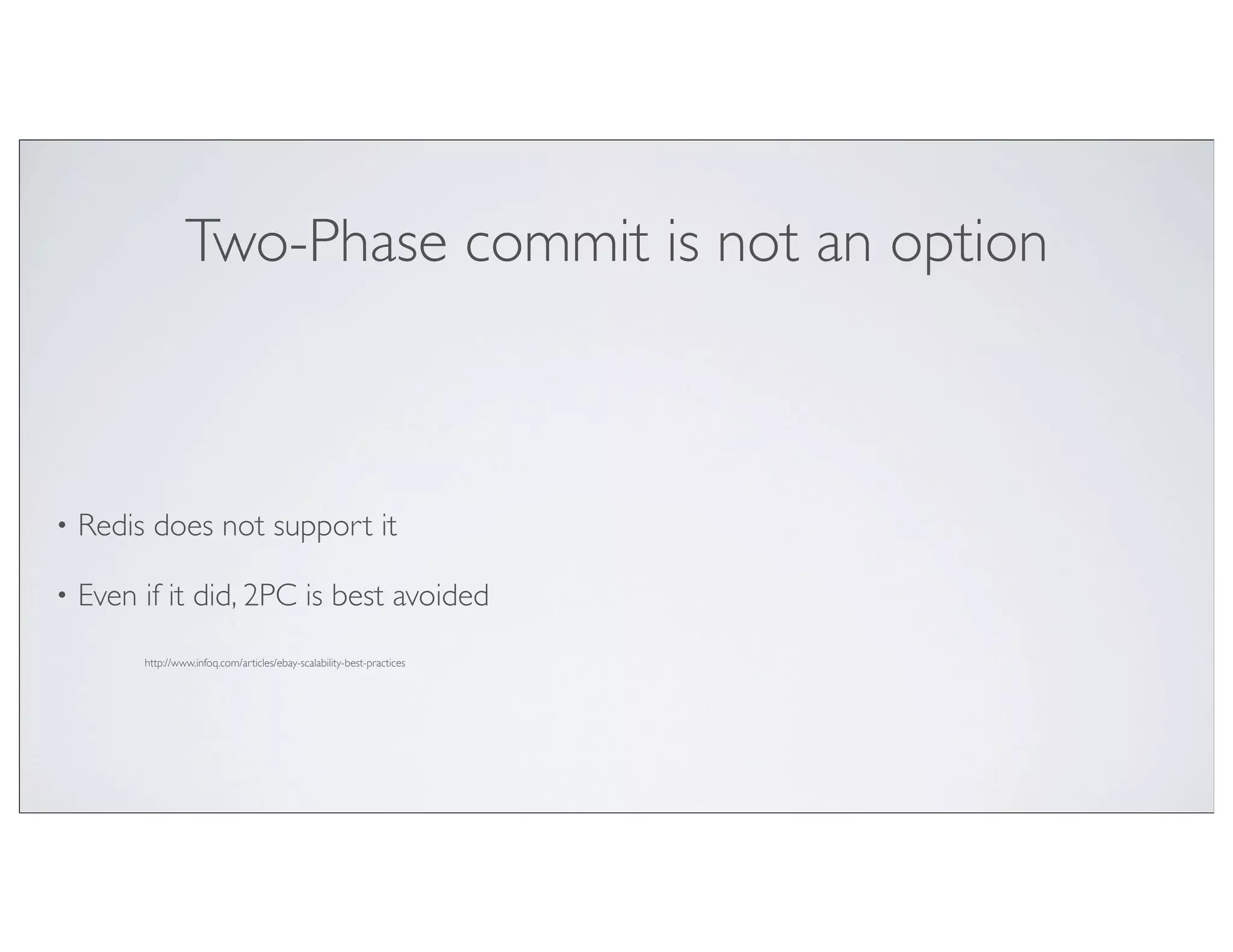

63. Two-Phase commit is not an option
• Redis does not support it
• Even if it did, 2PC is best avoided
http://www.infoq.com/articles/ebay-scalability-best-practices

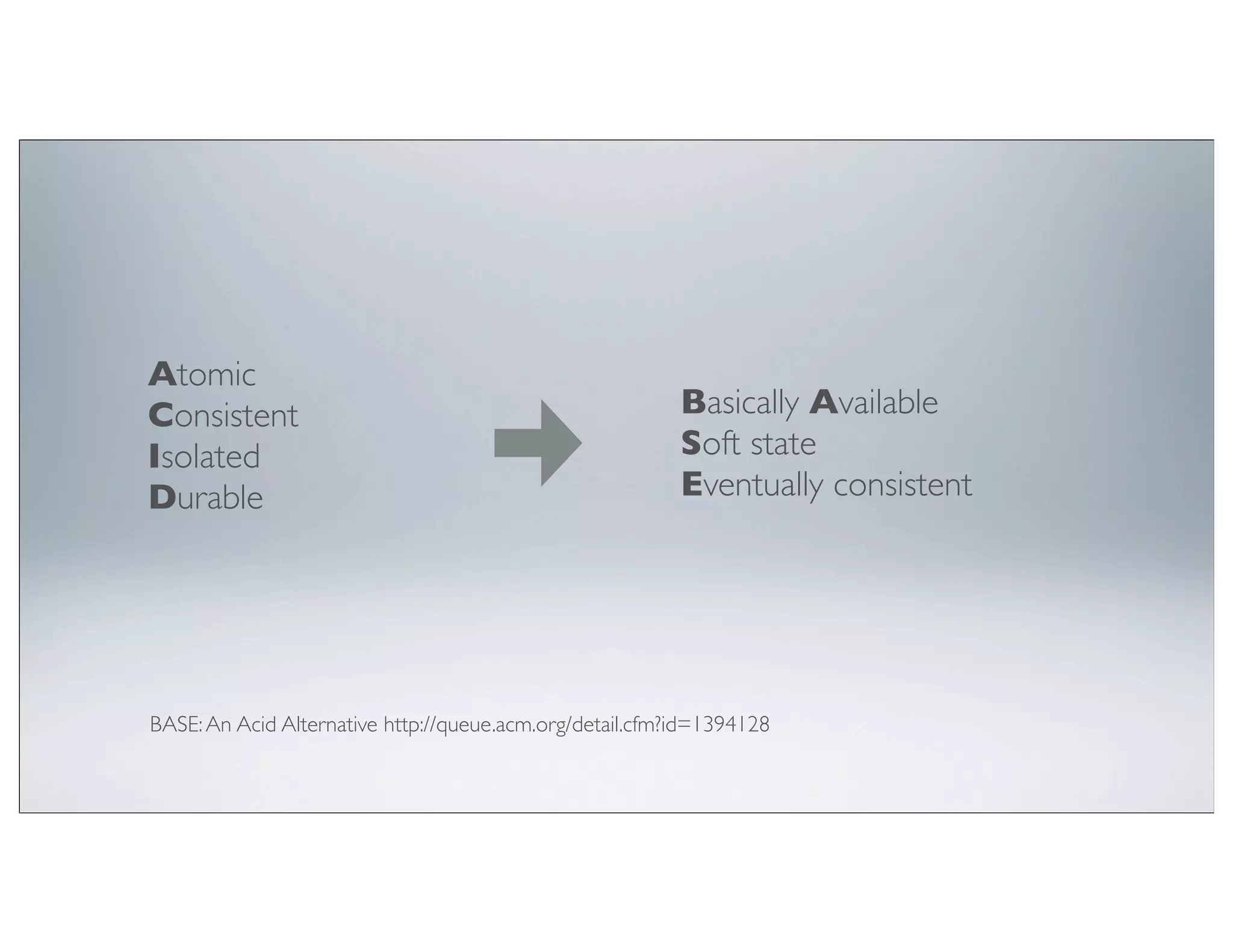

64. Atomic
Consistent Basically Available
Isolated Soft state
Durable Eventually consistent
BASE: An Acid Alternative http://queue.acm.org/detail.cfm?id=1394128

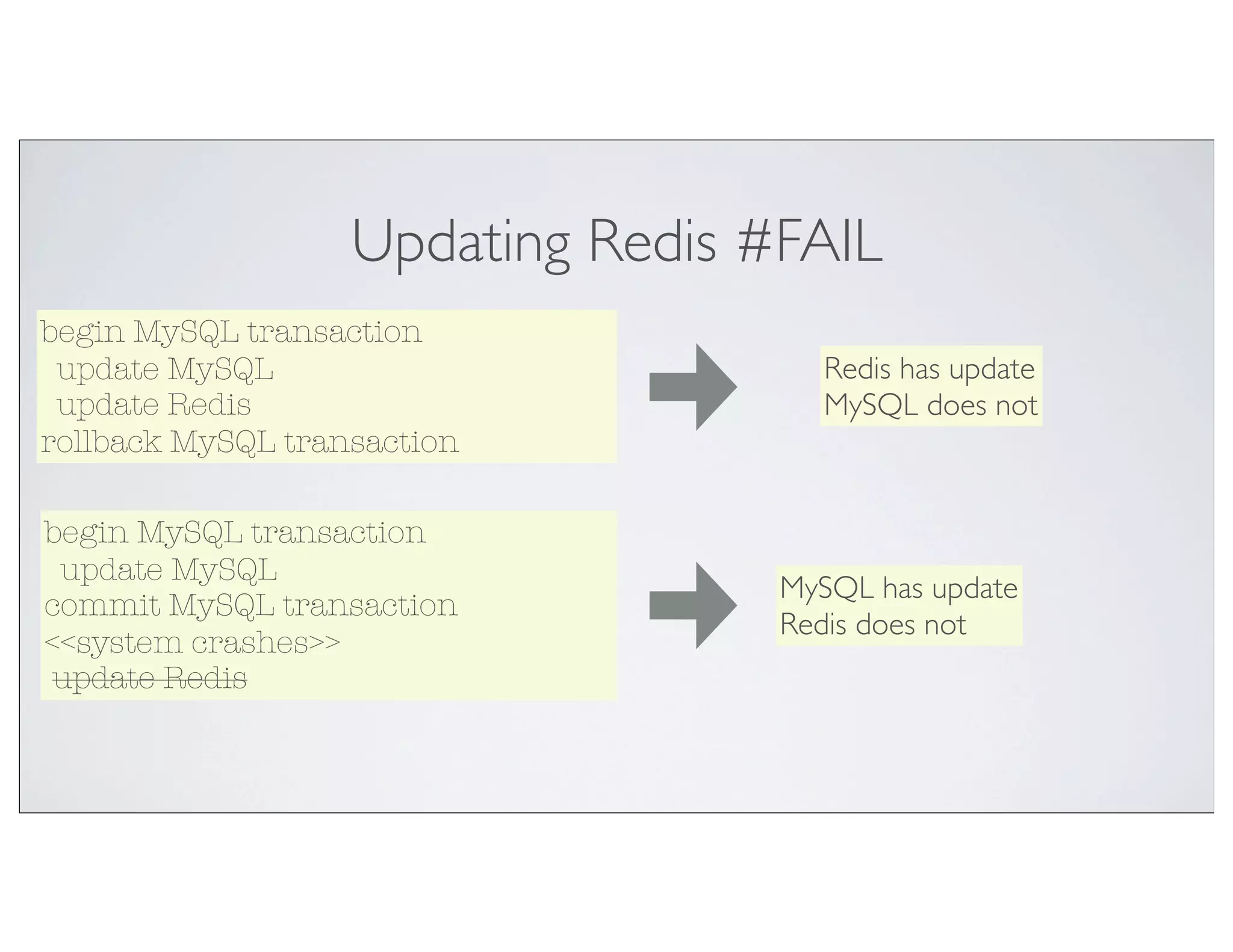

65. Updating Redis #FAIL
begin MySQL transaction
update MySQL Redis has update
update Redis MySQL does not
rollback MySQL transaction
begin MySQL transaction
update MySQL
MySQL has update
commit MySQL transaction
Redis does not
<<system crashes>>
update Redis

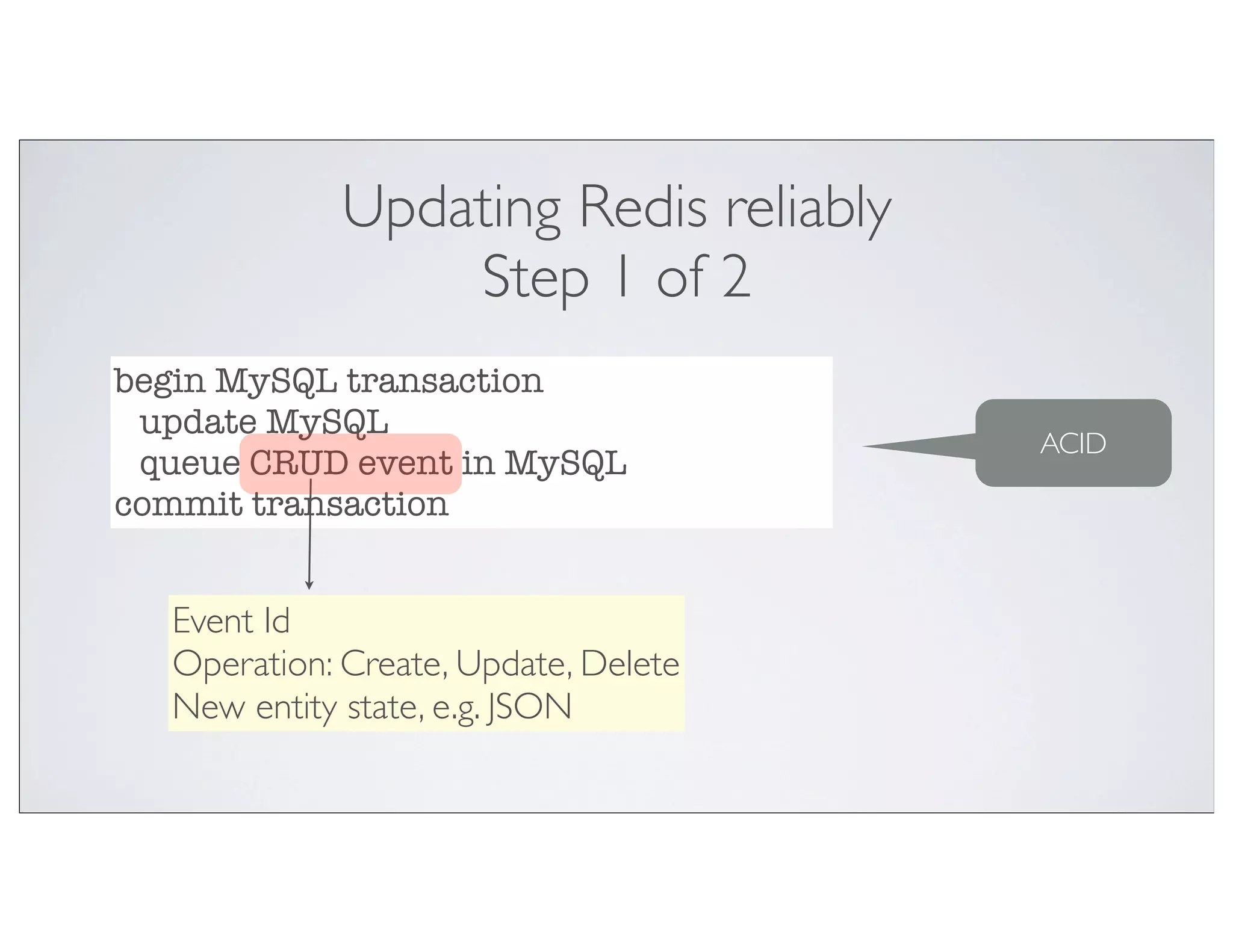

66. Updating Redis reliably
Step 1 of 2
begin MySQL transaction
update MySQL
ACID
queue CRUD event in MySQL
commit transaction
Event Id
Operation: Create, Update, Delete
New entity state, e.g. JSON

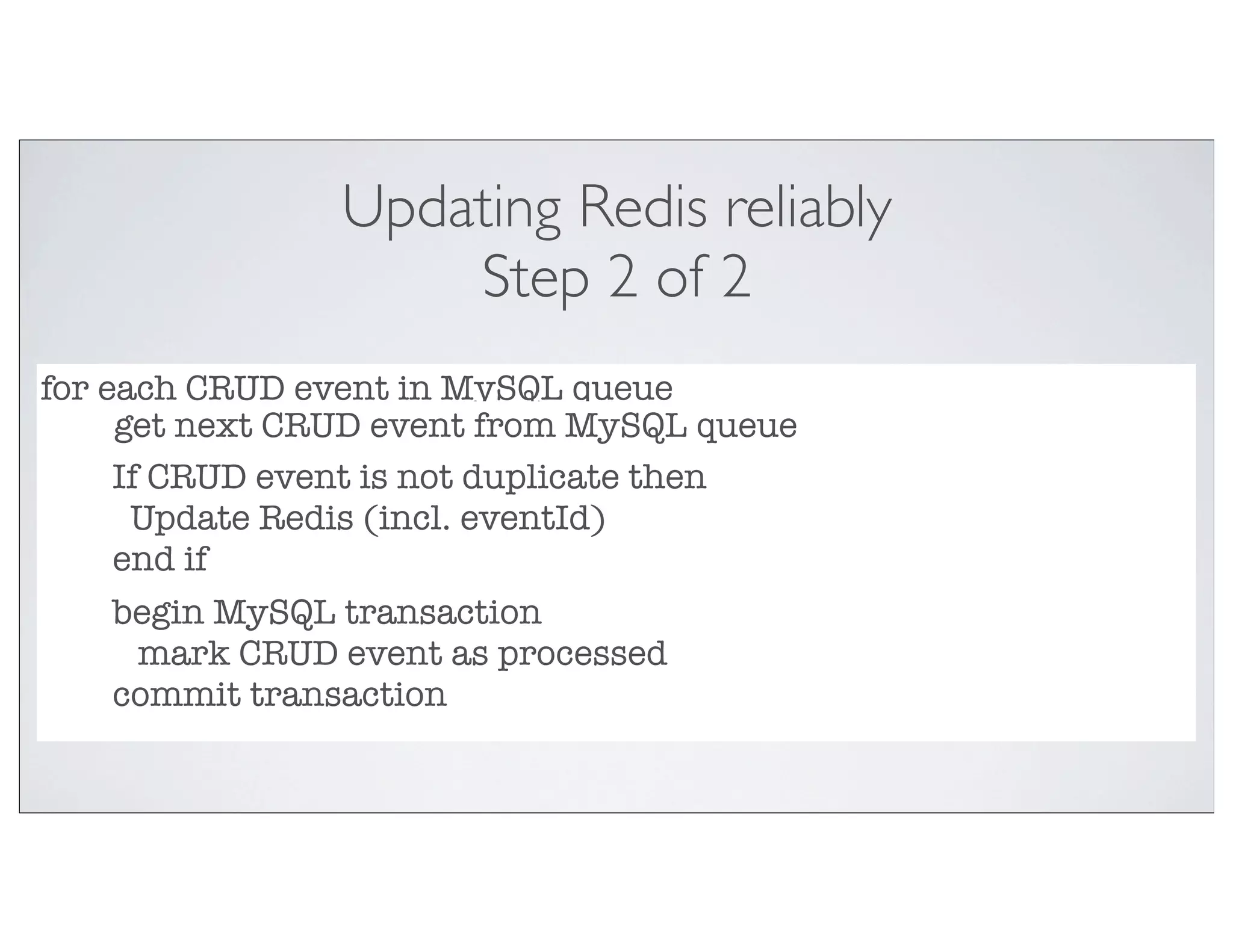

67. Updating Redis reliably
Step 2 of 2
for each CRUD event in MySQL queue
get next CRUD event from MySQL queue
If CRUD event is not duplicate then
Update Redis (incl. eventId)
end if
begin MySQL transaction
mark CRUD event as processed
commit transaction

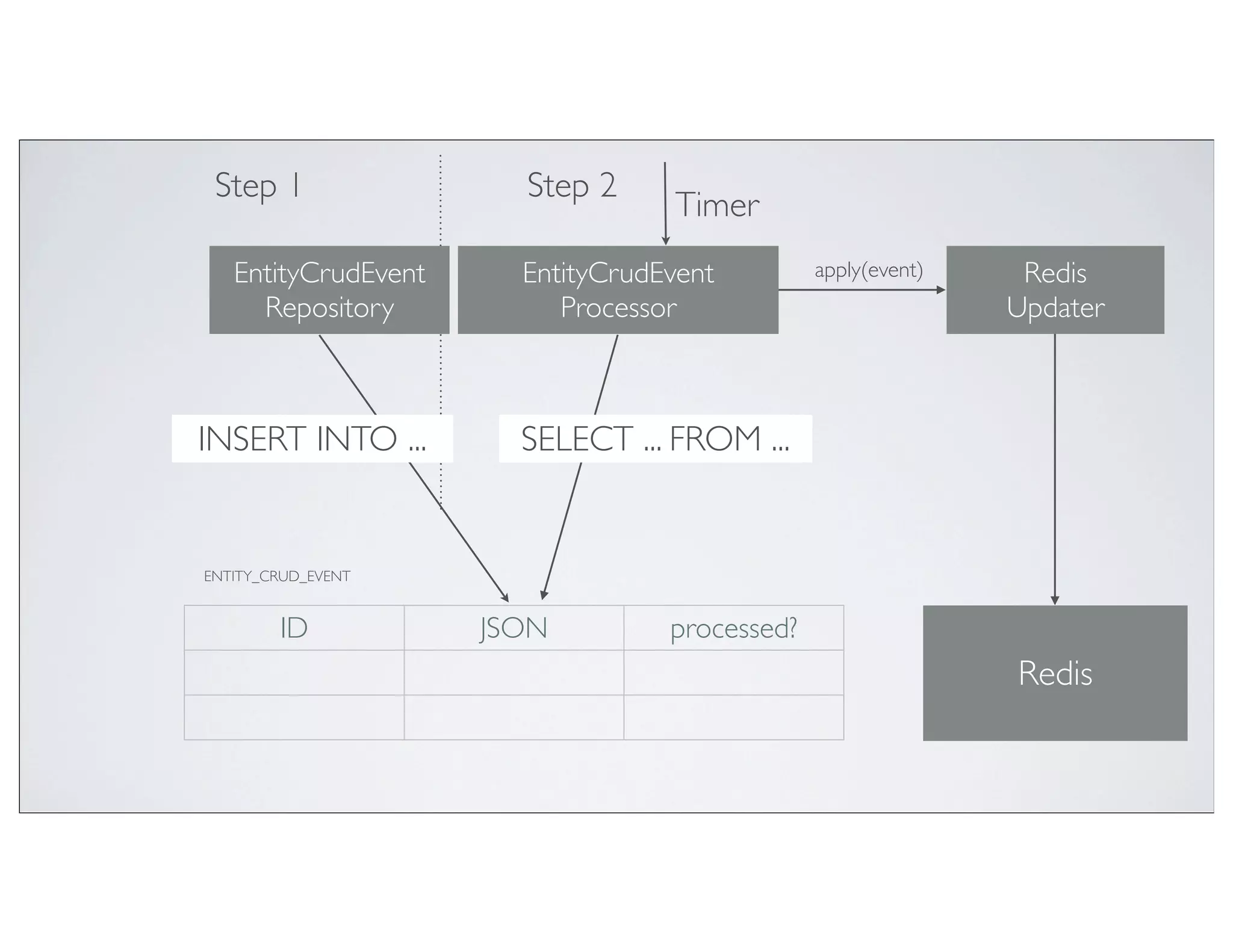

68. Step 1 Step 2
Timer
EntityCrudEvent EntityCrudEvent apply(event) Redis
Repository Processor Updater
INSERT INTO ... SELECT ... FROM ...
ENTITY_CRUD_EVENT
ID JSON processed?
Redis

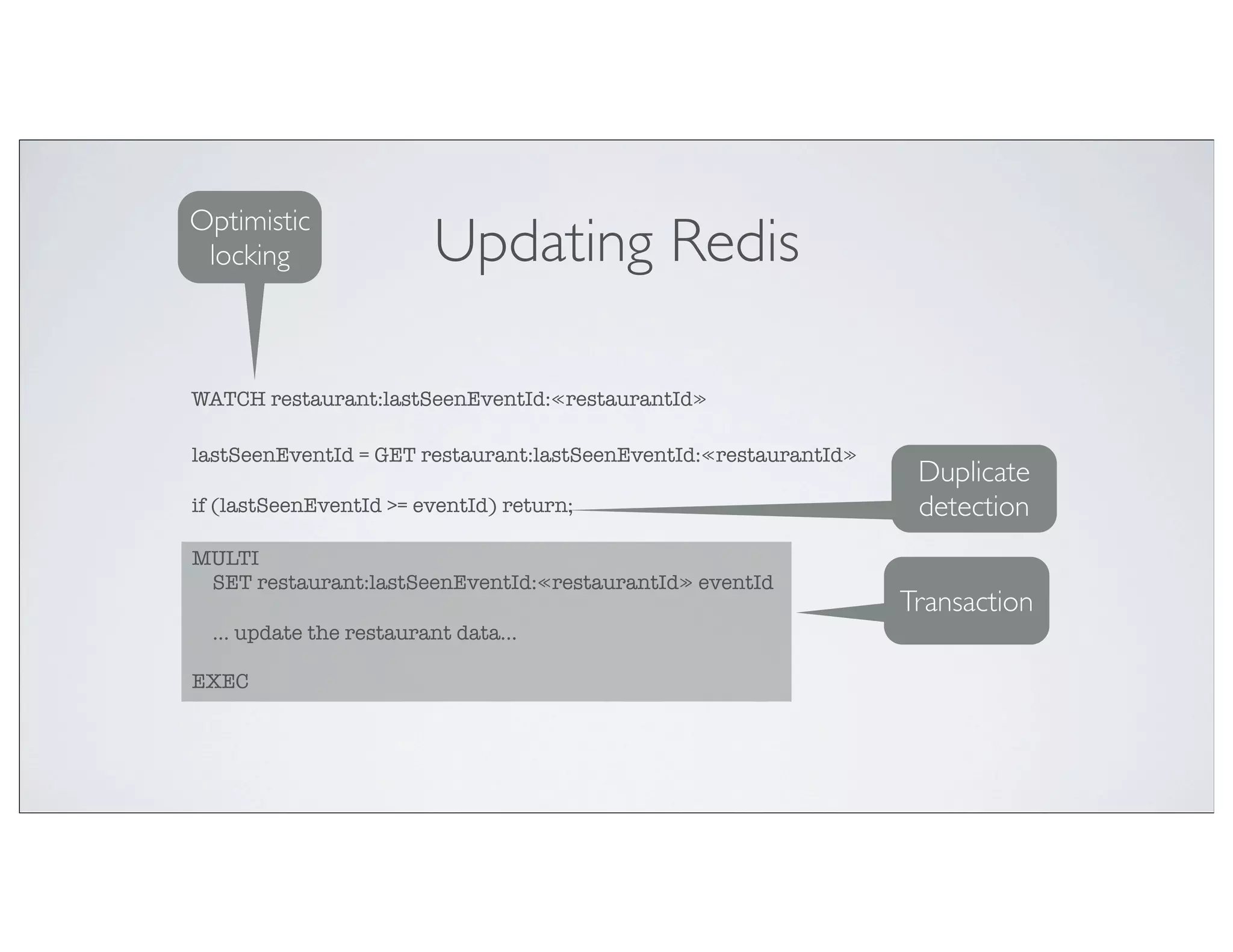

69. Optimistic
locking Updating Redis
WATCH restaurant:lastSeenEventId:≪restaurantId≫
lastSeenEventId = GET restaurant:lastSeenEventId:≪restaurantId≫
Duplicate
if (lastSeenEventId >= eventId) return; detection
MULTI
SET restaurant:lastSeenEventId:≪restaurantId≫ eventId
Transaction
... update the restaurant data...
EXEC

70. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

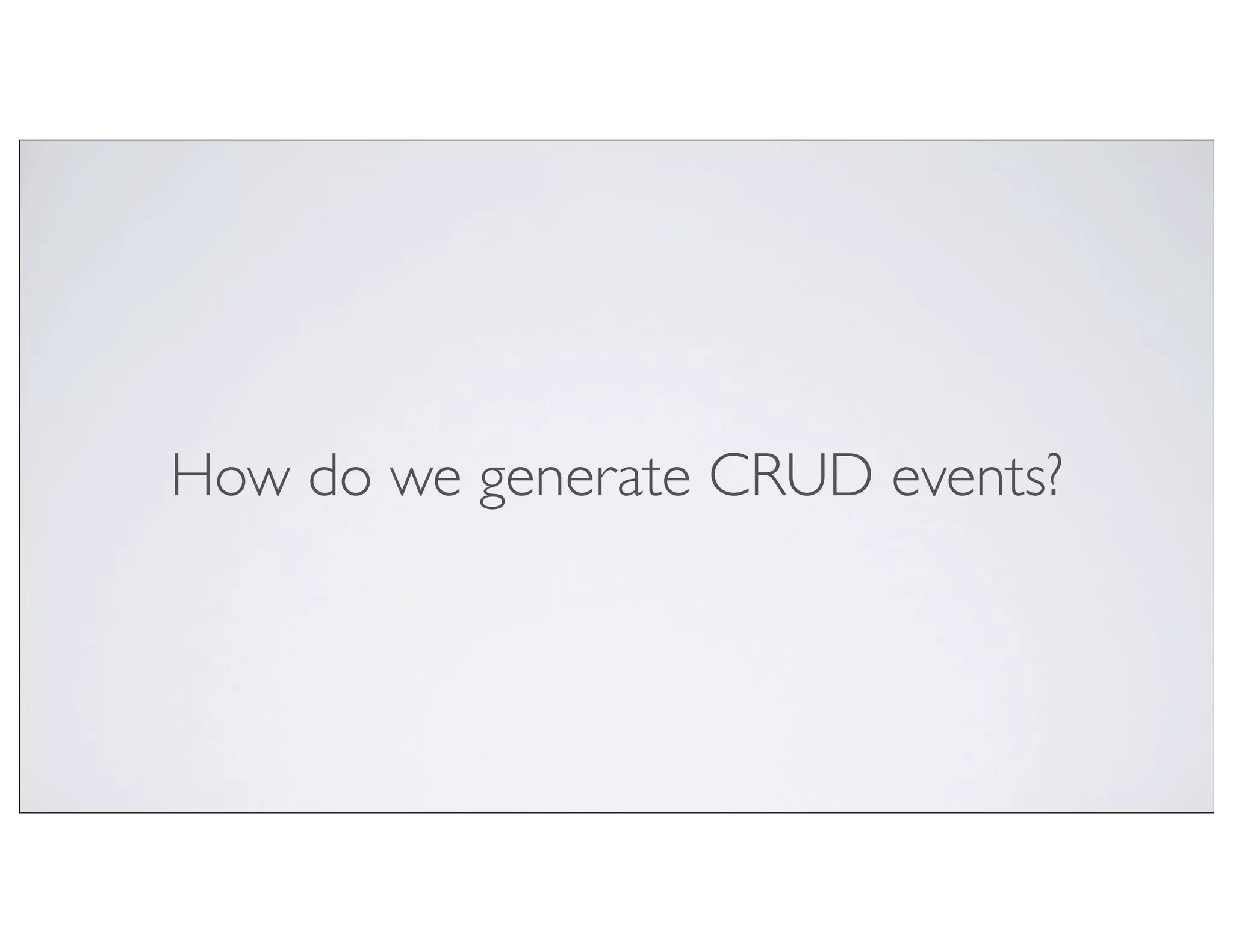

71. How do we generate CRUD events?

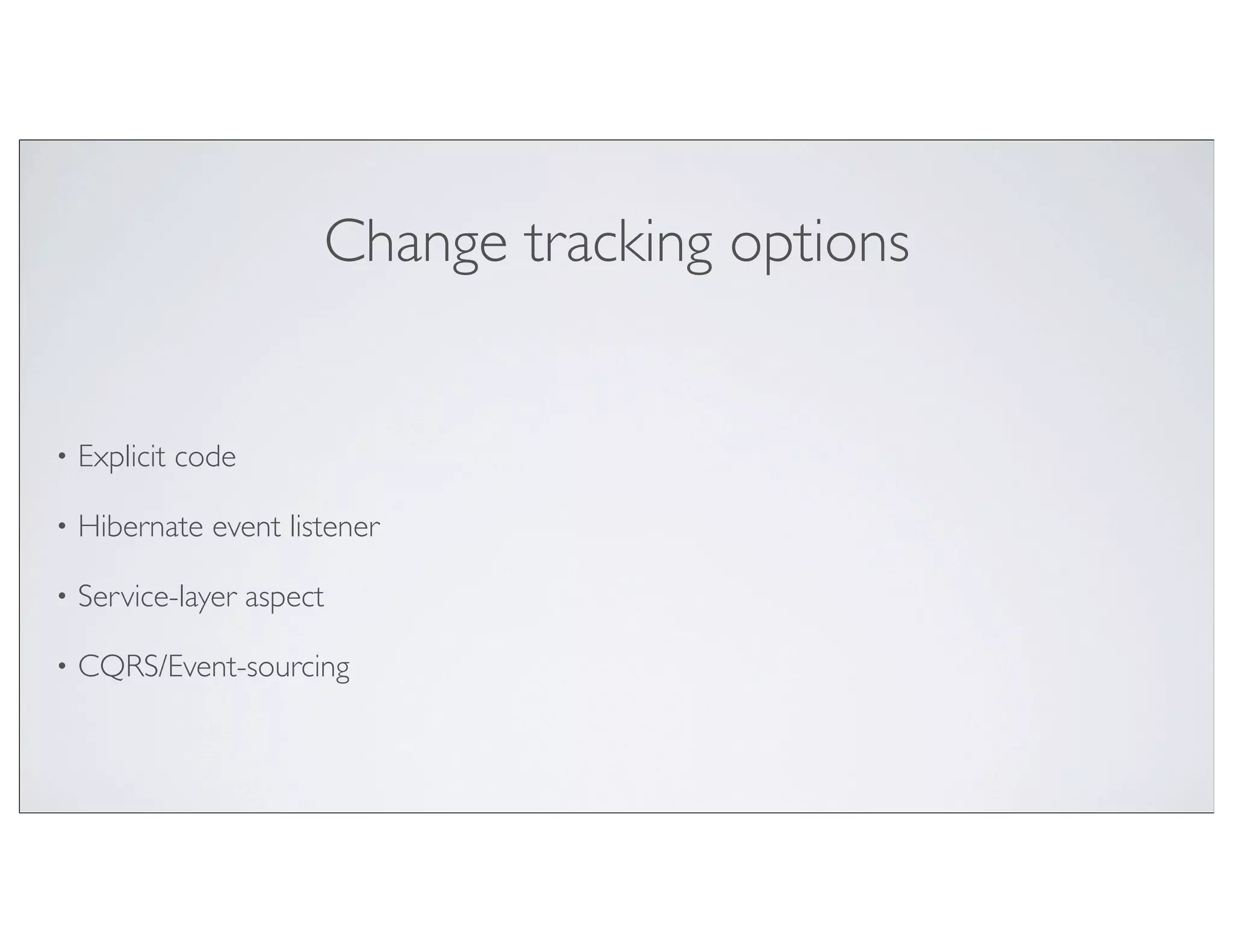

72. Change tracking options
• Explicit code
• Hibernate event listener
• Service-layer aspect
• CQRS/Event-sourcing

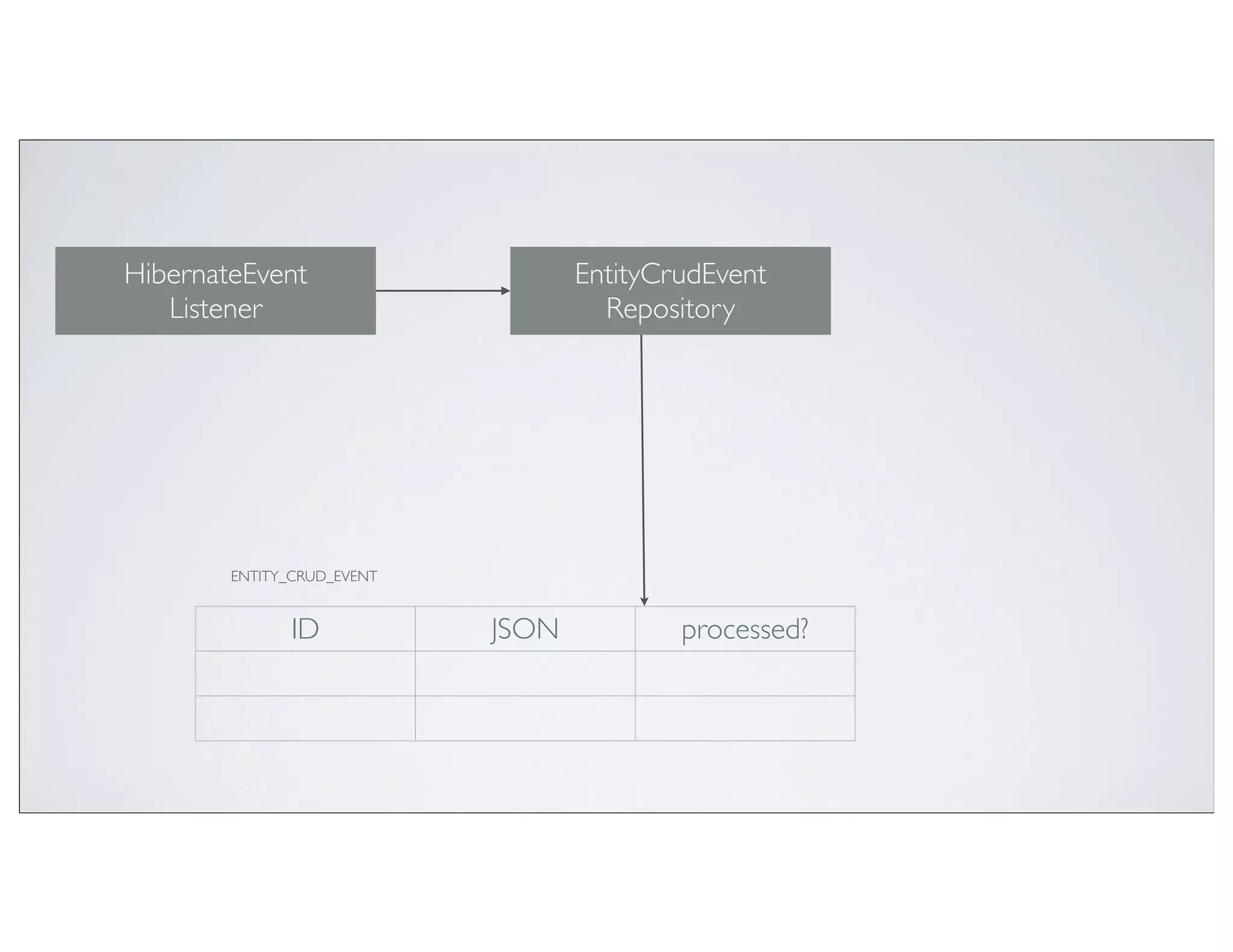

73. HibernateEvent EntityCrudEvent
Listener Repository
ENTITY_CRUD_EVENT
ID JSON processed?

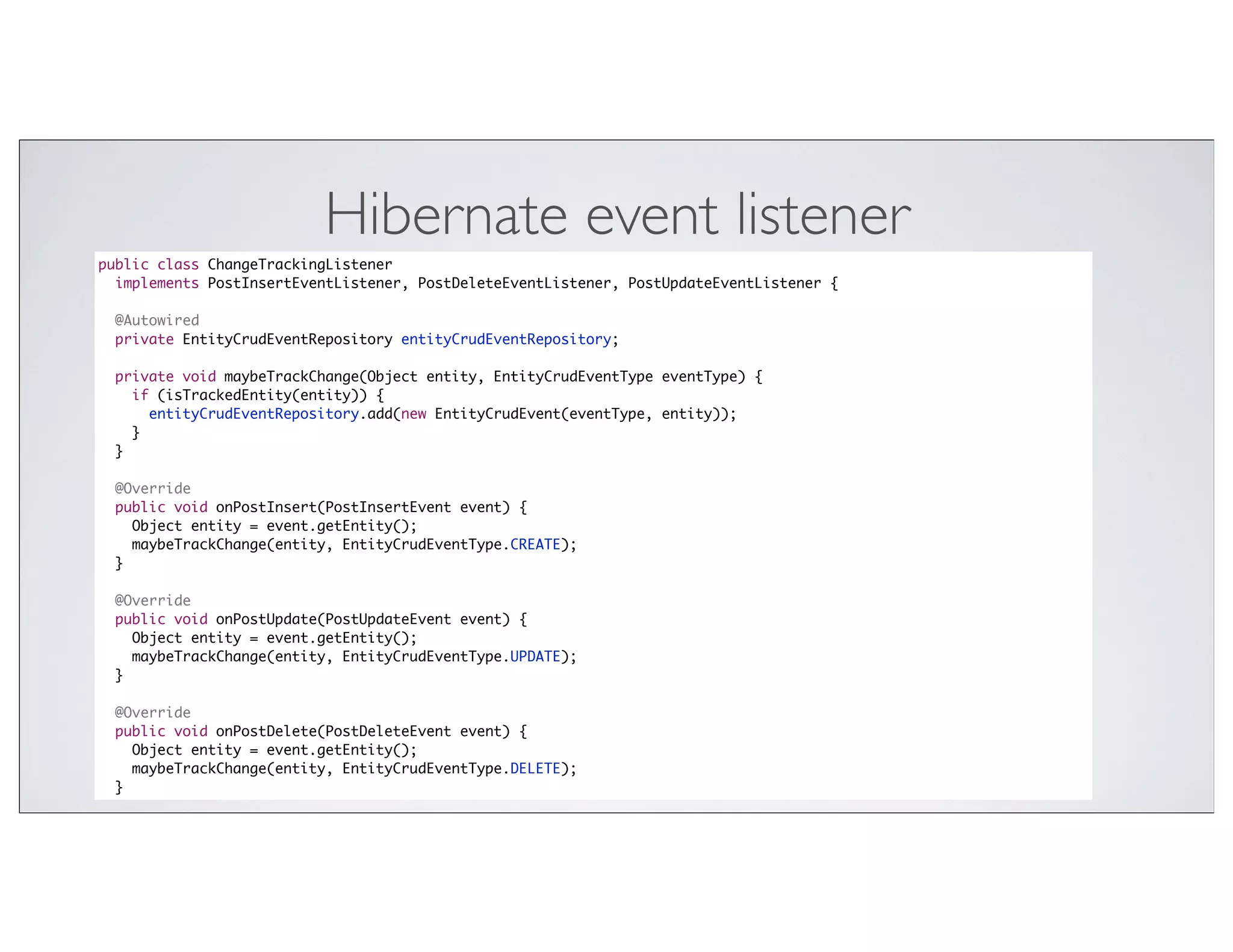

74. Hibernate event listener
public class ChangeTrackingListener
implements PostInsertEventListener, PostDeleteEventListener, PostUpdateEventListener {
@Autowired
private EntityCrudEventRepository entityCrudEventRepository;
private void maybeTrackChange(Object entity, EntityCrudEventType eventType) {
if (isTrackedEntity(entity)) {
entityCrudEventRepository.add(new EntityCrudEvent(eventType, entity));
}
}
@Override
public void onPostInsert(PostInsertEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.CREATE);
}
@Override
public void onPostUpdate(PostUpdateEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.UPDATE);
}
@Override
public void onPostDelete(PostDeleteEvent event) {
Object entity = event.getEntity();
maybeTrackChange(entity, EntityCrudEventType.DELETE);
}

75. Agenda
• Why polyglot persistence?
• Using Redis as a cache
• Optimizing queries using Redis materialized views
• Synchronizing MySQL and Redis
• Tracking changes to entities
• Using a modular asynchronous architecture

76. Original architecture
WAR
Restaurant
Management
...

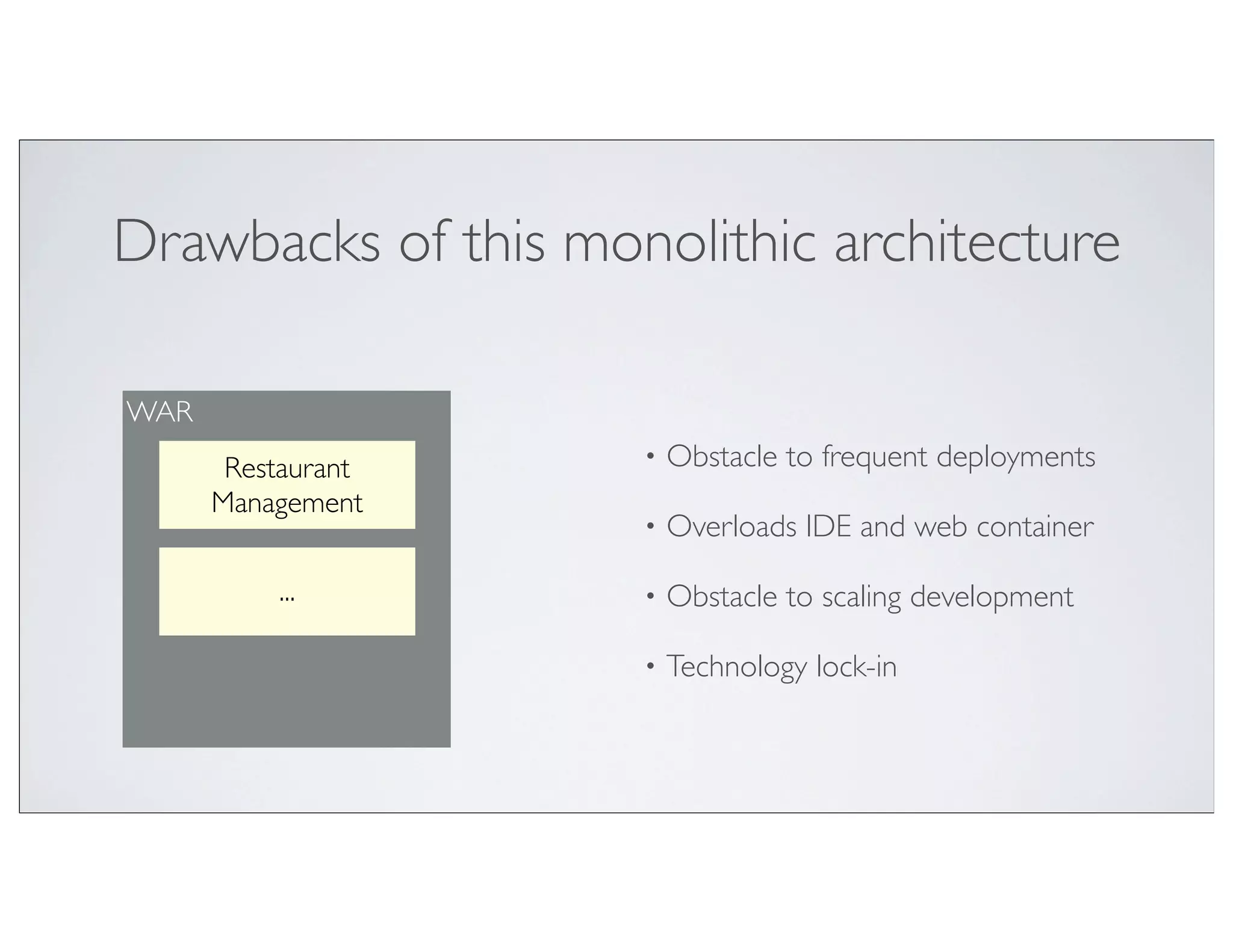

77. Drawbacks of this monolithic architecture
WAR
Restaurant • Obstacle to frequent deployments
Management
• Overloads IDE and web container
... • Obstacle to scaling development
• Technology lock-in

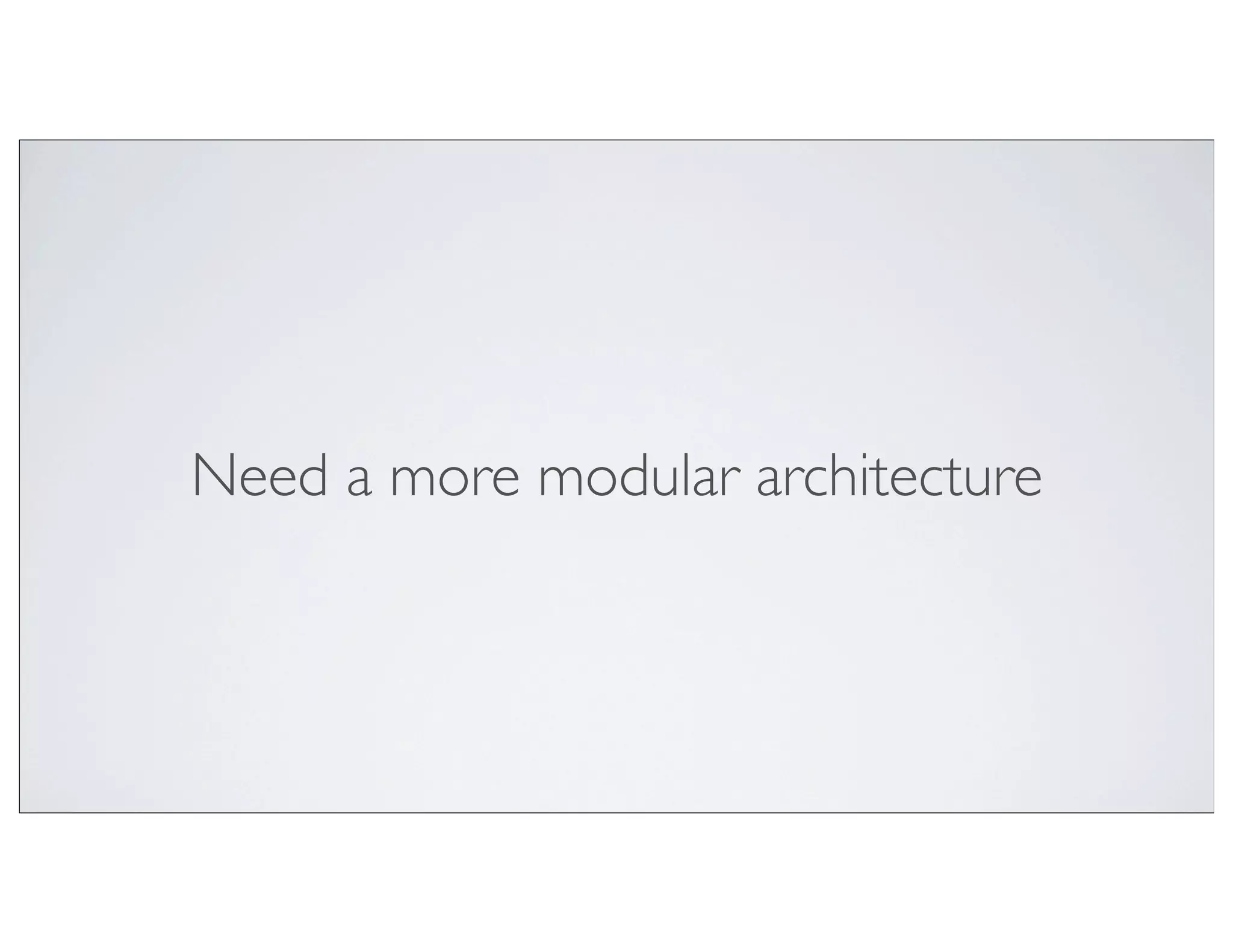

78. Need a more modular architecture

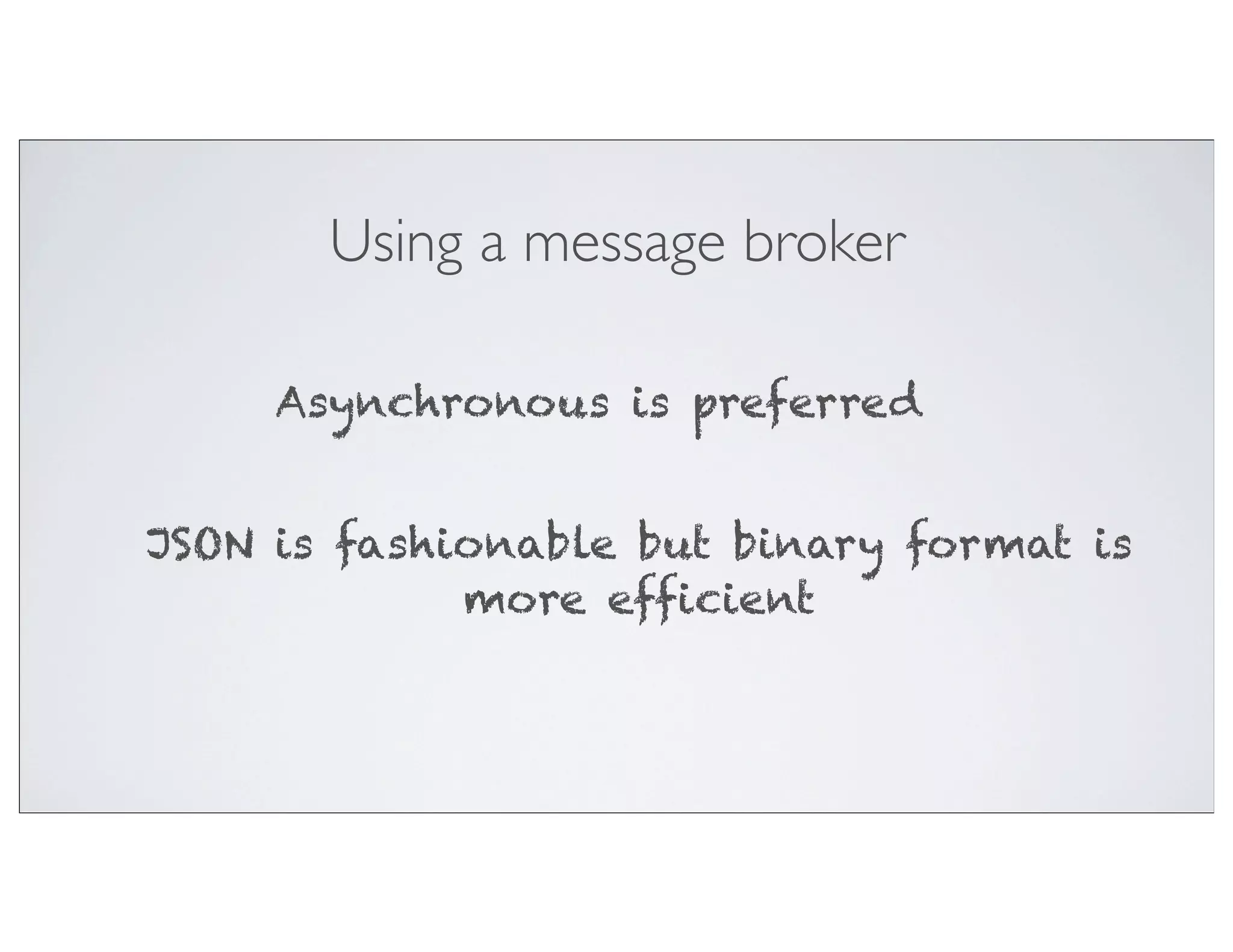

79. Using a message broker
Asynchronous is preferred
JSON is fashionable but binary format is
more efficient

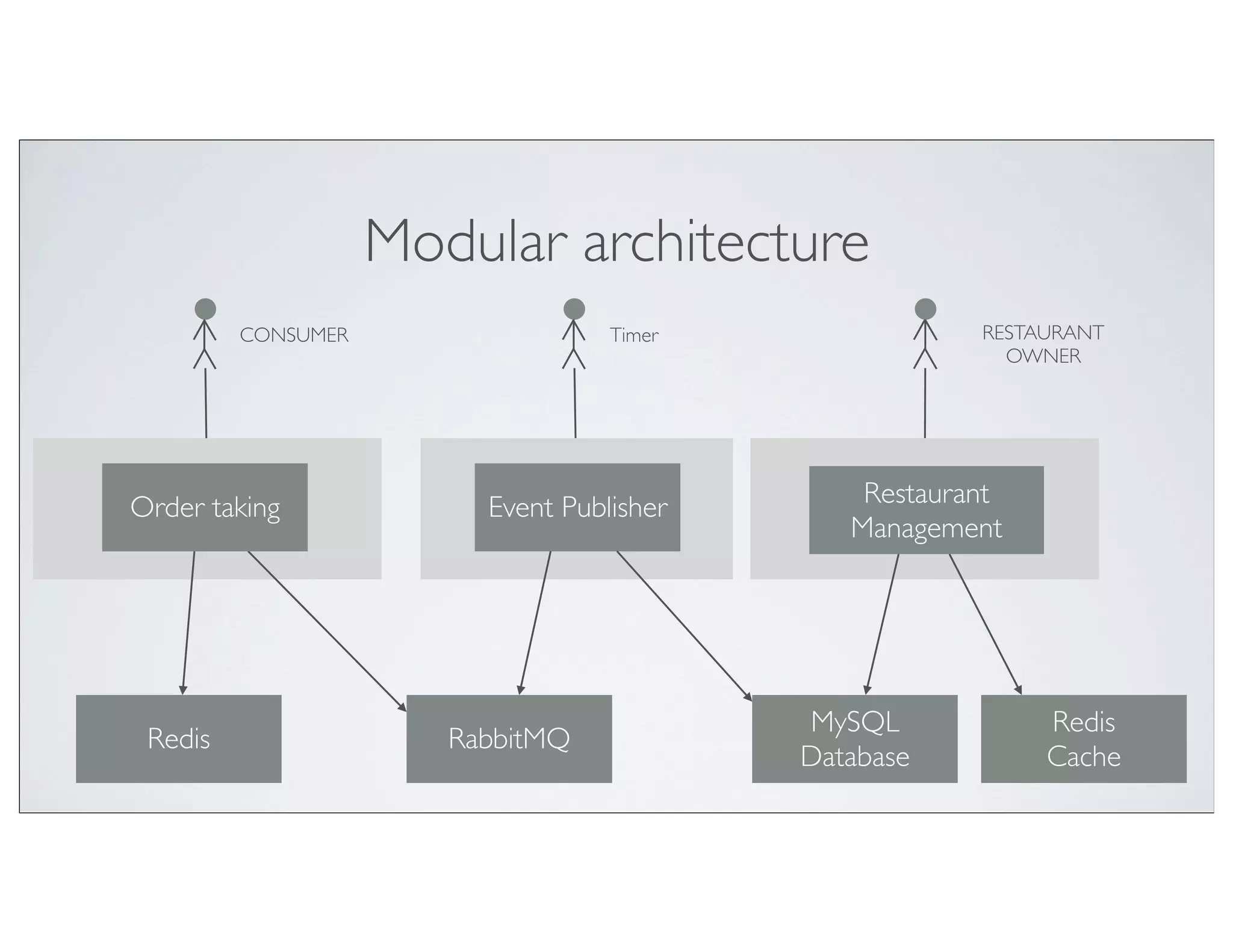

80. Modular architecture
CONSUMER Timer RESTAURANT
OWNER
Order taking Event Publisher Restaurant
Management
MySQL Redis
Redis RabbitMQ
Database Cache

81. Benefits of a modular asynchronous
architecture
• Scales development: develop, deploy and scale each service independently
• Redeploy UI frequently/independently
• Improves fault isolation
• Eliminates long-term commitment to a single technology stack
• Message broker decouples producers and consumers

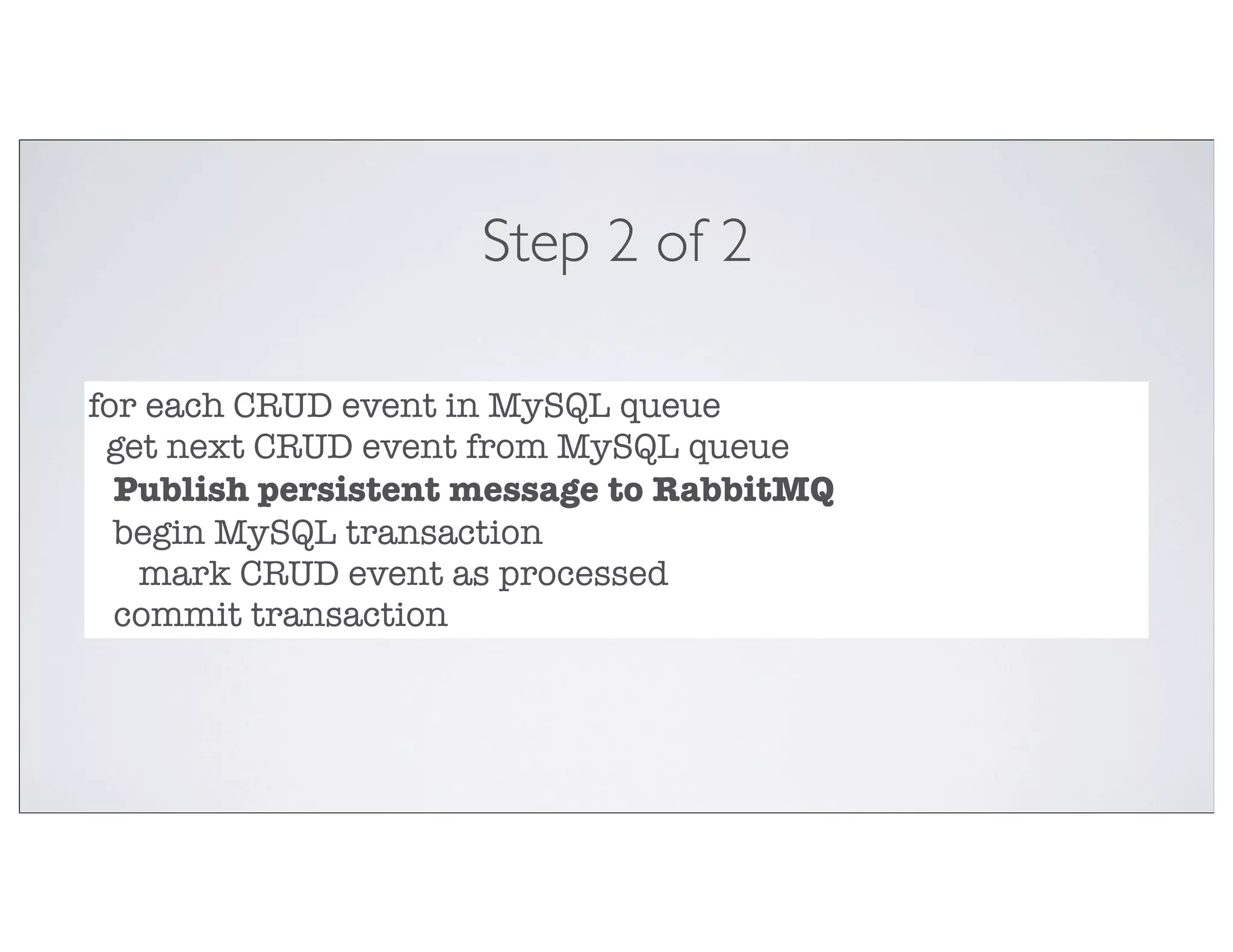

82. Step 2 of 2
for each CRUD event in MySQL queue
get next CRUD event from MySQL queue
Publish persistent message to RabbitMQ
begin MySQL transaction
mark CRUD event as processed
commit transaction

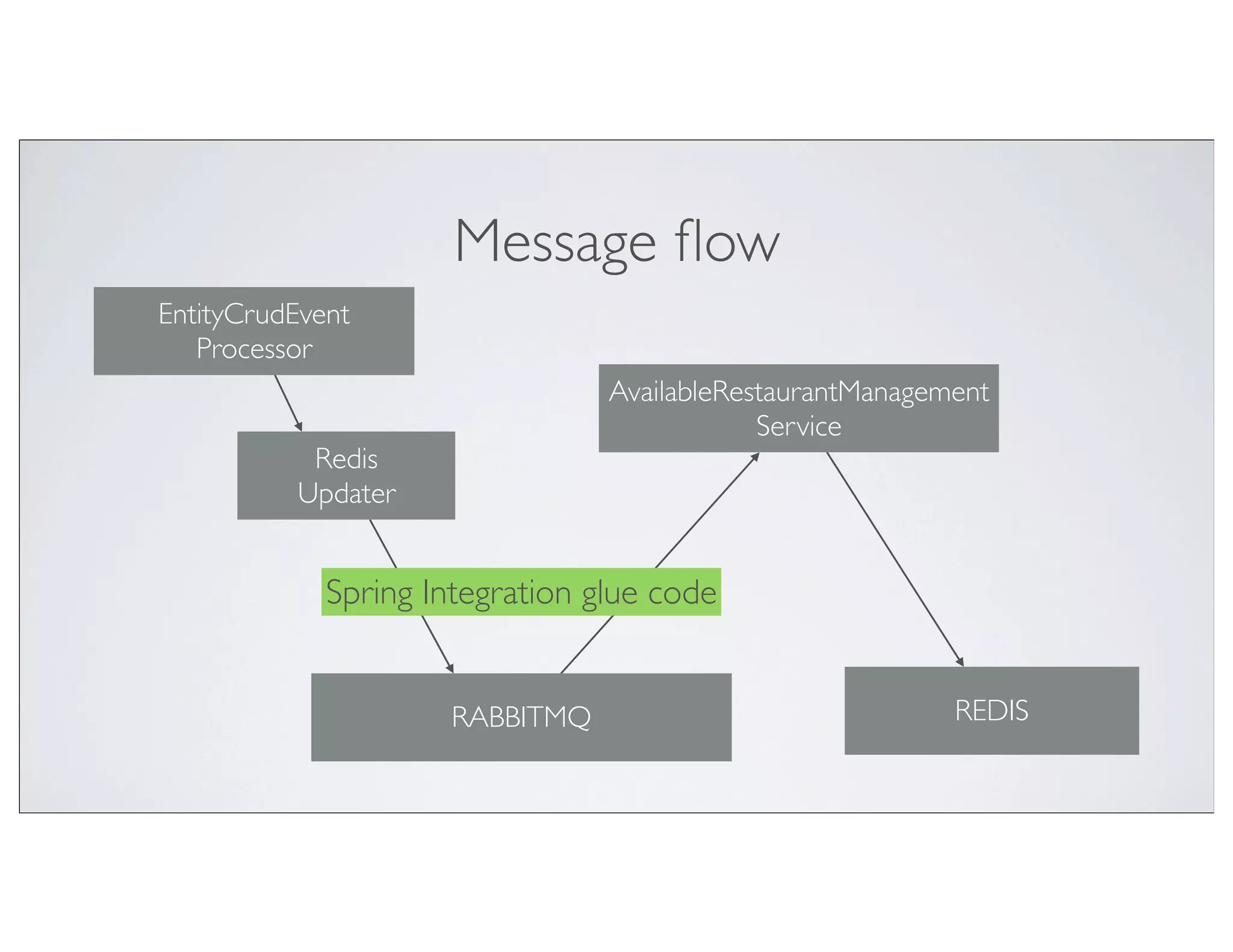

83. Message flow
EntityCrudEvent
Processor
AvailableRestaurantManagement
Service
Redis
Updater
Spring Integration glue code
RABBITMQ REDIS

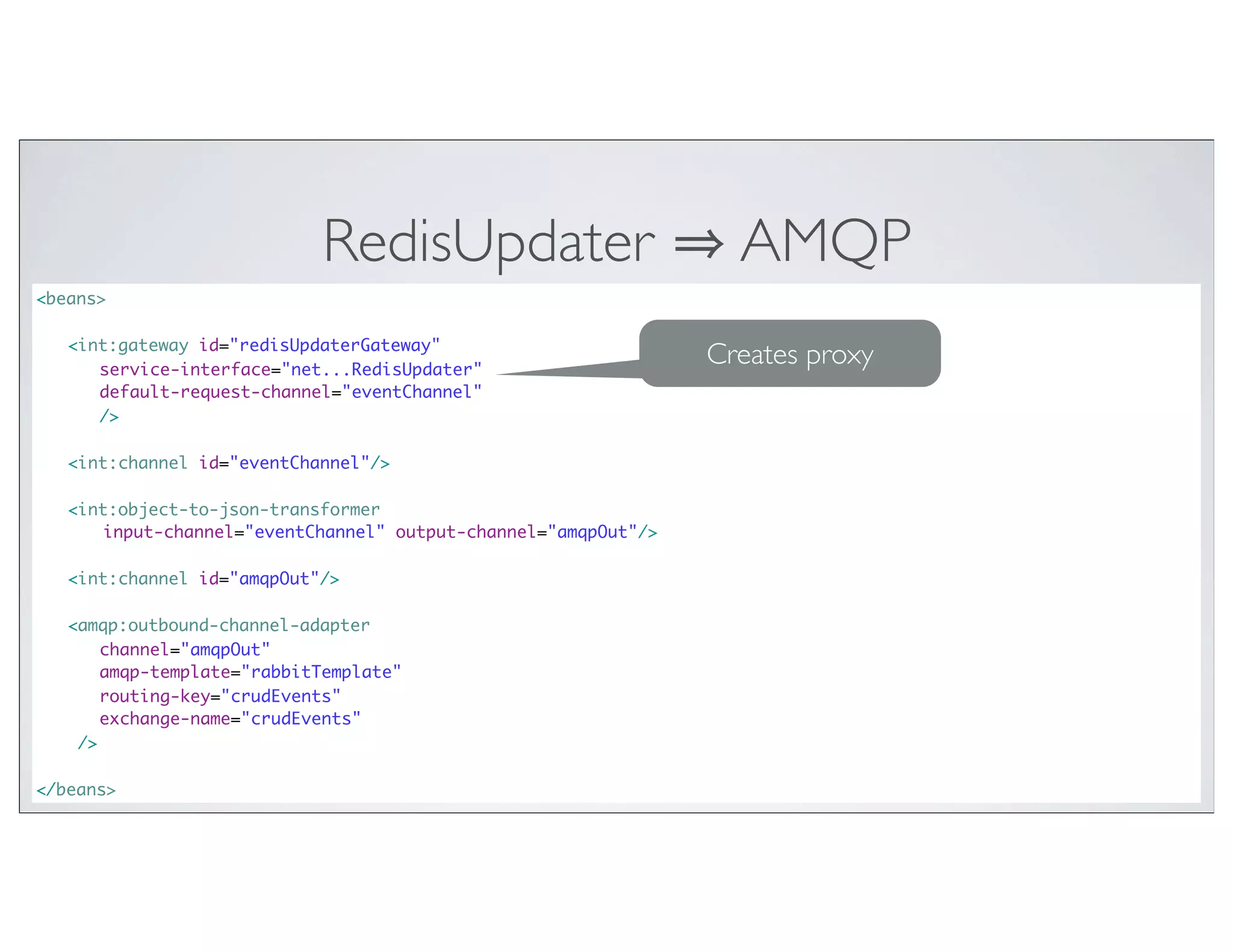

84. RedisUpdater AMQP
<beans>
<int:gateway id="redisUpdaterGateway"
service-interface="net...RedisUpdater"
Creates proxy
default-request-channel="eventChannel"
/>
<int:channel id="eventChannel"/>
<int:object-to-json-transformer
input-channel="eventChannel" output-channel="amqpOut"/>
<int:channel id="amqpOut"/>
<amqp:outbound-channel-adapter
channel="amqpOut"
amqp-template="rabbitTemplate"
routing-key="crudEvents"
exchange-name="crudEvents"
/>
</beans>

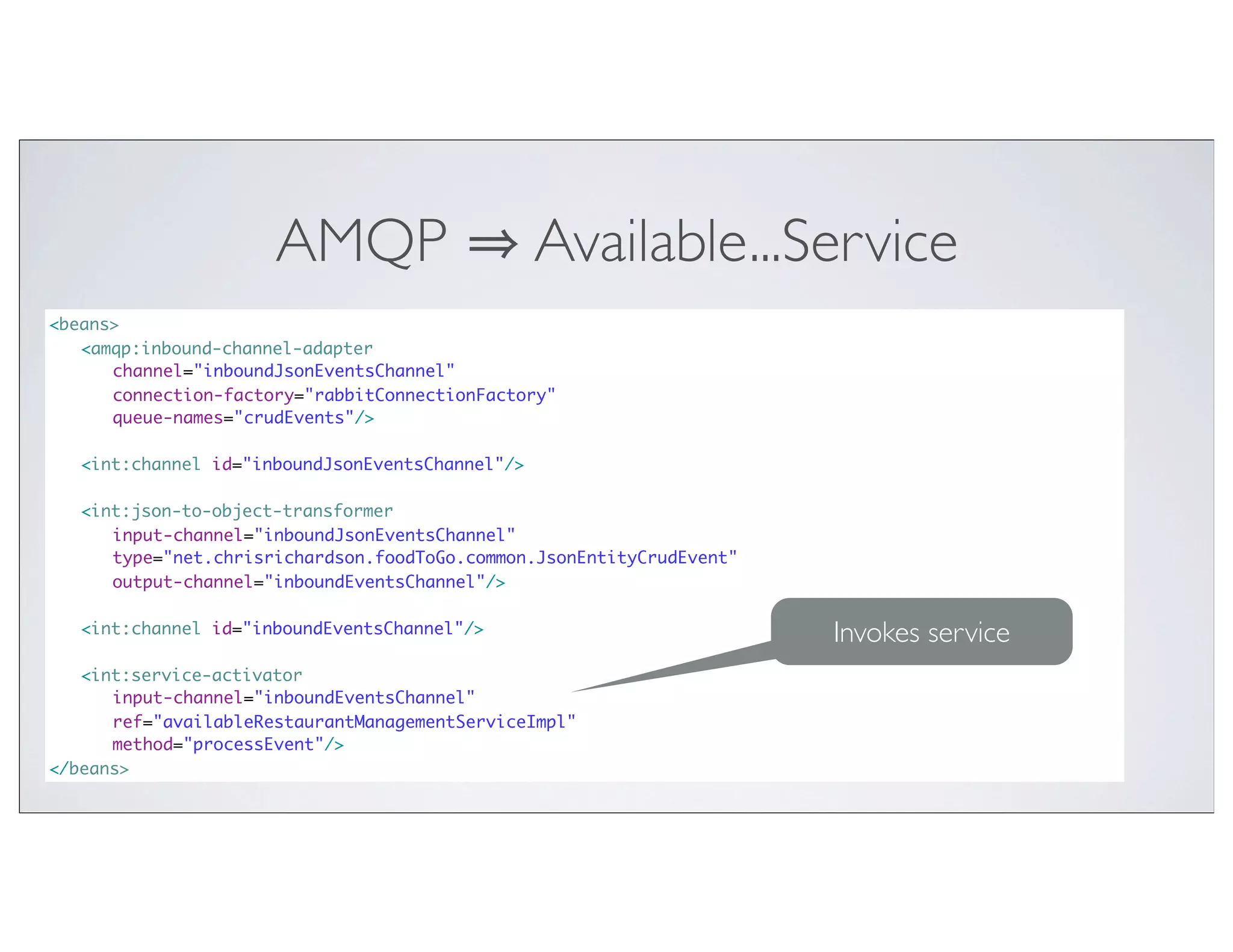

85. AMQP Available...Service
<beans>
<amqp:inbound-channel-adapter
channel="inboundJsonEventsChannel"
connection-factory="rabbitConnectionFactory"
queue-names="crudEvents"/>
<int:channel id="inboundJsonEventsChannel"/>
<int:json-to-object-transformer
input-channel="inboundJsonEventsChannel"
type="net.chrisrichardson.foodToGo.common.JsonEntityCrudEvent"
output-channel="inboundEventsChannel"/>
<int:channel id="inboundEventsChannel"/> Invokes service
<int:service-activator
input-channel="inboundEventsChannel"
ref="availableRestaurantManagementServiceImpl"
method="processEvent"/>
</beans>

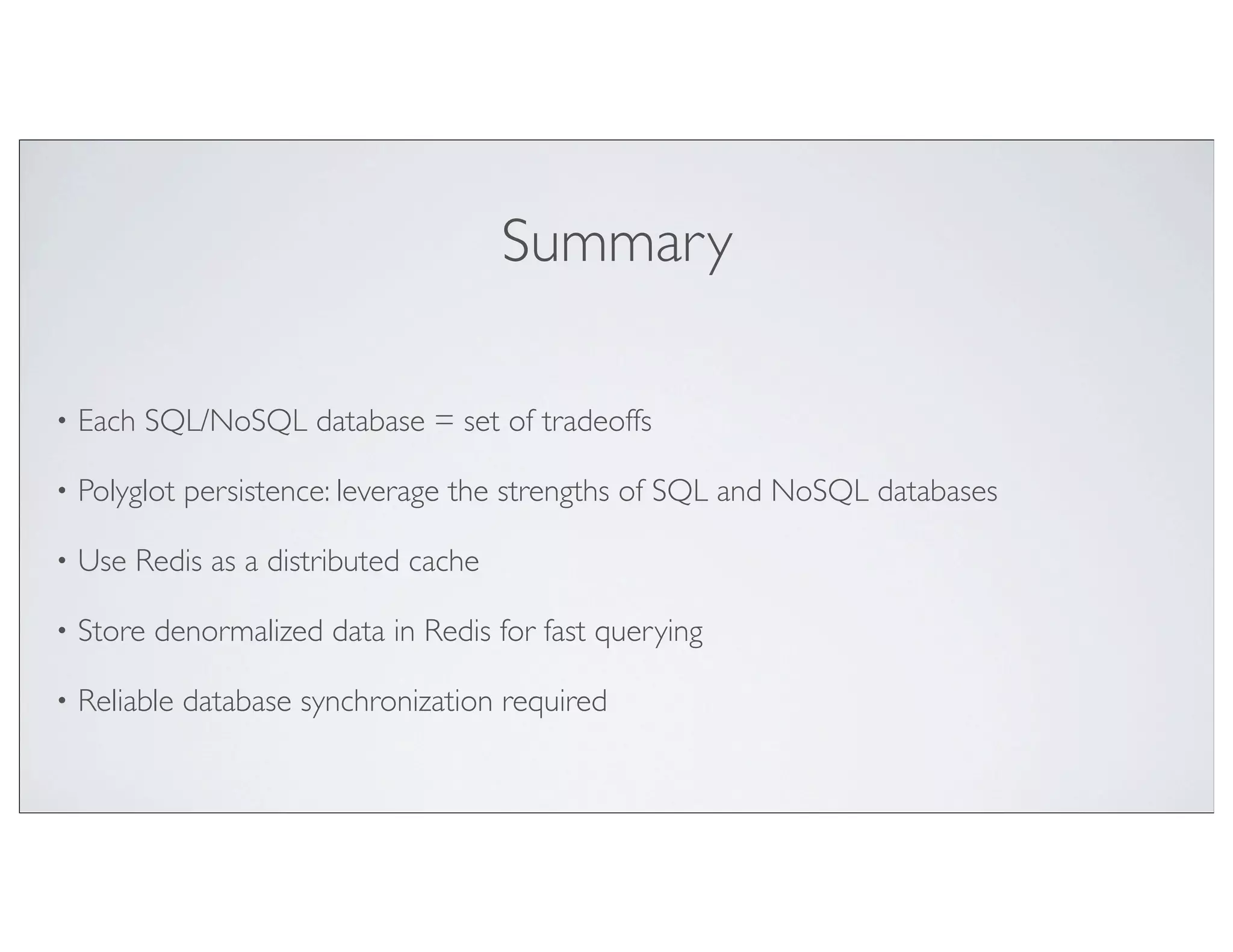

86. Summary
• Each SQL/NoSQL database = set of tradeoffs
• Polyglot persistence: leverage the strengths of SQL and NoSQL databases
• Use Redis as a distributed cache
• Store denormalized data in Redis for fast querying
• Reliable database synchronization required

87. @crichardson chris.richardson@springsource.com
http://plainoldobjects.com
Questions?
Sign up for CloudFoundry.com

88. Cloud Foundry 启动营
在www.cloudfoundry.com注册账号并成功上传应用程序，
即可于12月8日中午后凭账号ID和应用URL到签到处换取Cloud Foundry主题卫衣一件。
88

89. iPhone5 等你拿
第二天大会结束前，请不要提前离 ，将填写完整的意见反馈表投到签到处的抽奖箱内，
即可参与“iPhone5”抽奖活动。
89

90. Birds of a Feather 专家面对面
所有讲师都会在课程结束后，到紫兰厅与来宾讨论课程上的问题
90
