Technical overview of three of the most representative KeyValue Stores: Cassandra, Redis and CouchDB. Focused on Ruby and Ruby on Rails developement, this talk shows how to solve common problems, the most popular libraries, benchmarking and the best use case for each one of them. This talk was part of the Conferencia Rails 2009, Madrid, Spain. http://app.conferenciarails.org/talks/43-key-value-stores-conviertete-en-un-jedi-master

1. KeyValue Stores
Jedi Master Edition

2. Who?
Antonio Garrote
@antoniogarrote
Mauro Pompilio
@malditogeek
Pablo Delgado
@pablete

3. Agenda
•Why?
•Definitions
•CouchDB
•Redis
•Cassandra
•Ruby Libraries
•Demo application
•Data modeling
•Benchmark

4. Why?
•Scalability
•Availability
•Fault Tolerance
•Schema-free
•Ease of use
•Performance
•Elasticity
•blah blah blah

5. NO
silver bullet!

6. NoSQL != NoSQL
No SQL Not Only SQL

7. Taxonomy
•Key-value stores:
Redis, Voldemort, Cassandra
•Column-oriented datastores:
Cassandra, HBase
•Document collection databases:
CouchDB, MongoDB
•Graph database:
Neo4J, AllegroGraph
•Data structure store:
Redis

8. CouchDB
relax!
•Damien Katz
•Erlang - OTP compliant
•schema-less documents
•high availability
•completely distributed
•made for the web

9. CouchDB
B-Trees . MapReduce . MVCC

10. Ruby Libraries
•CouchDB
•Pure: net/http + JSON implementation
•Thin wrapper: Couchrest
http://github.com/jchris/couchrest
•ORM/ActiveRecord: ActiveCouch,
CouchObject, RelaxDB ..etc
http://github.com/arunthampi/activecouch
http://github.com/paulcarey/relaxdb

11. CouchDB
•Rocks
•Simplicity and elegance
•Much more than a DB
•New possibilities for web apps
•Sucks
•Speed
•Speed
•Speed

12. Redis
il meglio d'Italia
classy as a tasty as
Giulietta a pizza

13. Redis
•Salvatore 'antirez' Sanfilippo
•ANSI C - POSIX compliant
•MemCache-like (on steroids)
•Data structures store:
•strings
•counters
•lists
•sets + sorted sets (>= 1.1)

14. Ruby Libraries
•Redis
•Client: redis-rb
http://github.com/ezmobius/redis-rb
•Hash/Object mapper: Ohm
http://github.com/soveran/ohm
•ORM: RedisRecord
http://github.com/malditogeek/redisrecord

15. Redis
require 'redis'
redis = Redis.new
# Strings
redis['foo'] = 'bar' # => 'bar'
redis['foo'] # => 'bar'
# Expirations
redis.expire('foo', 5) # will expire existing key 'foo' in 5 sec
redis.set('foo', 'bar', 5) # set 'foo' with 5 sec expiration
# Counters
redis.incr('counter') # => 1
redis.incr('counter', 10) # => 11
redis.decr('counter') # => 10

16. Redis
# Lists
%w(1st 2nd 3rd).each { |item| redis.push_tail('logs', item) }
redis.list_range('logs', 0, -1) # => ["1st", "2nd", "3rd"]
redis.pop_head('logs') # => "1st"
redis.pop_tail('logs') # => "3rd"
# Sets
%w(one two).each { |item| redis.set_add('foo-tags', item) }
%w(two three).each { |item| redis.set_add('bar-tags', item) }
redis.set_intersect('foo-tags', 'bar-tags') # => ["two"]
redis.set_union('foo-tags', 'bar-tags') # => ["three", "two",
"one"]

17. Redis
•Rocks
•Speed, in memory dataset
•Asynch non-blocking persistence
•Non-blocking replication
•Data structures with atomic operations
•Ease of use and deployment
•Sucks
•Sharding (client-side only at the moment)
•Datasets > RAM
•Very frequent code updates (?)

18. Redis
Upcoming coolness...
•1.1
•Sorted sets (ZSET), append-only journaling
•1.2
•HASH type, JSON dump tool
•1.3
•Virtual memory (datasets > RAM)
•1.4
•Redis-cluster proxy: consistent hashing and fault
tollerant nodes
•1.5
•Optimizations, UDP GET/SET

19. Cassandra
BigTable Dynamo
by
+ by

20. Cassandra
Structure Storage System over P2P network
•Developed at Facebook
•Java
•Dynamo: partition and
replication
•Bigtable: Log-structured
ColumnFamily data model

21. Ruby Libraries
•Cassandra
•Client: cassandra
http://github.com/fauna/cassandra
•ORM: cassandra_object
http://github.com/NZKoz/cassandra_object
•ORM: BigRecord
http://github.com/openplaces/bigrecord

22. Cassandra
•Rocks
•High Availability
•Incremental Scalability
•Minimal Administration
•No Single Point of Failure
•Sucks
•Thrift API (...not so bad)
•Change Schema, restart server
•The Logo

23. Demo Application
http://github.com/antoniogarrote/conf_rails_hispana_2009

24. Data Modeling
•Class mapping
•ID generation
•Relationships
•one-to-one
•one-to-many
•many-to-many
•Index sorting
•Pagination
•Data filtering

25. Cassandra
•Class mapping
• ColumnFamily :Blog, :Post
•ID generation
•UUID.new(Time.now)
•Relationships
•Use ColumnFamily :PostsforUser to
hold all posts that belong to a user

26. Cassandra
•Index sorting
•Columns within a ColumnFamily are stored in
sorted order. Keys are also sorted (if
OrderPreservingPartitioner)
•Pagination
•for keys get_range (start, finish, count)
•for columns get_slice (start, finish, count)
•Data filtering
•Use get_range/get_slice and play around with
start/finish

27. Redis
•Class mapping
• Namespaced keys: 'Post:5:title'
•ID generation
•Redis counters: incr('Post:ids')
•Relationships
•Redis lists: push_tail('Post:5:_rating_ids', 4)

28. Redis
•Index sorting
•Redis sort:
•sort 'Post:list', by 'Post:*:score', get
'Post:*:id'
•Pagination
•Redis lists: list_range('Post:list', 0, -9)
•Data filtering
•Lookups: 'Post:permalink:fifth_post' => 5

29. CouchDB
•Type attribute in each document
•CouchDB automatic ID generation
•Related document IDs in the
attributes
•Views with complex keys
•Special attributes for view functions

30. CouchDB
View: relation_blog_posts
function(doc){
if(doc.type=="post"){
emit([doc.blog_id,
doc.created_at],
doc);
}
}

31. CouchDB
View: relation_blog_posts
GET
/db/design_doc/relation_blog_posts?
startkey=[blog_1]

32. VPork
•Utility for load-testing a distributed hash table.
•Allows you to test raw throughput via
concurrent read/writes operations.
•Hardware:
•2 x comodity servers: CoreDuo 2.5Ghz, 4Gb RAM,
7200RPM disks
•CouchDB: 2 instances, round-robin balanced
•Cassandra: 2 instances
•Redis: 1 instance
http://github.com/antoniogarrote/vpork

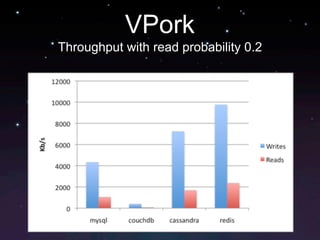

33. VPork
Throughput with read probability 0.2

34. VPork
Throughput with read probability 0.5

35. VPork
Throughput with read probability 0.8

36. Conclusions
•Complementary to relational solutions
•Each K/V address a different problem
•Best use case:
•CouchDB: distributed/scalable
Javascript-only app (no backend)
•Cassandra: big amount of writes, no
SPOF
•Redis: datasets < RAM, lookups,
cache, buffers

37. Credits
•All sponsored products, company names, brand names,
trademarks and logos are the property of their respective
owners.
•Alfa Romeo Giulietta: http://www.flickr.com/photos/
mauboi/3296469097/
•Pizza: http://reportingfrombelgium.wordpress.com/2009/
05/20/belgian-summer-holidays/
•Sammy: http://www.yuddy.com/celebrity/Sammy-Davis-
Jr/bio
•Everything else is from teh internets and is free.
