1. Abdelmonaim Remani | Just.me Inc.
The Rise of NoSQL and
Polyglot Persistence

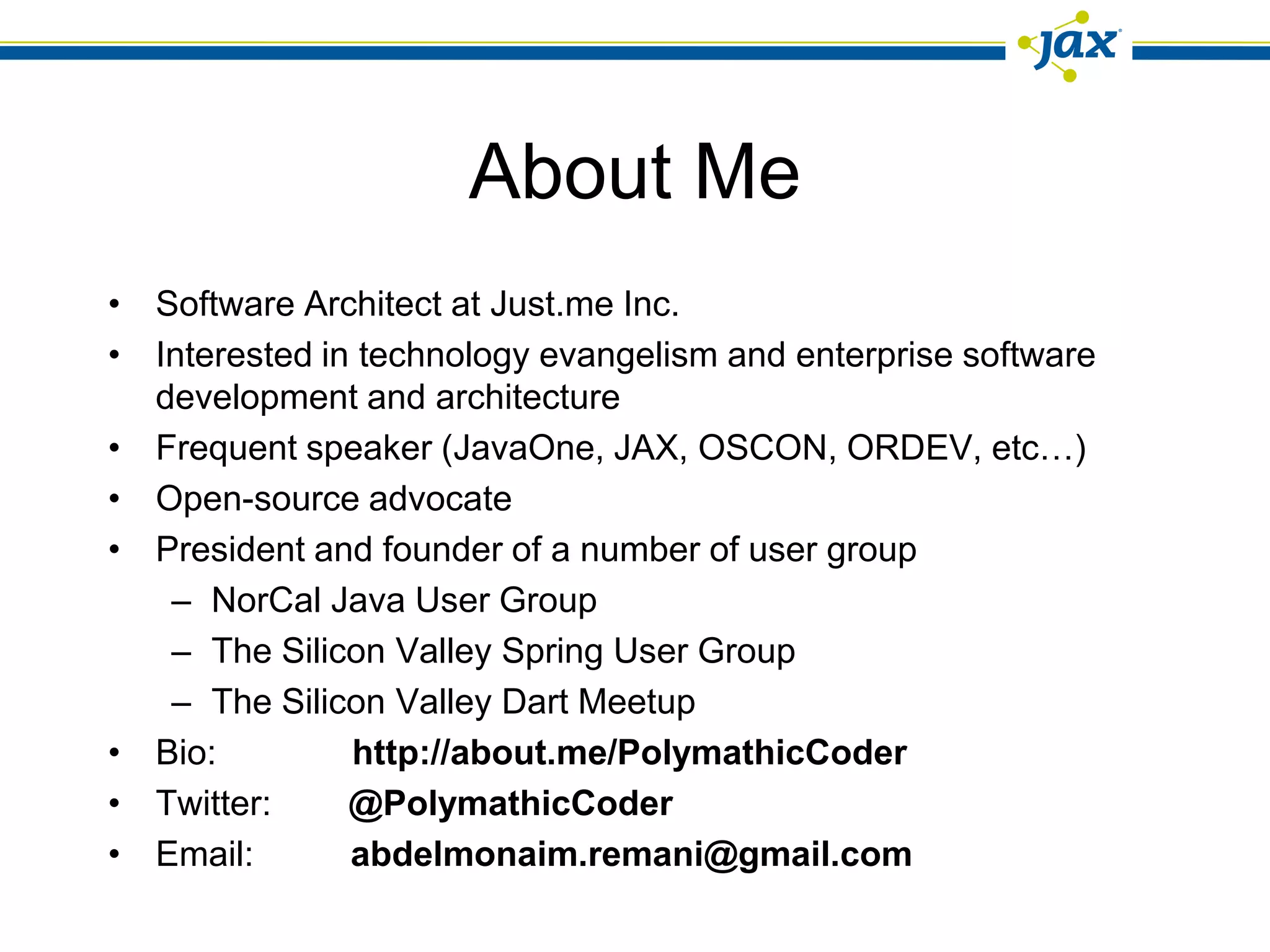

2. About Me
• Software Architect at Just.me Inc.
• Interested in technology evangelism and enterprise software
development and architecture
• Frequent speaker (JavaOne, JAX, OSCON, ORDEV, etc…)
• Open-source advocate
• President and founder of a number of user group
– NorCal Java User Group
– The Silicon Valley Spring User Group
– The Silicon Valley Dart Meetup
• Bio: http://about.me/PolymathicCoder
• Twitter: @PolymathicCoder
• Email: abdelmonaim.remani@gmail.com

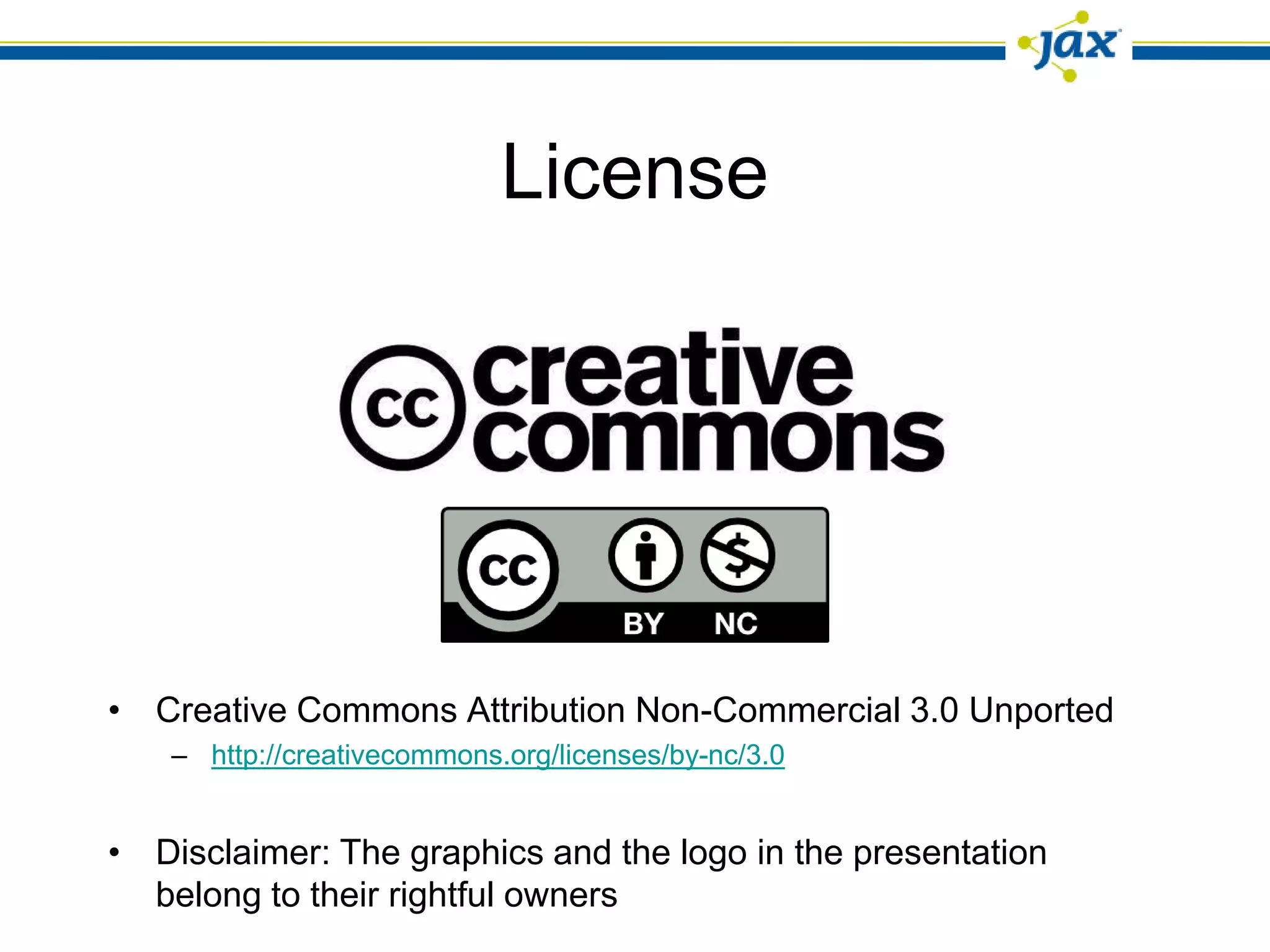

3. License
• Creative Commons Attribution Non-Commercial 3.0 Unported
– http://creativecommons.org/licenses/by-nc/3.0
• Disclaimer: The graphics and the logo in the presentation
belong to their rightful owners

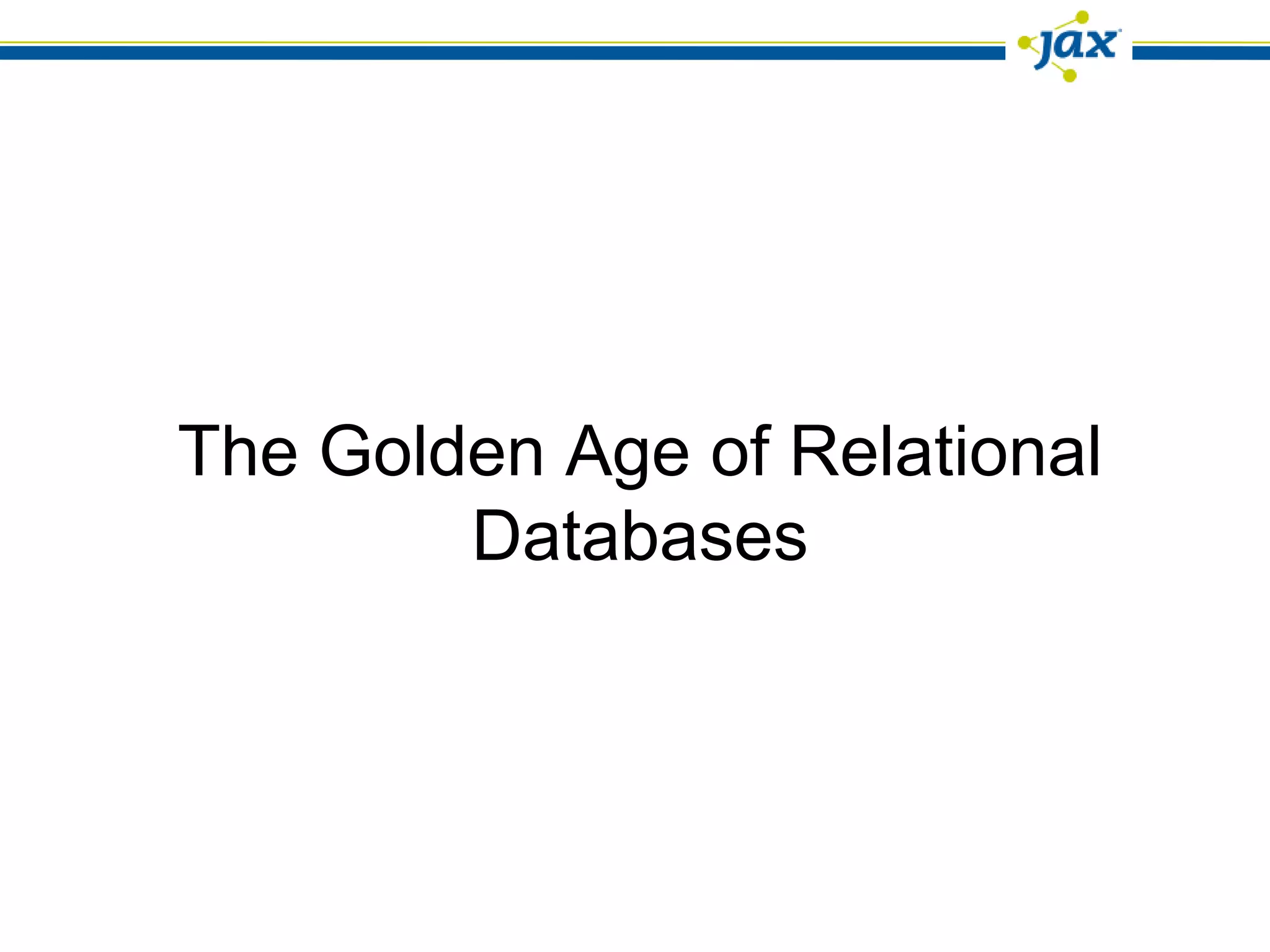

4. The Golden Age of Relational
Databases

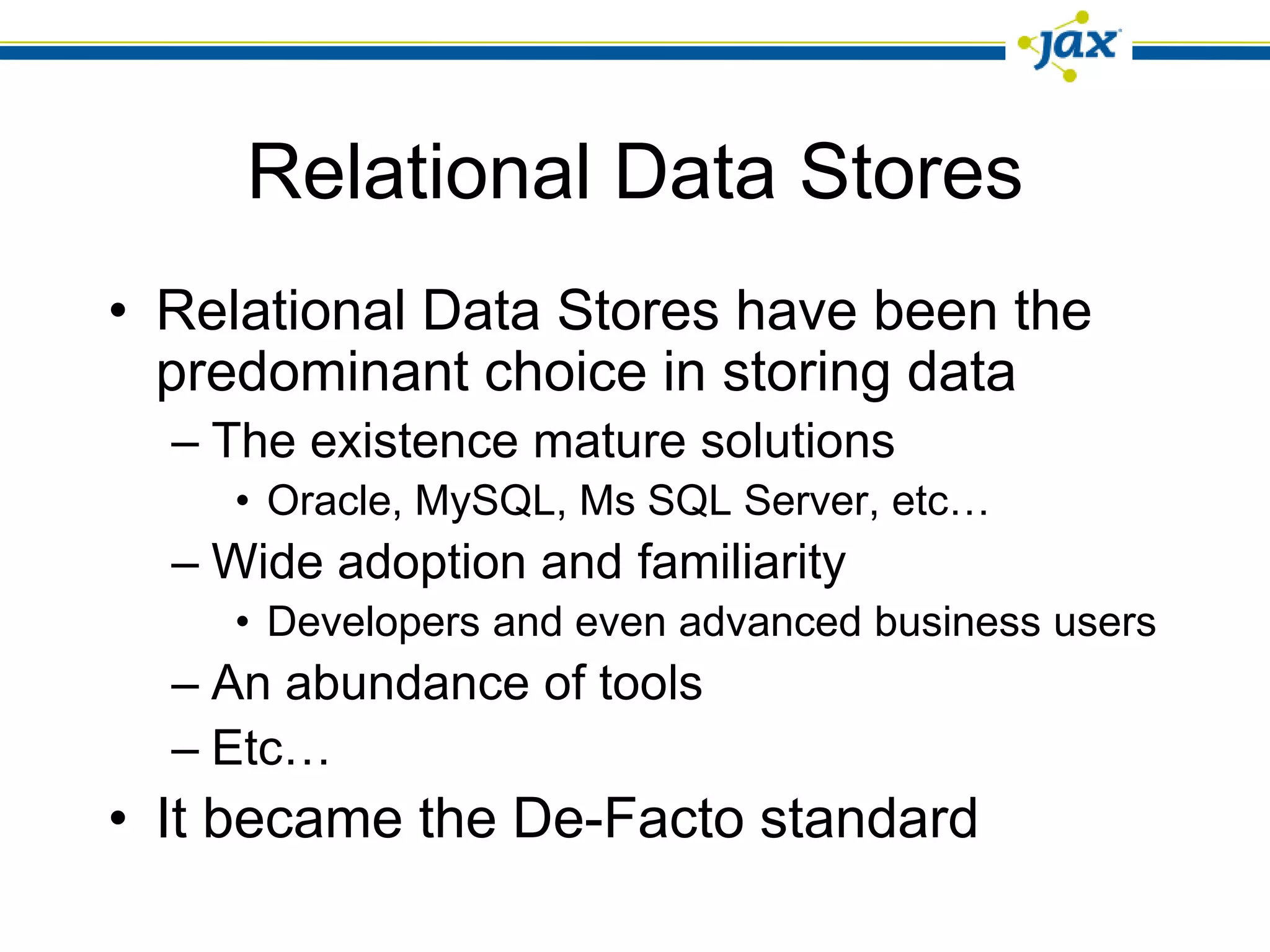

5. Relational Data Stores
• Relational Data Stores have been the
predominant choice in storing data
– The existence mature solutions
• Oracle, MySQL, Ms SQL Server, etc…
– Wide adoption and familiarity
• Developers and even advanced business users
– An abundance of tools
– Etc…
• It became the De-Facto standard

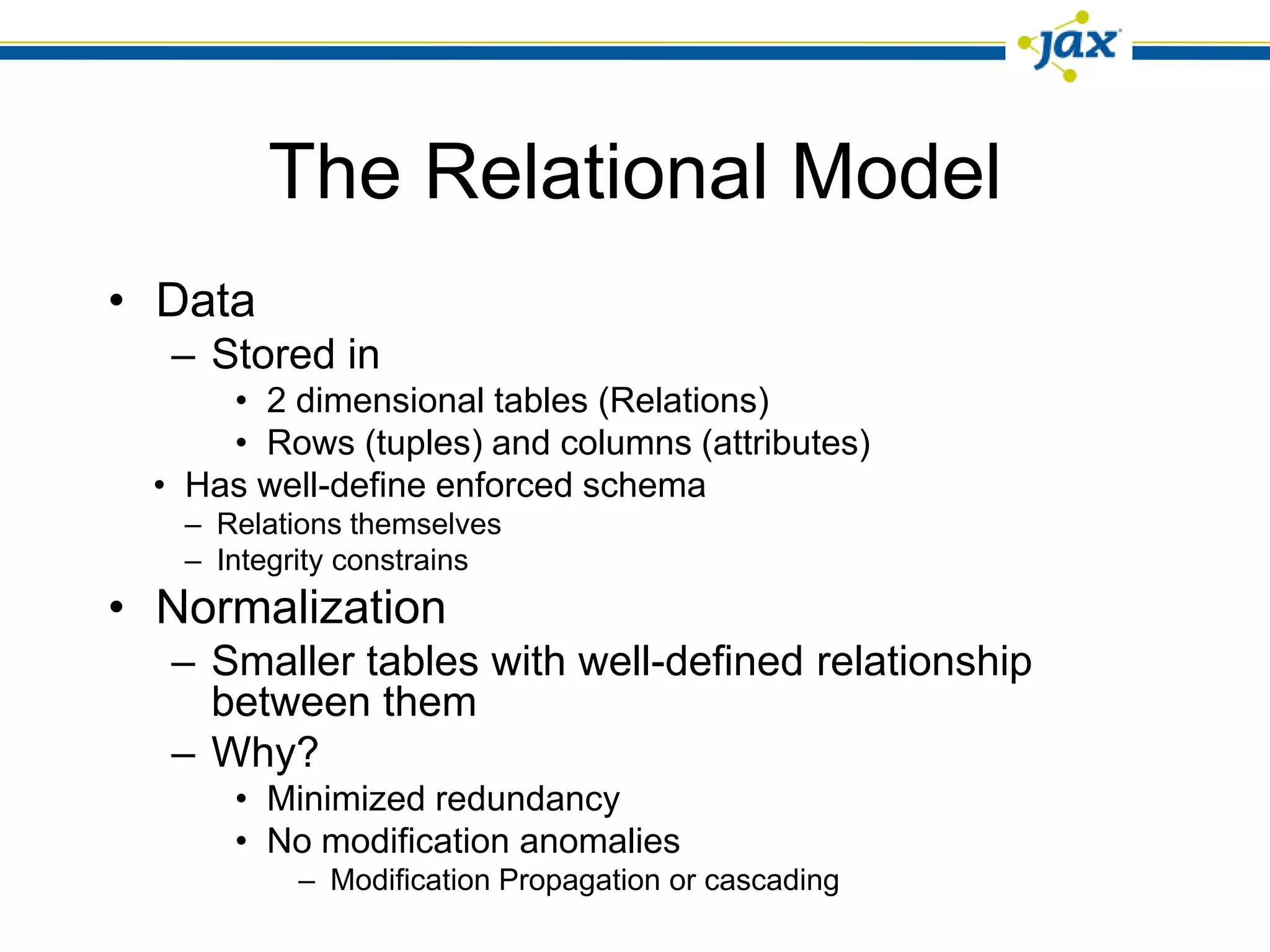

6. The Relational Model
• Data
– Stored in
• 2 dimensional tables (Relations)
• Rows (tuples) and columns (attributes)
• Has well-define enforced schema
– Relations themselves
– Integrity constrains
• Normalization
– Smaller tables with well-defined relationship
between them
– Why?
• Minimized redundancy
• No modification anomalies
– Modification Propagation or cascading

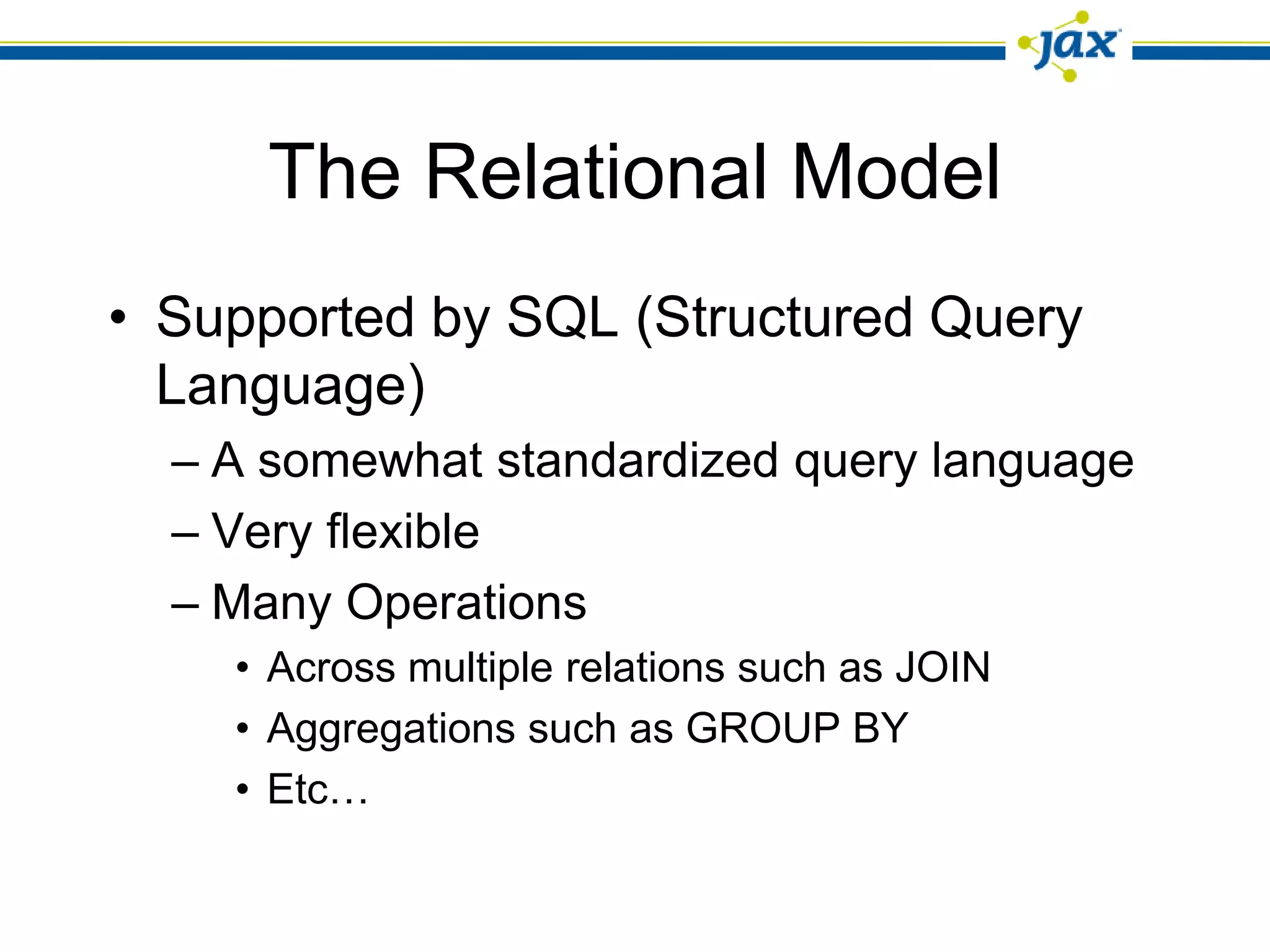

7. The Relational Model
• Supported by SQL (Structured Query
Language)
– A somewhat standardized query language
– Very flexible
– Many Operations
• Across multiple relations such as JOIN
• Aggregations such as GROUP BY
• Etc…

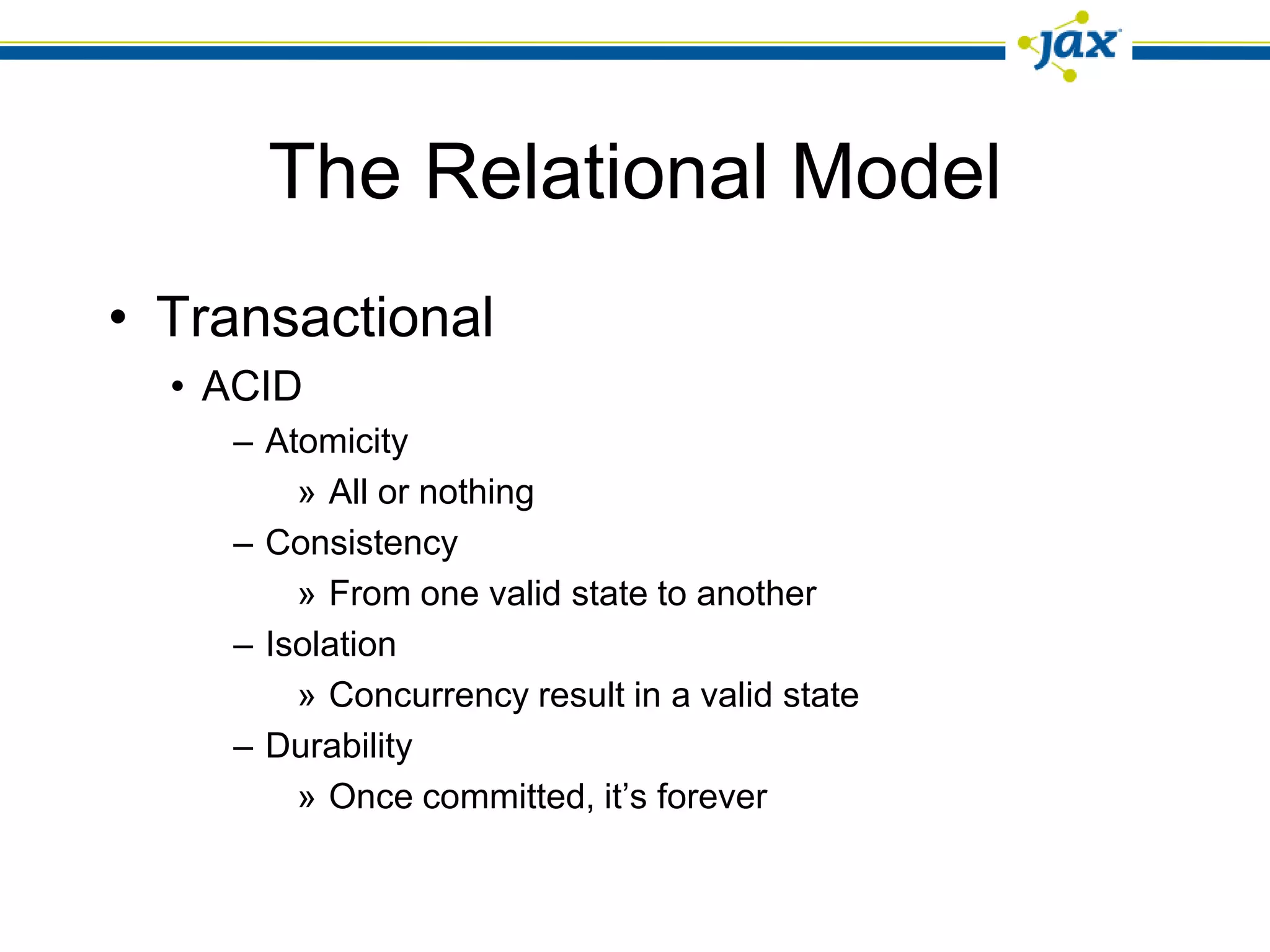

8. The Relational Model
• Transactional
• ACID
– Atomicity
» All or nothing
– Consistency
» From one valid state to another
– Isolation
» Concurrency result in a valid state
– Durability
» Once committed, it’s forever

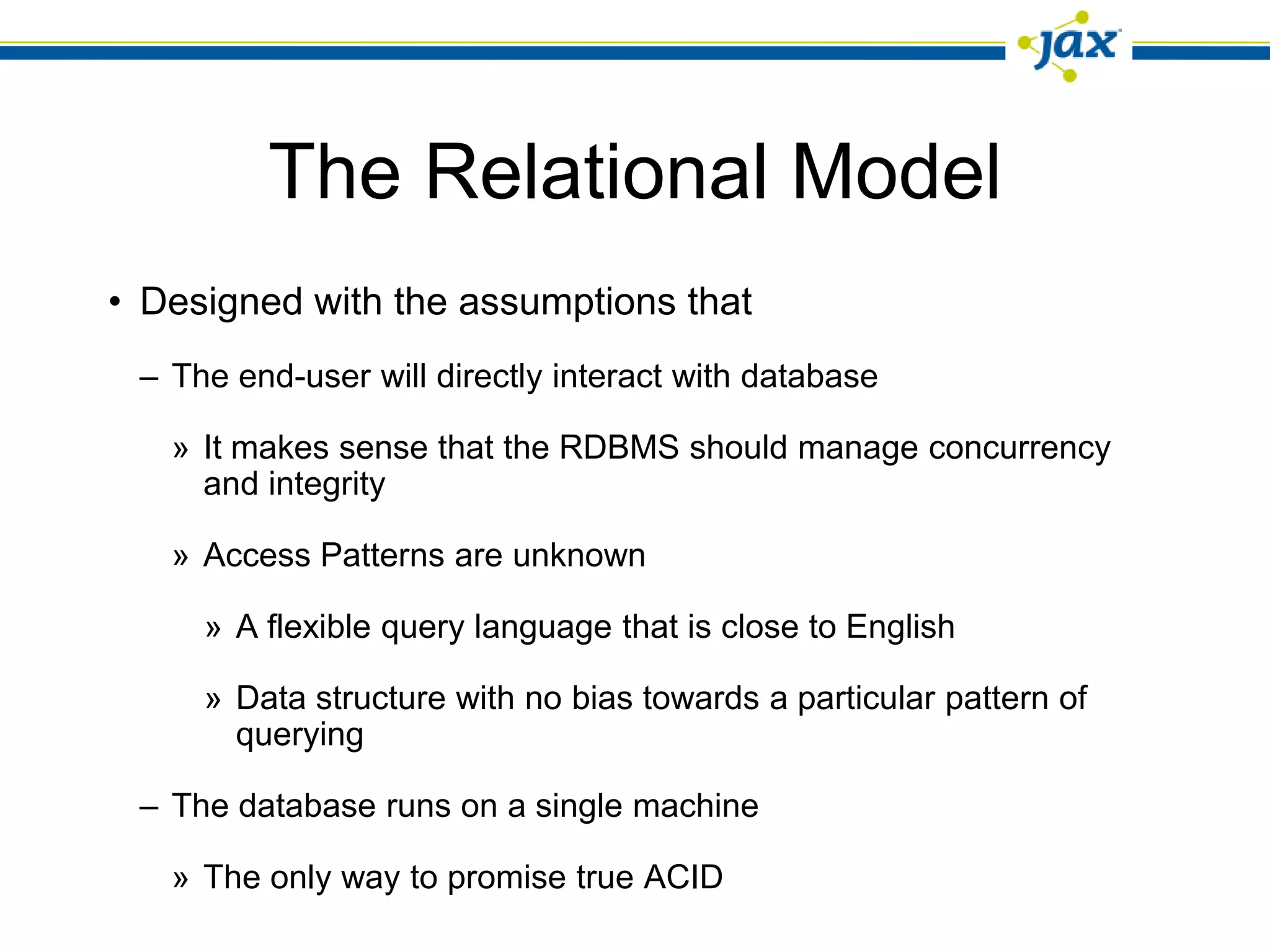

9. The Relational Model
• Designed with the assumptions that
– The end-user will directly interact with database
» It makes sense that the RDBMS should manage concurrency
and integrity
» Access Patterns are unknown
» A flexible query language that is close to English
» Data structure with no bias towards a particular pattern of
querying
– The database runs on a single machine
» The only way to promise true ACID

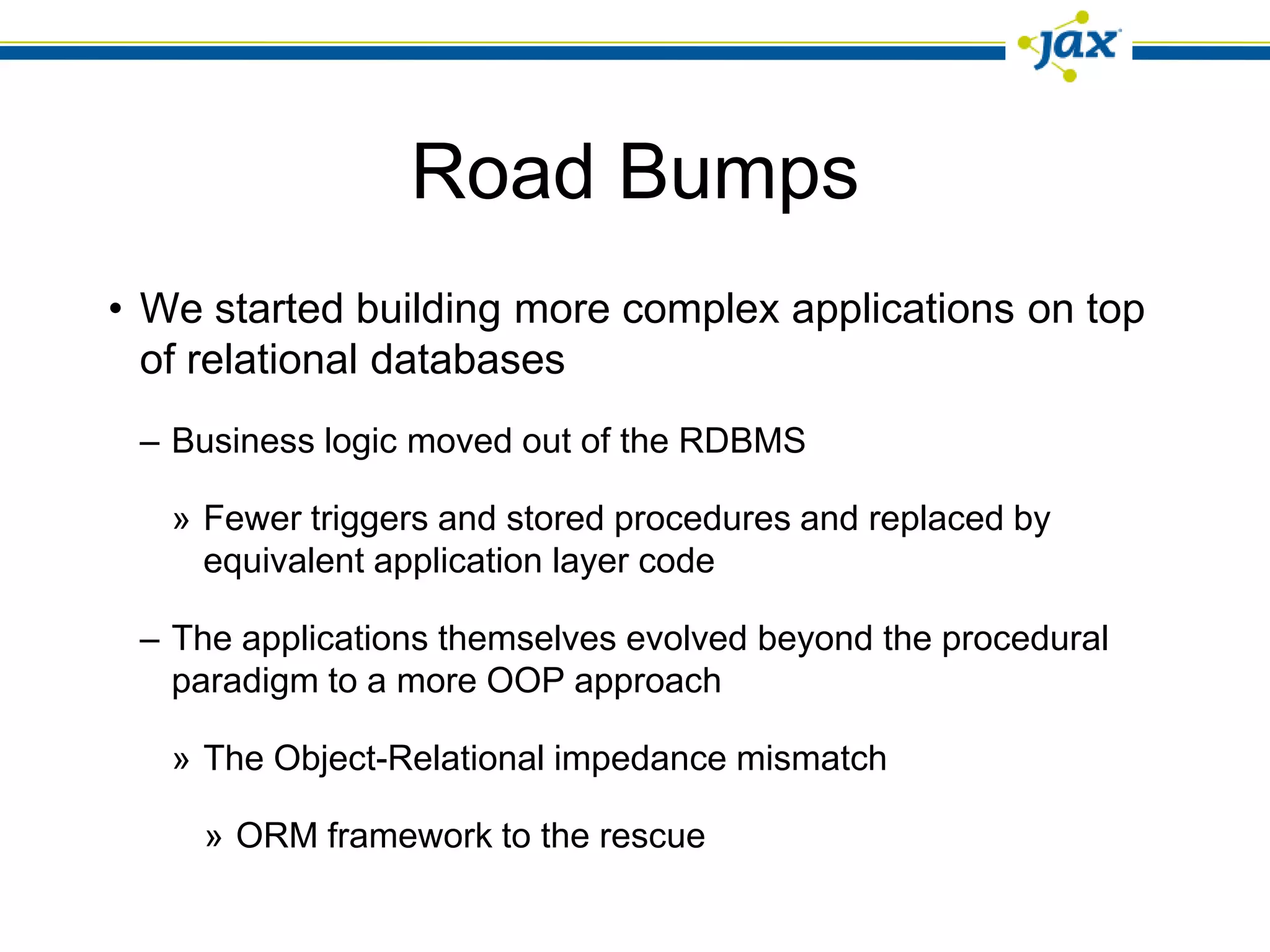

10. Road Bumps
• We started building more complex applications on top
of relational databases
– Business logic moved out of the RDBMS
» Fewer triggers and stored procedures and replaced by
equivalent application layer code
– The applications themselves evolved beyond the procedural
paradigm to a more OOP approach
» The Object-Relational impedance mismatch
» ORM framework to the rescue

11. Scalability

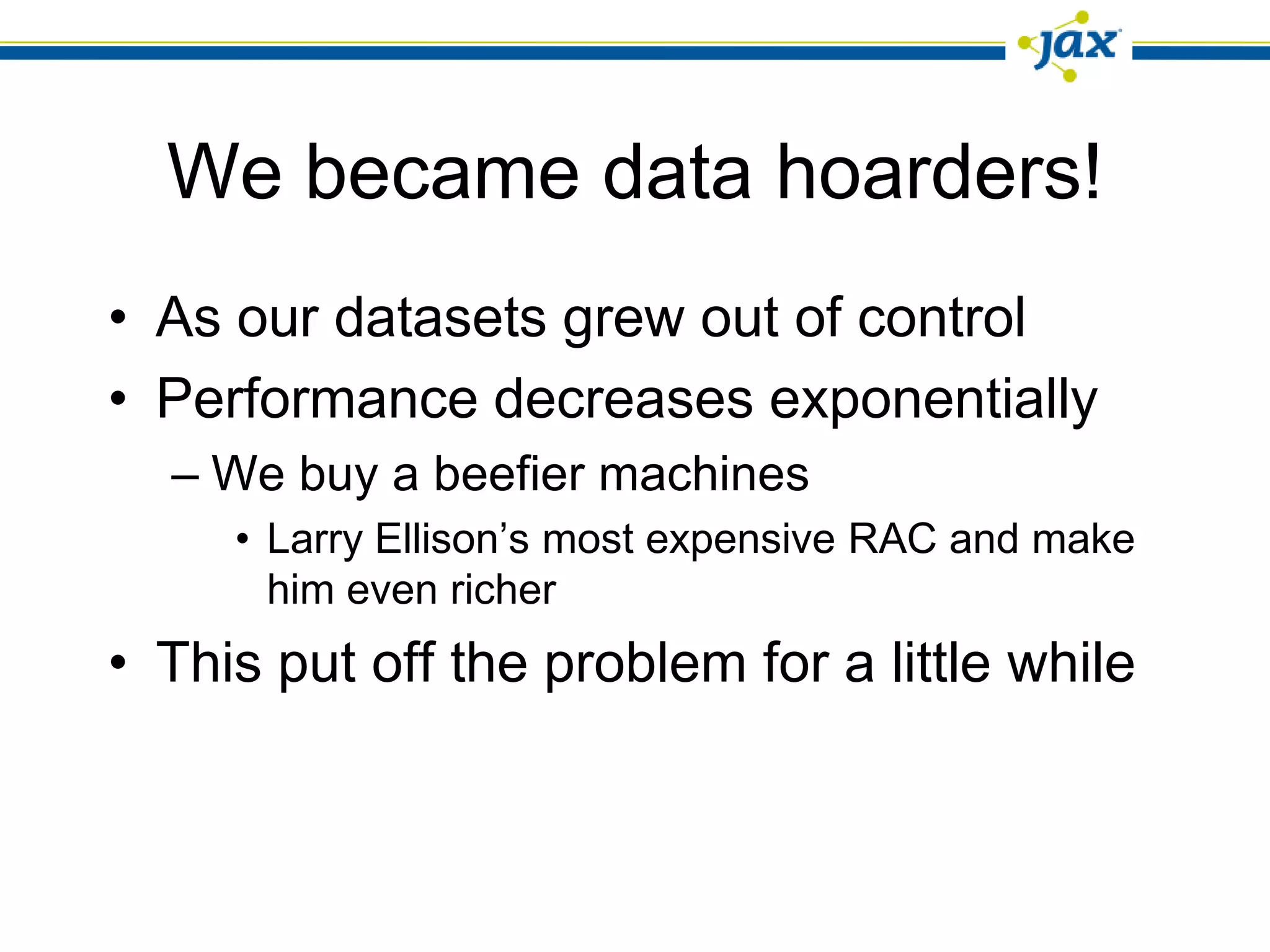

12. We became data hoarders!
• As our datasets grew out of control
• Performance decreases exponentially
– We buy a beefier machines
• Larry Ellison’s most expensive RAC and make
him even richer
• This put off the problem for a little while

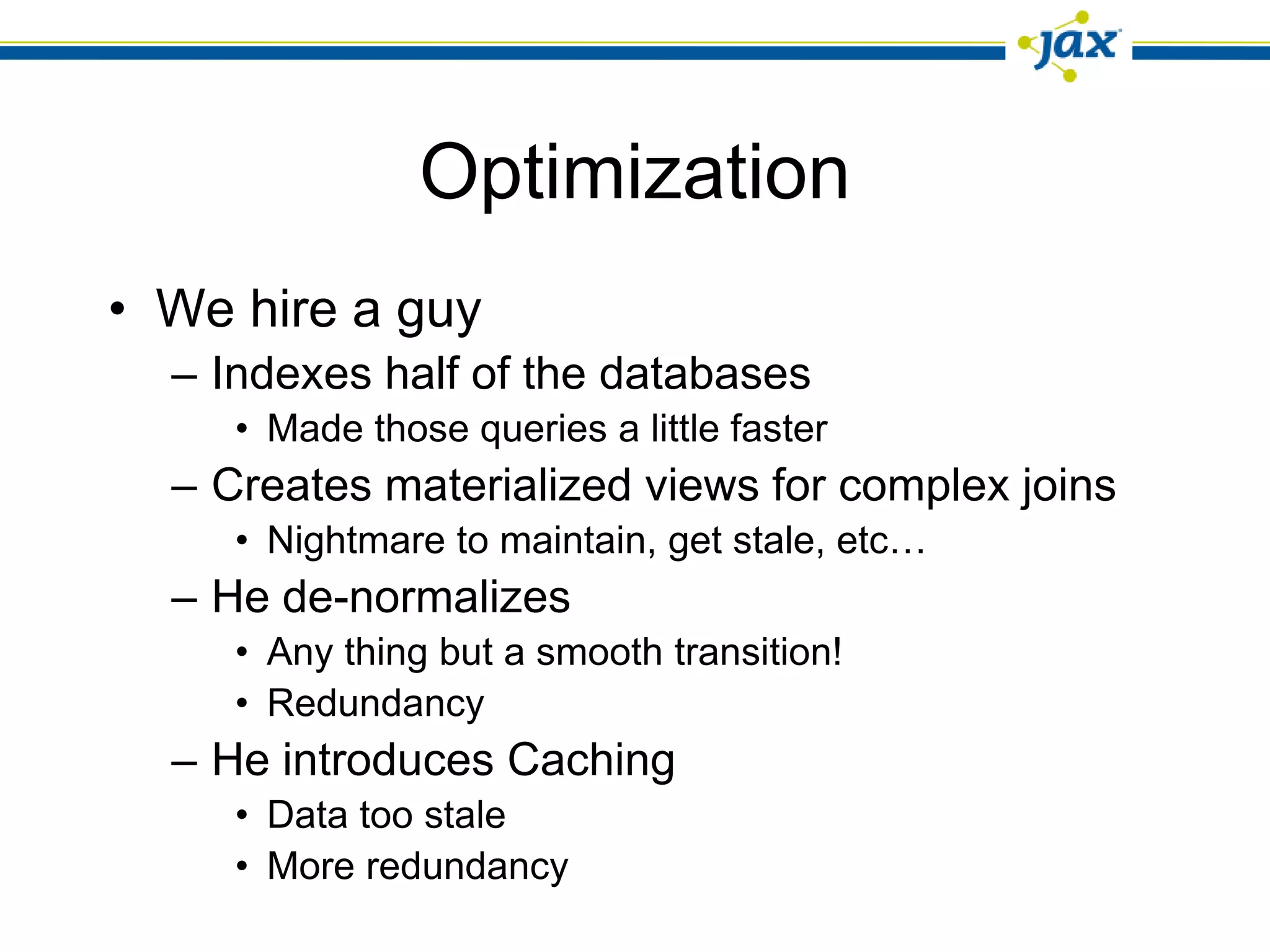

13. Optimization
• We hire a guy
– Indexes half of the databases
• Made those queries a little faster
– Creates materialized views for complex joins
• Nightmare to maintain, get stale, etc…
– He de-normalizes
• Any thing but a smooth transition!
• Redundancy
– He introduces Caching
• Data too stale
• More redundancy

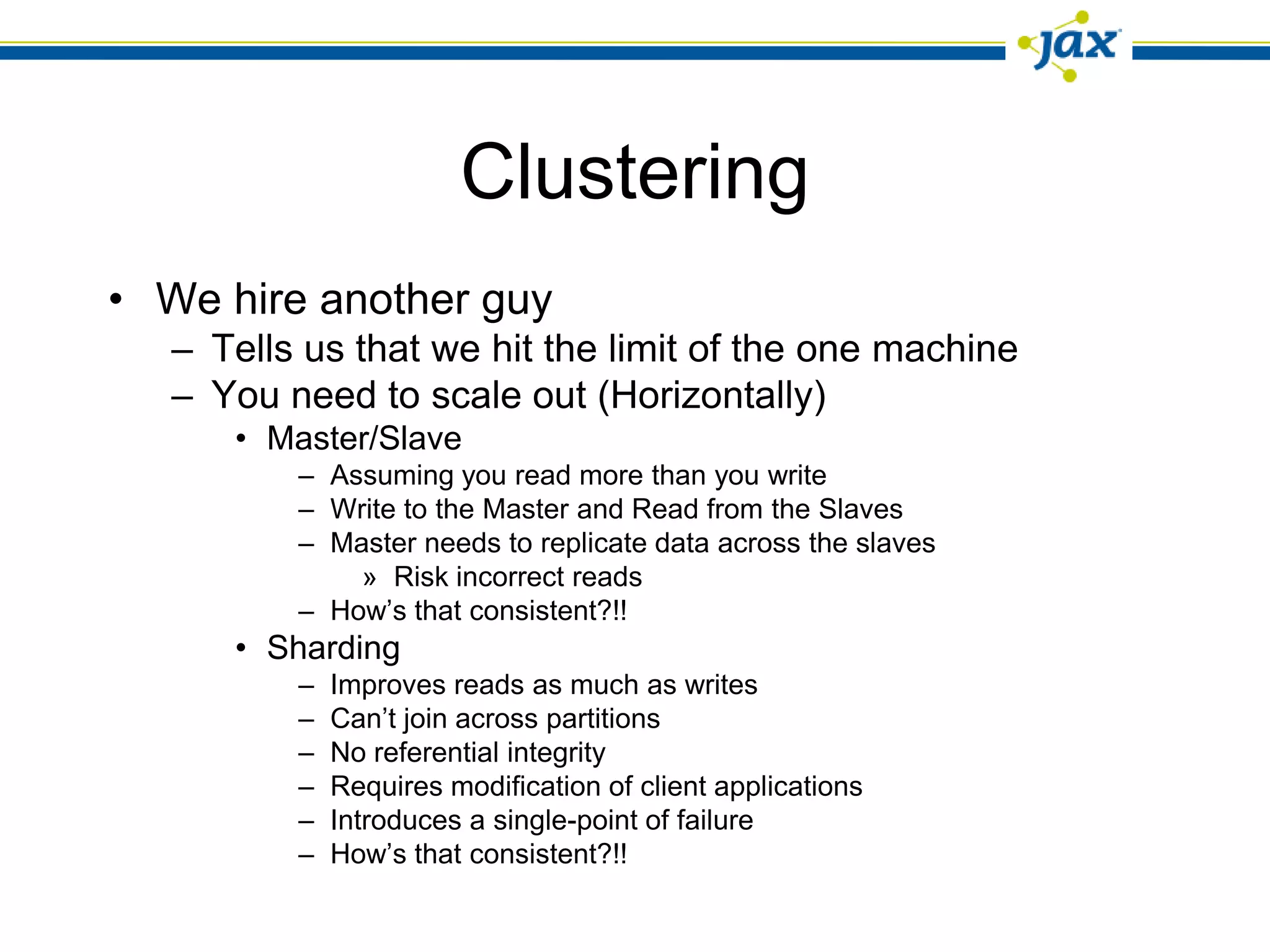

14. Clustering
• We hire another guy
– Tells us that we hit the limit of the one machine
– You need to scale out (Horizontally)
• Master/Slave
– Assuming you read more than you write
– Write to the Master and Read from the Slaves
– Master needs to replicate data across the slaves
» Risk incorrect reads
– How’s that consistent?!!
• Sharding
– Improves reads as much as writes
– Can’t join across partitions
– No referential integrity
– Requires modification of client applications
– Introduces a single-point of failure
– How’s that consistent?!!

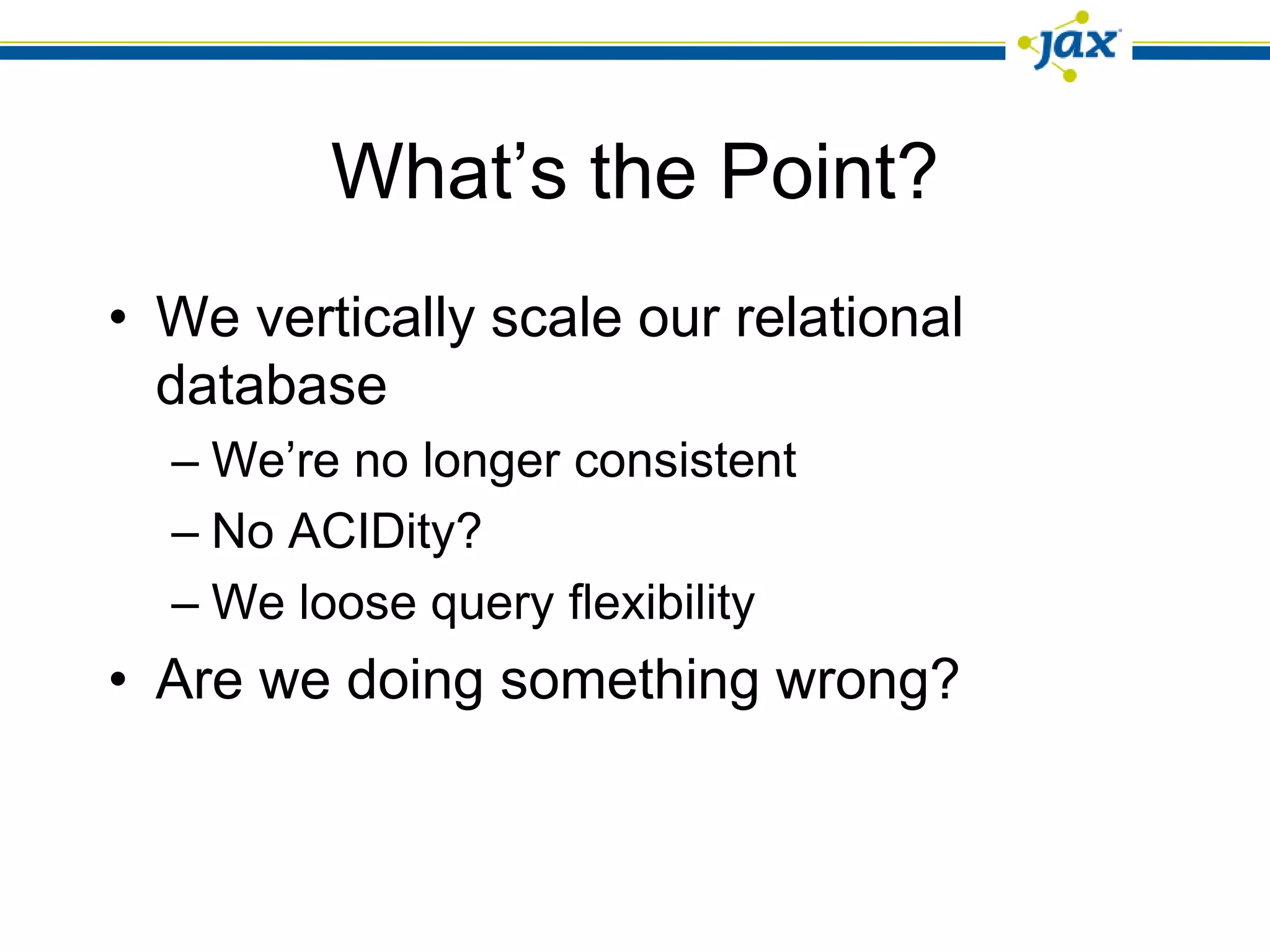

15. What’s the Point?
• We vertically scale our relational
database
– We’re no longer consistent
– No ACIDity?
– We loose query flexibility
• Are we doing something wrong?

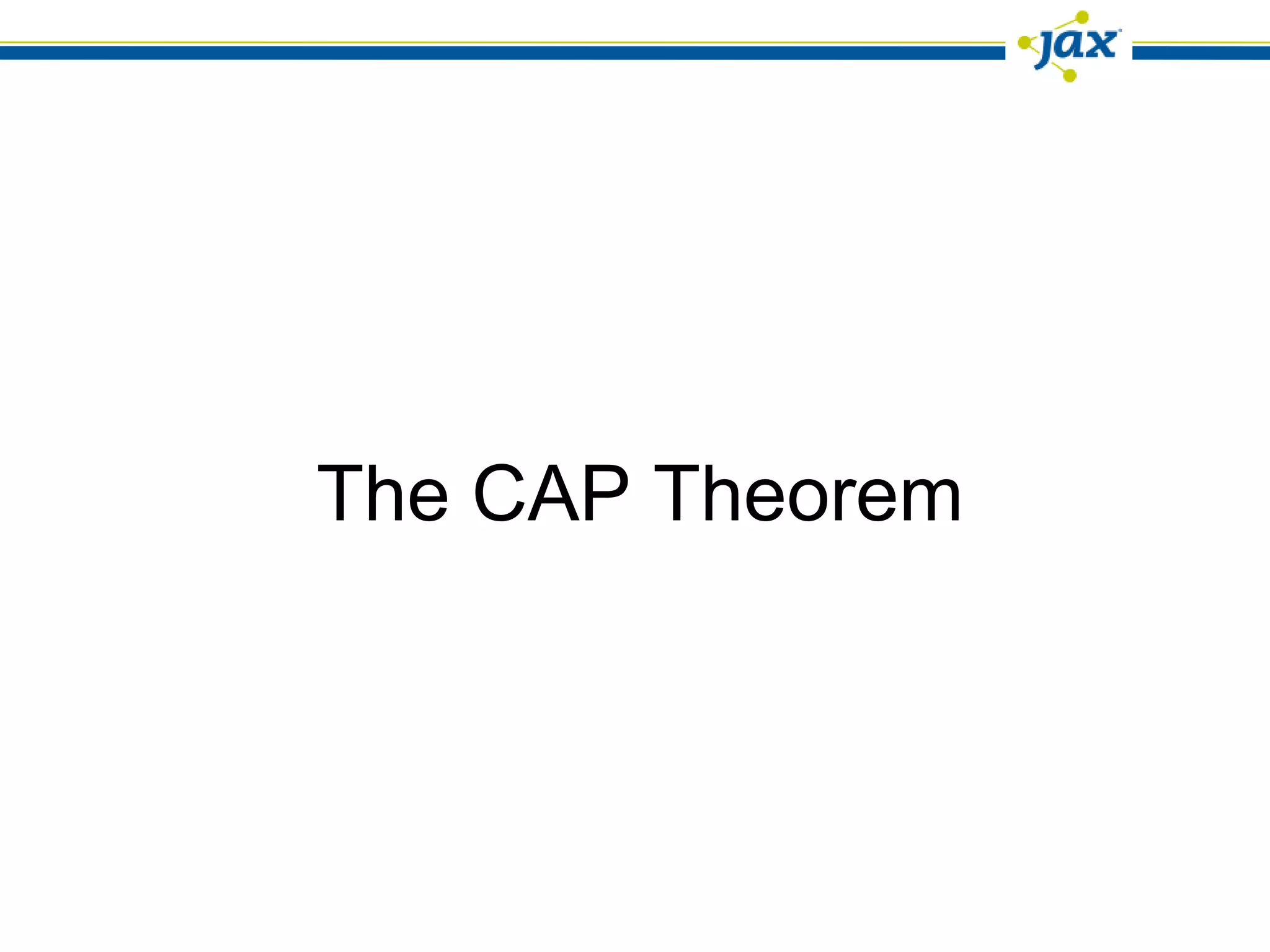

16. The CAP Theorem

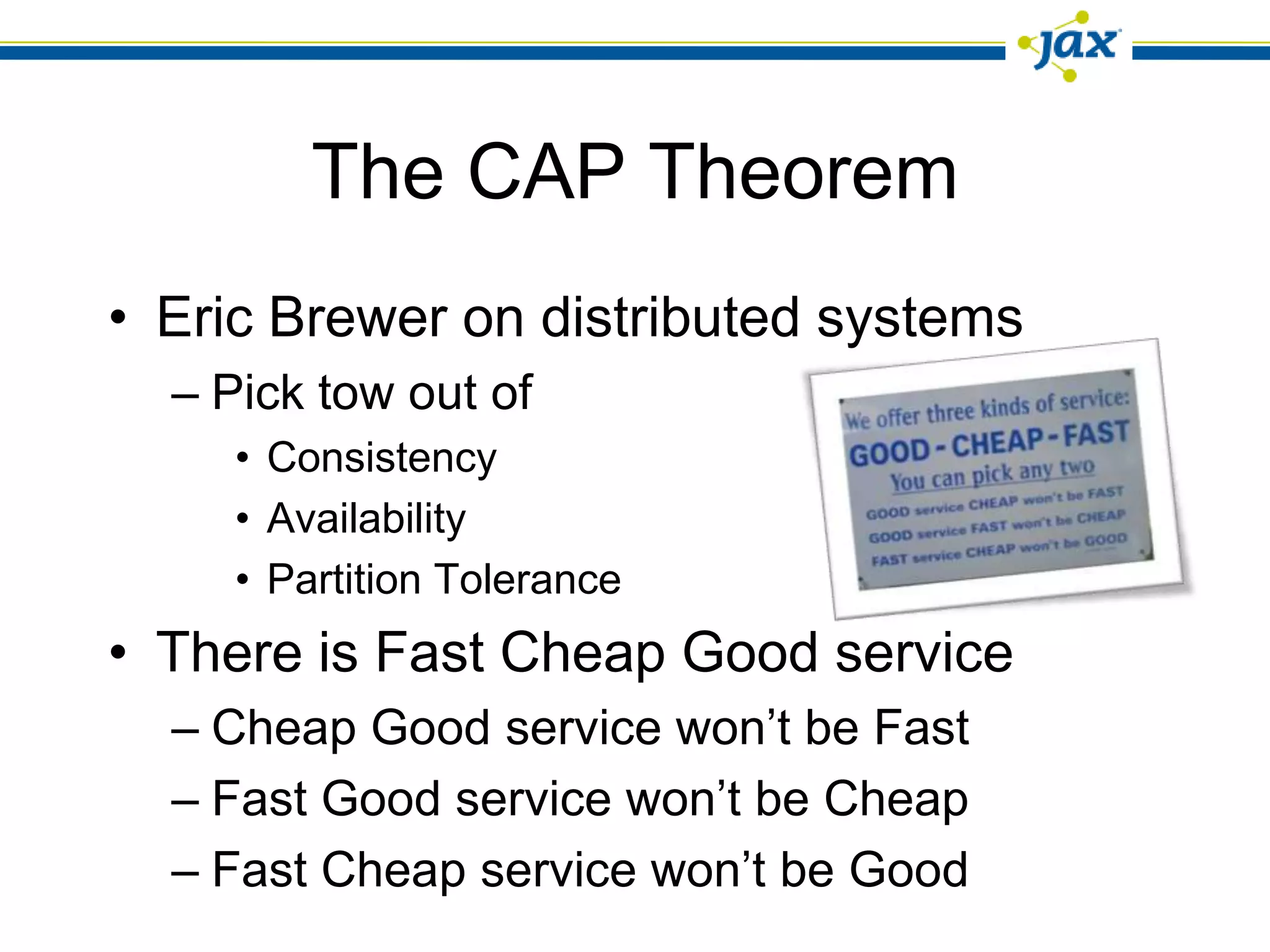

17. The CAP Theorem
• Eric Brewer on distributed systems
– Pick tow out of
• Consistency
• Availability
• Partition Tolerance
• There is Fast Cheap Good service
– Cheap Good service won’t be Fast
– Fast Good service won’t be Cheap
– Fast Cheap service won’t be Good

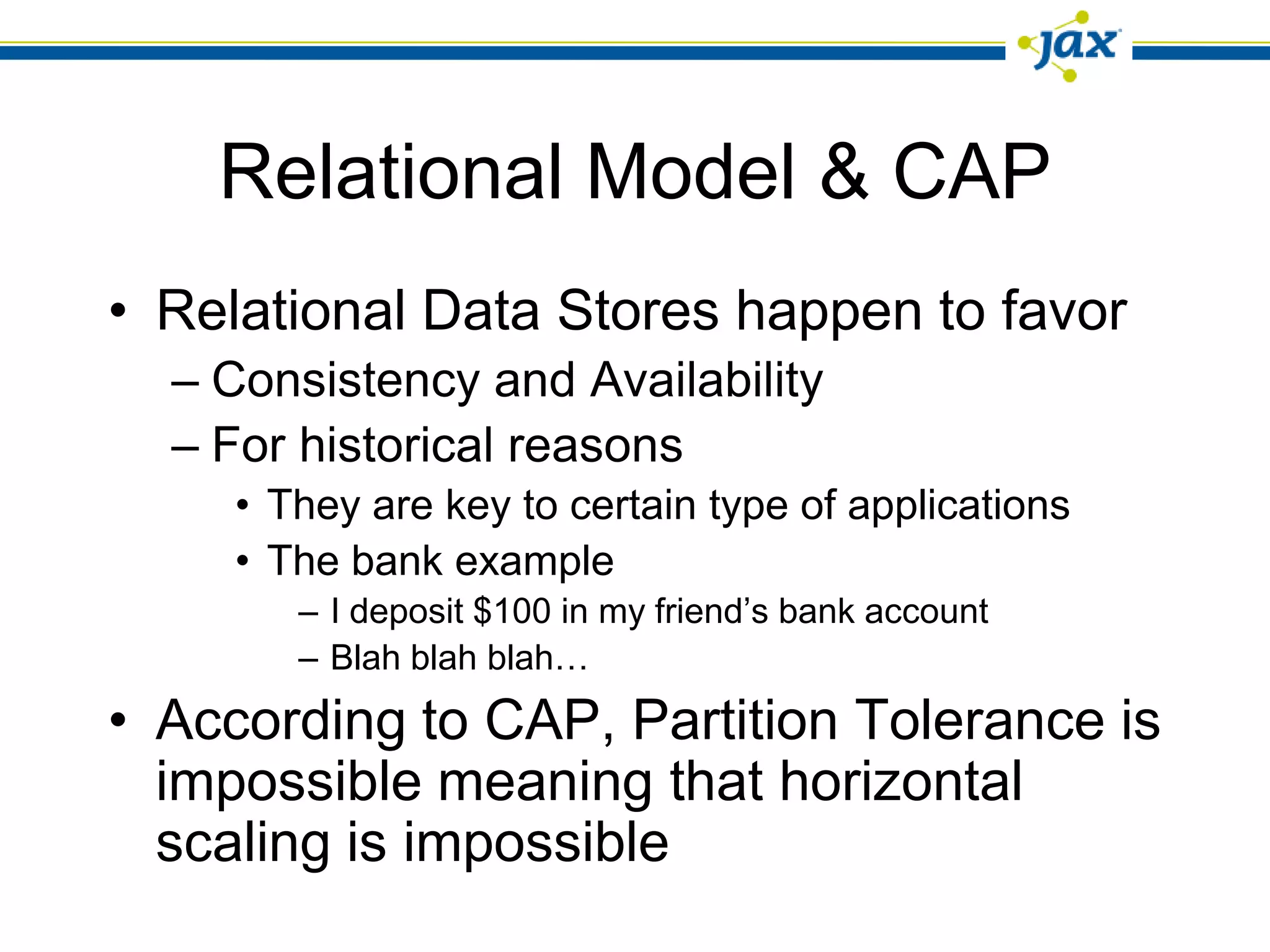

18. Relational Model & CAP
• Relational Data Stores happen to favor
– Consistency and Availability
– For historical reasons
• They are key to certain type of applications
• The bank example
– I deposit $100 in my friend’s bank account
– Blah blah blah…
• According to CAP, Partition Tolerance is
impossible meaning that horizontal
scaling is impossible

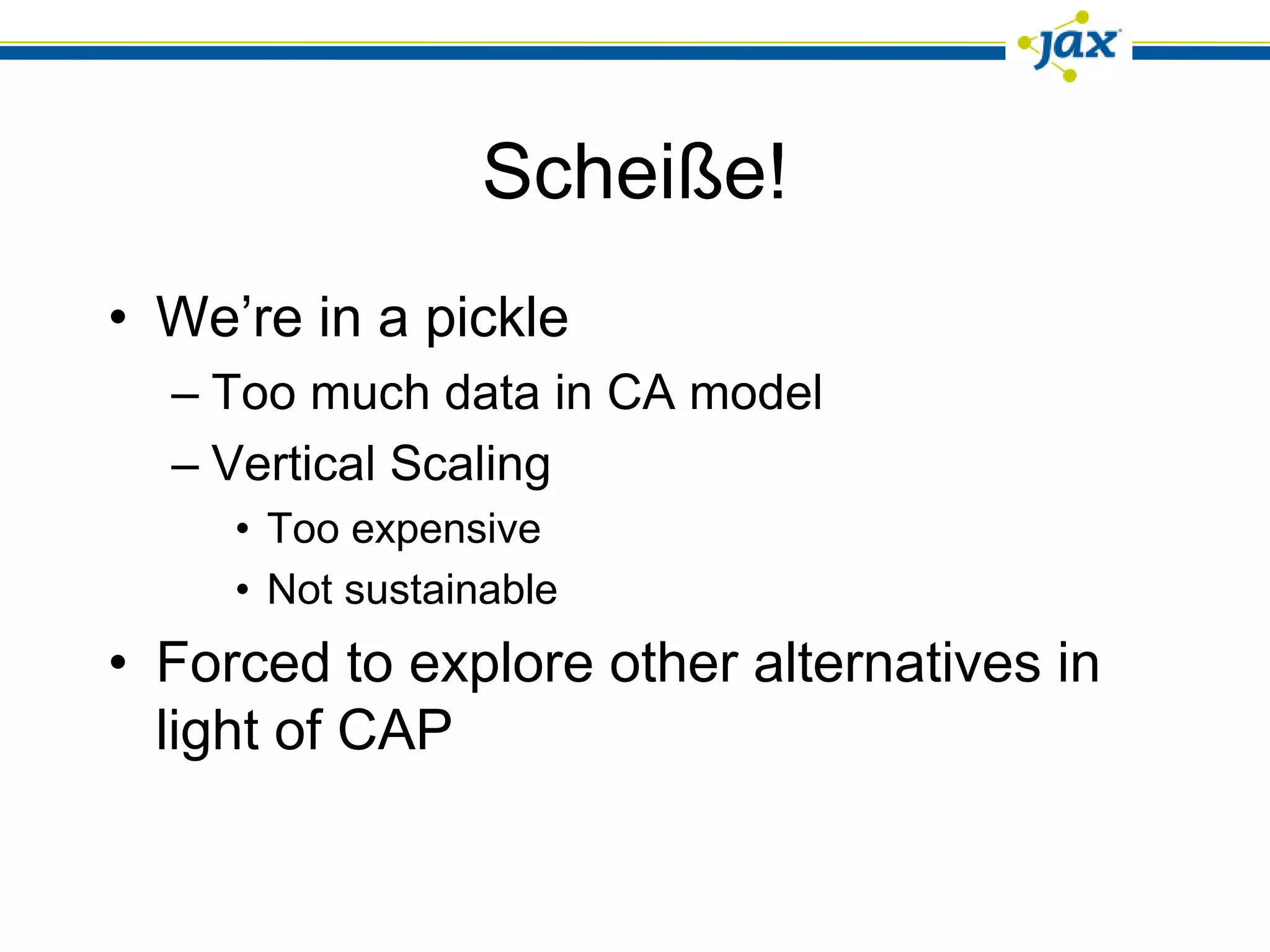

19. Scheiße!
• We’re in a pickle
– Too much data in CA model
– Vertical Scaling
• Too expensive
• Not sustainable
• Forced to explore other alternatives in
light of CAP

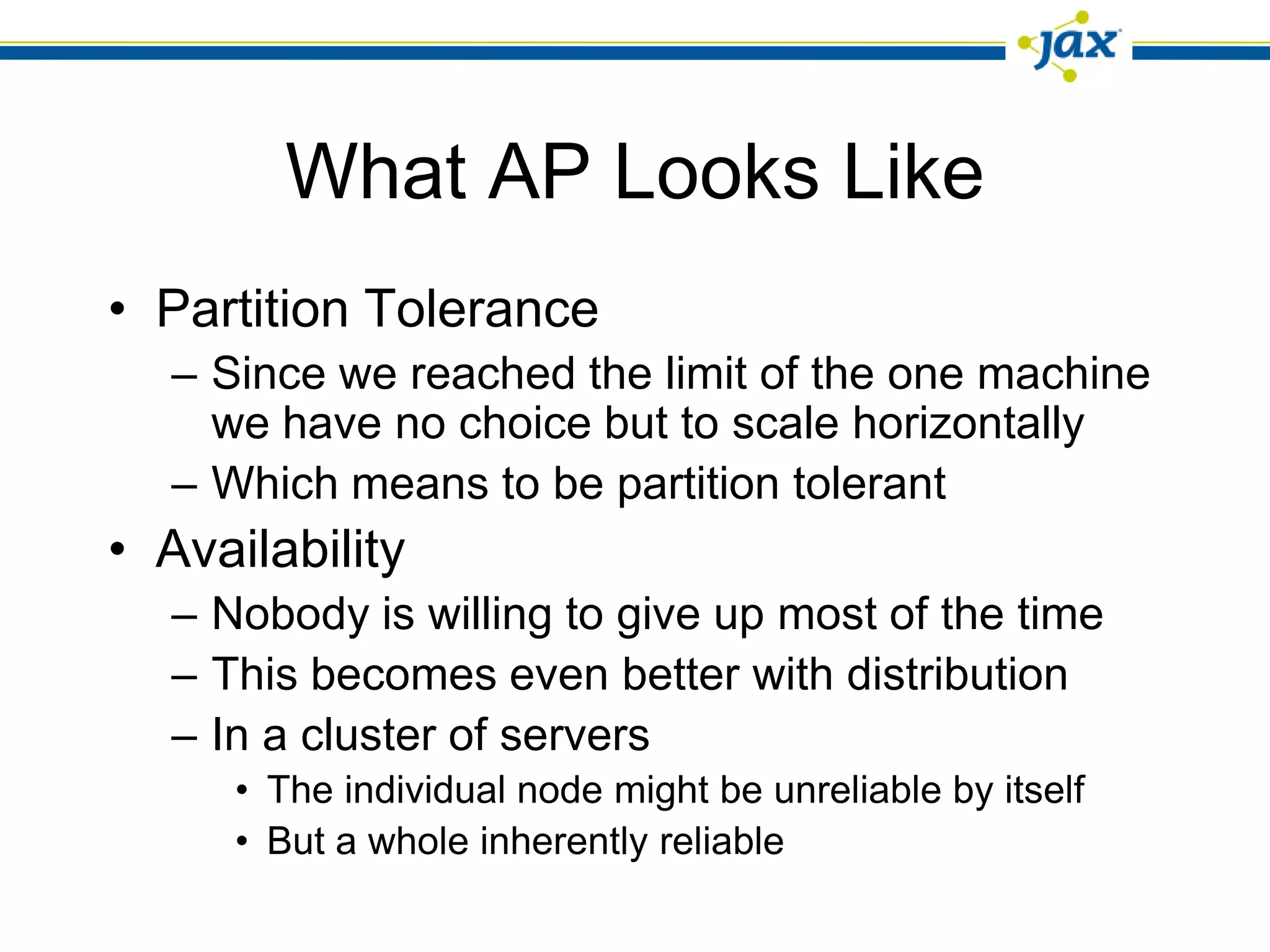

20. What AP Looks Like
• Partition Tolerance
– Since we reached the limit of the one machine
we have no choice but to scale horizontally
– Which means to be partition tolerant
• Availability
– Nobody is willing to give up most of the time
– This becomes even better with distribution
– In a cluster of servers
• The individual node might be unreliable by itself
• But a whole inherently reliable

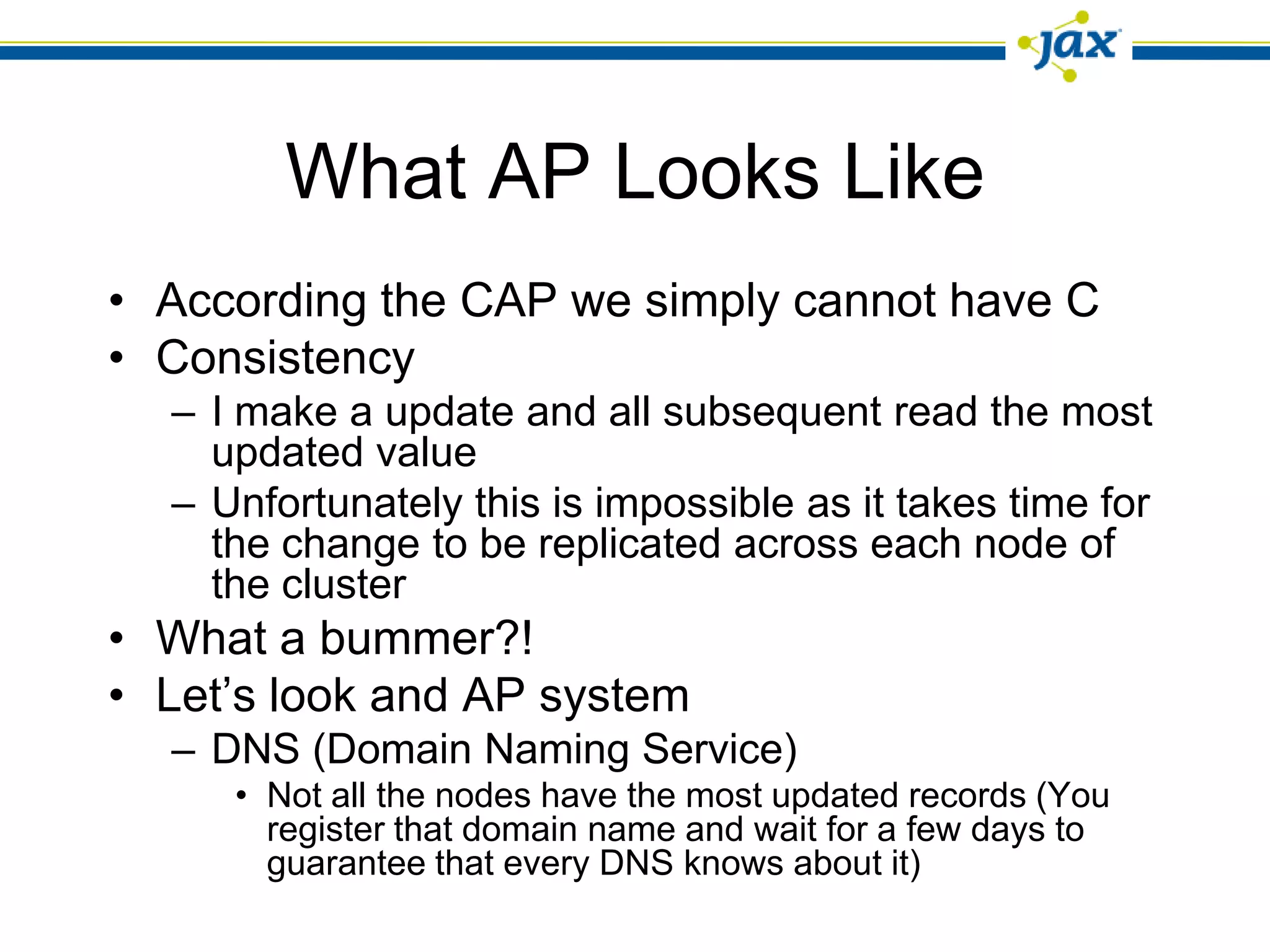

21. What AP Looks Like
• According the CAP we simply cannot have C
• Consistency
– I make a update and all subsequent read the most
updated value
– Unfortunately this is impossible as it takes time for
the change to be replicated across each node of
the cluster
• What a bummer?!
• Let’s look and AP system
– DNS (Domain Naming Service)
• Not all the nodes have the most updated records (You
register that domain name and wait for a few days to
guarantee that every DNS knows about it)

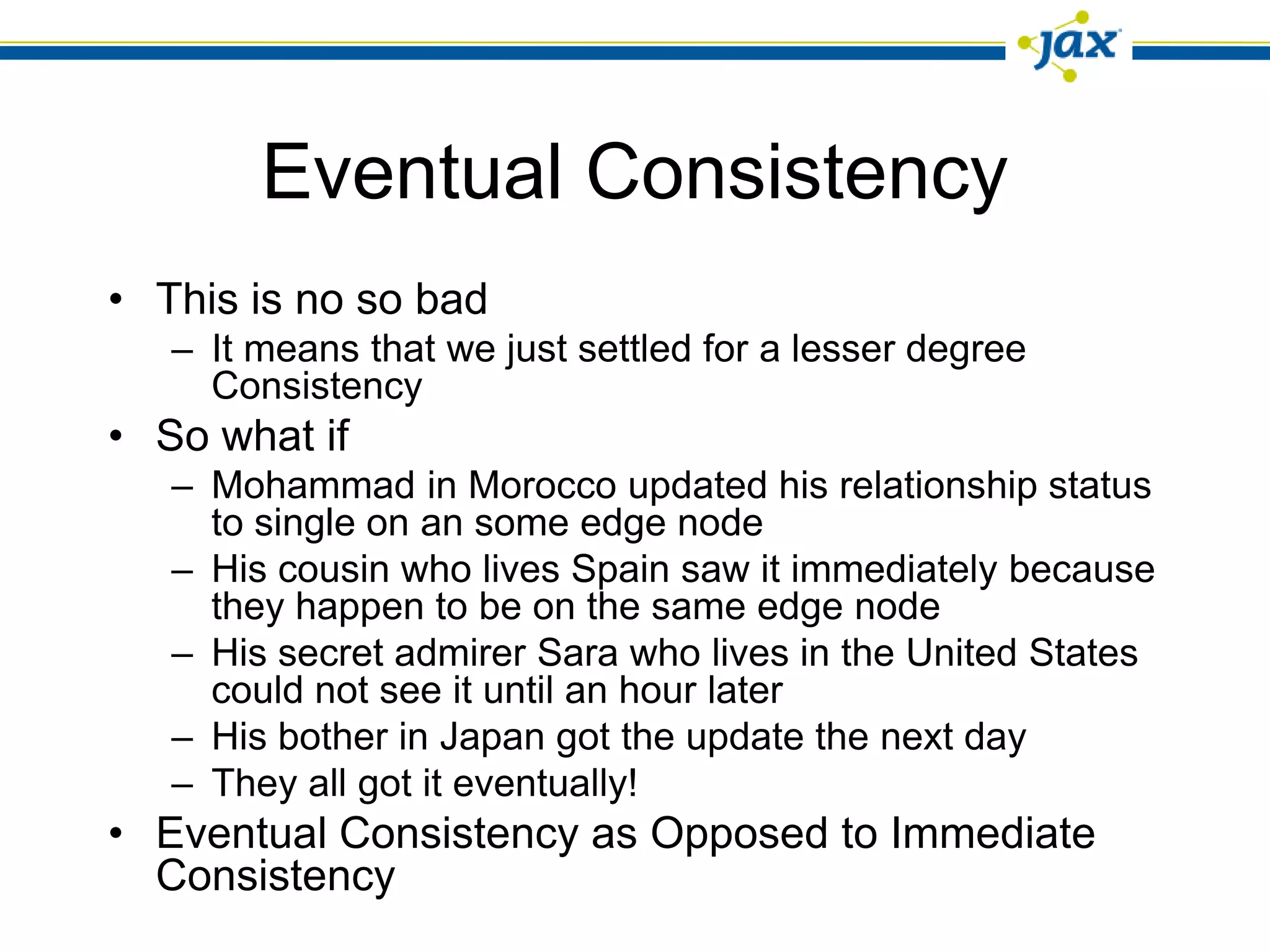

22. Eventual Consistency
• This is no so bad
– It means that we just settled for a lesser degree
Consistency
• So what if
– Mohammad in Morocco updated his relationship status
to single on an some edge node
– His cousin who lives Spain saw it immediately because
they happen to be on the same edge node
– His secret admirer Sara who lives in the United States
could not see it until an hour later
– His bother in Japan got the update the next day
– They all got it eventually!
• Eventual Consistency as Opposed to Immediate
Consistency

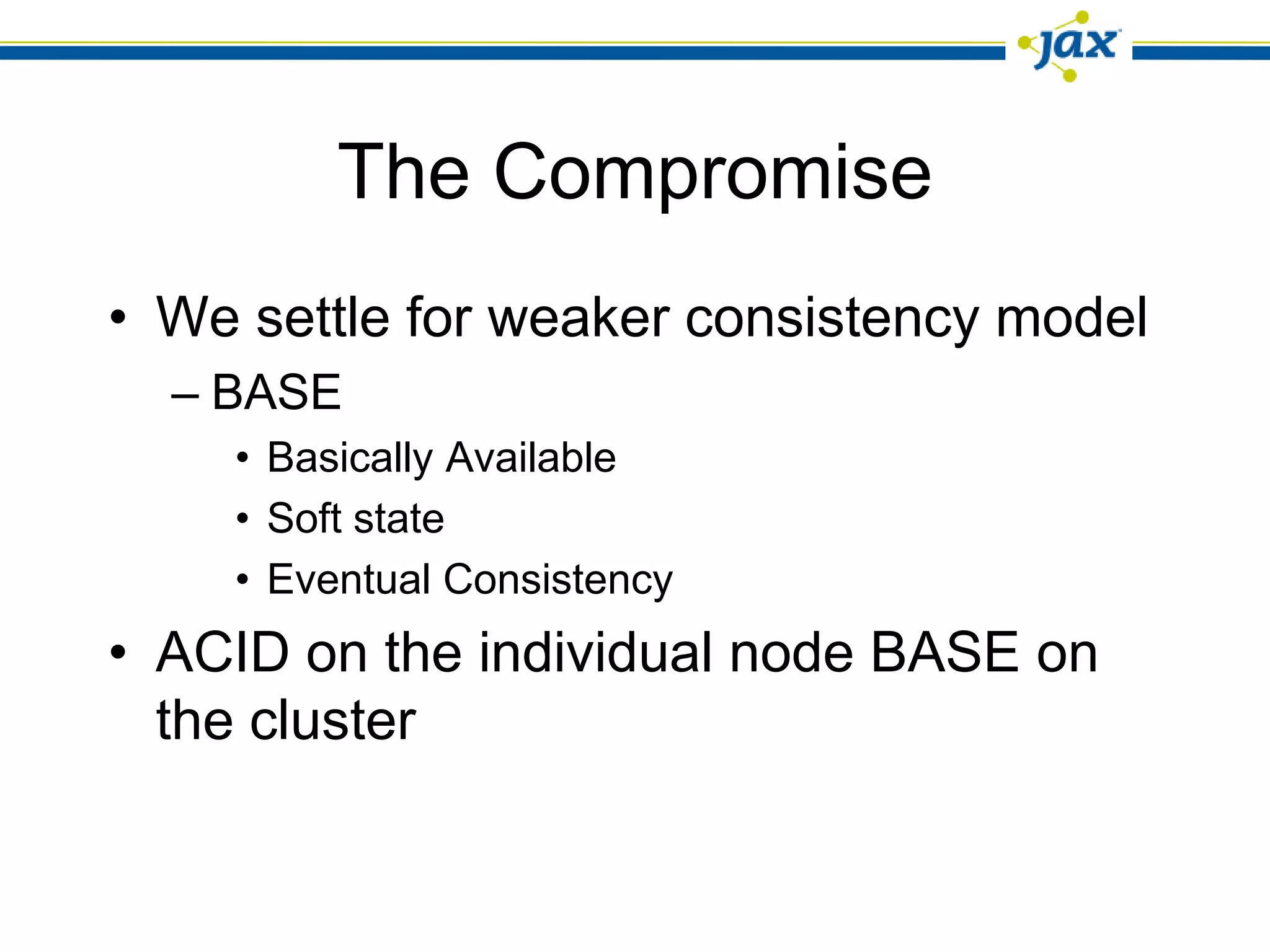

23. The Compromise
• We settle for weaker consistency model
– BASE
• Basically Available
• Soft state
• Eventual Consistency
• ACID on the individual node BASE on
the cluster

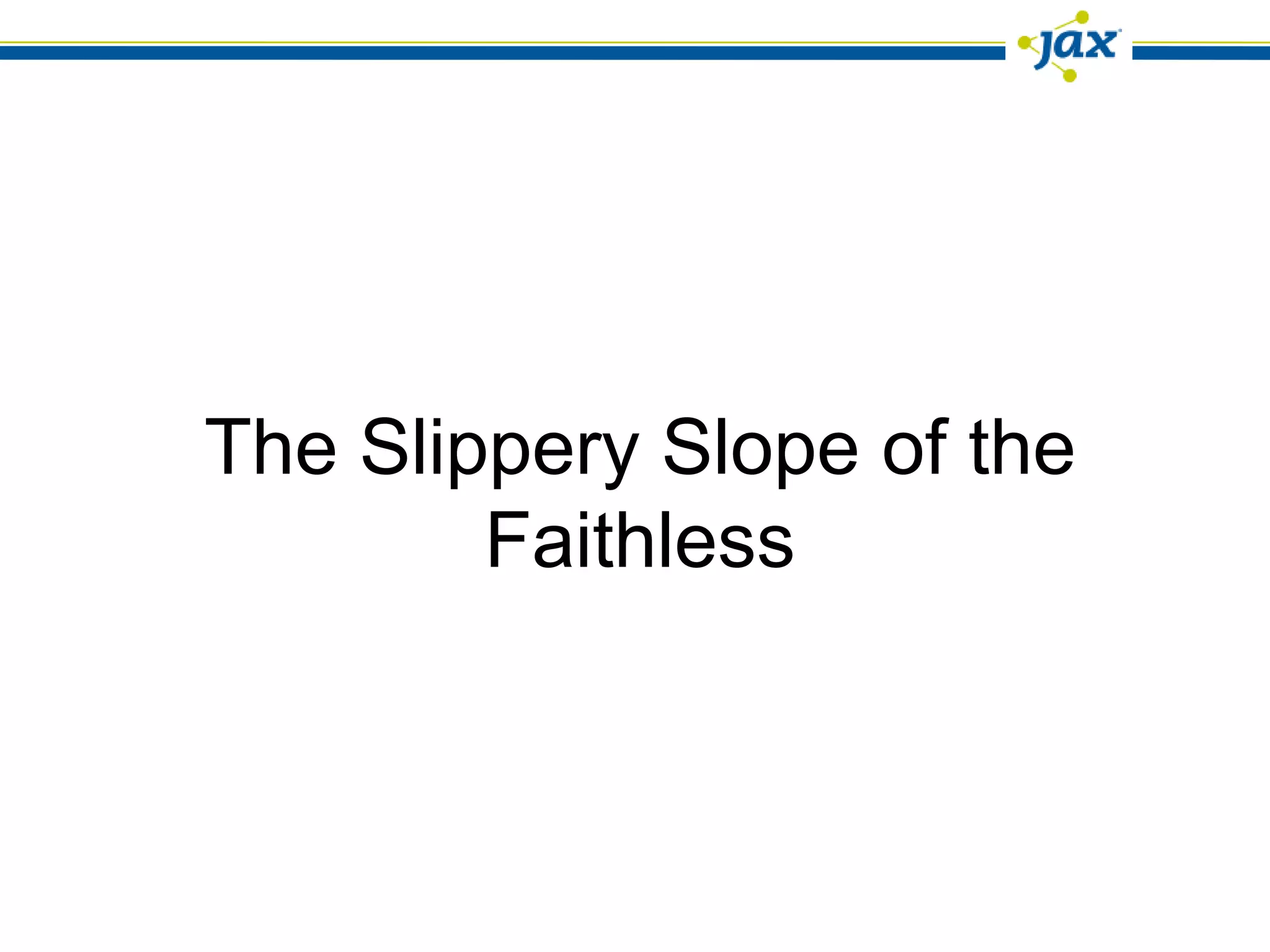

24. The Slippery Slope of the
Faithless

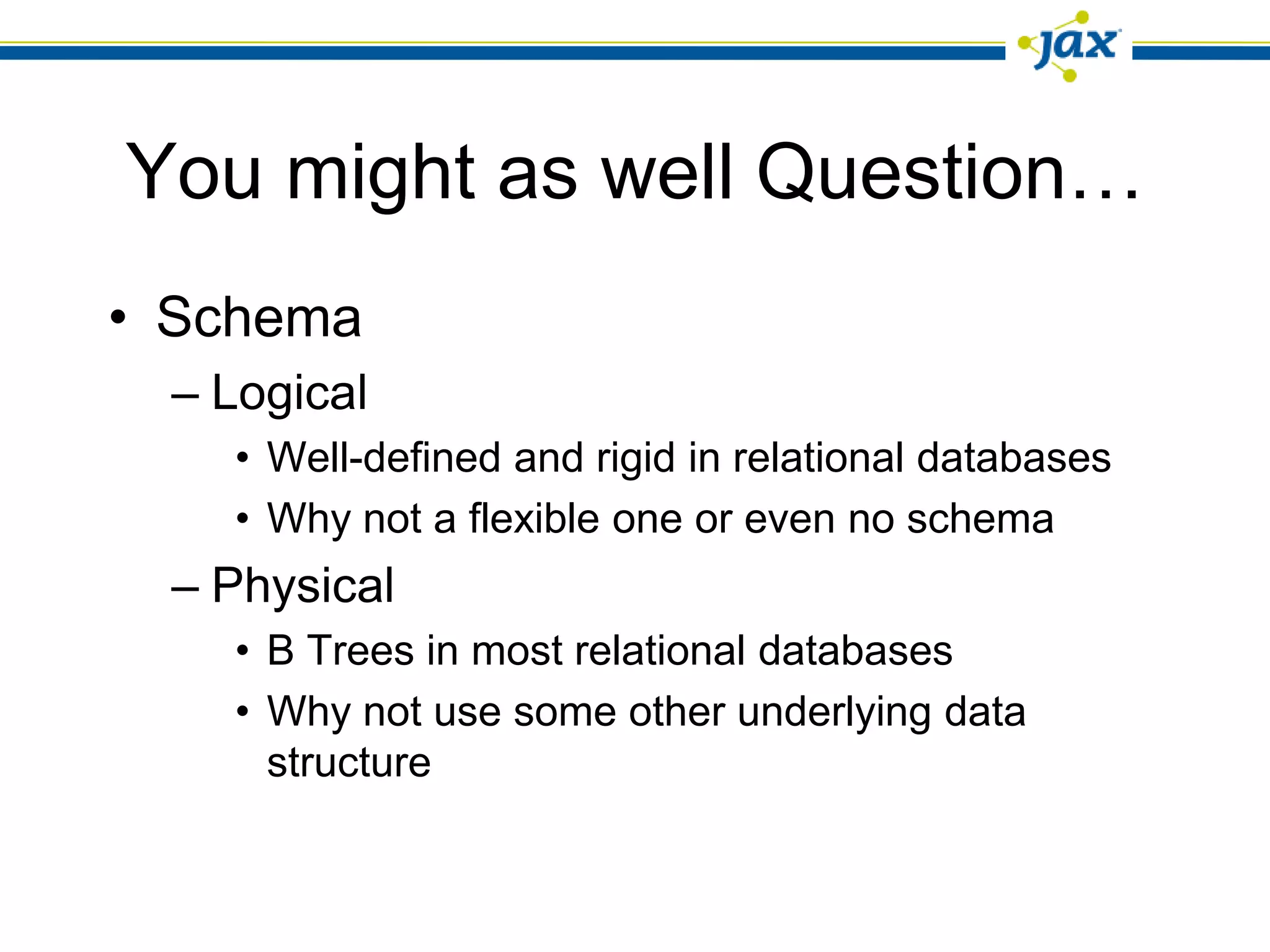

25. You might as well Question…
• Schema
– Logical
• Well-defined and rigid in relational databases
• Why not a flexible one or even no schema
– Physical
• B Trees in most relational databases
• Why not use some other underlying data
structure

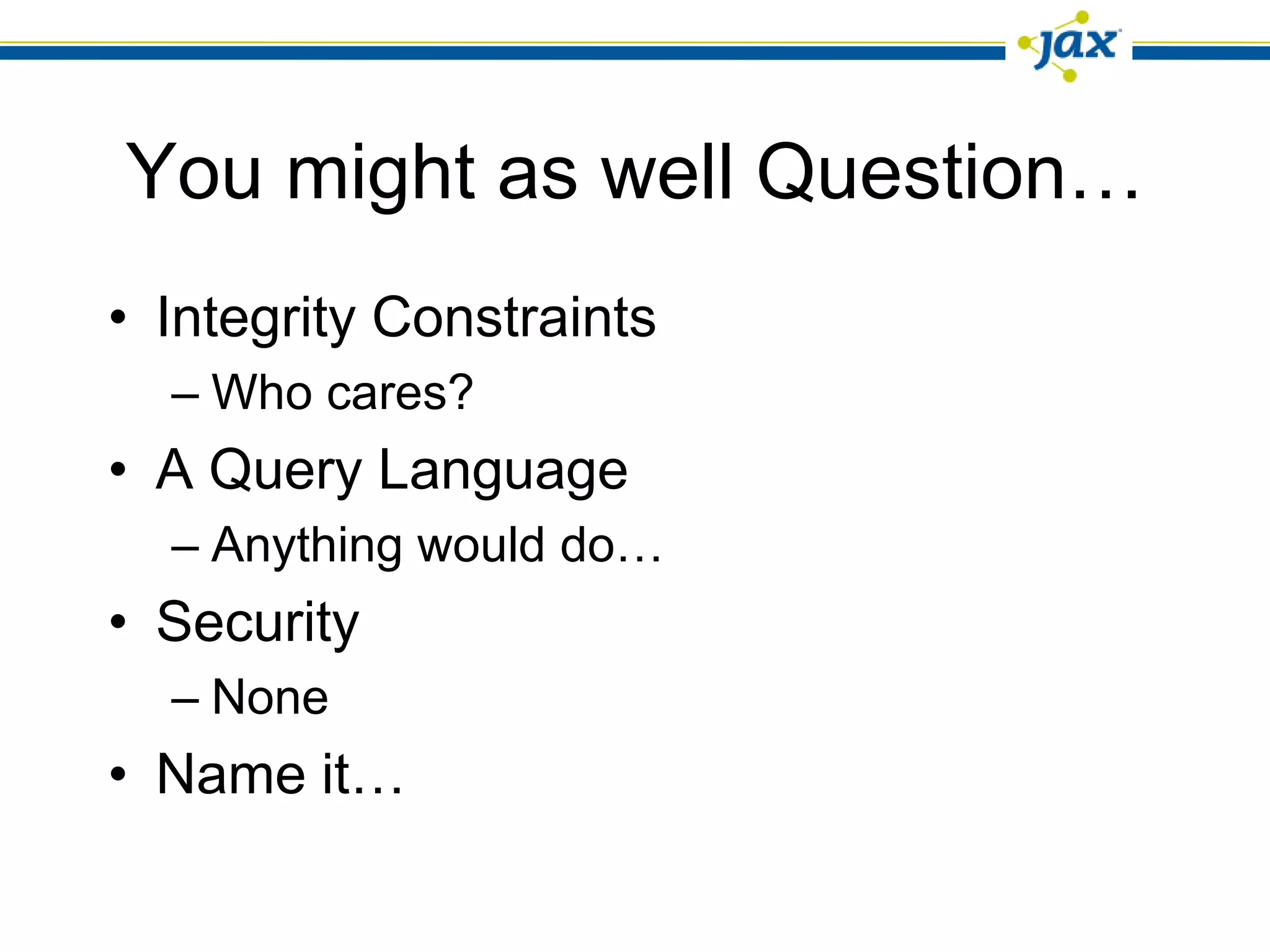

26. You might as well Question…
• Integrity Constraints
– Who cares?
• A Query Language
– Anything would do…
• Security
– None
• Name it…

27. NoSQL: Going Rogue…

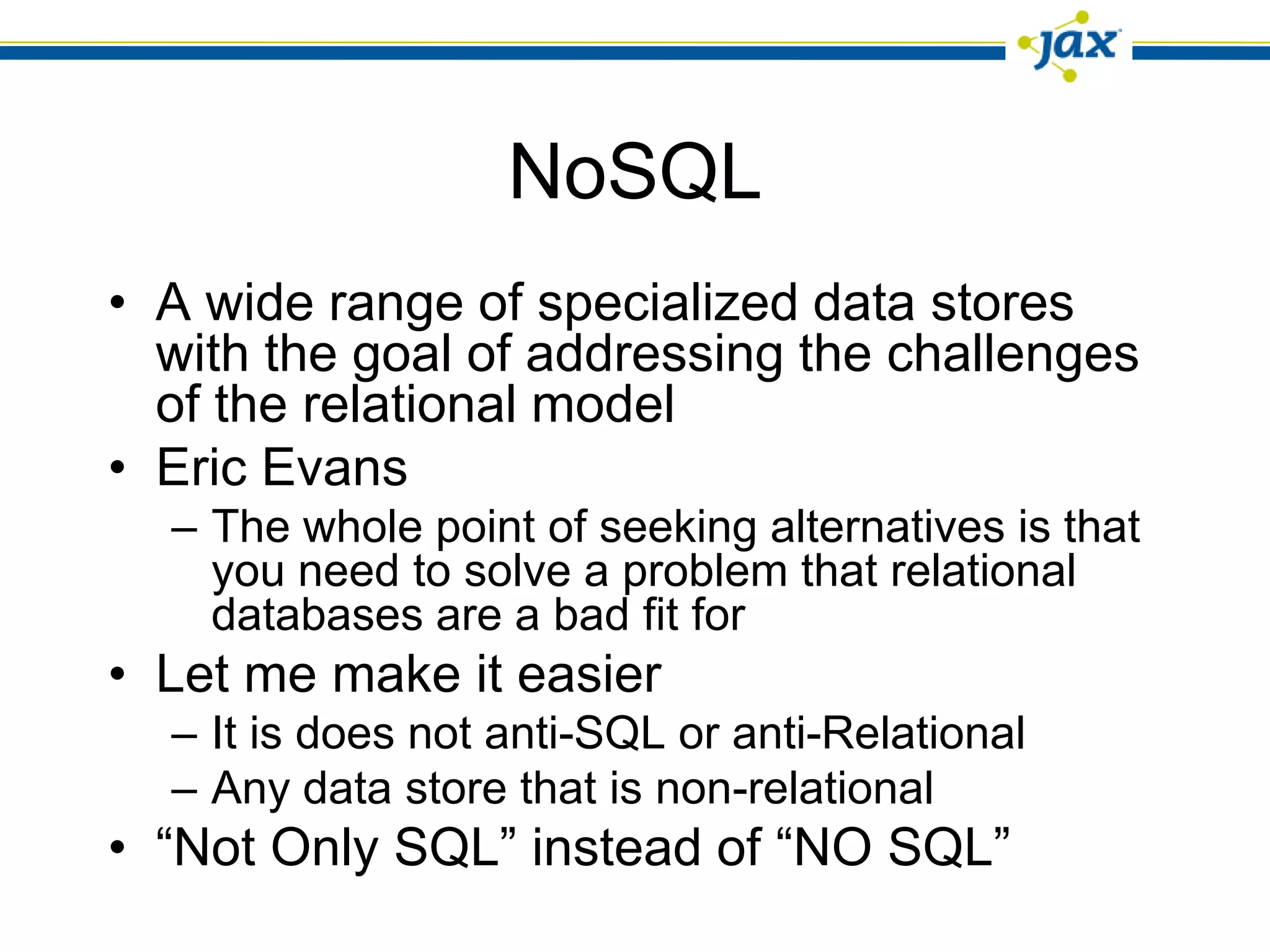

28. NoSQL
• A wide range of specialized data stores
with the goal of addressing the challenges
of the relational model
• Eric Evans
– The whole point of seeking alternatives is that
you need to solve a problem that relational
databases are a bad fit for
• Let me make it easier
– It is does not anti-SQL or anti-Relational
– Any data store that is non-relational
• “Not Only SQL” instead of “NO SQL”

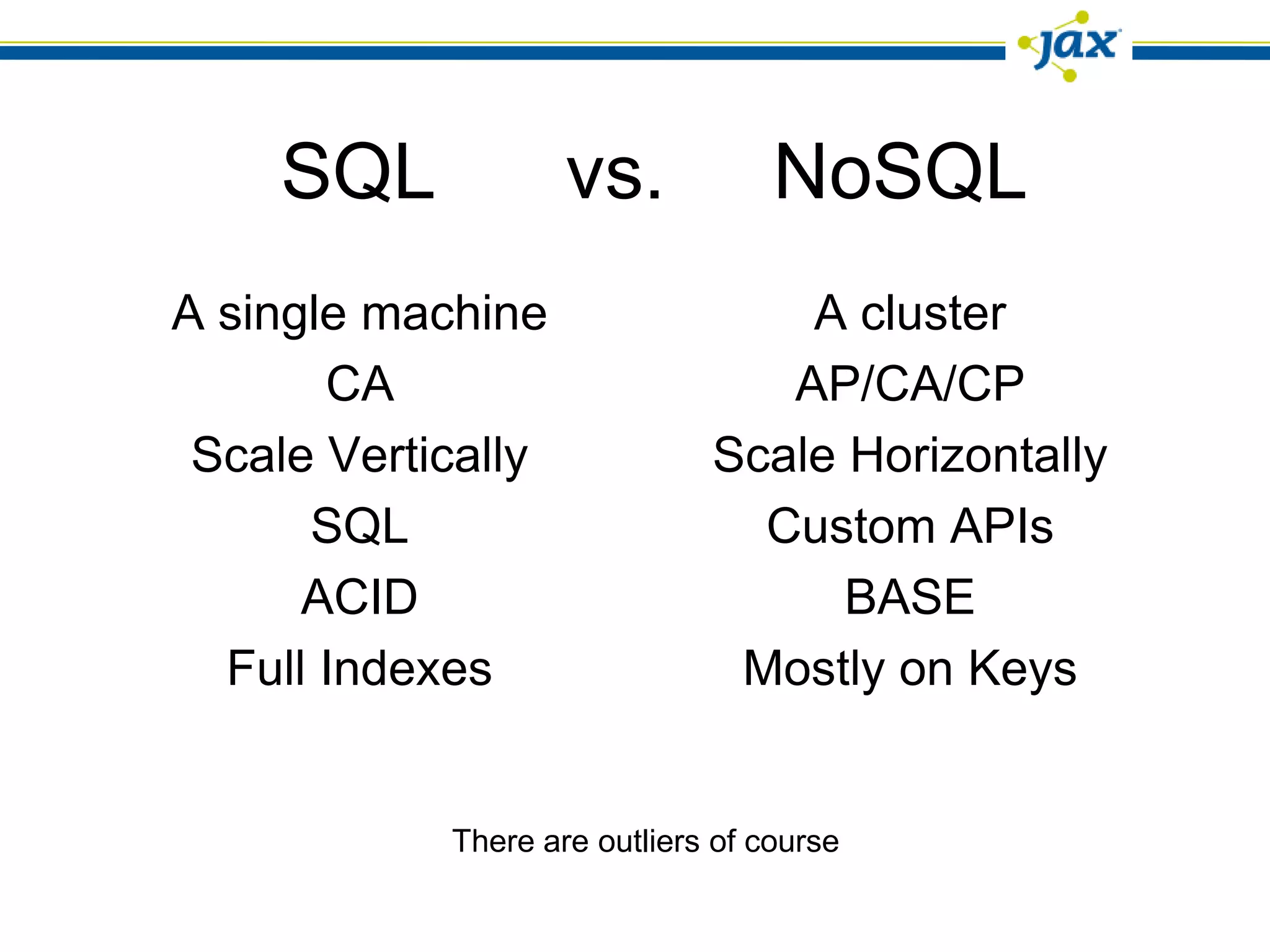

29. SQL vs. NoSQL
A single machine A cluster
CA AP/CA/CP
Scale Vertically Scale Horizontally
SQL Custom APIs
ACID BASE
Full Indexes Mostly on Keys
There are outliers of course

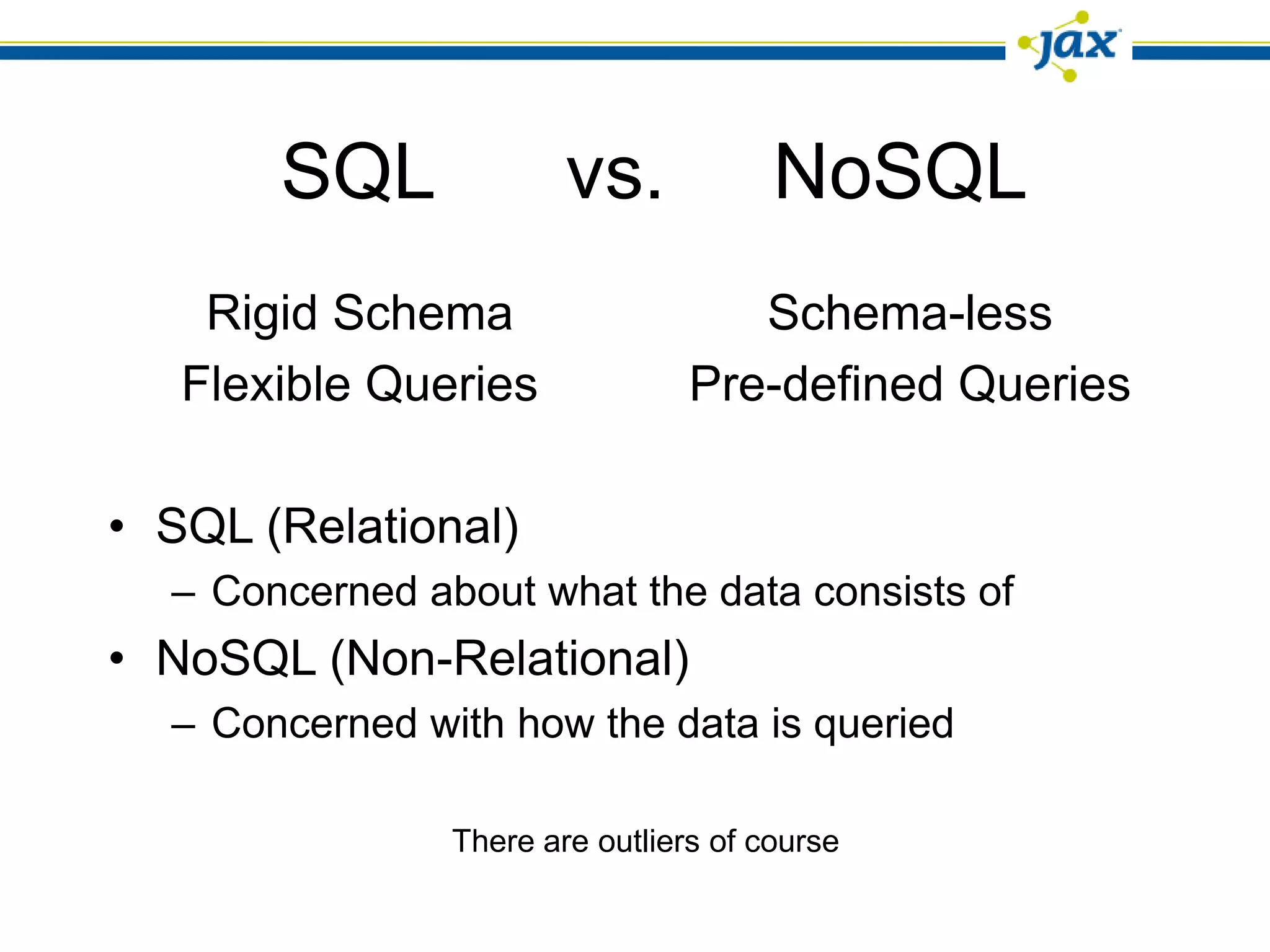

30. SQL vs. NoSQL
Rigid Schema Schema-less
Flexible Queries Pre-defined Queries
• SQL (Relational)
– Concerned about what the data consists of
• NoSQL (Non-Relational)
– Concerned with how the data is queried
There are outliers of course

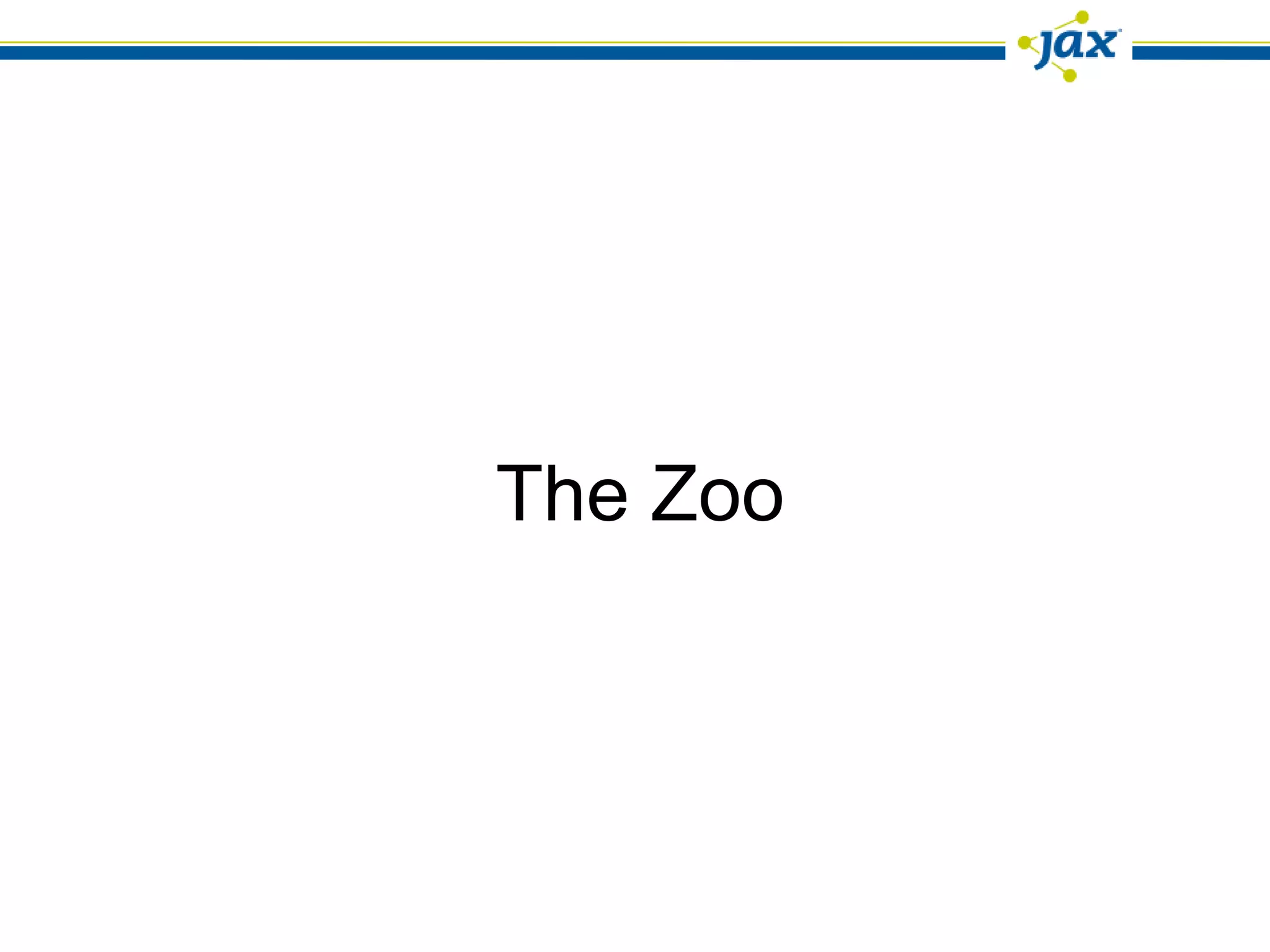

32. The Zoo

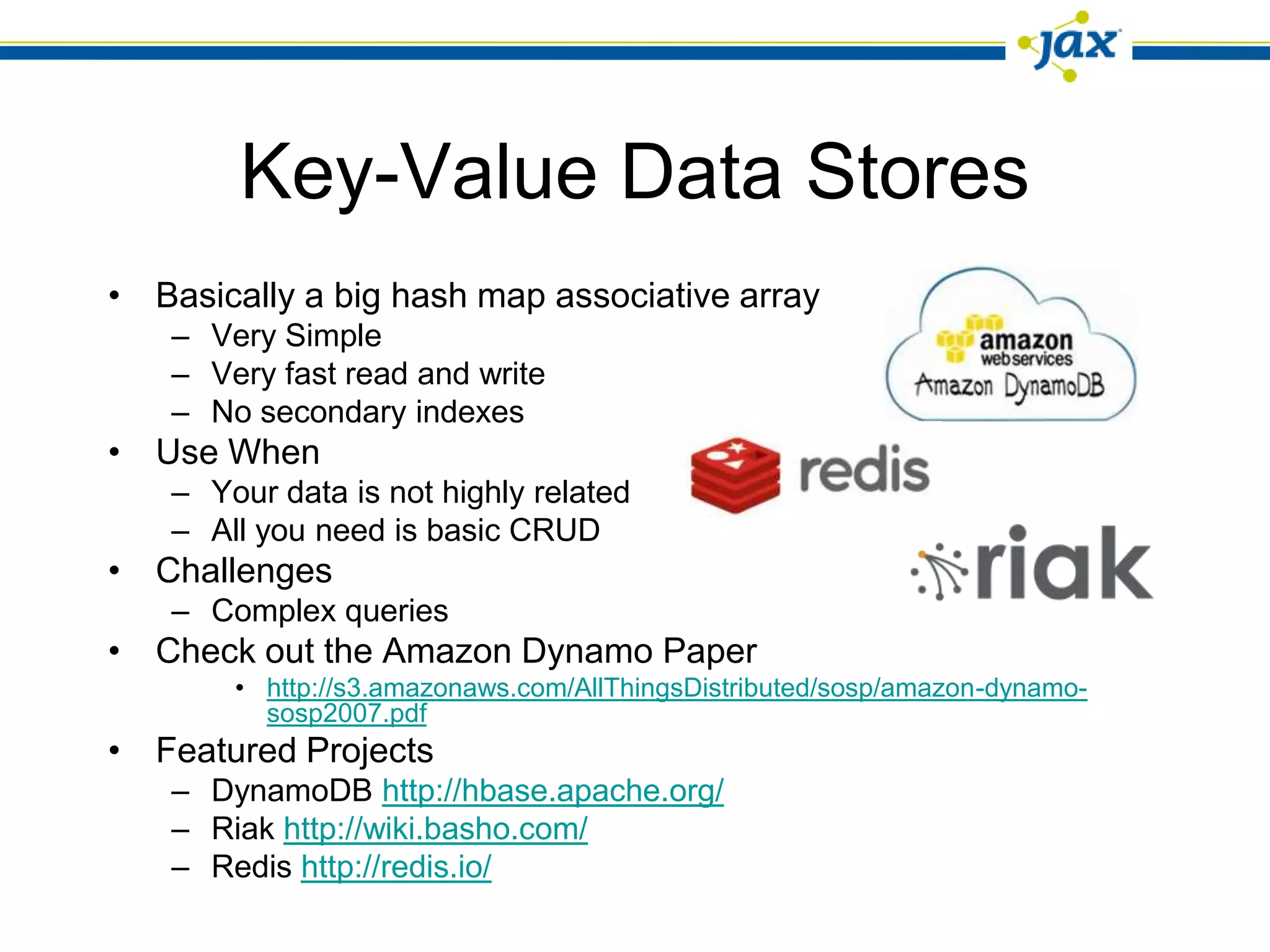

33. Key-Value Data Stores
• Basically a big hash map associative array
– Very Simple
– Very fast read and write
– No secondary indexes
• Use When
– Your data is not highly related
– All you need is basic CRUD
• Challenges
– Complex queries
• Check out the Amazon Dynamo Paper
• http://s3.amazonaws.com/AllThingsDistributed/sosp/amazon-dynamo-
sosp2007.pdf
• Featured Projects
– DynamoDB http://hbase.apache.org/
– Riak http://wiki.basho.com/
– Redis http://redis.io/

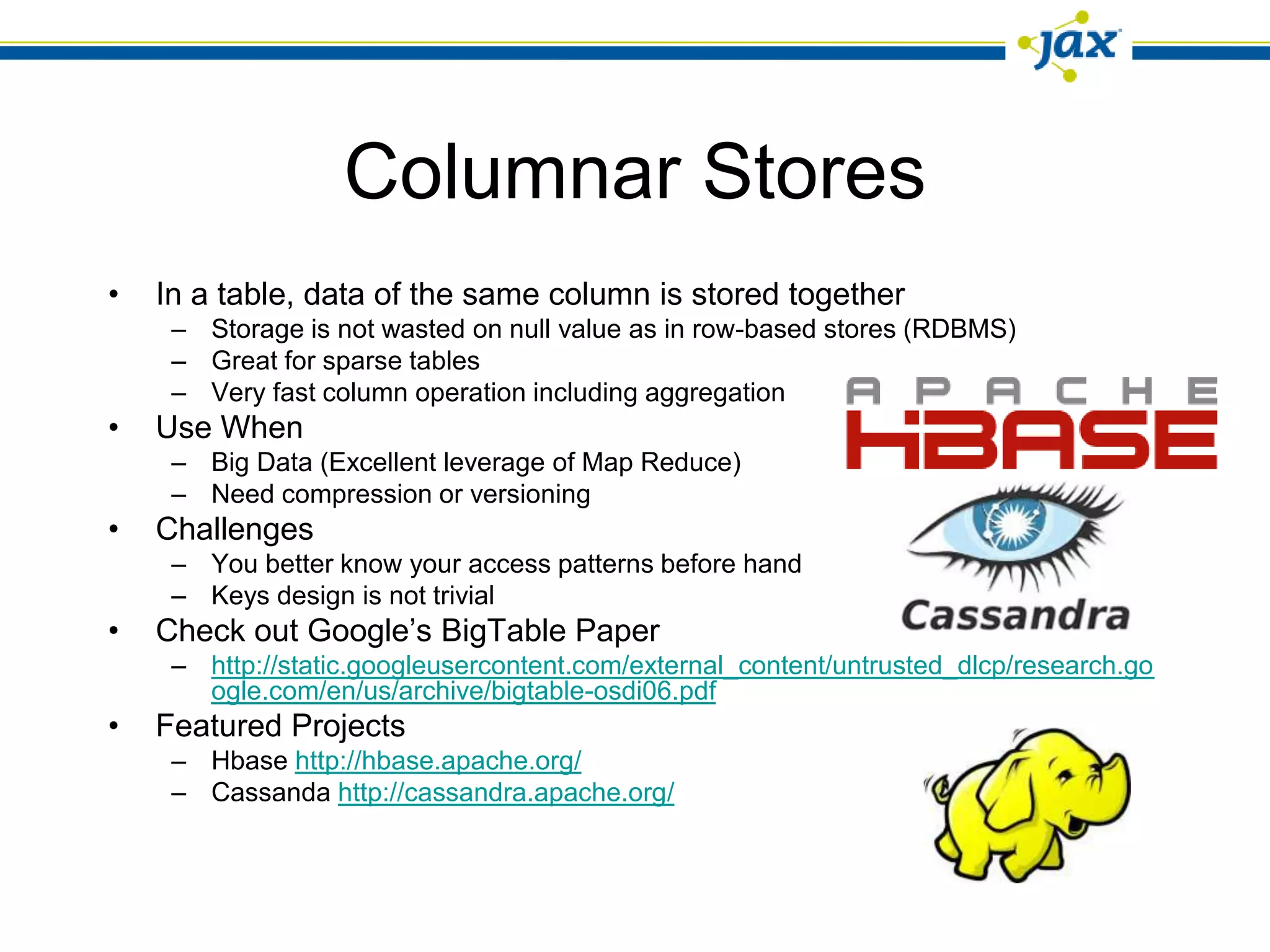

34. Columnar Stores
• In a table, data of the same column is stored together
– Storage is not wasted on null value as in row-based stores (RDBMS)
– Great for sparse tables
– Very fast column operation including aggregation
• Use When
– Big Data (Excellent leverage of Map Reduce)
– Need compression or versioning
• Challenges
– You better know your access patterns before hand
– Keys design is not trivial
• Check out Google’s BigTable Paper
– http://static.googleusercontent.com/external_content/untrusted_dlcp/research.go
ogle.com/en/us/archive/bigtable-osdi06.pdf
• Featured Projects
– Hbase http://hbase.apache.org/
– Cassanda http://cassandra.apache.org/

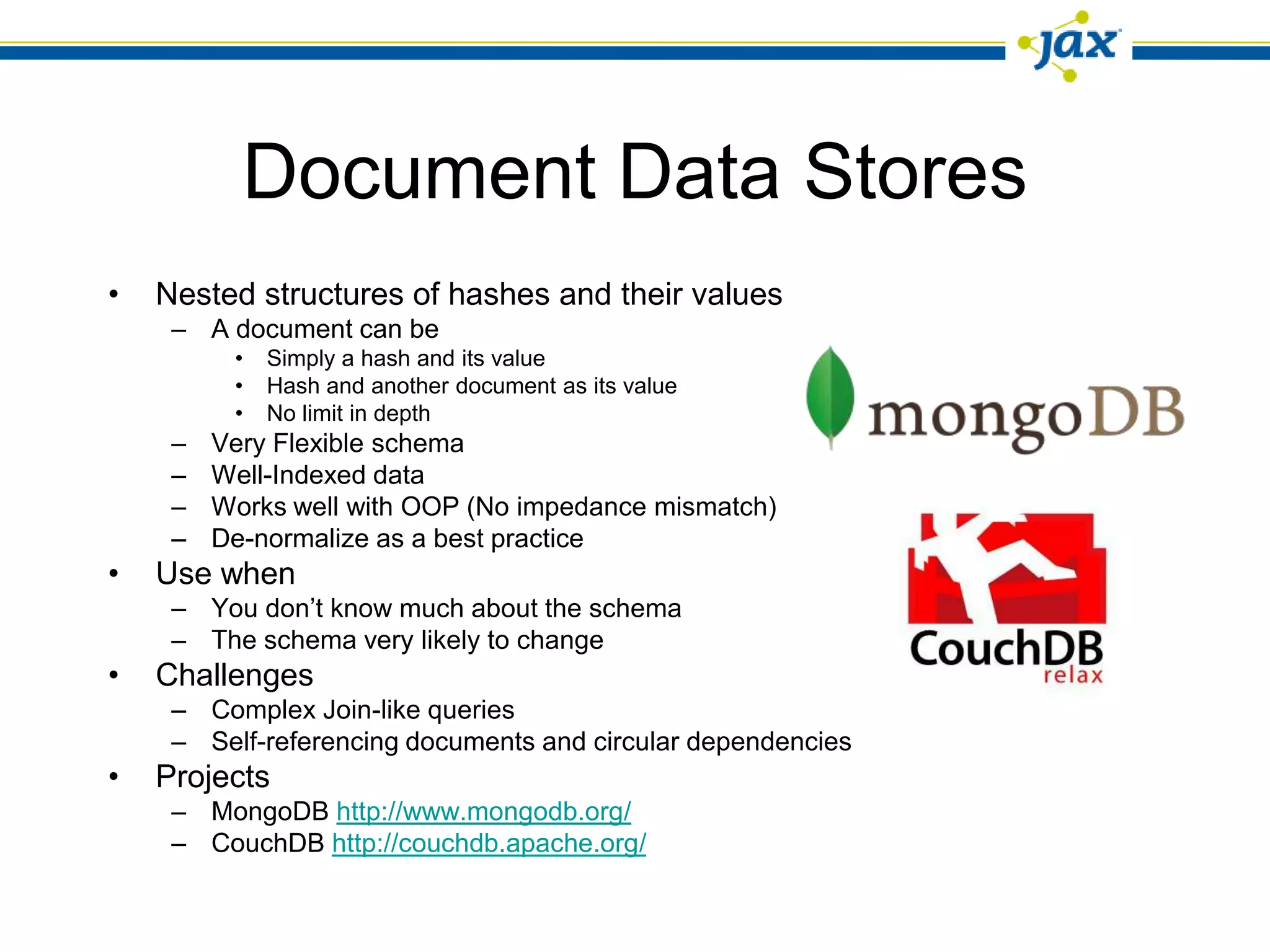

35. Document Data Stores
• Nested structures of hashes and their values
– A document can be
• Simply a hash and its value
• Hash and another document as its value
• No limit in depth
– Very Flexible schema
– Well-Indexed data
– Works well with OOP (No impedance mismatch)
– De-normalize as a best practice
• Use when
– You don’t know much about the schema
– The schema very likely to change
• Challenges
– Complex Join-like queries
– Self-referencing documents and circular dependencies
• Projects
– MongoDB http://www.mongodb.org/
– CouchDB http://couchdb.apache.org/

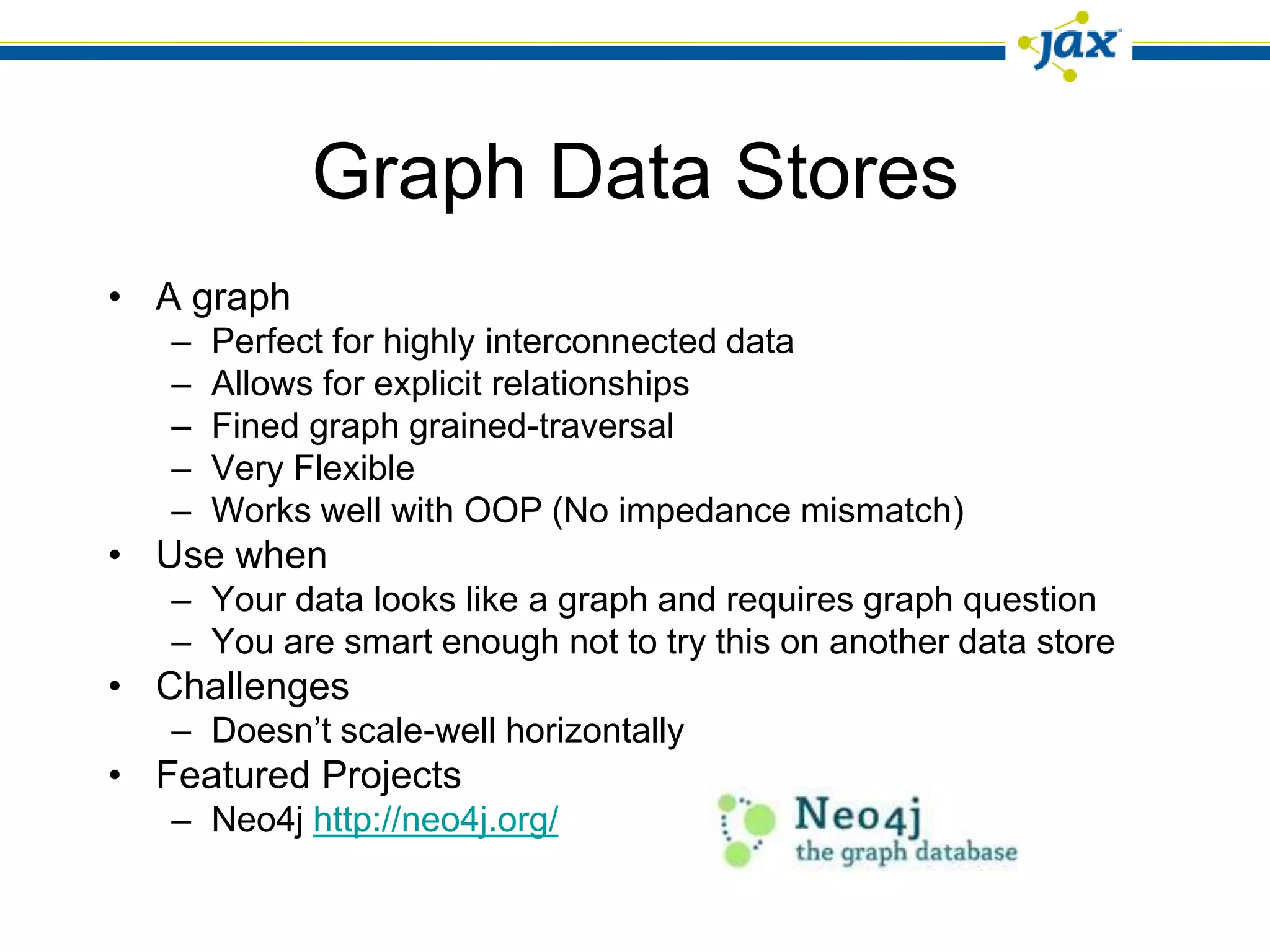

36. Graph Data Stores
• A graph
– Perfect for highly interconnected data
– Allows for explicit relationships
– Fined graph grained-traversal
– Very Flexible
– Works well with OOP (No impedance mismatch)
• Use when
– Your data looks like a graph and requires graph question
– You are smart enough not to try this on another data store
• Challenges
– Doesn’t scale-well horizontally
• Featured Projects
– Neo4j http://neo4j.org/

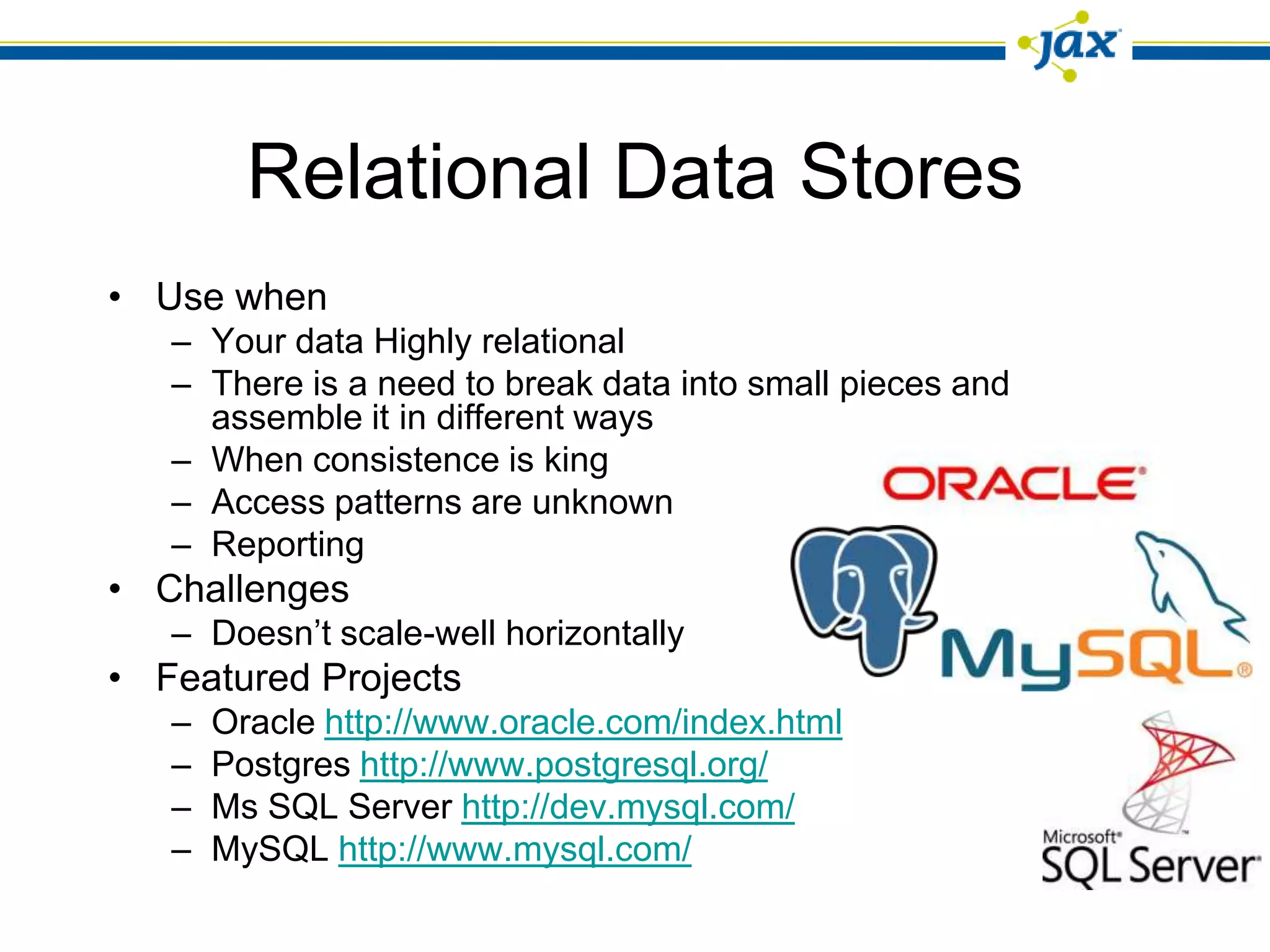

37. Relational Data Stores
• Use when
– Your data Highly relational
– There is a need to break data into small pieces and
assemble it in different ways
– When consistence is king
– Access patterns are unknown
– Reporting
• Challenges
– Doesn’t scale-well horizontally
• Featured Projects
– Oracle http://www.oracle.com/index.html
– Postgres http://www.postgresql.org/
– Ms SQL Server http://dev.mysql.com/
– MySQL http://www.mysql.com/

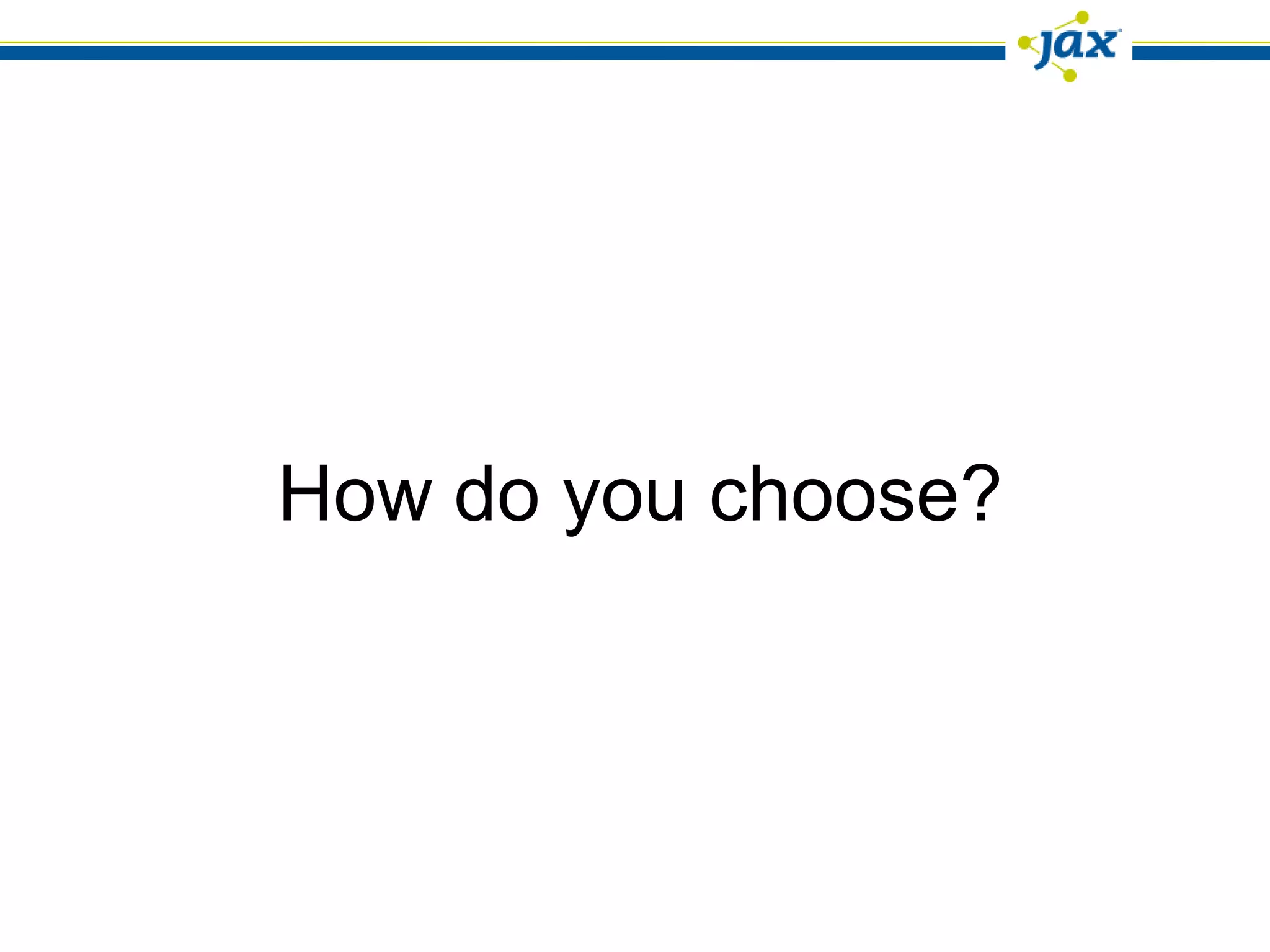

38. How do you choose?

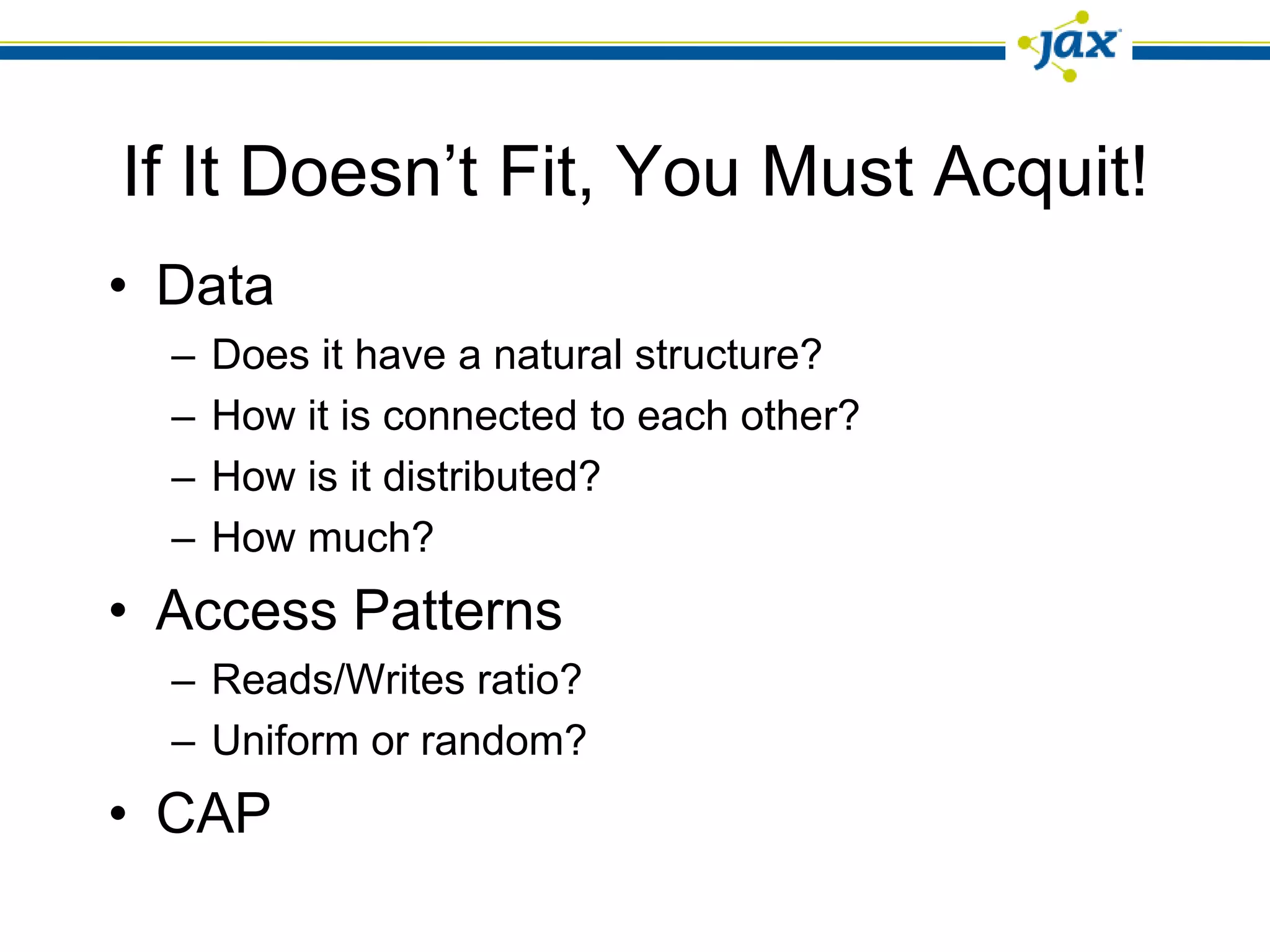

39. If It Doesn’t Fit, You Must Acquit!
• Data
– Does it have a natural structure?
– How it is connected to each other?
– How is it distributed?
– How much?
• Access Patterns
– Reads/Writes ratio?
– Uniform or random?
• CAP

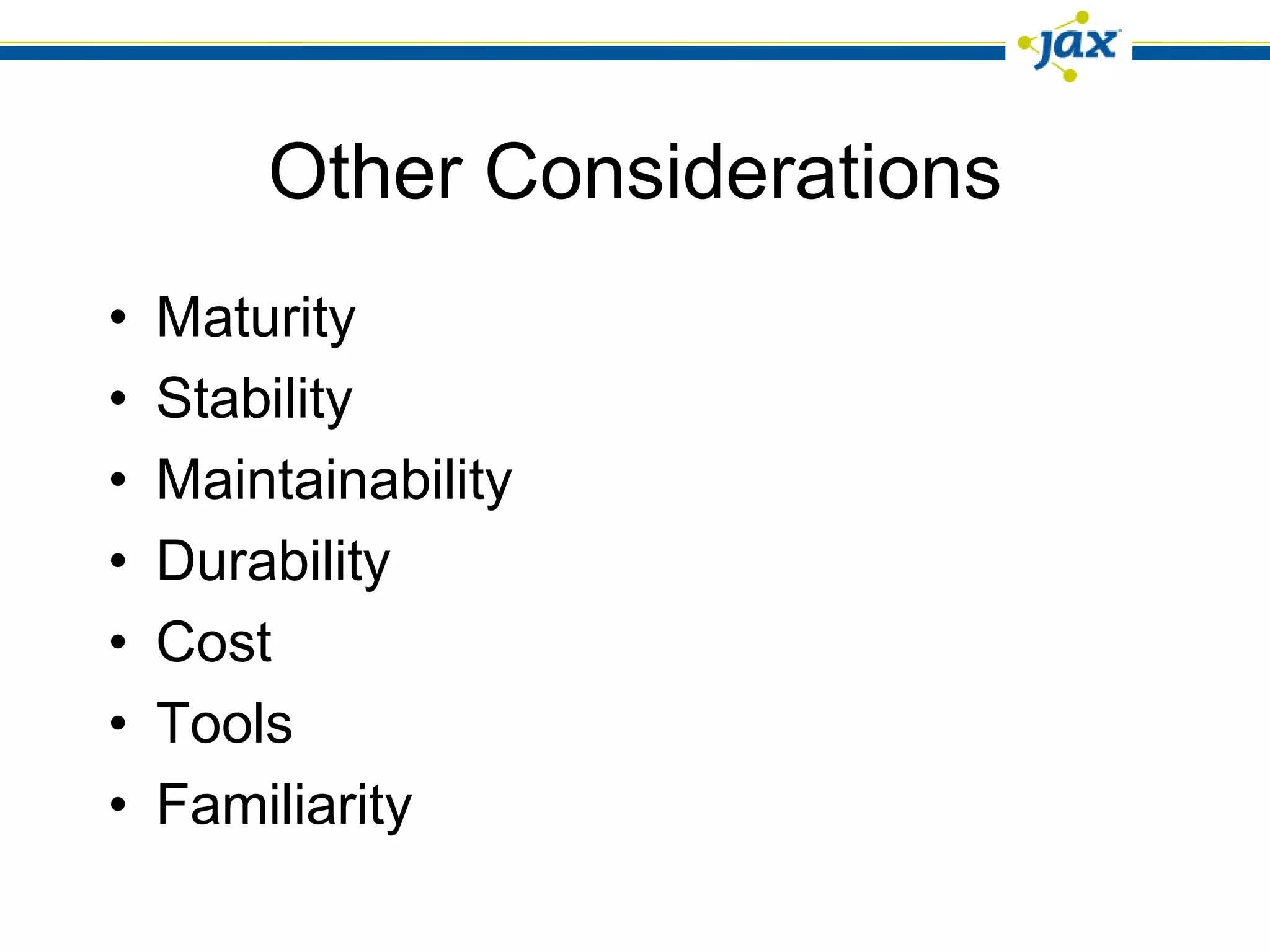

40. Other Considerations
• Maturity
• Stability
• Maintainability
• Durability
• Cost
• Tools
• Familiarity

41. For Fairness’ Sake!

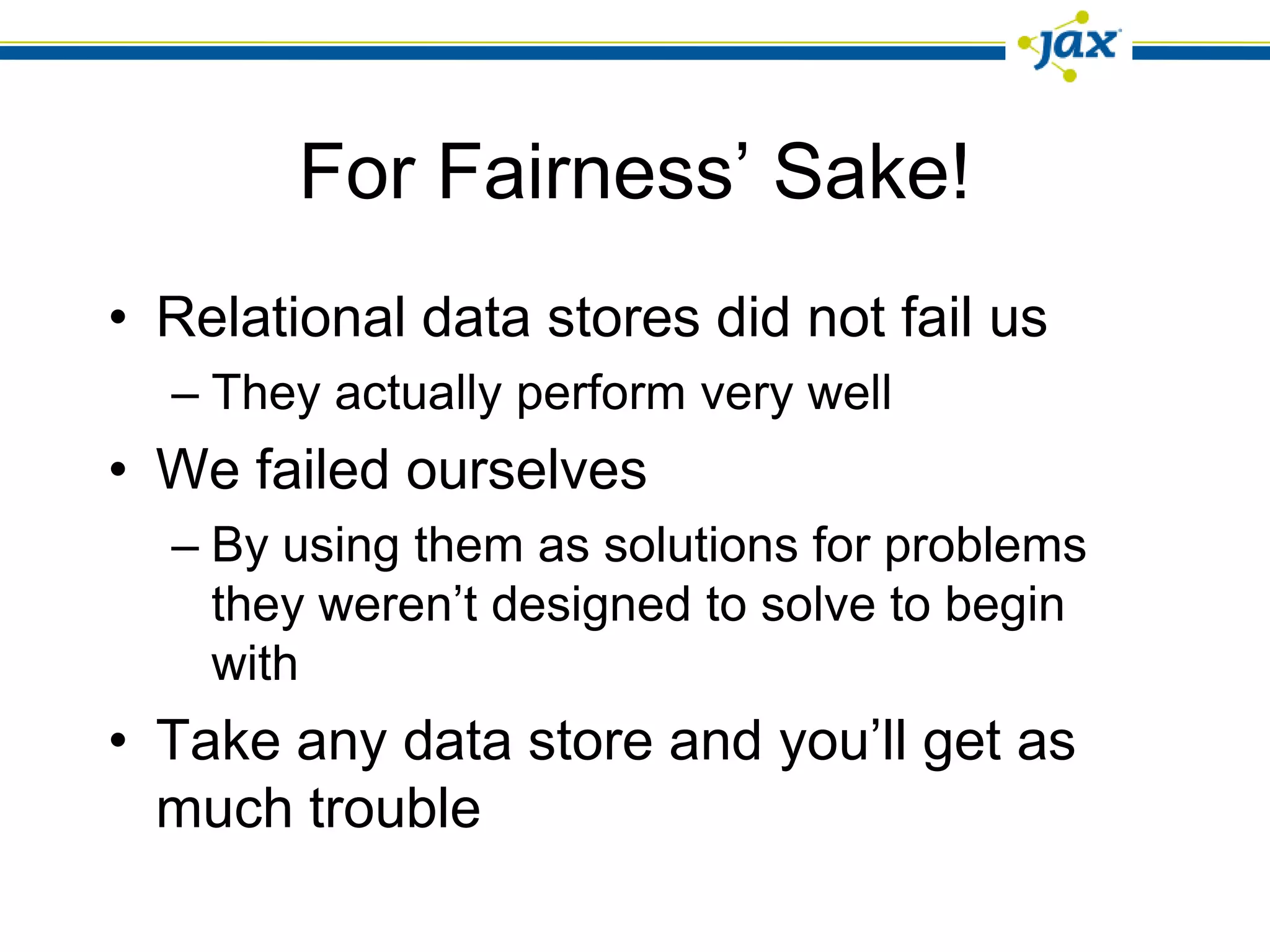

42. For Fairness’ Sake!
• Relational data stores did not fail us
– They actually perform very well
• We failed ourselves
– By using them as solutions for problems
they weren’t designed to solve to begin
with
• Take any data store and you’ll get as
much trouble

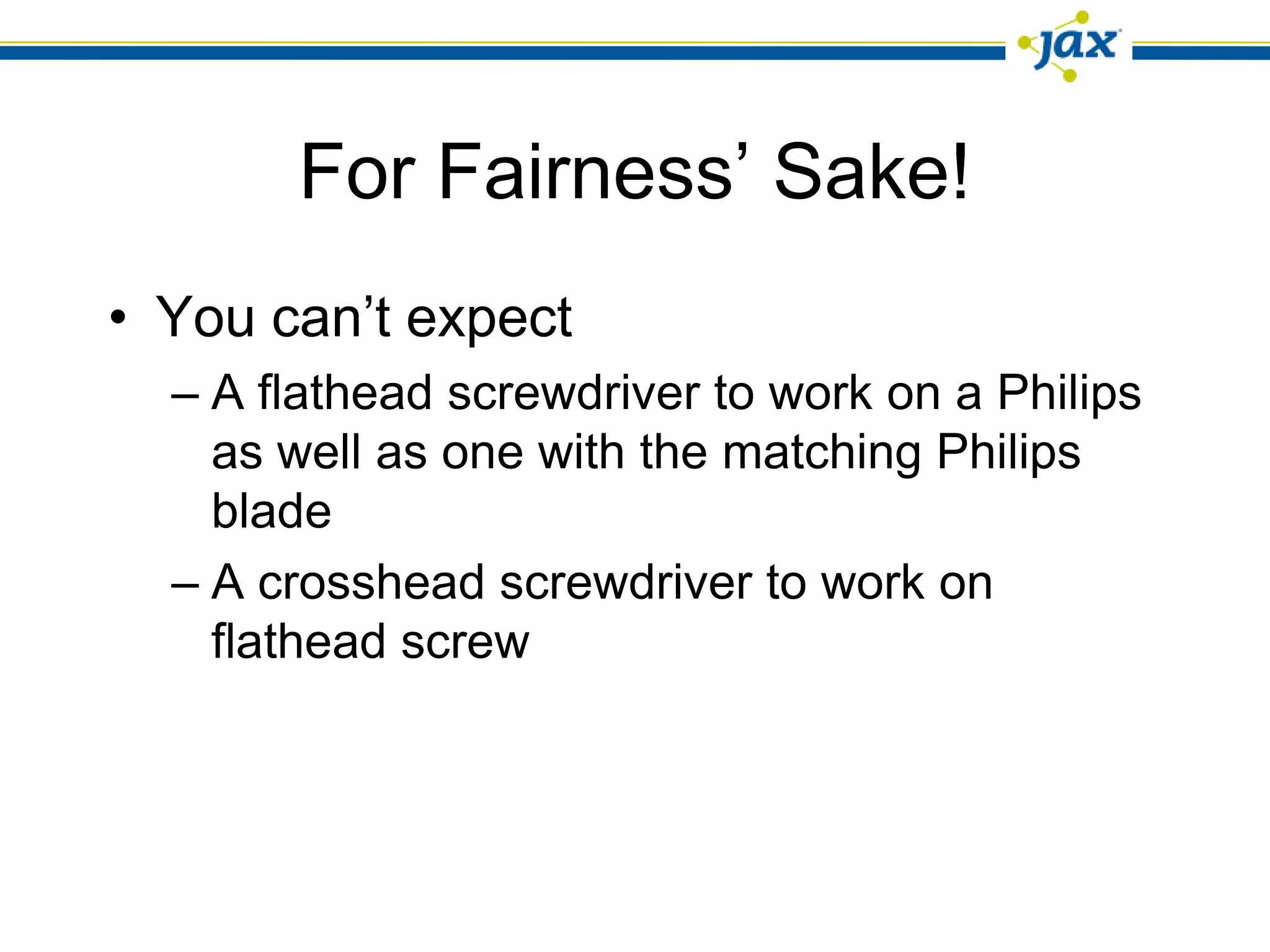

43. For Fairness’ Sake!
• You can’t expect
– A flathead screwdriver to work on a Philips
as well as one with the matching Philips
blade
– A crosshead screwdriver to work on
flathead screw

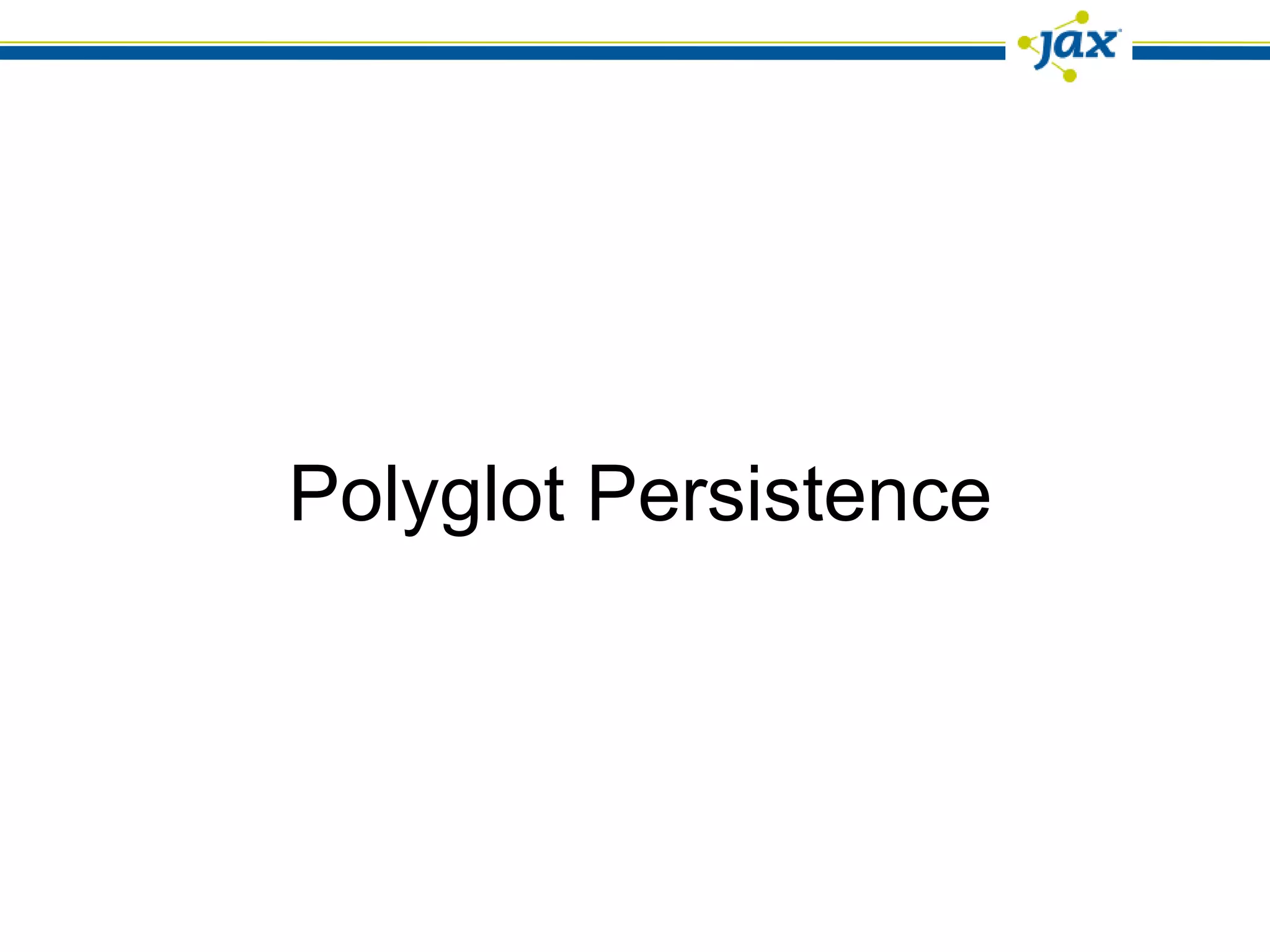

44. Polyglot Persistence

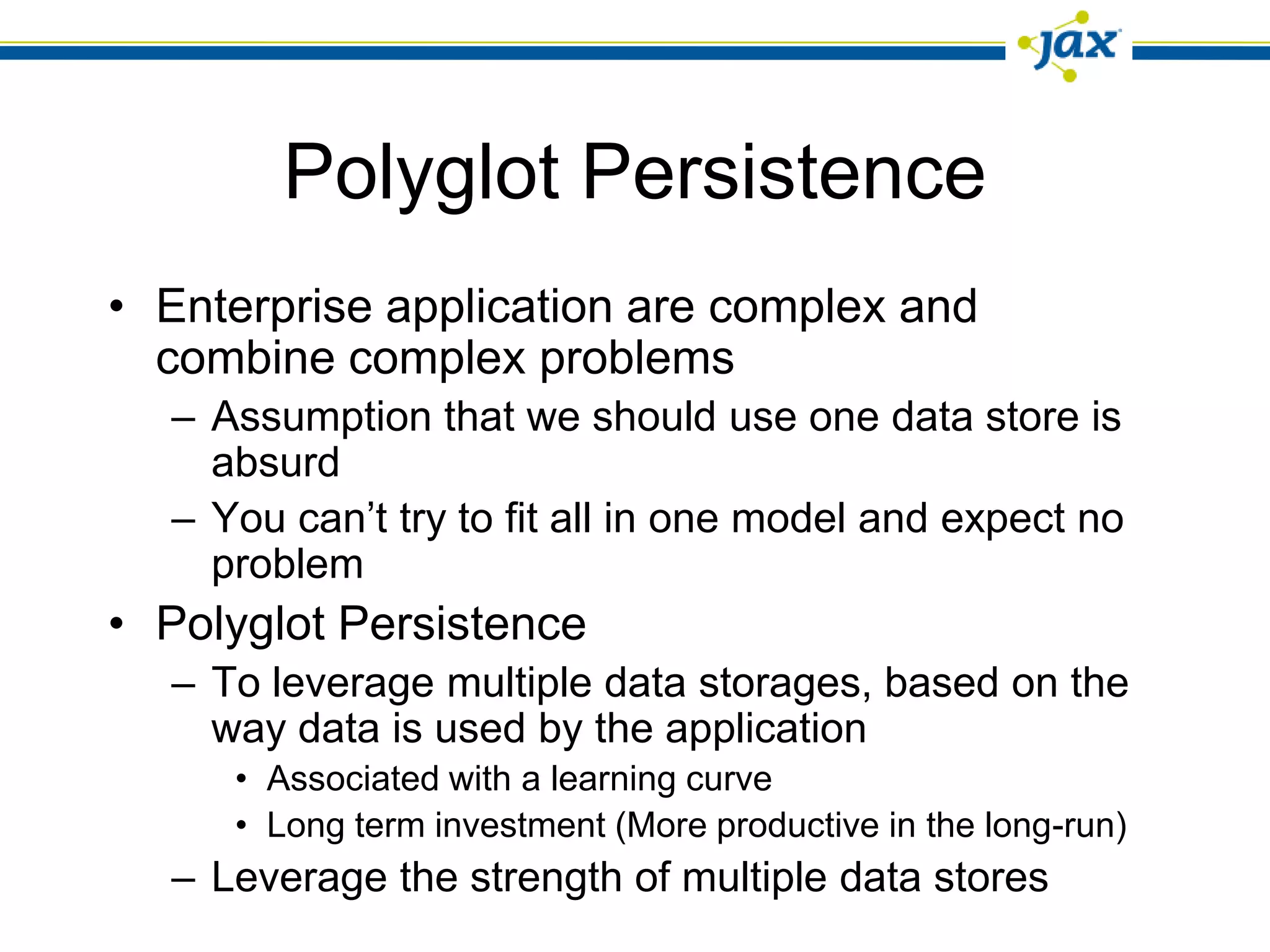

45. Polyglot Persistence
• Enterprise application are complex and
combine complex problems
– Assumption that we should use one data store is
absurd
– You can’t try to fit all in one model and expect no
problem
• Polyglot Persistence
– To leverage multiple data storages, based on the
way data is used by the application
• Associated with a learning curve
• Long term investment (More productive in the long-run)
– Leverage the strength of multiple data stores

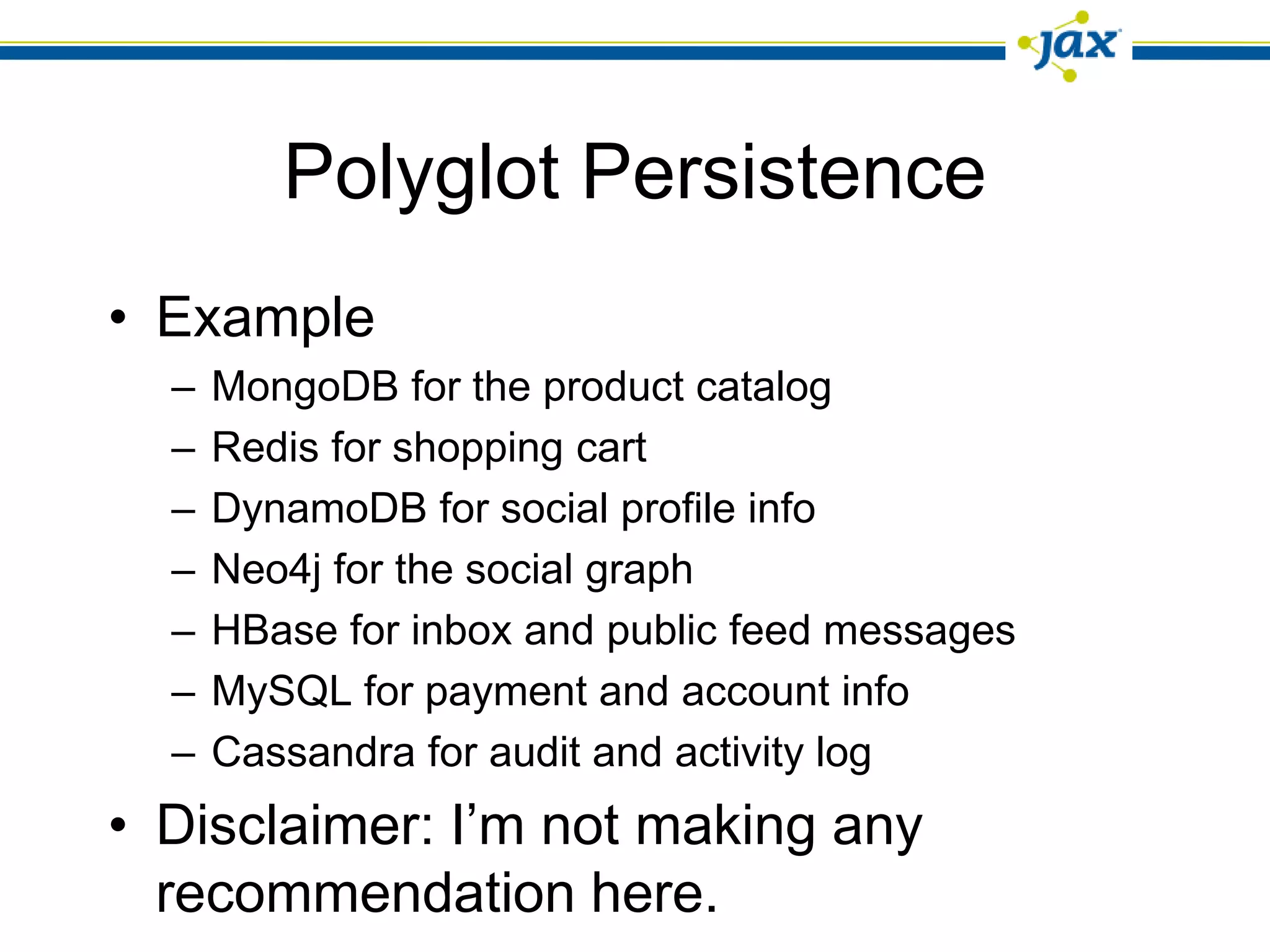

46. Polyglot Persistence
• Example
– MongoDB for the product catalog
– Redis for shopping cart
– DynamoDB for social profile info
– Neo4j for the social graph
– HBase for inbox and public feed messages
– MySQL for payment and account info
– Cassandra for audit and activity log
• Disclaimer: I’m not making any
recommendation here.

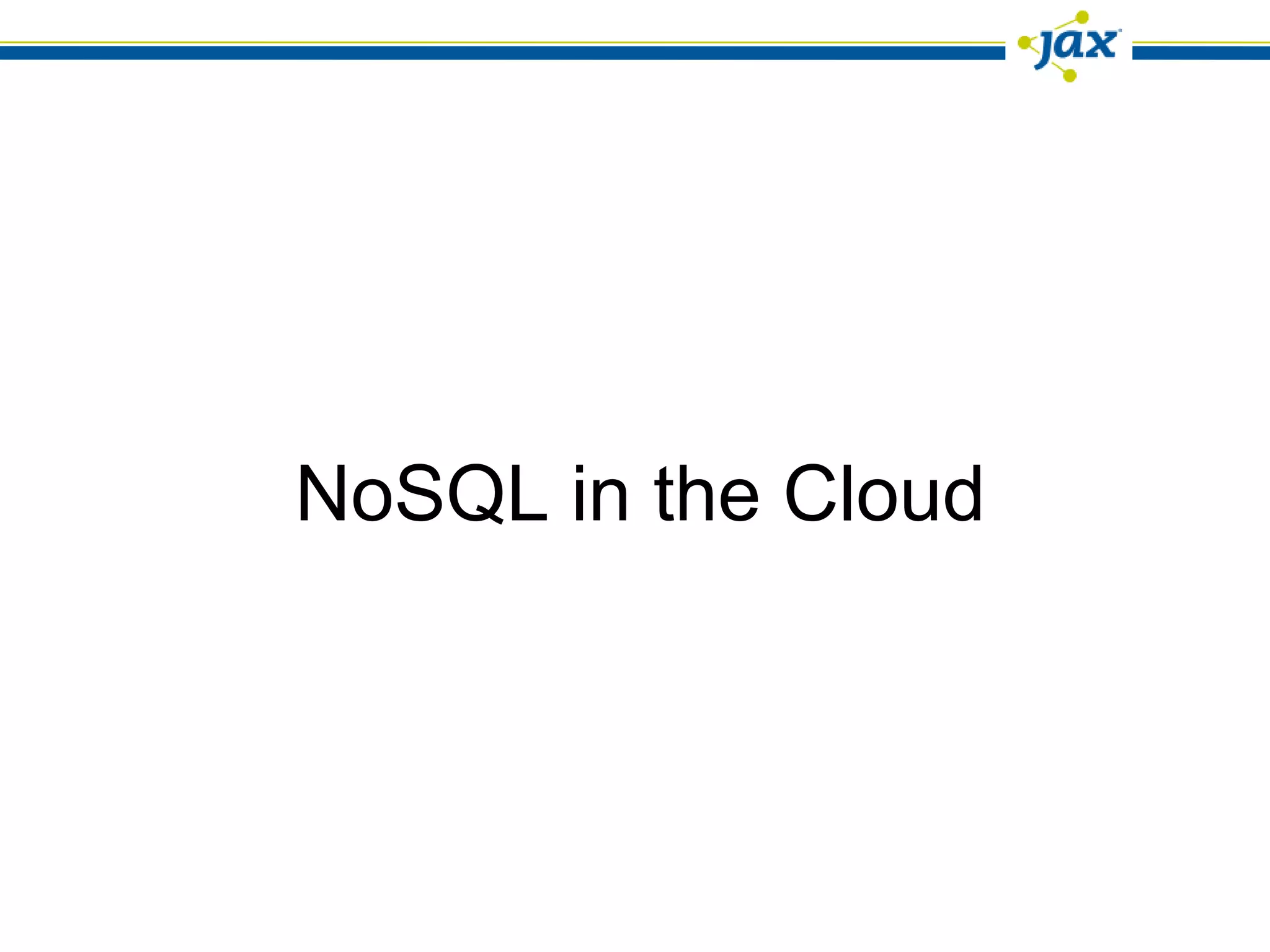

47. NoSQL in the Cloud

48. NoSQL in the Cloud
• NoSQL as a commodity
– Fully managed data stores (No
maintenance)
– Elastic scaling
– Cheap storage
• Featured:
– Amazon AWS
– Heroku Add-ons
– CloudFoundry

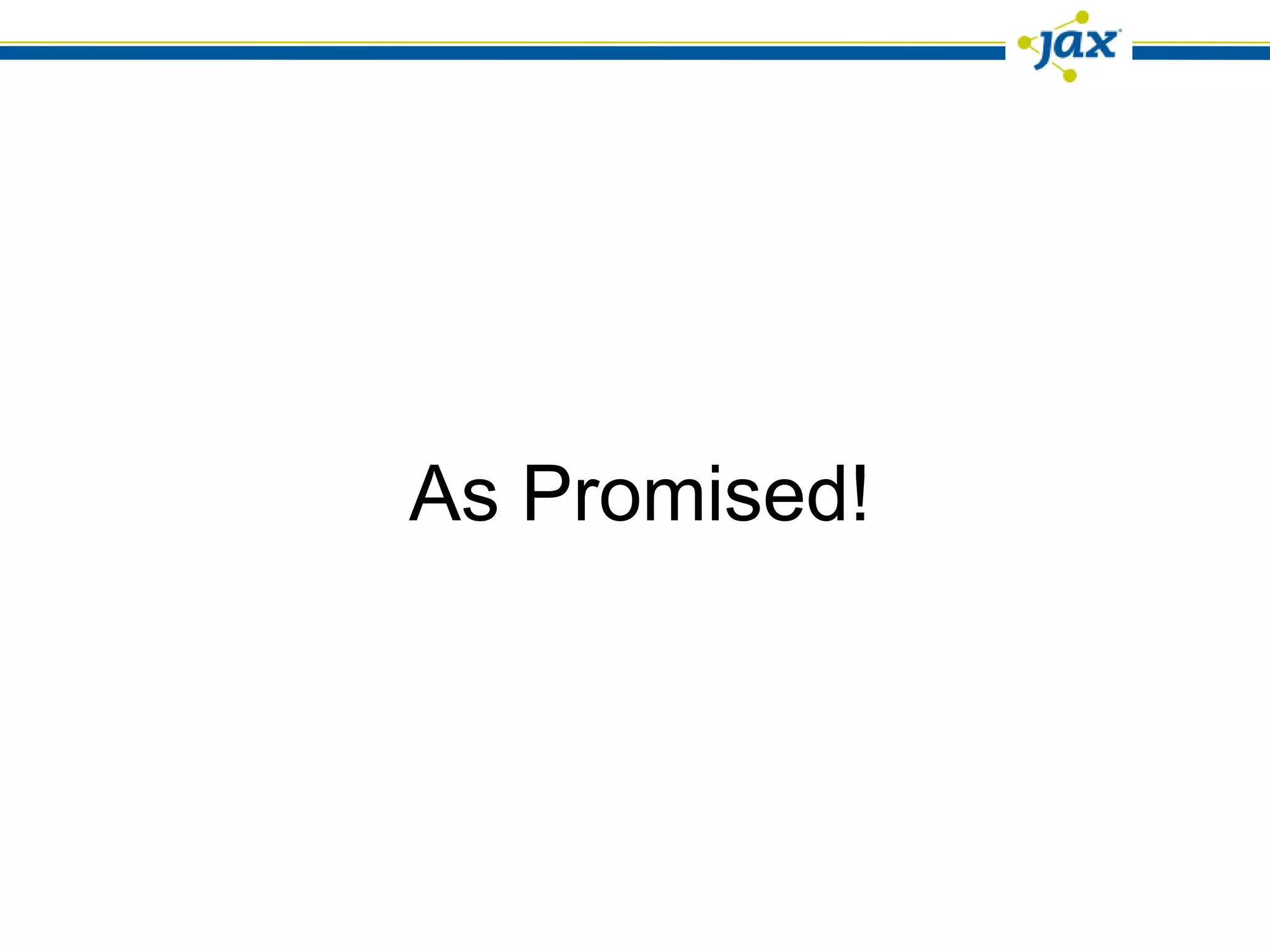

49. As Promised!

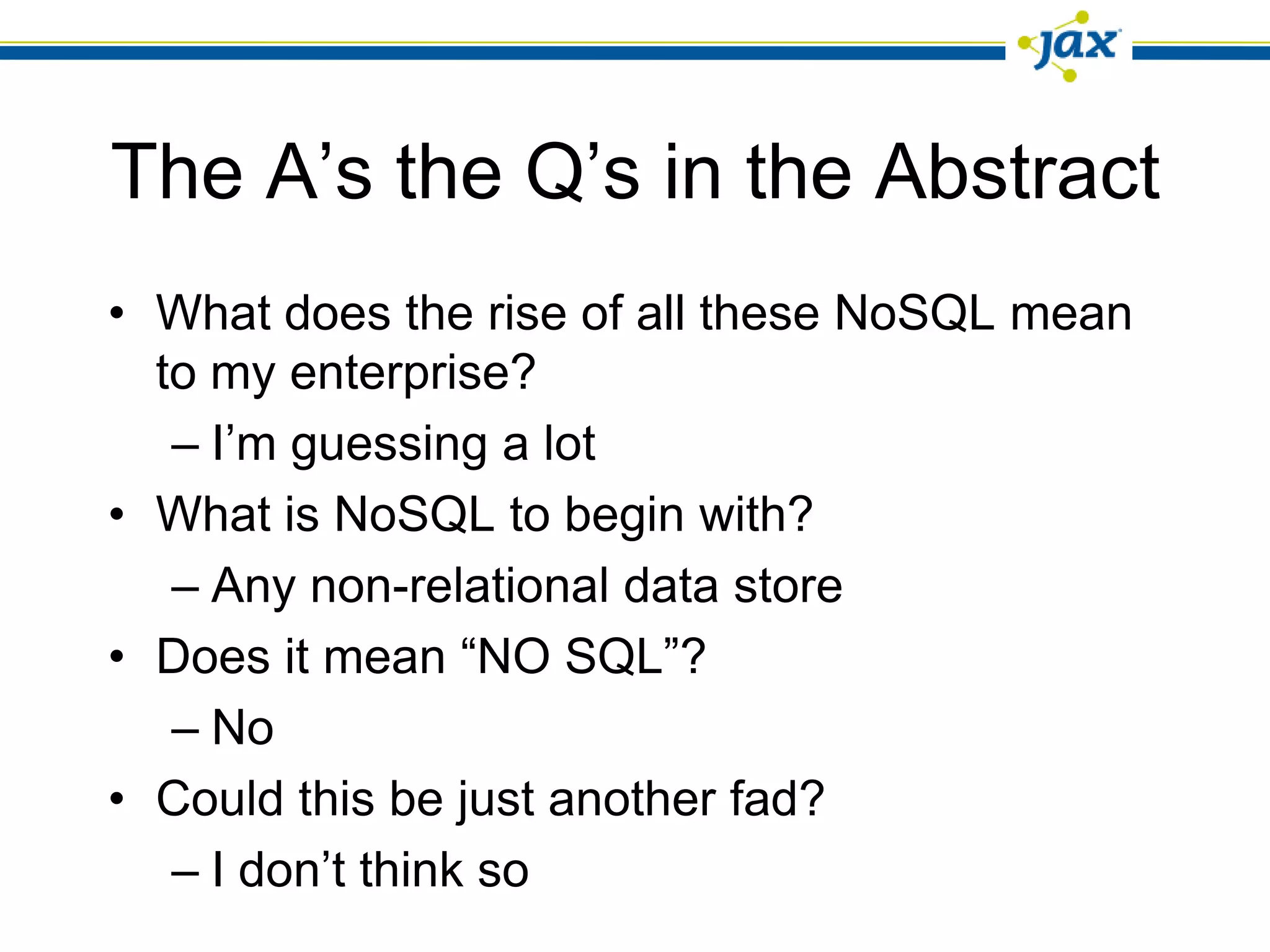

50. The A’s the Q’s in the Abstract
• What does the rise of all these NoSQL mean
to my enterprise?
– I’m guessing a lot
• What is NoSQL to begin with?
– Any non-relational data store
• Does it mean “NO SQL”?
– No
• Could this be just another fad?
– I don’t think so

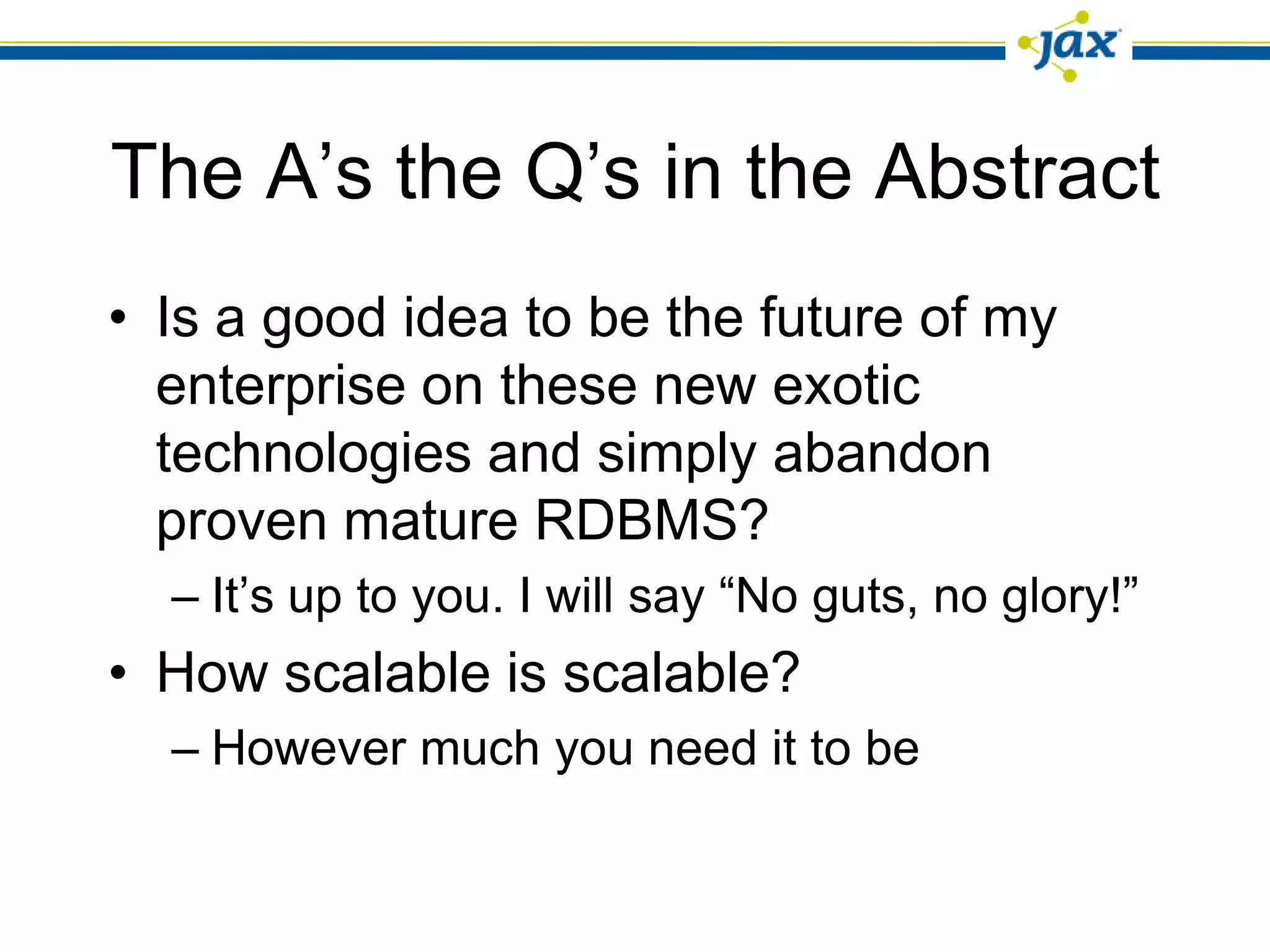

51. The A’s the Q’s in the Abstract
• Is a good idea to be the future of my
enterprise on these new exotic
technologies and simply abandon
proven mature RDBMS?
– It’s up to you. I will say “No guts, no glory!”
• How scalable is scalable?
– However much you need it to be

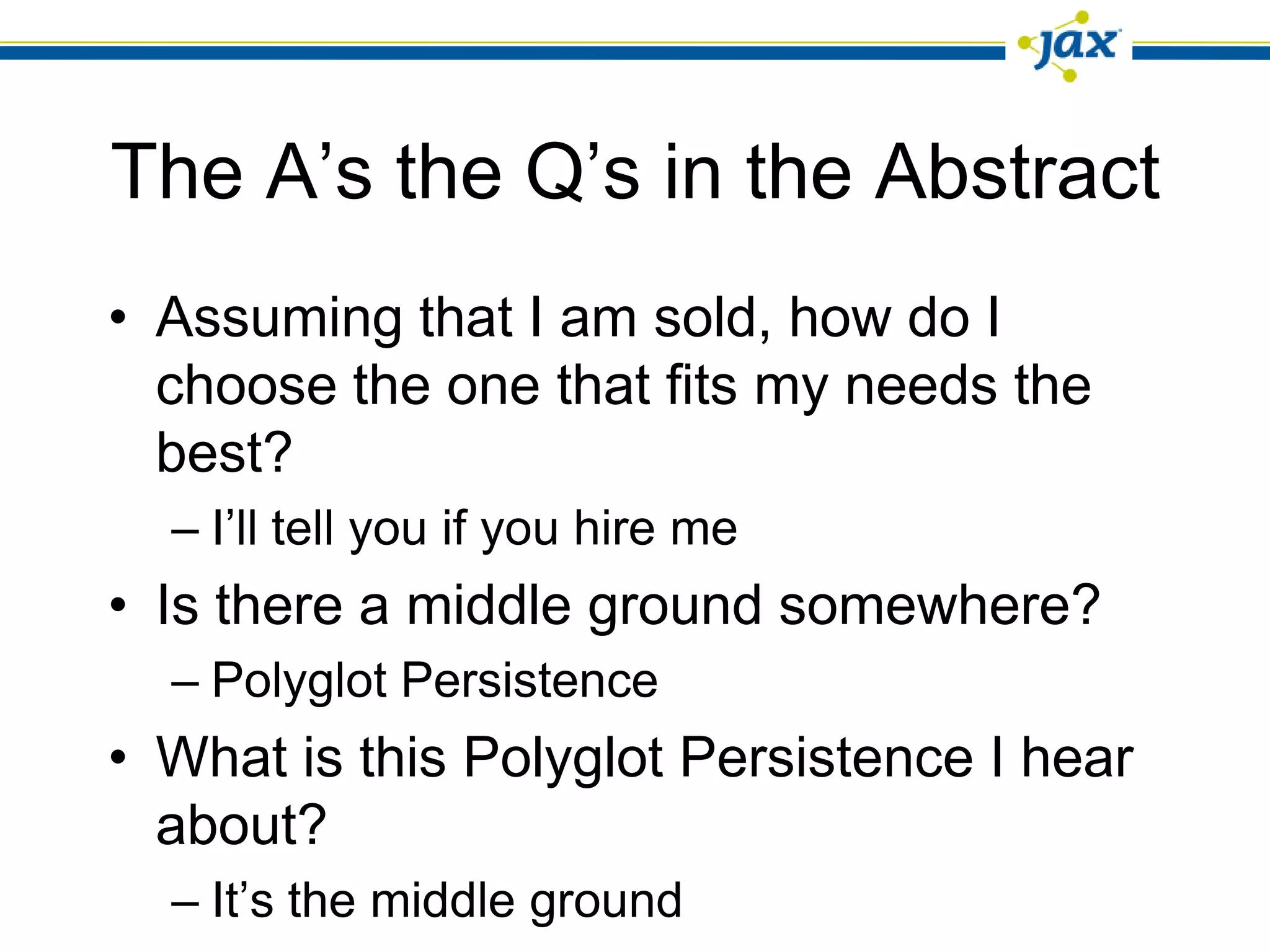

52. The A’s the Q’s in the Abstract
• Assuming that I am sold, how do I
choose the one that fits my needs the
best?
– I’ll tell you if you hire me
• Is there a middle ground somewhere?
– Polyglot Persistence
• What is this Polyglot Persistence I hear
about?
– It’s the middle ground

53. Any Other Questions?

54. Thank You All!
@PolymathicCoder
