More the merrier: a microservices anti-pattern

@crichardson
Avoiding more the merrier:
a microservices anti-pattern
Chris Richardson
Microservice architecture consultant and trainer
Founder of the original CloudFoundry.com
Author of POJOs in Action and Microservices Patterns
Founder of Eventuate.io
@crichardson
chris@chrisrichardson.net
adopt.microservices.io
Copyright © 2023. Chris Richardson Consulting, Inc. All rights reserved

@crichardson
Presentation goal
How to rightsize your services
and
avoid creating an overly complex,
fi
ne-grained architecture

@crichardson
About Chris
http://adopt.microservices.io
Late 80s 2006 2008 2009
2012-

@crichardson

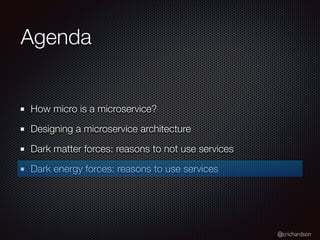

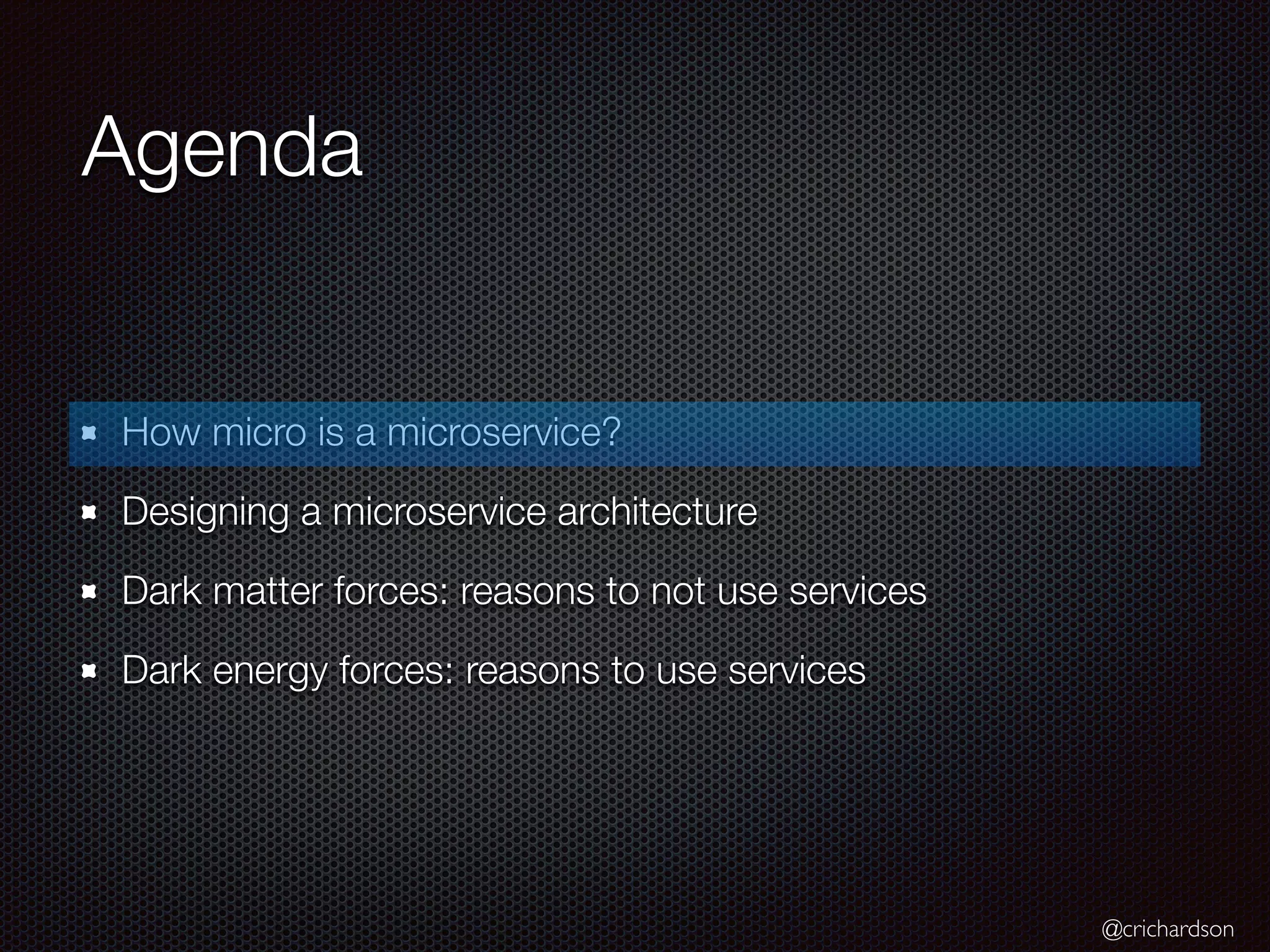

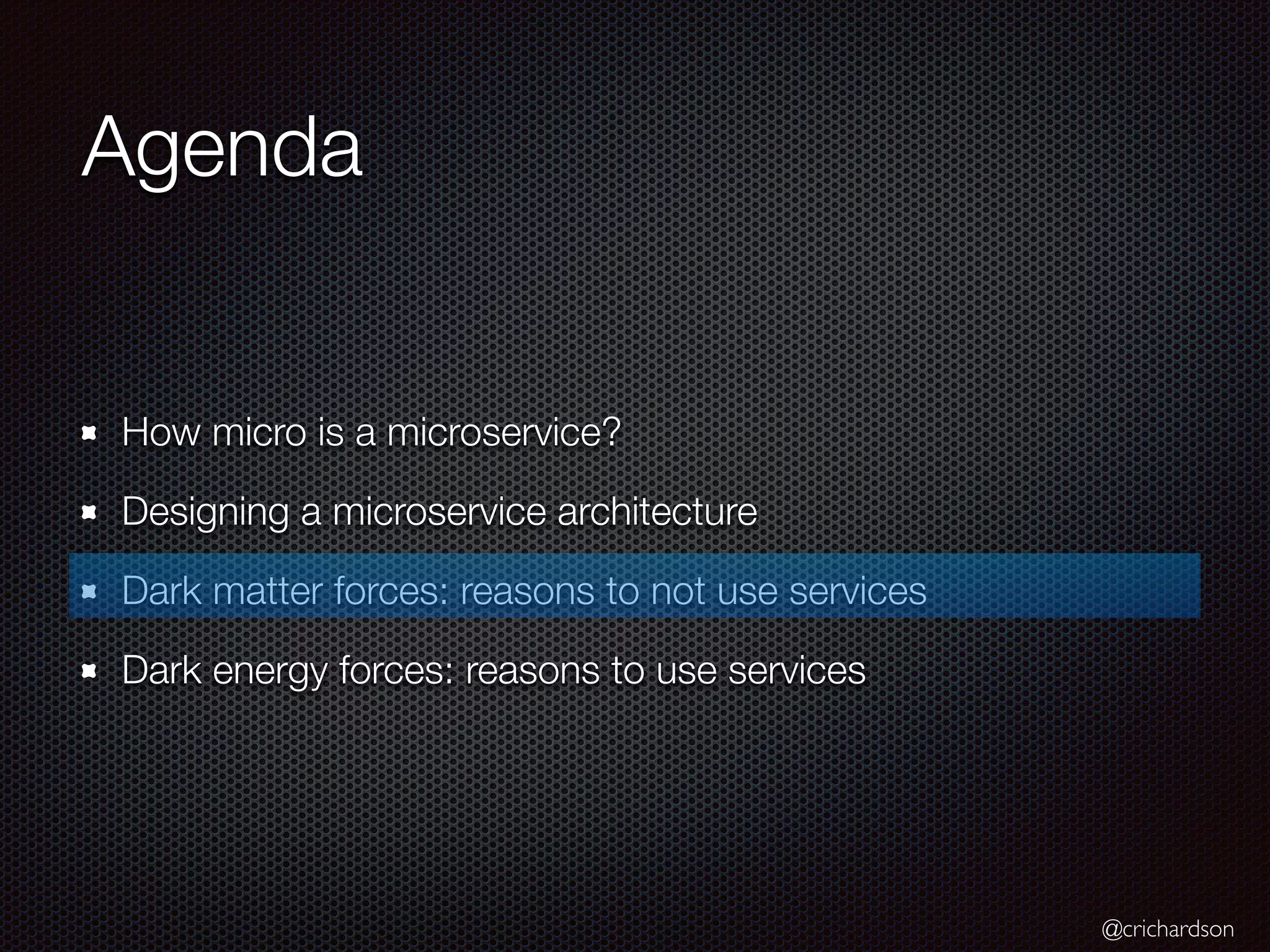

Agenda
How micro is a microservice?
Designing a microservice architecture
Dark matter forces: reasons to not use services
Dark energy forces: reasons to use services

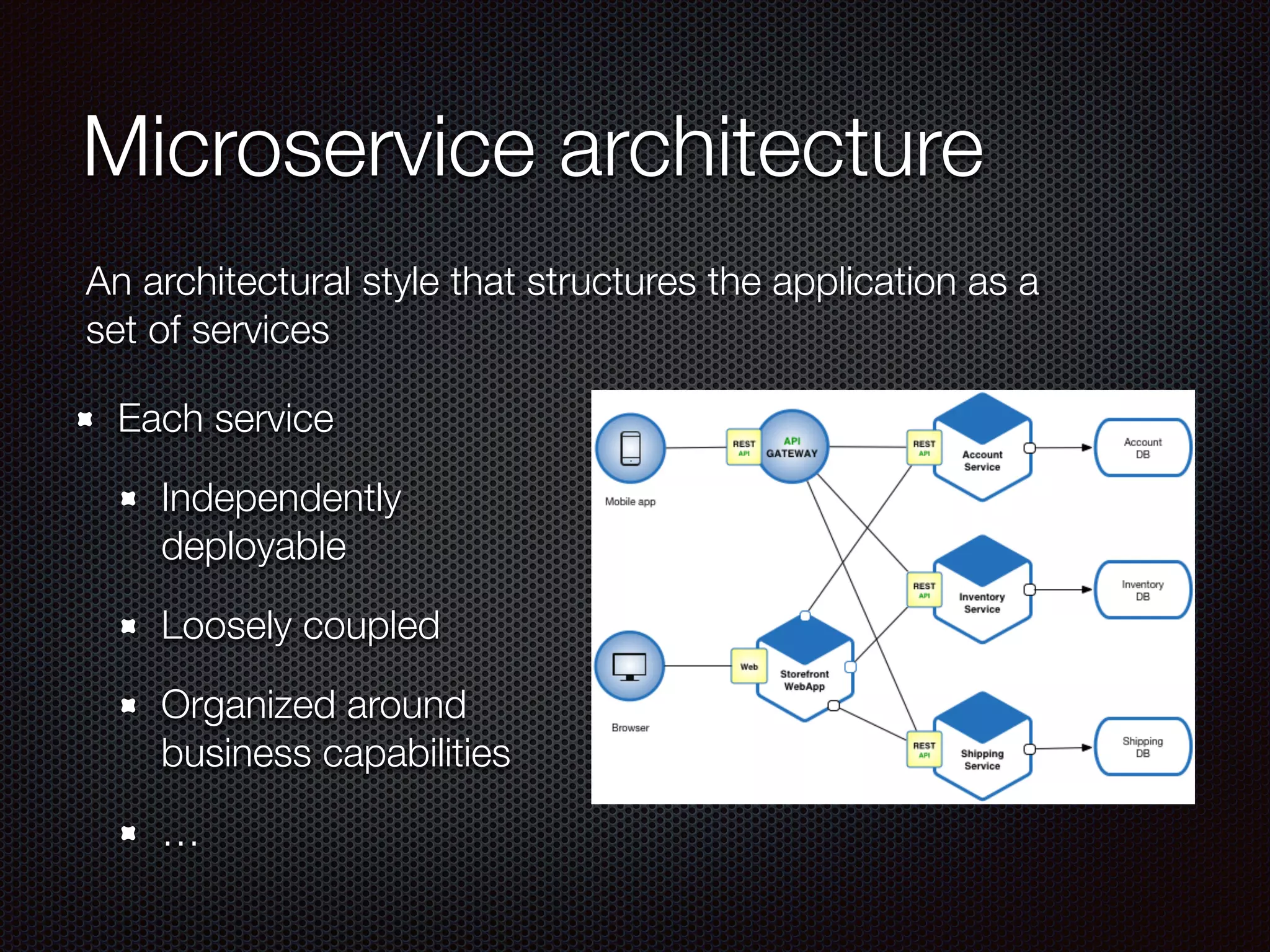

Microservice architecture
Each service
Independently
deployable
Loosely coupled
Organized around
business capabilities
…
An architectural style that structures the application as a
set of services

@crichardson
But how big is a service?
Microservice architecture
Must be small, right?!

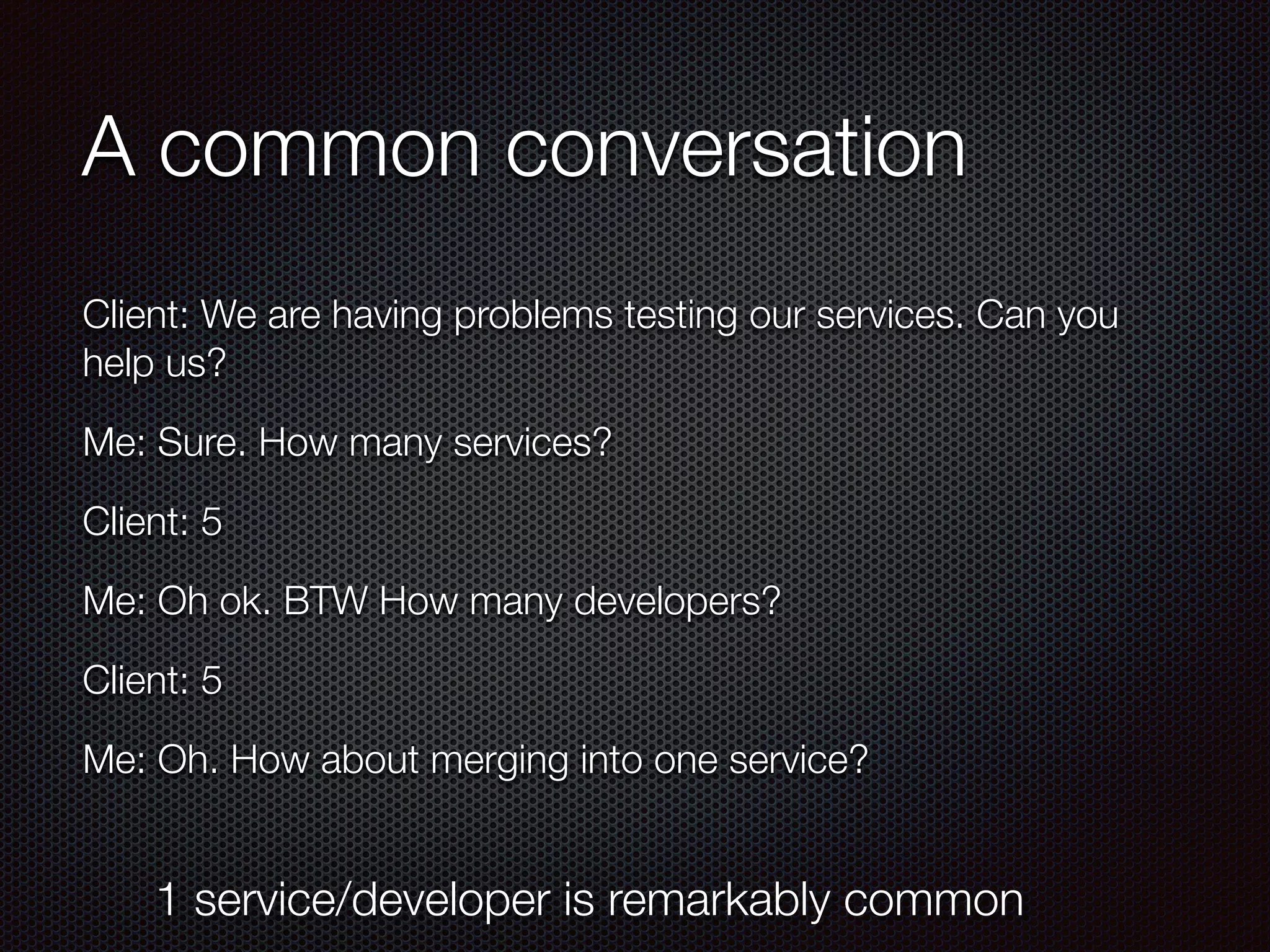

A common conversation
Client: We are having problems testing our services. Can you
help us?
Me: Sure. How many services?
Client: 5
Me: Oh ok. BTW How many developers?
Client: 5
Me: Oh. How about merging into one service?
1 service/developer is remarkably common

@crichardson
Anti-pattern: The more the merrier
Excessively
fi
ne-grained
microservice architecture:
Reduced maintainability,
performance, availability, ….
https://microservices.io/post/antipatterns/2019/05/21/antipattern-more-the-
merrier.html

@crichardson

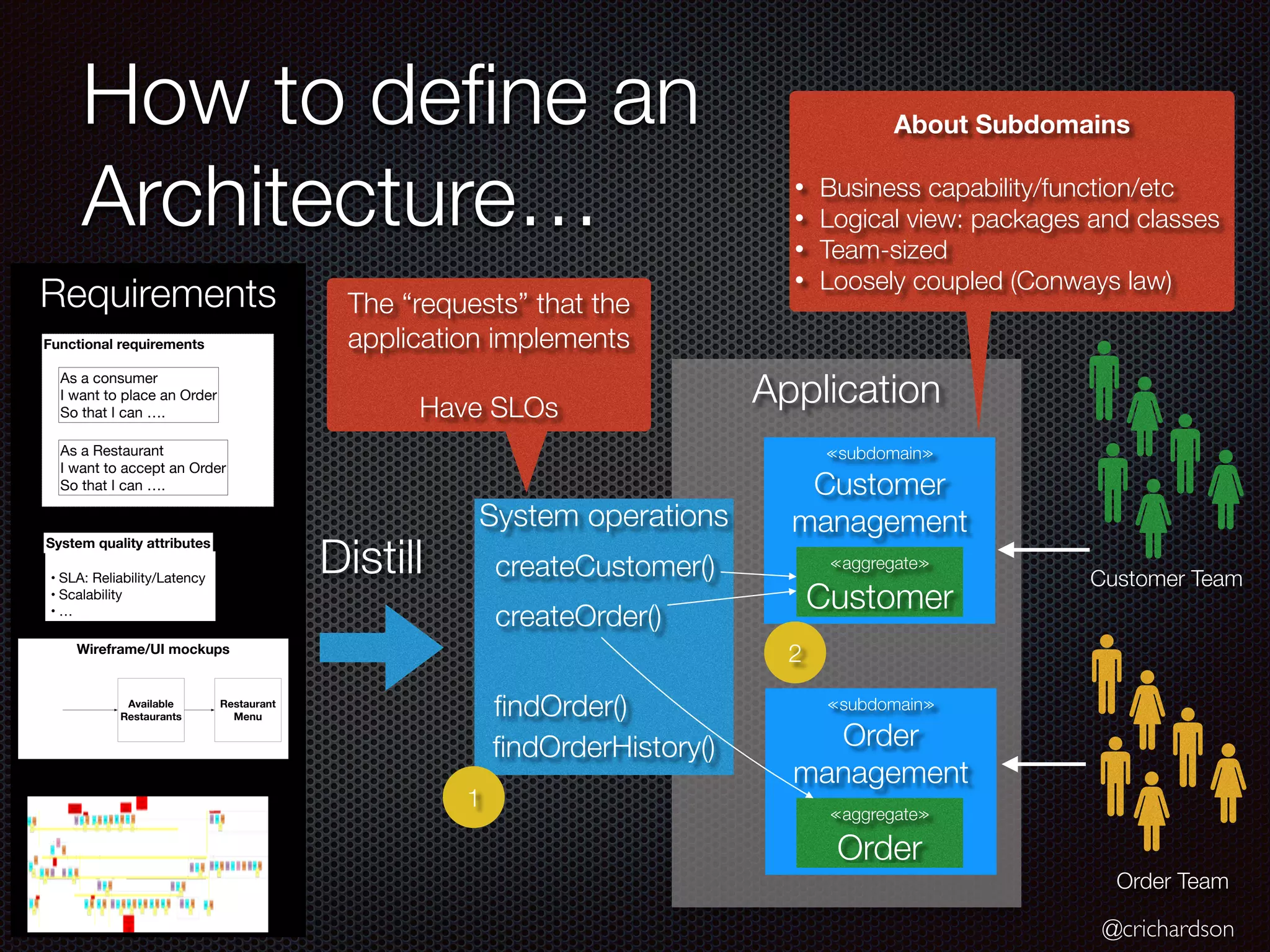

How to de
fi
ne an
Architecture…
Application
≪subdomain≫
Customer
management
≪aggregate≫
Customer
≪subdomain≫
Order
management
≪aggregate≫
Order
createCustomer()
createOrder()
fi
ndOrder()
fi
ndOrderHistory()
System operations
Distill
Requirements The “requests” that the
application implements
Have SLOs
Customer Team
Order Team
About Subdomains
• Business capability/function/etc
• Logical view: packages and classes
• Team-sized
• Loosely coupled (Conways law)
1
2
Functional requirements
As a consumer
I want to place an Order
So that I can ….
As a Restaurant
I want to accept an Order
So that I can ….
Event storming
Wireframe/UI mockups
Available
Restaurants
Restaurant
Menu
System quality attributes
• SLA: Reliability/Latency
• Scalability
• …

@crichardson

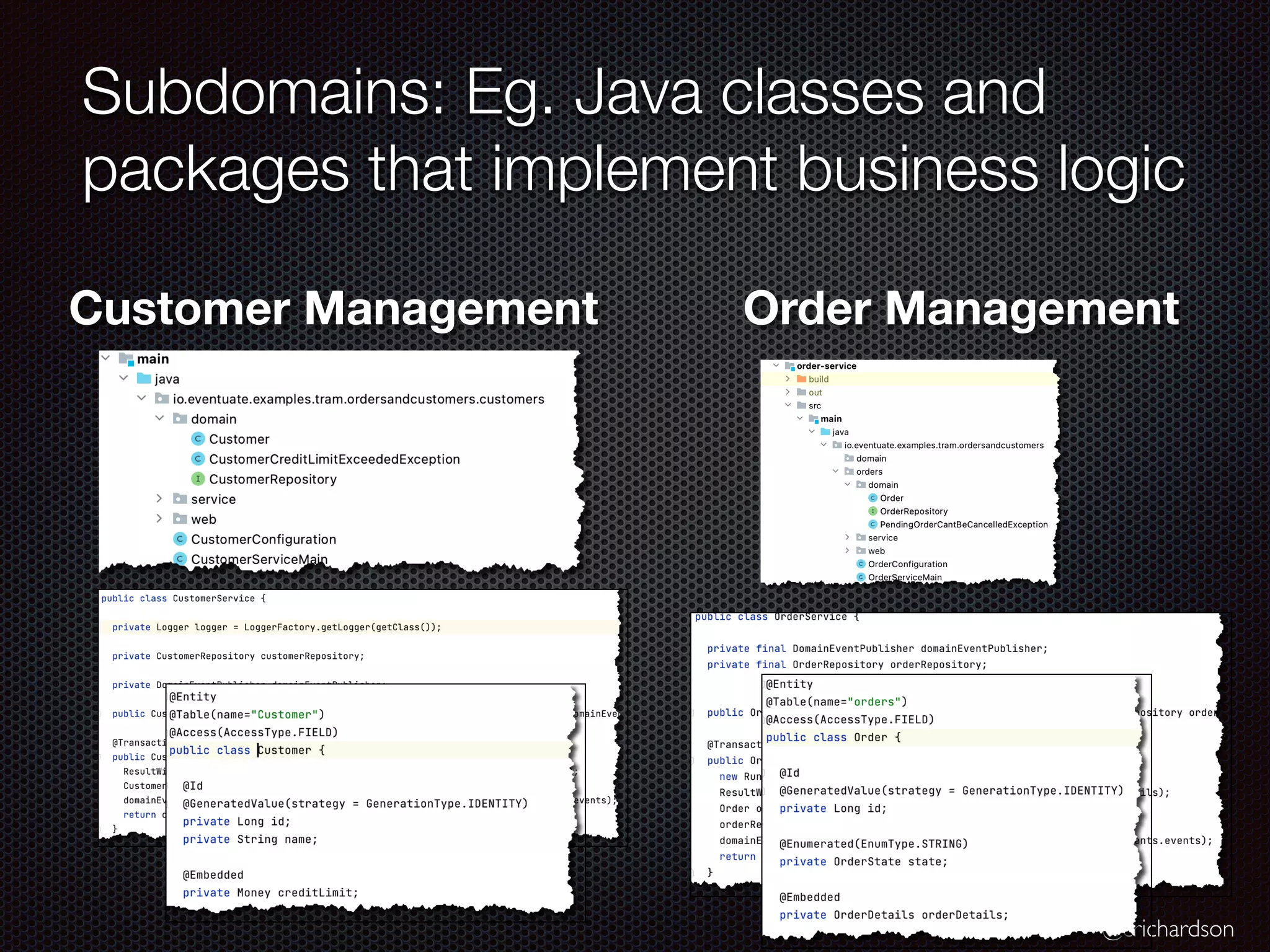

Subdomains: Eg. Java classes and
packages that implement business logic
Customer Management Order Management

@crichardson

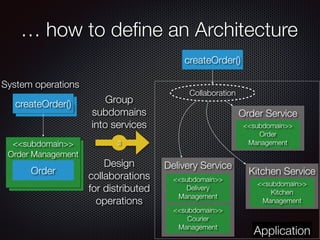

Kitchen Service
Delivery Service
Order Service
createOrder()
… how to de
fi
ne an Architecture
createOrder()
<<subdomain>>
Order Management
Order
System operations
<<subdomain>>
Order
Management
<<subdomain>>
Kitchen
Management
<<subdomain>>
Delivery
Management
<<subdomain>>
Courier
Management
Group
subdomains
into services
Application
Collaboration
Design
collaborations
for distributed
operations
createOrder()
3

@crichardson

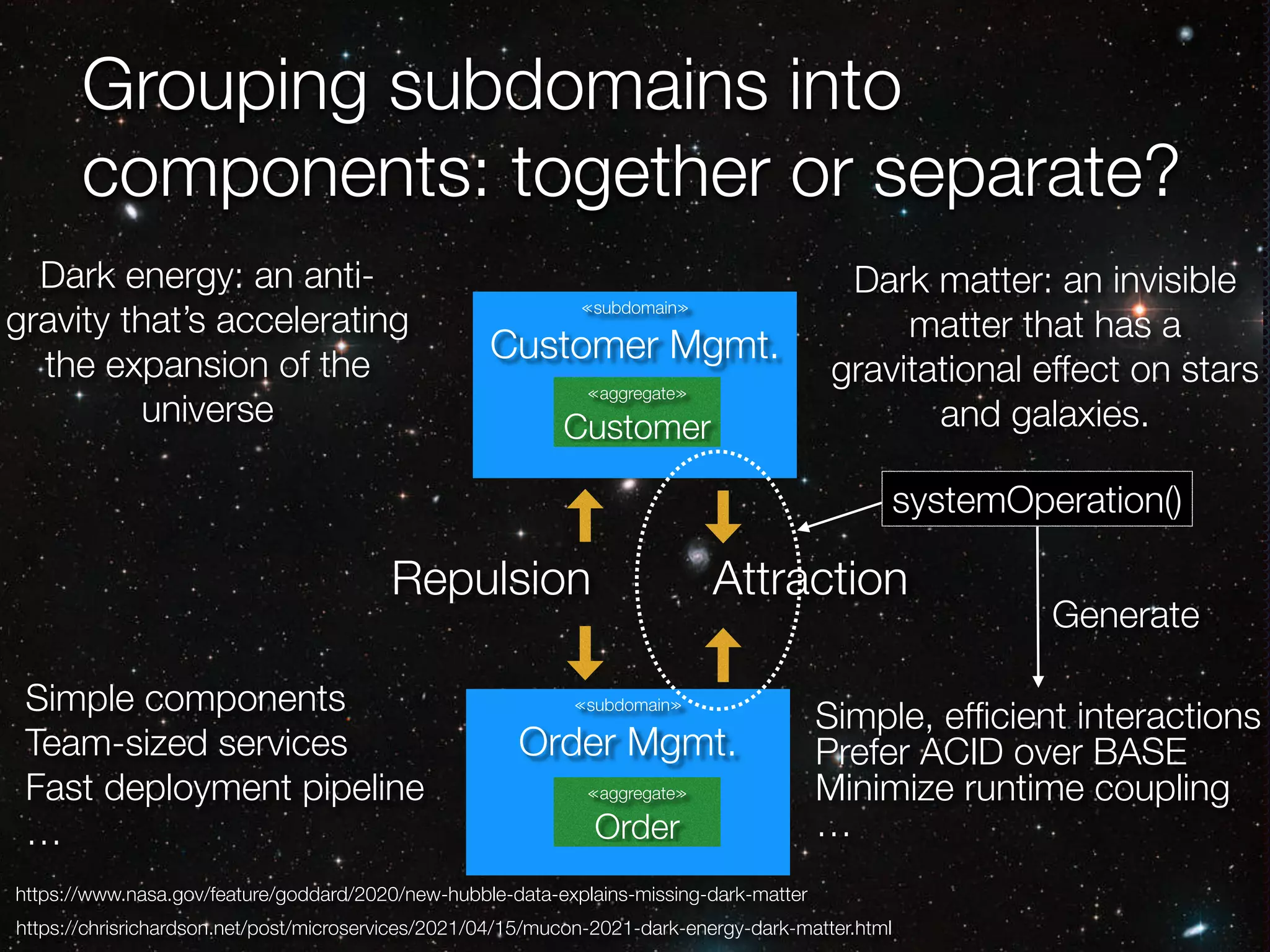

Grouping subdomains into
components: together or separate?
≪subdomain≫
Customer Mgmt.
≪aggregate≫
Customer
≪subdomain≫
Order Mgmt.
≪aggregate≫
Order
Attraction
Repulsion
Simple components
Team-sized services
Fast deployment pipeline
…
Dark energy: an anti-
gravity that’s accelerating
the expansion of the
universe
Dark matter: an invisible
matter that has a
gravitational effect on stars
and galaxies.
https://www.nasa.gov/feature/goddard/2020/new-hubble-data-explains-missing-dark-matter
Simple, ef
fi
cient interactions
Prefer ACID over BASE
Minimize runtime coupling
…
https://chrisrichardson.net/post/microservices/2021/04/15/mucon-2021-dark-energy-dark-matter.html
Generate
systemOperation()

@crichardson

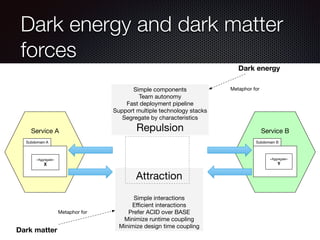

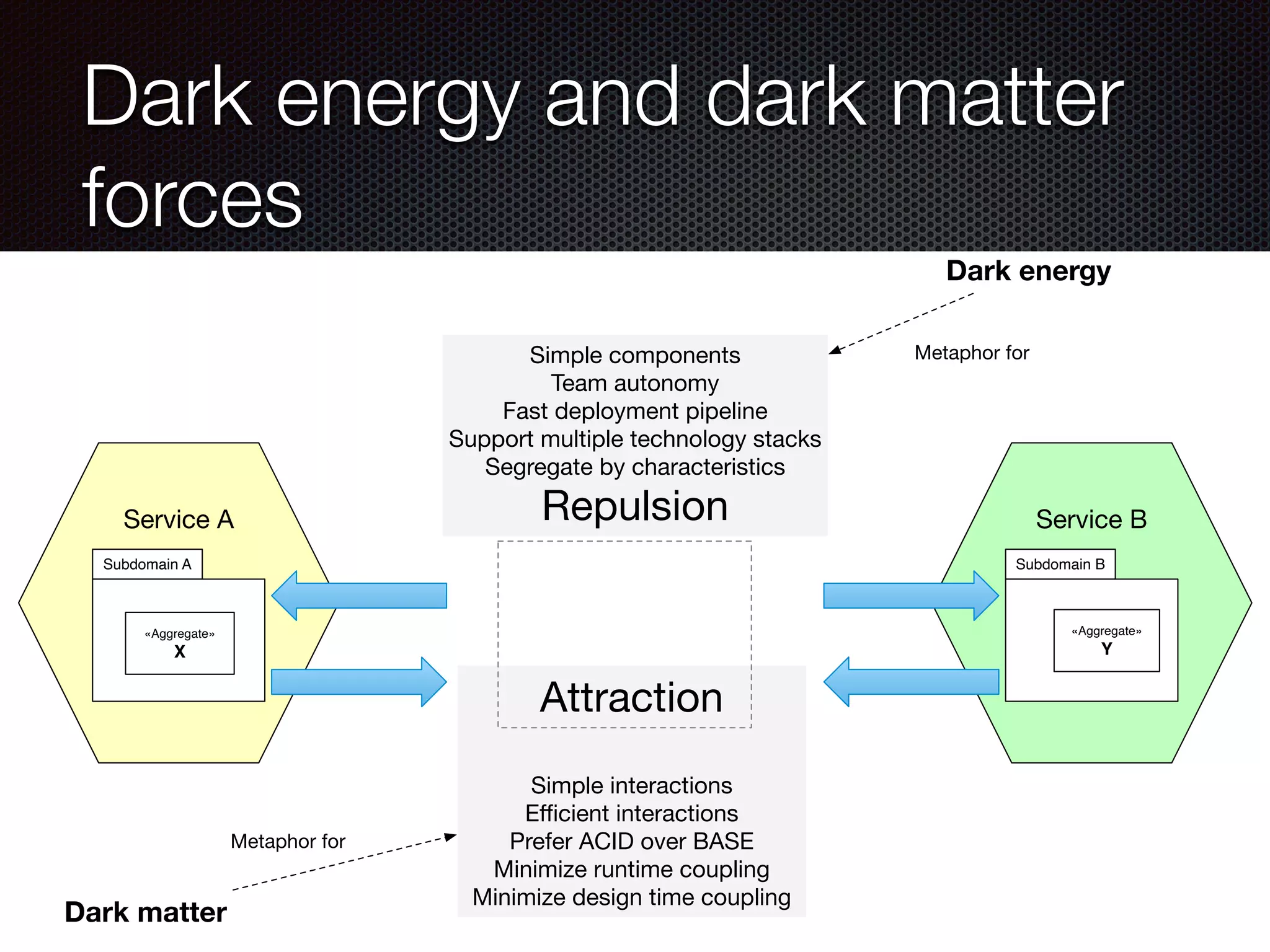

Dark energy and dark matter
forces
Subdomain A
«Aggregate»
X
Subdomain B
«Aggregate»
Y
Service A Service B
Attraction
Simple interactions
Eﬃcient interactions
Minimize design time coupling
Simple components
Team autonomy

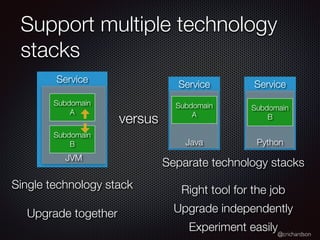

Support multiple technology stacks
Segregate by characteristics
Repulsion
Dark energy
Dark matter
Metaphor for
Metaphor for

@crichardson

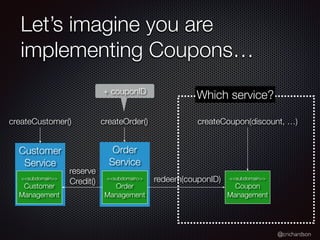

Let’s imagine you are
implementing Coupons…
Order
Service
<<subdomain>>
Order
Management
Customer
Service
<<subdomain>>
Customer
Management
createCustomer() createOrder()
<<subdomain>>
Coupon
Management
createCoupon(discount, …)
+ couponID
redeem(couponID)
Which service?
reserve
Credit()

@crichardson
Order
Service

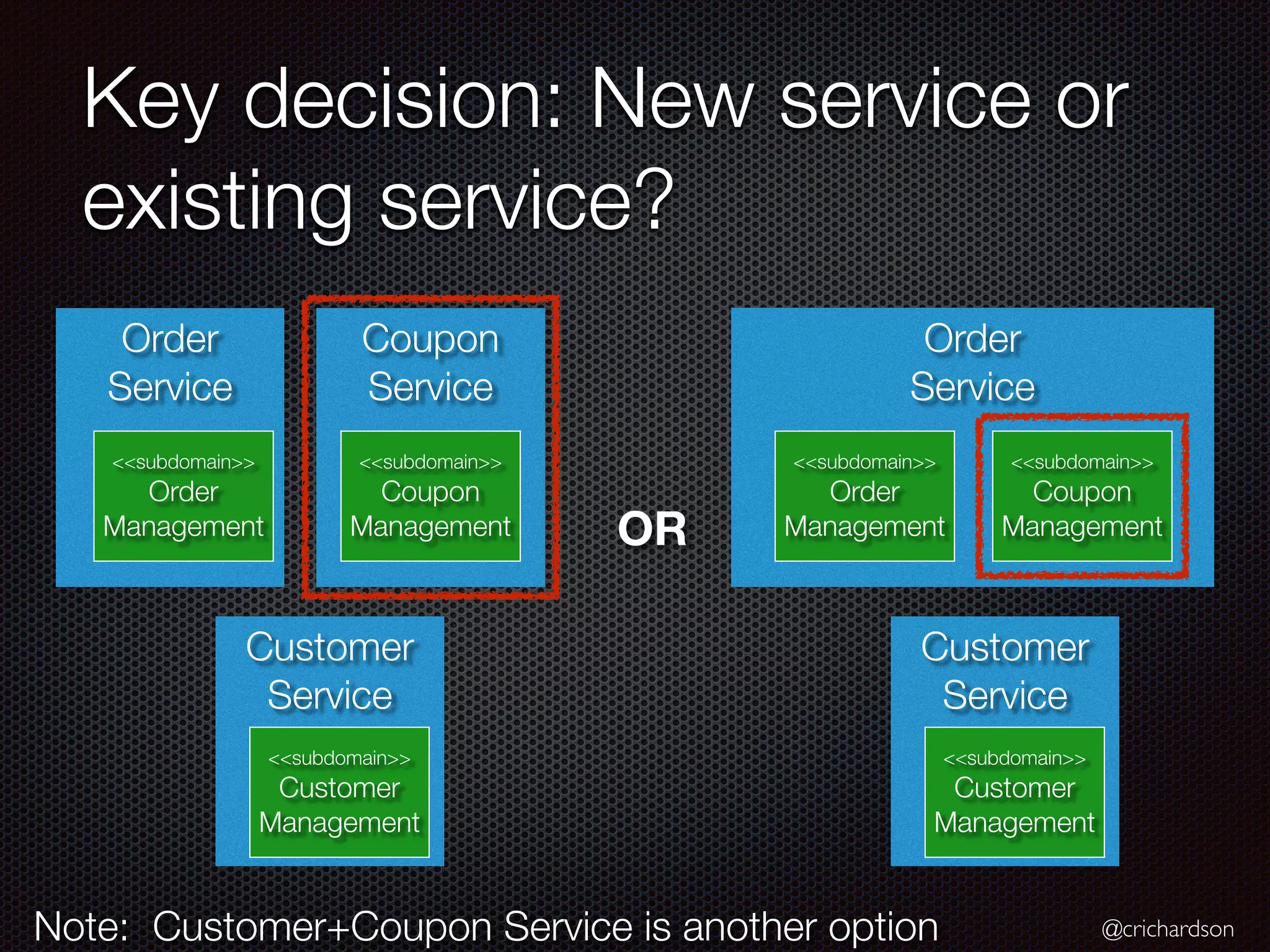

Key decision: New service or
existing service?
Coupon
Service
Order
Service
<<subdomain>>
Order
Management
<<subdomain>>
Coupon
Management
Customer
Service
<<subdomain>>
Customer
Management
<<subdomain>>
Order
Management
<<subdomain>>
Coupon
Management
Customer
Service
<<subdomain>>
Customer
Management
OR
Note: Customer+Coupon Service is another option

@crichardson

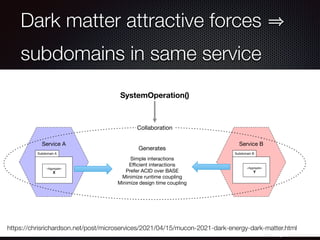

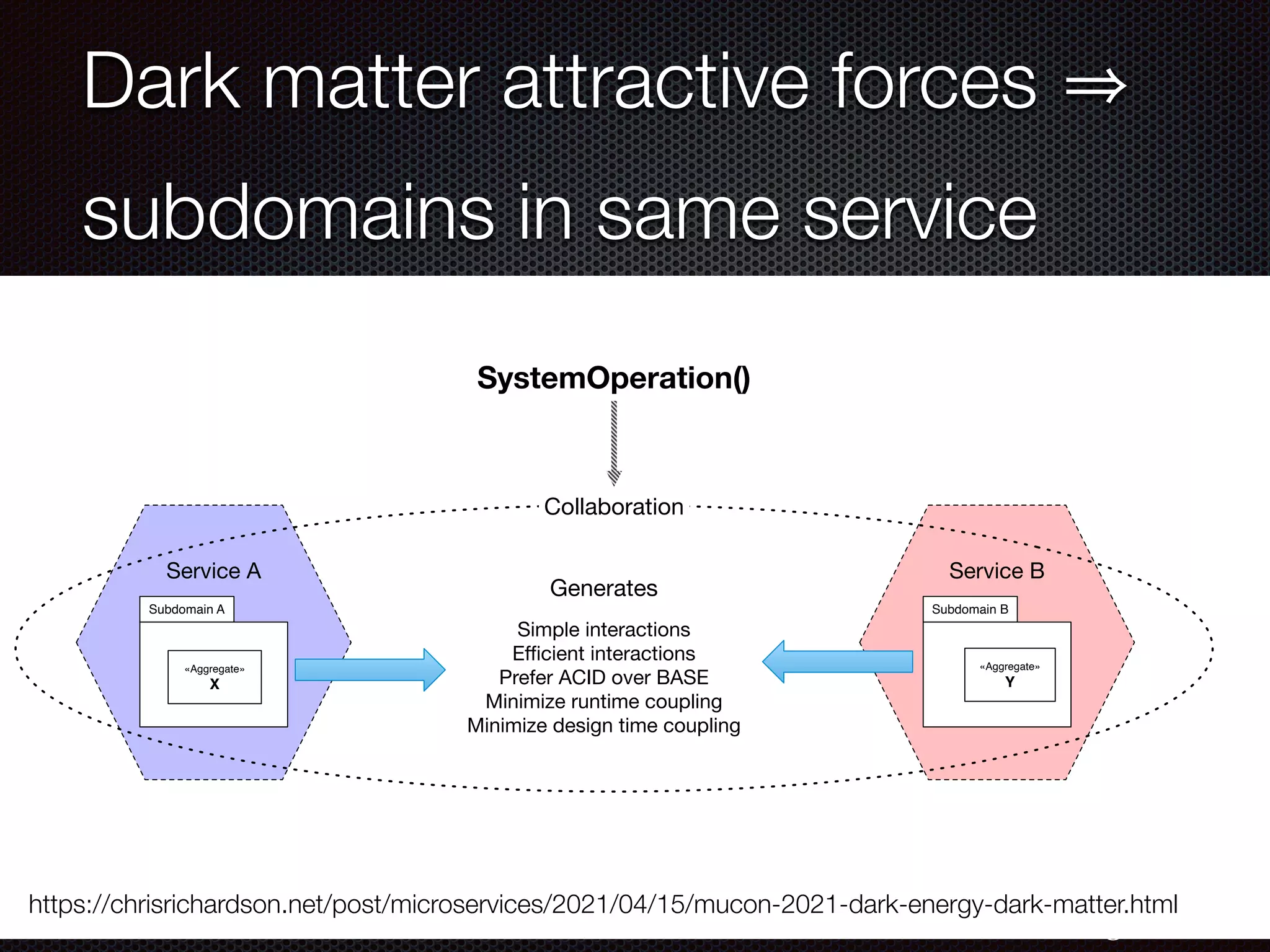

Dark matter attractive forces
subdomains in same service
Subdomain A
«Aggregate»
X
Subdomain B
«Aggregate»
Y
Service A Service B
Simple interactions
Eﬃcient interactions
Generates
SystemOperation()
Collaboration

@crichardson

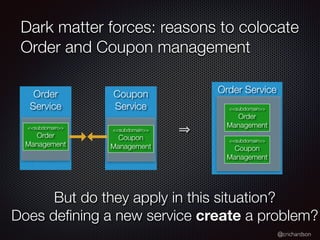

Dark matter forces: reasons to colocate
Order and Coupon management
Coupon
Service
Order
Service
Order Service
<<subdomain>>
Order
Management
<<subdomain>>
Order
Management
<<subdomain>>
Coupon
Management
<<subdomain>>
Coupon
Management
But do they apply in this situation?
Does de
fi
ning a new service create a problem?

@crichardson

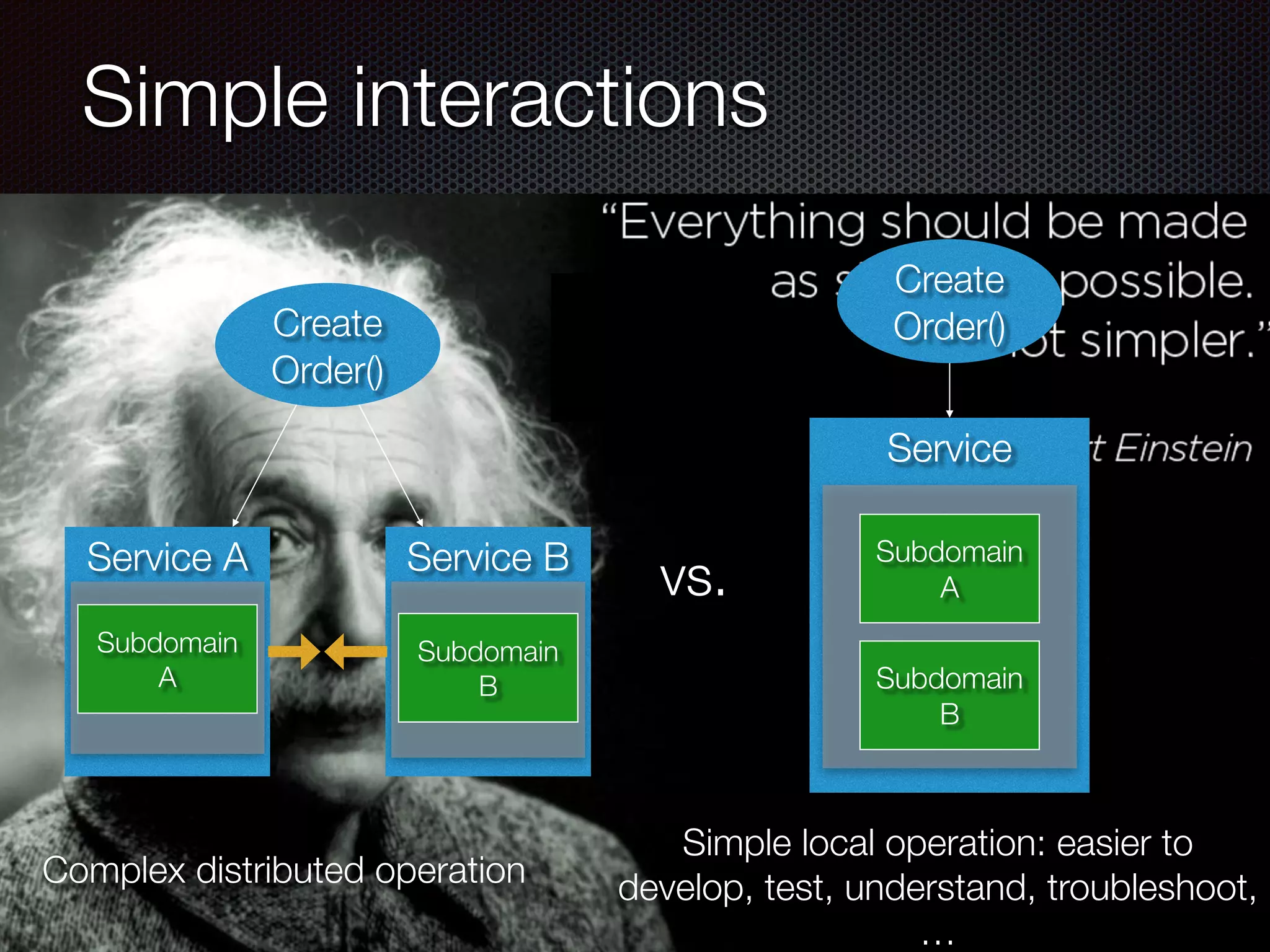

Simple interactions
Create
Order()
Service
Subdomain
A
Subdomain
B
Service B
Service A
Subdomain
A
Subdomain
B
Create
Order()
Complex distributed operation
Simple local operation: easier to
develop, test, understand, troubleshoot,
…
vs.

@crichardson

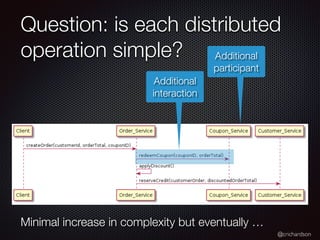

Question: is each distributed
operation simple?
Additional
interaction
Additional
participant
Minimal increase in complexity but eventually …

@crichardson

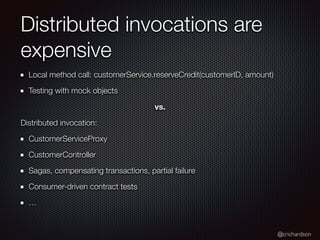

Distributed invocations are
expensive
Local method call: customerService.reserveCredit(customerID, amount)
Testing with mock objects
vs.
Distributed invocation:
CustomerServiceProxy
CustomerController
Sagas, compensating transactions, partial failure
Consumer-driven contract tests
…

@crichardson

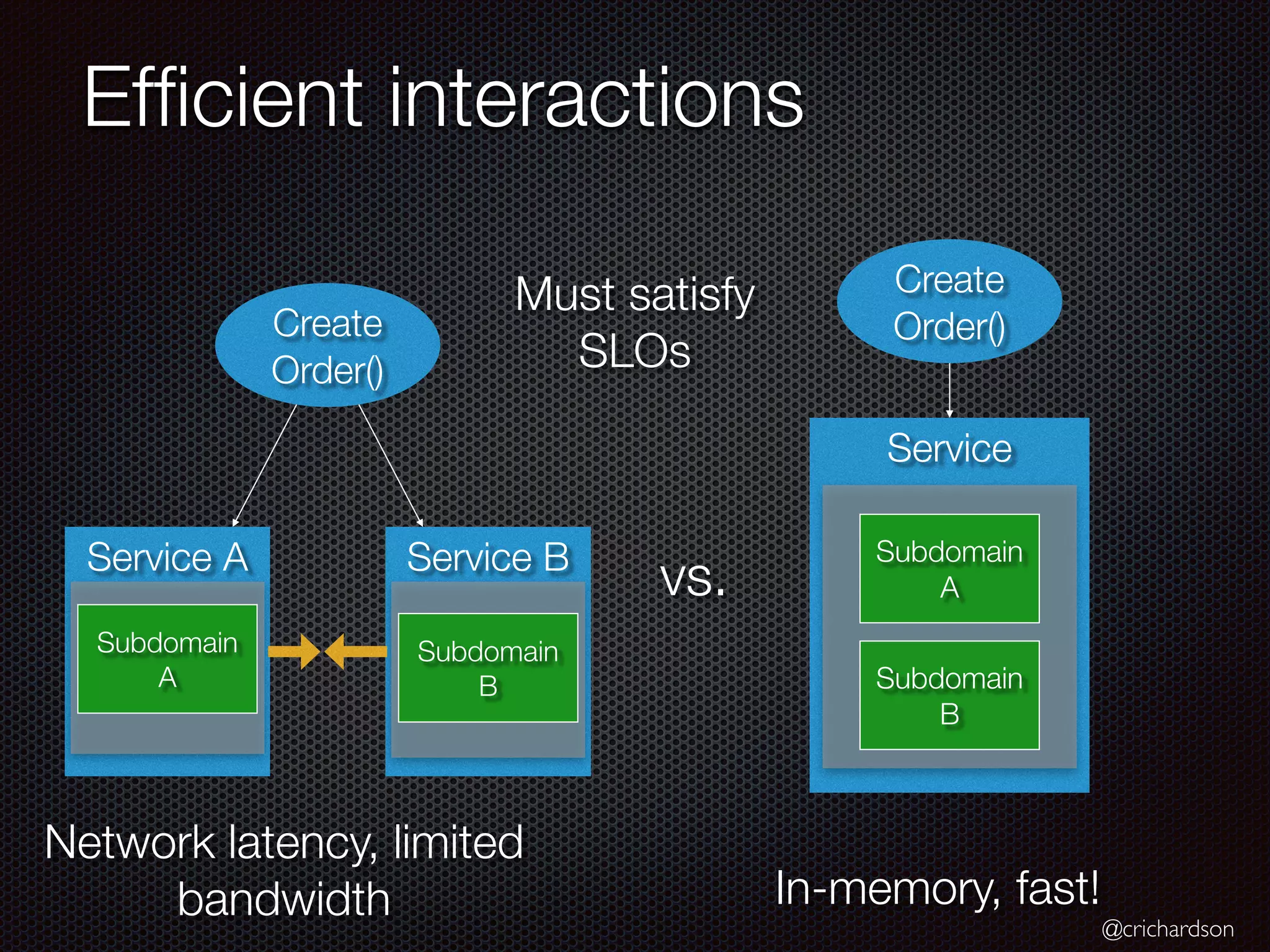

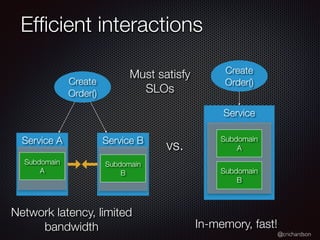

Ef
fi
cient interactions
Create
Order()
Service
Subdomain
A
Subdomain
B
Service B
Service A
Subdomain
A
Subdomain
B
Create
Order()
Network latency, limited
bandwidth In-memory, fast!
vs.
Must satisfy
SLOs

@crichardson

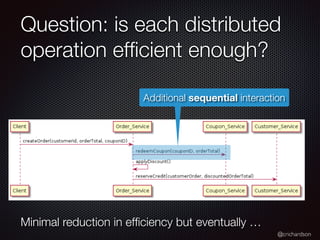

Question: is each distributed
operation ef
fi
cient enough?
Additional sequential interaction
Minimal reduction in ef
fi
ciency but eventually …

@crichardson

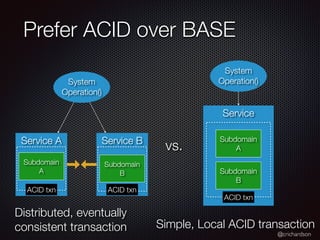

System
Operation()
Service
Subdomain
A
Subdomain
B
Service B
Service A
Subdomain
A
Subdomain
B
System
Operation()
Distributed, eventually
consistent transaction Simple, Local ACID transaction
vs.
ACID txn ACID txn
ACID txn

@crichardson

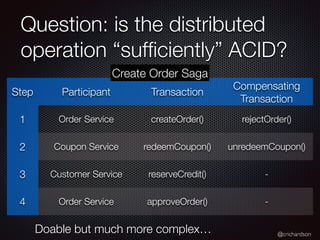

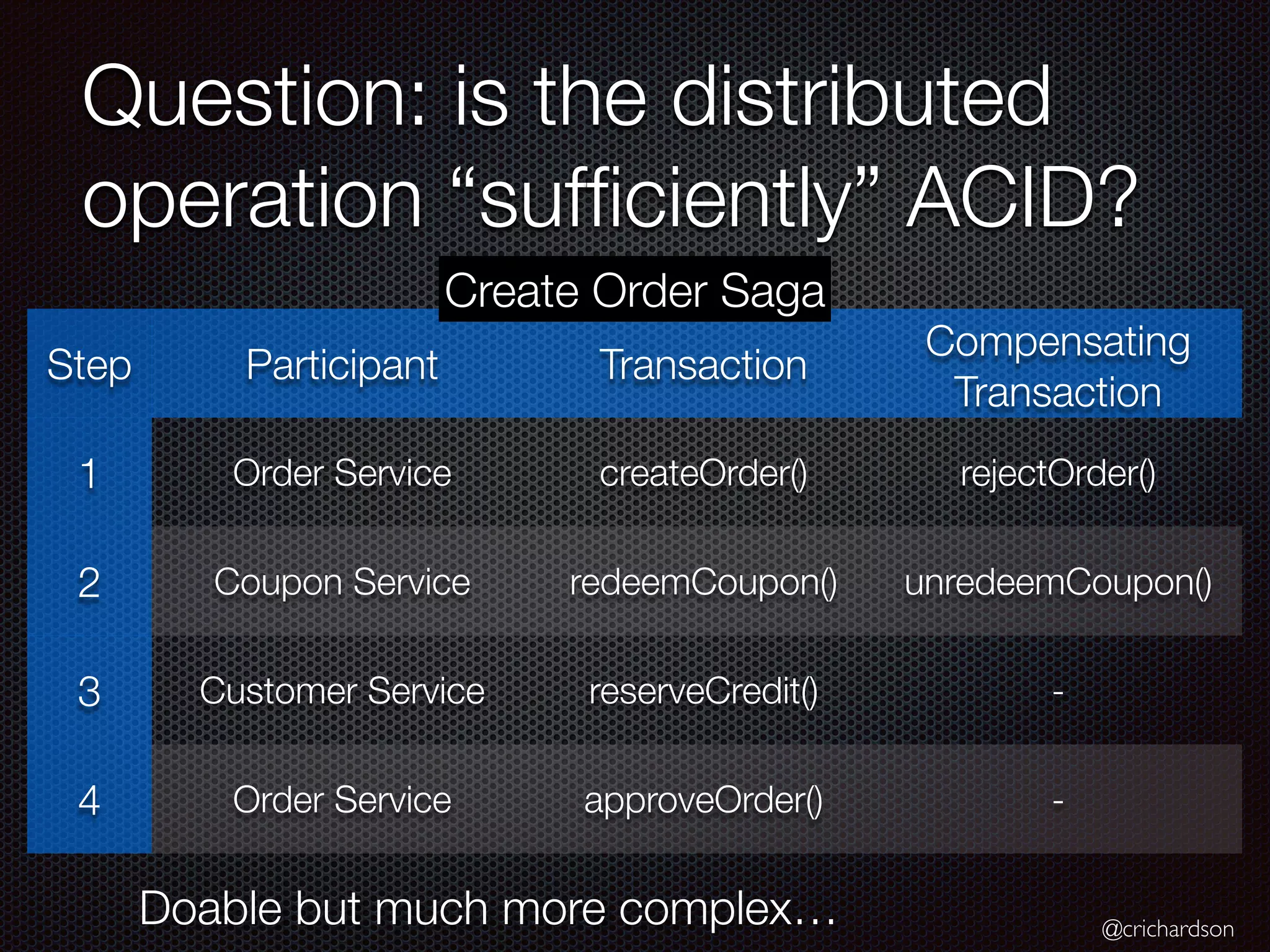

Question: is the distributed
operation “suf
fi
ciently” ACID?
Step Participant Transaction
Compensating
Transaction
1 Order Service createOrder() rejectOrder()
2 Coupon Service redeemCoupon() unredeemCoupon()
3 Customer Service reserveCredit() -
4 Order Service approveOrder() -
Create Order Saga
Doable but much more complex…

@crichardson

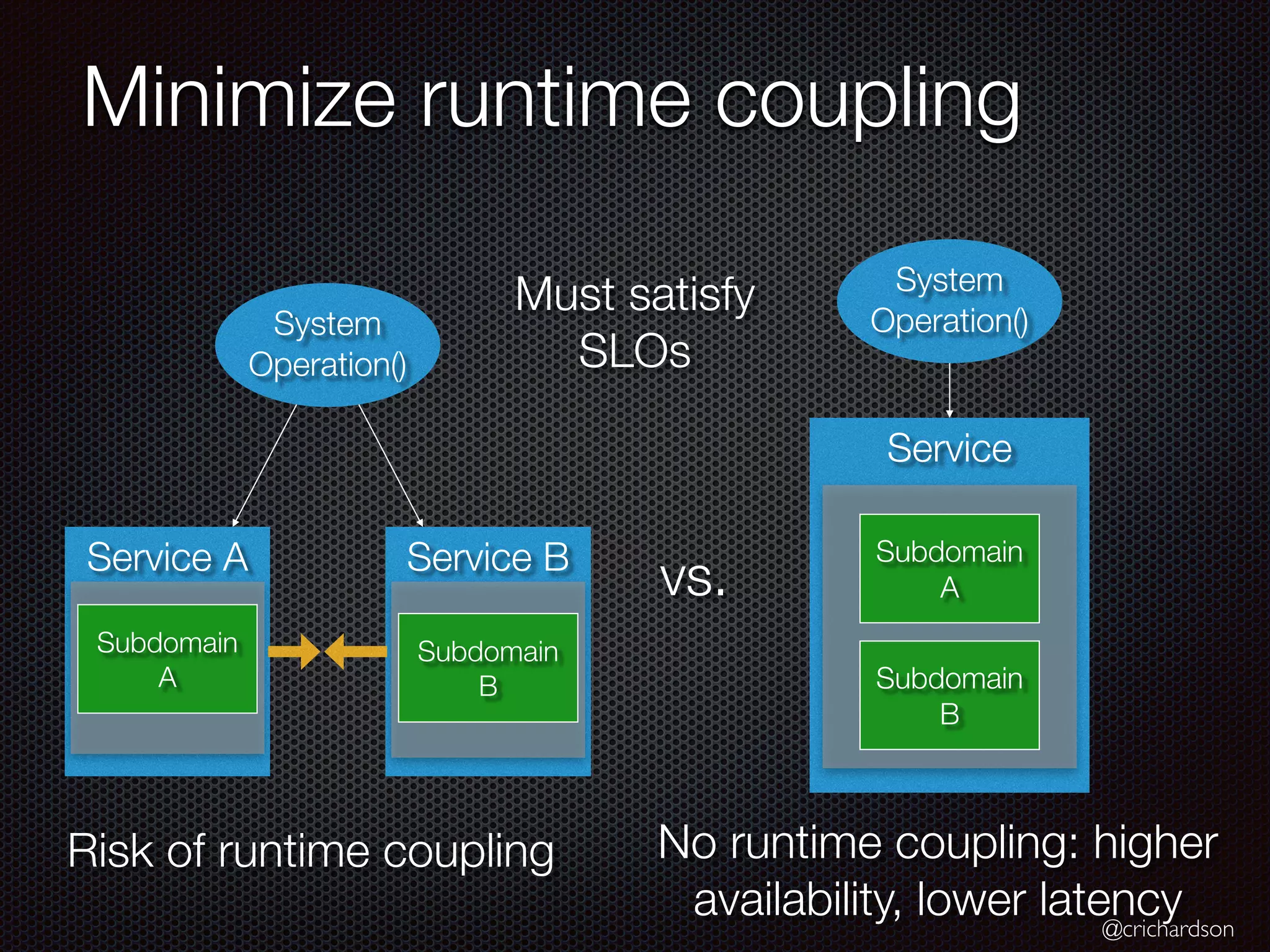

System
Operation()
Service
Subdomain
A
Subdomain
B
Service B
Service A
Subdomain
A
Subdomain
B
System
Operation()
Risk of runtime coupling No runtime coupling: higher
availability, lower latency
vs.
Must satisfy
SLOs

@crichardson

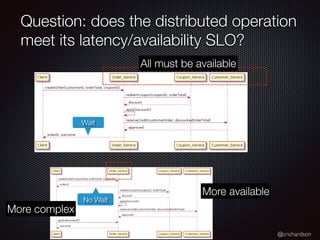

Question: does the distributed operation
meet its latency/availability SLO?
All must be available
More available
More complex
Wait
No Wait

@crichardson

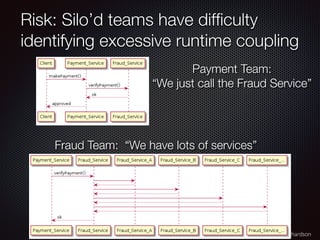

Risk: Silo’d teams have dif
fi
culty
identifying excessive runtime coupling
Payment Team:
“We just call the Fraud Service”
Fraud Team: “We have lots of services”

@crichardson

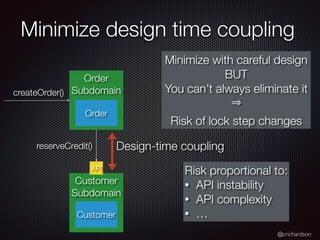

Order
Subdomain
Customer
Subdomain
reserveCredit()
createOrder()
Customer
Order
Design-time coupling
Minimize with careful design
BUT
You can’t always eliminate it
Risk of lock step changes
API
Risk proportional to:
• API instability
• API complexity
• …

@crichardson

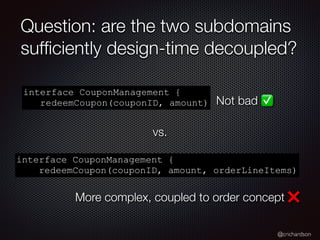

Question: are the two subdomains
suf
fi
ciently design-time decoupled?
interface CouponManagement {
redeemCoupon(couponID, amount)
interface CouponManagement {
redeemCoupon(couponID, amount, orderLineItems)
Not bad ✅
More complex, coupled to order concept ❌
vs.

@crichardson

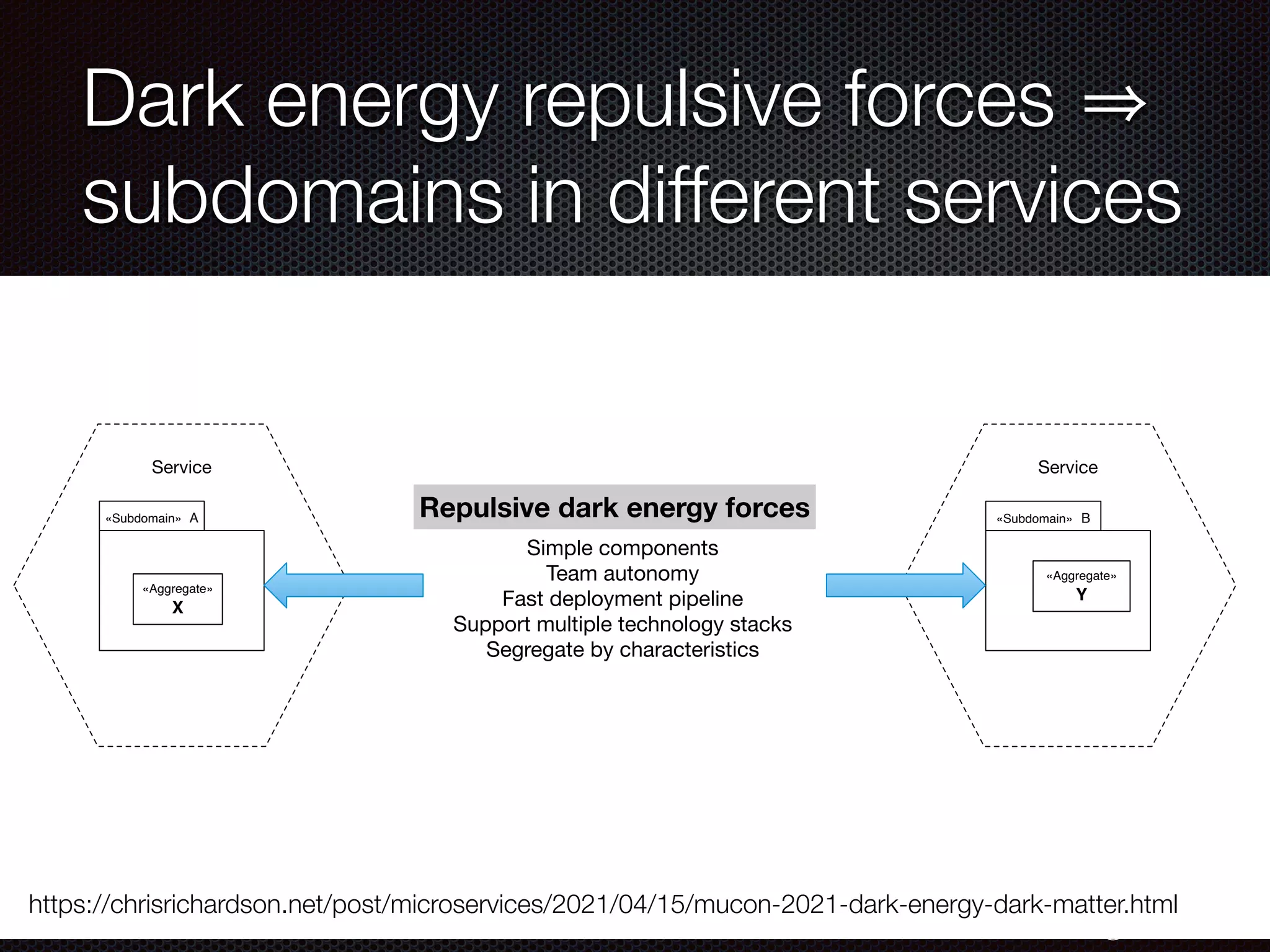

Dark energy repulsive forces
subdomains in different services
Service
Service
«Subdomain» A
«Aggregate»
X
«Subdomain» B
«Aggregate»
Y
Simple components
Team autonomy
Repulsive dark energy forces

@crichardson

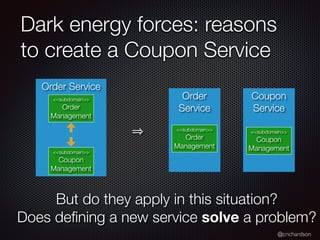

Dark energy forces: reasons
to create a Coupon Service
Coupon
Service
Order
Service
Order Service
<<subdomain>>
Order
Management
<<subdomain>>
Order
Management
<<subdomain>>
Coupon
Management
<<subdomain>>
Coupon
Management
But do they apply in this situation?
Does de
fi
ning a new service solve a problem?

@crichardson

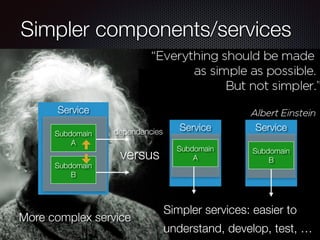

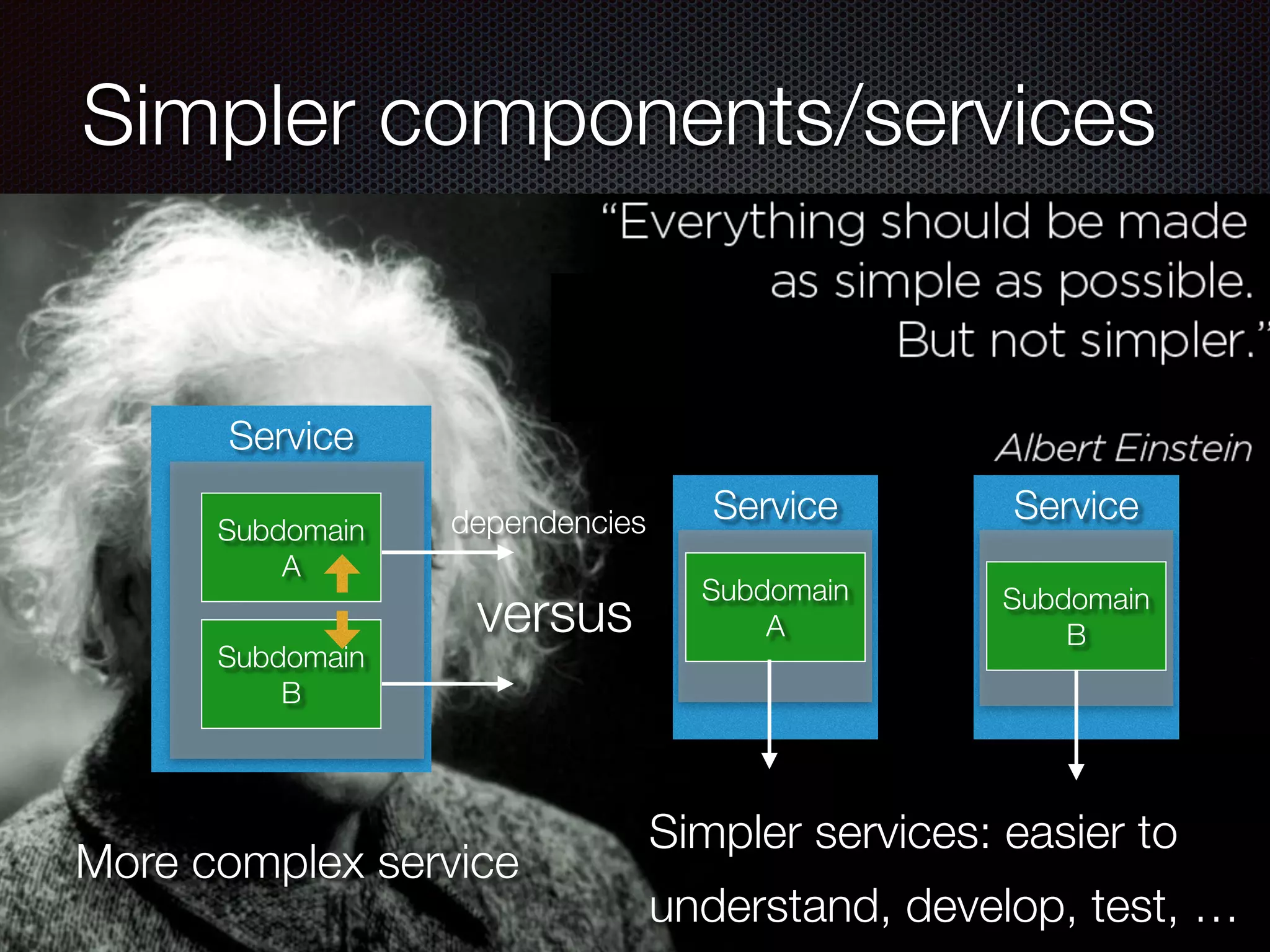

Simpler components/services
Service
Service
Service
Subdomain
A
Subdomain
A
Subdomain
B
Subdomain
B
More complex service
Simpler services: easier to
understand, develop, test, …
versus
dependencies

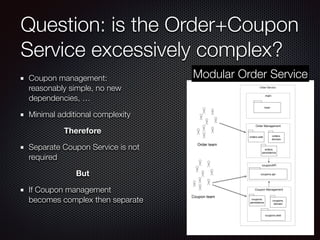

Question: is the Order+Coupon
Service excessively complex?
Coupon management:
reasonably simple, no new
dependencies, …
Minimal additional complexity
Therefore
Separate Coupon Service is not
required
But
If Coupon management
becomes complex then separate
Order Service
main
main
Order Management
orders.web
couponAPI
orders.
domain
Coupon Management
coupons.
persistence
orders.
persistence
Coupon team
Order team
coupons.
domain
coupons.web
coupons.api
Modular Order Service

@crichardson

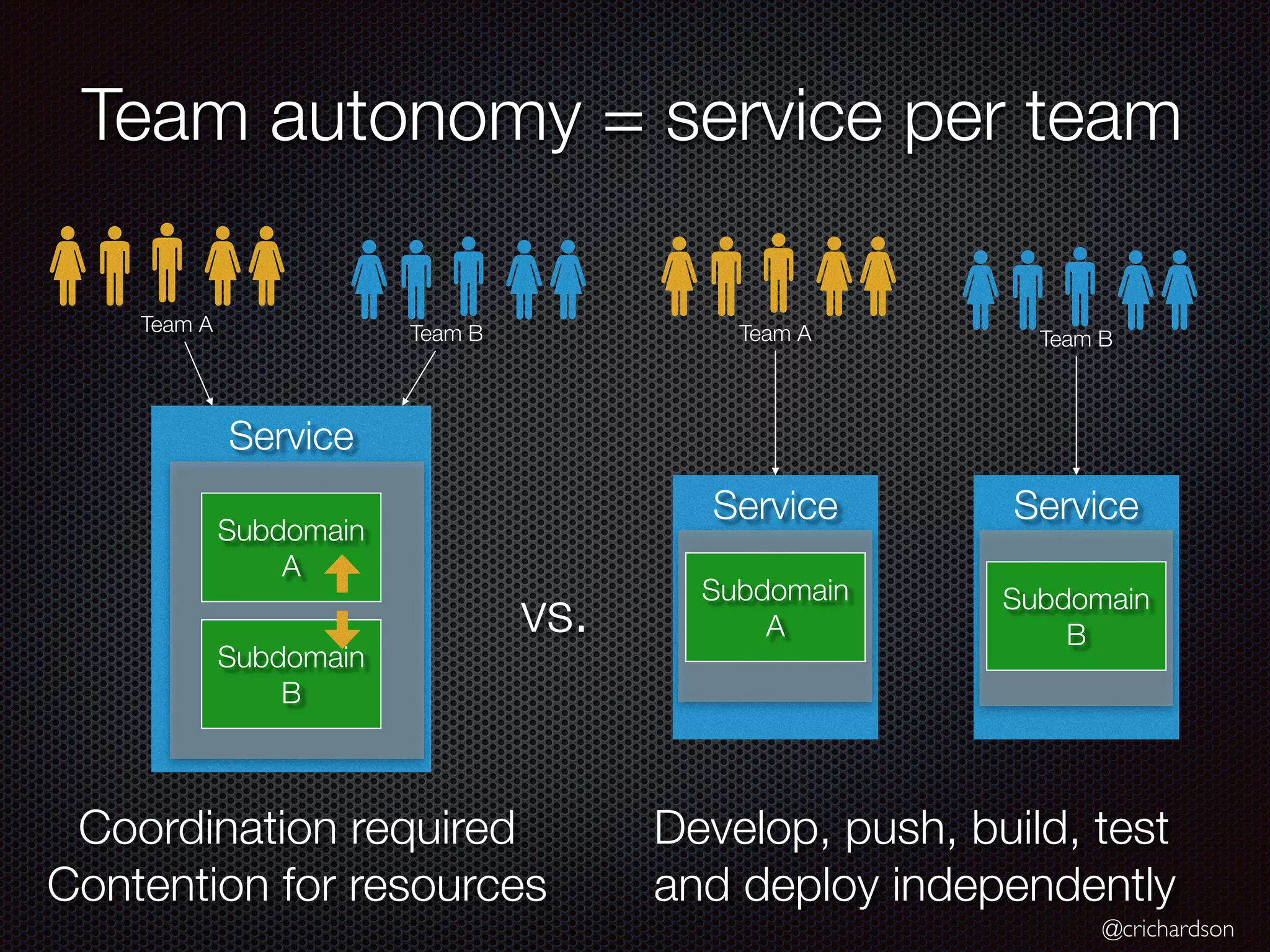

Team autonomy = service per team
Service
Service
Service
Subdomain
A
Subdomain
A
Subdomain
B
Subdomain
B
Coordination required
Contention for resources
Develop, push, build, test
and deploy independently
vs.
Team A Team B Team A Team B

@crichardson
Question: impact of a single Order
Service on team autonomy?
Who develops Coupon Management?
Orders team
Team autonomy is not an issue
Embed Coupon Management in Order Service
Different team, e.g. Coupons Team:
How much autonomy would they lose?
A few teams = probably ok
But there’s a limit

@crichardson
@mipsytipsy
https://speakerdeck.com/charity/cd?slide=17
Service
Subdomain
Subdomain
Service
Subdomain
Shorter
lead time
Simpler
build
Longer lead
time
More complex
build*
* Parallelizing building/testing partially helps
Service
Subdomain
vs.

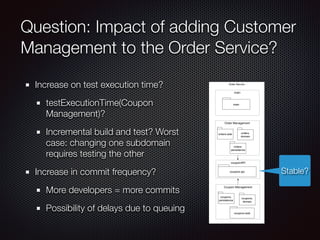

Question: Impact of adding Customer
Management to the Order Service?
Increase on test execution time?
testExecutionTime(Coupon
Management)?
Incremental build and test? Worst
case: changing one subdomain
requires testing the other
Increase in commit frequency?
More developers = more commits
Possibility of delays due to queuing
Order Service
main
main
Order Management
orders.web
couponAPI
orders.
domain
Coupon Management
coupons.
persistence
orders.
persistence
coupons.
domain
coupons.web
coupons.api Stable?

@crichardson
Support multiple technology
stacks
Service
Python
Service
Java
Service
JVM
Subdomain
A
Subdomain
A
Subdomain
B
Subdomain
B
Single technology stack
Upgrade together
Separate technology stacks
Right tool for the job
Upgrade independently
Experiment easily
versus

@crichardson

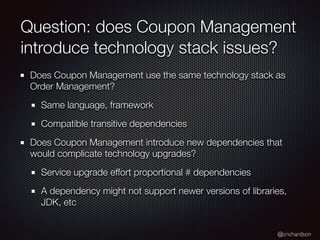

Question: does Coupon Management
introduce technology stack issues?
Does Coupon Management use the same technology stack as
Order Management?
Same language, framework
Compatible transitive dependencies
Does Coupon Management introduce new dependencies that
would complicate technology upgrades?
Service upgrade effort proportional # dependencies
A dependency might not support newer versions of libraries,
JDK, etc

@crichardson

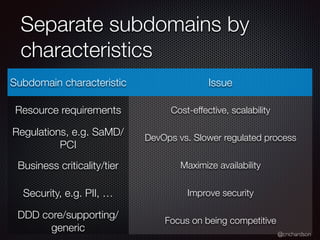

Separate subdomains by
characteristics
Subdomain characteristic Issue
Resource requirements Cost-effective, scalability
Regulations, e.g. SaMD/
PCI
DevOps vs. Slower regulated process
Business criticality/tier Maximize availability
Security, e.g. PII, … Improve security
DDD core/supporting/
generic
Focus on being competitive

@crichardson

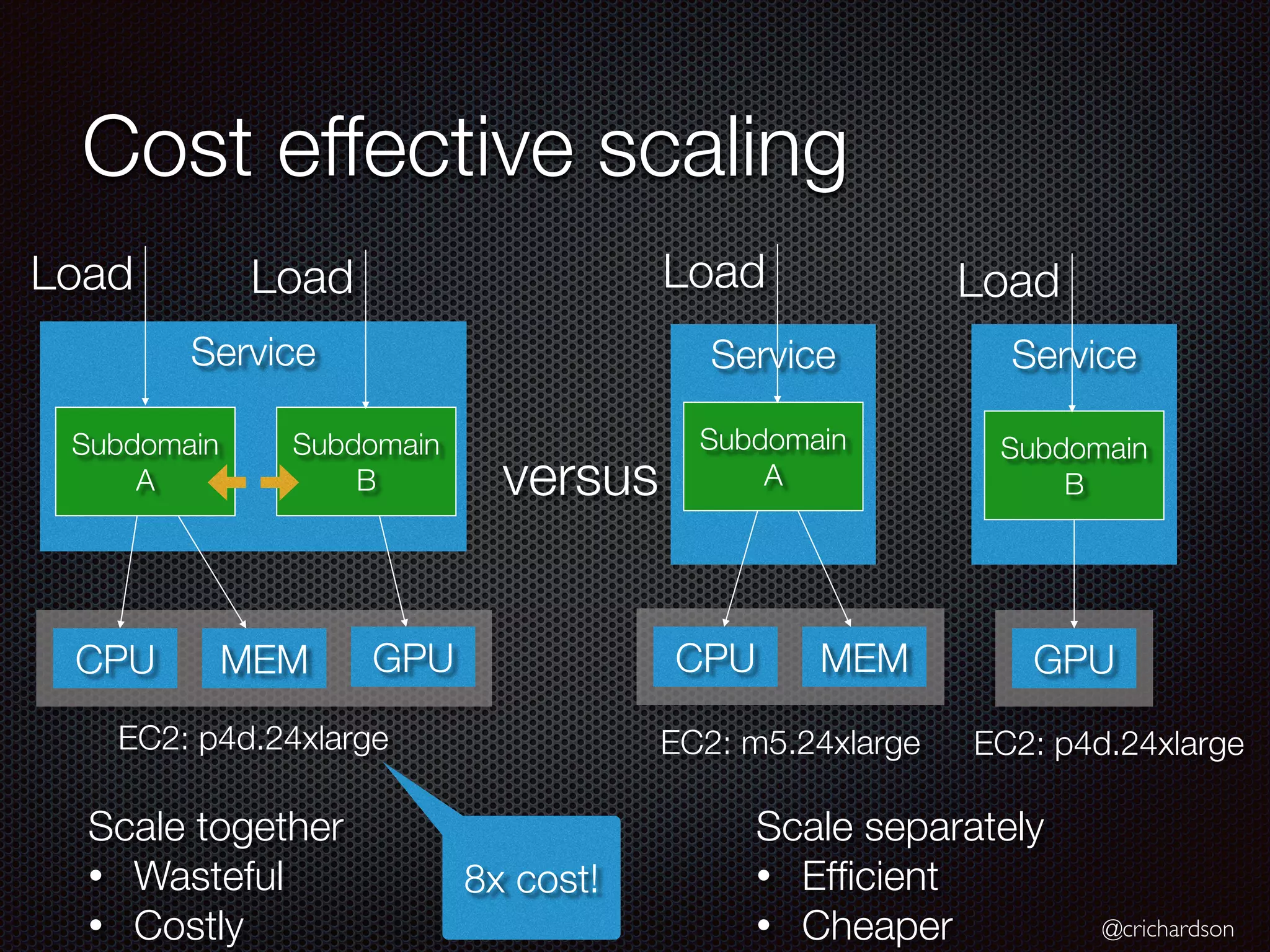

Cost effective scaling
Service
Service
Service
Subdomain
A
Subdomain
A
Subdomain
B
Subdomain
B
versus
CPU MEM GPU
Scale together
• Wasteful
• Costly
CPU MEM GPU
Scale separately
• Ef
fi
cient
• Cheaper
Load Load Load Load
EC2: p4d.24xlarge EC2: p4d.24xlarge
EC2: m5.24xlarge
8x cost!

@crichardson

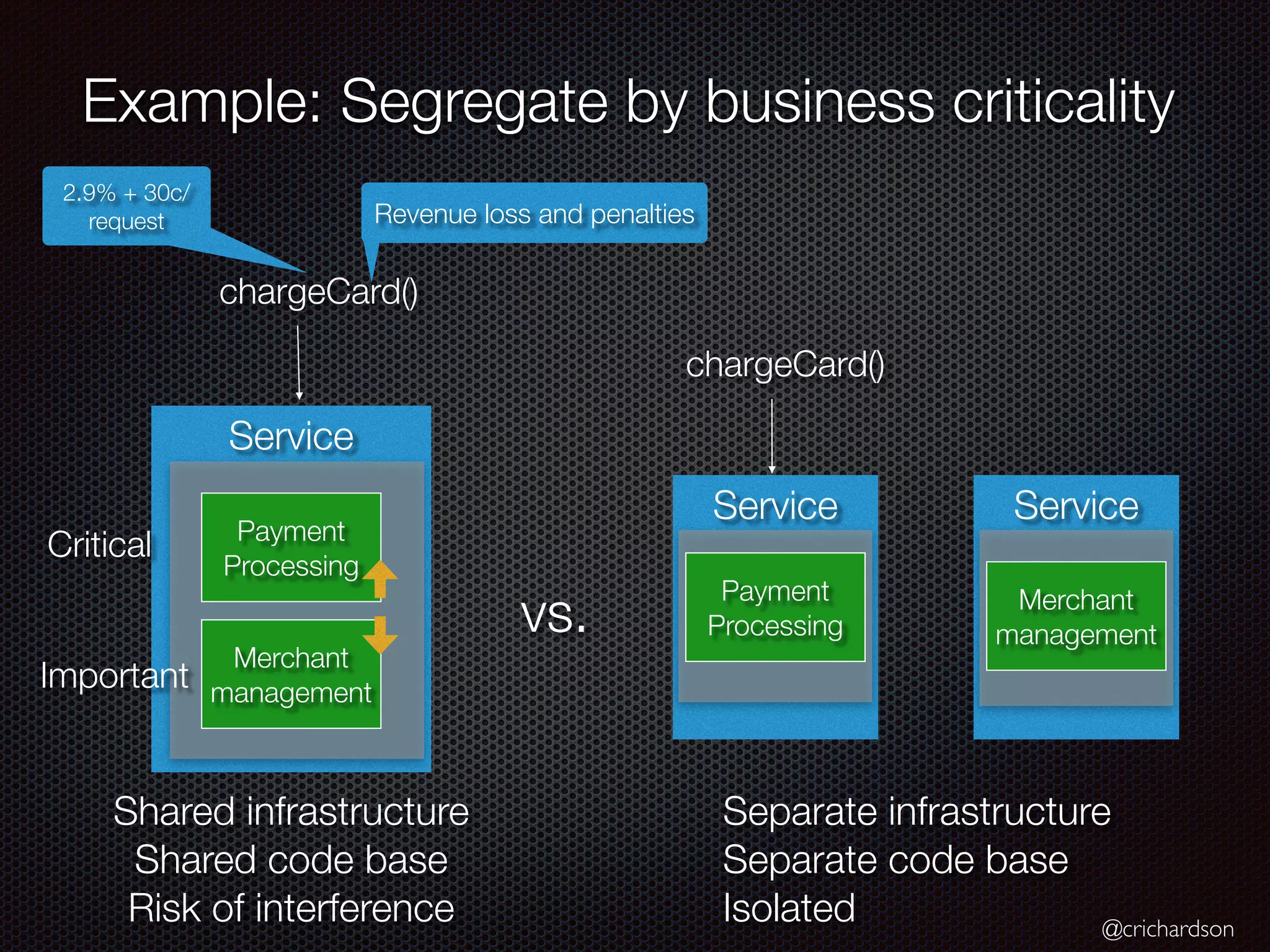

Example: Segregate by business criticality
Service
Service
Service
Payment
Processing
Payment
Processing
Merchant
management
Merchant
management
Shared infrastructure
Shared code base
Risk of interference
Separate infrastructure
Separate code base
Isolated
vs.
chargeCard()
2.9% + 30c/
request Revenue loss and penalties
chargeCard()
Critical
Important

@crichardson

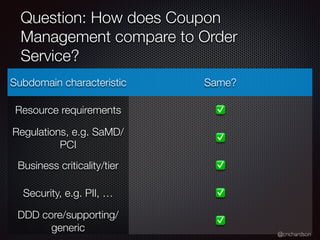

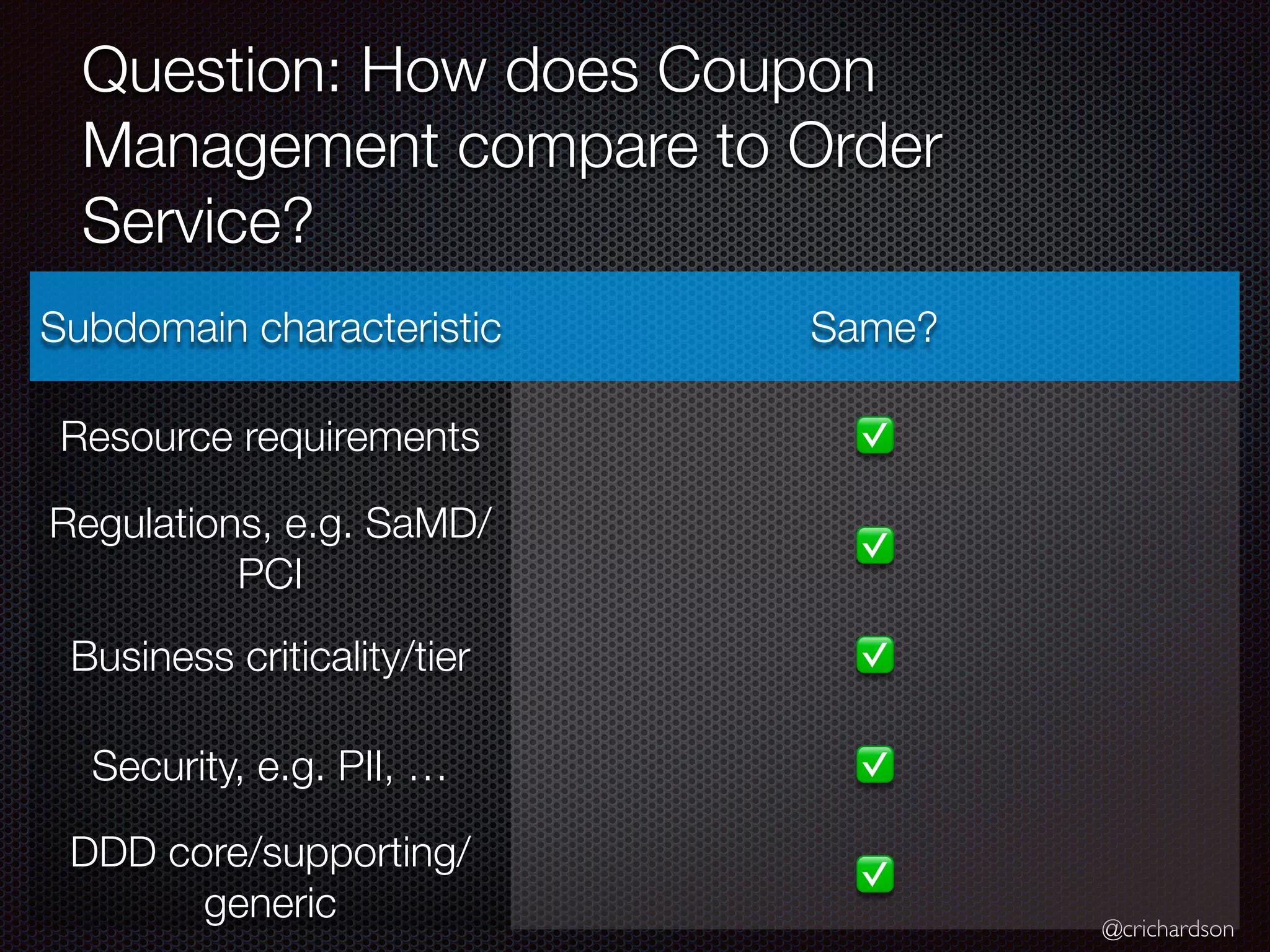

Question: How does Coupon
Management compare to Order
Service?
Subdomain characteristic Same?
Resource requirements ✅
Regulations, e.g. SaMD/
PCI
✅
Business criticality/tier ✅
Security, e.g. PII, … ✅
DDD core/supporting/
generic
✅

@crichardson

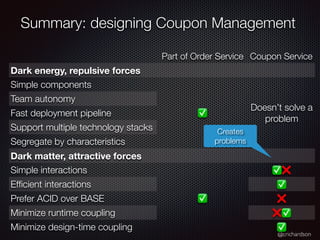

Summary: designing Coupon Management
Part of Order Service Coupon Service
Dark energy, repulsive forces
Simple components
✅
Doesn’t solve a
problem
Team autonomy
Dark matter, attractive forces
Simple interactions
✅
✅❌
Ef
fi
cient interactions ✅
Prefer ACID over BASE ❌
Minimize runtime coupling ❌✅
Minimize design-time coupling ✅
Creates
problems

@crichardson

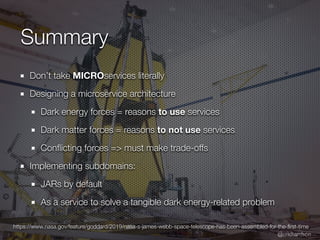

Summary
Don’t take MICROservices literally
Designing a microservice architecture
Dark energy forces = reasons to use services
Dark matter forces = reasons to not use services
Con
fl
icting forces => must make trade-offs
Implementing subdomains:
JARs by default
As a service to solve a tangible dark energy-related problem
https://www.nasa.gov/feature/goddard/2019/nasa-s-james-webb-space-telescope-has-been-assembled-for-the-
fi
rst-time

@crichardson
@crichardson chris@chrisrichardson.net
adopt.microservices.io
Questions?

More the merrier: a microservices anti-pattern

More Related Content

What's hot

Similar to More the merrier: a microservices anti-pattern

More from Chris Richardson

Recently uploaded

More the merrier: a microservices anti-pattern
