The microservice architecture is growing in popularity. It is an architectural style that structures an application as a set of loosely coupled services that are organized around business capabilities. Its goal is to enable the continuous delivery of large, complex applications. However, the microservice architecture is not a silver bullet and it has some significant drawbacks. The goal of the microservices pattern language is to enable software developers to apply the microservice architecture effectively. It is a collection of patterns that solve architecture, design, development and operational problems. In this talk, I’ll provide an overview of the microservice architecture and describe the motivations for the pattern language. You will learn about the key patterns in the pattern language.
Recommended
Recommended
More Related Content
What's hot
What's hot (20)
Similar to A pattern language for microservices - June 2021
Similar to A pattern language for microservices - June 2021 (20)
More from Chris Richardson
More from Chris Richardson (19)
Recently uploaded
Recently uploaded (20)
A pattern language for microservices - June 2021
- 1. @crichardson A pattern language for microservices Chris Richardson Microservice architecture consultant and trainer Founder of Eventuate.io Founder of the original CloudFoundry.com Author of POJOs in Action and Microservices Patterns @crichardson chris@chrisrichardson.net http://adopt.microservices.io Copyright © 2021. Chris Richardson Consulting, Inc. All rights reserved
- 2. @crichardson Presentation goal Why patterns and pattern languages? A pattern language for microservices
- 4. @crichardson Discounts 35% discount mpimeusp40 $170 discount coupon MBNKXFVQ http://adopt.microservices.io
- 5. @crichardson Agenda Why a pattern language for microservices? Core patterns: Monolith vs. Microservices Distributed data patterns
- 7. @crichardson Yet almost 30 years later developers are still passionately arguing over “silver bullets” Functional programming

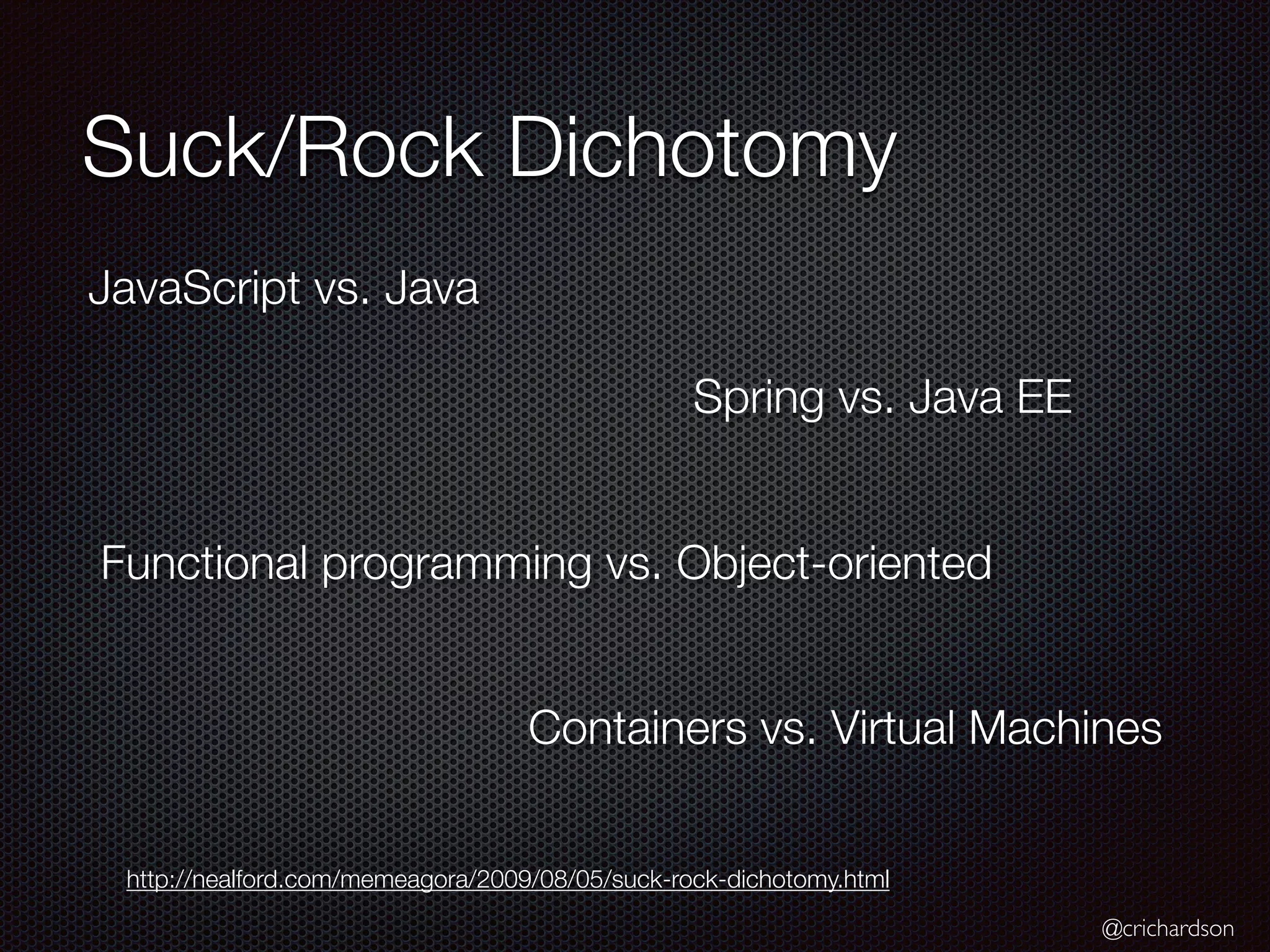

- 8. @crichardson Suck/Rock Dichotomy Spring vs. Java EE JavaScript vs. Java Functional programming vs. Object-oriented http://nealford.com/memeagora/2009/08/05/suck-rock-dichotomy.html Containers vs. Virtual Machines

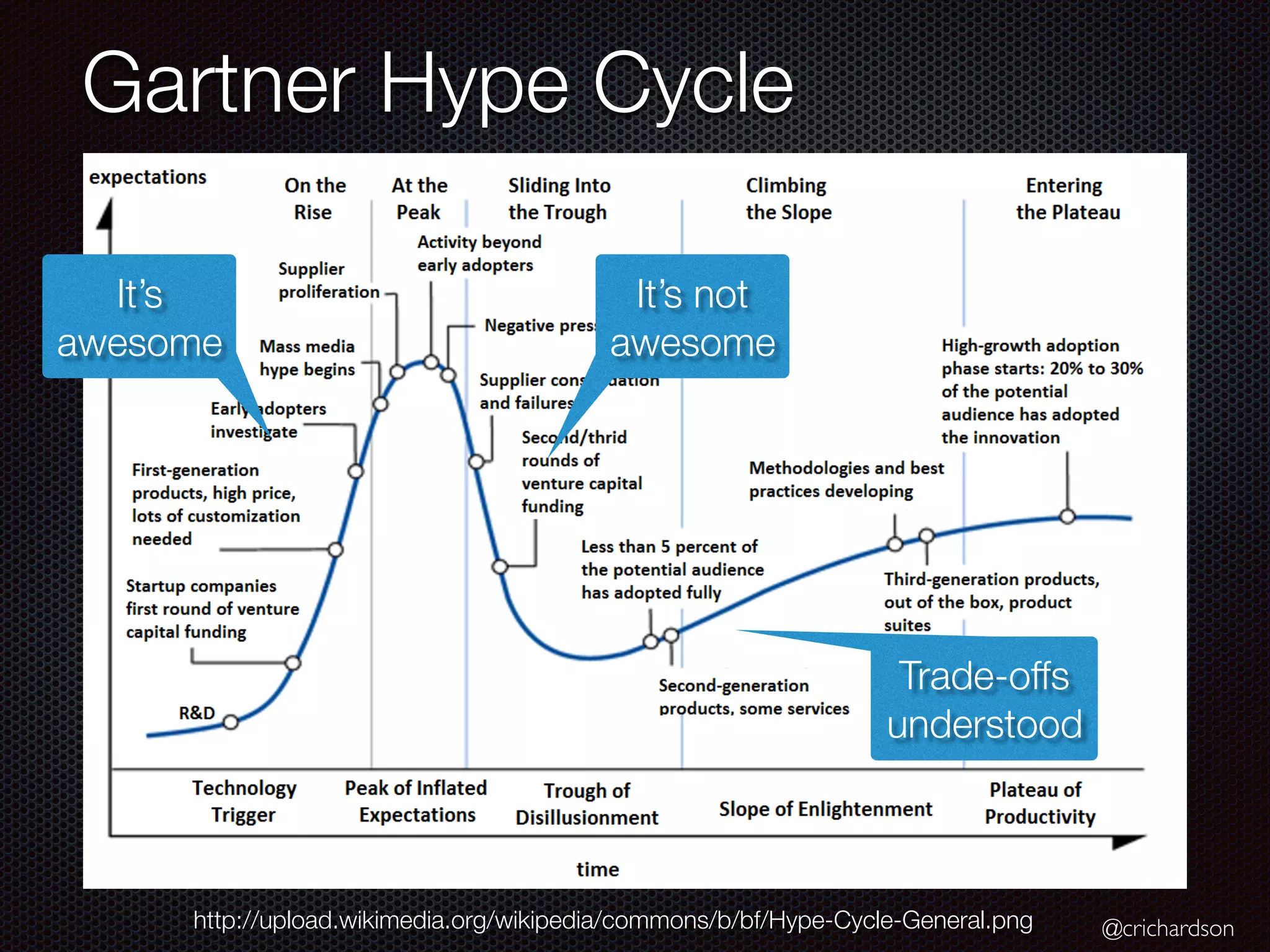

- 9. @crichardson Gartner Hype Cycle http://upload.wikimedia.org/wikipedia/commons/b/bf/Hype-Cycle-General.png It’s awesome It’s not awesome Trade-offs understood
- 10. @crichardson We need a better way to discuss and think about technology

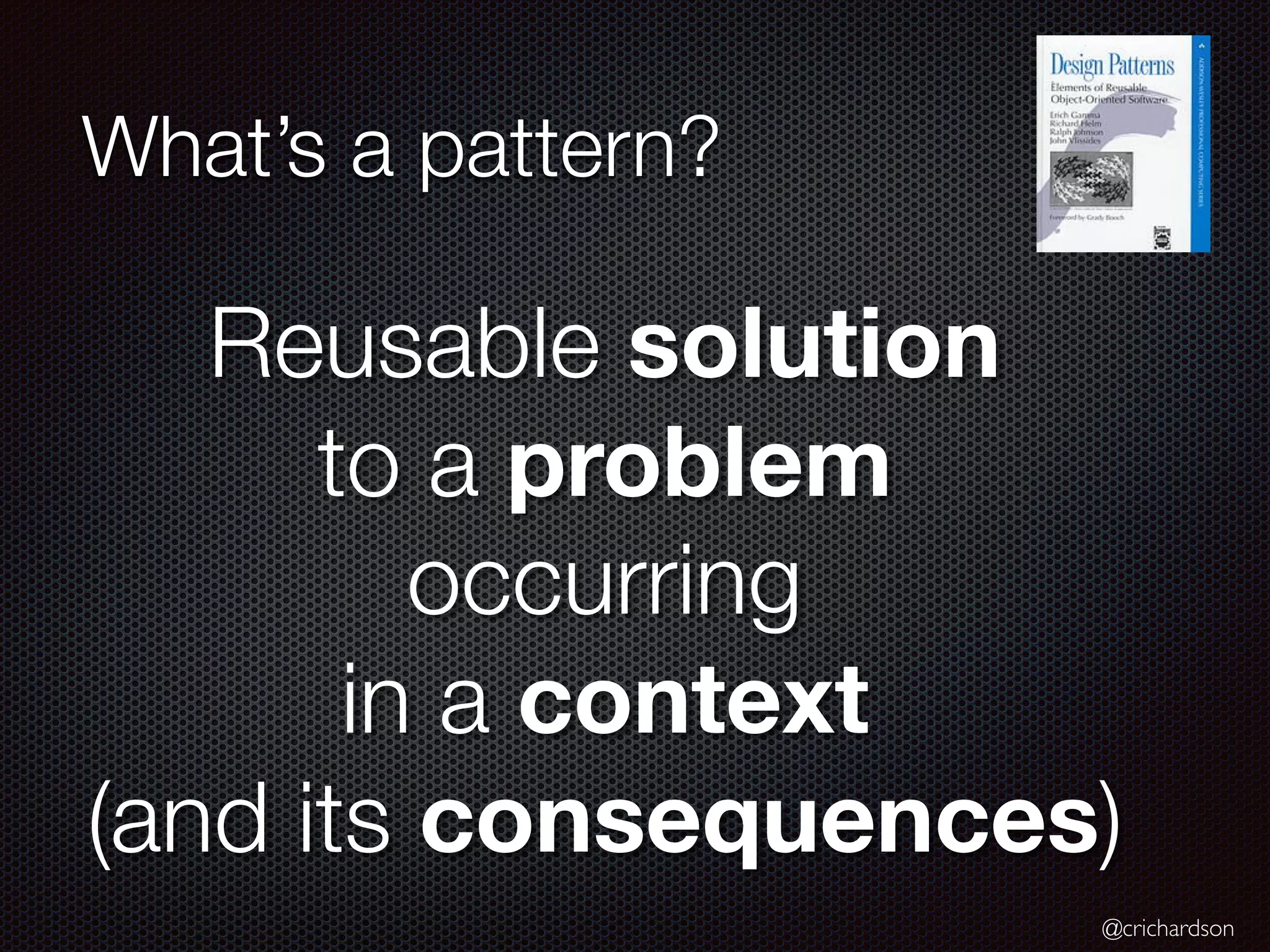

- 11. @crichardson What’s a pattern? Reusable solution to a problem occurring in a context (and its consequences)

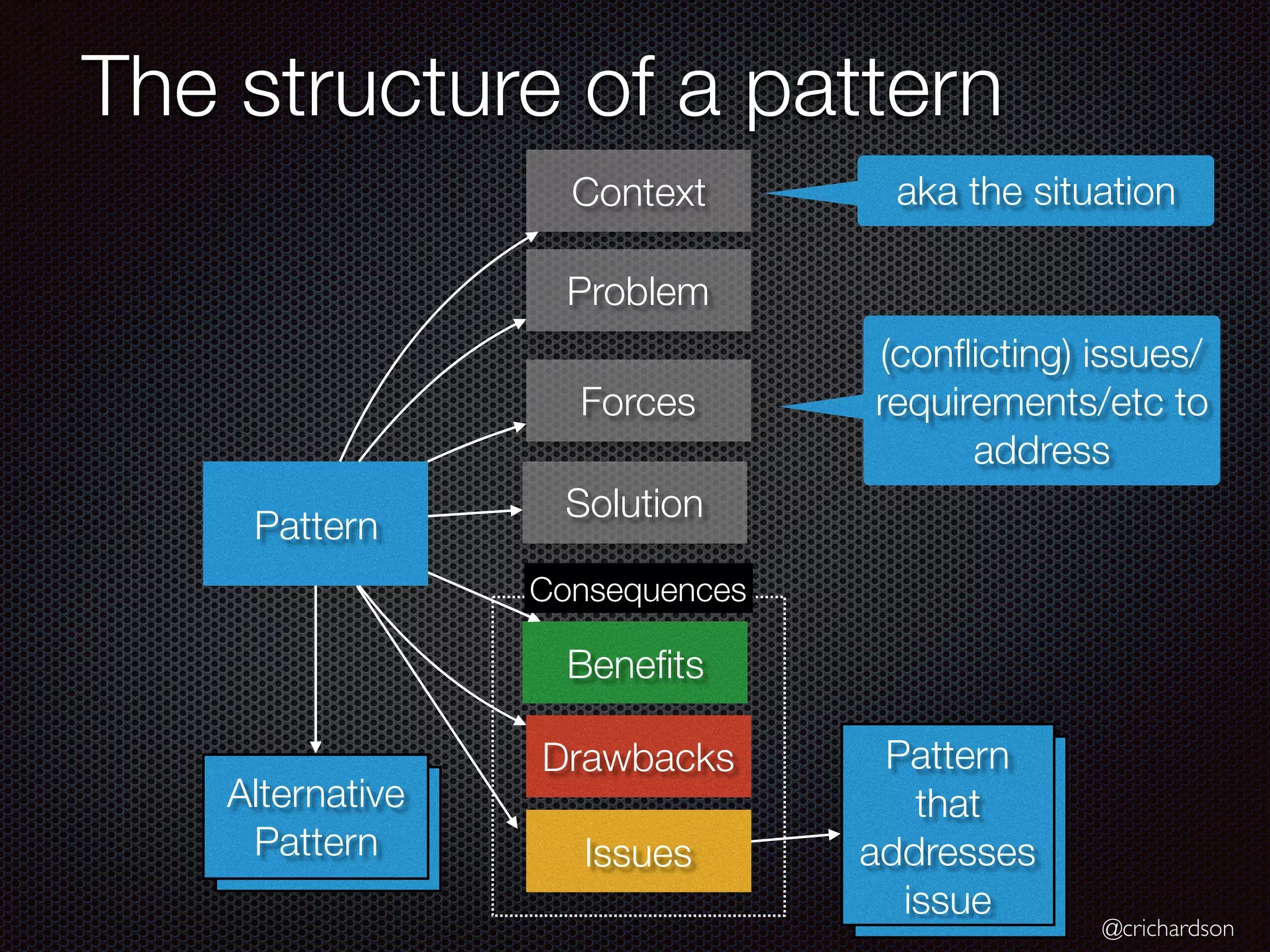

- 12. @crichardson Alternative Pattern The structure of a pattern Pattern Benefits Drawbacks Issues Alternative Pattern Pattern that addresses issue Context Problem Solution aka the situation (conflicting) issues/ requirements/etc to address Forces Consequences

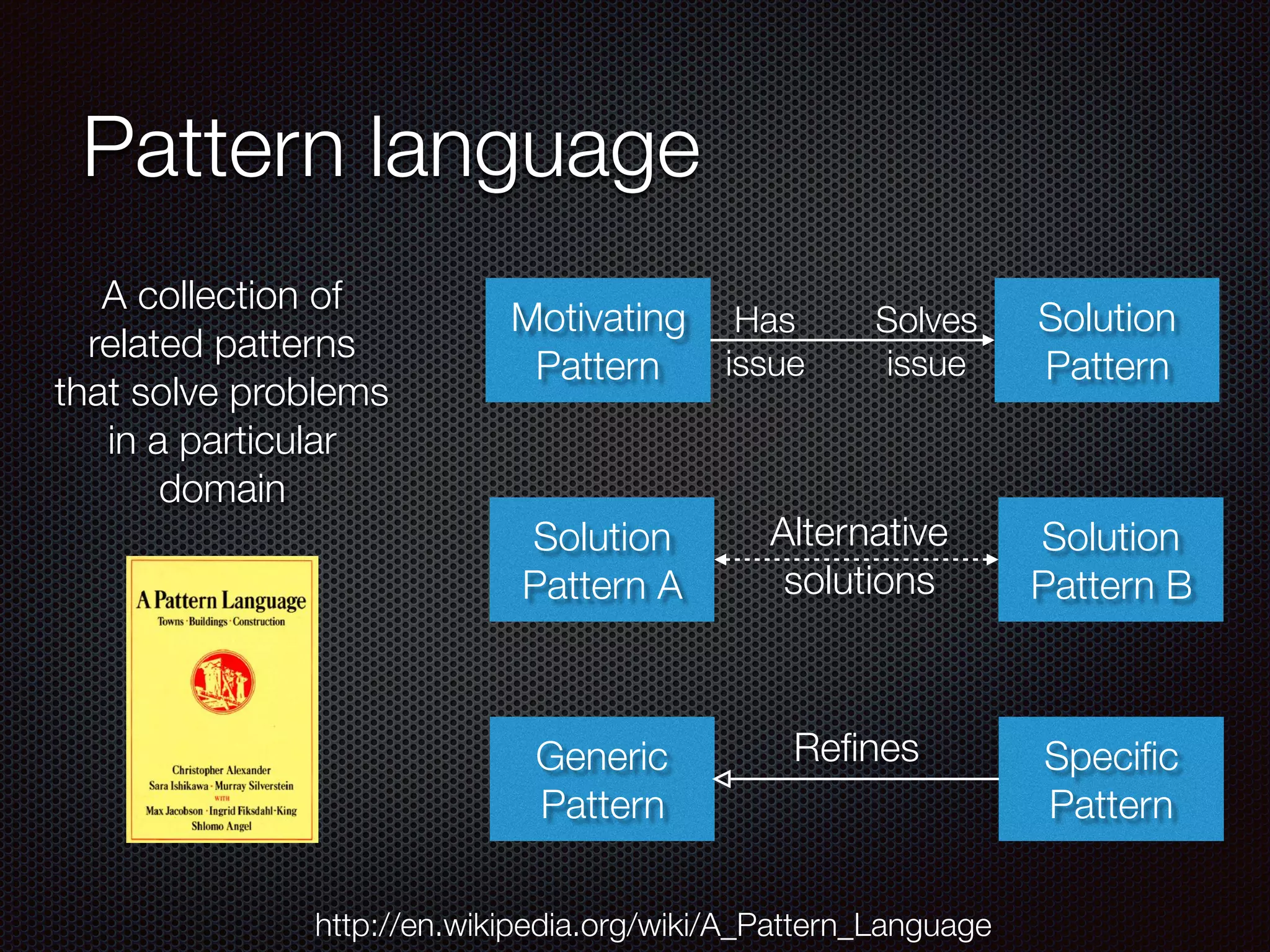

- 13. Pattern language A collection of related patterns that solve problems in a particular domain http://en.wikipedia.org/wiki/A_Pattern_Language Motivating Pattern Solution Pattern Solution Pattern A Solution Pattern B Generic Pattern Specific Pattern Has issue Solves issue Alternative solutions Refines
- 15. @crichardson The pattern language guides you when developing an architecture What architectural decisions you must make (a.k.a. problems to solve) For each decision/problem: Available patterns Trade-offs of each pattern

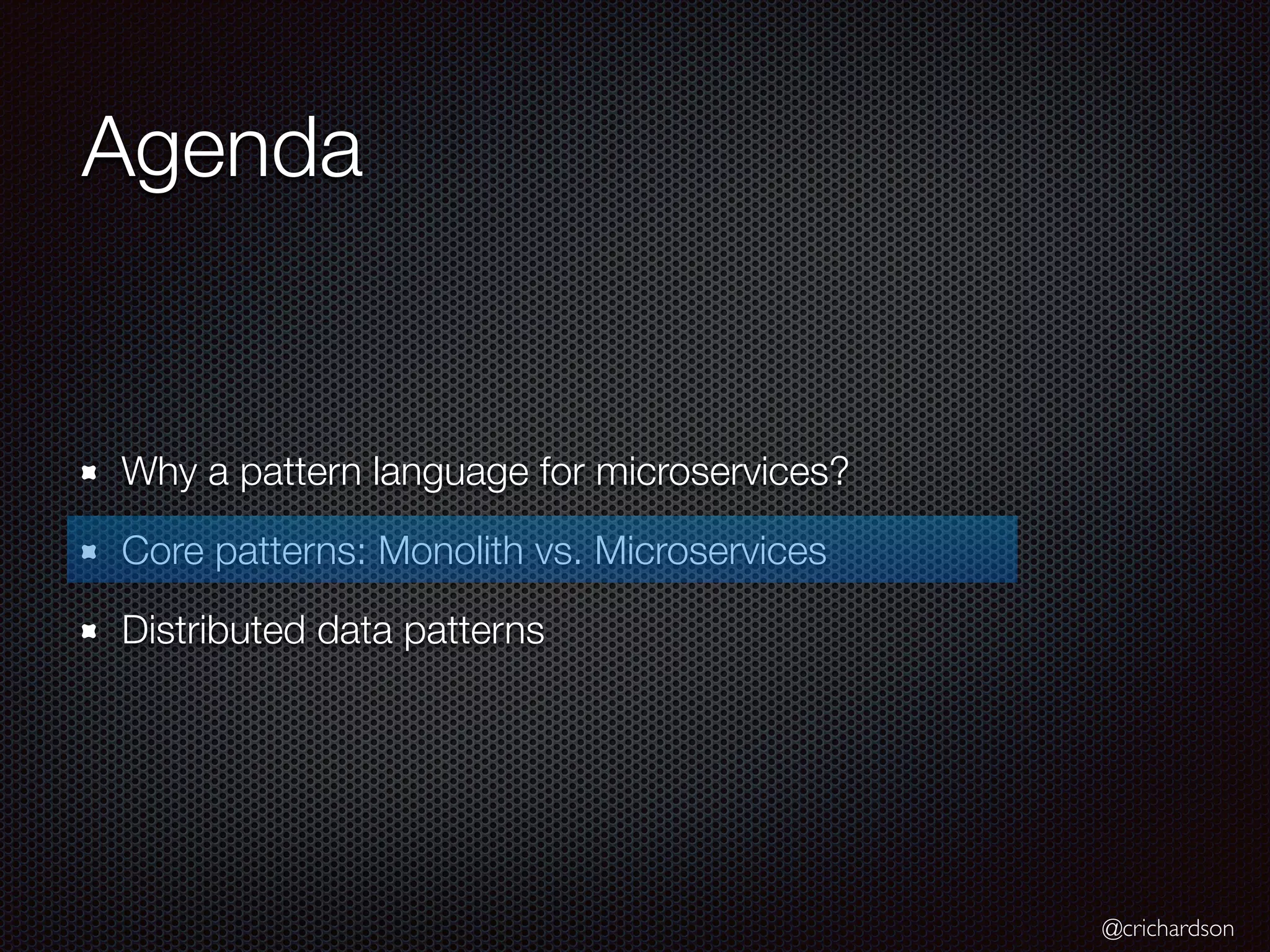

- 16. @crichardson Agenda Why a pattern language for microservices? Core patterns: Monolith vs. Microservices Distributed data patterns

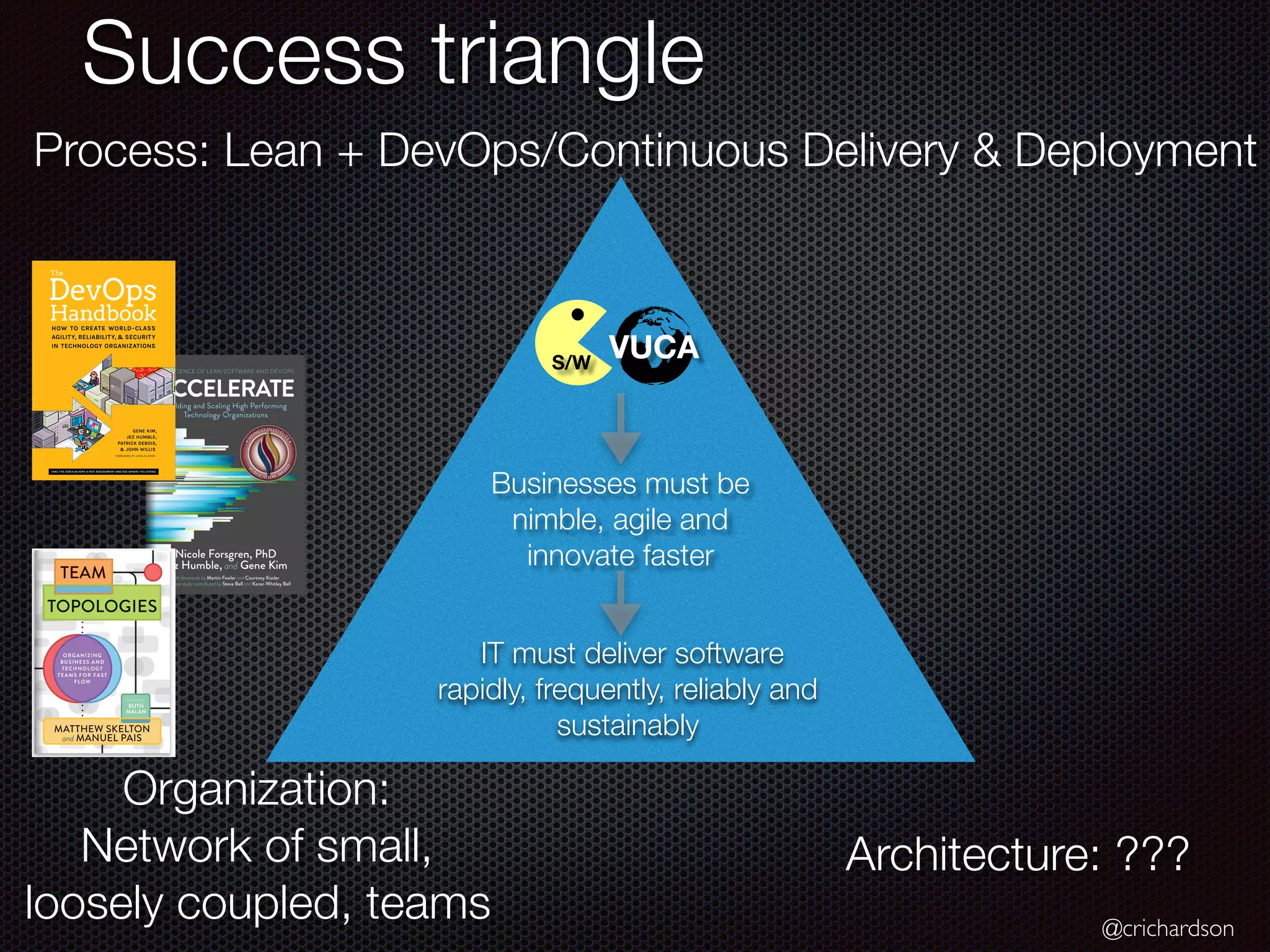

- 17. @crichardson Success triangle Process: Lean + DevOps/Continuous Delivery & Deployment Organization: Network of small, loosely coupled, teams Architecture: ??? IT must deliver software rapidly, frequently, reliably and sustainably Businesses must be nimble, agile and innovate faster S/W VUCA

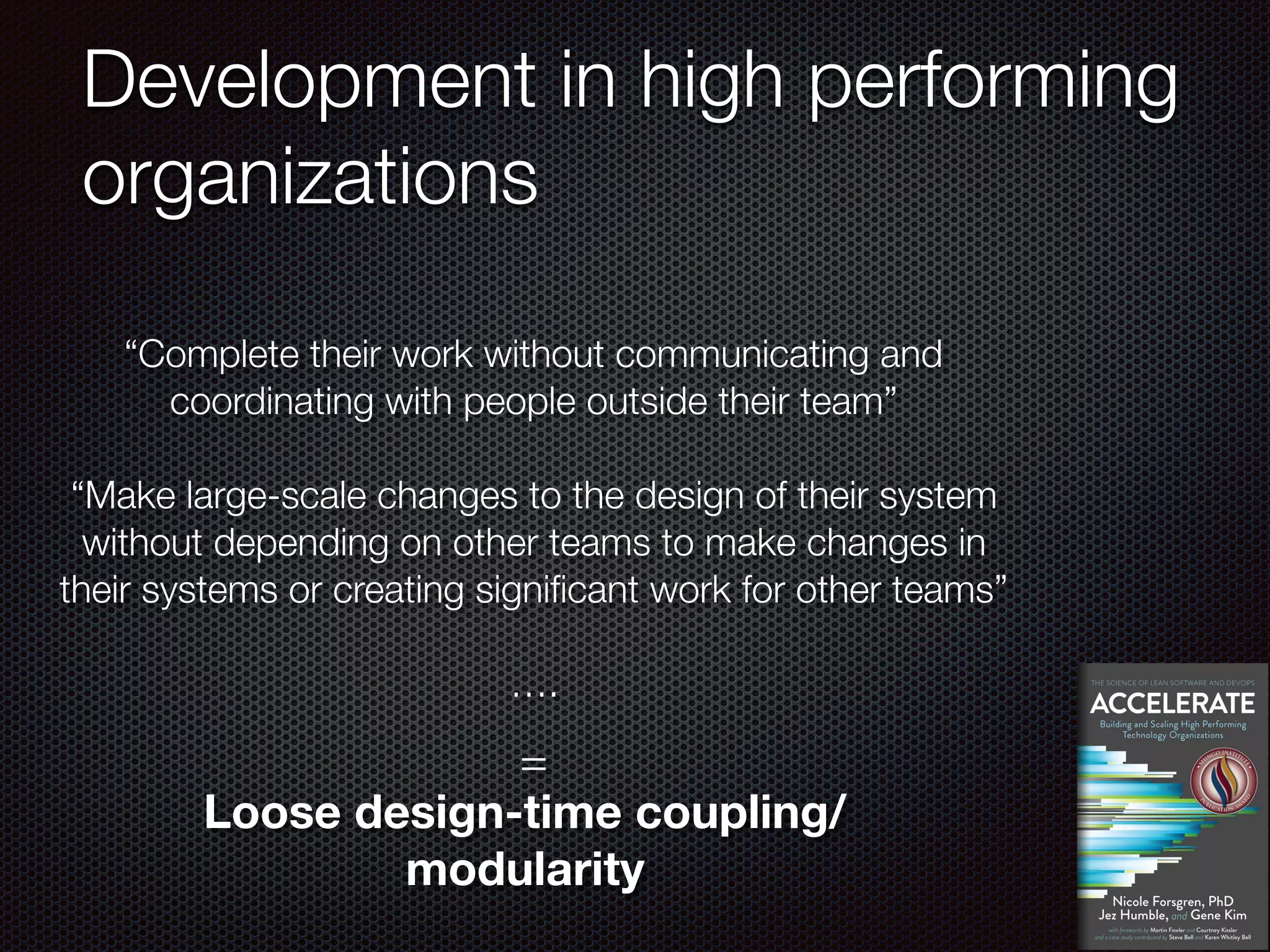

- 18. Development in high performing organizations “Complete their work without communicating and coordinating with people outside their team” “Make large-scale changes to the design of their system without depending on other teams to make changes in their systems or creating significant work for other teams” …. Loose design-time coupling/ modularity =
- 19. @crichardson Architectural requirements for DevOps: • Testability • Deployability

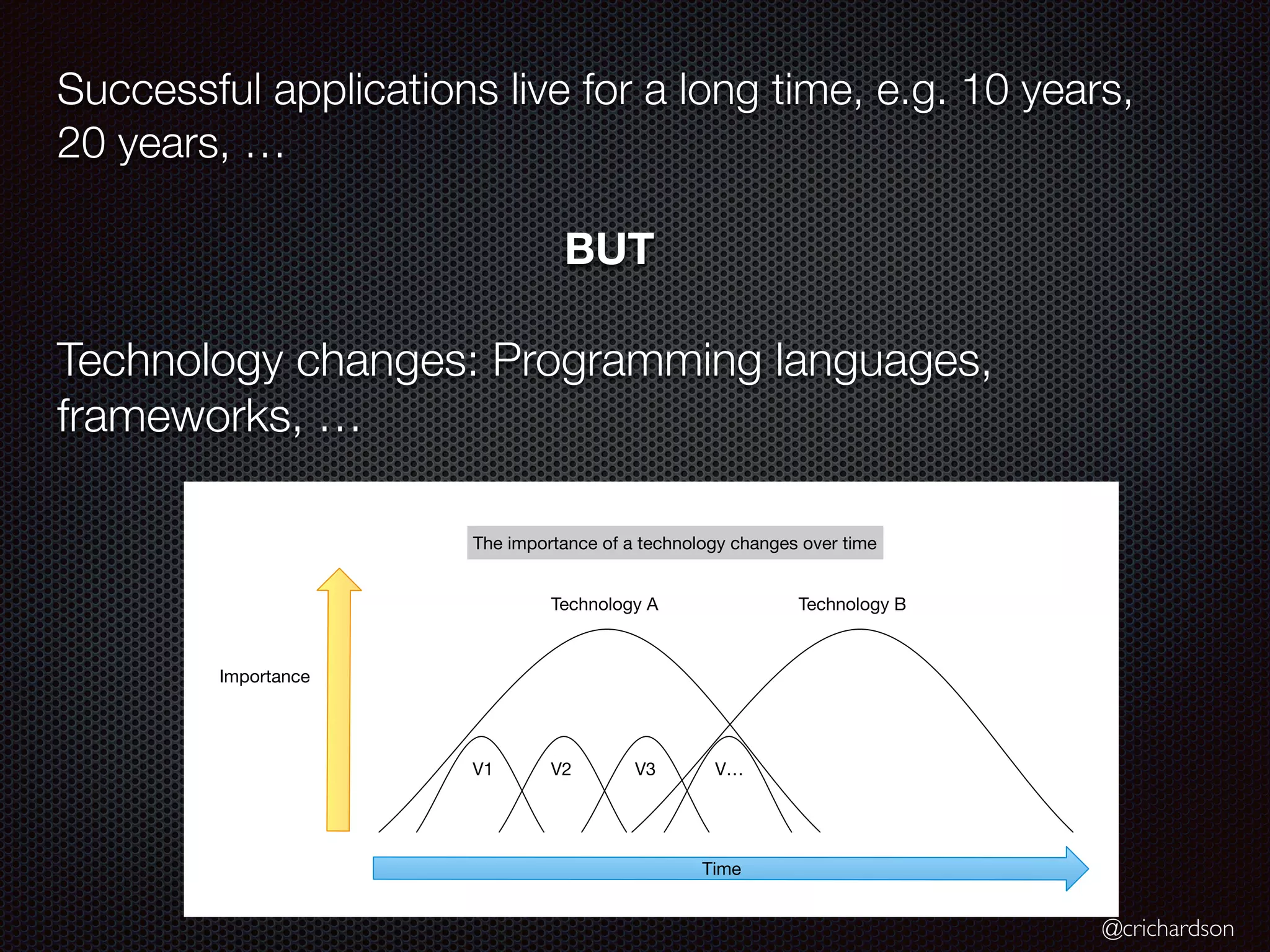

- 20. @crichardson Successful applications live for a long time, e.g. 10 years, 20 years, … BUT Technology changes: Programming languages, frameworks, … Time Technology A Technology B V1 V2 V3 V… Importance The importance of a technology changes over time

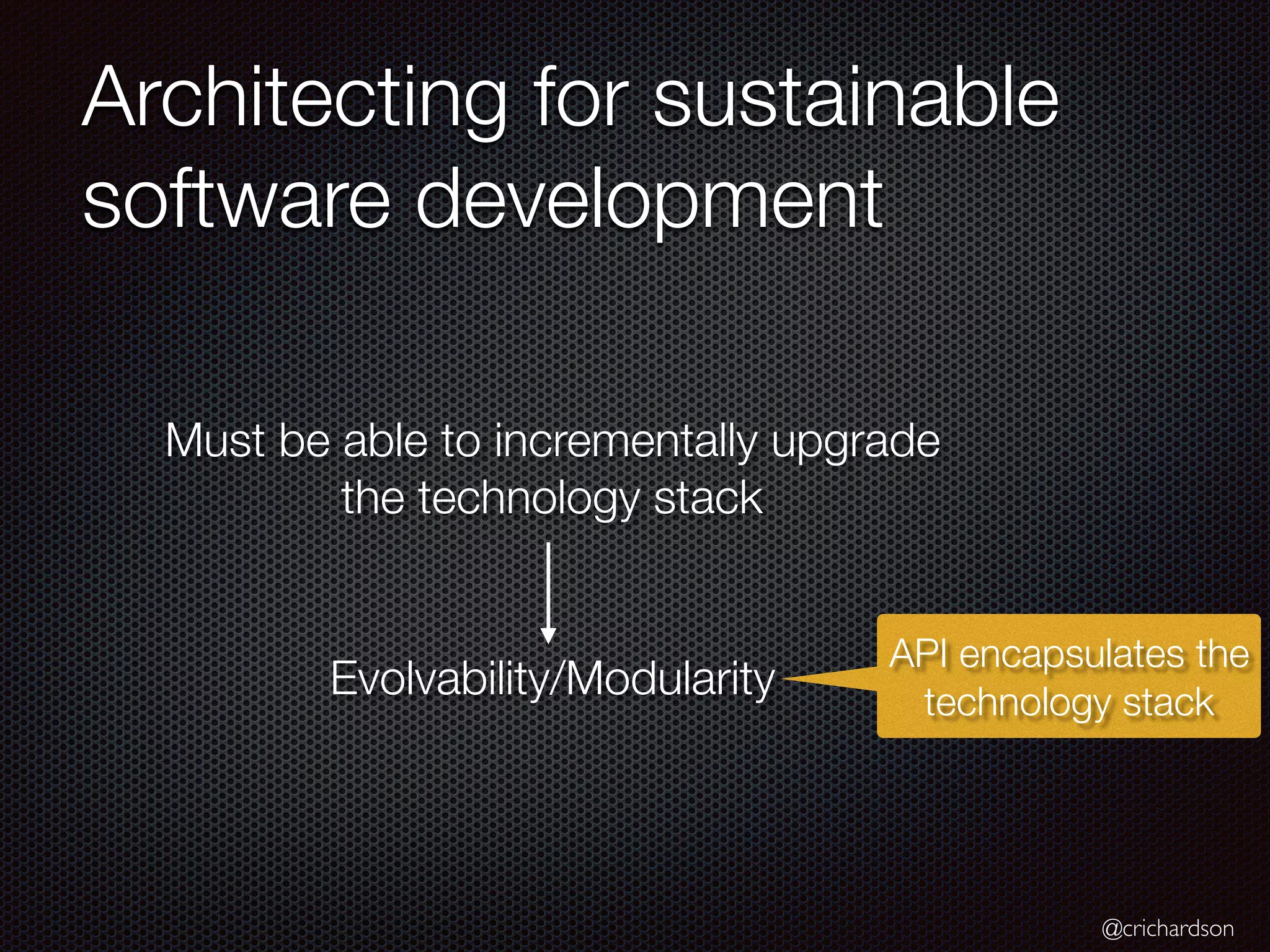

- 21. @crichardson Architecting for sustainable software development Evolvability/Modularity Must be able to incrementally upgrade the technology stack API encapsulates the technology stack

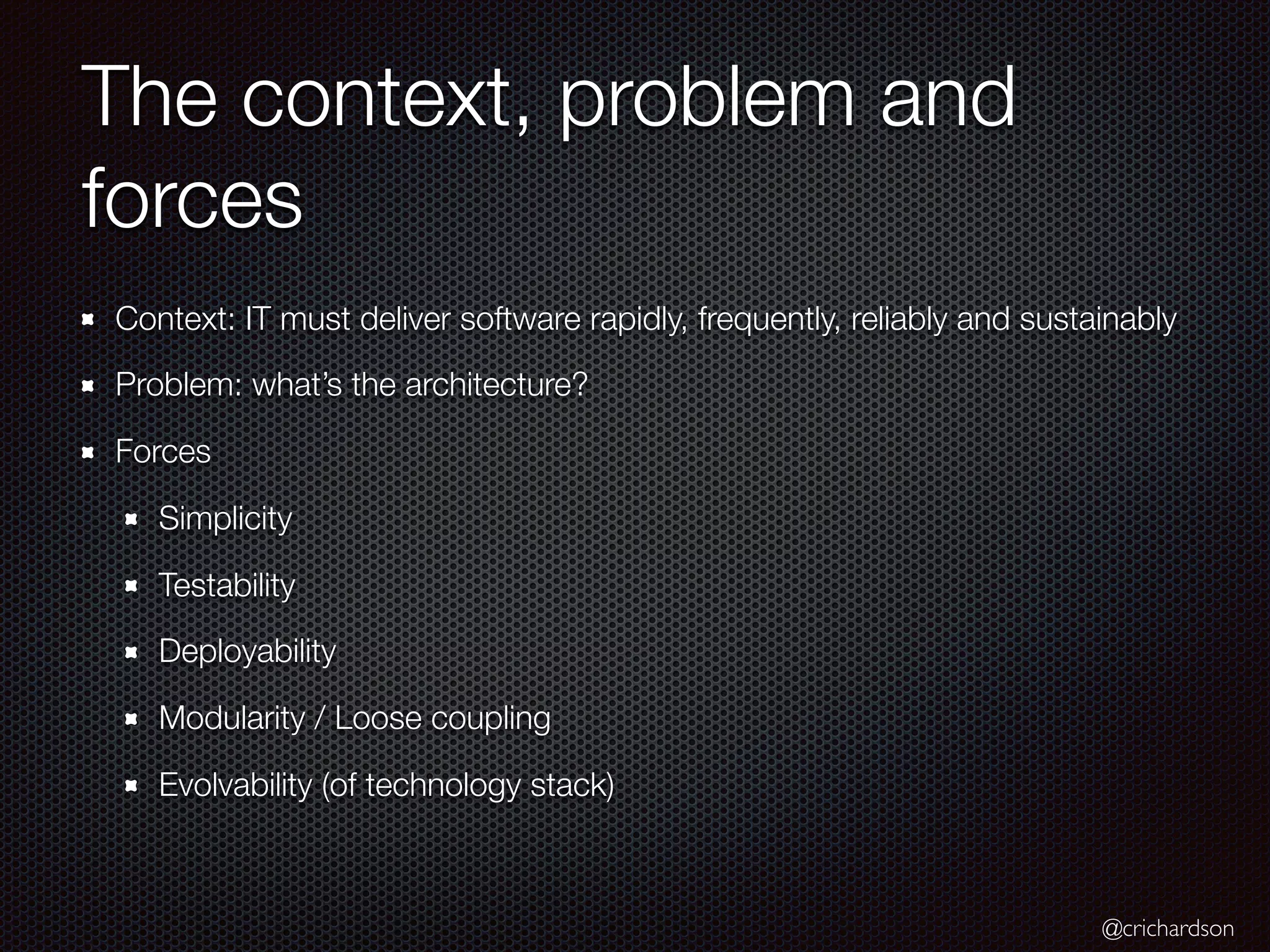

- 22. @crichardson The context, problem and forces Context: IT must deliver software rapidly, frequently, reliably and sustainably Problem: what’s the architecture? Forces Simplicity Testability Deployability Modularity / Loose coupling Evolvability (of technology stack)

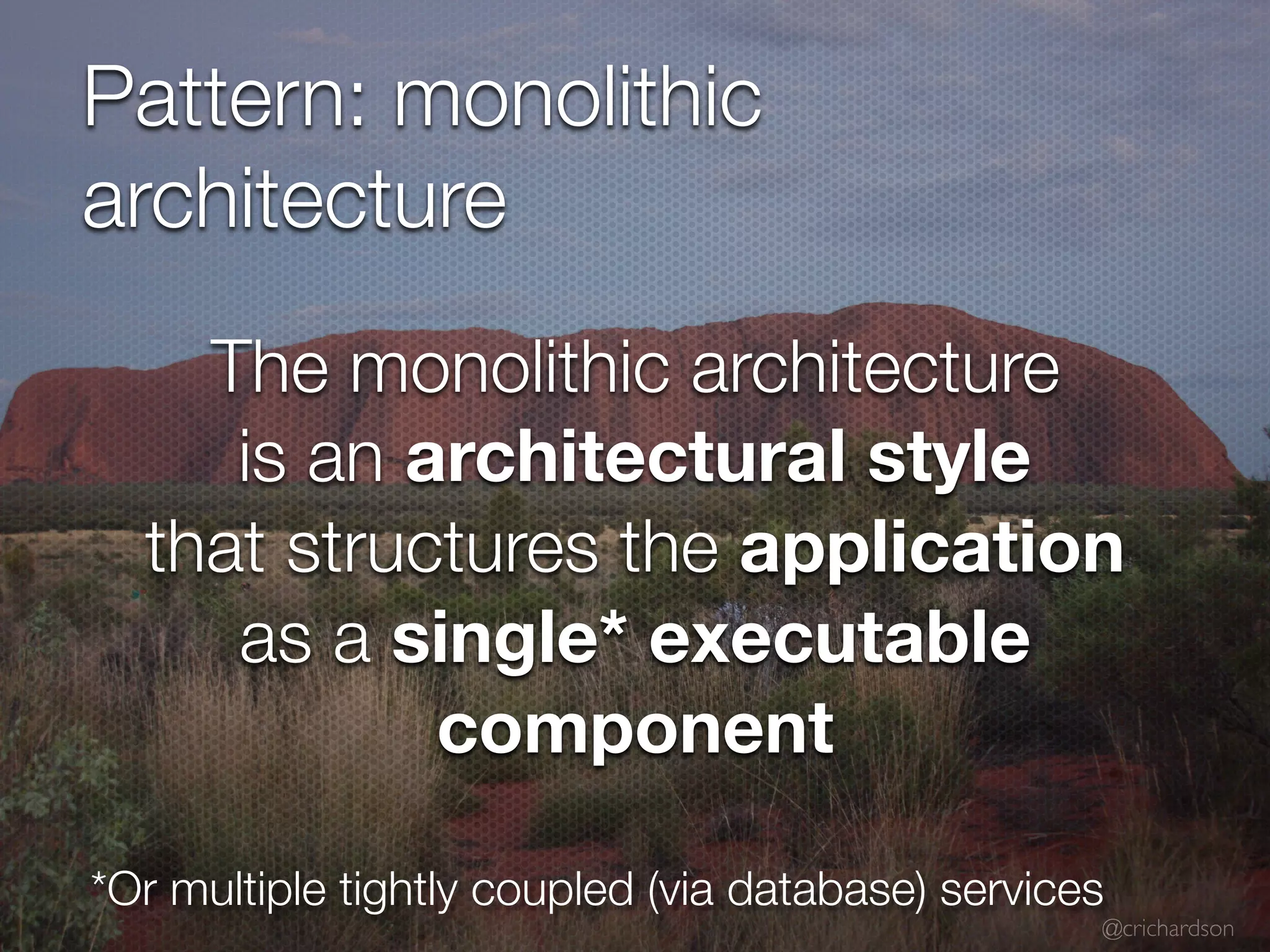

- 23. @crichardson Pattern: monolithic architecture *Or multiple tightly coupled (via database) services The monolithic architecture is an architectural style that structures the application as a single* executable component

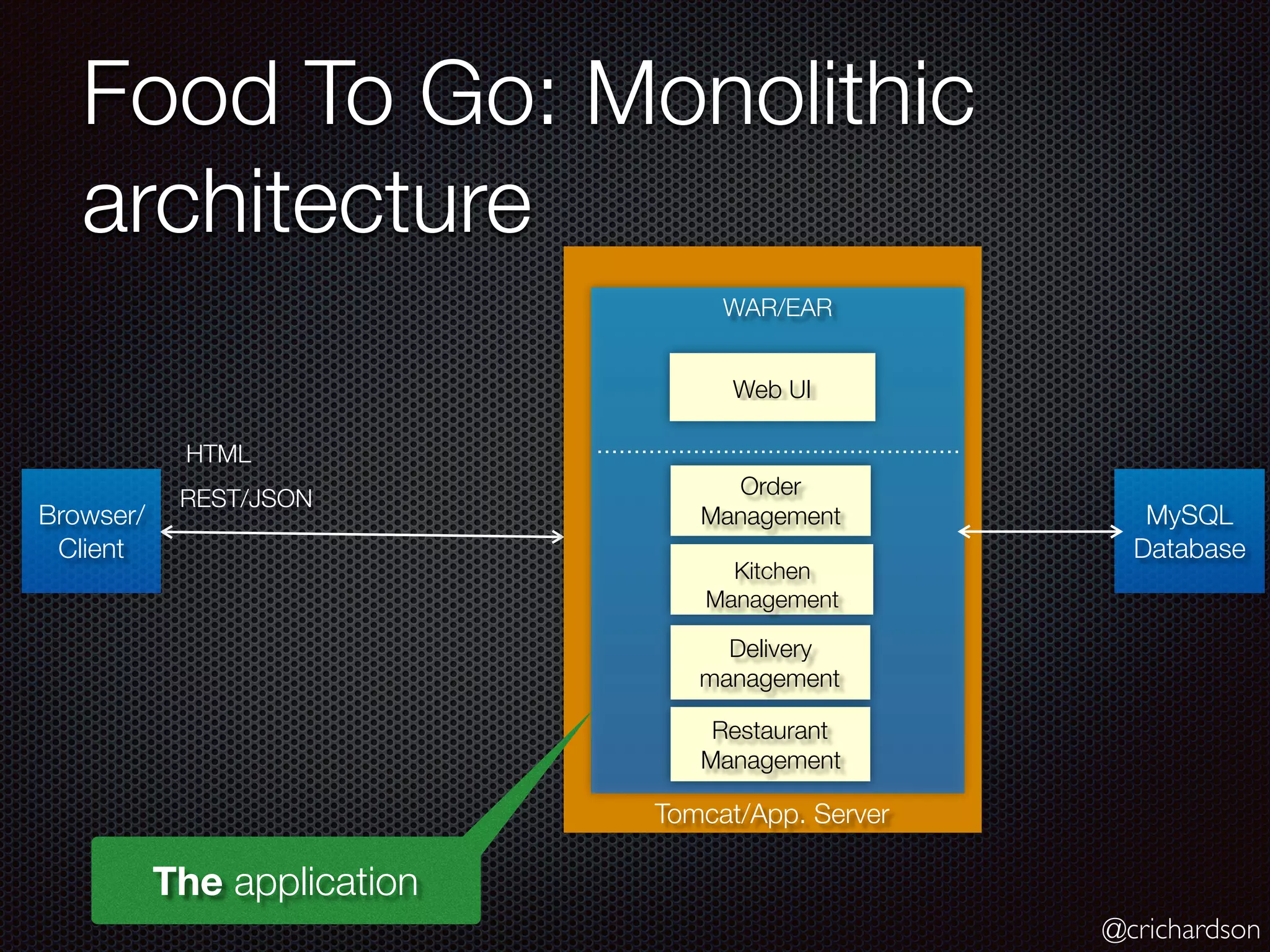

- 24. @crichardson Tomcat/App. Server Food To Go: Monolithic architecture Browser/ Client WAR/EAR MySQL Database Delivery management Order Management Kitchen Management Web UI Restaurant Management HTML REST/JSON The application

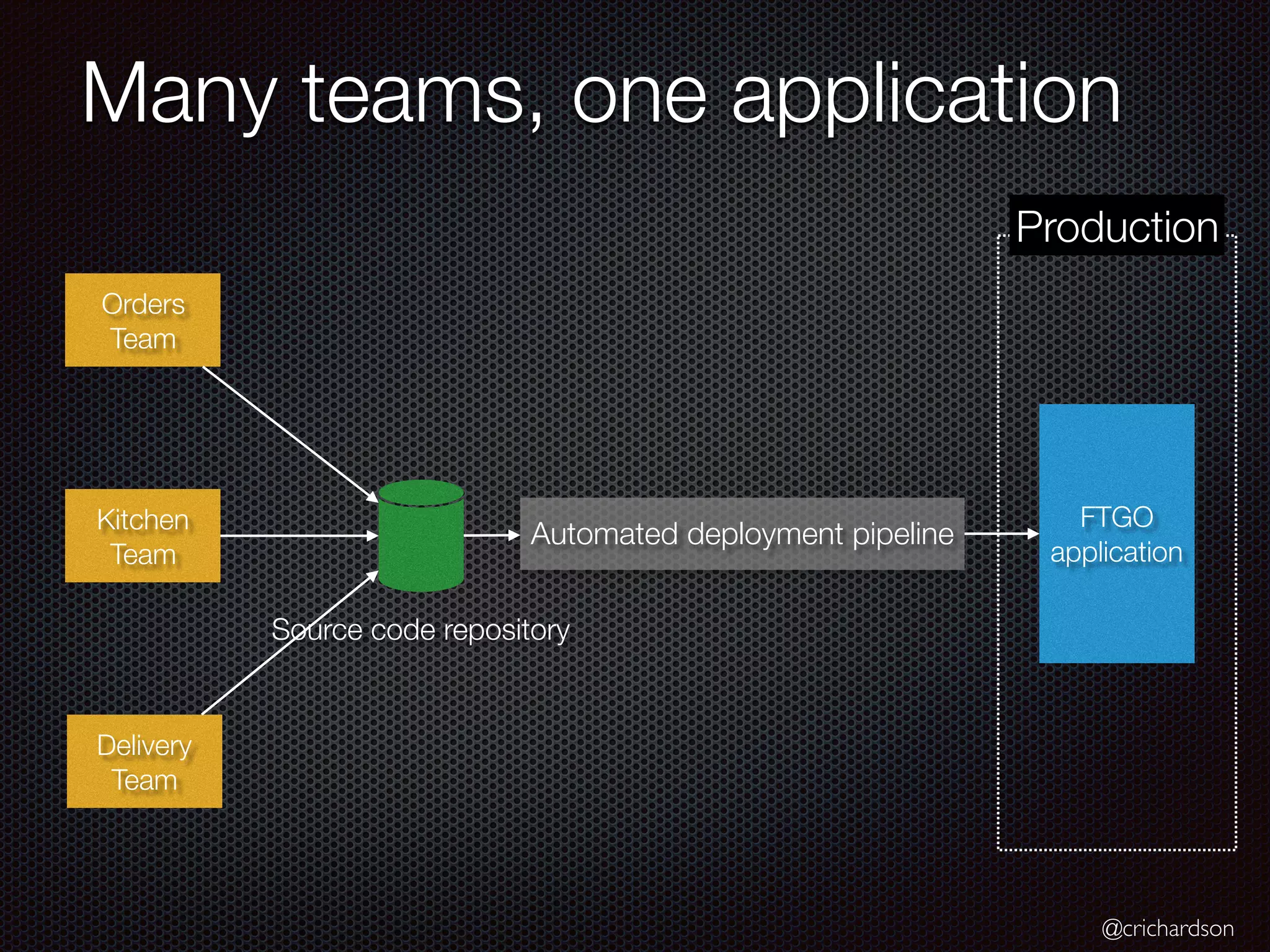

- 25. @crichardson Many teams, one application Orders Team FTGO application Kitchen Team Automated deployment pipeline Source code repository Delivery Team Production

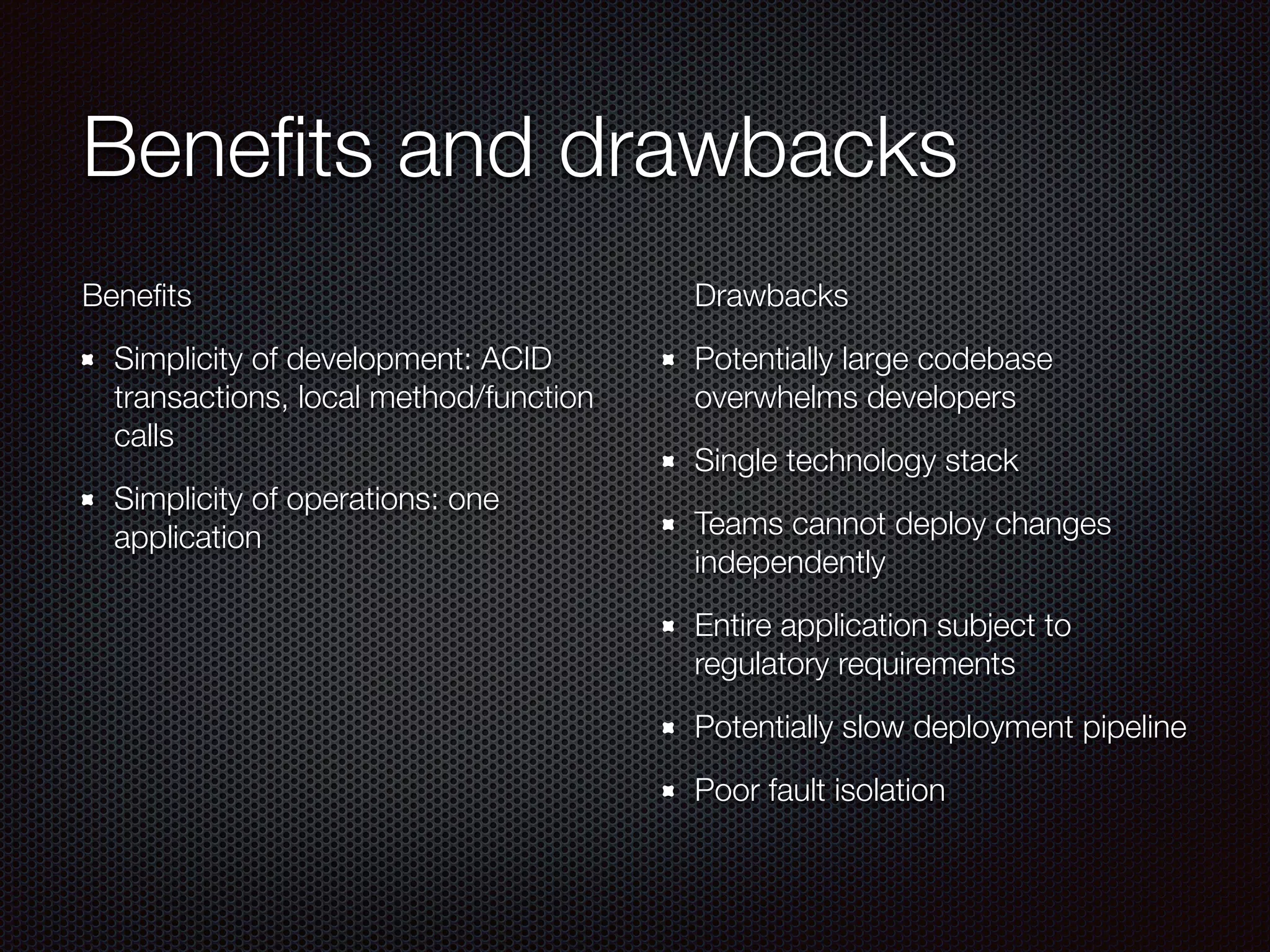

- 26. Benefits and drawbacks Benefits Simplicity of development: ACID transactions, local method/function calls Simplicity of operations: one application Drawbacks Potentially large codebase overwhelms developers Single technology stack Teams cannot deploy changes independently Entire application subject to regulatory requirements Potentially slow deployment pipeline Poor fault isolation

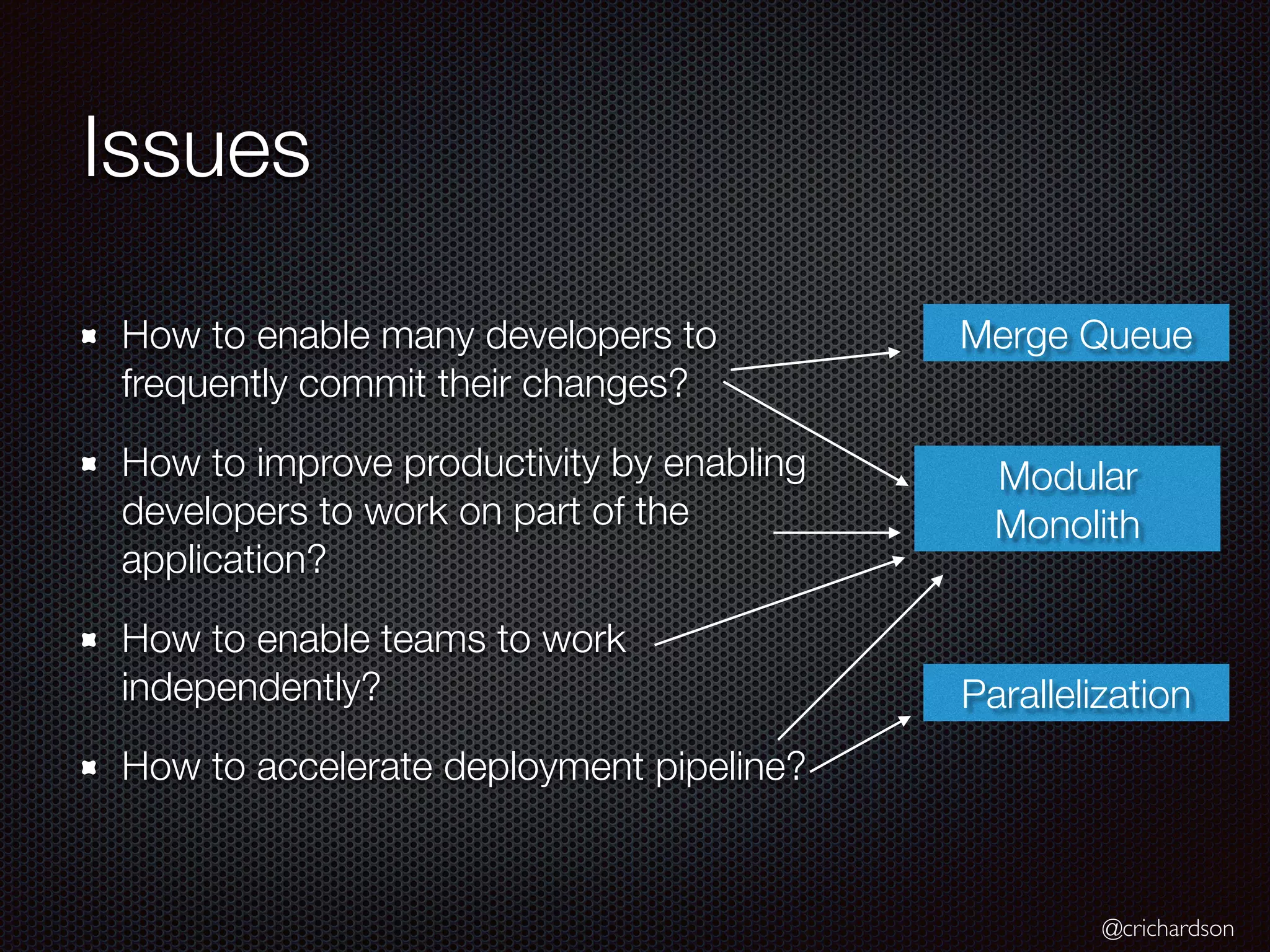

- 27. @crichardson Issues How to enable many developers to frequently commit their changes? How to improve productivity by enabling developers to work on part of the application? How to enable teams to work independently? How to accelerate deployment pipeline? Merge Queue Modular Monolith Parallelization

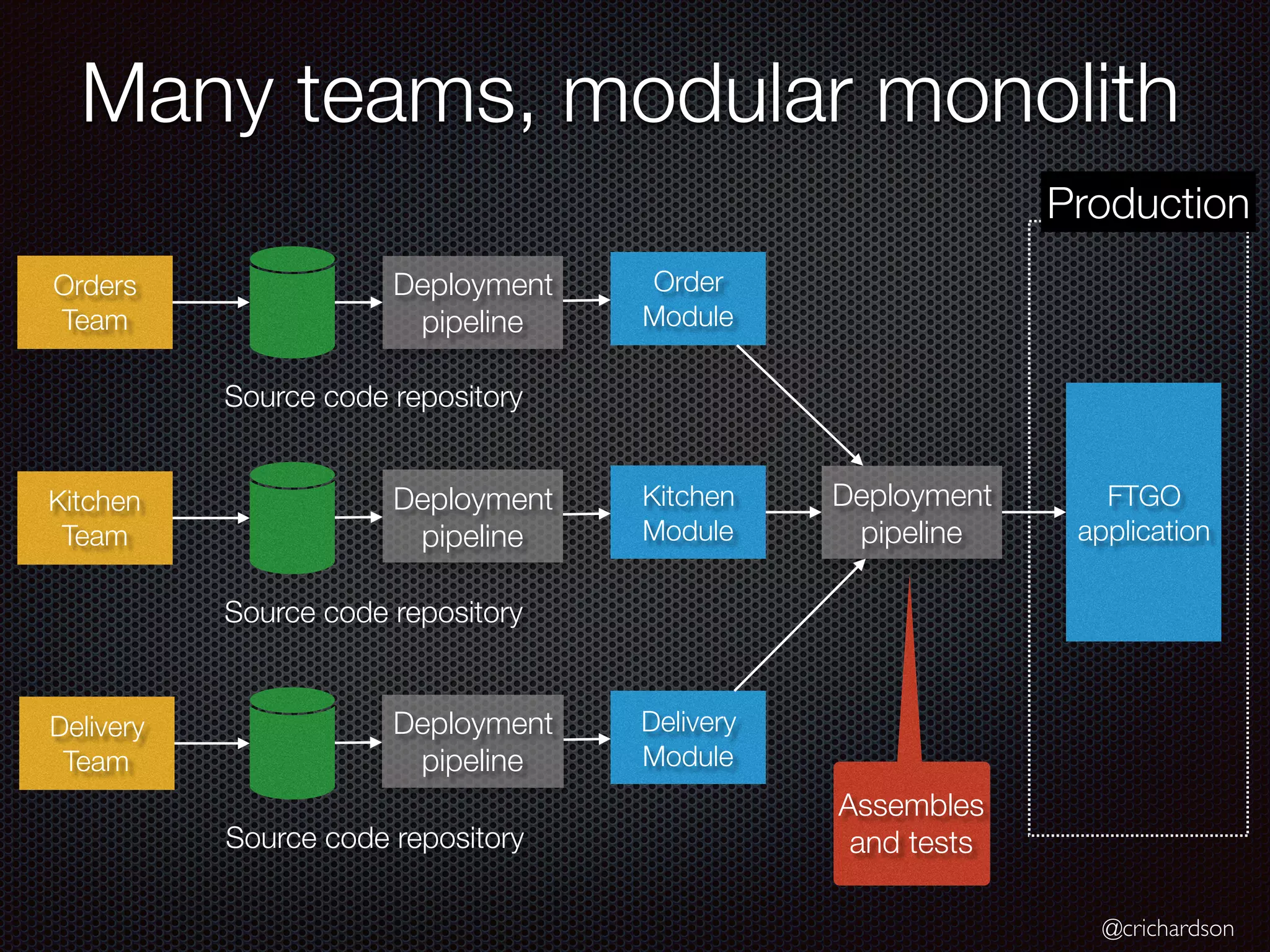

- 28. @crichardson Many teams, modular monolith Order Module Orders Team Deployment pipeline Source code repository Kitchen Module Kitchen Team Deployment pipeline Source code repository Delivery Module Delivery Team Deployment pipeline Source code repository Production Deployment pipeline FTGO application Assembles and tests
- 29. Pattern: microservice architecture Highly maintainable and testable Minimal lead time (time from commit to deploy) Loosely coupled Independently deployable Implements a business capability Owned/developed/tested/ deployed by a small team An architectural style that structures an application as a set of deployable/ executable units, a.k.a. services A service is:

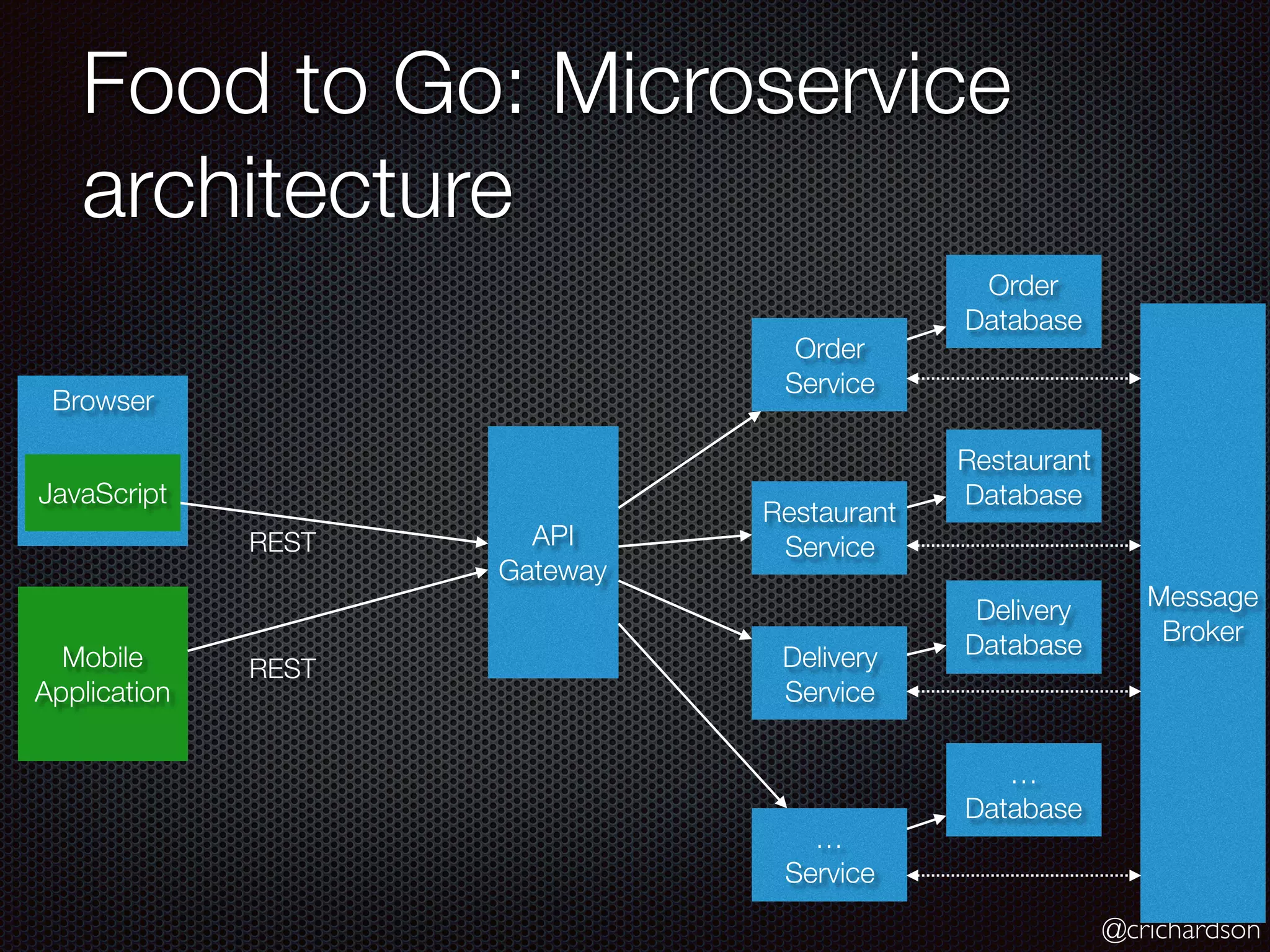

- 30. @crichardson Food to Go: Microservice architecture Browser Mobile Application API Gateway Order Service Restaurant Service Delivery Service … Service Order Database Restaurant Database Delivery Database … Database REST REST JavaScript Message Broker

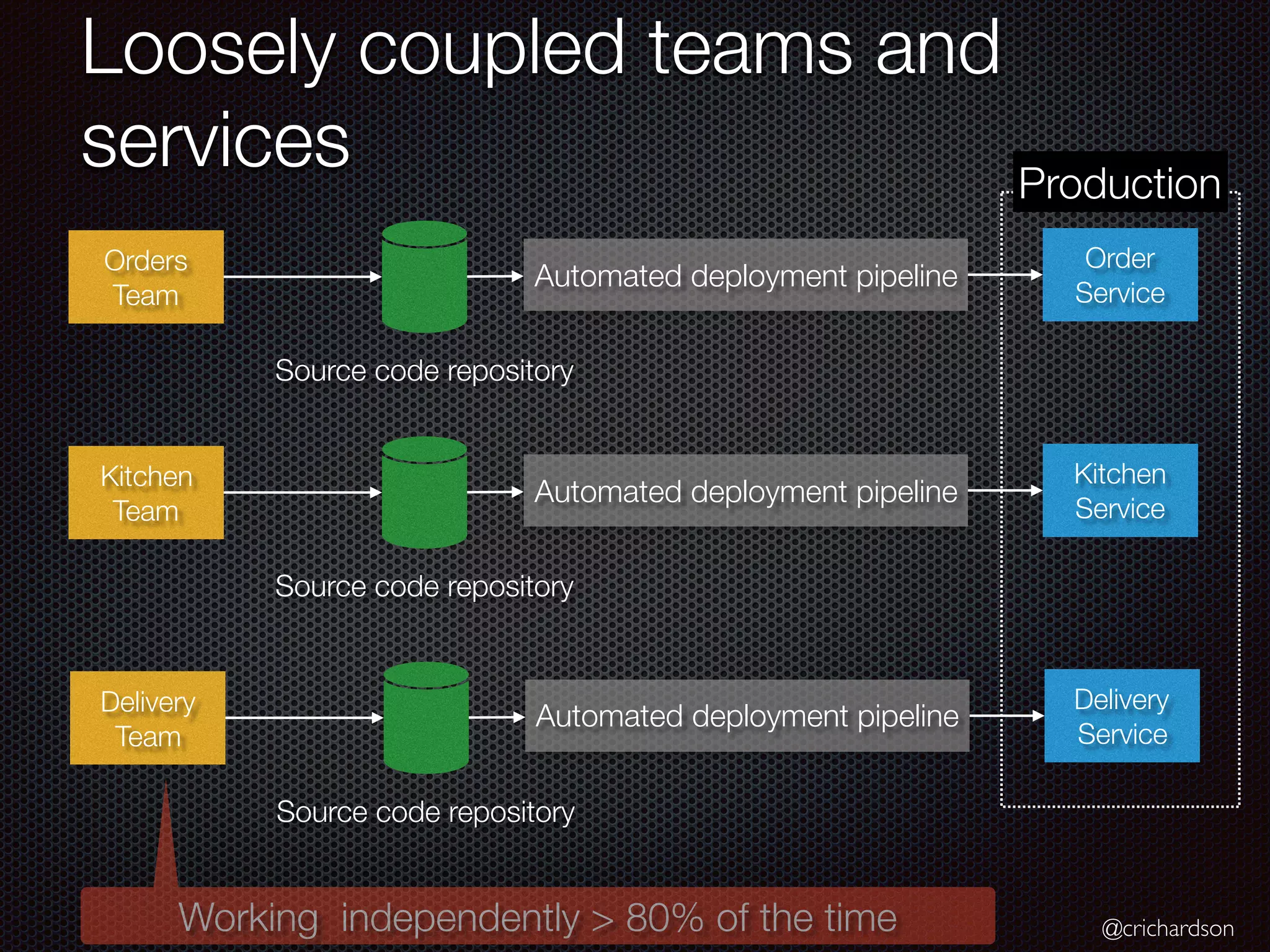

- 31. @crichardson Loosely coupled teams and services Order Service Orders Team Automated deployment pipeline Source code repository Kitchen Service Kitchen Team Automated deployment pipeline Source code repository Delivery Service Delivery Team Automated deployment pipeline Source code repository Working independently > 80% of the time Production

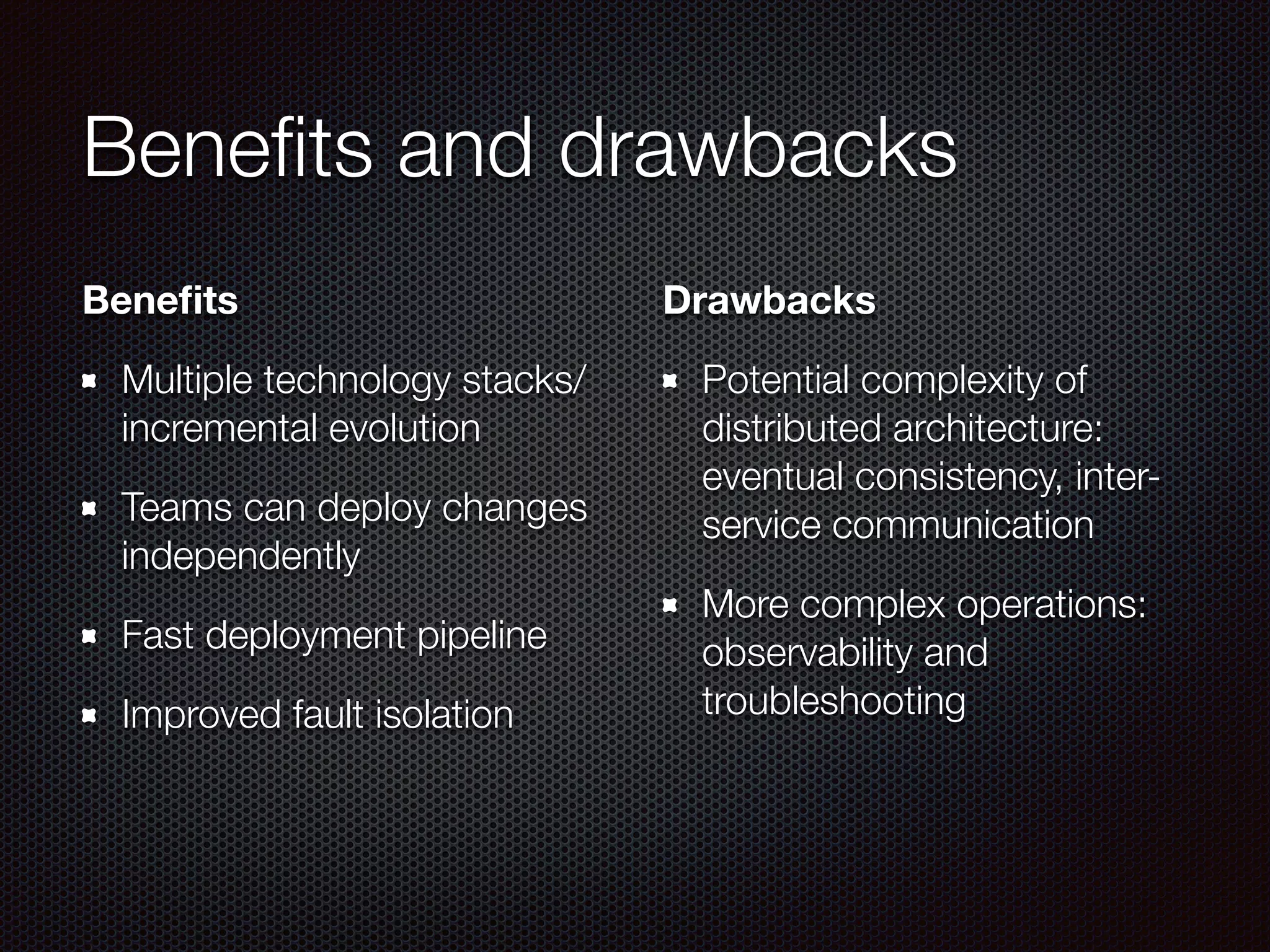

- 32. Benefits and drawbacks Benefits Multiple technology stacks/ incremental evolution Teams can deploy changes independently Fast deployment pipeline Improved fault isolation Drawbacks Potential complexity of distributed architecture: eventual consistency, inter- service communication More complex operations: observability and troubleshooting

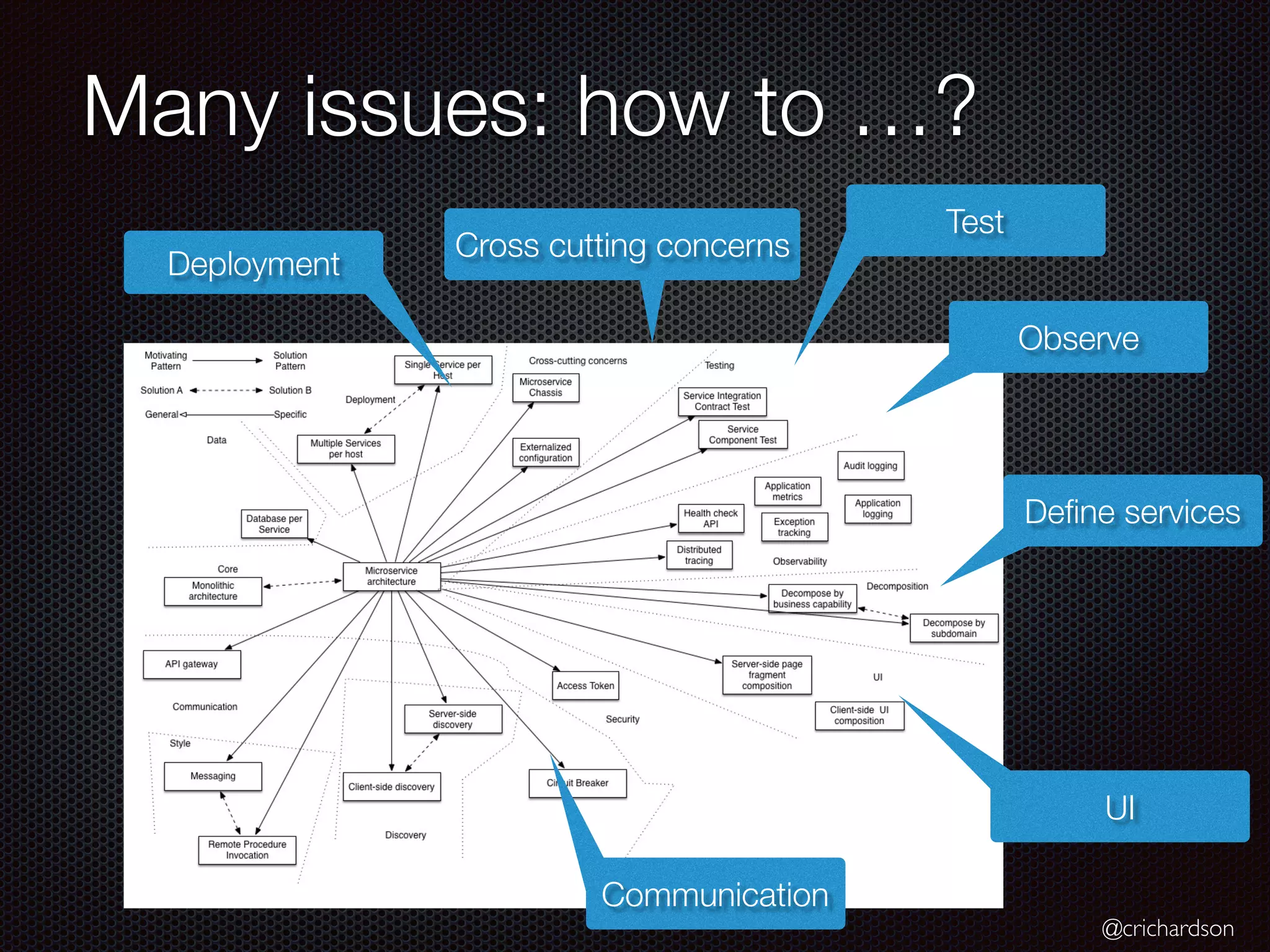

- 33. @crichardson Many issues: how to …? Deployment Define services Observe UI Communication Test Cross cutting concerns

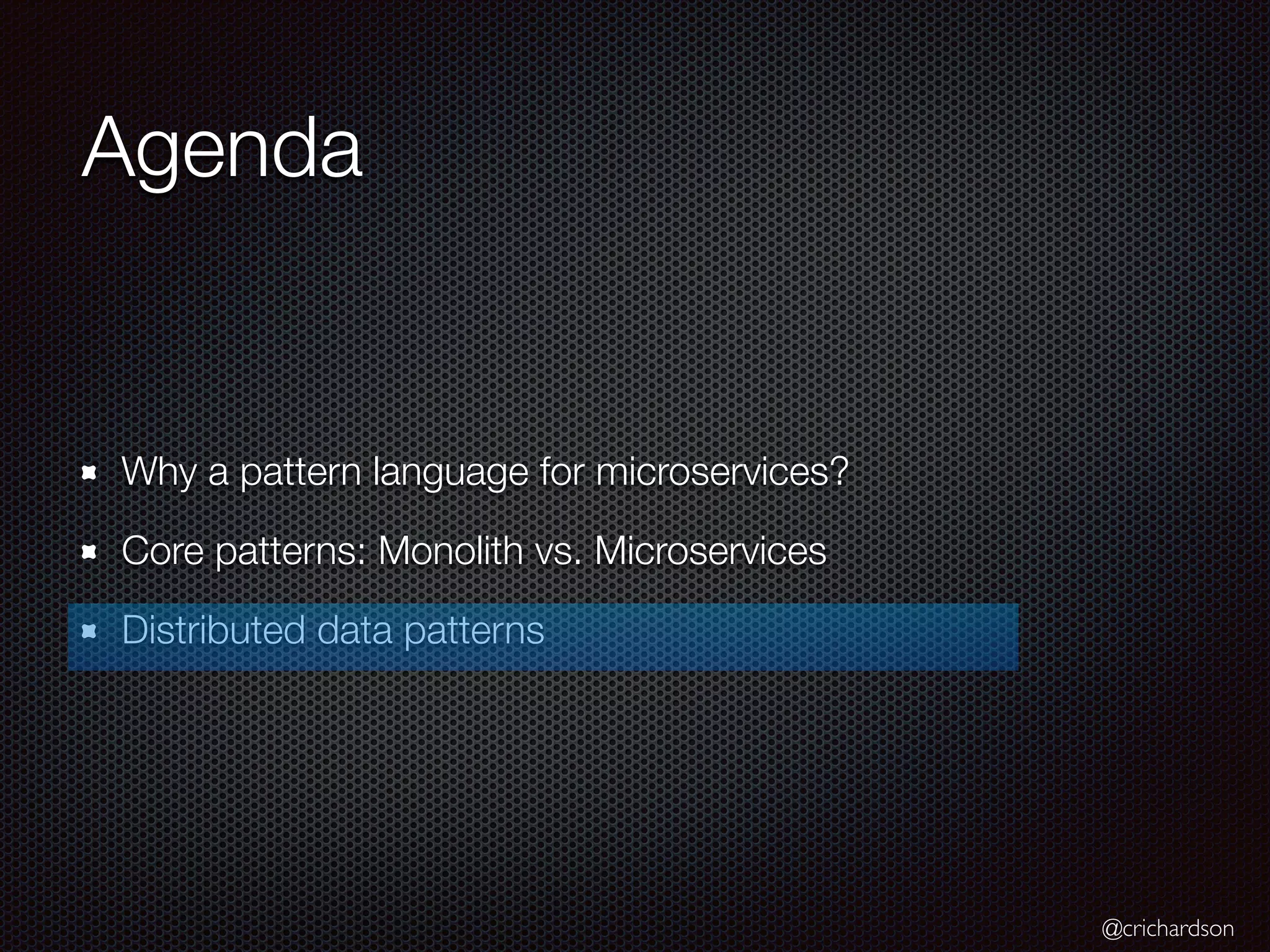

- 34. @crichardson Agenda Why a pattern language for microservices? Core patterns: Monolith vs. Microservices Distributed data patterns

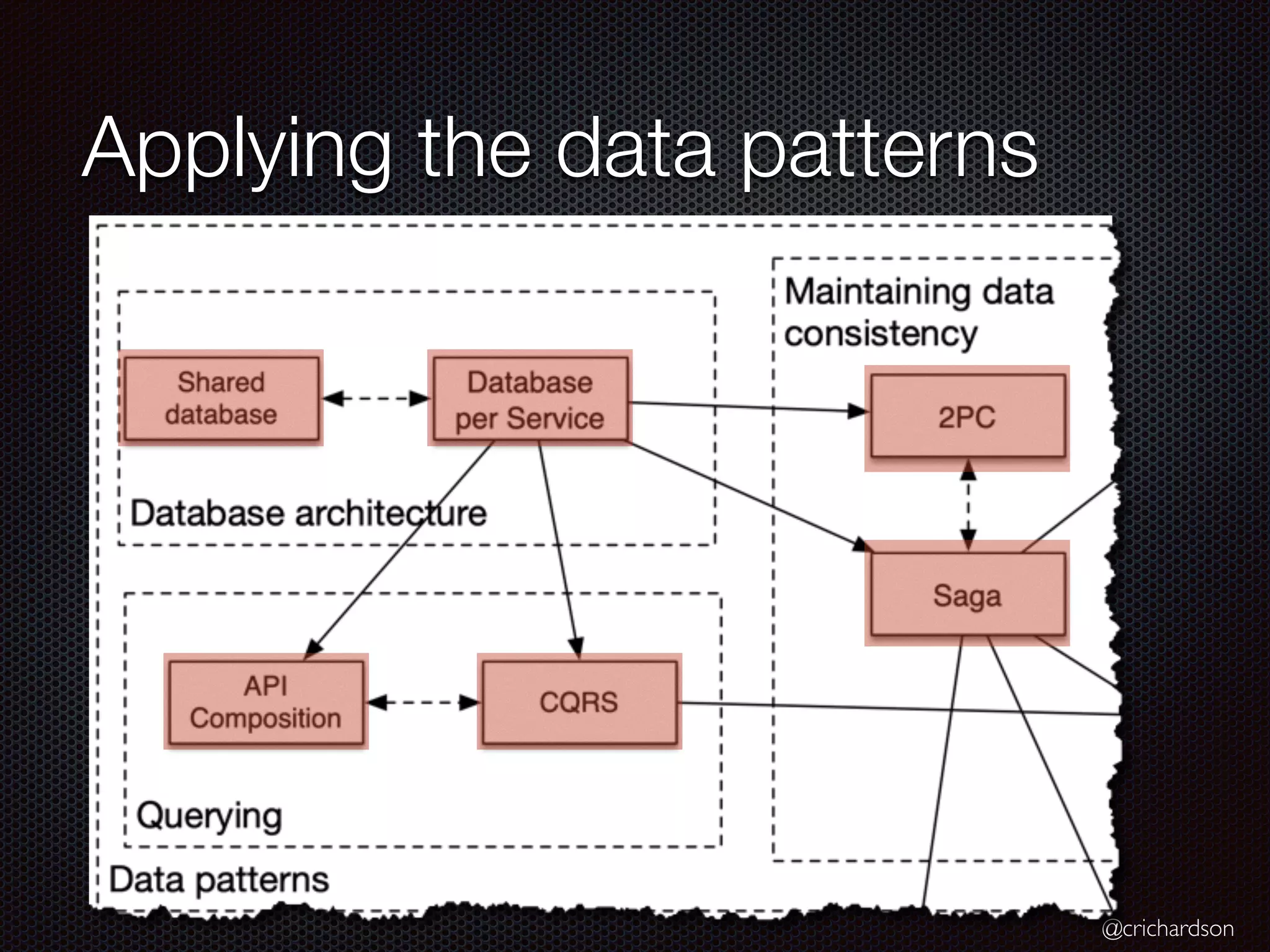

- 35. @crichardson Applying the data patterns

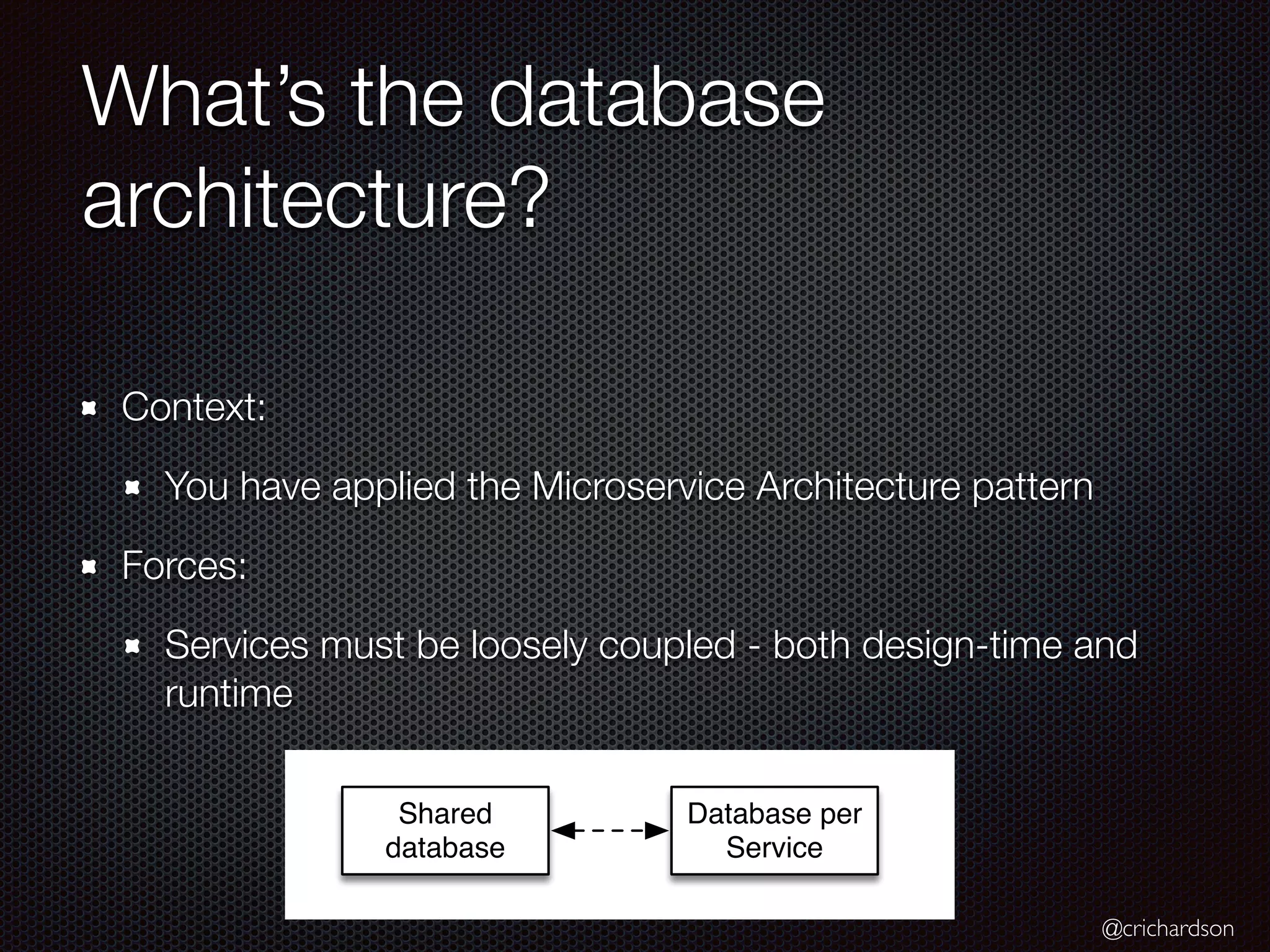

- 36. @crichardson What’s the database architecture? Context: You have applied the Microservice Architecture pattern Forces: Services must be loosely coupled - both design-time and runtime Database per Service Shared database

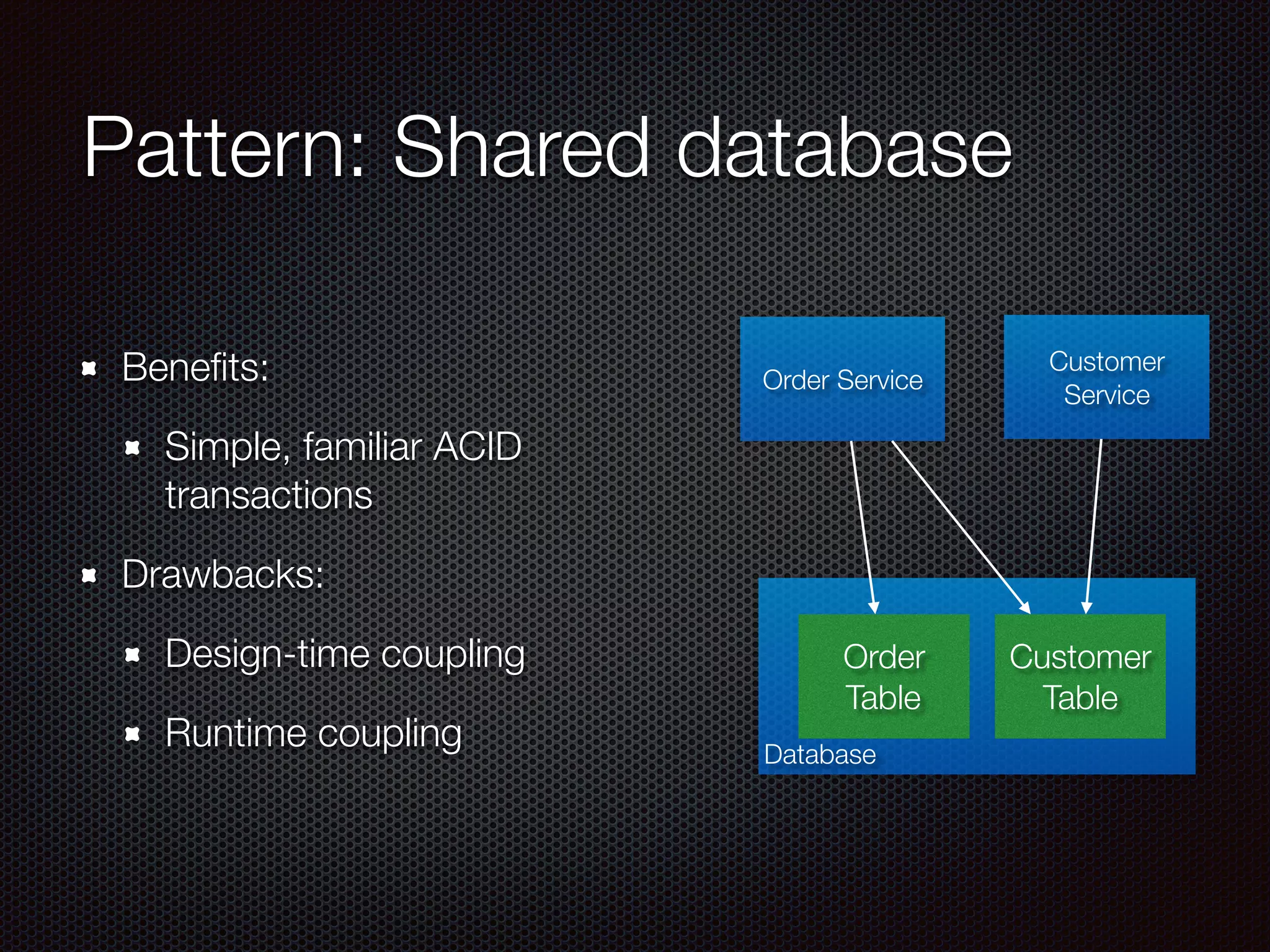

- 37. Pattern: Shared database Benefits: Simple, familiar ACID transactions Drawbacks: Design-time coupling Runtime coupling Order Service Customer Service Database Order Table Customer Table

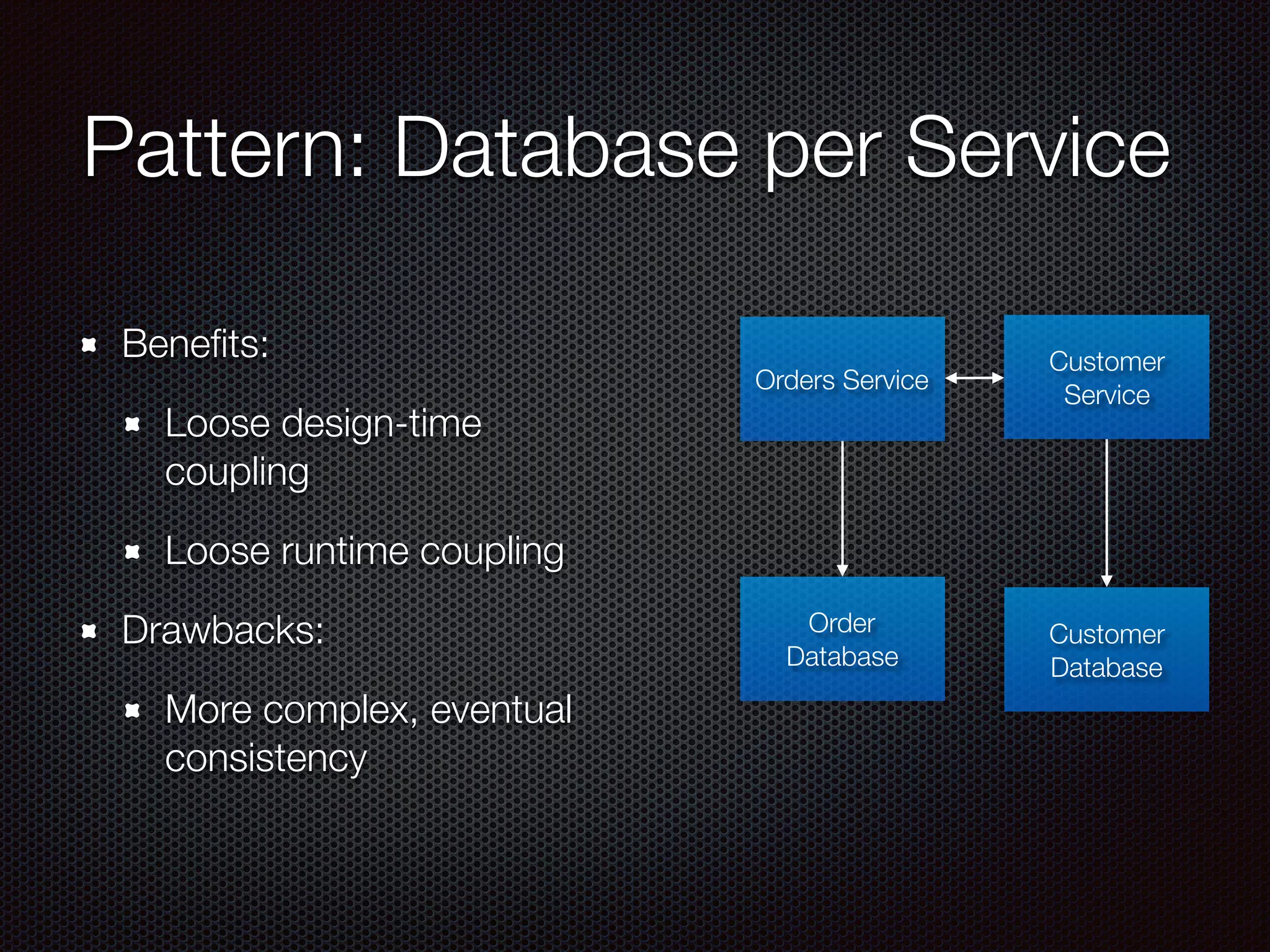

- 38. Pattern: Database per Service Benefits: Loose design-time coupling Loose runtime coupling Drawbacks: More complex, eventual consistency Orders Service Customer Service Order Database Customer Database

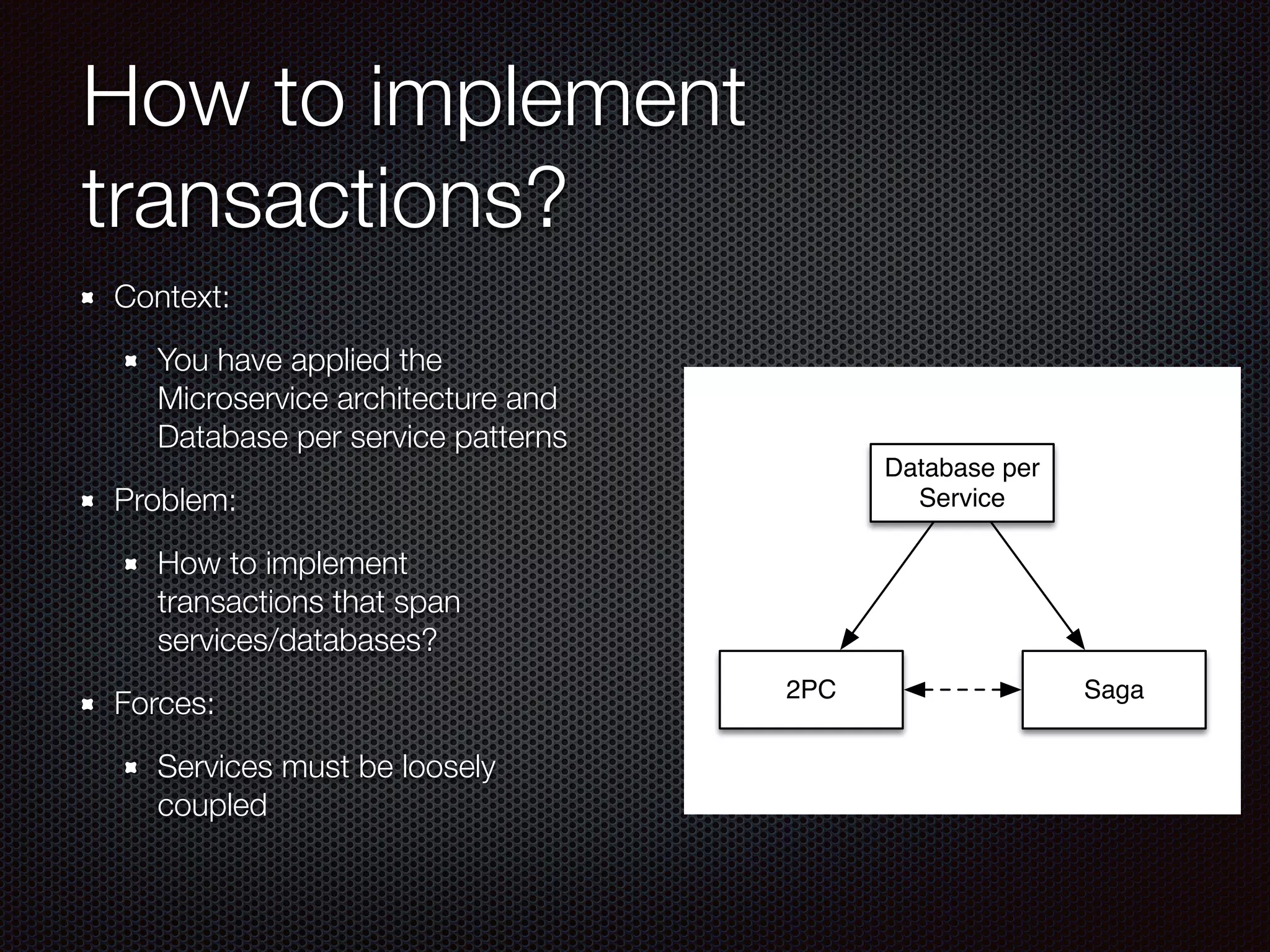

- 39. How to implement transactions? Context: You have applied the Microservice architecture and Database per service patterns Problem: How to implement transactions that span services/databases? Forces: Services must be loosely coupled Database per Service Saga 2PC

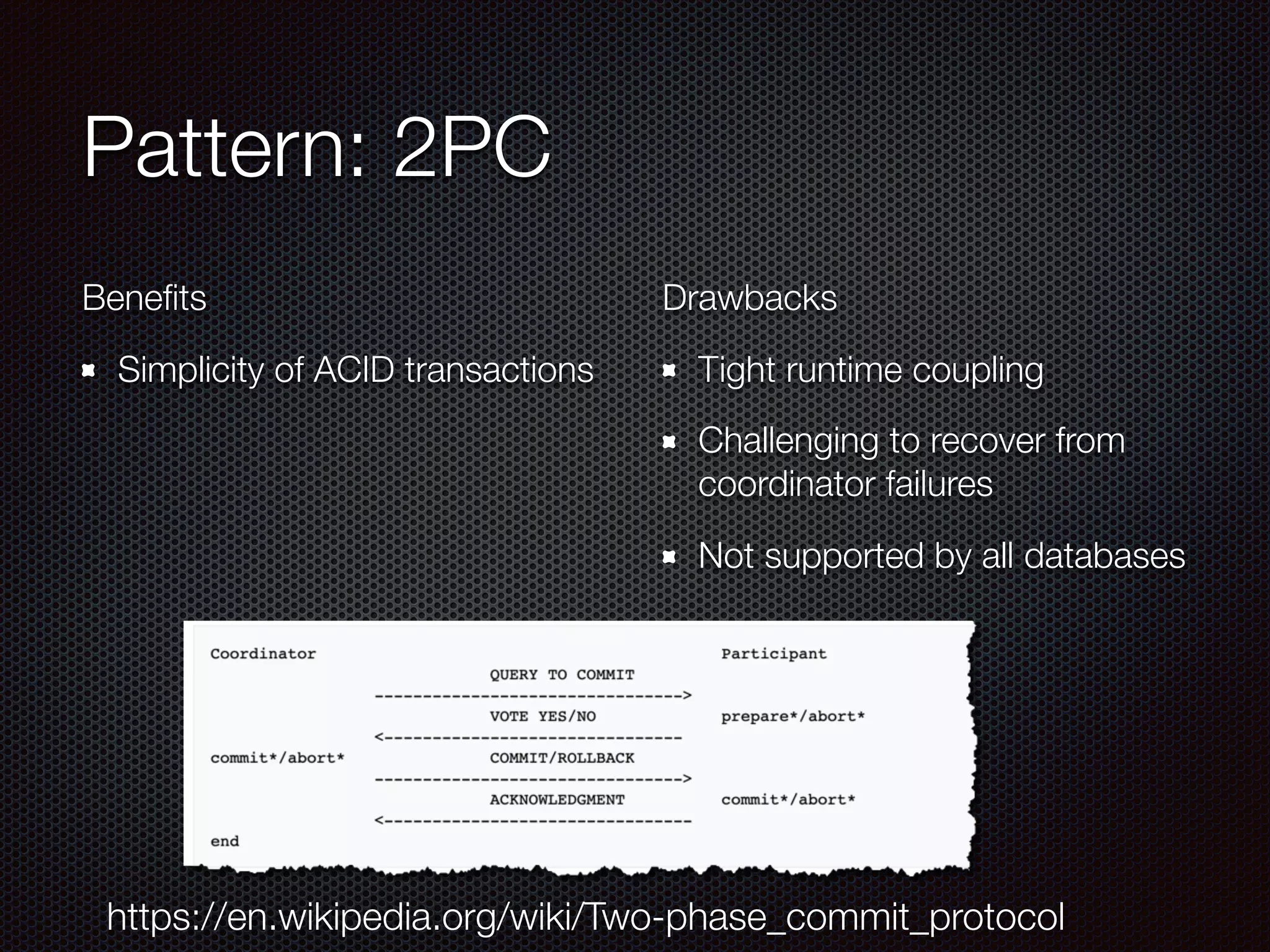

- 40. Pattern: 2PC Benefits Simplicity of ACID transactions Drawbacks Tight runtime coupling Challenging to recover from coordinator failures Not supported by all databases https://en.wikipedia.org/wiki/Two-phase_commit_protocol

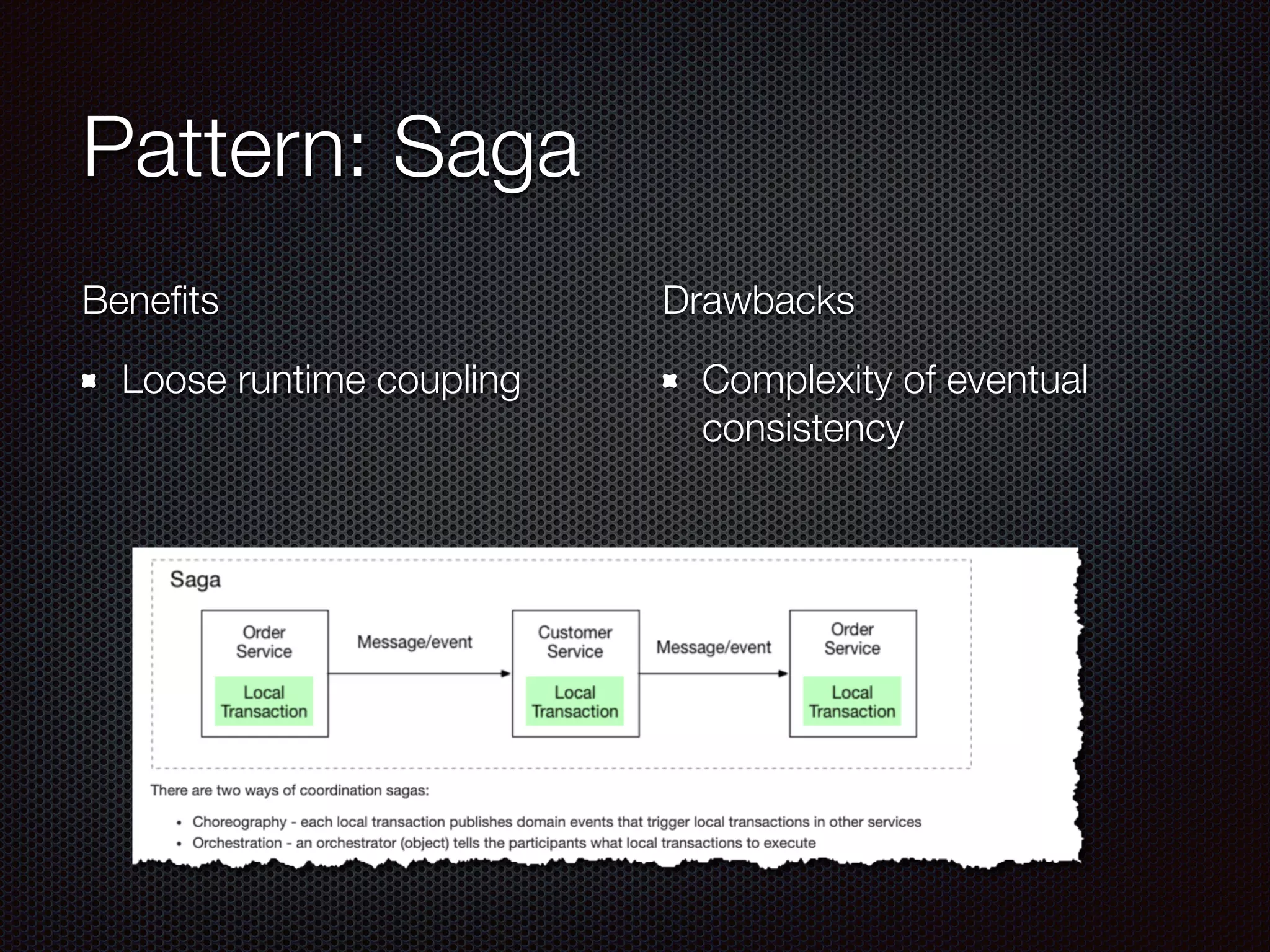

- 41. Pattern: Saga Benefits Loose runtime coupling Drawbacks Complexity of eventual consistency

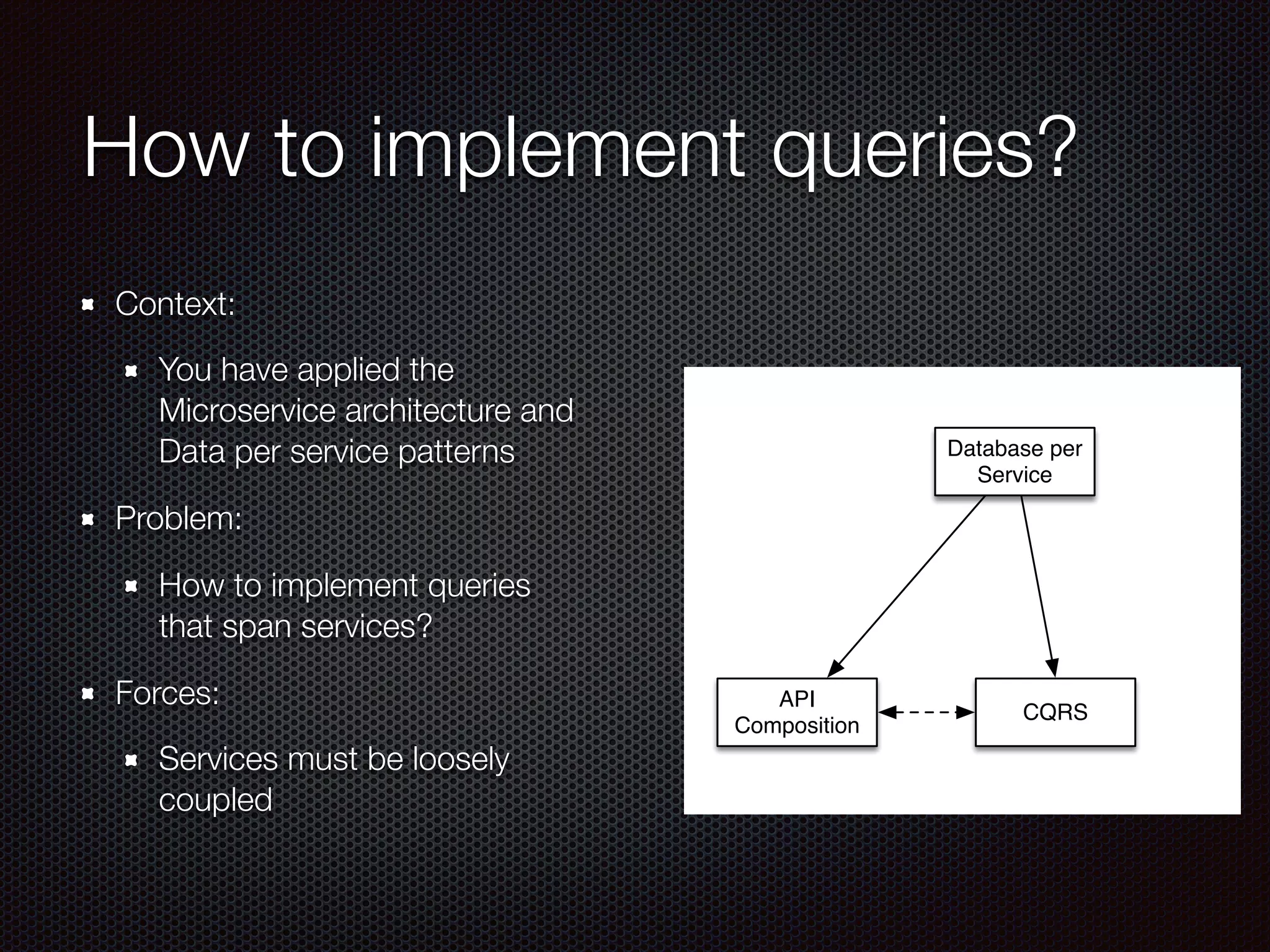

- 42. How to implement queries? Context: You have applied the Microservice architecture and Data per service patterns Problem: How to implement queries that span services? Forces: Services must be loosely coupled Database per Service CQRS API Composition

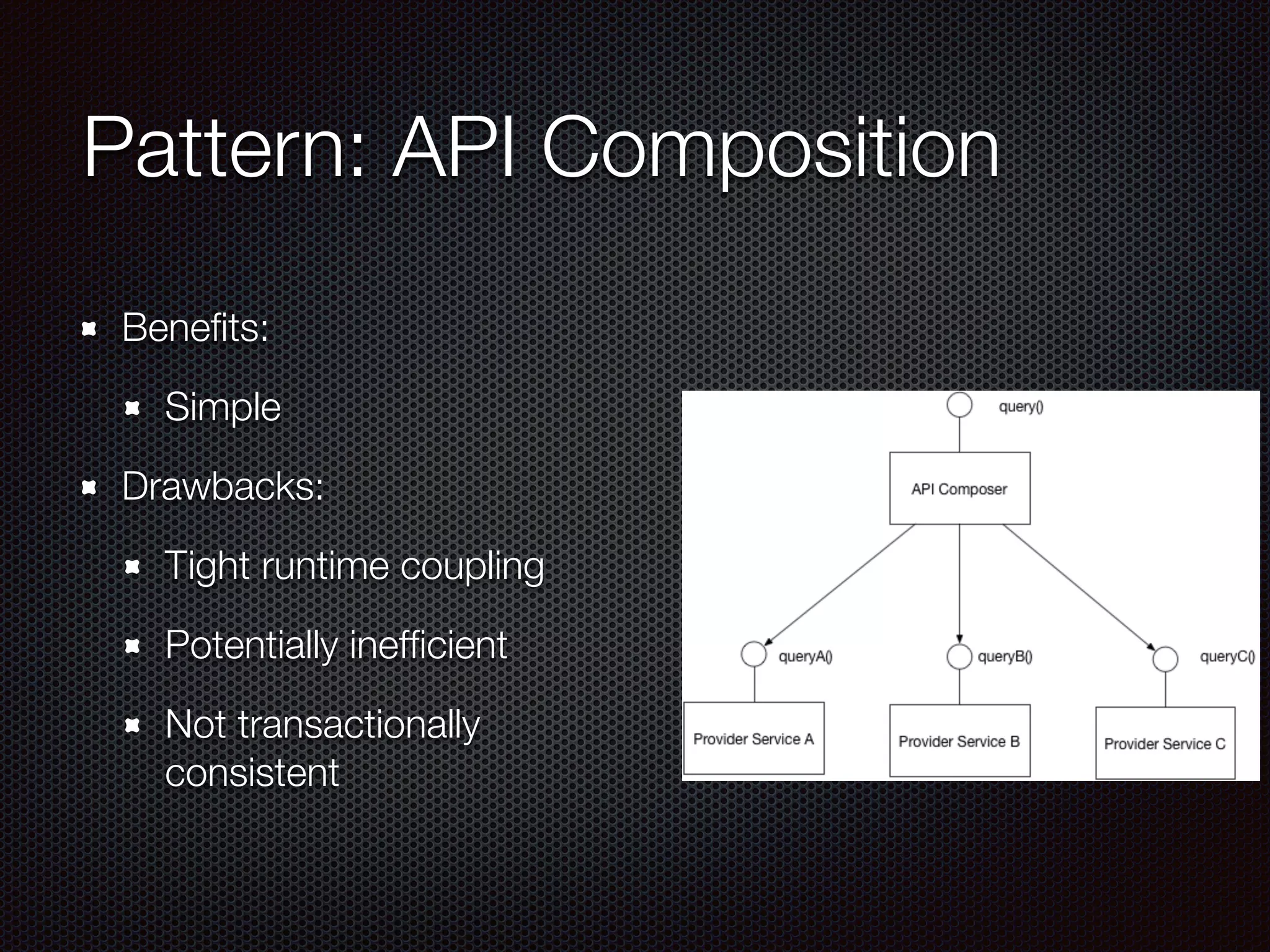

- 43. Pattern: API Composition Benefits: Simple Drawbacks: Tight runtime coupling Potentially inefficient Not transactionally consistent

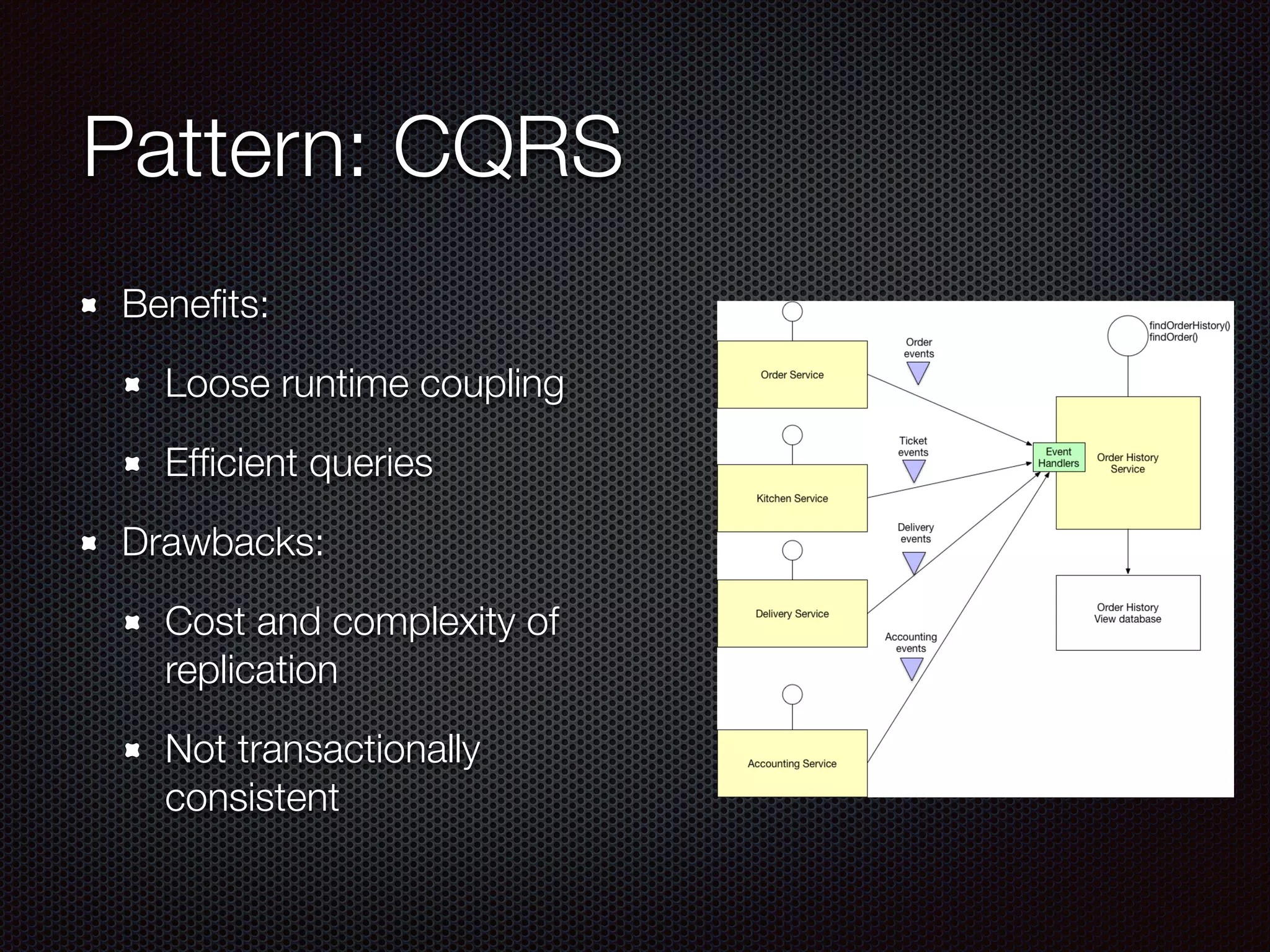

- 44. Pattern: CQRS Benefits: Loose runtime coupling Efficient queries Drawbacks: Cost and complexity of replication Not transactionally consistent

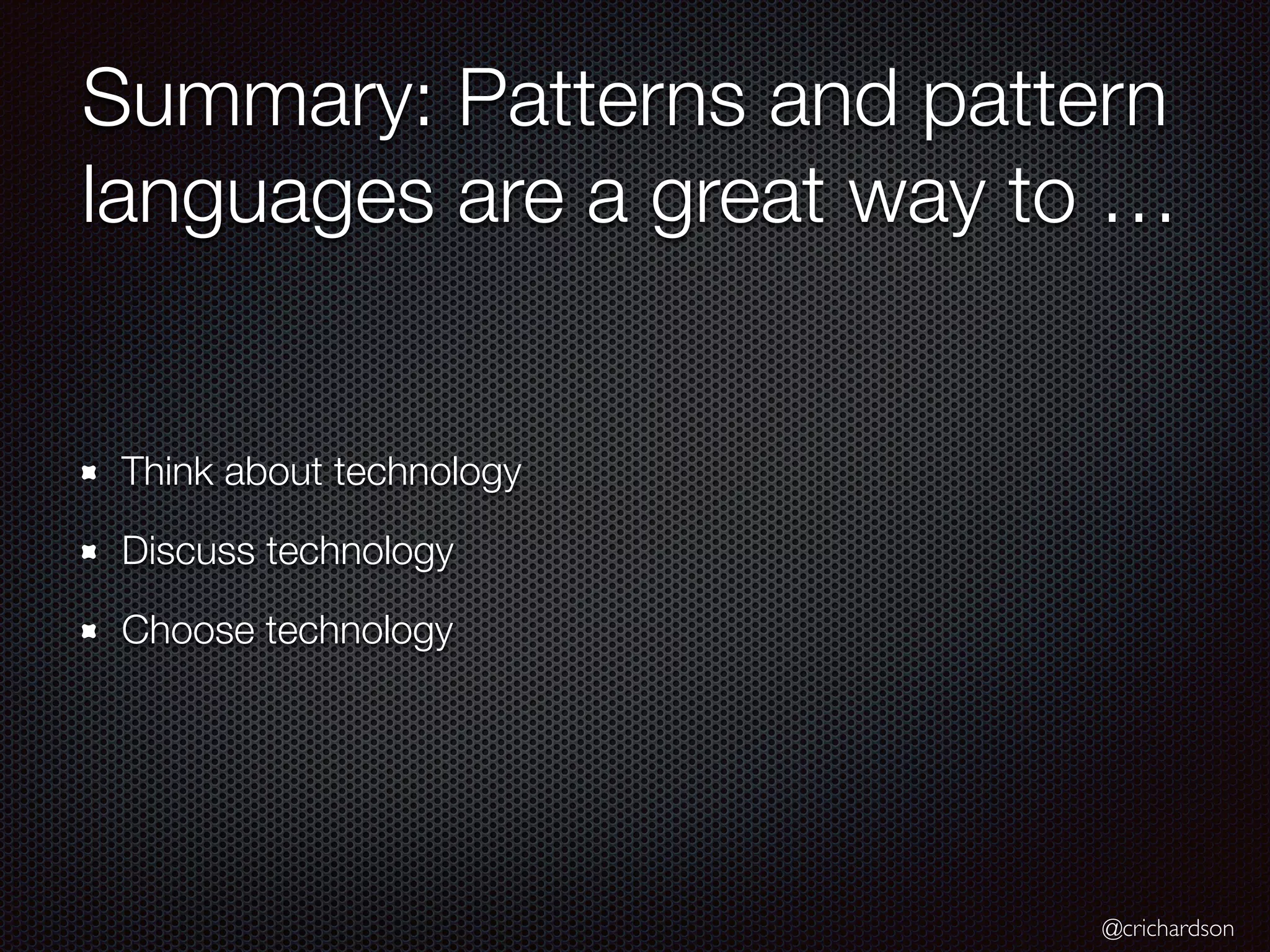

- 45. @crichardson Summary: Patterns and pattern languages are a great way to … Think about technology Discuss technology Choose technology
- 46. @crichardson Summary: The Microservices pattern language is a great way to … Think about microservices Discuss microservices Choose microservices (or not)
