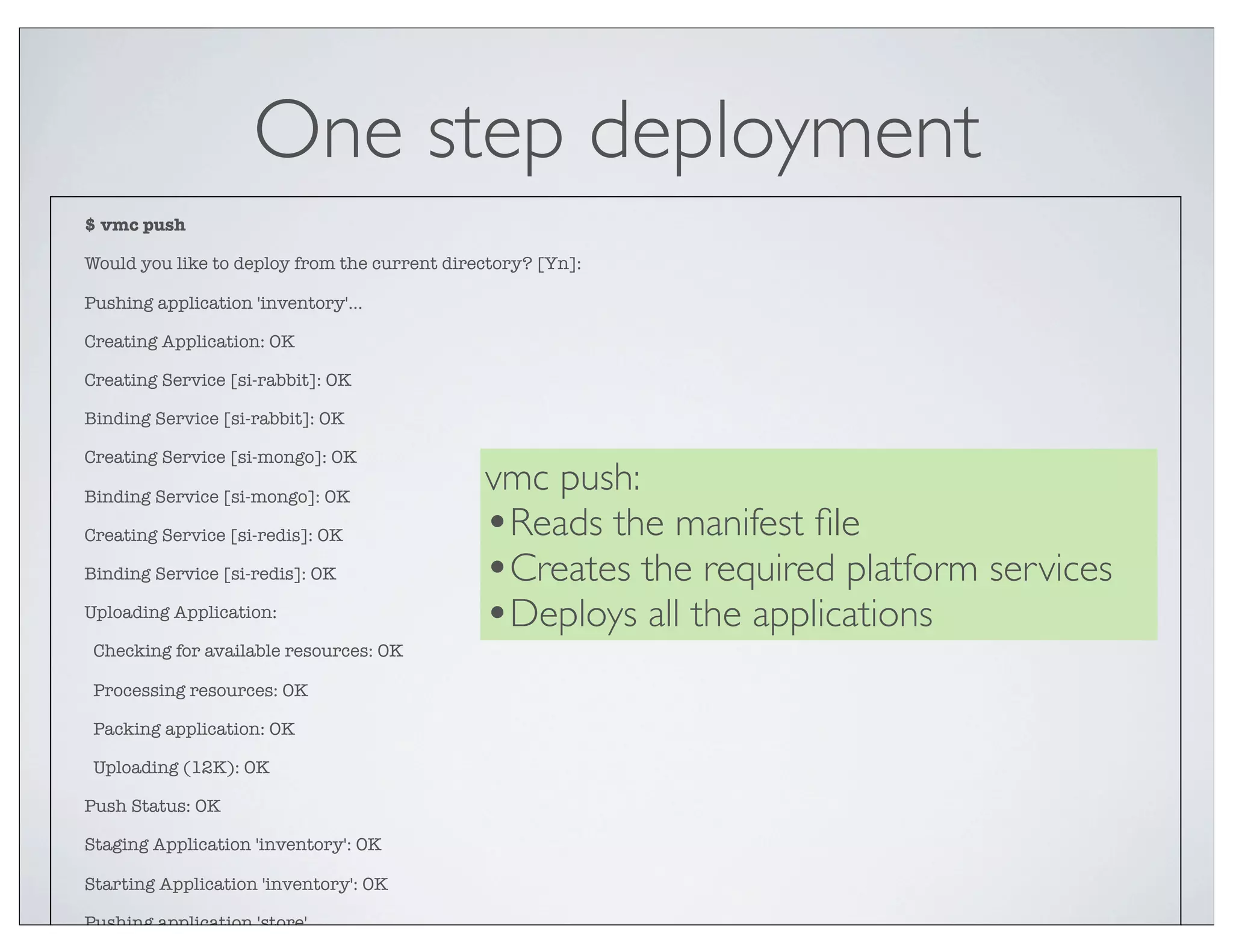

![One step deployment
$ vmc push
Would you like to deploy from the current directory? [Yn]:
Pushing application 'inventory'...
Creating Application: OK
Creating Service [si-rabbit]: OK
Binding Service [si-rabbit]: OK
Creating Service [si-mongo]: OK
Binding Service [si-mongo]: OK
vmc push:
Creating Service [si-redis]: OK •Reads the manifest file
Binding Service [si-redis]: OK •Creates the required platform services
Uploading Application:
•Deploys all the applications
Checking for available resources: OK
Processing resources: OK
Packing application: OK
Uploading (12K): OK
Push Status: OK
Staging Application 'inventory': OK
Starting Application 'inventory': OK
Pushing application 'store'...](https://image.slidesharecdn.com/developingpolyglotapplicationsoredev2012-121112111530-phpapp01/75/Developing-polyglot-applications-on-Cloud-Foundry-oredev-2012-62-2048.jpg)

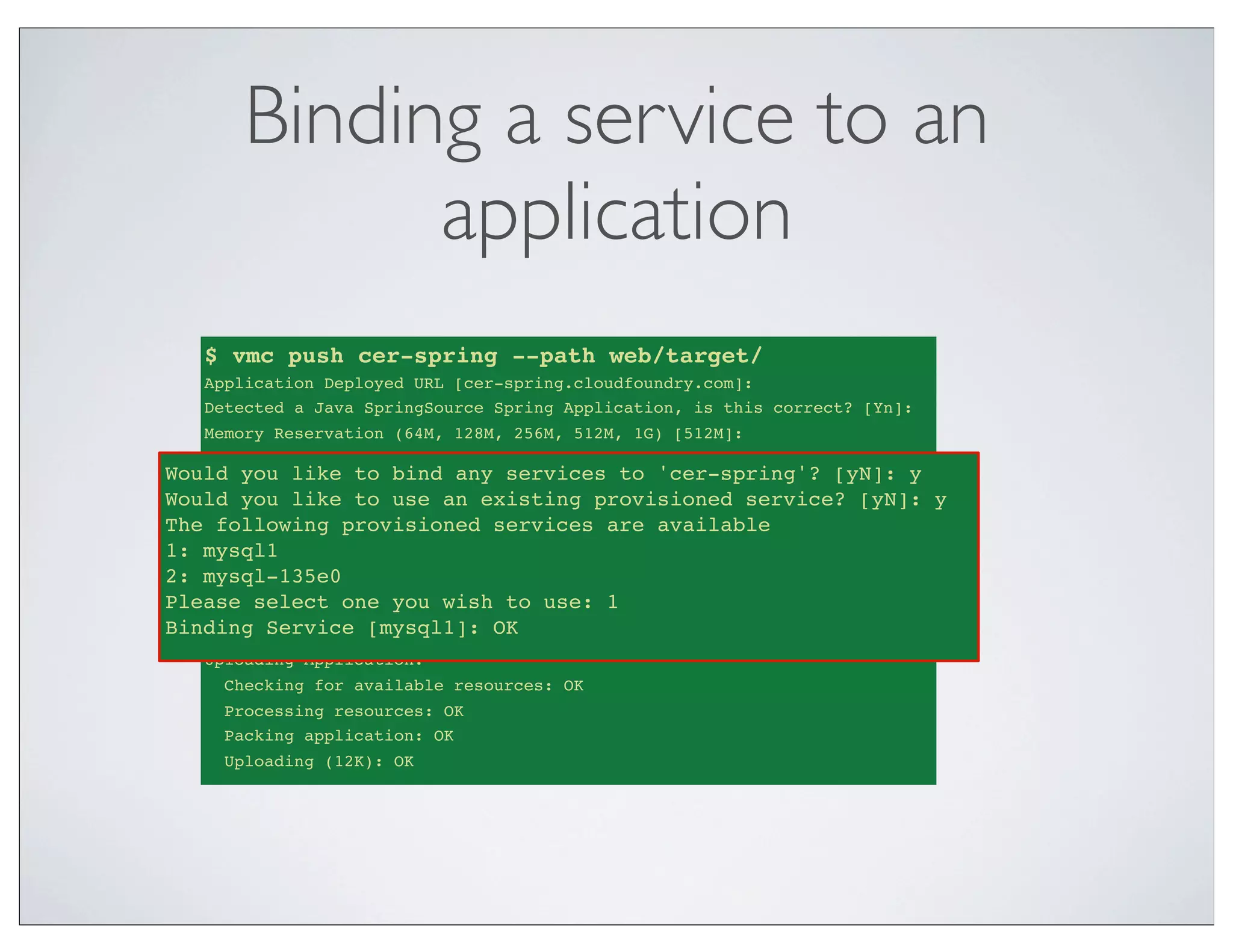

![Binding a service to an
application
$ vmc push cer-spring --path web/target/
Application Deployed URL [cer-spring.cloudfoundry.com]:
Detected a Java SpringSource Spring Application, is this correct? [Yn]:
Memory Reservation (64M, 128M, 256M, 512M, 1G) [512M]:
Creating Application: OK
Would you like to bind any services to 'cer-spring'? [yN]: y [yN]: y
Would you like
to bind any services to 'cer-spring'?
Would you like to use anan existing provisioned service? [yN]: y
Would you like
to use existing provisioned service? [yN]: y
The The following provisioned servicesavailable
following provisioned services are are available
1: mysql1
1: mysql1
2: mysql-135e0
2: mysql-135e0
Please select one you wish to use:use: 1
Please select one you wish to 1
Binding Service [mysql1]: OK OK
Binding Service [mysql1]:
Uploading Application:
Checking for available resources: OK
Processing resources: OK
Packing application: OK
Uploading (12K): OK](https://image.slidesharecdn.com/developingpolyglotapplicationsoredev2012-121112111530-phpapp01/75/Developing-polyglot-applications-on-Cloud-Foundry-oredev-2012-67-2048.jpg)

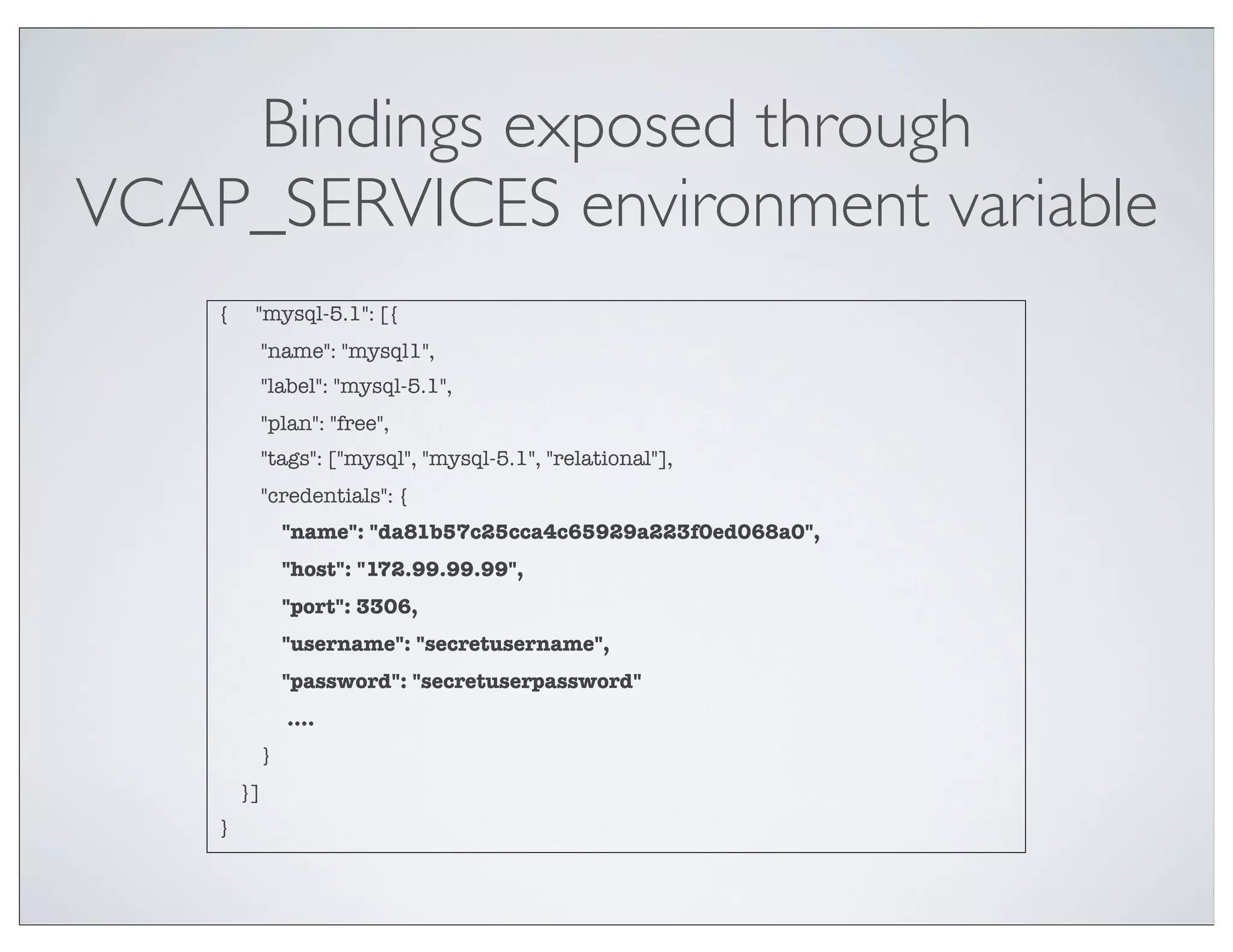

![Bindings exposed through
VCAP_SERVICES environment variable
{ "mysql-5.1": [{
"name": "mysql1",
"label": "mysql-5.1",
"plan": "free",
"tags": ["mysql", "mysql-5.1", "relational"],
"credentials": {
"name": "da81b57c25cca4c65929a223f0ed068a0",
"host": "172.99.99.99",
"port": 3306,
"username": "secretusername",
"password": "secretuserpassword"
....
}
}]
}](https://image.slidesharecdn.com/developingpolyglotapplicationsoredev2012-121112111530-phpapp01/75/Developing-polyglot-applications-on-Cloud-Foundry-oredev-2012-68-2048.jpg)

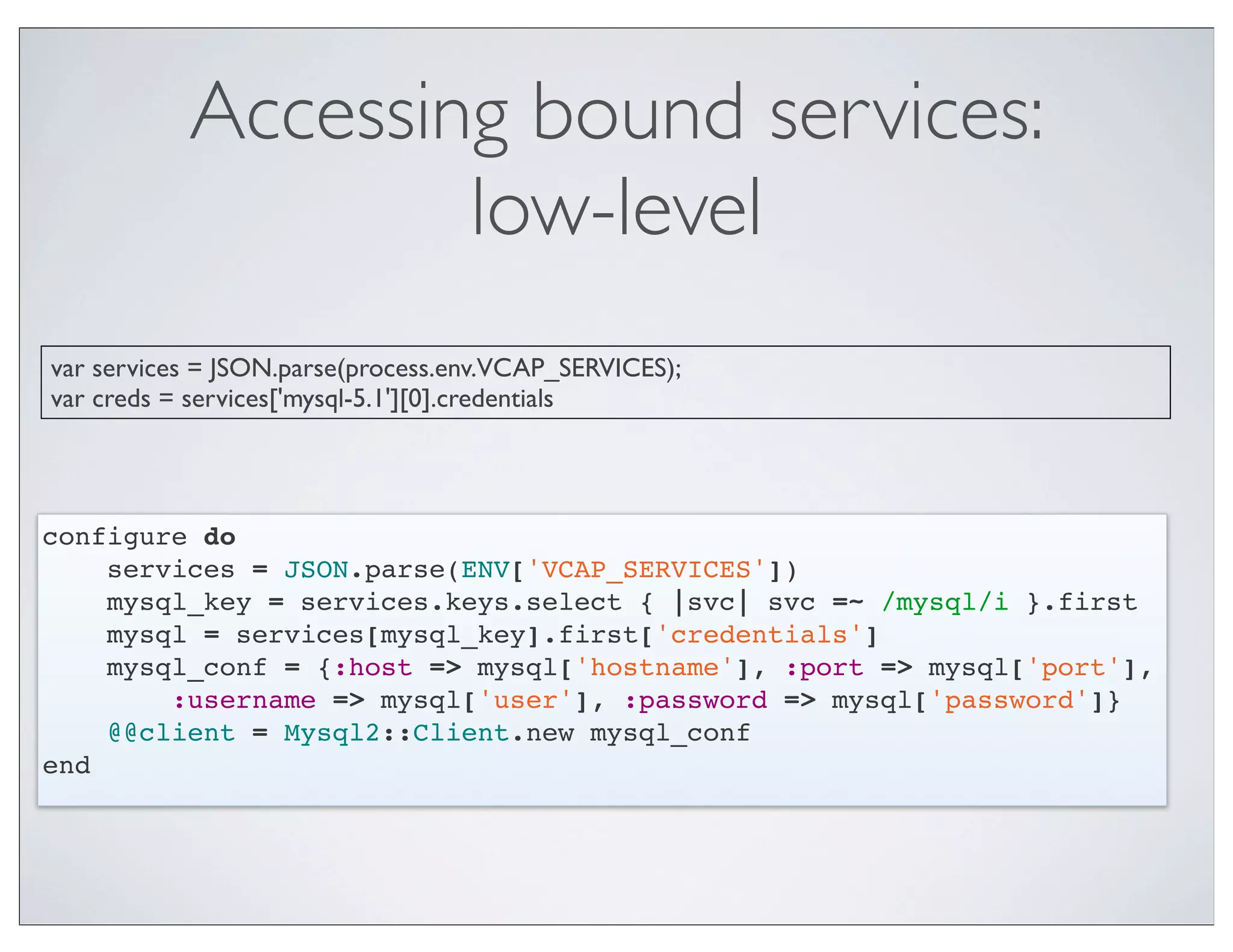

![Accessing bound services:
low-level
var services = JSON.parse(process.env.VCAP_SERVICES);
var creds = services['mysql-5.1'][0].credentials
configure do
services = JSON.parse(ENV['VCAP_SERVICES'])
mysql_key = services.keys.select { |svc| svc =~ /mysql/i }.first
mysql = services[mysql_key].first['credentials']
mysql_conf = {:host => mysql['hostname'], :port => mysql['port'],
:username => mysql['user'], :password => mysql['password']}
@@client = Mysql2::Client.new mysql_conf
end](https://image.slidesharecdn.com/developingpolyglotapplicationsoredev2012-121112111530-phpapp01/75/Developing-polyglot-applications-on-Cloud-Foundry-oredev-2012-69-2048.jpg)
Uploaded byChris Richardson
Developing polyglot applications on Cloud Foundry (#oredev 2012)
The document discusses the development of modular, polyglot applications on Cloud Foundry, emphasizing the transition from monolithic architectures to service-oriented designs. It highlights the benefits of using NoSQL databases, multi-service communication, and cloud deployment strategies to enhance scalability and flexibility in application development. The presentation also covers practical examples and commands for deploying applications on Cloud Foundry's platform-as-a-service (PaaS).
More Related Content
![JavaOne2016 - Microservices: Terabytes in Microseconds [CON4516]](https://cdn.slidesharecdn.com/ss_thumbnails/javaone2016microservicesfinal-160922163749-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Developing polyglot applications on Cloud Foundry (#oredev 2012)
Developing polyglot applications on Cloud Foundry (#oredev 2012)
- 1. Developing polyglot applications on Cloud Foundry Chris Richardson Author of POJOs in Action Founder of the original CloudFoundry.com @crichardson crichardson@vmware.com http://plainoldobjects.com/
- 2. Presentation goal Modular, polyglot applications: what, why and how? How Cloud Foundry simplifies their development and deployment
- 3.
- 4.
- 5.
- 6.

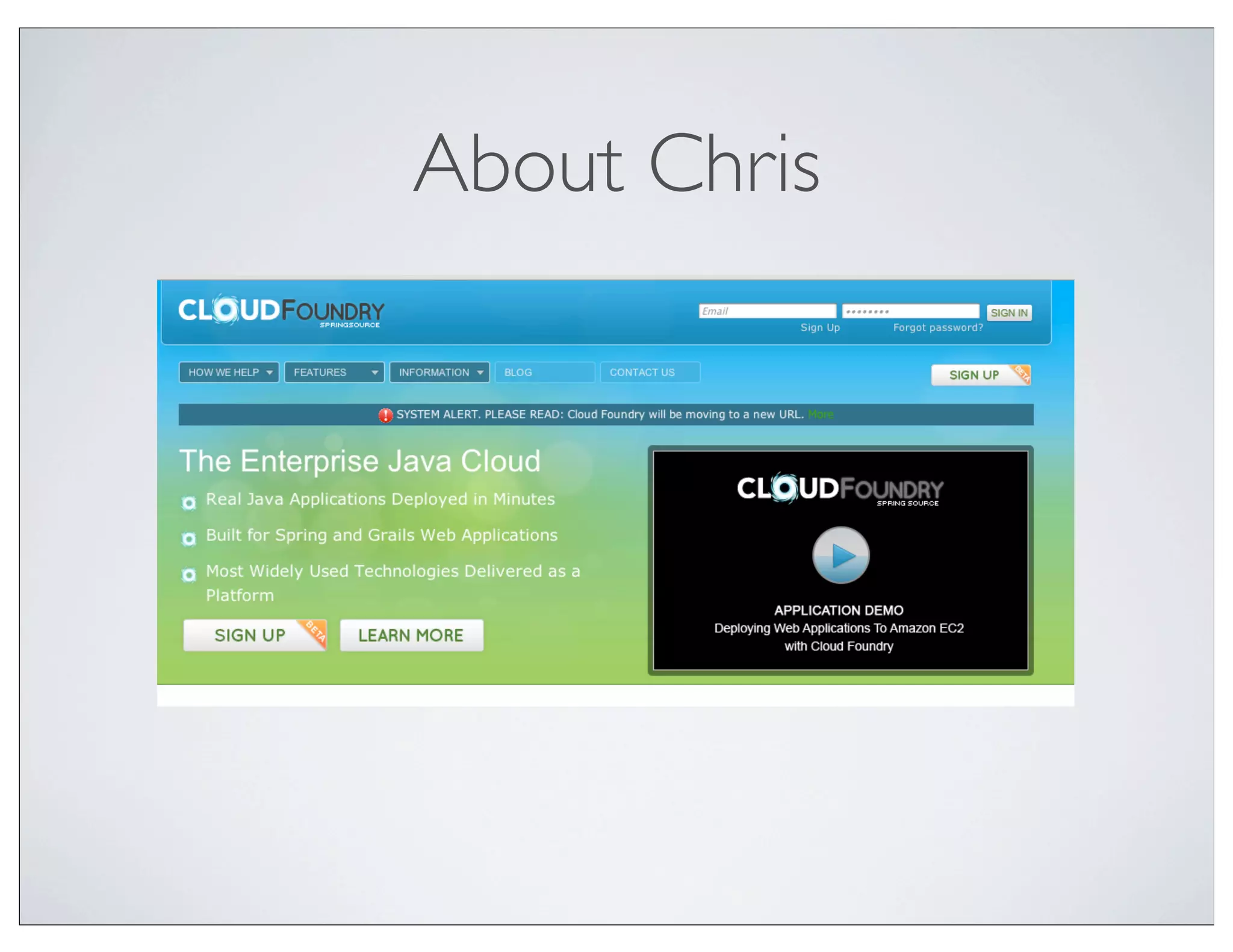

- 7. About Chris http://www.theregister.co.uk/2009/08/19/ springsource_cloud_foundry/
- 8. vmc push About-Chris Developer Advocate for CloudFoundry.com Signup at http://cloudfoundry.com

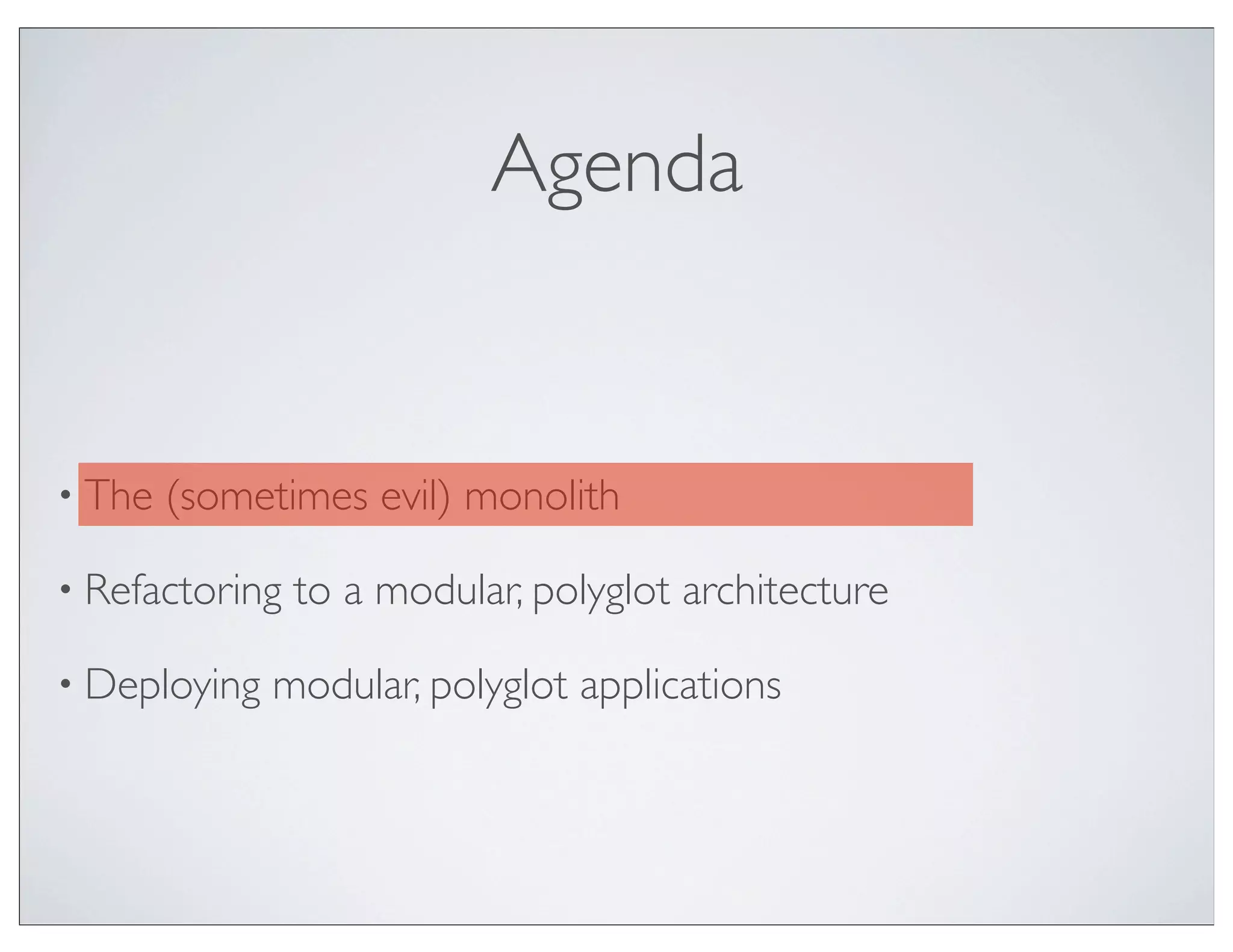

- 9. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Deploying modular, polyglot applications
- 10. Let’s imagine youare building an e-commerce application

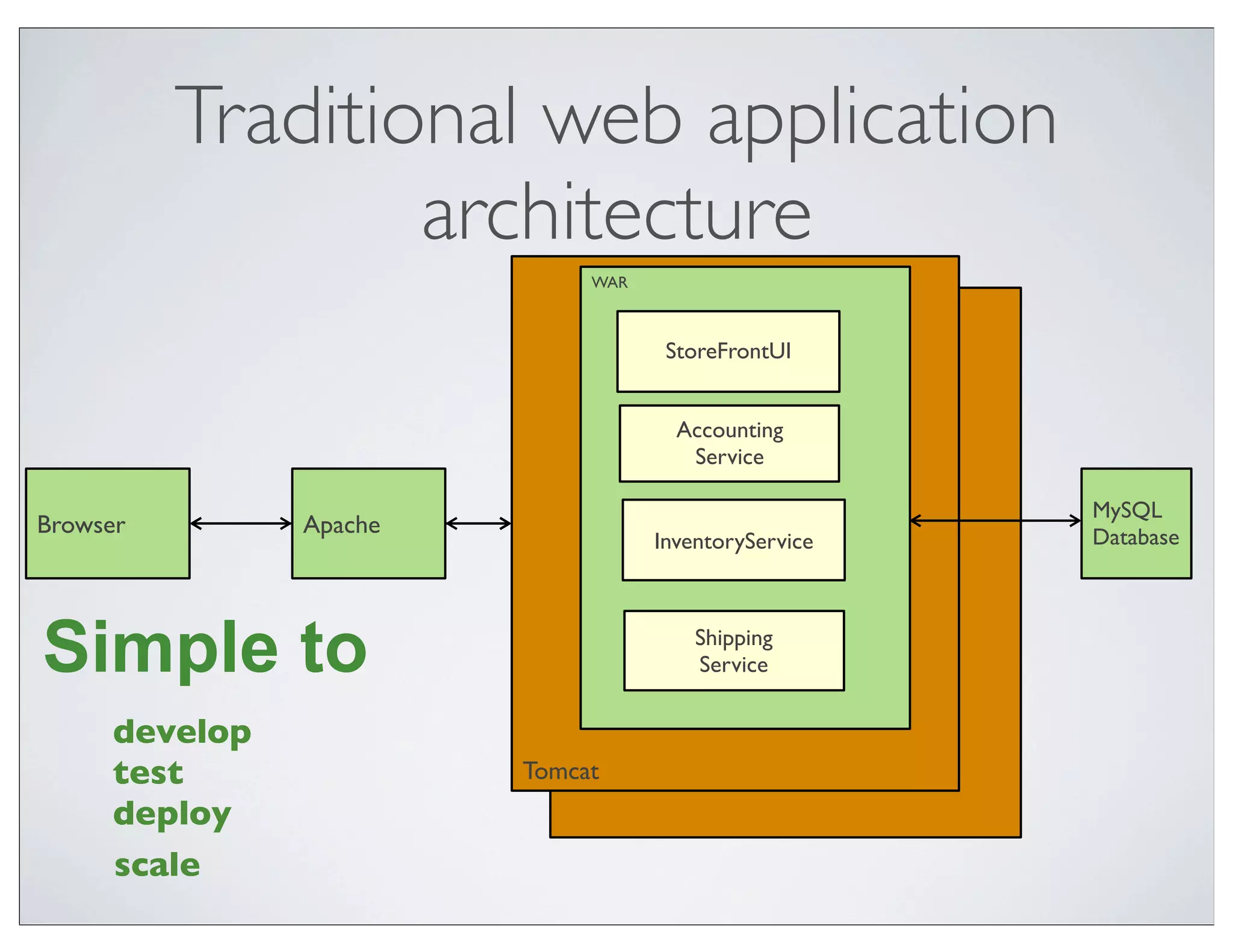

- 11. Traditional web application architecture WAR StoreFrontUI Accounting Service MySQL Browser Apache Database InventoryService Simple to Shipping Service develop test Tomcat deploy scale
- 12. But there areproblems

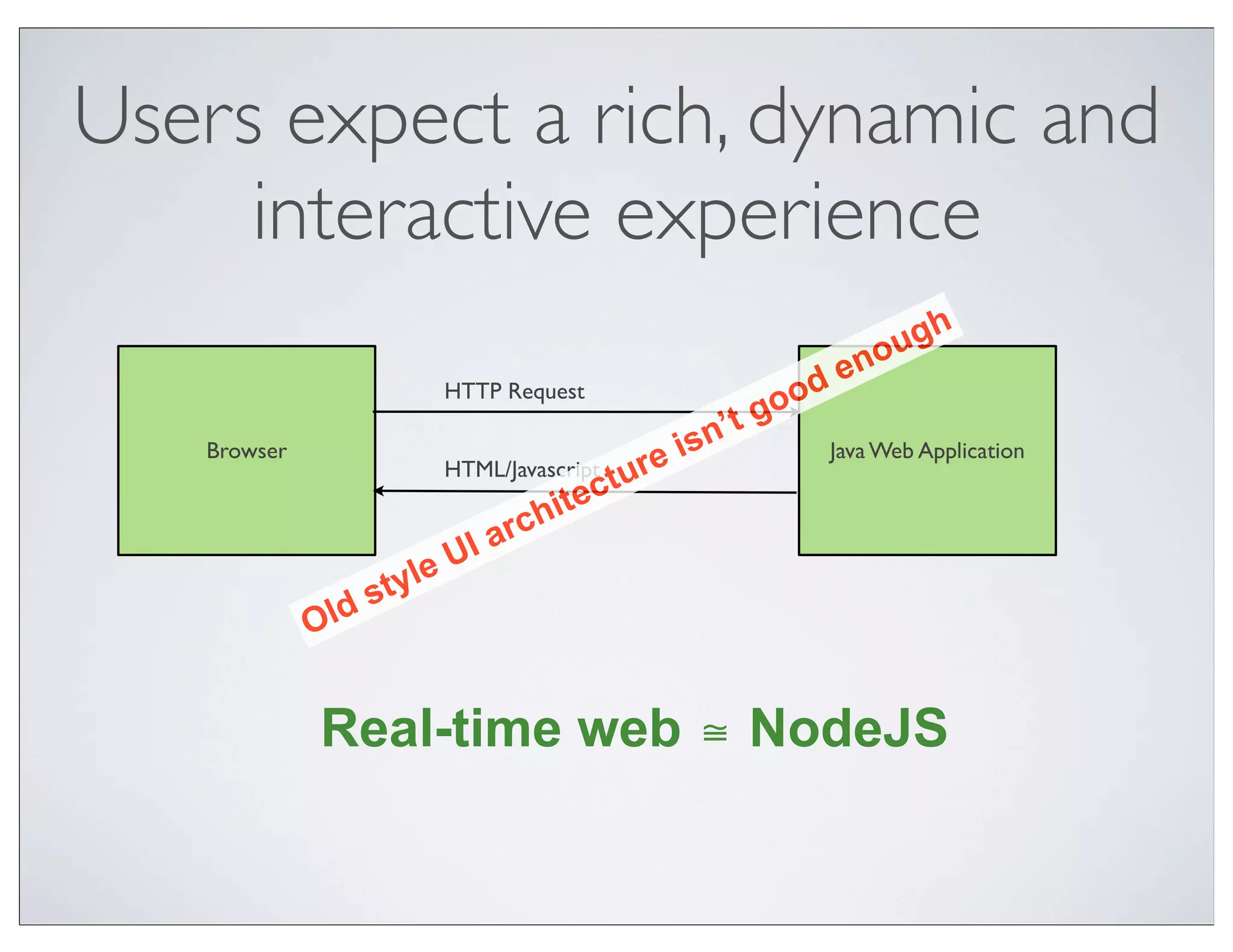

- 13. Users expect arich, dynamic and interactive experience h oug d en HTTP Request oo ’t g Browser e isn Java Web Application HTML/Javascript ec tur it ar ch e UI s tyl Old Real-time web ≅ NodeJS

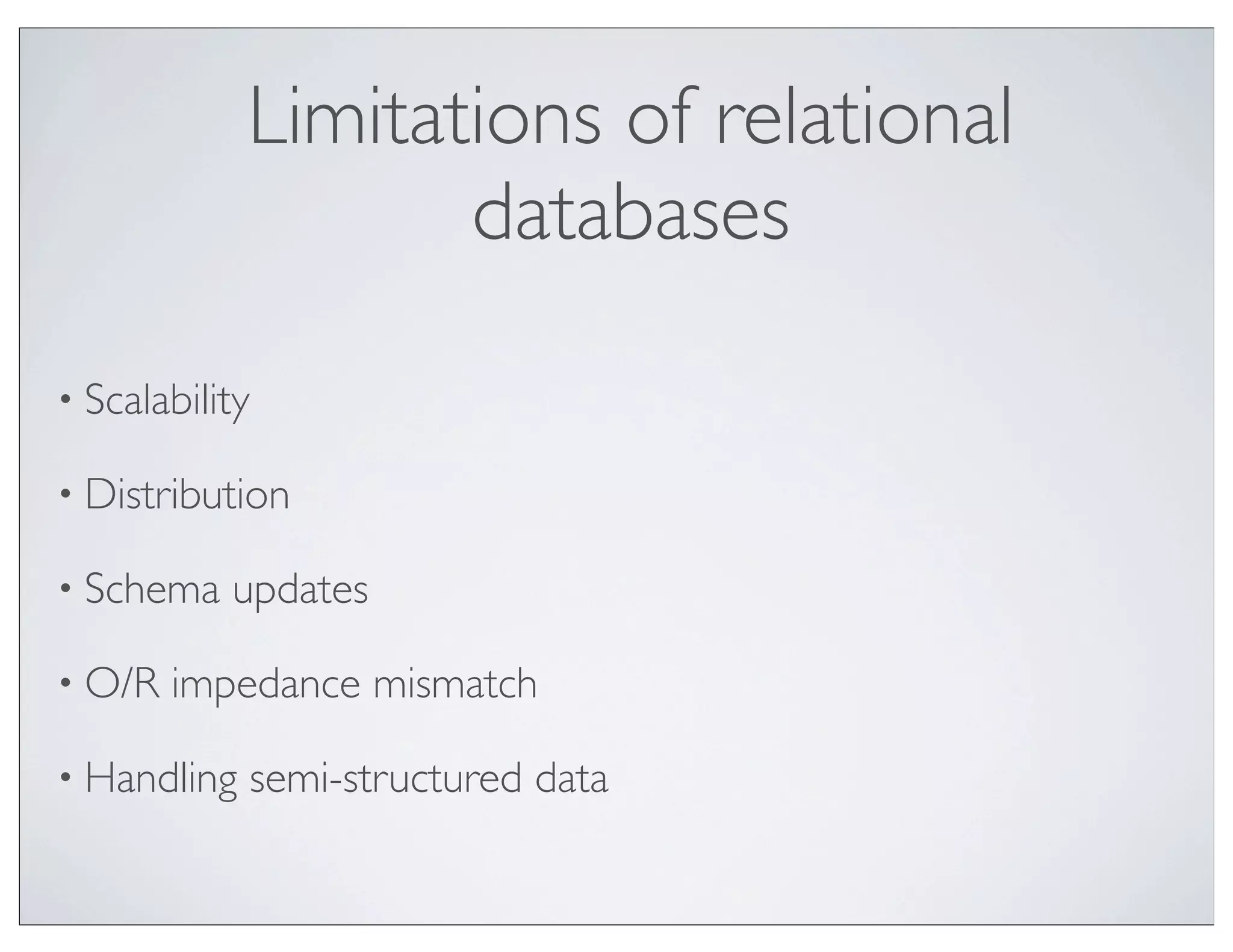

- 14. Limitations of relational databases • Scalability • Distribution • Schema updates • O/R impedance mismatch • Handling semi-structured data
- 15. Monolithic architecture = Problems
- 16.

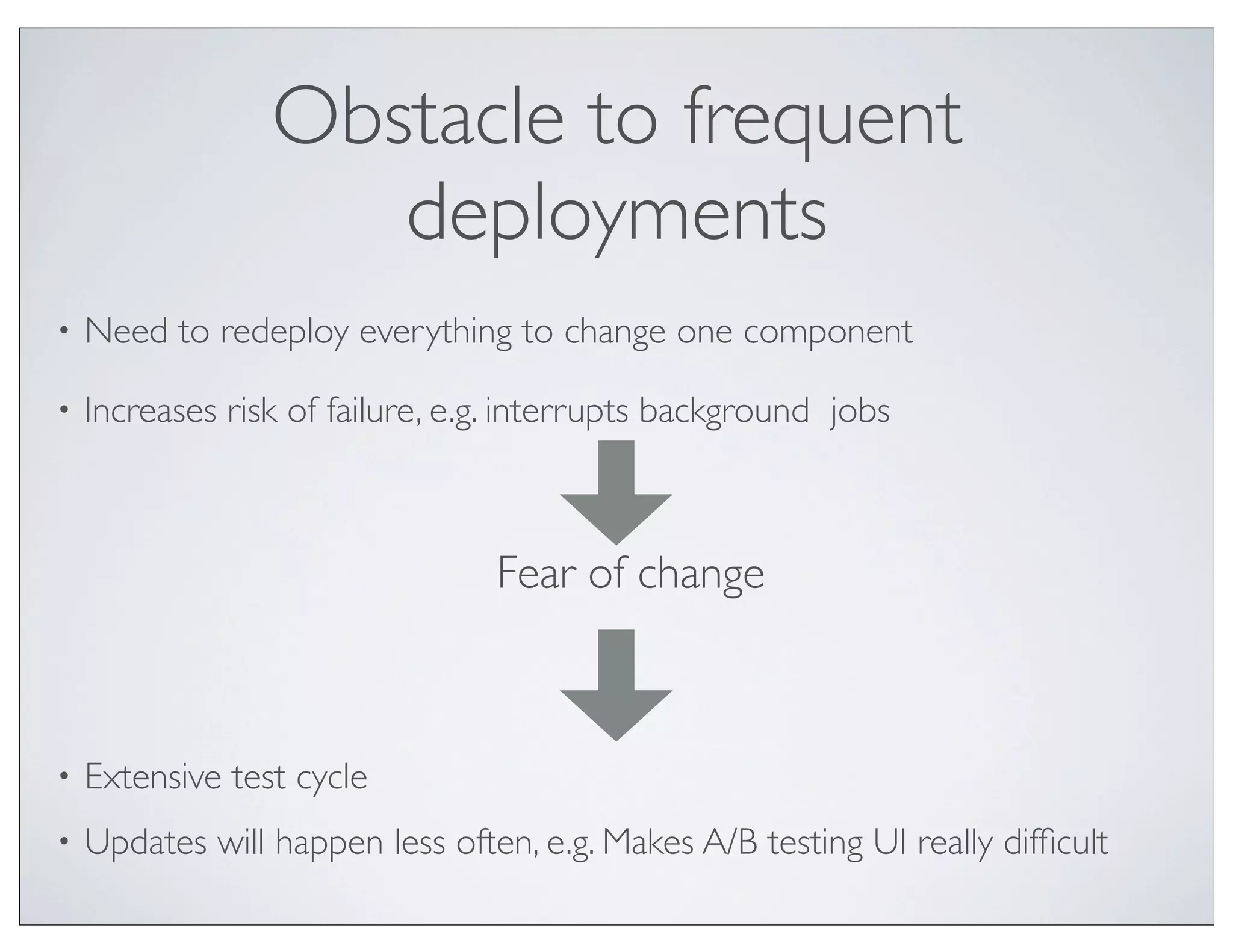

- 17. Obstacle to frequent deployments • Need to redeploy everything to change one component • Increases risk of failure, e.g. interrupts background jobs Fear of change • Extensive test cycle • Updates will happen less often, e.g. Makes A/B testing UI really difficult
- 18. Overloads your IDEand container Slows down development
- 19. Obstacle to scalingdevelopment But the I want to update backend is not the UI working yet! Lots of coordination and communication required
- 20. Requires long-term commitmentto a technology stack

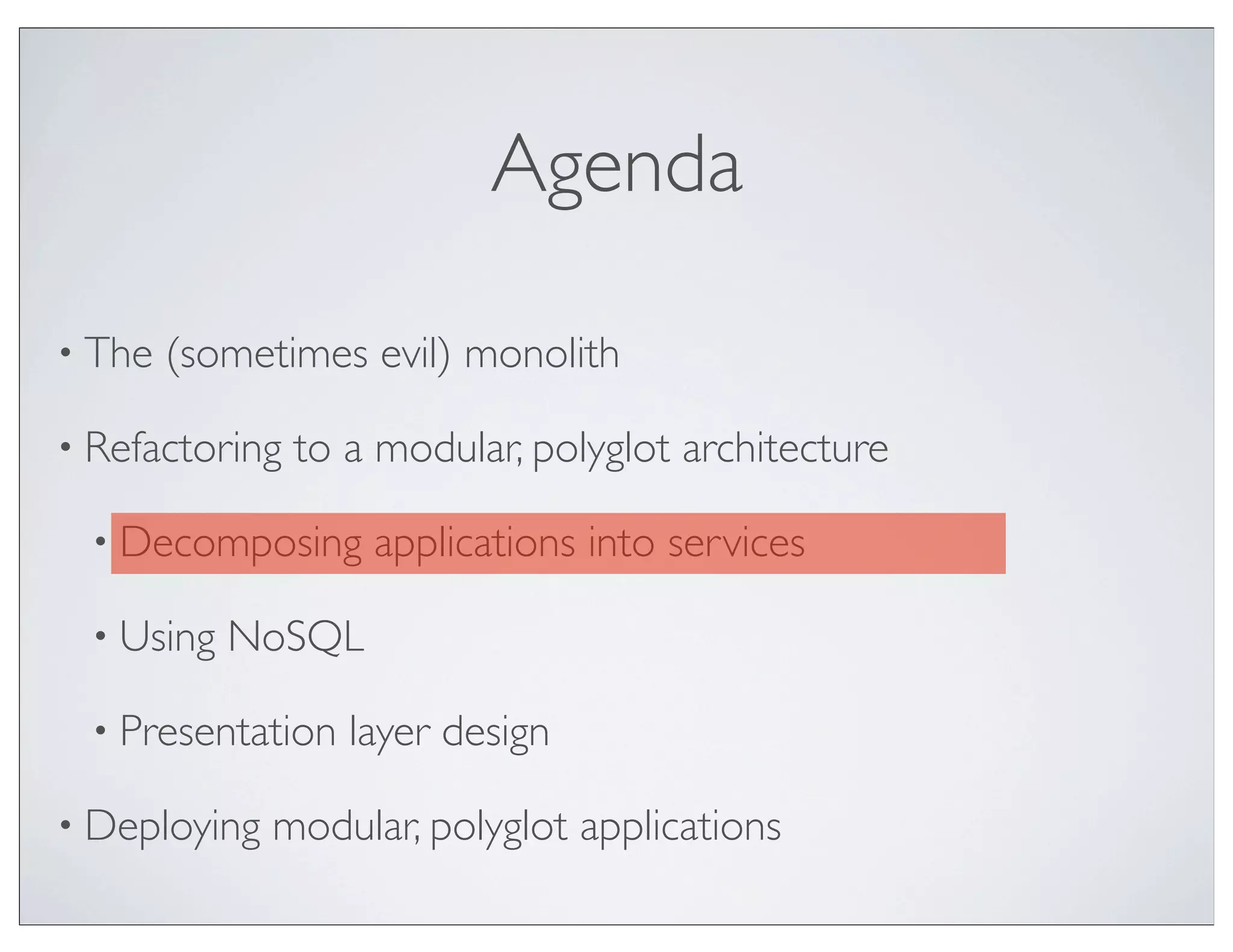

- 21. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Decomposing applications into services • Using NoSQL • Presentation layer design • Deploying modular, polyglot applications

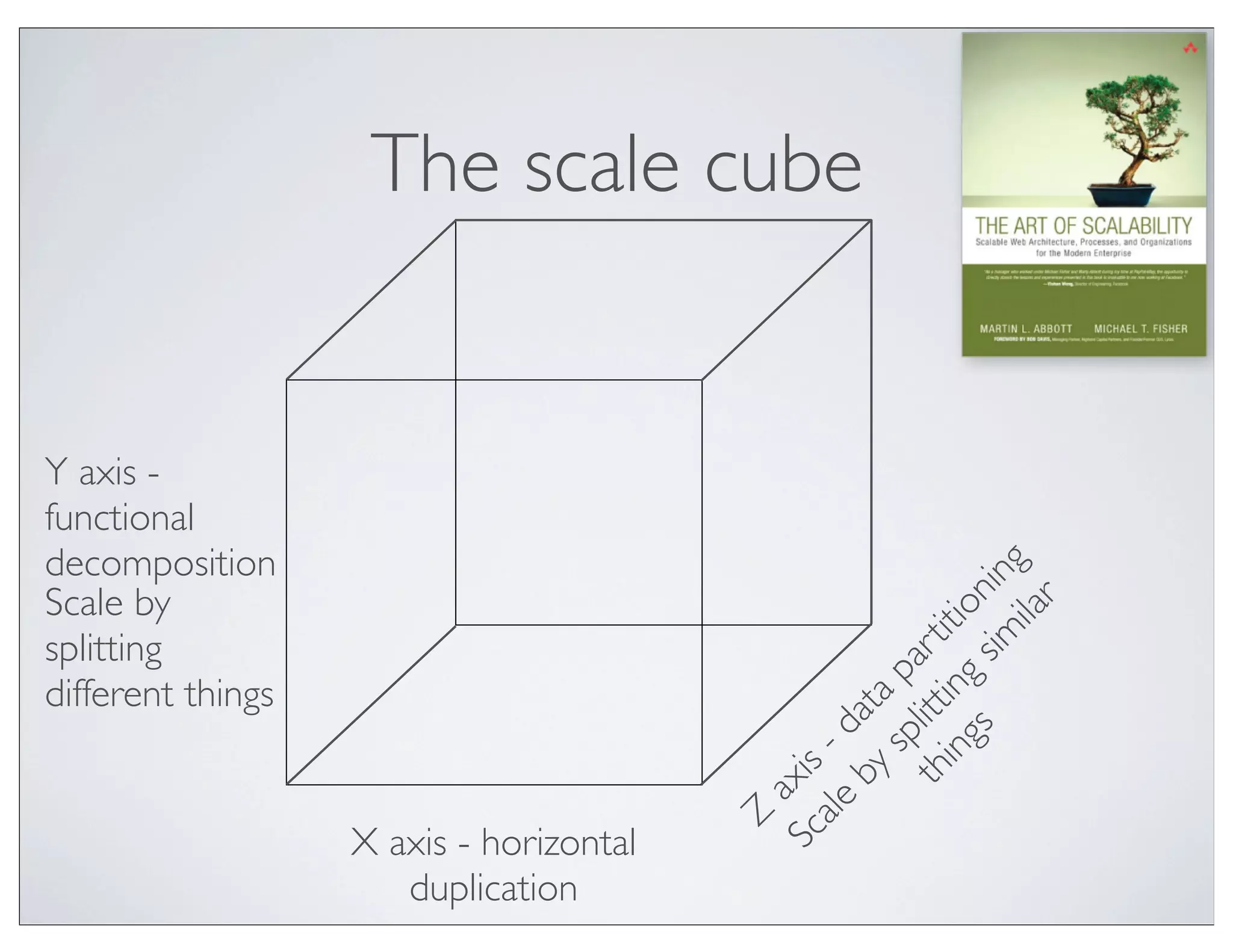

- 23. The scale cube Yaxis - functional decomposition ila g sim nin Scale by r ing ing tio splitting th litt r ti sp pa different things by data s ale - Sc is ax Z X axis - horizontal duplication

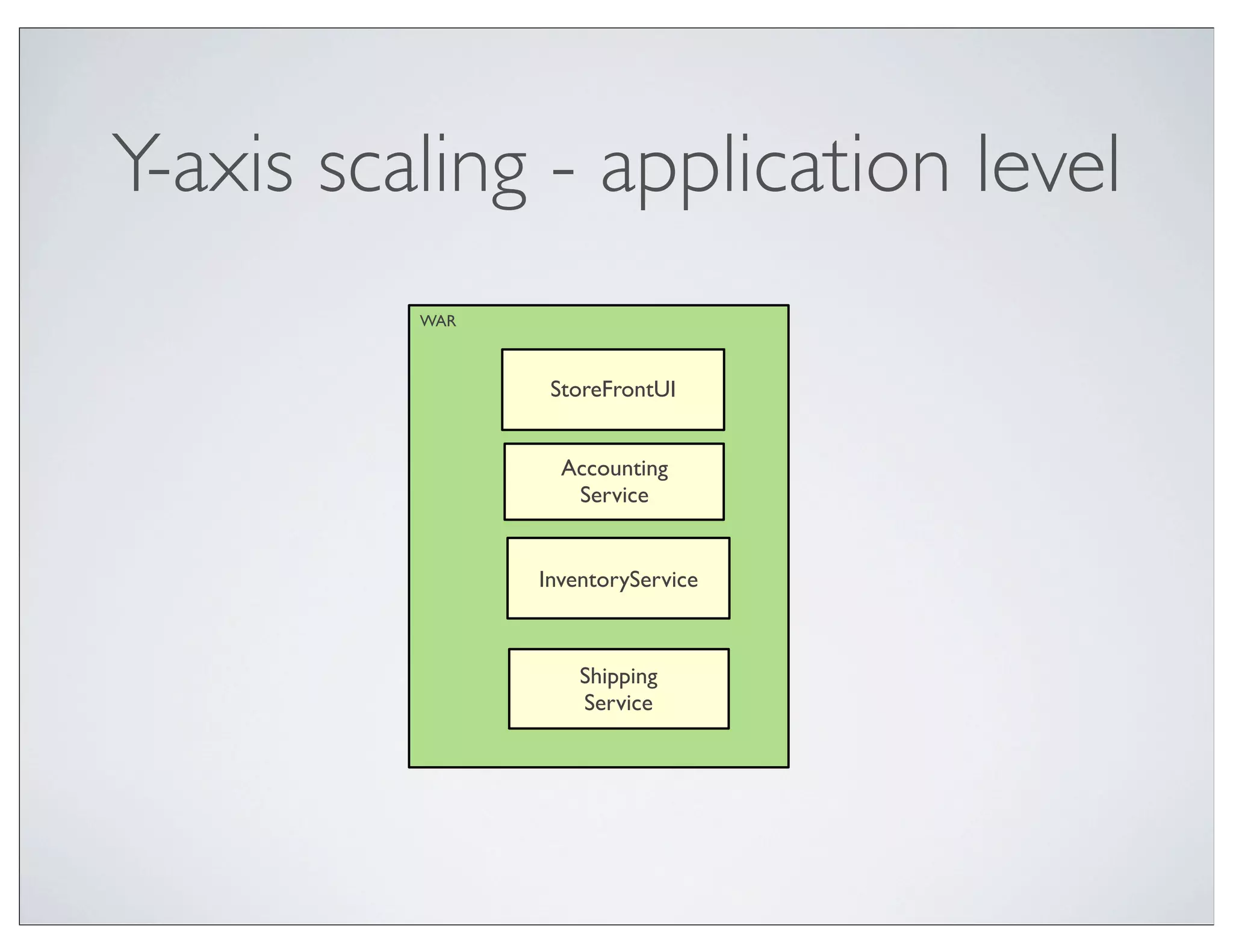

- 24. Y-axis scaling -application level WAR StoreFrontUI Accounting Service InventoryService Shipping Service

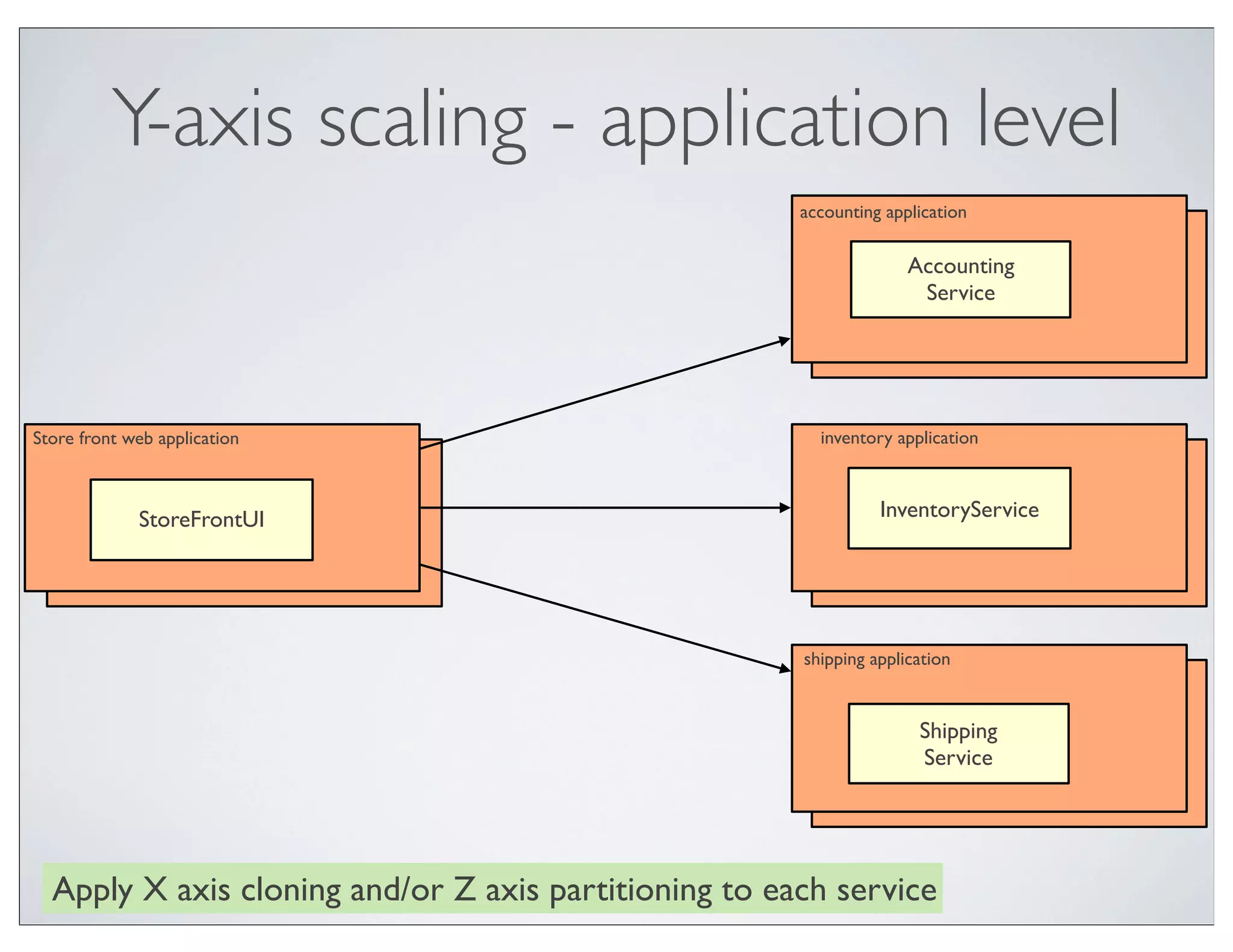

- 25. Y-axis scaling -application level accounting application Accounting Service Store front web application inventory application StoreFrontUI InventoryService shipping application Shipping Service Apply X axis cloning and/or Z axis partitioning to each service

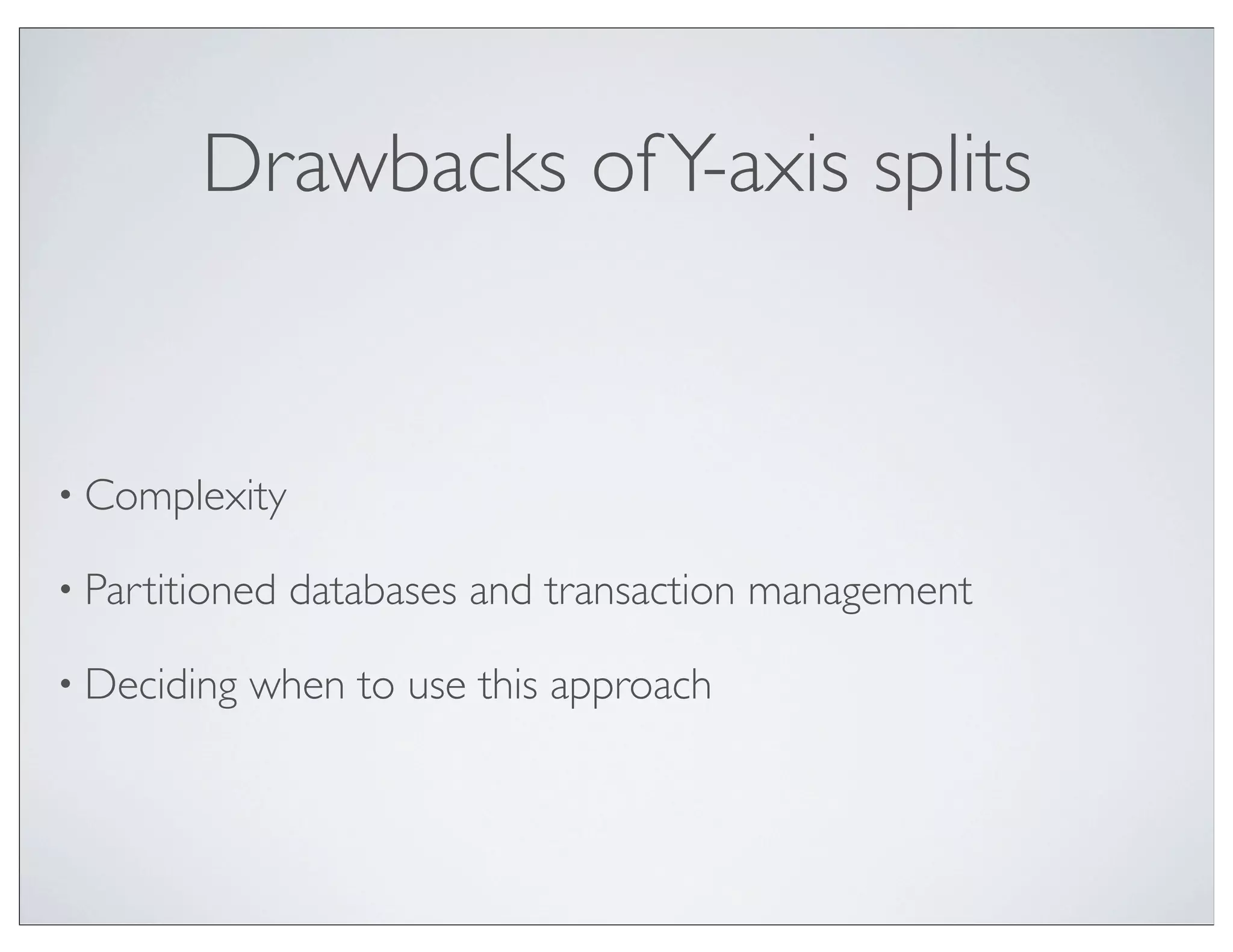

- 26. Drawbacks of Y-axissplits • Complexity • Partitioned databases and transaction management • Deciding when to use this approach

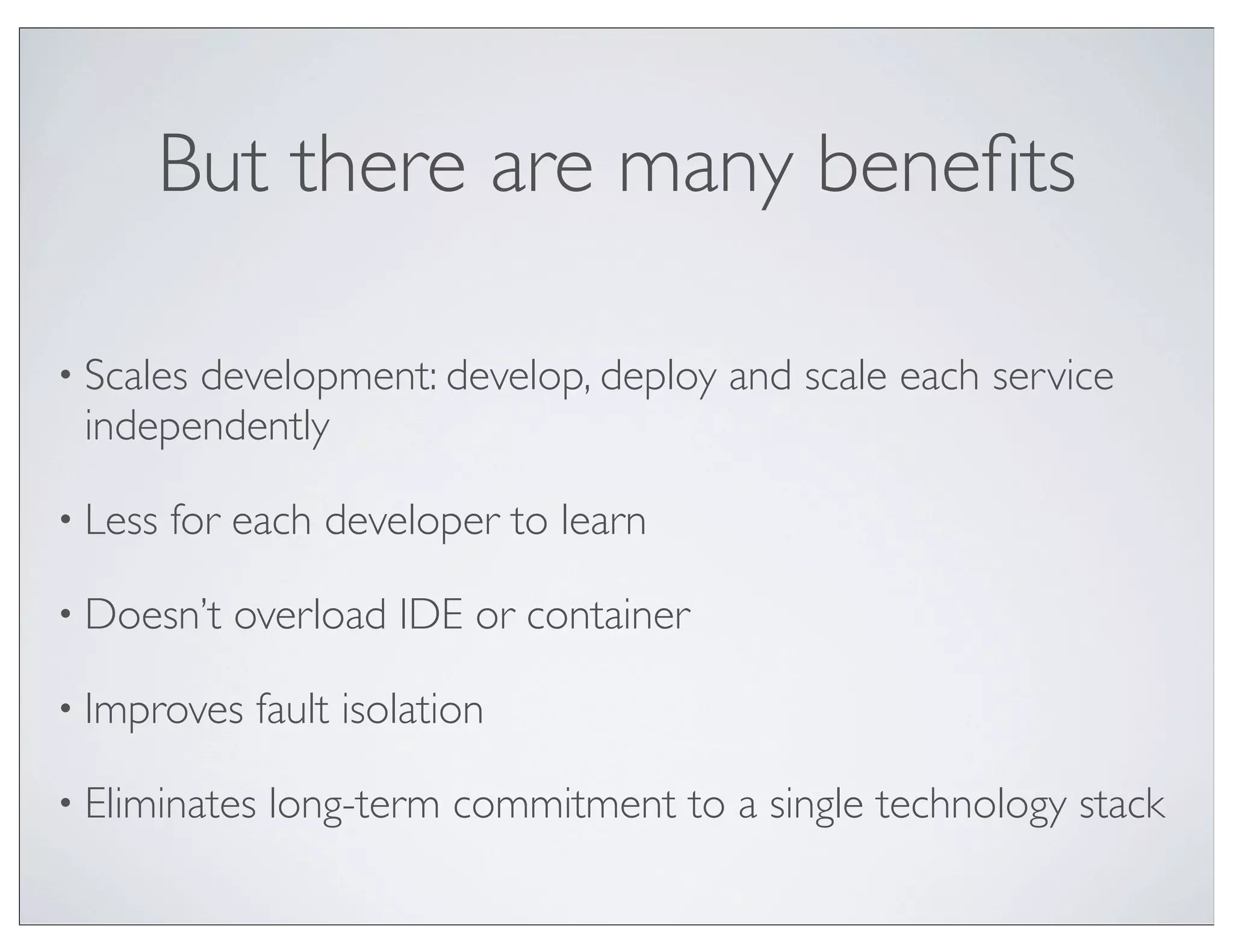

- 27. But there aremany benefits • Scales development: develop, deploy and scale each service independently • Less for each developer to learn • Doesn’t overload IDE or container • Improves fault isolation • Eliminates long-term commitment to a single technology stack

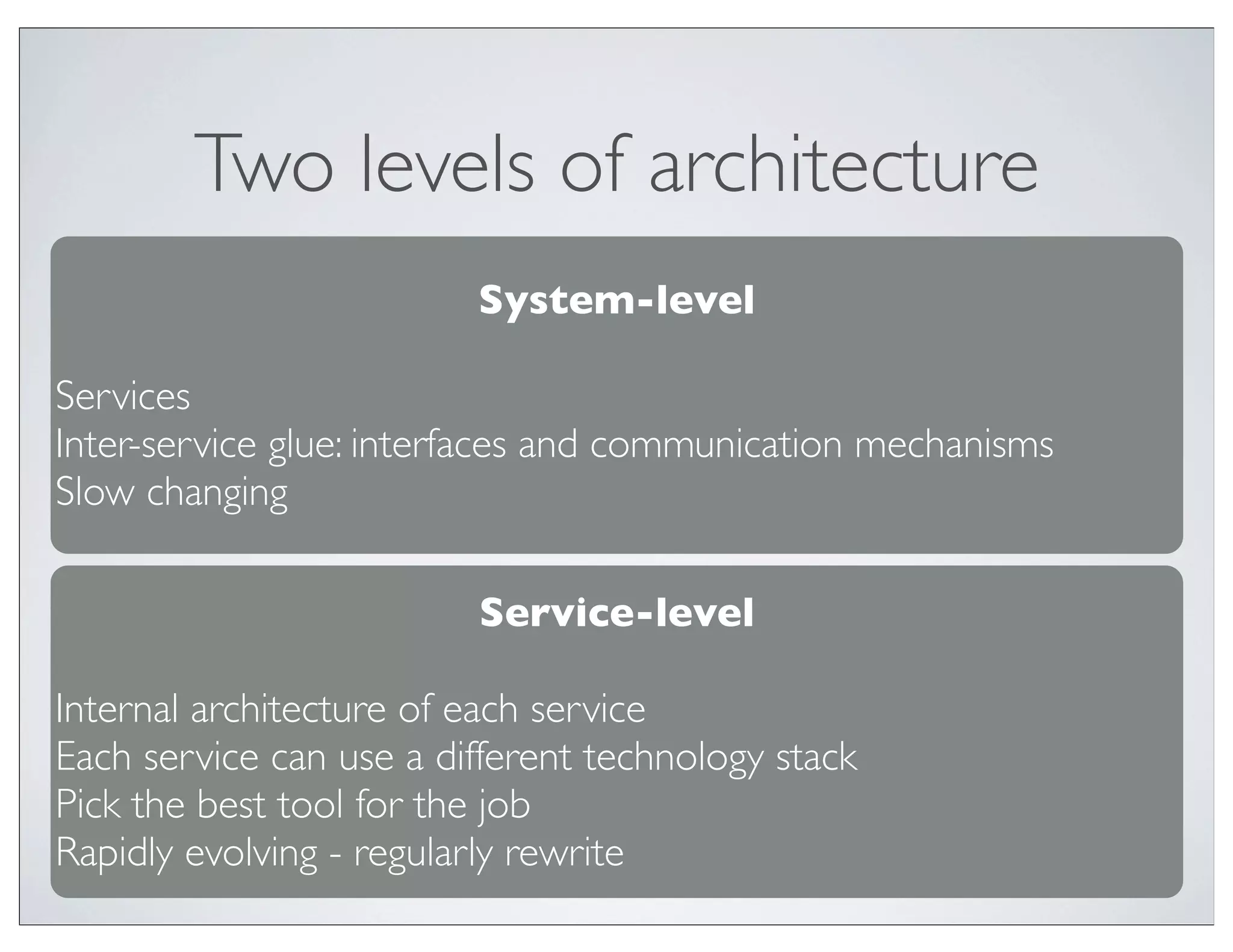

- 28. Two levels ofarchitecture System-level Services Inter-service glue: interfaces and communication mechanisms Slow changing Service-level Internal architecture of each service Each service can use a different technology stack Pick the best tool for the job Rapidly evolving - regularly rewrite
- 29. Modular, polyglot, applications

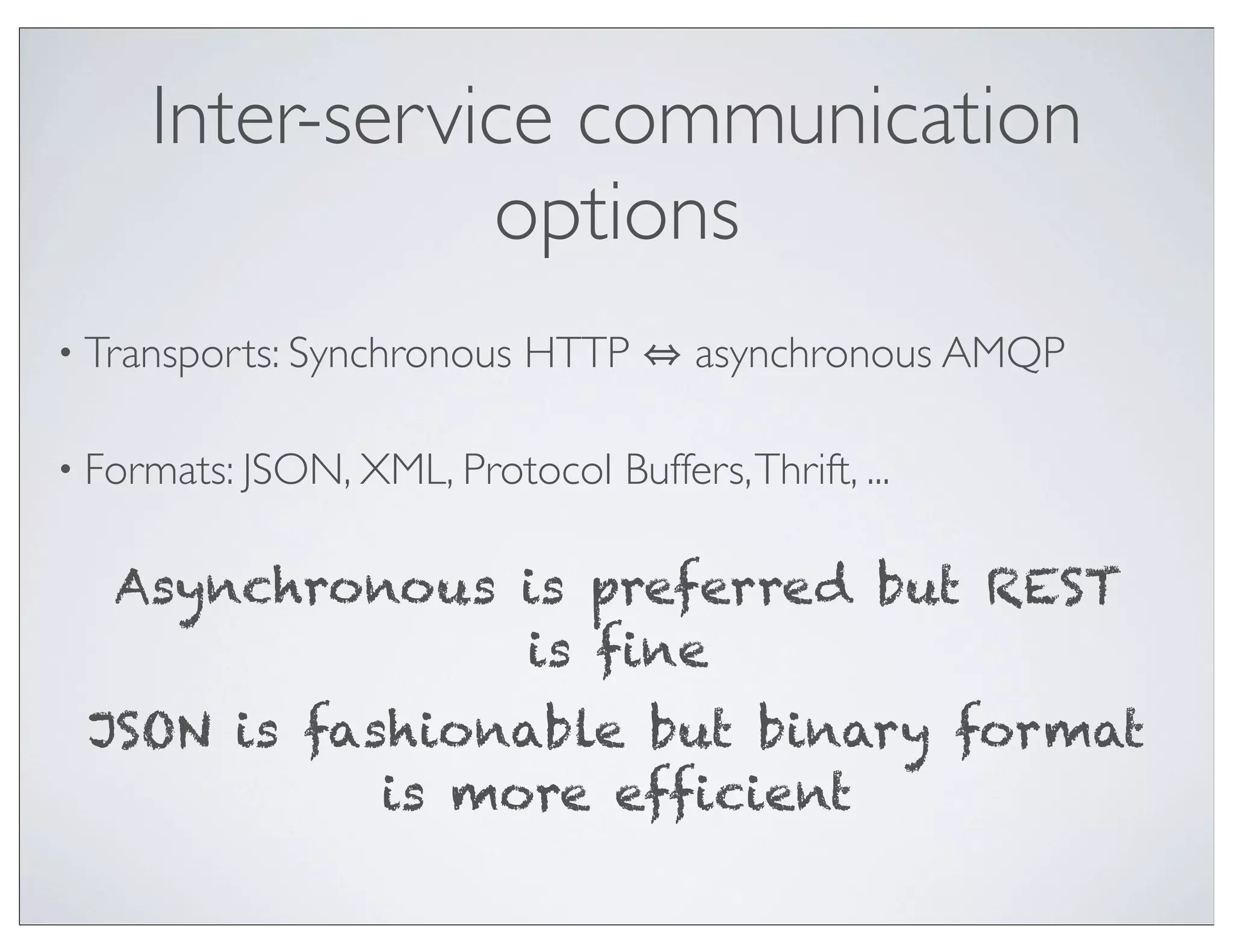

- 30. Inter-service communication options • Transports: Synchronous HTTP asynchronous AMQP • Formats: JSON, XML, Protocol Buffers, Thrift, ... Asynchronous is preferred but REST is fine JSON is fashionable but binary format is more efficient

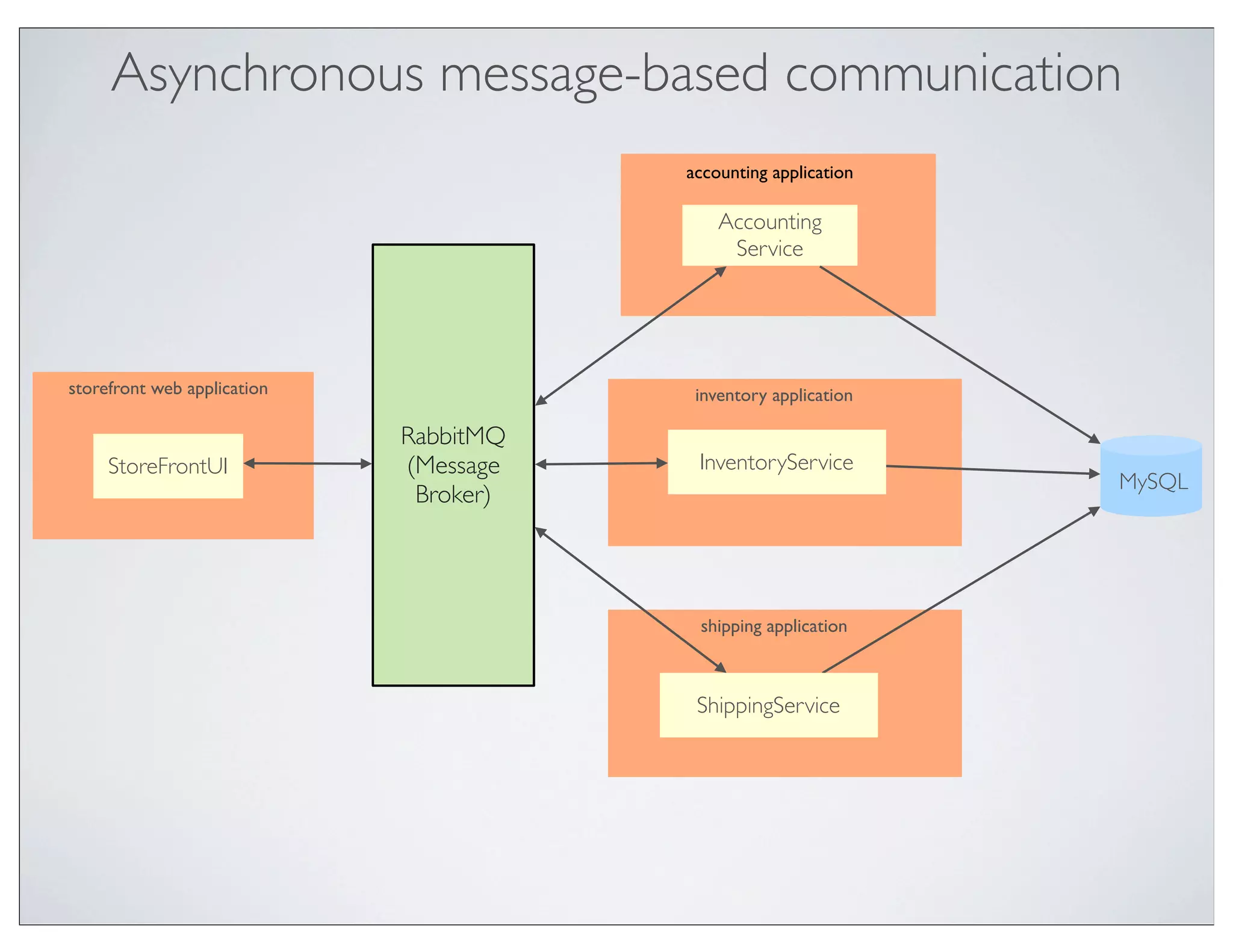

- 31. Asynchronous message-based communication accounting application Accounting Service storefront web application inventory application RabbitMQ StoreFrontUI (Message InventoryService MySQL Broker) shipping application ShippingService

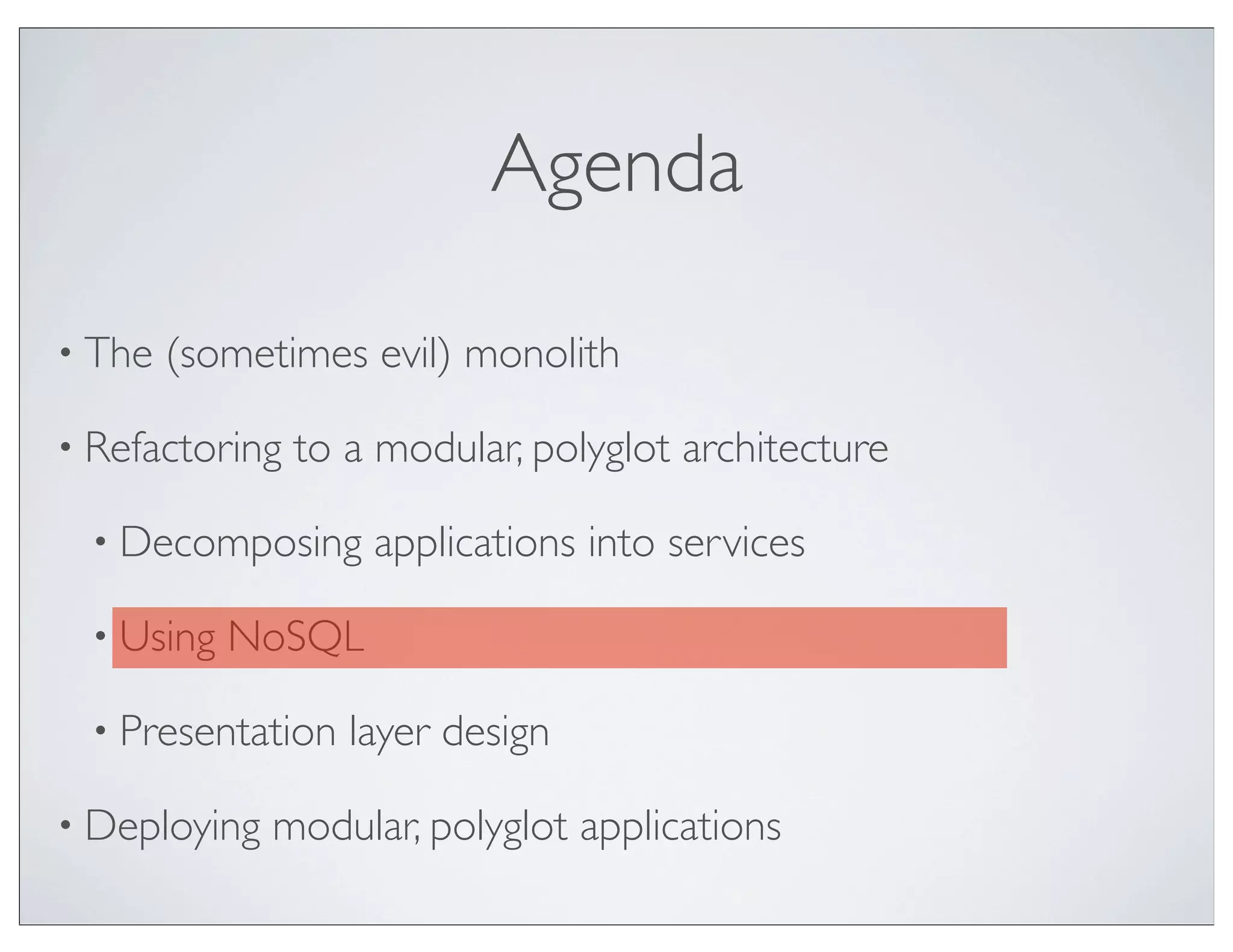

- 32. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Decomposing applications into services • Using NoSQL • Presentation layer design • Deploying modular, polyglot applications

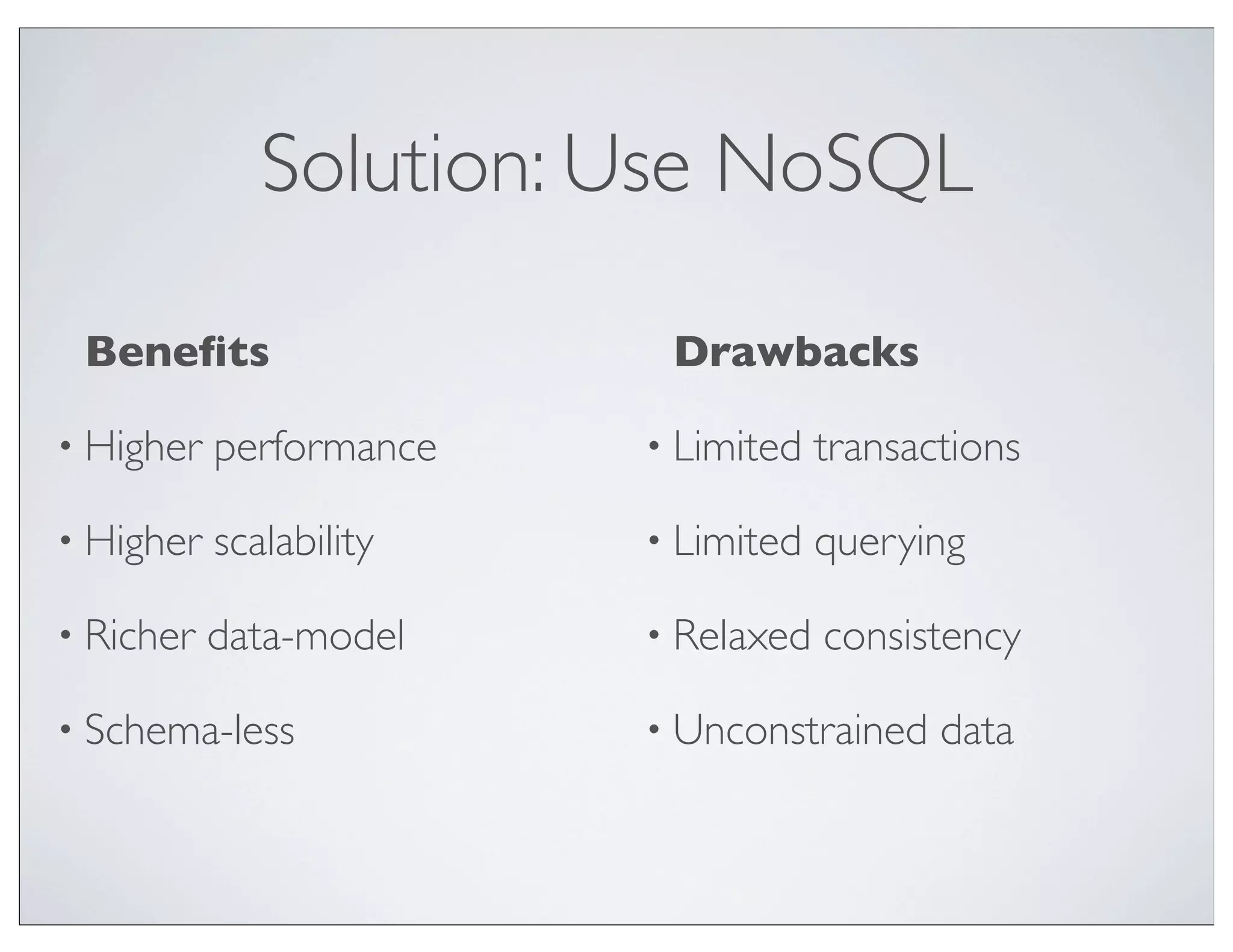

- 33. Solution: Use NoSQL Benefits Drawbacks • Higher performance • Limited transactions • Higher scalability • Limited querying • Richer data-model • Relaxed consistency • Schema-less • Unconstrained data

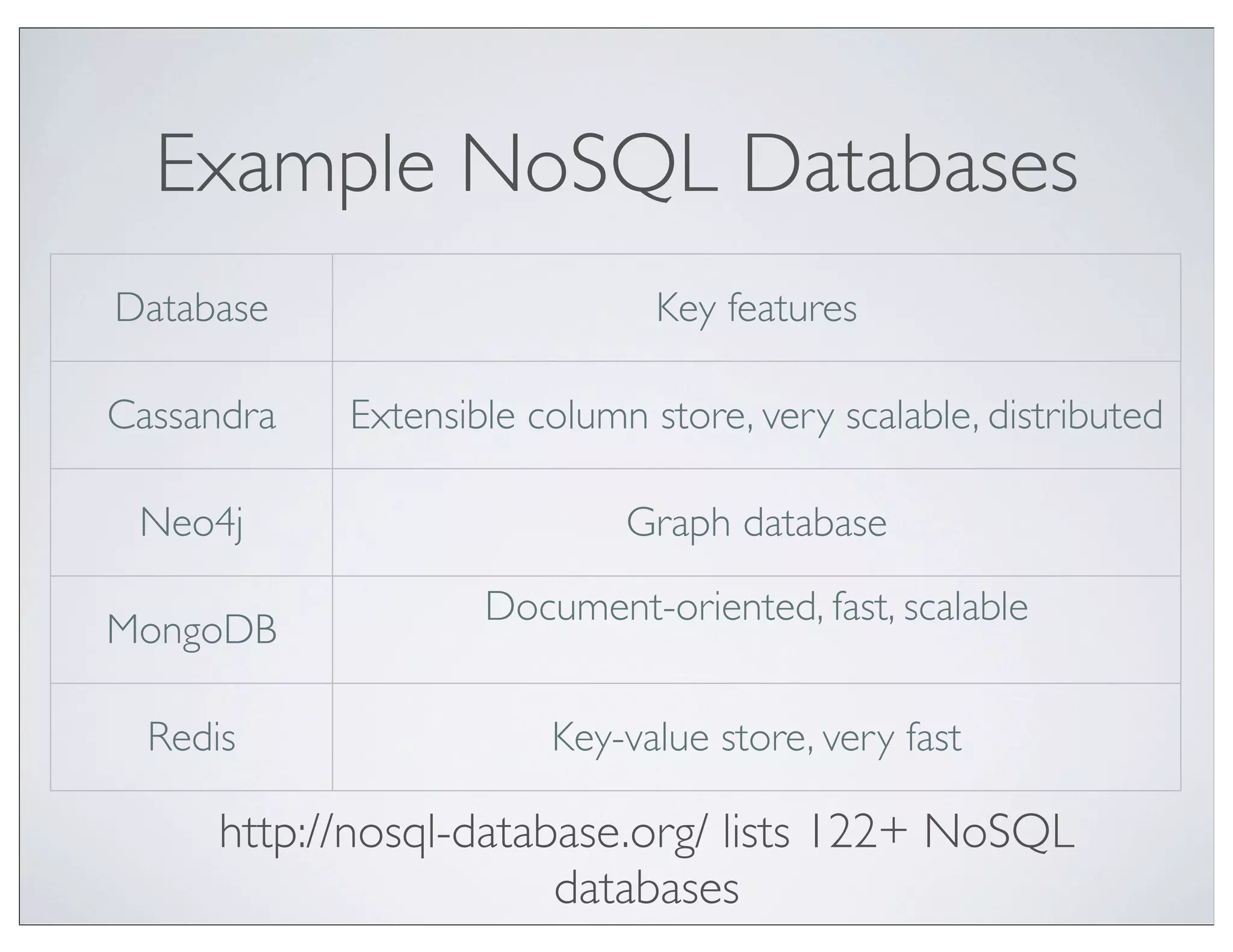

- 34. Example NoSQL Databases Database Key features Cassandra Extensible column store, very scalable, distributed Neo4j Graph database Document-oriented, fast, scalable MongoDB Redis Key-value store, very fast http://nosql-database.org/ lists 122+ NoSQL databases

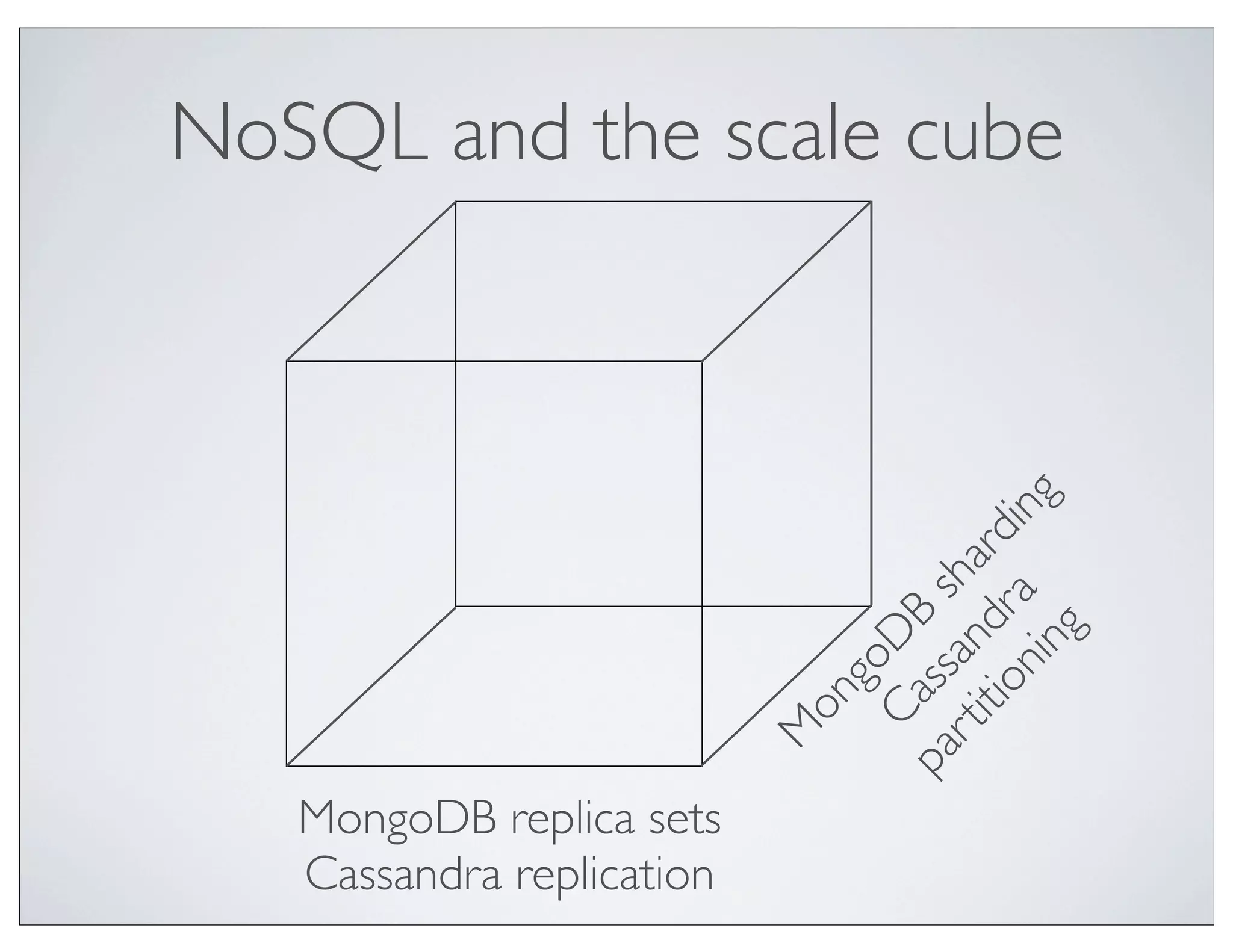

- 35. NoSQL and thescale cube nin a ing itio dr rd r t an ha pa ss s Ca DB g go on M MongoDB replica sets Cassandra replication

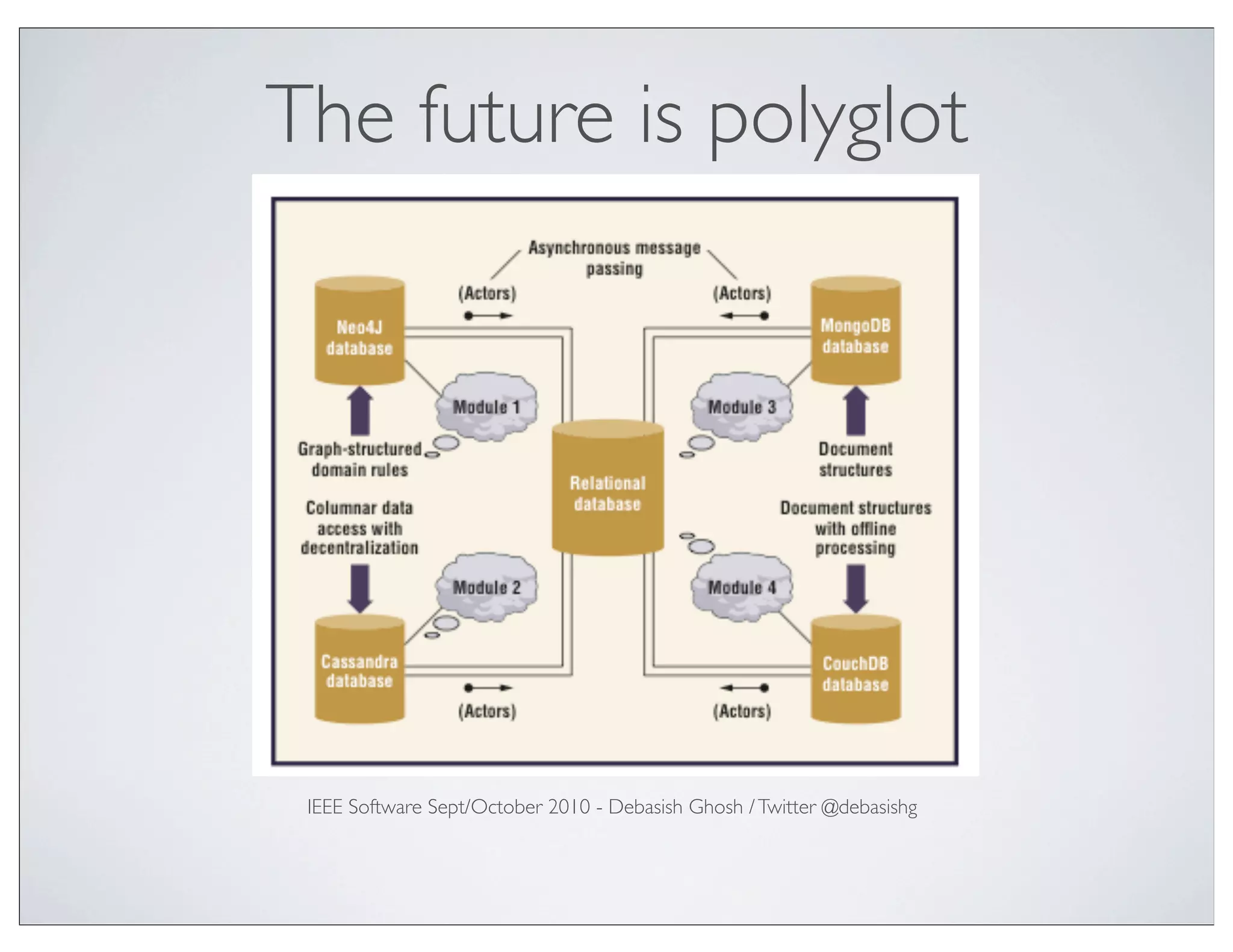

- 36. The future ispolyglot IEEE Software Sept/October 2010 - Debasish Ghosh / Twitter @debasishg

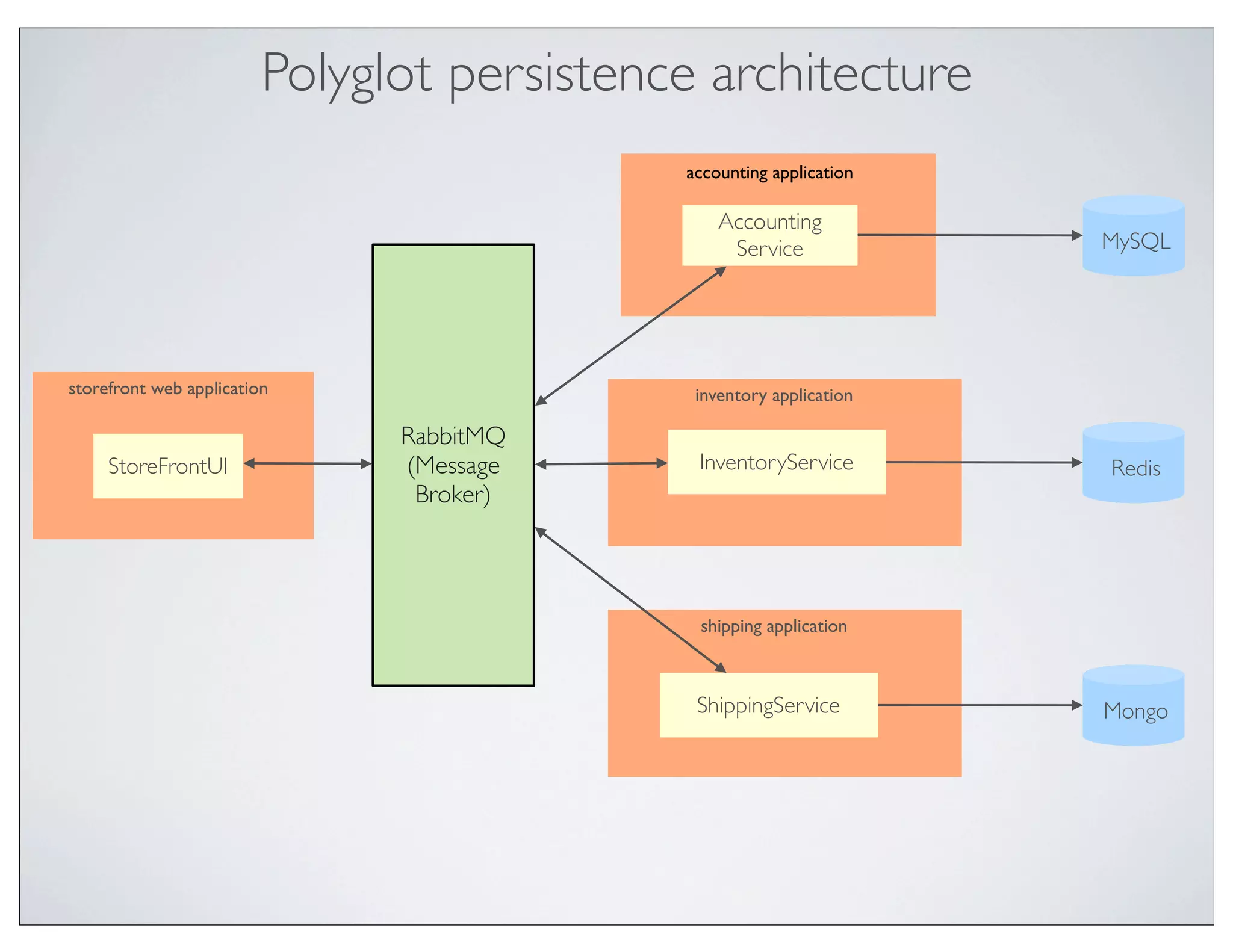

- 37. Polyglot persistence architecture accounting application Accounting Service MySQL storefront web application inventory application RabbitMQ StoreFrontUI (Message InventoryService Redis Broker) shipping application ShippingService Mongo

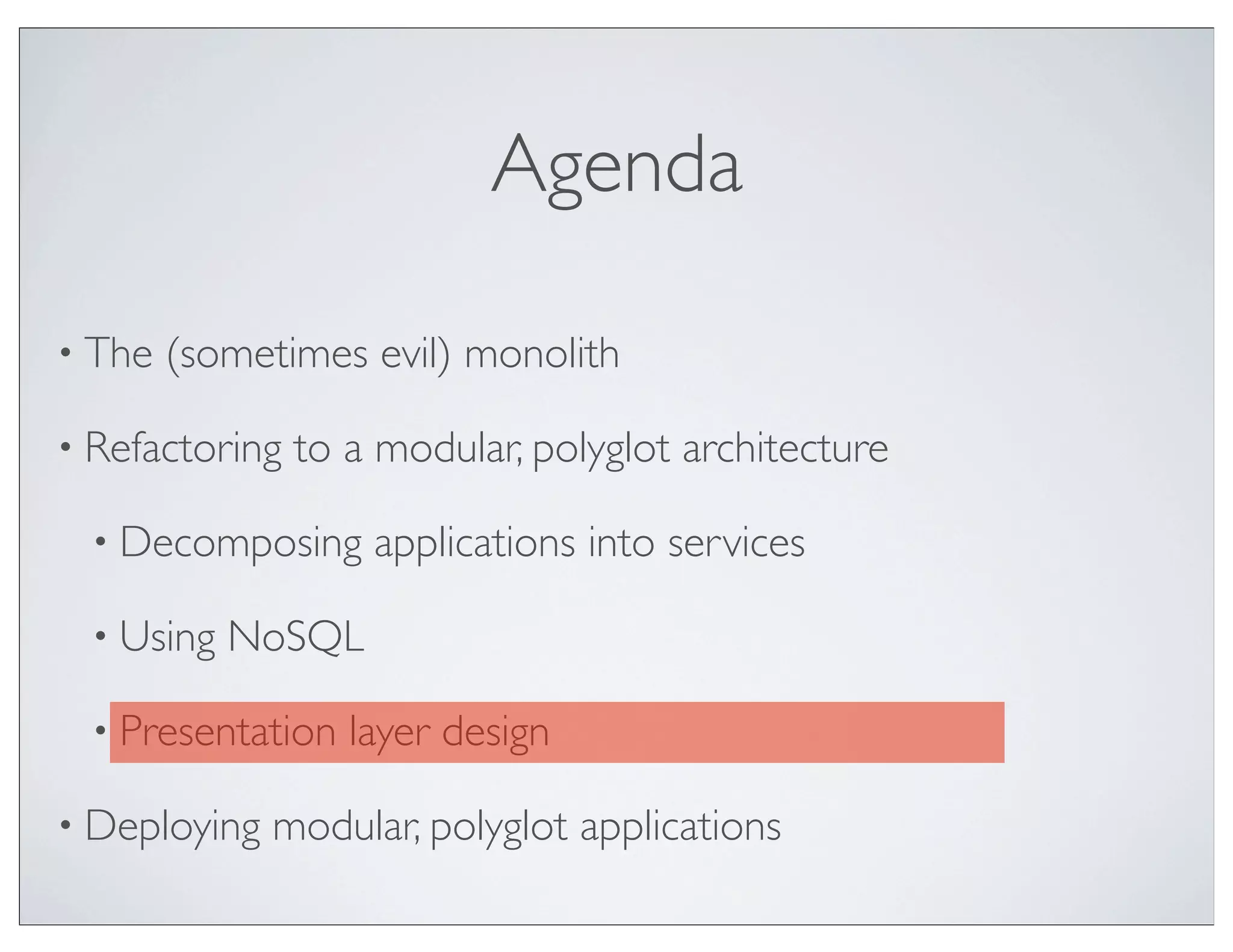

- 38. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Decomposing applications into services • Using NoSQL • Presentation layer design • Deploying modular, polyglot applications
- 39. Modular application Choice ofpresentation layer technology

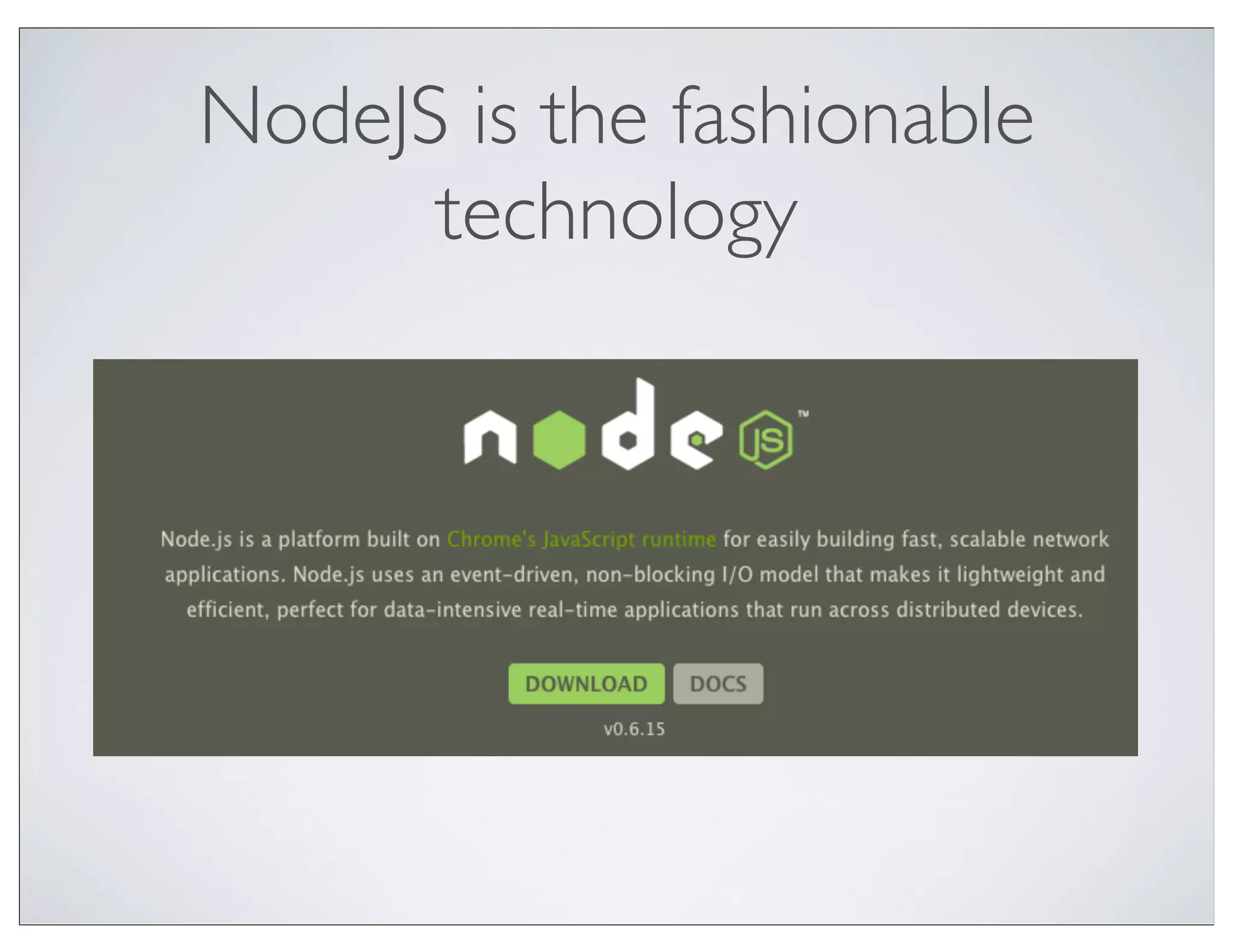

- 40. NodeJS is thefashionable technology

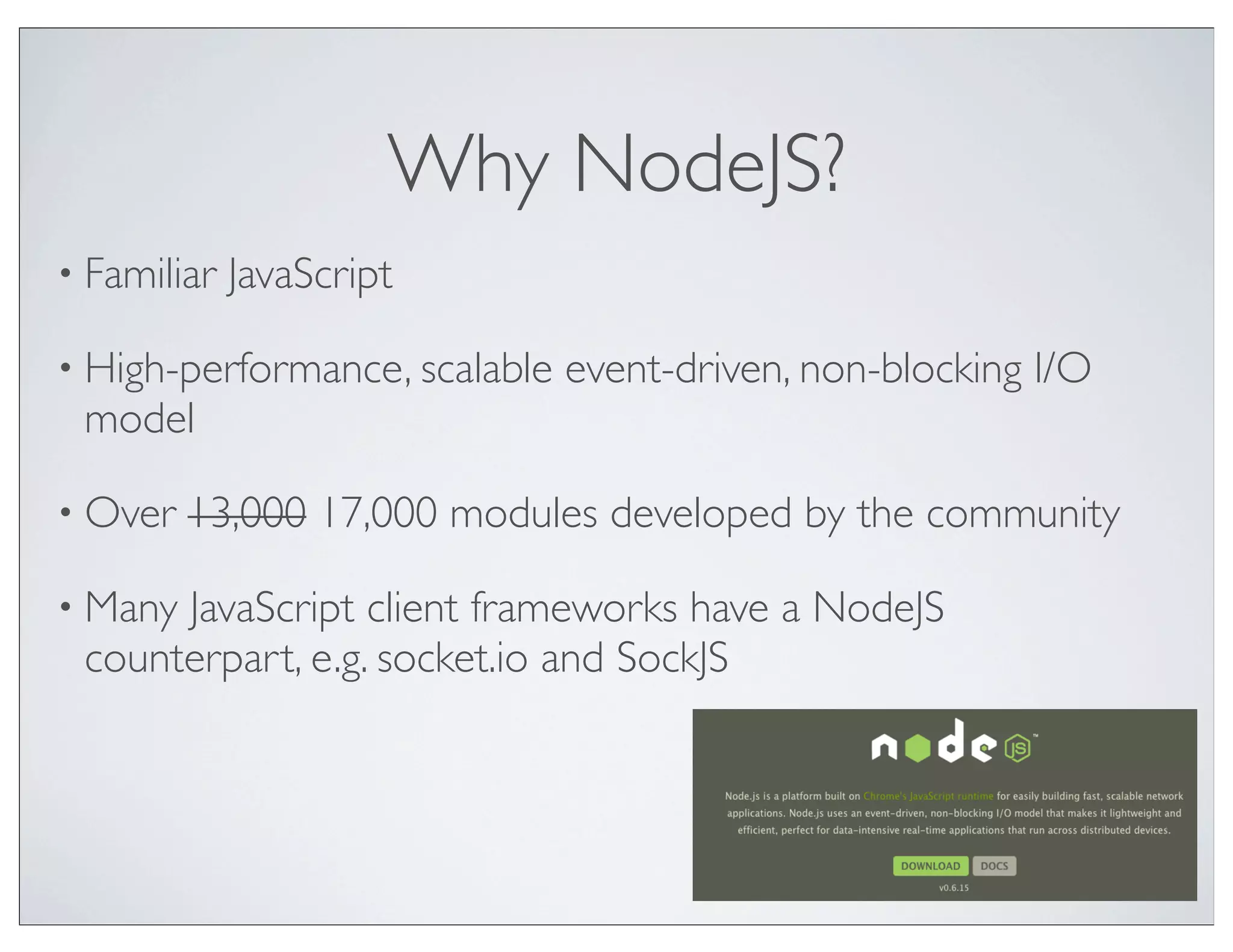

- 41. Why NodeJS? • Familiar JavaScript • High-performance, scalable event-driven, non-blocking I/O model • Over 13,000 17,000 modules developed by the community • ManyJavaScript client frameworks have a NodeJS counterpart, e.g. socket.io and SockJS
- 42. Why not NodeJS? a.k.a. callback hell

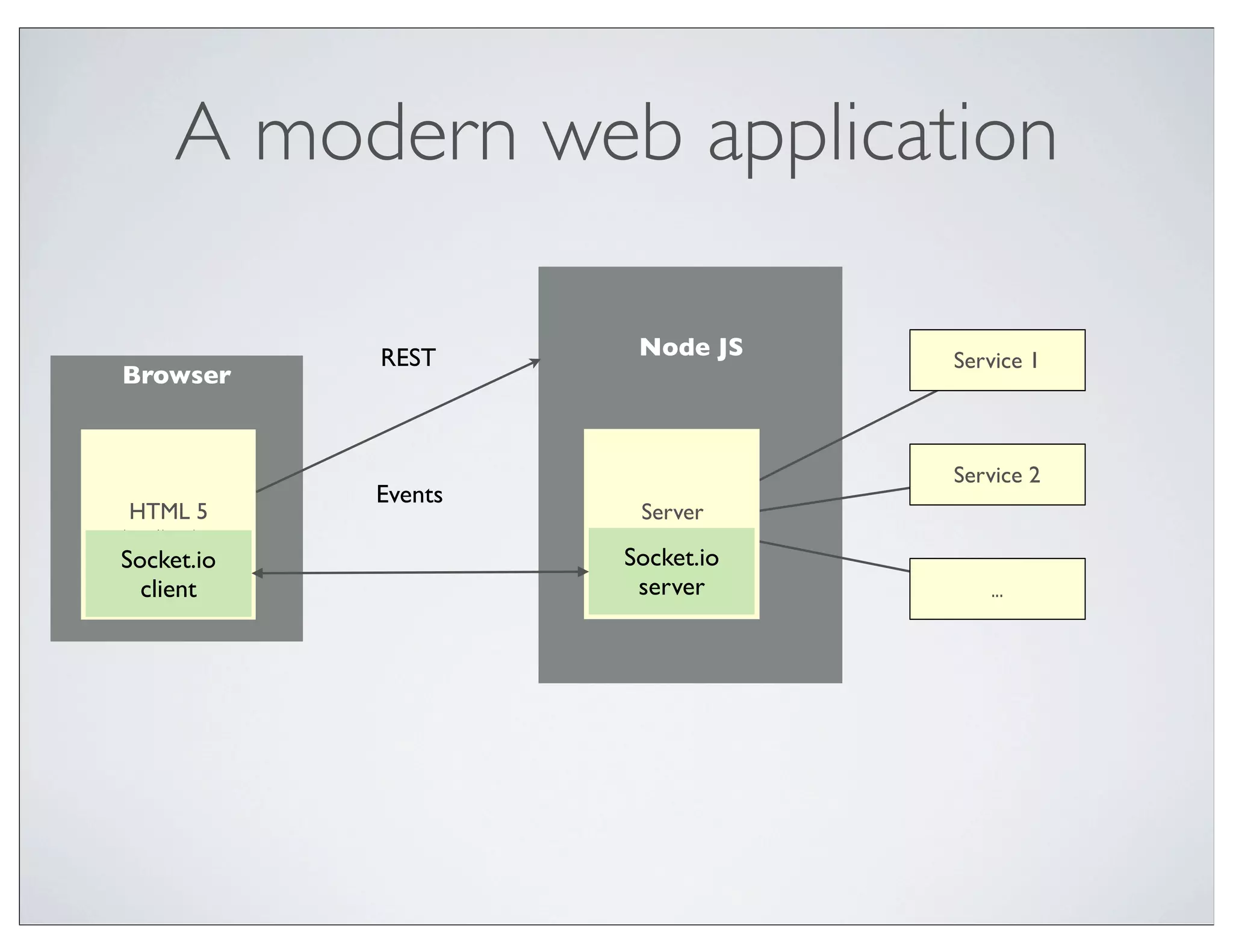

- 43. A modern webapplication REST Node JS Service 1 Browser Service 2 Events HTML 5 Server Application Application Socket.io Socket.io client server ...

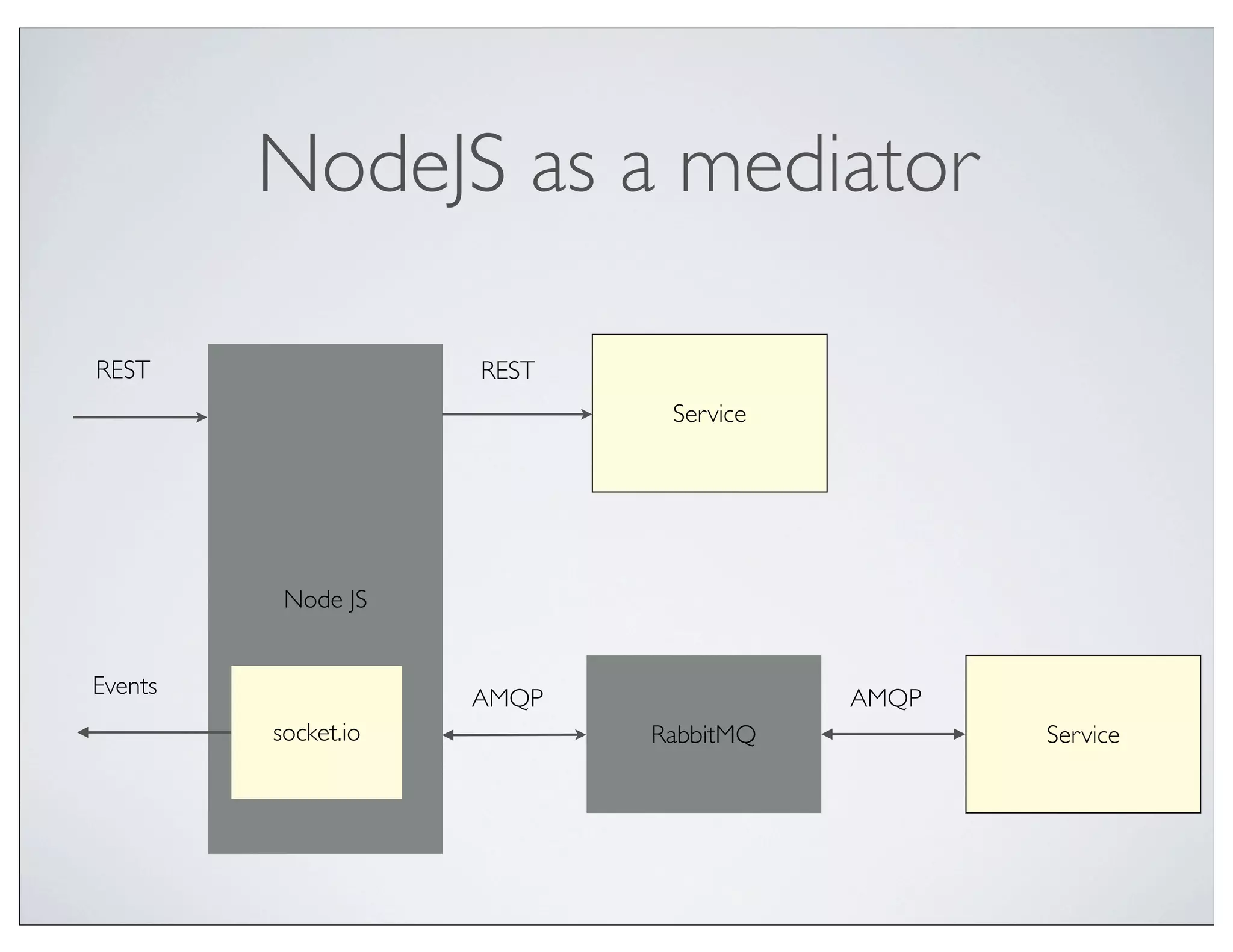

- 44. NodeJS as amediator REST REST Service Node JS Events AMQP AMQP socket.io RabbitMQ Service

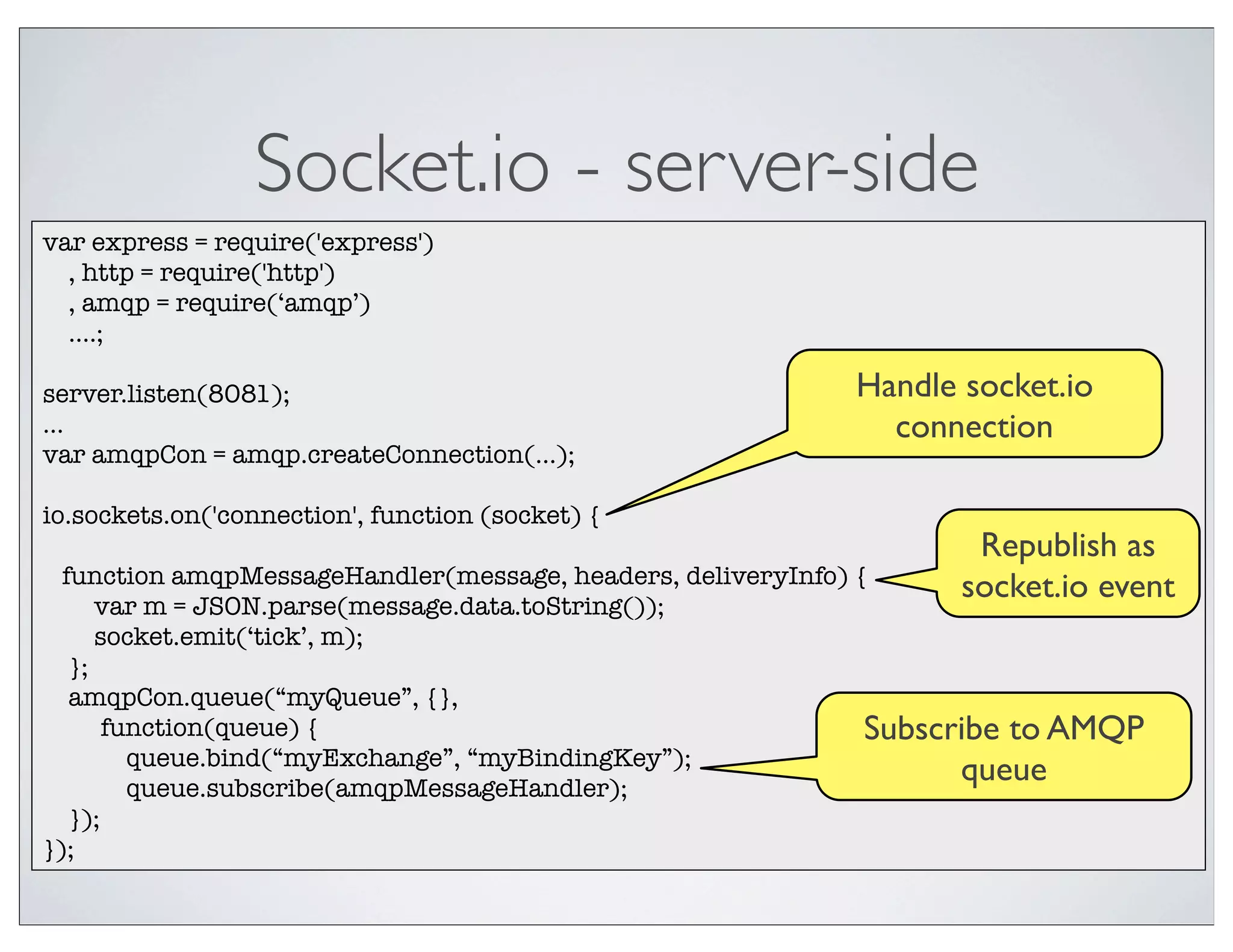

- 45. Socket.io - server-side varexpress = require('express') , http = require('http') , amqp = require(‘amqp’) ....; server.listen(8081); Handle socket.io ... connection var amqpCon = amqp.createConnection(...); io.sockets.on('connection', function (socket) { Republish as function amqpMessageHandler(message, headers, deliveryInfo) { socket.io event var m = JSON.parse(message.data.toString()); socket.emit(‘tick’, m); }; amqpCon.queue(“myQueue”, {}, function(queue) { Subscribe to AMQP queue.bind(“myExchange”, “myBindingKey”); queue.subscribe(amqpMessageHandler); queue }); });

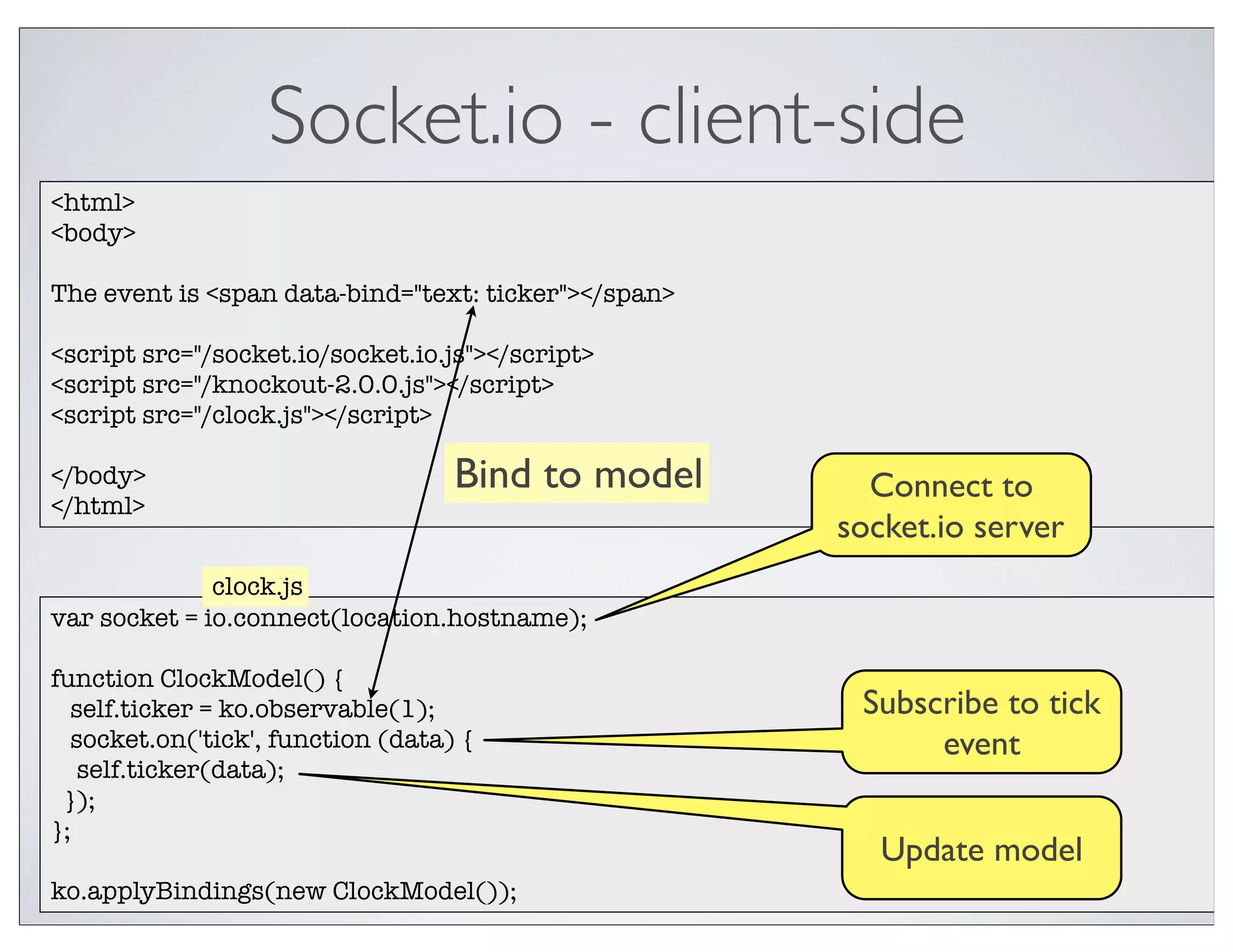

- 46. Socket.io - client-side <html> <body> Theevent is <span data-bind="text: ticker"></span> <script src="/socket.io/socket.io.js"></script> <script src="/knockout-2.0.0.js"></script> <script src="/clock.js"></script> </body> Bind to model Connect to </html> socket.io server clock.js var socket = io.connect(location.hostname); function ClockModel() { self.ticker = ko.observable(1); Subscribe to tick socket.on('tick', function (data) { event self.ticker(data); }); }; Update model ko.applyBindings(new ClockModel());
- 47. Modular, polyglot architecture p, Native Mobile application HTML5 mobile application lo Desktop Browser StoreUI StoreUI StoreUI ve de Asynchronous, NodeJS ? NodeJS Javascript scalable is StoreUI communication th te e w RabbitMQ st oy do Spring/Scala Standalone web application Inventory Inventory Shipping Service “headless” pl Service Shipping Service Spring/Java ow applications de Billing Service Redis Inventory Mongo Order H Database Database d an MySQL Customer Database
- 48. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Deploying modular, polyglot applications • Overview of Cloud Foundry • Using Cloud Foundry • Consuming Cloud Foundry services
- 49. The Open Platform as a Service Deploy and scale polyglot applications in seconds, without locking yourself into a single cloud ible, pen , Flex Sim ple, O lable Sca

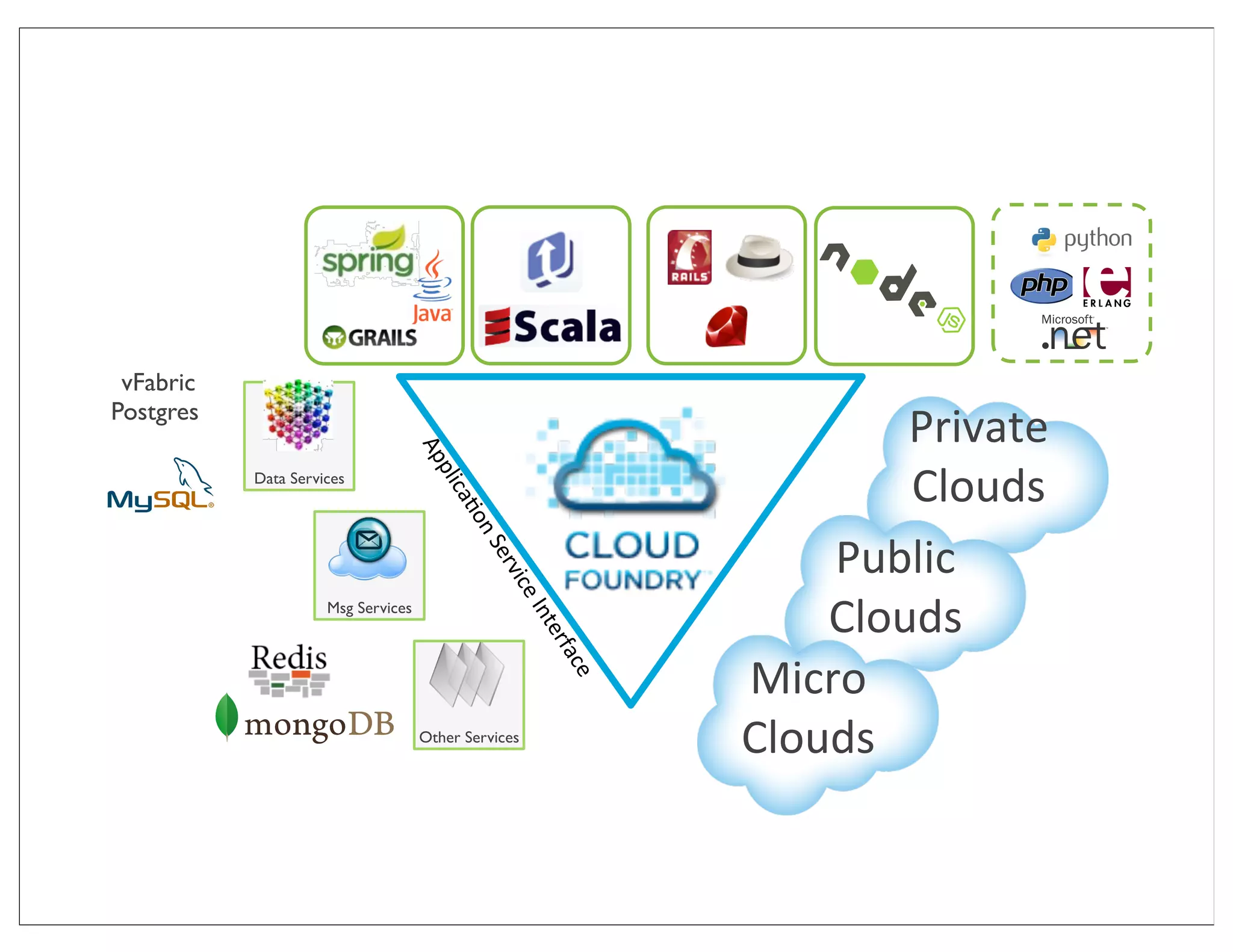

- 50. OSS community vFabric Postgres Ap Private Clouds p Data Services lica 'o n S vFabric Public erv RabbitMQTM ice Msg Services Clouds In ter fac Micro e Other Services Clouds Additional partners services …

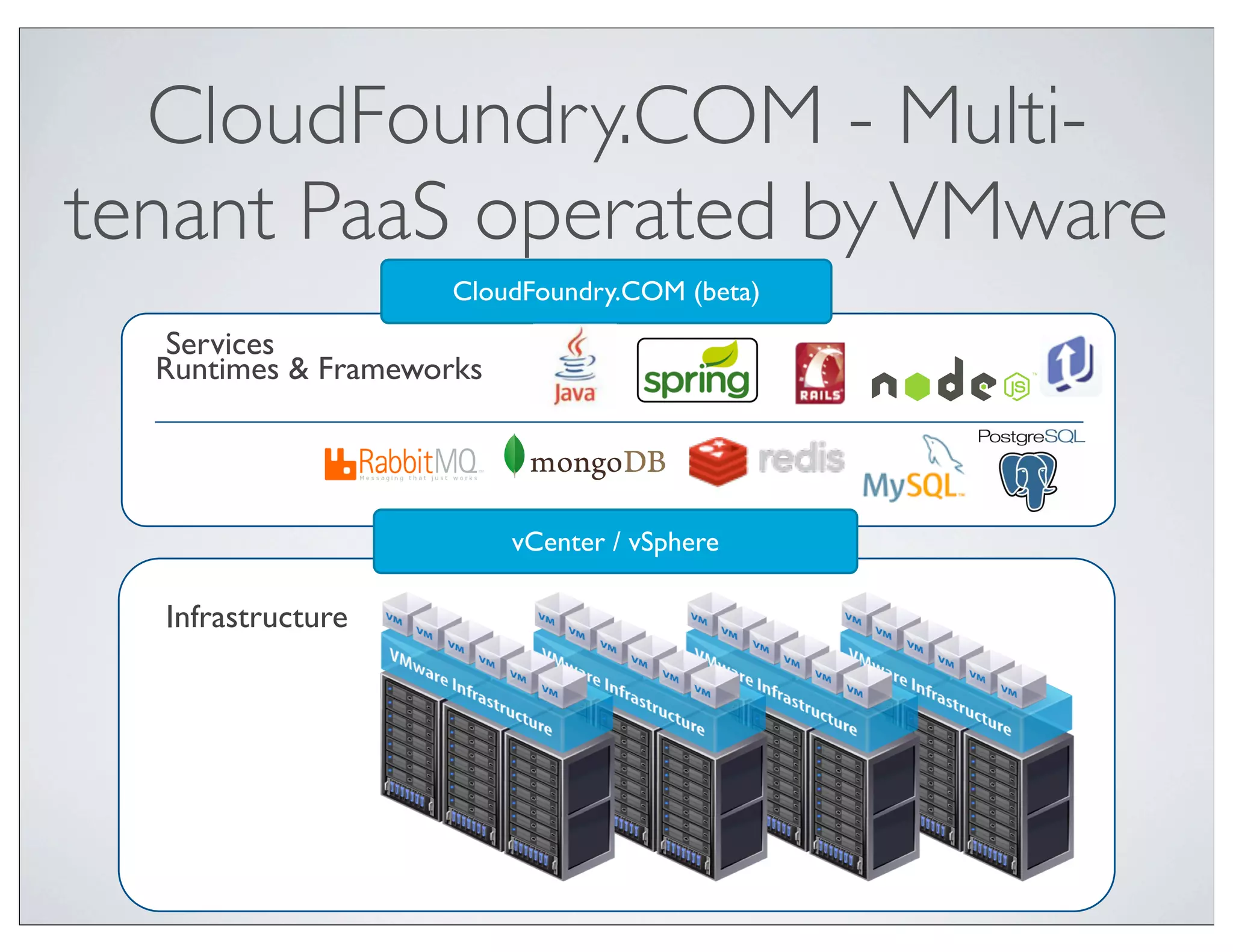

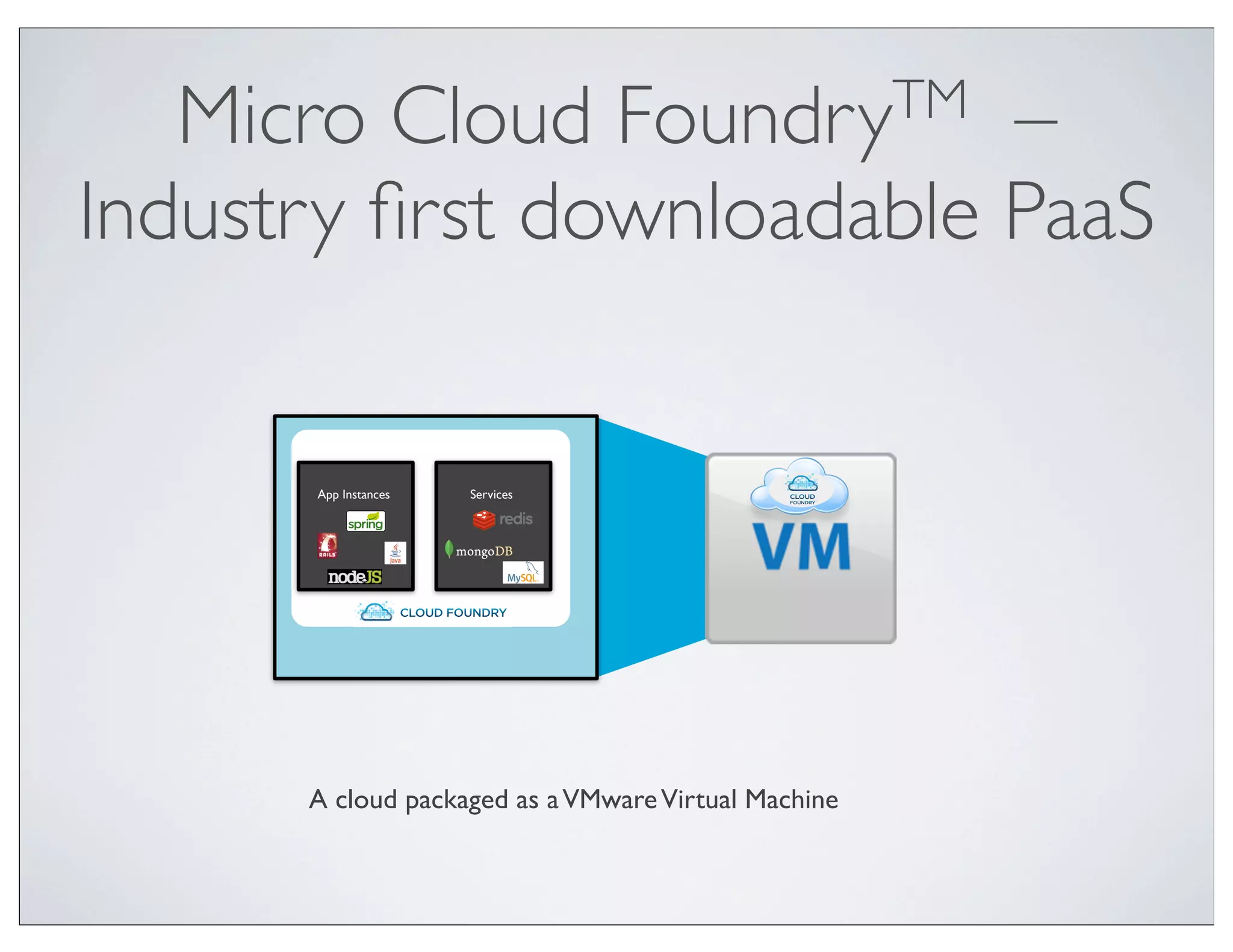

- 51. CloudFoundry.COM - Multi- tenantPaaS operated by VMware CloudFoundry.COM (beta) Services Runtimes & Frameworks vCenter / vSphere Infrastructure
- 52. Micro Cloud – FoundryTM Industry first downloadable PaaS App Instances Services Open source Platform as a Service project A cloud packaged as a VMware Virtual Machine

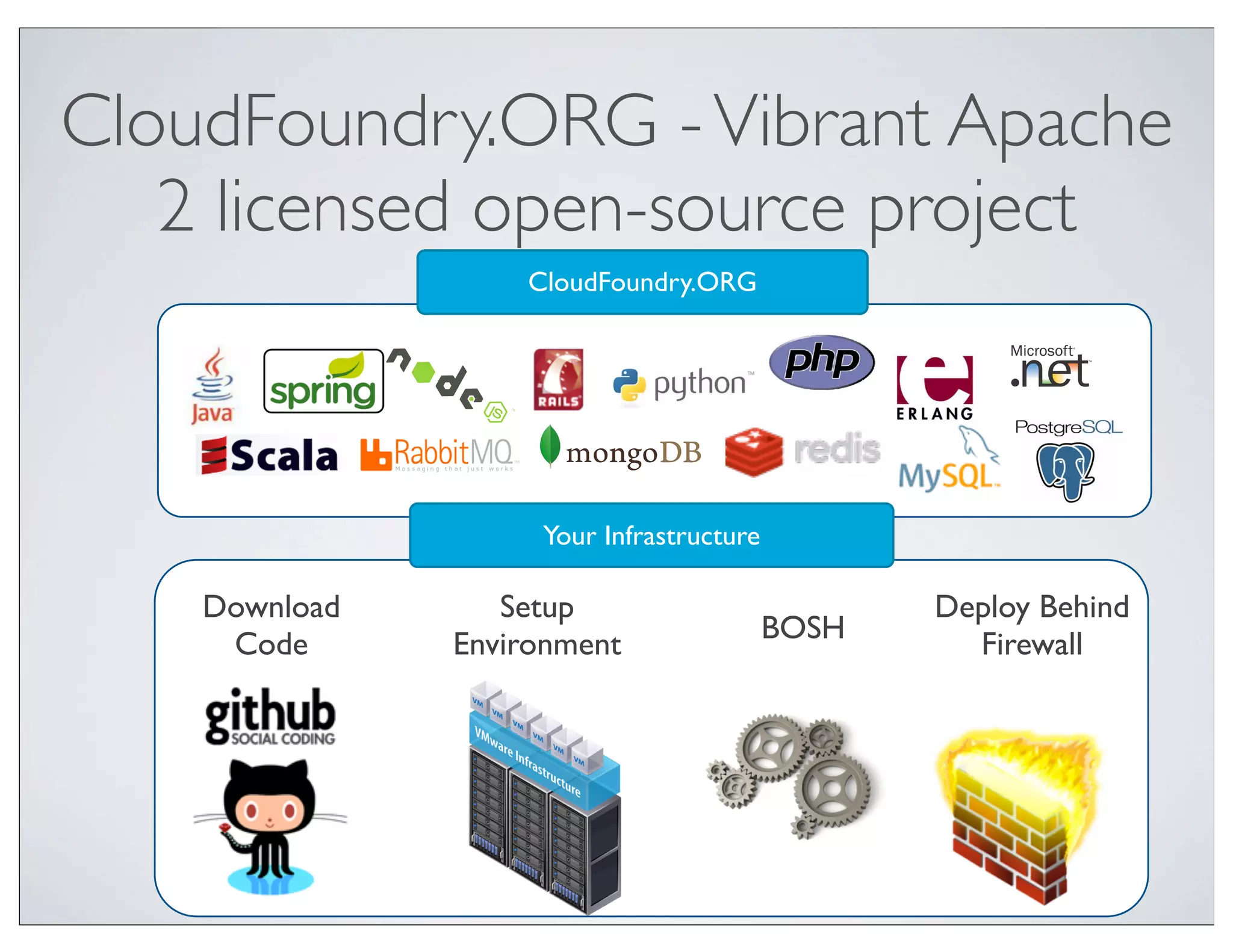

- 53. CloudFoundry.ORG - VibrantApache 2 licensed open-source project CloudFoundry.ORG Your Infrastructure Download Setup Deploy Behind Code Environment BOSH Firewall

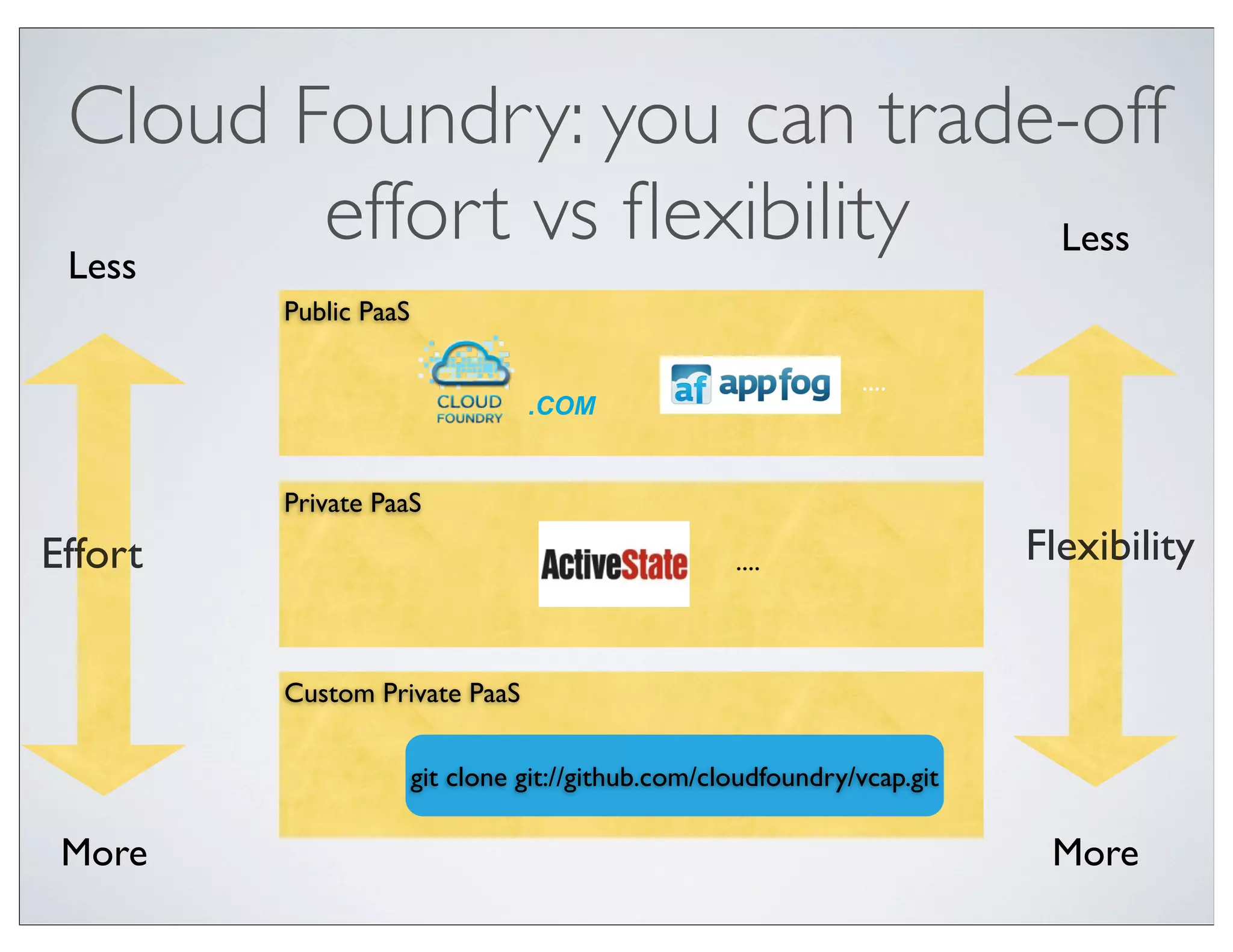

- 54. Cloud Foundry: youcan trade-off Less effort vs flexibility Less Public PaaS .... .COM Private PaaS Effort .... Flexibility Custom Private PaaS git clone git://github.com/cloudfoundry/vcap.git More More

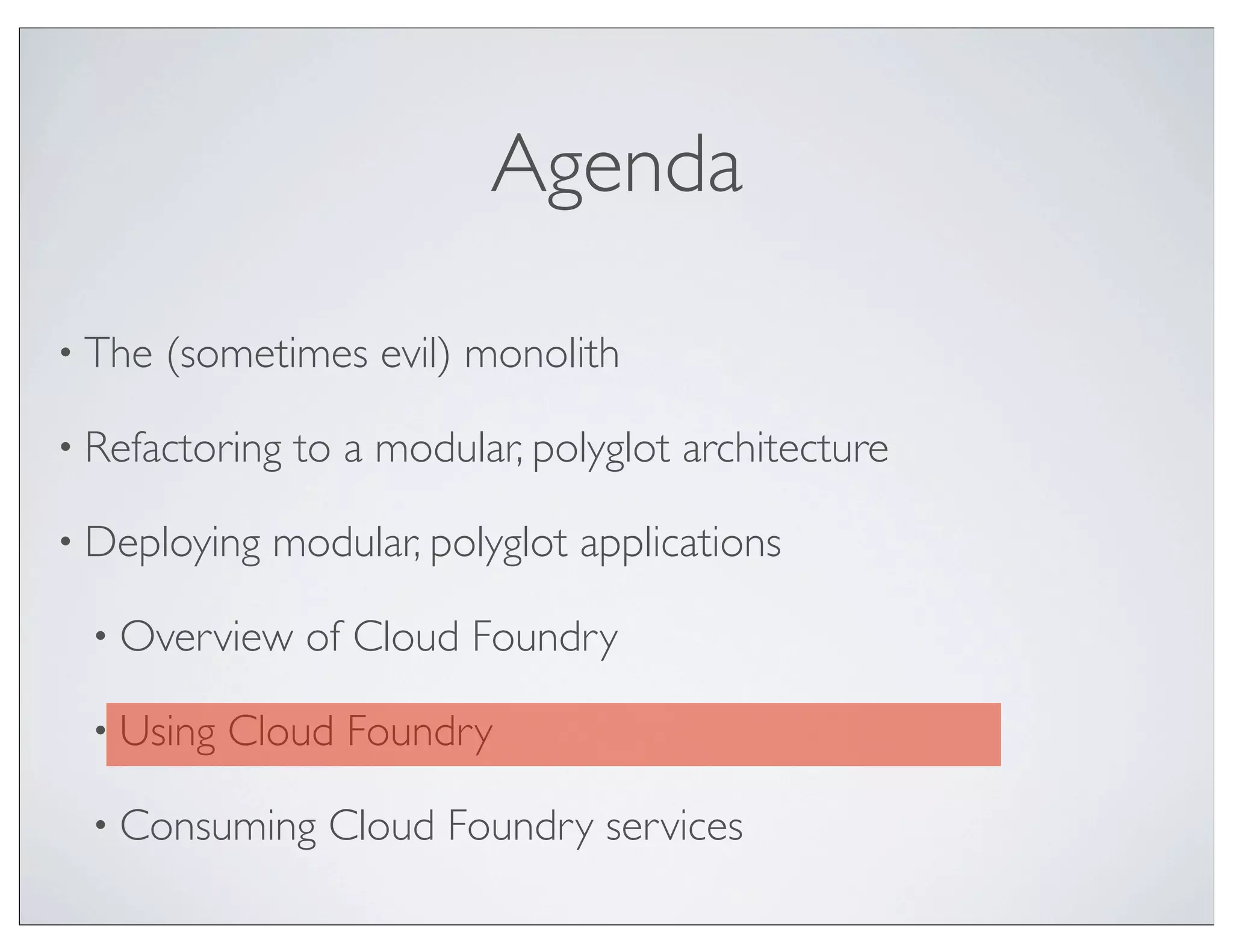

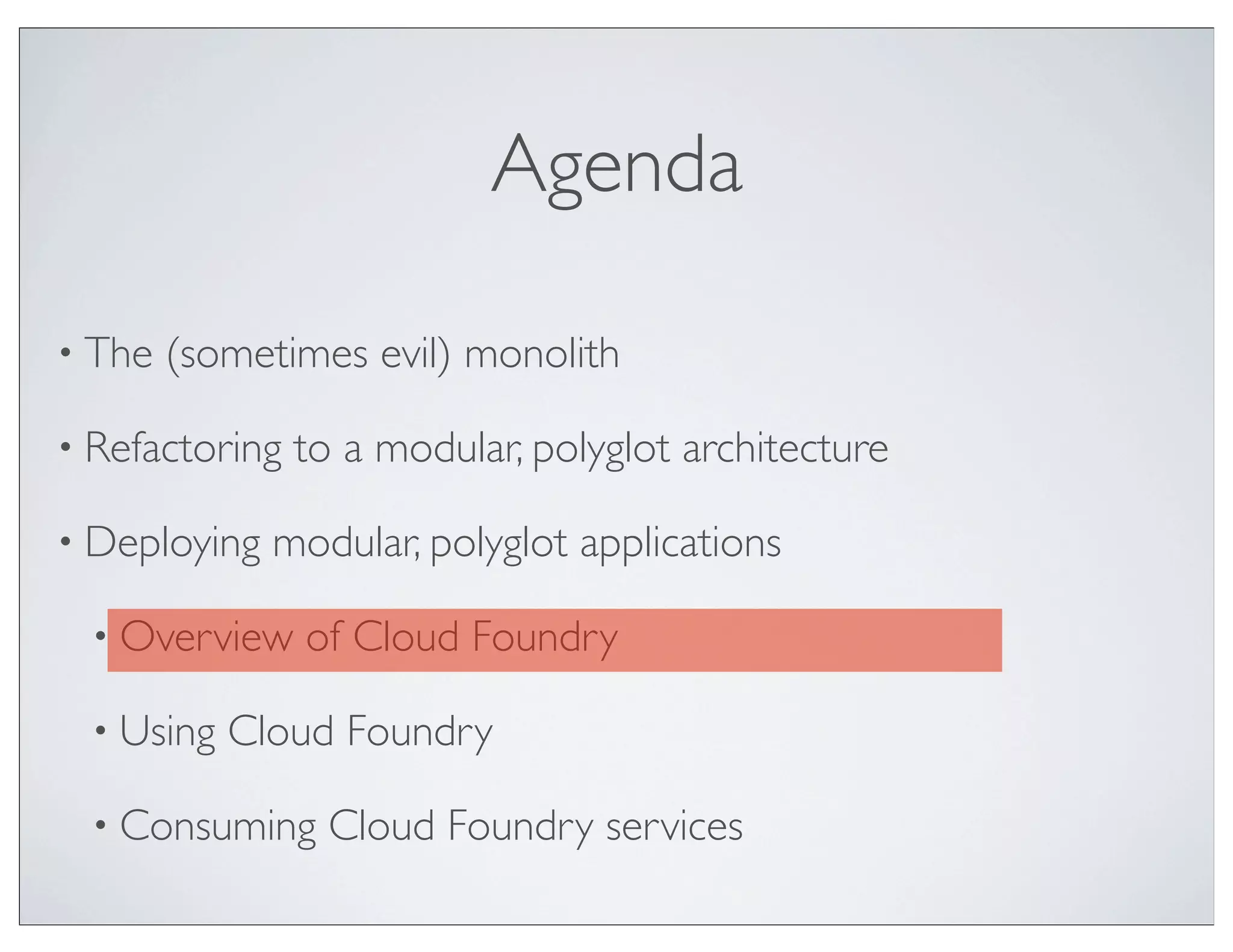

- 55. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Deploying modular, polyglot applications • Overview of Cloud Foundry • Using Cloud Foundry • Consuming Cloud Foundry services

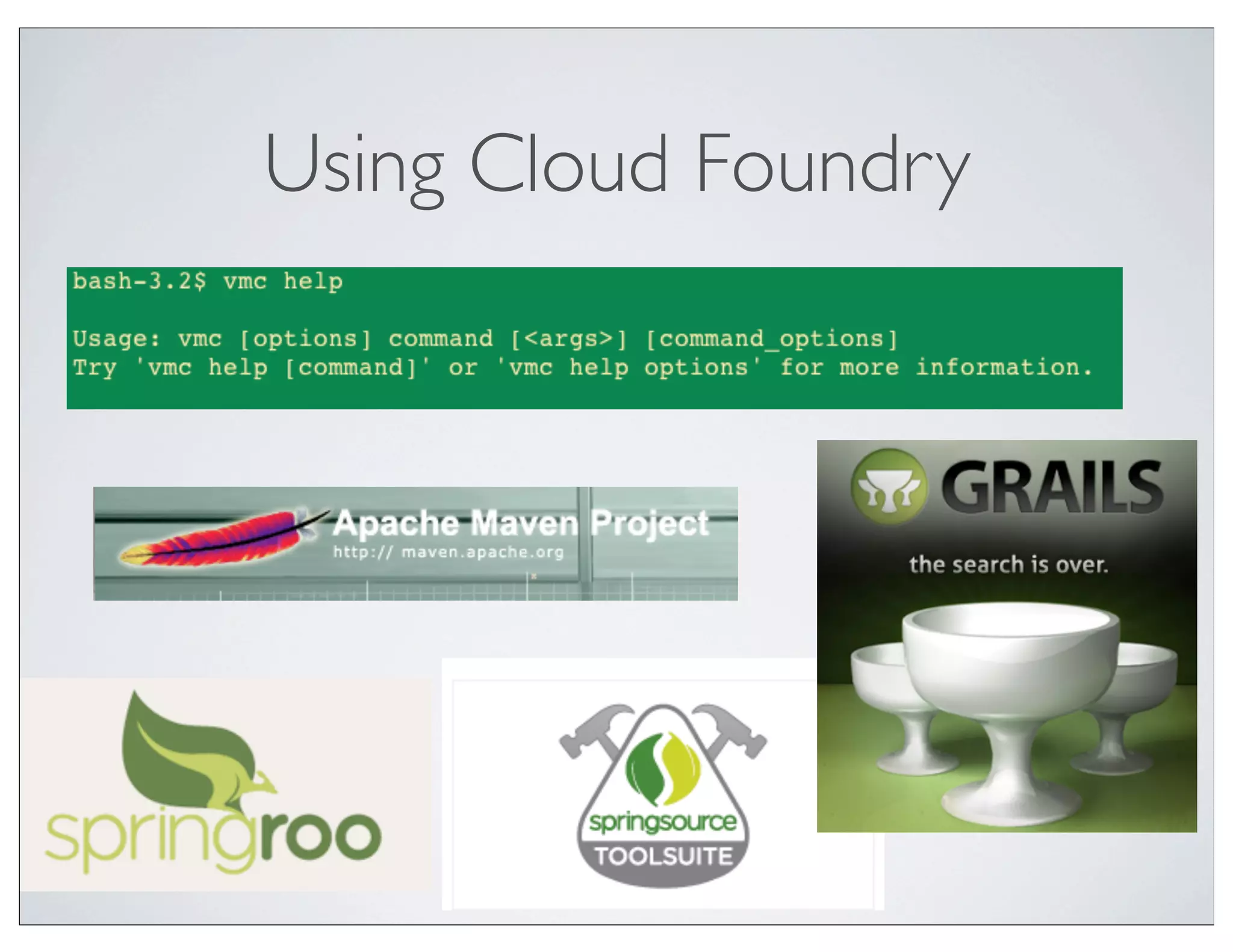

- 56.

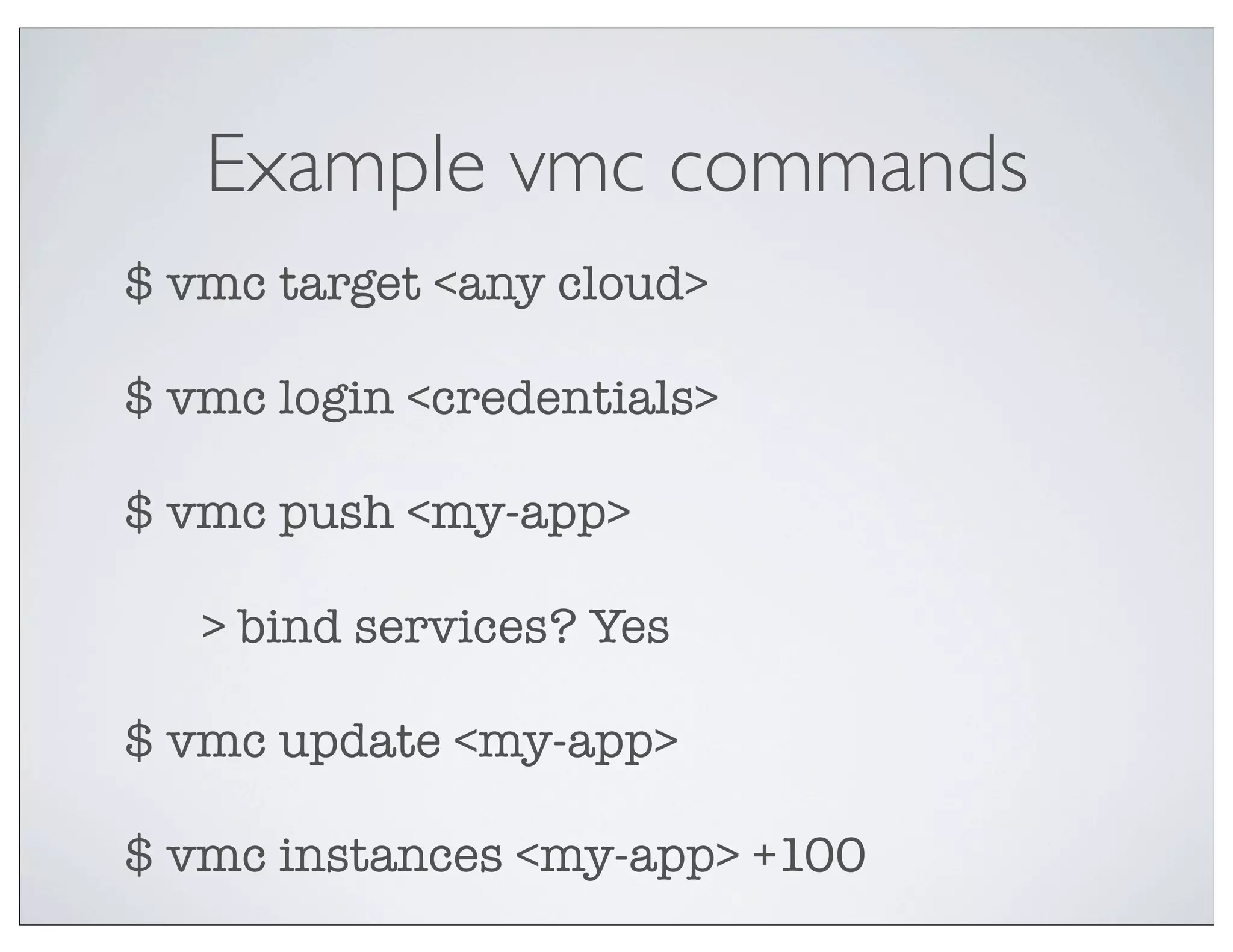

- 57. Example vmc commands $vmc target <any cloud> $ vmc login <credentials> $ vmc push <my-app> > bind services? Yes $ vmc update <my-app> $ vmc instances <my-app> +100

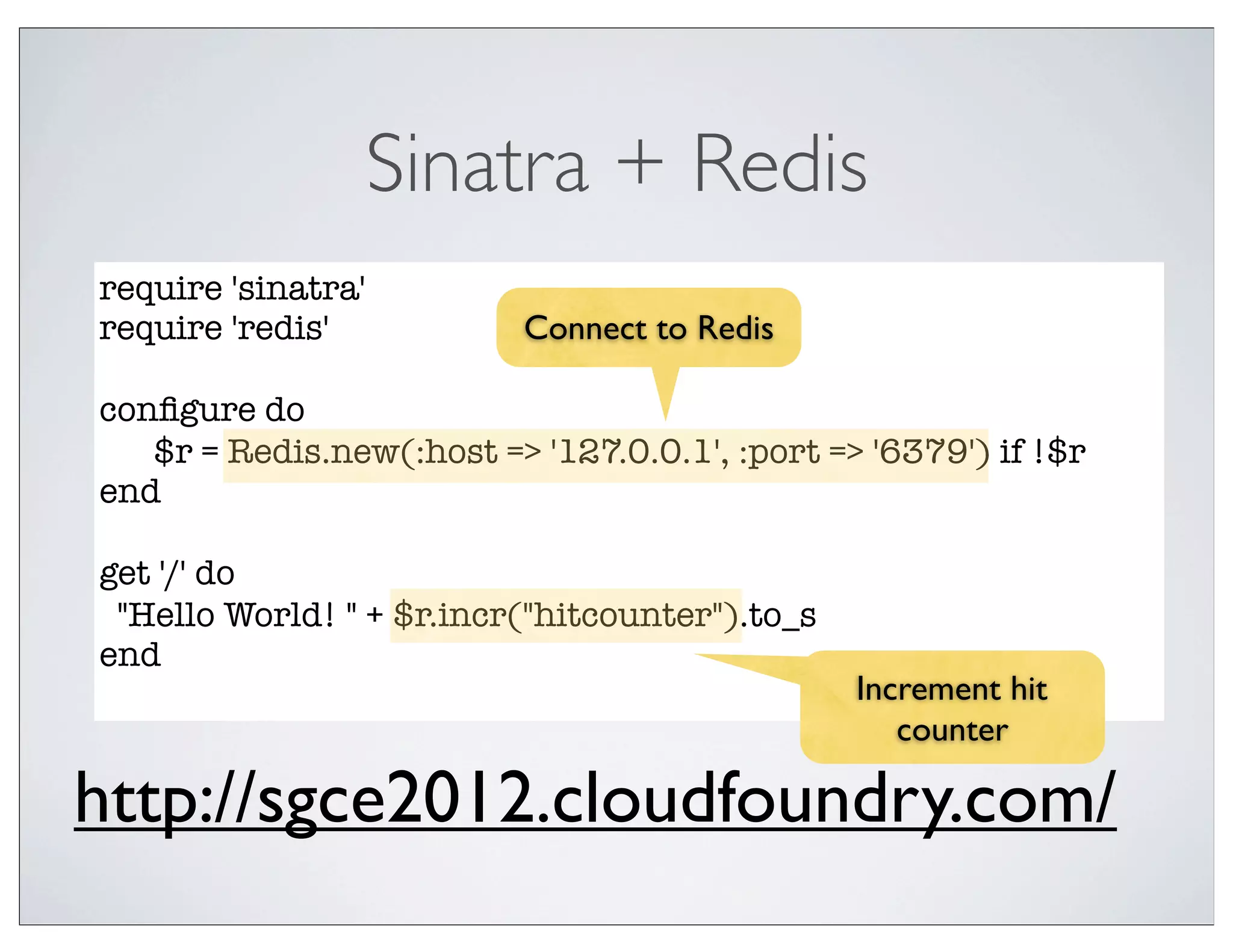

- 58. Sinatra + Redis require'sinatra' require 'redis' Connect to Redis configure do $r = Redis.new(:host => '127.0.0.1', :port => '6379') if !$r end get '/' do "Hello World! " + $r.incr("hitcounter").to_s end Increment hit counter http://sgce2012.cloudfoundry.com/

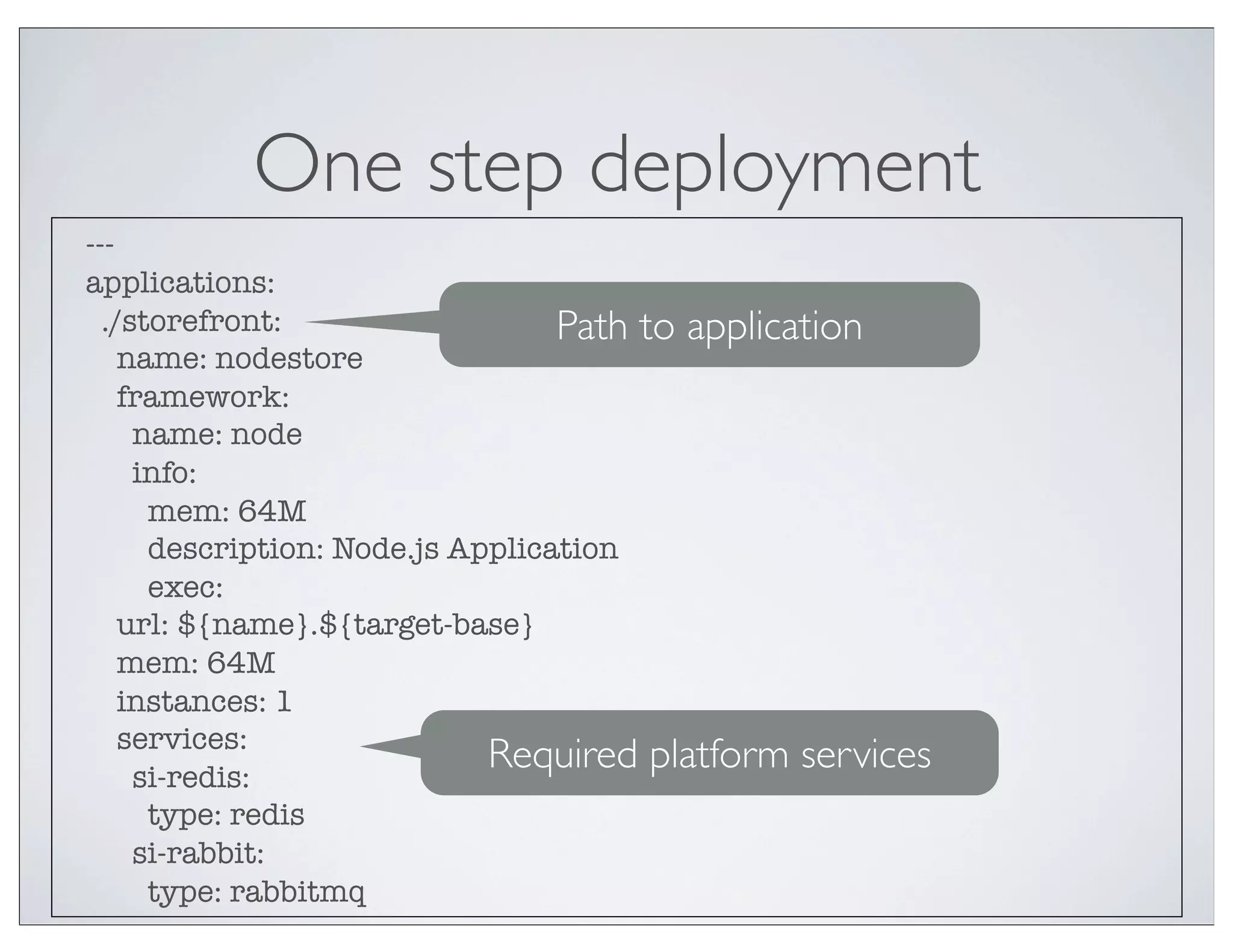

- 60. One step deployment --- applications: ./storefront: Path to application name: nodestore framework: name: node info: mem: 64M description: Node.js Application exec: url: ${name}.${target-base} mem: 64M instances: 1 services: si-redis: Required platform services type: redis si-rabbit: type: rabbitmq

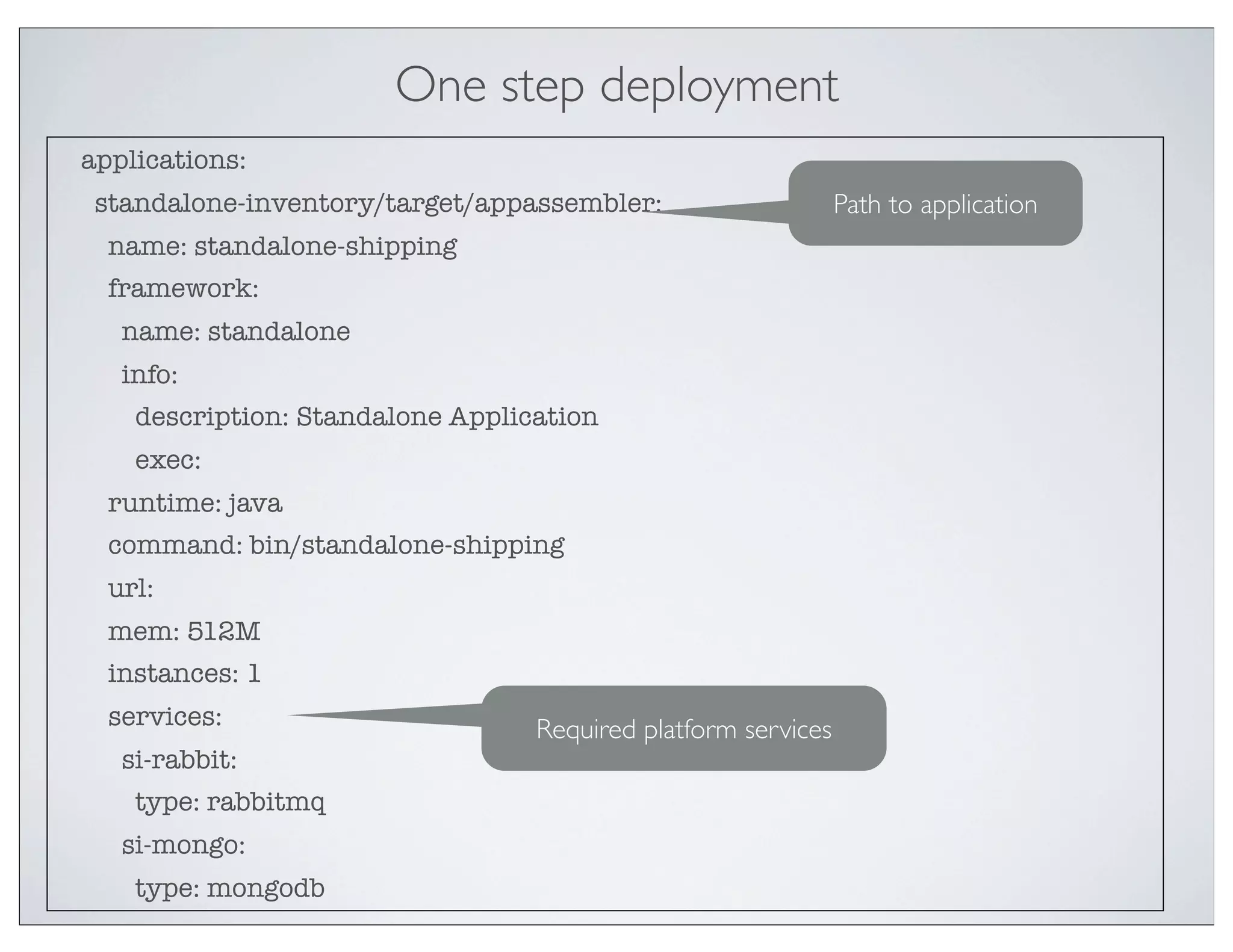

- 61. One step deployment applications: standalone-inventory/target/appassembler: Path to application name: standalone-shipping framework: name: standalone info: description: Standalone Application exec: runtime: java command: bin/standalone-shipping url: mem: 512M instances: 1 services: Required platform services si-rabbit: type: rabbitmq si-mongo: type: mongodb
- 62. One step deployment $vmc push Would you like to deploy from the current directory? [Yn]: Pushing application 'inventory'... Creating Application: OK Creating Service [si-rabbit]: OK Binding Service [si-rabbit]: OK Creating Service [si-mongo]: OK Binding Service [si-mongo]: OK vmc push: Creating Service [si-redis]: OK •Reads the manifest file Binding Service [si-redis]: OK •Creates the required platform services Uploading Application: •Deploys all the applications Checking for available resources: OK Processing resources: OK Packing application: OK Uploading (12K): OK Push Status: OK Staging Application 'inventory': OK Starting Application 'inventory': OK Pushing application 'store'...

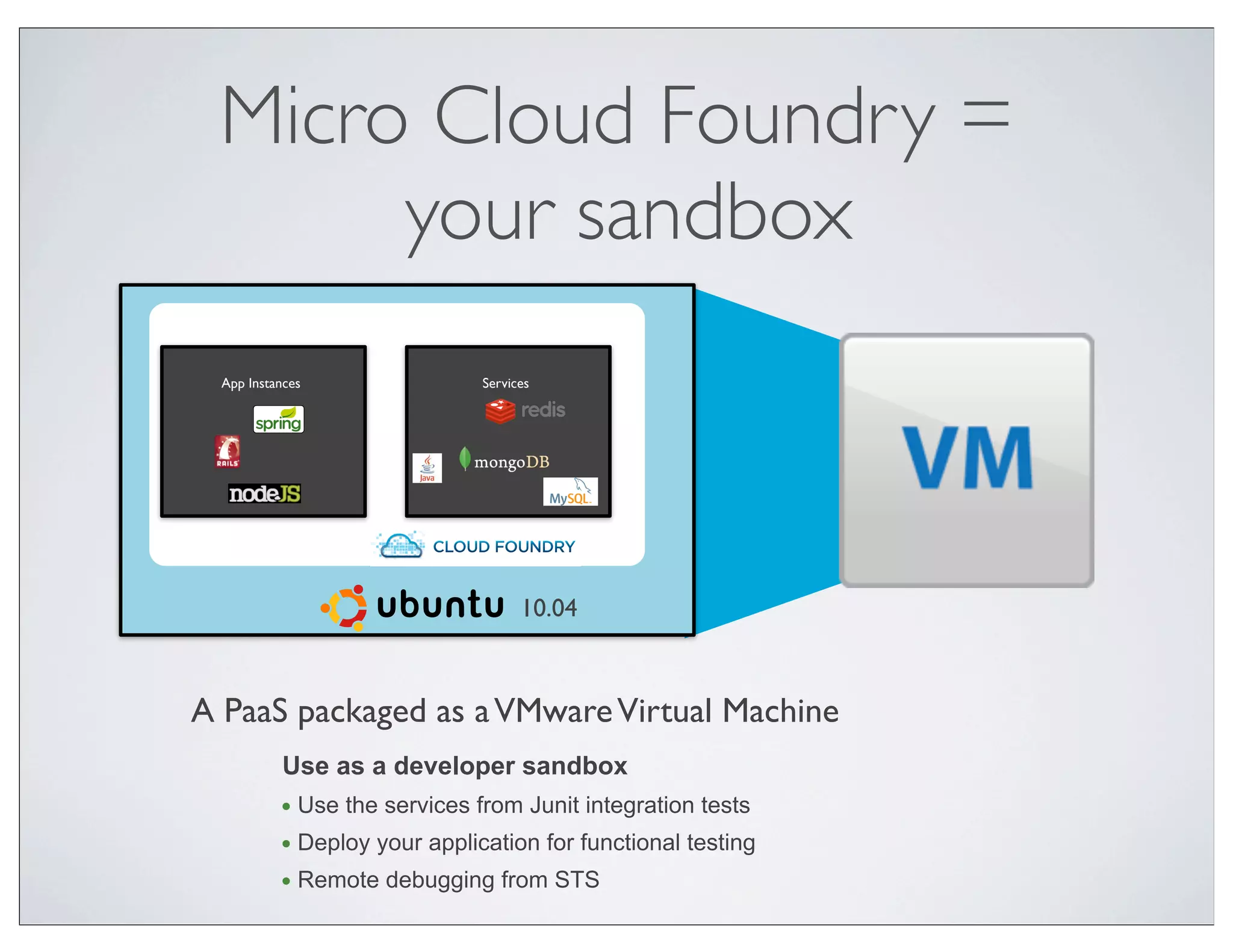

- 63. Micro Cloud Foundry= your sandbox App Instances Services Open source Platform as a Service project 10.04 A PaaS packaged as a VMware Virtual Machine Use as a developer sandbox • Use the services from Junit integration tests • Deploy your application for functional testing • Remote debugging from STS

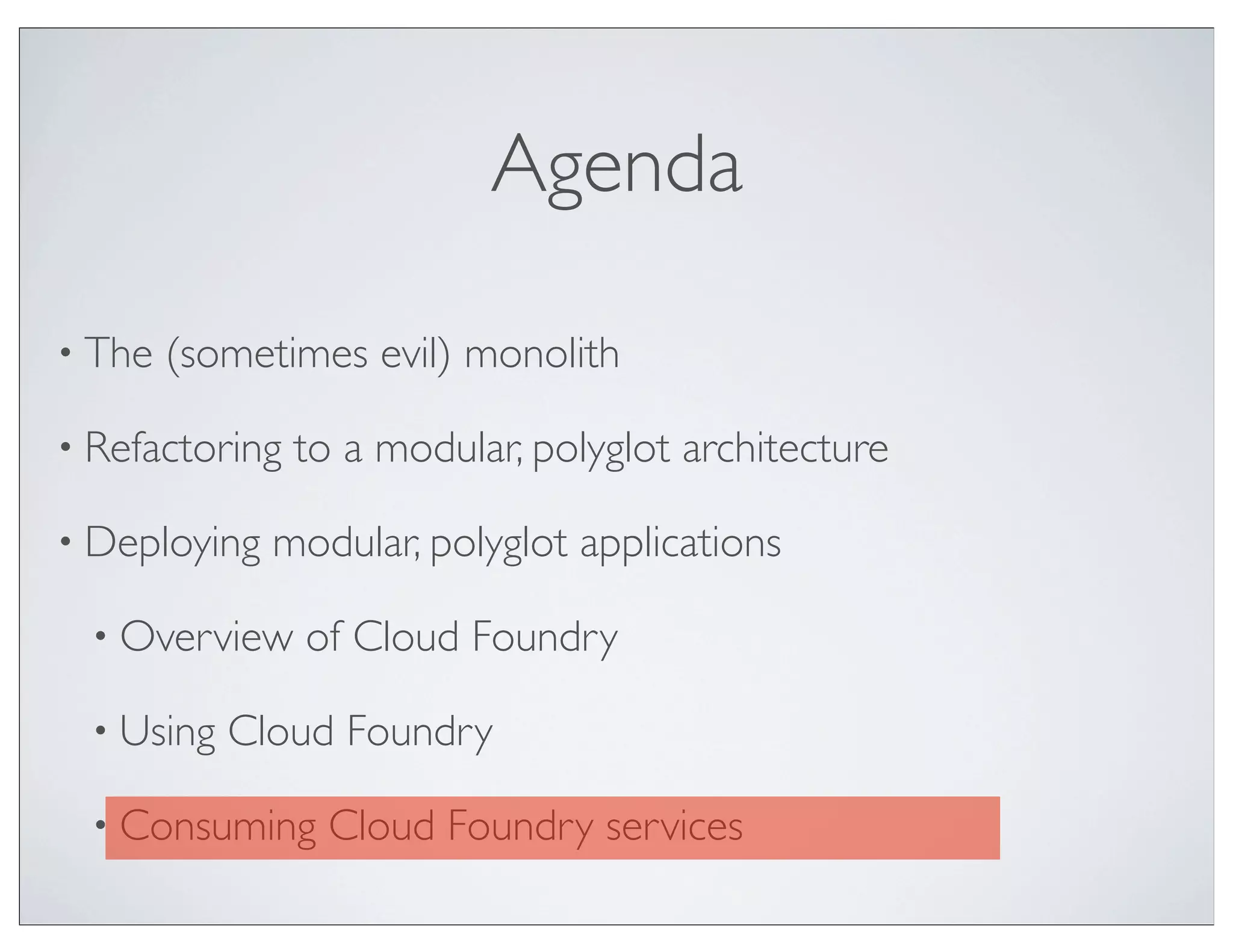

- 64. Agenda • The (sometimes evil) monolith • Refactoring to a modular, polyglot architecture • Deploying modular, polyglot applications • Overview of Cloud Foundry • Using Cloud Foundry • Consuming Cloud Foundry services

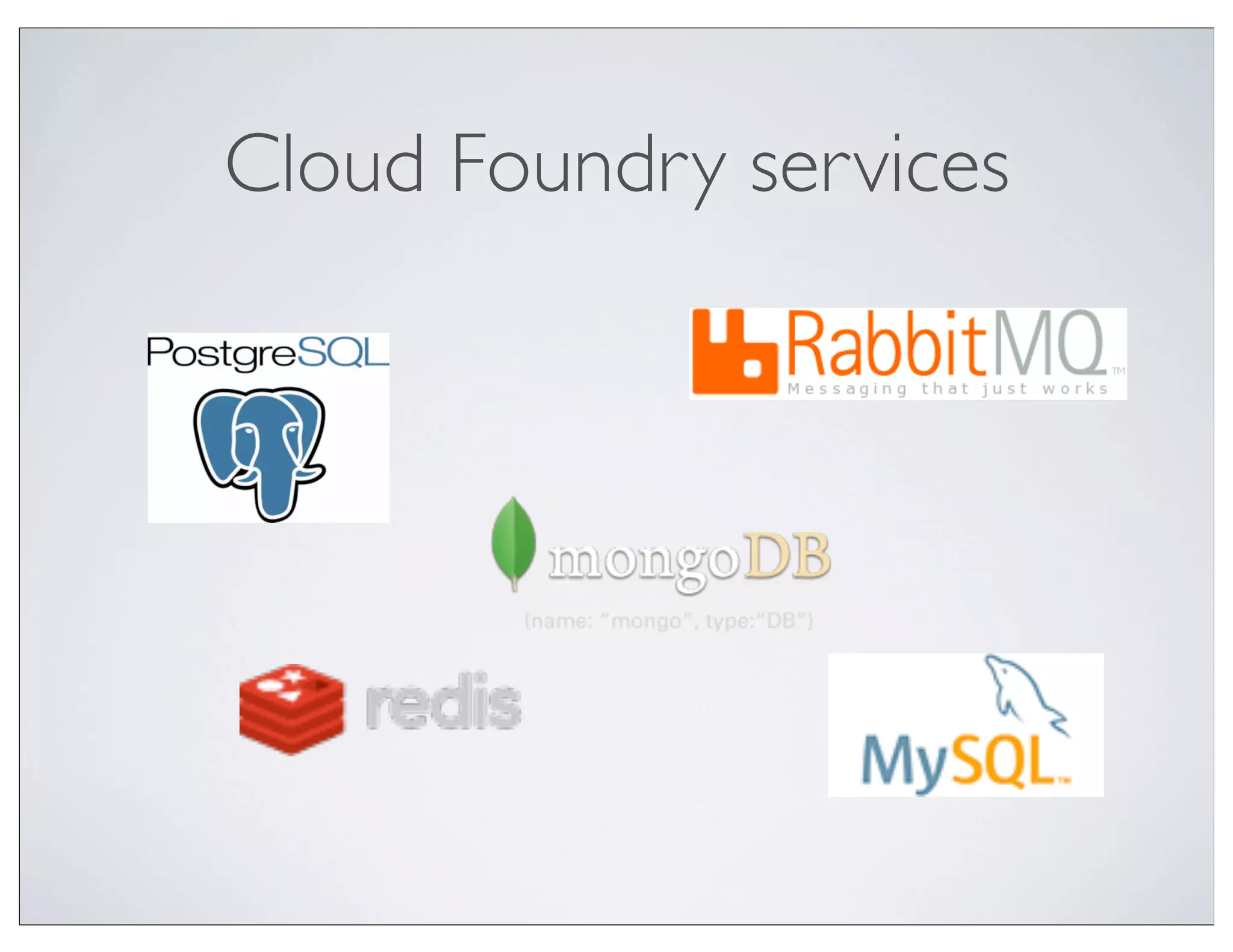

- 65.

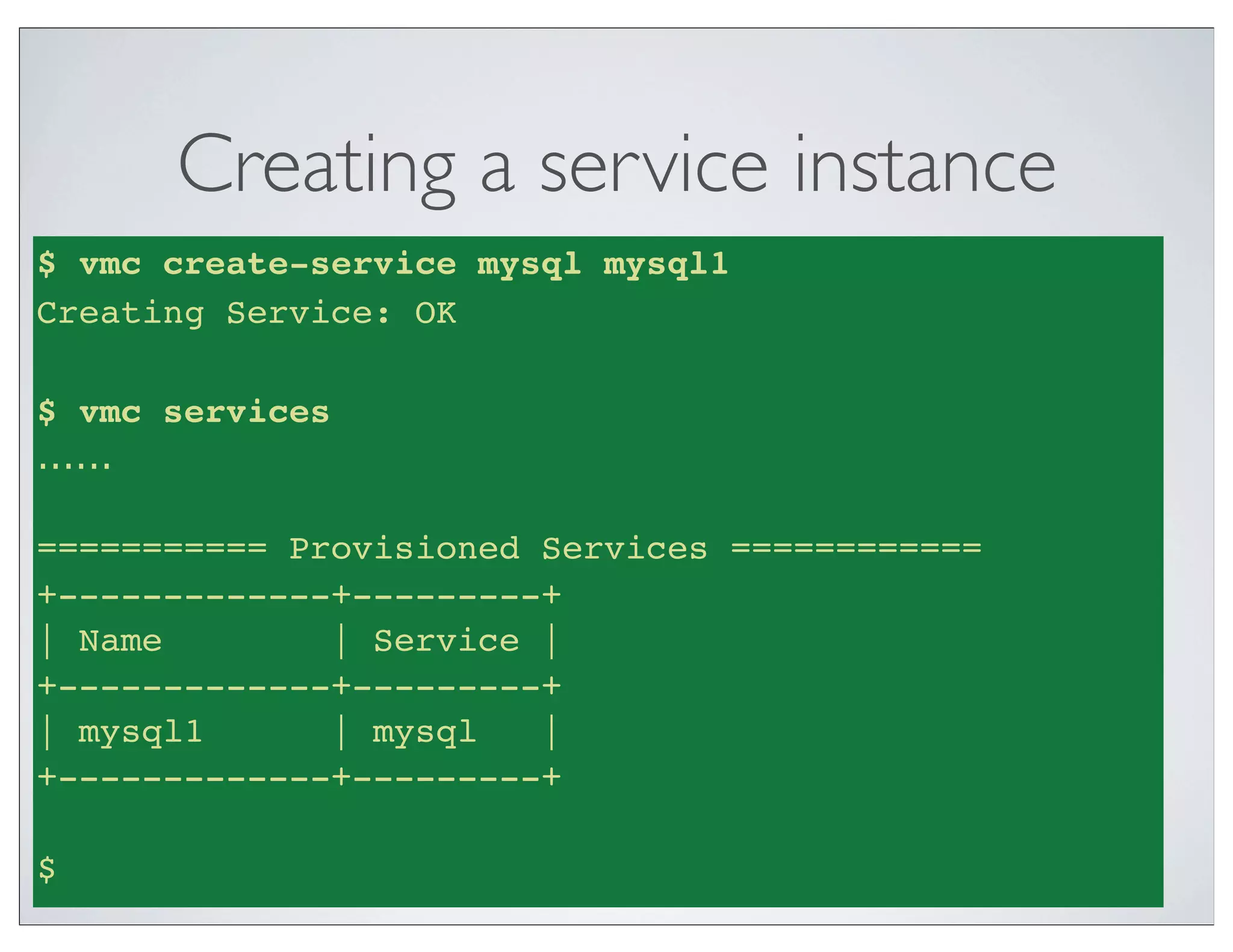

- 66. Creating a serviceinstance $ vmc create-service mysql mysql1 Creating Service: OK $ vmc services ...... =========== Provisioned Services ============ +-------------+---------+ | Name | Service | +-------------+---------+ | mysql1 | mysql | +-------------+---------+ $
- 67. Binding a serviceto an application $ vmc push cer-spring --path web/target/ Application Deployed URL [cer-spring.cloudfoundry.com]: Detected a Java SpringSource Spring Application, is this correct? [Yn]: Memory Reservation (64M, 128M, 256M, 512M, 1G) [512M]: Creating Application: OK Would you like to bind any services to 'cer-spring'? [yN]: y [yN]: y Would you like to bind any services to 'cer-spring'? Would you like to use anan existing provisioned service? [yN]: y Would you like to use existing provisioned service? [yN]: y The The following provisioned servicesavailable following provisioned services are are available 1: mysql1 1: mysql1 2: mysql-135e0 2: mysql-135e0 Please select one you wish to use:use: 1 Please select one you wish to 1 Binding Service [mysql1]: OK OK Binding Service [mysql1]: Uploading Application: Checking for available resources: OK Processing resources: OK Packing application: OK Uploading (12K): OK
- 68. Bindings exposed through VCAP_SERVICESenvironment variable { "mysql-5.1": [{ "name": "mysql1", "label": "mysql-5.1", "plan": "free", "tags": ["mysql", "mysql-5.1", "relational"], "credentials": { "name": "da81b57c25cca4c65929a223f0ed068a0", "host": "172.99.99.99", "port": 3306, "username": "secretusername", "password": "secretuserpassword" .... } }] }
- 69. Accessing bound services: low-level var services = JSON.parse(process.env.VCAP_SERVICES); var creds = services['mysql-5.1'][0].credentials configure do services = JSON.parse(ENV['VCAP_SERVICES']) mysql_key = services.keys.select { |svc| svc =~ /mysql/i }.first mysql = services[mysql_key].first['credentials'] mysql_conf = {:host => mysql['hostname'], :port => mysql['port'], :username => mysql['user'], :password => mysql['password']} @@client = Mysql2::Client.new mysql_conf end

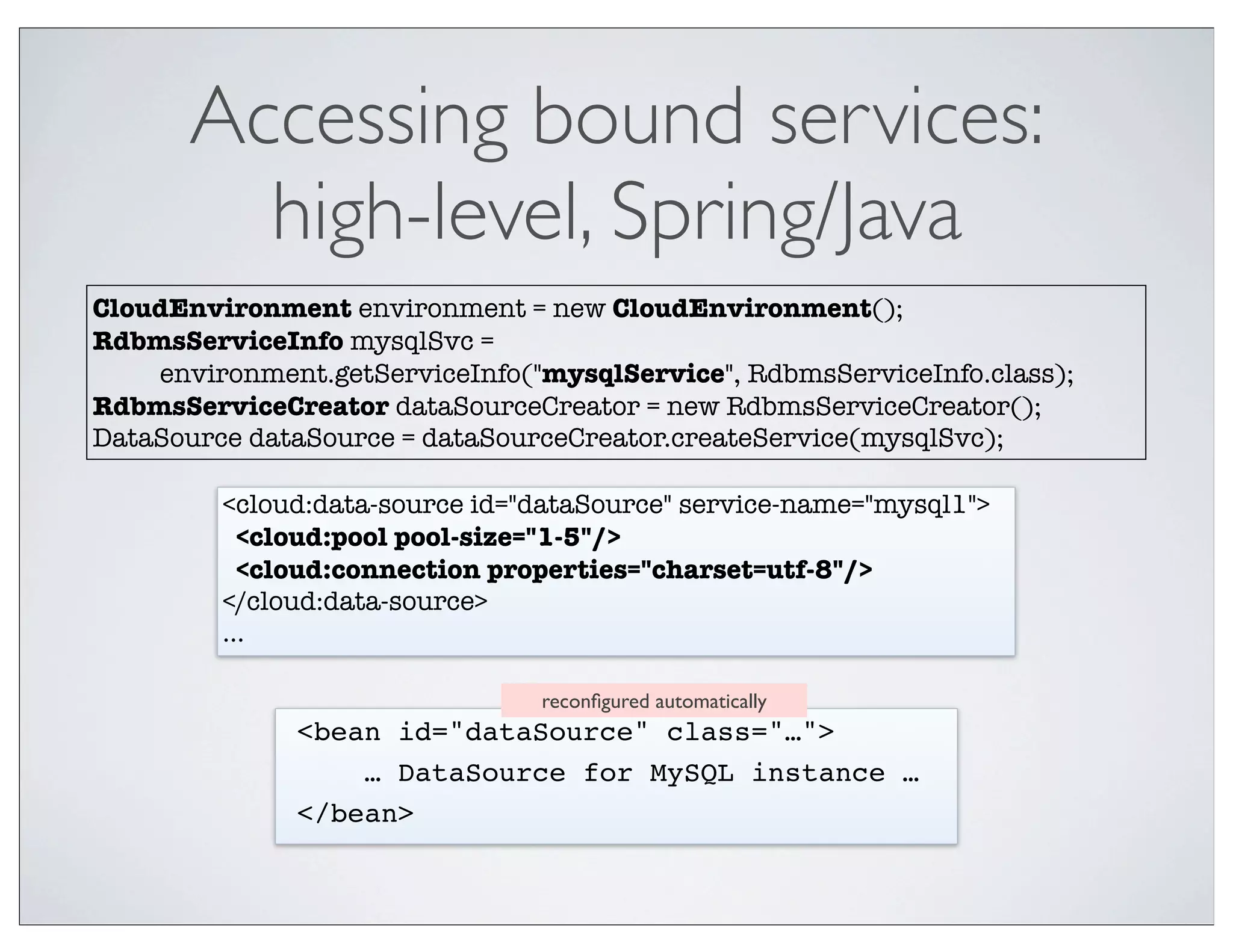

- 70. Accessing bound services: high-level, Spring/Java CloudEnvironment environment = new CloudEnvironment(); RdbmsServiceInfo mysqlSvc = environment.getServiceInfo("mysqlService", RdbmsServiceInfo.class); RdbmsServiceCreator dataSourceCreator = new RdbmsServiceCreator(); DataSource dataSource = dataSourceCreator.createService(mysqlSvc); <cloud:data-source id="dataSource" service-name="mysql1"> <cloud:pool pool-size="1-5"/> <cloud:connection properties="charset=utf-8"/> </cloud:data-source> ... reconfigured automatically <bean id="dataSource" class="…"> … DataSource for MySQL instance … </bean>

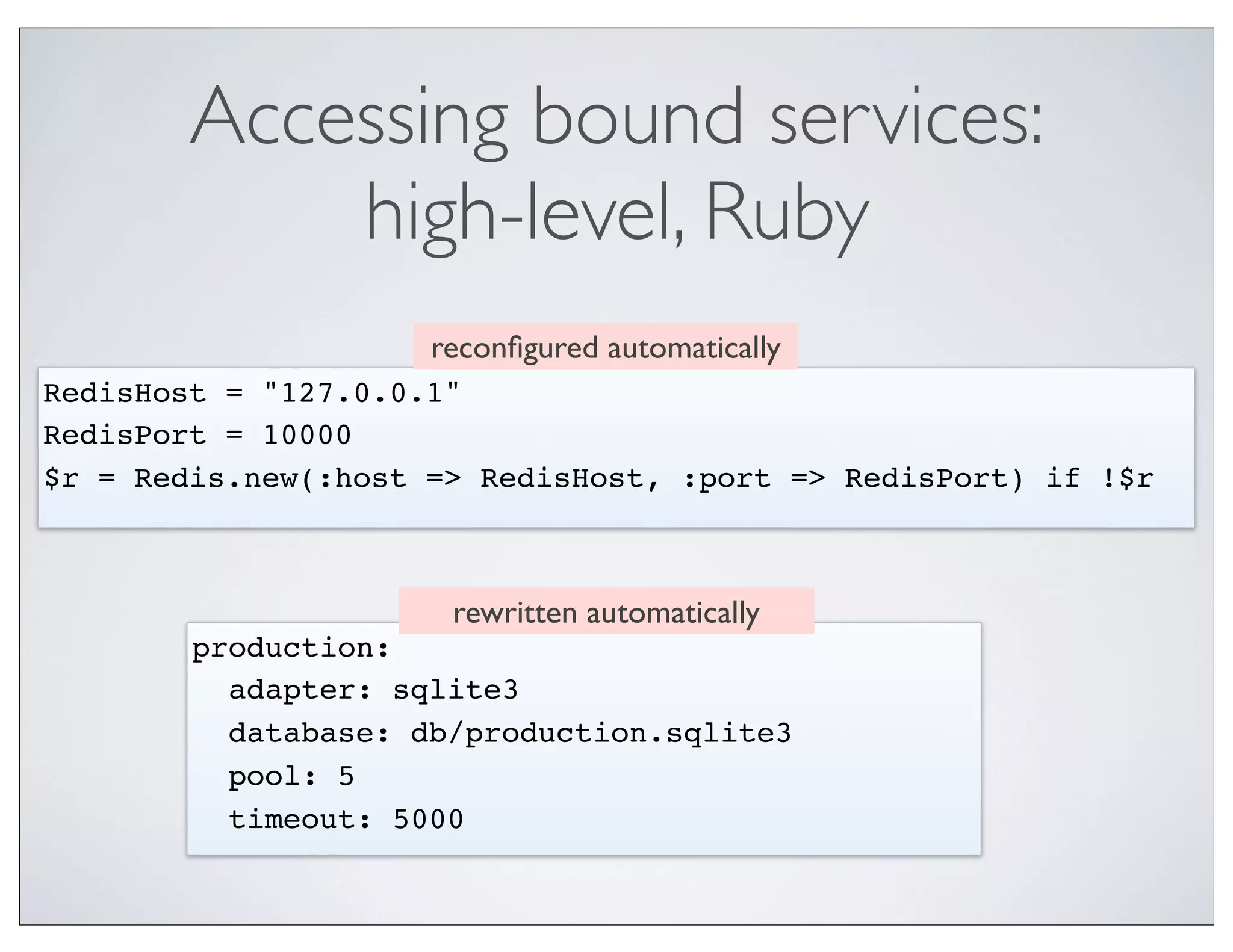

- 71. Accessing bound services: high-level, Ruby reconfigured automatically RedisHost = "127.0.0.1" RedisPort = 10000 $r = Redis.new(:host => RedisHost, :port => RedisPort) if !$r rewritten automatically production: adapter: sqlite3 database: db/production.sqlite3 pool: 5 timeout: 5000
- 72. The human bodyas a system
- 73. 50 to 70billion of your cells die each day
- 74. Yet you (thesystem) remain you
- 75. Can we buildsoftware systems with these characteristics? http://dreamsongs.com/Files/ DesignBeyondHumanAbilitiesSimp.pdf http://dreamsongs.com/Files/ WhitherSoftware.pdf
- 76. @crichardson crichardson@vmware.com http://plainoldobjects.com/presentations/ Questions? www.cloudfoundry.com @cloudfoundry
