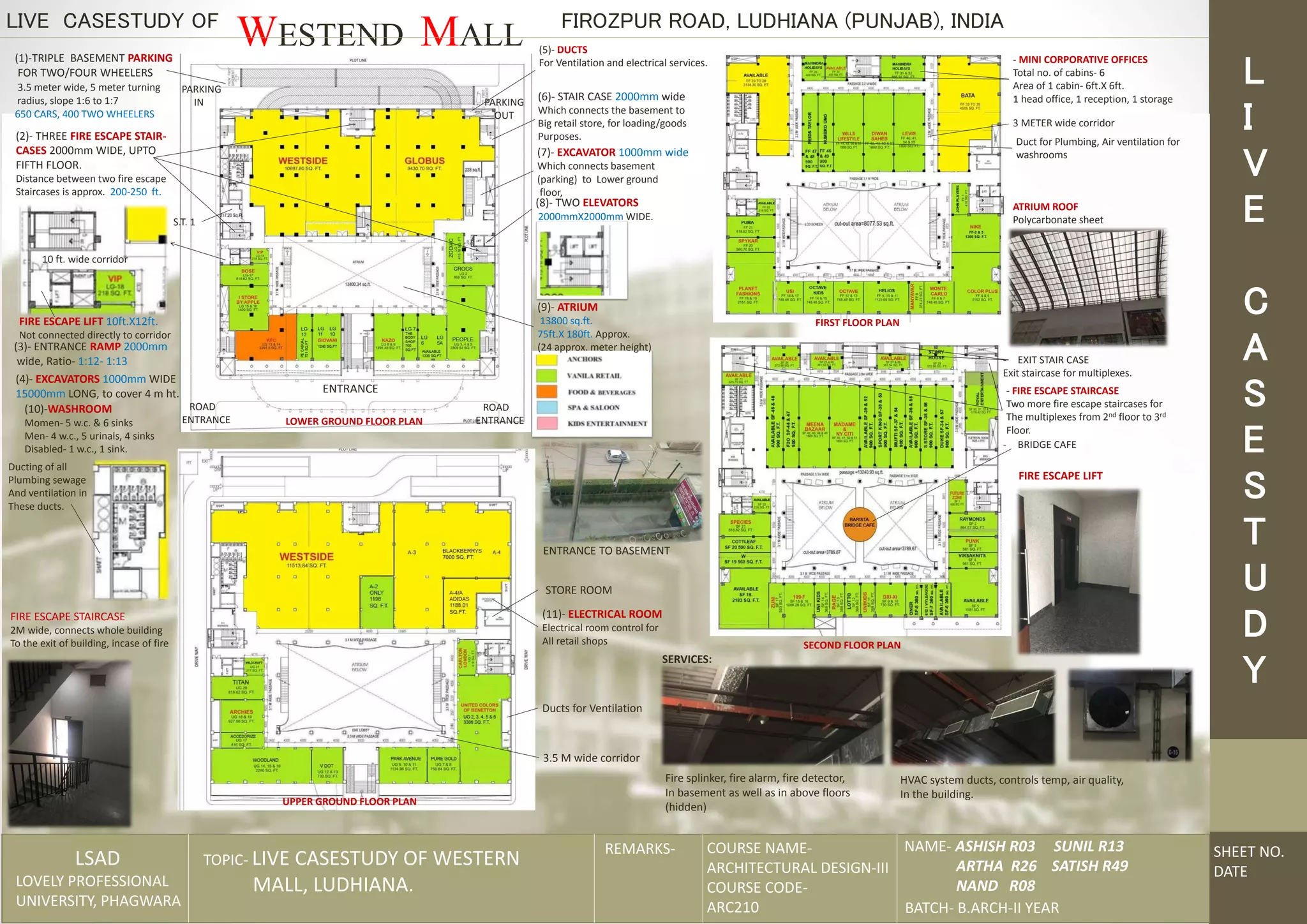

LIVE CASESTUDY OF
WESTEND MALL
FIROZPUR ROAD, LUDHIANA (PUNJAB), INDIA
ENTRANCE
ROAD
ENTRANCE
ROAD
ENTRANCE
PARKING
OUT
PARKING
IN
(1)-TRIPLE BASEMENT PARKING
FOR TWO/FOUR WHEELERS
3.5 meter wide, 5 meter turning
radius, slope 1:6 to 1:7
650 CARS, 400 TWO WHEELERS
(2)- THREE FIRE ESCAPE STAIR-
CASES 2000mm WIDE, UPTO
FIFTH FLOOR.
Distance between two fire escape
Staircases is approx. 200-250 ft.
10 ft. wide corridor
FIRE ESCAPE LIFT 10ft.X12ft.
Not connected directly to corridor
LOWER GROUND FLOOR PLAN
(3)- ENTRANCE RAMP 2000mm
wide, Ratio- 1:12- 1:13
(4)- EXCAVATORS 1000mm WIDE
15000mm LONG, to cover 4 m ht.
(7)- EXCAVATOR 1000mm wide
Which connects basement
(parking) to Lower ground
floor,
(8)- TWO ELEVATORS
2000mmX2000mm WIDE.
(9)- ATRIUM
13800 sq.ft.
75ft.X 180ft. Approx.
(24 approx. meter height)
(6)- STAIR CASE 2000mm wide
Which connects the basement to
Big retail store, for loading/goods
Purposes.
(5)- DUCTS
For Ventilation and electrical services.
UPPER GROUND FLOOR PLAN
(10)-WASHROOM
Momen- 5 w.c. & 6 sinks
Men- 4 w.c., 5 urinals, 4 sinks
Disabled- 1 w.c., 1 sink.
Ducting of all
Plumbing sewage
And ventilation in
These ducts.
(11)- ELECTRICAL ROOM
Electrical room control for
All retail shops
Ducts for Ventilation
3.5 M wide corridor
STORE ROOM
FIRST FLOOR PLAN
- MINI CORPORATIVE OFFICES
Total no. of cabins- 6
Area of 1 cabin- 6ft.X 6ft.
1 head office, 1 reception, 1 storage
3 METER wide corridor
Duct for Plumbing, Air ventilation for
washrooms
SECOND FLOOR PLAN
- FIRE ESCAPE STAIRCASE
Two more fire escape staircases for
The multiplexes from 2nd floor to 3rd
Floor.
- EXIT STAIR CASE
Exit staircase for multiplexes.
- BRIDGE CAFE
FIRE ESCAPE STAIRCASE
2M wide, connects whole building
To the exit of building, incase of fire
ENTRANCE TO BASEMENT
SERVICES:
Fire splinker, fire alarm, fire detector,
In basement as well as in above floors
(hidden)
HVAC system ducts, controls temp, air quality,
In the building.
FIRE ESCAPE LIFT
ATRIUM ROOF
Polycarbonate sheetS.T. 1

2. L
I
V
E
C
A
S
E
S
T
U
D
Y
LSAD
LOVELY PROFESSIONAL
UNIVERSITY, PHAGWARA
TOPIC- LIVE CASESTUDY OF WESTERN
MALL, LUDHIANA.
SHEET NO.
DATE
NAME- ASHISH R03 SUNIL R13
ARTHA R26 SATISH R49
NAND R08
COURSE NAME-
ARCHITECTURAL DESIGN-III
COURSE CODE-
ARC210
REMARKS-
LIVE CASESTUDY OF
WESTEND MALL
FIROZPUR ROAD, LUDHIANA (PUNJAB), INDIA
SECOND FLOOR PLAN
FIRE ESCAPE STAIRCASE
for 4 cinemas.
EXIT GATE STAIRCASE
For cinemas
MEN TOILET
6 w.c., 15-30 urinals
4 sinks
WOMEN TOILET
11 w.c., 10 sinks
ENTRANCE TO
MULTIPLEXES
THIRD FLOOR PLAN
AUDI 1
AUDI 2 AUDI 3
AUDI 4
FOOD
COURT
FOOD
COURT
BRIDGE CAFÉ, 2ND FLOOR
MINI CORPORATE OFFICE
AREA STATEMENT PROJECT Westend Mall, Ludhiana
DATE OF LAUNCH 31st August, 2007
TOTAL LAND AREA 94000 sq.ft.
BUILTUP AREA 471000 sq.ft.
GROSS LEASEABLE
AREA
282000 sq.ft.
PARKING AREA 188300 sq.ft.
ENTERTAINMENT
AREA
51300 sq.ft.
No. OF LEVELS 3 Basements + 7Floors
No. OF ESCALATORS 15
No. OF LIFTS 04+01 (Service)
No. OF TENANTS 73
FOOT FALL 3500 in weekens& 2500 in
weekdays
ARCHITECTURAL
STYLE
Modern Architecture
ARCHITECTURAL FEATURES
OF WESTEND MALL , LUDHIANA
-Easily we can see the whole shops & offices
even by standing in the Atrium.
-Different service staircases for large anchors
for loading/unloading of goods in basement.
-Three Fire Escape Staircases, planned on
perfect places as per NBC norms,
-Fire escape lift is not directly connected to
the building.
-All the Ventilations, Plumbing services are done
in hidden Ducts.
-Large Atrium of 24M height, covered by Poly-
carbonate sheet.
-Rain water harvesting is working, and stores the
water for Horticular and House keeping.
-3 Levels of Parking, 650 cars & 400 two Wheelers
-Easily accessible for wheelchair person.
-Bridge café at height of 10M approx.
-4 screens with total capacity of (1042 seats).
-Perfectly designed to exit Routes from Cinema
hall (from 3rd floor to 2nd floor)
ARCHITECTURAL DRAWBACKS
OF WESTEND MALL , LUDHIANA
-Fire Brigade Car not approachable at the back
part of the building.(in case of Fire)
-Poor Ventilation in 3rd basement.
-Lack of Natural Light in the building.
-Children Entertainment Zone is deigned in Upper
levels.
-Box office & its employers office is not directly
Connected to the Multiplex.
-Distance Between up-down escalators is too long.
-Public Washrooms not easily seen able.
-Problem of traffic jam in site area, during weekend
weeks.
BATCH- B.ARCH-II YEAR
