The document provides a site plan, floor plans, and details for SGS Mall located in Pune, India. The key points are: - The 15,000 square meter mall is located on Bund Garden Road in Camp, Pune and has 50-60 shops and a capacity of 1000-1500 people. - The lower ground floor has a food court, washrooms, and parking. The ground floor has the main entrance and shops facing the road. The basement provides parking for 300 cars and 500 two-wheelers. - Services include a centralized AC system, fire sprinklers, fire extinguishers, escalators, and a panoramic lift. However, the analysis notes some issues

1. SGS Mall Pune.
Hrishikesh Shewale
T.Y.B.Arch
Roll.No-07

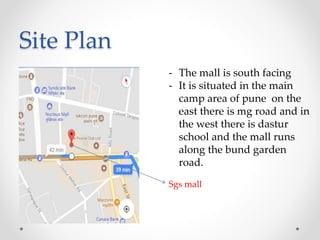

2. Site Plan
- The mall is south facing
- It is situated in the main
camp area of pune on the
east there is mg road and in
the west there is dastur
school and the mall runs
along the bund garden
road.
Sgs mall

3. Facts
• Location: SGS mall , Camp, Bund garden road , Pune.
• Total built area of the mall: 13,000 m2
• Total area approx. – 15,000 m2
• Number of shops: 50 - 60
• Capacity : 1000 – 1500 people

4. Floor Plans
• The lower ground
floor plan consist of -:
• 1 panaromic lift
• 1 escalator
• Food court
• Ladies/gents washrooms
• Parking for staff
Vehicular movement
Atrium

5. Ground floor
• The ground floor plan
consist of
• Main entarance to mall
• 2 escalators
• Panaromic lift
• Separate entarances to
road facing shops
• A drive way along the
mall
Atrium

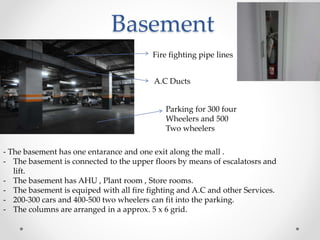

6. Basement
Fire fighting pipe lines
A.C Ducts
Parking for 300 four
Wheelers and 500
Two wheelers
- The basement has one entarance and one exit along the mall .
- The basement is connected to the upper floors by means of escalatosrs and
lift.
- The basement has AHU , Plant room , Store rooms.
- The basement is equiped with all fire fighting and A.C and other Services.
- 200-300 cars and 400-500 two wheelers can fit into the parking.
- The columns are arranged in a approx. 5 x 6 grid.

7. Front Elevation Mall entarance Private entarance
- The mall exterior façade is totally covered with
ACP panels.
- The entarance has a huge canopy supported on
columns .
- The main entarance is all a glass façade .
- The shops facing the main entarances have
their separate entarances and security check.

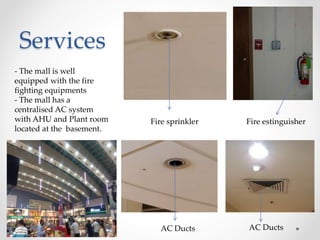

8. Services
Fire sprinkler Fire estinguisher
AC Ducts AC Ducts
- The mall is well
equipped with the fire
fighting equipments
- The mall has a
centralised AC system
with AHU and Plant room
located at the basement.

9. Services
washrooms
Escalators Washrooms for handicapped
Panaromic lift
- The mall has only one
toilet for ladies as well
as gents at the lower
ground floor .
- The mall has two
escalators on both ends
and it also has a
panaromic lift from
where the whole mall
can be viewed.

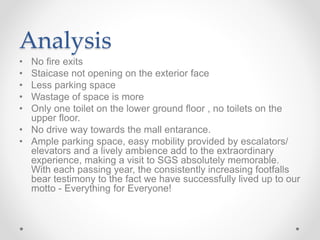

10. Analysis
• No fire exits
• Staicase not opening on the exterior face
• Less parking space
• Wastage of space is more
• Only one toilet on the lower ground floor , no toilets on the
upper floor.
• No drive way towards the mall entarance.
• Ample parking space, easy mobility provided by escalators/
elevators and a lively ambience add to the extraordinary
experience, making a visit to SGS absolutely memorable.
With each passing year, the consistently increasing footfalls
bear testimony to the fact we have successfully lived up to our
motto - Everything for Everyone!

11. Facilities
