Fun Republic is a 3,70,000 square foot mall located in Lucknow, India. It has two basement levels for parking with 250 car spots each and outdoor parking for approximately 2,000-2,500 two-wheelers. The setbacks are 20 meters in front, 25 meters in the rear, and 15 meters on each side. The mall also includes a 60-room boutique hotel spread across four floors connected by four steel bridges running through the atrium. Fire safety features include sprinklers, landing valves, and six fire escape staircases.

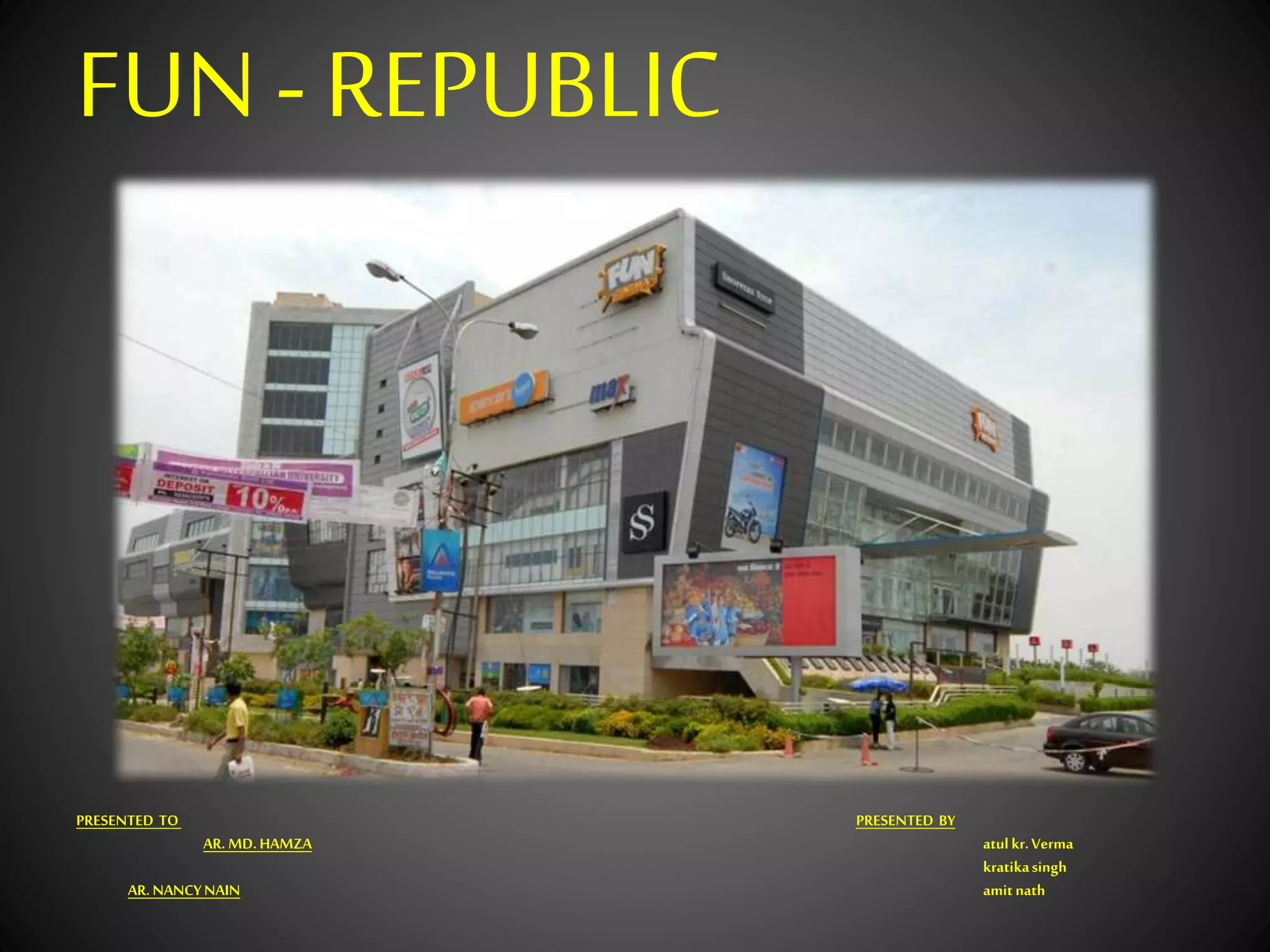

1. FUN - REPUBLIC
PRESENTED TO
AR. MD.HAMZA
AR.NANCYNAIN
PRESENTED BY
atulkr.Verma
kratikasingh
amitnath

2. INTRODUCTION C
A
S
E
S
T
U
D
Y
LANDMARK LOCATION
Reserve bank Of India Closet to ELDECO GREEN Apartment
Dr. R M Lohia park
PROJECTOWNER ORIENTATIONOf
ZEE Group. BUILDING
NW- SE
N
 Fun Republic in
Lucknow is a 3,70,000
sq ft (of leasable area)
edifice, opened on
February 2, 2007.

3. C
A
S
E
S
T
U
D
Y
1
2
Entry
Main
Entry
Exit
1. TWO WHEELER PARKING
2. DIGITAL GENERATOR SET
Way to
basement
2. FOUR WHEELER PARKING

4. C
A
S
E
S
T
U
D
Y

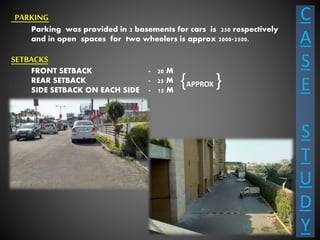

PARKING
Parking was provided in 2 basements for cars is 250 respectively
and in open spaces for two wheelers is approx 2000-2500.
SETBACKS
FRONT SETBACK - 20 M
REAR SETBACK - 25 M
SIDE SETBACK ON EACH SIDE - 15 M
{APPROX }

5. C
A
S
E
S
T
U
D
Y
 Another innovation to the model of modern malls is the presence
of a hotel block.
 Fun Republic boasts of a 60 room boutique business hotel, spread
over 4 floors.
 Four steel bridges, all columns-less, would run across the atrium
connecting the two towers of the hotel block. With a 15feet floor to
floor height across all levels.
 The architecture here only enhances functional qualities of retailing.

6. C
A
S
E
S
T
U
D
Y
Basement plan - 1 Basement plan - 2 Ground floor plan

7. C
A
S
E
S
T
U
D
Y

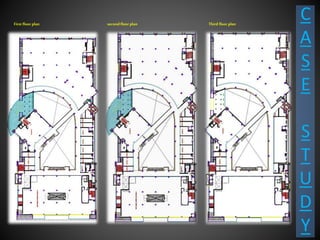

First floor plan second floor plan Third floor plan

8. C
A
S
E
S
T
U
D
Y

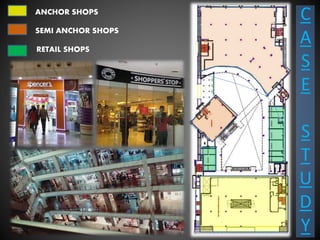

SEMI ANCHOR SHOPS
ANCHOR SHOPS
RETAIL SHOPS

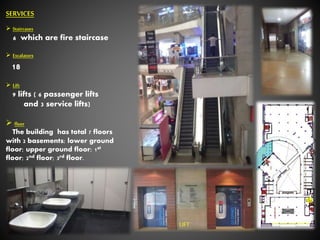

9. SERVICES
 Staircases
6 which are fire staircase
 Escalators
18
 Lift
9 lifts ( 6 passenger lifts
and 3 service lifts)
 floor
The building has total 7 floors
with 2 basements; lower ground
floor; upper ground floor; 1st
floor; 2nd floor; 3rd floor.
LIFT

10. C
A
S
E
S
T
U
D
Y

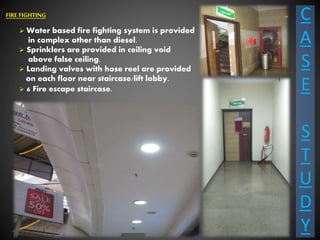

FIRE FIGHTING
 Water based fire fighting system is provided
in complex other than diesel.
 Sprinklers are provided in ceiling void
above false ceiling.
 Landing valves with hose reel are provided
on each floor near staircase/lift lobby.
 6 Fire escape staircase.

11. C
A
S
E
S
T
U
D
Y

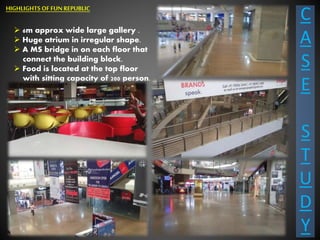

 6m approx wide large gallery .
 Huge atrium in irregular shape.
 A MS bridge in on each floor that
connect the building block.
 Food is located at the top floor
with sitting capacity of 200 person.
HIGHLIGHTS OF FUN REPUBLIC

12. THANK YOU
