This document contains a case study submitted by students at Poornima University, Jaipur about multiplex design. It includes literature studies of various multiplexes in India and Singapore. The document discusses the design of First Cinema in Jaipur, RBD Cinemas in Bharatpur, Wave Mall multiplex in Noida, and White Sands Mall in Singapore. It covers aspects like area and capacity, circulation, connectivity, parking facilities, and amenities of these multiplexes. The document also includes information on relevant building bylaws for commercial projects under unified bylaws.

1. CASE STUDY
MULTIPLEX
SUBMITTED BY :-
AMNISH SINGH
BAIKARE PARSHANT
ROHIT JAIN
SATWINDER SINGH
SAYED ARBAZ ARIF
By POORNIMA UNIVERSITY , Jaipur
Batch 2015-20

2. CONTENT
•FIRST CINEMA , JAIPUR LIVE STUDY
(BAIKARE PRASHANT)
•RBD CINEMAS, BHARATPUR LITERATURE STUDY
(SAYED ARBAZ ARIF)
•WAVE MALL, NOIDA LITERATURE STUDY
(SATWINDER SINGH)
•WHITE SANDS MALL, SINGAPORE LITERATURE STUDY
(ROHIT JAIN)
•INTRODUCTION MULTIPLEX
(AMNISH SINGH)

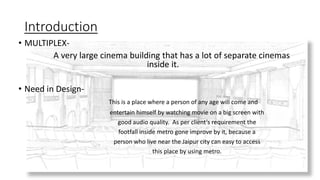

3. Introduction
• MULTIPLEX-
A very large cinema building that has a lot of separate cinemas
inside it.
• Need in Design-
This is a place where a person of any age will come and
entertain himself by watching movie on a big screen with
good audio quality. As per client’s requirement the
footfall inside metro gone improve by it, because a
person who live near the Jaipur city can easy to access
this place by using metro.

4. Some Standards

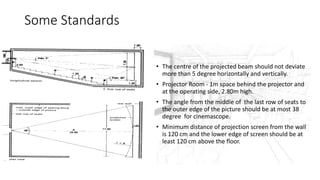

• The centre of the projected beam should not deviate
more than 5 degree horizontally and vertically.
• Projector Room - 1m space behind the projector and
at the operating side, 2.80m high.
• The angle from the middle of the last row of seats to
the outer edge of the picture should be at most 38
degree for cinemascope.
• Minimum distance of projection screen from the wall
is 120 cm and the lower edge of screen should be at
least 120 cm above the floor.

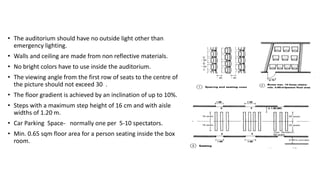

5. • The auditorium should have no outside light other than
emergency lighting.
• Walls and ceiling are made from non reflective materials.
• No bright colors have to use inside the auditorium.
• The viewing angle from the first row of seats to the centre of
the picture should not exceed 30 .
• The floor gradient is achieved by an inclination of up to 10%.
• Steps with a maximum step height of 16 cm and with aisle
widths of 1.20 m.
• Car Parking Space- normally one per 5-10 spectators.
• Min. 0.65 sqm floor area for a person seating inside the box
room.

6. FIRST CINEMA, JAIPUR
L I V E C A S E S T U D Y

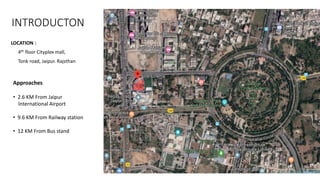

7. INTRODUCTON
LOCATION :
4th floor Cityplex mall,
Tonk road, Jaipur. Rajsthan
Approaches
• 2.6 KM From Jaipur
International Airport
• 9.6 KM From Railway station
• 12 KM From Bus stand

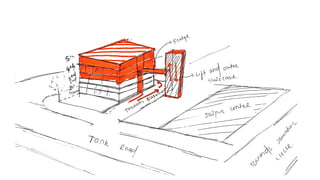

11. Connectivity
SIZE AREA CAPACITY PER PERSON AREA
AUDI 1 18M X 30M 548 sqm. 392 1.4
AUDI 2 14M X 21M 293 sqm 209 1.4
•First cinema multiplex have two Auditorium.
• Multiplex are located at third & fourth floor.
•They can be reacted through escalators, lifts and
staircase.
•All multiplexes connected with a common corridor.
•A common lobby has been provided for both multiplexes.

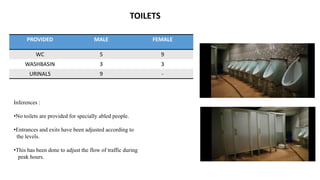

12. PROVIDED MALE FEMALE
WC 5 9
WASHBASIN 3 3
URINALS 9 -
Inferences :
•No toilets are provided for specially abled people.
•Entrances and exits have been adjusted according to
the levels.
•This has been done to adjust the flow of traffic during
peak hours.
TOILETS

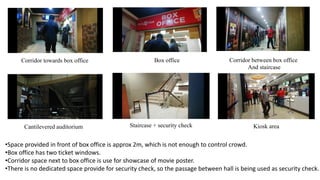

13. Corridor towards box office Box office Corridor between box office
And staircase
Cantilevered auditorium Staircase + security check Kiosk area
•Space provided in front of box office is approx 2m, which is not enough to control crowd.
•Box office has two ticket windows.
•Corridor space next to box office is use for showcase of movie poster.
•There is no dedicated space provide for security check, so the passage between hall is being used as security check.

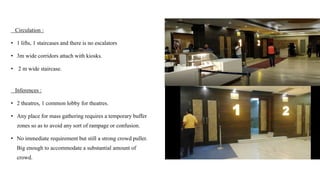

14. Circulation :
• 1 lifts, 1 staircases and there is no escalators
• 3m wide corridors attach with kiosks.
• 2 m wide staircase.
Inferences :
• 2 theatres, 1 common lobby for theatres.
• Any place for mass gathering requires a temporary buffer
zones so as to avoid any sort of rampage or confusion.
• No immediate requirement but still a strong crowd puller.
Big enough to accommodate a substantial amount of
crowd.

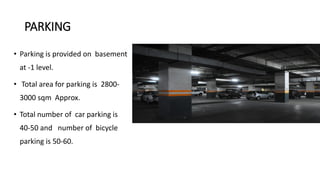

15. PARKING
• Parking is provided on basement
at -1 level.
• Total area for parking is 2800-
3000 sqm Approx.
• Total number of car parking is
40-50 and number of bicycle
parking is 50-60.

16. RDB CINEMAS, BHARATPUR

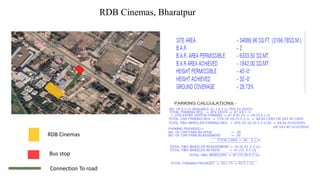

17. RDB Cinemas, Bharatpur
RDB Cinemas
Bus stop
Connection To road

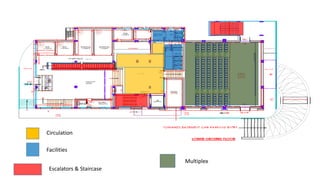

18. Circulation
Facilities
Escalators & Staircase
Multiplex

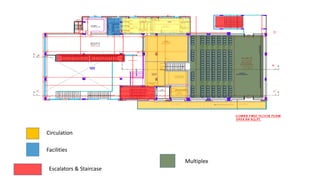

19. Circulation
Facilities
Escalators & Staircase
Multiplex

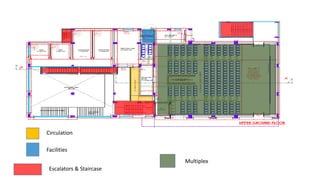

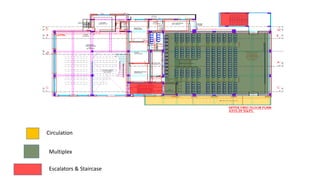

20. Circulation
Facilities
Escalators & Staircase
Multiplex

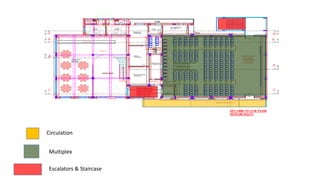

21. Circulation
Escalators & Staircase
Multiplex

22. Circulation
Escalators & Staircase
Multiplex

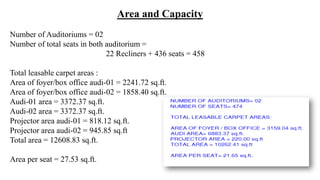

25. Area and Capacity
Number of Auditoriums = 02
Number of total seats in both auditorium =
22 Recliners + 436 seats = 458
Total leasable carpet areas :
Area of foyer/box office audi-01 = 2241.72 sq.ft.
Area of foyer/box office audi-02 = 1858.40 sq.ft.
Audi-01 area = 3372.37 sq.ft.
Audi-02 area = 3372.37 sq.ft.
Projector area audi-01 = 818.12 sq.ft.
Projector area audi-02 = 945.85 sq.ft
Total area = 12608.83 sq.ft.
Area per seat = 27.53 sq.ft.

27. Literature case study
WAVE MALL MULTIPLEX, NOIDA

28. Wave Mall, Noida
Noida sector 18 metro station
Wave Mall, Noida
Site Area :- 8777 sqm.
Approach road :
Entrance : 2 (out of which 1 is used for parking)
Exit : 1
Ground Coverage : 41%
Setbacks : side = 7.5m, rear = 4m, front = 25m
Height = 26m (G+6)
Build up area : 20,576sqm.
* 600 M away from the Noida Sec-18 metro station.

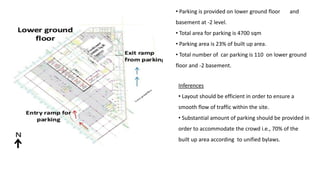

29. • Parking is provided on lower ground floor and
basement at -2 level.
• Total area for parking is 4700 sqm
• Parking area is 23% of built up area.
• Total number of car parking is 110 on lower ground
floor and -2 basement.
Inferences
• Layout should be efficient in order to ensure a
smooth flow of traffic within the site.
• Substantial amount of parking should be provided in
order to accommodate the crowd i.e., 70% of the
built up area according to unified bylaws.

30. Fire staircase
lift
Escalators
Staircase

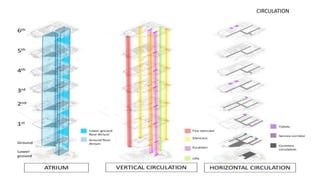

31. CIRCULATION

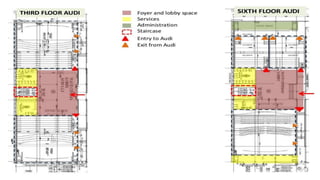

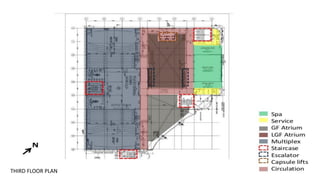

32. THIRD FLOOR PLAN

33. Multplex
Circulation
Services
Entertainment

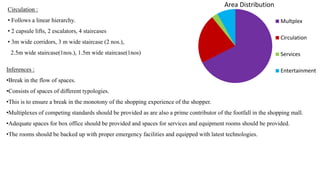

Circulation :
• Follows a linear hierarchy.
• 2 capsule lifts, 2 escalators, 4 staircases
• 3m wide corridors, 3 m wide staircase (2 nos.),
2.5m wide staircase(1nos.), 1.5m wide staircase(1nos)
Inferences :
•Break in the flow of spaces.
•Consists of spaces of different typologies.
•This is to ensure a break in the monotony of the shopping experience of the shopper.
•Multiplexes of competing standards should be provided as are also a prime contributor of the footfall in the shopping mall.
•Adequate spaces for box office should be provided and spaces for services and equipment rooms should be provided.
•The rooms should be backed up with proper emergency facilities and equipped with latest technologies.

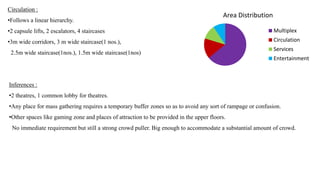

Area Distribution

34. SIXTH FLOOR PLAN

35. Area Distribution
Multiplex
Circulation
Services
Entertainment
Circulation :
•Follows a linear hierarchy.
•2 capsule lifts, 2 escalators, 4 staircases
•3m wide corridors, 3 m wide staircase(1 nos.),
2.5m wide staircase(1nos.), 1.5m wide staircase(1nos)
Inferences :
•2 theatres, 1 common lobby for theatres.
•Any place for mass gathering requires a temporary buffer zones so as to avoid any sort of rampage or confusion.
•Other spaces like gaming zone and places of attraction to be provided in the upper floors.
No immediate requirement but still a strong crowd puller. Big enough to accommodate a substantial amount of crowd.

37. Connectivity :
• Multiplex are located at third floor & sixth floor.
•They can be reacted through escalators, lifts and staircase.
•All multiplexes connected with a common corridor.
•A common lobby has been provided for both the multiplexes.
SIZE AREA CAPACITY PER PERSON AREA
AUDI 1 24M X 26M 624 sqm. 440 1.4
AUDI 2 24M X 26M 624 sqm 440 1.4
AUDI 3 14M x 26M 364 sqm 206 1.7
AUDI 4 14M X 26M 364 sqm 206 1.7
AUDI 5 24M X 32M 768 sqm 500 1.5

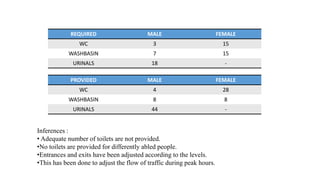

38. REQUIRED MALE FEMALE
WC 3 15
WASHBASIN 7 15
URINALS 18 -
PROVIDED MALE FEMALE
WC 4 28
WASHBASIN 8 8
URINALS 44 -
Inferences :
• Adequate number of toilets are not provided.
•No toilets are provided for differently abled people.
•Entrances and exits have been adjusted according to the levels.
•This has been done to adjust the flow of traffic during peak hours.

39. White Sands Shopping Mall, Singapore

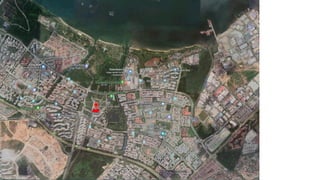

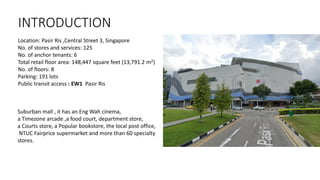

40. Location: Pasir Ris ,Central Street 3, Singapore
No. of stores and services: 125
No. of anchor tenants: 6
Total retail floor area: 148,447 square feet (13,791.2 m2)
No. of floors: 8
Parking: 191 lots
Public transit access : EW1 Pasir Ris
Suburban mall , it has an Eng Wah cinema,
a Timezone arcade ,a food court, department store,
a Courts store, a Popular bookstore, the local post office,
NTUC Fairprice supermarket and more than 60 specialty
stores.
INTRODUCTION

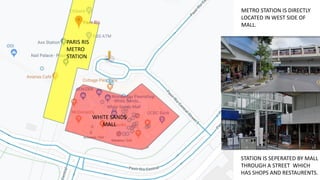

43. PARIS RIS
METRO
STATION
WHITE SANDS
MALL
METRO STATION IS DIRECTLY
LOCATED IN WEST SIDE OF
MALL.
STATION IS SEPERATED BY MALL
THROUGH A STREET WHICH
HAS SHOPS AND RESTAURENTS.

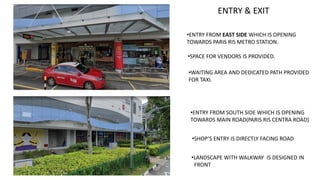

44. ENTRY & EXIT
•ENTRY FROM EAST SIDE WHICH IS OPENING
TOWARDS PARIS RIS METRO STATION.
•SPACE FOR VENDORS IS PROVIDED.
•WAITING AREA AND DEDICATED PATH PROVIDED
FOR TAXI.
•ENTRY FROM SOUTH SIDE WHICH IS OPENING
TOWARDS MAIN ROAD(PARIS RIS CENTRA ROAD)
•SHOP’S ENTRY IS DIRECTLY FACING ROAD
•LANDSCAPE WITH WALKWAY IS DESIGNED IN
FRONT

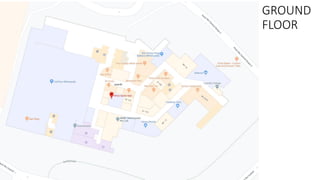

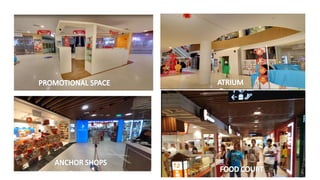

46. GROUND
FLOOR

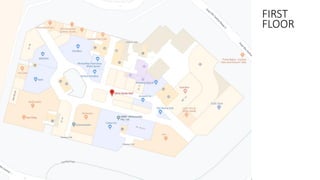

47. FIRST
FLOOR

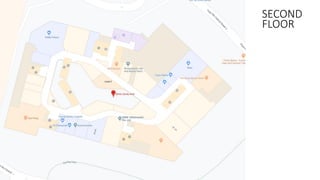

48. SECOND
FLOOR

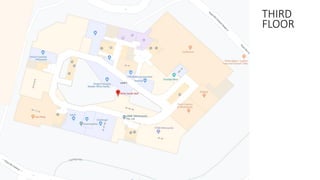

49. THIRD
FLOOR

50. FOURTH
FLOOR

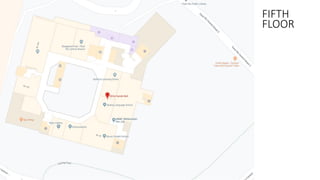

51. FIFTH
FLOOR

52. AMENITIES
•ATMs & FINANCIAL SERVICES
POSB ATM Level 3 (#03-05)
OCBC ATM Level 1 (#01-12A), Basement 1 (inside
Fair Price)
UOB ATM Level 2 (lift lobby)
AXS MACHINE Level 3 (outside POSB)
SAM MACHINE Level 5 (inside Singapore Post)
•FACILITIES
HANDICAPPED TOILETS Basement 1 to Level 5
NURSING ROOMS Basement 1, Level 4 & Level 5
OTHERS
FIRST AID KIT
Available at Customer Service Counter (Level 2)
RENTAL OF UMBRELLAS
RENTAL OF STROLLER

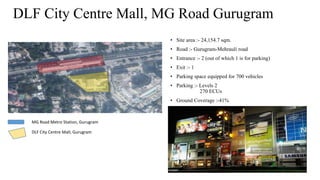

53. DLF City Centre Mall, MG Road Gurugram
• Site area :- 24,154.7 sqm.
• Road :- Gurugram-Mehrauli road
• Entrance :- 2 (out of which 1 is for parking)
• Exit :- 1
• Parking space equipped for 700 vehicles
• Parking :- Levels 2
270 ECUs
• Ground Coverage :-41%
MG Road Metro Station, Gurugram
DLF City Centre Mall, Gurugram

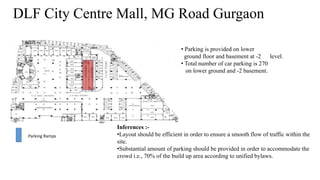

54. DLF City Centre Mall, MG Road Gurgaon
Parking Ramps
• Parking is provided on lower
ground floor and basement at -2 level.
• Total number of car parking is 270
on lower ground and -2 basement.
Inferences :-
•Layout should be efficient in order to ensure a smooth flow of traffic within the
site.
•Substantial amount of parking should be provided in order to accommodate the
crowd i.e., 70% of the build up area according to unified bylaws.

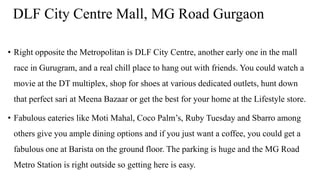

55. DLF City Centre Mall, MG Road Gurgaon
• Right opposite the Metropolitan is DLF City Centre, another early one in the mall
race in Gurugram, and a real chill place to hang out with friends. You could watch a
movie at the DT multiplex, shop for shoes at various dedicated outlets, hunt down
that perfect sari at Meena Bazaar or get the best for your home at the Lifestyle store.
• Fabulous eateries like Moti Mahal, Coco Palm’s, Ruby Tuesday and Sbarro among
others give you ample dining options and if you just want a coffee, you could get a
fabulous one at Barista on the ground floor. The parking is huge and the MG Road
Metro Station is right outside so getting here is easy.

56. DLF City Centre Mall

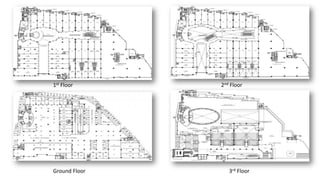

59. Ground Floor
1st Floor 2nd Floor
3rd Floor

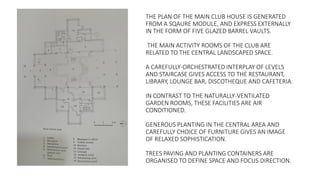

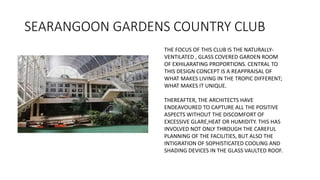

60. SEARANGOON GARDENS COUNTRY CLUB
THE FOCUS OF THIS CLUB IS THE NATURALLY-
VENTILATED , GLASS COVERED GARDEN ROOM
OF EXHILARATING PROPORTIONS. CENTRAL TO
THIS DESIGN CONCEPT IS A REAPPRAISAL OF
WHAT MAKES LIVING IN THE TROPIC DIFFERENT;
WHAT MAKES IT UNIQUE.
THEREAFTER, THE ARCHITECTS HAVE
ENDEAVOURED TO CAPTURE ALL THE POSITIVE
ASPECTS WITHOUT THE DISCOMFORT OF
EXCESSIVE GLARE,HEAT OR HUMIDITY. THIS HAS
INVOLVED NOT ONLY THROUGH THE CAREFUL
PLANNING OF THE FACILITIES, BUT ALSO THE
INTIGRATION OF SOPHISTICATED COOLING AND
SHADING DEVICES IN THE GLASS VAULTED ROOF.

61. THE PLAN OF THE MAIN CLUB HOUSE IS GENERATED
FROM A SQAURE MODULE, AND EXPRESS EXTERNALLY
IN THE FORM OF FIVE GLAZED BARREL VAULTS.
THE MAIN ACTIVITY ROOMS OF THE CLUB ARE
RELATED TO THE CENTRAL LANDSCAPED SPACE.
A CAREFULLY-ORCHESTRATED INTERPLAY OF LEVELS
AND STAIRCASE GIVES ACCESS TO THE RESTAURANT,
LIBRARY, LOUNGE BAR, DISCOTHEQUE AND CAFETERIA.
IN CONTRAST TO THE NATURALLY-VENTILATED
GARDEN ROOMS, THESE FACILITIES ARE AIR
CONDITIONED.
GENEROUS PLANTING IN THE CENTRAL AREA AND
CAREFULLY CHOICE OF FURNITURE GIVES AN IMAGE
OF RELAXED SOPHISTICATION.
TREES PAVING AND PLANTING CONTAINERS ARE
ORGANISED TO DEFINE SPACE AND FOCUS DIRECTION.

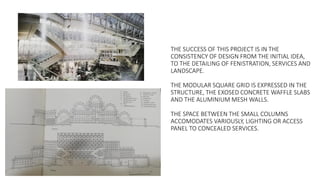

62. THE SUCCESS OF THIS PROJECT IS IN THE
CONSISTENCY OF DESIGN FROM THE INITIAL IDEA,
TO THE DETAILING OF FENISTRATION, SERVICES AND
LANDSCAPE.
THE MODULAR SQUARE GRID IS EXPRESSED IN THE
STRUCTURE, THE EXOSED CONCRETE WAFFLE SLABS
AND THE ALUMINIUM MESH WALLS.
THE SPACE BETWEEN THE SMALL COLUMNS
ACCOMODATES VARIOUSLY, LIGHTING OR ACCESS
PANEL TO CONCEALED SERVICES.

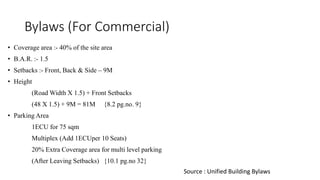

63. Bylaws (For Commercial)
• Coverage area :- 40% of the site area
• B.A.R. :- 1.5
• Setbacks :- Front, Back & Side – 9M
• Height
(Road Width X 1.5) + Front Setbacks
(48 X 1.5) + 9M = 81M {8.2 pg.no. 9}
• Parking Area
1ECU for 75 sqm
Multiplex (Add 1ECUper 10 Seats)
20% Extra Coverage area for multi level parking
(After Leaving Setbacks) {10.1 pg.no 32}
Source : Unified Building Bylaws

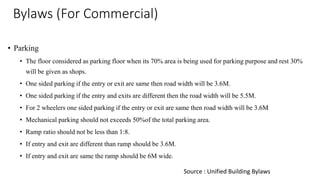

64. Bylaws (For Commercial)
• Parking
• The floor considered as parking floor when its 70% area is being used for parking purpose and rest 30%
will be given as shops.
• One sided parking if the entry or exit are same then road width will be 3.6M.
• One sided parking if the entry and exits are different then the road width will be 5.5M.
• For 2 wheelers one sided parking if the entry or exit are same then road width will be 3.6M
• Mechanical parking should not exceeds 50%of the total parking area.
• Ramp ratio should not be less than 1:8.
• If entry and exit are different than ramp should be 3.6M.
• If entry and exit are same the ramp should be 6M wide.
Source : Unified Building Bylaws

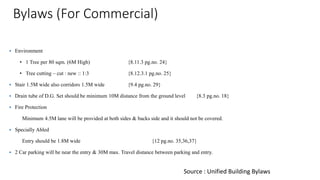

65. Bylaws (For Commercial)
 Environment
• 1 Tree per 80 sqm. (6M High) {8.11.3 pg.no. 24}
• Tree cutting – cut : new :: 1:3 {8.12.3.1 pg.no. 25}
 Stair 1.5M wide also corridors 1.5M wide {9.4 pg.no. 29}
 Drain tube of D.G. Set should be minimum 10M distance from the ground level {8.3 pg.no. 18}
 Fire Protection
Minimum 4.5M lane will be provided at both sides & backs side and it should not be covered.
 Specially Abled
Entry should be 1.8M wide {12 pg.no. 35,36,37}
 2 Car parking will be near the entry & 30M max. Travel distance between parking and entry.
Source : Unified Building Bylaws
