The document provides a location plan and floor-by-floor details for the Westend Mall in Ludhiana, Punjab, India. The multi-level mall was constructed at a cost of Rs 90 crore and covers 2.2 acres. It has several levels including 3 basements for parking and services, a lower ground floor with retail shops and anchor stores, and multiple upper floors consisting of additional retail space, food courts, a cinema, spa, and children's play areas. Electrical and fire safety systems were installed throughout the building.

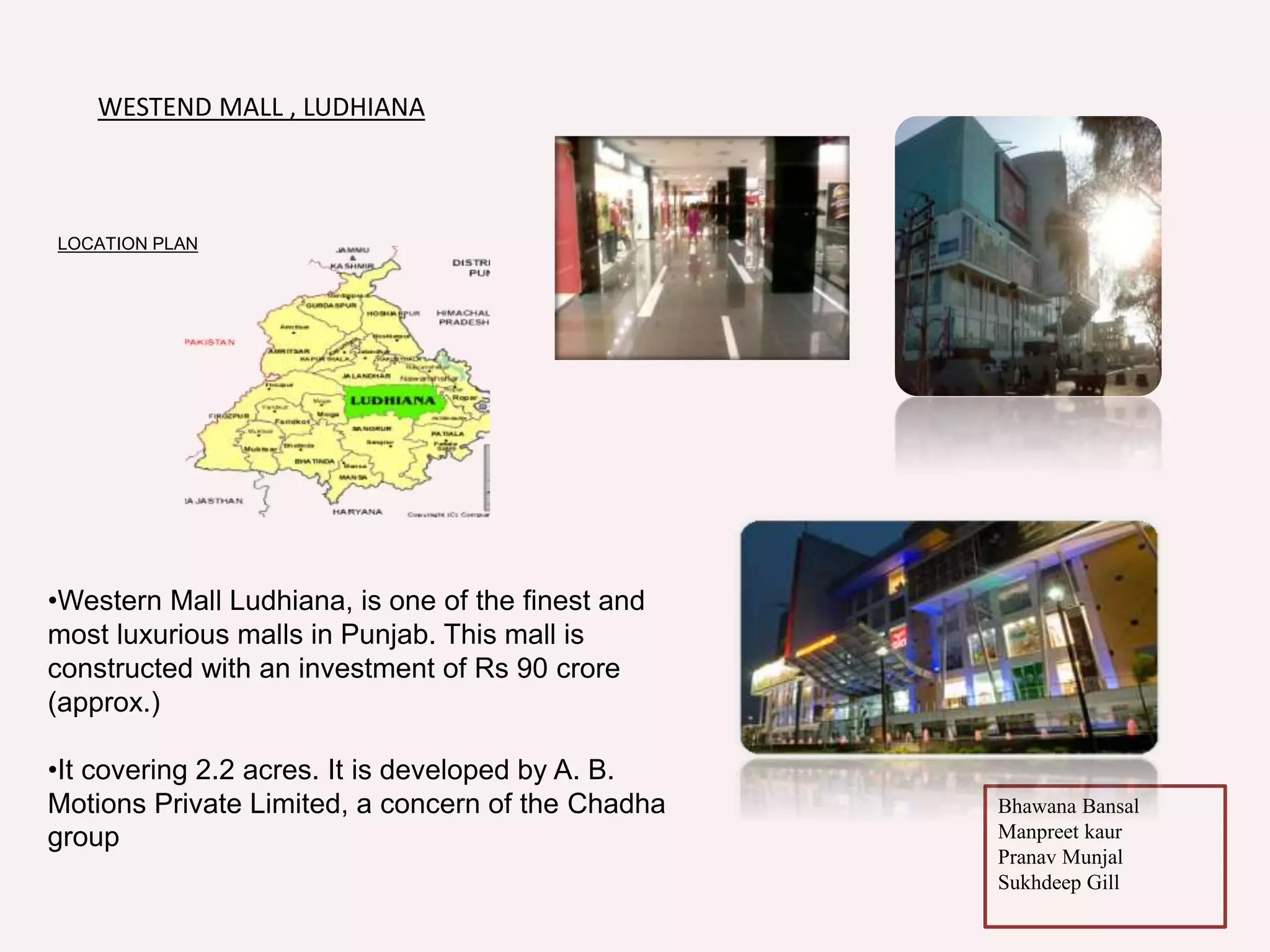

1. LOCATION PLAN
•Western Mall Ludhiana, is one of the finest and
most luxurious malls in Punjab. This mall is
constructed with an investment of Rs 90 crore
(approx.)
•It covering 2.2 acres. It is developed by A. B.
Motions Private Limited, a concern of the Chadha
group
WESTEND MALL , LUDHIANA
Bhawana Bansal
Manpreet kaur
Pranav Munjal
Sukhdeep Gill

2. BASEMENT :
•THE MALL HAS THREE BASEMENTS .
•THE FIRST BASEMENT IS APPROACHED BY A RAMP OF SLOPE 1:20
WHILE LOWER BASEMENTS ARE APPROACHED BY RAMPS OF SLOPE
1:15.
•BASEMENTS WERE UTILSED FOR DISTRIBUTING SERVICES AND FOR
PARKING .
•A PARKING OF ABOUT 300 CARS IS PROVIDED .

3. LOWER GROUND FLOOR:
•THE PLUSH ATRIUM IS ARTICULATELY SURROUNDED BY EXTENSIVE
CORRIDORS LEADING WAY TO THE NUMEROUS NATIONAL AND
INTERNATIONAL BRANDS WHO HAVE EAGERLY TAKEN UP SPACE AT THE
VIVACIOUS MALL .
•IT INCORPORATES 17 RETAIL SHOPS & 2 ANCHOR STORES.
•TOTAL COVERED AREA = 53831 SQ.FT
•THE LOCATION OF THE CHILDREN'S PLAY AREA IS VERY APPROPRIATELY IN
THE CENTRE OF THE ATRIUM, SUCH THAT WHILE SHOPPING IN THE SHOPS
AROUND PARENTS CAN LOOK OUT (OR DOWN, AS THE CASE MAY BE) AND
KEEP AN EYE ON THEIR CHILDREN.
•A BARISTA IS LOCATED NEXT TO THE PLAY
AREA - IN THE VOCABULARY OF A STREET
CAFE. THIS IS ALSO LIKE A SUPPORTIVE
FUNCTION OF THE PLAY AREA.
UPPER GROUND FLOOR
•MAIN ENTRANCE OF THE MALL GIVES A DIRECT ACCESS
TO UPPER GROUND FLOOR AS WELL AS THE LOWER
GROUND FLOOR .
•IT INCORPORATES 19 RETAIL SHOPS & 4 ANCHOR
STORES .
• COVERED AREA =53831 SQ.FT
•WIDTH OF CORRIDOR: 7M

4. SECOND FLOOR
SECOND FLOOR
•THE GRANDEUR OF THE MALL IS WELL SET IN THE PLETHORA OF
ITS HUGE ATRIUM WITH A FLOATING BRIDGE CAFÉ – A UNIQUE
FEATURE OF THE MALL.
•IT INCORPORATES 48 RETAIL SHOPS OF VARYING AREAS .
•COVERED AREA =55369 SQ.FT
FIRST FLOOR

5. FOURTH FLOOR:
•THE WESTEND MALL IS WAVE CINEMAS – THE GROUP’S OWN MULTIPLEX CHAIN WITH
ITS PIONEERING ADOPTION OF INTERNATIONAL STANDARDS OF EQUIPMENT WHICH
HAS CHANGED THE WAY THE NATION WATCHES MOVIES.
•THE MULTIPLEX AT THE WESTEND MALL HAS FOUR SCREENS WITH 1042 NUMBERS
OF SEATING CAPACITY.
•AUDI AREA = 30709 SQ.FT
•FOOD COURT AREA= 15500 SQ.FT
•TWO OF THE FLOORS AT THE
MALL ARE SPECIALLY
DEDICATED TO FOOD COURT
AND FINE DINING
RESTAURANTS WHERE THE
PATRONS CAN ENJOY VARIETY
OF INDIAN AND
INTERNATIONAL AUTHENTIC
CUISINES.
•IT INCORPORATES FOOD
COURTS ,CINEMA LOBBY &
AUDI .
THIRD FLOOR
FIFTH
FLOOR:
THIS FLOOR OF
MALL HOUSES SPA
AND GAMING ZONE
FOR CHILDREN.

6. ELECTRICAL:
• TWO TRANSFORMERS OF 2500 KVA IS INSTALLED IN THIRD
BASEMENT.
• DESIGN OF THE COMPLETE DISTRIBUTION SYSTEM IS SUCH THAT
MAXIMUM VOLTAGE DROP AT THE FARTHEST POINT FROM THE
TRANSFORMERS IS RESTRICTED TO 5% WHICH IS IN COMPLIANCE
WITH THE INDIAN ELECTRICITY RULE.
• THE LT DISTRIBUTION SCHEME IS SUCH THAT THERE IS A
ELECTRICAL ROOM AT EACH FLOOR WHERE THE FLOOR
DISTRIBUTION IS LOCATED. FLOOR DISTRIBUTION PANEL TO THE
LOAD CENTER AT EACH ZONE OF THE FLOOR IS FED WITH THE HELP
OF SMALL DISTRIBUTION BOARD.
•FIVE FIRE ESCAPE STAIRCASES HAVE BEEN
PROVIDED IN THE MALL.
•IT CONSISTS OF FIRE ALARM CONTROL PANEL AND
ELECTRIC SMOKE DETECTOR.
•FIRE HOSE CABINET ARE PROVIDED ON ALL FLOORS
WITH ACCESSORIES.
•MAIN PLANT CONSISTS OF 4 NOS. WATER COOLED SCREW
CHILLER, 3 NOS. CHILLED WATER PUMPS (ONE STANDBY), 3
NOS. CONDENSER WATER PUMPS (ONE STANDBY) ALONG
WITH 6 NOS. COOLING TOWER (ONE STANDBY).
•MAIN PLANT IS LOCATED AT TERRACE WITH A TOTAL
TONNAGE REFRIGERATION OF 1600 TONNES AND CHILLED
WATER FROM THE MAIN PLANT IS SUPPLIED TO AIR HANDLING
UNITSLOCATED AT VARIOUS FLOORS.
SERVICES
FIRE FIGHTING:

7. WESTEND MALL , LUDHIANA
