Delivering High-Availability Web Services with NGINX Plus on AWS
- 1. Delivering High-Availability Web Services with NGINX Plus on AWS Owen Garrett Nginx, Inc. Scott Ward Amazon Web Services
- 2. Introductions and Agenda • Owen Garrett Head of Products, NGINX • Scott Ward Solutions Architect, Amazon Web Services
- 3. Introducing Amazon WebServices
- 4. A broad anddeep platform that helps customers build sophisticated, scalable applications © 2014 Amazon.com, Inc. and its affiliates. All rights reserved. May not be copied, modified or distributed in whole or in part without the express consent of Amazon.com, Inc.
- 5. A Culture ofInnovation: Experiment Often & Fail Without Risk
- 6. Who is usingAWS and what are they using it for?
- 7. Startups on AWS http://aws.amazon.com/solutions/case-studies/
- 8. Enterprises on AWS http://aws.amazon.com/solutions/case-studies/

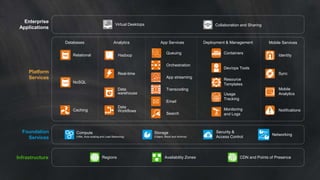

- 9. Foundation Services Infrastructure Storage (Object, Block and Archive) Regions Availability Zones Networking Collaboration and Sharing Security & Access Control Platform Services Databases Relational NoSQL Caching Analytics Hadoop Real-time Data warehouse App Services Queuing Orchestration App streaming Transcoding Email Search Deployment & Management Containers Dev/ops Tools Resource Templates Mobile Services Identity Sync Mobile Analytics Notifications Enterprise Applications Virtual Desktops Data Workflows Usage Tracking Monitoring and Logs Compute (VMs, Auto-scaling and Load Balancing) CDN and Points of Presence

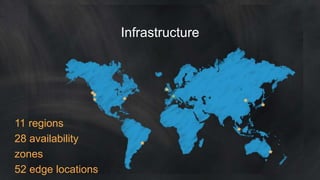

- 10. 11 regions 28availability zones 52 edge locations Infrastructure

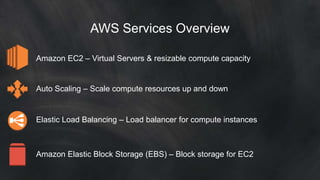

- 11. AWS Services Overview Amazon EC2 – Virtual Servers & resizable compute capacity Auto Scaling – Scale compute resources up and down Elastic Load Balancing – Load balancer for compute instances Amazon Elastic Block Storage (EBS) – Block storage for EC2

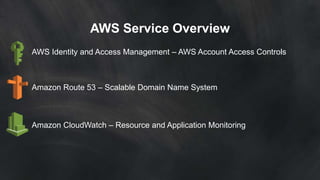

- 12. AWS Service Overview AWS Identity and Access Management – AWS Account Access Controls Amazon Route 53 – Scalable Domain Name System Amazon CloudWatch – Resource and Application Monitoring
- 13. Breaking news -New services on AWS

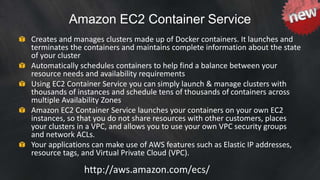

- 14. Amazon EC2 ContainerService Creates and manages clusters made up of Docker containers. It launches and terminates the containers and maintains complete information about the state of your cluster Automatically schedules containers to help find a balance between your resource needs and availability requirements Using EC2 Container Service you can simply launch & manage clusters with thousands of instances and schedule tens of thousands of containers across multiple Availability Zones Amazon EC2 Container Service launches your containers on your own EC2 instances, so that you do not share resources with other customers, places your clusters in a VPC, and allows you to use your own VPC security groups and network ACLs. Your applications can make use of AWS features such as Elastic IP addresses, resource tags, and Virtual Private Cloud (VPC). http://aws.amazon.com/ecs/

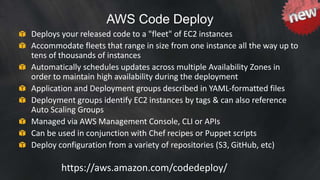

- 15. AWS Code Deploy Deploys your released code to a "fleet" of EC2 instances Accommodate fleets that range in size from one instance all the way up to tens of thousands of instances Automatically schedules updates across multiple Availability Zones in order to maintain high availability during the deployment Application and Deployment groups described in YAML-formatted files Deployment groups identify EC2 instances by tags & can also reference Auto Scaling Groups Managed via AWS Management Console, CLI or APIs Can be used in conjunction with Chef recipes or Puppet scripts Deploy configuration from a variety of repositories (S3, GitHub, etc) https://aws.amazon.com/codedeploy/

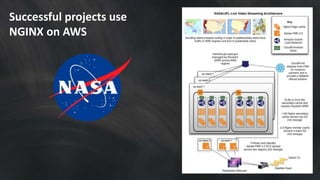

- 16. Successful projects use NGINX on AWS

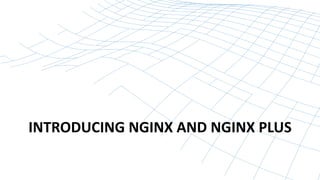

- 17. INTRODUCING NGINX ANDNGINX PLUS

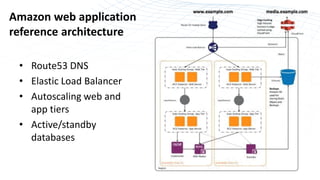

- 18. Amazon web application reference architecture • Route53 DNS • Elastic Load Balancer • Autoscaling web and app tiers • Active/standby databases

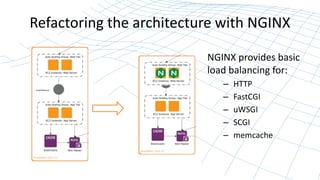

- 19. Refactoring the architecturewith NGINX NGINX provides basic load balancing for: – HTTP – FastCGI – uWSGI – SCGI – memcache

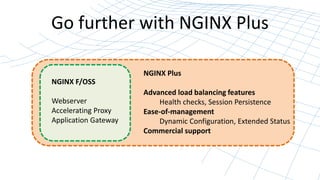

- 20. Go further withNGINX Plus NGINX F/OSS Webserver Accelerating Proxy Application Gateway NGINX Plus Advanced load balancing features Health checks, Session Persistence Ease-of-management Dynamic Configuration, Extended Status Commercial support

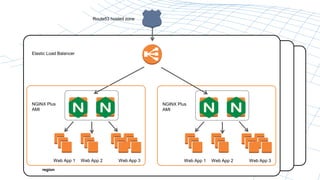

- 21. Elastic Load Balancer NGINX Plus AMI Web App 1 region region region Route53 hosted zone Web App 2 Web App 3 NGINX Plus AMI Web App 1 Web App 2 Web App 3

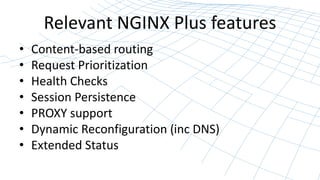

- 22. Relevant NGINX Plusfeatures • Content-based routing • Request Prioritization • Health Checks • Session Persistence • PROXY support • Dynamic Reconfiguration (inc DNS) • Extended Status

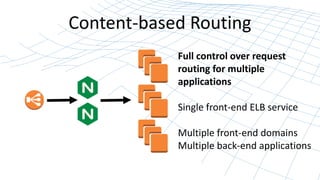

- 23. Content-based Routing Fullcontrol over request routing for multiple applications Single front-end ELB service Multiple front-end domains Multiple back-end applications

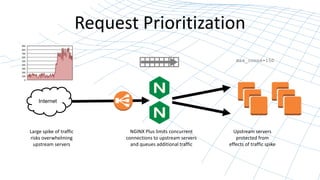

- 24. Request Prioritization Internet Large spike of traffic risks overwhelming upstream servers NGINX Plus limits concurrent connections to upstream servers and queues additional traffic max_conns=150 Upstream servers protected from effects of traffic spike

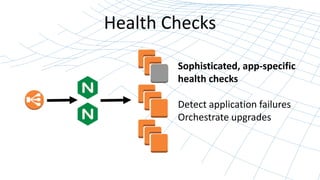

- 25. Health Checks Sophisticated,app-specific health checks Detect application failures Orchestrate upgrades
- 26. Session Persistence Per-applicationsession persistence rules Cookie-insertion, rules-based, Learn mode Consistent-hash load balancing

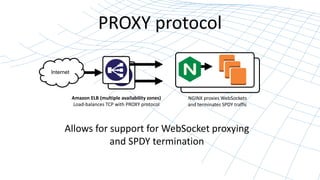

- 27. PROXY protocol Internet Amazon ELB (multiple availability zones) Load-balances TCP with PROXY protocol NGINX proxies WebSockets and terminates SPDY traffic Allows for support for WebSocket proxying and SPDY termination
- 28. Dynamic Reconfiguration http{ resolver 192.168.0.2; upstream backends { zone backends 64k; server api.u.com resolve; } upstream_conf; Control load balancing configuration dynamically } DNS Changes in DNS can dynamically update NGINX Plus’ load balancing configuration API Upstream_conf API gives a simple HTTP API to control configuration

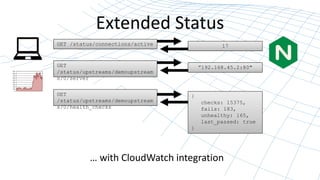

- 29. Extended Status GET/status/connections/active 17 GET /status/upstreams/demoupstream s/0/server ”192.168.45.2:80" { checks: 15375, fails: 183, unhealthy: 165, last_passed: true } GET /status/upstreams/demoupstream s/0/health_checks … with CloudWatch integration
- 30.

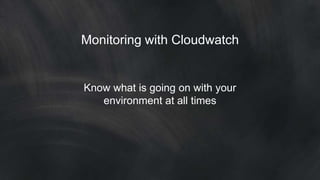

- 31. Monitoring with Cloudwatch Know what is going on with your environment at all times

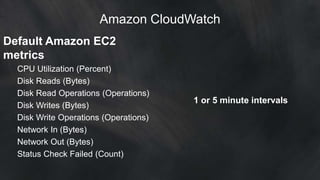

- 32. Amazon CloudWatch DefaultAmazon EC2 metrics CPU Utilization (Percent) Disk Reads (Bytes) Disk Read Operations (Operations) Disk Writes (Bytes) Disk Write Operations (Operations) Network In (Bytes) Network Out (Bytes) Status Check Failed (Count) 1 or 5 minute intervals
- 33. NGINX Metrics intoAmazon CloudWatch status.html CloudWatch Install Agent $ sudo yum install nginx-cw-agent $ sudo apt-get install nginx-cw-agent

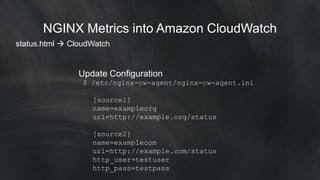

- 34. NGINX Metrics intoAmazon CloudWatch status.html CloudWatch Update Configuration $ /etc/nginx-cw-agent/nginx-cw-agent.ini [source1] name=exampleorg url=http://example.org/status [source2] name=examplecom url=http://example.com/status http_user=testuser http_pass=testpass
- 35. NGINX Metrics intoAmazon CloudWatch status.html CloudWatch Start Background Agent Test - $ /usr/bin/nginx-cw-agent.py –f start All in - $ sudo service nginx-cw-agent start View Metrics
- 36. NGINX with AmazonCloudWatch Logs • Consolidate metrics and alarming for log files from 1 or many instances • Define filters to parse content from your log files • Measure and alarm on specific attributes • Define retention period for your log files EC2 CloudWatch

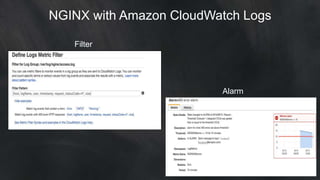

- 37. NGINX with AmazonCloudWatch Logs Filter Alarm

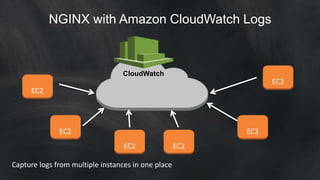

- 38. NGINX with AmazonCloudWatch Logs EC2 EC2 EC2 CloudWatch EC2 EC2 EC2 Capture logs from multiple instances in one place
- 39.

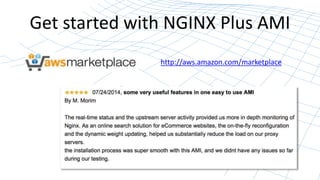

- 40. Get started withNGINX Plus AMI http://aws.amazon.com/marketplace

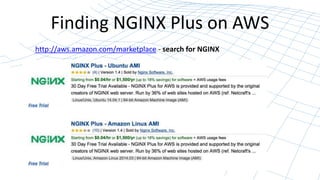

- 41. Finding NGINX Pluson AWS http://aws.amazon.com/marketplace - search for NGINX

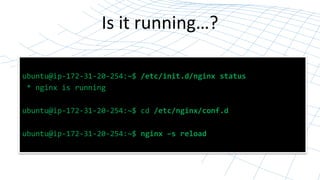

- 43. Is it running…? ubuntu@ip-172-31-20-254:~$ /etc/init.d/nginx status * nginx is running ubuntu@ip-172-31-20-254:~$ cd /etc/nginx/conf.d ubuntu@ip-172-31-20-254:~$ nginx –s reload

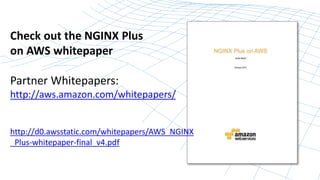

- 44. Check out theNGINX Plus on AWS whitepaper Partner Whitepapers: http://aws.amazon.com/whitepapers/ http://d0.awsstatic.com/whitepapers/AWS_NGINX _Plus-whitepaper-final_v4.pdf
- 45.
Editor's Notes
- #4 Slides 3-14 from http://www.slideshare.net/AmazonWebServices/nginx-plus-on-aws
- #5 The broad and deep platform that is AWS. If want to build new businesses from scratch or move some/all workloads to cloud, need a broad array of services and features to make this happen and not have to piecemeal it AWS Platform started in 2006 and it has grown rapidly since that time. Today it is the underlying infrastructure for companies around the world including startups, enterprises, and government agencies. AWS has hundreds of thousands of customers in 190 countries around the world. A little background… After over a decade of building and running the highly scalable web application, Amazon.com, the company realized that it had developed a core competency in operating massive scale technology infrastructure and datacenters, and embarked on a much broader mission of serving a new customer segment—developers and businesses—with a platform of web services they can use to build sophisticated, scalable applications. AWS is a comprehensive cloud services platform, offering compute power, storage, content delivery, and other functionality that enables businesses to cost-effectively deploy applications and services with greater flexibility, scalability, and reliability. The power of self-service through AWS means you can proactively address your internal plans and react to external demands when you choose and not have to wait for a salesperson to return your call. In response to customer needs and internal innovation on the customer’s behalf, In 2011, we released over 80 significant services and features; in 2012, nearly 160; and in 2013, 280. This trend does not show any sign of slowing.
- #6 All of a sudden, w the possibility a reality that you can try new ideas: Move teams from learned helplessness where no point using shower cycles To a world where employees are motivated to think of new ideas for customers And instead of only getting these ideas from select senior folks, come from all over org People often ask us what does cloud mean for our IT people Reality is they don’t go away…work on value-added activities on top of infrastructure instead of undifferentiated racking and stacking Imo, better question is how do we empower more of our employees to invent/improve cust exp Truth is, people who work at enterprises want to invent as much as start-ups, just been hamstrung Cloud unleashes this innovation…lets you be more agile, get more ideas all over org, and RECRUIT more talented folks in process Better for customers, companies, and business—WIN ACROSS BOARD
- #8 DropBox Pinterest AirBnB Flipboard
- #9 Shell Netflix Samsung GE Philips Pfizer Bristol-Myers Squibb Intuit CBA Suncorp
- #11 Quick focus on infrastructure because it is a key component that we will be discussing and utilizing throughout this presentation
- #12 As you saw from the overall AWS platform and service overview slide there are a lot of services that AWS offers. What I am going to touch base on here are services that are going to be relevant to the rest of the discussion that I will be presenting on. Happy to dive into other components of the platform post presentation ELB Health Checks AutoScaling Health Checks
- #13 As you saw from the overall AWS platform and service overview slide there are a lot of services that AWS offers. Route53- Route to infrastructure inside or outside of AWS * Routing – Latency, Geo, weighted round robin * health checks – DNS Failover. Route 53 monitors endpoint and if there is a failure traffic will be routed to an alternate endpoint
- #14 Slides 3-14 from http://www.slideshare.net/AmazonWebServices/nginx-plus-on-aws
- #15 If you are deploying NGINX using Docker containers the new functionality that is offered with the Amazon EC2 Container Service may be something you want to look into. This is a new service announced at the 2014 AWS re:Invent conference and is currently in a limited preview mode.
- #16 If you are deploying NGINX configuration files or other code related to your NGINX environment then you may be interested in AWS Code Deploy. This is a new service announced at the 2014 AWS re:Invent conference and is currently in a limited preview mode.
- #18 OWEN
- #21 Top features: Health checks Session persistence
- #22 NGINX Plus allows you to build this architecture… Mulesoft example

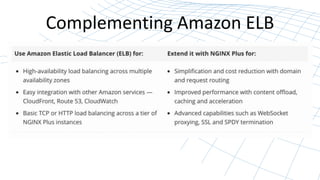

- #31 Having highlighted the features, the ways that NGINX Plus will complement and extend ELB should be clear
- #32 SCOTT
- #37 This requires a small agent to be running on your EC2 instance. Either need to use an instance role or provide access keys
- #39 CloudWatch logs allows you the ability to capture log files from your instances for further analysis. You could be capturing one log file from one instance or you could be capturing the same log file from many instances in a fleet. Cloudtrail logs gives you the ability to interpret the data in these log files and turn them into CloudWatch metrics. You can view the metrics graphically or create alarms based on the metrics that came from your log files
- #40 OWEN
