Reverse proxy & web cache with NGINX, HAProxy and Varnish
- 1. REVERSE PROXY &WEB CACHE BY :ELMAHDI BENZEKRI

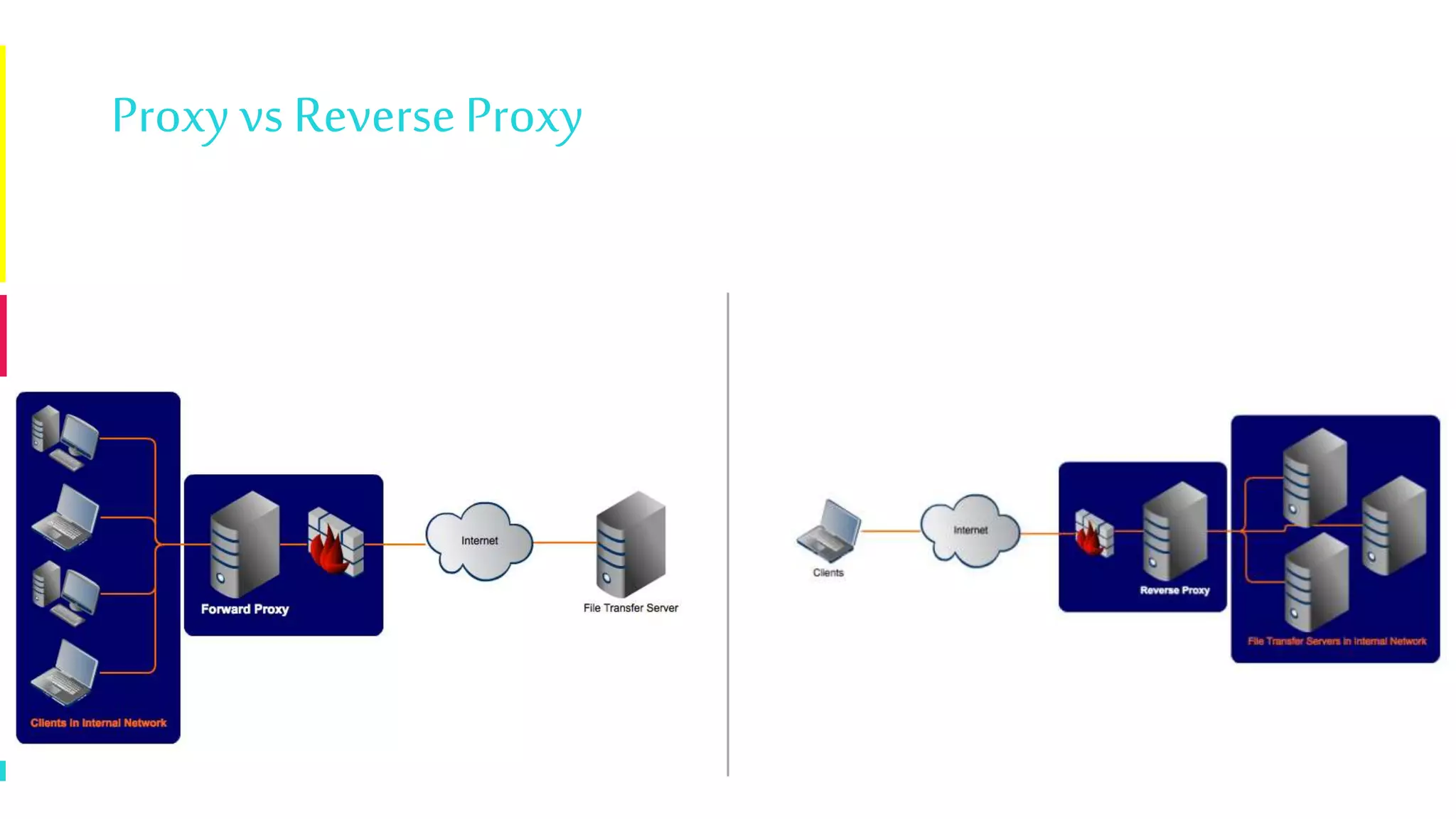

- 2.

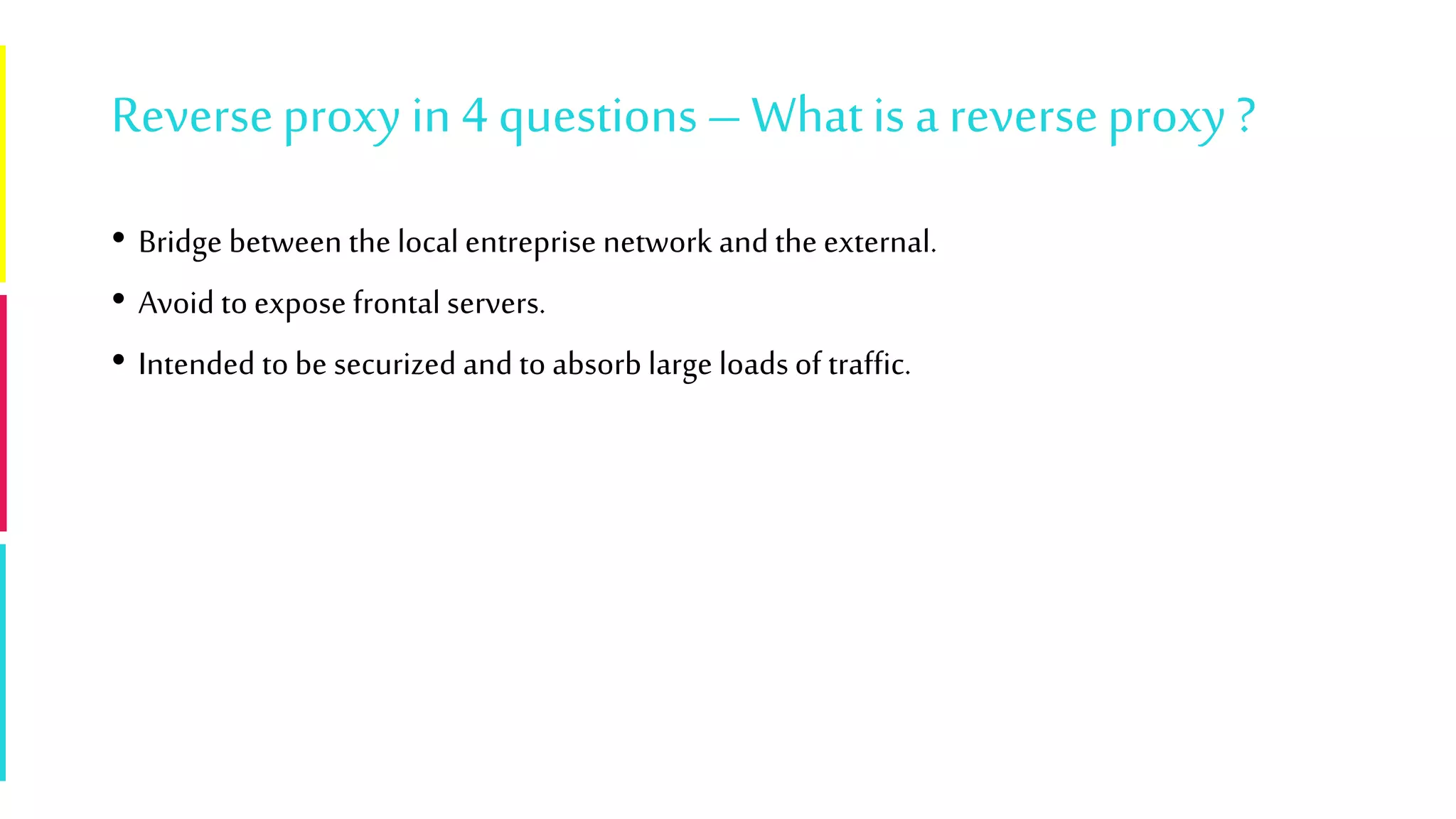

- 3. Reverseproxy in 4questions–Whatis a reverseproxy ? • Bridge between the local entreprise network and the external. • Avoid to expose frontal servers. • Intended to be securized and to absorb large loads of traffic.

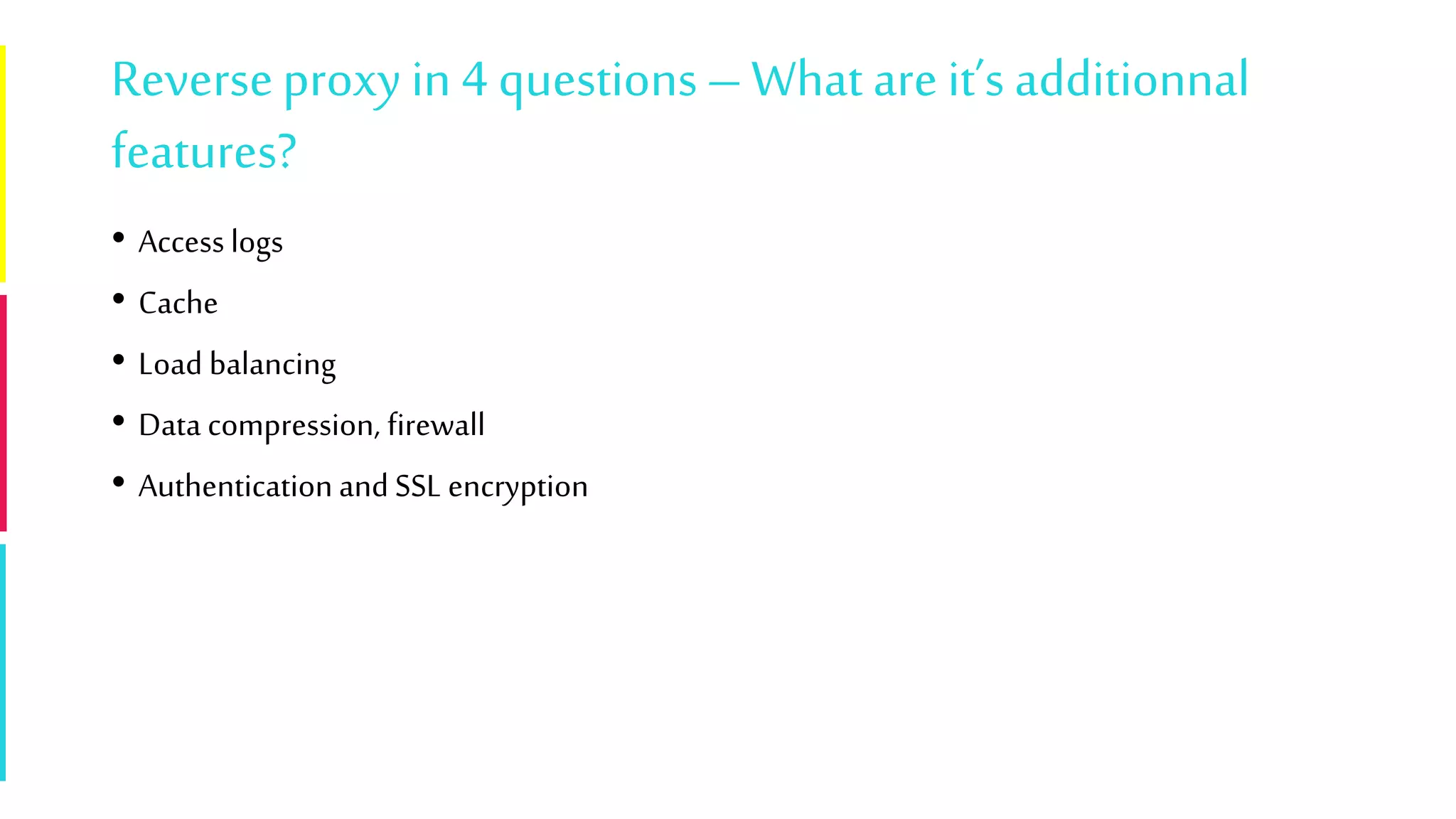

- 4. Reverseproxy in 4questions–What are it’s additionnal features? • Access logs • Cache • Load balancing • Data compression, firewall • Authenticationand SSL encryption

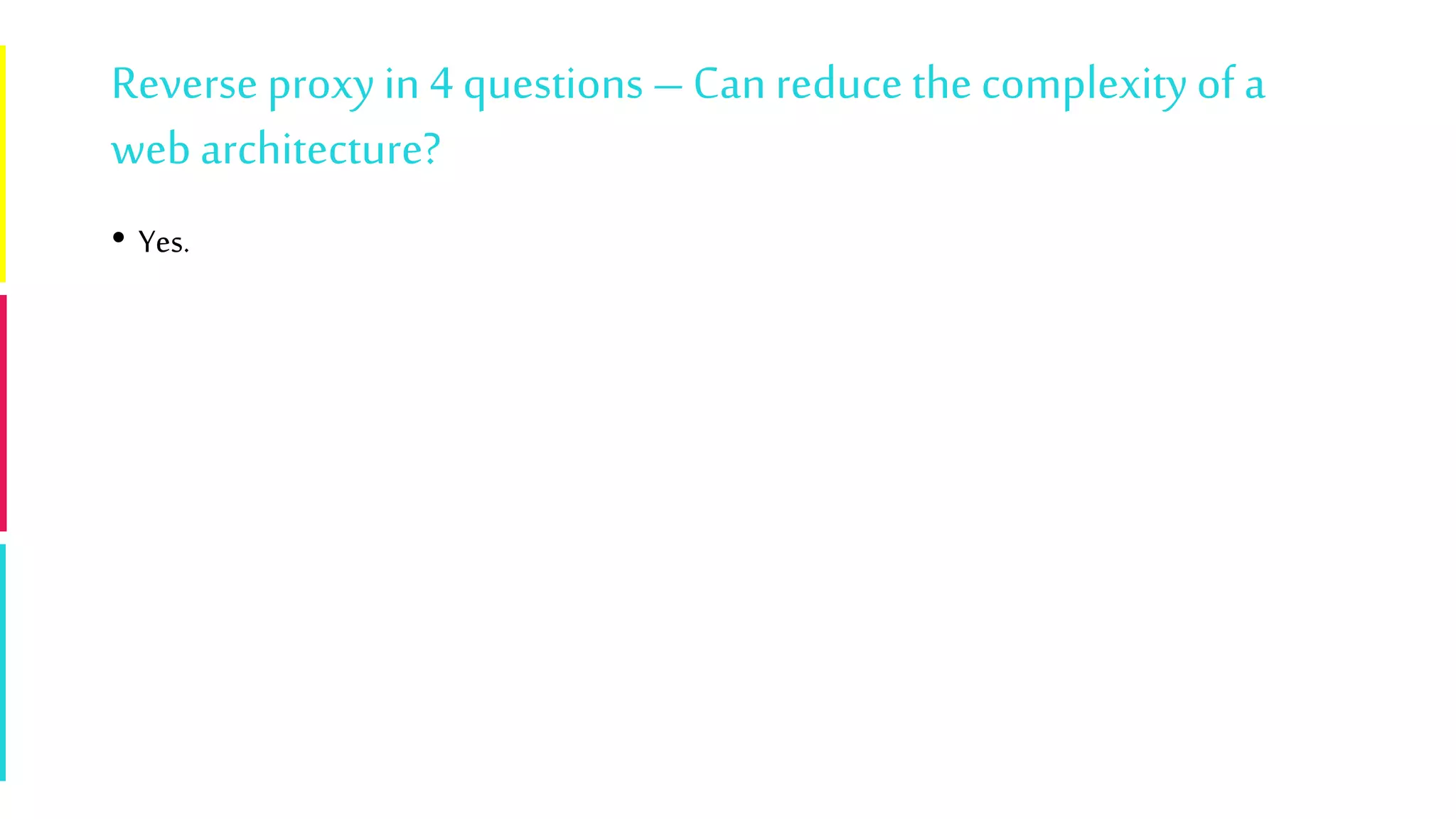

- 5. Reverse proxyin 4questions – Can reduce the complexityof a web architecture? • Yes.

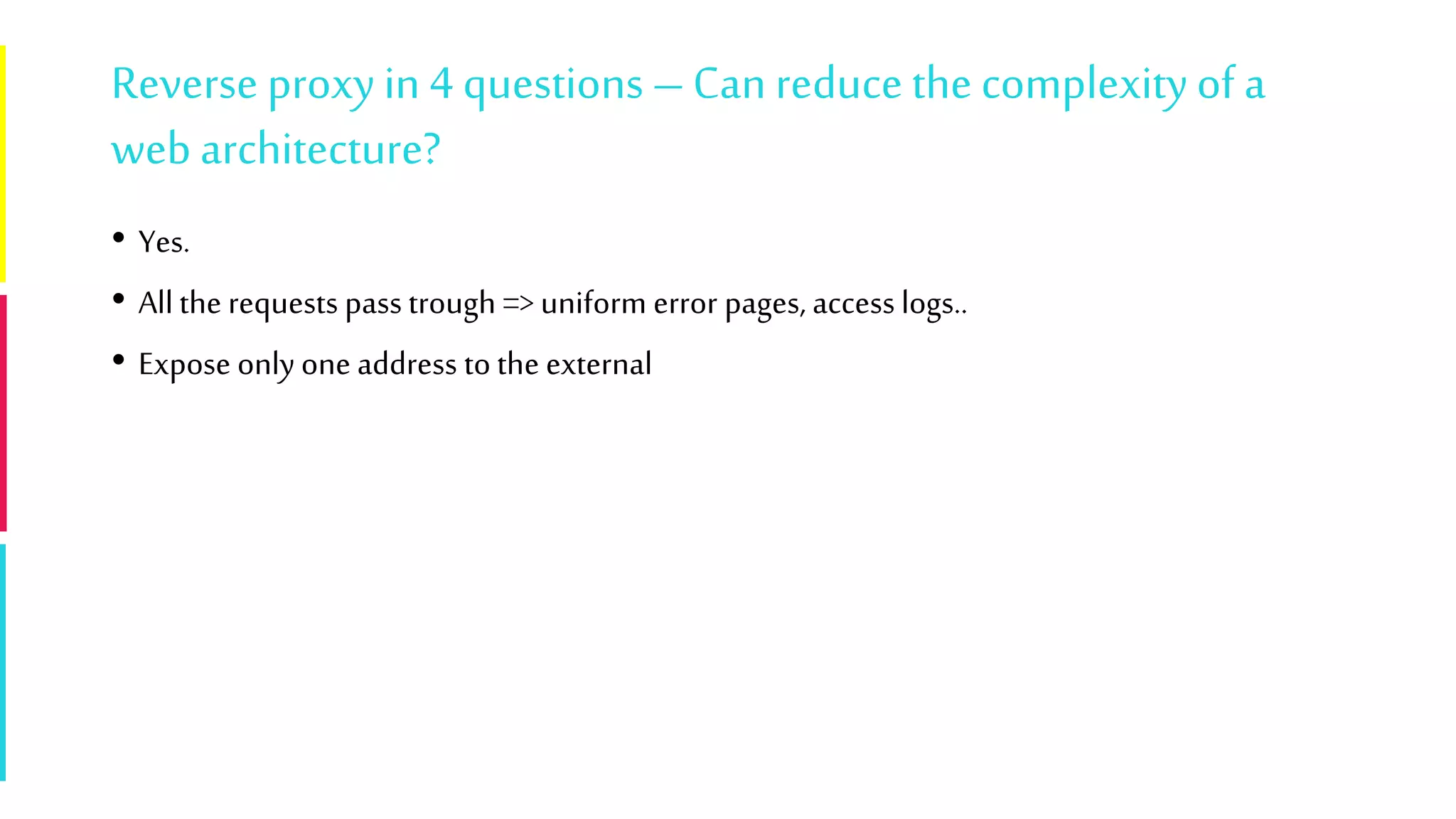

- 6. Reverse proxyin 4questions – Can reduce the complexityof a web architecture? • Yes. • Allthe requests pass trough => uniform error pages, access logs.. • Expose only one address to the external

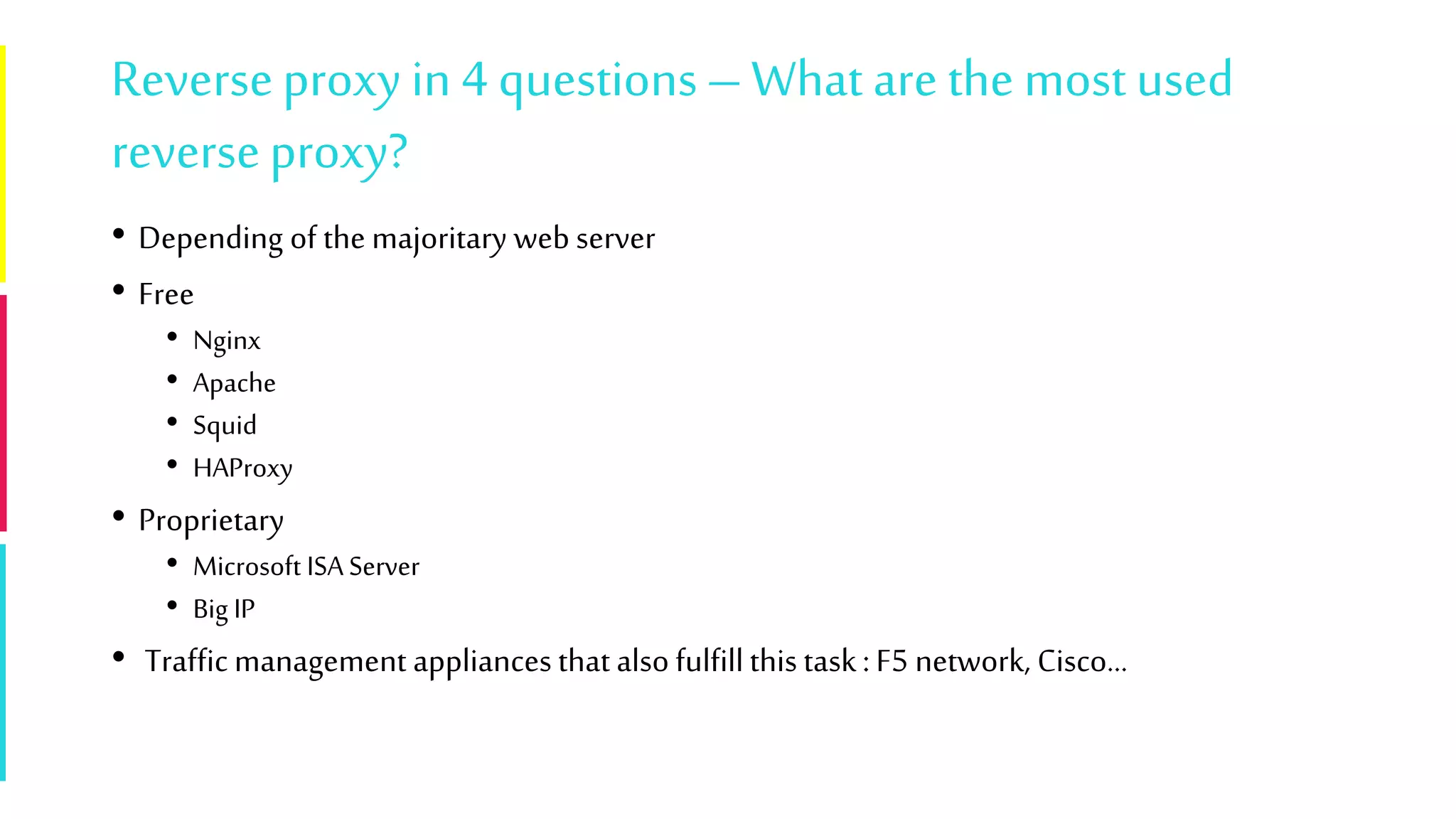

- 7. Reverseproxy in 4questions–What are the most used reverseproxy? • Depending of the majoritary web server • Free • Nginx • Apache • Squid • HAProxy • Proprietary • Microsoft ISA Server • Big IP • Traffic management appliances that also fulfillthis task: F5 network, Cisco…

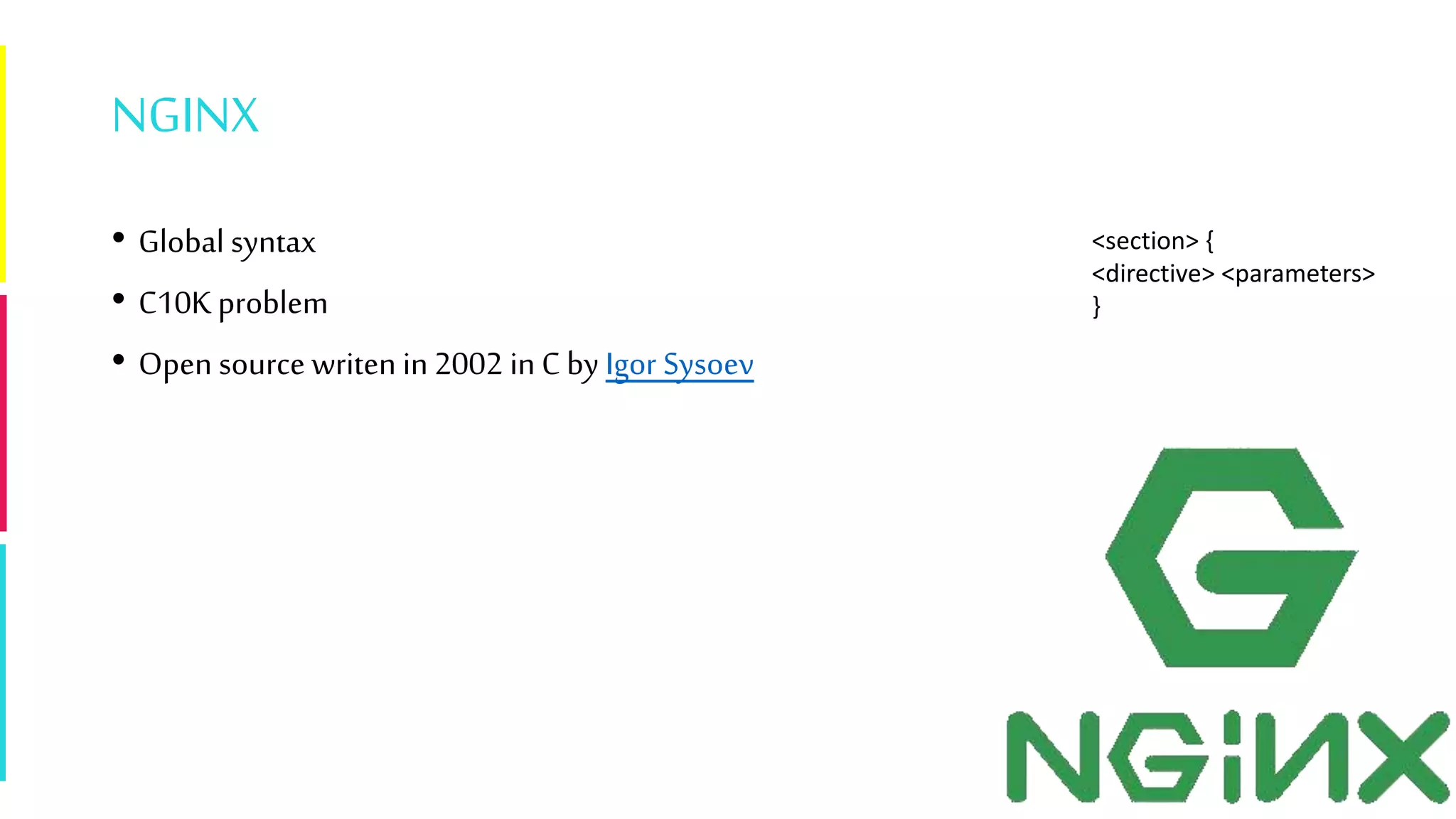

- 9. NGINX • Global syntax •C10K problem • Open source writen in 2002 in C by Igor Sysoev <section> { <directive> <parameters> }

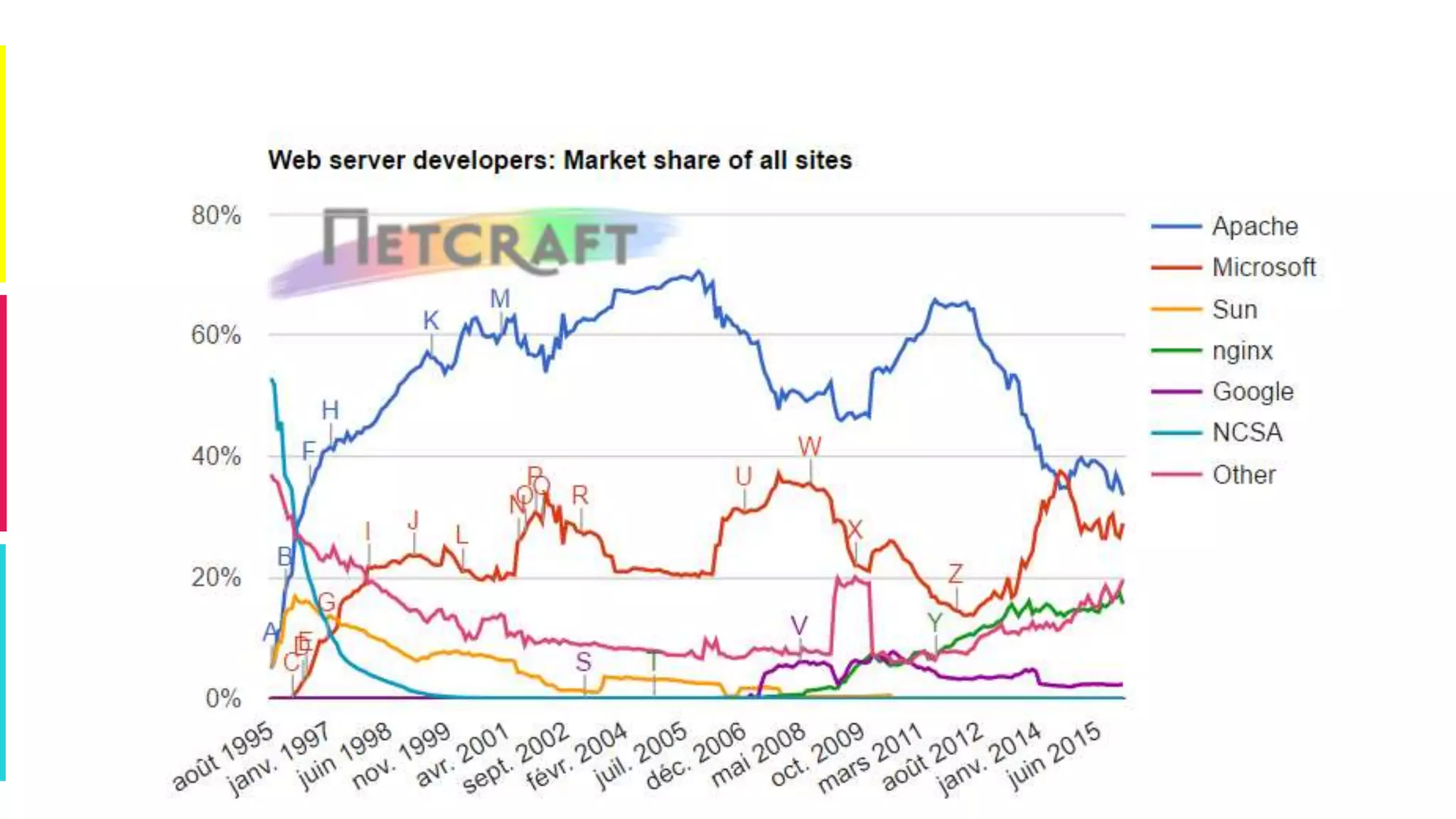

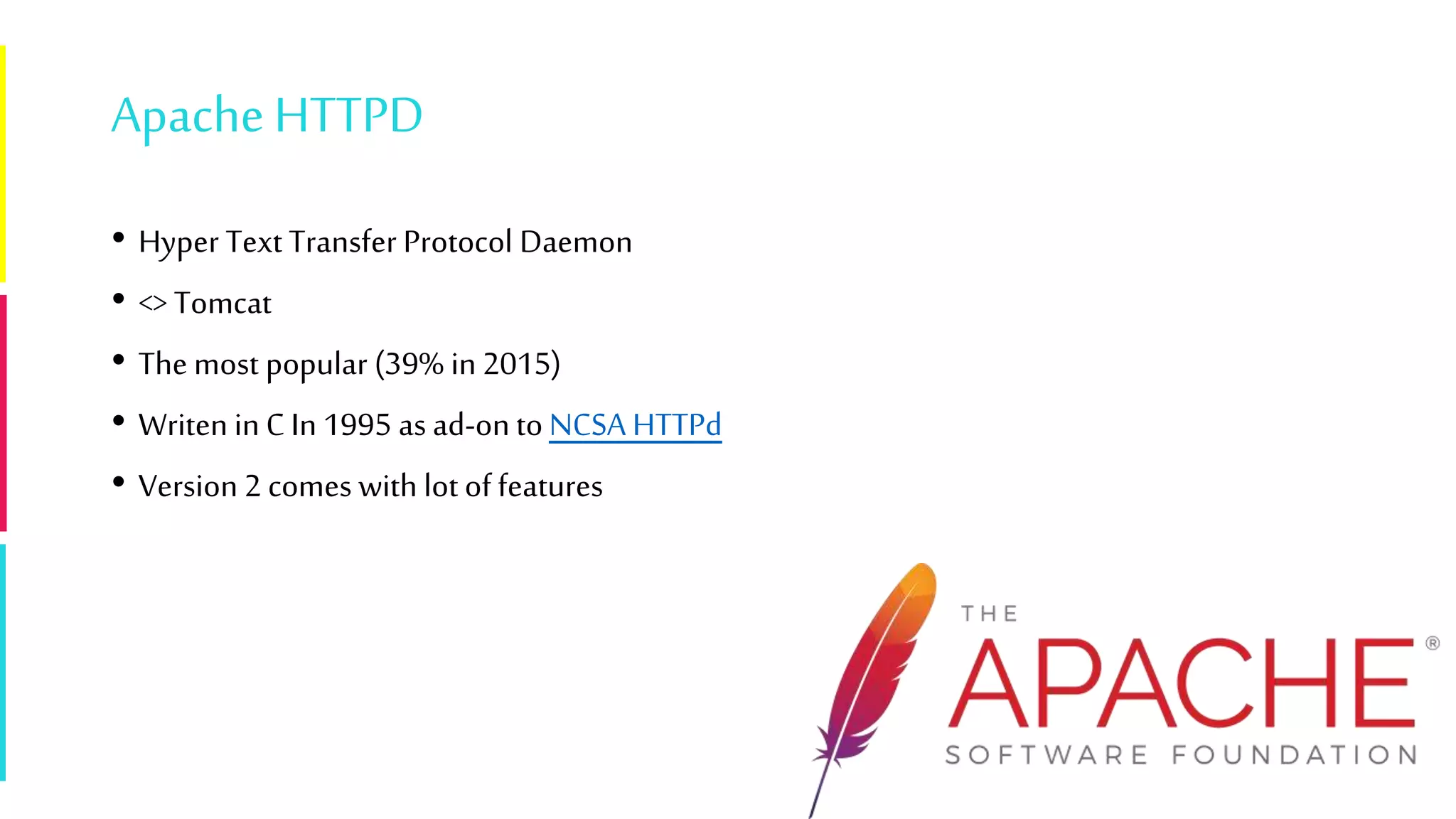

- 10. ApacheHTTPD • Hyper TextTransfer Protocol Daemon • <> Tomcat • The most popular (39% in 2015) • Writen in C In 1995 as ad-on to NCSA HTTPd • Version 2 comes with lot of features

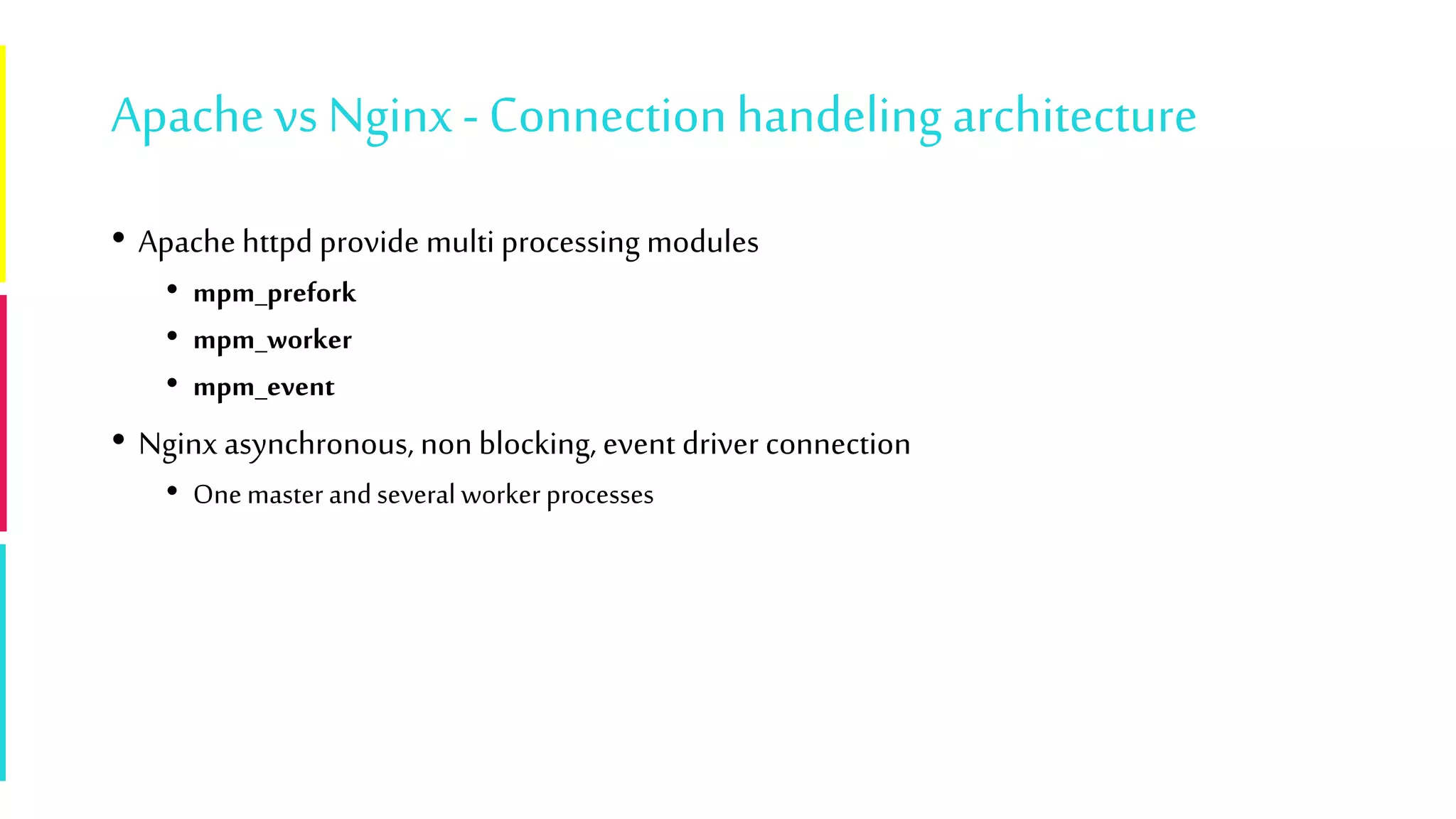

- 11. Apachevs Nginx- Connectionhandelingarchitecture • Apache httpd provide multi processing modules • mpm_prefork • mpm_worker • mpm_event • Nginx asynchronous, non blocking, event driver connection • Onemaster andseveral workerprocesses

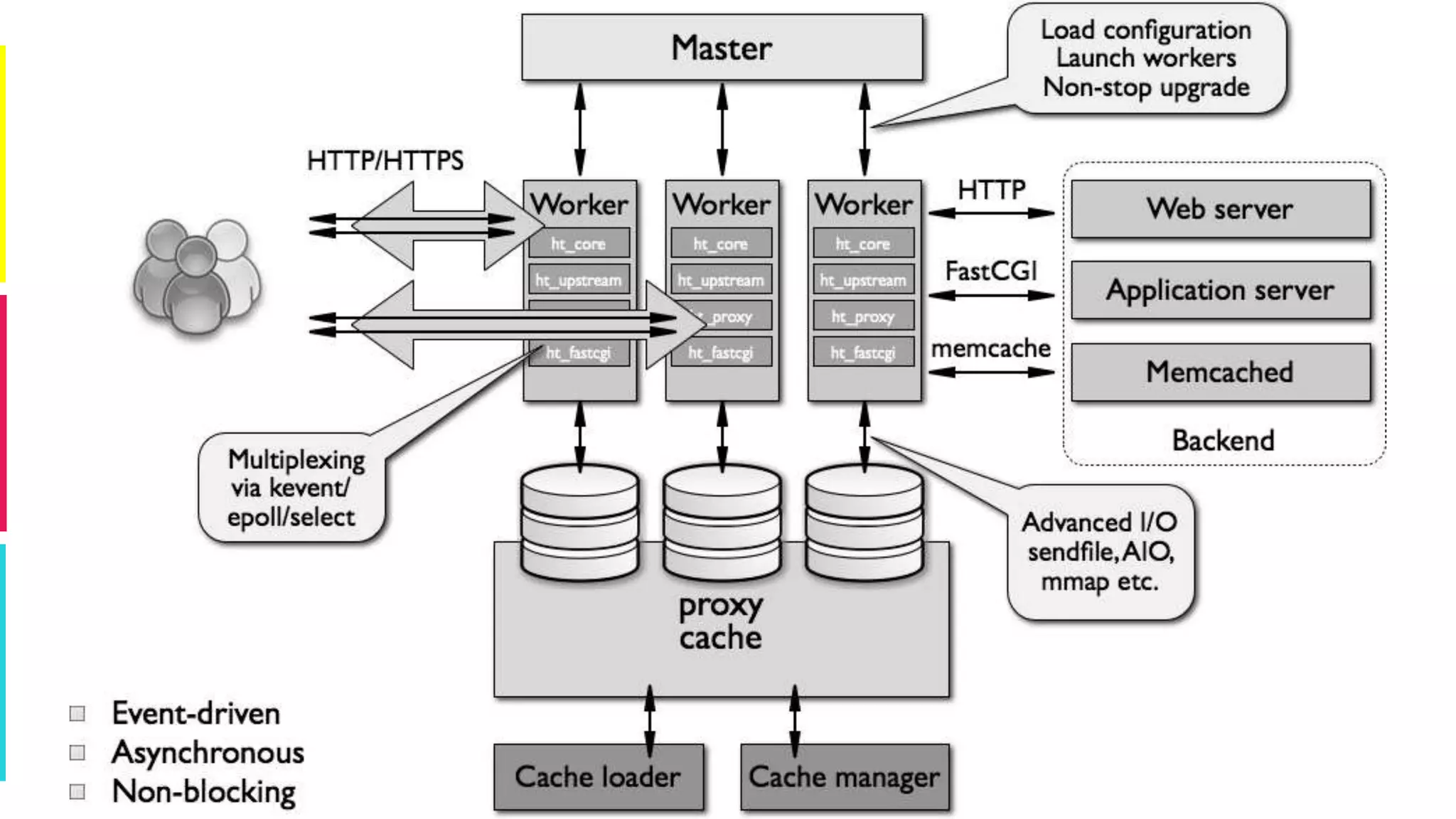

- 12. Apachevs Nginx- Connectionhandelingarchitecture

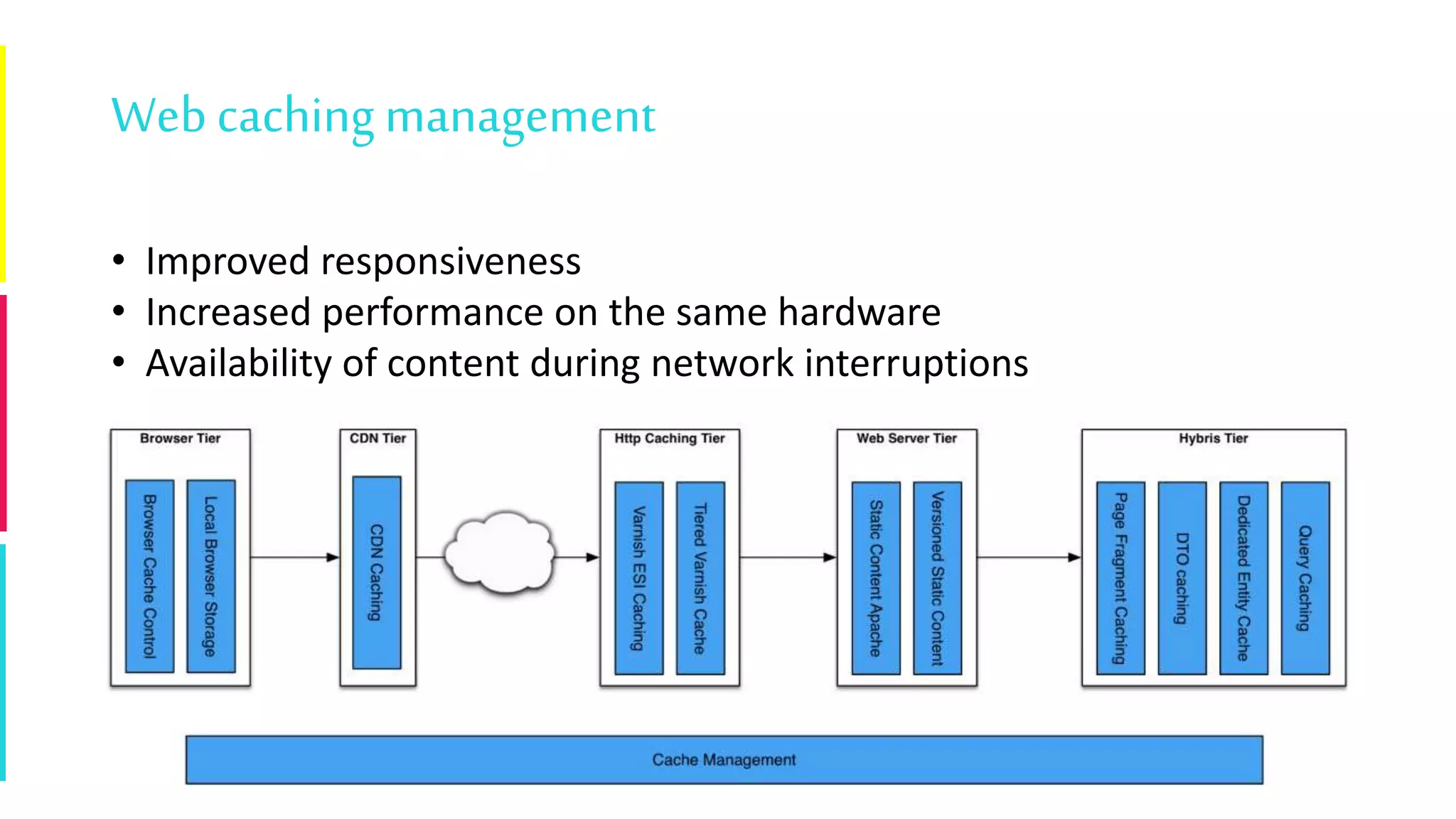

- 14. Webcaching management • Improvedresponsiveness • Increased performance on the same hardware • Availability of content during network interruptions

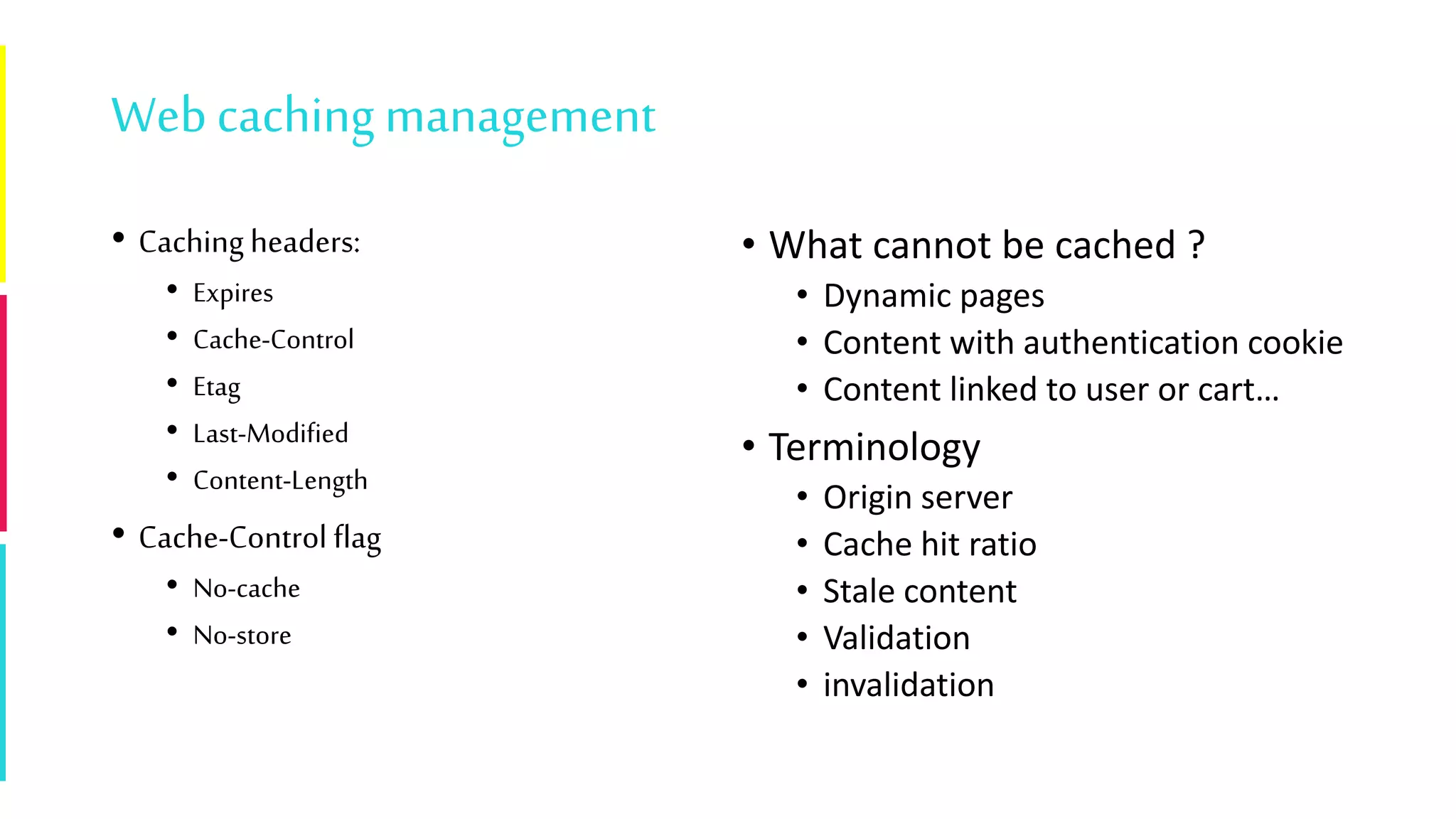

- 15. Webcaching management • Cachingheaders: • Expires • Cache-Control • Etag • Last-Modified • Content-Length • Cache-Control flag • No-cache • No-store • What cannot be cached ? • Dynamic pages • Content with authentication cookie • Content linked to user or cart… • Terminology • Origin server • Cache hit ratio • Stale content • Validation • invalidation

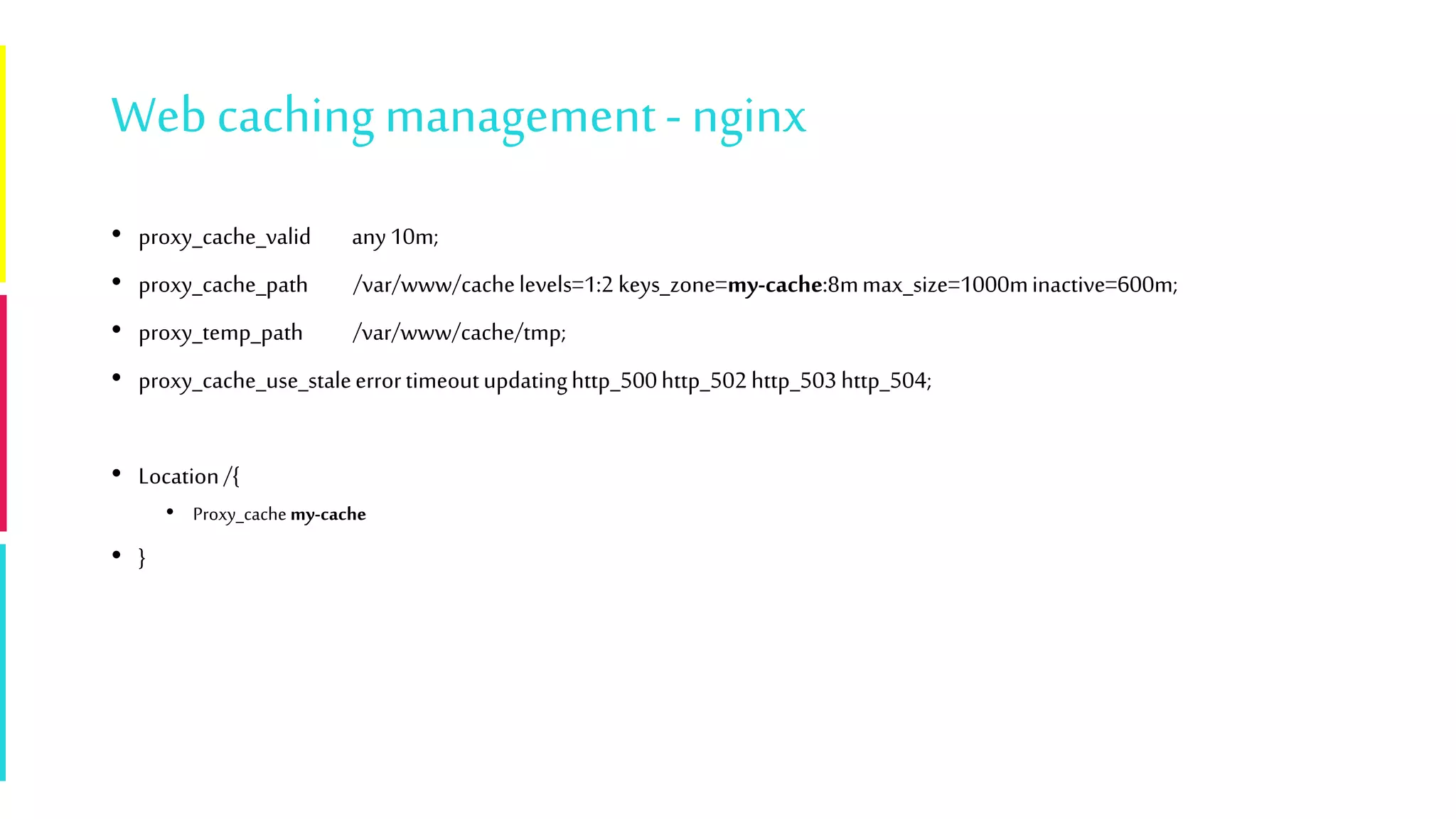

- 16. Webcaching management- nginx •proxy_cache_valid any10m; • proxy_cache_path /var/www/cachelevels=1:2 keys_zone=my-cache:8mmax_size=1000minactive=600m; • proxy_temp_path /var/www/cache/tmp; • proxy_cache_use_staleerrortimeoutupdatinghttp_500http_502http_503http_504; • Location/{ • Proxy_cache my-cache • }

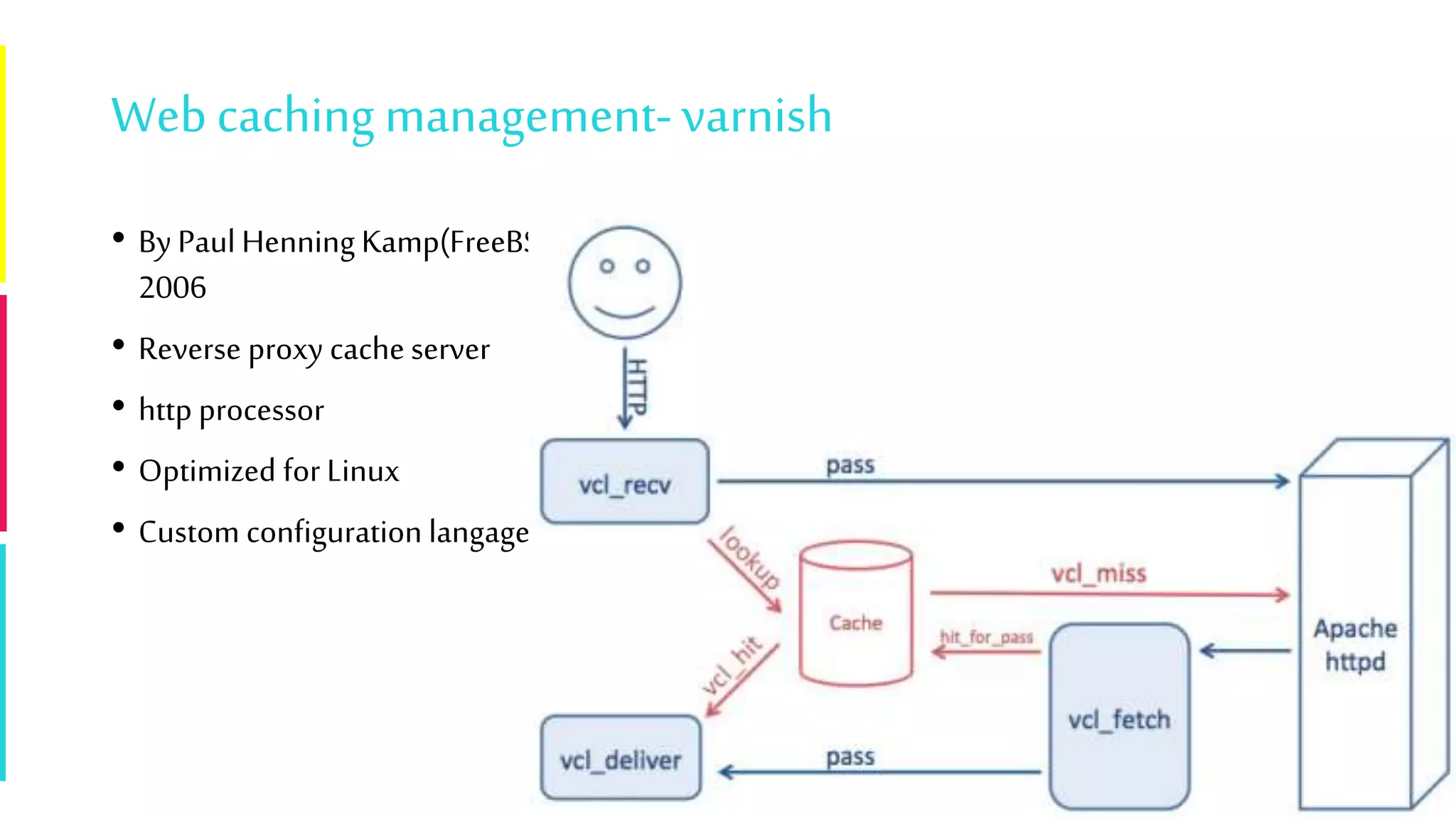

- 17. Webcaching management-varnish • ByPaul Henning Kamp(FreeBSD dev) in 2006 • Reverse proxy cache server • http processor • Optimized for Linux • Custom configuration langage

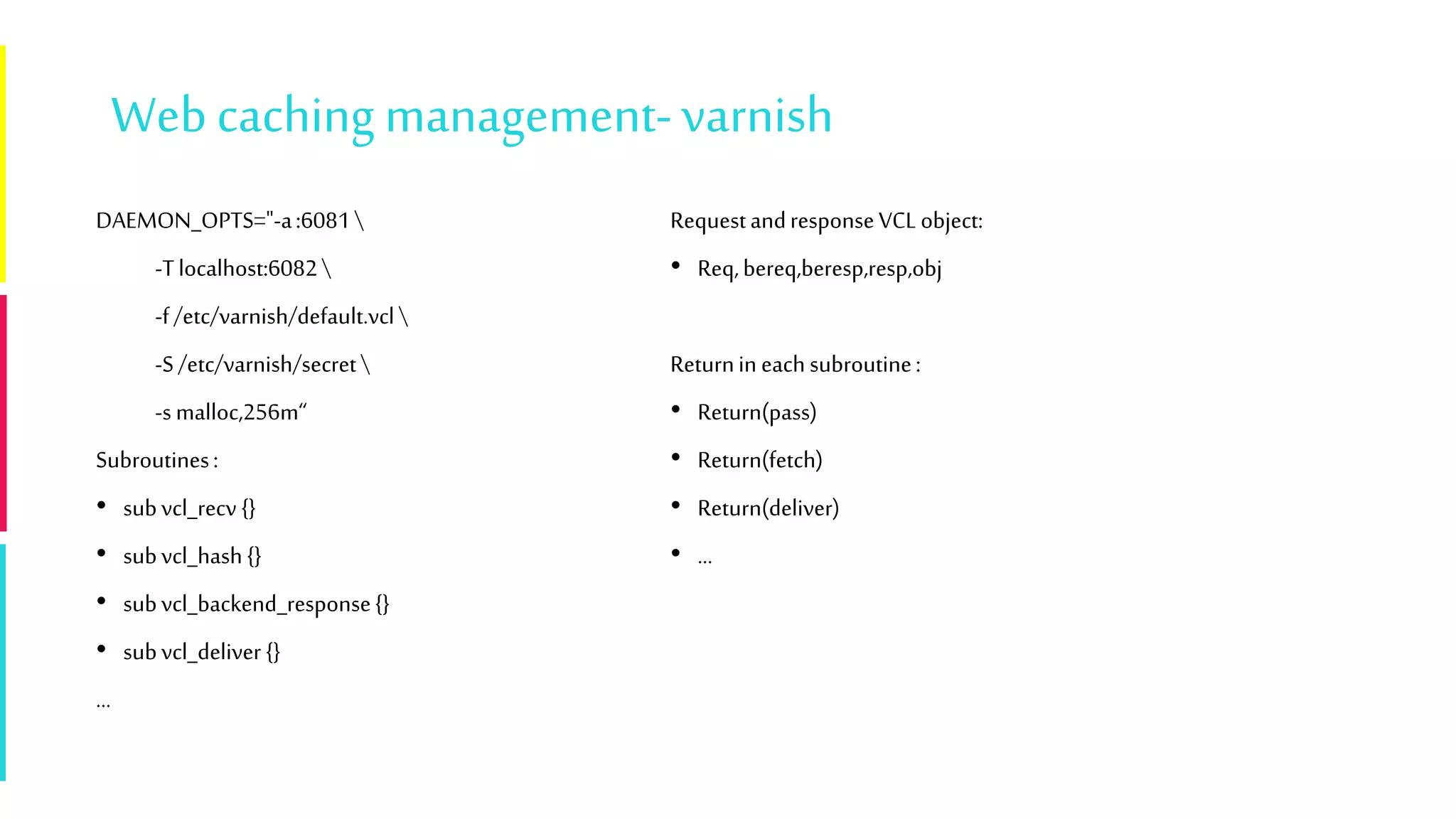

- 18. Webcaching management-varnish DAEMON_OPTS="-a:6081 -Tlocalhost:6082 -f/etc/varnish/default.vcl -S/etc/varnish/secret -s malloc,256m“ Subroutines: •subvcl_recv {} • subvcl_hash {} • subvcl_backend_response{} • subvcl_deliver {} … RequestandresponseVCLobject: • Req,bereq,beresp,resp,obj Returnin each subroutine: • Return(pass) • Return(fetch) • Return(deliver) • …

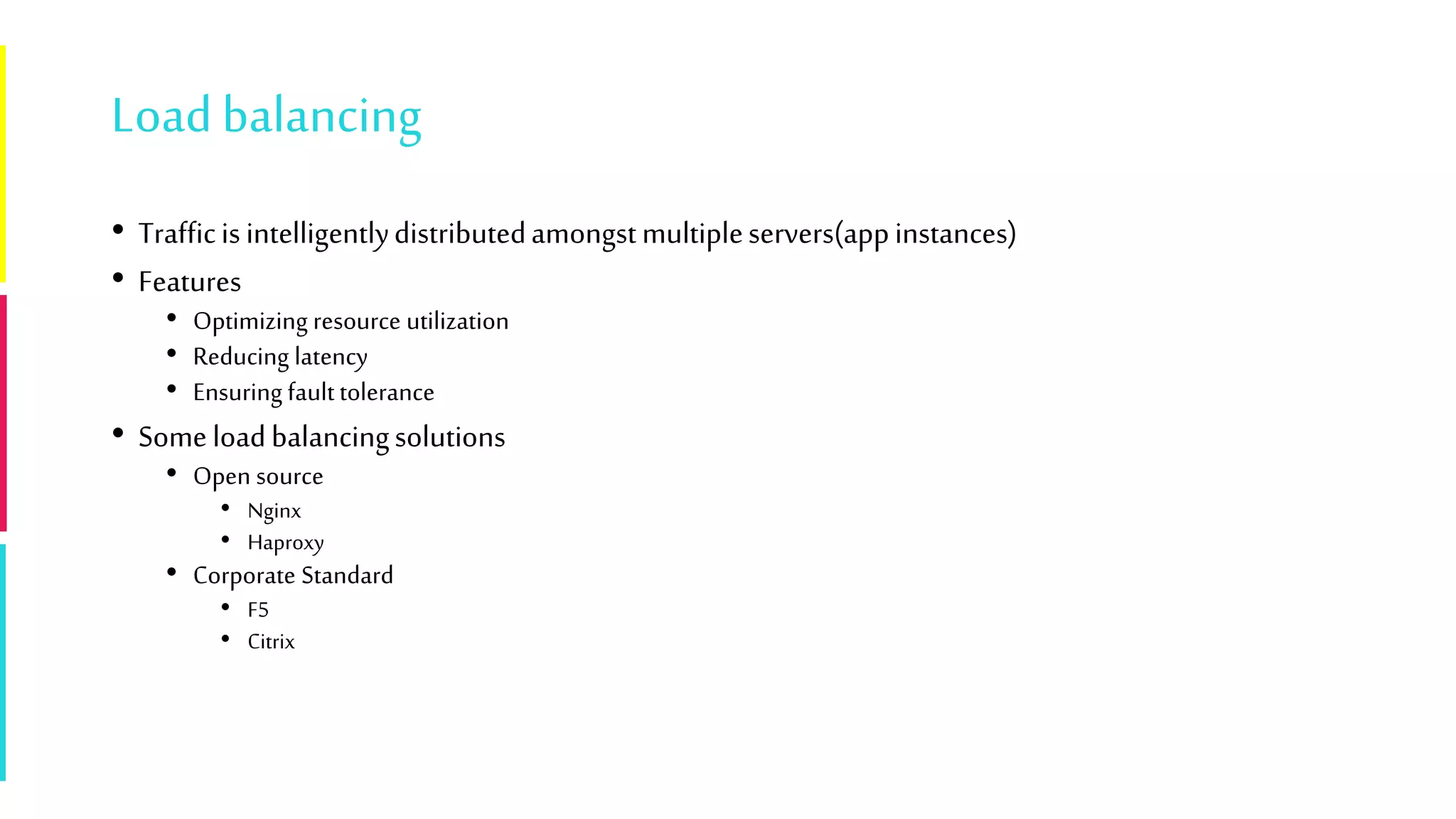

- 19. Loadbalancing • Trafficisintelligentlydistributedamongstmultipleservers(appinstances) • Features •Optimizing resource utilization • Reducing latency • Ensuring faulttolerance • Someloadbalancingsolutions • Open source • Nginx • Haproxy • Corporate Standard • F5 • Citrix

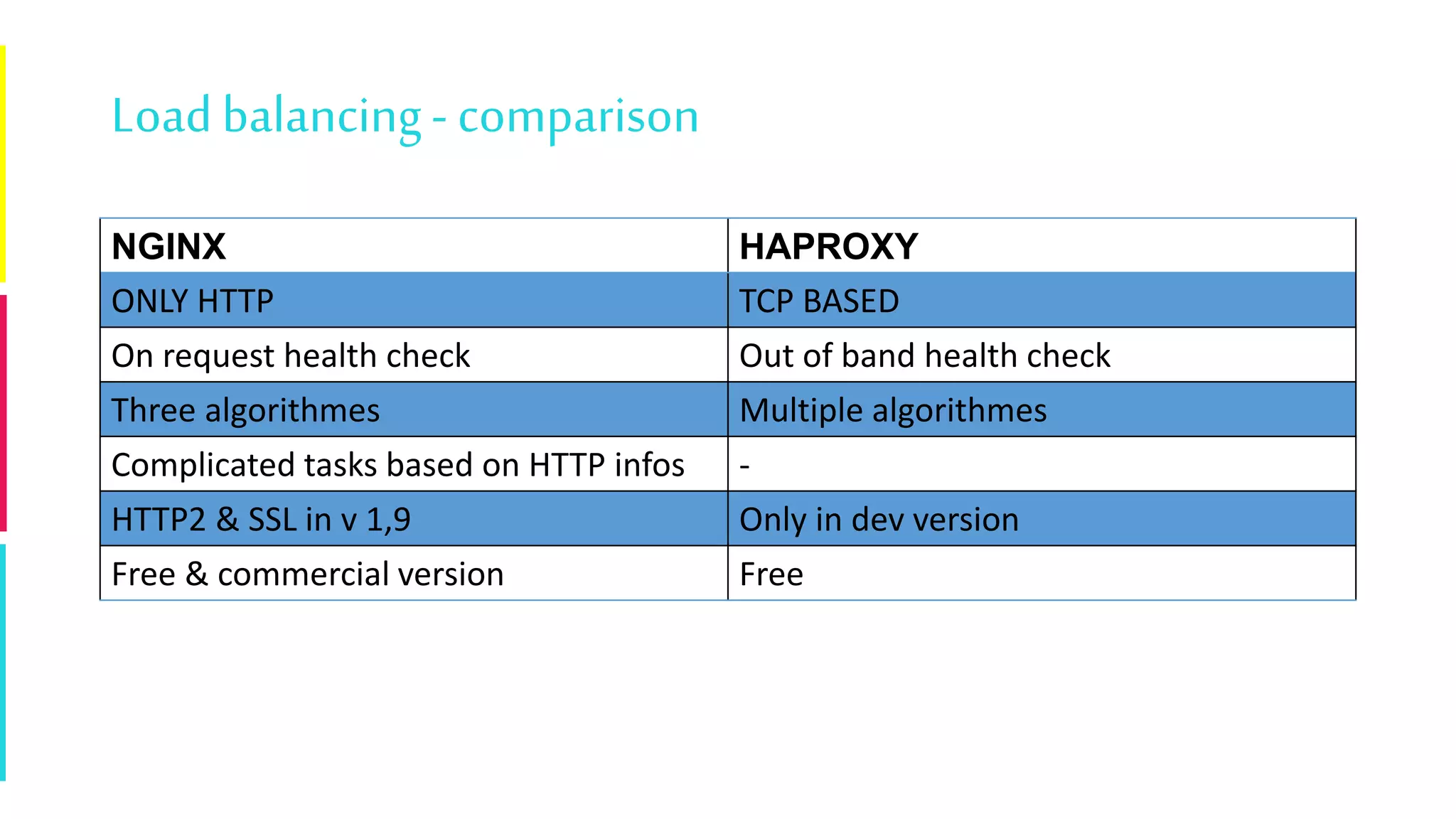

- 20. Loadbalancing- comparison NGINX HAPROXY ONLYHTTP TCP BASED On request health check Out of band health check Three algorithmes Multiple algorithmes Complicated tasks based on HTTP infos - HTTP2 & SSL in v 1,9 Only in dev version Free & commercial version Free

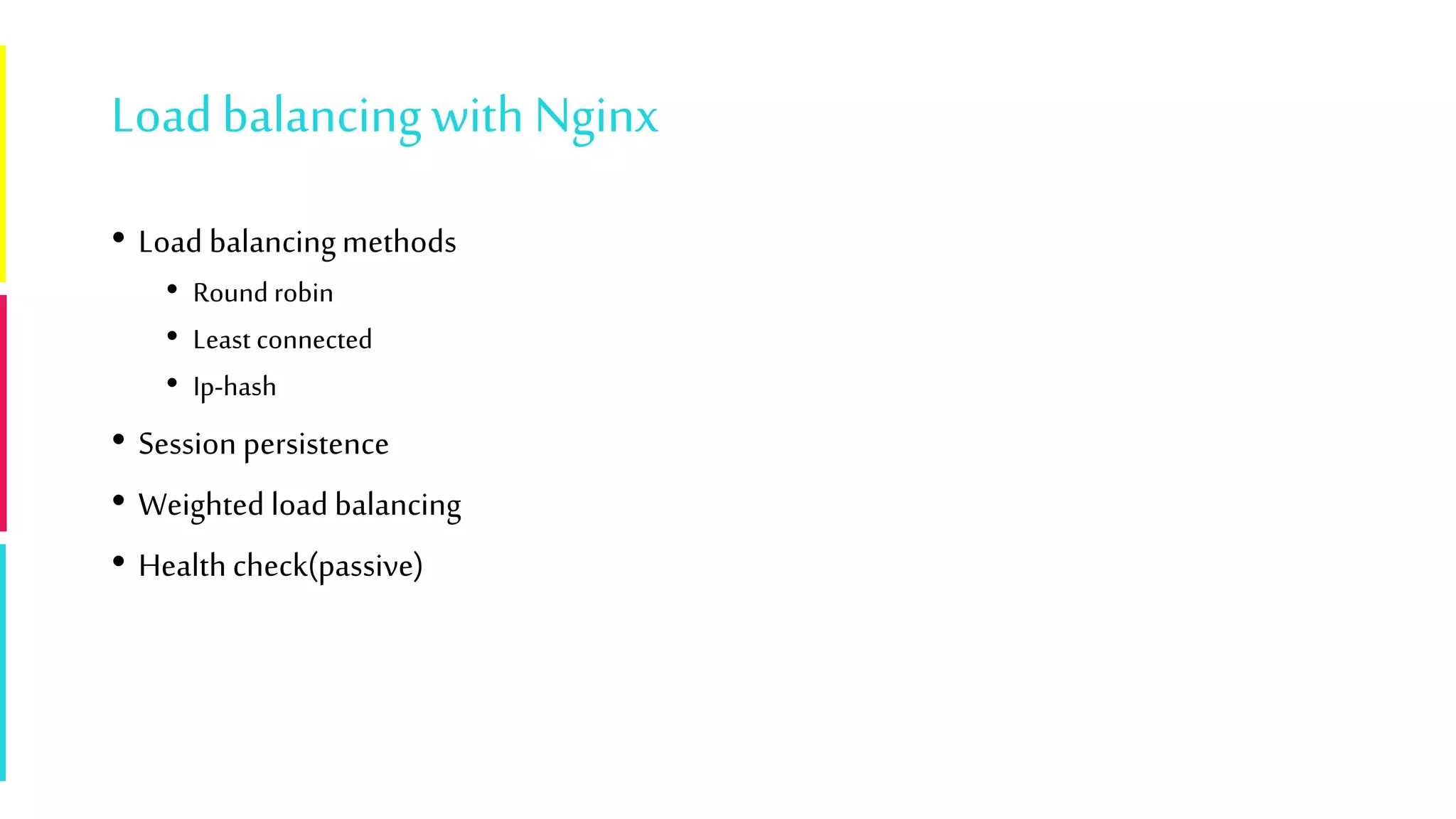

- 21. Loadbalancingwith Nginx • Loadbalancingmethods • Round robin • Least connected • Ip-hash • Session persistence • Weighted load balancing • Health check(passive)

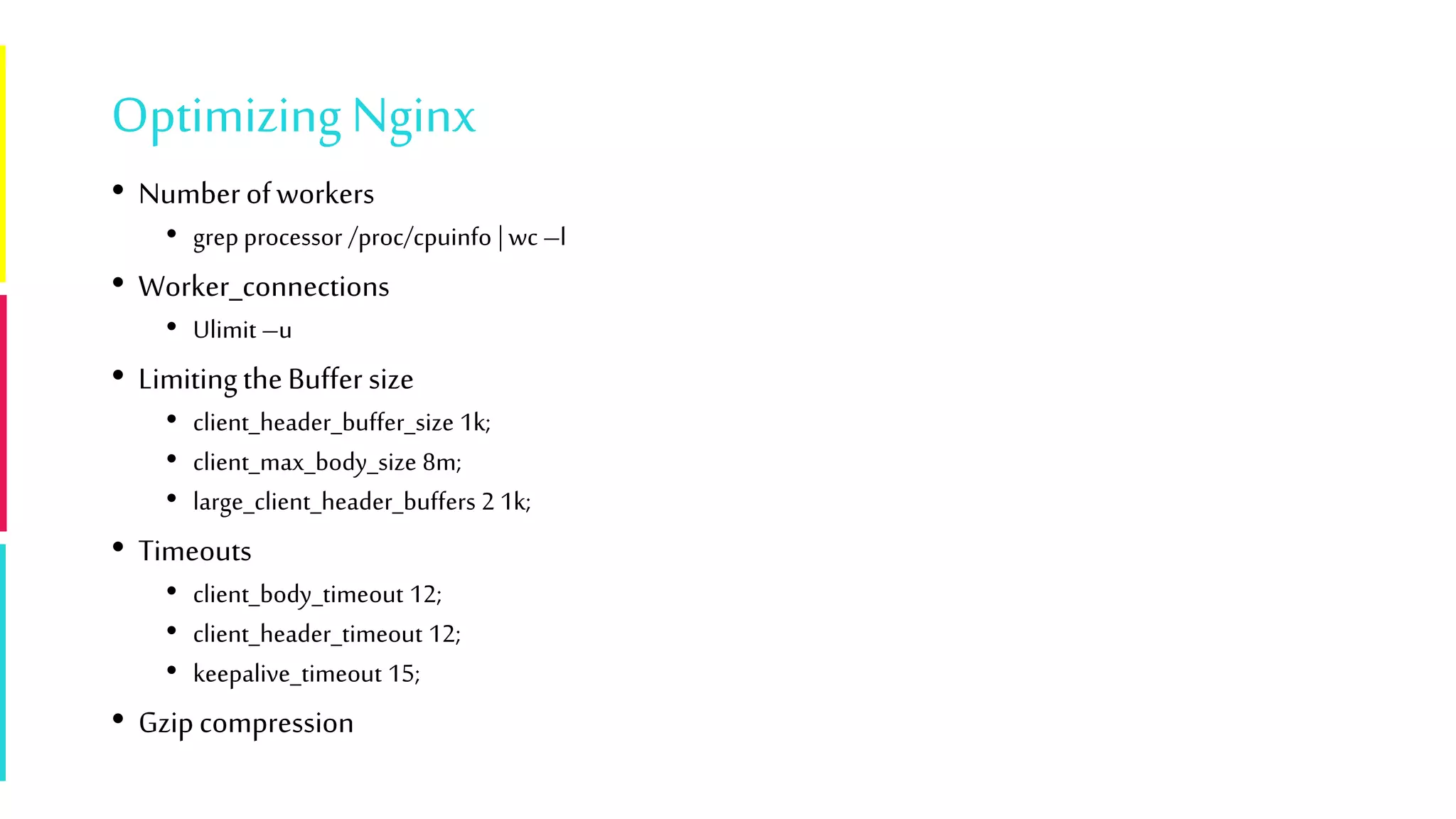

- 22. Optimizing Nginx • Numberofworkers •grep processor /proc/cpuinfo | wc –l • Worker_connections • Ulimit –u • LimitingtheBuffer size • client_header_buffer_size 1k; • client_max_body_size 8m; • large_client_header_buffers 2 1k; • Timeouts • client_body_timeout 12; • client_header_timeout 12; • keepalive_timeout 15; • Gzipcompression

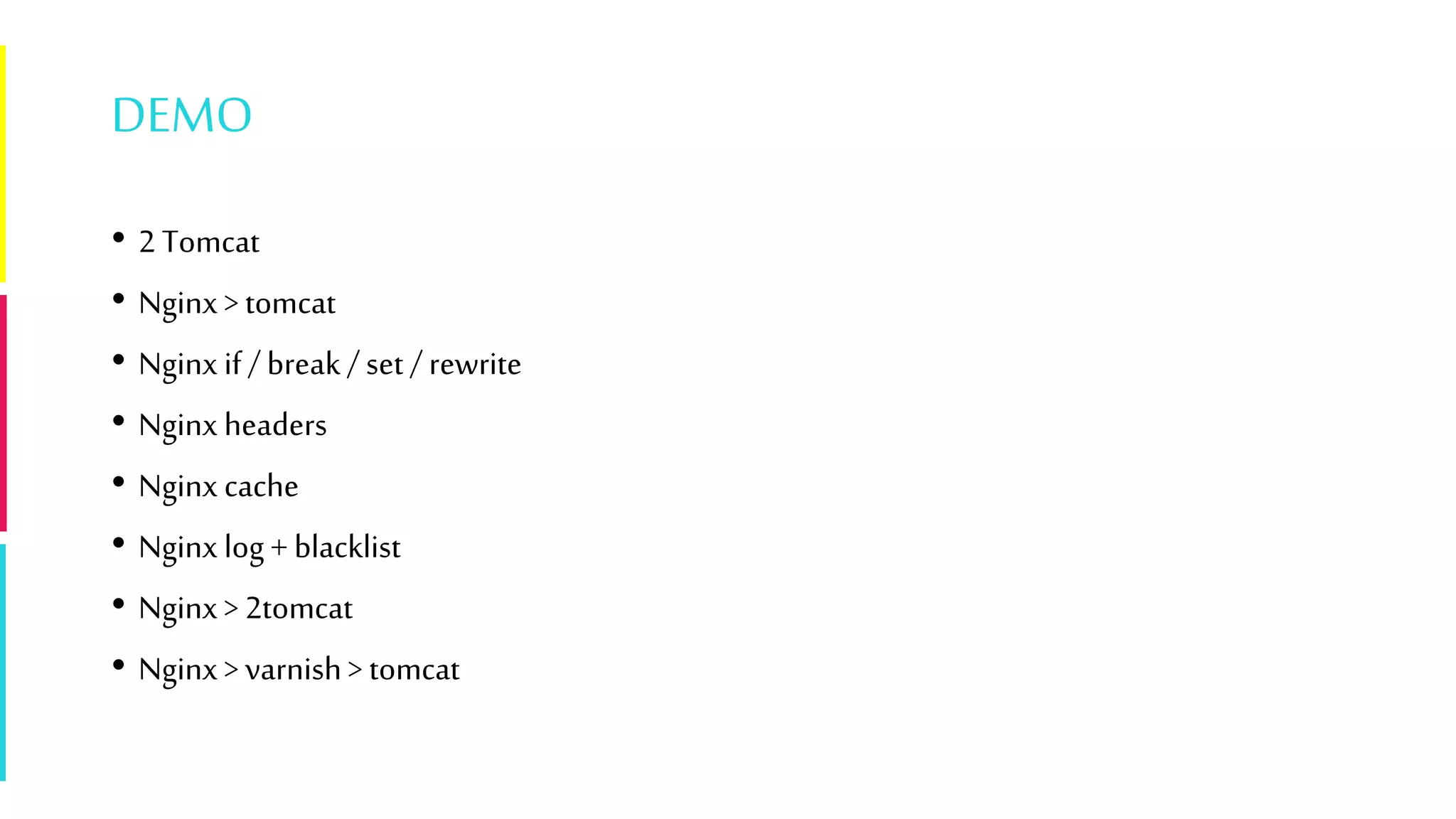

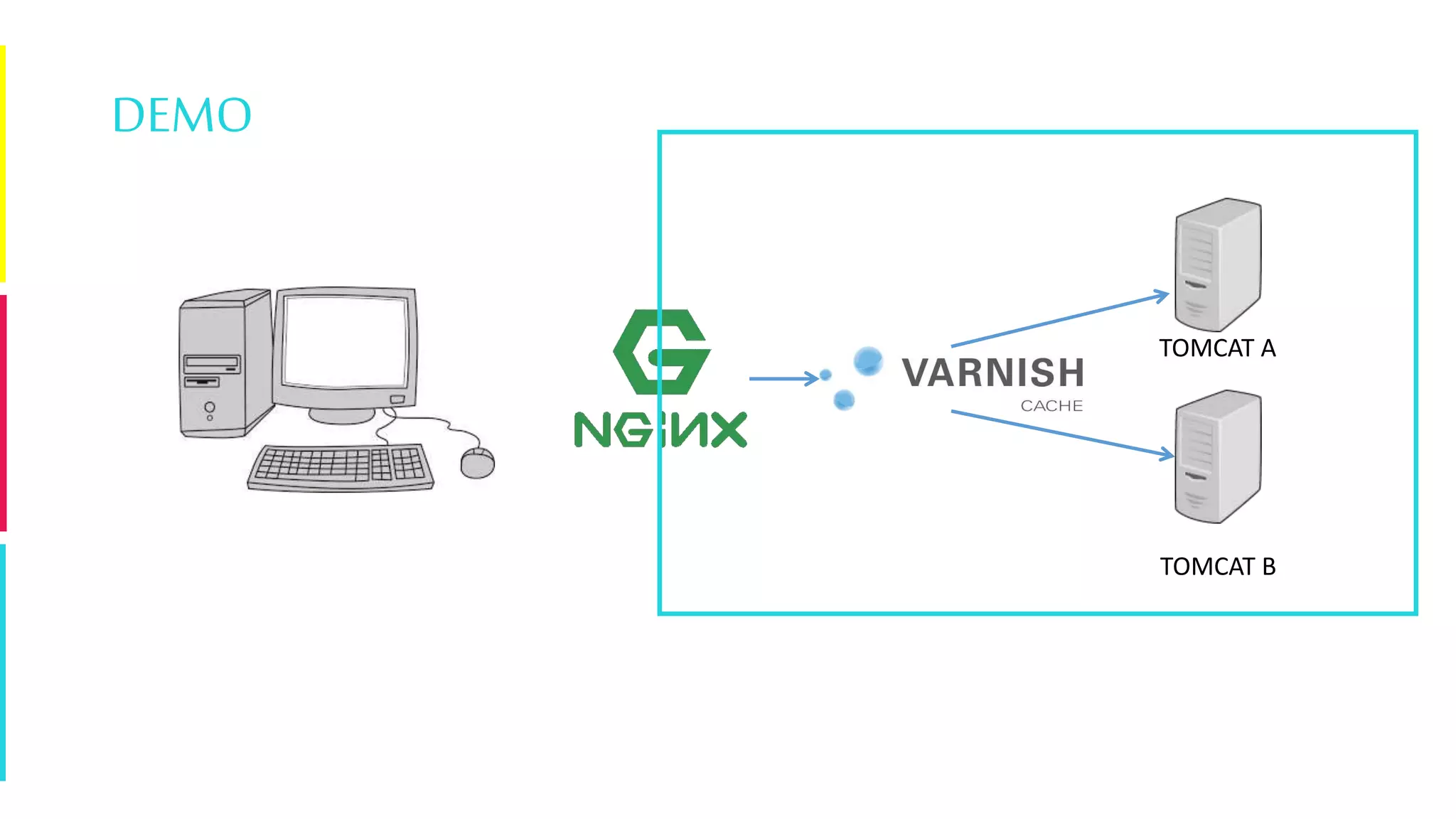

- 23. DEMO • 2 Tomcat •Nginx > tomcat • Nginx if / break / set / rewrite • Nginx headers • Nginx cache • Nginx log + blacklist • Nginx > 2tomcat • Nginx > varnish > tomcat
- 24.
- 25.
