1. Why Loggly Loves Apache
Kafka, and How We Use Its
Unbreakable Messaging for
Better Apache Log Storm
Management
Infrastructure Engineering Team
June 2014
| Log management as a service Simplify Log Management

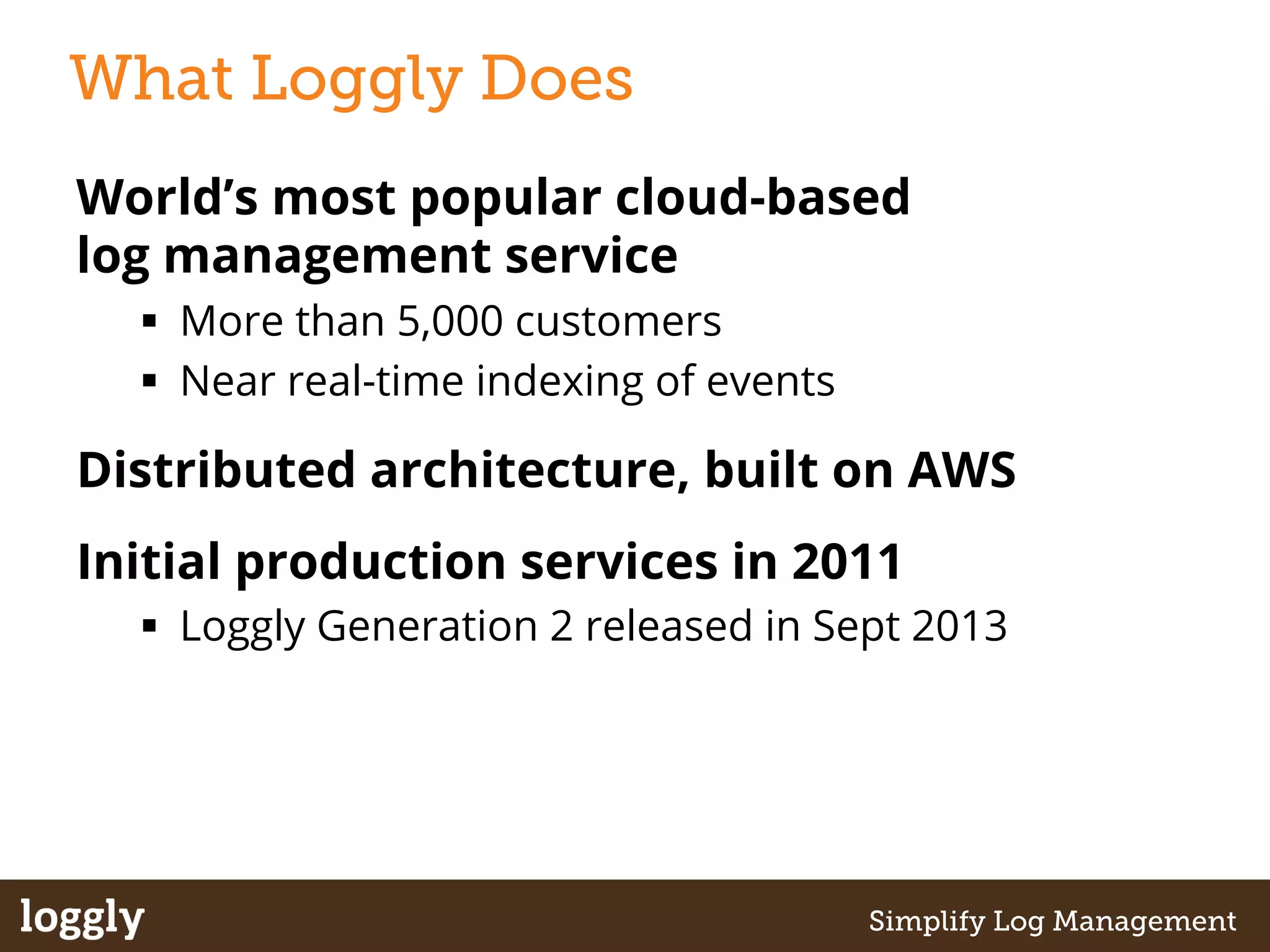

2. What Loggly Does
World’s most popular cloud-based
log management service
§ More than 5,000 customers
§ Near real-time indexing of events
Distributed architecture, built on AWS
Initial production services in 2011
§ Loggly Generation 2 released in Sept 2013
| Log management as a service Simplify Log Management

3. Loggly: Addressing the first big data
problem every company faces
§ Centralized logging
and archival
§ Real-time processing,
analysis and
visualization
§ Monitoring, alerting
and troubleshooting
| Log management as a service Simplify Log Management

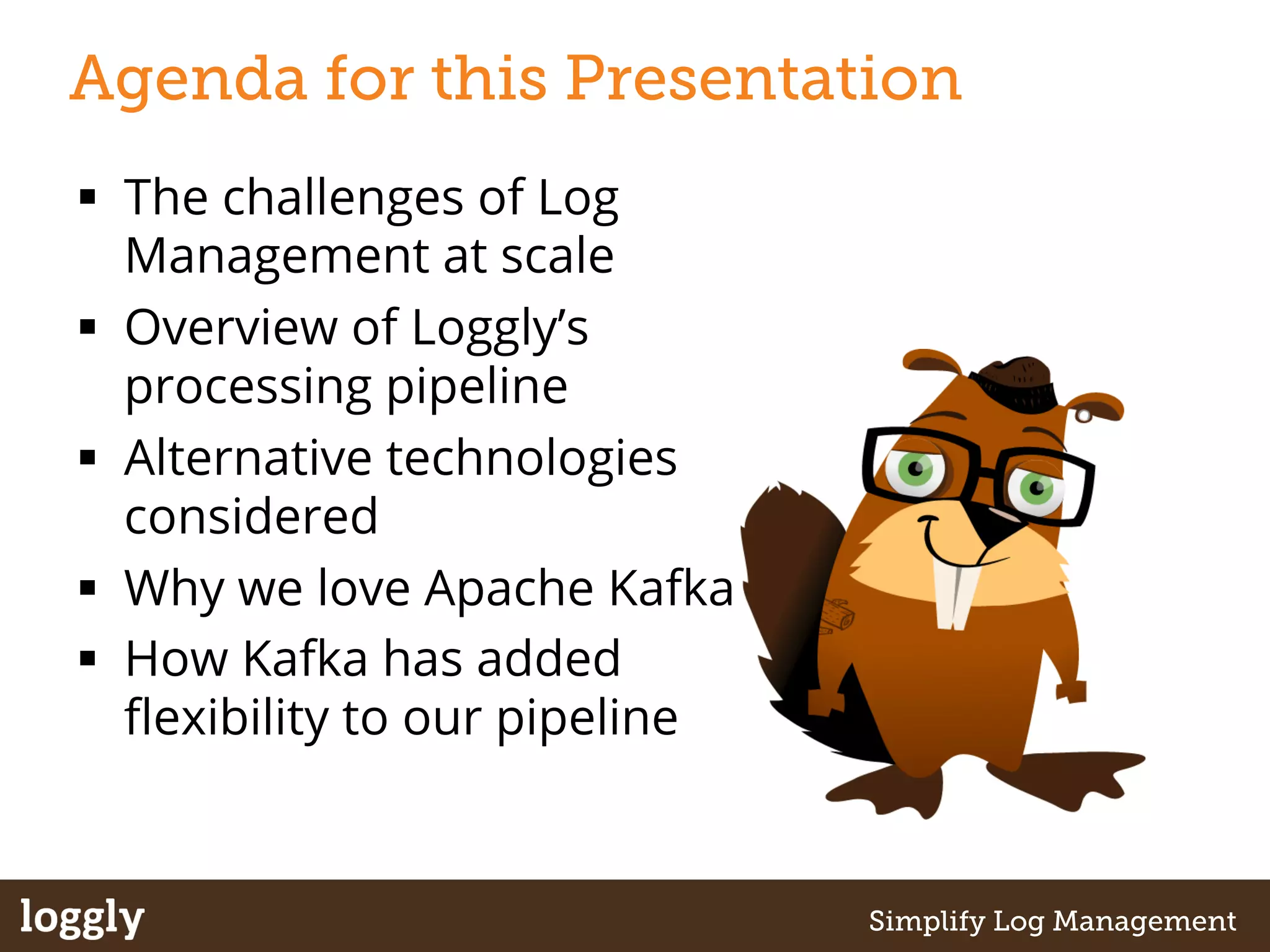

4. Agenda for this Presentation
§ The challenges of Log
Management at scale
§ Overview of Loggly’s
processing pipeline
§ Alternative technologies
considered
§ Why we love Apache Kafka
§ How Kafka has added
flexibility to our pipeline
| Log management as a service Simplify Log Management

5. The Challenges of Log Management at Scale
§ Big data
– >750 billion events logged to
date
– Sustained bursts of 100,000+
events per second
– Data space measured in
petabytes
§ Need for high fault tolerance
§ Near real-time indexing
requirements
§ Time-series index
management
| Log management as a service Simplify Log Management

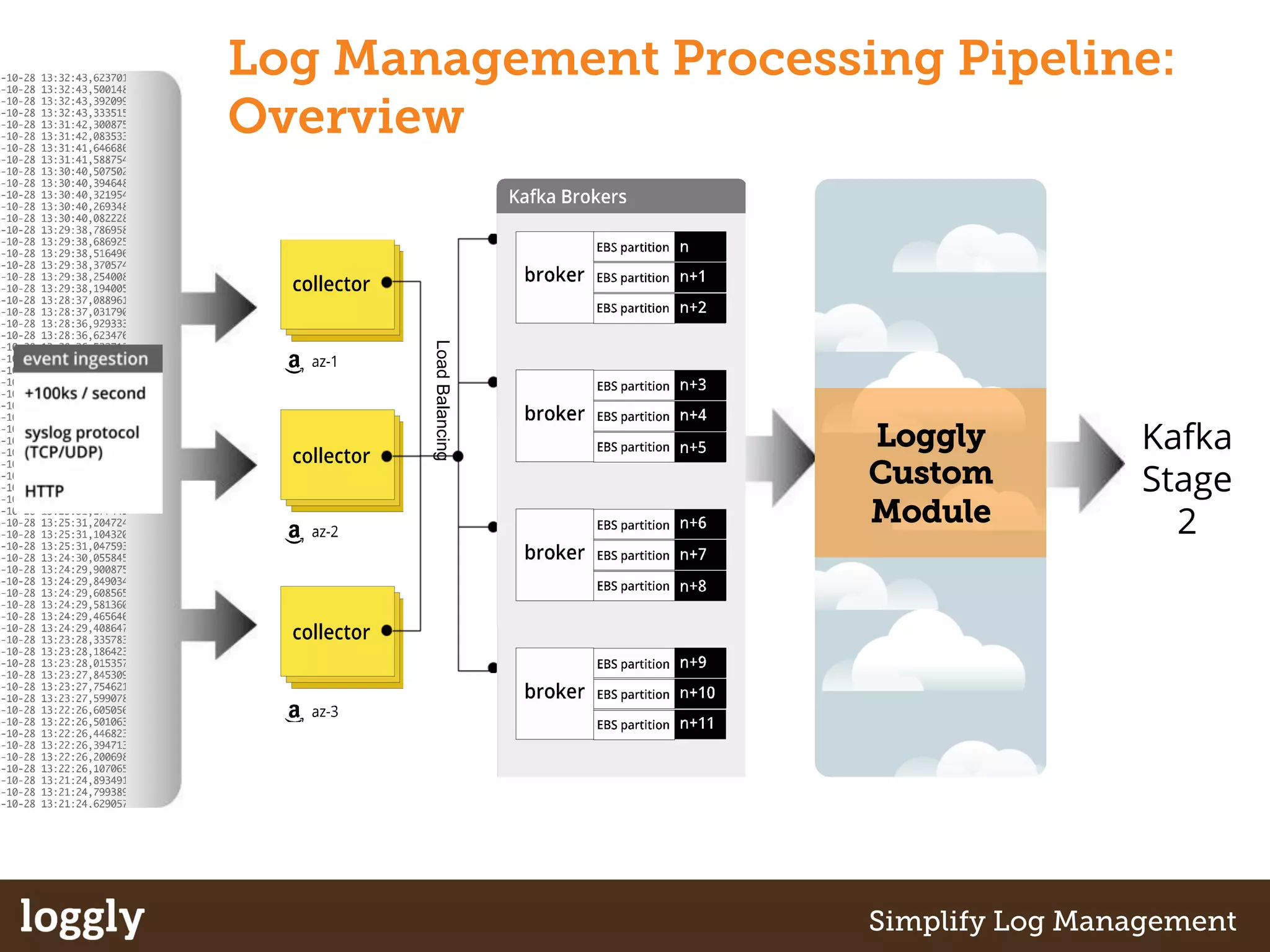

6. Log Management Processing Pipeline:
Overview
Load Balancing
Kafka
Stage
2
Loggly
Custom
Module
| Log management as a service Simplify Log Management

7. Collectors Can Easily Outpace
Downstream Processes
Load Balancing
Kafka
Stage
2
Loggly
Custom
Module
§ Written in C++
§ Designed to ingest
massive data volumes
§ Need to collect
regardless of what’s
happening
downstream
| Log management as a service Simplify Log Management

8. Solution:
Queue That’s External to Collector
Load Balancing
Kafka
Stage
2
Loggly
Custom
Module
§ Based on Apache
Kafka
§ Highly performant
and reliable
| Log management as a service Simplify Log Management

9. Alternate/ Supplementary
Approaches Considered
§ Internal buffering in collectors
– Added complexity
§ Cassandra
– Not as good a queue as Kafka
§ Apache Storm
– In initial Gen2 architecture, removed after launch
| Log management as a service Simplify Log Management

10. The Secret to Log Management at Scale:
Keep It Simple, Stupid
Results:
§ Can process sustained rates of
100,000+ events per second per cluster
§ Average message 300 bytes
| Log management as a service Simplify Log Management

11. Why We Love
Kafka
| Log management as a service Simplify Log Management

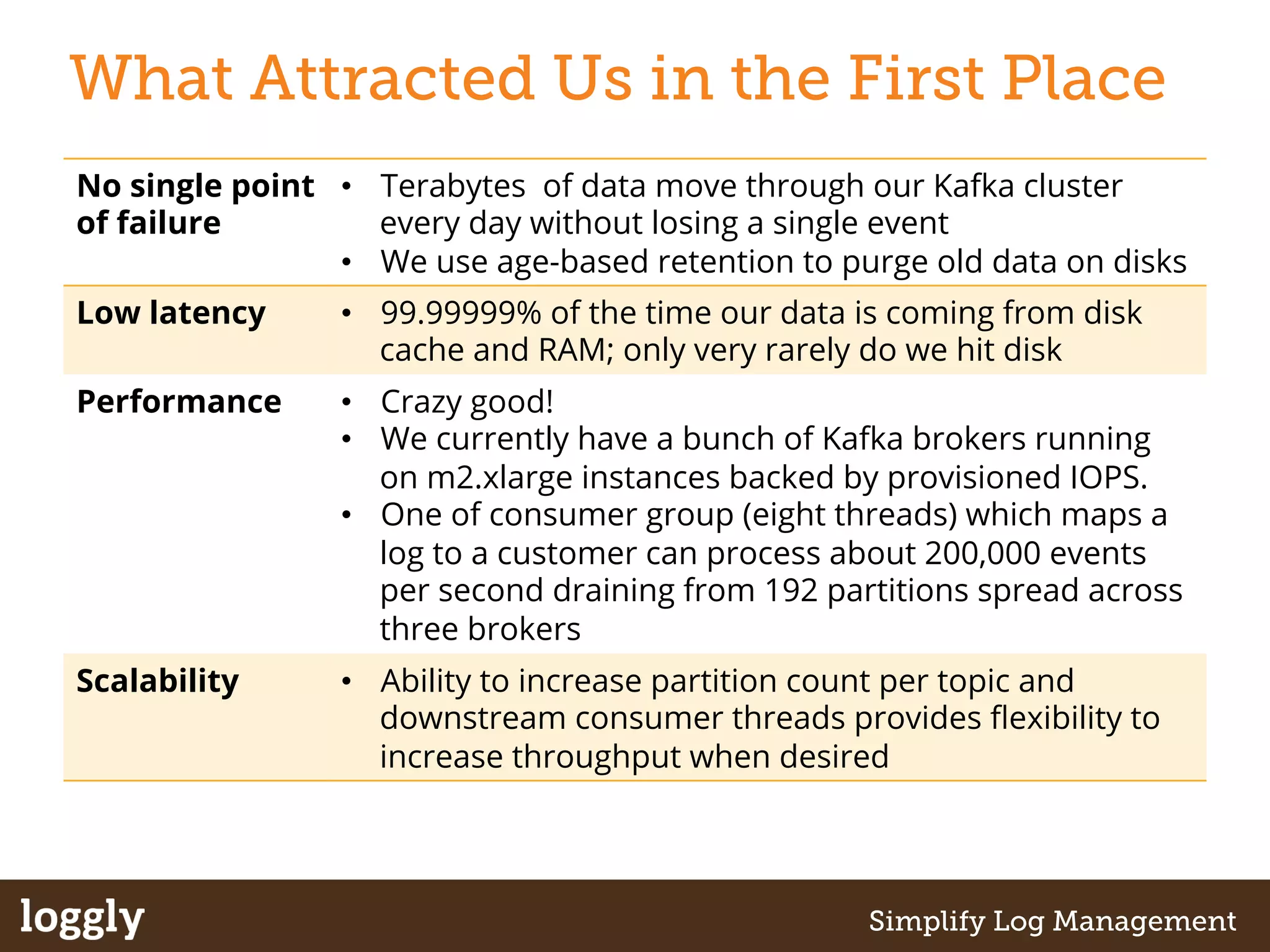

12. What Attracted Us in the First Place
No single point
of failure
• Terabytes of data move through our Kafka cluster
every day without losing a single event
• We use age-based retention to purge old data on disks
Low latency • 99.99999% of the time our data is coming from disk
cache and RAM; only very rarely do we hit disk
Performance • Crazy good!
• We currently have a bunch of Kafka brokers running
on m2.xlarge instances backed by provisioned IOPS.
• One of consumer group (eight threads) which maps a
log to a customer can process about 200,000 events
per second draining from 192 partitions spread across
three brokers
Scalability • Ability to increase partition count per topic and
downstream consumer threads provides flexibility to
increase throughput when desired
| Log management as a service Simplify Log Management

13. How Our Kafka Crush Has Deepened
Distributed log
collection
• Local pods and collectors spread all over the Internet with
local Kafka deployments to collect data from customers
located all over world
• Can collect logs even when we lose connectivity
• When network comes back, Kafka sends the logs
downstream to the rest of the pipeline
More efficient,
effective
DevOps
• Deploying Kafka throughout pipeline makes it easy to
disable certain parts of system (for troubleshooting or
upgrades)
• No worrying that we will lose customer data
• Example: Add support for new log type into our
automatic parsing capabilities by turning off existing
parser, deploying new one, and processing logs that
Kafka has queued up
Controlling
resource
utilization
• Keep collectors as simple as possible for resilience and
reliability reasons
• Add intelligence into our pipelines using Kafka
| Log management as a service Simplify Log Management

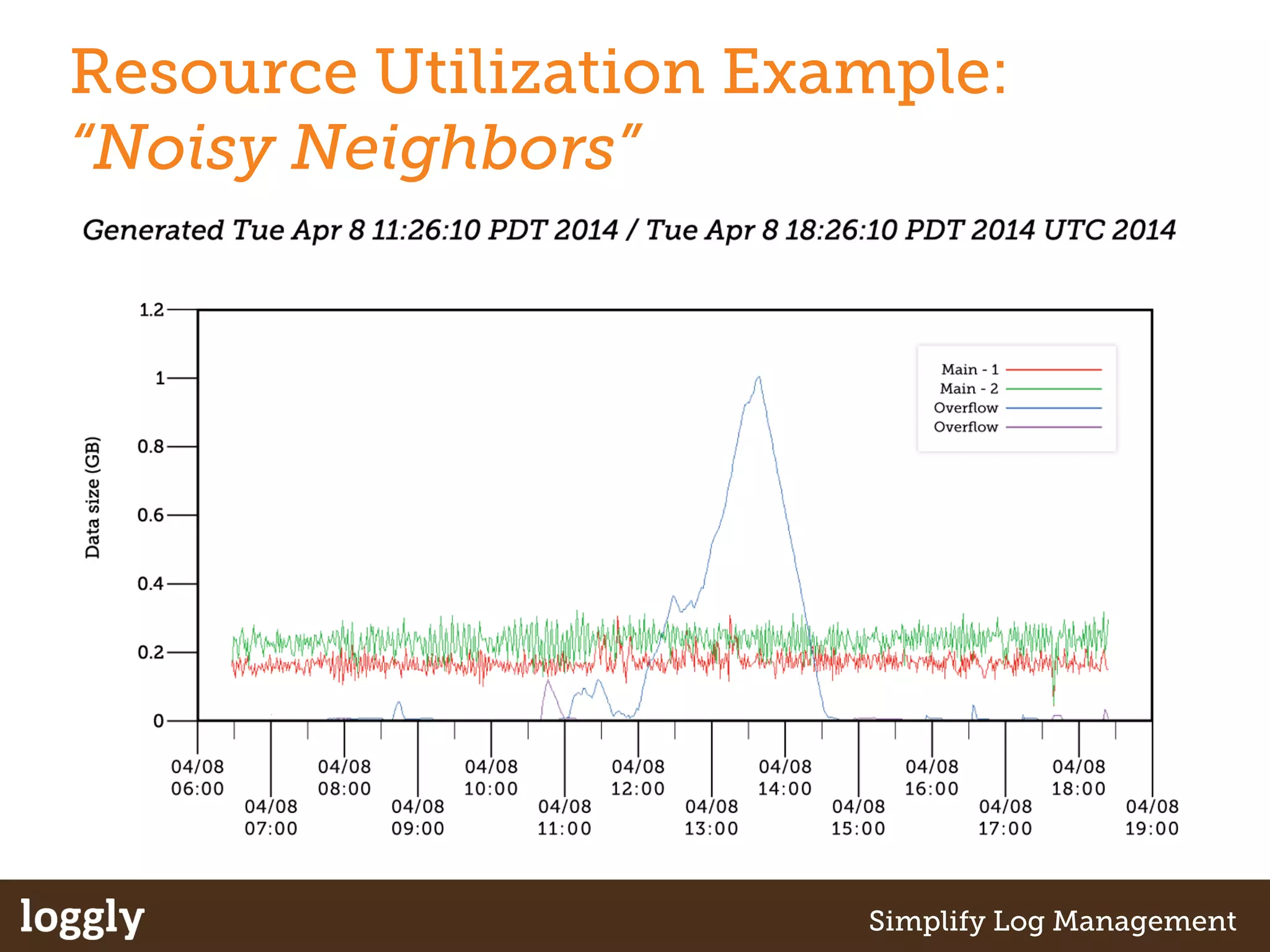

14. Resource Utilization Example:
“Noisy Neighbors”
| Log management as a service Simplify Log Management

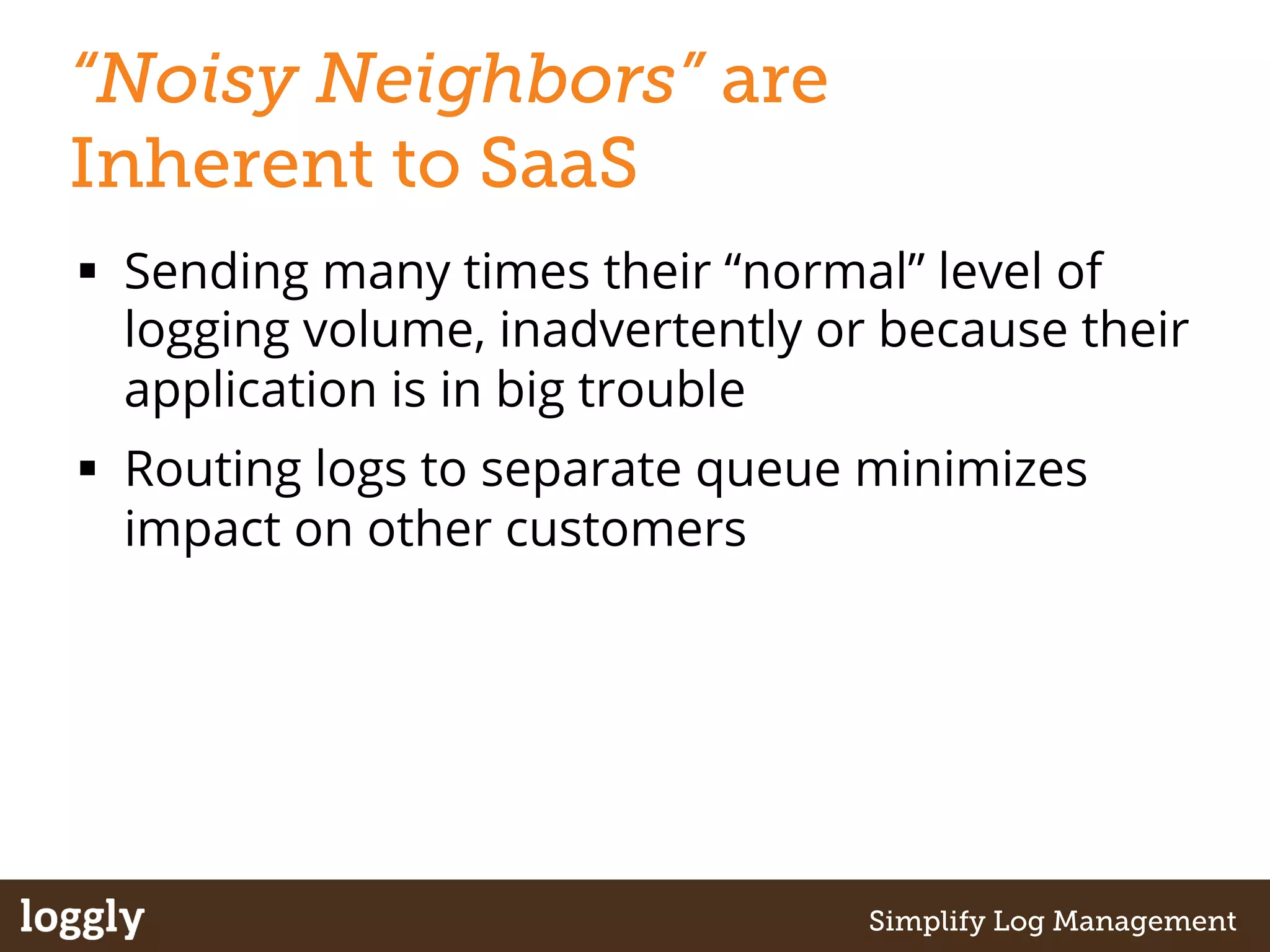

15. “Noisy Neighbors” are
Inherent to SaaS
§ Sending many times their “normal” level of
logging volume, inadvertently or because their
application is in big trouble
§ Routing logs to separate queue minimizes
impact on other customers
| Log management as a service Simplify Log Management

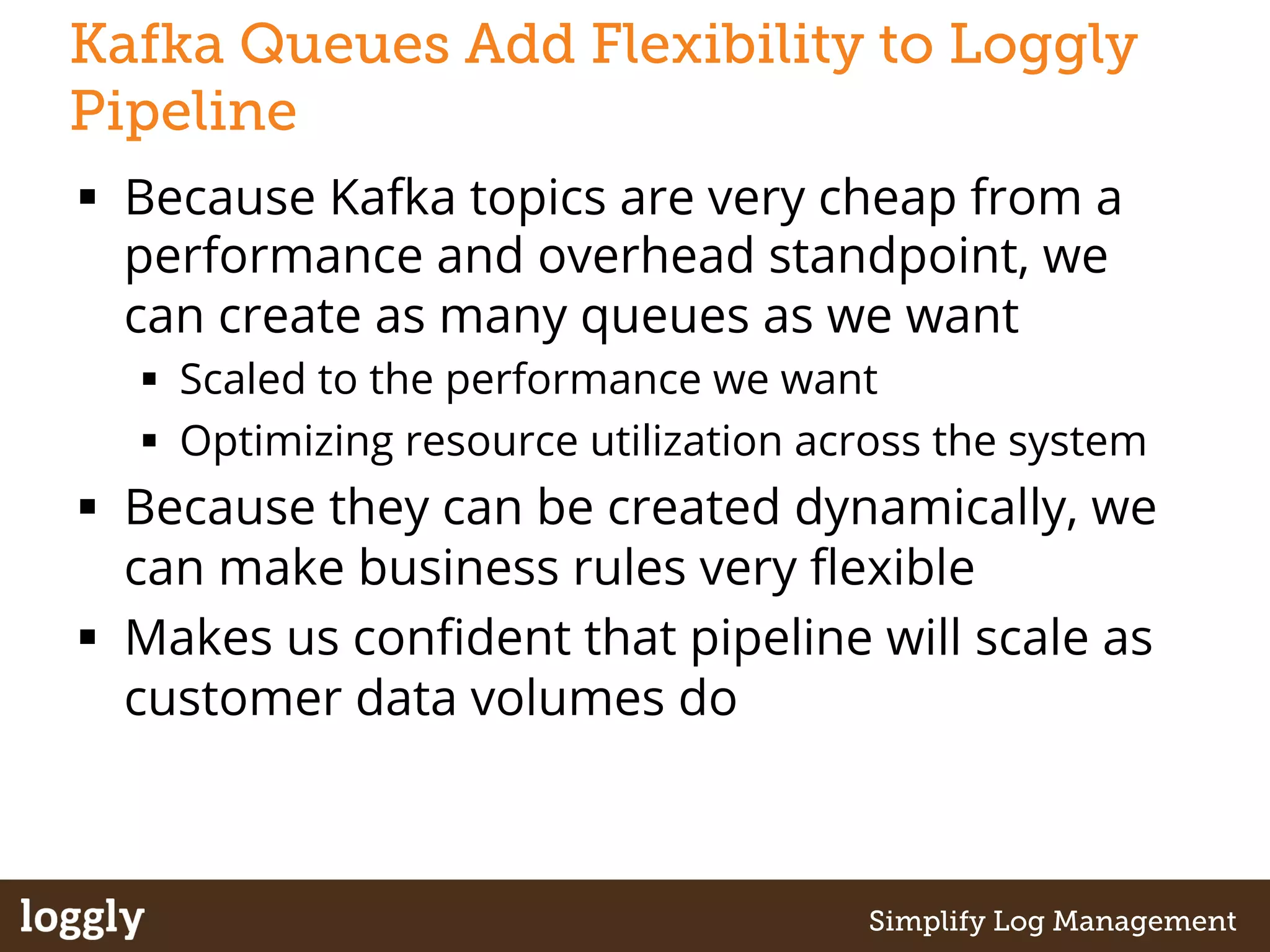

16. Kafka Queues Add Flexibility to Loggly
Pipeline
§ Because Kafka topics are very cheap from a
performance and overhead standpoint, we
can create as many queues as we want
§ Scaled to the performance we want
§ Optimizing resource utilization across the system
§ Because they can be created dynamically, we
can make business rules very flexible
§ Makes us confident that pipeline will scale as
customer data volumes do
| Log management as a service Simplify Log Management

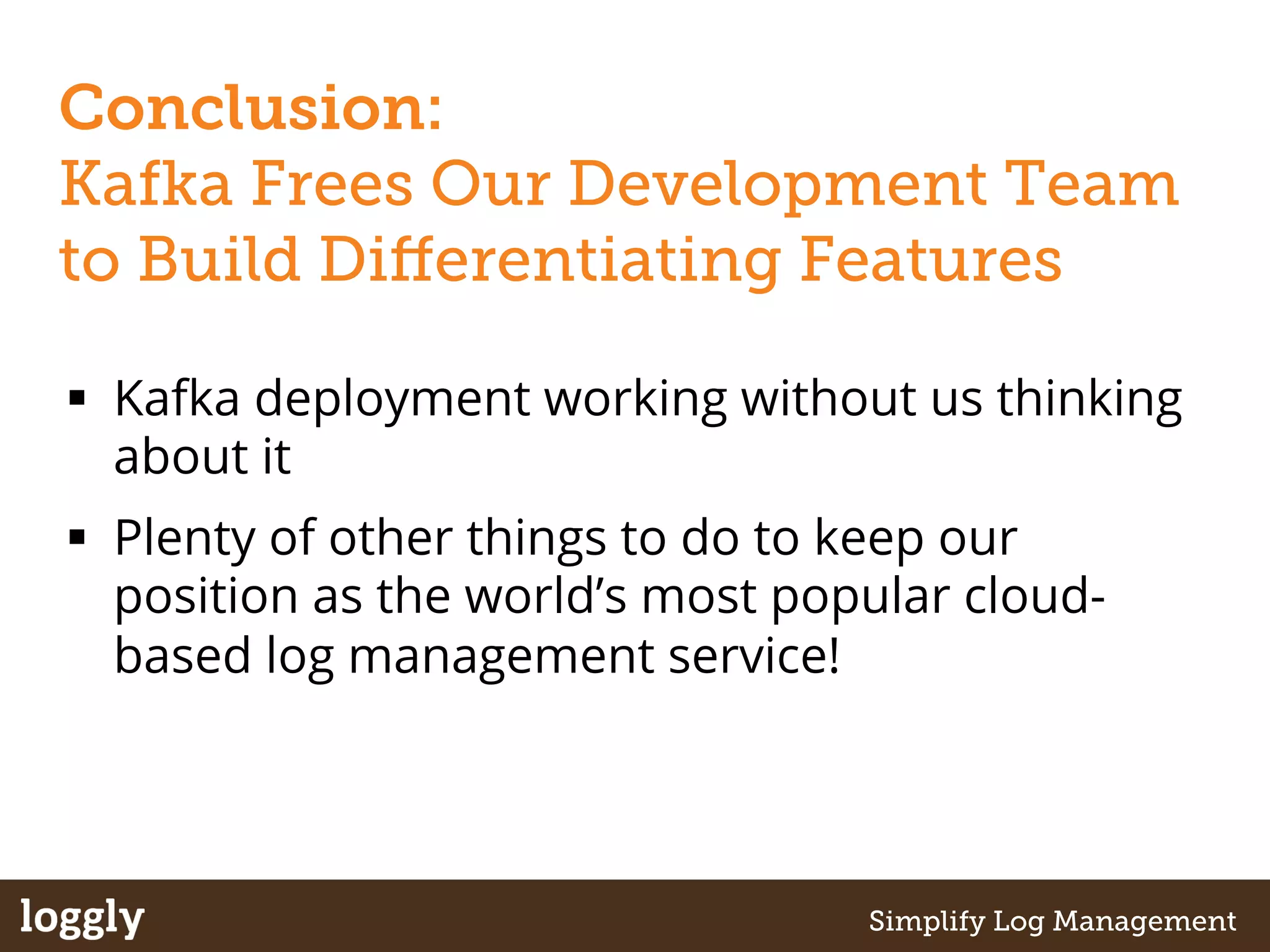

17. Conclusion:
Kafka Frees Our Development Team
to Build Differentiating Features
§ Kafka deployment working without us thinking
about it
§ Plenty of other things to do to keep our
position as the world’s most popular cloud-based
log management service!
