This pre-recorded 101-level lab and demo takes you from a “blank” LINUX system to a full-featured NGINX application delivery configuration for serving web content and load balancing.

1. Install and Configure
NGINX Open Source
Robert Haynes - NGINX

2. ©2022 F5
2
1. Housekeeping – (Q&A, resources, window sizing, lab access)
2. NGINX Overview
3. Steps to install NGINX
4. What can you do with NGINX?
5. Configuring NGINX
6. Quick Lab Demo
7. Over to you! - Hands on lab
Welcome!

3. ©2022 F5
3
>70%
10,000 busiest
websites
440M+
websites and apps
OPEN SOURCE FOOTPRINT

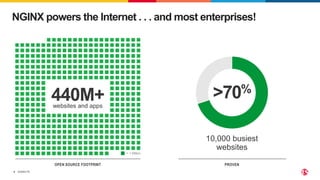

NGINX powers the Internet . . . and most enterprises!
PROVEN
= 1 Million

4. ©2022 F5
4

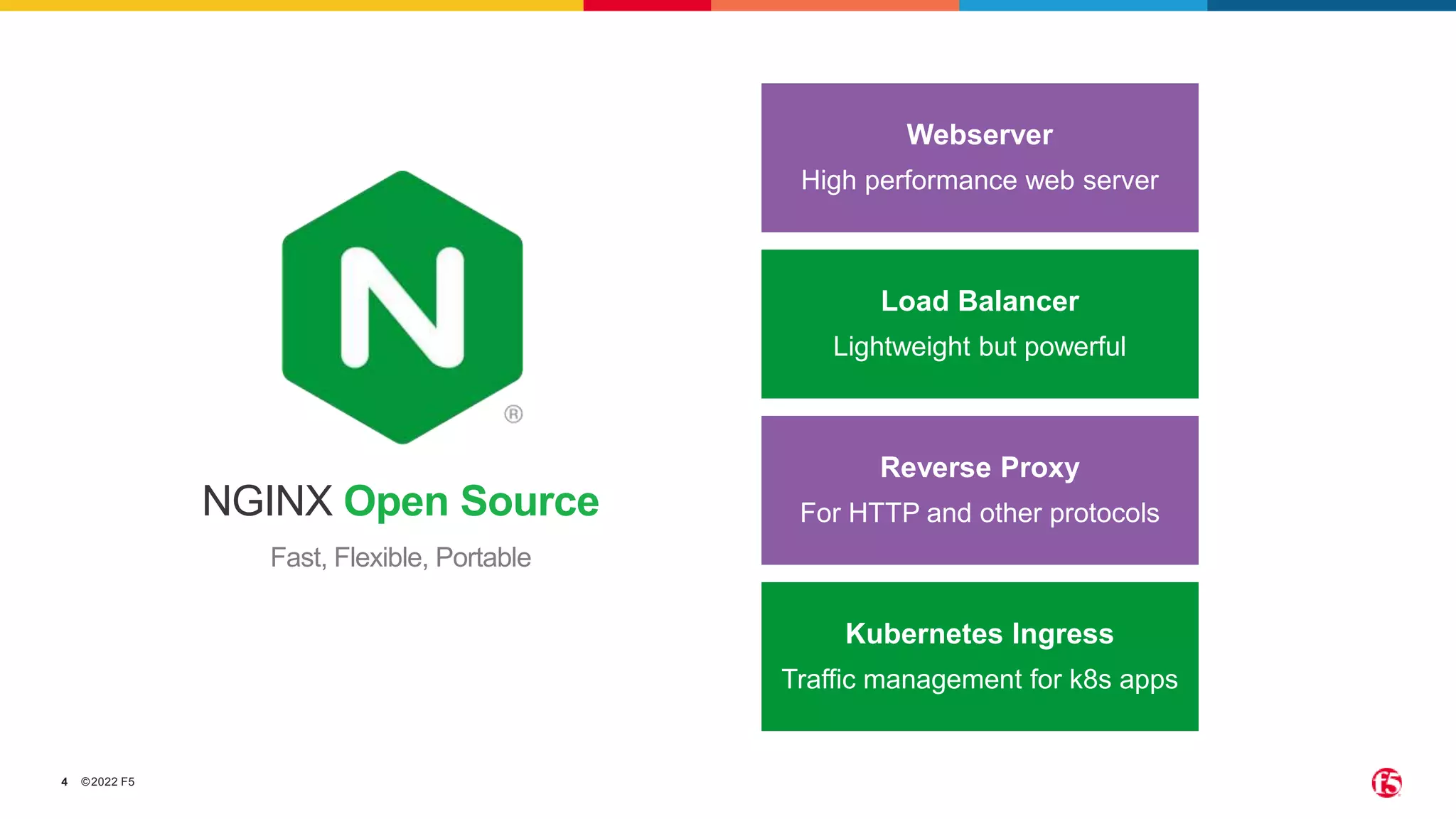

NGINX Open Source
Fast, Flexible, Portable
Webserver
High performance web server
Load Balancer
Lightweight but powerful
Reverse Proxy
For HTTP and other protocols
Kubernetes Ingress
Traffic management for k8s apps

5. ©2022 F5
5
NGINX Plus
Enterprise-Class Data Plane
NGINX Open Source
Fast, Flexible, Portable

6. ©2022 F5
6

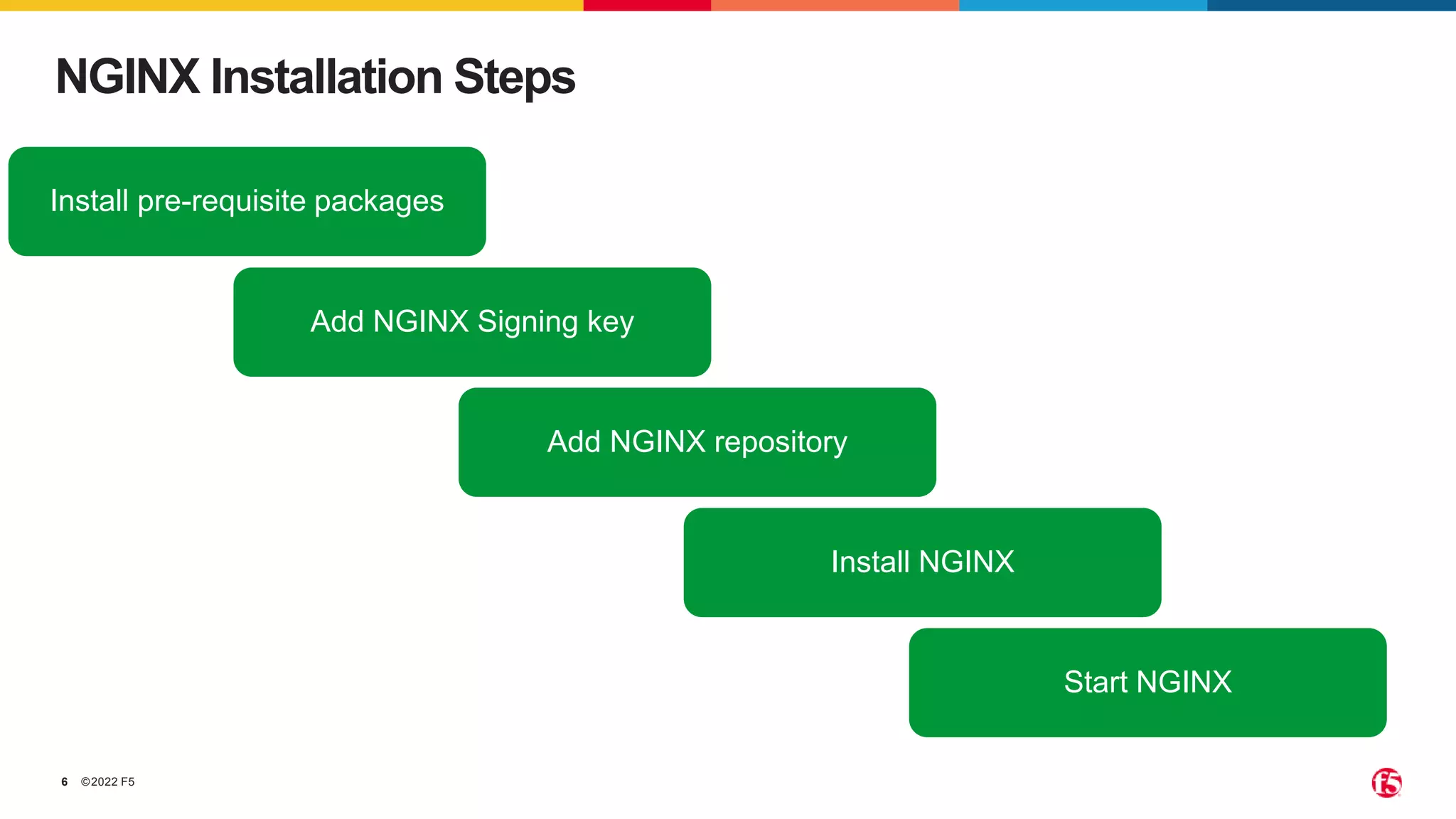

NGINX Installation Steps
Install pre-requisite packages
Add NGINX Signing key
Add NGINX repository
Install NGINX
Start NGINX

7. ©2022 F5
7

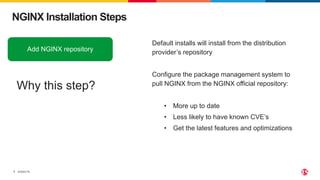

NGINX Installation Steps
Add NGINX repository
Default installs will install from the distribution
provider’s repository
Configure the package management system to
pull NGINX from the NGINX official repository:
• More up to date
• Less likely to have known CVE’s
• Get the latest features and optimizations
Why this step?

8. ©2022 F5
8
user www-data;
worker_processes auto;
pid /run/nginx.pid;
include /etc/nginx/modules-enabled/*.conf;
events {
worker_connections 768;
# multi_accept on;
}
http {
## lots of default config goes here
## Delete for readability
include /etc/nginx/conf.d/*.conf;
}

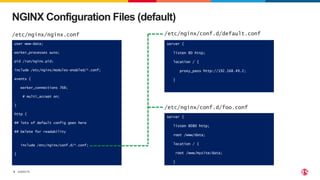

NGINX Configuration Files (default)
server {
listen 80 http;
location / {
proxy_pass http://192.168.49.2;
}
server {
listen 8080 http;
root /www/data;
location / {
root /www/mysite/data;
}
/etc/nginx/conf.d/default.conf
/etc/nginx/conf.d/foo.conf
/etc/nginx/nginx.conf

9. ©2022 F5
9

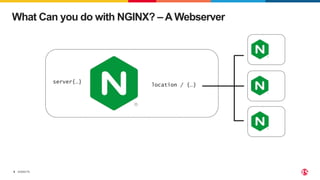

What Can you do with NGINX? – A Webserver
server{…}
location / {…}
/var/foo/html
/opt/www/bar

10. ©2022 F5
10

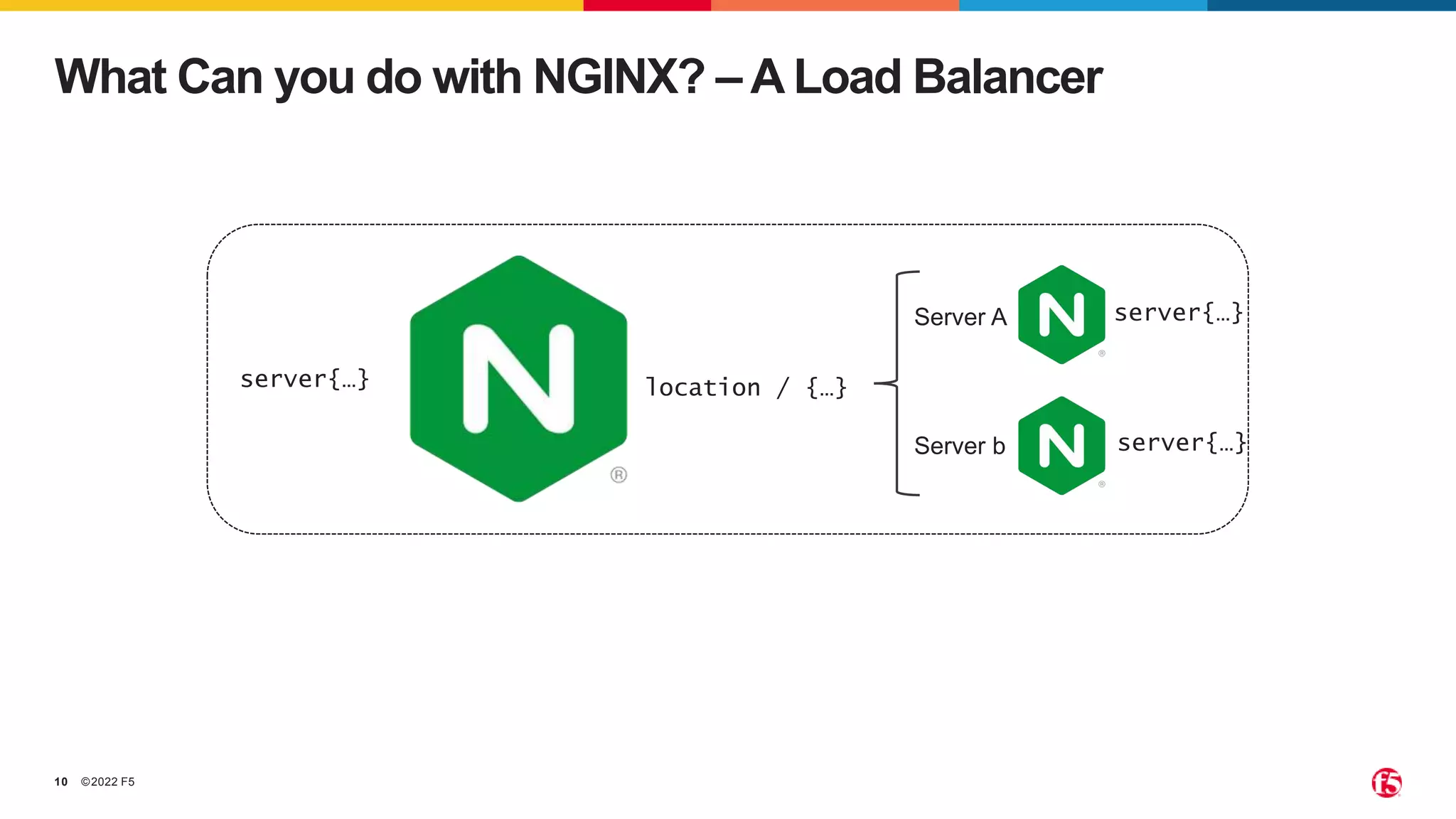

What Can you do with NGINX? – A Load Balancer
server{…} location / {…}
/var/foo/html
/opt/www/bar
Server A
Server b
server{…}
server{…}

11. ©2022 F5
11
Lab Demo

12. ©2022 F5
12
Over to You!
