This document provides an overview and agenda for an AWS webinar on Amazon EKS (Elastic Kubernetes Service). The key topics to be covered include: Kubernetes concepts and architecture; EKS features such as high availability, auto-scaling, and integration with IAM; networking and security with EKS; and best practices for running containers on EKS. The webinar aims to explain how EKS provides a fully managed Kubernetes service on AWS.

1. JUNE FANATICAL
SUPPORT FOR
AWS CUSTOMER
WEBINAR:
AMAZON EKS

2. • WARNING : This session
will be recorded !

3. AWS EKS
(ELASTIC
KUBERNETES
SERVICE)

4. 4
AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

5. 5
AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

6. 6
CONTAINER VS VM
Host OS
Hypervisor
App A
Binaries
Guest OS
(Windows)
App B
Binaries
Guest OS
(Linux)
Host OS
Container
Engine
App A
Binaries
OS
(Ubuntu)
App B
Binaries
OS image
(Red Hat)
The same Host Kernel
VM CONTAINER
Hardware
Emulation

7. 7

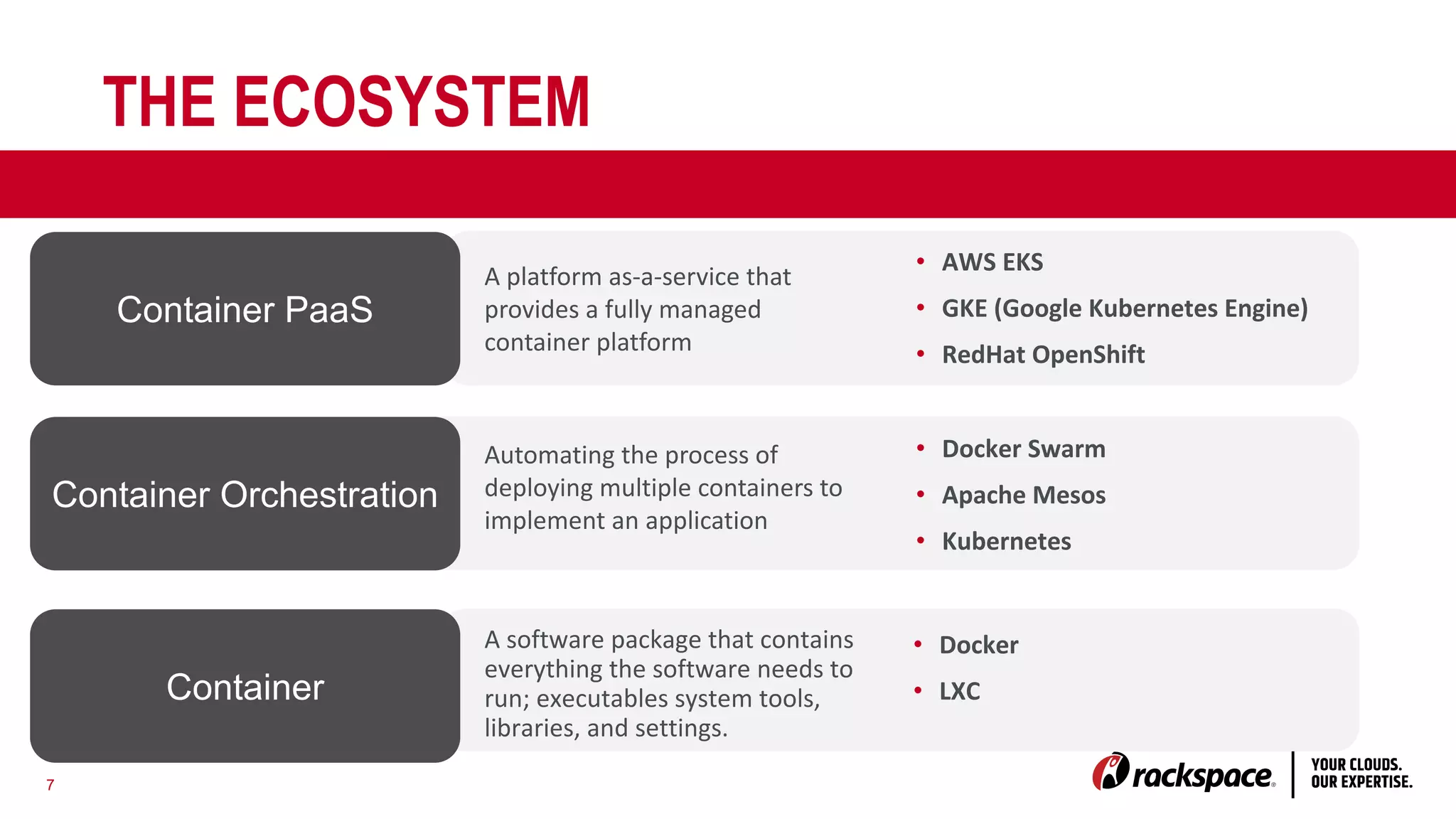

THE ECOSYSTEM
Container PaaS
A software package that contains
everything the software needs to
run; executables system tools,
libraries, and settings.
• Docker
• LXC
Container Orchestration
Container
Automating the process of
deploying multiple containers to
implement an application
• Docker Swarm
• Apache Mesos
• Kubernetes
A platform as-a-service that
provides a fully managed
container platform
• AWS EKS
• GKE (Google Kubernetes Engine)
• RedHat OpenShift

8. 8

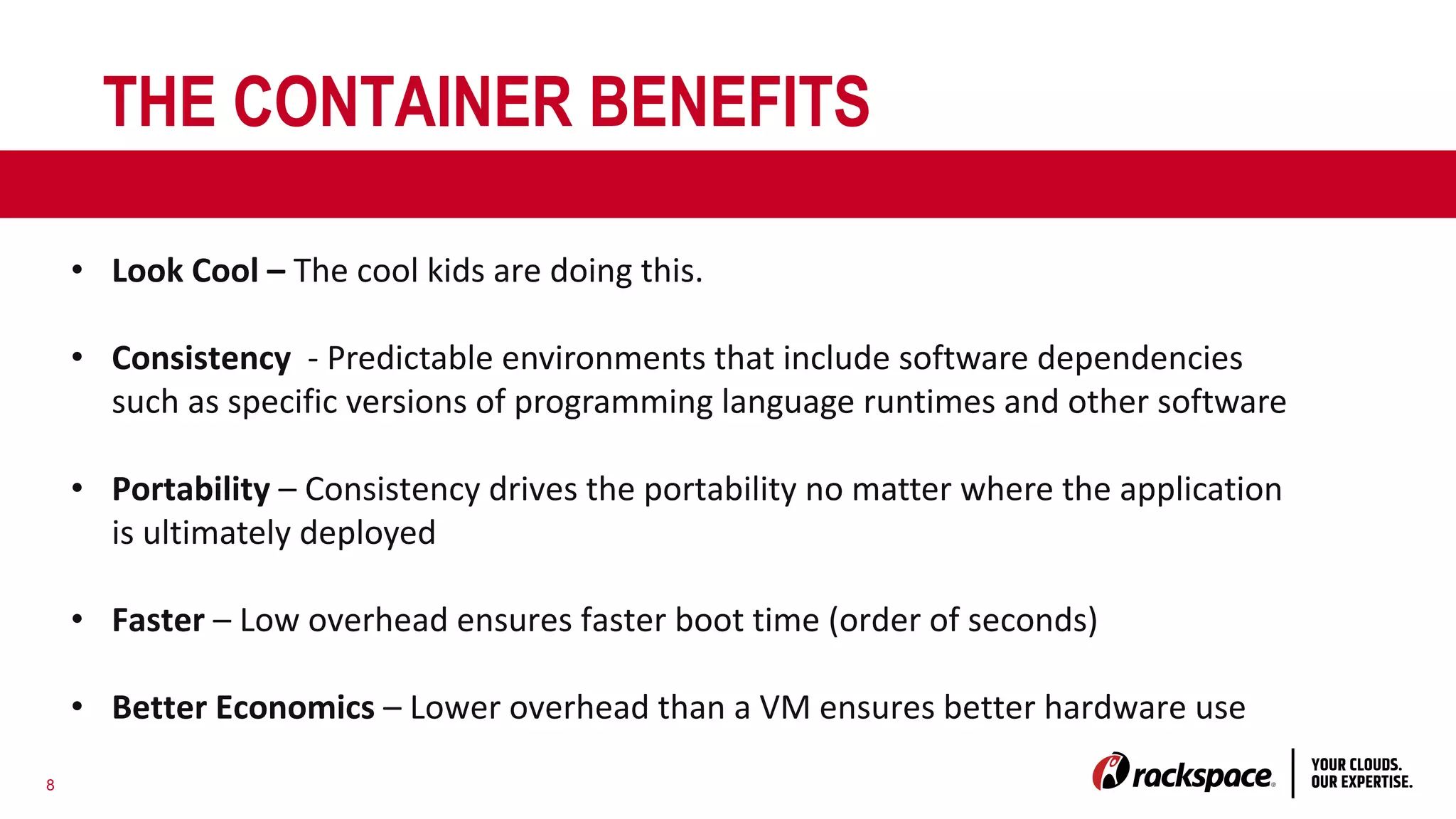

THE CONTAINER BENEFITS
• Look Cool – The cool kids are doing this.
• Consistency - Predictable environments that include software dependencies
such as specific versions of programming language runtimes and other software
• Portability – Consistency drives the portability no matter where the application
is ultimately deployed
• Faster – Low overhead ensures faster boot time (order of seconds)
• Better Economics – Lower overhead than a VM ensures better hardware use

9. 9

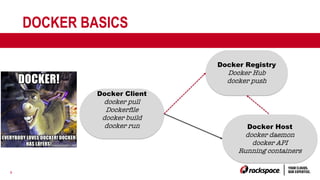

DOCKER BASICS
Docker Client
docker pull
Dockerfile
docker build
docker run
Docker Registry
Docker Hub
docker push
Docker Host
docker daemon
docker API
Running containers

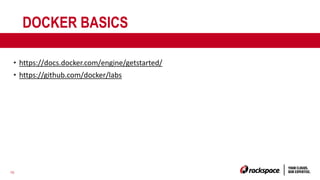

10. 10
DOCKER BASICS
• https://docs.docker.com/engine/getstarted/
• https://github.com/docker/labs

11. 11

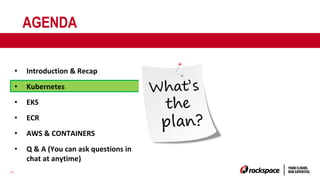

AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

12. 12

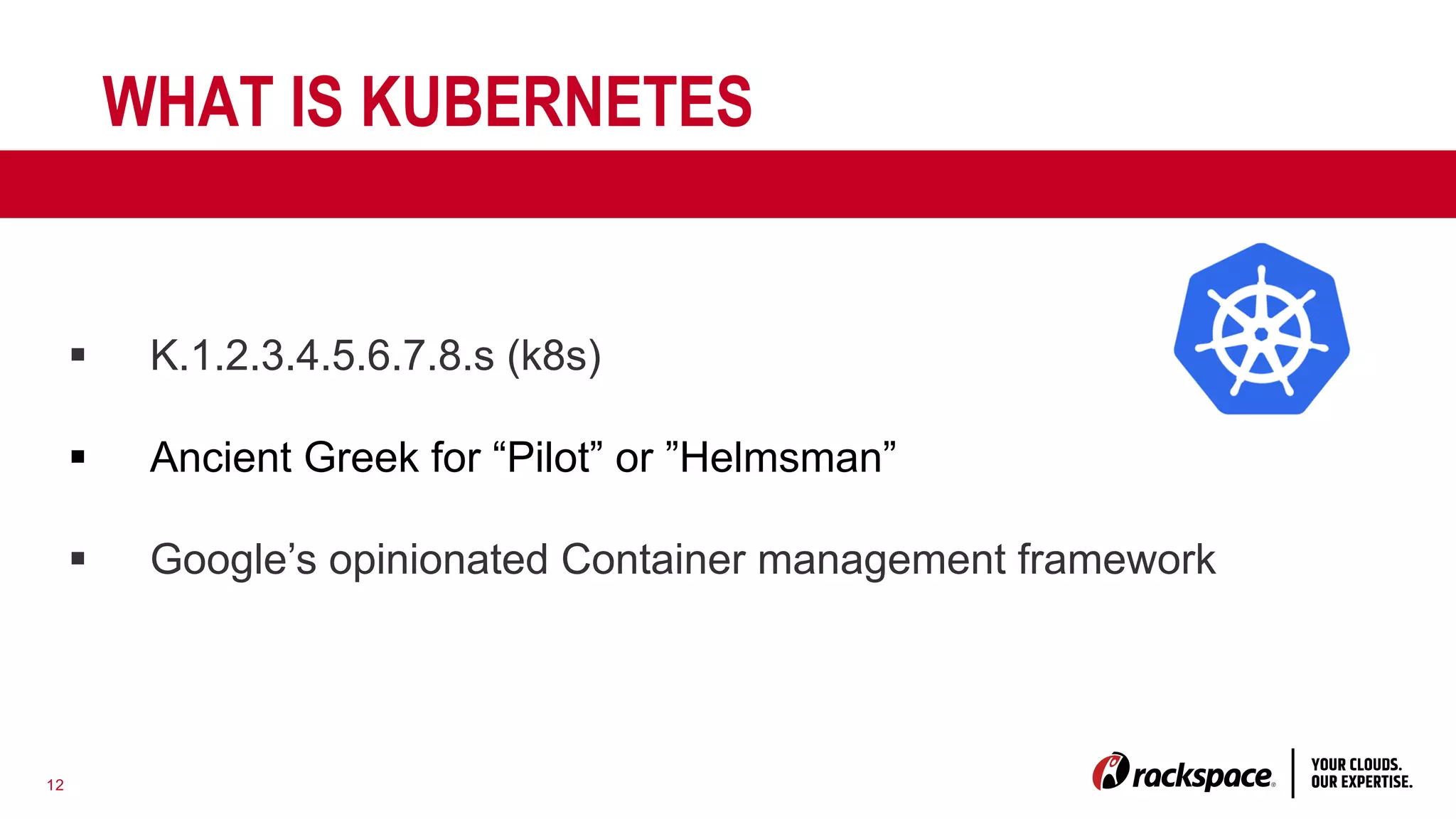

WHAT IS KUBERNETES
§ K.1.2.3.4.5.6.7.8.s (k8s)
§ Ancient Greek for “Pilot” or ”Helmsman”
§ Google’s opinionated Container management framework

13. 13

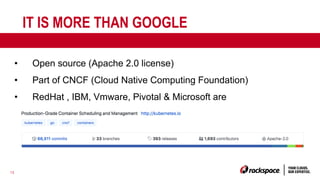

IT IS MORE THAN GOOGLE
• Open source (Apache 2.0 license)
• Part of CNCF (Cloud Native Computing Foundation)
• RedHat , IBM, Vmware, Pivotal & Microsoft are
contributing to it

14. 14

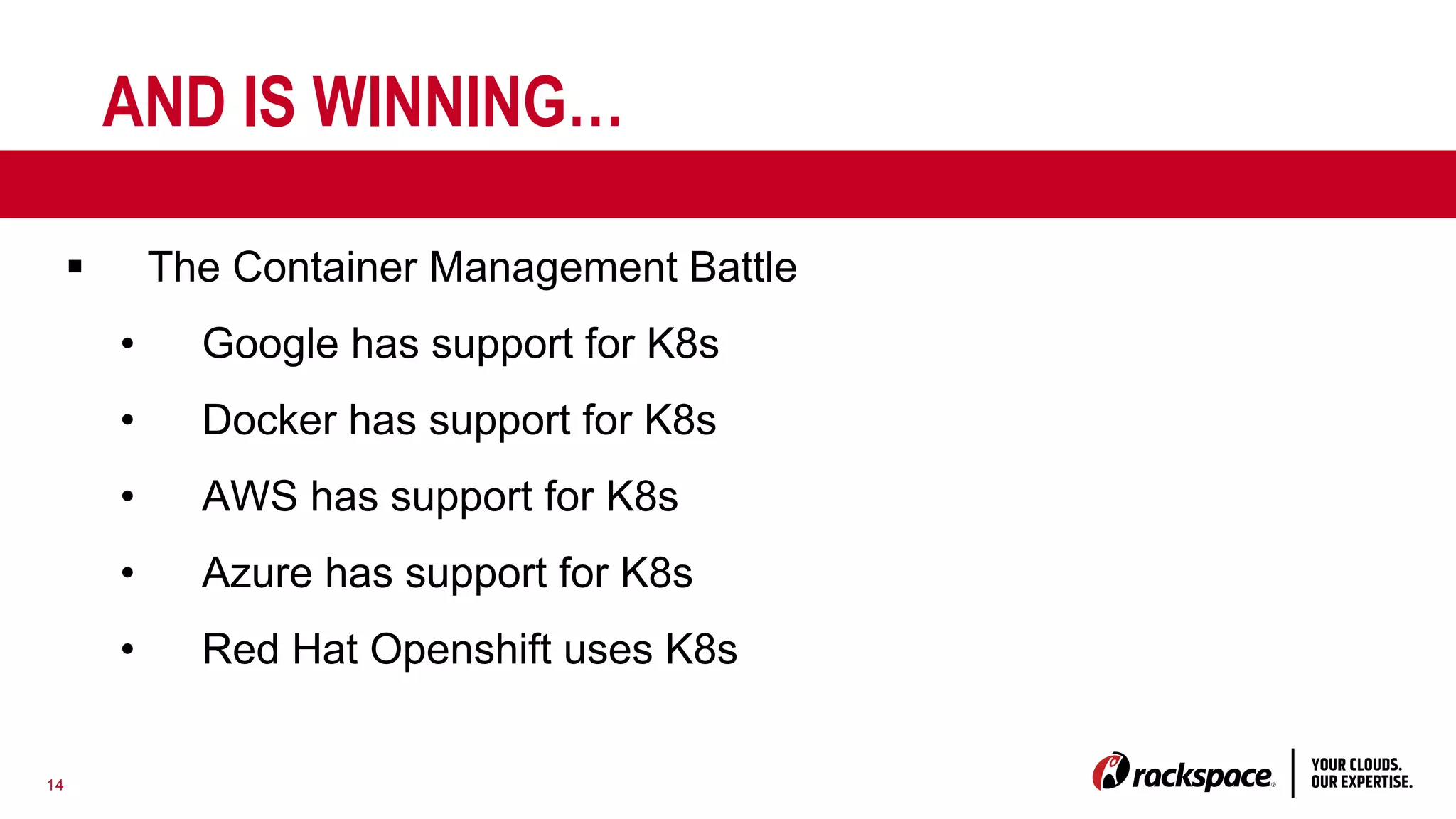

AND IS WINNING…
§ The Container Management Battle
• Google has support for K8s
• Docker has support for K8s
• AWS has support for K8s
• Azure has support for K8s
• Red Hat Openshift uses K8s

15. 15

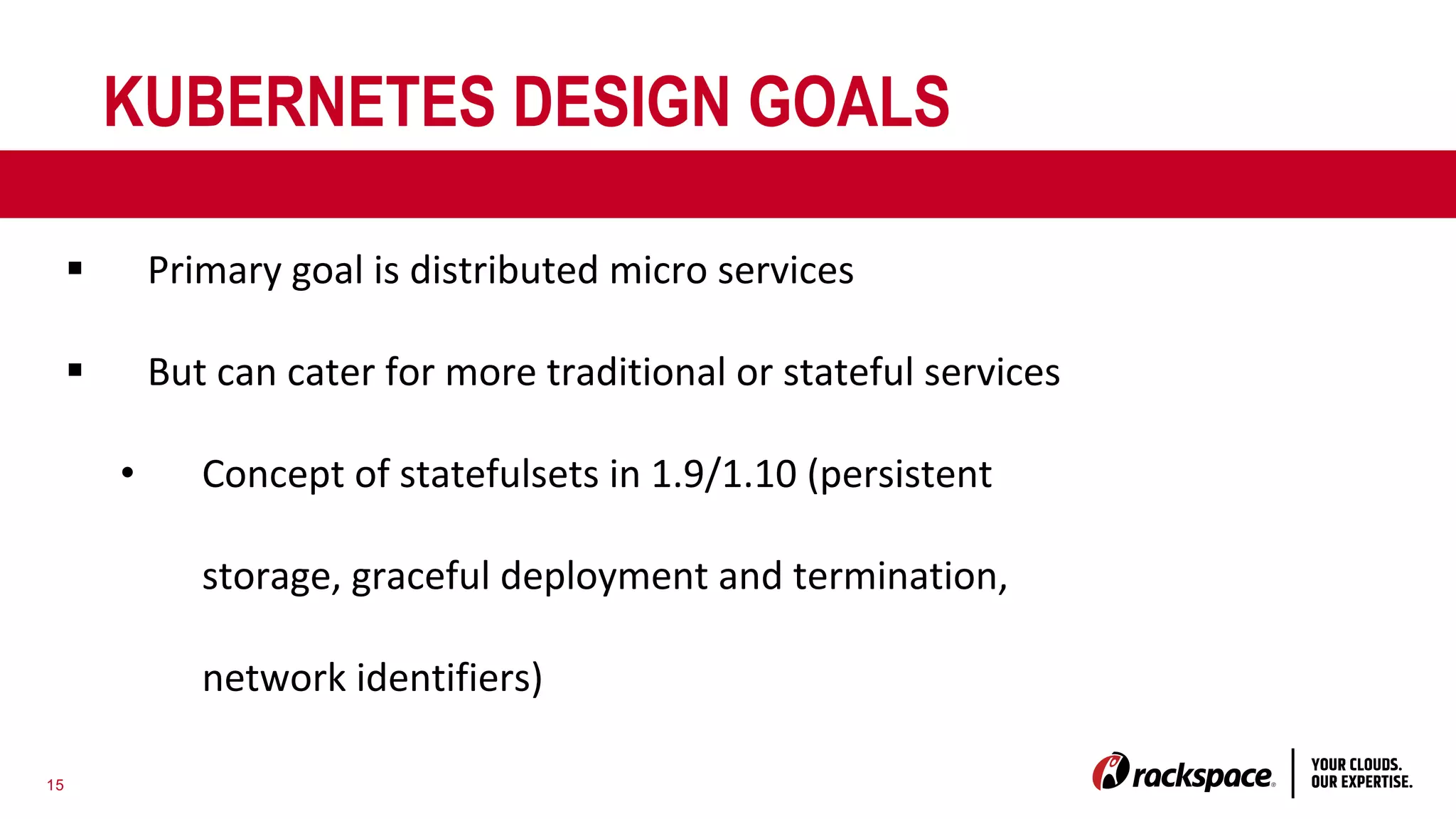

KUBERNETES DESIGN GOALS
§ Primary goal is distributed micro services
§ But can cater for more traditional or stateful services
• Concept of statefulsets in 1.9/1.10 (persistent
storage, graceful deployment and termination,
network identifiers)

16. 16

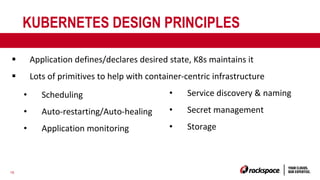

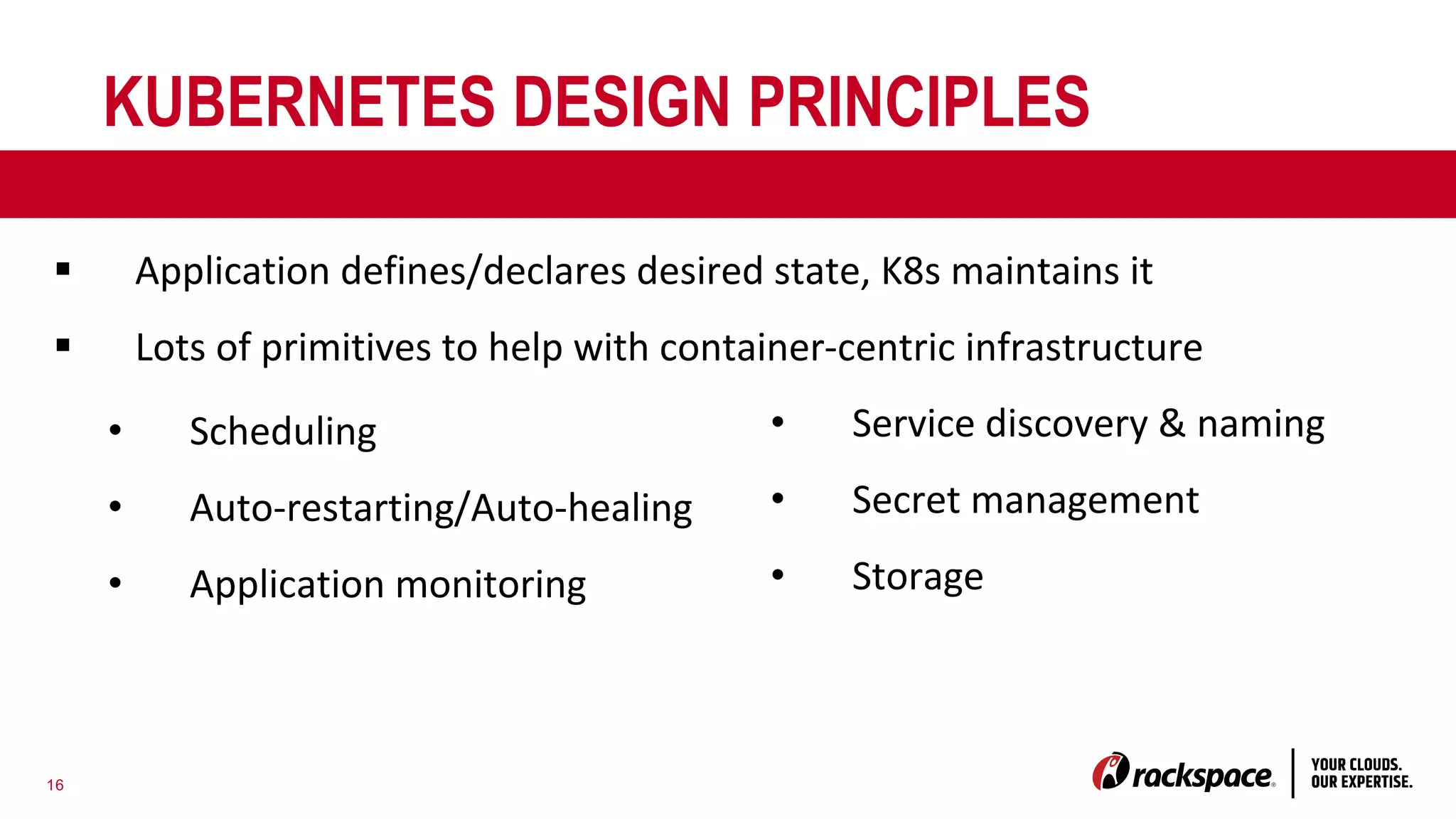

KUBERNETES DESIGN PRINCIPLES
§ Application defines/declares desired state, K8s maintains it
§ Lots of primitives to help with container-centric infrastructure
• Scheduling
• Auto-restarting/Auto-healing
• Application monitoring
• Service discovery & naming
• Secret management
• Storage

17. 17

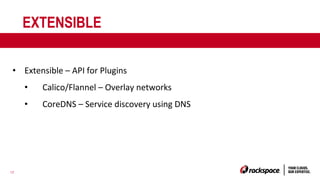

EXTENSIBLE
• Extensible – API for Plugins
• Calico/Flannel – Overlay networks
• CoreDNS – Service discovery using DNS

18. 18

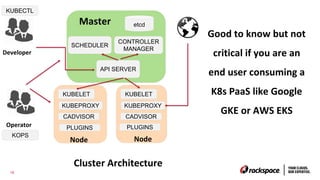

K8S DESIGN
18
Good to know but not
critical if you are an
end user consuming a
K8s PaaS like Google
GKE or AWS EKS
API SERVER
etcd
SCHEDULER
CONTROLLER
MANAGER
Master
KUBELET
KUBEPROXY
CADVISOR
Node
PLUGINS
KUBELET
KUBEPROXY
CADVISOR
Node
PLUGINS
Cluster Architecture
KUBECTL
Developer
Operator
KOPS

19. 19

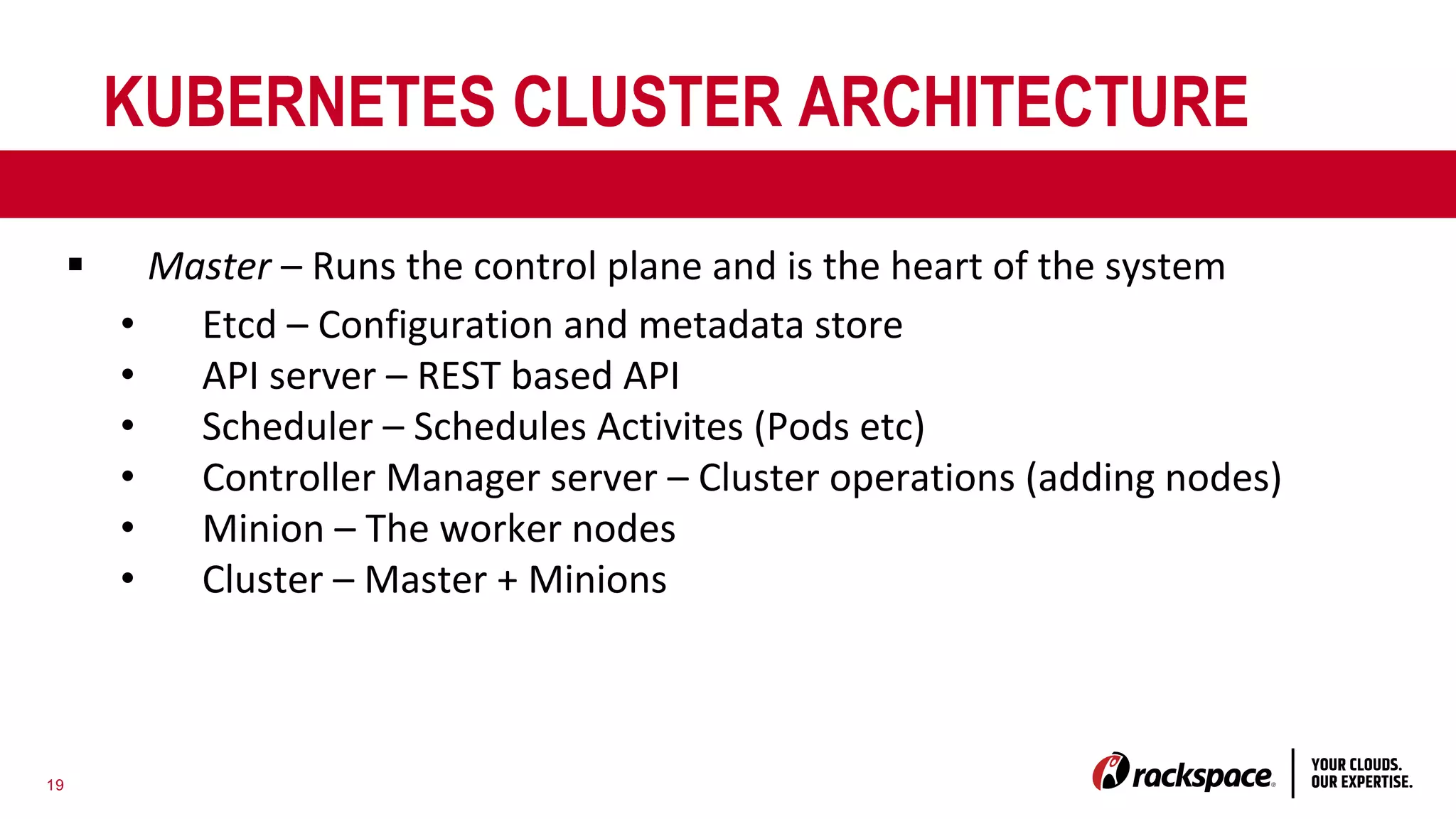

KUBERNETES CLUSTER ARCHITECTURE
§ Master – Runs the control plane and is the heart of the system
• Etcd – Configuration and metadata store
• API server – REST based API
• Scheduler – Schedules Activites (Pods etc)
• Controller Manager server – Cluster operations (adding nodes)
• Minion – The worker nodes
• Cluster – Master + Minions

20. 20

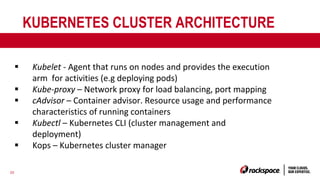

KUBERNETES CLUSTER ARCHITECTURE
§ Kubelet - Agent that runs on nodes and provides the execution
arm for activities (e.g deploying pods)
§ Kube-proxy – Network proxy for load balancing, port mapping
§ cAdvisor – Container advisor. Resource usage and performance
characteristics of running containers
§ Kubectl – Kubernetes CLI (cluster management and
deployment)
§ Kops – Kubernetes cluster manager

21. 21
21
KUBERNETES CONCEPTS & TERMINOLOGY
Deployment:
auth
Image - auth:stable
Replicas - 10
Container Port - 10080
Label -app:auth
Pod: auth-fm8lzPod: auth-qwc4df
Deployments - Declares
desired state for Pods &
ReplicaSets.
Pods - Runs of one or
more containers. Basic
building block
ReplicaSets - Ensures that
a specified number of
pods are running
Service: auth
Port: 80
Node Port: <service>
Target Port : 10080
DNS:
auth.default.cluster.local
IP: X.X.X.X or
LoadBalancer :a469bd69f-XXXXX.us-west-
2.elb.amazonaws.com
Services – Services binds deployments into a “service”
• Creates Endpoints or load balancer
• Auto-update service with DNS Names and SRV
records
• Updates resources whenever Pods in it change
Labels & Label
Selectors - Labels are
key value pairs for
identifying objects.
Label sector matches
labels to rules
E.g. environment =
production &&
application = auth

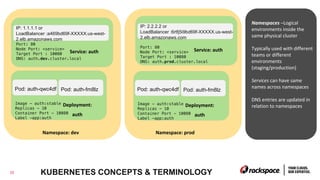

22. 22
22
Deployment:
auth
Image - auth:stable
Replicas - 10
Container Port - 10080
Label -app:auth
Pod: auth-fm8lzPod: auth-qwc4df
Service: auth
IP: 1.1.1.1 or
LoadBalancer :a469bd69f-XXXXX.us-west-
2.elb.amazonaws.com
Namespace: dev
Deployment:
auth
Image - auth:stable
Replicas - 10
Container Port - 10080
Label -app:auth
Pod: auth-fm8lzPod: auth-qwc4df
Service: auth
Port: 80
Node Port: <service>
Target Port : 10080
DNS: auth.prod.cluster.local
IP: 2.2.2.2 or
LoadBalancer :6rtfj5i9bd69f-XXXXX.us-west-
2.elb.amazonaws.com
Namespace: prod
Port: 80
Node Port: <service>
Target Port : 10080
DNS: auth.dev.cluster.local
Namespaces –Logical
environments inside the
same physical cluster
Typically used with different
teams or different
environments
(staging/production)
Services can have same
names across namespaces
DNS entries are updated in
relation to namespaces
KUBERNETES CONCEPTS & TERMINOLOGY

23. 23
KUBERNETES CONCEPTS & TERMINOLOGY

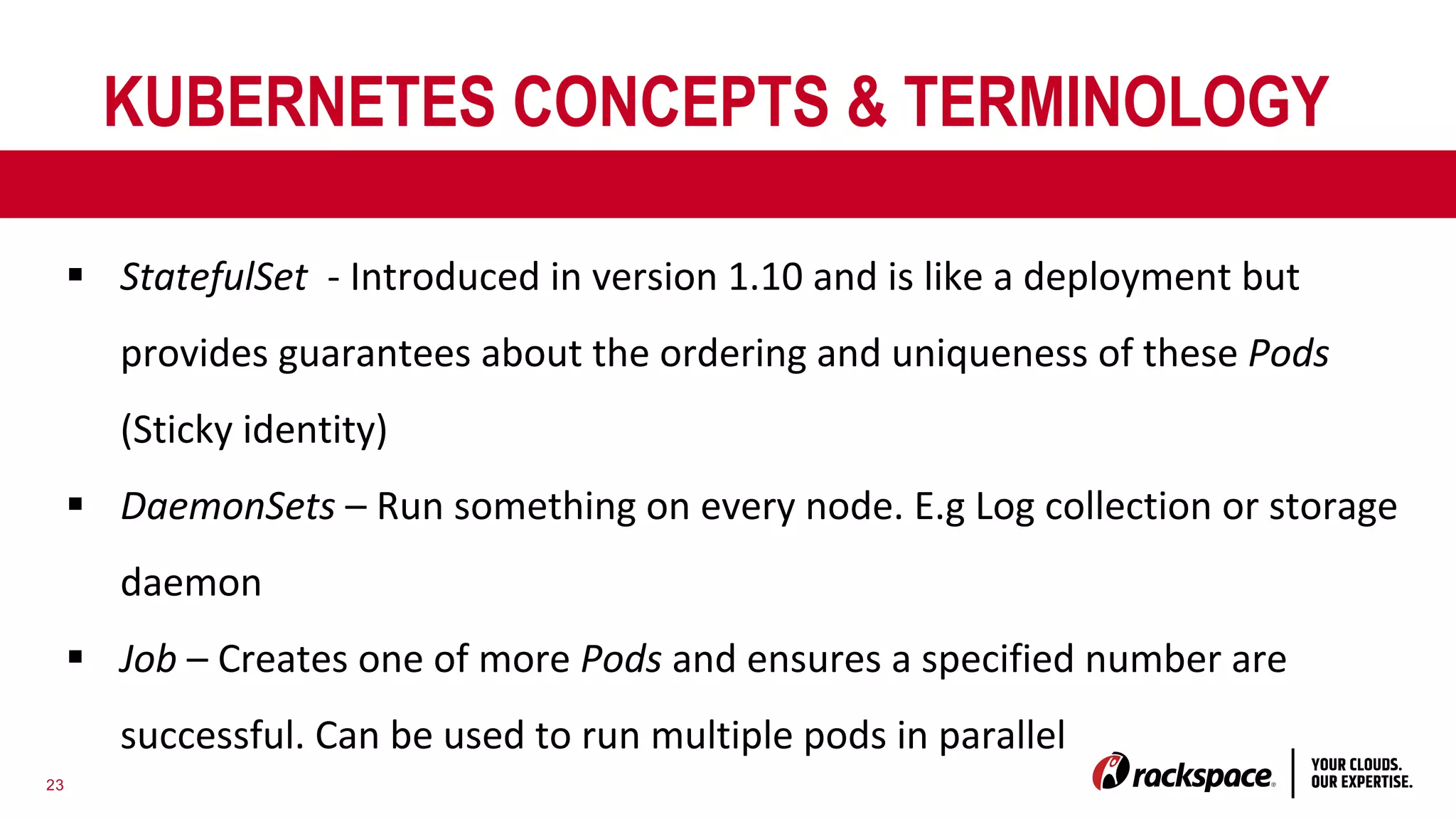

§ StatefulSet - Introduced in version 1.10 and is like a deployment but
provides guarantees about the ordering and uniqueness of these Pods
(Sticky identity)
§ DaemonSets – Run something on every node. E.g Log collection or storage
daemon
§ Job – Creates one of more Pods and ensures a specified number are
successful. Can be used to run multiple pods in parallel

24. 24

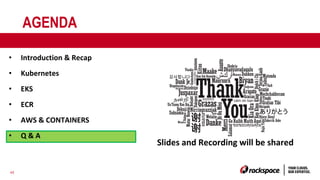

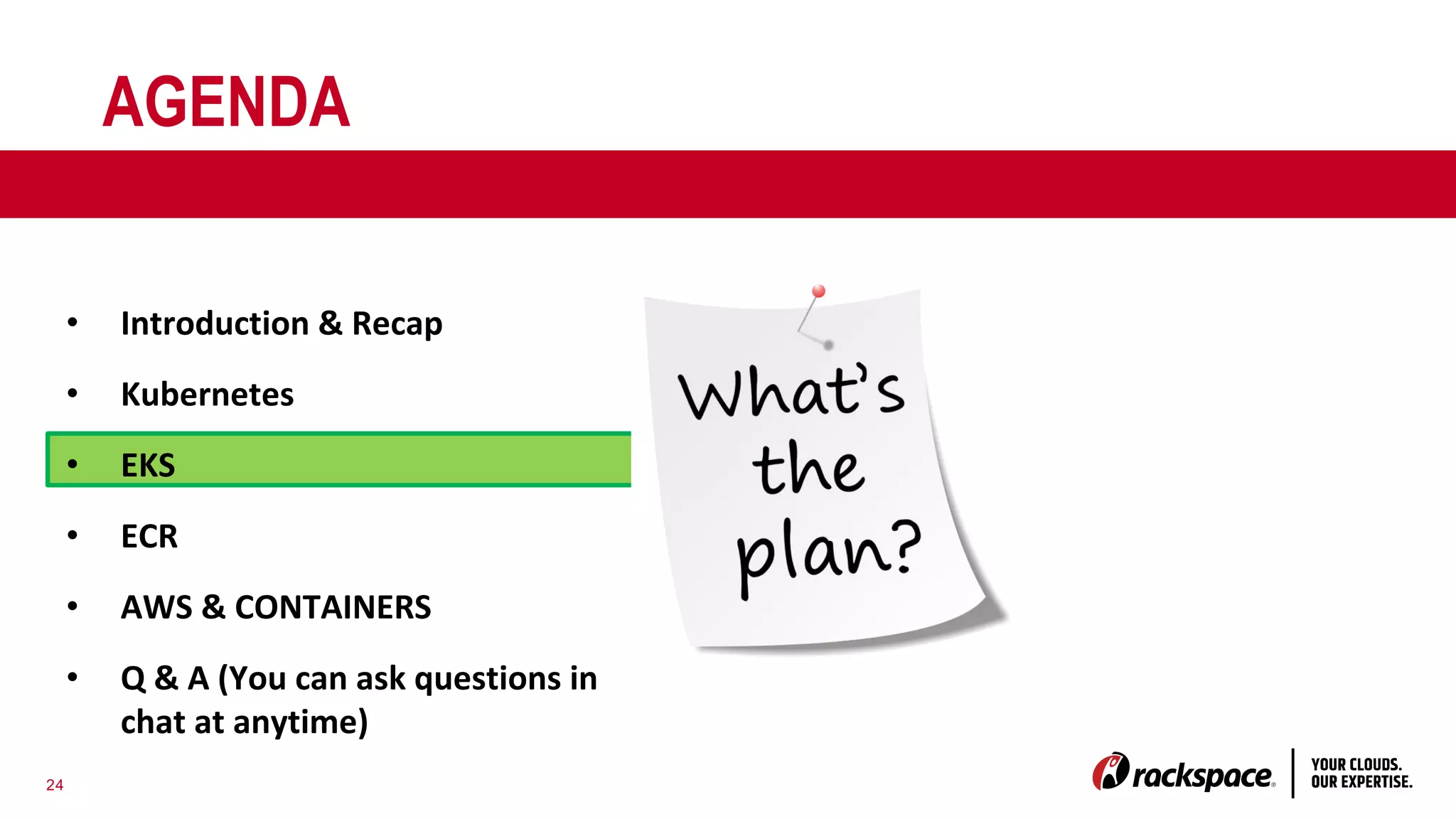

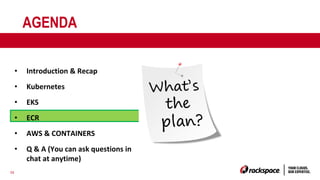

AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

25. 25

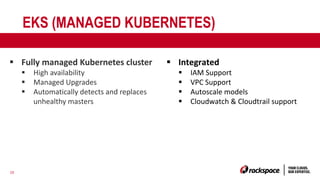

EKS (MANAGED KUBERNETES)
§ Fully managed Kubernetes cluster
§ High availability
§ Managed Upgrades
§ Automatically detects and replaces
unhealthy masters
§ Integrated
§ IAM Support
§ VPC Support
§ Autoscale models
§ Cloudwatch & Cloudtrail support

26. 26

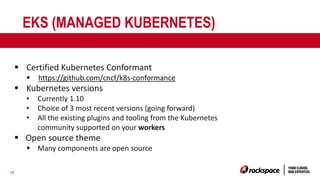

EKS (MANAGED KUBERNETES)
§ Certified Kubernetes Conformant
§ https://github.com/cncf/k8s-conformance
§ Kubernetes versions
• Currently 1.10
• Choice of 3 most recent versions (going forward)
• All the existing plugins and tooling from the Kubernetes
community supported on your workers
§ Open source theme
§ Many components are open source

27. 27

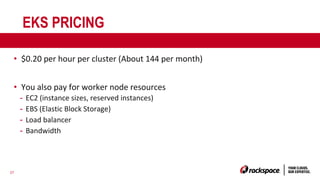

EKS PRICING
• $0.20 per hour per cluster (About 144 per month)
• You also pay for worker node resources
- EC2 (instance sizes, reserved instances)
- EBS (Elastic Block Storage)
- Load balancer
- Bandwidth

28. 28

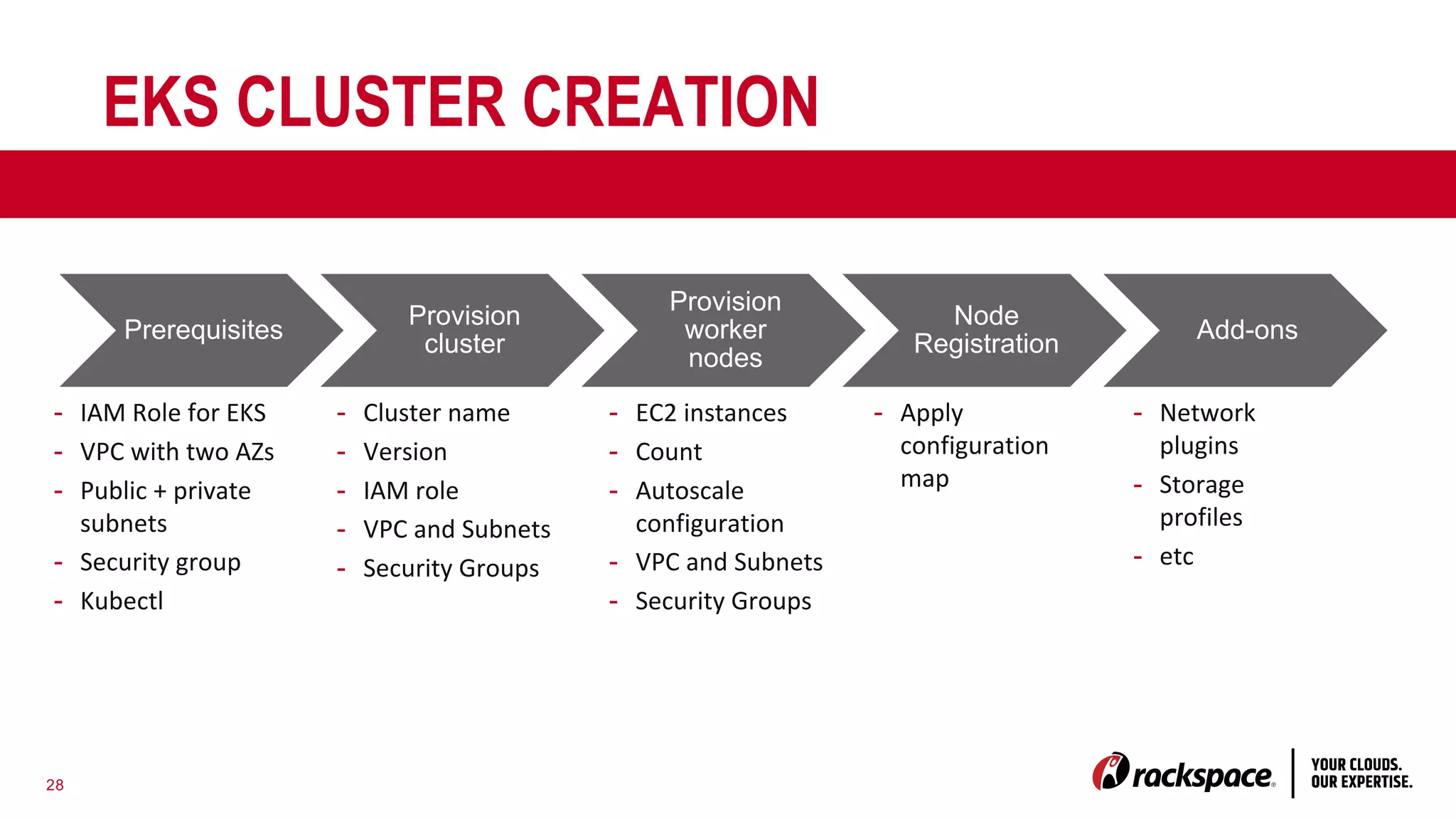

EKS CLUSTER CREATION
Prerequisites
Provision
cluster
Provision
worker
nodes
Node
Registration
Add-ons
- IAM Role for EKS
- VPC with two AZs
- Public + private
subnets
- Security group
- Kubectl
- Cluster name
- Version
- IAM role
- VPC and Subnets
- Security Groups
- EC2 instances
- Count
- Autoscale
configuration
- VPC and Subnets
- Security Groups
- Apply
configuration
map
- Network
plugins
- Storage
profiles
- etc

29. 30

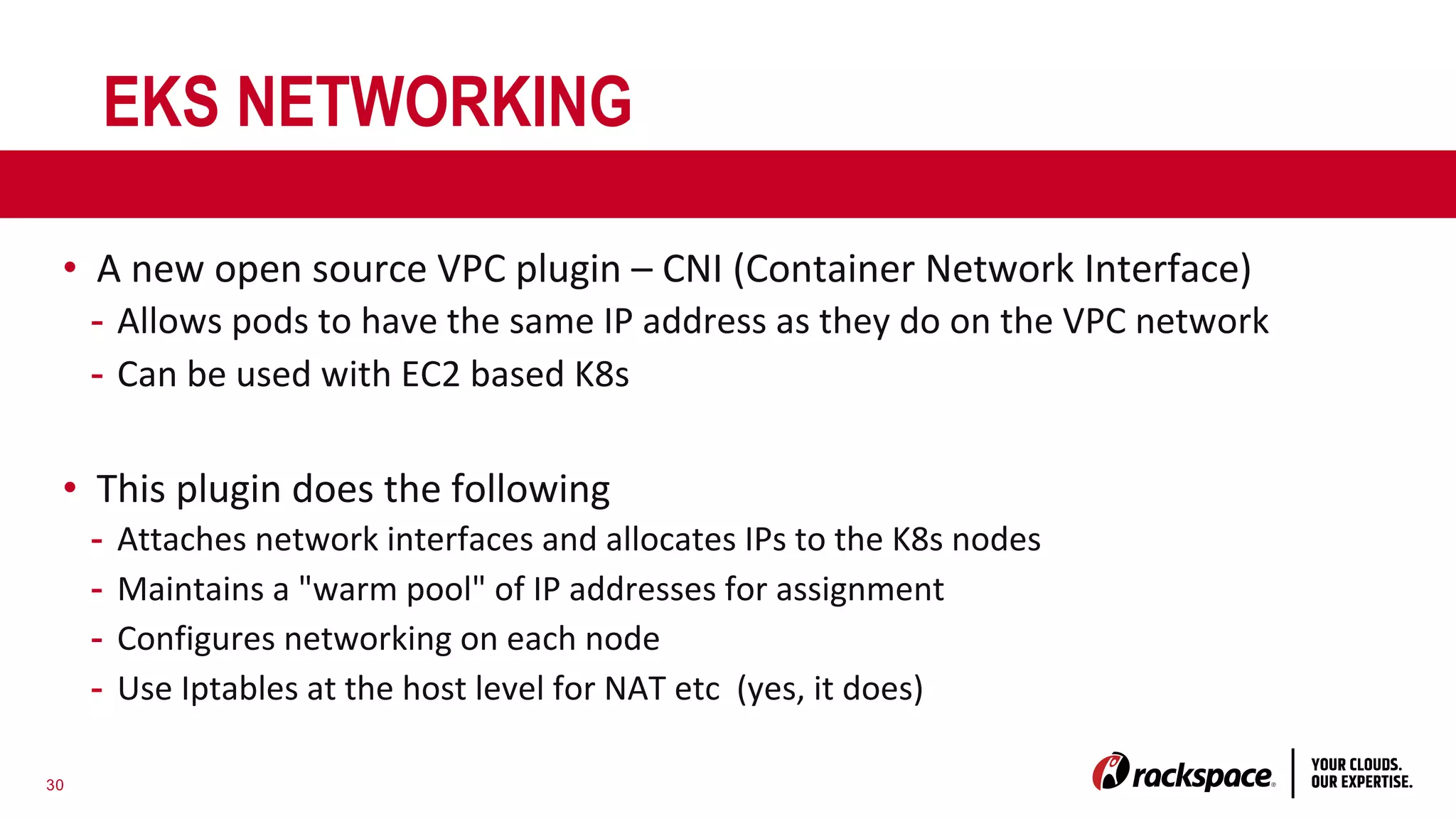

EKS NETWORKING
• A new open source VPC plugin – CNI (Container Network Interface)
- Allows pods to have the same IP address as they do on the VPC network
- Can be used with EC2 based K8s
• This plugin does the following
- Attaches network interfaces and allocates IPs to the K8s nodes
- Maintains a "warm pool" of IP addresses for assignment
- Configures networking on each node
- Use Iptables at the host level for NAT etc (yes, it does)

30. 31
EKS NETWORKING - CALICO
• Support for Calico, a network policy engine for Kubernetes
• Enables the implementation of network segmentation and tenant
isolation
- E.g. To separate the same cluster from different environments
• Works similar to security groups
- Create network ingress and egress rules,
- Assign network policies
- But applies to pods using pod selectors and labels

31. 32

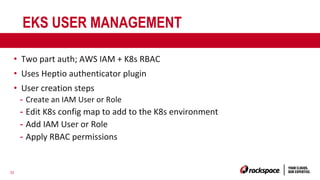

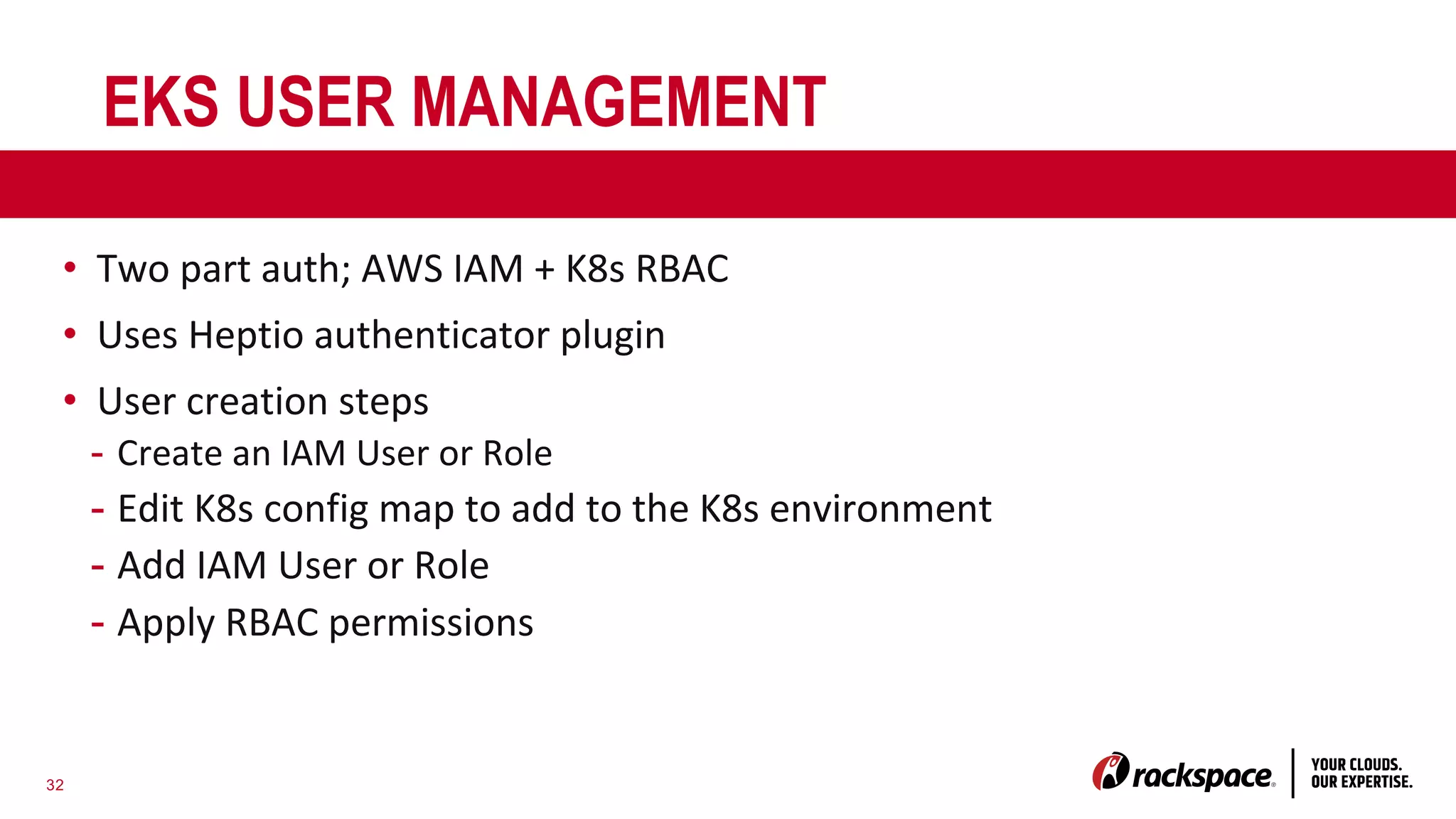

EKS USER MANAGEMENT
• Two part auth; AWS IAM + K8s RBAC
• Uses Heptio authenticator plugin
• User creation steps
- Create an IAM User or Role
- Edit K8s config map to add to the K8s environment
- Add IAM User or Role
- Apply RBAC permissions

32. 33
EKS AUTOSCALING
Deployments
• Scaling Control Plane
• Transparently managed by AWS
Worker Nodes
Cluster
• Same as EC2 autoscaling.
• Autoscale policies (e.g. using CPU or RAM)
• Pod Autoscaler (Horizontal scaling)
• Needs to be
designed in
conjunction

33. 34

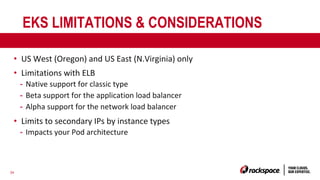

EKS LIMITATIONS & CONSIDERATIONS
• US West (Oregon) and US East (N.Virginia) only
• Limitations with ELB
- Native support for classic type
- Beta support for the application load balancer
- Alpha support for the network load balancer
• Limits to secondary IPs by instance types
- Impacts your Pod architecture

34. 35

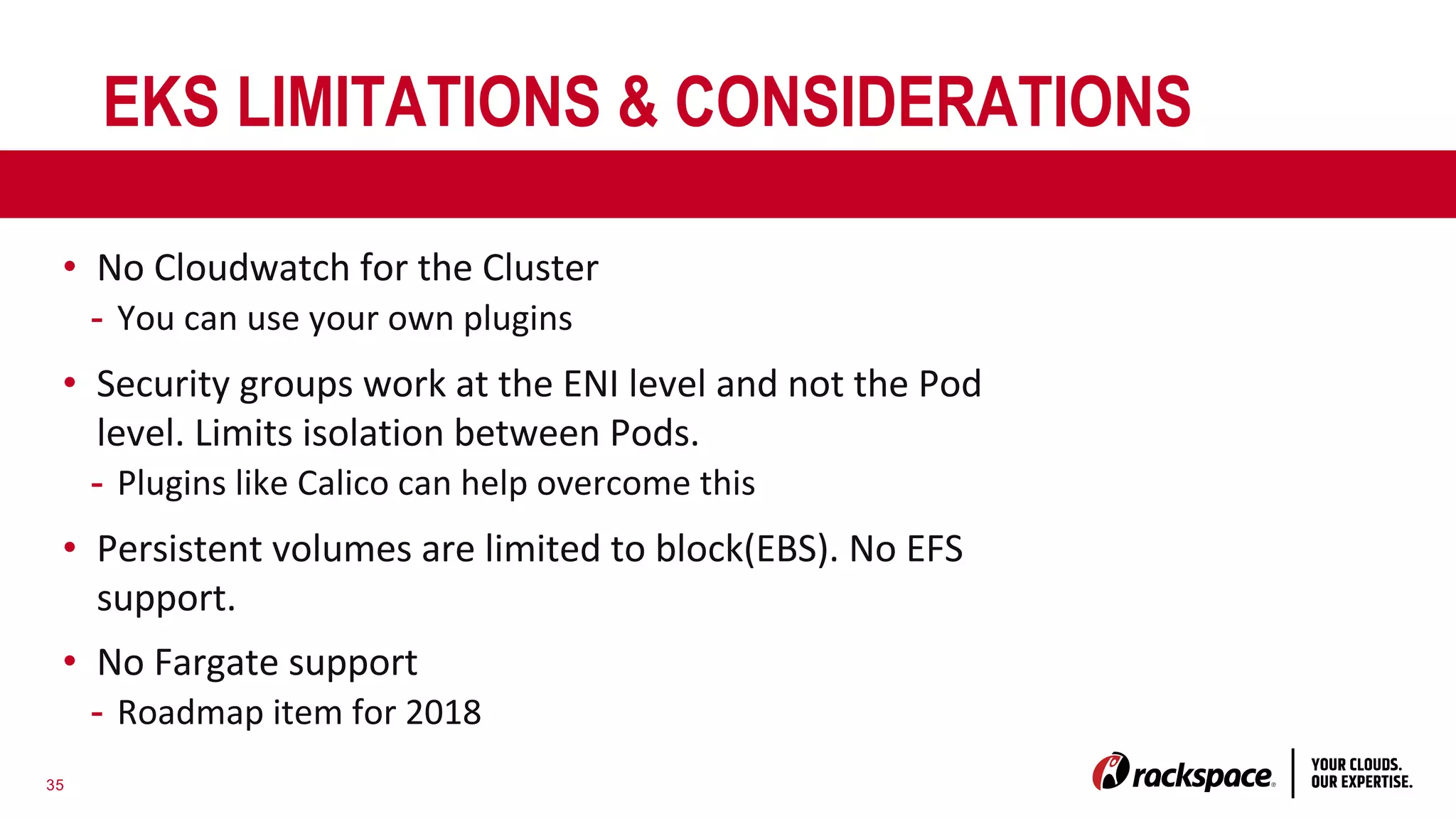

EKS LIMITATIONS & CONSIDERATIONS
• No Cloudwatch for the Cluster
- You can use your own plugins
• Security groups work at the ENI level and not the Pod
level. Limits isolation between Pods.
- Plugins like Calico can help overcome this
• Persistent volumes are limited to block(EBS). No EFS
support.
• No Fargate support
- Roadmap item for 2018

35. 36

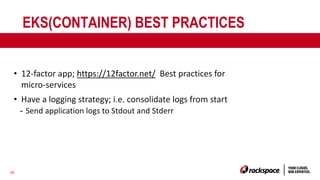

EKS(CONTAINER) BEST PRACTICES
• 12-factor app; https://12factor.net/ Best practices for
micro-services
• Have a logging strategy; i.e. consolidate logs from start
- Send application logs to Stdout and Stderr

36. 37

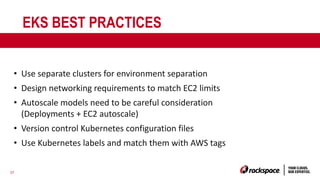

EKS BEST PRACTICES
• Use separate clusters for environment separation
• Design networking requirements to match EC2 limits
• Autoscale models need to be careful consideration
(Deployments + EC2 autoscale)
• Version control Kubernetes configuration files
• Use Kubernetes labels and match them with AWS tags

37. 38

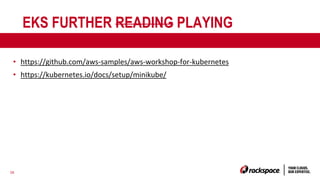

EKS FURTHER READING PLAYING
• https://github.com/aws-samples/aws-workshop-for-kubernetes
• https://kubernetes.io/docs/setup/minikube/

38. 39
AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

39. 40

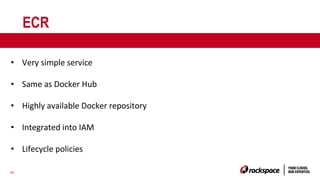

ECR
• Very simple service
• Same as Docker Hub
• Highly available Docker repository
• Integrated into IAM
• Lifecycle policies

40. 41

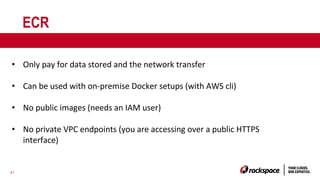

ECR
• Only pay for data stored and the network transfer
• Can be used with on-premise Docker setups (with AWS cli)
• No public images (needs an IAM user)
• No private VPC endpoints (you are accessing over a public HTTPS
interface)

41. 42

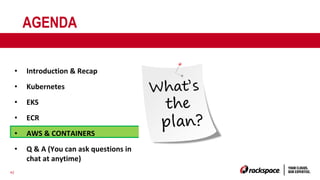

AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A (You can ask questions in
chat at anytime)

42. 43

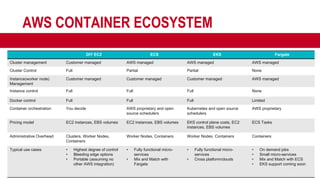

AWS CONTAINER ECOSYSTEM
DIY EC2 ECS EKS Fargate
Cluster management Customer managed AWS managed AWS managed AWS managed
Cluster Control Full Partial Partial None
Instance(worker node)
Management
Customer managed Customer managed Customer managed AWS managed
Instance control Full Full Full None
Docker control Full Full Full Limited
Container orchestration You decide AWS proprietary and open
source schedulers
Kubernetes and open source
schedulers
AWS proprietary
Pricing model EC2 instances, EBS volumes EC2 instances, EBS volumes EKS control plane costs, EC2
instances, EBS volumes
ECS Tasks
Administrative Overhead Clusters, Worker Nodes,
Containers
Worker Nodes, Containers Worker Nodes, Containers Containers
Typical use cases • Highest degree of control
• Bleeding edge options
• Portable (assuming no
other AWS integration)
• Fully functional micro-
services
• Mix and Match with
Fargate
• Fully functional micro-
services
• Cross platform/clouds
• On demand jobs
• Small micro-services
• Mix and Match with ECS
• EKS support coming soon

43. 44
RACKSPACE & CONTAINERS
• ECS
• Already in our spheres of management
• EKS - We are working on
• Finishing support enablement & internal documentation
• Finalizing our spheres of management document
• Managed Kubernetes
• Launched managed Kubernetes on OpenStack.
• Roadmap to extend that to cloud platforms
• Professional Services
• Application transformation services to build container-based architecture

44. 45
AGENDA
• Introduction & Recap
• Kubernetes
• EKS
• ECR
• AWS & CONTAINERS
• Q & A
Slides and Recording will be shared
