DBMS Architectures and Features - Lecture 7 - Introduction to Databases (1007156ANR)

2 December 2005
Introduction to Databases
DBMS Architectures and Features
Prof. Beat Signer
Department of Computer Science
Vrije Universiteit Brussel
http://www.beatsigner.com

Beat Signer - Department of Computer Science - bsigner@vub.ac.be 2March 31, 2017
DBMS Components
Access
Methods
System
Buffers
Authorisation
Control
Integrity
Checker
Command
Processor
Program
Object Code
DDL
Compiler
File
Manager
Buffer
Manager
Recovery
Manager
Scheduler
Query
Optimiser
Transaction
Manager
Query
Compiler
Queries
Catalogue
Manager
DML
Preprocessor
Database
Schema
Application
Programs
Database
Manager
Data
Manager
DBMS
Programmers Users DB Admins
Based on 'Components of a DBMS', Database Systems,
T. Connolly and C. Begg, Addison-Wesley 2010
Data, Indices and
System Catalogue

DBMS Components ...
 DML preprocessor
 transforms embedded SQL statements into statements of the host
language
 interacts with the query compiler to generate the appropriate host
language code
 Query compiler
 transforms queries into a set of low-level instructions (query plan)
which are forwarded to the database manager component
 DDL compiler
 converts a set of DDL statements into a set of tables
 tables and metadata are stored in the system catalogue
(catalogue manager)

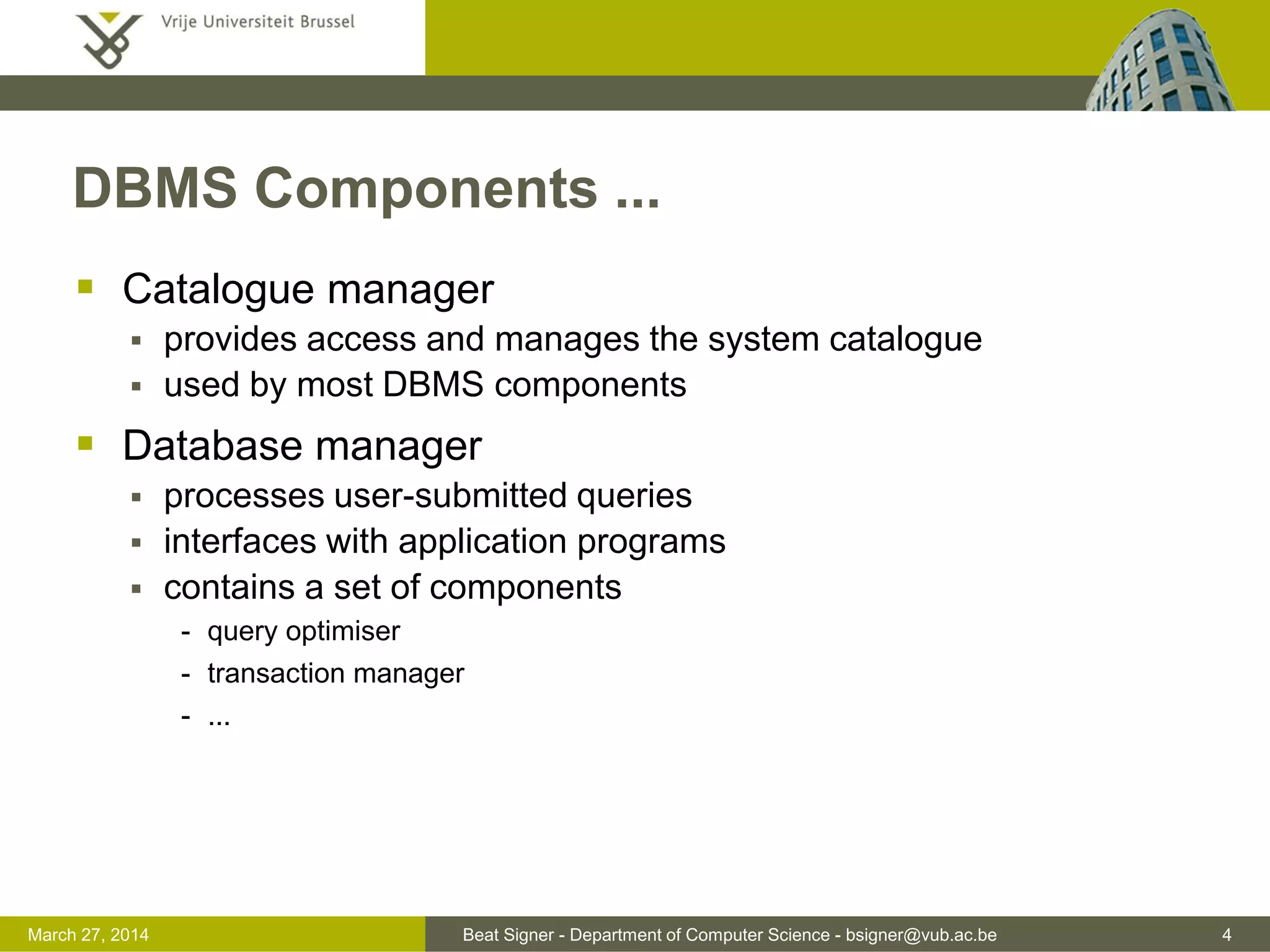

DBMS Components ...
 Catalogue manager
 provides access and manages the system catalogue
 used by most DBMS components
 Database manager
 processes user-submitted queries
 interfaces with application programs
 contains a set of components
- query optimiser
- transaction manager
- ...

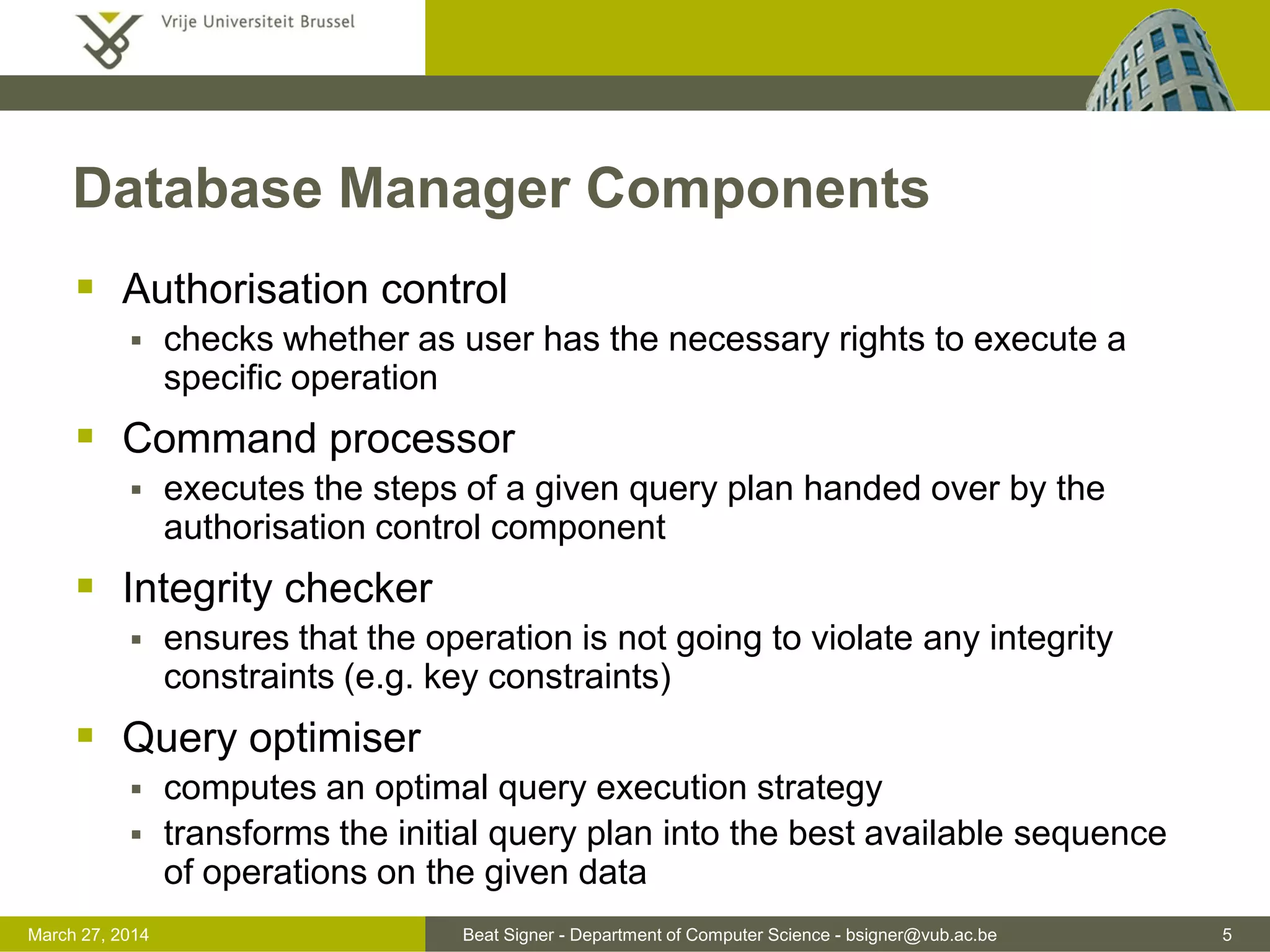

Database Manager Components
 Authorisation control
 checks whether as user has the necessary rights to execute a
specific operation
 Command processor
 executes the steps of a given query plan handed over by the
authorisation control component
 Integrity checker
 ensures that the operation is not going to violate any integrity
constraints (e.g. key constraints)
 Query optimiser
 computes an optimal query execution strategy
 transforms the initial query plan into the best available sequence
of operations on the given data

Database Manager Components ...
 Transaction manager
 processes any transaction-specific operations
 Scheduler
 manages the relative order in which transaction operations are
executed
 Recovery manager
 deals with commits and aborts of transactions
 ensures that the database remains in a consistent state in case of
failures
 Buffer manager
 transfers data between main memory and secondary storage

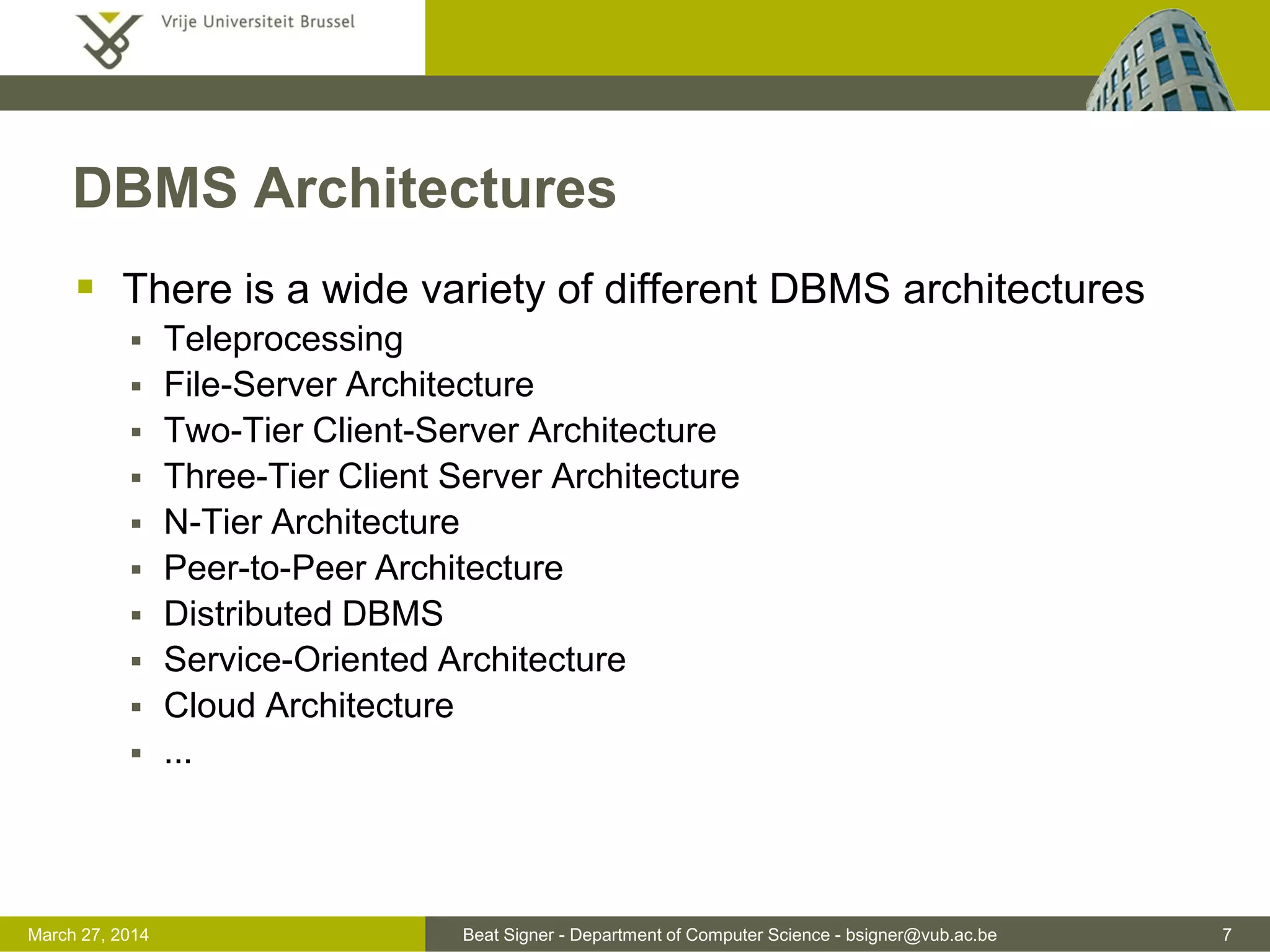

DBMS Architectures
 There is a wide variety of different DBMS architectures
 Teleprocessing
 File-Server Architecture
 Two-Tier Client-Server Architecture
 Three-Tier Client Server Architecture
 N-Tier Architecture
 Peer-to-Peer Architecture
 Distributed DBMS

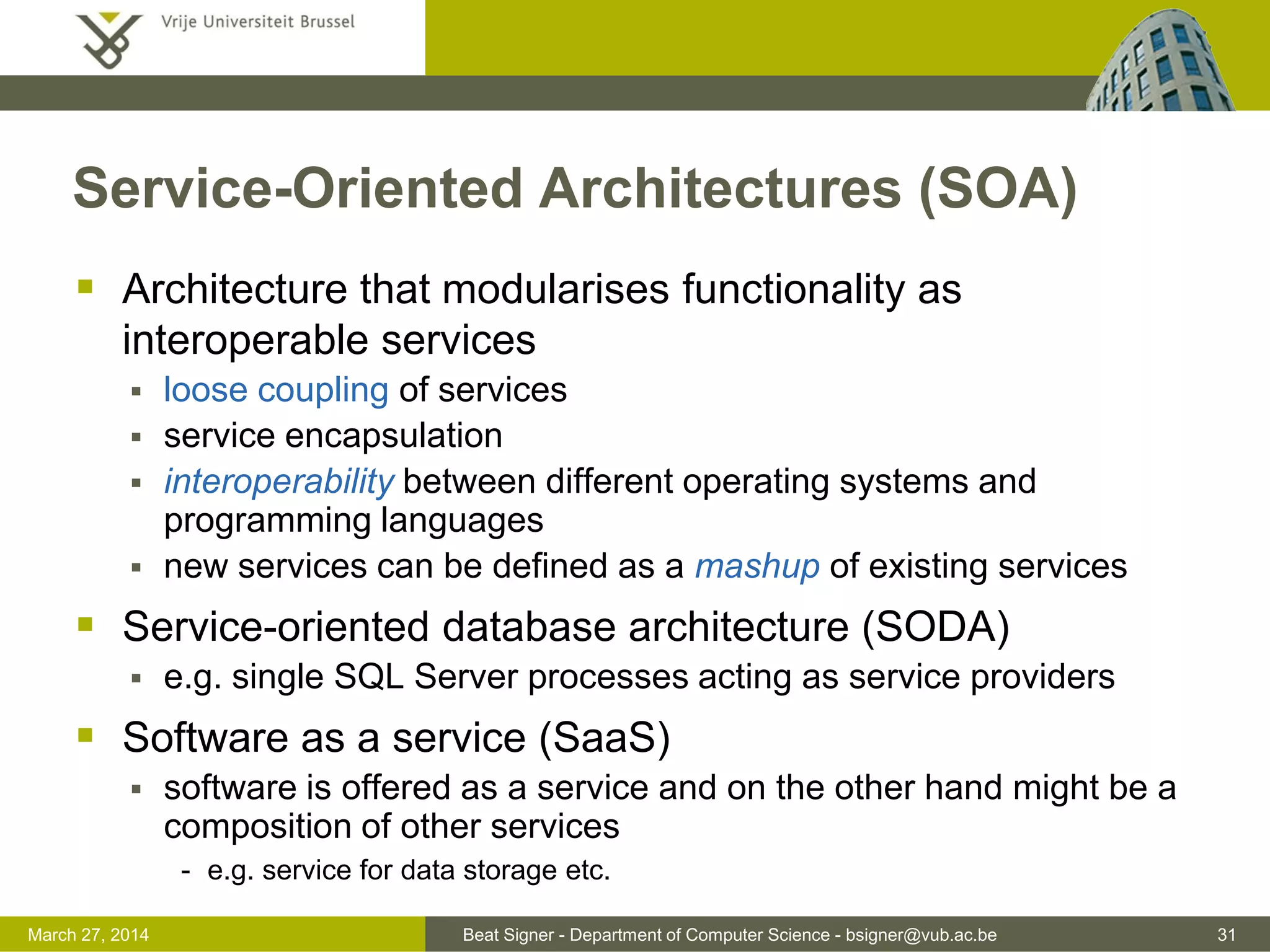

 Service-Oriented Architecture
 Cloud Architecture
 ...

Teleprocessing
 Traditional multi-user system architecture
 single mainframe and multiple (dumb) terminals
 Heavy load on the central mainframe
 runs application programs and DBMS
 formats data for presentation on terminals
Mainframe
Terminal 1
Terminal 2
Terminal 3
Terminal n

Teleprocessing ...
 Tendency to replace expensive mainframes with network
of personal computers (downsizing)
 file-server architectures
 client-server architectures
 ...

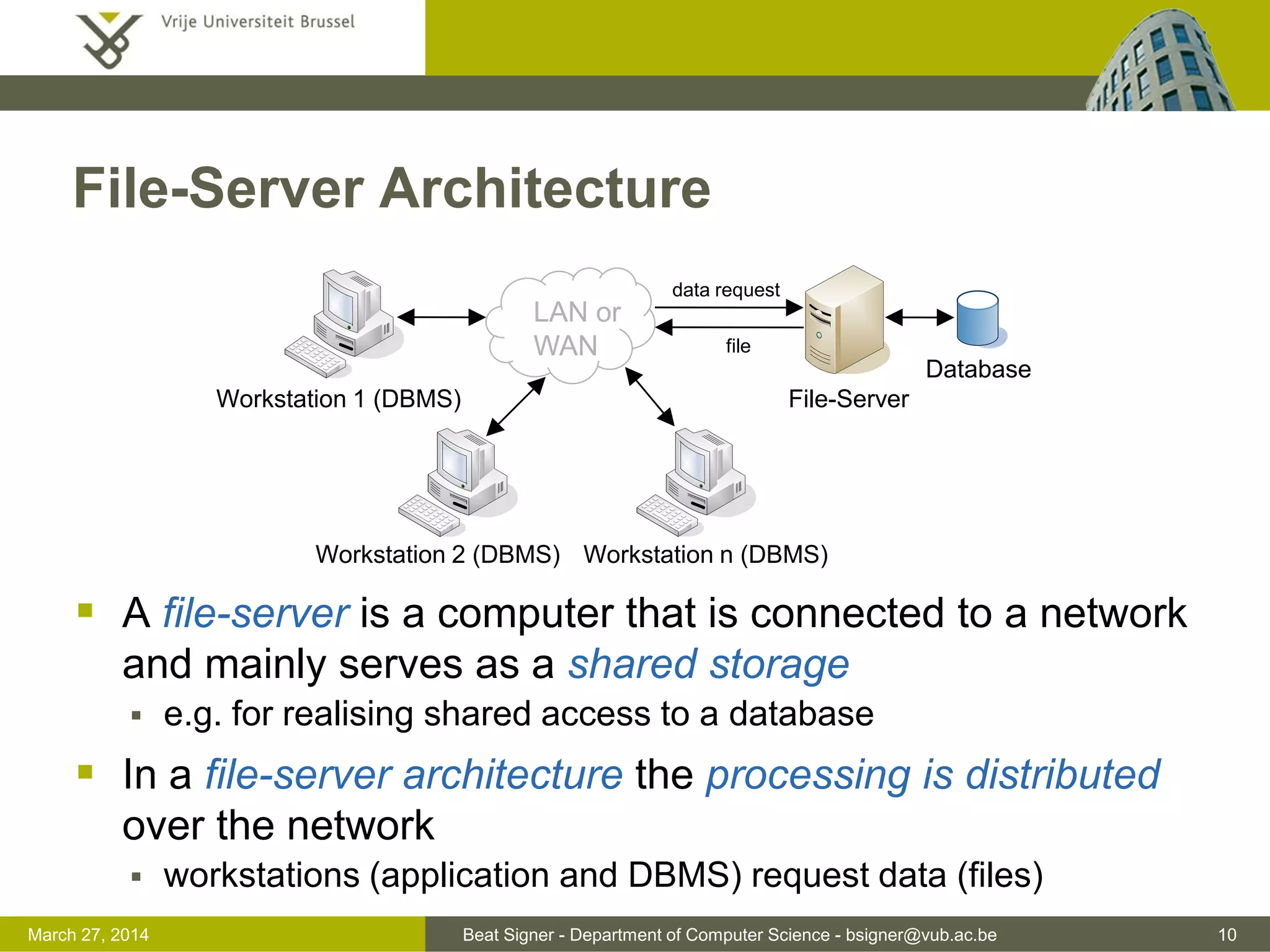

File-Server Architecture
 A file-server is a computer that is connected to a network
and mainly serves as a shared storage
 e.g. for realising shared access to a database
 In a file-server architecture the processing is distributed
over the network
 workstations (application and DBMS) request data (files)
Workstation 2 (DBMS) Workstation n (DBMS)
Workstation 1 (DBMS) File-Server
Database
data request
file
LAN or
WAN

File-Server Architecture ...
 SQL Request Example
 Since the file-server is not SQL-aware, the Customer and
Order relations (files) have to be transferred to the client
 Disadvantages
 heavy network traffic
 high total costs of ownership (TCO)
- maintain a full instance of the DBMS on each client (workstation)
 complex integrity, concurrency and recovery control
- multiple DBMSs may concurrently access the same shared file
SELECT name, street
FROM Customer, Order
WHERE Order.customerID = Customer.customerID AND name = 'Max Frisch';

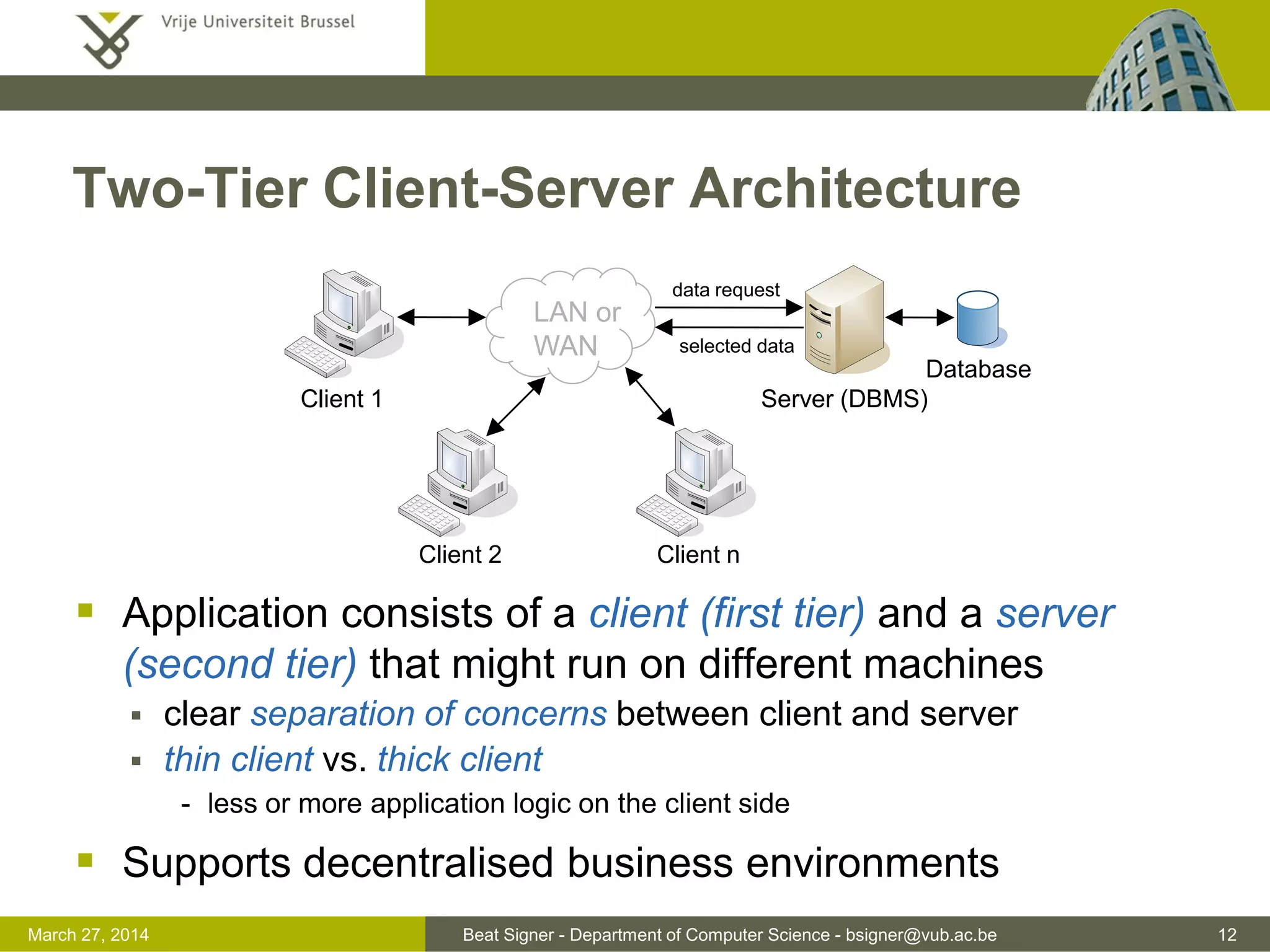

Two-Tier Client-Server Architecture
 Application consists of a client (first tier) and a server
(second tier) that might run on different machines
 clear separation of concerns between client and server
 thin client vs. thick client
- less or more application logic on the client side
 Supports decentralised business environments
LAN or
WAN
Client 2 Client n
Client 1 Server (DBMS)
Database
data request
selected data

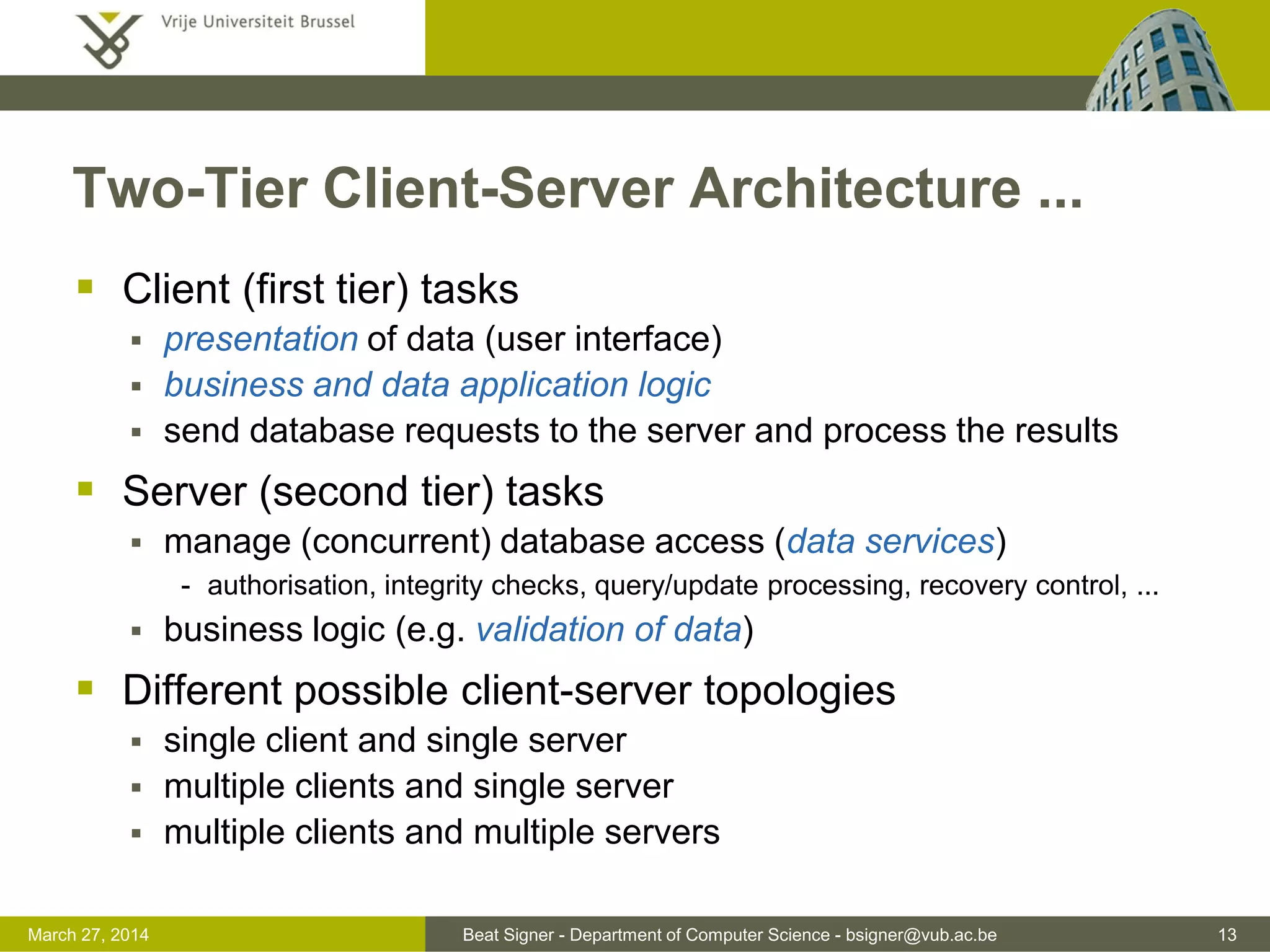

Two-Tier Client-Server Architecture ...
 Client (first tier) tasks
 presentation of data (user interface)
 business and data processing logic
 send database requests to the server and process the results
 Server (second tier) tasks
 manage (concurrent) database access (data services)
- authorisation, integrity checks, query/update processing, recovery control, ...
 business logic (e.g. validation of data)
 Different possible client-server topologies
 single client and single server
 multiple clients and single server
 multiple clients and multiple servers

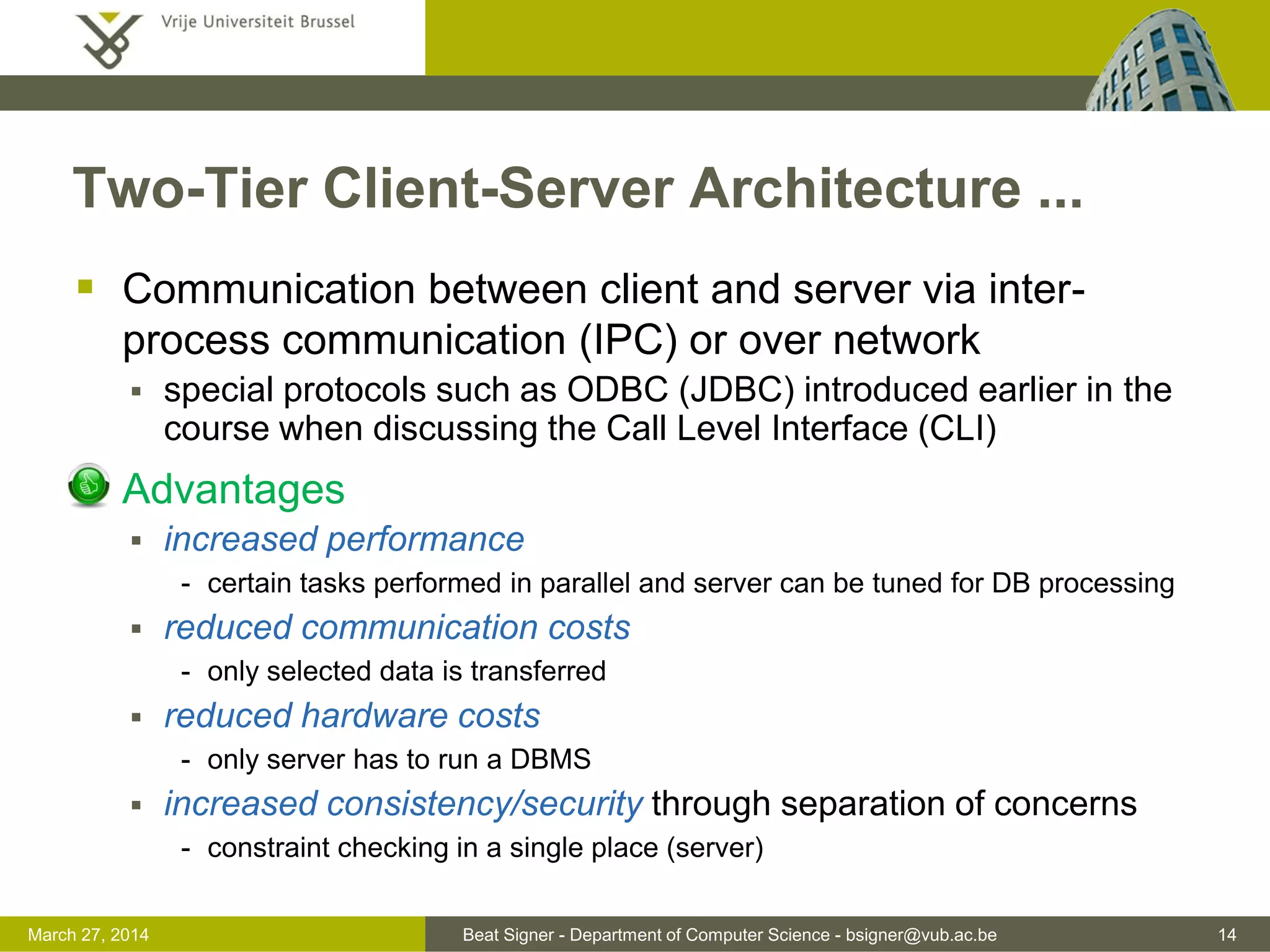

 Communication between client and server via inter-
process communication (IPC) or over network
 special protocols such as ODBC (JDBC) introduced earlier in the
course when discussing the Call Level Interface (CLI)
 Advantages
 increased performance
- certain tasks performed in parallel and server can be tuned for DB processing
 reduced communication costs
- only selected data is transferred
 reduced hardware costs
- only server has to run a DBMS
 increased consistency/security through separation of concerns
- constraint checking in a single place (server)

 Disadvantages
 limitations in terms of enterprise scalability with thousands of
potential clients
- significant client-side administration overhead
• e.g. expensive deployment of new busines and data application logic
- thick client requires a considerable amount of resources (CPU, RAM, ...) to run
applications efficiently

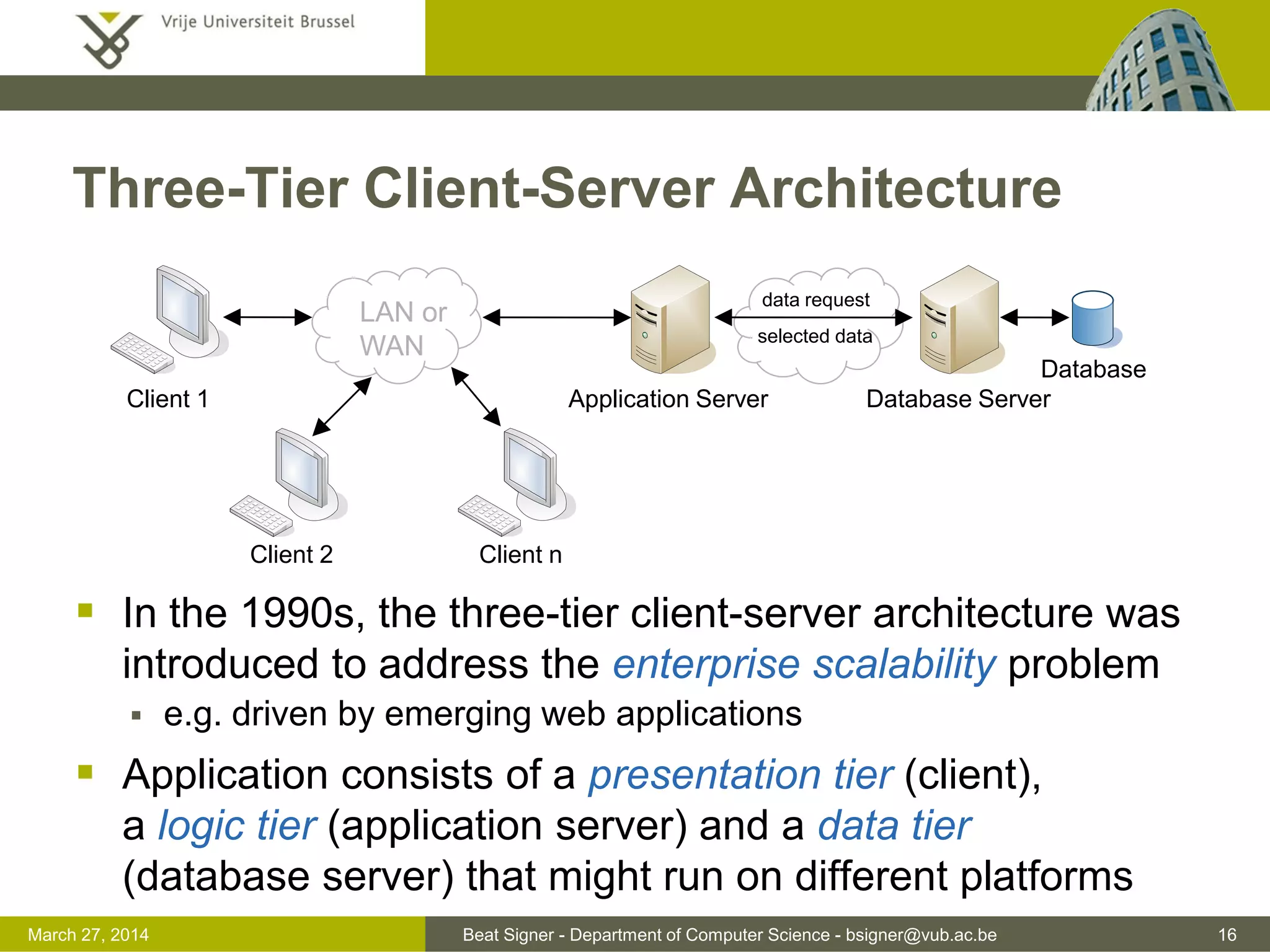

Three-Tier Client-Server Architecture
 In the 1990s, the three-tier client-server architecture was
introduced to address the enterprise scalability problem
 e.g. driven by emerging web applications
 Application consists of a presentation tier (client),
a logic tier (application server) and a data tier
(database server) that might run on different platforms
LAN or
WAN
Client 1 Database Server
Database
data request
selected data
Client 2 Client n
Application Server

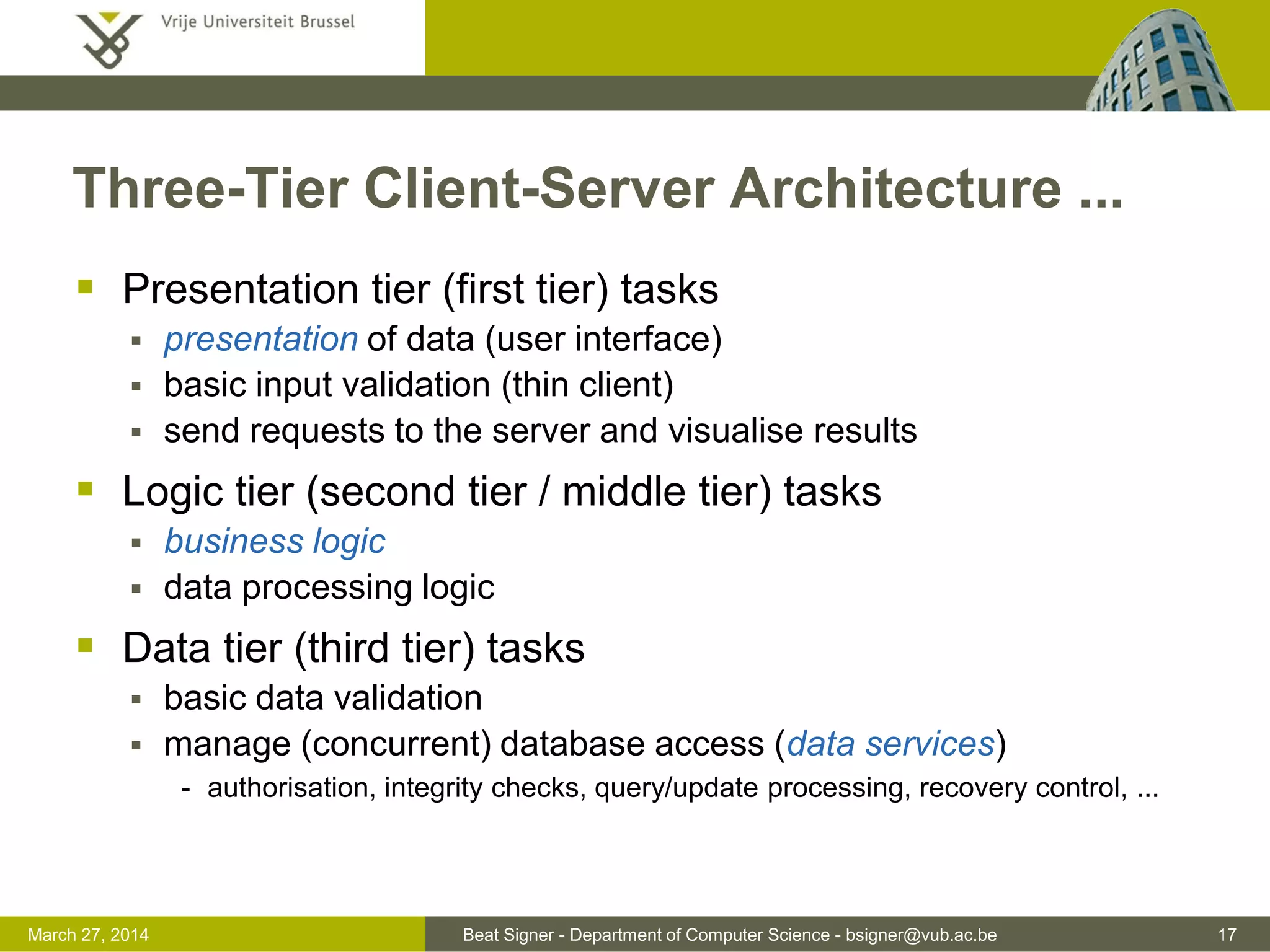

Three-Tier Client-Server Architecture ...
 Presentation tier (first tier) tasks
 presentation of data (user interface)
 basic input validation (thin client)
 send requests to the server and visualise results
 Logic tier (second tier / middle tier) tasks
 business logic
 data processing logic
 Data tier (third tier) tasks
 basic data validation
 manage (concurrent) database access (data services)
- authorisation, integrity checks, query/update processing, recovery control, ...

Three-Tier Client-Server Architecture ...
 Advantages
 reduced costs for thin clients due to lower resource requirements
(CPU, RAM, ...)
- e.g. applications running in a web browser
 application logic is centralised in a single application server
- reduces the software distribution problem (updates) that is present in
two-tier client-server architectures
 increased modularity
- easier to replace one tier without affecting the other tiers
 load balancing becomes easier with a clear separation between
the core business logic and the database functionality

Web Information Systems (WIS)
 The three-tier architecture maps very naturally to web
environments
 browser as a thin client, application server and database server
 The move towards thin browser clients has dramatically
reduced the costs for software deployment
Internet
HTTP Request
HTTP Response
Client Application
Server
DB Server
Database

N-Tier Architecture
 The three-tier architecture can be extended with
additional intermediary tiers for increased flexibility
 e.g. separation between web server and application server in the
previous web information system example
- increases the flexibility for load balancing by introducing multiple web servers
- only dynamic content delivered by the application server whereas static
content is directly managed by the web server
Internet
HTTP Request
HTTP Response
Client
Application
Server
HTML Pages
Web
Server
DB Server
Database

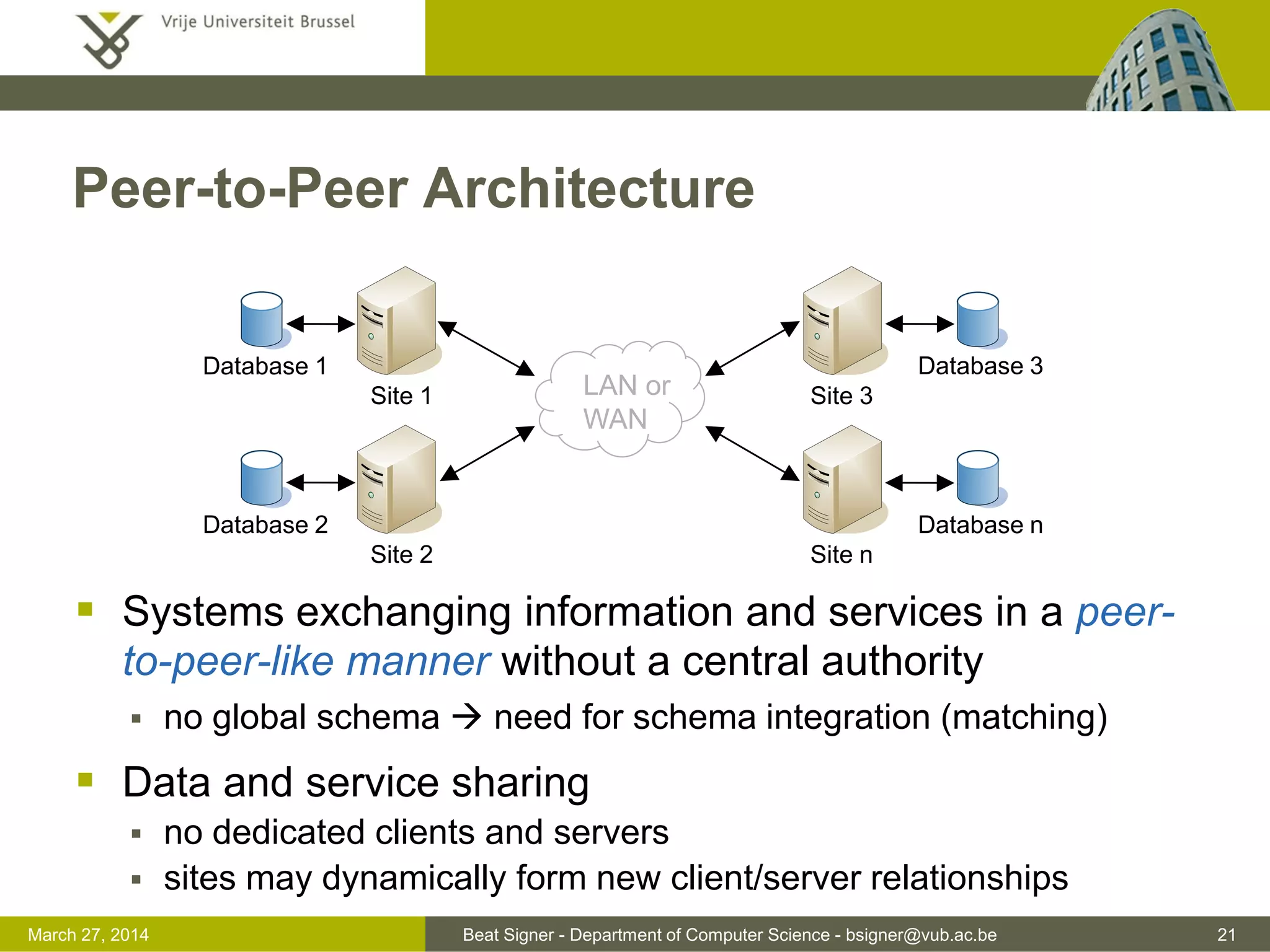

Peer-to-Peer Architecture
 Systems exchanging information and services in a peer-
to-peer-like manner without a central authority
 no global schema  need for schema integration (matching)
 Data and service sharing
 no dedicated clients and servers
 sites may dynamically form new client/server relationships
LAN or
WAN
Site 3
Site n
Database 3
Site 2
Database 2
Site 1
Database 1
Database n

Middleware
 Software that connects (mediates) between software
components or applications
 hide complexity of heterogenous and distributed components
(e.g. servers) and provide a uniform interface
 There exist different types of middleware
 remote procedure call (RPC)
- Java RMI
- CORBA
- XML RPC
 asynchronous publish/subscribe
- subscribe for different types of messages
 SQL-oriented data access
- open database connectivity (ODBC), JDBC, ...
 ...

Transaction Processing Monitor
 Complex applications can be built on top of several
resource managers
 e.g. multiple DBMSs, operating systems, ...
 A Transaction Processing Monitor (TP Monitor) is a
middleware component that provides uniform access to
the services of a number of resource managers
DB Server 1
Database 1
DB Server n
Database n
TP Monitor
Service 1
Service r
.
.
.
Client 1
Client m Application Server

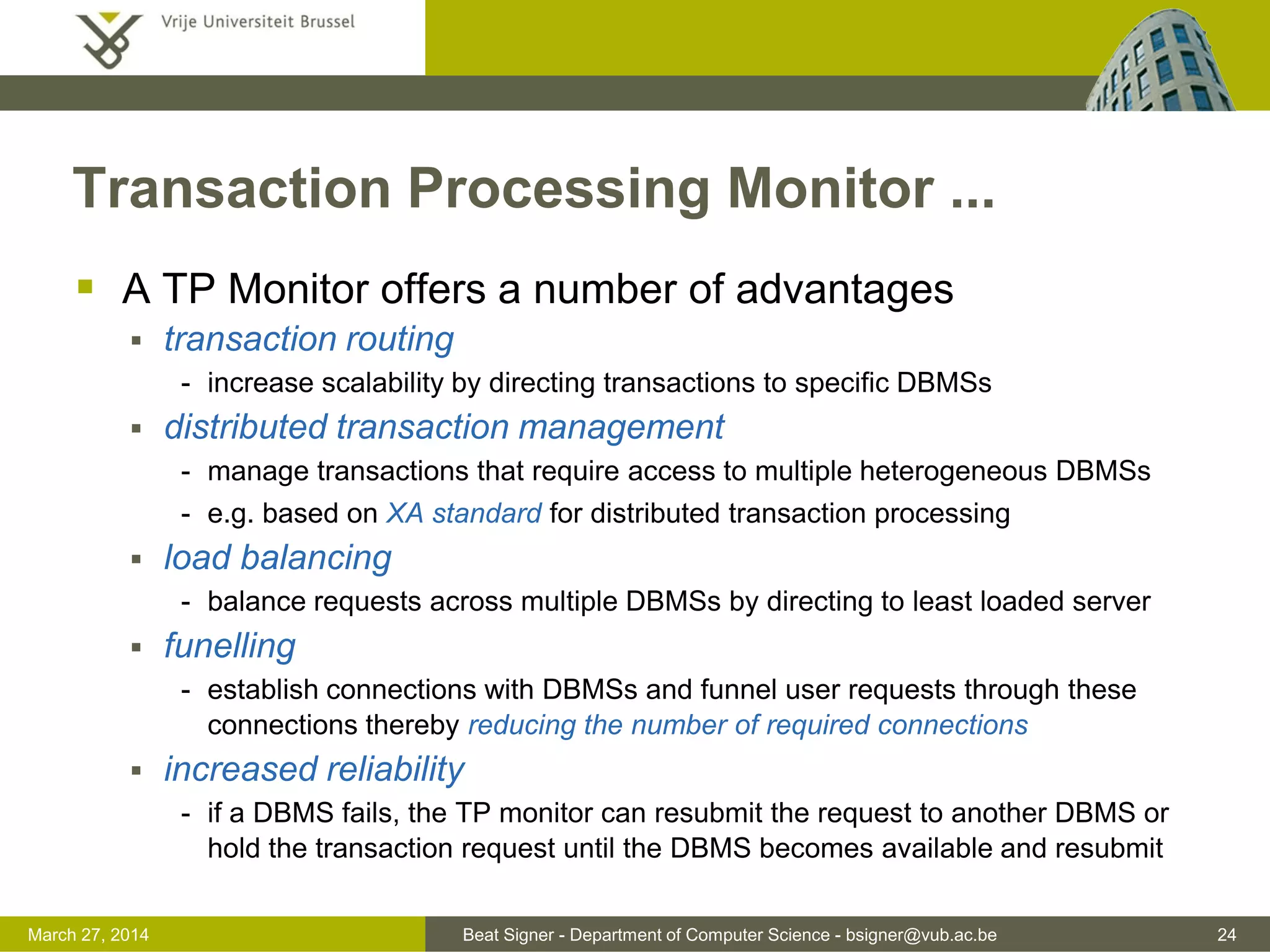

Transaction Processing Monitor ...
 A TP Monitor offers a number of advantages
 transaction routing
- increase scalability by directing transactions to specific DBMSs
 distributed transaction management
- manage transactions that require access to multiple heterogeneous DBMSs
- e.g. based on XA standard for distributed transaction processing
 load balancing
- balance requests across multiple DBMSs by directing to least loaded server
 funelling
- establish connections with DBMSs and funnel user requests through these
connections thereby reducing the number of required connections
 increased reliability
- if a DBMS fails, the TP monitor can resubmit the request to another DBMS or
hold the transaction request until the DBMS becomes available and resubmit

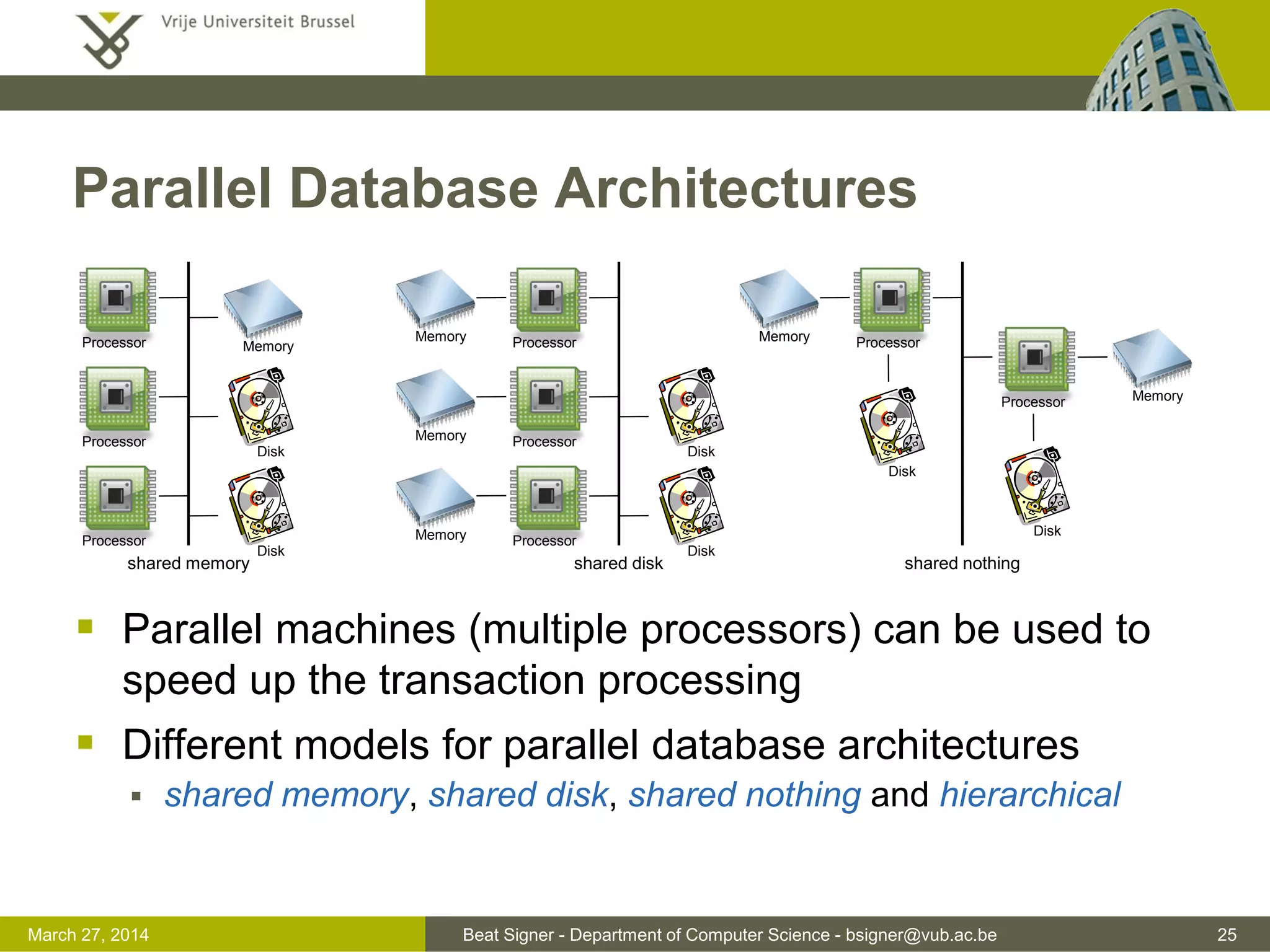

Parallel Database Architectures
 Parallel machines (multiple processors) can be used to
speed up the transaction processing
 Different models for parallel database architectures
 shared memory, shared disk, shared nothing and hierarchical
Processor Memory
Processor
Processor
Disk
Disk
shared memory
Processor
Processor
Processor
Disk
Disk
shared disk
Memory
Memory
Memory
Processor
Disk
shared nothing
Memory
Processor
Disk
Memory

Parallel Database Architectures ...
 Shared memory
 processors and disks have access to a shared memory via a bus
 very efficient communication between processors
 not scalable since bus becomes a bottleneck
 Shared disk
 all processors can access all disks via an interconnection network
 each processor has its own memory
 certain degree of fault tolerance if processor/memory fails
 also disks maybe have fault tollerance (e.g. RAID architecture)
 interconnection to the disk systems becomes bottleneck

Parallel Database Architectures ...
 Shared nothing
 each node consists of a processor, memory and one or
more disks
 high-speed interconnection network between processors
 more scalable than shared memory or shared disk model
 increased communication costs for non-local disk access
 Hierarchical
 combines the different models (composition)
 top level is shared nothing between nodes
- each node can be a shared memory or shared disk "subsystem"

Distributed DBMS (DDBMS)
 Distributed database
 logically related collection of shared data and metadata that is
distributed over a network
 Distributed DBMS
 software system to manage the distributed database in a
transparent way
LAN or
WAN
Site 3
Site n
Database
Site 2
Database
Site 1
Database Database

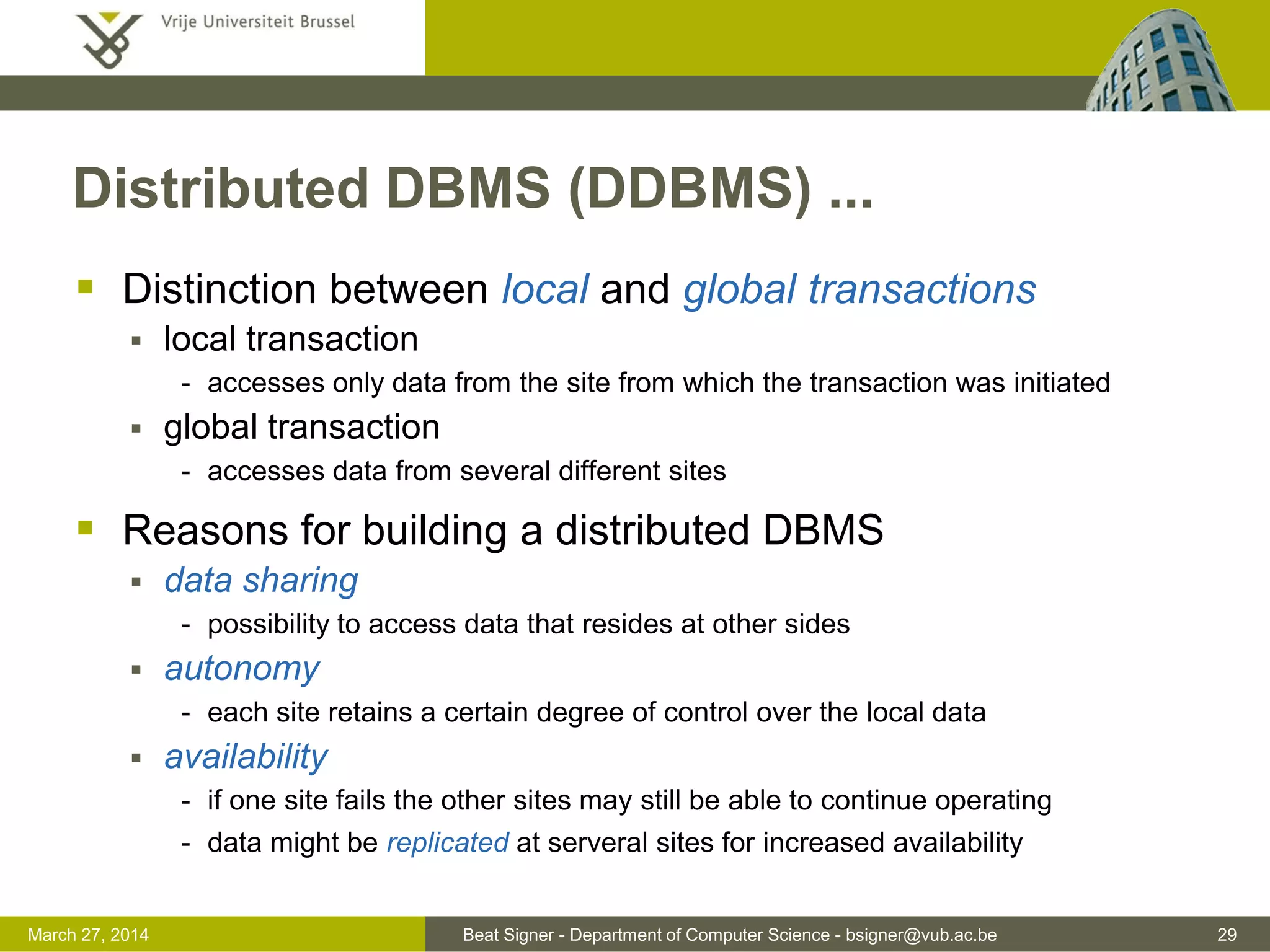

Distributed DBMS (DDBMS) ...
 Distinction between local and global transactions
 local transaction
- accesses only data from the site from which the transaction was initiated
 global transaction
- accesses data from several different sites
 Reasons for building a distributed DBMS
 data sharing
- possibility to access data that resides at other sides
 autonomy
- each site retains a certain degree of control over the local data
 availability
- if one site fails the other sites may still be able to continue operating
- data might be replicated at serveral sites for increased availability

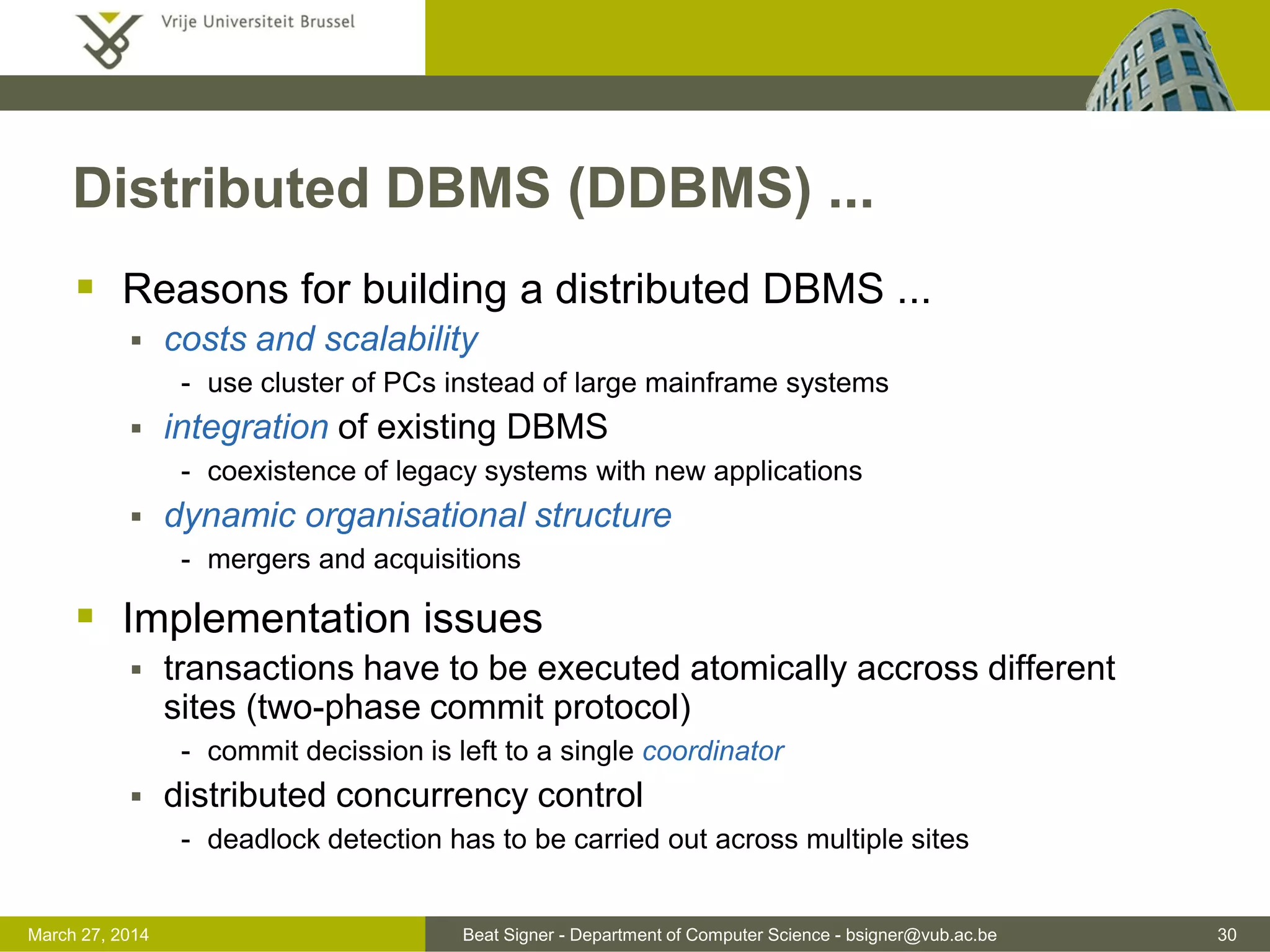

Distributed DBMS (DDBMS) ...
 Reasons for building a distributed DBMS ...
 costs and scalability
- use cluster of PCs instead of large mainframe systems
 integration of existing DBMS
- coexistence of legacy systems with new applications
 dynamic organisational structure
- mergers and acquisitions
 Implementation issues
 transactions have to be executed atomically accross different
sites (two-phase commit protocol)
- commit decission is left to a single coordinator
 distributed concurrency control
- deadlock detection has to be carried out across multiple sites

Service-Oriented Architectures (SOA)
 Architecture that modularises functionality as
interoperable services
 loose coupling of services
 service encapsulation
 interoperability between different operating systems and
programming languages
 new services can be defined as a mashup of existing services
 Service-oriented database architecture (SODA)
 e.g. single SQL Server processes acting as service providers

Service-Oriented Architectures (SOA) ...
 Share business logic, data and processes via web
service APIs
 Big Web Services
- Universal Description, Discovery and Integration (UDDI)
- Web Services Description Language (WSDL)
- Simple Object Access Protocol (SOAP)
 RESTful Web Services
 Web services are based on established technologies
such as the Extensible Markup Language (XML)
 Special service orchestration languages for the use of
services
 e.g. Business Process Execution Language (BPEL)

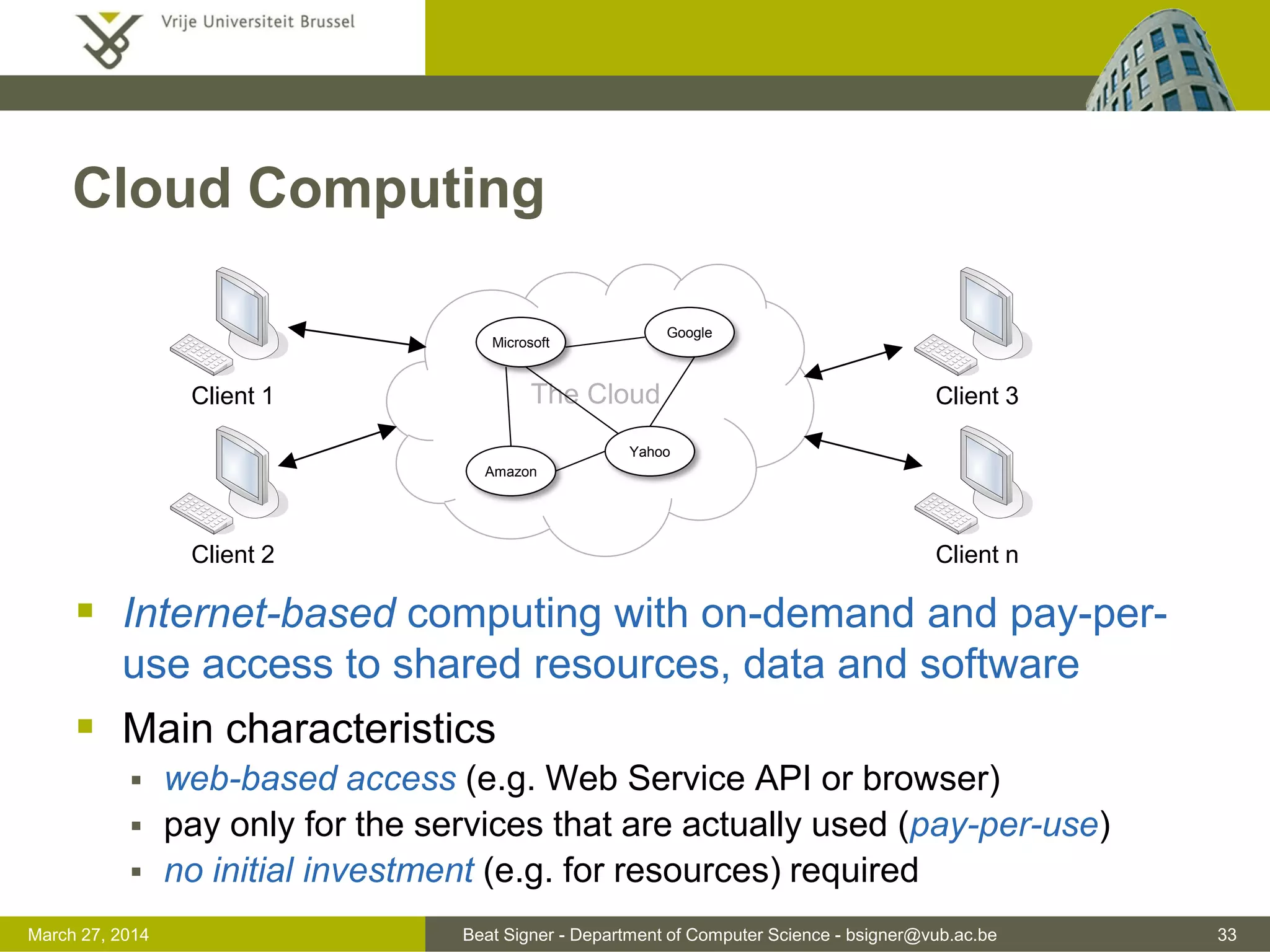

Cloud Computing
 Internet-based computing with on-demand and pay-per-
use access to shared resources, data and software
 Main characteristics
 web-based access (e.g. Web Service API or browser)
 pay only for the services that are actually used (pay-per-use)
 no initial investment (e.g. for resources) required
The Cloud
Google
Microsoft
Amazon
Yahoo
Client 1
Client 2
Client 3
Client n

Cloud Computing ...
 Cloud services
 infrastructure as a service (IaaS)
- OS virtualisation
- e.g. Amazon EC2, Rackspace, ...
 platform as a service (PaaS)
- provide platform to run applications
- e.g. Google App Engine, Windows Azure Platform, ...
 software as a service (SaaS)
- provide software as a service over the Internet
- e.g. Google Docs, ...
 Cloud service vendor gets some degree of control

Cloud Computing ...
 New challenges for database management
in cloud computing
 cloud database server might be less reliable
- might become difficult to guarantee a specific quality of service (QoS) for an
application realised in the cloud
 backup, replication, ...
 Online or web-based databases
 store data in the cloud or on servers on the Internet

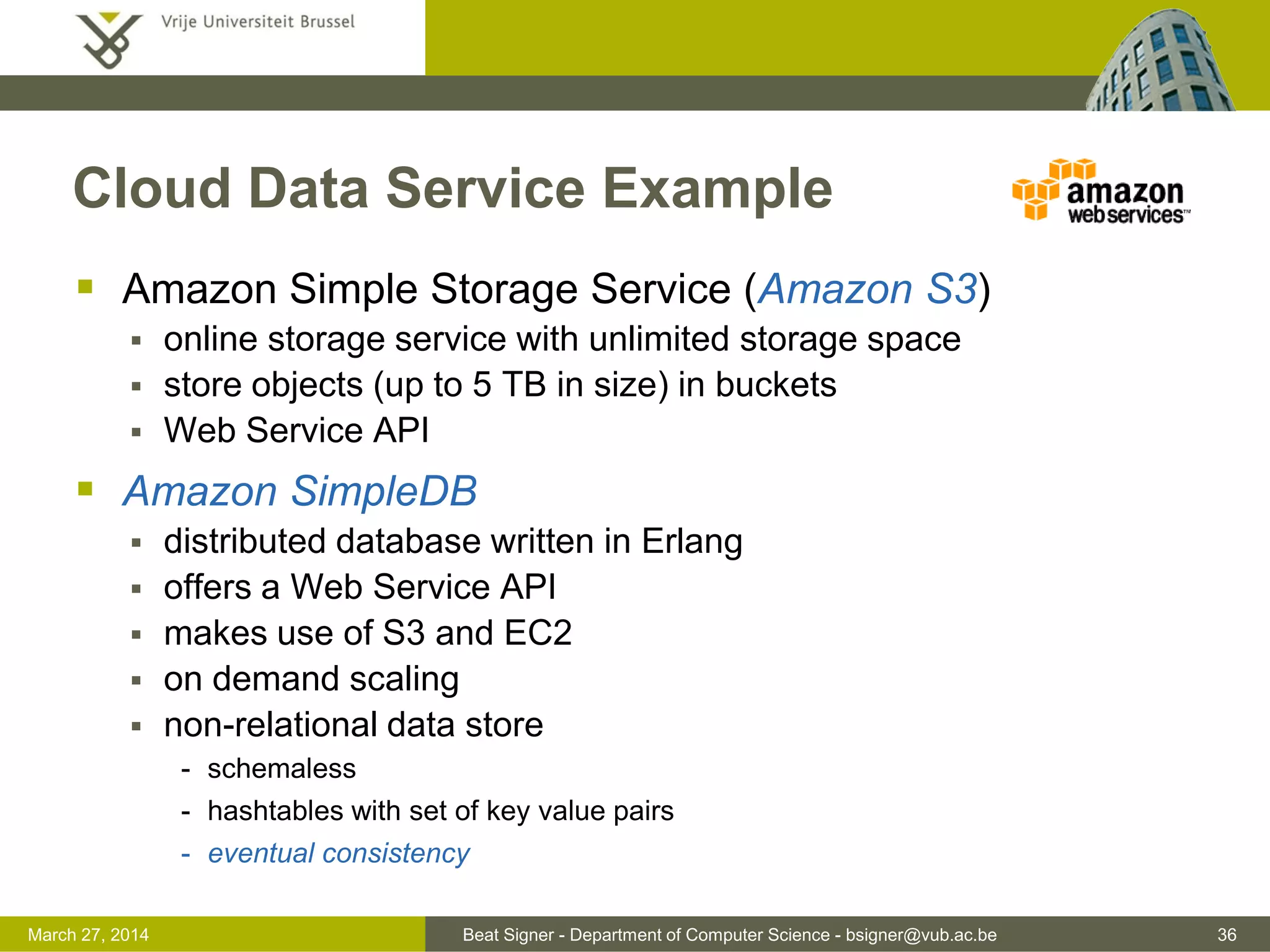

Cloud Data Service Example
 Amazon Simple Storage Service (Amazon S3)
 online storage service with unlimited storage space
 store objects (up to 5 TB in size) in buckets
 Web Service API
 Amazon SimpleDB
 distributed database written in Erlang
 offers a Web Service API
 makes use of S3 and EC2
 on demand scaling
 non-relational data store
- schemaless
- hashtables with set of key value pairs
- eventual consistency

Mobile DBMS
 Users want access to information on the move via mobile
devices
 tourist information systems
 salesperson who is visiting their customers
 emergency services
 ...
 New requirements for mobile DBMSs
 small footprint databases that can run on mobile devices with
limited resources
- e.g. db4objects, http://www.db4o.com
 location-dependent queries
 context-aware queries

Mobile DBMS ...
 New requirements for mobile DBMSs ...
 communicate with centralised database server via wireless
network or fixed Internet connections
 replicate data on a centralised server and on a mobile device
- synchronisation challenges
 caching of data and transactions to cope with potential network
connection failures
 opportunistic (peer-to-peer based) information exchange with
other mobile DBMSs
- e.g. dynamic P2P Bluetooth connections with other devices in range
(proximity-based information exchange)
 security
- which portion of a database can/should be replicated on a mobile device?
 ...

Homework
 Study the following chapter of the
Database System Concepts book
 chapter 17
- sections 17.1-17.6
- Database-System Architectures

Exercise 7
 Structured Query Language (SQL)
 JDBC

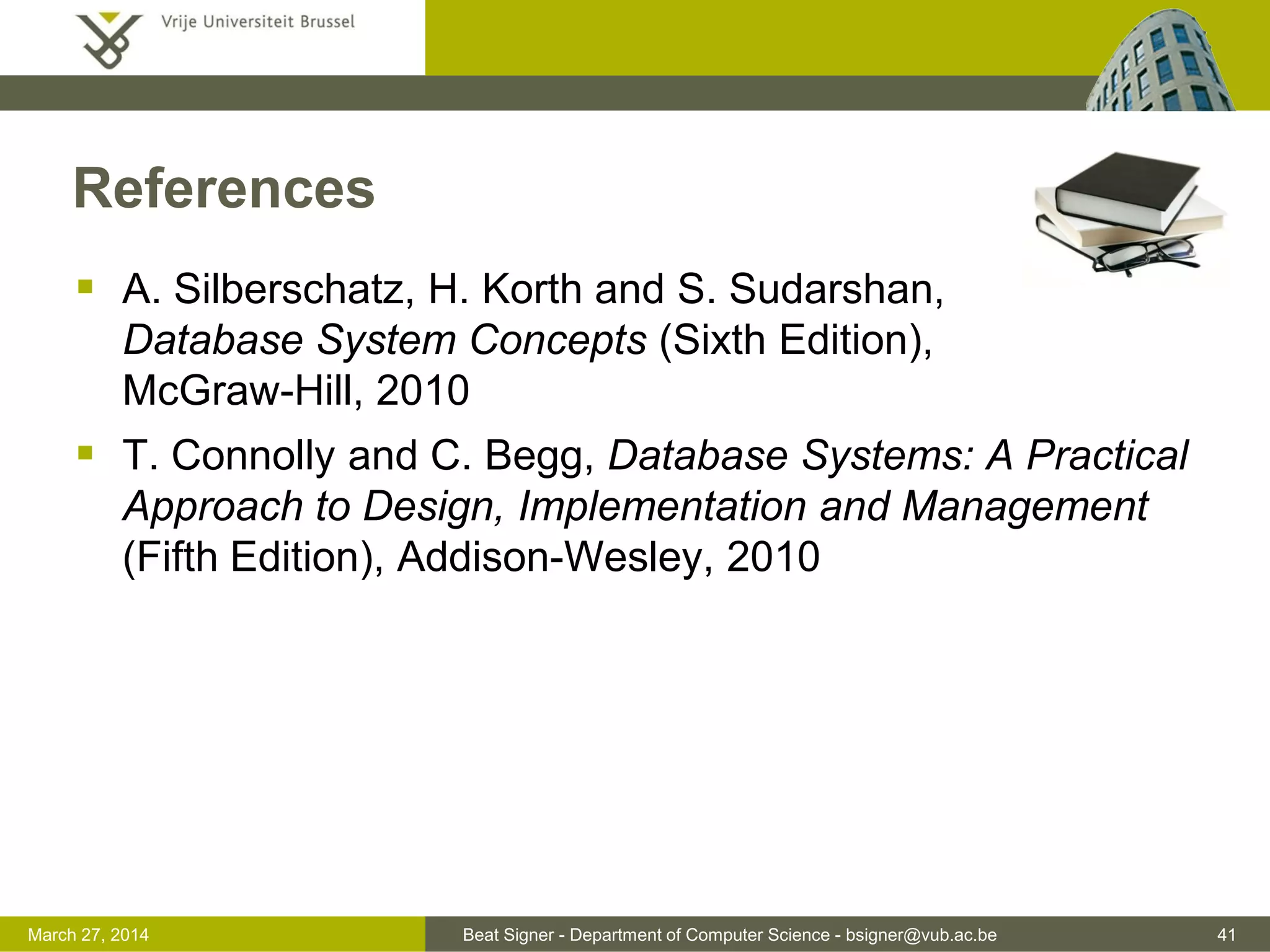

References
 A. Silberschatz, H. Korth and S. Sudarshan,
Database System Concepts (Sixth Edition),
McGraw-Hill, 2010
 T. Connolly and C. Begg, Database Systems: A Practical
Approach to Design, Implementation and Management
(Fifth Edition), Addison-Wesley, 2010

2 December 2005
Next Lecture
Storage Management

DBMS Architectures and Features - Lecture 7 - Introduction to Databases (1007156ANR)

More Related Content

What's hot

Viewers also liked

Similar to DBMS Architectures and Features - Lecture 7 - Introduction to Databases (1007156ANR)

More from Beat Signer

Recently uploaded

DBMS Architectures and Features - Lecture 7 - Introduction to Databases (1007156ANR)
