Transactions & Concurrency
Control
CS4262 Distributed Systems
Dilum Bandara
Dilum.Bandara@uom.lk
Some slides adapted from U Uthaiyashankar (WSO2) and Rajkumar
Buyya’s
Outline
 Transactions
 Properties
 Classification
 Transaction implementation
 Concurrency control
2
Transactions
 Transactions protect a shared resource (e.g.,
shared data) against simultaneous access by
several concurrent processes
 Transactions can do much more…
 They allow a process to access & modify multiple data
items as a single atomic operation
 All-or-nothing property
3
Transactions in DBMS
 A unit of work performed within a DBMS against
a database
 Treated in a coherent & reliable way independent of
other transactions
 2 main purposes
 To provide reliable units of work that allow correct
recovery from failures & keep a database consistent
even in cases of (complete or partial) system failure
 To provide isolation between programs accessing a
database concurrently
4

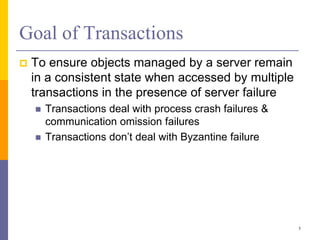

Goal of Transactions
 To ensure objects managed by a server remain
in a consistent state when accessed by multiple
transactions in the presence of server failure
 Transactions deal with process crash failures &
communication omission failures
 Transactions don’t deal with Byzantine failure
5
Transaction Model
 Recoverable objects
 Objects that can be recovered after their server
crashes
 Failure atomicity
 Effects of the transaction are atomic even when
server crashes
 Transactions require coordination among
 A client program
 Some recoverable objects
 A coordinator
6
Transaction Model (Cont.)
 Each transaction is created & managed by a
coordinator which implements the coordinator
interface
 Coordinator gives each transaction an identifier (TID)
 Clients invoke transaction coordinator interface
methods to perform a transaction
 A transaction may be aborted by client or server
7

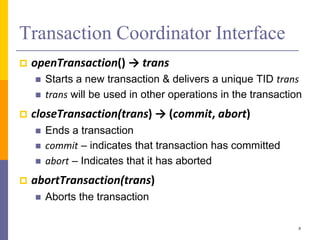

Transaction Coordinator Interface
 openTransaction() → trans
 Starts a new transaction & delivers a unique TID trans
 trans will be used in other operations in the transaction
 closeTransaction(trans) → (commit, abort)
 Ends a transaction
 commit – indicates that transaction has committed
 abort – Indicates that it has aborted
 abortTransaction(trans)
 Aborts the transaction
8

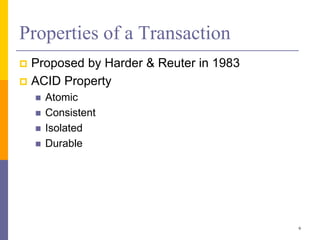

Properties of a Transaction
 Proposed by Harder & Reuter in 1983
 ACID Property
 Atomic
 Consistent
 Isolated
 Durable
9

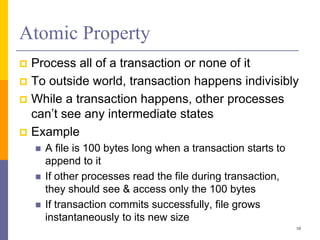

Atomic Property
 Process all of a transaction or none of it
 To outside world, transaction happens indivisibly
 While a transaction happens, other processes
can’t see any intermediate states
 Example
 A file is 100 bytes long when a transaction starts to
append to it
 If other processes read the file during transaction,
they should see & access only the 100 bytes
 If transaction commits successfully, file grows
instantaneously to its new size
10

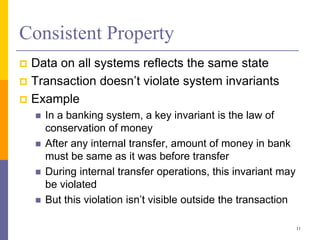

Consistent Property
 Data on all systems reflects the same state
 Transaction doesn’t violate system invariants
 Example
 In a banking system, a key invariant is the law of
conservation of money
 After any internal transfer, amount of money in bank
must be same as it was before transfer
 During internal transfer operations, this invariant may
be violated
 But this violation isn’t visible outside the transaction
11
Isolated Property
 Transactions don’t interact/interfere with one
another
 Concurrent transactions don’t interfere with each
other
 i.e., transactions are serializable
 Example
 If 2+ transactions are running at the same time, to
each of them & to other processes, final result
appears as though all transactions ran sequentially (in
some system-dependent order)
12

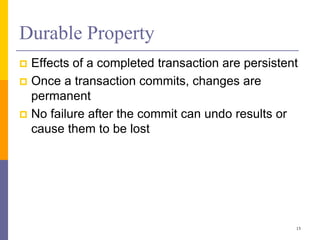

Durable Property
 Effects of a completed transaction are persistent
 Once a transaction commits, changes are
permanent
 No failure after the commit can undo results or
cause them to be lost
13

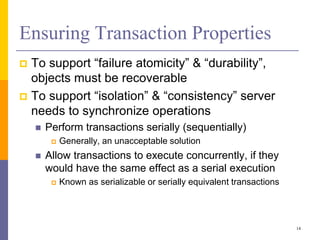

Ensuring Transaction Properties
 To support “failure atomicity” & “durability”,
objects must be recoverable
 To support “isolation” & “consistency” server
needs to synchronize operations
 Perform transactions serially (sequentially)
 Generally, an unacceptable solution
 Allow transactions to execute concurrently, if they
would have the same effect as a serial execution
 Known as serializable or serially equivalent transactions
14

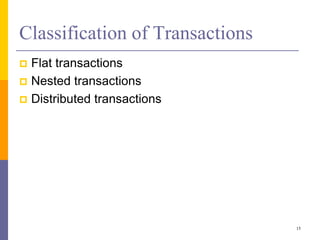

Classification of Transactions
 Flat transactions
 Nested transactions
 Distributed transactions
15

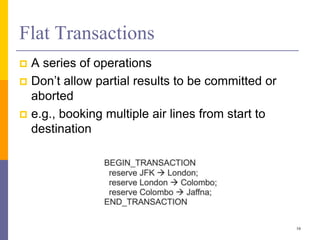

Flat Transactions
 A series of operations
 Don’t allow partial results to be committed or
aborted
 e.g., booking multiple air lines from start to
destination
16

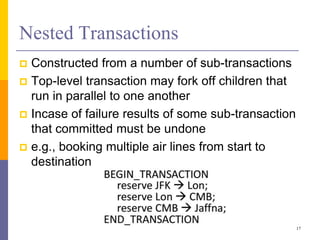

Nested Transactions
 Constructed from a number of sub-transactions
 Top-level transaction may fork off children that
run in parallel to one another
 Incase of failure results of some sub-transaction
that committed must be undone
 e.g., booking multiple air lines from start to
destination
17

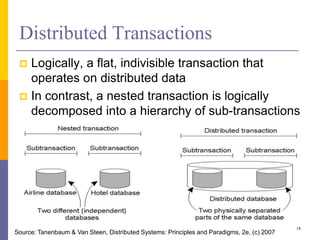

Distributed Transactions
 Logically, a flat, indivisible transaction that
operates on distributed data
 In contrast, a nested transaction is logically
decomposed into a hierarchy of sub-transactions
18
Source: Tanenbaum & Van Steen, Distributed Systems: Principles and Paradigms, 2e, (c) 2007

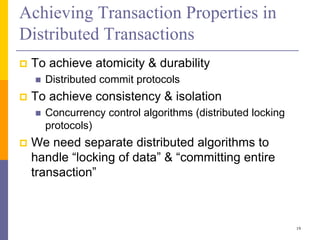

Achieving Transaction Properties in
Distributed Transactions
 To achieve atomicity & durability
 Distributed commit protocols
 To achieve consistency & isolation
 Concurrency control algorithms (distributed locking
protocols)
 We need separate distributed algorithms to
handle “locking of data” & “committing entire
transaction”
19
Transaction Implementation
 Consider transactions on a file system
 If each process executing a transaction just updates
the file it uses in place, then transactions will not be
atomic
 2 common implementation techniques
 Private workspace
 Write-ahead log
20

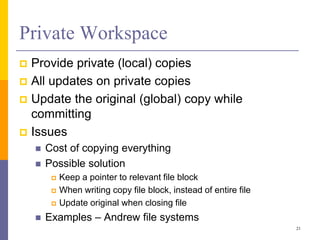

Private Workspace
 Provide private (local) copies
 All updates on private copies
 Update the original (global) copy while
committing
 Issues
 Cost of copying everything
 Possible solution
 Keep a pointer to relevant file block
 When writing copy file block, instead of entire file
 Update original when closing file
 Examples – Andrew file systems
21

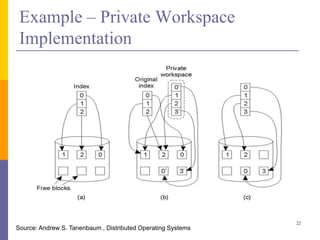

Example – Private Workspace
Implementation
22
Source: Andrew S. Tanenbaum , Distributed Operating Systems

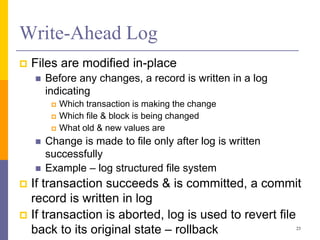

Write-Ahead Log
 Files are modified in-place
 Before any changes, a record is written in a log
indicating
 Which transaction is making the change
 Which file & block is being changed
 What old & new values are
 Change is made to file only after log is written
successfully
 Example – log structured file system
 If transaction succeeds & is committed, a commit
record is written in log
 If transaction is aborted, log is used to revert file
back to its original state – rollback 23

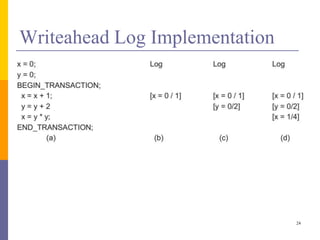

Writeahead Log Implementation
24

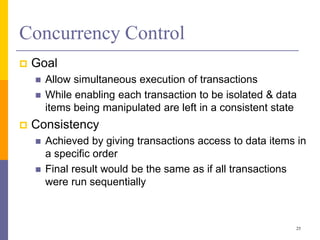

Concurrency Control
 Goal
 Allow simultaneous execution of transactions
 While enabling each transaction to be isolated & data
items being manipulated are left in a consistent state
 Consistency
 Achieved by giving transactions access to data items in
a specific order
 Final result would be the same as if all transactions
were run sequentially
25

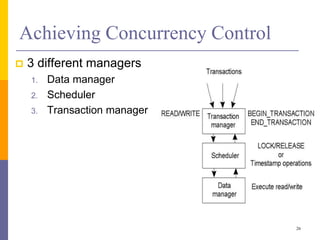

Achieving Concurrency Control
 3 different managers
1. Data manager
2. Scheduler
3. Transaction manager
26

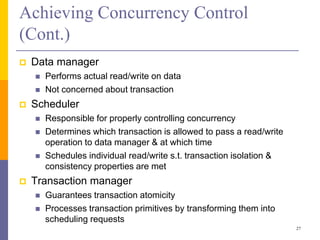

Achieving Concurrency Control
(Cont.)
 Data manager
 Performs actual read/write on data
 Not concerned about transaction
 Scheduler
 Responsible for properly controlling concurrency
 Determines which transaction is allowed to pass a read/write
operation to data manager & at which time
 Schedules individual read/write s.t. transaction isolation &
consistency properties are met
 Transaction manager
 Guarantees transaction atomicity
 Processes transaction primitives by transforming them into
scheduling requests
27

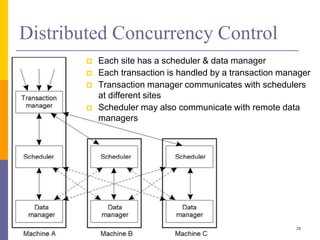

 Each site has a scheduler & data manager
 Each transaction is handled by a transaction manager
 Transaction manager communicates with schedulers
at different sites
 Scheduler may also communicate with remote data
managers
Distributed Concurrency Control
28

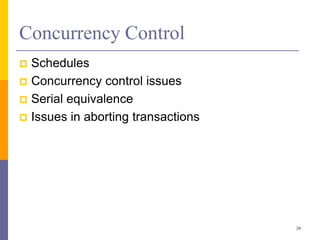

Concurrency Control
 Schedules
 Concurrency control issues
 Serial equivalence
 Issues in aborting transactions
29

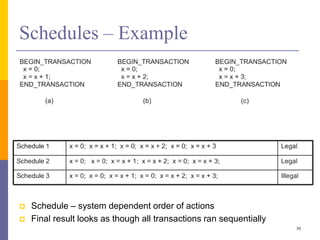

Schedules – Example
 Schedule – system dependent order of actions
 Final result looks as though all transactions ran sequentially
30

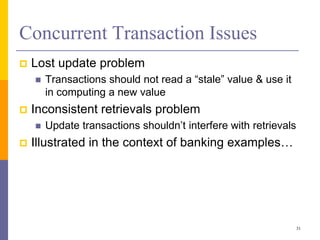

Concurrent Transaction Issues
 Lost update problem
 Transactions should not read a “stale” value & use it
in computing a new value
 Inconsistent retrievals problem
 Update transactions shouldn’t interfere with retrievals
 Illustrated in the context of banking examples…
31

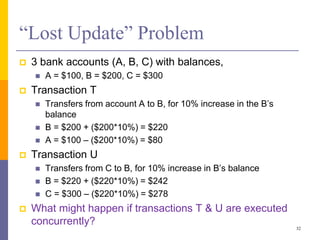

“Lost Update” Problem
 3 bank accounts (A, B, C) with balances,
 A = $100, B = $200, C = $300
 Transaction T
 Transfers from account A to B, for 10% increase in the B’s
balance
 B = $200 + ($200*10%) = $220
 A = $100 – ($200*10%) = $80
 Transaction U
 Transfers from C to B, for 10% increase in B’s balance
 B = $220 + ($220*10%) = $242
 C = $300 – ($220*10%) = $278
 What might happen if transactions T & U are executed
concurrently?
32
“Lost Update” Problem (Cont.)
33

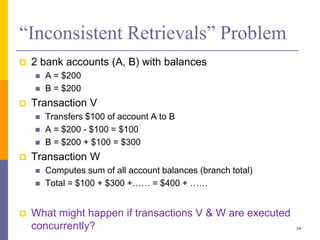

“Inconsistent Retrievals” Problem
 2 bank accounts (A, B) with balances
 A = $200
 B = $200
 Transaction V
 Transfers $100 of account A to B
 A = $200 - $100 = $100
 B = $200 + $100 = $300
 Transaction W
 Computes sum of all account balances (branch total)
 Total = $100 + $300 +…… = $400 + ……
 What might happen if transactions V & W are executed
concurrently? 34

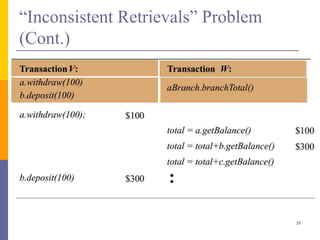

“Inconsistent Retrievals” Problem
(Cont.)
35

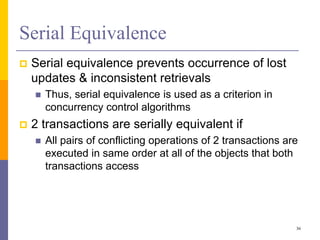

Serial Equivalence
 Serial equivalence prevents occurrence of lost
updates & inconsistent retrievals
 Thus, serial equivalence is used as a criterion in
concurrency control algorithms
 2 transactions are serially equivalent if
 All pairs of conflicting operations of 2 transactions are
executed in same order at all of the objects that both
transactions access
36

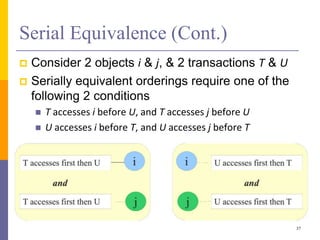

Serial Equivalence (Cont.)
 Consider 2 objects i & j, & 2 transactions T & U
 Serially equivalent orderings require one of the
following 2 conditions
 T accesses i before U, and T accesses j before U
 U accesses i before T, and U accesses j before T
37
“Lost Update” Problem
38

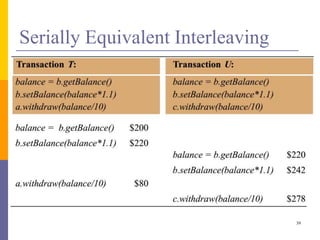

Serially Equivalent Interleaving
39
“Inconsistent Retrievals” Problem
40

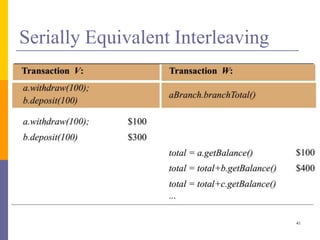

Serially Equivalent Interleaving
41

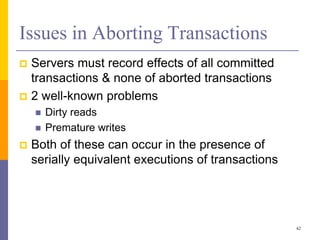

Issues in Aborting Transactions
 Servers must record effects of all committed
transactions & none of aborted transactions
 2 well-known problems
 Dirty reads
 Premature writes
 Both of these can occur in the presence of
serially equivalent executions of transactions
42

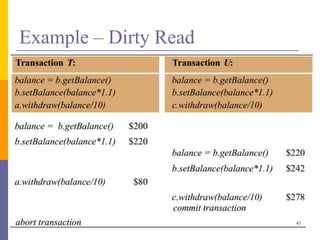

Example – Dirty Read
43

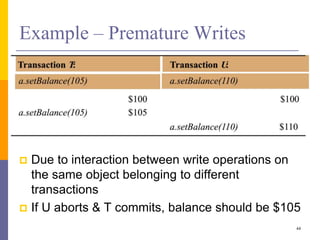

Example – Premature Writes
 Due to interaction between write operations on
the same object belonging to different
transactions
 If U aborts & T commits, balance should be $105
44

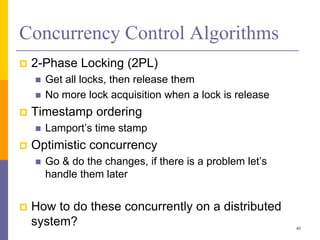

Concurrency Control Algorithms
 2-Phase Locking (2PL)
 Get all locks, then release them
 No more lock acquisition when a lock is release
 Timestamp ordering
 Lamport’s time stamp
 Optimistic concurrency
 Go & do the changes, if there is a problem let’s
handle them later
 How to do these concurrently on a distributed
system? 45

More Related Content

What's hot

Resource management
Resource managementResource management
Resource management
Dr Sandeep Kumar Poonia

Database System Architectures
Database System ArchitecturesDatabase System Architectures
Database System Architectures
Information Technology

Threads (operating System)
Threads (operating System)Threads (operating System)
Threads (operating System)
Prakhar Maurya

Replication in Distributed Systems
Replication in Distributed SystemsReplication in Distributed Systems
Replication in Distributed Systems
Kavya Barnadhya Hazarika

Cpu scheduling in operating System.
Cpu scheduling in operating System.Cpu scheduling in operating System.
Cpu scheduling in operating System.
Ravi Kumar Patel

Concurrency Control in Distributed Database.
Concurrency Control in Distributed Database.Concurrency Control in Distributed Database.
Concurrency Control in Distributed Database.
Meghaj Mallick

distributed shared memory
 distributed shared memory distributed shared memory
distributed shared memory
Ashish Kumar

15. Transactions in DBMS
15. Transactions in DBMS15. Transactions in DBMS
15. Transactions in DBMS
koolkampus

Concurrency control
Concurrency controlConcurrency control
Concurrency control
Subhasish Pati

16. Concurrency Control in DBMS
16. Concurrency Control in DBMS16. Concurrency Control in DBMS
16. Concurrency Control in DBMS
koolkampus

13. Query Processing in DBMS
13. Query Processing in DBMS13. Query Processing in DBMS
13. Query Processing in DBMS
koolkampus

RPC: Remote procedure call
RPC: Remote procedure callRPC: Remote procedure call
RPC: Remote procedure call
Sunita Sahu

Distributed file system
Distributed file systemDistributed file system
Distributed file system
Anamika Singh

Overview of Concurrency Control & Recovery in Distributed Databases
Overview of Concurrency Control & Recovery in Distributed DatabasesOverview of Concurrency Control & Recovery in Distributed Databases
Overview of Concurrency Control & Recovery in Distributed Databases
Meghaj Mallick

Memory management
Memory managementMemory management
Memory management
Rajni Sirohi

Processes and threads
Processes and threadsProcesses and threads
Clock synchronization in distributed system
Clock synchronization in distributed systemClock synchronization in distributed system
Clock synchronization in distributed system
Sunita Sahu

Deadlock Detection in Distributed Systems
Deadlock Detection in Distributed SystemsDeadlock Detection in Distributed Systems
Deadlock Detection in Distributed Systems
DHIVYADEVAKI

Transaction management and concurrency control
Transaction management and concurrency controlTransaction management and concurrency control
Transaction management and concurrency control
Dhani Ahmad

Paging and segmentation
Paging and segmentationPaging and segmentation
Paging and segmentation
Piyush Rochwani


What's hot (20)

Resource management
Resource managementResource management
Resource management

Database System Architectures
Database System ArchitecturesDatabase System Architectures
Database System Architectures

Threads (operating System)
Threads (operating System)Threads (operating System)
Threads (operating System)

Replication in Distributed Systems
Replication in Distributed SystemsReplication in Distributed Systems
Replication in Distributed Systems

Cpu scheduling in operating System.
Cpu scheduling in operating System.Cpu scheduling in operating System.
Cpu scheduling in operating System.

Concurrency Control in Distributed Database.
Concurrency Control in Distributed Database.Concurrency Control in Distributed Database.
Concurrency Control in Distributed Database.

distributed shared memory
 distributed shared memory distributed shared memory
distributed shared memory

15. Transactions in DBMS
15. Transactions in DBMS15. Transactions in DBMS
15. Transactions in DBMS

Concurrency control
Concurrency controlConcurrency control
Concurrency control

16. Concurrency Control in DBMS
16. Concurrency Control in DBMS16. Concurrency Control in DBMS
16. Concurrency Control in DBMS

13. Query Processing in DBMS
13. Query Processing in DBMS13. Query Processing in DBMS
13. Query Processing in DBMS

RPC: Remote procedure call
RPC: Remote procedure callRPC: Remote procedure call
RPC: Remote procedure call

Distributed file system
Distributed file systemDistributed file system
Distributed file system

Overview of Concurrency Control & Recovery in Distributed Databases
Overview of Concurrency Control & Recovery in Distributed DatabasesOverview of Concurrency Control & Recovery in Distributed Databases
Overview of Concurrency Control & Recovery in Distributed Databases

Memory management
Memory managementMemory management
Memory management

Processes and threads
Processes and threadsProcesses and threads
Processes and threads

Clock synchronization in distributed system
Clock synchronization in distributed systemClock synchronization in distributed system
Clock synchronization in distributed system

Deadlock Detection in Distributed Systems
Deadlock Detection in Distributed SystemsDeadlock Detection in Distributed Systems
Deadlock Detection in Distributed Systems

Transaction management and concurrency control
Transaction management and concurrency controlTransaction management and concurrency control
Transaction management and concurrency control

Paging and segmentation
Paging and segmentationPaging and segmentation
Paging and segmentation


Similar to Transactions and Concurrency Control

Dbms sixth chapter_part-1_2011
Dbms sixth chapter_part-1_2011Dbms sixth chapter_part-1_2011
Dbms sixth chapter_part-1_2011
sumit_study

Svetlin Nakov - Database Transactions
Svetlin Nakov - Database TransactionsSvetlin Nakov - Database Transactions
Svetlin Nakov - Database Transactions
Svetlin Nakov

24904 lecture11
24904 lecture1124904 lecture11
Transactionsmanagement
TransactionsmanagementTransactionsmanagement
Transactionsmanagement
Sanjeev Gupta

DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx
DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docxDBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx
DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx
randyburney60861

Introduction to transaction processing concepts and theory
Introduction to transaction processing concepts and theoryIntroduction to transaction processing concepts and theory
Introduction to transaction processing concepts and theory
Zainab Almugbel

Unit06 dbms
Unit06 dbmsUnit06 dbms
Unit06 dbms
arnold 7490

Chapter 4 u
Chapter 4 uChapter 4 u
Chapter 4 u
Sandeep Singh

DBMS-chap 2-Concurrency Control
DBMS-chap 2-Concurrency ControlDBMS-chap 2-Concurrency Control
DBMS-chap 2-Concurrency Control
Mukesh Tekwani

Distributed datababase Transaction and concurrency control
Distributed datababase Transaction and concurrency controlDistributed datababase Transaction and concurrency control
Distributed datababase Transaction and concurrency control
balamurugan.k Kalibalamurugan

Dartabase Transaction.pptx
Dartabase Transaction.pptxDartabase Transaction.pptx
Dartabase Transaction.pptx
Bibus Poudel

Cs501 transaction
Cs501 transactionCs501 transaction
Cs501 transaction
Kamal Singh Lodhi

Transactions in dbms
Transactions in dbmsTransactions in dbms
Transactions in dbms
Nancy Gulati

Tranasaction management
Tranasaction managementTranasaction management
Tranasaction management
Dr. C.V. Suresh Babu

Introduction to transaction processing
Introduction to transaction processingIntroduction to transaction processing
Introduction to transaction processing
Jafar Nesargi

Chapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processingChapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processing
Jafar Nesargi

Chapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processingChapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processing
Jafar Nesargi

Presentation on Transaction
Presentation on TransactionPresentation on Transaction
Presentation on Transaction
Rahul Prajapati

DBMS UNIT 4
DBMS UNIT 4DBMS UNIT 4
DBMS UNIT 4
SURBHI SAROHA

Ch15
Ch15Ch15

Similar to Transactions and Concurrency Control (20)

Dbms sixth chapter_part-1_2011
Dbms sixth chapter_part-1_2011Dbms sixth chapter_part-1_2011
Dbms sixth chapter_part-1_2011

Svetlin Nakov - Database Transactions
Svetlin Nakov - Database TransactionsSvetlin Nakov - Database Transactions
Svetlin Nakov - Database Transactions

24904 lecture11
24904 lecture1124904 lecture11
24904 lecture11

Transactionsmanagement
TransactionsmanagementTransactionsmanagement
Transactionsmanagement

DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx
DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docxDBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx
DBF-Lecture11-Chapter12.pptDatabase Principles Fundam.docx

Introduction to transaction processing concepts and theory
Introduction to transaction processing concepts and theoryIntroduction to transaction processing concepts and theory
Introduction to transaction processing concepts and theory

Unit06 dbms
Unit06 dbmsUnit06 dbms
Unit06 dbms

Chapter 4 u
Chapter 4 uChapter 4 u
Chapter 4 u

DBMS-chap 2-Concurrency Control
DBMS-chap 2-Concurrency ControlDBMS-chap 2-Concurrency Control
DBMS-chap 2-Concurrency Control

Distributed datababase Transaction and concurrency control
Distributed datababase Transaction and concurrency controlDistributed datababase Transaction and concurrency control
Distributed datababase Transaction and concurrency control

Dartabase Transaction.pptx
Dartabase Transaction.pptxDartabase Transaction.pptx
Dartabase Transaction.pptx

Cs501 transaction
Cs501 transactionCs501 transaction
Cs501 transaction

Transactions in dbms
Transactions in dbmsTransactions in dbms
Transactions in dbms

Tranasaction management
Tranasaction managementTranasaction management
Tranasaction management

Introduction to transaction processing
Introduction to transaction processingIntroduction to transaction processing
Introduction to transaction processing

Chapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processingChapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processing

Chapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processingChapter 9 introduction to transaction processing
Chapter 9 introduction to transaction processing

Presentation on Transaction
Presentation on TransactionPresentation on Transaction
Presentation on Transaction

DBMS UNIT 4
DBMS UNIT 4DBMS UNIT 4
DBMS UNIT 4

Ch15
Ch15Ch15
Ch15


More from Dilum Bandara

Introduction to Machine Learning
Introduction to Machine LearningIntroduction to Machine Learning
Introduction to Machine Learning
Dilum Bandara

Time Series Analysis and Forecasting in Practice
Time Series Analysis and Forecasting in PracticeTime Series Analysis and Forecasting in Practice
Time Series Analysis and Forecasting in Practice
Dilum Bandara

Introduction to Dimension Reduction with PCA
Introduction to Dimension Reduction with PCAIntroduction to Dimension Reduction with PCA
Introduction to Dimension Reduction with PCA
Dilum Bandara

Introduction to Descriptive & Predictive Analytics
Introduction to Descriptive & Predictive AnalyticsIntroduction to Descriptive & Predictive Analytics
Introduction to Descriptive & Predictive Analytics
Dilum Bandara

Introduction to Concurrent Data Structures
Introduction to Concurrent Data StructuresIntroduction to Concurrent Data Structures
Introduction to Concurrent Data Structures
Dilum Bandara

Hard to Paralelize Problems: Matrix-Vector and Matrix-Matrix
Hard to Paralelize Problems: Matrix-Vector and Matrix-MatrixHard to Paralelize Problems: Matrix-Vector and Matrix-Matrix
Hard to Paralelize Problems: Matrix-Vector and Matrix-Matrix
Dilum Bandara

Introduction to Map-Reduce Programming with Hadoop
Introduction to Map-Reduce Programming with HadoopIntroduction to Map-Reduce Programming with Hadoop
Introduction to Map-Reduce Programming with Hadoop
Dilum Bandara

Embarrassingly/Delightfully Parallel Problems
Embarrassingly/Delightfully Parallel ProblemsEmbarrassingly/Delightfully Parallel Problems
Embarrassingly/Delightfully Parallel Problems
Dilum Bandara

Introduction to Warehouse-Scale Computers
Introduction to Warehouse-Scale ComputersIntroduction to Warehouse-Scale Computers
Introduction to Warehouse-Scale Computers
Dilum Bandara

Introduction to Thread Level Parallelism
Introduction to Thread Level ParallelismIntroduction to Thread Level Parallelism
Introduction to Thread Level Parallelism
Dilum Bandara

CPU Memory Hierarchy and Caching Techniques
CPU Memory Hierarchy and Caching TechniquesCPU Memory Hierarchy and Caching Techniques
CPU Memory Hierarchy and Caching Techniques
Dilum Bandara

Data-Level Parallelism in Microprocessors
Data-Level Parallelism in MicroprocessorsData-Level Parallelism in Microprocessors
Data-Level Parallelism in Microprocessors
Dilum Bandara

Instruction Level Parallelism – Hardware Techniques
Instruction Level Parallelism – Hardware TechniquesInstruction Level Parallelism – Hardware Techniques
Instruction Level Parallelism – Hardware Techniques
Dilum Bandara

Instruction Level Parallelism – Compiler Techniques
Instruction Level Parallelism – Compiler TechniquesInstruction Level Parallelism – Compiler Techniques
Instruction Level Parallelism – Compiler Techniques
Dilum Bandara

CPU Pipelining and Hazards - An Introduction
CPU Pipelining and Hazards - An IntroductionCPU Pipelining and Hazards - An Introduction
CPU Pipelining and Hazards - An Introduction
Dilum Bandara

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An Introduction
Dilum Bandara

High Performance Networking with Advanced TCP
High Performance Networking with Advanced TCPHigh Performance Networking with Advanced TCP
High Performance Networking with Advanced TCP
Dilum Bandara

Introduction to Content Delivery Networks
Introduction to Content Delivery NetworksIntroduction to Content Delivery Networks
Introduction to Content Delivery Networks
Dilum Bandara

Peer-to-Peer Networking Systems and Streaming
Peer-to-Peer Networking Systems and StreamingPeer-to-Peer Networking Systems and Streaming
Peer-to-Peer Networking Systems and Streaming
Dilum Bandara

Mobile Services
Mobile ServicesMobile Services
Mobile Services
Dilum Bandara


More from Dilum Bandara (20)

Introduction to Machine Learning
Introduction to Machine LearningIntroduction to Machine Learning
Introduction to Machine Learning

Time Series Analysis and Forecasting in Practice
Time Series Analysis and Forecasting in PracticeTime Series Analysis and Forecasting in Practice
Time Series Analysis and Forecasting in Practice

Introduction to Dimension Reduction with PCA
Introduction to Dimension Reduction with PCAIntroduction to Dimension Reduction with PCA
Introduction to Dimension Reduction with PCA

Introduction to Descriptive & Predictive Analytics
Introduction to Descriptive & Predictive AnalyticsIntroduction to Descriptive & Predictive Analytics
Introduction to Descriptive & Predictive Analytics

Introduction to Concurrent Data Structures
Introduction to Concurrent Data StructuresIntroduction to Concurrent Data Structures
Introduction to Concurrent Data Structures

Hard to Paralelize Problems: Matrix-Vector and Matrix-Matrix
Hard to Paralelize Problems: Matrix-Vector and Matrix-MatrixHard to Paralelize Problems: Matrix-Vector and Matrix-Matrix
Hard to Paralelize Problems: Matrix-Vector and Matrix-Matrix

Introduction to Map-Reduce Programming with Hadoop
Introduction to Map-Reduce Programming with HadoopIntroduction to Map-Reduce Programming with Hadoop
Introduction to Map-Reduce Programming with Hadoop

Embarrassingly/Delightfully Parallel Problems
Embarrassingly/Delightfully Parallel ProblemsEmbarrassingly/Delightfully Parallel Problems
Embarrassingly/Delightfully Parallel Problems

Introduction to Warehouse-Scale Computers
Introduction to Warehouse-Scale ComputersIntroduction to Warehouse-Scale Computers
Introduction to Warehouse-Scale Computers

Introduction to Thread Level Parallelism
Introduction to Thread Level ParallelismIntroduction to Thread Level Parallelism
Introduction to Thread Level Parallelism

CPU Memory Hierarchy and Caching Techniques
CPU Memory Hierarchy and Caching TechniquesCPU Memory Hierarchy and Caching Techniques
CPU Memory Hierarchy and Caching Techniques

Data-Level Parallelism in Microprocessors
Data-Level Parallelism in MicroprocessorsData-Level Parallelism in Microprocessors
Data-Level Parallelism in Microprocessors

Instruction Level Parallelism – Hardware Techniques
Instruction Level Parallelism – Hardware TechniquesInstruction Level Parallelism – Hardware Techniques
Instruction Level Parallelism – Hardware Techniques

Instruction Level Parallelism – Compiler Techniques
Instruction Level Parallelism – Compiler TechniquesInstruction Level Parallelism – Compiler Techniques
Instruction Level Parallelism – Compiler Techniques

CPU Pipelining and Hazards - An Introduction
CPU Pipelining and Hazards - An IntroductionCPU Pipelining and Hazards - An Introduction
CPU Pipelining and Hazards - An Introduction

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An Introduction

High Performance Networking with Advanced TCP
High Performance Networking with Advanced TCPHigh Performance Networking with Advanced TCP
High Performance Networking with Advanced TCP

Introduction to Content Delivery Networks
Introduction to Content Delivery NetworksIntroduction to Content Delivery Networks
Introduction to Content Delivery Networks

Peer-to-Peer Networking Systems and Streaming
Peer-to-Peer Networking Systems and StreamingPeer-to-Peer Networking Systems and Streaming
Peer-to-Peer Networking Systems and Streaming

Mobile Services
Mobile ServicesMobile Services
Mobile Services


Recently uploaded

Generative AI Use cases applications solutions and implementation.pdf
Generative AI Use cases applications solutions and implementation.pdfGenerative AI Use cases applications solutions and implementation.pdf
Generative AI Use cases applications solutions and implementation.pdf
mahaffeycheryld

Open Channel Flow: fluid flow with a free surface
Open Channel Flow: fluid flow with a free surfaceOpen Channel Flow: fluid flow with a free surface
Open Channel Flow: fluid flow with a free surface
Indrajeet sahu

smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...
um7474492

一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
upoux

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
ecqow

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx
harshapolam10

Height and depth gauge linear metrology.pdf
Height and depth gauge linear metrology.pdfHeight and depth gauge linear metrology.pdf
Height and depth gauge linear metrology.pdf
q30122000

SENTIMENT ANALYSIS ON PPT AND Project template_.pptx
SENTIMENT ANALYSIS ON PPT AND Project template_.pptxSENTIMENT ANALYSIS ON PPT AND Project template_.pptx
SENTIMENT ANALYSIS ON PPT AND Project template_.pptx
b0754201

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
ydzowc

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
uqyfuc

Blood finder application project report (1).pdf
Blood finder application project report (1).pdfBlood finder application project report (1).pdf
Blood finder application project report (1).pdf
Kamal Acharya

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...
Prakhyath Rai

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
ijaia

Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...
Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...
Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...
Transcat

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf
Kamal Acharya

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf
Atif Razi

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai


Recently uploaded (20)

Generative AI Use cases applications solutions and implementation.pdf
Generative AI Use cases applications solutions and implementation.pdfGenerative AI Use cases applications solutions and implementation.pdf
Generative AI Use cases applications solutions and implementation.pdf

Open Channel Flow: fluid flow with a free surface
Open Channel Flow: fluid flow with a free surfaceOpen Channel Flow: fluid flow with a free surface
Open Channel Flow: fluid flow with a free surface

smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...smart pill dispenser is designed to improve medication adherence and safety f...
smart pill dispenser is designed to improve medication adherence and safety f...

一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理
一比一原版(uofo毕业证书)美国俄勒冈大学毕业证如何办理

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理

SCALING OF MOS CIRCUITS m .pptx
SCALING OF MOS CIRCUITS m                 .pptxSCALING OF MOS CIRCUITS m                 .pptx
SCALING OF MOS CIRCUITS m .pptx

Height and depth gauge linear metrology.pdf
Height and depth gauge linear metrology.pdfHeight and depth gauge linear metrology.pdf
Height and depth gauge linear metrology.pdf

SENTIMENT ANALYSIS ON PPT AND Project template_.pptx
SENTIMENT ANALYSIS ON PPT AND Project template_.pptxSENTIMENT ANALYSIS ON PPT AND Project template_.pptx
SENTIMENT ANALYSIS ON PPT AND Project template_.pptx

原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样
原版制作(Humboldt毕业证书)柏林大学毕业证学位证一模一样

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

Blood finder application project report (1).pdf
Blood finder application project report (1).pdfBlood finder application project report (1).pdf
Blood finder application project report (1).pdf

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...
Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...
Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...


Transactions and Concurrency Control

  • 1. Transactions & Concurrency Control CS4262 Distributed Systems Dilum Bandara Dilum.Bandara@uom.lk Some slides adapted from U Uthaiyashankar (WSO2) and Rajkumar Buyya’s
  • 2. Outline  Transactions  Properties  Classification  Transaction implementation  Concurrency control 2
  • 3. Transactions  Transactions protect a shared resource (e.g., shared data) against simultaneous access by several concurrent processes  Transactions can do much more…  They allow a process to access & modify multiple data items as a single atomic operation  All-or-nothing property 3
  • 4. Transactions in DBMS  A unit of work performed within a DBMS against a database  Treated in a coherent & reliable way independent of other transactions  2 main purposes  To provide reliable units of work that allow correct recovery from failures & keep a database consistent even in cases of (complete or partial) system failure  To provide isolation between programs accessing a database concurrently 4
  • 5. Goal of Transactions  To ensure objects managed by a server remain in a consistent state when accessed by multiple transactions in the presence of server failure  Transactions deal with process crash failures & communication omission failures  Transactions don’t deal with Byzantine failure 5
  • 6. Transaction Model  Recoverable objects  Objects that can be recovered after their server crashes  Failure atomicity  Effects of the transaction are atomic even when server crashes  Transactions require coordination among  A client program  Some recoverable objects  A coordinator 6
  • 7. Transaction Model (Cont.)  Each transaction is created & managed by a coordinator which implements the coordinator interface  Coordinator gives each transaction an identifier (TID)  Clients invoke transaction coordinator interface methods to perform a transaction  A transaction may be aborted by client or server 7
  • 8. Transaction Coordinator Interface  openTransaction() → trans  Starts a new transaction & delivers a unique TID trans  trans will be used in other operations in the transaction  closeTransaction(trans) → (commit, abort)  Ends a transaction  commit – indicates that transaction has committed  abort – Indicates that it has aborted  abortTransaction(trans)  Aborts the transaction 8
  • 9. Properties of a Transaction  Proposed by Harder & Reuter in 1983  ACID Property  Atomic  Consistent  Isolated  Durable 9
  • 10. Atomic Property  Process all of a transaction or none of it  To outside world, transaction happens indivisibly  While a transaction happens, other processes can’t see any intermediate states  Example  A file is 100 bytes long when a transaction starts to append to it  If other processes read the file during transaction, they should see & access only the 100 bytes  If transaction commits successfully, file grows instantaneously to its new size 10
  • 11. Consistent Property  Data on all systems reflects the same state  Transaction doesn’t violate system invariants  Example  In a banking system, a key invariant is the law of conservation of money  After any internal transfer, amount of money in bank must be same as it was before transfer  During internal transfer operations, this invariant may be violated  But this violation isn’t visible outside the transaction 11
  • 12. Isolated Property  Transactions don’t interact/interfere with one another  Concurrent transactions don’t interfere with each other  i.e., transactions are serializable  Example  If 2+ transactions are running at the same time, to each of them & to other processes, final result appears as though all transactions ran sequentially (in some system-dependent order) 12
  • 13. Durable Property  Effects of a completed transaction are persistent  Once a transaction commits, changes are permanent  No failure after the commit can undo results or cause them to be lost 13
  • 14. Ensuring Transaction Properties  To support “failure atomicity” & “durability”, objects must be recoverable  To support “isolation” & “consistency” server needs to synchronize operations  Perform transactions serially (sequentially)  Generally, an unacceptable solution  Allow transactions to execute concurrently, if they would have the same effect as a serial execution  Known as serializable or serially equivalent transactions 14
  • 15. Classification of Transactions  Flat transactions  Nested transactions  Distributed transactions 15
  • 16. Flat Transactions  A series of operations  Don’t allow partial results to be committed or aborted  e.g., booking multiple air lines from start to destination 16
  • 17. Nested Transactions  Constructed from a number of sub-transactions  Top-level transaction may fork off children that run in parallel to one another  Incase of failure results of some sub-transaction that committed must be undone  e.g., booking multiple air lines from start to destination 17
  • 18. Distributed Transactions  Logically, a flat, indivisible transaction that operates on distributed data  In contrast, a nested transaction is logically decomposed into a hierarchy of sub-transactions 18 Source: Tanenbaum & Van Steen, Distributed Systems: Principles and Paradigms, 2e, (c) 2007
  • 19. Achieving Transaction Properties in Distributed Transactions  To achieve atomicity & durability  Distributed commit protocols  To achieve consistency & isolation  Concurrency control algorithms (distributed locking protocols)  We need separate distributed algorithms to handle “locking of data” & “committing entire transaction” 19
  • 20. Transaction Implementation  Consider transactions on a file system  If each process executing a transaction just updates the file it uses in place, then transactions will not be atomic  2 common implementation techniques  Private workspace  Write-ahead log 20
  • 21. Private Workspace  Provide private (local) copies  All updates on private copies  Update the original (global) copy while committing  Issues  Cost of copying everything  Possible solution  Keep a pointer to relevant file block  When writing copy file block, instead of entire file  Update original when closing file  Examples – Andrew file systems 21
  • 22. Example – Private Workspace Implementation 22 Source: Andrew S. Tanenbaum , Distributed Operating Systems
  • 23. Write-Ahead Log  Files are modified in-place  Before any changes, a record is written in a log indicating  Which transaction is making the change  Which file & block is being changed  What old & new values are  Change is made to file only after log is written successfully  Example – log structured file system  If transaction succeeds & is committed, a commit record is written in log  If transaction is aborted, log is used to revert file back to its original state – rollback 23
  • 25. Concurrency Control  Goal  Allow simultaneous execution of transactions  While enabling each transaction to be isolated & data items being manipulated are left in a consistent state  Consistency  Achieved by giving transactions access to data items in a specific order  Final result would be the same as if all transactions were run sequentially 25
  • 26. Achieving Concurrency Control  3 different managers 1. Data manager 2. Scheduler 3. Transaction manager 26
  • 27. Achieving Concurrency Control (Cont.)  Data manager  Performs actual read/write on data  Not concerned about transaction  Scheduler  Responsible for properly controlling concurrency  Determines which transaction is allowed to pass a read/write operation to data manager & at which time  Schedules individual read/write s.t. transaction isolation & consistency properties are met  Transaction manager  Guarantees transaction atomicity  Processes transaction primitives by transforming them into scheduling requests 27
  • 28.  Each site has a scheduler & data manager  Each transaction is handled by a transaction manager  Transaction manager communicates with schedulers at different sites  Scheduler may also communicate with remote data managers Distributed Concurrency Control 28
  • 29. Concurrency Control  Schedules  Concurrency control issues  Serial equivalence  Issues in aborting transactions 29
  • 30. Schedules – Example  Schedule – system dependent order of actions  Final result looks as though all transactions ran sequentially 30
  • 31. Concurrent Transaction Issues  Lost update problem  Transactions should not read a “stale” value & use it in computing a new value  Inconsistent retrievals problem  Update transactions shouldn’t interfere with retrievals  Illustrated in the context of banking examples… 31
  • 32. “Lost Update” Problem  3 bank accounts (A, B, C) with balances,  A = $100, B = $200, C = $300  Transaction T  Transfers from account A to B, for 10% increase in the B’s balance  B = $200 + ($200*10%) = $220  A = $100 – ($200*10%) = $80  Transaction U  Transfers from C to B, for 10% increase in B’s balance  B = $220 + ($220*10%) = $242  C = $300 – ($220*10%) = $278  What might happen if transactions T & U are executed concurrently? 32
  • 34. “Inconsistent Retrievals” Problem  2 bank accounts (A, B) with balances  A = $200  B = $200  Transaction V  Transfers $100 of account A to B  A = $200 - $100 = $100  B = $200 + $100 = $300  Transaction W  Computes sum of all account balances (branch total)  Total = $100 + $300 +…… = $400 + ……  What might happen if transactions V & W are executed concurrently? 34
  • 36. Serial Equivalence  Serial equivalence prevents occurrence of lost updates & inconsistent retrievals  Thus, serial equivalence is used as a criterion in concurrency control algorithms  2 transactions are serially equivalent if  All pairs of conflicting operations of 2 transactions are executed in same order at all of the objects that both transactions access 36
  • 37. Serial Equivalence (Cont.)  Consider 2 objects i & j, & 2 transactions T & U  Serially equivalent orderings require one of the following 2 conditions  T accesses i before U, and T accesses j before U  U accesses i before T, and U accesses j before T 37
  • 42. Issues in Aborting Transactions  Servers must record effects of all committed transactions & none of aborted transactions  2 well-known problems  Dirty reads  Premature writes  Both of these can occur in the presence of serially equivalent executions of transactions 42
  • 43. Example – Dirty Read 43
  • 44. Example – Premature Writes  Due to interaction between write operations on the same object belonging to different transactions  If U aborts & T commits, balance should be $105 44
  • 45. Concurrency Control Algorithms  2-Phase Locking (2PL)  Get all locks, then release them  No more lock acquisition when a lock is release  Timestamp ordering  Lamport’s time stamp  Optimistic concurrency  Go & do the changes, if there is a problem let’s handle them later  How to do these concurrently on a distributed system? 45

Editor's Notes

  1. Both T and U read the balance of B (200) T overwrites the update by U without seeing it
  2. W computes the sum before V updates account B
  3. Both T and U read the balance of B (200) T overwrites the update by U without seeing it
  4. W computes the sum before V updates account B
