These slides cover the fundamentals of data communication & networking. It covers all data types which are used in communication of data over transmission medium. It is useful for engineering students & also for the candidates who want to master data communication & computer networking.

1. Introduction to Data communication
Lecture #3
Topic :Channel Types
Dr Rajiv Srivastava
Director
Sagar Institute of Research & Technology (SIRT)
Sagar Group of Institutions, Bhopal
http://www.sirtbhopal.ac.in

2. Unit 1
Lecture 3

3. • Line configuration refers to the way two or
more communication devices attach to a link.
• Link : A link is the physical communication
pathway that transfers data from the device
to the another.
• Network : A network is two or more devices
connected to each other through connecting
links.
3
Line Configuration, Link & Network in data
communication?

4. There are two possible ways to connect the devices.
They are follows :
1. Point to point connection.
2. Multipoint connection.

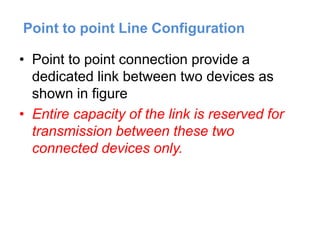

5. Point to point Line Configuration
• Point to point connection provide a
dedicated link between two devices as
shown in figure
• Entire capacity of the link is reserved for
transmission between these two
connected devices only.

6. Point-to-Point Line Configuration
Entire capacity of the link is reserved for transmission
between these two connected devices only.

7. Point-to-Point Line Configuration

8. Point-to-Point Line Configuration
It is possible to connect the two devices by means microwave
or satellite link.

9. Multipoint connection is also called as a
Multidrop connection.
• In such a connection more than two devices
share a single link as shown in figure.
• In the Multipoint connection the channel
capacity is shared. If many devices share the link
simultaneously, it is called as spatially shared
connection.
9
Multipoint connection

10. Multipoint Line Configuration

11. 11
Comparison of point to Point & Multi-Point Line Configuration

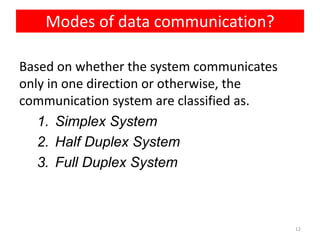

12. Based on whether the system communicates
only in one direction or otherwise, the
communication system are classified as.
1. Simplex System
2. Half Duplex System
3. Full Duplex System
12
Modes of data communication?

14. Simplex System
In these system the information is communicated
in only one direction.
• Examples
• the radio or TV broadcasting system can only
transmit. They cannot receive.
• transmissions like computer to printer
14

15. Simplex Transmission

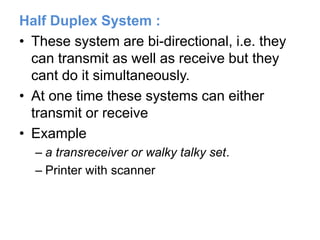

16. Half Duplex System :
• These system are bi-directional, i.e. they
can transmit as well as receive but they
cant do it simultaneously.
• At one time these systems can either
transmit or receive
• Example
– a transreceiver or walky talky set.
– Printer with scanner

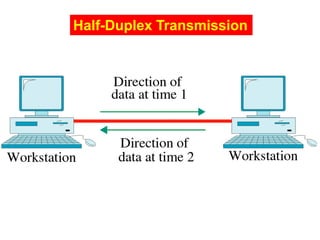

17. Half-Duplex Transmission

18. Full Duplex System
• These are truly bi-directional system as they
allow the communication to take place in both
the directions simultaneously.
• These system can transmit as well as receive
information simultaneously
• Example :
– the telephone system.
18

19. Full-Duplex Transmission

20. • Data transmission means movement of data (in
the form of bits) between two or more digital
devices. The data transmission takes place over
some physical medium from one computer to
the other.
• There are two ways of transmitting a bits. They
are:
1. Parallel Transmission.
2. Serial Transmission.
20
Types of data transmission?

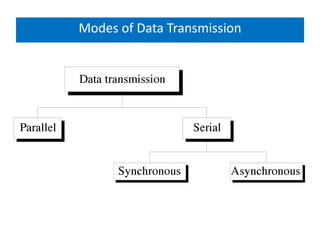

21. Modes of Data Transmission

22. Parallel Transmission
• In Parallel Transmission of data, all the bits of
a byte are transmitted simultaneously on
separate wires.
• This type of transmission requires multiple
circuits for interconnecting the two devices.
• Parallel Transmission is possible practically if
the two devices are close to each other.
22

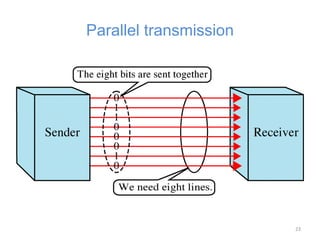

23. 23
Parallel transmission

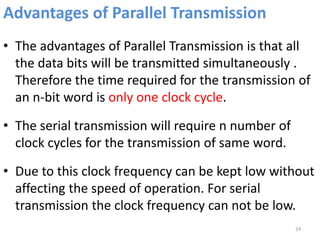

24. Advantages of Parallel Transmission
• The advantages of Parallel Transmission is that all
the data bits will be transmitted simultaneously .
Therefore the time required for the transmission of
an n-bit word is only one clock cycle.
• The serial transmission will require n number of
clock cycles for the transmission of same word.
• Due to this clock frequency can be kept low without
affecting the speed of operation. For serial
transmission the clock frequency can not be low.
24
