2. • The conditions of pre-biotic Earth
• Experiments of Miller and Urey
• Hypothesis regarding first catalysts
• Theory that regarding RNA and replication
• Possible origin of membranes and prokaryotic
cells
• Endosymbiotic theory for the origin
of eukaryotes
MISS J WERBA – IB BIOLOGY 2

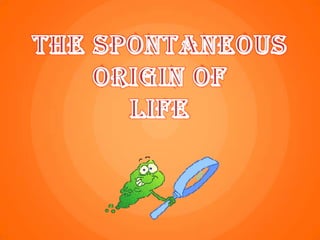

3.

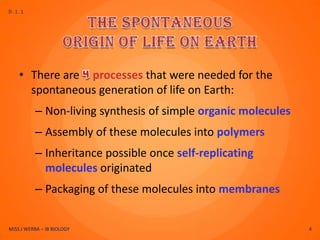

4. D.1.1
• There are processes that were needed for the
spontaneous generation of life on Earth:
– Non-living synthesis of simple organic molecules
– Assembly of these molecules into polymers
– Inheritance possible once self-replicating
molecules originated
– Packaging of these molecules into membranes
MISS J WERBA – IB BIOLOGY 4

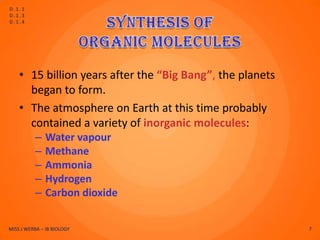

7. D.1.1
D.1.3
D.1.4
• 15 billion years after the “Big Bang”, the planets
began to form.
• The atmosphere on Earth at this time probably
contained a variety of inorganic molecules:
– Water vapour
– Methane
– Ammonia
– Hydrogen
– Carbon dioxide
MISS J WERBA – IB BIOLOGY 7
8. D.1.1
D.1.3
D.1.4

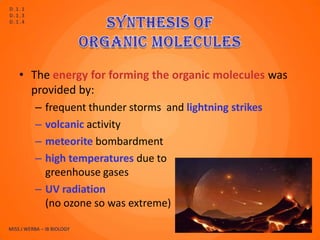

• The energy for forming the organic molecules was
provided by:
– frequent thunder storms and lightning strikes
– volcanic activity
– meteorite bombardment
– high temperatures due to
greenhouse gases
– UV radiation
(no ozone so was extreme)
MISS J WERBA – IB BIOLOGY 8

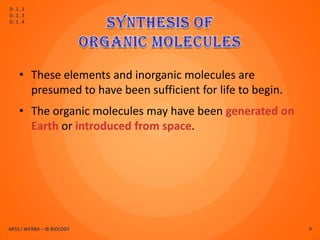

9. D.1.1
D.1.3
D.1.4
• These elements and inorganic molecules are
presumed to have been sufficient for life to begin.
• The organic molecules may have been generated on
Earth or introduced from space.
MISS J WERBA – IB BIOLOGY 9
10. D.1.1
D.1.3
D.1.4

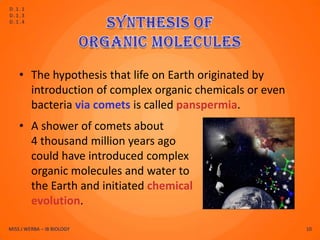

• The hypothesis that life on Earth originated by
introduction of complex organic chemicals or even
bacteria via comets is called panspermia.
• A shower of comets about
4 thousand million years ago
could have introduced complex
organic molecules and water to
the Earth and initiated chemical
evolution.
MISS J WERBA – IB BIOLOGY 10
11.

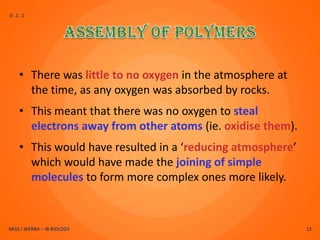

12. D.1.1
• There was little to no oxygen in the atmosphere at
the time, as any oxygen was absorbed by rocks.
• This meant that there was no oxygen to steal
electrons away from other atoms (ie. oxidise them).
• This would have resulted in a ‘reducing atmosphere’
which would have made the joining of simple
molecules to form more complex ones more likely.
MISS J WERBA – IB BIOLOGY 12

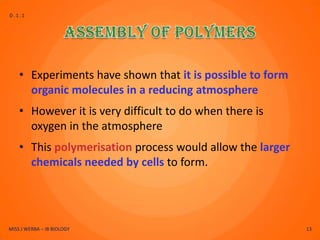

13. D.1.1
• Experiments have shown that it is possible to form
organic molecules in a reducing atmosphere
• However it is very difficult to do when there is
oxygen in the atmosphere
• This polymerisation process would allow the larger
chemicals needed by cells to form.
MISS J WERBA – IB BIOLOGY 13

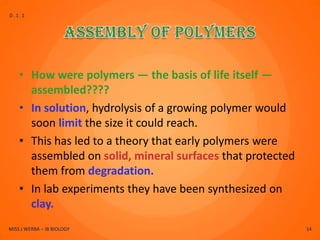

14. D.1.1
• How were polymers — the basis of life itself —
assembled????
• In solution, hydrolysis of a growing polymer would
soon limit the size it could reach.
• This has led to a theory that early polymers were
assembled on solid, mineral surfaces that protected
them from degradation.
• In lab experiments they have been synthesized on
clay.
MISS J WERBA – IB BIOLOGY 14

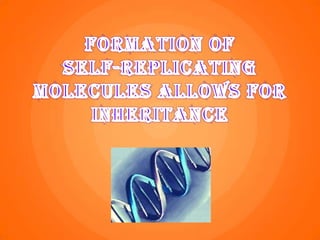

15.

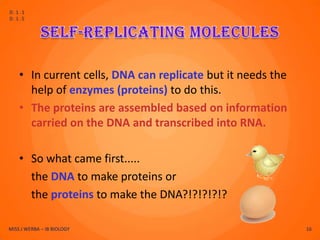

16. D.1.1
D.1.5
• In current cells, DNA can replicate but it needs the
help of enzymes (proteins) to do this.
• The proteins are assembled based on information
carried on the DNA and transcribed into RNA.
• So what came first.....
the DNA to make proteins or
the proteins to make the DNA?!?!?!?!?
MISS J WERBA – IB BIOLOGY 16
17. D.1.1
D.1.5

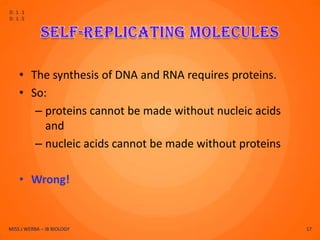

• The synthesis of DNA and RNA requires proteins.
• So:
– proteins cannot be made without nucleic acids
and
– nucleic acids cannot be made without proteins
• Wrong!
MISS J WERBA – IB BIOLOGY 17
18. D.1.1
D.1.5

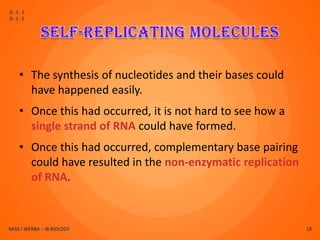

• The synthesis of nucleotides and their bases could
have happened easily.
• Once this had occurred, it is not hard to see how a
single strand of RNA could have formed.
• Once this had occurred, complementary base pairing
could have resulted in the non-enzymatic replication
of RNA.
MISS J WERBA – IB BIOLOGY 18

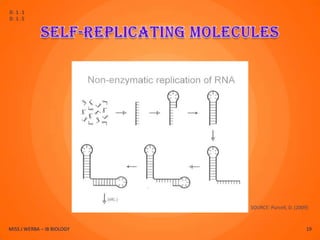

19. D.1.1
D.1.5
SOURCE: Purcell, D. (2009)
MISS J WERBA – IB BIOLOGY 19

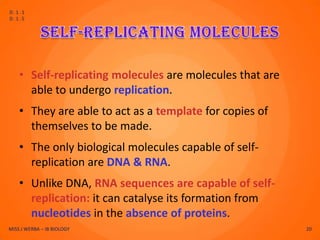

20. D.1.1
D.1.5
• Self-replicating molecules are molecules that are
able to undergo replication.
• They are able to act as a template for copies of
themselves to be made.
• The only biological molecules capable of self-
replication are DNA & RNA.
• Unlike DNA, RNA sequences are capable of self-
replication: it can catalyse its formation from
nucleotides in the absence of proteins.
MISS J WERBA – IB BIOLOGY 20

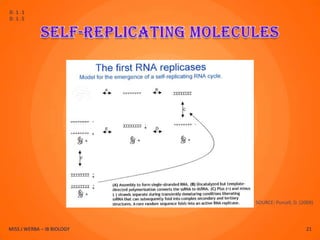

21. D.1.1
D.1.5
SOURCE: Purcell, D. (2009)
MISS J WERBA – IB BIOLOGY 21

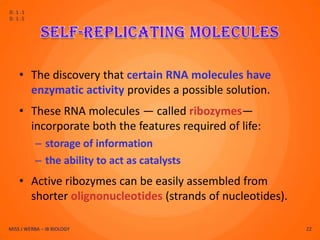

22. D.1.1
D.1.5
• The discovery that certain RNA molecules have
enzymatic activity provides a possible solution.
• These RNA molecules — called ribozymes—
incorporate both the features required of life:
– storage of information
– the ability to act as catalysts
• Active ribozymes can be easily assembled from
shorter olignonucleotides (strands of nucleotides).
MISS J WERBA – IB BIOLOGY 22
23. D.1.1
D.1.5

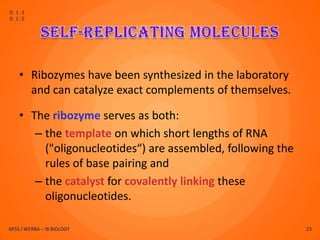

• Ribozymes have been synthesized in the laboratory
and can catalyze exact complements of themselves.
• The ribozyme serves as both:
– the template on which short lengths of RNA
("oligonucleotides“) are assembled, following the
rules of base pairing and
– the catalyst for covalently linking these
oligonucleotides.
MISS J WERBA – IB BIOLOGY 23

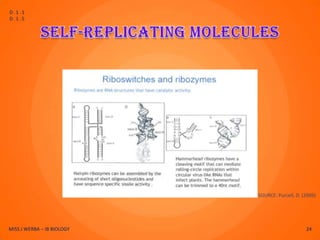

24. D.1.1
D.1.5
SOURCE: Purcell, D. (2009)
MISS J WERBA – IB BIOLOGY 24

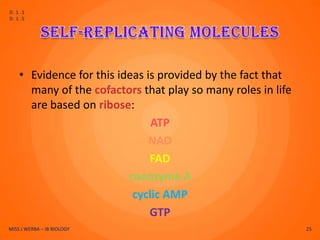

25. D.1.1
D.1.5
• Evidence for this ideas is provided by the fact that
many of the cofactors that play so many roles in life
are based on ribose:
ATP
NAD
FAD
coenzyme A
cyclic AMP
GTP
MISS J WERBA – IB BIOLOGY 25
26.

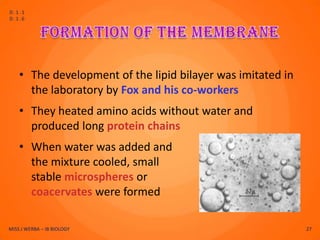

27. D.1.1
D.1.6
• The development of the lipid bilayer was imitated in
the laboratory by Fox and his co-workers
• They heated amino acids without water and
produced long protein chains
• When water was added and
the mixture cooled, small
stable microspheres or
coacervates were formed
MISS J WERBA – IB BIOLOGY 27

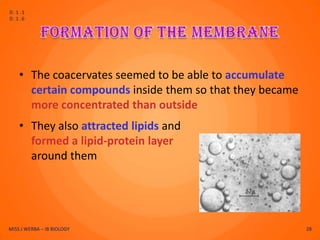

28. D.1.1
D.1.6
• The coacervates seemed to be able to accumulate
certain compounds inside them so that they became
more concentrated than outside
• They also attracted lipids and
formed a lipid-protein layer
around them
MISS J WERBA – IB BIOLOGY 28
29. D.1.1
D.1.6

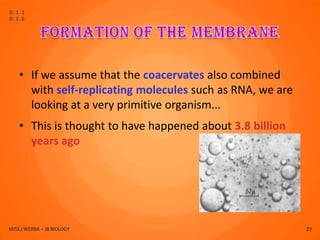

• If we assume that the coacervates also combined
with self-replicating molecules such as RNA, we are
looking at a very primitive organism...
• This is thought to have happened about 3.8 billion
years ago
MISS J WERBA – IB BIOLOGY 29

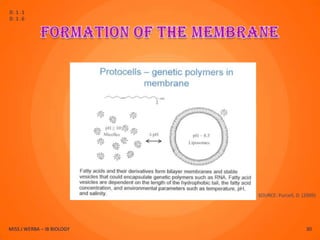

30. D.1.1
D.1.6
SOURCE: Purcell, D. (2009)
MISS J WERBA – IB BIOLOGY 30

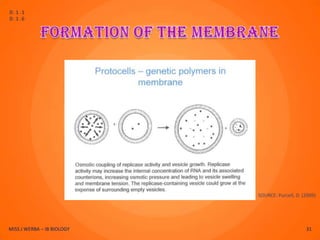

31. D.1.1
D.1.6
SOURCE: Purcell, D. (2009)
MISS J WERBA – IB BIOLOGY 31

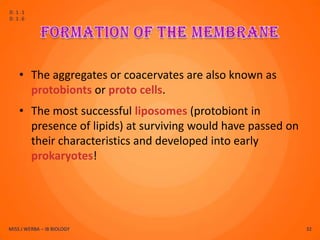

32. D.1.1
D.1.6
• The aggregates or coacervates are also known as
protobionts or proto cells.
• The most successful liposomes (protobiont in
presence of lipids) at surviving would have passed on
their characteristics and developed into early
prokaryotes!
MISS J WERBA – IB BIOLOGY 32

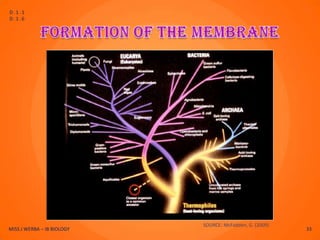

33. D.1.1
D.1.6
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 33

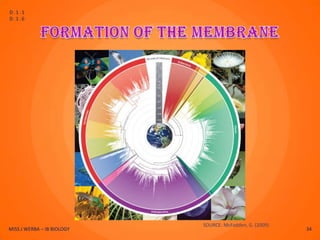

34. D.1.1
D.1.6
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 34
35.
36. D.1.2

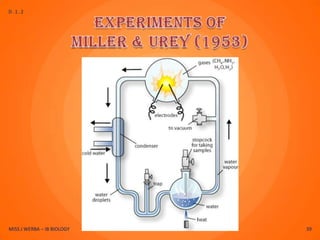

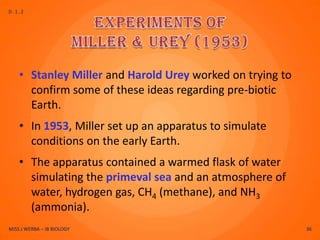

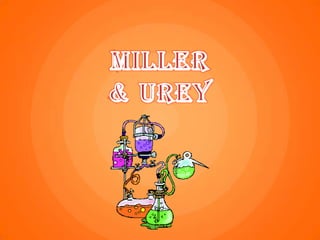

• Stanley Miller and Harold Urey worked on trying to
confirm some of these ideas regarding pre-biotic
Earth.
• In 1953, Miller set up an apparatus to simulate
conditions on the early Earth.
• The apparatus contained a warmed flask of water
simulating the primeval sea and an atmosphere of
water, hydrogen gas, CH4 (methane), and NH3
(ammonia).
MISS J WERBA – IB BIOLOGY 36

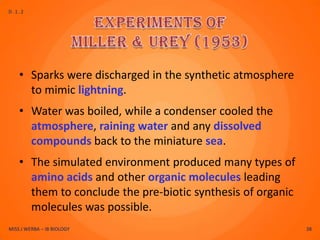

38. D.1.2
• Sparks were discharged in the synthetic atmosphere
to mimic lightning.
• Water was boiled, while a condenser cooled the
atmosphere, raining water and any dissolved
compounds back to the miniature sea.
• The simulated environment produced many types of
amino acids and other organic molecules leading
them to conclude the pre-biotic synthesis of organic
molecules was possible.
MISS J WERBA – IB BIOLOGY 38

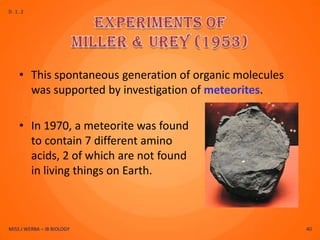

40. D.1.2
• This spontaneous generation of organic molecules
was supported by investigation of meteorites.
• In 1970, a meteorite was found
to contain 7 different amino
acids, 2 of which are not found
in living things on Earth.
MISS J WERBA – IB BIOLOGY 40

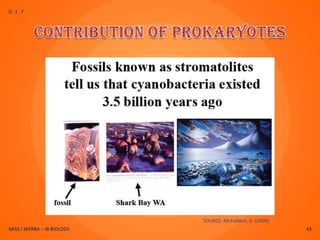

43. D.1.7
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 43

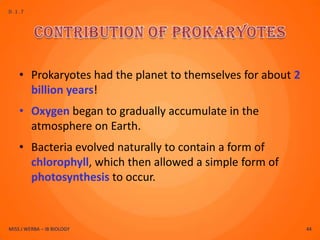

44. D.1.7
• Prokaryotes had the planet to themselves for about 2
billion years!
• Oxygen began to gradually accumulate in the
atmosphere on Earth.
• Bacteria evolved naturally to contain a form of
chlorophyll, which then allowed a simple form of
photosynthesis to occur.
MISS J WERBA – IB BIOLOGY 44

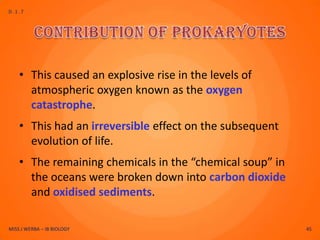

45. D.1.7
• This caused an explosive rise in the levels of
atmospheric oxygen known as the oxygen
catastrophe.
• This had an irreversible effect on the subsequent
evolution of life.
• The remaining chemicals in the “chemical soup” in
the oceans were broken down into carbon dioxide
and oxidised sediments.
MISS J WERBA – IB BIOLOGY 45

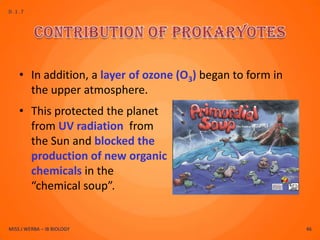

46. D.1.7
• In addition, a layer of ozone (O3) began to form in
the upper atmosphere.
• This protected the planet
from UV radiation from
the Sun and blocked the
production of new organic
chemicals in the
“chemical soup”.
MISS J WERBA – IB BIOLOGY 46
47.

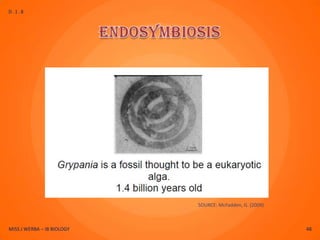

48. D.1.8
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 48
49. D.1.8
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 49

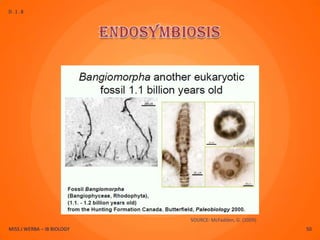

50. D.1.8
SOURCE: McFadden, G. (2009)
MISS J WERBA – IB BIOLOGY 50

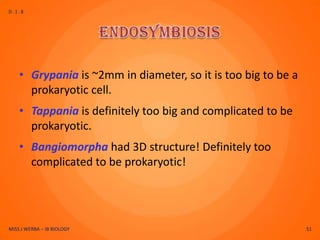

51. D.1.8
• Grypania is ~2mm in diameter, so it is too big to be a
prokaryotic cell.
• Tappania is definitely too big and complicated to be
prokaryotic.
• Bangiomorpha had 3D structure! Definitely too
complicated to be prokaryotic!
MISS J WERBA – IB BIOLOGY 51

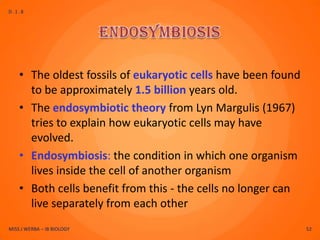

52. D.1.8
• The oldest fossils of eukaryotic cells have been found
to be approximately 1.5 billion years old.
• The endosymbiotic theory from Lyn Margulis (1967)
tries to explain how eukaryotic cells may have
evolved.
• Endosymbiosis: the condition in which one organism
lives inside the cell of another organism
• Both cells benefit from this - the cells no longer can
live separately from each other
MISS J WERBA – IB BIOLOGY 52

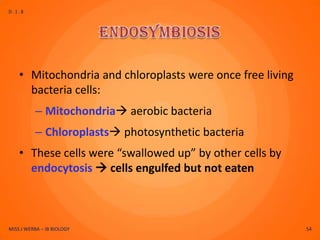

54. D.1.8
• Mitochondria and chloroplasts were once free living
bacteria cells:
– Mitochondria aerobic bacteria
– Chloroplasts photosynthetic bacteria
• These cells were “swallowed up” by other cells by
endocytosis cells engulfed but not eaten
MISS J WERBA – IB BIOLOGY 54

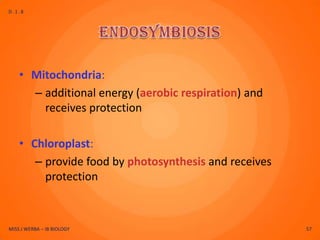

57. D.1.8
• Mitochondria:
– additional energy (aerobic respiration) and
receives protection
• Chloroplast:
– provide food by photosynthesis and receives
protection
MISS J WERBA – IB BIOLOGY 57

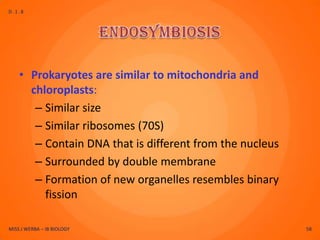

58. D.1.8
• Prokaryotes are similar to mitochondria and
chloroplasts:
– Similar size
– Similar ribosomes (70S)
– Contain DNA that is different from the nucleus
– Surrounded by double membrane
– Formation of new organelles resembles binary
fission
MISS J WERBA – IB BIOLOGY 58
59. D.1.8
• The four eukaryotic kingdoms are:
– Protoctista
– Fungi
– Plantae
– Animalia
• Eukaryotic cells have some advantages over
prokaryotic cells so the early eukaryotes survived
and proliferated
• Hence the wide diversity of species we know today!
MISS J WERBA – IB BIOLOGY 59
