Coolmax is a specially engineered polyester fiber known for its moisture-wicking properties. It was developed by DuPont in 1986 and is now produced by Invista. Coolmax fabric has a structure that creates capillary action to draw moisture away from the skin through the fiber core and out to the surface of the fabric, keeping the wearer cool and dry. It is commonly used in clothing for outdoor sports and activities. The manufacturing process spins and molds polyester into a shape that allows for quick evaporation of moisture.

1. 1
Prepared By
Md. Siful Islam Bulbul.
B.Sc in Textile Engineering
Intake: 9th
ID: 12133107008
BUBT
Prepared For
MD. Mahbub Hasan
Assistant Professor
Department of Textile
BUBT
Bangladesh University of Business & Technology
Department of Textile Engineering

2. Presentation on Coolmax
Fabric
2

3. COOLMAX:
3
Coolmax developed in 1986 by Dupont, is Invista's
speclly engineered polyester fiber brand. The
engineered fibers of Coolmax has better breathability
properties than natural fibers. Coolmax is known for
drawing the moisture away from the skin. The structure
of the fibers creates capillary action and wicks the
moisture through the core out to the surface of the
fabric. Coolmax keeps the wearer cool and dry under hot
weather conditions.

4. RAW MATERIAL:
4
CoolMax is made of specially spun and
molded polyester. Its special shape allows it to
evaporate moisture quickly.

5. RECOMMENDED END USES:
5
Outdoor sports such as:
• Golf
• Cycling
• Running
• Soccer
• Football
• Hiking
• Fishing
• Socks
• Undergarments
• Clothing for cycling, team sports, gym/workout/aerobics

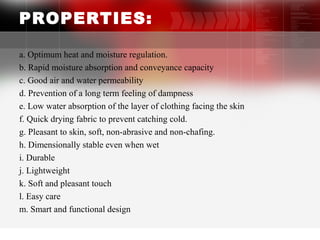

6. PROPERTIES:
a. Optimum heat and moisture regulation.
b. Rapid moisture absorption and conveyance capacity
c. Good air and water permeability
d. Prevention of a long term feeling of dampness
e. Low water absorption of the layer of clothing facing the skin
f. Quick drying fabric to prevent catching cold.
g. Pleasant to skin, soft, non-abrasive and non-chafing.
h. Dimensionally stable even when wet
i. Durable
j. Lightweight
k. Soft and pleasant touch
l. Easy care
m. Smart and functional design
6

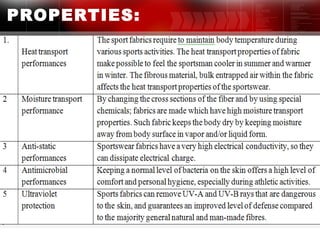

7. PROPERTIES:
7

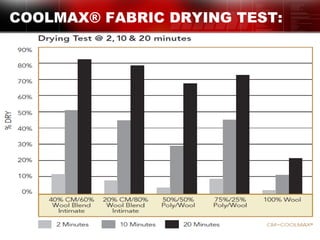

8. COOLMAX® FABRIC DRYING TEST:
8

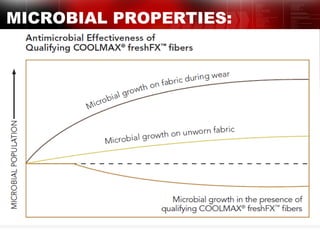

9. MICROBIAL PROPERTIES:
9

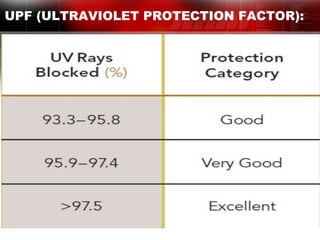

10. UPF (ULTRAVIOLET PROTECTION FACTOR):
10

11. The physical structure of Coolmax fabric means moisture is
pulled into it, away from the body. That moisture is then
spread out thinly across the fabric to enable it to evaporate
faster. The quicker it is able to evaporate, the dryer you are.
This is what makes Coolmax such a popular fabric to use in
both clothing and in mattress covers.
11
HOW DOES IT WORK?

12. HOW DOES IT WORK?
12

13. Fabric Manufacturing process of Coolmax To meet
consumer desire for apparel that uses resources more
efficiently, COOLMAX® EcoMade fiber and fabric is
made from recycled plastic bottles. This great INVISTA
innovation has been specially designed and engineered to
reduce the impact on the environment.
In addition to the classic COOLMAX® fabric
performance for absorbency, wicking, durability and
abrasion resistance, COOLMAX® EcoMade fiber and
fabric demonstrates superior results when tested for
whiteness.
13
MANUFACTURING PROCESS OF COOLMAX:

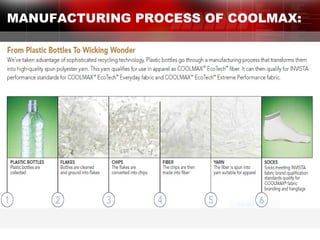

14. MANUFACTURING PROCESS OF COOLMAX:
14

15. TYPES OF COOLMAX:
COOLMAX® Everyday fabric
Consumers who want comfortable clothing that keeps them cool and confi
dent should look no further than COOLMAX®Everyday fabrics. Clothes
made of COOLMAX® Everyday fabric are designed to provide an advanced
fabric system that helps maintain the body’s comfortable temperature, while
retaining a smart, fashionable appearance. Providing confi dence and a
self-belief that is diffi cult to shake. COOLMAX® Everyday fabric can be
incorporated.
COOLMAX® Active Fabric
fabric has been designed to deliver wicking performance to help move
moisture away from the skin. This helps ensure body temperature is kept at
comfortable levels, helping concentration, endurance and ultimate overall
active performance.
15

16. TYPES OF COOLMAX:
COOLMAX® Extreme Performance fabric
When total focus on your performance is key, this is the product.
This s the highest level of COOLMAX® performance fabrics
available. Engineered and designed for the very serious
sportsman and sportswoman. It is for those who demand the
very best, so they can deliver their very best.
16

17. REFERENCES:
http://www.snugmattress.co.uk/coolmax-technology
coolmax.com/ch_gb/docs/1227082321-sell%20sheets.pdf
https://en.wikipedia.org/wiki/Coolmax
17

18. 18
Thanks for your
attention
