Control System Components

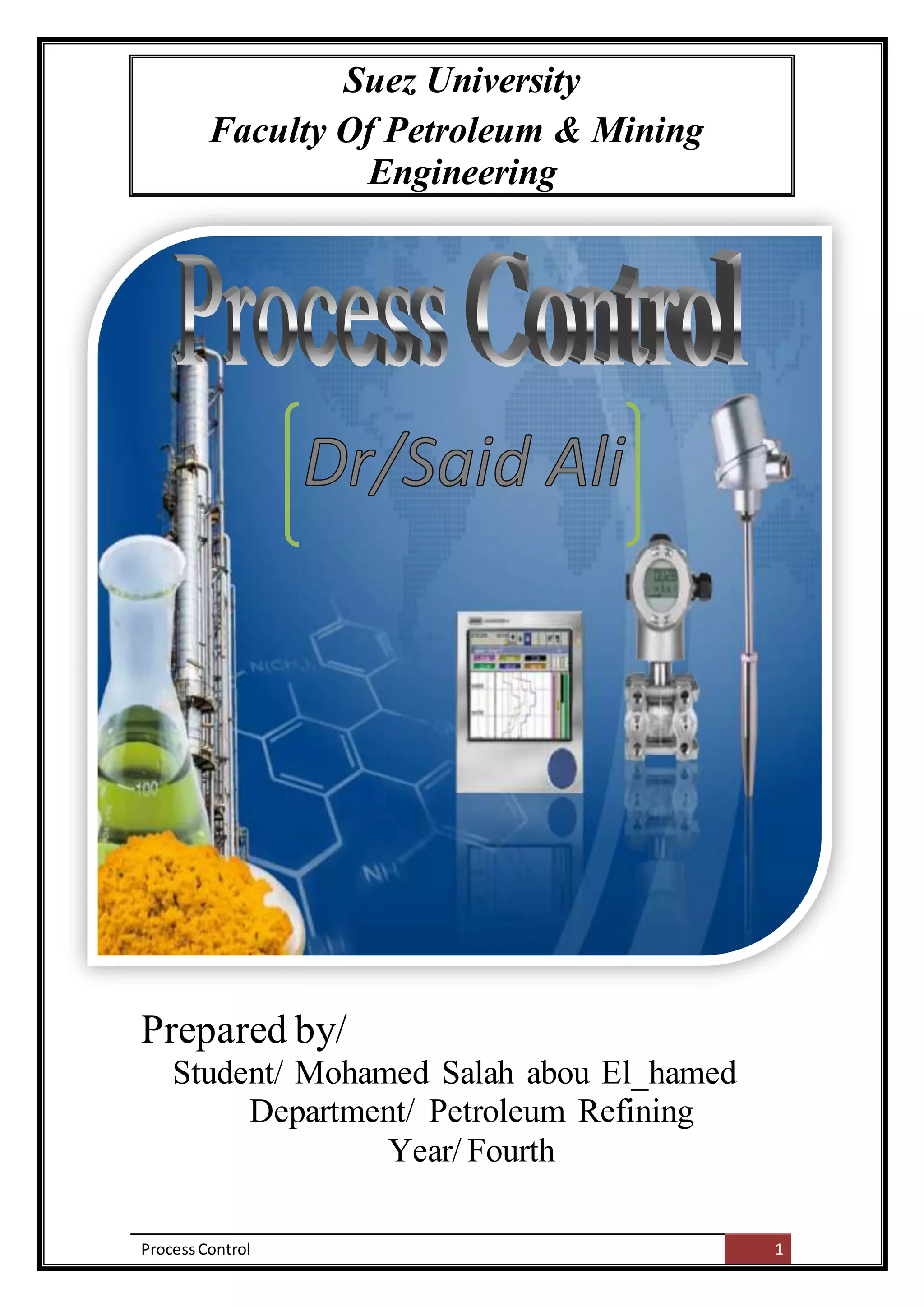

1. ProcessControl 1
Suez University
Faculty Of Petroleum & Mining
Engineering
Prepared by/
Student/ Mohamed Salah abou El_hamed
Department/ Petroleum Refining
Year/ Fourth
2. ProcessControl 2
Measuring principle
The measuring system operates on the principle of transit time difference. In
this measurement method, acoustic (ultrasonic) signals are transmitted
between two sensors. The signals are sent in both directions, i.e. the sensor in
question works as both a sound transmitter and a sound receiver.
As the propagation velocity of the waves is less when the waves travel
against the direction of flow than along the direction of flow, a transit time
difference occurs. This transit time difference is directl proportional to the flow
velocity.
Principle of the transit time difference measurement method
a Sensor
b Sensor
Q Volume flow
v Flow velocity (v &∆t )
∆t Transit time difference (∆t = ta – tb)
A Pipe cross-sectional area
The measuring system calculates the volume flow of the fluid from the
measured transit time difference and the pipe cross-sectional area. In addition to
measuring the transit time difference, the system simultaneously
measures the sound velocity of the fluid. This additional measured variable can
be used to distinguish different fluids or as a measure of product quality.
The measuring device can be configured onsite to suit the specific
application using Quick Setup menus.
4. ProcessControl 4
Control System Components
A control system is comprised of the following components:
1. Primary elements (or sensors/transmitters)
2. Controllers
3. Final control elements (usually control valves)
4. Processes
illustrates a level control system and its components. The level in the tank
is read by a level sensor device, which transmits the information on to the
controller. The controller compares the level reading with the desired level or
set point and then computes a corrective action. The controller output adjusts the
control valve, referred to as the final control element. The valve percent opening
has been adjusted to correct for any deviations from the set point.
Primary Elements
Primary elements, also known as sensors/transmitters, are the instruments
used to measure variables in a process such as temperature and pressure. A full
listing of the types of primary elements available on the market would be very
long, but these sensor types can be broadly classified into groups including the
following:
1. Pressure and level
2. Temperature
3. Flow rate and total flow
4. Quality or analysis instruments (e.g. electrolytic conductivity, pH, Pion)
5. Transducers (working with the above or as individual units)
Some specific examples of instruments from the more common groups listed
above willbe examined, including pressure, level, temperature and flow.
5. ProcessControl 5
Pressure Measurement
There are numerous types of primary elements used for measuring pressure
that could
be studied,These include manometers, Bourdon tubes and differential pressure
(DP) cells.
Manometers.
Manometers are simple rugged.
cheap and give reliable static measurements.
very popular as calibration devices for pressure measurement.
The working concept of a manometer is simple.
where
ρ A fluid with a known density
P1–P2 is used to measure the pressure difference between two points
H is the height difference in the fluid level
The Bourdon Tube Pressure Gauge
The Bourdon tube pressure gauge, named
after Eugene Bourdon (ca. 1852) and shown
in Figure, is probably the most common
gauge used in industry. Figure illustrates
the Bourdon tube pressure gauge. The
essential feature of the Bourdon tube is its
oval-shaped cross section. The operating
principle behind the gauge is that when
pressure is applied to the inside of the tube
the tip is moved outward. This pulls up the
link and causes the quadrant to move the
pinion to which the pointer is attached. The
resultant movement is indicated on a dial.
A hairspring is also included (not shown) to
take up any backlash that exists between
quadrant and pinion; this has no effect on
calibration.
The accuracy of the gauge is ±0.5% of
full range for commercial models. Generally,
the normal working pressure will be specified as 60% of the full scale.
6. ProcessControl 6
The Differential Pressure Cell
The DP cell is considered by many as the start of modern-day automation.
The DP cell was developed at the outbreak of World War II by Foxboro in
Massachusetts, USA, on a government grant provided that it was not patented.
The idea was that competition would bring down the price of the instrument.
DP cells allow remote transmission to central control rooms where a small
number of operators can control large, complex plants.
For example, a typical petroleum refinery processing around 80 000
barrels/day
(530 m3/h) might have 2000 DP cells throughout the refinery.
Seal systems can be used to enhance the usefulness of the DP cell by
facilitating pressure measurement for many temperature ranges (−73–427◦
C).They serve to protect the transmitter from the process fluid, using a hydraulic
system to conduct the pressure from the process fluid to the transmitter. Only
the seal’s diaphragm contacts the process fluid, and a capillary or tube of fluid
transfers the process pressure from the diaphragm to the transmitter. Before a
seal is installed consider ambient conditions, such as temperature, which may
introduce errors.
Some of the major benefits of DP cells are that their maintenance is
practically zero and no mercury is used in the operation of the transducer.
1. The Pneumatic DP Cell
Pressure is applied to the opposite sides of a silicone-filled twin diaphragm
capsule.
The pressure difference applies a force at the lower end of the force bar, which
is balanced through a simple lever system consisting of the force bar and baffle.
This force exerted by the capsule is opposed through the lever system by the
feedback bellows. The result is a 3 psi (or 20 kPa if calibrated in SI units) to 15
psi (or 100 kPa if calibrated in SI units) signal proportional to the DP.
7. ProcessControl 7
2. Modern DP Cells
E-type electronic transducers, strain gauges, capacitive cell transducers and
most recently digital electronics have replaced the pneumatic-type DP cell.
photo of a modern DP cell The features of the modern electronic DP cell,
such as the Rosemount Model 3051 or Honeywell’s ‘smart’ transmitter, include
remote range change, diagnostics that indicate the location and type of any
system faults, easy self-calibration, local digital display, reporting and
interrogation functions and local and remote reporting. The modern DP cell can
also be directly connected to a process computer and has the ability to
communicate with the computer indicating problem analysis that is then
displayed on the computer screen.
8. ProcessControl 8
Temperature Measurement
Temperature measurement can be accomplished using several types of
sensing mechanisms. Temperature measurement systems generally consist of a
sensor, a transmitter, an external power supply (for some types of systems), and
the wiring that connects these components.
The temperature measurement sensors most commonly used in engineering
applications are thermocouples, resistance temperature detectors (RTD’s), and
infrared (IR) thermometers; these devices are described in detail in the
following paragraphs. Integrated circuit (IC) temperature transducers and
thermistors also are commonly used but have more limitations than
thermocouples, RTD’s, and IR thermometers. measuring devices.
Other types of temperature sensors include bimetallic devices, fluid
expansion devices, and change-of-state devices. Bimetallic temperature sensors
relate temperature to the difference in thermal expansion between two bonded
strips of different metals.
Fluid expansion devices, such as the common thermometer, measure
temperature as a function of the thermal expansion of mercury or organic liquid,
such as alcohol. Change-of-state temperature sensors change appearance when a
specific temperature is reached. One major drawback of these types of sensors is
that they do not readily lend themselves to automatically recording temperatures
on a continuous or periodic basis.
1* Thermocouples
Due to their simplicity, reliability, and relatively low cost, thermocouples are
widely used. They are self-powered, eliminating the need for a separate power
supply to the sensor.
Thermocouples are fairly durable when they are appropriately chosen for a
given application.Thermocouples also can be used in high-temperature
applications, such as incinerators.
Measurement Principle and Description of Sensor
A thermocouple is a type of temperature transducer that operates on the
principle that dissimilar conductive materials generate current when joined (the
Seebeck effect). Such a device is made by joining two wires made of different
metals (or alloys) together at one end, generating a voltage eAB when heated, as
shown schematically in Figure.
The generated voltage is proportional to the difference between the temperatures
of the measured point and an experimentally determined reference point (block
temperature) and is also dependent on the materials used. A basic temperature
monitoring system using a thermocouple is made up of the thermocouple,
connectors, extension wires, isothermal block (also called temperature blocks,
terminal blocks, or zone boxes), and a voltmeter or transmitter.
9. ProcessControl 9
This schematic is for a type J iron (Fe)-constantin (Cu-Ni) thermocouple. As
the thermocouple junction point (J1) is heated or cooled, the resulting voltage
can be measured using a potentiometer or digital voltmeter (DVM), which is
calibrated to read in degrees of temperature. In practice, a programmed indicator
or a combination indicator/controller is used to convert the signal from voltage
to temperature using the appropriate equation for the particular thermocouple
materials and compensation for voltage generated at terminal connection points
(J3) and (J4).
10. ProcessControl 10
2*Resistance Thermometer Detectors (RTDs)
RTDs are made of either metal or semiconductor materials as resistive
elements that may be classed as follows :
1. Wire wound – range 240–260◦C, accuracy 0.75%
2. Photo etched – range 200–300◦C, accuracy 0.5%
3. Thermistor beads – range 0–400◦C, accuracy 0.5%
An example is the platinum RTD, which is the most accurate thermometer in
the world.
RTDs exhibit a highly linear and stable resistance versus temperature
relationship. However, resistance thermometers all suffer from a self-heating
effect that must be allowed for, and I2R must be kept below 20 mW, where I is
defined as the electrical current and R is the resistance.
When compared to thermocouples, RTDs have higher accuracy, better
linearity and longterm stability, do not require cold junction compensation or
extension lead wires and are less susceptible to noise. However, they have a
lower maximum temperature limit and are slower in response time in
applications without a thermal well (a protective well filled with conductive
material in which the sensor is placed).
Selecting Temperature Sensors
Getting the right operating data is crucial in selecting the proper sensor. A
good article on selecting the right sensor is by Johnson.
a selection of thermocouples, RTDs and temperature accessories, such as
thermal wells, that are typically available from instrument suppliers (in this case
Emerson Process Management). a picture of a typical temperature sensor and
transmitter assembly.
11. ProcessControl 11
Flow Measurement
Flow measurement techniques can be divided into the following categories :
1. Obstruction-type meters, such as
(a) Orifice plates
(b) Flow nozzles
(c) Venturi tubes
(d) Pitot tubes
(e) Dall tubes
(f) Combinations of (a) to (e)
(g) Elbow and target meters
3. Rotational or turbine meters
4. Variable area meters/rotameters
5. Ultrasonic and thermal-type meters
5. Square root extractors for obstruction-type meters
6. Quantity or total flowmeters, such as
(a) Positive displacement
(b) Sliding vane
(c) Bellows type
(d) Nutating disc
(e) Rotating piston
(f) Turbine type
7. Magnetic flowmeters
8. Vortex meters
9. Mass flowmeters, such as
(a) Coriolis effect flowmeters
(b) Thermal dispersion flowmeters
Selection of a flowmeter
is based on obtaining the optimum measuring accuracy at the minimum
price. It should be noted that flowmeters may use up a substantial amount of
energy, especially when used in low pressure vapour service. Therefore they
should only be provided when necessary.
There are many factors to consider when selecting a flowmeter, including
properties of the fluid being measured such as viscosity, and performance
requirements such as response time and accuracy. Ambient temperature effects,
vibration effects and ease of maintenance should also be compared when
selecting a flowmeter. For a more thorough presentation on the selection of
flowmeters, refer to the article by Parker .
Orifice plates and magnetic flowmeters will be discussed in detail since they
are two of the most common types found in the fluid-processing industry.
12. ProcessControl 12
1. Orifice Plates
The concentric orifice plate is the least expensive and the simplest of the head
meters. The orifice plate is a primary device that constricts the flow of a fluid to
produce a DP across the plate. The result is proportional to the square of the
flow. a typical thin-plate orifice meter.
An orifice plate usually produces a larger overall pressure loss than other
primary devices. A practical advantage of the orifice plate is that cost does not
increase significantly with pipe size. They are used widely in industrial
applications where line pressure losses and pumping costs are not critical.
The thin concentric orifice plate can be used with clean homogenous
fluids,which include liquids, vapours or gases, whose viscosity does not exceed
65 cP at 15◦C. In general the Reynolds number (Re) should not exceed 10 000.
The plate thickness should be 1.5–3.0 mm or, in certain applications, up to 4.5
mm .
Many variations for orifice plates have been suggested, especially during the
1950s when oil companies and universities in North America and Europe
sponsored numerous PhD studies on orifice plates. Of these only a few have
survived, which were the ones that incorporated cheaply some of the features of
the more expensive devices. Figure 2.15 shows some of these designs.Other
designs that are utilized include eccentric and segmental orifice configurations.
13. ProcessControl 13
2. Magnetic Flowmeters
Themagnetic flowmeter is a device that measures flow using amagnetic field,
as implied by the name. The working relationship for magnetic flowmeters is
based on Faraday’s law (see Equation), which states that a voltage will be
induced in a conductor moving through a magnetic field:
In Equation
E is the generated emf. B is the magnetic field strength
D is the pipe diameter. V is the average velocity of the fluid
k is a constant of proportionality.
3. Flow nozzles.
The flow nozzle is similar to the venturi tube in that it has a throat; the
primary difference is that the flow nozzle does not include a long converging
cone and diffuser. Flow nozzles are generally selected for high temperature,
pressure, and velocity applications (e.g., measuring steam flow).
Flow nozzles, which can be used to measure fluid flow in pipes with
diameters of approximately 7.6 to 61 cm (3 to 24 in.).
have the following advantages:
1. Net pressure loss is less than for an orifice plate (although the net pressure
loss is much greater than the loss associated with venturi tubes), and
2. Can be used in fluids containing solids that settle.
Flow nozzles have the following disadvantages:
1. More expensive than orifice plates.
2. Limited to moderate pipe sizes.
14. ProcessControl 14
4. Venturi tubes
The venturi tube consists of a converging cone, venturi throat, and diffuser.
The inlet section to the venturi tube consist of a converging cone that has an
included angle of roughly 21 degrees. The converging cone is joined by a
smooth curve to a short cylindrical section called the venturi throat. Another
smooth curve joins the throat to the diffuser, which consists of a cone with an
included angle of roughly 7 to 8 degrees. The diffuser recovers most of the
pressure normally lost by an orifice plate.
The venturi tube can be used to measure fluid flow in pipes with diameters
of approximately 5 to 120 centimeters (cm) (2 to 48 inches [in]).
The venturi has the following advantages over the orifice plate:
1. Handles more flow while imposing less permanent pressur loss
approximately 60 percent greater flow capacity.
2. Can be used with fluids containing a higher percentage of entrained solids.
3. Has greater accuracy over a wider flow rate range.
.
15. ProcessControl 15
Level Measurement
Level measurement is the determination of the location of the interface
between two fluids which separate by gravity, with respect to a fixed plane. The
most common level measurement is between a liquid and a gas.
Methods of level measurement include the following:
1. Float actuated devices, such as
(a) Chain or tape float gauge
(b) Lever and shaft mechanisms
(c) Magnetically coupled devices
2. Pressure/head devices, that is, DP cells or manometers:
(a)Bubble tube systems
(b)Electrical methods
3. Thermal methods
4. Sonic methods
5. Radar methods
6. Nuclear methods
7. Weight methods
It is extremely important that vessels are well protected from an overflow
condition. An overflowing vessel may have severe safety consequences,
impacting nearby employees, the environment and the surrounding community.
Some vessels require low-level protection to operate safely. Ideally, each vessel
should have a visual indication for the operator, an alarm point and a transmitted
level indicator.
Factors affecting the choice of levelmeasurement include corrosive process
fluids (requiring exotic materials), viscous process fluids which may cause
blockages, hazardous atmospheres, sanitary requirements, density changes,
dielectric and moisture changes and the required degree of accuracy and
durability.
Pressure/head devices such as the DP cell are the most popular of all level
measurements devices. TheDPcell can often be usedwheremanometers are
impracticable and floatswould cause problems. The DP cell requires a constant
product density for accurate measurement of level or a way of compensating for
density fluctuations. Figure 2.8 demonstrates a typical set-up for level
measurement using a Rosemount Model 3051SMV level controller, which is
essentially a combined DP cell and proportional controller.
16. ProcessControl 16
Ultrasonic Methods
Ultrasonic refers to sound of such high frequency that it is undetectable to
the human ear. Frequencies used in level measurement range from 30 kHz to
the megahertz range. A transducer sends pulses of ultrasonic sound to the
surface of the liquid to be measured.
The liquid surface reflects these pulses and the distance from transducer to
the liquid level is calculated. This calculation is based on the speed of the
signal and the time elapsed between the sending and receiving of the ultrasonic
sound signal .
Ultrasonics can be top or bottom mounted. Although a top-mounted device
is easier to service, mists, vapours and internal ladders and agitators may cause
erroneous readings.
Bottom-mounted devices must be calibrated to the density of the measured
fluid; however, bubbles and solids in the liquid may skew their reading.
17. ProcessControl 17
Concentration Measurement
Introduction
Many of the laws of optics were discovered or rediscovered in the period
called the Renaissance. Isaac Newton studied the properties of prisms and their
ability to separate white light into what we now call the visible spectrum and
also prepared lenses to use in telescopes. Laws of optics such as the law of
reflection,
Chromatography
Chromatography is a technique for separating chemical substances that relies
on differences in partitioning behaviour between a flowing mobile phase and a
stationary phase to separate the components in a mixture.
The sample is carried by a moving gas stream through a tube packed with a
finely divided solid or may be coated with a film of a liquid. Because of its
simplicity, sensitivity, and effectiveness in separating components of mixtures,
gas chromatography is one of the most important tools in chemistry. It is widely
used for quantitative and qualitative analysis of mixtures, for the purification of
compounds, and for the determination of such thermochemical constants as
heats of solution and vaporization, vapour pressure and activity coefficients. Gas
chromatography is also used to monitor industrial processes automatically: gas
streams are analyzed periodically and manual or automatic responses are made
to counteract undesirable variations.
18. ProcessControl 18
Many routine analyses are performed rapidly in environmental and other
fields. For example, many countries have fixed moniotor points to continuously
measure the emission levels of for instance nitrogen dioxides, carbon dioxide
and carbon monoxide. Gas chromatography is also useful in the analysis of
pharmaceutical products, alcohol in blood, essential oils and food products.
The method consists of, first, introducing the test mixture or sample into a
stream of an inert gas, commonly helium or argon, that acts as carrier. Liquid
samples are vaporized before injection into the carrier stream. The gas stream is
passed through the packed column, through which the components of the sample
move at velocities that are influenced by the degree of interaction of each
constituent with the stationary nonvolatile phase. The substances having the
greater interaction with the stationary phase are retarded to a greater extent and
consequently separate from those with smaller interaction. As the components
elute from the column they can be quantified by a detector and/or collected for
further analysis.
19. ProcessControl 19
Carrier gas; D: Detector gas; M: Make up gas
Two types of gas chromatography are encountered: gas-solid
chromatography (GSC) and gas-liquid chromatography (GLC). Gas-solid
chromatography is based upon a solid stationary phase on which retention of
analytes is the consequence of physical adsorption. Gas-liquid chromatography
is useful for separating ions or molecules that are dissolved in a solvent. If the
sample solution is in contact with a second solid or liquid phase, the different
solutes will interact with the other phase to differing degrees due to differences
in adsorption, ion-exchange, partitioning or size. These differences allow the
mixture components to be separated from each other by using these differences
to determine the transit time of the solutes through a column.
Gas Chromatography - Carrier gas
The choice of carrier gas depends on the type of detector that is used and the
components that are to be determined. Carrier gases for chromatographs must be
of high purity and chemically inert towards the sample e.g., helium (He), argon
(Ar), nitrogen (N2), carbon dioxide (CO2) and hydrogen (H2). The carrier gas
system can contain a molecular sieve to remove water or other impurities.
Sample injection system
The most common injection systems for introduction of gas samples are the
gas sampling valve and injection with a syringe.
Direct injection with syringe
Both gaseous and liquid samples can be injected with a syringe. In the
simplest form the sample is first injected into a heated chamber where it is
vaporized before it is transferred to the column.
20. ProcessControl 20
When packed columns are used, the first part of the column often serves as
injection chamber, separately heated to an appropriate temperature. For capillary
columns a separate injection chamber is used from which only a small part of
the vaporized/gaseous sample is transferred to the column, so called split-
injection. This is necessary in order not to overload the column in regard to the
sample volume .
When trace amounts can be found in the sample, so called on-column-
injection can be used for capillary-GC. The liquid sample is injected directly
into the column with a syringe. The solvent is thereafter allowed to evaporate
and a concentration of the sample components takes place. If the sample is
gaseous the concentration is achieved by so called cryo focusing. The sample
components are concentrated and separated from the matrix by condensation in
a cold-trap before the chromatographic separation.
Injection with valve/sample loop
Loop-injection is often used in process control, where gaseous or liquid
samples continuously flow through the sample loop. The sample loop is filled in
off-line position with a syringe or an automatic pump.
Thereafter the loop is connected in series with the column and the sample is
transferred by the mobile phase. Sometimes a concentration step is necessary.
